Open AccessArticle
Energies 2018, 11(12), 3412;

Load Frequency Control Using Demand Response and Storage Battery by Considering Renewable Energy Sources

Department of Electrical and Electronics Engineering, University of the Ryukyus, Okinawa 903-0123, Japan
Department of Electrical Power and Machines, Zagazig University, Zagazig 44519, Egypt
Electrical and Computer Engineering School of Engineering, RMIT University, Melbourne 3000, Victoria, Australia
Author to whom correspondence should be addressed.
Received: 23 October 2018 / Revised: 22 November 2018 / Accepted: 3 December 2018 / Published: 5 December 2018
(This article belongs to the Special Issue Advanced Techniques for Electronic Power and Energy Systems)

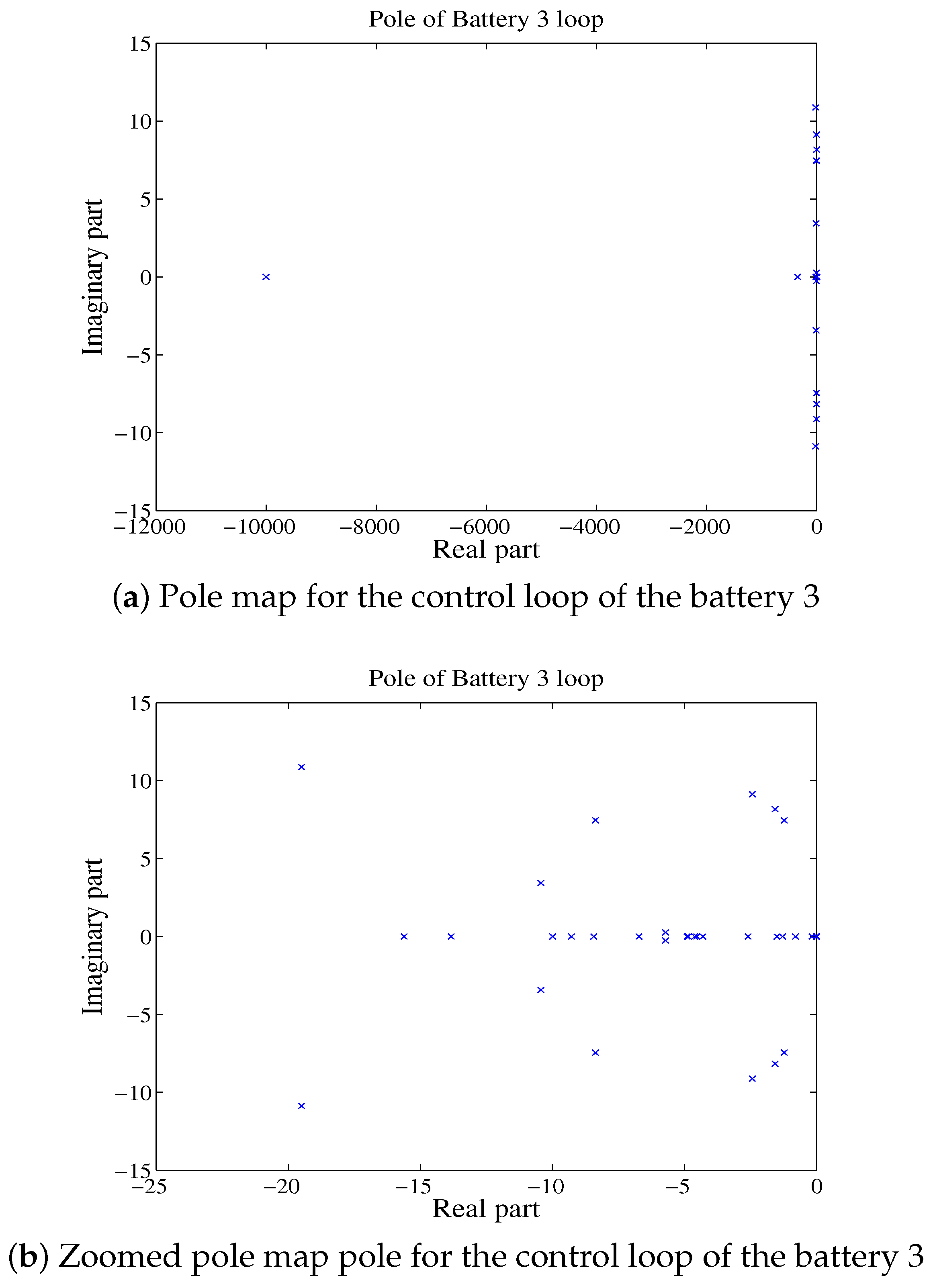

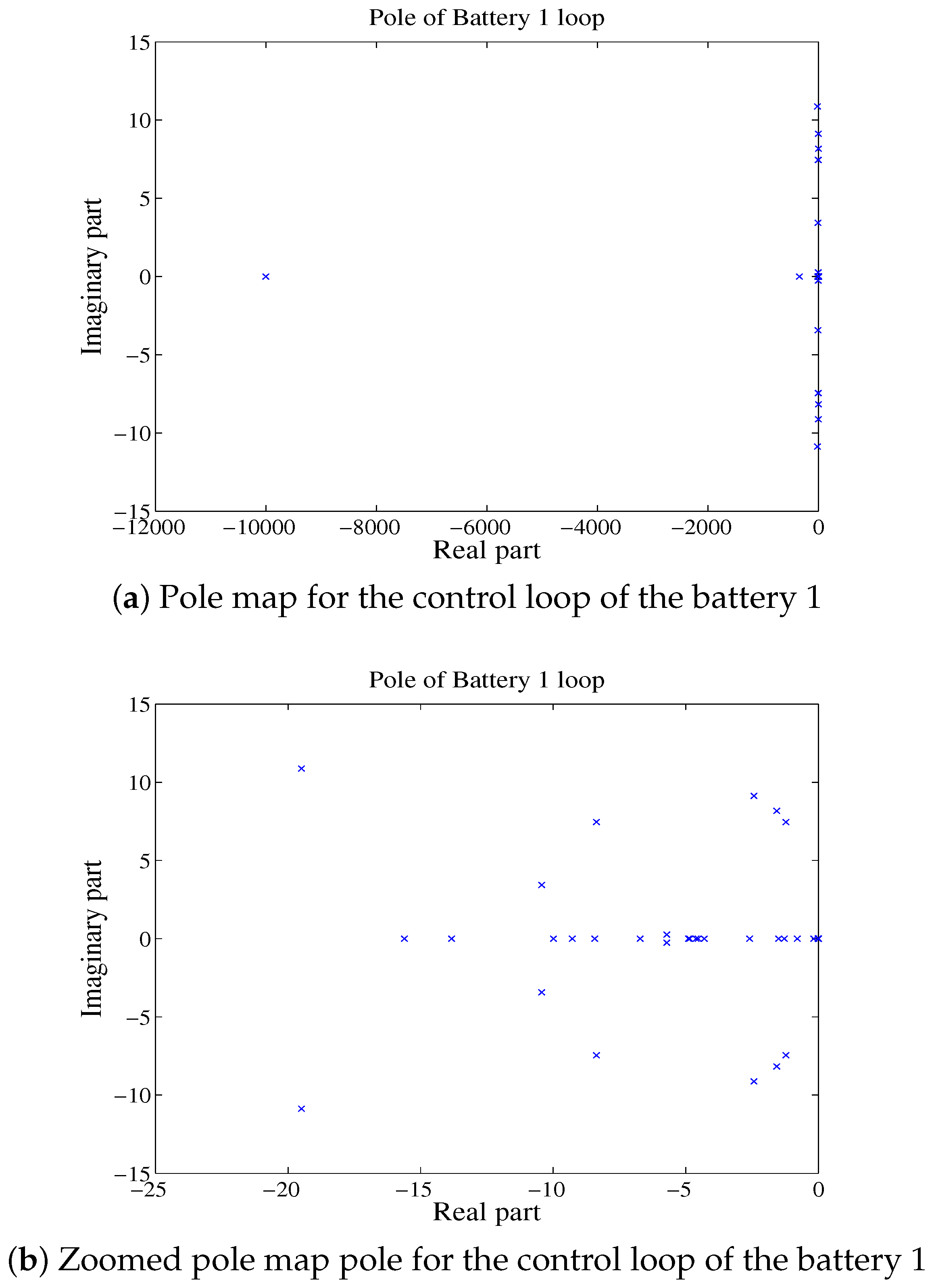

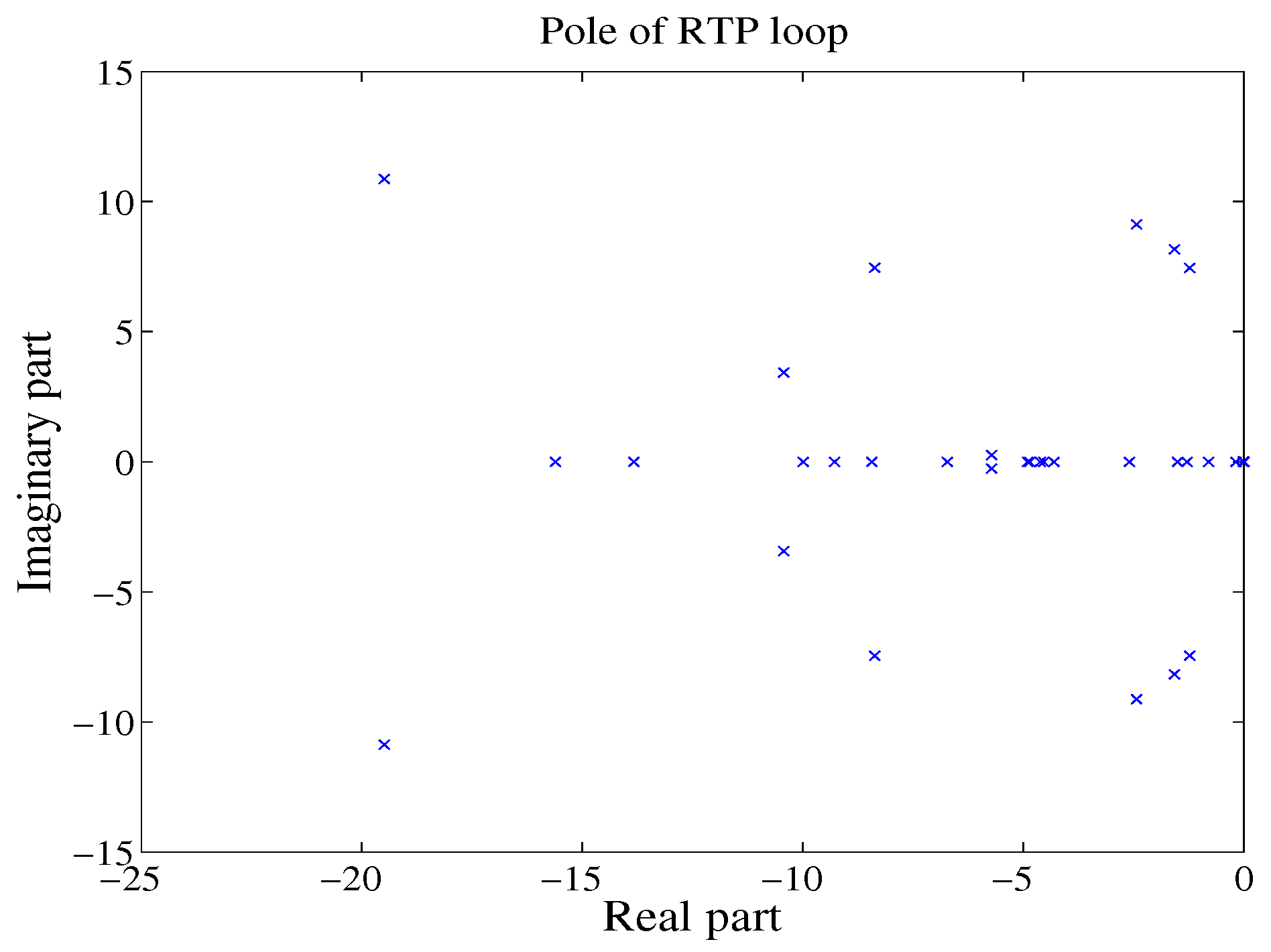

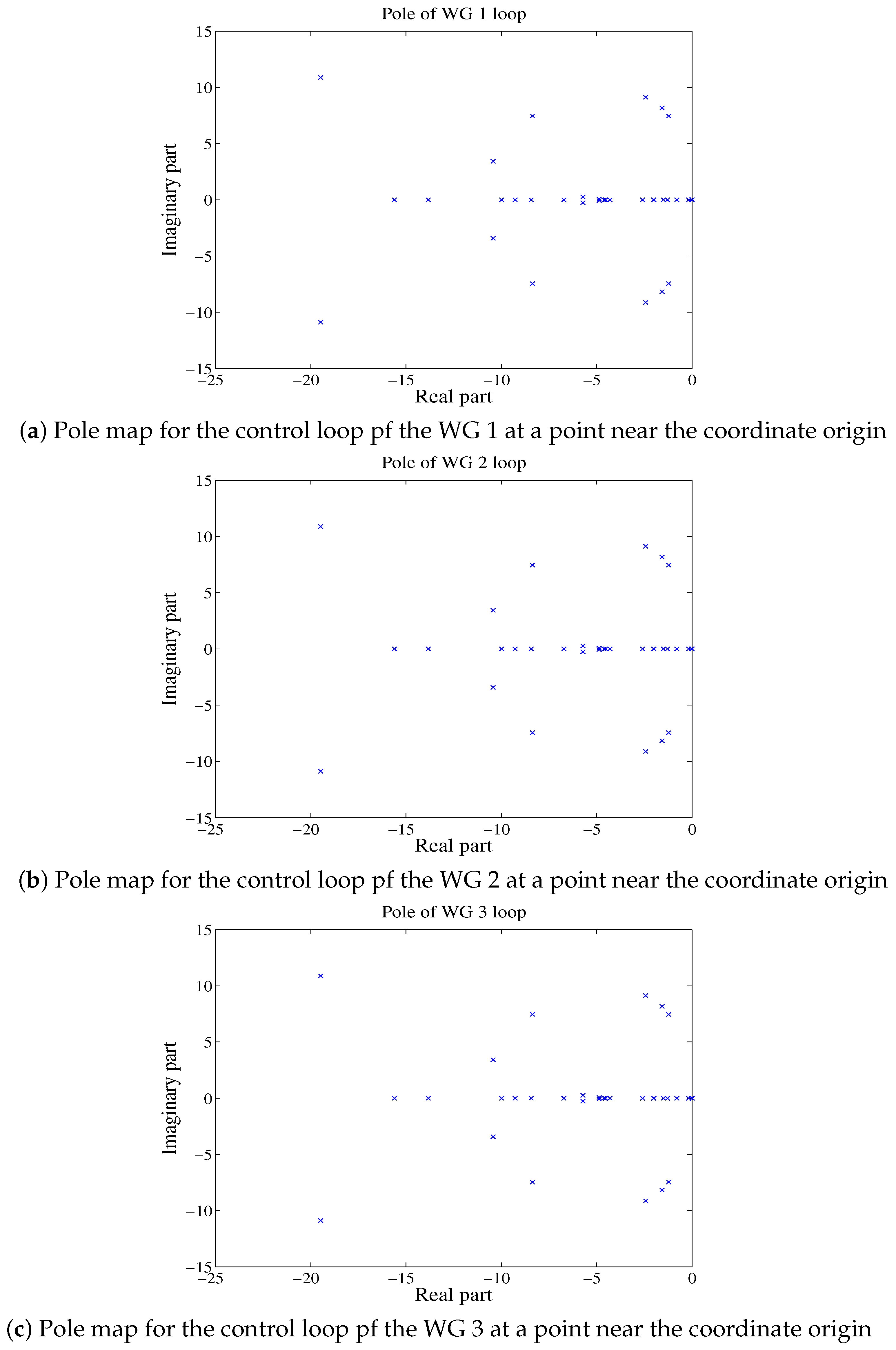

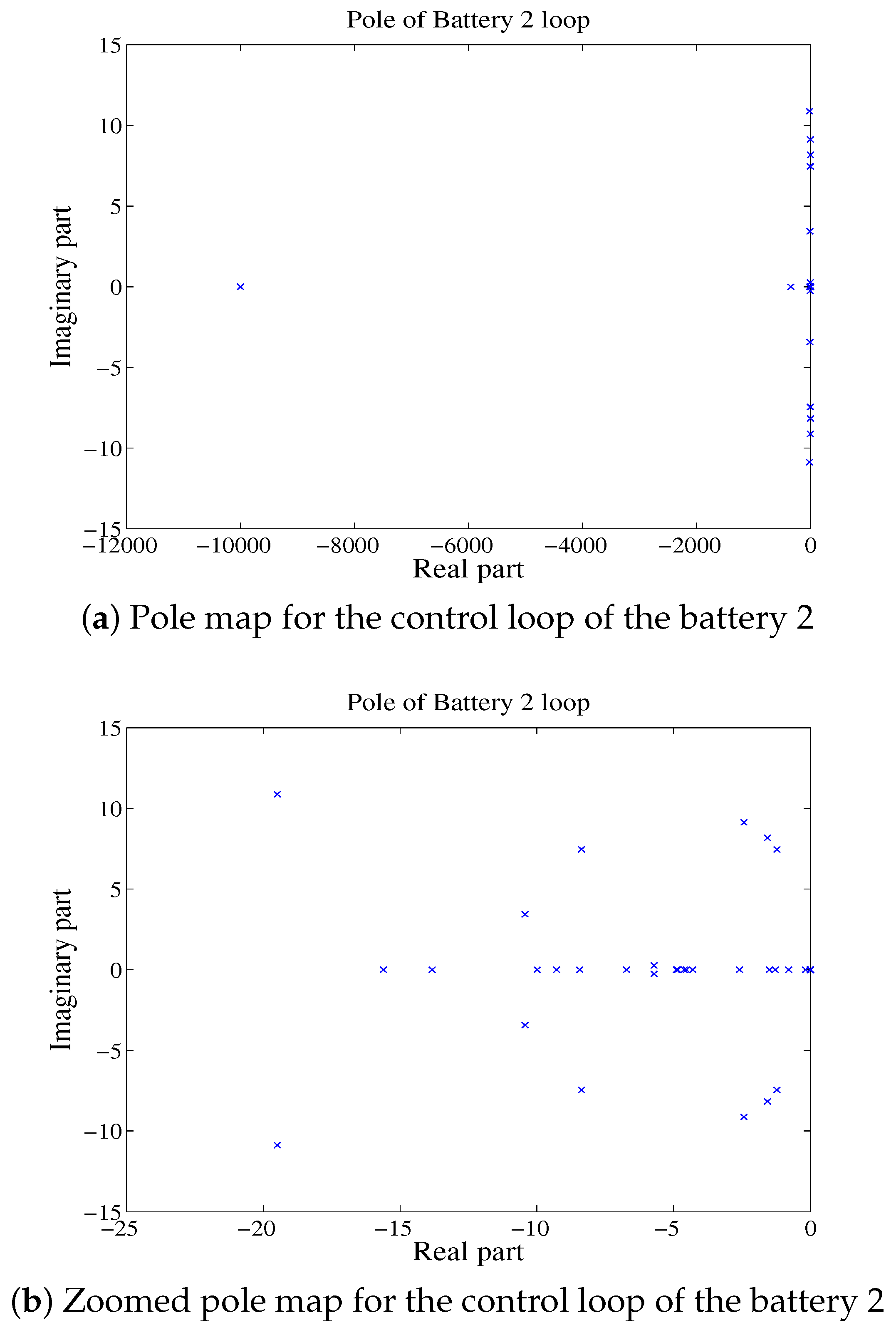

Renewable energy sources (RESs), as clean, abundant, and inexhaustible source of energy, have developed quickly in recent years and played more and more important roles around the world. However, RESs also have some disadvantages, such as the weakness of stability, and by the the estimated increase of utilizing RESs in the near future, researchers began to give more attention to these issues. This paper presents a novel output power fluctuate compensation scheme in the small-scale power system, verifying the effect of output power control using storage battery, demand response and RESs. Four scenarios are considered in the proposed approach: real-time pricing demand response employment, RESs output control use and both of demand response and RESs output control implementation. The performance of the proposed control technique is investigated using the real 10-bus power system model of Okinawa island, Japan. Moreover, the system stability is checked using the pole-zero maps for all of the control loops associated with the proposed scheme. The robustness and effectiveness of the proposed method was verified by simulation using Matlab®/Simulink®. View Full-Text
Keywords: frequency control; renewable energy source; demand response; storage battery frequency control; renewable energy source; demand response; storage battery

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, L.; Matayoshi, H.; Lotfy, M.E.; Datta, M.; Senjyu, T. Load Frequency Control Using Demand Response and Storage Battery by Considering Renewable Energy Sources. Energies 2018, 11, 3412.
