Open AccessArticle
Energies 2018, 11(10), 2689; https://doi.org/10.3390/en11102689

Cooling Process Analysis of a 5-Drum System for Radioactive Waste Processing

1
Thermal Engineering Group, Energy Engineering Department, School of Engineering, Universidad de Sevilla, Camino de los Descubrimientos, s/n, 41092 Sevilla, Spain
2
NUSIM S.A. c/Balbino Marrón, 8, Pl. 6, 41018 Sevilla, Spain
*
Author to whom correspondence should be addressed.
Received: 7 September 2018 / Revised: 4 October 2018 / Accepted: 8 October 2018 / Published: 9 October 2018
Full-Text   |   PDF [6332 KB, uploaded 13 October 2018]   |

Abstract

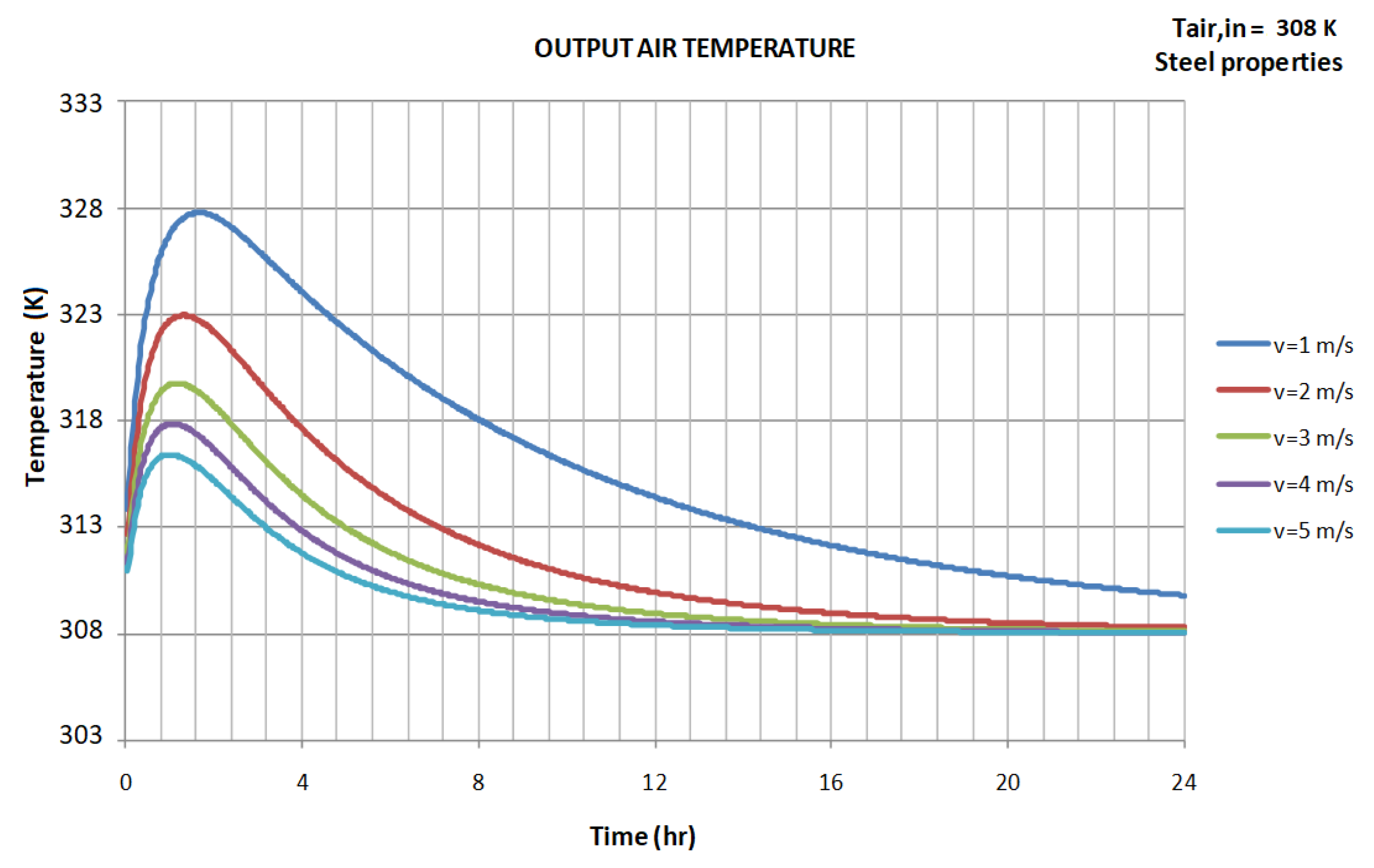

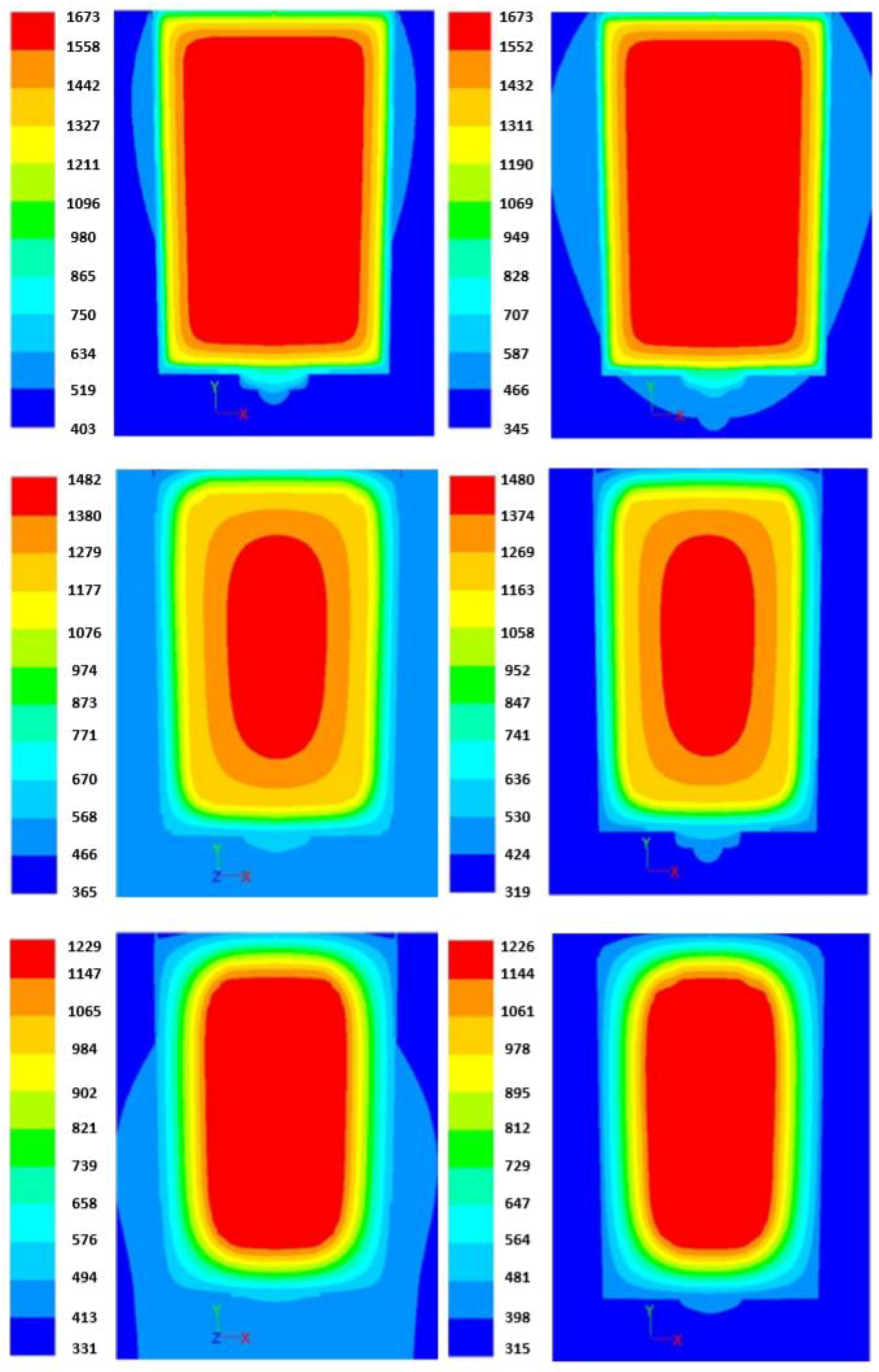

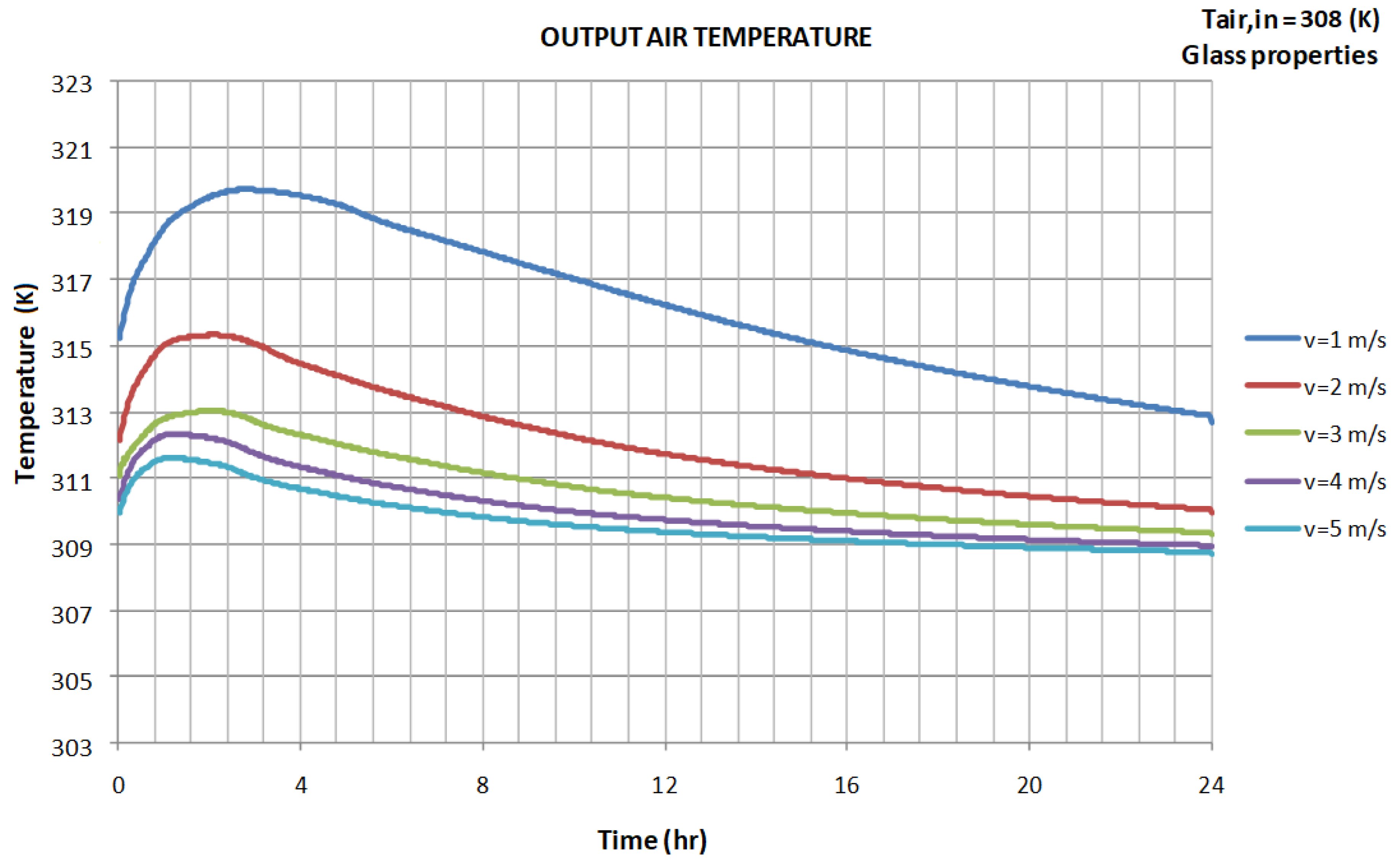

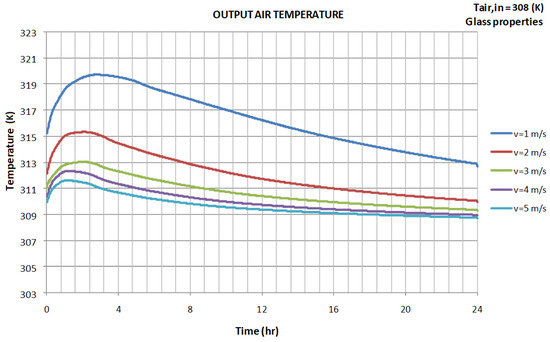

A cooling system design for the processing of radioactive waste drums is investigated in this work, with the objective of providing insights for the determination of the air flow rate required to ensure an acceptable slag temperature (323 K or below) after 5 days. A methodology based on both 3D and 2D axisymmetric Computational Fluid Dynamics (CFD) modelling is developed. Transient temperature distributions within the drums in time and space determined by the heat transfer characteristics are studied in detail. A sensitivity analysis is also carried out assuming different physical properties of the radioactive slag. It was found out that for all variations analyzed, the maximum temperature of slag at the end of five days cooling is below 323 K, where the maximum outlet air temperature for a minimum air inlet velocity of 1 m/s is between 320 K and 323 K depending on the radioactive slag properties. When glass-like radioactive slag properties are assumed, the internal heat conduction within the slag is limiting the overall heat transfer, therefore requiring significantly longer cooling times. View Full-Text
Keywords: heat transfer; cooling; CFD; numerical model; radioactive waste processing heat transfer; cooling; CFD; numerical model; radioactive waste processing
Figures

Figure 1
