Open AccessArticle
Energies 2017, 10(9), 1249; https://doi.org/10.3390/en10091249

Numerical Simulation and Optimization of the Melting Process of Phase Change Material inside Horizontal Annulus

School of Energy Science and Engineering, Central South University, Changsha 410083, China
*
Author to whom correspondence should be addressed.
Received: 16 July 2017 / Revised: 18 August 2017 / Accepted: 20 August 2017 / Published: 23 August 2017
(This article belongs to the Section Energy Storage and Application)
Full-Text   |   PDF [2877 KB, uploaded 23 August 2017]   |

Abstract

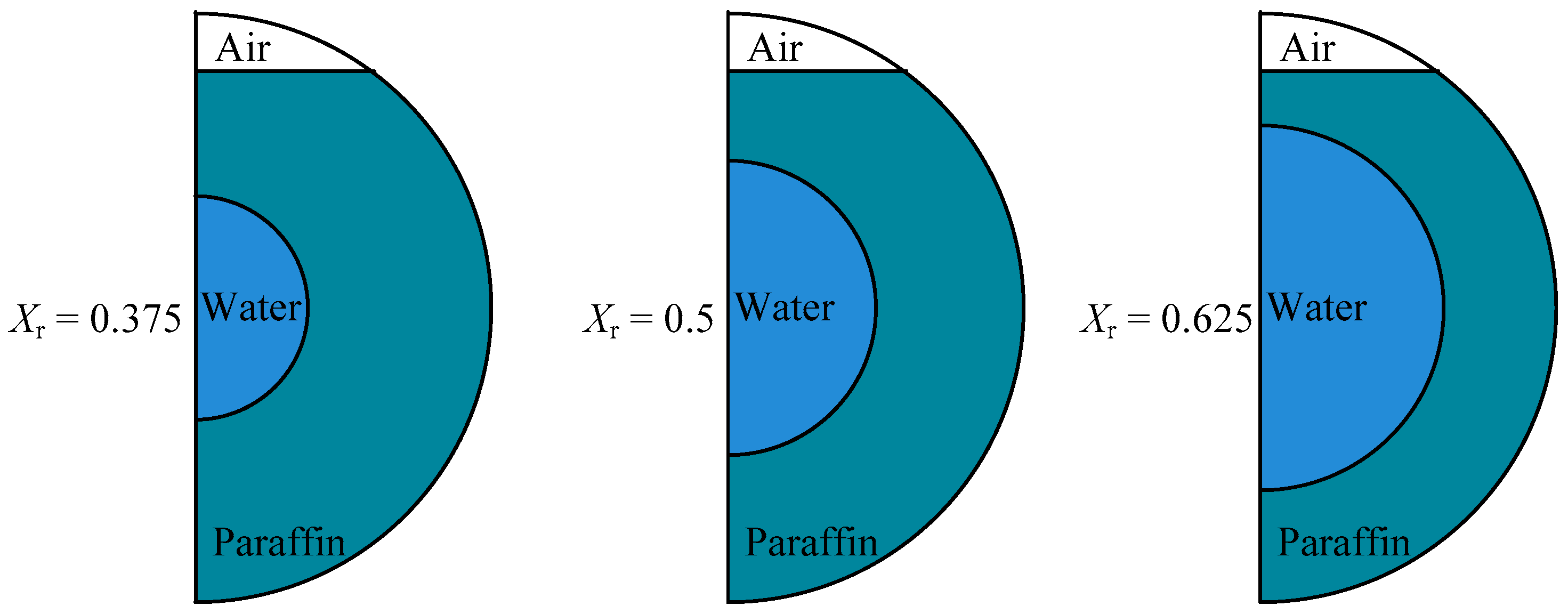

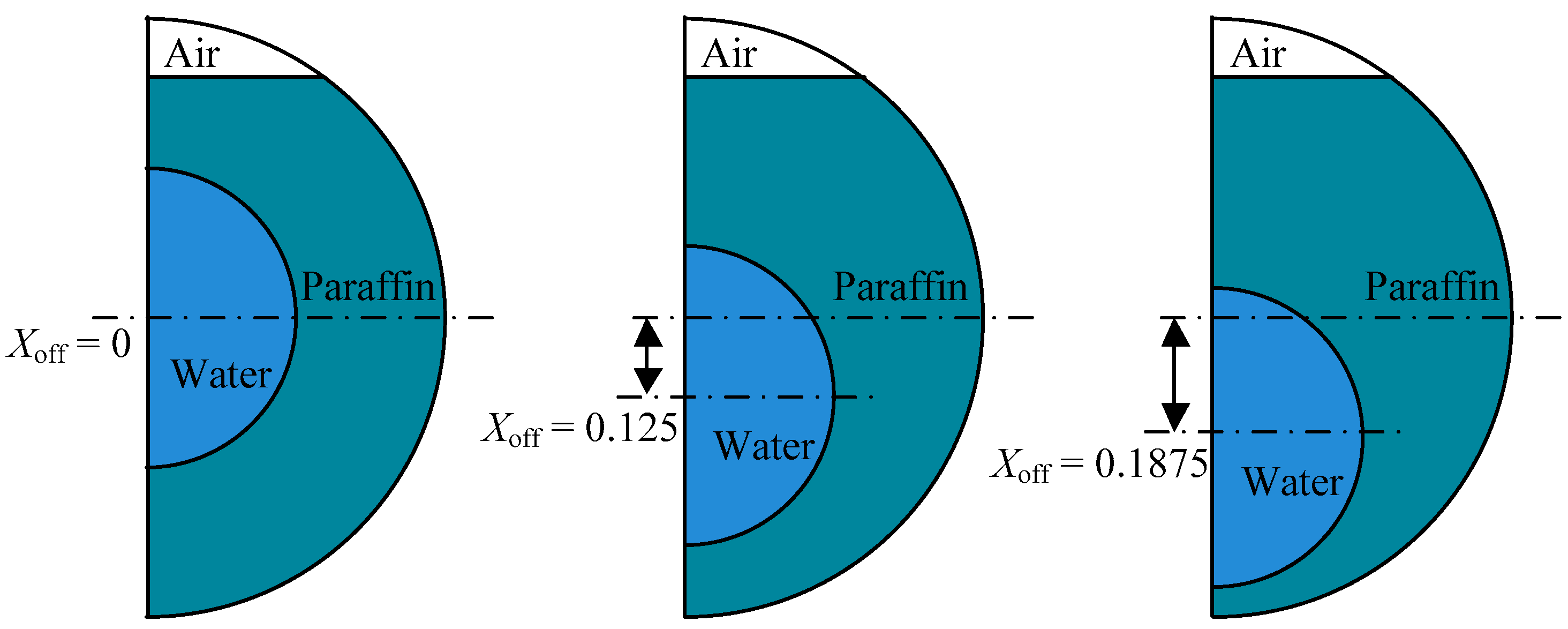

Latent heat storage (LHS) technologies adopting phase change materials (PCMs) are increasingly being used to bridge the spatiotemporal mismatch between energy production and demand, especially in industries like solar power, where strong cyclic fluctuations exist. The shell-and-tube configuration is among the most prevalent ones in LHS and thus draws special attention from researchers. This paper presents numerical investigations on the melting of PCM, a paraffin blend RT27, inside a horizontal annulus. The volume of fluid model was adopted to permit density changes with the solidification/melting model wherein natural convection was taken into account. The eccentricity and diameter of the inner tube, sub-cooling degree of the PCM, and the heating-surface temperature were considered as variables for study. Through the evaluation of the melting time and exergy efficiency, the optimal parameters of the horizontal annulus were obtained. The results showed that the higher the heating boundary temperature, the earlier the convection appeared and the shorter the melting time. Also, the different eccentricity and diameters of the inner tube influenced the annulus tube interior temperature distribution, which in turn determined the strength and distribution of the resulting natural convection, resulting in varying melting rates. View Full-Text
Keywords: latent heat storage; phase change material; melting; shell and tube; parametric study latent heat storage; phase change material; melting; shell and tube; parametric study
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Li, S.; Chen, Y.; Sun, Z. Numerical Simulation and Optimization of the Melting Process of Phase Change Material inside Horizontal Annulus. Energies 2017, 10, 1249.
