Open AccessArticle
Energies 2017, 10(7), 967; https://doi.org/10.3390/en10070967

A Novel Method to Directly Analyze Dissolved Acetic Acid in Transformer Oil without Extraction Using Raman Spectroscopy

1
State Key Laboratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, Chongqing 400044, China
2
Chengdu Power Supply Company of State Grid, Chengdu 610041, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Issouf Fofana
Received: 12 April 2017 / Revised: 27 June 2017 / Accepted: 4 July 2017 / Published: 10 July 2017
Full-Text   |   PDF [2097 KB, uploaded 12 July 2017]   |

Abstract

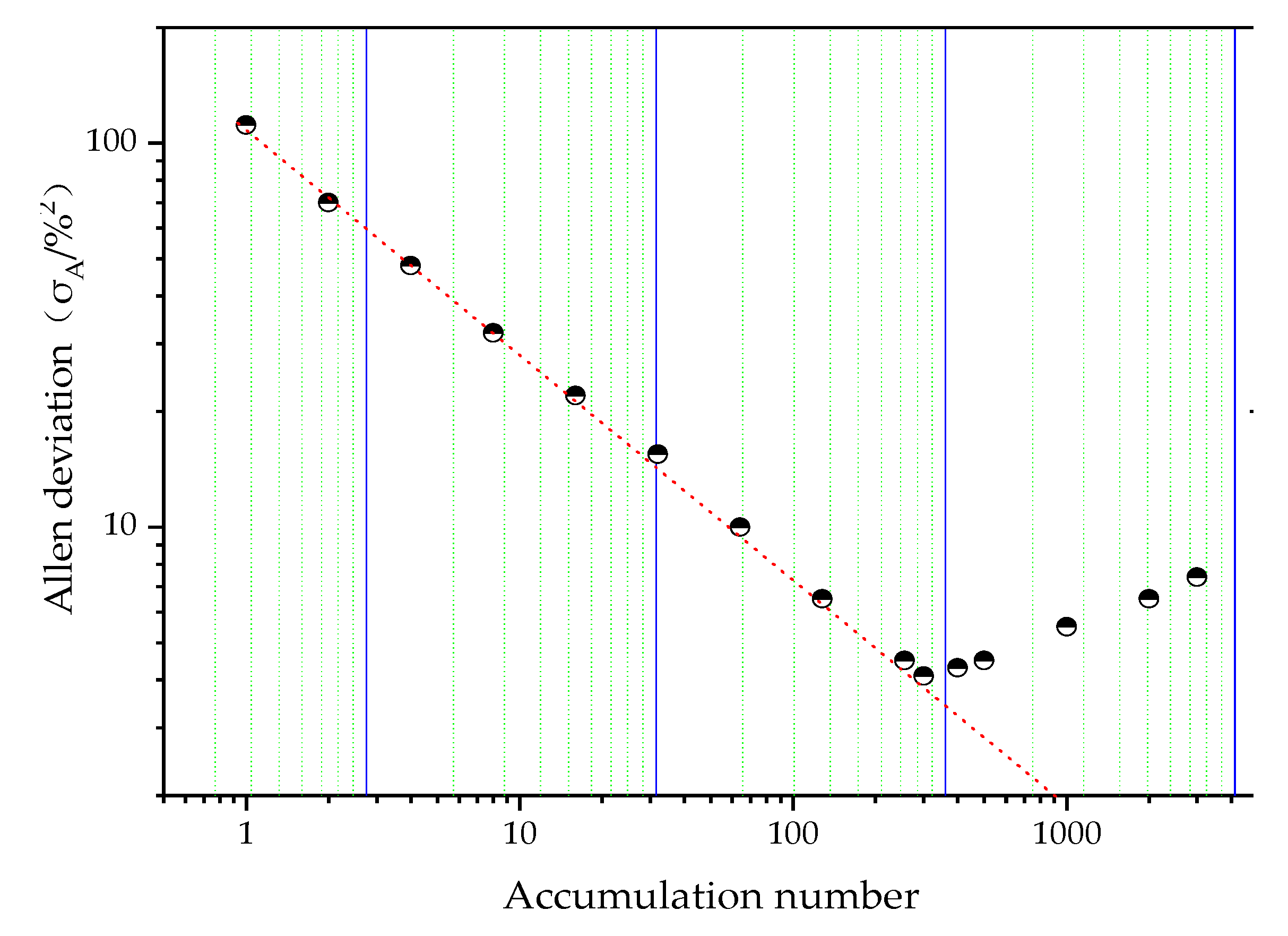

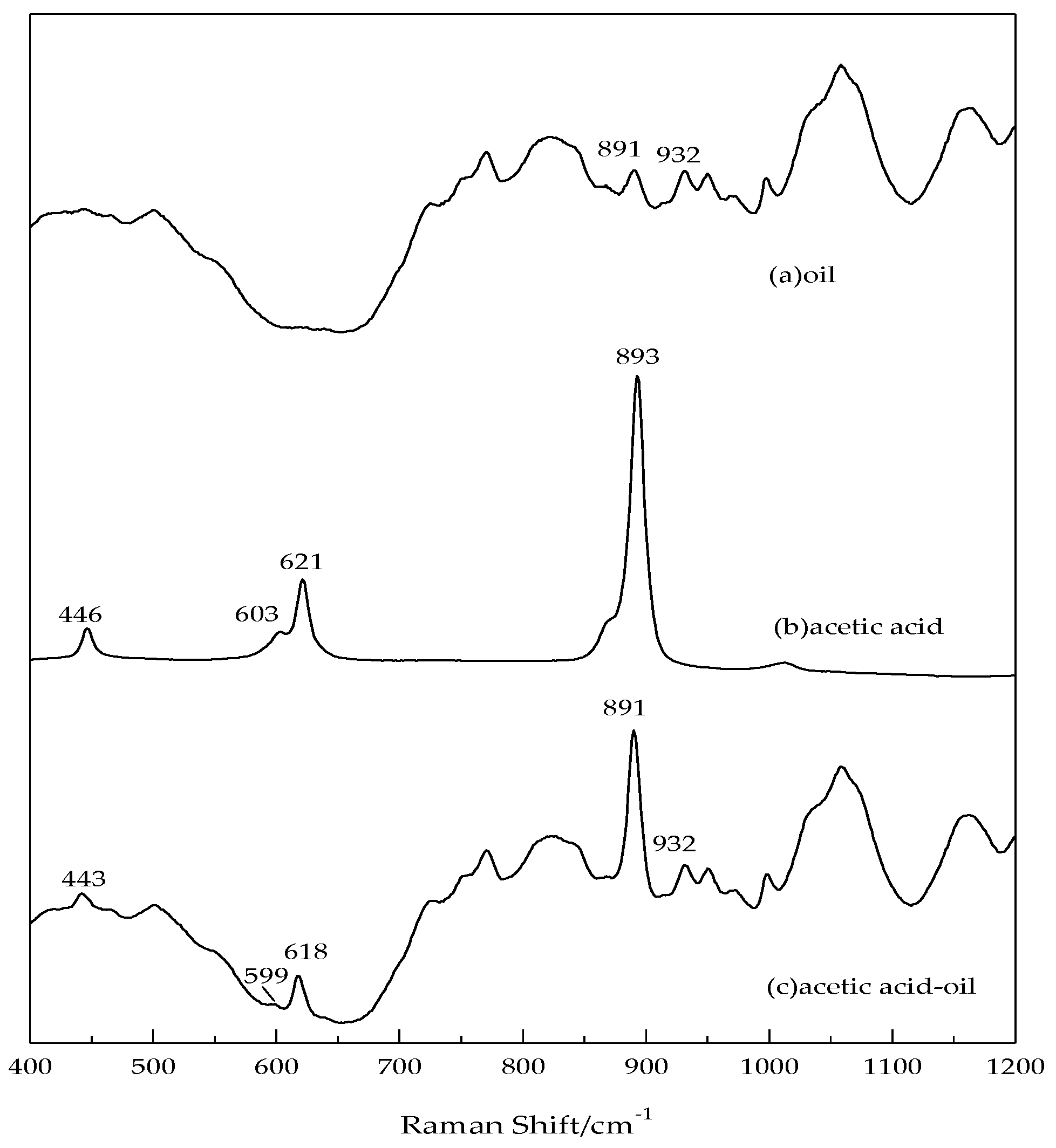

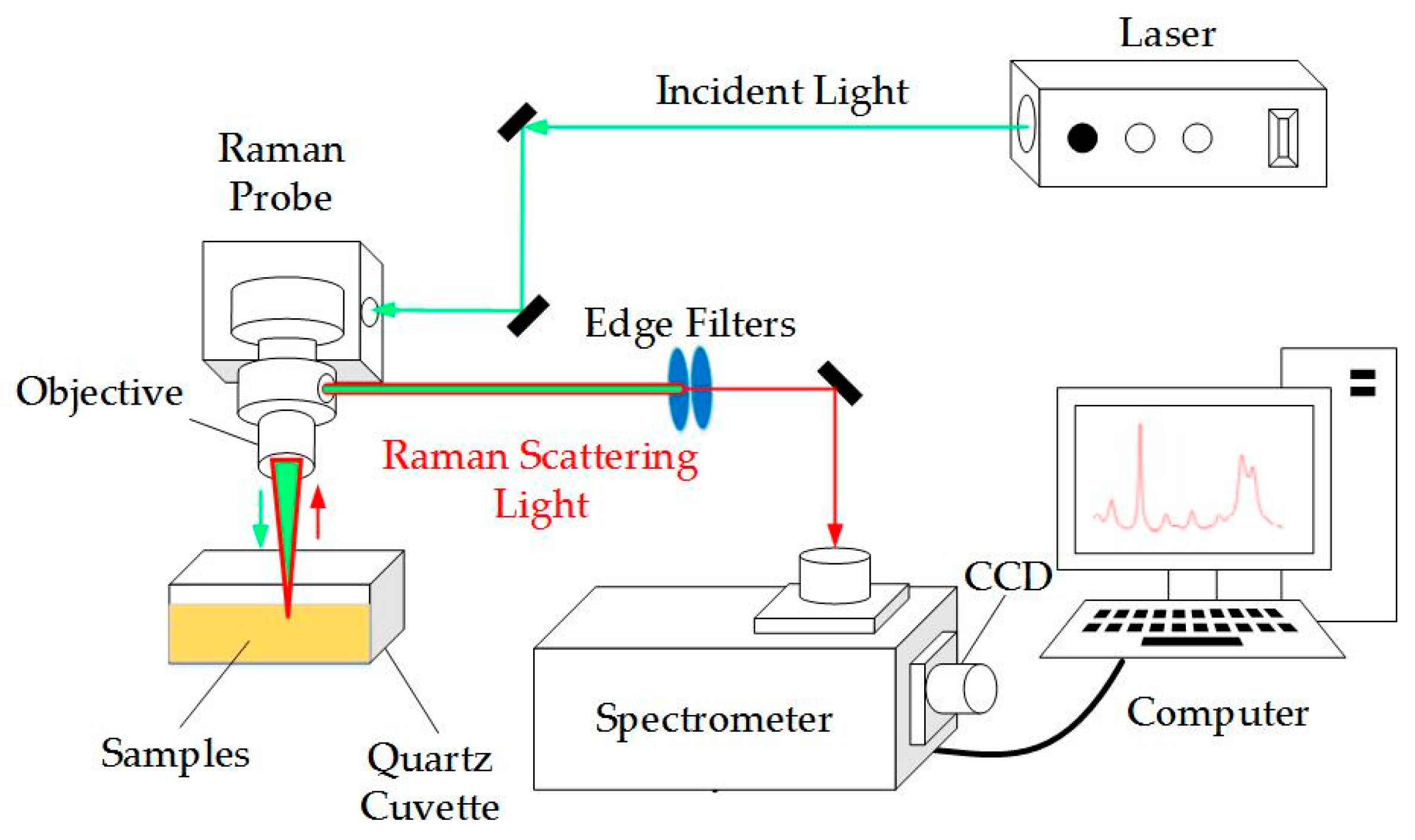

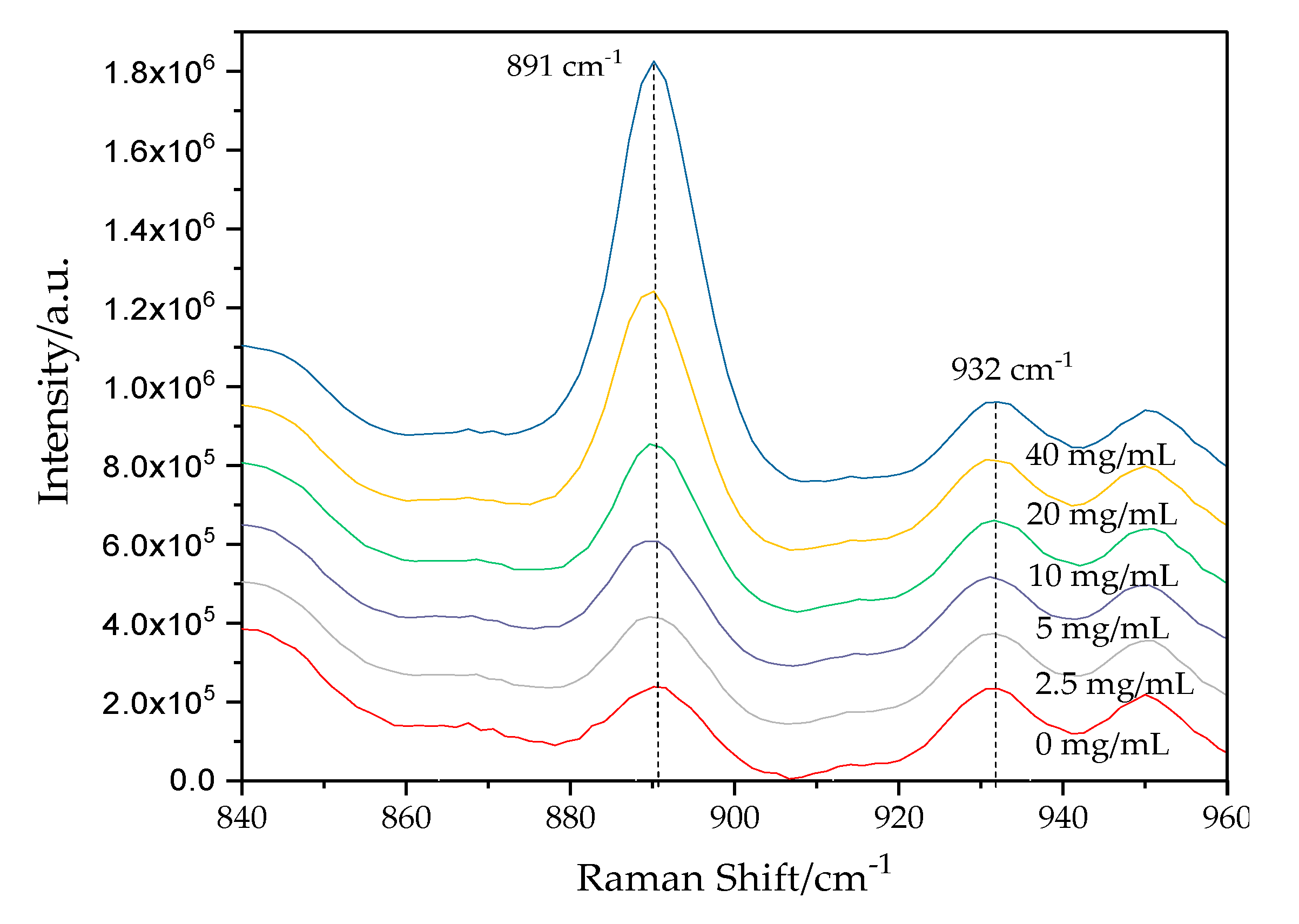

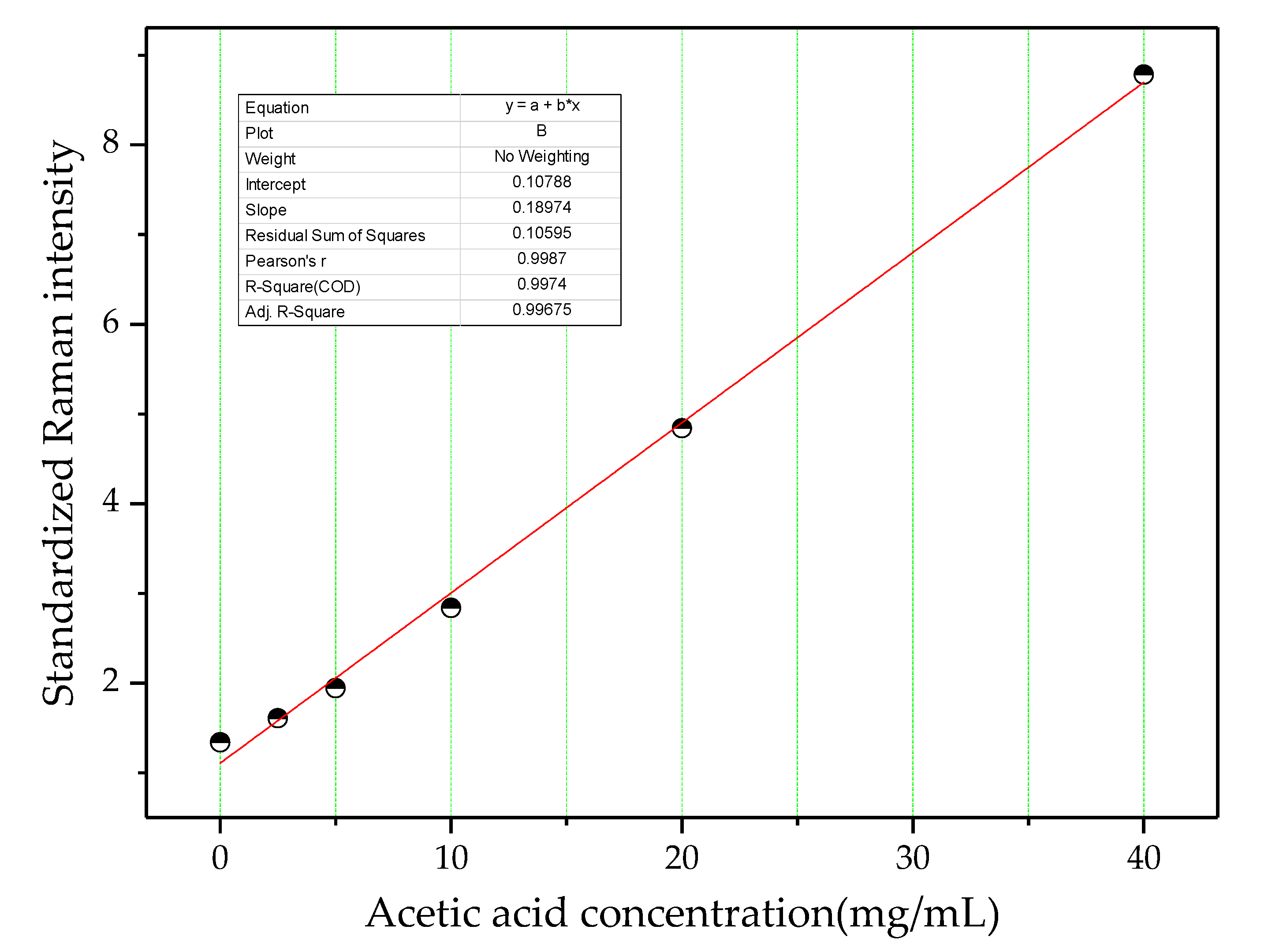

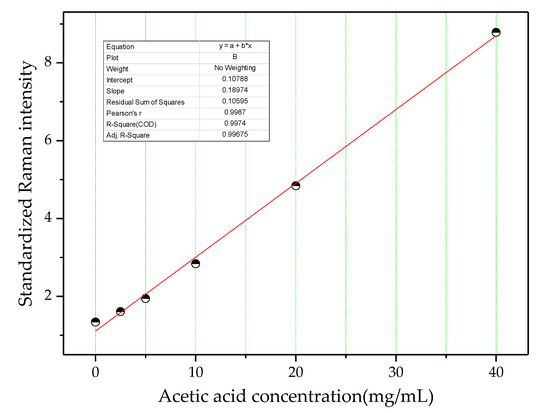

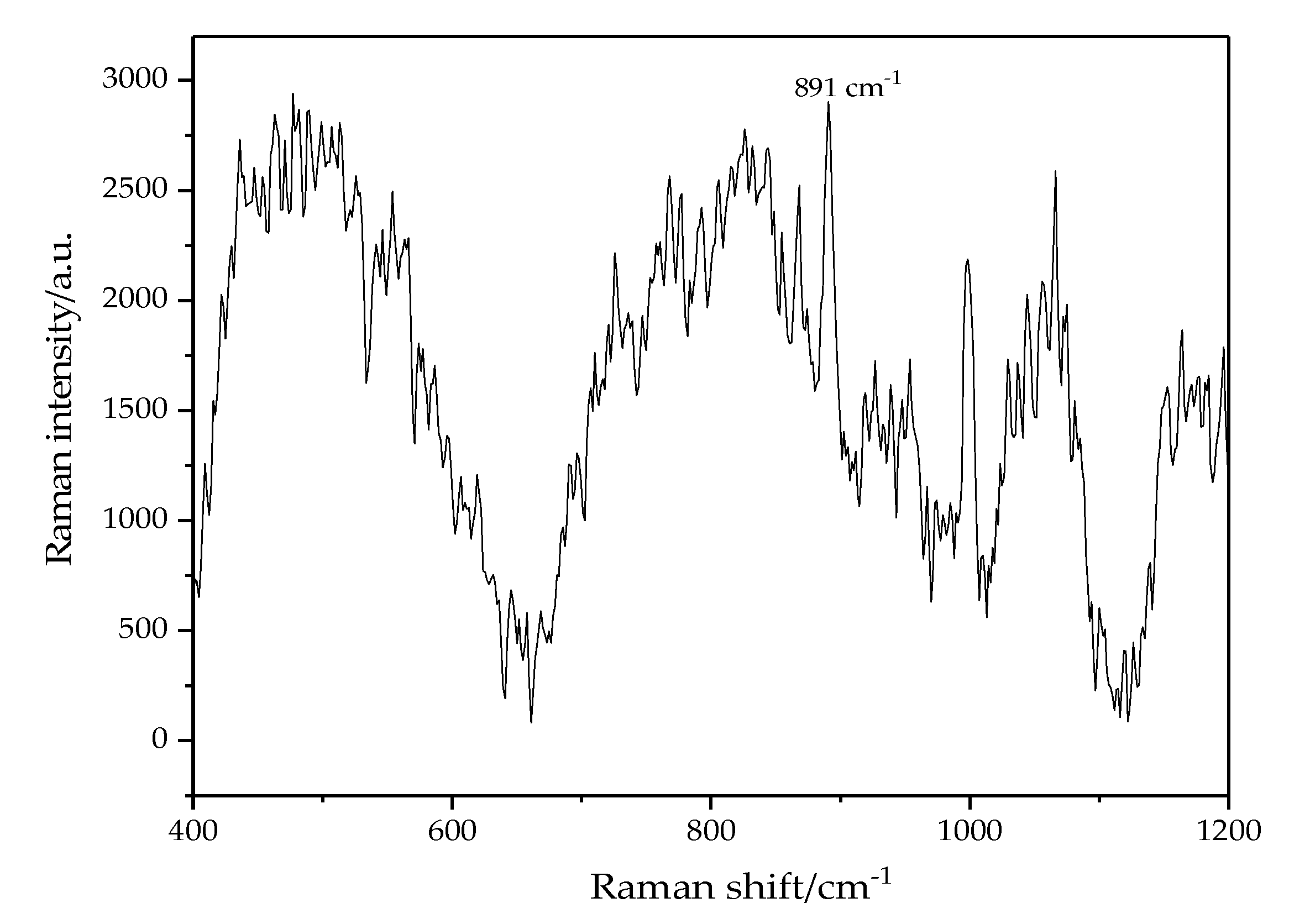

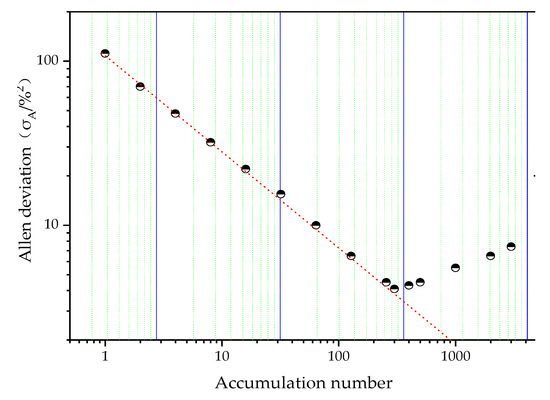

Analyzing the concentration of low molecular acids dissolved in oil is vital in the oil-paper insulation aging diagnostic procedure of power transformers. The existing methods cannot distinguish between different acid types and their strengths. In this study, an improved solution Raman detection platform is fabricated. The direct measurement of dissolved acetic acid, a kind of low molecular acids, is observed in transformer oil without extraction. The Raman shift line of oil-dissolved acetic acid at 891 cm−1 corresponding to H–C–H symmetrical swing and O–H swing modes is taken as its characteristic value. Taking Raman shift line of pure oil at 932 cm−1 as an internal standard, a linear regression curve for quantitative analysis is obtained with a slope of 0.19. The best platform parameter of accumulation number is 300, which is determined by Allan deviation analysis. The current concentration detection limit and accuracy for oil-dissolved acetic acid are obtained at about 0.68 mg/mL and 91.66%, separately. The results show that Raman spectroscopy could be a useful alternative method for evaluation insulation aging state of an operating power transformer in the future. View Full-Text
Keywords: power transformer; oil-paper insulation aging state; acetic acid; Raman spectroscopy; internal standard power transformer; oil-paper insulation aging state; acetic acid; Raman spectroscopy; internal standard
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
