Characterization of the Inlet Port Flow under Steady-State Conditions Using PIV and POD
Abstract
:1. Introduction

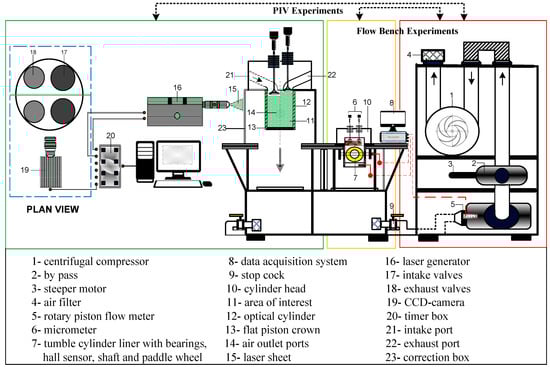

2. Experimental Set Up

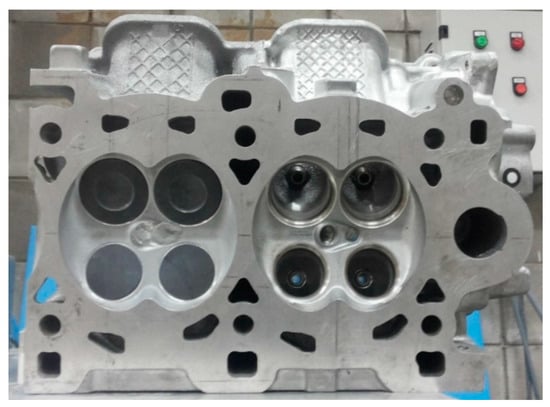

2.1. Steady-State Flow Bench
Parameters used in port performance analysis

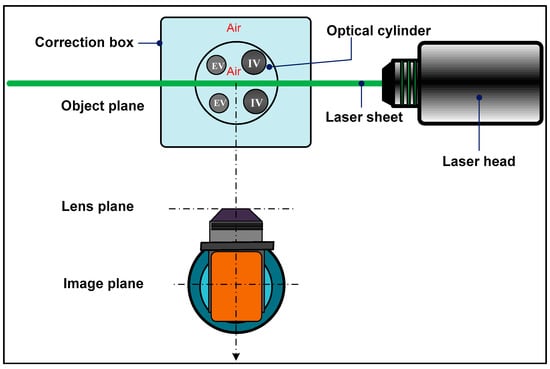

2.2. PIV System
3. Proper Orthogonal Decomposition
- 1-
- The instantaneous velocity field () must be decomposed firstly into two parts, the mean part () and the fluctuating part (), as POD analysis is carried out only on the fluctuating part.
- 2-
- All fluctuating velocity components from the K snapshots are arranged in a matrix
- 3-
- Then, the spatial correlation matrix for velocity distributions is defined as
- 4-
- The corresponding eigenvalue problem is solved
- 5-
- The POD modes () are derived after normalization by projecting correlation matrix R onto the eigenvectors ).
- 6-
- The corresponding coefficients of each mode are determined by projecting the original velocity fields onto the computed POD modes.
- 7-
- The kinetic energy captured by the mode is calculated by
4. Results

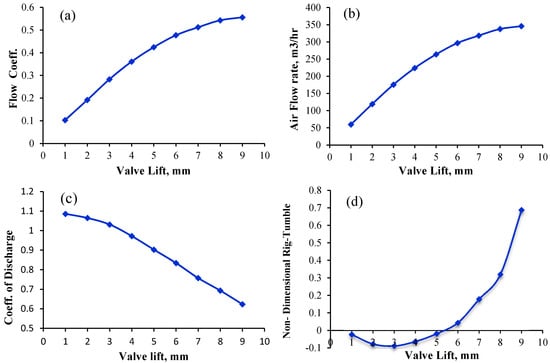

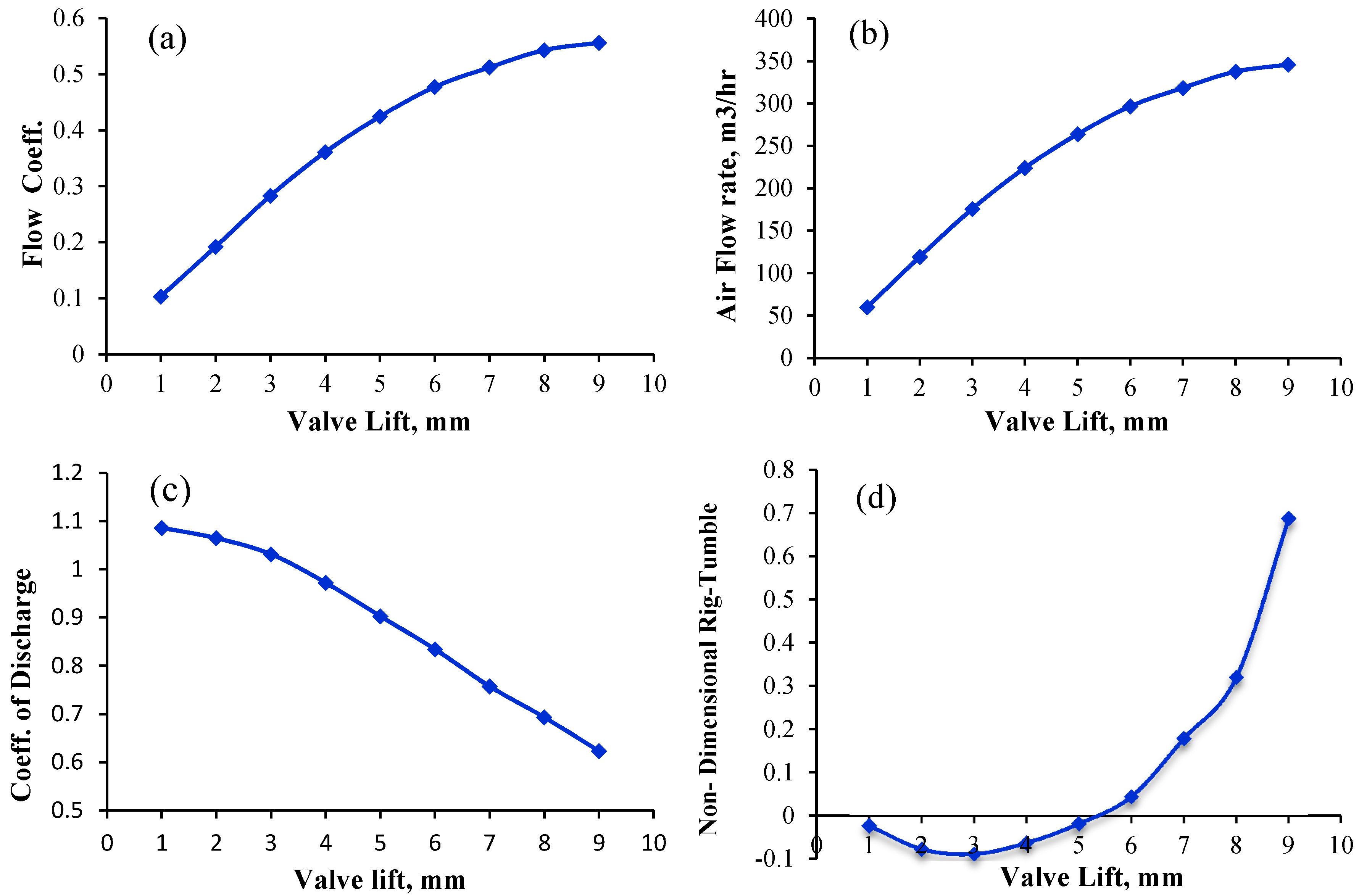

4.1. Steady-State Flow Bench Results

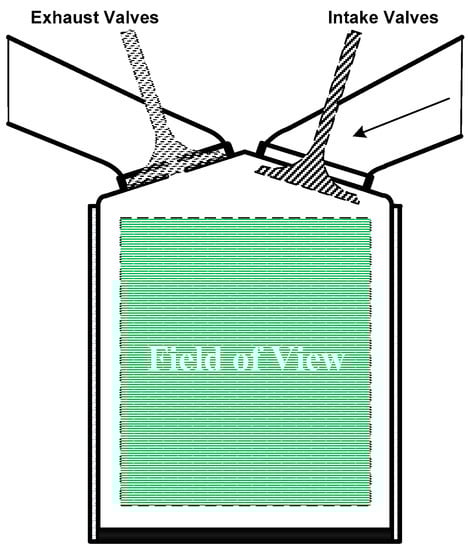

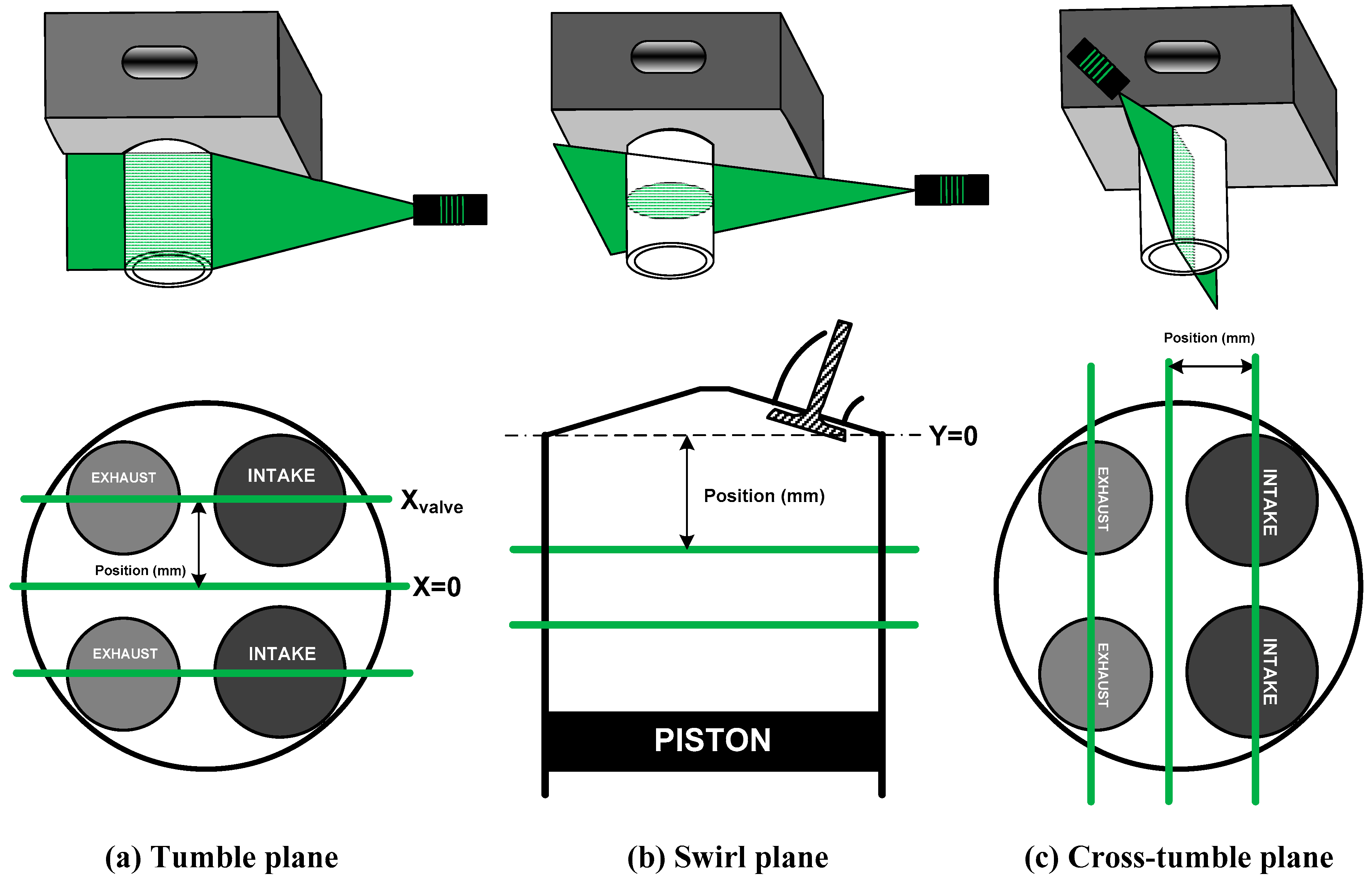

4.2. PIV Measurements in the Tumble Plane

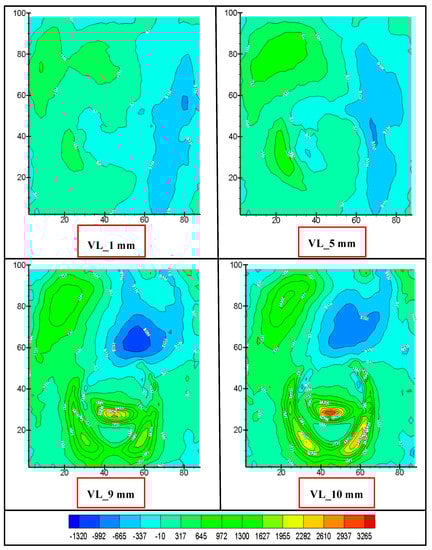

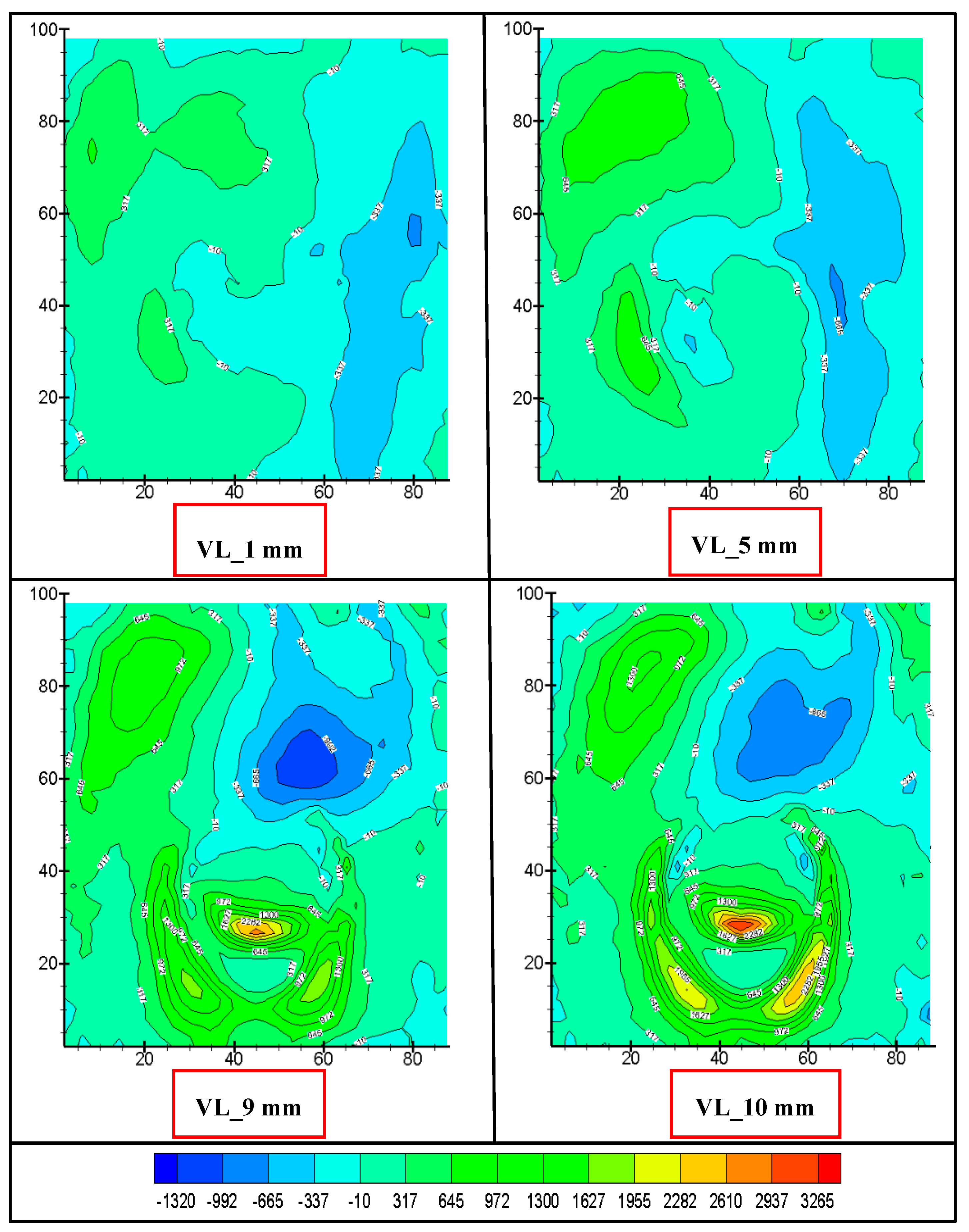

4.3. POD Results
5. Conclusions

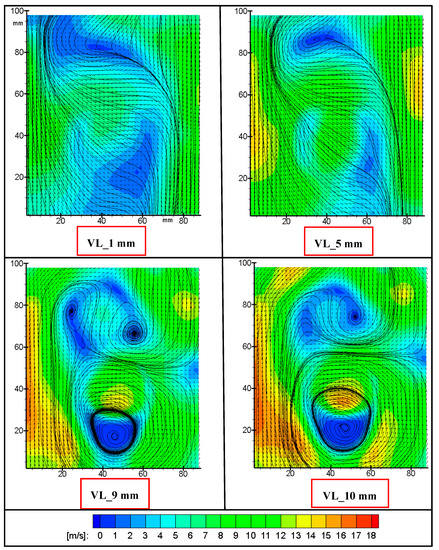

- The steady-state experiments illustrated that at low valve lifts, the high velocity vectors were concentrated behind the intake valves. At about 5 mm, the valve lift of the velocity distribution was symmetrical, resulting in no tumble motion. At high valve lifts, a significant amount of the incoming air to the cylinder was directed towards the exhaust side, forming a strong jet from the left side of the valve seat. The interaction of this air jet with the left cylinder wall and then with the flat piston led, finally, to a strong tumbling motion within the cylinder, with positive values of the non-dimensional tumble-rig.
- The PIV ensemble-average velocity distribution showed a good qualitative agreement with the measured, steady-state-flow integral parameters.

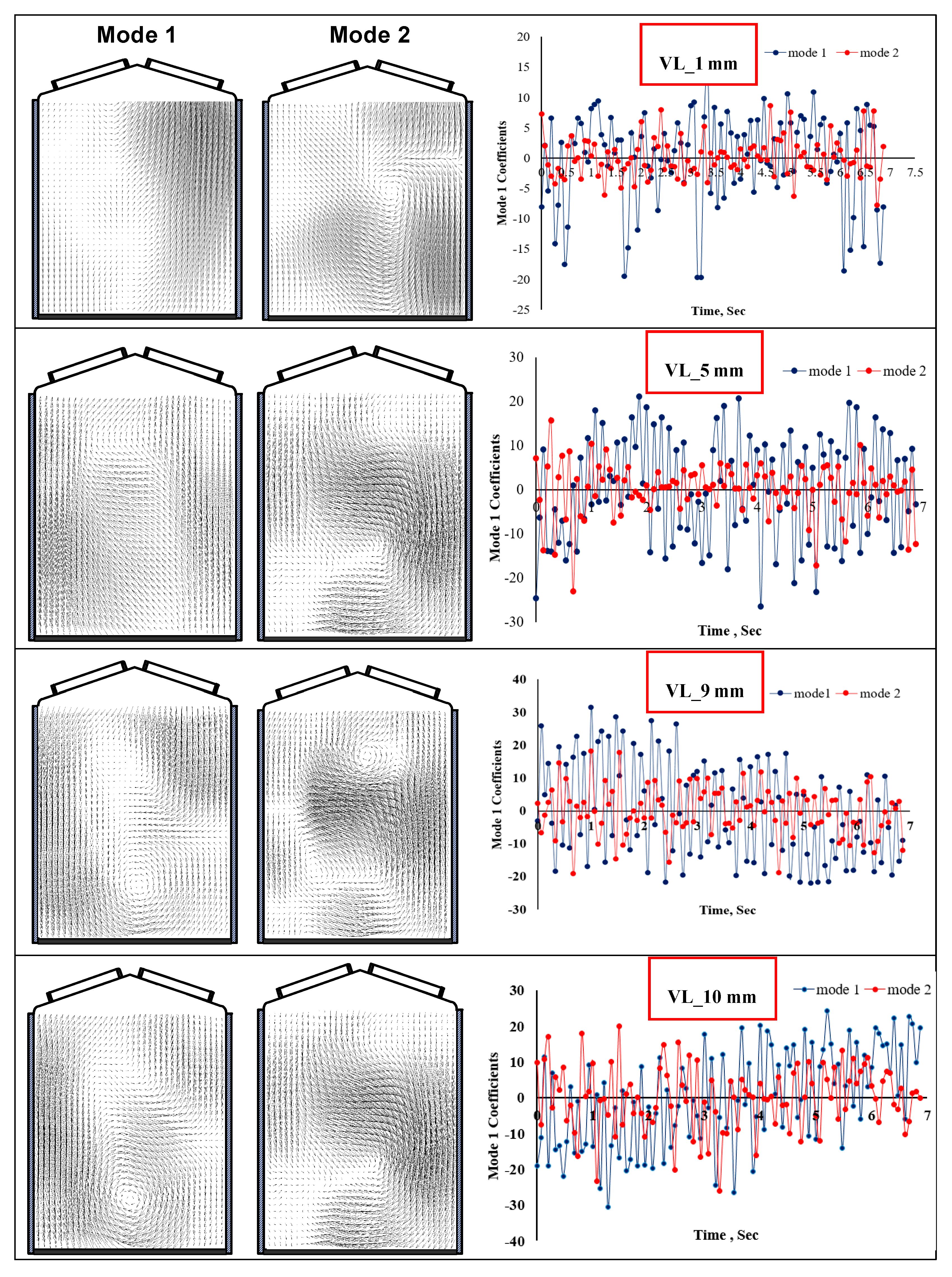

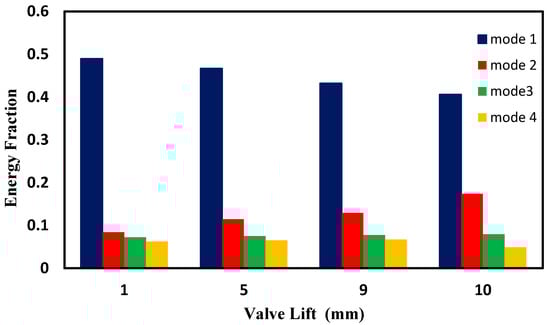

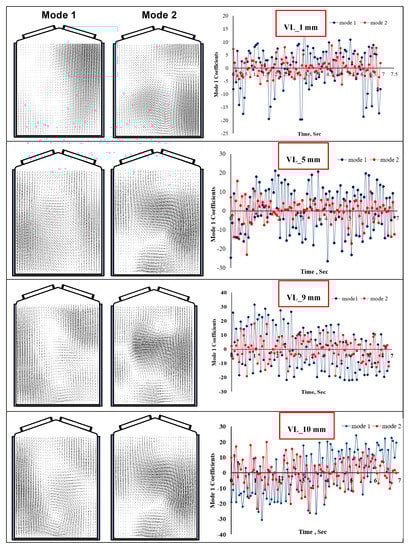

- POD results showed that mode 1 contained about 48.9%, 46.6%, 43.2%, and 40.6% of the turbulent kinetic energy for the 1 mm, 5 mm, 9 mm, and 10 mm valve lifts, respectively. It was observed that, at high valve lifts, some of the energy in the large eddies of mode 1 was transferred to the smaller flow structures of modes 2 and 3.

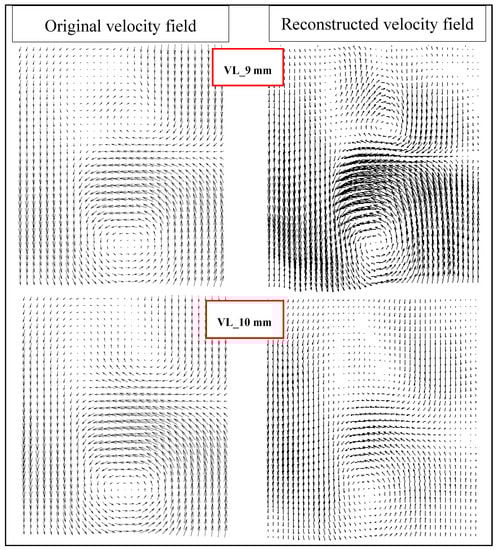

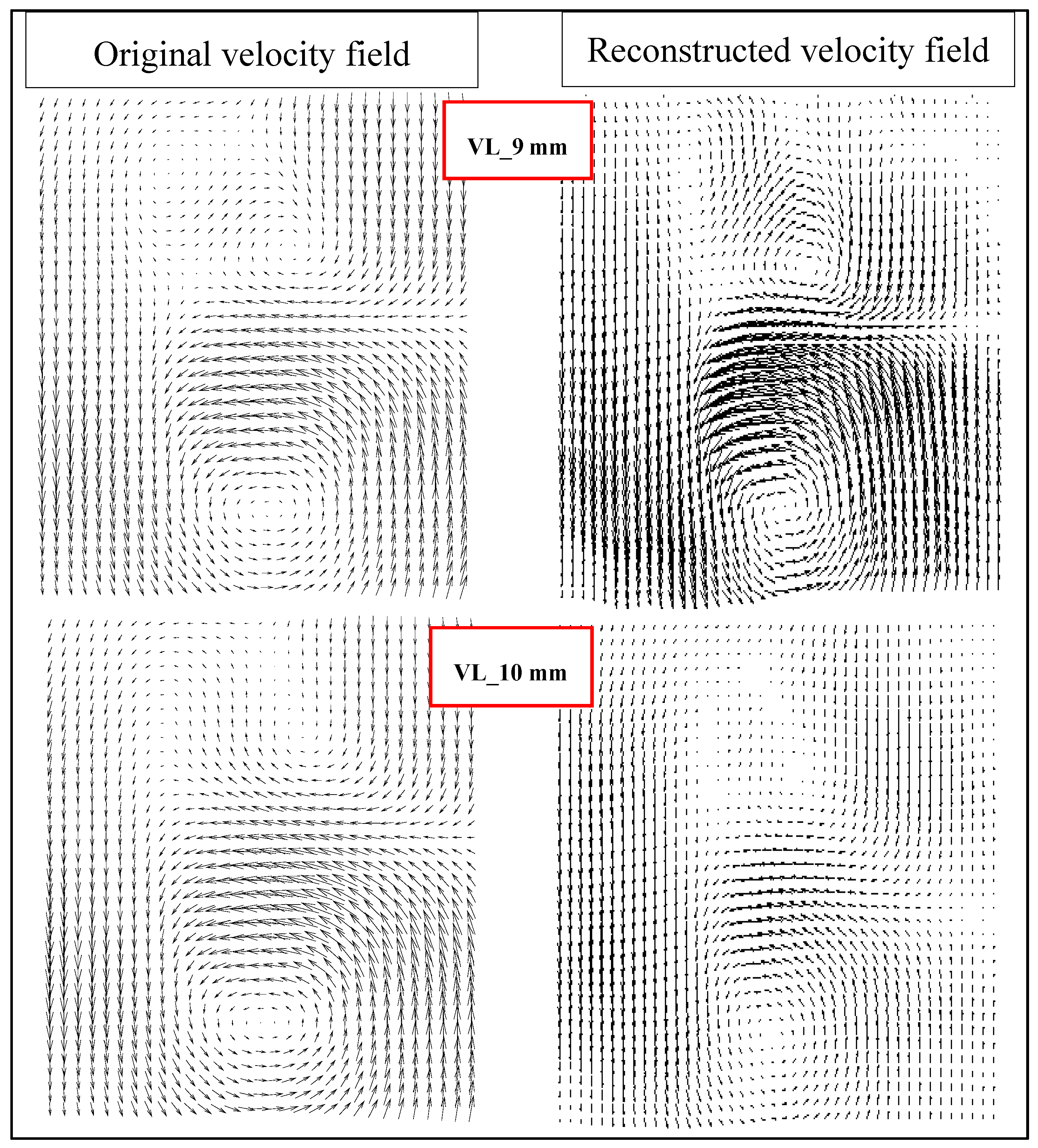

- The reconstructed flow field using the first five dominant modes for both valve lifts (9 mm and 10 mm) were in agreement with the ensemble average field.
- The combination between 2-D PIV and POD provided good information about the flow structure and the relative energy content in the various modes.
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Zhao, F.; Lai, M.-C.; Harrington, D.L. Automotive spark-ignited direct-injection gasoline engines. Prog. Energy Combust. Sci. 1999, 25, 437–562. [Google Scholar] [CrossRef]
- Smith, J.D.; Sick, V. A Multi-Variable High-Speed Imaging Study of Ignition Instabilities in a Spray-Guided Direct-Injected Spark-Ignition Engine; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2006. [Google Scholar]
- Kume, T.; Tanada, H.; Iida, K.; Murakami, N.; Ando, H. Combustion control technologies for direct injection SI engines. JSAE Rev. 1996, 4, 435. [Google Scholar]
- Spiegel, L.; Spicher, U. Mixture Formation and Combustion in a Spark Ignition Engine with Direct Fuel Injection; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 1992. [Google Scholar]
- Preussner, C.; Döring, C.; Fehler, S.; Kampmann, S. GDI: Interaction between Mixture Preparation, Combustion System and Injector Performance; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 1998. [Google Scholar]
- Fraidl, G.; Piock, W.; Wirth, M. Gasoline Direct Injection: Actual Trends and Future Strategies for Injection and Combustion Systems; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 1996. [Google Scholar]
- Yamakawa, M.; Isshiki, S.; Lee, J.; Nishida, K. 3-D PIV Analysis of Structural Behavior of DI Gasoline Spray; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2001. [Google Scholar]
- Lee, J.; Yamakawa, M.; Isshiki, S.; Nishida, K. An Analysis of Droplets and Ambient Air Interaction in a DI Gasoline Spray Using LIF-PIV Technique; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2002. [Google Scholar]
- Ishida, R.; Nakayama, T.; Kaneko, M.; Morikawa, K. Analysis of In-Cylinder Flow and Fuel Vapor Concentration Distribution in Gasoline Direct Injection Engine; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2011. [Google Scholar]
- Hung, D.L.; Zhu, G.G.; Winkelman, J.R.; Stuecken, T.; Schock, H.; Fedewa, A. A High Speed Flow Visualization Study of Fuel Spray Pattern Effect on Mixture Formation in a Low Pressure Direct Injection Gasoline Engine; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2007. [Google Scholar]
- Serras-Pereira, J.; Aleiferis, P.; Richardson, D.; Wallace, S. Mixture Preparation and Combustion Variability in a Spray-Guided DISI Engine; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2007. [Google Scholar]
- Banerjee, R.; Kumar, S. Numerical investigation of stratified air/fuel preparation in a GDI engine. Appl. Therm. Eng. 2016, 104, 414–428. [Google Scholar] [CrossRef]
- Georjon, T.; Bourguignon, E.; Duverger, T.; Delhaye, B.; Voisard, P. Characteristics of Mixture Formation and Combustion in a Spray-Guided Concept Gasoline Direct Injection Engine: An Experimental and Numerical Approach; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2000. [Google Scholar]
- Gold, M.; Li, G.; Sapsford, S.; Stokes, J. Application of Optical Techniques to the Study of Mixture Preparation in Direct Injection Gasoline Engines and Validation of a CFD Model; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2000. [Google Scholar]
- Lucchini, T.; D'Errico, G.; Onorati, A.; Bonandrini, G.; Venturoli, L.; di Gioia, R. Development of a CFD Approach to Model Fuel-Air Mixing in Gasoline Direct-Injection Engines; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 2012. [Google Scholar]
- Heywood, J. Internal Combustion Engine Fundamentals; McGraw-Hill Education: New York, NY, USA, 1988. [Google Scholar]
- Ricardo, J. Steady State Flow Bench Port Performance Measurement and Analysis Techniques; Report DP93/0704; Ricardo: Shoreham-by-Sea, UK, 1993. [Google Scholar]
- Hill, P.; Zhang, D. The effects of swirl and tumble on combustion in spark-ignition engines. Prog. Energy Combust. Sci. 1994, 20, 373–429. [Google Scholar] [CrossRef]
- El-Adawy, M.; Heikal, M.; Aziz, A.R.A.; Siddiqui, M.; Wahhab, H.A.A. Experimental study on an IC engine in-cylinder flow using different steady-state flow benches. Alex. Eng. J. 2017. [Google Scholar] [CrossRef]
- Khalighi, B. Study of the intake tumble motion by flow visualization and particle tracking velocimetry. Exp. Fluids 1991, 10, 230–236. [Google Scholar] [CrossRef]
- Yang, X.; Kuo, T.-W.; Guralp, O.; Grover, J.R.O.; Najt, P. In-Cylinder Flow Correlations between Steady Flow Bench and Motored Engine Using Computational Fluid Dynamics. J. Eng. Gas Turbines Power 2017, 139, 072802. [Google Scholar] [CrossRef]
- Baratta, M.; Misul, D.; Spessa, E.; Viglione, L.; Carpegna, G.; Perna, F. Experimental and numerical approaches for the quantification of tumble intensity in high-performance SI engines. Energy Convers. Manag. 2017, 138, 435–451. [Google Scholar] [CrossRef]
- Reuss, D.L.; Adrian, R.J.; Landreth, C.C.; French, D.T.; Fansler, T.D. Instantaneous Planar Measurements of Velocity and Large-Scale Vorticity and Strain Rate in an Engine Using Particle-Image Velocimetry; SAE Technical Paper 0148-7191; SAE International: Troy, MI, USA, 1989. [Google Scholar]
- Krishna, B.M.; Mallikarjuna, J. Effect of engine speed on in-cylinder tumble flows in a motored internal combustion engine—An experimental investigation using particle image velocimetry. J. Appl. Fluid Mech. 2011, 4, 1–14. [Google Scholar]
- Huang, R.; Huang, C.; Chang, S.; Yang, H.; Lin, T.; Hsu, W. Topological flow evolutions in cylinder of a motored engine during intake and compression strokes. J. Fluids Struct. 2005, 20, 105–127. [Google Scholar] [CrossRef]
- Krishna, B.M.; Mallikarjuna, J. Characterization of flow through the intake valve of a single cylinder engine using particle image velocimetry. J. Appl. Fluid Mech. 2010, 3, 23–32. [Google Scholar]
- Munir, S.; Siddiqui, M.I.; Heikal, M.; Aziz, A.R.A.; de Sercey, G. Identification of dominant structures and their flow dynamics in the turbulent two-phase flow using POD technique. J. Mech. Sci. Technol. 2015, 29, 4701–4710. [Google Scholar] [CrossRef]
- Lumley, J.L. The structure of inhomogeneous turbulent flows. Atmos. Turbul. Radio Wave Propag. 1967, 790, 166–178. [Google Scholar]
- Zhuang, H.; Hung, D.L. Characterization of the effect of intake air swirl motion on time-resolved in-cylinder flow field using quadruple proper orthogonal decomposition. Energy Convers. Manag. 2016, 108, 366–376. [Google Scholar] [CrossRef]
- Wang, T.; Li, W.; Jia, M.; Liu, D.; Qin, W.; Zhang, X. Large-eddy simulation of in-cylinder flow in a DISI engine with charge motion control valve: Proper orthogonal decomposition analysis and cyclic variation. Appl. Therm. Eng. 2015, 75, 561–574. [Google Scholar] [CrossRef]
- Pitcher, G. An Investigation and Comparison between Standard Steady Flow Measurements and Those in a Motored Engine. Ph.D. Thesis, Loughborough University, Loughborough, UK, 2013. [Google Scholar]
- Sirovich, L. Chaotic dynamics of coherent structures. Phys. D Nonlinear Phenom. 1989, 37, 126–145. [Google Scholar] [CrossRef]
