Open AccessArticle
Energies 2017, 10(12), 1932; https://doi.org/10.3390/en10121932

Optimization of the Heating Element in a Gas-Gas Heater Using an Integrated Analysis Model

1
Department of Mechanical Engineering, Yonsei University, Seoul 03722, Korea
2
Korea Midland Power Co., Ltd., Boryeong-si 33439, Korea
*
Author to whom correspondence should be addressed.
Received: 15 October 2017 / Revised: 10 November 2017 / Accepted: 20 November 2017 / Published: 23 November 2017
(This article belongs to the Section Energy Fundamentals and Conversion)
Full-Text   |   PDF [4403 KB, uploaded 23 November 2017]   |

Abstract

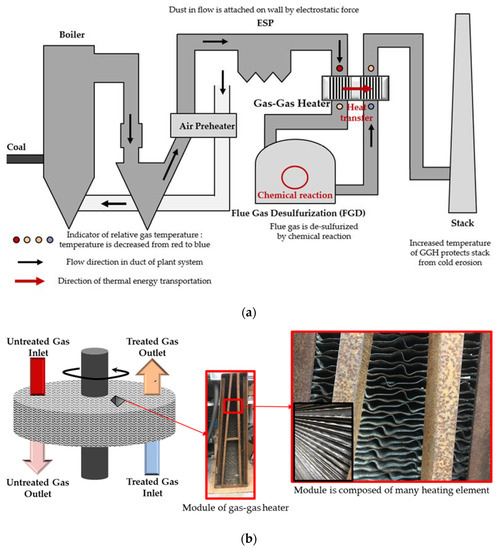

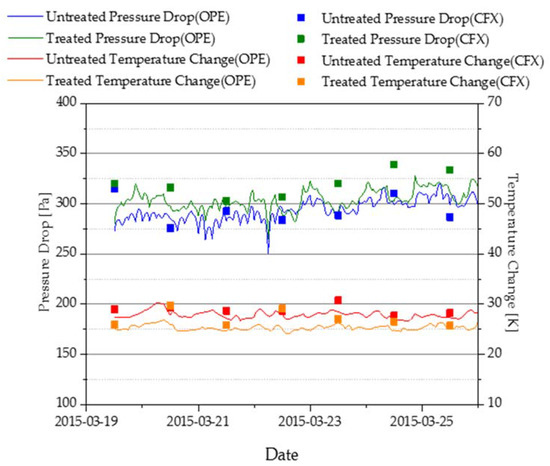

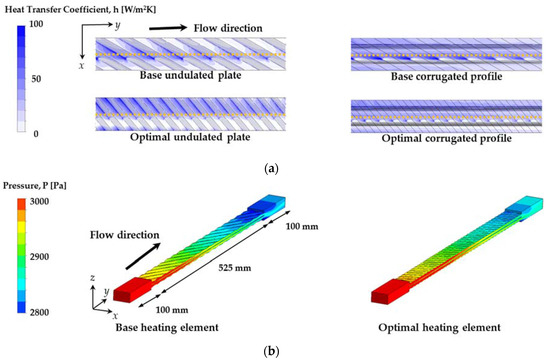

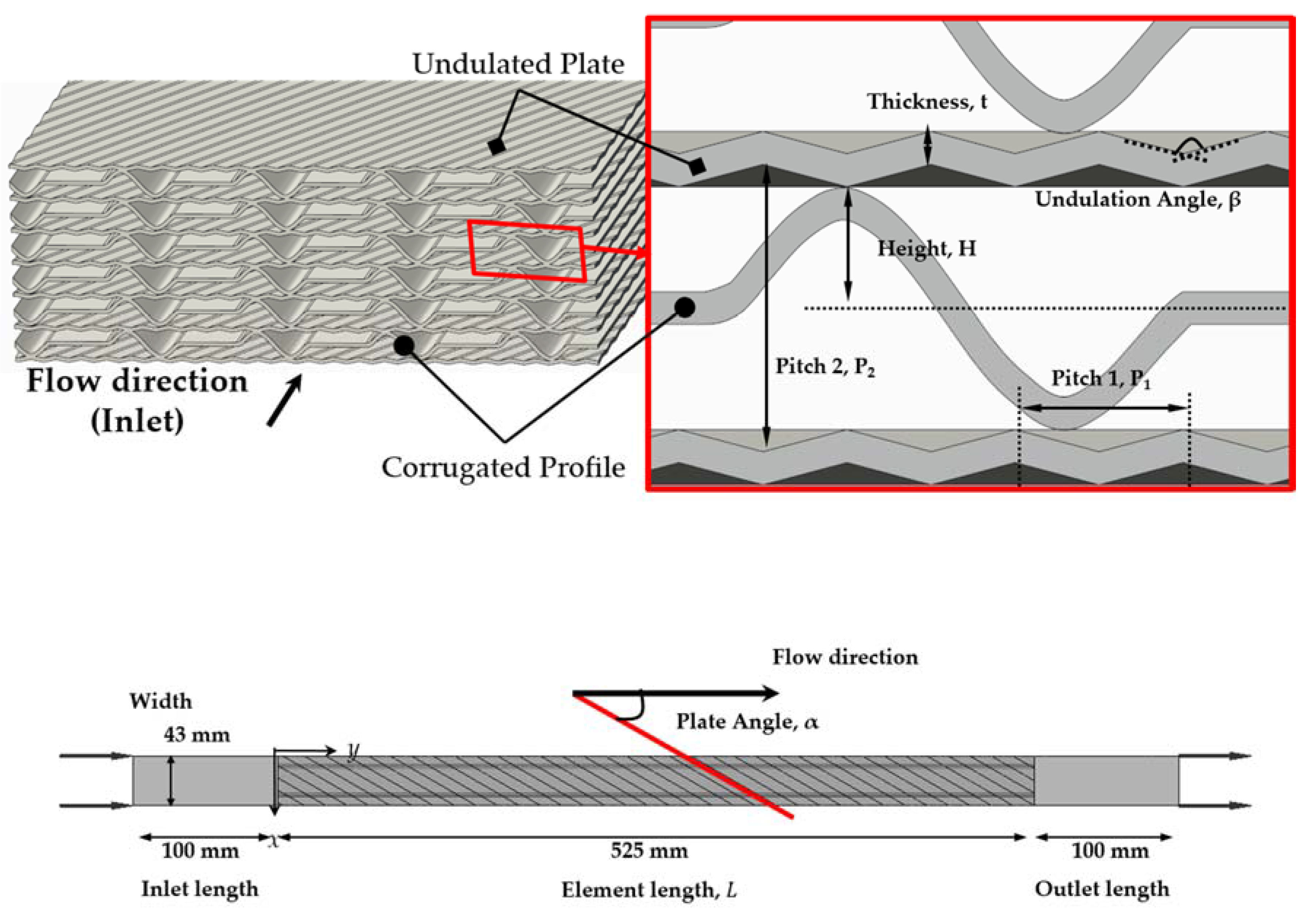

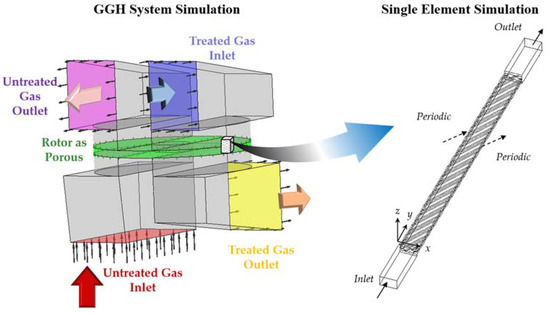

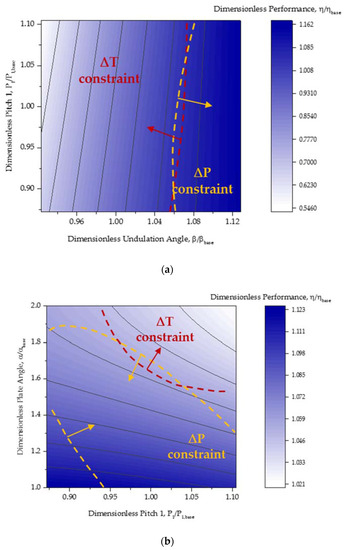

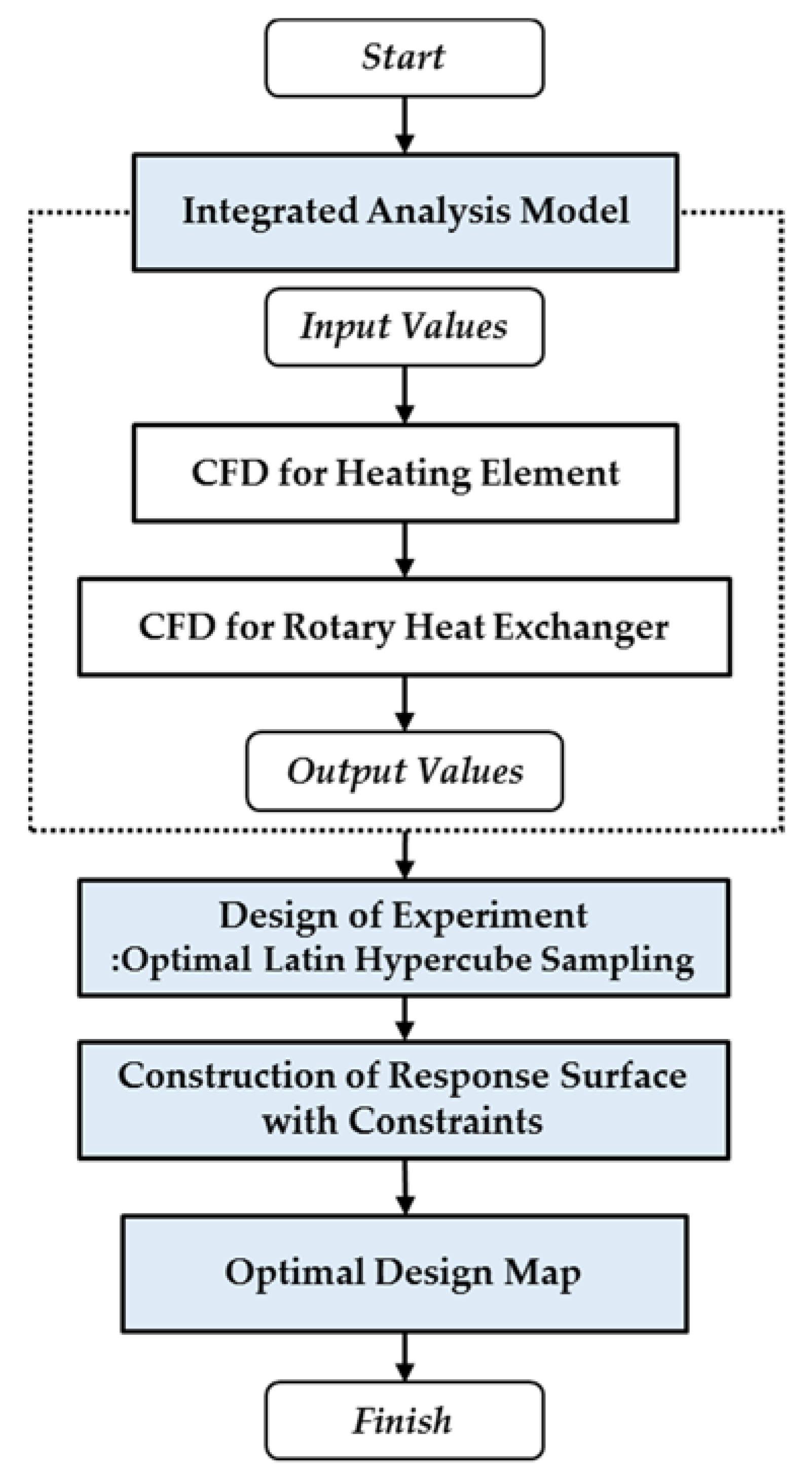

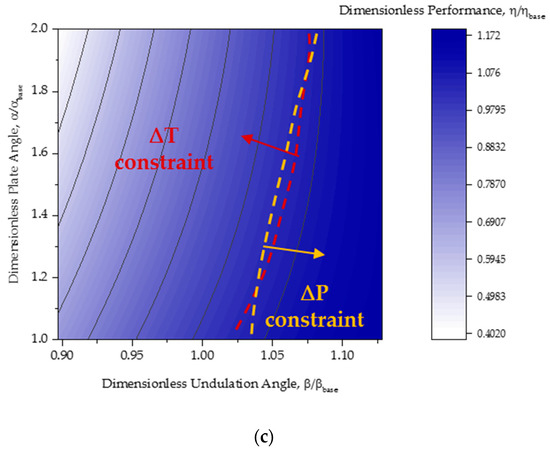

Gas-gas heaters (GGHs) are used to reheat gases through desulfurization in coal-fired power plants to reduce low-temperature corrosion and white smoke. Wrinkled heating elements are installed inside the GGH to perform effective heat exchange. An optimization study of the heating element shape was conducted to reduce the differential pressure effectively and improve performance. An integrated analysis model was applied. Based on actual operational data, a computational fluid dynamic analysis was conducted on the L-type heating element and GGH system. The experiments applied the optimal latin hypercube sampling method, and numerical analysis was performed for each sample. Based on the response surface, the result of the sample was optimized through the pointer algorithm. For the integrated analysis model, validation was performed by comparison with the actual operational data, and the thermal-fluid characteristics of the heating element and GGH system were analyzed to set three parameters: plate angle, undulated angle, and pitch 1. From the optimization result, increases in the undulated angle and pitch 1 reduce the pressure drop by widening the heating element cross section. By increasing the plate angle, the heat transfer area is secured and the reduced heat transfer coefficient is compensated, improving the GGH performance. View Full-Text
Keywords: optimization; heating element; gas-gas heater; integrated analysis model optimization; heating element; gas-gas heater; integrated analysis model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Lee, Y.M.; Chung, H.; Kim, S.H.; Bae, H.S.; Cho, H.H. Optimization of the Heating Element in a Gas-Gas Heater Using an Integrated Analysis Model. Energies 2017, 10, 1932.
