Energies 2017, 10(11), 1868; https://doi.org/10.3390/en10111868

Article
An Integrated Modeling Approach for Forecasting Long-Term Energy Demand in Pakistan
1
State Key Laboratory of Water Environment Simulation, School of Environment, Beijing Normal University, Beijing 100875, China
2
Institute for Energy, Environment and Sustainable Communities, University of Regina, Regina, SK S4S 0A2, Canada
3
Pakistan Institute of Development Economics (PIDE), Quaid-e-Azam University Campus, P.O. Box 1091, Islamabad 44000, Pakistan
4
Department of Mechanical Engineering, Quaid-e-Awam University of Engineering, Science and Technology, Nawabshah 67480, Pakistan
5
Department of Electrical Engineering, Mehran University of Engineering and Technology, Jamshoro 76062, Pakistan
*
Author to whom correspondence should be addressed.
Received: 16 September 2017 / Accepted: 31 October 2017 / Published: 15 November 2017

Abstract

:
Energy planning and policy development require an in-depth assessment of energy resources and long-term demand forecast estimates. Pakistan, unfortunately, lacks reliable data on its energy resources as well do not have dependable long-term energy demand forecasts. As a result, the policy makers could not come up with an effective energy policy in the history of the country. Energy demand forecast has attained greatest ever attention in the perspective of growing population and diminishing fossil fuel resources. In this study, Pakistan’s energy demand forecast for electricity, natural gas, oil, coal and LPG across all the sectors of the economy have been undertaken. Three different energy demand forecasting methodologies, i.e., Autoregressive Integrated Moving Average (ARIMA), Holt-Winter and Long-range Energy Alternate Planning (LEAP) model were used. The demand forecast estimates of each of these methods were compared using annual energy demand data. The results of this study suggest that ARIMA is more appropriate for energy demand forecasting for Pakistan compared to Holt-Winter model and LEAP model. It is estimated that industrial sector’s demand shall be highest in the year 2035 followed by transport and domestic sectors. The results further suggest that energy fuel mix will change considerably, such that oil will be the most highly consumed energy form (38.16%) followed by natural gas (36.57%), electricity (16.22%), coal (7.52%) and LPG (1.52%) in 2035. In view of higher demand forecast of fossil fuels consumption, this study recommends that government should take the initiative for harnessing renewable energy resources for meeting future energy demand to not only avert huge import bill but also achieving energy security and sustainability in the long run.
Keywords:
autoregressive integrated moving average; energy forecasting; Holt-Winter; long-range energy alternate planning; Pakistan

1. Introduction

Developing countries around the globe are striving to ensure supplies of economical, sustainable and if possible cleaner form of energy for meeting their energy demand. As such, medium to long term energy demand forecasts are inevitable to catch up economic growth and social development based on realistic estimates [1]. It is extremely important for energy planning and management (energy production and distribution) that these forecasts should be based on precise forecasting models [2,3]. Developing energy demand forecasting model, which is anticipated to provide a reliable forecast, is challenging as it depends on various data inputs pertaining population, economy and technologies [4]. From a methodological perspective, a variety of co-integration techniques, neural and abductive network techniques, multivariate modeling and univariate time series analysis such as the autoregressive moving average (ARMA) modeling is extensively employed in the literature for energy demand forecast. A list for various energy demand forecasting studies with scope, forecasting methodologies used and time horizon in various countries is shown in Table 1. Most of these forecasting model take into account variables such as Gross Domestic Product (GDP), income, degree-days, population and energy price to estimate energy demand [2,5].
In this study, three different energy demand forecasting methods, i.e., Autoregressive Integrated Moving Average (ARIMA), Holt-Winter and Long-range Energy Alternate Planning (LEAP) model have been used to project energy demand up to 2035. The demand forecast estimates of each of these methods were compared using annual energy demand data as tons of oil equivalents (TOE). ARIMA model was first described by Box and Jenkins [24] for forecasting univariate time series data. On the other hand, LEAP is a software-based energy modeling tool which is used explicitly for energy planning and policy analysis having excellent simulation capabilities.
Energy demand forecasting is extremely important for Pakistan to undertake effective energy planning and policy development for the nation which essentially requires reliable and sustainable energy supplies for progress in all the sectors of the economy [25,26,27]. In this context, this research is an attempt to fulfil the persisting gap relating to reliable energy demand forecasting in the country. This study is first of its kind work which energy demand forecasting for all major fuels and for all of the sectors of the economy for a period of 21 years (2015–2035). In the subsequent parts of this paper an overview of energy system in Pakistan is provided in Section 2 including historical energy demand and supply in Pakistan, the power and energy demand forecasting efforts made in Pakistan, Economic growth and energy consumption in Pakistan, description of methodological and theoretical framework in the Section 3, results and discussion in Section 4 and Section 5 provides conclusion with s policy recommendation.

2. Overview of the Energy System in Pakistan

2.1. Historical Energy Demand and Supply

Pakistan is located in South Asia and bordered by Afghanistan, Iran, India and China with a total area of 803,940 km2 of which 97% is land area while rest is covered by water [28]. For the past couple of decades, the energy crisis is hindering economic growth in the country. Amongst all energy resources, electricity have had received greater attention owing to fast growth in its demand [29]. The government is under considerable pressure to overcome energy crisis thereby investing in the sector and maintaining the economic growth at the same time [30]. It was until the 1980’s when Pakistan was able to meet its energy demand indigenously sufficiently. Although, in 1990’s new discoveries of oil and gas were made, however, later they even become insufficient to fulfil the growing energy demand of the nation. As a result in the year 2000, Pakistan started importing a significant amount of energy resources with crude oil leading imported fuel [31]. As of today, the critical state of Pakistan’s energy sector is a primary constraint on the country’s economic development. Despite sufficiently important contribution found in the literature to address issues in the energy sector and various options suggested therein for overcoming energy crisis, the energy sector of Pakistan has not recovered as yet with evident supply and demand gap and various other challenges encountered [32].

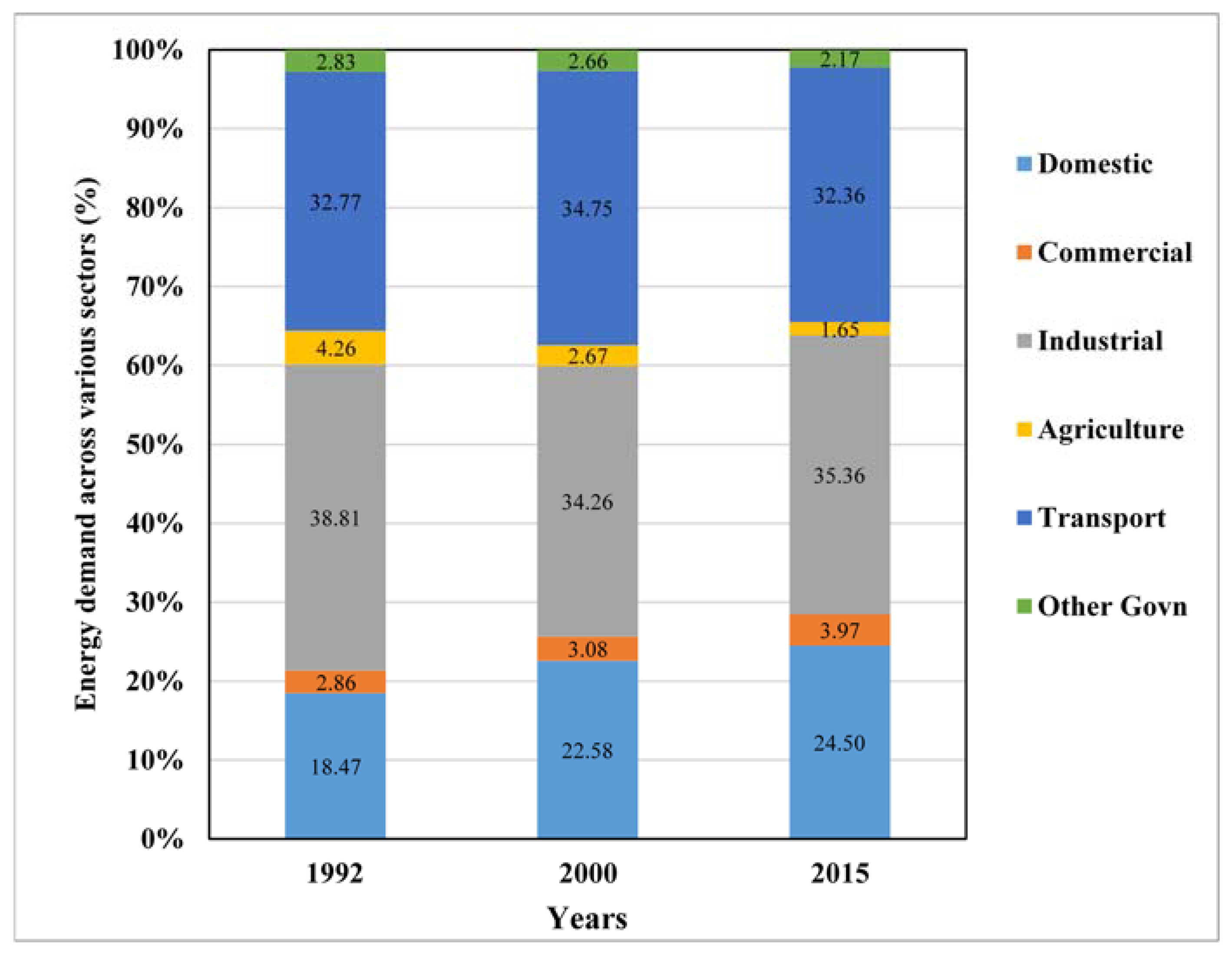

According to the energy statistics published by HDIP, the primary commercial energy supplies of the Pakistan was 70 million TOE in 2015. The share of each source in primary energy supplies for 2014–2015 was oil: 35.5%, gas: 42.7%, LPG: 0.7%, LNG imported: 0.7%, coal: 7.0% and imported electricity: 0.2%. On the other hand, the highest share in total energy demand is coming from industrial sector (35.36%), followed by transport sector (32.36%), domestic sector (24.50%) and commercial sector (3.97%) as shown in (Figure 1). The indigenous oil produced in 2015 was at the rate of 94,493 barrels per day while natural gas statistic remained 4016 MMCFD in 2014. A total of 47 exploratory and 35 development/appraisal wells were drilled. On the other hand, the oil import bill for the year 2014–2015 was US$12 billion. New hydel power plants of 438 MW capacity was also installed during this period. The total electricity generation for the same period was 106,966 GWh, which was comprised of 63.5% from the thermal power plant, 30.4% from hydel plants, 5.4% from the nuclear power plant and only 0.7% from renewable sources [33]. The historical consumption of different fuels across different sectors of the economy shows that oil and gas have been the most dominant fuels since 1992. The transport sector has been the main consumer of oil while natural gas consumption has raised over the past few years owing to enhanced supplies to the power sector and demand from domestic sector.
The main causes of current energy crisis are mainly attributed to decades old poor policy inconsistent fuel mix for the various sector of the economy as evident from data in Table 2. As a result of these poor policies [34]; mostly thermal power plants in the private sector were commissioned from the period 1994–2000 with no major hydropower project undertaken during this period. The electricity produced from these thermal power units is very costly and the government had to offer subsidies which further deteriorated the economic conditions of the country [35]. As a result of these policies, Pakistan’s present electricity generation is mainly from oil and gas with a very limited contribution from coal-fired plants. In order to avoid the power generation sector being vulnerable to the global energy market, it is inevitable to transform country’s generation mix [36,37]. The amount of energy import forecasted for Pakistan by various researchers shows that the country will face serious challenges with regards to energy supply and price shocks in future. This implies that some serious efforts are required to transform energy sector by diversifying local production, improving energy efficiency and follow conservation practices to avoid unbearable oil and gas import bills [38]. More recently as well as historical energy consumption pattern suggests that energy growth rate shall persist at an annual growth rate of 8.8% which would require 361 million tons of oil equivalent (MTOE) of energy by 2030. In other words, Pakistan has to enhance energy production by almost six times to that of the supply level of 2010-2011 (64 MTOE) [39].
There have been some efforts from the Government of Pakistan (GOP) to promote the adoption of renewable energy technologies (RETs). In this context, first, ever renewable energy policy of the country was announced in 2006. However, implementation of this policy faced various challenges thus had achieved only limited success [40]. In recent times, Ministry of Water and Power developed a balanced power policy in 2013 that aimed at dealing energy crisis with balanced fuel mix and energy conservation also could not deliver to the expectation of the various sectors of the economy [41]. As a result, despite of these efforts, in 2013 and 2014 worst sort of energy and power crises were coped with 16 to 18-hour of electricity supply interruptions [42].
The energy supply targets can be generally achieved if demand is projected appropriately thus enabling the government to develop long-term integrated energy plans including the future arrangements for energy supplies. Unfortunately, Pakistan so far have had been unable to devise integrated energy plan taking into consideration any of fairly estimated demand forecast. Most of the demand forecast studies at government level are generally exaggerated, such as such as Government of Pakistan [43] study which estimated energy demand projection for future. This study had estimated energy demand forecast for Pakistan as of 120.18 million TOE in 2015 which actually came out to be 70 million TOE. Importantly no parallel matching efforts are visible to devise and implement integrated energy plan for the country based on the demand forecast studies.

2.2. Power and Energy Demand Forecasting Efforts

Integrated energy modeling, as the process of energy planning and policy development has had rarely been undertaken in Pakistan. Although, there are some studies conducted in this context both by government and academia. At the government level, studies such as Government of Pakistan [43], Petroleum Institute of Pakistan [44], National Transmission and Dispatch Comparny Limited [45] are more prominent and academia contribution include Hussain, Rahman and Memon [19], Perwez, et al. [46], Perwez and Sohail [47], International Resources Group [48], Hussain, et al. [49], Anwar [50], Anwar [51]. Most of the studies have generally forecasted electricity demand for various sectors of the economy over different time horizons. There are other studies by Anwar [51], Government of Pakistan [43], Petroleum Institute of Pakistan [44], Anwar [50] and International Resources Group [48] which mostly discusses different aspects of energy systems in general. Nevertheless, in this section of the paper, some of important studies wherein power and energy demand forecast have been undertaken are discussed in further detail.
Water and Power Development Authority (WAPDA), a fully government controlled department announced the first comprehensive Power Plan for the country in 1994. The plan comprises of load forecast, generation planning and transmission expansion planning for the period from 1992 to 2018. This plan was subsequently further updated in 1995, 1996, 1998, 2003, 2008, 2011, 2012 and in 2014. The latest regression based load forecast report was prepared by National Transmission and Dispatch Comparny Limited [45] in 2014 and is based on the historical data which encompasses electricity consumption, electricity tariff, GDP and population. The electricity demand forecast in latest study extends up to the year 2037 and includes three demand scenarios which are low growth scenario (3.56% GDP growth), normal growth scenario (5% GDP growth) and high growth scenario (6.5% GDP growth). The data used for Regression Analysis entailed GDP by major sectors (agriculture, manufacturing, trade, services, etc.), category wise electricity consumption, tariff wise price of electricity, category wise consumers and load shedding data of PEPCO and K-Electric, Consumer Price Index (CPI) and population. In the process of regression analysis, the elasticity coefficients are calculated at first and followed by application Ordinary Least Squares (OLS) method of estimation for regression analysis. Electricity consumption (GWh) for various consumer categories including domestic, commercial, industrial and agricultural were selected as dependent variables. Some 51 different regression models were developed and tested with a different combination of response variables.
Perwez and Sohail [47] developed three long-term energy pathways to meet the forecasted electricity demand. The three scenarios of this study are Business As Usual (BAU), New Coal (NC) and Green Futures (GF). Long-Range Energy Alternative Planning (LEAP) software was used to forecast electricity demand and develop supply side scenario for the period 2011–2030. Since, the data required for the final energy intensity was not available for Pakistan, as such, this study used total annual consumption and number of electric consumer in each sector to obtain the final energy intensity. In another study by Petroleum Institute of Pakistan [44] aimed at presenting Pakistan energy outlook used single and multiple independent variables and undertook regression analysis to predict energy demand for residential, industrial, commercial, agriculture and transport sectors up to 2025. The independent variable selection in this study was based on trial and error process so that best fit variables were determined. Further, the residuals of the last observation (the difference between actual and predicted numbers) were added in some cases for smoothing the previous years’ effect. The regression equations used to obtain the results are given as under:
(a)
Primary energy/capita = 0.024 + 2.831 Real GDP/Capita + Residual,
(b)
Residential Electricity demand/connection = 673 + 0.012 Real GDP/Capita + Residual,
(c)
Residential sector Natural gas demand: From 2014, onwards the demand for natural gas/customer is being considered at 2014 level with an increase in gas connections by 5% each year,
(d)
Residential sector LPG: LPG spend = 0.286 × Natural gas spend,
(e)
Residential sector oil: Oil spend = 26,306 − 0.433 × LPG spend,
(f)
Industrial fuel demand: Industrial fuel demand = 1.373 + 0.0001 Real GDP Manufacturing,
(g)
Transport Sector Fuel: Road Transport Demand = −6.550 + 0.276 Real GDP + 0.093 Population − 0.045 Fuel Prices,
(h)
Commercial Electricity Spend = 10,287 + 9.007 Real GDP Services + Residual; Commercial Natural Gas = −7532 + 2.572 Real GDP Services,
(i)
Commercial sector LPG + Gas spend = −24,917 + 5.886 Real GDP Services + Residual,
(j)
Agriculture and Government Electricity spend = 7.651 Real GDP + Residual and
(k)
Agriculture and Government fuel spend = 2.118 Real GDP + Residual.
Similarly, Anwar [50,51] projected the service energy demand through three different techniques: (i) econometric models (ii) relating energy service demand in particular sector to GDP and (iii) relating energy service demand to value added of the particular sector. Service energy demand in transport and the residential sector was determined through econometric approach using dependent variables such as a number of energy devices, passenger kms, ton km and others to be dependent on independent variables such as Gross Domestic Product (GDP) and population. On the other hand, service energy demand in industrial, commercial and agriculture sector was projected through economic value added and GDP approach. In this case, the service demand of particular sector in particular year is considered equal to service demand of that sector in the base year multiplied by the ratio of the current year GDP and base year GDP. The Service demand projection for agriculture, commercial and industrial sector was based on the service demand of sector in the base year multiplied by the ratio of the current year value added and base year value added.

2.3. Economic Growth and Energy Consumption

Renewable and non-renewable energy consumption is an important determinant of economic growth like other factors of production such as labor and capital. The literature on energy and growth nexus is generally divided in four competing hypotheses which are: growth hypothesis, conservation hypothesis, feedback hypothesis and neutrality hypothesis [52]. The energy demand is a function of various factors such as real income, relative prices and structure of the economy, the available technology and lifestyle [53]. Economic growth is closely related to growth in energy consumption because more energy used result the higher the economic growth [54]. Like other developing countries, Pakistan is also growing energy intensive economy, as such, the per capita energy consumption is increasing with time as shown in Table 3. Further, like most of the other non-oil producing countries, energy needs of Pakistan are met by large quantities of imports. Thus, to meet its growing energy demand, Pakistan faces both energy constraints from the supply side as well as dare demand management at the same time [55].

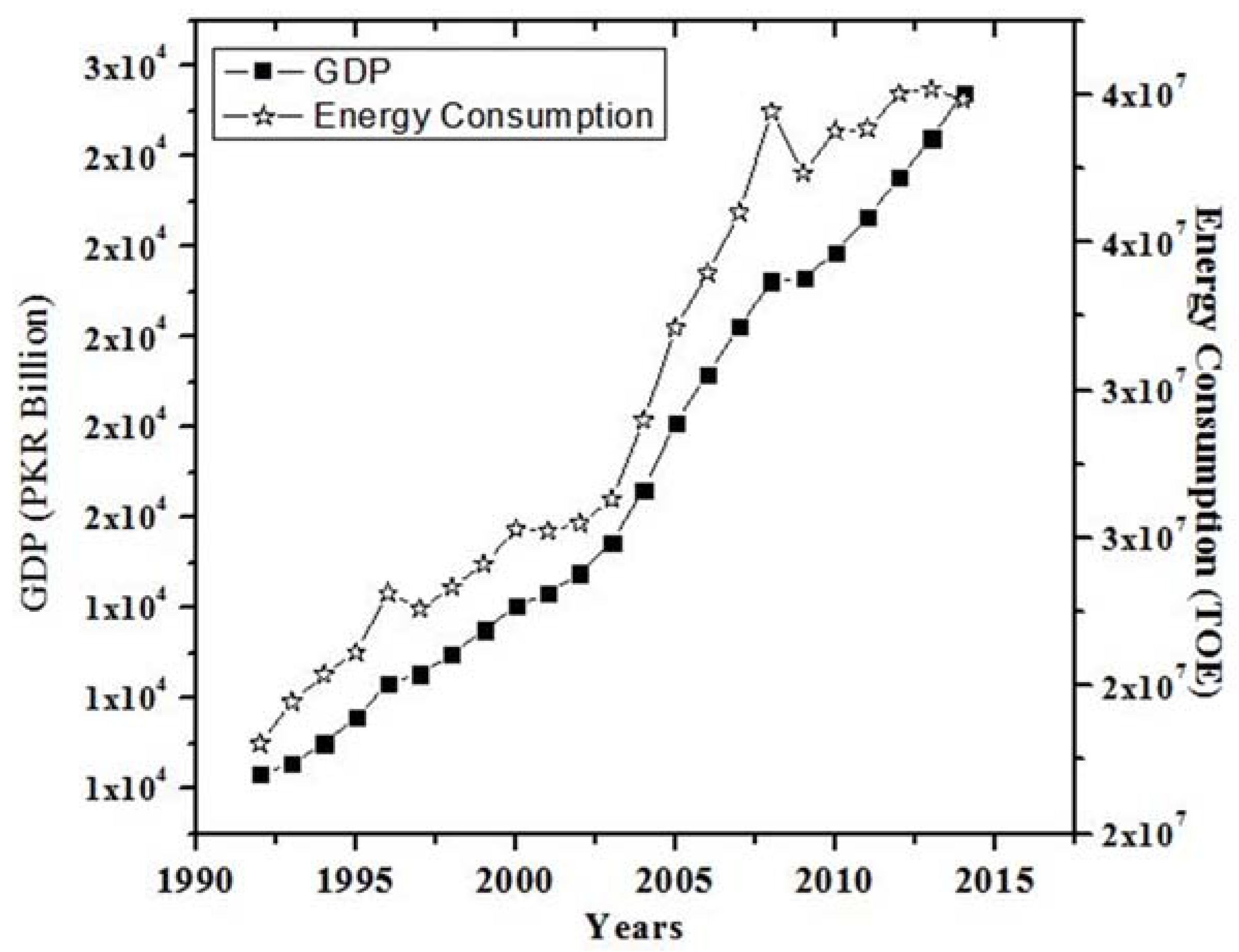

Pakistan’s economy generally remained stable during the period 2001–2007 with fairly strong GDP growth of 5.4%. A remarkable GDP growth of 8.9% was recorded for the year 2005. However, the rate of GDP growth fell drastically by 0.36% in 2009 which resulted in low energy consumption, i.e., 37.3 MTOE which was 39.4 MTOE in 2008. The slowdown in economic activity caused energy consumption to decline [57] and vice versa as shown in Figure 2. According to Alahdad [32], by assuming an annual economic growth rate of 6.5%, an energy supply of 198 million TOE shall be required in order to meet the demand in 2025.
A large number of studies have been undertaken to test the relationship of demand (consumption) of different energy commodities i.e., electricity, oil, natural gas, coal with various economic indicators. These studies for Pakistan, have also tested the classical theories and hypothesis of energy economics. In this context, numerous important studies that reflect the relationship between energy consumption and energy-economic nexus for Pakistan have been carried out (Aqeel and Butt [55]; Siddiqui [58]; Nasir and Ur Rehman [59]; Khan and Ahmad [53]; Shahbaz and Lean [60]; Hye and Riaz [61]; Shahbaz, Zeshan and Afza [52]; Zaman, et al. [62]; Raza, et al. [63]; Ahmed, et al. [64]; Komal and Abbas [65]; Shahbaz, et al. [66]; Shahbaz, et al. [67] and Arshad, Zakaria and Junyang [31]).
Some authors have also reported the GHG emissions as a function of energy consumption and economic growth in Pakistan. Alam, Fatima and Butt [54] indicated that a 1% increase in economic growth, in the long run, will increase CO2 emissions by up to 0.84%. Ali and Abbas [68] have estimated CO2 emission from energy consumption as direct and indirect emissions. Nasir and Ur Rehman [59] found that 1% increase in per capita real GDP will increase per capita emissions by 7.20% in the long-run. Similarly, 1% increase in per capita energy consumption may lead to 1.65% increase in per capita carbon emissions. This brings forth the important finding that besides the contribution of energy with stimulation of economic activities, energy consumption also contributes to emissions through some non-economic activities of, for example, domestic and transport sectors. Importantly, together these two sectors consume almost 50% of total energy in Pakistan. As such, energy policy makers in should not only focus on forecasting the future demand for energy with different growth scenarios but also on focusing the least cost energy options.

3. Methodological and Theoretical Framework

The historical energy demand (consumption) data of six sectors (domestic, industrial, commercial, transportation, agriculture and other government sectors) and five fuels (electricity, oil and petroleum, natural gas, coal and LPG) have been retrieved from Pakistan’s energy yearbooks published annually by Hydrocarbon Development Institute of Pakistan (HDIP). The data mentioned above from energy yearbooks was converted into time series data starting from 1992 till 2014. Subsequently, the energy demand forecast of all these sectors of the economy for each fuel using each ARIMA, Holt-Winter and LEAP methodology was undertaken.

3.1. Autoregressive Integrated Moving Average (ARIMA) and Holt-Winter Approach

The abbreviation ARIMA has been derived from the two models involved in the methodology, i.e., Autoregressive model (AR) and the Moving Average model (MA) [12,69]. ARMA methodology has been used in this study to model the stationary time series with an appropriate number of p and q lags [2,11]. ARMA focuses on the stochastic, or probabilistic properties of economic time series on their own instead of constructing single or simultaneous equation models. The model considers the stochastic error terms and is based on the own past or lagged values. The ARMA ( p ,   q ) model when written as ARIMA ( p ,   d ,   q ) will mean that the series has been made stationary by differencing it “d” times. This is important because either ARIMA model is applied in a series which is stationary or by applying a certain order of difference so that it becomes stationary for forecasting [7,11]. The Holt-Winter approach analysis the trend and seasonal variation in the time series data along with exponentially smoothed component. The optimal utilization of this methodology is to estimate the Root Mean Square Error (RMSE) and Mean Absolute Percent Error (MAPE), which is one of the most widely used approaches to test and validate the model outcomes.
The historical publication of Box and Jenkins [24] and the later sequels of the same publication provides the stepwise procedure for the ARMA analysis [8,69]. The step followed in this are same as of followed in various studies. These are:
(1) Time series data is differentiated in order to make it stationary first which is achieved by making both variances and mean constant [10];
(2) Determining p and q orders by studying the autocorrelation and partial autocorrelation coefficients [13,14];
(3) Validating the selected models by applying diagnostic tests that provide information about the residuals being white noise [2,8]. Detail of each of these steps is given under:
If the means, variances and covariances of the series are independent of time, rather than the entire distribution, then the time series data is said to be stationary [70,71]. On the other hand, the non-stationarity in a series might originate due to various reasons. Amongst which the most important one is the occurrence of “unit roots”. For instance, as shown below, the autoregressive model of order 1 with lag 1 [19,20]:
Y t = θ Y t 1 + ɛ t
where Yt is any time series, θ is the coefficient, εt stands for an error term serially uncorrelated white noise having a zero Mean and a fixed variance. The Equation (1) will become a random walk without a drift in the model if θ = 1. Therefore, the problem of “unit root” arises when θ = 1 in real series which in fact mean that the series is non-stationary. On the other hand, if |θ| ≤ 1, then the series Yt is considered stationary. The stationarity series is checked at first stage because correlation might exist in non-stationary time series and even in very large sample which results into the spurious (or nonsense) regression [7,72]. From Equation (1) it is inferred that wherever the issue of unit root arises in the time series, the differencing is done and is therefore indicated as the order of integration for each series. The objective at the back of co-integration is that if a linear combination of nonstationary variables is stationary then the variables are said to be co-integrated. Thus, the linear combination cancels out the stochastic trends in two series and, as a result, the regression would be meaningful; i.e., not spurious [7].
The next step is to determine suitable p and q orders for autoregressive (AR) and moving average (MA) segments of the ARIMA [7,10,11]. This is done by analyzing auto-correlation function (ACF) and partial auto-correlation function (PACF) [16,73]. It is achieved by using statistical software EVIEWS (version 7). The ACF and PACF also provided a statistical summary at a particular lag. Maximum count of lags was determined by dividing the number of observations by 4, as each of our series had less than 240 observations according to Box and Jenkins method. Since the number of observations in this study is 23 and the lag number is calculated as 6. One of the most important tools is the visualization of time series graphs and then observing the correlogram specifically. This correlogram of auto-correlation and partial auto-correlation provided information about the appropriate orders of MA and AR respectively drawn on the basis of lags involved [6,8]. The resulting correlograms are simply the plots of ACF and PACF against the lag length. The ACF at lag k, denoted by ρ k , is defined as [7,8]:
ρ k = γ k γ 0
where γk is the covariance at lag k, γ0 is the variance. Since both covariance and variance are measured in the same units, ρ k is a unitless—or pure—number and lies between −1 and +1. In time series data, the main reason of correlation between Yt and Yt−k originates from the correlations they have with intervening lags, i.e., Yt−1, Yt−2, …., Ytk+1. The partial correlation measures the correlation between observations that are k time periods apart after controlling for correlations at intermediate lags, i.e., it removes the influence of these intervening variables. In other words, partial auto-correlation is the correlation between Yt and Ytk after removing the effect of intermediate Y’s [19].
Further, before finally selecting a forecasting model, the residuals from the estimation is observed in the previous step and checked whether any of the auto-correlations and partial correlations of the residuals are individually and statistically significant or not. They are being statistically significant, meaning that the residuals were purely random and there was no need to look for another ARIMA model. In the final step, forecasting was carried out based on the developed and checked ARIMA model [7]. The Minitab tool (version 14) was used in this study, without seasonal variation, to forecast the time series [69] for the next 21 observations, i.e., up to 2035.
The forecasting outcomes of the ARIMA and Holt-Winter models have been validated by the so-called “within sample forecasting capability” using two different tests: Root Mean Square Error (RMSE) and Mean Absolute Percentage Error (MAPE). The mathematical relationship of both RMSE and MAPE is given below [12,15,19,74]:
RMSE =   i = 1 n | ( F i A i ) 2 | n
MAPE = ( i = 1 n | ( F i A i / A i | n ) × 100 %
where Ai is the actual value and Fi is the forecasted value. The forecasting results of ARIMA and Holt-Winter models are matching which are discussed in detail in Section 4 of this paper. It may be noted that estimated RMSE and MAPE for every time series have been used in this study. Out of the total 28 time-series analyzed, 11 series have both RMSE and MAPE higher in ARIMA compared to Holt-Winter, while 9 series have RMSE and MAPE smaller in ARIMA. However, the decision that which model is a most appropriate model is taken on the basis of RMSE only which is smaller in 15 series forecasted through ARIMA as compared to Holt-Winter approach as shown in Table 4.
In addition, for ARIMA model, experiments on 24 different time series was carried out one by one. As such, following analysis of the auto-correlogram and partial auto-correlogram, the best parameter settings for each energy consumption of the time series used are determined as given in Table 5 [15]. The consumption/demand of certain fuels some sectors of the economy are being recorded zero, as such, there is no ARIMA model in such case. Similarly, the power generation sector consumes a significant amount of oil and natural gas, therefore, has been considered as a separate sector of the economy.
Generally, ARIMA modeling technique only requires data for the modelled variable, thus saving the user from the trouble of determining influential variables [2]. It is known that if θ = 1, i.e., in the case of unit root, Equation (1) becomes a random walk model without drift which is known as non-stationary process. The basic idea behind the unit root test of stationary is to simply regress Yt on its (one-period) lagged value Yt−1 and find out if the estimated θ is statically equal to 1 or not [17]. Ducky Fuller test (DF) is applied to check whether the data is stationary or non-stationary. By stationarity, it is meant that the series with constant mean and constant variance. In this study, the Augmented Ducky Fuller Test (ADF) has been used for checking unit root problem.
Δ Y t = α t + β t + ρ Y t 1 + ε t H 0 : ρ = 0 H 1 : ρ 0
where H0: series is non-stationary; H1: Series is stationary; A Series is said to be stationary if it satisfying following properties; (a) the process has fixed mean i.e., E ( y t ) = μ and (b) the process is homoscedastic or constant variance i.e., V a r ( y t ) = σ 2 . The covariance between two observations of series depends on the lag between the two observations but not on the time index t. i.e., c o v a r ( y t ,   y t j ) = σ j .
In ADF test, the lags of the first difference are included in the regression in order to make the error term εt white noise and, therefore, the regression is presented in the following form:
Δ Y t = δ Y t 1 + α i i = 1 m Δ Y t 1 + ɛ t
To be more specific, we may also include an intercept and a time trend t, after which model becomes:
Δ Y t = β 1 + β 2 t + δ Y t 1 + α i i = 1 m Δ Y t 1 + ɛ t
The DF and ADF tests are similar since they have the same asymptotic distribution. In literature, there are various unit root tests. However, the most notable and commonly used one is ADF test and, therefore, it has been used in this study [7].

3.2. The Long-Range Energy Alternatives Planning (LEAP) Tool

The Long-range Energy Alternatives Planning (LEAP) is a software-based modeling tool that allows simulation of energy systems for specific applications suited to particular problems at various spatial levels (cities, state, country, region or global). LEAP incorporates both demand and supply side features of the system being an integrated energy planning model (Figure 3). In this study, we have used the demand forecasting features of the LEAP model. The model contains various mathematical and statistical functions that follows the accounting framework to forecast energy demand based on the time series data provided to the software. The demand analysis, following the end-use approach, is carried out as follows [75]:
  • The analysis is carried out sector by sector having the time series energy demand data of each fuel called demand devices that is defined by the user. Thus, a “hierarchical tree,” is generated; where the higher branches of the tree sums up the energy demand of all lower branches. This hierarchy might consist of: sectors, sub-sectors, end-uses and fuels/devices.
  • In most of the cases, the product of activity and the energy intensity (i.e., demand per unit of the activity) is used to obtain the demand at the disaggregated levels. However, the model allows alternative options and in our case, we used the linear forecasting function to obtain results that were based on the time series historical data used in this study.
The LEAP modeling interface is highly flexible and can perform analysis at any spatial or temporal scale [5]. In the current study, we neither used the economic parameters to forecast energy demand nor energy intensity—instead, we used the time series linear forecasting capability of the model so that we could compare the results with the other two models, which are also based on time series secondary data.
One of the main advantages of LEAP is that, it can be used with minimal data for demand forecasting using the in-built modeling tools in the software. However, the modeler can perform complex analysis by constructing sophisticated relationships between exogenous variables and energy systems variables. Such analysis requires more data that are added to the system in the form of key assumptions for which the user set equations in order to obtain useful results.

4. Results and Discussions

In this study, three different energy demand forecasting methodologies namely ARIMA, Holt-Winter and Long-range Energy Alternate Planning (LEAP) model were used to forecast energy demand for the period 2015–2035. In the first instance, the results obtained from the ARIMA model—which provided the most appropriate results for the energy demand—are analyzed. The ARIMA forecasting model produced results in three different patterns which are upper limits, lower limits and forecasted values. Upper and lower limits provide a confidence interval of 95%, in other words, any realization within the confidence limits will be acceptable. Therefore, we have provided the forecasted values only in the form of data tables (below the figures) and as such in the tabular format alone. This is in order to bring simplicity in the presentation i.e., we have omitted the upper and lower limits. Similarly, the values mentioned in the respective tables and figures lies within the 95% confidence interval limits [6]. The results show that industrial sector will have the highest energy demand in 2035, i.e., 40.84 million TOE as shown in Table 6 followed by transport sector (18.94 million TOE) and domestic sector (16.32 million TOE). However, a major portion of the industrial sector energy demand will be from thermal power plants which is estimated as 21.01 million TOE.

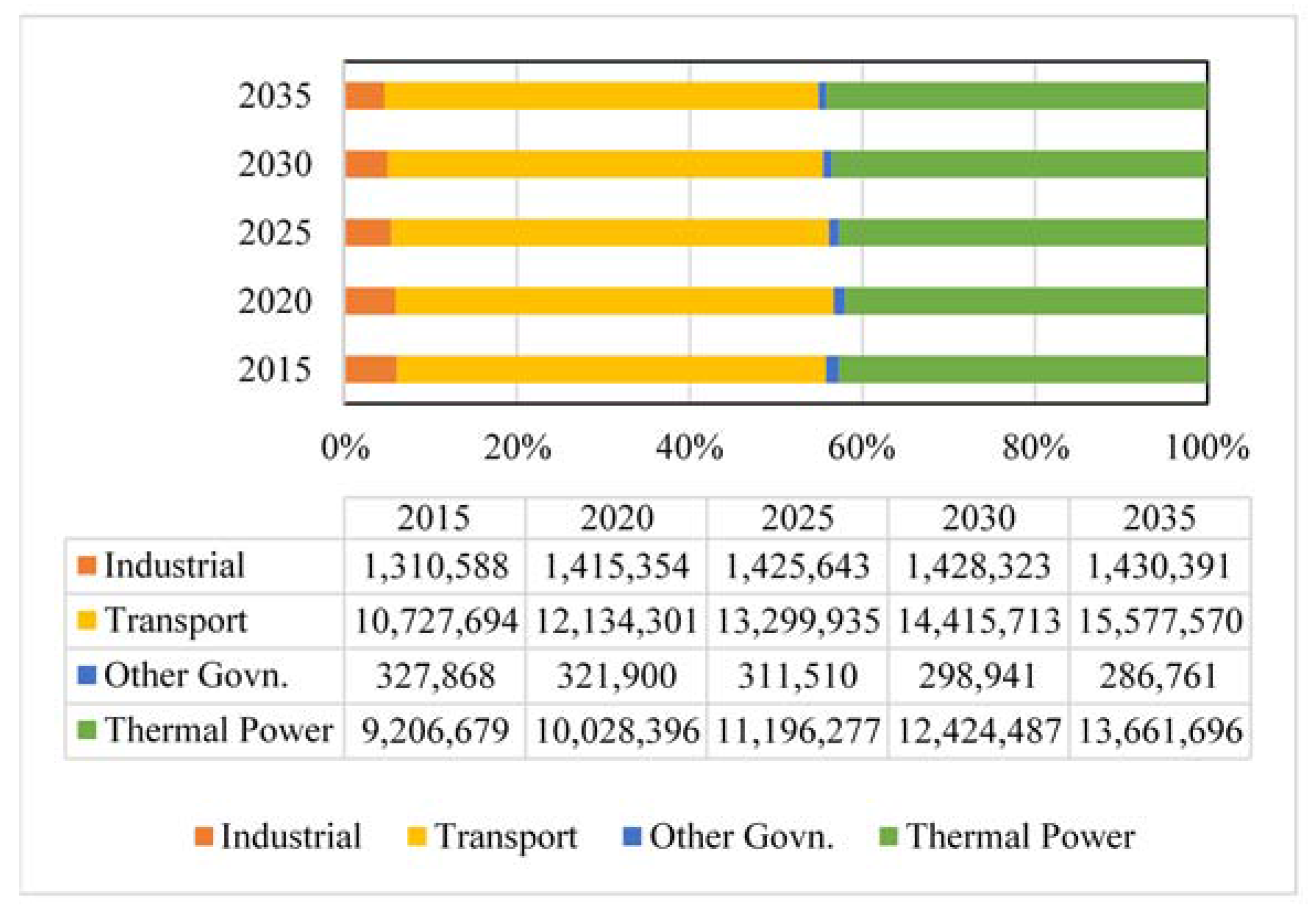

The results further suggest that energy fuel mix will be dominated by the oil (38.16%) in 2035 with a total demand of 30.9 million TOE as shown in Figure 4. The highest demand for oil will be from transport sector which is estimated to be 15.5 million TOE followed by thermal power plants 13.6 million TOE. The oil demand in domestic and agriculture sectors have been omitted from Figure 4 because ARIMA has forecasted negative oil demand in these sectors due to historically declining trend.

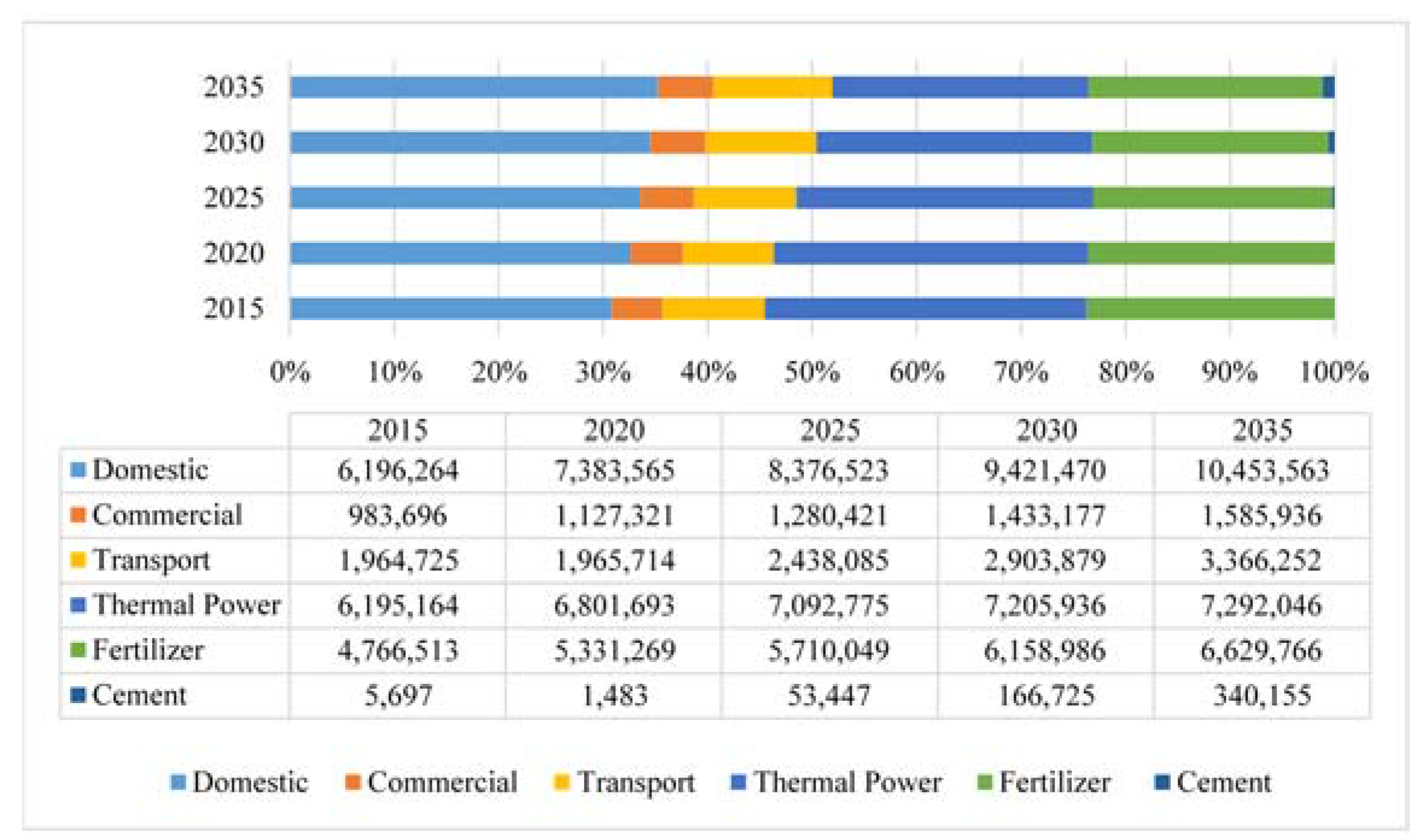

Amongst other fuels, natural gas is forecasted to be second most demanding fuel. Natural gas demand in the country is forecasted to rise continuously and is estimated to reach 29.66 million TOE in 2035 as shown in Figure 5. The main consumer of natural gas will be domestic sector (10.4 million TOE) followed by thermal power plants (7.2 million TOE). Natural gas consumption in industrial subsectors—except for the fertilizer, cement and power production sectors—shall be declining. It is important to mention that most of the natural gas consumed in the industrial sector is forecasted to produce electricity for the industry’s own use called captive power.
From the results of ARIMA model of this study, it is estimated that by the end of forecasting period, i.e., 2035, electricity share in total fuel mix shall be 17.74% which corresponds to 13.1 million TOE and most of the electricity is projected to be consumed in industrial sector (5.3 million TOE), followed by domestic (5.2 million TOE), agriculture (0.9 million TOE) and commercial (0.8 million TOE) sectors as shown in Figure 6.
The electricity demand forecasted by Hussain, Rahman and Memon [19] for Pakistan using ARIMA model from 2015 to 2020 closely match with the results of this study as shown in Table 7. The National It is worth mentioning here that Energy Security Plan (NESP) developed by the government of Pakistan for period 2005–2030 had also envisaged the increased demand for fossil fuels for meeting the future energy needs. With some of LPG import projects, it was forecasted that the overall energy import share of the country would increase from the existing 31 to 45% by 2030. Accordingly, in terms of power requirements, it was forecasted that the electricity demand would reach 163 GW, of which 44.6 GW would be shared by alternative energy resources, including hydro, nuclear and renewable by 2030 [76].
The share of coal and LPG in both current and future energy mix is low, i.e., this study results revealed that coal and LPG would share 8.23% and 1.66% of the fuel mix in 2035 respectively. This implies that the demand for coal and LPG in 2032 will be 6.1 and 1.23 million TOE respectively as shown in Figure 7 and Figure 8. The main consumption of coal is forecasted for the industrial sector while LPG demand shall be high in the domestic sector.
The share of each source in primary energy supplies for 2014–2015 remained as oil: 35.5%, natural gas: 42.7%, LPG: 0.7%, LNG imported: 0.7%, coal: 7.0% and imported electricity: 0.2% [33]. These shares of each fuel for different sectors in total energy consumption varies considerably from base year (2014) till the end of forecasting period (2035) as of alone oil from 35 to 50% in industrial, 32 to 23% in transport sector, 25 to 20% in domestic sector, 2 to 1% in agriculture sector and 2% to 1% in other government sectors. This variance in fuel consumption during the base year (2015) and the end year of forecasting (2035) is owing to the fact that, contrary to the conventional position of a single fuel for one sector, a variety of fuels shall be in demand from different sectors. For instance, domestic sectors wherein generally electricity and natural gas is in demand shall also be consuming LPG during the forecast period as shown in Table 8.
It is evident from Table 9 that there is a minor difference in the forecasting results of ARIMA and Holt-Winter models, yet the most appropriate model selection is only considered subject to model validation exercise. However, in case of more conservative approach, the negative forecasted values can be neglected by considering LEAP estimates for planning purposes.
The forecasting results of this study suggest that industrial sector shall be a major consumer of different energy commodities with a demand of 40.84 million TOE in 2035 as shown in Table 9 and Table 10. However, the rising energy demand for all fuels and all sub-sectors within the industrial sector cannot be taken for granted. It is pertinent to mention that as per results of this study suggest that Pakistan is not only currently importing oil in huge quantities but the similar trend may continue onwards as huge quantities of oil are used for electricity generation which contributes to overall fuel consumption of the industrial sector. The natural gas, which has been so far indigenously produced with diminishing tended and may exhaust until further reserves are not discovered. Therefore, natural gas supply to industrial activities other than power production has been minimized with continuous decline.
The transport sector, throughout the forecasting period, is mainly oil dependent with 15.57 million TOE demand in the year 2035 following by natural gas demand of 3.36 million TOE as shown in Table 11. It is noted that over past decade, a large number of the vehicle have switched their fuel from oil to natural gas which has caused an imbalance of supply of this commodity in great demand in the industrial and domestic sector. As a result, during the winter when natural gas demand in the domestic sector rises, the load shedding of natural gas is observed in the transport sector thus oil is indispensable fuel for the transport sector.
In the commercial sector, the demand for natural gas, electricity and LPG shall be increasing with each commodity demand estimated 1.58, 0.78 and 0.42 million TOE respectively in 2035 and the demand for oil is projected to be decreasing as shown in Table 12.
Electricity is the key energy commodity in demand in the agriculture sector mainly for irrigation tube wells and forecasted to be 0.99 TOE in 2035. The oil consumption in this sector is projected to decline as shown in Table 13.
The other government sector refers energy consumption in this sector which is otherwise not considered in any of above-discussed consumer groups. Energy consumption in this sector includes consumption in government buildings, offices, institutes and street lighting. The energy demand for different fuel for this sector is projected to be electricity 0.62 million TOE, oil 0.28 million TOE and LPG 0.10 million TOE as shown in Table 14.

5. Conclusions and Recommendations

Pakistan at this juncture of time, with growing population and socio-economic challenges and beyond, essentially require sustainable energy supplies for all of the sectors of its economy. Energy demand forecasting is, therefore, very important input to develop long-term plans and policies to achieve this goal. The forecasting studies, however, are based on energy and economic data, provision of which is at juvenile stages in Pakistan. In particular, data pertaining sub-sectors is generally either missing from statistic or not reliable. Nevertheless, in this study energy demand forecasting for all of the sectors of the economy has been undertaken using ARIMA, Holt-Winter and LEAP models. The results of ARIMA model have been validated through different tests as well. The energy demand forecast out of this study provides an outlook for likely energy system of Pakistan for the study period 2015–2035. The results of this study are anticipated to be of great help, as these are based on three different models, for energy planning and policy development. The demand forecast analysis pertained six sectors of the economy which are domestic, industrial, commercial, agriculture, transportation and other government sectors. The demand for all types of energy commodities in practice, i.e., electricity, natural gas, oil, coal and LPG were forecasted. The historical data from 1992 to 2014 pertaining energy consumption was used in all three models of this study to forecast energy demand for the study period (2015–2035). The industrial sector of the economy is projected to have the highest energy demand of 40.84 million TOE in 2035, followed by transport sector (18.94 million TOE) and domestic sector (16.32 million TOE). However, a major portion of the industrial sector energy demand will comprise of energy transformation at thermal power plants which is estimated to be 21.01 million TOE in 2035. The energy demand shares of each sector in total energy consumption varies significantly from the base year (2014) till the end of forecasting period (2035). The energy demand share of industrial sector various from 35 to 50%, transport sector from 32 to 23%, from 5 to 20% in domestic sector, from 2 to 1% in agriculture sector and from 2 to 1% in other government sector for the base year 2015 to end year of forecasting. The results further suggest that energy fuel mix will change such that oil will be the most highly used energy commodity (38.16%) followed by natural gas (36.57%), electricity (16.22%), coal (7.52%) and LPG (1.52%) in 2035.
Although, there are various energy demand forecasting models which are persistent in the literature with certain bounds and limitation pertaining data and other modeling parameters. As such, this study used three most widely used forecasting techniques aimed at comparing their results to arrive at a most consistent forecast. The analysis of forecasting results suggests that ARIMA model projection are most appropriate and in the similar pattern as that of in the literature. However, the negative results of demand forecast require careful consideration and it would be appropriate to analyses these estimated using LEAP model. Based on this study results, it is essentially important that government undertake an initiative to develop long term plan and policies to ensure energy supplies in the future to meet the increased demand. Evidently, the government has plans to import oil and gas through inter-regional pipe line projects to meet increased energy demand. However, the import based energy supplies cannot be termed sustainable. It is, therefore, very important that investment for harnessing renewable energy sources should be a priority to meet forecasted energy demand sustainably. This is on-going research work and the result of this study shall be used to develop a TIMES/MARKAL based integrated energy model for supply side as future work. The renewable energy potential of Pakistan shall be specifically considered in the proposed work. Finally, it is strongly recommended that government should also strengthen energy related institutes, bridge the gap between academia, industry, policy making Institutes to develop energy plan and policies based on solid research to promote energy security and sustainability.

Acknowledgments

This work was supported by National Key Research Program of China (2016YFC0502209), the National Natural Science Foundation of China (51522901), and the Fundamental Research Funds for the Central Universities. The authors extend deeper appreciation to the anonymous reviewers and editors for their constructive comments for improving the paper.

Author Contributions

Syed Aziz Ur Rehman, Yanpeng Cai, and Rizwan Fazal designed the study and undertook modelling work. Gordhan Das Walasai and Nayyar Hussain Mirjat analysed the model results, refined the technical aspects of the study, improved and finalized the manuscript. Rizwan Fazal and Syed Aziz Ur Rehman undertook data collection and management task alongside developing the preliminary write up of the study.

Conflicts of Interest

The authors declare no conflict of interest.
