Open AccessArticle
Energies 2017, 10(11), 1813;

Band Gap Tuning of Cu2ZnGeSxSe4-x Absorbers for Thin-Film Solar Cells

Zentrum für Sonnenenergie- und Wasserstoff-Forschung Baden-Württemberg, Meitnerstraße 1, 70563 Stuttgart, Germany
Author to whom correspondence should be addressed.
Received: 13 October 2017 / Revised: 3 November 2017 / Accepted: 6 November 2017 / Published: 9 November 2017
(This article belongs to the Section Energy Fundamentals and Conversion)
Full-Text   |   PDF [5134 KB, uploaded 9 November 2017]   |

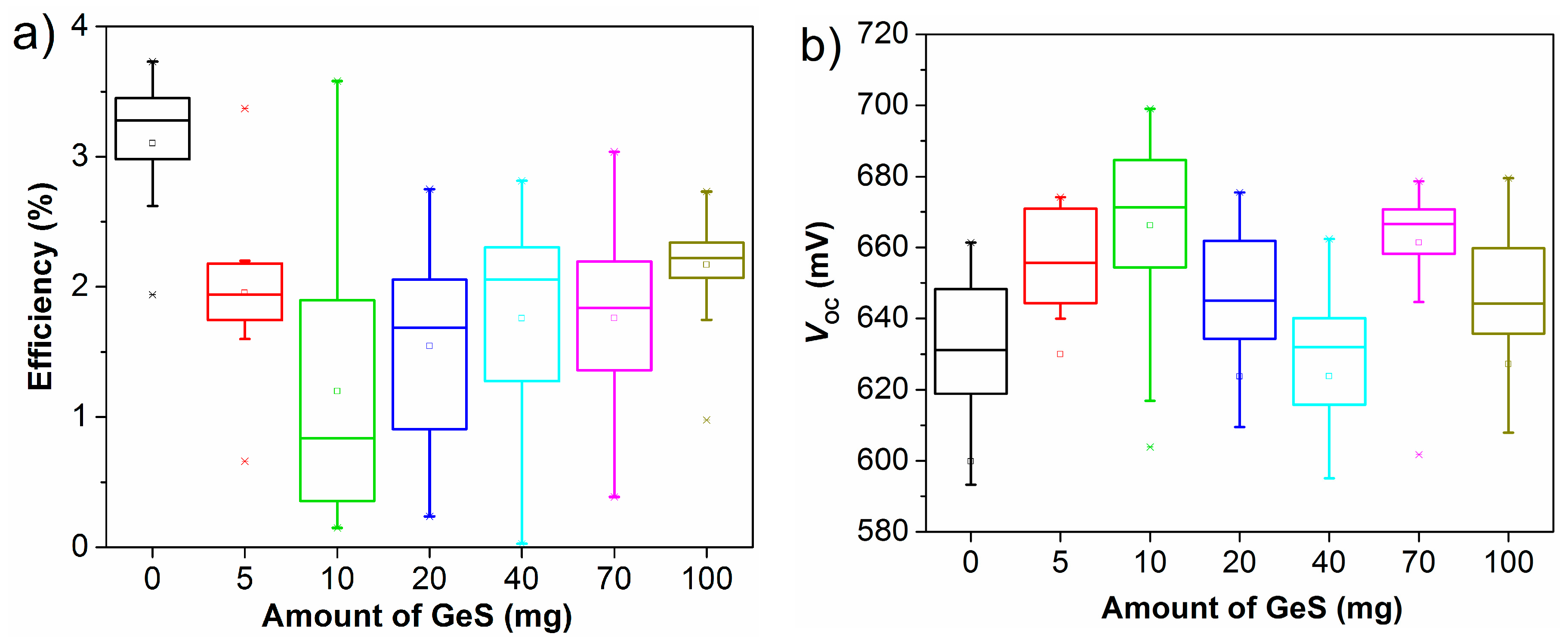

In this work, kesterite-type Cu2ZnGeSxSe4-x absorbers were prepared by a two-step process for use in thin-film solar cells. Their high band gap makes them an interesting candidate as top cells in multijunction solar cells. However, an exact tuning of the band gap is essential. Therefore, for the first time, the [S]/([S] + [Se]) ratio was controlled via addition of a variable amount of GeS during the annealing step, which allowed precise control of the band gap between 1.5 and 1.7 eV. The changes in morphology and crystallinity of the absorber are discussed in detail. An additional focus was directed toward the parameters of the resulting solar cells. Although the efficiency declined as the [S]/([S] + [Se]) ratio increases, the open-circuit voltage was considerably increased. View Full-Text
Keywords: thin-film solar cells; kesterite; CZGS; band gap thin-film solar cells; kesterite; CZGS; band gap

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Schnabel, T.; Seboui, M.; Ahlswede, E. Band Gap Tuning of Cu2ZnGeSxSe4-x Absorbers for Thin-Film Solar Cells. Energies 2017, 10, 1813.
