Complex Metal Hydrides for Hydrogen, Thermal and Electrochemical Energy Storage

Abstract

Hydrogen has a very diverse chemistry and reacts with most other elements to form compounds, which have fascinating structures, compositions and properties. Complex metal hydrides are a rapidly expanding class of materials, approaching multi-functionality, in particular within the energy storage field. This review illustrates that complex metal hydrides may store hydrogen in the solid state, act as novel battery materials, both as electrolytes and electrode materials, or store solar heat in a more efficient manner as compared to traditional heat storage materials. Furthermore, it is highlighted how complex metal hydrides may act in an integrated setup with a fuel cell. This review focuses on the unique properties of light element complex metal hydrides mainly based on boron, nitrogen and aluminum, e.g., metal borohydrides and metal alanates. Our hope is that this review can provide new inspiration to solve the great challenge of our time: efficient conversion and large-scale storage of renewable energy.

1. Introduction

The ultimate challenge of our time is the development of an environmentally friendly energy system based on sustainable renewable energy to replace our fossil fuel dependency. Fossil fuels are burnt and energy release is accompanied by release of carbon dioxide (CO₂), nitrogen oxides (NO_x), particles etc. and may locally lead to extreme air pollution and smog while climate changes are observed globally. Hence, the great challenge of our time is efficient conversion and large-scale storage of renewable energy for days, weeks, and maybe months [1]. However, renewable energy sources generally vary significantly over time and place [2]. Thus, the realization of this scenario calls for a range of novel ideas, technologies, and a paradigm shift in design and development of novel energy materials with new functionalities. Incremental improvement of known materials never changes the world, but just one new material may, since novel materials often form the basis for technological paradigm shifts. The chemistry of hydrogen is very diverse and a wide range of novel hydrides have been discovered during the past decade with a rich and fascinating structural chemistry and a range of useful properties, e.g., energy storage, which is the topic of this review.

Renewable energy occurs mainly as heat from the sun or electricity from sun or wind. Electricity can be used directly, stored in a battery, or used to split water to hydrogen and oxygen, see Figure 1.

Hydrogen (H₂), is the lightest element of all and also has some unique properties among known substances, e.g., the highest gravimetric energy density, the fastest diffusion speed in air, and a low density both as a gas and liquid. The latter makes hydrogen challenging to store in a dense manner. Figure 1 illustrates that maybe in the future, carbon dioxide from the atmosphere is reacted with hydrogen to create ‘carbon neutral’ hydrocarbons or carbohydrates. Oxidation of such hydrocarbons/carbohydrates will not increase the carbon dioxide level in the atmosphere. Sustainability means that all material cycles are closed, including our energy system. Therefore, all materials that we use must be reused as illustrated in Figure 1.

This review reveals metal hydrides as a diverse class of materials with a range of compositions, structures and properties towards multi-functionality. The focus is on light elemental hydrides, consisting mainly of boron, nitrogen or aluminum, which may be used for storage of hydrogen, solar heat or as novel battery materials. It is hoped that this review will provide new inspiration to create new materials and technologies for efficient conversion and large-scale storage of renewable energy.

2. Complex Metal Hydrides for High-Density Hydrogen Storage

Complex metal hydrides (CMHs) formed by light elements, such as boron, nitrogen, or aluminum often have extreme hydrogen densities but also poor thermodynamic and kinetic properties and limited reversibility [1,2,3,4]. Initially, the discovery of reversibility in titanium-catalyzed NaAlH₄ initiated a paradigm shift in hydrogen storage research towards complex anions [5]. Hence, research was extended to include metal borohydrides, e.g., LiBH₄ and nitrogen-based complex hydrides, e.g., LiNH₂ [6,7,8]. The complex hydride anions consist mainly of covalent bonds with well-defined directionality, whereas ionic bonding dominates in the solid state between the complex anions and counter cations, e.g., in LiBH₄, NaBH₄, and NaAlH₄. Solid state CMHs have high volumetric and gravimetric hydrogen densities (see

Table 1. Properties of selected light element complex metal hydrides [23,24]. M = molar mass; ρ = volumetric mass density; ρ_m = gravimetric hydrogen density; ρ_V = volumetric hydrogen density; ΔH_dec = decomposition enthalpy; T(1 bar) = equilibrium temperature at p(H₂) = 1 bar; T_dec = decomposition temperature.

	M (g/mol)	ρ (g/mL)	ρm (wt % H2)	ρV (g H2/L)	ΔHdec (kJ/mol)	T(1 bar) (°C)	Tdec (°C)	Ref.
LiBH4	21.78	0.66	18.4	122.5	74	370	~400	[25]
NaBH4	37.83	1.07	10.8	115.6	108	534	~500	[26]
LiAlH4	37.95	0.92	10.6	97.5	−10	-	~150 a	[27]
Li3AlH6	53.85	1.02	11.2	114.2	25	−81 c	~200 a	[27]
NaAlH4	54.00	1.28	7.3	93.4	33.1	18	~230 a	[28]
Na3AlH6	102.00	1.45	5.9	85.6	49.0	103	~275 a	[28]
LiNH2	22.96	1.18	8.8	103.6	67 b	-	~300	[29,30,31]

^a Not catalysed. Decomposition temperatures strongly depend on the physical conditions for the measurement and the published data scatter significantly; ^b Reported for the LiNH₂-LiH system; ^c Calculated based on the van’t Hoff equation using ΔS = 130 J/(mol K).

), which makes them interesting as hydrogen storage materials. However, the poor thermodynamic and kinetic properties only allow hydrogen release and uptake at elevated temperatures and pressures, which makes them unsuitable for portable applications. The hydrogen release pathway from complex hydrides is complicated compared to metallic and ionic hydrides, and thus remains not fully understood.

Amide-hydride composite systems, e.g., LiNH₂-LiH, has been investigated as possible candidates for hydrogen storage [7]. The LiNH₂-LiH composite has a high calculated hydrogen content of ρ_m = 10.5 wt % H₂ and releases hydrogen according to reaction scheme (1).

LiNH₂(s) + 2LiH(s) ↔ Li₂NH(s) + LiH(s) + H₂(g) ↔ Li₃N(s) + 2H₂(g)

(1)

The decomposition reaction initiates at T = 180 °C, which is lower than those of the individual reactants, i.e., 300 °C for LiNH₂ and 600 °C for LiH [7]. Thus, similar composite systems have been considered [9,10,11,12,13], e.g., Mg(NH₂)₂-2LiH (5.6 wt % H₂) with suitable thermodynamic properties (∆H_des = 39 kJ mol⁻¹ H₂, ∆S_des = 112 J K⁻¹ mol⁻¹ H₂), i.e., dehydrogenation may occur below 90 °C at p(H₂) = 1 bar [14]. However, experimental results reveal that T > 180 °C is required to achieve hydrogen release [9]. Addition of CaH₂ (8 mol %) catalyzes the reaction and decreases the activation energy, i.e., the decomposition begins at 78 °C [15]. Generally, the dehydrogenation of amide-hydride systems suffer from sluggish kinetics that might be caused by interface reactions, nucleation/nuclei growth, and/or diffusion processes. Mechanical milling was found to be effective in increasing the dehydrogenation kinetics, due to the reduced grain size and increased homogeneous distribution of amide and hydride particles [16,17]. An effective catalyst may significantly improve the kinetics. Recently, K₂[Zn(NH₂)₄] was synthesized by mechanochemical milling and the composite K₂[Zn(NH₂)₄]-8LiH showed release of 4.2 wt % H₂ below 400 °C [18,19,20]. Remarkably, the composite may be fully hydrogenated in 30 s at 230 °C and p(H₂) = 50 bar [18,19,20]. The LiAl(NH₂)₄-4LiH desorbs 5.0 wt % H₂ at 130 °C [21]. However, the instability of LiAl(NH)₂, one of the desorption products, prevents rehydrogenation [21]. Metal amides and metal hydroxides may also form solid solutions, such as in the NaNH₂-NaOH system [22].

2.1. Complex Aluminum Hydrides

2.1.1. Aluminum Hydride

Aluminum hydride (AlH₃, alane), is a promising hydrogen-storage material based on thegravimetric and volumetric hydrogen density of ρ_m = 10.1 wt % H₂ and ρ_V = 149 g H₂/L, respectively. Additionally, alane has a low hydrogen desorption temperature and fast desorption kinetics, whilst aluminum is abundant [32]. Alane is thermodynamically unstable at room temperature due to a positive Gibbs free energy of formation, ΔG_f° = 46.5 kJ/mol, however, the crystalline α-AlH₃ is kinetically stable at room temperature [33,34,35]. Alane was first synthesized in its pure form in 1947 [36]. Since then, a variety of six polymorphs of alane has been discovered (α, α′, β, γ, δ and ε) [37]. The obtained polymorph is entirely dependent on the chosen synthesis route [38]. The structures of α-, α′-, β-, and γ-AlH₃ consist of corner-sharing AlH₆ octahedra whereas γ-AlH₃ also possesses edge-sharing AlH₆ octahedra [37,39,40,41,42,43].

Alane can be produced directly from the elements by hydrogenation of aluminum. However, this synthesis method is impractical as it requires a hydrogen pressure above 25 kbar at room temperature [44]. Another synthesis method is by mechanochemical treatment at liquid nitrogen temperature (cryomilling, T = −196 °C) where a thermodynamically spontaneous metathesis reaction, ΔG_r° = −191 kJ/mol, between AlCl₃ and LiAlH₄ occurs (see reaction scheme (2)), producing several polymorphs of alane (α, α′, β, and γ-AlH₃) [40,45,46].

AlCl₃(s) + 3LiAlH₄(s) → 3LiCl(s) + 4AlH₃(s)

(2)

Furthermore, ball milling of AlCl₃ and LiAlH₄ at room temperature under hydrogen pressure (p(H₂) > 210 bar) only leads to formation of α-AlH₃ [47]. A solid state reaction is facilitated by thermal treatment at T ~ 75 °C followed by solvent extraction of LiCl [48]. The monomeric alane can also be stabilized as a solvate R∙AlH₃ (R = Et₂O, amines or tetrahydrofuran (THF)) by reaction in donating solvents such as ethers or amines [49,50]. Subsequently, the solvent can be removed from the AlH₃ adduct by heating in vacuum. Alane readily reacts with metal hydrides to form other complex hydrides [51], e.g., NaAlH₄, which will be discussed in the next section.

2.1.2. Metal Alanates

The potential of complex aluminum hydrides was seriously established with the discovery of titanium-catalyzed NaAlH₄ by Bogdanović in 1997 [5]. The system shows a reversible capacity approximately twice of any of the conventional metal hydrides [52]. The complex aluminum hydrides are based on the tetrahydridoaluminate(1−) or hexahydridoaluminate(3−) complex anion, AlH₄⁻ or AlH₆³⁻, respectively, which is commonly denoted alanates.

In the 1960s it was discovered that a range of alkali metal alanates can be prepared through direct hydrogenation of the alkali metal hydride (MH, M = Li, Na, K, Cs) and aluminum either in the solid state or in a solvent-mediated reaction [53,54]. The reaction is commonly described as a two-step reaction [55,56], see reaction schemes (3) and (4)

3MH(s) + Al(s) + 3/2H₂(g) ↔ M₃AlH₆(s)

(3)

M₃AlH₆(s) + 2Al(s) + 3H₂(g) ↔ 3MAlH₄(s)

(4)

However, the detailed reaction mechanism for different metal alanates is debatable and other intermediates may be involved [55,57].

LiAlH₄ (ρ_m = 10.5 wt % H₂) was synthesized in the late 1940s and is widely used as a reducing agent in organic chemistry [58], but it attained increased attention as a hydrogen storage material with the discovery of the titanium-catalyzed NaAlH₄. Thermolysis of LiAlH₄ is initiated by the melting of LiAlH₄, T_mp(LiAlH₄) = 125 °C [23], which subsequently decomposes into solid Li₃AlH₆ and Al accompanied by an exothermic release of hydrogen gas in the temperature range 150–220 °C [59,60]. The exothermic decomposition in this first step hinders the full reversibility of the system. The second decomposition step occurs around 190–260 °C as an endotherm [61,62]. Ball milling metal alanates tends to lower the decomposition temperature as particle size is reduced and defects are introduced. However, LiAlH₄ often decomposes during milling with additives, e.g., TiCl₃, VCl₃, and Fe [63,64,65,66]. Furthermore, addition of TiCl₃ only reduces the decomposition temperature but does not enable rehydrogenation [67]. A way to overcome the energy barrier preventing rehydrogenation of LiAlH₄ is to use a solvent-mediated synthesis route, hence LiH and Al stirred in, e.g., THF or Me₂O and apply hydrogen pressure as low as p(H₂) > 10 bar [68,69].

Sodium alanate, NaAlH₄ (ρ_m = 7.4 wt % H₂) is the most investigated metal alanate with moderate rehydrogenation conditions of titanium-catalyzed NaAlH₄ (at T = 170 °C, p(H₂) = 150 bar) [5]. However, the useful capacity is low (5.6 wt % H₂) and not ideal for consideration in mobile applications. Thus, a tremendous effort has been carried out in research to tailor the system, e.g., by addition of dopants or nanoconfinement [70,71,72,73,74,75,76,77]. Furthermore, NaAlH₄ has also been widely used as a precursor in metathesis reactions to synthesize new metal alanate compounds, e.g., Mg(AlH₄)₂, Ca(AlH₄)₂, Sr(AlH₄)₂, and Eu(AlH₄)₂ [78,79,80].

Potassium alanate, KAlH₄ (ρ_m = 5.7 wt % H₂), has a less understood mechanism of decomposition as compared to LiAlH₄ and NaAlH₄. The formation of an intermediate has been observed experimentally and a crystal structure and composition of K₃AlH₆ has been suggested by density functional theory (DFT) calculations [37,81,82,83]. In contrast, experimental observations suggest a K_yAlH_x compound with 1 ≤ y ≤ 3 and 4 ≤ x ≤ 6 [57]. The main advantage of KAlH₄ over LiAlH₄ and NaAlH₄ is the reversible hydrogen sorption at low pressure (<10 bar) and moderate temperature (250–300 °C) without the need of additives [84].

In general the alkali metal alanates are less stable than the alkali metal borohydrides with decomposition temperatures of 60 to 300 °C as compared to T > 350 °C, respectively [2,67]. Hence, they may more easily become a practical hydrogen storage material, but generally with lower gravimetric hydrogen storage capacity.

2.2. Metal Borohydrides

In 2003, lithium borohydride, LiBH₄, was proposed as a hydrogen storage material. Since then, a wide range of novel metal borohydrides has been discovered, due to the great coordination flexibility of the complex BH₄⁻ anion, which can act as a counter ion in the solid state, or coordinate to a metal via corner sharing (η¹), edge sharing (η²), or face sharing (η³) [3,85]. Metal borohydride structures appear to be related to structures of metal oxides, e.g., polymorphs of Ca(BH₄)₂ are isostructural to polymorphs of TiO₂ [85].

2.2.1. Monometallic Borohydrides

Lithium is one of the lightest elements and LiBH₄ has a high gravimetric and volumetric hydrogen density of ρ_m = 18.4 wt % H₂ and ρ_V = 122.5 g H₂/L, respectively [6,8,86,87]. The structure of LiBH₄ is orthorhombic (Pnma), o-LiBH₄, at room temperature whereas a first-order polymorphic transition into a hexagonal (P6₃mc) structure, denoted h-LiBH₄, occurs at T ~ 108 °C [8,86,88]. Both polymorphs contain relatively rigid, regular, and undistorted BH₄⁻ tetrahedra [89]. Furthermore, LiBH₄ melts at T ~ 275 °C and eventually decomposes at T > 350 °C into LiH and elemental B where the enthalpy change amounts to ∆H_dec = 74 kJ/mol H₂ [25]. The other alkali metal borohydrides MBH₄, M = Na, K, Rb and Cs have higher thermal stability and all crystallize in the Rock salt structure. Sodium borohydride is also stable in basic aqueous solutions, which has been used as a hydrogen storage media [90]. Alkali metal borohydrides are known to have the highest thermal stability, which hampers the possible application as hydrogen storage materials.

Only recently, the full series of alkaline earth metal borohydrides was completed with the discovery of Ba(BH₄)₂, Sr(BH₄)₂, and their chloride derivatives [91,92,93]. The alkaline earth metal borohydrides show decreasing degree of covalent and directional bonding in the series, Mg > Ca > Sr > Ba. Magnesium borohydride is known in seven different polymorphs and, remarkably, one of these, γ-Mg(BH₄)₂, has permanent porosity and 30 % of open space in the structure [94,95,96,97,98,99,100,101,102,103]. The heavier alkali earth metal borohydrides form three to four polymorphs [3].

A few transition metal borohydrides have also been described and those that are stable at room temperature have electron configurations d⁰, d⁵ or d¹⁰ [2], i.e., containing the metal ions, Sc³⁺, Y³⁺, Zr⁴⁺, Mn²⁺, Zn²⁺ or Cd²⁺. A few less stable transition metal borohydrides are also described, e.g., Ti(BH₄)₃ (d¹) which sublimes at T ~ 0 °C, or Fe(BH₄)₂ which is stable in solution (at T ~ −30 °C) and can be stabilized as [Fe(NH₃)₆](BH₄)₂ [104,105].

Some monometallic borohydrides form molecular solids and sublime at low temperatures, e.g., Al(BH₄)₃ and Zr(BH₄)₄, where the latter is the most stable, T_sub = 29 °C and may be prepared by vapour deposition [106].

2.2.2. Bimetallic Borohydrides

Lithium potassium borohydride, LiK(BH₄)₂, was the first discovered bimetallic borohydride [107,108]. Later, a range of lithium, rubidium, and caesium borohydrides were described while also a solid solution of Na_1−xK_xBH₄ was discovered [85,109]. These compounds have structures similar to their parent monometallic borohydrides.

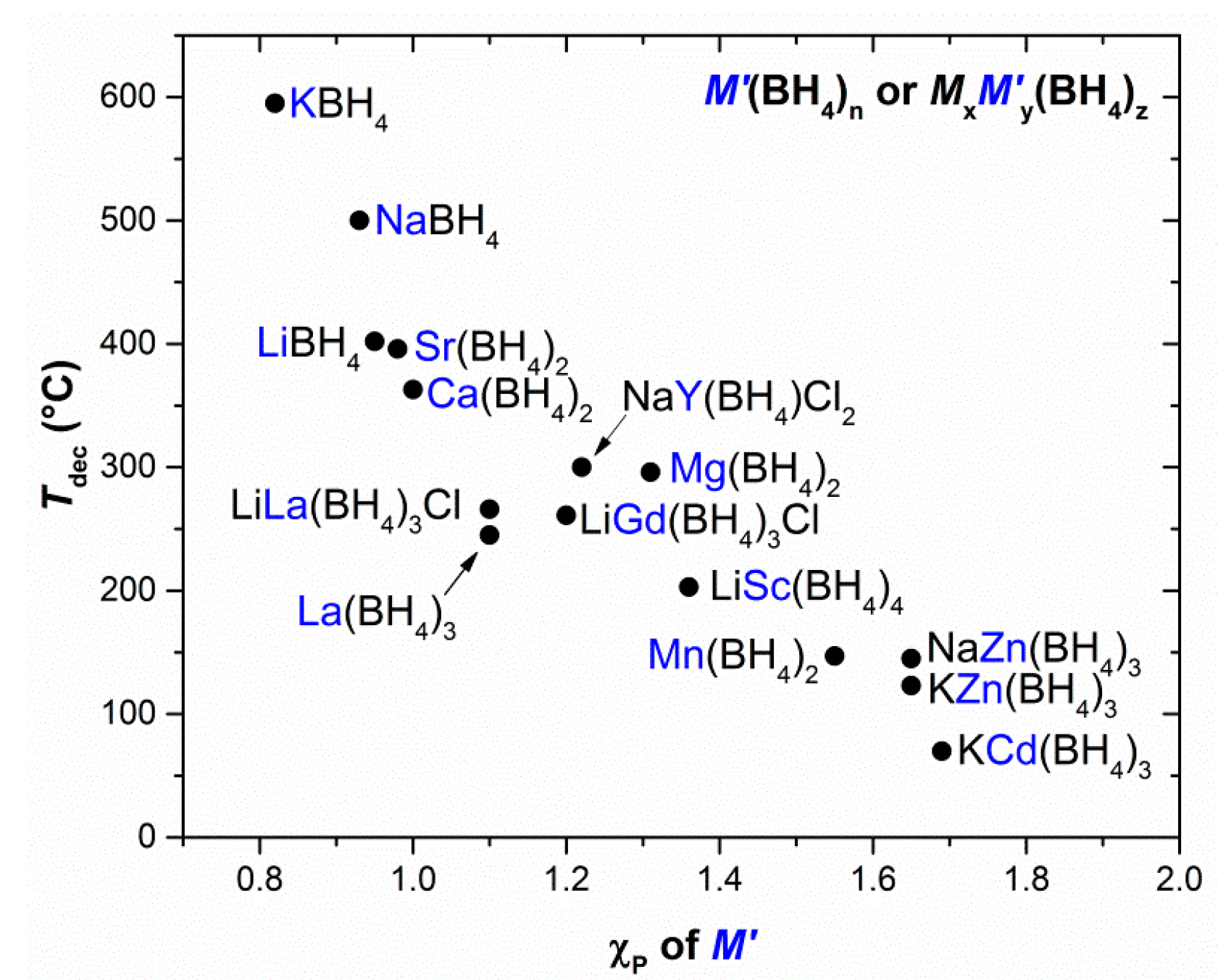

Bimetallic borohydrides, where the metals have increasing difference in Pauling electronegativity, have structures constructed of larger metal complexes with the most electronegative metal as the central ion and the less electronegative metal with dominantly ionic coordination. Thus, lithium scandium borohydride, LiSc(BH₄)₄, consists of [Sc(BH₄)₄]⁻ complexes and Li⁺ ions. Additionally, a relationship between the Pauling electronegativity of the metal cation and the thermal stability of the metal borohydride has been established as higher electronegativity results in lower decomposition temperature, see Figure 2 [2,110,111].

Sodium zinc borohydrides are known in two compositions, NaZn(BH₄)₃ and NaZn₂(BH₄)₅, which contain the complex ions [Zn(BH₄)₃]⁻ and [Zn₂(BH₄)₅]⁻, respectively. The latter can also be described as two identical interpenetrated three-dimensional frameworks [112,113,114]. Strong and directional Zn-BH₄ bonding by edge sharing (η²) is observed, which defines the structural architecture. The compound LiCe(BH₄)₃Cl, has a very unique structure consisting of tetranuclear anionic clusters [Ce₄Cl₄(BH₄)₁₂]⁴⁻ with a distorted cubane Ce₄Cl₄ core [3,115].

Perovskite structures have long been known for metal hydrides, e.g., CsCaH₃ and NaMgH₃ containing the anion H⁻ [117,118,119,120,121]. However, only recently the first perovskite-type metal borohydride, KMn(BH₄)₃, was reported, though followed up by extensive research reporting multiple new perovskite-type metal borohydrides containing the complex anion BH₄⁻, see also Figure 3 [116,122,123,124]. Structurally, the metal borohydride perovskites differ from regular oxide and halide ABX₃ perovskites as their polymorphic transitions are not always intuitively towards higher symmetry with increasing temperature. H-H repulsion between the BH₄⁻ ligands may in some cases result in lower symmetry.[123,125].

2.2.3. Trimetallic Borohydrides

The first trimetallic borohydrides, Li₃MZn₅(BH₄)₁₅, M = Mg and Mn, presented in 2013 [126], were prepared by partial cation substitution in LiZn₂(BH₄)₅ using the chemical knowledge that the ions, Li⁺, Mg²⁺, Mn²⁺, and Zn²⁺ share some chemical properties and may substitute for each other in the solid state. The two compounds, Li₃MZn₅(BH₄)₁₅, M = Mg and Mn, are isostructural with cation disorder in the hexagonal (P6₃/mcm) structure related to bimetallic LiZn₂(BH₄)₅ [126]. The five trimetallic compounds ALiM(BH₄)₄ (A = K or Rb; M = Mg or Mn) and K₃Li₂Mg₂(BH₄)₉ have negatively charged Li-Mg/Mn layered structures [127]. These trimetallic compounds have interesting structural relationships to aluminosilicates, e.g., KAlSi₃O₈ (feldspar), and may open new research directions, e.g., preparation of zeolite-like metal borohydrides. Similarly, zeolites contain three-dimensional negatively charged Al-Si-O networks [127]. Double perovskites LiA₂M(BH₄)₆ have been observed for large alkali metals A = Rb, Cs and M = Y, Ce, Gd while the smaller alkali metal A = K stabilizes the garnet-type structure Li₃K₃M₂(BH₄)₁₂ for M = La, Ce [128,129].

2.2.4. Metal Borohydrides Modified by Neutral Molecules

Metal borohydrides have been modified with neutral molecules in order to improve hydrogen release and uptake properties [3]. Nitrogen-based molecules have attracted significant attention, e.g., ammonia, NH₃, hydrazine, N₂H₄, and ammonia borane, NH₃BH₃, in order to introduce dihydrogen bonding via partly positively charged hydrogen atoms, e.g., B–H^δ−⋯^+δH–N in the solid state. Dihydrogen bonding is explored for tailoring thermal stability and decomposition. Trends in composition, structure, and properties for a range of new ammine metal borohydrides, M(BH₄)_m∙nNH₃, have been investigated recently. The interest in ammine metal borohydrides has increased tremendously during the past ~5 years [3,4]. The number of BH₄⁻ anions (m) in the compounds is fixed and determined by the oxidation state of the metal, whereas the number of NH₃ ligands (n) may range from 1 to 8, e.g., Ca(BH₄)₂∙NH₃ and Zr(BH₄)₄∙8NH₃ [130,131]. In all cases the ammonia molecule, NH₃, coordinates via the lone pair on N to the metal, and the BH₄⁻ anions coordinate in a more flexible way (η⁰–η³). The most extensive series of crystalline ammine metal borohydride is formed by Y(BH₄)₃∙nNH₃ (n = 1, 2, 4, 5, 6 and 7), which illustrates the great structural flexibility ranging from cation complexes (n = 6 and 7), molecular neutral complexes (n = 4 and 5), one-dimensional chain like (n = 2), and two-dimensional layered structure (n = 1) [132].

Ammine metal borohydrides have been considered promising hydrogen storage materials, e.g., Al(BH₄)₃∙6NH₃, Li₂Al(BH₄)₅∙6NH₃, and Zn(BH₄)₂∙2NH₃ release 9 to 12 wt % H₂ in the temperature range 115 to 170 °C with traces of NH₃ [133,134,135].

Interestingly, ammonia has a destabilizing effect for metal borohydrides with low metal electronegativity (χ_p < ~1.6) and a stabilizing effect for those with χ_p > ~1.6. Thus the latter are often more thermally stable than their respective metal borohydride [104,130]. The stabilization may be due to complex formation and a shielding effect of the metal cation, which would otherwise be reduced to the metallic state, e.g., Zn(BH₄)₂∙4NH₃ and Zn(BH₄)₂∙2NH₃ [135].

Previously, a low NH₃/BH₄⁻ ratio (n/m ~ 1) and strong dihydrogen bonds were assumed to provide H₂ rich (and NH₃ poor) gas release during thermolysis. However, recent experimental results disagree with this hypothesis [130,132,136]. The composition of the released gas appears to depend on the thermal stability of the ammine metal borohydride, i.e., if it is similar to or higher than the thermal stability of the corresponding metal borohydride, then H₂ is released. In contrast, mainly NH₃ is released if the thermal stability of the ammine metal borohydride is significantly lower than the corresponding metal borohydride. For instance, the compounds, M(BH₄)_m∙nNH₃, M = Al, Zn, Zr, and V, release H₂ (and maybe some NH₃), e.g., Al(BH₄)₃∙6NH₃ releases H₂ and a small amount of NH₃ at T ~ 165 °C [131,133,135,137].

Ammonia borane metal borohydride compounds have also been investigated, M(BH₄)_m∙nNH₃BH₃, M = Li, Mg, Ca, or Al [138,139,140,141,142]. They tend to separate during thermal treatment and NH₃BH₃ decomposes at T > 200 °C and the release of the toxic gasses is not suppressed, as observed for metal amidoboranes, M(NH₂BH₃)_m [143]. An interesting amidoborane is the complex Na[Al(NH₂BH₃)₄] which was found to reversibly absorb 1.7 mole of H₂, although between two amorphous decomposition states [144]. Replacement of the Na⁺ ion with a K⁺ ion results in similar thermal decomposition temperatures. However, the reversibility seem to be disabled by this cation substitution [145].

3. Complex Metal Hydrides for Electrochemical Applications

Ni-metal hydride (Ni-MH) batteries have been used commercially in portable electrical devices since the early 1990’s. The cathode consists of Ni(OH)₂, while the anode is a MH and the electrolyte is an alkaline solution [146]. The overall reaction is:

MH + NiOOH ↔ M + Ni(OH)₂ M: Hydrogen storage alloy

(5)

The LaNi₅-based AB₅ type alloy was modified and commercially used as negative electrodes for Ni-metal hydride batteries [147]. Even though the energy densities of these batteries are smaller than those of Li-ion batteries, they still play an important role in the market, especially for hybrid and fuel cell vehicles. Furthermore, several metal hydrides have been proposed as conversion type electrodes and others as electrolytes for complete solid state batteries. Different properties of metal hydrides have also been highlighted elsewhere [148].

3.1. Metal Hydrides as Electrode Materials

In 2008 use of metal hydrides as conversion type anodes in Li-ion batteries was proposed for the first time by Oumellal et al. [149]. In this concept, hydrides store lithium through the following general conversion reaction:

MH_n + nLi → nLiH + M  M: Metal or intermetallic hydride

(6)

The first investigation in 2008 focused on MgH₂ as the anode material, but the study also showed successful conversion reactions for TiH₂, NaH, LaNi_4.25Mn_0.75H₅ and Mg₂NiH_3.7. The high theoretical capacities of the hydrides (e.g., 2038 mAh/g for MgH₂, i.e., more than five times that of graphite) naturally caused significant interest for this new class of anodes. Furthermore, the investigation revealed that magnesium hydride exhibits smaller cell polarization (ΔV between charge and discharge) than any of the other previously investigated conversion type electrodes (e.g., electrodes based on nitrides, sulfides and oxides) [149]. Unfortunately, hydride materials show limitations in their initial capacity (relative to the theoretical values) and large capacity loss upon cycling, which is subscribed to poor electronic conductivity and the large volume change occurring in the electrode during cycling, which may lead to poor contact. The capacity of MgH₂ can be improved by limiting the amount of inserted lithium [149], through careful formulation (e.g., choice of binder) and choice of electrolyte. Hereby, a capacity retention for MgH₂ of 542 mAh/g over 40 cycles has been achieved [150]. Subsequently, several studies have investigated Li-ion storage in MgH₂ [151,152,153,154,155,156,157,158], TiH₂ [159,160], AlH₃ [151,161], M-LiH (M = Mg, Ti) [162] and TiH₂-MgH₂ [163] composites as well as a series of Mg-based complex hydrides such as Mg₂FeH₆, Mg₂CoH₅ and Mg₂NiH₄ [164]. For detailed descriptions of these results we refer to other reviews [165,166].

Li-ion storage through conversion reactions in lithium and sodium alanate, LiAlH₄ and NaAlH₄, were investigated for the first time in 2015 [161,167,168]. The theoretical capacity for these materials is ~2000 mAh/g when considering reaction with 3 Li equivalents and full reduction to LiH and metallic aluminium. Silvestri et al. [168] obtained an initial discharge capacity of 1180 mAh/g for LiAlH₄, corresponding to storage of 1.67 Li equivalent, at discharge potentials dominated by extended plateaus at 0.78, 0.26 and 0.16 V versus Li. The conversion reaction has been shown by powder X-ray diffraction to occur through the following steps:

2LiAlH₄ + 3Li⁺ + 3e⁻ → Li₃AlH₆ + Al + 2LiH

(7)

Li₃AlH₆ + 3Li⁺ + 3e⁻ → Al + 6LiH

(8)

The formation of Al results in formation of the LiAl alloy according to the following reaction, which is predicted to occur below 0.29 V [168].

Li⁺ + e⁻ + Al → LiAl

(9)

The reversible capacity in the first charge is less than 1/3 of the capacity in the first discharge with the alloying/de-alloying reaction being responsible for the majority of the reversible capacity.

For NaAlH₄ anodes initial capacities of 1700–1800 mAh/g can be achieved according to Reale et al. [167] with the majority of the Li storage reaction taking place at potentials <0.45 V. High energy ball milling with conductive carbon (Super P) for 15 h improves the reversible capacity in the first cycle from less than 30% to almost 70%. The discharge mechanism is still not completely agreed upon. In general, multiple reaction steps are reported and the bi-alkali hexa-alanate, LiNa₂AlH₆ is a common intermediate [161,167].

NaAlH₄ + 3/2Li⁺ + 3/2 e⁻ → 1/2LiNa₂AlH₆ + 1/2Al + LiH

(10)

LiNa₂AlH₆ + 5Li⁺ + 5 e⁻ → 2Na + Al + 6LiH

(11)

However, Reale et al. [167] also observed formation of the sodium hexa-alanate, Na₃AlH₆ (Equation (12)), which is suggested to be a competitive process affected by kinetic limitations. Formation of Na₃AlH₆ during discharge was also confirmed in a separate study through ²³Na and ²⁷Al solid state NMR [169].

3NaAlH₄ + 6Li + 6 e⁻ → Na₃AlH₆ + 6LiH + 2Al

(12)

Reale et al. also used the hexa-alanates Na₃AlH₆ and LiNa₂AlH₆ directly as anodes, which were found to behave similarly to the alanates.

Recently, attempts were made to improve the reversibility of NaAlH₄ by nanoconfinement in mesoporous carbon scaffolds [170,171]. Nanoconfinement seems to alter the conversion mechanism by enhancing the conversion from NaAlH₄ to Na₃AlH₆. Also it appears to increase the capacity retention of the system, however the results suggests that the majority of the long term capacity stems from the carbon scaffolds [171].

Metal borohydrides have very high theoretical capacities, e.g., 4992 mAh/g for LiBH₄ and thus have great potential as future anode materials. However, only a few studies of borohydride-based anodes exists [172,173]. Theoretical calculations predict that Li-conversion reactions are thermodynamically feasible for a long list of metal borohydrides both through a one-step mechanism with direct formation of the metal, elemental boron and lithium hydride, or through a two-step reaction with formation of a metal hydride as an intermediate. In the same investigation, five mono-metallic borohydrides, M(BH₄)_n (M = Li, Na, K, Mg and Ca) were tested as anodes in Li-ion batteries. Ca(BH₄)₂ appears to be electrochemically inactive, and for LiBH₄ and KBH₄ capacities below 75 mAh/g were achieved in the first discharge. Mg(BH₄)₂ and NaBH₄ exhibited initial capacities of ~540 and 250 mAh/g, which is well below their theoretical capacities of 3971 and 2834 mAh/g, respectively. Furthermore, the reversible capacity in the second discharge is less than 50%. Thus, it appears that metal borohydride based systems require further improvements in order to yield results comparable to those obtained for the metal alanates.

3.2. Complex Metal Hydrides as Electrolytes

Metal borohydrides have recently been employed as a new class of solid-state electrolytes for batteries [174,175] and the main advantages of light-weight CMHs are: (i) low material density compared to similar oxides and chalcogenides (can be two to three times lower); (ii) thinner solid state electrolytes, hence (i) and (ii) provide higher battery energy density; (iii) safer batteries because flammable organic ionic liquids and polymeric electrolytes are avoided; and (iv) easier assembly of all-solid-state batteries [176].

Research on metal borohydrides and derivatives, oxides and chalcogenides as solid state electrolytes have been mainly focused on monovalent alkali metals, Li⁺ and Na⁺. Indeed, multivalent cations, e.g., Mg²⁺, Ca²⁺, and Al³⁺, may further increase the energy density of solid state batteries. However, development of fast ion conductors for these cations is challenging due to much larger charge density as compared to mono-valent cations. Therefore, very large, low charge density anions, such as closo-boranes, B₁₂H₁₂²⁻, or closo-carboranes, CB₁₁H₁₂⁻, may prove useful for design of new electrolytes.

The high-temperature polymorph h-LiBH₄ was among the first metal hydrides to be discovered as fast ion conductors with Li⁺ conductivity of the order of 10⁻³ S cm⁻¹ at T > 115 °C [177]. Attempts to stabilize the high-temperature polymorph at room temperature were successful by halide-substitution of the borohydride group, i.e., h-Li(BH₄)_1−xI_x [178,179,180]. Reversible Mg stripping/plating has been demonstrated using Mg(BH₄)₂ as an electrolyte in THF and dimethoxyethane solutions [181]. However, the conductivity of solid state Mg(BH₄)₂ is very low (<10⁻¹² S cm⁻¹ at 30 °C) [182] but may be enhanced in double anion compounds, e.g., Mg(BH₄)(NH₂) has a Mg²⁺ conductivity of 1 × 10⁻⁶ S cm⁻¹ at T = 150 °C [183]. Recently, the addition of ethylene diamine, NH₂(CH₂)₂NH₂ (en), to Mg(BH₄)₂ resulted in the formation of cis-Mg(en)(BH₄)₂ which shows ion conductivity between 5 × 10⁻⁸ and 6 × 10⁻⁵ cm⁻¹ in the temperature range 30 to 70 °C, respectively [182]. So far, the most promising compounds are Na₂B₁₀H₁₀ and Na₂B₁₂H₁₂, which show superionic conductivity in the high-temperature polymorphs (phase transition at 87 and 207 °C, respectively) with Na ion conductivity of ~0.01 and 0.1 S cm⁻¹, respectively [184,185].

Intermolecular anion substitution in metal borohydrides has been explored as a valuable technique for tailoring physical and chemical properties [3]. The heavier halides have provided a wide range of metal borohydride halides with either fully ordered, e.g., KZn(BH₄)₂Cl or Sr(BH₄)Cl [92,186], partly ordered, e.g., NaY(BH₄)_2−xCl_2+x [187,188], or disordered structures, e.g., K₂Zn(BH₄)_xCl_4−x [189]. The smaller fluoride ion can substitute for the hydride ion, i.e., intramolecular anion substitution, F⁻ → H⁻, in the BH₄⁻ complex and the composite NaBH₄-NaBF₄ provided the first fluorine-substituted borohydride, NaBH_2.1F_1.9, observed in the temperature range of 200–215 °C [190,191].

Recently, a new class of Li ion conductors was discovered, LiRe(BH₄)₃Cl, Re = La, Ce, Pr, Nd, Sm, Gd, with an interesting new structure type [115,192,193,194]. The structure reveals disordered Li⁺ ions that occupy only 2/3 of the 12d Wyckoff sites, but a fully ordered anion lattice. The Li⁺ ion conductivity for LiCe(BH₄)₃Cl was measured to be 1.03 × 10⁻⁴ S cm⁻¹, at 20 °C [115]. Additionally, solid-state ¹H, ¹¹B, and ⁷Li NMR measurements of spin-lattice relaxation rates of LiLa(BH₄)₃Cl reveal two types of dynamics on the same frequency scale, i.e., Li-ion diffusion and reorientational motion of BH₄⁻ groups. Therefore the Li-ion diffusion and the dynamics of BH₄⁻ complexes appear to be correlated, which suggests a paddle wheel mechanism is responsible for fast ionic mobility [195,196]. Anion substitution in this class of materials is also possible, i.e., LiLa(BH₄)₃X, X = Cl, Br, I, which may open new possibilities for improvement of ion conductivity by tailoring the structural aperture for cation diffusion in the solid materials [197,198].

New types of double anion hydride-oxides, i.e., containing BH₄⁻ and BO₃³⁻, have also been discovered recently [199,200], which may suggest formation of new types of hydrides containing, also SO₄²⁻, PO₄³⁻, or PS₄³⁻, which may be compatible with known electrode materials.

A new class of silver closo-boranes was discovered recently, Ag₂B₁₂H₁₂ and Ag₂B₁₀H₁₀, with high ion conductivities. Anion substitution with iodine stabilizes a high temperature polymorph with ion conductivity up to 3.2 mS cm⁻¹ at room temperature [201]. Partly or fully halogenated closo-boranes may in future be useful to create new materials with higher conductivities [202,203].

Substitution of a boron atom with a carbon atom in closo-boranes leads to the formation of closo-carboranes, e.g., CB₁₁H₁₂⁻ with even lower charge density. Particularly, LiCB₁₁H₁₂, and NaCB₁₁H₁₂ have lower polymorphic transition temperatures (127 and 107 °C, respectively) compared to the analogues Li₂B₁₂H₁₂ and Na₂B₁₂H₁₂ (342 and 256 °C, respectively) while showing some of the most promising Li and Na ion conductivities of >0.1 S cm⁻¹ yet observed [204].

4. Complex Metal Hydrides for Thermal Energy Storage

There are thousands of metals, metal alloys and compounds that can reversibly react with gaseous hydrogen [205] at temperatures as low as −100 °C (TiCr_1.9H_3.5 [206]) and as high as 1100 °C (LaH_x [207]). The absorption of hydrogen is an exothermic process that releases heat while the desorption of hydrogen is an endothermic process that absorbs heat and the direction of the reaction can be controlled by changing either the hydride temperature or hydrogen pressure. This property of metal hydrides means that they can be exploited for a wide range of closed-loop energy storage and energy transformation applications including as; H₂ compressors; hydride heat engines, actuators and temperature sensors; thermochemical heat storage; heat pumping and thermally driven refrigeration. In fact, many of the relevant engineering principles were developed and proven during the 1970s and 1980s based on the high-cost, low capacity intermetallic hydrides known at the time. Extensive reviews on the progress of metal hydrides for these applications have been published [208,209,210,211]. However, a consistent road block to the commercialisation of metal hydrides for these applications has been the relatively low H₂ capacity and high cost of traditional intermetallic hydrides based on transition metals [210].

With the commercialization of concentrating solar power plants (CSPs) incorporating molten nitrate salts heat storage and, in conjunction with the U.S. Department of Energy SunShot Initiative to drive down the cost of solar electricity [212], there has been a renewed focus on the potential of low-cost, high-temperature metal hydrides to be the second generation of CSP heat storage materials that can operate at temperatures above 600 °C [213,214,215,216,217]. This is because the thermochemical heat storage capacity of metal hydrides can exceed the sensible heat storage capacity of molten salts by a factor of >10 [216]. In fact, the theoretical thermochemical heat storage capacity of some metal hydrides, such as LiH and CaH₂, are only exceeded by methane reforming reactions [214,218]. Specific details about the energy cycle for using metal hydrides as high temperature heat storage materials for CSP can be found elsewhere [67,214,219,220,221,222]. Besides the intermetallic hydrides first considered for heat storage in the 1970s and 1980s, most of the research on metal hydrides for high temperature heat storage (T > 400 °C) has focused on a few particular sub-sets. These include: simple binary/ternary hydrides and their partially fluorinated analogues [216], such as MgH₂ [223,224,225,226,227], NaH/NaH_1−xF_x [215,228], NaMgH₃/NaMgH₂F [229,230], and TiH_x [213]; destabilized binary hydrides, such as LiH-Al [231], xLiH-Si [232,233], and CaH₂-Al [234] and; complex transition metal hydrides, such as Mg₂NiH₄ [235,236], Mg₂FeH₆ [236,237], Mg₂CoH₅, and Mg₆CoH₁₁ [236]. The high thermodynamic stability in conjunction with their high hydrogen capacity make CMHs intriguing candidates as thermochemical heat storage materials for CSP and for industrial waste heat recovery and utilization. Despite this, CMHs have rarely been considered for heat storage applications with examples in the literature limited to: the Li₂NH/Li₄NH system [238]; Na₃AlH₆, Na₂LiAlH₆ and K₂NaAlH₆ [215] and; 6LiBH₄ + CaH₂ [239].

For this review, we have used the thermodynamic data reported in the literature for the H₂ absorption/desorption from CMHs to calculate properties relevant for heat storage, Figure 4a,b and

Table 2. Properties of complex metal hydrides compared to selected heat storage materials. * Volumetric heat storage capacity (in kJ/L) calculated based on the room-temperature crystalline density of materials unless otherwise noted. ^# The operating temperature ranges correspond to H₂ equilibrium pressures that range between 1 bar and 150 bar unless otherwise noted.

Hydride Materials	Theoretical H2 Capacity (wt %)	ΔHdes/ΔHabs (kJ/mol·H2)	kJ/kg	* kJ/L	# Operating Temperature Range (°C)
NaAlH4 ↔ ⅓Na3AlH6 + ⅔Al + H2(g)	3.73	38.4/−35.2 [243]	651.8	808.3	25 a–202 b
Na3AlH6 ↔ 3NaH + Al + 3/2H2(g)	2.96	47.6/−46.1 [243]	678.0	983.0	100–290
LiNa2AlH6 ↔ 2NaH + LiH + Al + 3/2H2(g)	3.52	54.95/n.a. [244,245]	959.0	1371.4	135–315
NaK2AlH6 ↔ 2KH + NaH + Al + 3/2H2(g)	2.25	98.0/−98.0 [246]	1095.3	1818.1	380–600 c
KAlH4 + LiCl↔KCl + LiH + Al + 3/2H2(g) [247]	2.69	37.6/−37.6 d	501.2	728.2	111–396
KAlH4 + NaCl ↔ KCl + NaH + Al + 3/2H2(g) [247]	2.35	62.3/−62.3 d	726.6	1111.8	334–574 e
Mg(NH2)2 + 2LiH ↔ Li2Mg(NH)2 + 2H2(g)	5.58	38.9/n.a. [14]	2086.3	2166.5	75–280
LiNH2 + LiH ↔ Li2NH + H2(g)	6.52	64.5/n.a. [30,248]	912.6	2086.1	270–375 f
CaNH + CaH2 ↔ Ca2NH + H2(g)	2.07	n.a./−88.7 [7]	1077.8	1257.8	590–780 g
LiBH4(l) ↔ LiH + B + 3/2H2(g)	13.88	57.3/−57.3[240]	3945.7	2634.9	460–688 h
LiBH4(l) ↔ LiH(l) + B + 3/2H2(g)	13.88	71.7/−71.7 [240]	4936.2	3296.3	688 h–1000+
NaBH4 ↔ Na(l) + B + 2H2(g)	10.66	97.9/−97.9 [241]	5176.0	5559.1	~507.5 i
KBH4 ↔ K(l) + B + 2H2(g)	7.47	114.6/−114.6 [241]	4250.1	4985.9	~615.5 j
2LiBH4 + MgH2 ↔ 2LiH + MgB2 + 4H2(g)	11.54	48.3/−48.3 k	2766.6	2308.0	205–467 l
NaH ↔ Na(l) + 1/2H2(g)	4.20	116.8/−116.8 m	2433.5	2355.7	427–638 m
MgH2 ↔ Mg + H2(g)	7.66	74.1/−74.1 [249]	2813.2	3994.7	282–534 n
Mg2NiH4 ↔ Mg2Ni + 2H2(g)	3.62	64.6/n.a. [235]	1159.7	3142.7	253–523
Mg2FeH6 ↔ 2Mg + Fe + 3H2(g)	5.47	77.4/−77.4 [237]	2101.1	5757.0	300–566
TiH1.6 ↔ TiH1.0 + 0.3H2(g)	1.22	n.a./−165.5 o	1003.2	3772.0	645–921
Other Thermochemical Materials (TCM)		ΔHdes/ΔHabs (kJ/mol Gas Species)	kJ/kg	kJ/L	Temperature Range (°C)
CaCO3 ↔ CaO + CO2(g)		178/−178 [218]	1764	4982.4	700–1000 p
Ca(OH)2 ↔ CaO + H2O(g)		104/−104 [218]	1404	3146.4	350–900 q
2Co3O4 ↔ 6CoO + O2(g)		205/−205 [218]	864	2124	700–850 r
2BaO2 ↔ 2BaO + O2(g)		77/−77 [218]	468	2361.6	400–1025 s
Phase Change Materials (PCM)		ΔHmelt/ΔHfusion (kJ/mol)	kJ/kg	kJ/L	Melting Point (°C)
Al ↔ Al(l)		10.7/−10.7 [241]	397	1071.9	660
LiF ↔ LiF(l)		27.0/−27.0 [250]	1041	2747.2	849
LiCl ↔ LiCl(l)		19.9/−19.9 [241]	469.3	969.6	610
NaCl ↔ NaCl(l)		28.2/−28.2 [250]	482	1033.4	801
Sensible Heat Materials (SHM)		Specific Heat (kJ/kg·K)	kJ/kg	kJ/L	Temperature Range (°C)
60 wt % NaNO3(l), 40 wt % KNO3(l) [212]		1.59 t	436.3	958.6 (802.8 u)	290–565
60 wt % NaNO3(l), 40 wt % KNO3(l) [212]		1.59 t	174.5	383.4 (321.1 u)	290–400

“n.a.” = data not available. ^a The lower temperature limit is based on the thermodynamics of the system. In practice, however, temperatures above ~100 °C are required for reasonable kinetics. ^b NaAlH₄ is molten above 183 °C [243]. ^c Upper temperature potentially limited by melting point of NaH, ~638 °C [241], and KH, ~619 °C [241], decomposition products. There are some indications that NaH and KH may also form a eutectic melt at a temperature as low as 280 °C [246]. ^d There are some discrepancies in the reported thermodynamics for KAlH₄. The enthalpy of formation of KAlH₄, ∆H_f° = −175.4 kJ/mol, was taken as the average of the values reported in [241,251] while the entropy of KAlH₄, S° = 120.9 J/mol·H₂·K, was taken as the average of the values reported in [241,252]. ^e At ~574 °C, decomposition directly to liquid sodium metal rather than solid NaH becomes thermodynamically preferred according to the reaction KAlH₄ + NaCl ↔ KCl + Na(l) + Al + 2H₂(g). The H₂ equilibrium pressure at this temperature is ~33.2 bar. ^f Limited to melting point of LiNH₂ = 375 °C [253]. ^g Calculated up to the α-CaH₂ to β-CaH₂ phase transition at 780 °C [241]. At this temperature, the H₂ equilibrium pressure for the CaNH + CaH₂ ↔ Ca₂NH + H₂(g) system is ~10.0 bar. The H₂ equilibrium pressure for the 6LiBH₄(l) + CaH₂ ↔ 6LiH(l) + CaB₆ + 10H₂(g) system is ~132.4 bar. ^h The melting point of LiH is ~688 °C. The enthalpy and entropy of melting are ∆H_m = 21.8 kJ/mol and ∆S_m = 22.6 J/mol.K, respectively [241]. ⁱ The melting point of NaBH₄, 507.5 °C, is taken as the average of reference values [254,255]. This temperature corresponds to an H₂ equilibrium pressure of ~0.26 bar [241]. The thermodynamics of molten NaBH₄ have not been experimentally determined. ^j The melting point of KBH₄, 615.5 °C, is taken as the average of reference [254,255]. This temperature corresponds to an H₂ equilibrium pressure of ~0.23 bar [241]. The thermodynamics of molten KBH₄ have not been experimentally determined. ^k Thermodynamic data source for: (1) LiBH₄ is reference [240]; (2) Mg is reference [241]; (3) MgH₂ is reference [256] and; (4) MgB₂ is reference [257]. ^l At 467 °C, the H₂ equilibrium pressure is ~57.8 bar for the reaction between 2LiBH₄ and MgH₂. Above this temperature the direct decomposition of MgH₂ becomes thermodynamically preferred which is then followed by the reaction of metallic Mg with LiBH₄(l). ^m Data is for solid NaH up to its melting point ~638 °C [207,241]. The H₂ equilibrium pressure at this temperature is ~106.5 bar. ⁿ Practical maximum operating temperature limited to ~400 °C due Mg sintering and capacity loss above this temperature [258]. ^o Enthalpy and entropy for the reaction TiH_1.6−TiH-0.3H₂(g) calculated using data extracted for 527 °C ≤ T ≤ 707 °C from Figure 2 on p 241 of [207]. ^p The operating temperature range corresponds to a CO₂(g) partial pressure of between 0 and 10 bar [218]. ^q The operating temperature range corresponds to a H₂O(g) partial pressure of between 0 and 2 bar [218]. ^r The operating temperature range corresponds to a O₂(g) partial pressure of between 0 and 1 bar [218]. ^s The operating temperature range corresponds to a O₂(g) partial pressure of between 0 and 10 bar [218]. ^t Weighted average of the values for NaNO₃(l) (1.83 kJ/kg·K), and KNO₃(l) (1.22 kJ/kg·K), respectively [259]. ^u Due to the substantial volume change upon melting, the volumetric heat storage capacity calculated at 400 °C, ρ = 1.84 g/cm³ [260], has also been included for 60 wt % NaNO₃/40 wt % KNO₃.

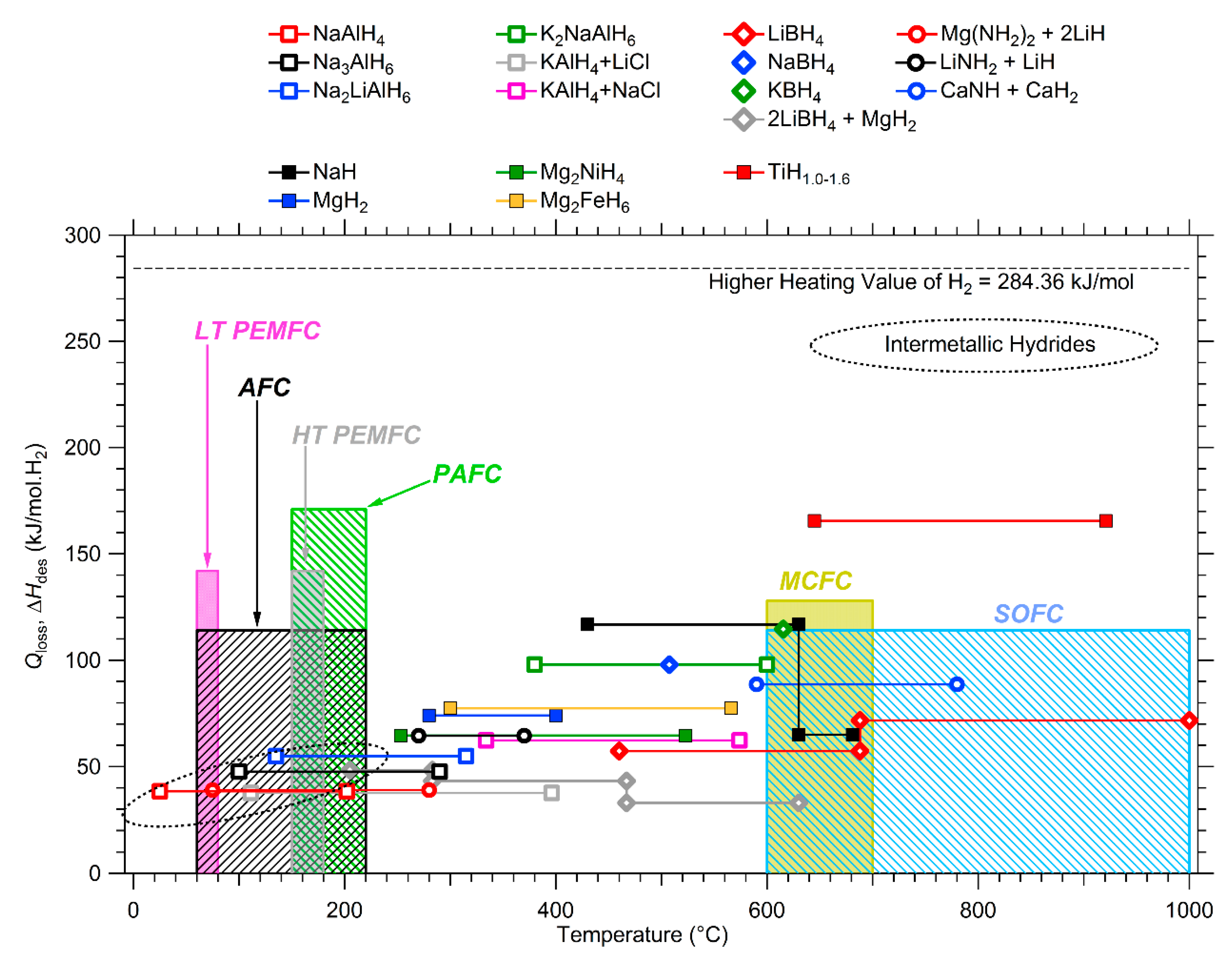

. Figure 4a shows the theoretical gravimetric and volumetric heat storage capacities of 15 CMH systems compared to other well-known: (1) thermochemical heat storage materials (TCMs) based on metal hydrides, carbonates, hydroxides and oxides; (2) phase change materials (PCMs) and; (3) sensible heat storage materials (SHMs). Another important factor in determining the suitability of a metal hydride for a particular application is the H₂ equilibrium pressure which increases exponentially with temperature. Figure 4b shows the temperature dependent H₂ equilibrium pressure for the CMH systems, with NaH, MgH₂, Mg₂NiH₄, Mg₂FeH₆ and TiH_1.0–1.6H included as comparisons. The H₂ equilibrium pressures have been plotted up to a value of 150 bar except for where thermodynamic data is not available, i.e., above the melting point of NaBH₄.

Figure 4a shows that the theoretical gravimetric and volumetric heat storage capacities of LiBH₄ (4936 kJ/kg and 3296 kJ/L at 727 °C [240]), NaBH₄ (5176 kJ/kg and 5559 kJ/L at 507.5 °C [241]) and KBH₄ (4248 kJ/kg and 4986 kJ/L at 615.5 °C [241]) are some of the highest known for a gas-solid thermochemical reaction. Only LiH (8389 kJ/kg and 6543 kJ/L at 938 °C [241]) and CaH₂ (3857 kJ/kg and 7374 kJ/L at 1018 °C [241]) have theoretical gravimetric and/or volumetric heat storage capacities that are higher. However, the theoretical operating temperatures for LiBH₄, NaBH₄ and KBH₄ are well within the target window of 600–800 °C for next generation CSP [212], whereas LiH and CaH₂ require operating temperatures of >900 °C and 1000 °C, respectively. One issue with utilizing the alkali metal borohydrides for thermal heat storage is their reversibility. Both NaBH₄ and KBH₄ release hydrogen and decompose directly to the respective molten alkali metals that easily vaporize and segregate from the other decomposition product, boron. Pure LiBH₄ also has problems with full reversibility but progress has recently been made by starting from the 0.68LiBH₄-0.32Ca(BH₄)₂ eutectic composition [242].

Complex Metal Hydrides and Fuel Cell Applications

An emerging research direction is that of CMHs as H₂ storage materials for stationary fuel cells (FCs) for clean power generation in seasonal storage, remote area and off-grid applications [261,262,263,264]. Unlike the closed-loop applications discussed in Section 4, this application utilizes an electrolyser to produce H₂, which is stored (e.g., in a metal hydride) until the consumption of hydrogen by the fuel cell is required for electricity production. Interest in the use of classic intermetallic hydrides for this role began in the 1990s [261,262] and an in-depth review of the principles and progress on the use of metal hydrides in fuel cell applications has recently been published [264]. Some of the advantages of energy storage based on a photo voltaic (PV)-electrolyser-H₂ storage-fuel cell configuration over a PV-Li ion battery system include:

Self-discharge: All batteries steadily lose charge over time and the self-discharge rate of Li-ion is highly dependent on temperature and the state-of-charge (SOC). The higher the temperature/SOC, the higher self-discharge rate [265]. The self-discharge rate of Li-ion batteries is usually 3–5% a month [265]. However, ageing of the battery may influence the self-discharge rate significantly [266]. In comparison, metal hydrides do not undergo “self-discharge” and can store their “charge” indefinitely.

Safety: Li-ion batteries suffer from lithium dendrite formation which may lead to short-circuit of the battery. Additionally, the organic electrolyte is hazardous in the presence of an oxidizing agent, which may result in runaway reactions and the battery catching fire or exploding [267]. The classic intermetallic hydrides first studied at near-ambient temperatures in combination with FCs have intrinsic safety due to their modest H₂ pressures and operating temperatures combined with the endothermic nature of the H₂ release process [264]. A more complicated scenario is presented by CMHs due to the fact that they are, in general, strong reducing agents, and many have the potential to be flammable or pyrophoric upon contact with air or water. However, in practical applications CMHs are typically used in the form of dense compacts and research on these has shown that they only undergo a mild temperature increase on exposure to air, and that direct immersion in water results in a mild temperature increase combined with slow release of H₂ [268,269]. A comprehensive determination of the safety of CMHs would require performing reactivity testing at their practical operating temperatures.

Deep discharge: Unlike rechargeable batteries [270], metal hydride systems do not, in general, suffer capacity loss from being fully discharged [263].

Longevity: A battery’s cycle life is defined as the number of cycles until the capacity reaches 80% of its initial reversible value [271]. Commonly, Li-ion batteries have a cycle life between 1000 and 4500 cycles, i.e., a lifetime between 7 and 20 years [272]. Li-ion batteries with a 95% retention after 30,000 cycles have been discovered, however, at the expense of energy density [273], which is a severe drawback. In comparison, LaNi₅ showed no capacity loss over 3300 cycles when using a H₂ purity above 99.9999% [274]. Furthermore, TiFe_0.8Ni_0.2 showed only a 16% capacity loss after 65,000 cycles: equivalent to a ~178 year product lifetime based on a daily cycling regime [275]. The biggest issue so far for the CMHs is the reversibility and cyclic stability and much less long term cycling has been performed.

System size: As the energy density of CMHs is much higher than for Li-ion batteries, the system size of a stationary energy storage system will be much denser [263]. Additionally, the mass of an extensive Li-ion battery capable of storing large amounts of energy is considerable [276].

An additional benefit of thermally integrating CMHs with moderate- and high-temperature FCs is that, by consuming a significant fraction of the waste heat generated, the CMHs could actually improve the thermal control of high-temperature FC stacks [264].

One of the original driving forces for reducing the operating temperature of high capacity CMHs was that they could be used in mobile applications/passenger vehicles, where the waste heat (~80 °C) of Low Temperature Proton Exchange Membrane Fuel Cells (LT-PEMFCs) could be used to release H₂ for FC consumption. However, H₂ storage in complex hydrides with high thermodynamic stability is less of an issue for stationary applications as a number of different types of fuel cells are available that operate in different temperature ranges (AFC = Alkaline Fuel Cell, HT-PEMFC = High-Temperature Proton Exchange Membrane Fuel Cell, PAFC = Phosphoric Acid Fuel Cell, MCFC = Molten Carbonate Fuel Cell, SOFC = Solid Oxide Fuel Cell). Consequently, using complex hydride systems such as NaAlH₄ [277,278,279,280,281,282] and Mg(NH₂)₂ + 2LiH [283] in conjunction with HT-PEMFCs is now being investigated. The integration of SOFCs with MgH₂ [284,285,286,287,288], a metal hydride that historically suffered from high thermodynamic stability and poor kinetics, highlights the potential of CMHs for this application.

The different types of FCs are characterized by different operating temperatures as well as different efficiencies. The efficiency of the FC determines the amount of waste heat generated, Q_loss, which can be used to release H₂ from the metal hydride provided it exceeds the enthalpy of desorption, ΔH_des. The potential for thermal integration of a CMH with a particular type of FC can be assessed by considering their respective operating temperatures and the amount of waste heat available in comparison to that required to release H₂ from the CMH. Figure 5 presents this comparison for the CMH systems and NaH, MgH₂, Mg₂NiH₄, Mg₂FeH₆ and TiH_1.0–1.6. It also includes the general range that applies to intermetallic hydrides, as a comparison, since most fuel cell integration research has been performed with these types of hydrides. Not all metal hydrides are suitable as H₂ storage materials when paired with FCs. As an example, TiH_1.0–1.6 would not be appropriate for use with any of the fuel cells, regardless of type, as the thermal energy required for H₂ release, exceeds the waste heat available from the fuel cell.

The choice of CMH for H₂ storage when paired with a particular FC will be dependent on the application under consideration. Some of the potential deciding factors include: CMH cost; cost and complexity of thermal integration between the CMH and FC; CMH footprint/volume; CMH operating temperature range; H₂ equilibrium pressure of the CMH; H₂ sorption kinetics of the CMH as a function of temperature and; the amount of FC waste heat available. The supply of H₂ from CMHs with operating temperatures below ~250 °C requires only modest energy input where simple heat transfer solutions with low-efficiency, but low-cost, can be implemented. In principle, metal hydrides that operate at either low- or high-temperature are suitable for use with high-temperature fuel cells (MCFCs and SOFCs).

Figure 5 shows that, in general, the classic intermetallic hydrides are suitable for use with low- and moderate-temperature FCs (i.e., ~250 °C and below), including LT- and HT-PEMFCs, AFCs and PAFCs. In contrast, of all the CMH systems, only NaAlH₄ and the Mg(NH₂)₂ + 2LiH system can theoretically operate at low enough temperatures for use with a LT-PEMFC. However, in practice, these systems only display sufficient H₂ sorption kinetics above ~100 °C, which excludes their practical use with LT-PEMFCs. The CMH systems based on Na₃AlH₆, Na₂LiAlH₆ and KAlH₄ + LiCl can also, in theory, operate with the low- and moderate-temperature FCs other than LT-PEMFCs. Of these systems, uncatalyzed KAlH₄-LiCl also has kinetic limitations with the maximum rate of H₂ release only achieved at ~230 °C [247]. Figure 5 also shows that all of the CMHs can potentially be used for H₂ storage when paired with MCFCs and SOFCs. The choice of CMH would then be determined by the best match of the FC operating conditions, CMH properties and the application requirements.

To summarize, the high thermal stability of CMHs makes them attractive as heat storage materials as the energy density may be tenfold higher than current state-of-the-art materials. Secondly, CMHs in combination with a fuel cell for stationary energy storage, have several advantages compared to commercially available Li-ion batteries, e.g., no self-discharge, higher safety and energy density.

5. Conclusions

The chemistry of complex metal hydrides is extremely diverse, and has provided a wide range of novel materials in the past decade. Especially metal borohydrides with gravimetric hydrogen density of >10 mass %, have received increasing interest as solid state hydrogen storage materials. Furthermore, these materials have extremely rich chemistry based on structural flexibility and a wide range of elemental compositions.

The potential of complex metal hydrides for use in a range of new applications have also been highlighted in this review, see Figure 6. Examples are: as electrodes or electrolytes in solid state batteries, e.g., the high-temperature polymorph of Na₂B₁₂H₁₂ which has a high ionic conductivity; thermal energy storage, e.g., at 507.5 °C NaBH₄ has theoretical gravimetric and volumetric heat storage capacities of 5176 kJ/kg and 5559 kJ/L, respectively; and fuel cell applications. Indeed, many other properties, e.g., optical and magnetic properties are also promising and have been discovered in the metal borohydrides CsEu(BH₄)₃ and K₂Gd(BH₄)₅ as fluorescent and magnetocaloric properties, respectively [123,289]. Furthermore, the metal closo-boranes, Ag₂B₁₀H₁₀ and Ag₂B₁₂H₁₂, display photosensitivity analogous to silver halides and forms silver nanofilaments upon electron beam exposure [201].

Hopefully, new metal borohydrides will be possible to design with desired chemical composition, atomic coordination, and exciting properties, based on the extensive knowledge about novel compounds, e.g., new combinations of light elements and boron, nitrogen or aluminum in complexes with hydrogen may lead to new interesting possibilities in applications.
