# Estimation of Hourly, Daily and Monthly Global Solar Radiation on Inclined Surfaces: Models Re-Visited

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Basic Solar Components

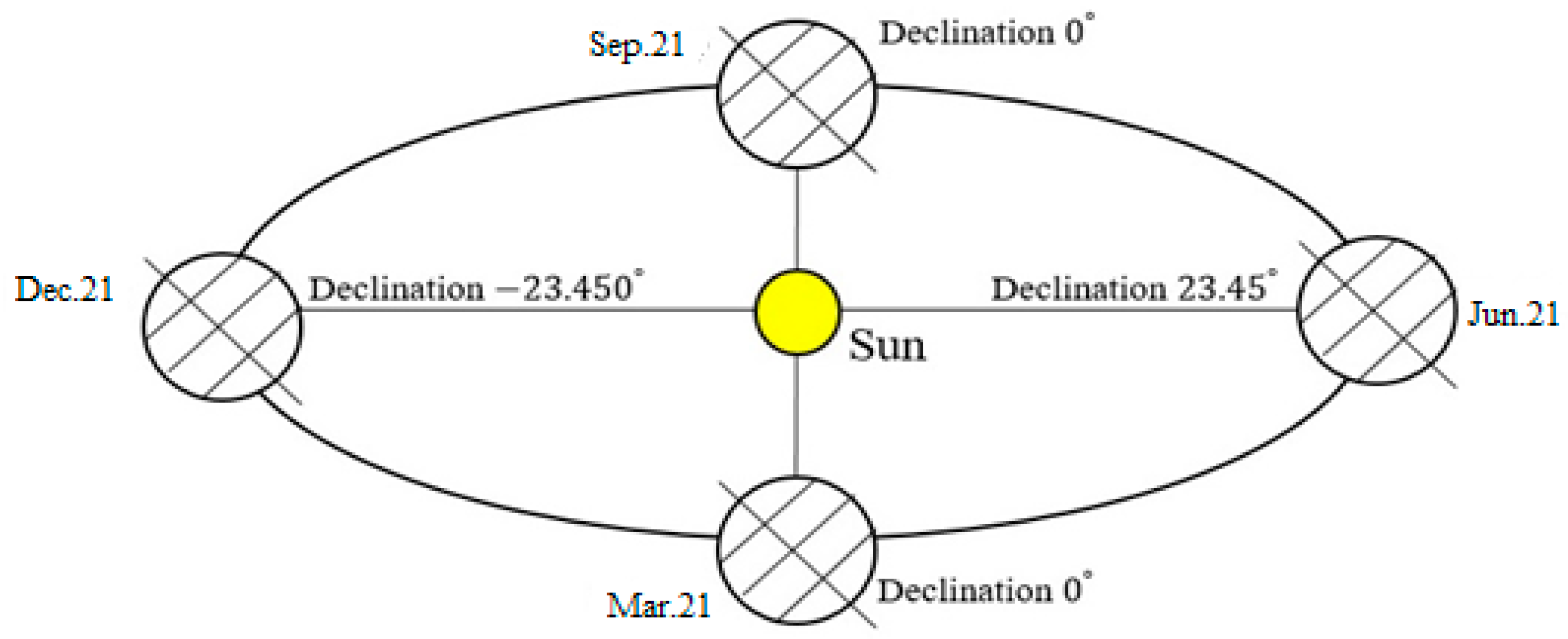

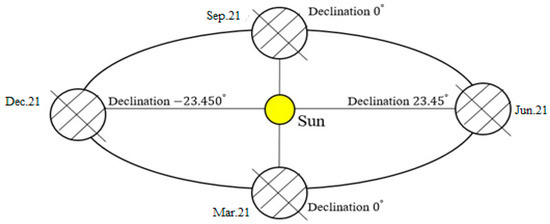

**Declination Angle (δ)**

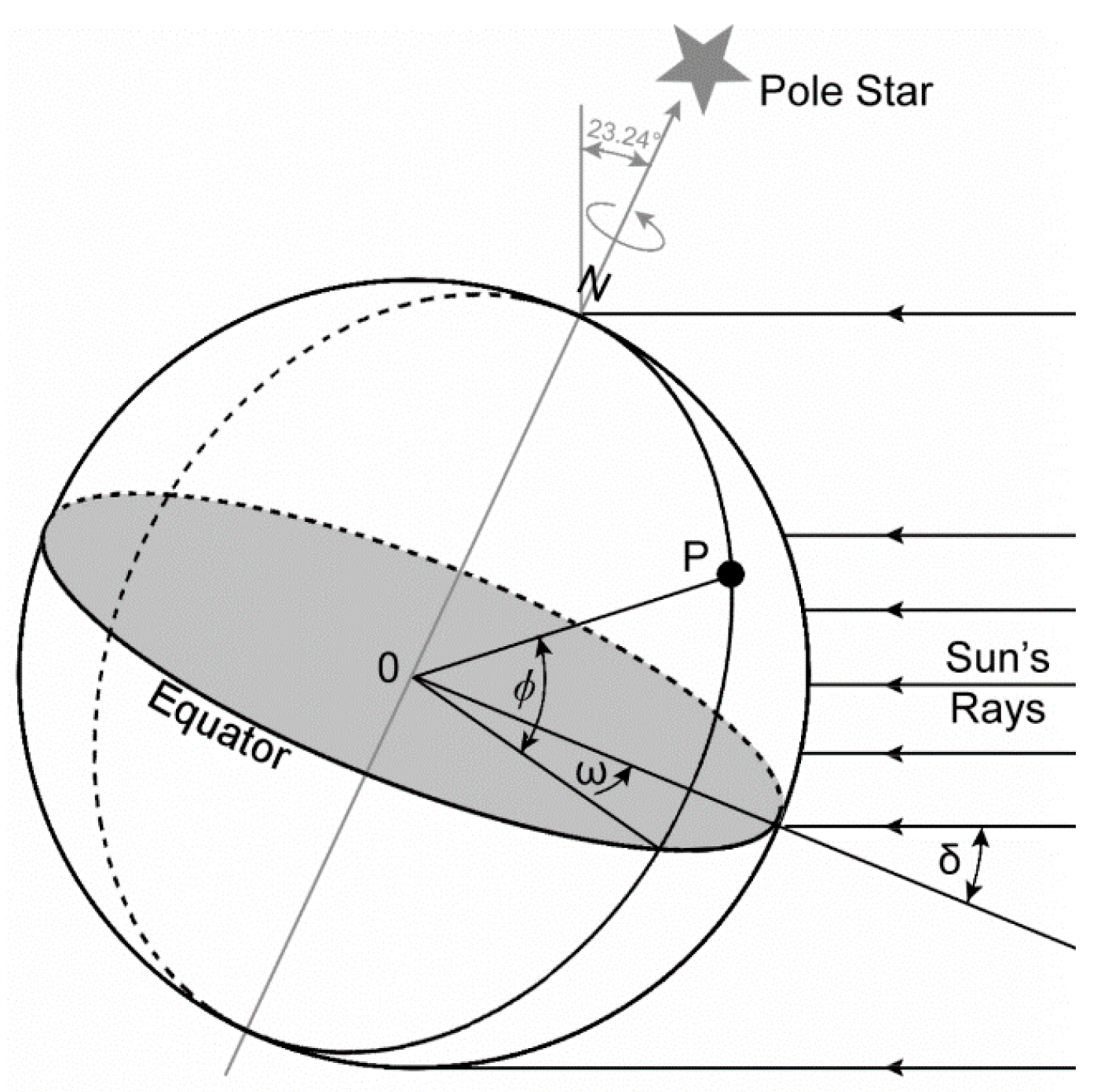

**Hour Angle (ω)**

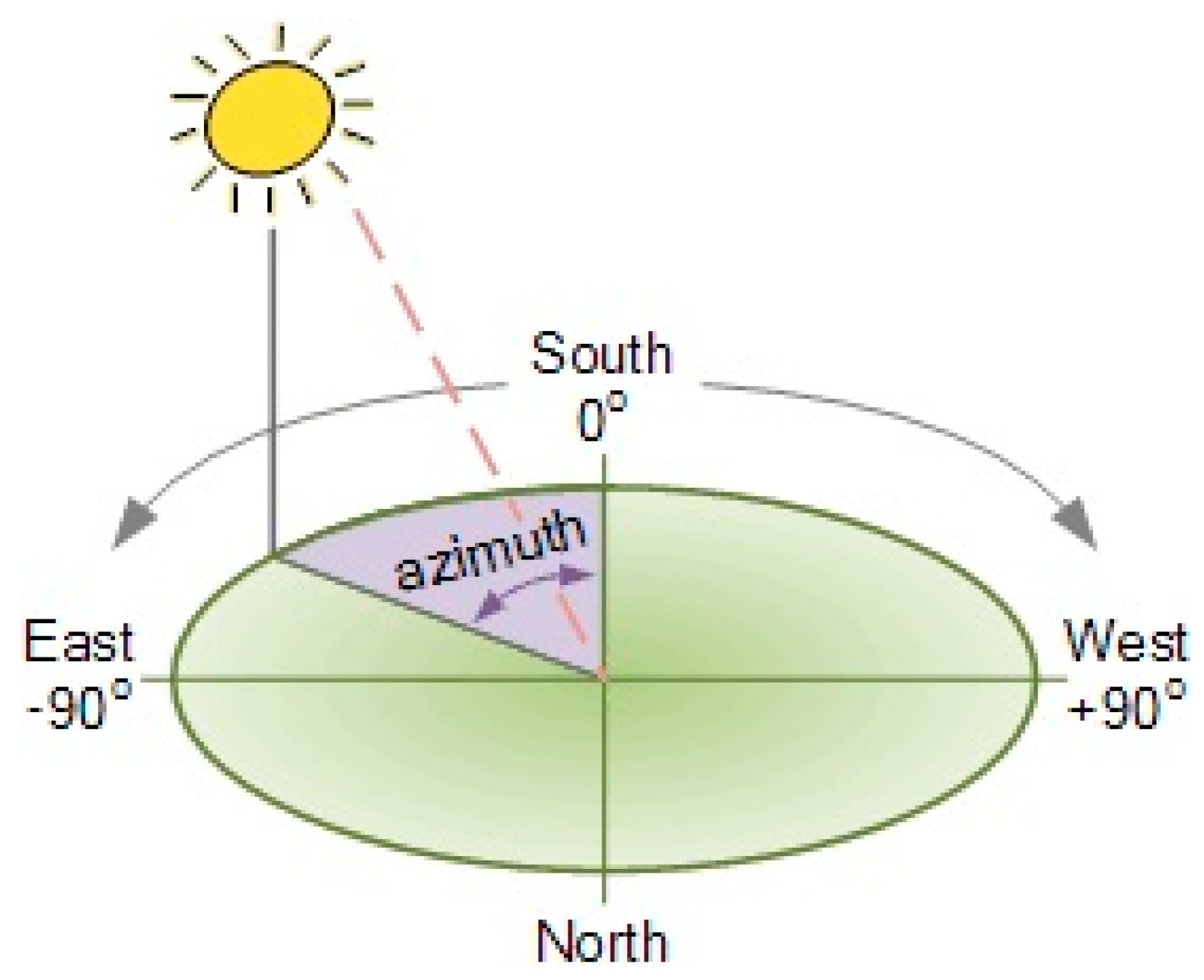

**Solar Azimuth Angle (γ)**

**Latitude (φ)**

**Hourly Extraterrestrial Radiation (Io)**

^{2}); ${E}_{0}$ is the eccentricity correction factor [10]; $\delta $ is the declination angle; $\phi $ is the latitude of location; ${\omega}_{1}$ and ${\omega}_{2}$ are the hour angle at the beginning and end of the time interval, where all angles are given in degrees. The eccentricity correction factor ${E}_{0}$ can be calculated according to Spencer [7]. The following series gives the equation for time (in minutes).

## 3. Hourly Global Solar Radiation on Horizontal Surfaces (I_{H})

- Diffuse solar radiation (${I}_{b}$)
- Direct beam solar radiation (${I}_{d}$)

#### 3.1. Hourly Diffuse Radiation on Horizontal Surface (I_{d})

- Parametric models
- Decomposition models

#### 3.1.1. Parametric Models

**ASHRAE Model**

**Machler and Iqbal’s Model**

**Parishwad’s Model**

**Nijegorodov’s Model**

#### 3.1.2. Decomposition Models

**Chandrasekaran and Kumar’s Model**

**Erbs’ Model**

**Hawlader’s Model**

**Jacovides’ Model**

**Karatasou’s Model**

**Lam and Li’s Model**

**Louche’s Model**

**Miguel’s Model**

**Orgill and Hollands’ Model**

**Boland’s Model**

**Liu and Jordan’s Model**

**Spencer’s Model**

**Reindl’s Model**

**Oliveira’s Model**

**Soares’ Model**

**Muneer’s Model**

#### 3.2. Hourly Direct Radiation on Horizontal Surface (I_{b})

_{bN}) can be measured by an instrument called a pyrheliometer. Moreover, the direct normal radiation (I

_{bN}) can be estimated by the number of models such as: the Bird model [36], METSTAT [37], the Yang model [38], REST2 [39], and the Ineichen model [40].

#### 3.3. Recognizing Accurate Models to Estimate Diffuse Radiation on Horizontal Surfaces

## 4. Hourly Global Solar Radiation on an Inclined Surface (I_{β})

#### 4.1. Isotropic Models

**Badescu’s Model**

**Koronakis’ Model**

**Liu and Jordan’s Model**

**Tian’s Model**

#### 4.2. Anisotropic Models

**Bugler’s Model**

**Temps and Coulson’s Model**

**Hay’s Model**

**Reindl’s Model**

**Klucher’s Model**

**Klucher’s Model Is Described by the Following Equation:**

**The HDKR Model (the Klucher and Reindl, and Hay and Davies’ Model)**

**Skartveit and Olseth’s Model**

**Steven and Unsworth’s Model**

**Wilmott’s Model**

**Perez’ Model**

_{d}is the hourly diffuse radiation on a horizontal surface and I

_{o}is the extraterrestrial radiation at normal incidence (W/m

^{2}). The ε is a function of hourly diffuse radiation ${I}_{d}$ which is given in Table 4 and direct beam radiation${I}_{b}$ [60]. The required coefficients ${F}_{i,j}$ are obtained from Perez et al., as seen in Table 5.

#### 4.3. Recognizing Accurate Models for Estimation of Diffuse Radiation on Angled Surfaces

#### 4.4. Estimating Direct Beam Radiation of an Angled Surface (I_{bβ})

#### 4.5. Estimating Ground-Reflected Radiation on an Angled Surface (Ir)

#### 4.6. Combination of Diffuse Estimation Models for Horizontal and Inclined Surfaces

## 5. Estimation of Daily Global Solar Radiation on a Horizontal Surface (H_{H})

#### 5.1. Daily Radiation on an Inclined Surface (H_{β})

#### 5.2. Estimation of the Monthly Average Daily Global Radiation on an Inclined Surface

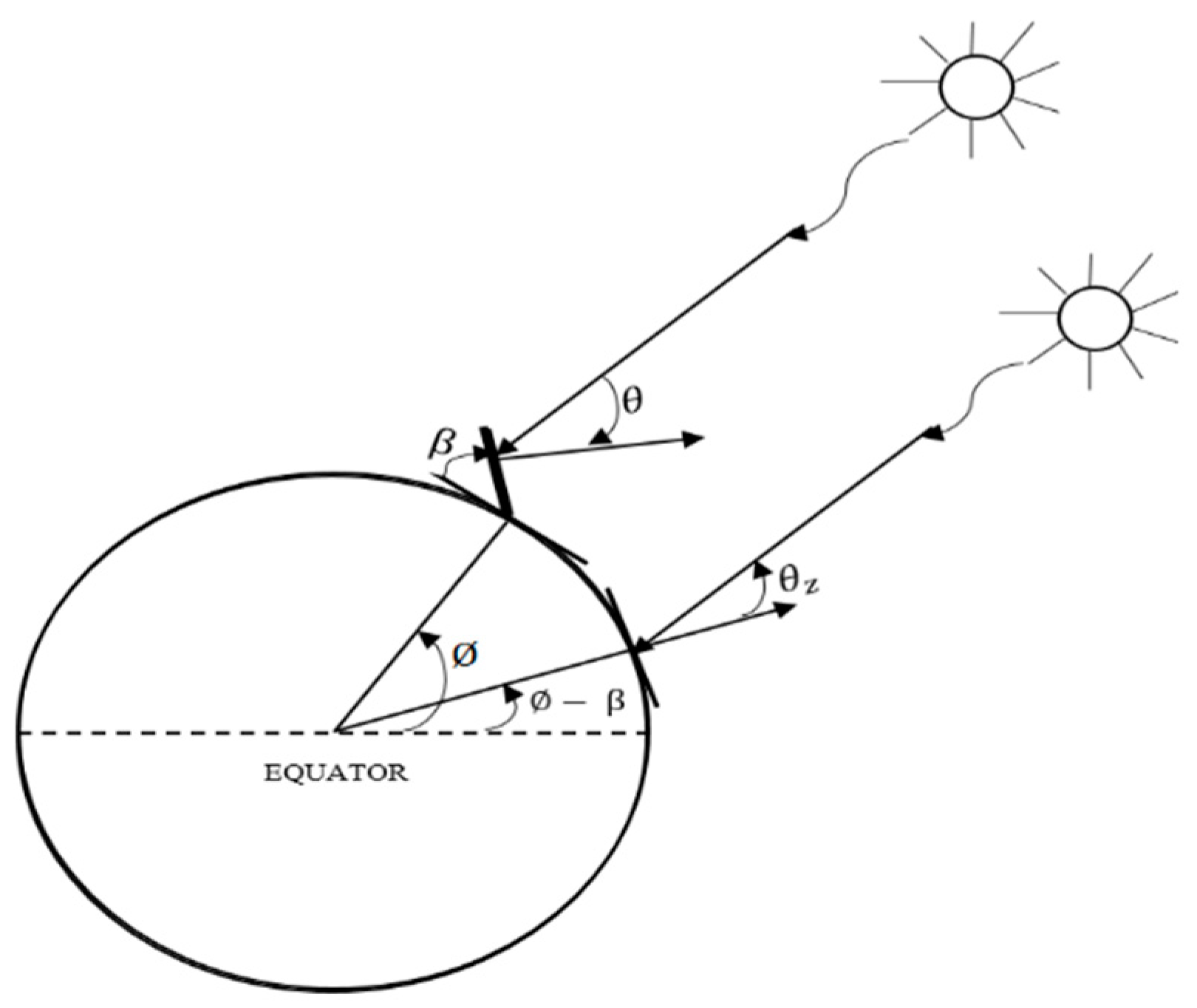

#### 5.3. Optimum Tilt Angle (β)

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Nomenclature

ST | Local solar time |

LT | Local standard time |

${L}_{s}$ | Standard meridian for a local zone |

${L}_{L}$ | Longitude of the location under study in degrees |

ET | Equation of time |

${I}_{o}$ | Hourly extraterrestrial solar radiation on horizontal surface |

${I}_{sc}$ | Solar constant |

${E}_{0}$ | Eccentricity correction factor |

$I$_{H} | Hourly global solar radiation on horizontal surface |

${I}_{b}$ | Hourly direct beam solar radiation on horizontal surface |

${I}_{bN}$ | Hourly direct normal beam radiation on horizontal surface |

${I}_{d}$ | Hourly diffuse solar radiation on horizontal surface |

${M}_{t}$ | Hourly clearness index |

${I}_{\beta}$ | Hourly global solar radiation on inclined surface |

${I}_{d\beta}$ | Hourly diffuse solar radiation on inclined surface |

${P}_{1}$ | Vicinity of the sun’s disc |

${P}_{2}$ | Sky radiation from the region near the horizon |

Z | Correcting factor |

m | Air mass |

${I}_{b\beta}$ | Hourly direct beam solar radiation on inclined surface |

${I}_{r}$ | Hourly ground reflected radiation on inclined surface |

${H}_{H}$ | Daily global radiation on a horizontal surface |

${H}_{b}$ | Beam radiation on a horizontal surface |

${H}_{d}$ | Diffuse radiation on a horizontal surface |

${K}_{t}$ | Daily clearness index |

${w}_{s}$ | Sunrise hour angle |

${H}_{\beta}$ | Daily global radiation on an inclined surface |

${H}_{b\beta}$ | Daily beam radiation on an inclined surface |

${H}_{d\beta}$ | Daily diffuse radiation on an inclined surface |

${H}_{r}$ | Daily reflected radiation on an inclined surface |

${w}_{s}^{\prime}$ | Sunset hour angle |

$n$ | The number of the day in the year |

Greek Symbols | |

$\beta $ | Tilt angle |

$\theta $ | Angle of incidence for a surface facing the equator in degrees |

${\theta}_{z}$ | Zenith angle |

δ | Declination angle |

Г | The day angle in radians |

ω | Hour angle |

γ | Solar azimuth angle |

φ | Latitude |

ε | Function of hourly diffuse radiation |

## References

- Gueymard, C.A. A review of validation methodologies and statistical performance indicators for modeled solar radiation data: Towards a better bankability of solar projects. Renew. Sustain. Energy Rev.
**2014**, 39, 1024–1034. [Google Scholar] [CrossRef] - El-Sebaii, A.A.; Al-Hazmi, F.S.; Al-Ghamdi, A.A.; Yaghmour, S.J. Global, direct and diffuse solar radiation on horizontal and tilted surfaces in Jeddah, Saudi Arabia. Appl. Energy
**2010**, 87, 568–576. [Google Scholar] [CrossRef] - Koussa, M.; Saheb-koussa, D.; Hamane, M. Effect of a daily flat plate collector orientation change on the solar system performances. In Proceedings of the IEEE 7th International Renewable Energy Congress (IREC), Hammamet, Tunisia, 22–24 March 2016.
- Demain, C.; Journée, M.; Bertrand, C. Evaluation of different models to estimate the global solar radiation on inclined surfaces. Renew. Energy
**2013**, 50, 710–721. [Google Scholar] [CrossRef] - Khatib, T.; Mohamed, A.; Mahmoud, M.; Sopian, K. Optimization of the Tilt Angle of Solar Panels for Malaysia. Energy Sources A Recover. Util. Environ. Eff.
**2015**, 37, 606–613. [Google Scholar] [CrossRef] - Iqbal, M. An Introduction to Solar Radiation; Academic Press: Toronto, ON, Canada, 1983. [Google Scholar]
- Spencer, J.W. Fourier series representation of the position of the sun. Appl. Opt.
**1971**, 10, 2569–2571. [Google Scholar] - Taşdemiroğlu, E. Solar Energy Utilization Technical and Economic Aspects; Middle East Tecnical University: Ankara, Turkey, 1988. [Google Scholar]
- Wong, L.T.; Chow, W.K. Solar radiation model. Appl. Energy
**2001**, 69, 191–224. [Google Scholar] [CrossRef] - Duffie, J.A.; Beckman, W.A.; Worek, W.M. Solar Engineering of Thermal Processes, 4th ed.; Willey: New York, NY, USA, 2003; Volume 116. [Google Scholar]
- Li, D.H.W.; Lou, S.W.; Lam, J.C. An Analysis of Global, Direct and Diffuse Solar Radiation. In Energy Procedia; Elsevier B.V.: Amsterdam, The Netherlands, 2015; Volume 75, pp. 388–393. [Google Scholar]
- Gueymard, C. Critical analysis and performance assessment of clear sky solar irradiance models using theoretical and measured data. Sol. Energy
**1993**, 51, 385–397. [Google Scholar] [CrossRef] - Yadav, A.K.; Chandel, S.S. Solar radiation prediction using Artificial Neural Network techniques: A review. Renew. Sustain. Energy Rev.
**2014**, 33, 772–781. [Google Scholar] [CrossRef] - ASHRAE Handbook, 1985 Fundamentals; American Society of Heating Refrigerating and Air-Conditioning Engineers, Inc.: Atlanta, GA, USA, 2011.
- Machler, M.A.; Iqbal, M. A modification of the ASHRAE clear sky irradiation model. ASHRAE Trans.
**1967**, 91, 106–115. [Google Scholar] - Parishwad, G.; Bhardwaj, R.K.; Nema, V.K. Estimation of hourly solar radiation for India. Renew. Energy
**1997**, 12, 303–313. [Google Scholar] [CrossRef] - Nijegorodov, N. Improved ashrae model to predict hourly and daily solar radiation components in Botswana, Namibia, and Zimbabwe. WREC
**1996**, 9, 1270–1273. [Google Scholar] [CrossRef] - Kumar, R.; Umanand, L. Estimation of global radiation using clearness index model for sizing photovoltaic system. Renew. Energy
**2005**, 30, 2221–2233. [Google Scholar] [CrossRef] - Ayodele, T.R.; Ogunjuyigbe, A.S.O. Prediction of monthly average global solar radiation based on statistical distribution of clearness index. Energy
**2015**, 90, 1733–1742. [Google Scholar] [CrossRef] - Chandrasekaran, J.; Kumar, S. Hourly diffuse fraction correlation at a tropical location. Sol. Energy
**1994**, 53, 505–510. [Google Scholar] [CrossRef] - Erbs, D.G.; Klein, S.A.; Duffle, J.A. Estimation of the diffuse radiation fraction for hourly, daily and monthly-average global radiation. Sol. Energy
**1982**, 28, 293–302. [Google Scholar] [CrossRef] - Hawlader, M.N.A. Diffuse, global and extra-terrestrial solar radiation for Singapore. Int. J. Ambient Energy
**1984**, 5, 31–38. [Google Scholar] [CrossRef] - Jacovides, C.P.; Tymvios, F.S.; Assimakopoulos, V.D.; Kaltsounides, N.A. Comparative study of various correlations in estimating hourly diffuse fraction of global solar radiation. Renew. Energy
**2006**, 31, 2492–2504. [Google Scholar] [CrossRef] - Karatasou, S.; Santamouris, M.; Geros, V. Analysis of experimental data on diffuse solar radiation in Athens, Greece, for building applications. Int. J. Sustain. Energy
**2003**, 23, 1–11. [Google Scholar] [CrossRef] - Lam, J.C.; Li, D.H.W. Correlation between global solar radiation and its direct and diffuse components. Build. Environ.
**1996**, 31, 527–535. [Google Scholar] [CrossRef] - Louche, A.; Poggi, P.; Simonnot, G.; Sanguinaires, R. Correlations for direct normal a n d global horizontal irradiation on a french mediterranean site. Sol. Energy
**1991**, 46, 261–266. [Google Scholar] [CrossRef] - De Miguel, A.; Bilbao, J.; Aguiar, R.; Kambezidis, H.; Negro, E. Diffuse solar irradiation model evaluation in the North Mediterranean Belt area. Sol. Energy
**2001**, 70, 143–153. [Google Scholar] [CrossRef] - Orgill, J.F.; Hollands, K.G.T. Correlation equation for hourly diffuse radiation on a horizontal surface. Sol. Energy
**1977**, 19, 357–359. [Google Scholar] [CrossRef] - Boland, J.; Scott, L.; Luther, M. Modelling the diffuse fraction of global solar radiation on a horizontal surface. Environmetrics
**2001**, 12, 103–116. [Google Scholar] [CrossRef] - Liu, B.Y.H.; Jordan, R.C. The interrelationship and characteristic distribution of direct, diffuse and total solar radiation. Sol. Energy
**1960**, 4, 1–19. [Google Scholar] [CrossRef] - Spencer, J.W. A comparison of methods for estimating hourly diffuse solar radiation from global solar radiation. Sol. Energy
**1982**, 29, 19–32. [Google Scholar] [CrossRef] - Oliveira, A.P.; Escobedo, J.F.; Machado, A.J.; Soares, J. Correlation models of diffuse solar-radiation applied to the city of São Paulo, Brazil. Appl. Energy
**2002**, 71, 59–73. [Google Scholar] [CrossRef] - Soares, J.; Oliveira, A.P.; Božnar, M.Z.; Mlakar, P.; Escobedo, J.F.; Machado, A.J. Modeling hourly diffuse solar-radiation in the city of São Paulo using a neural-network technique. Appl. Energy
**2004**, 79, 201–214. [Google Scholar] [CrossRef] - Radiation, G.; New, F.O.R. Correlation between hourly diffuse and. Energy Convers. Manag.
**1984**, 24, 265–267. [Google Scholar] - Al-Rawahi, N.Z.; Zurigat, Y.H.; Al-Azri, N.A. Prediction of hourly solar radiation on horizontal and inclined surfaces for Muscat/Oman. J. Eng. Res.
**2011**, 8, 19–31. [Google Scholar] - Bird, R.E.; Hulstrom, R.L. A Simplified Clear Sky Model for Direct and Diffuse Insolation on Horizontal Surface; Solar Energy Research Institute: Golden, CO, USA, 1981; p. 46. [Google Scholar]
- Maxwell, E.L. METSTAT—The solar radiation model used in the production of the national solar radiation data base (NSRDB). Sol. Energy
**1998**, 62, 263–279. [Google Scholar] [CrossRef] - Yang, K.; Koike, T. A general model to estimate hourly and daily solar radiation for hydrological studies. Water Resour. Res.
**2005**, 41, 1–13. [Google Scholar] [CrossRef] - Gueymard, C.A. REST2: High-performance solar radiation model for cloudless-sky irradiance, illuminance, and photosynthetically active radiation—Validation with a benchmark dataset. Sol. Energy
**2008**, 82, 272–285. [Google Scholar] [CrossRef] - Ineichen, P. A broadband simplified version of the Solis clear sky model. Sol. Energy
**2008**, 82, 758–762. [Google Scholar] [CrossRef] - Engerer, N.A. Minute resolution estimates of the diffuse fraction of global irradiance for southeastern Australia. Sol. Energy
**2015**, 116, 215–237. [Google Scholar] [CrossRef] - Yao, W.; Li, Z.; Xiu, T.; Lu, Y.; Li, X. New decomposition models to estimate hourly global solar radiation from the daily value. Sol. Energy
**2015**, 120, 87–99. [Google Scholar] [CrossRef] - Gueymard, C. Mean daily averages of beam radiation received by tilted surfaces as affected by the atmosphere. Sol. Energy
**1986**, 37, 261–267. [Google Scholar] [CrossRef] - Kuo, C.-W.; Chang, W.-C.; Chang, K.-C. Modeling the hourly solar diffuse fraction in Taiwan. Renew. Energy
**2014**, 66, 56–61. [Google Scholar] [CrossRef] - Chendo, M.A.C.; Maduekwe, A.A.L. DATA BANK Hourly distributions of global and diffuse solar radiation in Lagos, Nigeria. Renew. Energy
**1994**, 4, 101–108. [Google Scholar] [CrossRef] - Chikh, M.; Mahrane, A.; Haddadi, M. Modeling the diffuse part of the global solar radiation in Algeria. Energy Procedia
**2012**, 18, 1068–1075. [Google Scholar] [CrossRef] - Dervishi, S.; Mahdavi, A. Comparison of models for the derivation of diffuse fraction of global irradiance data for Vienna, Austria. In Proceedings of the Building Simulation 2011—12th Conference of International Building Performance Simulation Association, Sydney, Australia, 14–16 November 2011; pp. 760–771.
- Badescu, V. 3D isotropic approximation for solar diffuse irradiance on tilted surfaces. Renew. Energy
**2002**, 26, 221–233. [Google Scholar] [CrossRef] - Koronakis, P.S. On the choice of the angle of tilt for south facing solar collectors in the Athens basin area. Sol. Energy
**1986**, 36, 217–225. [Google Scholar] [CrossRef] - Liu, B.; Jordan, R. Daily insolation on surfaces tilted towards equator. ASHRAE
**1961**, 10, 53–59. [Google Scholar] - Tian, Y.Q.; Davies-Colley, R.J.; Gong, P.; Thorrold, B.W. Estimating solar radiation on slopes of arbitrary aspect. Agric. For. Meteorol.
**2001**, 109, 67–74. [Google Scholar] [CrossRef] - Bugler, J.W. The determination of hourly insolation on an inclined plane using a diffuse irradiance model based on hourly measured global horizontal insolation. Sol. Energy
**1977**, 19, 477–491. [Google Scholar] [CrossRef] - Temps, R.C.; Coulson, K.L. Solar radiation incident upon slopes of different orientations. Sol. Energy
**1977**, 19, 179–184. [Google Scholar] [CrossRef] - Hay, J.; Davies, J. Calculation of monthly mean solar radiation for horizontal and inclined surfaces. Sol. Energy
**1980**, 23, 301–307. [Google Scholar] [CrossRef] - Reindl, D.T. Evaluation of hourly tilted surface radiation models. Sol. Energy
**1990**, 45, 9–17. [Google Scholar] [CrossRef] - Klucher, T.M. Evaluation of models to predict insolation on tilted surfaces. Sol. Energy
**1979**, 23, 111–114. [Google Scholar] [CrossRef] - Arvid Skartveit, J.A.O. A model for the diffuse fraction of hourly global radiation. Sol. Energy
**1987**, 38, 271–274. [Google Scholar] [CrossRef] - Willmott, C.J. On the climatic optimization of the tilt and azimuth of flat-plate solar collectors. Sol. Energy
**1982**, 28, 205–216. [Google Scholar] [CrossRef] - Perez, R.; Stewart, R.; Seals, R.; Guertin, T. The Development and Verification of the Perez Diffuse Radiation Model; Sandia National Labs.: Albuquerque, NM, USA; State University of New York: Albany, NY, USA, 1988.
- Perez, R.; Ineichen, P.; Seals, R.; Michalsky, J.; Stewart, R. Modeling daylight availability and irradiance components from direct and global irradiance. Sol. Energy
**1990**, 44, 271–289. [Google Scholar] [CrossRef] - Dal Pai, A.; Escobedo, J.F.; Dal Pai, E.; dos Santos, C.M. Estimation of Hourly, Daily and Monthly Mean Diffuse Radiation Based on MEO Shadowring Correction. Energy Procedia
**2014**, 57, 1150–1159. [Google Scholar] [CrossRef] - Khoo, Y.S.; Nobre, A.; Malhotra, R.; Yang, D.; Ruther, R.; Reindl, T.; Aberle, A.G. Optimal orientation and tilt angle for maximizing in-plane solar irradiation for PV applications in Singapore. IEEE J. Photovolt.
**2014**, 4, 647–653. [Google Scholar] [CrossRef] - Gulin, M.; Vasak, M.; Baotic, M. Estimation of the global solar irradiance on tilted surfaces. In Proceedings of the 17th International Conference on Electrical Drives and Power Electronics, Dubrovnik, Croatia, 2–4 October 2013; p. 6.
- Souza, A.P.; Escobedo, J.F. Estimates of Hourly Diffuse Radiation on Tilted Surfaces in Southeast of Brazil. Int. J. Renew. Energy Res.
**2013**, 3, 207–221. [Google Scholar] - Frydrychowicz-Jastrzębska, G.; Bugała, A. Modeling the Distribution of Solar Radiation on a Two-Axis Tracking Plane for Photovoltaic Conversion. Energies
**2015**, 8, 1025–1041. [Google Scholar] [CrossRef] - Włodarczyk, D.; Nowak, H. Statistical analysis of solar radiation models onto inclined planes for climatic conditions of Lower Silesia in Poland. Arch. Civ. Mech. Eng.
**2009**, 9, 127–144. [Google Scholar] [CrossRef] - Elminir, H.K.; Ghitas, A.E.; El-Hussainy, F.; Hamid, R.; Beheary, M.M.; Abdel-Moneim, K.M. Optimum solar flat-plate collector slope: Case study for Helwan, Egypt. Energy Convers. Manag.
**2006**, 47, 624–637. [Google Scholar] [CrossRef] - Diez-Mediavilla, M.; de Miguel, A.; Bilbao, J. Measurement and comparison of diffuse solar irradiance models on inclined surfaces in Valladolid (Spain). Energy Convers. Manag.
**2005**, 46, 2075–2092. [Google Scholar] [CrossRef] - Mehleri, E.D.; Zervas, P.L.; Sarimveis, H.; Palyvos, J.A.; Markatos, N.C. A new neural network model for evaluating the performance of various hourly slope irradiation models: Implementation for the region of Athens. Renew. Energy
**2010**, 35, 1357–1362. [Google Scholar] [CrossRef] - Muneer, T. Solar Radiation and Daylight Models for the Energy Efficient Design of Buildings, 2nd ed.; Butterworth-Heinemann: London, UK, 2004. [Google Scholar]
- Coffari, E. The sun and the celestial vault. In Solar Energy Engineer; Academic Press: New York, NY, USA, 1977. [Google Scholar]
- Gueymard, C. An anisotropic solar irradiance model for tilted surfaces and its comparison with selected engineering algorithms. Sol. Energy
**1987**, 38, 367–386. [Google Scholar] [CrossRef] - Gueymard, C.A. Direct and indirect uncertainties in the prediction of tilted irradiance for solar engineering applications. Sol. Energy
**2009**, 83, 432–444. [Google Scholar] [CrossRef] - Shukla, K.N.; Rangnekar, S.; Sudhakar, K. Comparative study of isotropic and anisotropic sky models to estimate solar radiation incident on tilted surface: A case study for Bhopal, India. Energy Rep.
**2015**, 1, 96–103. [Google Scholar] [CrossRef] - Page, J. The estimation of monthly mean values of daily total short wave radiation on vertical and inclined surfaces from sunshine records 40S-40N. In Proceedings of the United Nations Conference on New Sources of Energy: Solar Energy, Wind Power and Geothermal Energy, Rome, Italy, 21–31 August 1967; pp. 378–390.
- Tarhan, S.; Sari, A. Model selection for global and diffuse radiation over the Central Black Sea (CBS) region of Turkey. Energy Convers. Manag.
**2005**, 46, 605–613. [Google Scholar] [CrossRef] - Barbaro, S.; Cannata, G.; Coppolino, S.; Leone, C.; Sinagra, E. Diffuse solar radiation statistics for Italy. Sol. Energy
**1981**, 26, 429–435. [Google Scholar] [CrossRef] - Aras, H.; Balli, O.; Hepbasli, A. Estimating the horizontal diffuse solar radiation over the Central Anatolia Region of Turkey. Energy Convers. Manag.
**2006**, 47, 2240–2249. [Google Scholar] [CrossRef] - Liu, B.Y.H.; Jordan, R.C. A Rational Procedure for Predicting The Long-Term Average Performance of Flat-Plate Solar-Energy Collectors. Sol. Energy
**1963**, 7, 53–74. [Google Scholar] [CrossRef] - Farhan, S.F.; Tabbassum, K.; Talpur, S.; Alvi, B.M.; Liao, X.; Dong, L. Electrical Power and Energy Systems Evaluation of solar energy resources by establishing empirical models for diffuse solar radiation on tilted surface and analysis for optimum tilt angle for a prospective location in southern region of Sindh, Pakistan. Int. J. Electr. Power Energy Syst.
**2015**, 64, 1073–1080. [Google Scholar] - Lee, K.; Yoo, H.; Levermore, G.J. Quality control and estimation hourly solar irradiation on inclined surfaces in South Korea. Renew. Energy
**2013**, 57, 190–199. [Google Scholar] [CrossRef] - Noorian, A.M.; Moradi, I.; Kamali, G.A. Evaluation of 12 models to estimate hourly diffuse irradiation on inclined surfaces. Renew. Energy
**2008**, 33, 1406–1412. [Google Scholar] [CrossRef] - Notton, G.; Poggi, P.; Cristofari, C. Predicting hourly solar irradiations on inclined surfaces based on the horizontal measurements: Performances of the association of well-known mathematical models. Energy Convers. Manag.
**2006**, 47, 1816–1829. [Google Scholar] [CrossRef] - Padovan, A.; Col, D. Del Measurement and modeling of solar irradiance components on horizontal and tilted planes. Sol. Energy
**2010**, 84, 2068–2084. [Google Scholar] [CrossRef] - The Chartered Institution of Building Services Engineers. Available online: http://www.cibse.org/getmedia/4f58cd6d-9335–49ae-bade-74106690e3c9/Guide-A-presentation.pdf.aspx (accessed on 19 September 2016).
- Klein, S.A. Calculation of monthly average insolation on tilted surfaces. Sol. Energy
**1977**, 19, 325–329. [Google Scholar] [CrossRef] - Khatib, T. A Review of Designing, Installing and Evaluating Standalone Photovoltaic Power Systems. J. Appl. Sci.
**2010**, 10, 1212–1228. [Google Scholar] [CrossRef] - Sinha, S.; Chandel, S.S. Analysis of fixed tilt and sun tracking photovoltaic-micro wind based hybrid power systems. Energy Convers. Manag.
**2016**, 115, 265–275. [Google Scholar] [CrossRef] - Khorasanizadeh, H.; Mohammadi, K.; Mostafaeipour, A. Establishing a diffuse solar radiation model for determining the optimum tilt angle of solar surfaces in Tabass, Iran. Energy Convers. Manag.
**2014**, 78, 805–814. [Google Scholar] [CrossRef] - Jafarkazemi, F.; Saadabadi, S.A. Optimum tilt angle and orientation of solar surfaces in Abu Dhabi, UAE. Renew. Energy
**2013**, 56, 44–49. [Google Scholar] [CrossRef] - Klein, S.A.; Theilacker, J.C. Algorithm for Calculating Monthly-Average Radiation on Inclined Surfaces. J. Sol. Energy Eng. Trans. ASME
**1981**, 103, 29–33. [Google Scholar] [CrossRef] - Bakirci, K. General models for optimum tilt angles of solar panels: Turkey case study. Renew. Sustain. Energy Rev.
**2012**, 16, 6149–6159. [Google Scholar] [CrossRef] - Ertekin, C.; Evrendilek, F.; Kulcu, R. Modeling spatio-temporal dynamics of optimum tilt angles for solar collectors in Turkey. Sensors
**2008**, 8, 2913–2931. [Google Scholar] [CrossRef] [PubMed] - Zhao, Q.; Wang, P.; Goel, L. Optimal PV panel tilt angle based on solar radiation prediction. In Proceedings of the 2010 IEEE 11th International Conference on Probabilistic Methods Applied to Power Systems (PMAPS), Singapore, 14–17 June 2010; pp. 425–430.
- Liu, L.-M.; Hudak, G.B.; Box, G.E.P.; Muller, M.E.; Tiao, G.C. Forecasting and Time Series Analysis Using the SCA Statistical System; Scientific Computing Associates: DeKalb, IL, USA, 1992. [Google Scholar]
- Maru, N.; Vajpai, J. Model based Optimization of Tilt angle for Solar PV Panels in Jodhpur. In Proceedings of the National Conference on Intelligent Systems (NCIS 2014), Jodhpur, India, 22–23 December 2014; pp. 32–39.
- Kazem, H.A.; Khatib, T.; Alwaeli, A.A.K. Optimization of photovoltaic modules tilt angle for Oman. In Proceedings of the 2013 IEEE 7th International Power Engineering and Optimization Conference, PEOCO 2013, Langkawi, Malaysia, 3–4 June 2013; pp. 703–707.
- Ismail, M.S.; Moghavvemi, M.; Mahlia, T.M.I. Analysis and evaluation of various aspects of solar radiation in the Palestinian territories. Energy Convers. Manag.
**2013**, 73, 57–68. [Google Scholar] [CrossRef] - Jain, P.C. Estimation of monthly average hourly global and diffuse irradiation. Sol. Wind Technol.
**1988**, 5, 7–14. [Google Scholar] [CrossRef] - Despotovic, M.; Nedic, V. Comparison of optimum tilt angles of solar collectors determined at yearly, seasonal and monthly levels. Energy Convers. Manag.
**2015**, 97, 121–131. [Google Scholar] [CrossRef]

**Figure 4.**Diagram of the equality of angles $\theta $ and ${\theta}_{z}$, adapted with permission from Liu and Jordan [50].

January | February | March | April | May | June | July | August | September | October | November | December | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

ASHARE | ||||||||||||

A | 1230 | 1215 | 1186 | 1136 | 1104 | 1088 | 1085 | 1107 | 1152 | 1193 | 1221 | 1234 |

B | 0.142 | 0.144 | 0.156 | 0.180 | 0.196 | 0.205 | 0.207 | 0.201 | 0.177 | 0.160 | 0.149 | 0.142 |

C | 0.058 | 0.060 | 0.071 | 0.097 | 0.121 | 0.134 | 0.136 | 0.122 | 0.092 | 0.073 | 0.063 | 0.057 |

Machler and Iqbal | ||||||||||||

A | 1202 | 1187 | 1164 | 1130 | 1106 | 1092 | 1093 | 1107 | 1136 | 1166 | 1190 | 1204 |

B | 0.141 | 0.142 | 0.149 | 0.164 | 0.177 | 0.185 | 0.186 | 0.182 | 0.165 | 0.152 | 0.144 | 0.141 |

C | 0.103 | 0.104 | 0.109 | 0.120 | 0.130 | 0.137 | 0.138 | 0.134 | 0.121 | 0.111 | 0.106 | 0.103 |

Parishwad et al. | ||||||||||||

A | 610.00 | 652.20 | 667.86 | 613.35 | 558.39 | 340.71 | 232.87 | 240.80 | 426.21 | 584.73 | 616.60 | 622.52 |

B | 0.000 | 0.010 | 0.036 | 0.121 | 0.200 | 0.428 | 0.171 | 0.148 | 0.074 | 0.020 | 0.008 | 0.000 |

C | 0.242 | 0.249 | 0.299 | 0.395 | 0.495 | 1.058 | 1.611 | 1.624 | 0.688 | 0.366 | 0.253 | 0.243 |

Nijegorodov | ||||||||||||

A | 1163 | 1151 | 1142 | 1146 | 1152 | 1157 | 1158 | 1152 | 1150 | 1156 | 1167 | 1169 |

B | 0.177 | 0.174 | 0.170 | 0.165 | 0.162 | 0.160 | 0.159 | 0.164 | 0.167 | 0.172 | 0.174 | 0.177 |

C | 0.114 | 0.112 | 0.110 | 0.105 | 0.101 | 0.098 | 0.100 | 0.103 | 0.107 | 0.111 | 0.113 | 0.115 |

Models | Constraints | Diffuse Fraction $\left({\mathit{r}}_{\mathit{d}}\right)$ |
---|---|---|

Chandrasekaran and Kumar | $0<{M}_{t}\le 0.24$ | $1.0086-0.178{M}_{t}$ |

$0.24<{M}_{t}\le 0.8$ | $0.9686+0.1325{M}_{t}+1.4183{M}_{t}{}^{2}-10.1862{M}_{t}{}^{3}+8.3733{M}_{t}{}^{4}$ | |

$0.8<{M}_{t}\le 1$ | $1.0086-0.178{M}_{t}$ | |

Erbs | $0<{M}_{t}\le 0.22$ | $1-0.09{M}_{t}$ |

$0.22<{M}_{t}\le 0.8$ | $0.9511-0.1604{M}_{t}+4.388{M}_{t}{}^{2}-16.638{M}_{t}{}^{3}+12.336{M}_{t}{}^{4}$ | |

$0.8<{M}_{t}\le 1$ | $0.165$ | |

Hawlader | $0<{M}_{t}\le 0.225$ | $0.915{M}_{t}$ |

$0.225<{M}_{t}<0.775$ | $1.135-0.9422{M}_{t}-0.3878{M}_{t}{}^{2}$ | |

$0.775\le {M}_{t}\le 1$ | $0.215$ | |

Jacovides | $0<{M}_{t}\le 0.1$ | $0.987$ |

$0.1<{M}_{t}\le 0.8$ | $0.94+0.937{M}_{t}-5.01{M}_{t}{}^{2}+3.32{M}_{t}{}^{3}$ | |

$0.8<{M}_{t}\le 1$ | $0.177$ | |

Karatasou | $0<{M}_{t}\le 0.78$ | $0.9995-0.05{M}_{t}-2.4156{M}_{t}{}^{2}+1.4926{M}_{t}{}^{3}$ |

$0.78<{M}_{t}\le 1$ | $0.2$ | |

Lam and Li | $0<{M}_{t}\le 0.15$ | $0.977$ |

$0.15<{M}_{t}\le 0.17$ | $1.237-1.361{M}_{t}$ | |

$0.17<{M}_{t}\le 1$ | $0.273$ | |

Louche | $0<{M}_{t}\le 1$ | ${I}_{b}=\left(-10.676{M}_{t}{}^{5}+15.307{M}_{t}{}^{4}-5.205{M}_{t}{}^{3}+0.99{M}_{t}{}^{2}-0.059{M}_{t}+0.02\right)$ |

Miguel | $0<{M}_{t}\le 0.21$ | $0.995-0.081{M}_{t}$ |

$0.21<{M}_{t}\le 0.76$ | $0.724+2.738{M}_{t}-8.32{M}_{t}{}^{2}+4.967{M}_{t}{}^{3}$ | |

$0.76<{M}_{t}\le 1$ | $0.18$ | |

Orgill and Hollands | $0<{M}_{t}<0.35$ | $1-0.249{M}_{t}$ |

$0.35\le {M}_{t}\le 0.75$ | $1.577-1.84{M}_{t}$ | |

$0.75<{M}_{t}\le 1$ | $0.177$ | |

Boland | For any value of ${M}_{t}$ | $\frac{1}{1+{e}^{7.997\left({M}_{t}-0.586\right)}}$ |

Liu and Jordan | $0.75<{M}_{t}\le 1$ | $0.384-0.416{M}_{t}$ |

Spencer | $0.35<{M}_{t}\le 0.75$ | ${a}_{3}-{b}_{3}{M}_{t}$ |

Reindl-1 | $0<{M}_{t}\le 0.3$ | $1.02-0.248{M}_{t}$ |

$0.3{M}_{t}0.78$ | $1.45-1.67{M}_{t}$ | |

$0.78\le {M}_{t}\le 1$ | $0.147$ | |

Reindl-2 | $0<{M}_{t}\le 0.3$ | $1.02-0.254{M}_{t}+0.0123\mathrm{sin}\alpha $ |

$0.3{M}_{t}0.78$ | $1.4-1.749{M}_{t}+0.177\mathrm{sin}\alpha $ | |

$0.78\le {M}_{t}\le 1$ | $0.486{M}_{t}-0.182\mathrm{sin}\alpha $ | |

Oliveira | $0<{M}_{t}\le 0.17$ | $1$ |

$0.17{M}_{t}0.75$ | $0.97+0.8{M}_{t}-3{M}_{t}^{2}-3.1{M}_{t}^{3}+5.2{M}_{t}^{4}$ | |

$0.75<{M}_{t}\le 1$ | $0.17$ | |

Soares | $0<{M}_{t}\le 0.17$ | $1$ |

$0.17{M}_{t}0.75$ | $0.9+1.1{M}_{t}-4.5{M}_{t}^{2}-0.01{M}_{t}^{3}+3.14{M}_{t}^{4}$ | |

$0.75<{M}_{t}\le 1$ | $0.17$ | |

Muneer | $0<{M}_{t}<0.175$ | $0.95$ |

$0.175{M}_{t}0.755$ | $0.9698+0.4353{M}_{t}-3.4499{M}_{t}^{2}+2.1888{M}_{t}^{3}$ | |

$0.775<{M}_{t}<1$ | $0.26$ |

**Table 3.**Summary of studies on identifying the most accurate diffuse models for horizontal surfaces.

Authors | Location | Most Accurate Models |
---|---|---|

N. A. Engerer | Southeast Australia | Perez |

Wanxiang Yao et al. | China | Gueymard |

Kuo | Taiwan | Erbs, Chandrasekaran and Kumar, and Boland |

Chikh et al. | Algeria | KTCOR |

Dervishi et al. | Vienna, Austria | Erbs, Reindl, and Orgill and Hollands |

**Table 4.**Discrete sky clearness categories [60].

$\mathit{\epsilon}$ | Lower Range | Upper Range |
---|---|---|

1 Overcast | 1 | 1.065 |

2 | 1.065 | 1.230 |

3 | 1.230 | 1.500 |

4 | 1.500 | 1.950 |

5 | 1.950 | 2.800 |

6 | 2.800 | 4.500 |

7 | 4.500 | 6.200 |

8 Clear | 6.200 | ∞` |

**Table 5.**Brightness coefficients for the Perez Anisotropic Sky [60].

$\mathit{\epsilon}$ Bin | F_{11} | F_{12} | F_{13} | F_{21} | F_{22} | F_{23} |
---|---|---|---|---|---|---|

1.000 | −0.008 | 0.588 | −0.062 | −0.060 | 0.072 | −0.022 |

1.065 | 0.130 | 0.683 | −0.151 | −0.019 | 0.066 | −0.029 |

1.230 | 0.330 | 0.487 | −0.221 | 0.055 | −0.064 | −0.026 |

1.500 | 0.568 | 0.187 | −0.295 | 0.109 | −0.152 | 0.014 |

1.950 | 0.873 | −0.392 | −0.362 | 0.226 | −0.462 | 0.001 |

2.800 | 1.132 | −1.237 | −0.412 | 0.288 | −0.823 | 0.056 |

4.500 | 1.060 | −1.600 | −0.359 | 0.264 | −1.127 | 0.131 |

6.200 | 0.678 | −0.327 | −0.250 | 0.159 | −1.377 | 0.251 |

Models | Diffuse Radiation on Inclined Surfaces $\left({\mathit{I}}_{\mathit{d}\mathit{\beta}}\right)$ |
---|---|

Badescu | $\left(\frac{3+\mathrm{cos}\left(2\beta \right)}{4}\right){I}_{d}$ |

Koronakis | $\frac{1}{3}\left(\frac{1}{2+\mathrm{cos}\beta}\right){I}_{d}$ |

Liu and Jordan | $\left(\frac{1+\mathrm{cos}\beta}{2}\right){I}_{d}$ |

Tian | $(1-\frac{\beta}{180}){I}_{d}$ |

Bugler | $\left(\frac{1+\mathrm{cos}\beta}{2}\left({I}_{d}-0.05\frac{{I}_{b\beta}}{\mathrm{cos}{\theta}_{z}}\right)\right)+0.05{I}_{b\beta}\mathrm{cos}\theta $ |

Temps and Coulson | $\frac{1}{2}{I}_{d}\left(1+\mathrm{cos}\beta \right){P}_{1}{P}_{2}$ |

Hay | ${I}_{d}\left[{f}_{Hay}\left(\frac{\mathrm{cos}\theta}{\mathrm{cos}{\theta}_{z}}\right)+\left(\frac{1+\mathrm{cos}\beta}{2}\right)\left(1-{f}_{Hay}\right)\right]$ |

Reindl | ${I}_{d}\left[{f}_{Hay}\left(\frac{\mathrm{cos}\theta}{\mathrm{cos}{\theta}_{z}}\right)+\left(\frac{1+\mathrm{cos}\beta}{2}\right)\left(1-{f}_{Hay}\right)\left(1+{f}_{R}{\mathrm{sin}}^{3}\left(\frac{\beta}{2}\right)\right)\right]$ |

Klucher | ${I}_{d}\left[\frac{1}{2}\left(1+\mathrm{cos}\left(\frac{\beta}{2}\right)\right)\right]\left[1+{f}_{k}{\mathrm{cos}}^{2}\theta \left({\mathrm{sin}}^{3}{\theta}_{z}\right)\right]\left[1+{f}_{k}{\mathrm{sin}}^{3}\left(\frac{\beta}{2}\right)\right]$ |

HDKR | ${I}_{d}\left[\left(\frac{1+\mathrm{cos}\beta}{2}\right)\left(1-{f}_{Hay}\right)\left(1+{f}_{R}{\mathrm{sin}}^{3}\left(\frac{\beta}{2}\right)\right)\right]$ |

Skartveit and Olseth | ${I}_{d}\left[\left({f}_{Hay}\left(\frac{\mathrm{cos}\theta}{\mathrm{cos}{\theta}_{z}}\right)\right)+\left(1-{f}_{Hay}-Z\right)\left(\frac{1+\mathrm{cos}\beta}{2}\right)-S\left(\omega ,{\Omega}_{i}\right)\right]$ |

Steven and Unsworth | ${I}_{d}\left[\left(0.51\left(\frac{\mathrm{cos}\theta}{\mathrm{cos}{\theta}_{z}}\right)\right)+\left(\frac{1+\mathrm{cos}\beta}{2}\right)-\frac{1.74}{1.26\pi}\left\{\mathrm{sin}\beta -\beta \frac{\pi}{180}\mathrm{cos}\beta -\pi {\mathrm{sin}}^{2}\frac{\beta}{2}\right\}\right]$ |

Wilmott | ${I}_{d}\left[\frac{{I}_{bN}{R}_{b}}{{I}_{sc}}+{C}_{\beta}\left(1-\frac{{I}_{bN}}{{I}_{sc}}\right)\right]$ |

Perez | ${I}_{d}\left[\frac{1+\mathrm{cos}\beta}{2}\left(1-{F}_{1}\right)+{F}_{1}\frac{{a}_{1}}{{a}_{2}}+{F}_{2}\mathrm{sin}\beta \right]$ |

Authors | Location | Most Accurate Models |
---|---|---|

Dal Pai.et al. | Brazil | Isotropic and anisotropic models |

Khoo.et al. | Singapore | Perez |

Demain et al. | Belgium | Willmott, Perez |

Gulin et al. | Croatia | 3 different neural network models |

Souza and Escobedo | Brazil | Iqbal, Hay, Reindl, Willmott, Badescu and Koronakis |

Frydrychowicz-Jastrzębska and Bugała | Poland | Hay, Steven and Unsworth |

Włodarczyk and Nowak | Poland | Reindl, Gueymard, Perez, Koronakis and Muneer [70] |

Elminir et al. | Egypt | Perez |

Diez-Mediavilla et al. | Spain | Hay, Muneer and Willmott |

Mehleri et al. | Athens | RBF model |

**Table 8.**Summary of studies on finding the most accurate diffuse models for horizontal and inclined surfaces.

Authors | Location | Most Accurate Models for Horizontal and Inclined Surfaces |
---|---|---|

Shukla et al. | India | Decomposition model + Badescu |

Farhan et al. | Pakistan | Sunshine fraction model + Liu and Jordan’s model |

Lee et al. | South Korea | CIBSE Guide J [85] + Isotropic |

Noorian et al. | Iran | Skartveit and Olseth, Hay, Reindl and Perez |

Notton et al. | French | Maxwell + Klucher |

Padovan and Col | Italy | Erbs+ Perez, Erbs + HDKR |

**Table 9.**Average day for each month as recommended by Klein [68].

Month | Date | Day of the Year |
---|---|---|

January | 17 January | 17 |

January | 16 January | 47 |

January | 16 January | 75 |

April | 15 April | 105 |

May | 15 May | 135 |

June | 11 June | 162 |

July | 17 July | 198 |

August | 16 August | 228 |

September | 15 September | 258 |

October | 15 October | 288 |

November | 14 November | 318 |

December | 10 December | 344 |

Author | Location (Latitude Longitude) | Monthly Tilt Angle (Degree) | Annual Tilt Angle (Degree) | Orientation | Estimation Diffuse Model for Horizontal and Inclined Surface |
---|---|---|---|---|---|

Sinha [88] | Hamirpur, India (31°59′ N, 76°52′ E) | 0 and 60 | 29.25 | south-facing | Erbs model |

Farhan et al. [80] | Sindh, Pakistan (25°12′ N, 67°64′ E) | spring: 21, summer: 0, autumn: 18, winter: 46 | 23 | south-facing | Sunshine fraction model |

Liu and Jordan model | |||||

Khorasanizadeh et al. [89] | Tabass, Iran (33°36′ N, 51°2175′ E) | 62, 53, 38 | 32 | south-facing | Reindl model |

19, 2, 0 | |||||

0, 12, 32 | |||||

49, 60, 64 | |||||

Jafarkazemi and Saadabadi [90] | Abu Dhabi, UAE (24°45′ N, 54°37′ E) | 50, 39, 25 | 2 | south-facing | Klein and Theilacker (KT model) [91] |

10, 3, 9 | |||||

6, 5, 20 | |||||

36, 48, 52 | |||||

Bakirci [92] | Turkey (8 provinces) | optimum tilt angle changed between 0 and 65 | south-facing | Liu and Jordan | |

Ankara | Ankara: 31.21 | ||||

Diyarbakir | Diyarbakir: 32.71 | ||||

Erzurum | Erzurum: 32.61 | ||||

Istanbul | Istanbul: 34.31 | ||||

Izmir | Izmir: 32.61 | ||||

Samsun | Samsun: 32.81 | ||||

Trabzon | Trabzon: 33.21 | ||||

Ertekin et al. [93] | Antalya | For autumn: φ − 3.41 For winter: φ + 8.14 For spring: φ − 23.92 For summer: φ − 35.17 | For throughout the Turkey: φ−17.31 | south-facing | Liu and Jordan |

Edirne | |||||

Hakkari | |||||

Izmir | |||||

Sanliufa | |||||

Trabzonf | |||||

Zhao [94] | Singapore (1.3667 N, 103.8 E) | 27.1, 18.1, 3.4 | - | southwest facing | ARMA model [95] |

0.1, 0.1, 0.1 | |||||

0.1, 0.1, 0.1 | |||||

12.5, 23.3, 28.7 | |||||

Maru [96] | Jodhpur, India | 49.8, 40.20, 27, 9, 0, 0 | 31.80 | south-facing | Liu and Jordan |

0, 3.60, 21.6 | |||||

39, 50.40, 52.80 | |||||

Khatib [5] | Malaysia, 5 cities | - | - | Liu and Jordan | |

Kuala Lumpur, | 29, 19, 5, 0, 0, 0, 0, 0, 0, 14, 24, 24 | ||||

Johor Bharu, | 24, 17, 3, 0, 0, 0, 0, 0, 0, 11, 22, 23 | ||||

Ipoh, | 28, 19, 6, 0, 0, 0, 0, 0, 2, 13, 22, 25 | ||||

Kuching | 19, 16, 3, 0, 0, 0, 0, 0, 0, 11, 21, 22 | ||||

Alor Setar | 32, 22, 8, 0, 0, 0, 0, 0, 2, 15, 26, 31 | ||||

Kazem [97] | Sohar, Oman (24°20′ N,56°40′ E) | 57, 48, 32 | - | - | Liu and Jordan |

10, 0, 0 | |||||

0, 3, 25 | |||||

44, 55, 60 | |||||

Ismail [98] | Ramallah, Palestinian (31.8 N, 35.45 E) | Change between 6.5 and 62.6 from June to December | 32.8 | - | Jain model [99] |

Despotovic [100] | Belgrade, Serbia (44.8 N, 20.46 E) | Average of optimum monthly tilt angle is 43.55 | 39.9 | south-facing | Liu and Jordan |
