# Thermal Simulation of the Fresh Food Compartment in a Domestic Refrigerator

^{*}

## Abstract

**:**

## 1. Introduction

#### Techniques for Designing the Fresh Food Compartment

## 2. Experimental Analysis

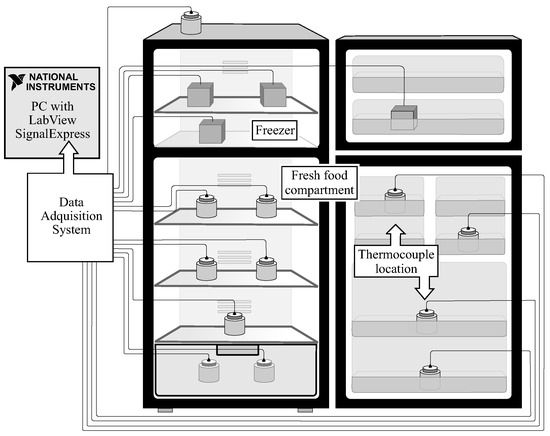

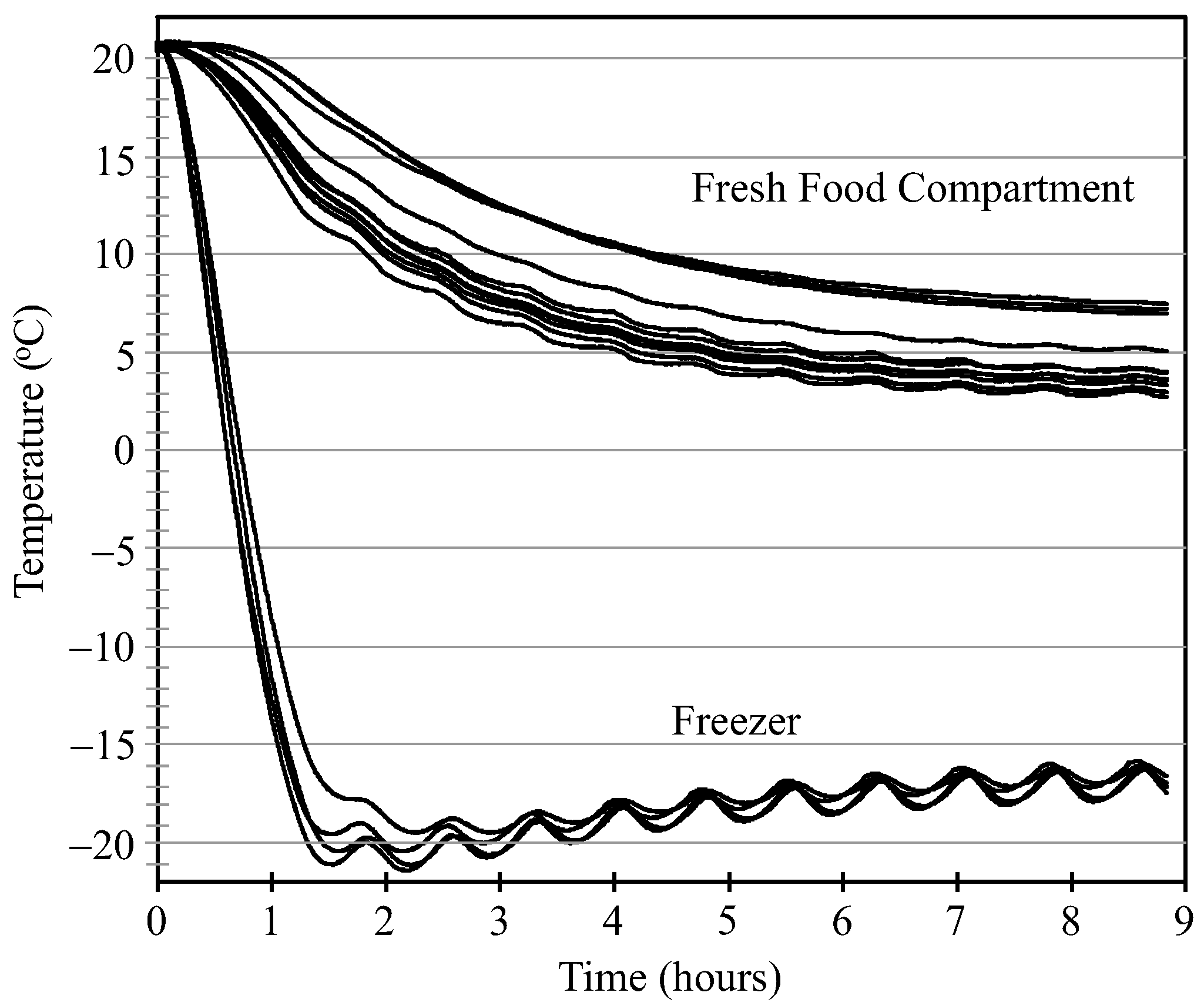

#### Instrumentation and Measurements

## 3. Unidimensional Interpolation

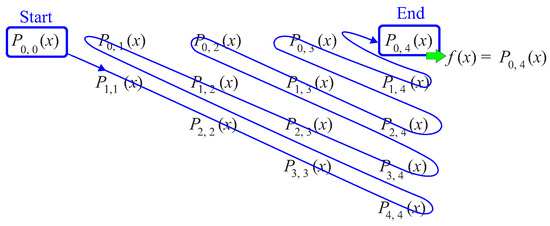

#### 3.1. Lagrange’s Interpolation

#### 3.2. Cubic Spline Interpolation

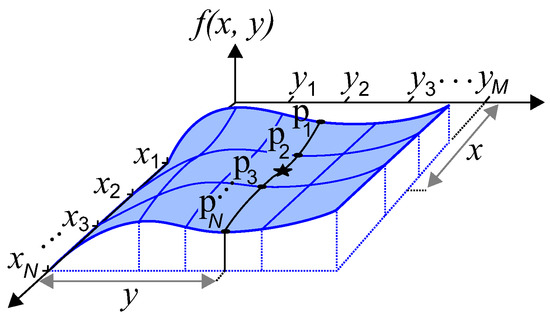

## 4. Multidimensional Interpolation

## 5. Computer Simulations and Results

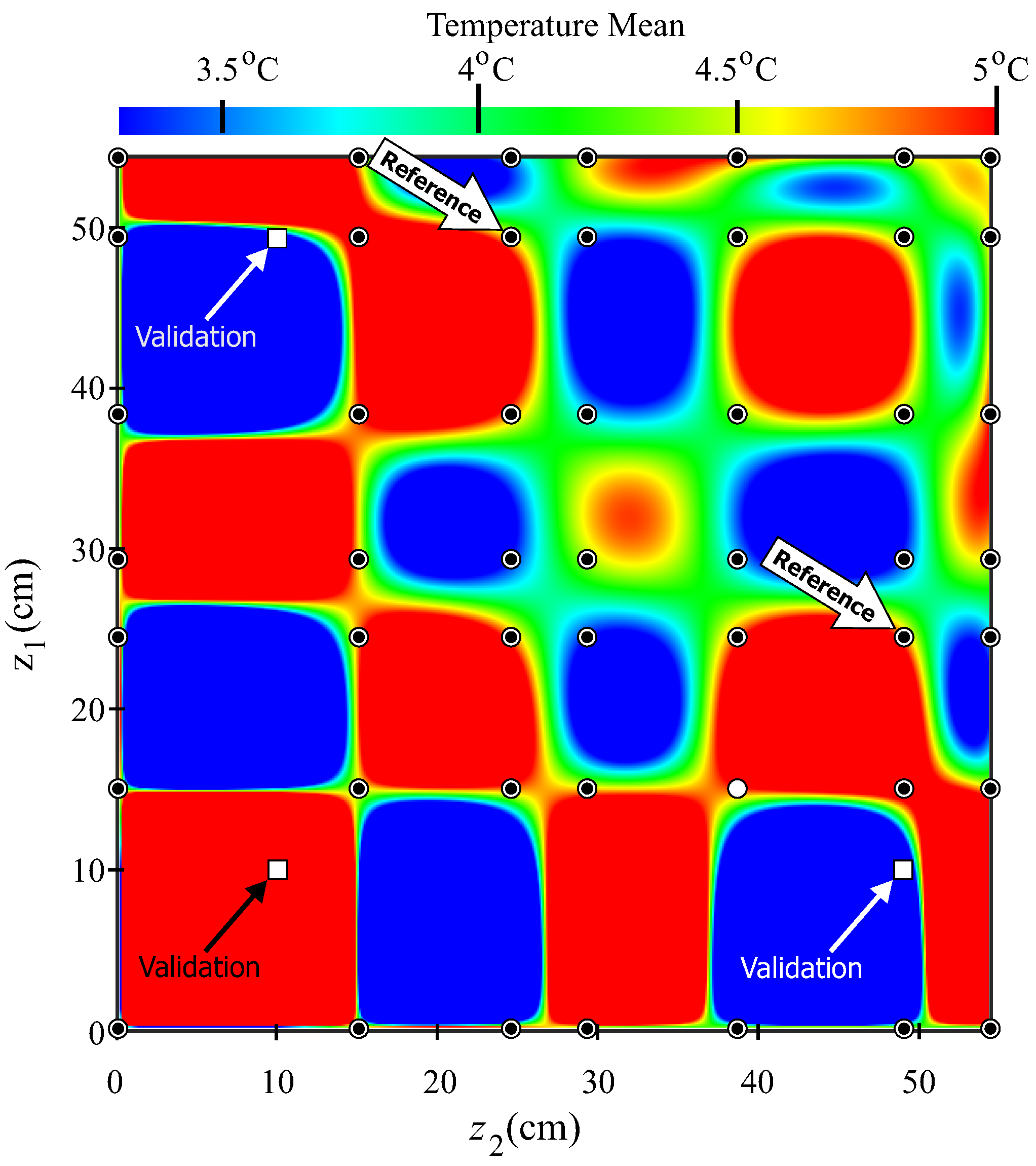

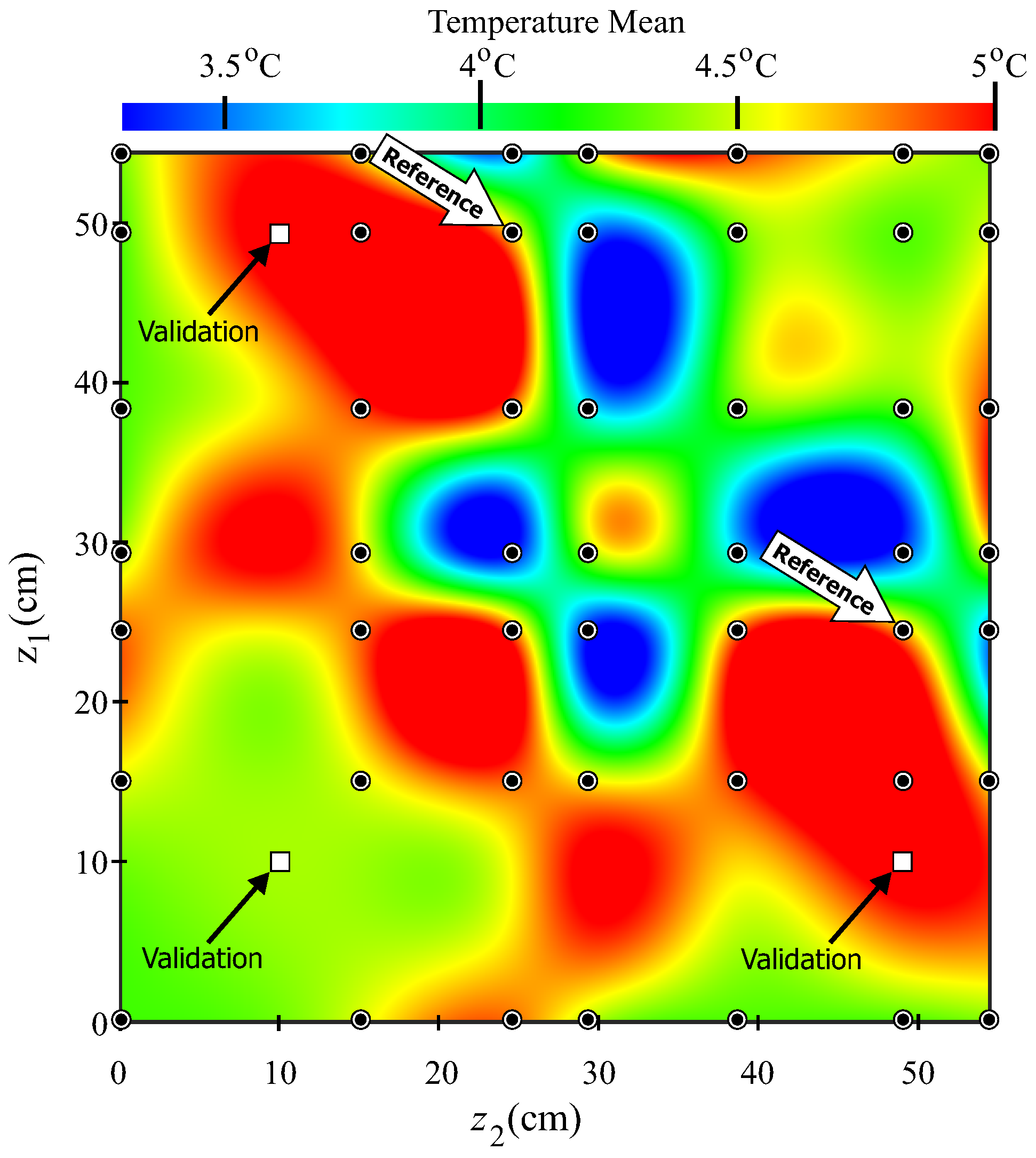

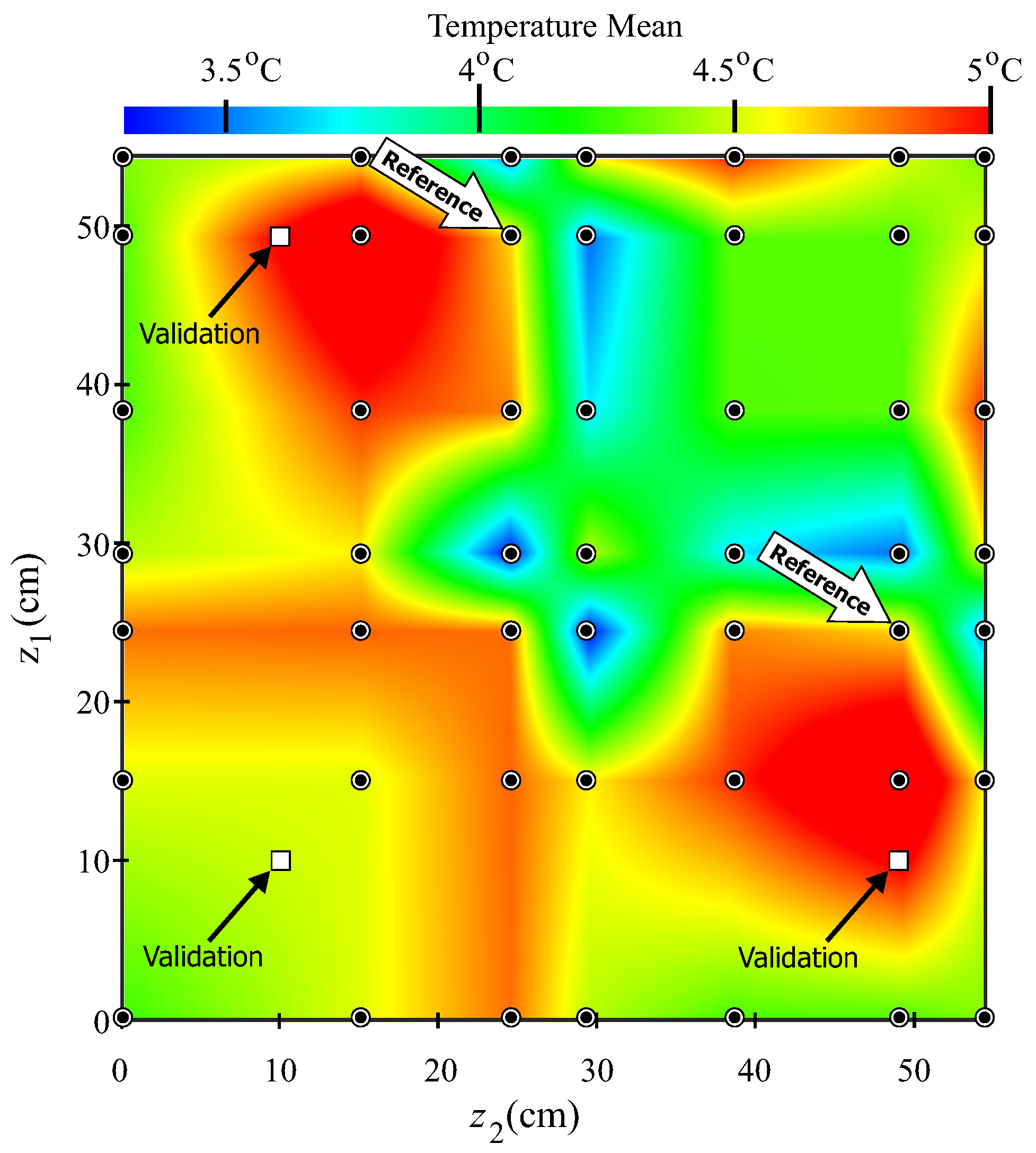

#### 5.1. Temperature Mean

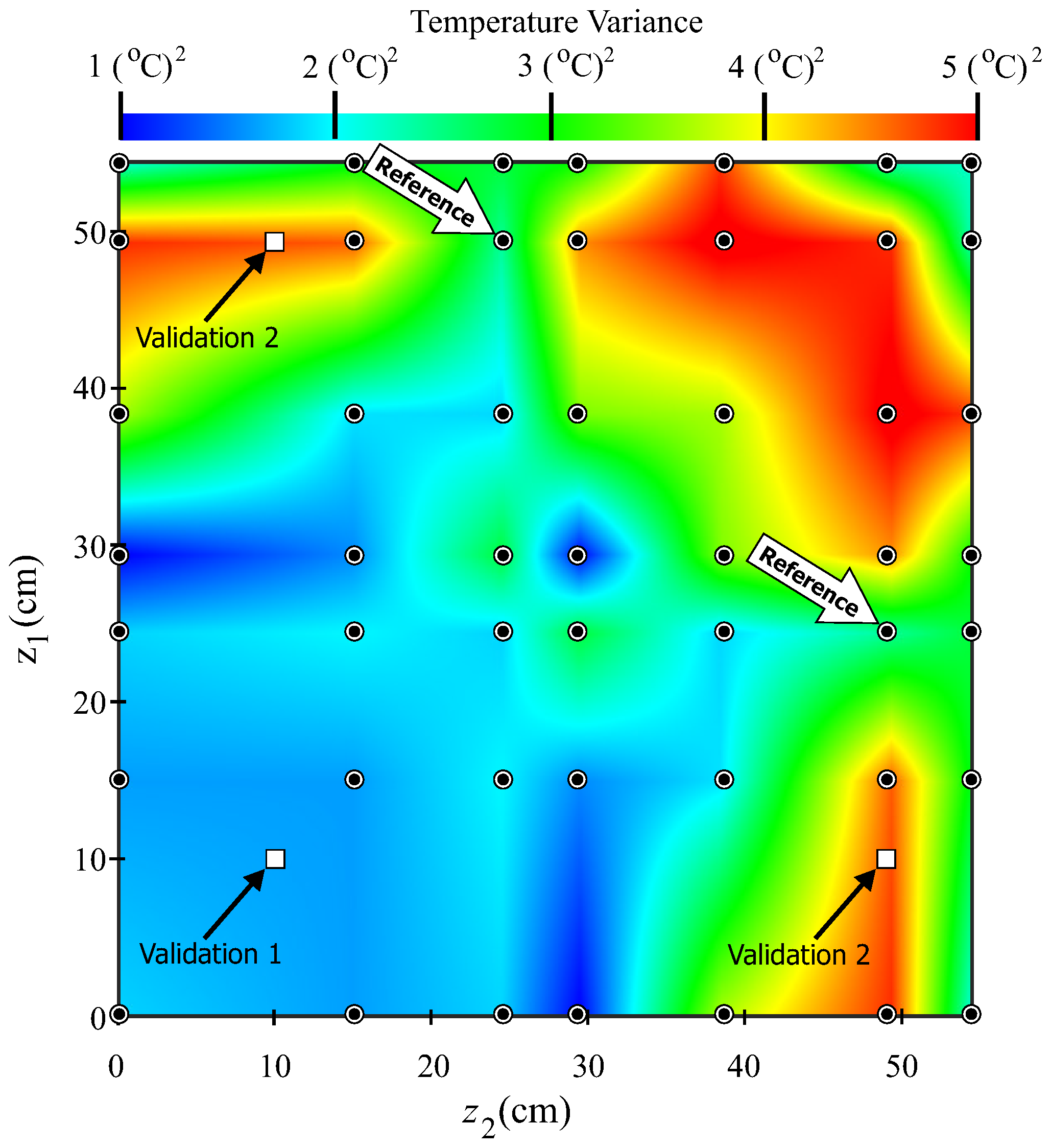

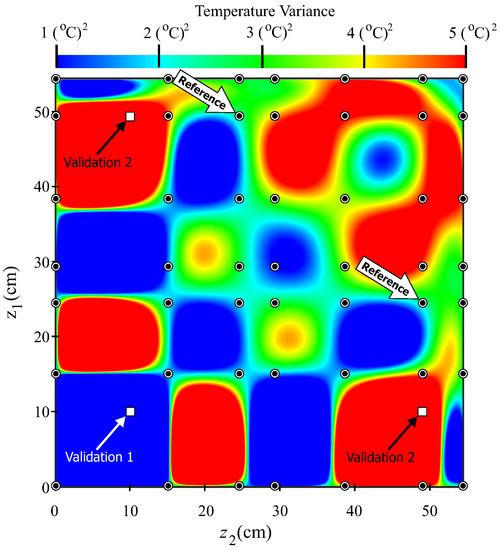

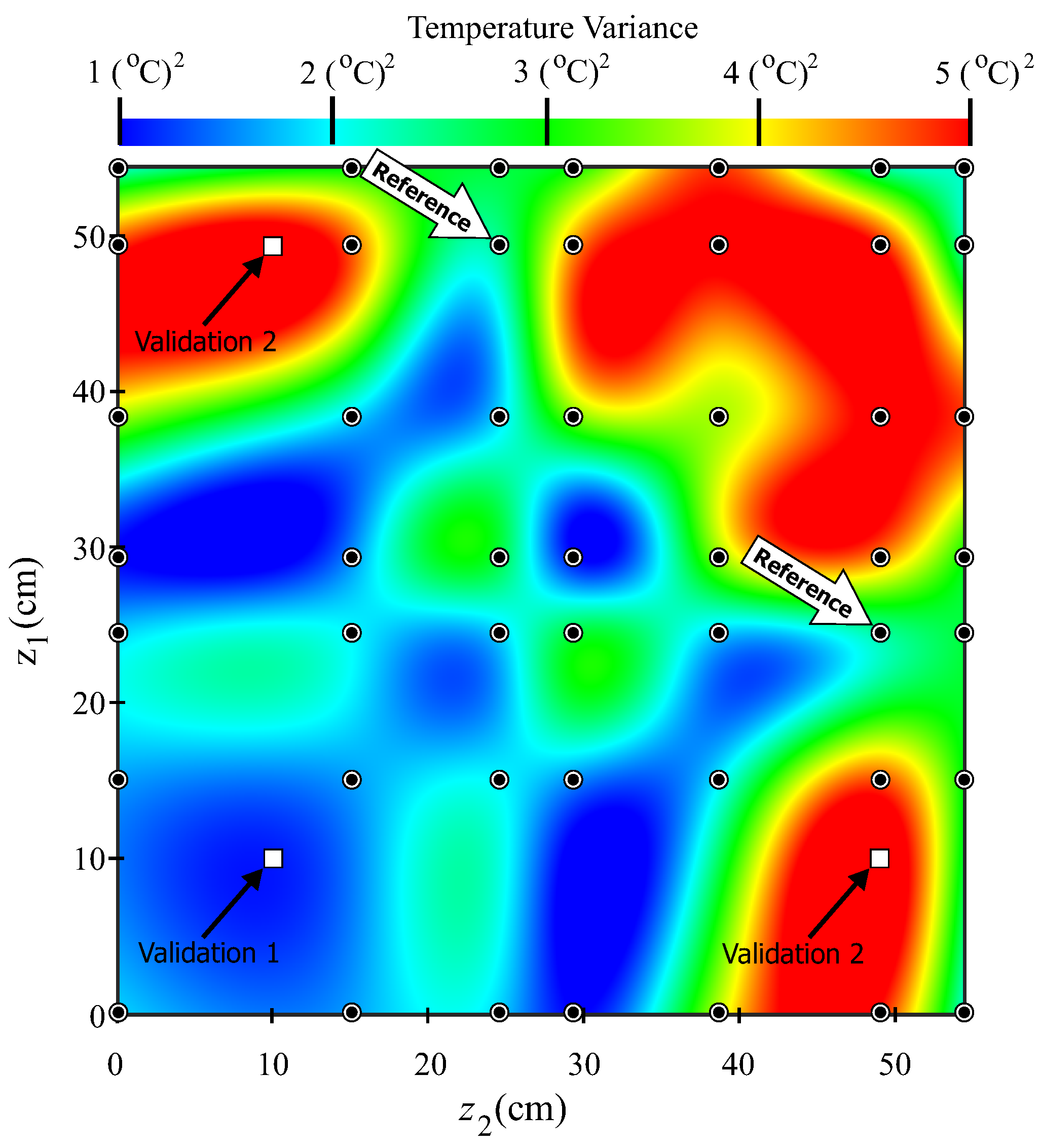

#### 5.2. Temperature Variance

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Belman-Flores, J.M.; Barroso-Maldonado, J.M.; Rodríguez-Muñoz, A.P.; Camacho-Vázquez, G. Enhancements in domestic refrigeration, approaching a sustainable refrigerator A review. Renew. Sustain. Energy Rev.
**2015**, 51, 955–968. [Google Scholar] [CrossRef] - Wang, S.; Srinivasan, S. Classification of household appliance operation cycles: A case-study approach. Energies
**2015**, 8, 10522–10536. [Google Scholar] - Brown, T.; Hipps, N.A.; Easteal, S.; Parry, A.; Evans, J.A. Reducing domestic food waste by lowering home refrigerator temperatures. Int. J. Refrig.
**2014**, 40, 246–253. [Google Scholar] [CrossRef] - Garrido, V.; García-Jalón, I.; Vitlas, A.I. Temperature distribution in Spanish refrigerators and its effect on Listeria monocytogenes growth in sliced ready-to-eat ham. Food Control
**2010**, 21, 896–901. [Google Scholar] [CrossRef] - Ding, G.L.; Qiao, H.T.; Lu, Z.L. Ways to improve thermal uniformity inside refrigerator. Appl. Therm. Eng.
**2004**, 24, 1827–1840. [Google Scholar] [CrossRef] - Afonso, V.; Matos, J. The effect of radiation shields around the air condenser and compressor of a refrigerator on the temperature distribution inside it. Int. J. Refrig.
**2006**, 29, 1144–1151. [Google Scholar] [CrossRef] - Gupta, J.K.; Gopal, M.R.; Chakraborty, S. Modeling of a domestic frost-free refrigerator. Int. J. Refrig.
**2007**, 30, 311–322. [Google Scholar] [CrossRef] - Yang, K.S.; Chang, W.R.; Chen, I.Y.; Wang, C.C. An investigation of a top-mounted domestic refrigerator. Energy Convers. Manag.
**2010**, 51, 1422–1427. [Google Scholar] [CrossRef] - Torabi, M.; Saedodin, S.; Salami, N.R.; Salehi, P. A combined experimental and three-dimensional numerical study of natural convection heat transfer in a domestic freezer for optimization and temperature prediction. Int. Rev. Mech. Eng.
**2010**, 4, 6. [Google Scholar] - Björk, E.; Palm, B.; Nordenberg, J. Thermographic study of the on-off behavior of an all-refrigerator. Appl. Therm. Eng.
**2010**, 30, 1974–1984. [Google Scholar] [CrossRef] - Laguerre, O.; Flick, D. Temperature prediction in domestic refrigerators: Deterministic and stochastic approaches. Int. J. Refrig.
**2010**, 33, 41–51. [Google Scholar] [CrossRef] - Kumlutas, D.; Haktan, Z.; Avci, H.; Özcen, M. Investigation of design parameters of a domestic refrigerator by artificial neural networks and numerical simulations. Int. J. Refrig.
**2012**, 35, 1678–1689. [Google Scholar] [CrossRef] - Bayer, O.; Oskay, R.; Paksoy, A.; Aradag, S. CFD simulations and reduced order modeling of a refrigerator compartment including radiation effects. Energy Convers. Manag.
**2013**, 69, 68–76. [Google Scholar] [CrossRef] - Belman-Flores, J.M.; Gallegos-Muñoz, A.; Puente-Delgado, A. Analysis of the temperature stratification of a no-frost domestic refrigerator with bottom mount configuration. Appl. Therm. Eng.
**2014**, 65, 299–307. [Google Scholar] [CrossRef] - Press, W.H.; Teukolsky, S.A.; Vetterling, W.T.; Flannery, B.P. Numerical Recipes 3rd Edition: The Art of Scientific Computing, 3rd ed.; Cambridge University Press: New York, NY, USA, 2007. [Google Scholar]

Name | Value |
---|---|

Net weight | 47 kg |

Total depth | 65.5 cm |

Total height | 169 cm |

Total width | 61.8 cm |

Defrost | Automatic |

Refrigerant | R134a |

Configuration | Top mount, two doors |

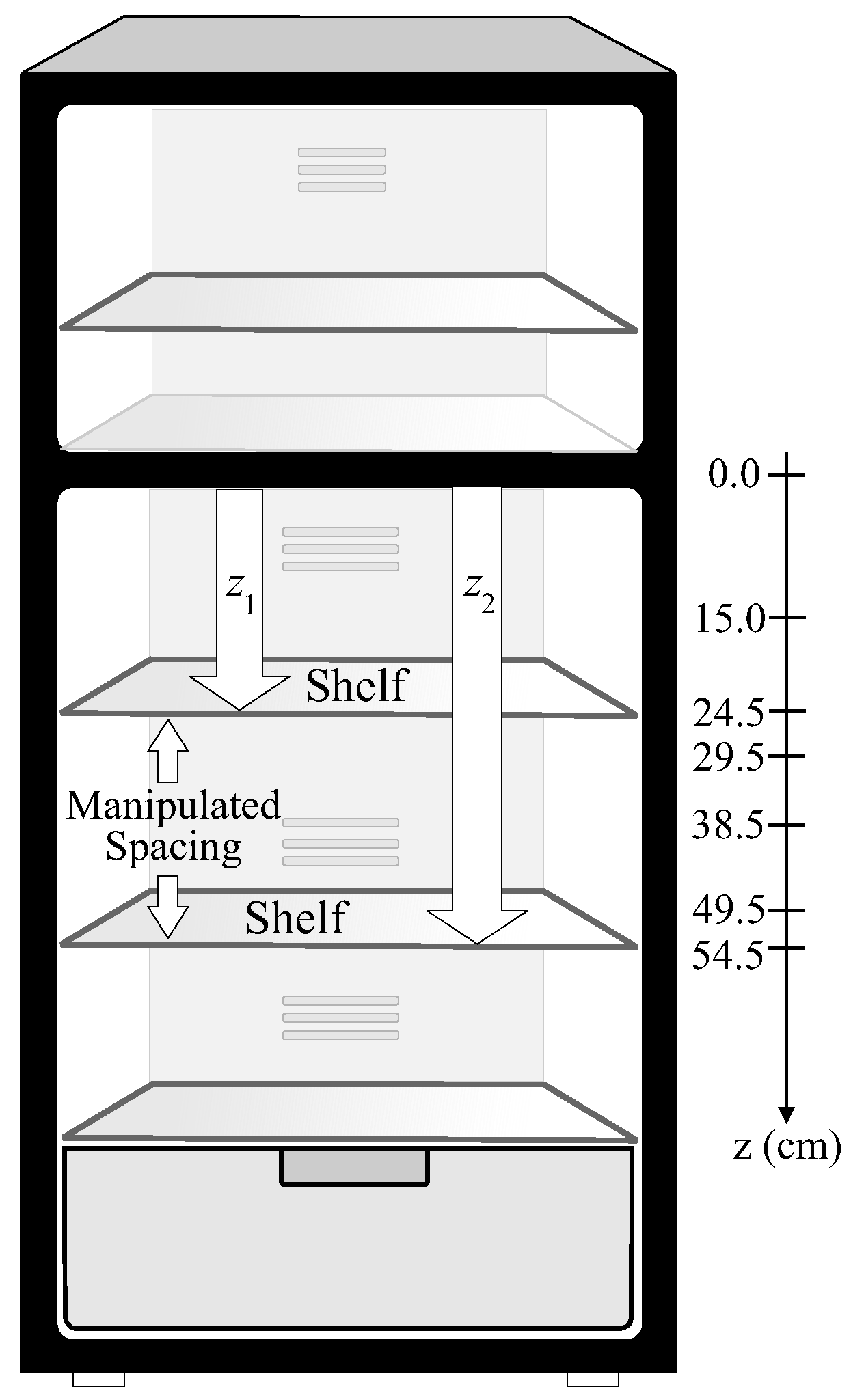

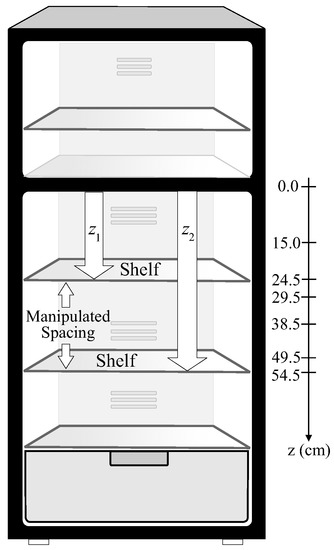

Shelf 1 | Shelf 2 | Temperature | Temperature |
---|---|---|---|

Location: ${\mathit{z}}_{1}$ (cm) | Location: ${\mathit{z}}_{2}$ (cm) | Mean ${}^{\circ}$C | Variance (${}^{\circ}$C)${}^{2}$ |

0 | 0 | 4.25 | 1.82 |

15 | 15 | 4.52 | 1.62 |

15 | 24.5 | 4.84 | 1.97 |

15 | 29.5 | 4.60 | 1.54 |

15 | 38.5 | 4.92 | 1.89 |

15 | 49.5 | 5.43 | 4.64 |

15 | 54.5 | 4.61 | 2.96 |

24.5 | 24.5 | 4.82 | 1.83 |

24.5 | 29.5 | 3.31 | 2.76 |

24.5 | 38.5 | 4.78 | 1.85 |

24.5 | 49.5 | 4.64 | 2.41 |

24.5 | 54.5 | 3.55 | 2.76 |

29.5 | 29.5 | 4.45 | 0.99 |

29.5 | 38.5 | 3.70 | 3.49 |

29.5 | 49.5 | 3.48 | 4.44 |

29.5 | 54.5 | 4.55 | 3.06 |

38.5 | 38.5 | 4.28 | 3.65 |

38.5 | 49.5 | 4.30 | 5.15 |

38.5 | 54.5 | 4.91 | 4.80 |

49.5 | 49.5 | 4.29 | 4.83 |

49.5 | 54.5 | 4.51 | 2.36 |

54.5 | 54.5 | 4.37 | 2.23 |

Interpolation | Validation 1 | Validation 2 | ||
---|---|---|---|---|

Mean ${}^{\circ}$C | Variance (${}^{\circ}$C)${}^{2}$ | Mean ${}^{\circ}$C | Variance (${}^{\circ}$C)${}^{2}$ | |

Experimental | 4.44 | 1.67 | 4.95 | 4.7 |

Lagrange’s | 5 | 1 | 3.25 | 5 |

Cubic spline | 4.4 | 1.4 | 4.95 | 5 |

Bilinear | 4.5 | 1.7 | 4.95 | 4.7 |

Interpolation | Validation 1 | Validation 2 | ||
---|---|---|---|---|

Mean (%) | Variance (%) | Mean (%) | Variance (%) | |

Lagrange’s | 12.61 | 40.12 | 34.34 | 6.38 |

Cubic spline | 0.90 | 16.17 | 0 | 6.38 |

Bilinear | 1.35 | 1.80 | 0 | 0 |
