Frey's Syndrome Consequent to an Unusual Pattern of Temporomandibular Joint Dislocation: Case Report with Review of Its Incidence and Etiology
Abstract
:Case Report
Discussion

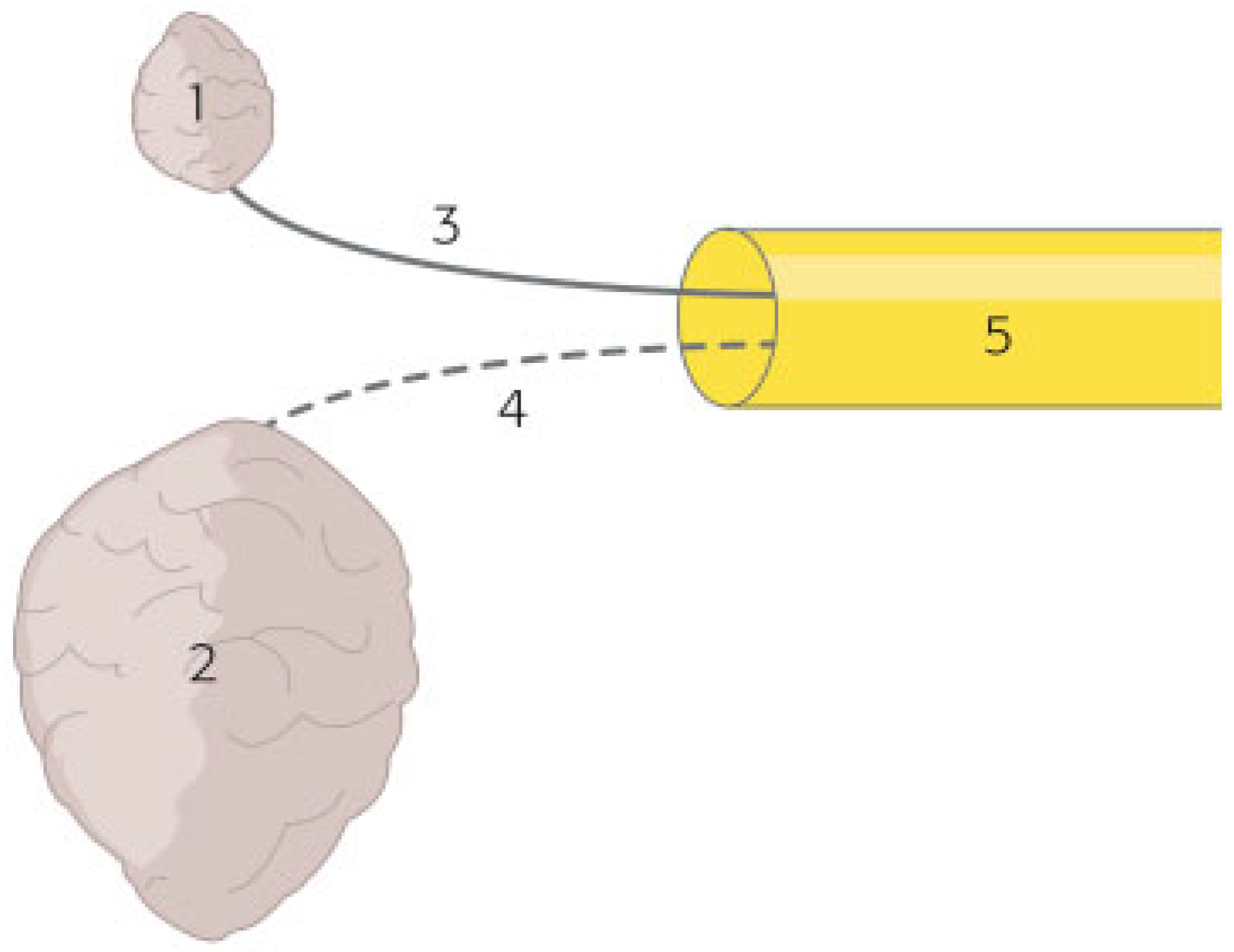

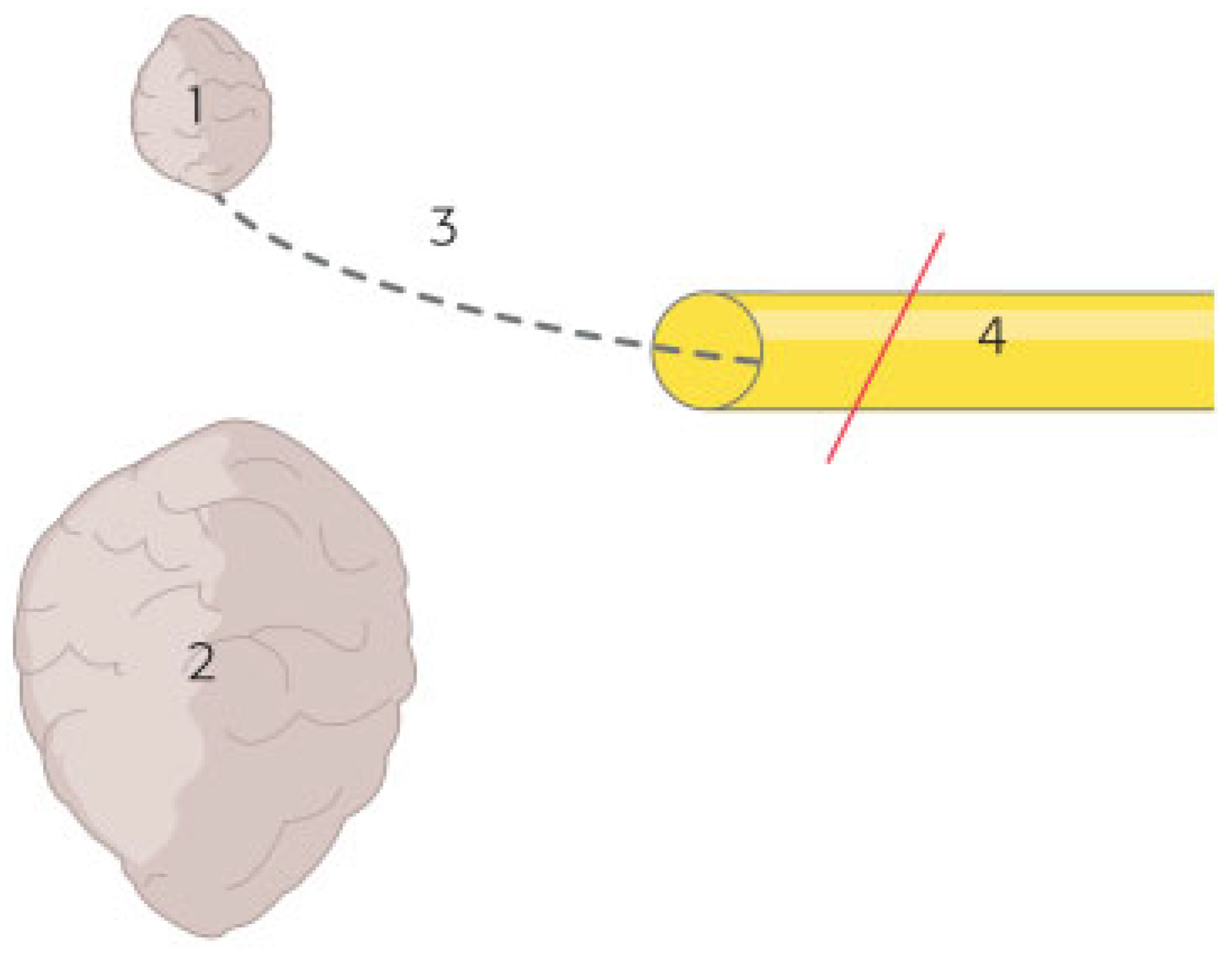

- Secretomotor fibers to the parotid that run in the ATN regenerate along the wrong neurilemma sheath following its interruption and come to innervate the sympathetic endings in the skin.
- Scarred gland tissue causes excessive tension during parotid activity, consequently leading to irritation of sympathetic fibers traversing the gland in the auriculotemporal nerve.
- Abnormal irritability of the cholinergic nerve endings results when the regeneration attempt of fibers of the auriculotemporal nerve is strangulated by scar tissue in the parotid gland.
- The auriculotemporal syndrome normally exists as a spontaneous effect, deprived of inhibitory fibers by damage to the nerve supply of the area.
- Sensory fibers conveying impulses from the skin,
- Vasodilator fibers to the subcutaneous arterioles,
- Secretory fibers to the sweat glands from the cervical sympathetics,
- Salivary secretory fibers to the parotid, and
- Vasodilator fibers to the parotid.
Type | Pathological State | Pathological Basis |
---|---|---|
Type 1 Sympathetic/parasympathetic | Salivary gland surgery, salivary gland disease, neck dissection | Lesion of thermoregulated fibers + a lesion of gustatorycontrolled parasympathetic fibers |
Type 2 Sympathetic | Sympathetic neck surgery with sympathetic (trunk) lesions, cervical and cephalic trauma | Lesion of thermoregulated sympathetic fibers + a lesion of preganglionic (cholinergic) gustatory-controlled sympathetic fibers |
Type 3 Central | Healthy individuals, feeble, central nervous diseases (e.g., encephalitis, spinal process such as syringomyelia, emotional stress) | Central nervous lesion of thermoregulatory or gustatory regulation centers, low reflex threshold of gustatory sweating |
- A high-velocity injury impacts the mandible twice: one impact at the mandibular symphysis causes it to fracture and the other dislocates the “intact” condyle in a backward, upward, and outward direction in an already fractured lower jaw. Recollecting the anatomy of the medial aspect of the TMJ, the ATN could have sustained injury in its course between the TMJ and the external auditory meatus (Figure 7A); here, at the posterior border of the lateral pterygoid muscle, the nerve trunk is in direct contact with the condylar neck. The horizontal distance is 0 mm at this level (Figure 7B) [26], prior to its termination in the temporal region.

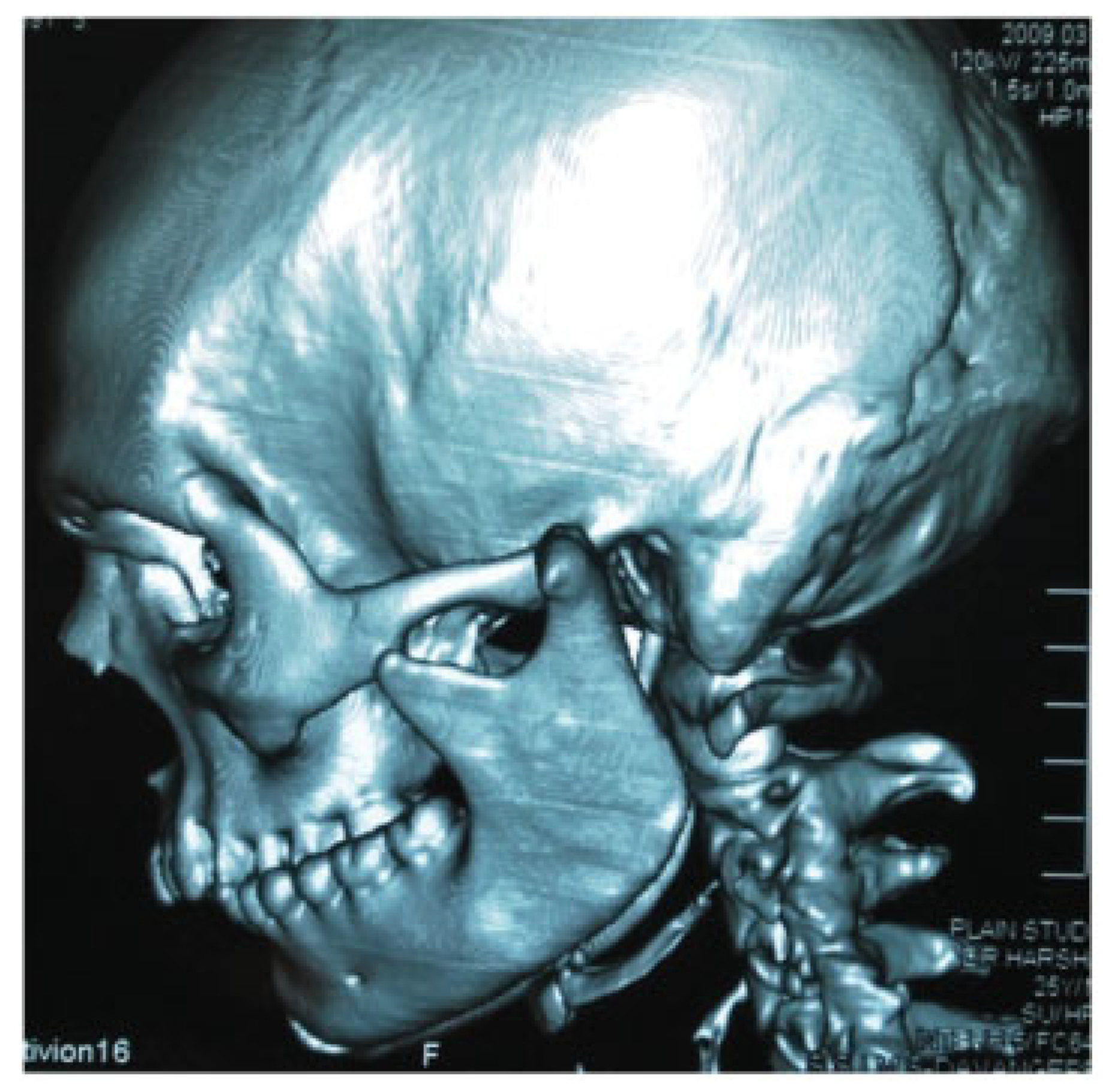

- The phenomenon of the condyle hooking the superior border of the ipsilateral zygomatic arch following traumatic (superolateral) dislocation may have caused possible impingement injury to the terminal branches of the

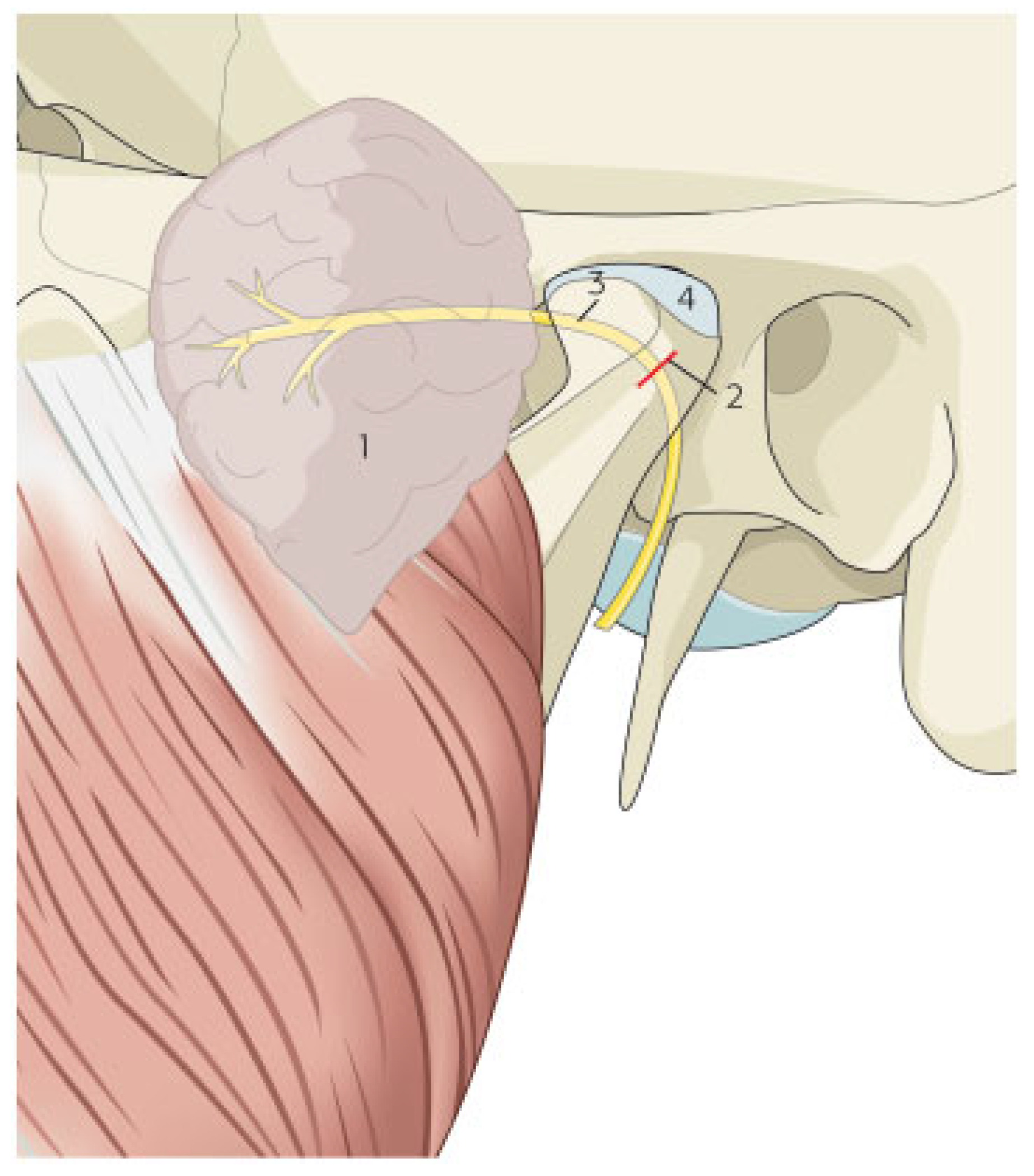

- ATN (Figure 8).
- As the ATN gives off branches to the retrodiscal tissue of the TMJ following dislocation, the undue stretching of the joint capsule and the ATN may have resulted in nerve damage.
- During deep sedation–assisted reduction, the sudden snapback of the condyle into the glenoid fossa could have possibly resulted in ATN injury (assuming the nerve’s displacement in the glenoid fossa at the time of dislocation) (Figure 9).
- Partial superficial parotidectomy [32]. The use of partial superficial parotidectomy instead of superficial or total parotidectomy produces improved cosmetic results and salivary function.
- Free abdominal dermal fat grafts [33]. These grafts provide good facial contouring that reduces the incidence of postoperative gustatory sweating without significantly increasing operating time or lengthening in-hospital stay.
- Superficial musculoaponeurotic system (SMAS) interpositional taps [34,35]. After partial superficial parotidectomy, the remainder of the parotid gland and the SMAS may be sutured back to the sternocleidomastoid muscle. This SMAS interposition seems to reduce the incidence of Frey’s syndrome. At the same time, the connection between the ATN and the facial nerve is preserved.
- Fascia lata interpositional tap [36].
- Sternocleidomastoid taps [37].
- Permacol (Permacol™; Dublin, Ireland) (porcine dermal collagen) [38]. It is a strong biological, nonabsorbable implant with natural properties.
- Allogenic acellular dermal matrix tap [39].
Conclusions
Acknowledgments
References
- Duphenix, M. Observations sur les fistules du canal salivaire de Stenon. I. Sur une playe compliquee a la joue ou le canal salivaire fut dechire. Mem Acad Royal Chir 1757, 3, 431–437. [Google Scholar]
- Baillarger, J.G.F. Mémoire sur l’oblitération du canal de Stenon. Gaz Med 1853, 23, 194. [Google Scholar]
- Weber, F. A case of localized sweating and blushing on eating, possibly due to temporary compression of vasomotor fibres. Trans Clin Soc 1897, 31, 277–280. [Google Scholar]
- Frey, L. Le syndrome du nerve auriculo-temporal. Rev Neurol 1923, 2, 97–104. [Google Scholar]
- Manson, M.; David, K. Auriculotemporal syndrome (Frey’s syndrome) following surgery of parotid tumors. Am J Surg 1961, 102, 777–780. [Google Scholar]
- Freedberg, A.S.; Shaw, R.S.; McManus, M.J. The auriculotemporal syndrome – A clinical and pharmacologic study. J Clin Invest 1948, 27, 669–676. [Google Scholar] [CrossRef]
- Ford, F.R.; Woodhall, B. Phenomena due to misdirection of regenerating fibers of cranial, spinal and automatic nerves. Arch Surg 1938, 38, 480–496. [Google Scholar] [CrossRef]
- Glaister, D.H.; Hearnshaw, J.R.; Heffron, P.F.; Peck, A.W.; Patey, D.H. The mechanism of post-parotidectomy gustatory sweating (The auriculo-temporal syndrome). Br Med J 1958, 51, 942. [Google Scholar] [CrossRef]
- Haxton, H.A. Gustatory sweating. Brain 1948, 71, 16. [Google Scholar] [CrossRef]
- Laage-Hellman, J.K. Gustatory sweating and tushing. Aetiological implications of latent period and mode of development after parotidectomy. Acta Otolaryngol 1958, 49, 306–314. [Google Scholar] [CrossRef]
- Scouteris, C.A.; Rapidis, A.D.; Angelopoulos, A.P.; Langdon, J.D. Frey’s syndrome. Oral Surg Oral Med Oral Pathol 1981, 52, 368–371. [Google Scholar] [CrossRef] [PubMed]
- Morfit, M.H.; Kramish, D. Auriculotemporal Syndrome (Frey’s Syndrome) Following surgery of parotid tumors. American Journal of Surgery 1961, 102, 777–780. [Google Scholar] [CrossRef]
- Rustemeyer, J.; Eufinger, H.; Bremerich, A. The incidence of Frey’s syndrome. J Craniomaxillofac Surg 2008, 36, 34–37. [Google Scholar] [CrossRef] [PubMed]
- Ross, J.A.T. The function of the tympanic plexus as related to Frey’s syndrome. Laryngoscope 1970, 80, 1816–1833. [Google Scholar] [CrossRef] [PubMed]
- Martis, C.; Athanassiades, S. Auriculotemporal syndrome (Frey’s syndrome), secondary to the fracture of the mandibular condyle. Plast Reconstr Surg 1969, 44, 602–603. [Google Scholar] [CrossRef]
- Pansino, F.A. Auriculotemporal syndrome (Frey’s syndrome). Oral Surg 1971, 39–40. [Google Scholar] [CrossRef]
- Tuinzing, D.B.; Van Der Kwast, W.A.M. Frey’s syndrome: a complication after sagittal splitting of the mandibular ramus. Int J Oral Surg 1982, 11, 197–200. [Google Scholar] [CrossRef]
- Zöller, J.; Herrmann, A.; Maier, H. Frey’s syndrome secondary to a subcondylar fracture. Otolaryngology 1993, 8, 751–753. [Google Scholar] [CrossRef]
- Mellor, T.K.; Shaw, R.J. Frey’s syndrome following fracture of the mandibular condyle: case report and literature review. Injury 1996, 27, 359–360. [Google Scholar] [CrossRef]
- Sengezer, M.; Sadove, R.C.; Deveci, M. Frey’s syndrome following fracture of the mandibular condyle—a case report. Eur J Plast Surg 1997, 20, 217–219. [Google Scholar] [CrossRef]
- Ellis, E. Passive repositioning of maxillary fractures: An occasional impossibility without osteotomy. J Oral and Maxillofac Surg 2004, 62, 1477–1485. [Google Scholar] [CrossRef] [PubMed]
- Maj, M.G.V.; Col Sinha, R.; Col Menon, P.S.; Col Chattopadhyay, P.K.; Col Roy, C.S.K. Fractures in the maxillofacial region: a four year retrospective study. MJAFI 2010, 66, 14–17. [Google Scholar]
- Tue, W.K.; Jennifer, C.; Karin, F.; Ann, W. Frey’s syndrome—an under reported complication to closed treatment of mandibular condyle fracture? Case report and literature review. JOMS 2011, 69, 2211–2216. [Google Scholar]
- Moreno-Arias, G.A.; Grimalt, R.; Llusa, M.; Cadavid, J.; Otal, C.; Ferrando, J. Frey’s syndrome. J Pediatr 2001, 138, 294. [Google Scholar] [CrossRef] [PubMed]
- Tauro, D.; Lakshmi, S.; Mishra, M. Superolateral dislocation of the mandibular condyle: report of a case with review of literature and a proposed modification in the classification. Craniomaxillofac Trauma Reconstr 2010, 3, 119–123. [Google Scholar] [CrossRef] [PubMed]
- Schmidt, B.L.; Pogrel, M.A.; Necoechea, M.; Kearns, G. The distribution of the auriculotemporal nerve around the temporomandibular joint. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1998, 86, 165–168. [Google Scholar] [CrossRef]
- Chisa, N.; Mendelson, C.G.; Damlev, J.D. Auriculotemporal ’syndrome, krch. Dermatol 1964, 90, 257–461. [Google Scholar]
- Laskawi, R.; Ellies, M.; Rödel, R.; Schoenebeck, C. Gustatory sweating: clinical implications and etiologic aspects. J Oral Maxillofac Surg 1999, 57, 642–648. [Google Scholar] [CrossRef]
- Hemenway, W.G. Gustatory sweating and tushing. The auriculotemporal syndrome—Frey’s syndrome. Laryngoscope 1960, 70, 84–90. [Google Scholar] [CrossRef]
- Ng, S.; Torjek, C.; Hovan, A. Management of Frey syndrome using botulinum neurotoxin: a case report. J Can Dent Assoc 2009, 75, 651–654. [Google Scholar]
- Wang, C.C.; Wang, C.P. Preliminary experience with botulinum toxin type A intracutaneous injection for Frey’s syndrome. J Chin Med Assoc 2005, 68, 463–467. [Google Scholar] [CrossRef]
- Roh, J.L.; Kim, H.S.; Park, C.I. Randomized clinical trial comparing partial parotidectomy versus superficial or total parotidectomy. Br J Surg 2007, 94, 1081–1087. [Google Scholar] [CrossRef] [PubMed]
- Nosan, D.K.; Ochi, J.W.; Davidson, T.M. Preservation of facial contour during parotidectomy. Otolaryngol Head Neck Surg 1991, 104, 293–298. [Google Scholar] [CrossRef] [PubMed]
- Casler, J.D.; Conley, J. Superficial musculoaponeurotic system plication in the prevention of Frey’s syndrome. Laryngoscope 1991, 101 Pt 1, 195–100. [Google Scholar] [CrossRef]
- Taylor, S.M.; Yoo, J.; Matthews, T.W.; Lampe, H.B.; Trites, J.R. Frey’s syndrome and parotidectomy taps: A retrospective cohort study. Otolaryngol Head Neck Surg 2000, 122, 201–203. [Google Scholar] [CrossRef] [PubMed]
- Sessions, R.B.; Roark, D.T.; Alford, B.R. Frey’s syndrome: a technical remedy. Ann Otol 1976, 85, 734–739. [Google Scholar] [CrossRef]
- Hancock, B.D. Clinically benign parotid tumours: local dissection as an alternative to superficial parotidectomy in selected cases. Ann R Coll Surg Engl 1999, 81, 299–301. [Google Scholar]
- Soler, J.A.; Gidwani, S.; Curtis, M.J. Early complications from the use of porcine dermal collagen implants (Permacol) as bridging constructs in the repair of massive rotator cuff tears. A report of 4 cases. Acta Orthop Belg 2007, 73, 432–436. [Google Scholar]
- Ye, W.M.; Zhu, H.G.; Zheng, J.W.; Wang, X.D.; Zhao, W.; Zhong, L.P.; Zhang, Z.Y. Use of allogenic acellular dermal matrix in prevention of Frey’s syndrome after parotidectomy. Br J Oral Maxillofac Surg 2008, 46, 649–652. [Google Scholar] [CrossRef]
