Review

Pathophysiology and Prevention of Manual-Ventilation-Induced Lung Injury (MVILI)

by
Luke A. White
1,2,
Steven A. Conrad
2,3,4 and
Jonathan Steven Alexander
1,2,5,*
1
Department of Molecular and Cellular Physiology, LSU Health Shreveport, Shreveport, LA 71103, USA
2
Department of Internal Medicine, LSU Health Shreveport, Shreveport, LA 71103, USA
3
Department of Emergency Medicine, LSU Health Shreveport, Shreveport, LA 71103, USA
4
Department of Pediatrics, LSU Health Shreveport, Shreveport, LA 71103, USA
5
Department of Neurology, LSU Health Shreveport, Shreveport, LA 71103, USA
*
Author to whom correspondence should be addressed.
Pathophysiology 2024, 31(4), 583-595; https://doi.org/10.3390/pathophysiology31040042
Submission received: 12 July 2024 / Revised: 5 September 2024 / Accepted: 2 October 2024 / Published: 12 October 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Manual ventilation, most commonly with a bag-valve mask, is a form of short-term ventilation used during resuscitative efforts in emergent and out-of-hospital scenarios. However, compared to mechanical ventilation, manual ventilation is an operator-dependent skill that is less well controlled and is highly subject to providing inappropriate ventilation to the patient. This article first reviews recent manual ventilation guidelines set forth by the American Heart Association and European Resuscitation Council for providing appropriate manual ventilation parameters (e.g., tidal volume and respiratory rate) in different patient populations in the setting of cardiopulmonary resuscitation. There is then a brief review of clinical and manikin-based studies that demonstrate healthcare providers routinely hyperventilate patients during manual ventilation, particularly in emergent scenarios. A discussion of the possible mechanisms of injury that can occur during inappropriate manual hyperventilation follows, including adverse hemodynamic alterations and lung injury such as acute barotrauma, gastric regurgitation and aspiration, and the possibility of a subacute, inflammatory-driven lung injury. Together, these injurious processes are described as manual-ventilation-induced lung injury (MVILI). This review concludes with a discussion that highlights recent progress in techniques and technologies for minimizing manual hyperventilation and MVILI, with a particular emphasis on tidal-volume feedback devices.

1. Introduction

There are numerous clinical scenarios in which ventilation is accomplished directly by healthcare professionals (manual ventilation) rather than by a machine (mechanical ventilation) [1]. Indications for manual ventilation use include (1) emergency ventilation where mechanical ventilation is not feasible (during either inpatient or out-of-hospital cardiopulmonary resuscitation, or CPR) or (2) short-term ventilatory support (e.g., during a tracheal intubation procedure prior to mechanical ventilator connection or transporting patients around the hospital or to another facility). Although a life-sustaining maneuver, manual ventilation is not as precisely controlled as mechanical ventilation, increasing the risk of inappropriate, even injurious, ventilation [2]. Despite specific guidelines set forth by groups such as the American Heart Association (AHA) and European Resuscitation Council (ERC), unrecognized manual hyperventilation commonly occurs, particularly during resuscitation efforts, and can lead to acute, life-threatening pneumatic and hemodynamic changes. Acute pulmonary injury can also occur from gastric regurgitation and subsequent aspiration. Additionally, a more insidious, sub-barotraumatic lung injury may also occur, similar in pathophysiology to ventilator-induced lung injury (VILI), if manual ventilation occurs for a sufficiently long time. To minimize the risk of manual-ventilation-induced lung injury (MVILI), recent advancements have been made in devices utilized during manual ventilation, most notably tidal-volume feedback devices.

2. Manual Ventilation

The most common method for manual ventilation utilizes an inflating/deflating bag connected through a one-way valve either to a mask (bag-valve mask, BVM) or endotracheal tube. Ventilation is achieved when the healthcare provider squeezes the bag, forcing air from the bag and into the patient’s lungs, causing inspiration. With the release of the bag squeeze, air then moves out of the patient’s lungs and into the atmosphere via the nonrebreathing valve. Reinflation of the bag between bag squeezes may or may not require an external pressurized gas source, and those that do not are called self-inflating bags. This process of squeezing and releasing the bag is repeated, and the patient is manually ventilated by the healthcare provider [1].
Although simple in concept, manual ventilation can be difficult to perform correctly [3]. When used with a mask applied to the face, appropriate mask size selection and good hand placement are necessary to create a tight seal between the mask and patient for effective ventilation. Airway patency and evidence of ventilation (such as seeing the patient’s chest rise and fall) should be assessed continuously. Appropriate tidal volumes and respiratory rates for the patient’s age and size should also be delivered to prevent both inadequate ventilation (if bagged too shallowly or slowly) and avoid injury (if bagged too aggressively or quickly). Guidelines for optimal manual ventilation parameters during the resuscitation of adult, pediatric, and neonatal patients have been published from groups such as the American Heart Association (AHA) and the European Resuscitation Council (ERC) and are summarized in Table 1 [4,5,6,7,8,9].

3. Manual Hyperventilation

Despite these recommendations, manikin studies have demonstrated that healthcare personnel do not routinely maintain these guidelines regarding tidal volume and respiratory rate delivery during manual ventilation. In one manikin study, 20 ambulance personnel bagged an adult manikin at a mean tidal volume 746 ± 221 mL, 24% higher than the study’s defined target tidal-volume upper bound of 600 mL [10]. Another manikin study from 140 participants including first-aid workers, nurses, and physicians bagged a manikin at an average inspiratory tidal volume of 590 ± 193 mL at a rate of 24 ± 9 breaths/min [11]. In this study, a mask was used to interface between the bag and the manikin’s test lung, likely leading to an inadvertent leak, and the mean delivered tidal volume was 334 ± 124 mL. Excessive ventilation, defined in the study as tidal volumes greater than 600 mL and respiratory rates above 15 breaths/min averaged over a 1 min sliding window throughout the 5 min test, occurred in over 79% of tests For manual ventilation of pediatric patients, one study simulating 72 inpatient pediatric CPR events including pediatric resident and intern physicians, respiratory therapists, and nurses found that BVM hyperventilation occurred during every simulation [12]. The mean respiratory rate was of 41 ± 12 breaths/min, double the study’s target ventilation rate of 20 breaths/min. For manual ventilation of neonatal patients, one manikin study found that the average inspiratory tidal volume was 96 ± 19 mL with a five-fingered grip technique and 88 ± 16 mL with a two-fingered grip at rates of 43 ± 16 and 47 ± 17 breaths/min, respectively [13]. Expiratory tidal volumes were also measured at 62 ± 24 mL and 59 ± 17 mL, respectively. In this study, there were no criteria for excessive ventilation since the study’s endpoint was comparing five- versus two-fingered grip techniques. Nonetheless, even assuming a simulated large 5 kg neonate (a birthweight greater than 99.9% of the recorded birthweights for the United States in 2019 [14]), the measured inspiratory and expiratory tidal volumes were nearly 50% above the ERC’s upper limit for its recommended tidal volume of 8 mL/kg (a tidal volume of 40 mL) [9]. Furthermore, these volumes are nearly three times greater than the recommended tidal volume for low-birthweight neonates (defined as a birthweight less than 2.5 kg, giving a recommended tidal volume of 20 mL) [14], which is one of the most important risk factors associated with neonatal respiratory distress syndrome and the need for emergent manual ventilation [15].
Clinical studies involving real-life resuscitation scenarios have also documented the alarming tendency for healthcare personnel to hyperventilate. In 2004, a study was published where the quality of out-of-hospital CPR performed by emergency medical personnel was observed [16,17]. After seven cases, they noted that the average delivered respiratory rate was 37 ± 4 breaths/min, over three times the target respiratory rate of 12 breaths/min. After a retraining of the personnel, the respiratory rate dropped to 22 ± 3 breaths/min in the subsequent six cases, which was still nearly double the target respiratory rate. The authors concluded that hyperventilation during emergency manual ventilation in a pre-hospital setting is a common problem. In a 2006 study, respiratory variables were measured during resuscitation attempts with 12 patients in an in-hospital setting of an emergency department [18]. The median tidal volume delivered was 619 mL (range of 374 to 923 mL) at a median rate of 21 breaths/min (range of 7 to 37 breaths/min).

4. Manual-Ventilation-Induced Lung Injury (MVILI)

The above studies demonstrate that healthcare personnel routinely hyperventilate patients during manual ventilation, events that can have deleterious effects on the resuscitated patient. Previous research has focused on two mechanisms of manual hyperventilation injury: (1) adverse hemodynamic changes and (2) gastric insufflation (in non-intubated, unprotected airways) leading to aspiration lung injury. Evidence from several case studies (particularly in intubated, closed-circuit airways) also suggests gross barotrauma, such as pneumothorax, pneumomediastinum, and pneumoperitoneum, as another important mechanism of lung injury. Finally, a more insidious secondary, inflammation-driven lung injury has been surmised to occur, similar in mechanism to what has been extensively studied as ventilator-induced lung injury (VILI), although experimental and clinical evidence for this pathophysiology is scarce. Collectively, these mechanisms of lung injury can be classified as manual-ventilation-induced lung injury or MVILI (Figure 1).

4.1. Adverse Hemodynamic Changes

Because the thoracic cavity is occupied by both the lungs and the heart, alterations to intrathoracic pressure through positive pressure mechanical ventilation can affect cardiac dynamics [19,20,21]. Aufderheide et al. experimentally demonstrated in a porcine model how hyperventilation (from 12 to 30 breaths/min) can increase mean intrathoracic pressure and decrease coronary perfusion pressure (experimentally measured as the difference between aortic diastolic pressure and right atrial diastolic pressure) during CPR [16,17]. Furthermore, return of spontaneous circulation occurred after biphasic shock in nearly all (six of seven pigs, 86%) pigs ventilated at 12 breaths/min, while only one of seven (14%) of pigs ventilated at 30 breaths/min was successfully resuscitated. The authors speculated that the increase in intrathoracic pressure led to a decrease in venous return, reducing right ventricular preload and cardiac output. They also speculated that this increased intrathoracic pressure would reduce left ventricular cardiac output. Additionally, the decrease in coronary perfusion pressure would lead to decreased myocardial blood flow, a vital component for a successful return of spontaneous circulation. The authors expressed concern that these hemodynamic changes from manual hyperventilation during resuscitation attempts could severely impact outcomes and survival.

4.2. Gastric Regurgitation and Aspiration

Some forms of manual ventilation, in particular the use of a mask, exposes the patient’s esophagus to increased airway pressure. At high-enough pressures, the lower esophageal sphincter (LES) may open, leading to gastric insufflation. Subsequent regurgitation of gastric contents back up through the esophagus and into the airway may then occur, leading to a pulmonary aspiration injury.
In 1961, Ruben and colleagues reported the static airway pressures necessary to induce gastric insufflation in 20 patients [22]. They found that pressures below 15 cm H2O rarely induced gastric inflation while pressures greater than 25 cm H2O induced gastric inflation in most patients. In a porcine model of cardiac arrest, it was shown that the airway pressure necessary to open the LES decreased from 20.6 ± 2.8 cm H2O at baseline to 5.6 ± 4.6 cm H2O after 5 min of cardiac arrest [23]. The mechanisms underlying these reductions in LES sphincter opening pressure are not clear. A later case series on three patients undergoing withdrawal of life support demonstrated a similar decrease in LES opening pressure from approximately 20 cm H2O to 5 cm H2O during the first few minutes of cardiac arrest [24]. These data suggest that decreased lower esophageal sphincter tone (which may exist during cardiac arrest and other stresses) could increase susceptibility to gastric regurgitation during BVM ventilation of cardiac arrest patients. Indeed, one study found that gastric regurgitation occurred during manual ventilation in 12.4% of the 466 CPR patients ventilated with a BVM [25].
The airway pressures generated during an inspiration for a given patient during BVM ventilation is inextricably tied to the airflow rate and thoracic compliance. An increase in tidal volume or decrease in inspiratory time could lead to greater generated airflow rates and increased airway pressures. Thus, BVM hyperventilation—where tidal volumes increases and inspiratory times decreases—increases one’s susceptibility to gastric regurgitation and lung aspiration [26,27].

4.3. Barotrauma

Mechanical ventilation with inappropriate ventilatory parameters can lead to a primary mechanical injury in the bronchotracheal tree. If severe enough, this can lead to a hyperacute pressure injury, including pneumothorax, pneumomediastinum, and pneumoperitoneum. Such injury has been historically classified as barotrauma. Several case studies have documented the incidence of barotrauma due to injurious manual hyperventilation. Although some reported barotraumatic injuries were the result of faulty equipment, such as a misassembled BVM [28,29], there are other cases where manual hyperventilation performed directly by the healthcare provider likely induced the injury [30,31,32]. However, beyond case reports, there is a lack of larger clinical studies on acute barotrauma in manually ventilated patients.

4.4. Sub-Barotraumatic and Secondary Inflammation-Driven Injury

In VILI, a link to primary mechanical damage that triggers a secondary inflammation-driven injury is well established [33]. The mechanical damage is induced by lung overdistension (volutrauma) and cyclic opening and closing of collapsible lung units (atelectrauma). These types of injurious mechanical ventilation that do not induce an acute barotraumatic episode can still lead to damage through this secondary inflammation-driven injury. However, whether BVM hyperventilation can also induce a sub-barotraumatic, secondary inflammatory injury is not known. One may reasonably speculate that the same pathophysiologic mechanisms that drive VILI could also apply in MVILI.
A key difference between manual and mechanical ventilation is the timeframe during which a patient is subjected to each method of ventilation. It is not uncommon for patients to be ventilated with a mechanical ventilator for days to weeks, potentially subjecting them to sub-barotraumatic levels of injurious ventilation for an extended duration. Manual ventilation, on the other hand, may only be performed for minutes or, in some extreme cases of emergency surge crises, hours at a time [34,35]. Nevertheless, manual ventilation is far less well controlled, lacking the precision and safety alarms mechanical ventilation offers. A crucial question that remains unanswered is whether manual hyperventilation realistically occurs over a long-enough timeframe to induce this secondary inflammatory injury, and experimental and clinical data are lacking.
Blackburn et al. performed manual hyperventilation in pigs for one hour following moderate hemorrhaging to simulate resuscitation in a trauma patient [36]. After 24 h post-hemorrhage, signs of secondary inflammatory injury were assessed. Plasma pro-inflammatory cytokines IL-1β and IL-2 were only significantly elevated in the maximal hyperventilation group (750 mL tidal volume at 20 breaths/min) at 4 h post-hemorrhage, which returned to baseline. Lung wet-to-dry-weight ratios were similar in all three groups, and no significant differences in pulmonary congestion or presence of thrombi were noted on histological examination. These data suggest that a substantial secondary inflammatory injury to the lungs may not occur in moderate hemorrhage and manual hyperventilation. Other scenarios and models could yield differing results, and the group noted that models that incorporate underlying pulmonary disease may predispose the lungs to further injury by manual hyperventilation. Of particular interest would be hyperventilation in a model of neonatal respiratory distress, as the mismatch between recommended and delivered tidal volumes has the potential to be much higher compared to adult models of manual hyperventilation.

4.5. Current Knowledge Gaps

Although VILI is a well-studied and accepted pathology that can occur during mechanical ventilation, MVILI, in contrast, is vastly understudied. The lack of large, high-quality clinical studies on MVILI makes even its incidence, particularly during resuscitation, currently unknown. For this reason, it is unclear whether MVILI is either greatly underdiagnosed or a mostly theoretical concept without much clinical correlation. Nevertheless, as described above, expert opinion and society guidelines insist on the minimization of manual hyperventilation to decrease the possibility of MVILI’s pathophysiological processes.
Other knowledge gaps on manual hyperventilation and MVILI exist in the literature. For instance, scenarios where persistent manual hyperventilation outweighs the risks of MVILI are not well studied, particularly in conjunction with resuscitation attempts. Similar to therapeutic mechanical hyperventilation, there may be specific scenarios where manual hyperventilation may be preferred in select patients, such as in certain cases of traumatic brain injury [37,38] or during a newborn pulmonary hypertensive crisis [6,39]. Additionally, patient–mechanical ventilation dyssynchrony, where phases of a patient’s respiratory attempts do not match with the supported mechanical ventilation, is a well-documented adverse interaction that can occur between patients and mechanical ventilators [40,41]. One may suspect patient–manual ventilation dyssynchrony to also exist, and expert opinion has warned against it [42,43], but no studies that investigated its prevalence in scenarios of resuscitation have been found.
Another gap of knowledge in the literature is the appropriate application of positive end expiratory pressure, or PEEP, during manual ventilation. Mechanical ventilation can lead to improved gas exchange while simultaneously reducing the risk of atelectrauma, i.e., injury to the lungs from cyclical opening and closing of alveoli [33]. Similarly, maintenance of PEEP during manual ventilation with a PEEP valve, an adjustable one-way valve fitted to the exhalation arm of the bag, can be utilized to prevent alveolar collapse between bag squeezes [44]. However, PEEP pressures that are too high can increase the risk of certain MVILI pathophysiologies, particularly gastric insufflation and aspiration in non-intubated patients and worsening hemodynamics due to a continued increase in intrathoracic pressure, as described above. Optimal PEEP during resuscitation, during either mechanical or manual ventilation, has not been well defined, and guidelines for PEEP during resuscitation are either absent or vague for adult and pediatric populations [4,5,6,7]. The most specific recommendation comes from the AHA and ERC neonatal guidelines, recommending that PEEP be maintained around 5 to 6 cm H2O, especially in preterm neonates [8,9].
The application of mouth-to-mouth or mouth-to-nose rescue breathing is another form of manual ventilation that can be provided by a rescuer, particularly if no other form of ventilation is available. It may be suspected that rescue breathing may not only be effective at providing adequate oxygenation and ventilation [45], but that it may provide a means of manual ventilation that is less injurious than using a bag. As the eighteenth-century physician John Fothergill stated, “the lungs of one man may bear, without injury, as great a force as those of another man can exert” [46]. Interestingly, no studies that investigated the extent to which hyperventilation occurs with rescue breathing during resuscitation could be found. Given that rescue breathing is not a discouraged form of manual ventilation in adult and pediatric patients [4,5,6,7], this remains a large knowledge gap in the current literature.

5. Therapies for MVILI Reduction

Methods for minimizing manual hyperinflation to limit MVILI while simultaneously ensuring adequate ventilation would improve the safety and efficacy of manual ventilation. Specifically, the delivery of proper tidal volumes at an appropriate ventilatory rate to the patient is of primary importance. Attempts have been made to improve bagging through several methods, including (1) changes in bag size and design optimization, (2) pressure manometry monitoring, and (3) direct tidal-volume feedback.

5.1. Bag Size and Design Optimization

One of the simplest methods for reducing manual hyperventilation is to use smaller bags. Common adult self-inflating bags range in their total volume from 1450 to 1650 mL [47,48,49,50]. Doerges et al. found that delivered tidal volumes can be reduced from 334 ± 125 mL with an adult bag and mask to 256 ± 77 mL with a pediatric bag [51]. More recently, Dafilou and colleagues found that tidal volumes could be reduced from 808 ± 160 mL with an adult bag down to 631 ± 85 mL with a pediatric bag when used with an endotracheal tube [52]. Wenzel et al. found that the use of pediatric bags during anesthesia induction prior to surgery reduced exhaled tidal volumes from 779 ± 122 mL to 365 ± 55 mL [53]. The discrepancy of delivered tidal volumes between the first and subsequent two studies is likely due to the loss of delivered tidal volume due to mask leak.
Utilizing different bagging techniques, such as bagging with one versus two hands, can also influence tidal-volume delivery [54]. To reduce this variation, Cho et al. placed specific markings on the bag to indicate where fingers should be placed to facilitate non-injurious and consistent tidal-volume delivery [55]. Among the 83 healthcare personnel who participated in the manikin study, the percentage of individuals bagging at tidal volumes between the target volumes of 500 and 600 mL increased from 17% to 93% when the marked bags were used. Additionally, the standard deviation of the delivered tidal volumes with the marked bag group was lower (24 mL) compared to the unmarked bag group (95 mL), consistent with a reduction in inter-user variability. Based on these findings, the choice of correct bag size is highly sensitive to (1) the presence and extent of an unintended leak, likely due to a poor mask seal, and (2) the methodology by which the bag is squeezed.
Another method for providing more appropriate manual ventilation is to redesign the self-inflating bag altogether. Merrell et al. recently tested a novel BVM called the Butterfly BVM, which allows for the adjustment of valves on the device to provide a specific peak inspiratory pressure, tidal volume, and bag reinflation rate to provide more consistent ventilation [56]. Utilizing adult and pediatric manikins, the mean tidal volume provided by participants were more consistently within the target range (defined as 4 to 8 mL/kg; 280 to 560 mL for a 70 kg adult and 48 to 112 mL for a 12–14 kg pediatric patient) with the Butterfly BVM (351 ± 50 mL for adult patients; 90 ± 18 mL for pediatric patients) compared to using a standard BVM (629 ± 94 mL for adult patients; 181 ± 57 mL for pediatric patients).

5.2. Pressure Manometry Monitoring

For a given patient, the applied airway pressure and subsequent administered tidal volume are related through thoracic compliance. All other parameters being identical, an increase in peak airway pressure during the delivery of a breath would result in an increase in delivered tidal volume [57]. Pressure manometers are simple and inexpensive devices that measure air pressure. Because of the relationship between volume and pressure, pressure manometers can potentially be used as a surrogate index for tidal-volume delivery, where limiting the pressure below a certain threshold could reduce manual hyperventilation.
Manikin studies that examine the utility of pressure manometers during manual ventilation have provided equivocal results. An early neonatal manikin study by Zmora and Merritt showed an increase in success rates of achieving two target peak inspiratory pressures (with the ranges of 15 ± 2 and 30 ± 2 cm H2O) with lower variations when manually ventilating with a manometer [58]. Karsdon et al. performed a similar study and also demonstrated a decrease in variation with peak inspiratory pressure at a target peak inspiratory pressure of 15 cm H2O; however, there was no difference with manometer use at the higher target peak inspiratory pressure of 25 cm H2O [59]. O’Donnell et al. more recently found that manometer use on a neonatal manikin did not improve delivered peak inspiratory pressure accuracy (target pressure of 25 cm H2O) [60]. Furthermore, they found that manometer use did not alter delivered tidal volume or percent leak from the facemask during bagging.
Beyond whether pressure manometry can improve peak inspiratory pressure accuracy, a more fundamental problem emerges. The thoracic compliance relating peak airway pressure and tidal-volume delivery is both patient- and condition-specific, depending upon several factors including the patient’s lung volumes, pulmonary compliance, airway resistance, and any underlying pulmonary or chest wall disease [61]. One cannot measure pressure and simply deduce delivered tidal volume without prior knowledge of these other parameters. This is especially important during neonatal transition, where pulmonary mechanics change rapidly [62]. Kattwinkel et al. showed in a manikin model of dynamic lung compliance that tidal-volume monitoring outperformed pressure monitoring in achieving the target tidal volume (4 to 6 mL/kg) [63]. The authors in this study suggested that devices providing tidal-volume feedback should routinely be included in neonatal resuscitation equipment.

5.3. Tidal-Volume Feedback

Recently, low-cost and portable devices that provide instantaneous feedback on delivered tidal volumes during manual ventilation have been developed, termed tidal-volume feedback devices (Figure 2). These devices are inserted between the bag and mask, endotracheal tube, or other advanced airway device, measuring the airflow from the bag to the patient; from this measurement, the tidal volume can be calculated and immediately reported to the healthcare provider utilizing an onboard display. Other useful parameters, such as respiratory rate or measured percent air leaks, may also be displayed. Some of these devices also incorporate respiratory rate guidance with a countdown timer, as it has been shown that metronome guidance improves manual ventilation respiratory rates [64,65,66].
In 2017, You et al. reported the development and testing of the first of such devices in the literature, the tidal-volume feedback (TVD) device [67]. The TVD prototype contains a magnet connected to a compression spring placed within the air conduit of the device. When air is pushed through the device by bag compression, the magnet and spring are displaced by a distance proportional to the airflow, and six highly sensitive Hall sensors detect this displacement. A microcontroller utilizing specified numerical equations determines the delivered tidal volume, which is directly displayed to the user during each delivered breath. The device, when connected between a mechanical ventilator and test lung, provided accurate measurements of tidal volume (mean difference 1.02 ± 0.15 mL). In a manikin study, pooled optimal tidal-volume delivery (defined as 420 to 490 mL) frequency increased from 32% without the TVD to 84% with the TVD. Although shown to be more accurate and efficacious, the TVD does not allow for airflow back through the device, necessitating a second one-way expiratory valve.
The Amflow®, developed by MEDICION and tested by Kim and colleagues, is a handheld device that utilizes a turbine and infrared sensor to measure airflow and calculate delivered tidal volume [68]. The device uses an onboard display to output measured tidal volume graphically, as a bar whose size is dependent on the proportion of a set target tidal volume. A countdown timer is also displayed to guide the ventilation rate at a defined rate. A manikin study demonstrated improvements to pooled tidal-volume delivery in scenarios of cardiac arrest (target tidal volume of 450–550 mL achieved; 85% with Amflow® versus 41% without Amflow®) and acute respiratory distress syndrome (315–385 mL; 59% with versus 24% without) with no difference in a head trauma scenario (630–770 mL; 66% with versus 68% without). Pooled respiratory rates also improved in all three scenarios (within 0.1 breaths/min of target rates of 10, 20, and 15 breaths/min for cardiac arrest, acute respiratory distress syndrome, and head trauma scenarios, respectively).
The Real-Time Ventilation Feedback Device (RTVFD), developed and tested by Heo et al., utilizes a mass flow sensor to measure flow rate and calculate delivered tidal volume, which is numerically displayed on an onboard screen [69]. After an inspiration is detected, a countdown timer is also displayed to indicate when the next breath should be delivered to achieve ventilation at a set respiratory rate. The device can also be connected to smart devices via Bluetooth to display bagging pressures and air volume delivery in real time. The efficacy of the RTVFD was tested with both an adult and pediatric bag in a two-scenario manikin study. In the adult scenario, RTVFD use improved delivery of optimal tidal volume (defined as 420 to 480 mL) and respiratory rate (defined as one breath delivered every 6 to 8 s) from 18% to 47% and from 50% to 96%, respectively. Similarly, RTVFD use improved optimal tidal volume (120 to 180 mL) and respiratory rate (again, one breath delivered every 6 to 8 s) delivery in the pediatric scenario from 73% to 90% and 57% to 96%, respectively.
Khoury et al. developed the Ventilation Feedback Device (VFD) [70]. The VFD is a handheld device that utilizes a commercially available and disposable flow sensor that connects to an electronic unit. The VFD provides visual (via an onboard display) and audible (through an onboard speaker) tidal-volume and respiratory rate feedback, along with information on inspiratory/expiratory time and percent air leakage. The user can set a target range of ideal tidal volumes based on the patient’s estimated ideal body weight (6 to 7 mL/kg), and the VFD targets a specific ventilation rate for the patient, determined based on a calculated and measured expiratory time constant. Furthermore, the VFD provides visual warning messages to the user if inadequate ventilation or a high level of air leak is detected. A manikin study with 40 participants demonstrated an improvement in acceptable ventilation (defined as 300 to 600 mL at 8 to 15 breaths/min) by both basic-life-support-certified (15% without versus 90% with VFD) and advanced-life-support-certified (15% without versus 85% with VFD) healthcare personnel.
More recently, Maxey et al. have developed the BVM Emergency Narration Guided Instrument (BENGI) [71]. The BENGI utilizes simplified audiovisual cues in the form of LEDs and pre-recorded voice-guided instructions to guide the user on appropriate bagging. The LEDs are arranged in a ring and sequentially light up as one approaches the target tidal volume, which can be set as appropriate for adult, pediatric, and neonatal patients. Audio cues instruct the user when to initiate a bag squeeze and alerts the user if a bag squeeze is performed too slowly or quickly. Another audio cue alerts the user if a substantial leak from the mask is detected. A randomized crossover manikin study demonstrated that BENGI use resulted in manual ventilation that more closely and consistently approached target tidal volumes and respiratory rates in adult (500 and 750 mL at 10 breaths/min), pediatric (300 mL at 10 breaths/min), and neonatal (20 mL at 60 breaths/min) scenarios [72] (in press).

6. Summary

Manual ventilation remains a very common emergency ventilation procedure that has undergone very few changes despite its widespread implementation nearly 70 years ago. Delivery of manual ventilation is highly uncontrolled, and the efficacy and safety of its performance is based on the user’s individual training, experience, and intuition without objective feedback indicating appropriate ventilation. Unfortunately, several manikin studies and clinical observations have shown that manual ventilation users frequently hyperventilate while bagging. Manual hyperventilation can lead to adverse, even life-threatening, effects. These include altered hemodynamics, increased risk of gastric regurgitation and aspiration, barotrauma, and possibly a sub-barotraumatic inflammation-driven injury. Recently, advancements have been made to make manual ventilation less subjective. Most promising are handheld real-time tidal-volume monitoring devices. However, these devices have not been widely implemented, likely due to the lack of high-quality clinical data that demonstrate their efficacy. Nevertheless, the adoption of such devices has the potential to improve manual ventilation safety and efficacy.

Author Contributions

L.A.W., writing—original draft preparation; S.A.C. and J.S.A., writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Department of Molecular and Cellular Physiology at LSU Health Shreveport. L.A.W. was the recipient of the LSU Health Shreveport “Ike Muslow Predoctoral Fellowship Award” during the writing of the manuscript.

Acknowledgments

The authors would like to acknowledge David Wright for assisting in the graphic design of Figure 1.

Conflicts of Interest

The authors have submitted a patent application in the United States relating to the technology referenced in [71,72].

References

  1. Khoury, A.; Hugonnot, S.; Cossus, J.; De Luca, A.; Desmettre, T.; Sall, F.S.; Capellier, G. From Mouth-to-Mouth to Bag-Valve-Mask Ventilation: Evolution and Characteristics of Actual Devices—A Review of the Literature. BioMed Res. Int. 2014, 2014, 762053. [Google Scholar] [CrossRef] [PubMed]
  2. Ricard, J.-D. Manual ventilation and risk of barotrauma: Primum non nocere. Respir. Care 2005, 50, 338–339. [Google Scholar] [PubMed]
  3. Davies, J.D.; Costa, B.K.; Asciutto, A.J. Approaches to Manual VentilationDiscussion. Respir. Care 2014, 59, 810–824. [Google Scholar] [CrossRef] [PubMed]
  4. Panchal, A.R.; Bartos, J.A.; Cabañas, J.G.; Donnino, M.W.; Drennan, I.R.; Hirsch, K.G.; Kudenchuk, P.J.; Kurz, M.C.; Lavonas, E.J.; Morley, P.T.; et al. Part 3: Adult Basic and Advanced Life Support: 2020 American Heart Association Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care. Circulation 2020, 142, S366–S468. [Google Scholar] [CrossRef] [PubMed]
  5. Soar, J.; Böttiger, B.W.; Carli, P.; Couper, K.; Deakin, C.D.; Djärv, T.; Lott, C.; Olasveengen, T.; Paal, P.; Pellis, T.; et al. European Resuscitation Council Guidelines 2021: Adult advanced life support. Resuscitation 2021, 161, 115–151. [Google Scholar] [CrossRef]
  6. Topjian, A.A.; Raymond, T.T.; Atkins, D.; Chan, M.; Duff, J.P.; Jr, B.L.J.; Lasa, J.J.; Lavonas, E.J.; Levy, A.; Mahgoub, M.; et al. Part 4: Pediatric Basic and Advanced Life Support: 2020 American Heart Association Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care. Circulation 2020, 142, S469–S523. [Google Scholar] [CrossRef]
  7. Van de Voorde, P.; Turner, N.M.; Djakow, J.; de Lucas, N.; Martinez-Mejias, A.; Biarent, D.; Bingham, R.; Brissaud, O.; Hoffmann, F.; Johannesdottir, G.B.; et al. European Resuscitation Council Guidelines 2021: Paediatric Life Support. Resuscitation 2021, 161, 327–387. [Google Scholar] [CrossRef]
  8. Aziz, K.; Lee, H.C.; Escobedo, M.B.; Hoover, A.V.; Kamath-Rayne, B.D.; Kapadia, V.S.; Magid, D.J.; Niermeyer, S.; Schmölzer, G.M.; Szyld, E.; et al. Part 5: Neonatal Resuscitation: 2020 American Heart Association Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care. Circulation 2020, 142, S524–S550. [Google Scholar] [CrossRef]
  9. Madar, J.; Roehr, C.C.; Ainsworth, S.; Ersdal, H.; Morley, C.; Rüdiger, M.; Skåre, C.; Szczapa, T.; Pas, A.T.; Trevisanuto, D.; et al. European Resuscitation Council Guidelines 2021: Newborn resuscitation and support of transition of infants at birth. Resuscitation 2021, 161, 291–326. [Google Scholar] [CrossRef]
  10. Nielsen, A.M.; Isbye, D.L.; Lippert, F.K.; Rasmussen, L.S. Basic life support and automated external defibrillator skills among ambulance personnel: A manikin study performed in a rural low-volume ambulance setting. Scand. J. Trauma Resusc. Emerg. Med. 2012, 20, 34–37. [Google Scholar] [CrossRef]
  11. Khoury, A.; Sall, F.S.; De Luca, A.; Pugin, A.; Pili-Floury, S.; Pazart, L.; Capellier, G. Evaluation of Bag-Valve-Mask Ventilation in Manikin Studies: What Are the Current Limitations? BioMed Res. Int. 2016, 2016, 4521767. [Google Scholar] [CrossRef] [PubMed]
  12. Niebauer, J.M.; White, M.L.; Zinkan, J.L.; Youngblood, A.Q.; Tofil, N.M. Hyperventilation in Pediatric Resuscitation: Performance in Simulated Pediatric Medical Emergencies. Pediatrics 2011, 128, e1195–e1200. [Google Scholar] [CrossRef] [PubMed]
  13. Zweiker, D.; Schwaberger, H.; Urlesberger, B.; Mileder, L.P.; Baik-Schneditz, N.; Pichler, G.; Schmölzer, G.M.; Schwaberger, B. Does the Number of Fingers on the Bag Influence Volume Delivery? A Randomized Model Study of Bag-Valve-Mask Ventilation in Infants. Children 2018, 5, 132. [Google Scholar] [CrossRef]
  14. Martin, J.A.; Hamilton, B.E.; Osterman, M.J.K.; Driscoll, A.K. Births: Final Data for 2019. Natl. Vital. Stat. Rep. 2021, 70, 1–51. [Google Scholar] [PubMed]
  15. Condò, V.; Cipriani, S.; Colnaghi, M.; Bellù, R.; Zanini, R.; Bulfoni, C.; Parazzini, F.; Mosca, F. Neonatal respiratory distress syndrome: Are risk factors the same in preterm and term infants? J. Matern. Neonatal Med. 2017, 30, 1267–1272. [Google Scholar] [CrossRef]
  16. Aufderheide, T.P.; Sigurdsson, G.; Pirrallo, R.G.; Yannopoulos, D.; McKnite, S.; von Briesen, C.; Sparks, C.W.; Conrad, C.J.; Provo, T.A.; Lurie, K.G. Hyperventilation-Induced Hypotension During Cardiopulmonary Resuscitation. Circulation 2004, 109, 1960–1965. [Google Scholar] [CrossRef]
  17. Aufderheide, T.P.; Lurie, K.G. Death by hyperventilation: A common and life-threatening problem during cardiopulmonary resuscitation. Crit. Care Med. 2004, 32, S345–S351. [Google Scholar] [CrossRef]
  18. O’neill, J.F.; Deakin, C.D. Do we hyperventilate cardiac arrest patients? Resuscitation 2007, 73, 82–85. [Google Scholar] [CrossRef]
  19. Theres, H.; Binkau, J.; Laule, M.; Heinze, R.; Hundertmark, J.; Blobner, M.; Erhardt, W.; Baumann, G.; Stangl, K. Phase-related changes in right ventricular cardiac output under volume-controlled mechanical ventilation with positive end-expiratory pressure. Crit. Care Med. 1999, 27, 953–958. [Google Scholar] [CrossRef]
  20. Cournand, A.; Motley, H.L.; Werko, L.; Richards, D.W. Physiological Studies of the Effects of Intermittent Positive Pressure Breathing on Cardiac Output in Man. Am. J. Physiol. Content 1947, 152, 162–174. [Google Scholar] [CrossRef]
  21. Paradis, N.A.; Martin, G.B.; Rivers, E.P.; Goetting, M.G.; Appleton, T.J.; Feingold, M.; Nowak, R.M. Coronary Perfusion Pressure and the Return of Spontaneous Circulation in Human Cardiopulmonary Resuscitation. JAMA 1990, 263, 1106–1113. [Google Scholar] [CrossRef] [PubMed]
  22. Ruben, H.; Knudsen, E.J.; Carugati, G. Gastric Inflation in Relation to Airway Pressure. Acta Anaesthesiol. Scand. 1961, 5, 107–114. [Google Scholar] [CrossRef] [PubMed]
  23. Bowman, F.P.; Menegazzi, J.J.; Check, B.D.; Duckett, T.M. Lower Esophageal Sphincter Pressure During Prolonged Cardiac Arrest and Resuscitation. Ann. Emerg. Med. 1995, 26, 216–219. [Google Scholar] [CrossRef]
  24. Gabrielli, A.; Wenzel, V.; Layon, A.J.; von Goedecke, A.; Verne, N.G.; Idris, A.H. Lower Esophageal Sphincter Pressure Measurement during Cardiac Arrest in Humans: Potential Implications for Ventilation of the Unprotected Airway. Anesthesiology 2005, 103, 897–899. [Google Scholar] [CrossRef] [PubMed]
  25. Stone, B.; Chantler, P.; Baskett, P. The incidence of regurgitation during cardiopulmonary resuscitation: A comparison between the bag valve mask and laryngeal mask airway. Resuscitation 1998, 38, 3–6. [Google Scholar] [CrossRef] [PubMed]
  26. Wenzel, V.; Idris, A.H.; Banner, M.J.; Kubilis, P.S.; Williams, J.L. Influence of tidal volume on the distribution of gas between the lungs and stomach in the nonintubated patient receiving positive-pressure ventilation. Crit. Care Med. 1998, 26, 364–368. [Google Scholar] [CrossRef]
  27. Fitz-Clarke, J.R. Fast or Slow Rescue Ventilations: A Predictive Model of Gastric Inflation. Respir. Care 2018, 63, 502–509. [Google Scholar] [CrossRef]
  28. Munford, B.J.; Wishaw, K.J. Critical Incidents with Nonrebreathing Valves. Anesth. Intensive Care 1990, 18, 560–563. [Google Scholar] [CrossRef]
  29. Cooper, R.M.; Grgas, S. Fatal Barotrauma Resulting from Misuse of a Resuscitation Bag. Anesthesiology 2000, 93, 892–893. [Google Scholar] [CrossRef]
  30. Rodriguez, A.L.; Sánchez, L.L.; Julia, J.A. Pneumoperitoneum Associated with Manual Ventilation Using a Bag—Valve Device. Acad. Emerg. Med. 1995, 2, 944. [Google Scholar] [CrossRef]
  31. Kim, J.B.; Jung, H.-J.; Lee, J.M.; Im, K.S.; Kim, D.J. Barotrauma developed during intra-hospital transfer—A case report. Korean J. Anesthesiol. 2010, 59, S218–S221. [Google Scholar] [CrossRef] [PubMed]
  32. Lee, H.Y.; Joo, Y.Y.; Oh, Y.S.; Seo, Y.R.; Joo, H.S.; Kim, S.C.; Rhee, C.K. Barotrauma after Manual Ventilation in a Patient with Life-Threatening Massive Hemoptysis. Korean J. Crit. Care Med. 2015, 30, 308–312. [Google Scholar] [CrossRef]
  33. Slutsky, A.S.; Ranieri, V.M. Ventilator-Induced Lung Injury. N. Engl. J. Med. 2013, 369, 2126–2136. [Google Scholar] [CrossRef]
  34. Deboisblanc, B.P. Black Hawk, Please Come Down: Reflections on a hospital’s struggle to survive in the wake of Hurricane Katrina. Am. J. Respir. Crit. Care Med. 2005, 172, 1239–1240. [Google Scholar] [CrossRef]
  35. Branson, R.D.; Johannigman, J.A.; Daugherty, E.L.; Rubinson, L. Surge capacity mechanical ventilation. Respir. Care 2008, 53, 78. [Google Scholar]
  36. Blackburn, M.B.; Hudson, I.L.; Rodriguez, C.; Wienandt, N.; Ryan, K.L. Acute overventilation does not cause lung damage in moderately hemorrhaged swine. J. Appl. Physiol. 2021, 130, 1337–1344. [Google Scholar] [CrossRef] [PubMed]
  37. Bogossian, E.G.; Peluso, L.; Creteur, J.; Taccone, F.S. Hyperventilation in Adult TBI Patients: How to Approach It? Front. Neurol. 2021, 11, 580859. [Google Scholar] [CrossRef]
  38. Zhang, Z.; Guo, Q.; Wang, E. Hyperventilation in neurological patients: From physiology to outcome evidence. Curr. Opin. Anaesthesiol. 2019, 32, 568–573. [Google Scholar] [CrossRef]
  39. Nair, J.; Lakshminrusimha, S. Update on PPHN: Mechanisms and treatment. Semin. Perinatol. 2014, 38, 78–91. [Google Scholar] [CrossRef]
  40. Blanch, L.; Villagra, A.; Sales, B.; Montanya, J.; Lucangelo, U.; Luján, M.; García-Esquirol, O.; Chacón, E.; Estruga, A.; Oliva, J.C.; et al. Asynchronies during mechanical ventilation are associated with mortality. Intensiv. Care Med. 2015, 41, 633–641. [Google Scholar] [CrossRef]
  41. The Asynchronies in the Intensive Care Unit (ASYNICU) Group; De Haro, C.; Ochagavia, A.; López-Aguilar, J.; Fernandez-Gonzalo, S.; Navarra-Ventura, G.; Magrans, R.; Montanyà, J.; Blanch, L. Patient-ventilator asynchronies during mechanical ventilation: Current knowledge and research priorities. Intensive Care Med. Exp. 2019, 7, 43. [Google Scholar] [CrossRef]
  42. Saddawi-Konefka, D.; Hung, S.L.; Kacmarek, R.M.; Jiang, Y. Optimizing Mask Ventilation: Literature Review and Development of a Conceptual Framework. Respir. Care 2015, 60, 1834–1840. [Google Scholar] [CrossRef] [PubMed]
  43. Sivco, C.S.; Cherian, V.T. What Every Anesthesiologist Should Know About the Manual Resuscitation Bag. A&A Pract. 2018, 11, 288–291. [Google Scholar] [CrossRef]
  44. Roy, S.; Bunting, L.; Stahl, S.; Textor, D. Inline Positive End-Expiratory Pressure Valves: The Essential Component of Individualized Split Ventilator Circuits. Crit. Care Explor. 2020, 2, e0198. [Google Scholar] [CrossRef] [PubMed]
  45. Wenzel, V.; Idris, A.H.; Banner, M.J.; Fuerst, R.S.; Tucker, K.J. The Composition of Gas Given by Mouth-to-Mouth Ventilation During CPR. Chest 1994, 106, 1806–1810. [Google Scholar] [CrossRef] [PubMed]
  46. Fothergill, J. XI. Observations on a case published in the last volume of the medical essays, &c. of recovering a man dead in appearance, by distending the lungs with air. Printed at Edinburgh, 1744; by John Fothergill, Licent. Coll. Med. Lond. Philos. Trans. R. Soc. Lond. 1744, 43, 275–281. [Google Scholar] [CrossRef]
  47. AMBU, Ambu® SPUR® II Datasheet, (n.d.). Available online: https://www.ambuusa.com/emergency-care-and-training/resuscitators/product/ambu-spur-ii (accessed on 14 January 2021).
  48. Laerdal, The BAG II Manual Single-Use Self-Inflating Resuscitator User Guide, (n.d.). Available online: https://cdn.laerdal.com/downloads/f4968/the_bag_ii (accessed on 23 December 2021).
  49. Intersurgical, Bag-Valve-Mask Resuscitators Information Sheet, (n.d.). Available online: https://www.intersurgical.com/content/files/72303/1893681232 (accessed on 23 December 2021).
  50. AirLife, AirflowTM Manual Resuscitator, (n.d.). Available online: https://connect.myairlife.com/resource/airflow-manual-resuscitator-literature-sheet/ (accessed on 23 December 2021).
  51. Doerges, V.; Sauer, C.; Ocker, H.; Wenzel, V.; Schmucker, P. Smaller tidal volumes during cardiopulmonary resuscitation: Comparison of adult and paediatric self-inflatable bags with three different ventilatory devices. Resuscitation 1999, 43, 31–37. [Google Scholar] [CrossRef]
  52. Dafilou, B.; Schwester, D.; Ruhl, N.; Marques-Baptista, A. It’s In The Bag: Tidal Volumes in Adult and Pediatric Bag Valve Masks. J. Emerg. Med. 2020, 21, 722–726. [Google Scholar] [CrossRef]
  53. Wenzel, V.; Keller, C.; Idris, A.H.; Dörges, V.; Lindner, K.H.; Brimacombe, J.R. Effects of smaller tidal volumes during basic life support ventilation in patients with respiratory arrest: Good ventilation, less risk? Resuscitation 1999, 43, 25–29. [Google Scholar] [CrossRef]
  54. Hart, D.; Reardon, R.; Ward, C.; Miner, J. Face Mask Ventilation: A Comparison of Three Techniques. J. Emerg. Med. 2013, 44, 1028–1033. [Google Scholar] [CrossRef]
  55. Cho, Y.C.; Cho, S.W.; Chung, S.P.; Yu, K.; Kwon, O.Y.; Kim, S.W. How can a single rescuer adequately deliver tidal volume with a manual resuscitator? An improved device for delivering regular tidal volume. Emerg. Med. J. 2011, 28, 40–43. [Google Scholar] [CrossRef] [PubMed]
  56. Merrell, J.G.; Scott, A.C.; Stambro, R.; Boukai, A.; Cooper, D.D. Improved simulated ventilation with a novel tidal volume and peak inspiratory pressure controlling bag valve mask: A pilot study. Resusc. Plus 2023, 13, 100350. [Google Scholar] [CrossRef] [PubMed]
  57. Grinnan, D.C.; Truwit, J.D. Clinical review: Respiratory mechanics in spontaneous and assisted ventilation. Crit. Care 2005, 9, 472–484. [Google Scholar] [CrossRef] [PubMed]
  58. Zmora, E.; Merritt, T.A. Control of peak inspiratory pressure during manual ventilation. A controlled study. Am. J. Dis. Child. 1982, 136, 46–48. [Google Scholar] [CrossRef]
  59. Karsdon, J.; Stijnen, T.; Berger, H.M. The effect of a manometer on the mean airway pressure during hand ventilation, an in vitro study. Eur. J. Pediatr. 1989, 148, 574–576. [Google Scholar] [CrossRef]
  60. O’Donnell, C.P.F.; Davis, P.G.; Lau, R.; Dargaville, P.A.; Doyle, L.W.; Morley, C.J. Neonatal resuscitation 3: Manometer use in a model of face mask ventilation. Arch. Dis. Child.-Fetal Neonatal Ed. 2005, 90, F397–F400. [Google Scholar] [CrossRef]
  61. Gertler, R. Respiratory Mechanics. Anesthesiol. Clin. 2021, 39, 415–440. [Google Scholar] [CrossRef]
  62. Foglia, E.E.; Pas, A.B.T. Effective ventilation: The most critical intervention for successful delivery room resuscitation. Semin. Fetal Neonatal Med. 2018, 23, 340–346. [Google Scholar] [CrossRef]
  63. Kattwinkel, J.; Stewart, C.; Walsh, B.; Gurka, M.; Paget-Brown, A. Responding to Compliance Changes in a Lung Model During Manual Ventilation: Perhaps Volume, Rather Than Pressure, Should be Displayed. Pediatrics 2009, 123, e465–e470. [Google Scholar] [CrossRef]
  64. Kern, K.B.; Stickney, R.E.; Gallison, L.; Smith, R.E. Metronome improves compression and ventilation rates during CPR on a manikin in a randomized trial. Resuscitation 2010, 81, 206–210. [Google Scholar] [CrossRef]
  65. Lim, J.S.; Cho, Y.C.; Kwon, O.Y.; Chung, S.P.; Yu, K.; Kim, S.W. Precise minute ventilation delivery using a bag-valve mask and audible feedback. Am. J. Emerg. Med. 2012, 30, 1068–1071. [Google Scholar] [CrossRef] [PubMed]
  66. Kim, J.H.; Beom, J.H.; You, J.S.; Cho, J.; Min, I.K.; Chung, H.S. Effect of flashlight guidance on manual ventilation performance in cardiopulmonary resuscitation: A randomized controlled simulation study. PLoS ONE 2018, 13, e0198907. [Google Scholar] [CrossRef]
  67. You, K.M.; Lee, C.; Kwon, W.Y.; Lee, J.C.; Suh, G.J.; Kim, K.S.; Park, M.J.; Kim, S. Real-time tidal volume feedback guides optimal ventilation during simulated CPR. Am. J. Emerg. Med. 2017, 35, 292–298. [Google Scholar] [CrossRef] [PubMed]
  68. Kim, J.W.; Park, S.O.; Lee, K.R.; Hong, D.Y.; Baek, K.J. Efficacy of Amflow®, a Real-Time-Portable Feedback Device for Delivering Appropriate Ventilation in Critically Ill Patients: A Randomised, Controlled, Cross-Over Simulation Study. Emerg. Med. Int. 2020, 2020, 5296519. [Google Scholar] [CrossRef] [PubMed]
  69. Heo, S.; Yoon, S.Y.; Kim, J.; Kim, H.S.; Kim, K.; Yoon, H.; Hwang, S.Y.; Cha, W.C.; Kim, T. Effectiveness of a Real-Time Ventilation Feedback Device for Guiding Adequate Minute Ventilation: A Manikin Simulation Study. Medicina 2020, 56, 278. [Google Scholar] [CrossRef]
  70. Khoury, A.; De Luca, A.; Sall, F.S.; Pazart, L.; Capellier, G. Ventilation feedback device for manual ventilation in simulated respiratory arrest: A crossover manikin study. Scand. J. Trauma Resusc. Emerg. Med. 2019, 27, 93. [Google Scholar] [CrossRef]
  71. Maxey, B.S.; White, L.A.; Solitro, G.F.; Conrad, S.A.; Alexander, J.S. Experimental validation of a portable tidal volume indicator for bag valve mask ventilation. BMC Biomed. Eng. 2022, 4, 9. [Google Scholar] [CrossRef]
  72. White, L.A.; Maxey, B.S.; Solitro, G.F.; Conrad, S.A.; Davidson, K.P.; Alhaque, A.; Alexander, J.S. Enhanced Manual Ventilation with a Handheld Audiovisual Device—‘BENGI’—Insights from a Pilot Study in Special Operations Medicine. J. Spec. Oper. Med. 2024; in press. [Google Scholar]
Pathophysiology 31 00042 g001

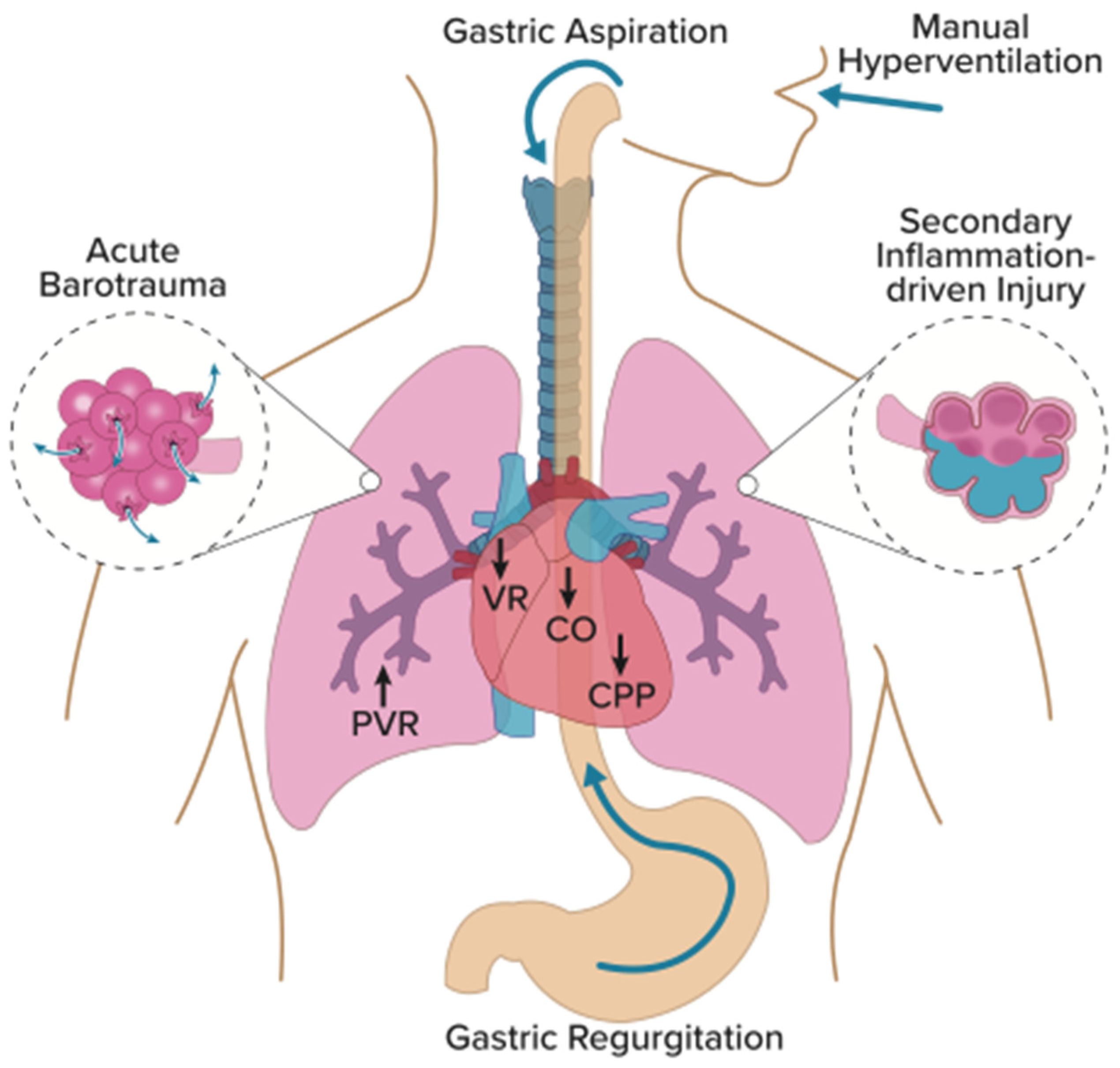

Figure 1. Mechanisms of MVILI. Manual hyperventilation increases intrathoracic pressure leading to adverse hemodynamic changes, including decreased venous return (VR), cardiac output (CO), and coronary perfusion pressure (CPP). Additionally, increased inspiratory pressures can open the lower esophageal sphincter, causing gastric insufflation, regurgitation, and aspiration. Vigorous manual ventilation may also lead to acute barotrauma (pneumothorax, pneumomediastinum, pneumoperitoneum, and subcutaneous emphysema) and possibly a sub-barotraumatic, inflammation-driven injury lung injury. Graphic design by David Wright.
Figure 1. Mechanisms of MVILI. Manual hyperventilation increases intrathoracic pressure leading to adverse hemodynamic changes, including decreased venous return (VR), cardiac output (CO), and coronary perfusion pressure (CPP). Additionally, increased inspiratory pressures can open the lower esophageal sphincter, causing gastric insufflation, regurgitation, and aspiration. Vigorous manual ventilation may also lead to acute barotrauma (pneumothorax, pneumomediastinum, pneumoperitoneum, and subcutaneous emphysema) and possibly a sub-barotraumatic, inflammation-driven injury lung injury. Graphic design by David Wright.
Pathophysiology 31 00042 g001
Pathophysiology 31 00042 g002

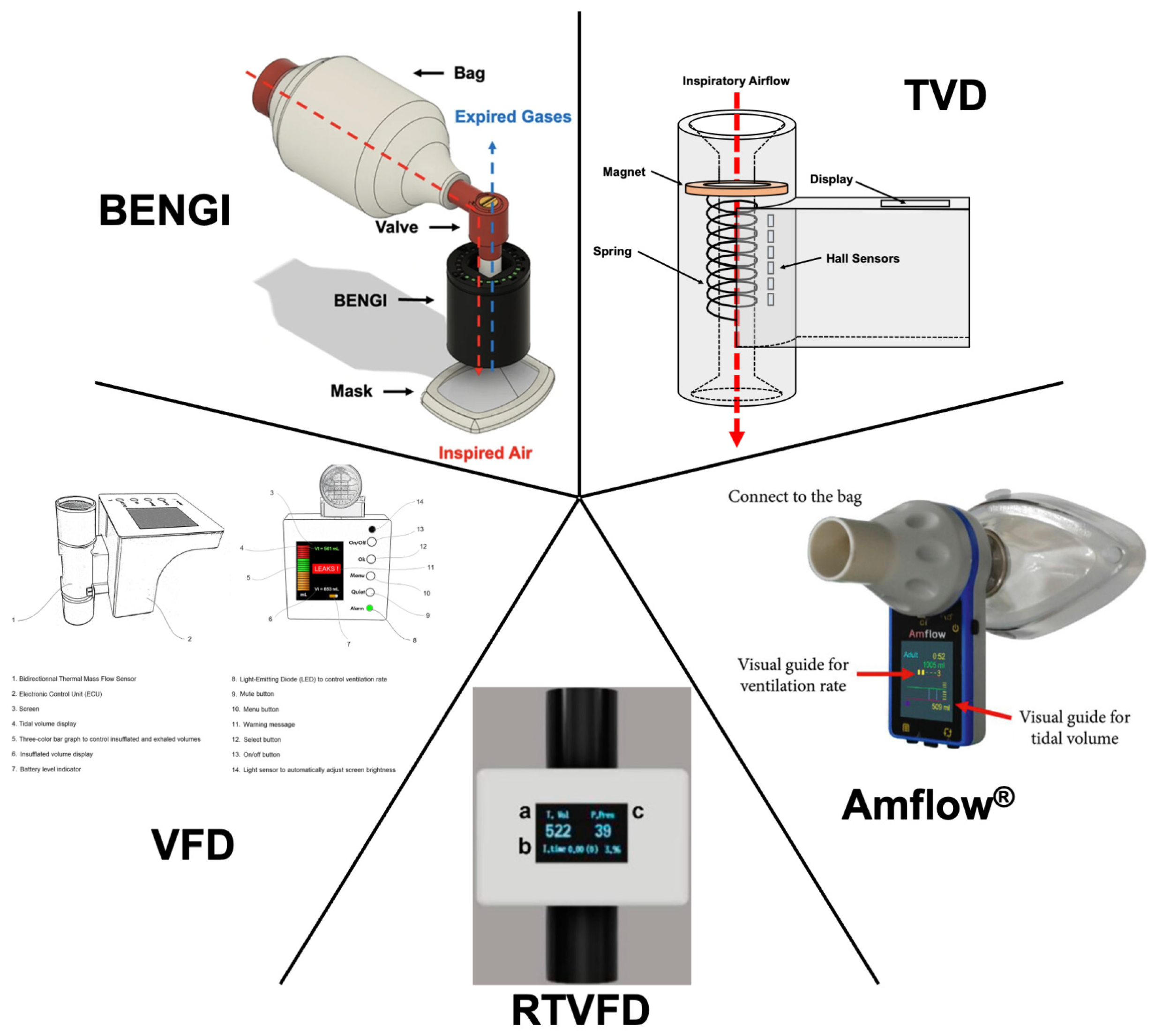

Figure 2. Tidal-volume feedback devices. Authors’ rendering of the TVD based on [67]. Cropped and edited images of the Amflow® [68], RTVFD (a, tidal volume; b, inspiration time; c, peak pressure) [69], VFD [70], and BENGI [71] reproduced under Creative Commons Attribution Non-Commercial License 4.0.
Figure 2. Tidal-volume feedback devices. Authors’ rendering of the TVD based on [67]. Cropped and edited images of the Amflow® [68], RTVFD (a, tidal volume; b, inspiration time; c, peak pressure) [69], VFD [70], and BENGI [71] reproduced under Creative Commons Attribution Non-Commercial License 4.0.
Pathophysiology 31 00042 g002
Table 1. Summary of AHA and ERC guidelines for ventilation during resuscitation. “+” denotes “with” and “−” indicates “without” advanced airway (AA) or initiation of chest compressions (CC). Where applicable, “:” is used to denote “chest-compression-to-delivered-breath ratio” during resuscitation (for example, 30:2 would imply 30 chest compressions followed by the administration of 2 breaths). PIP, peak inspiratory pressure; RR, respiratory rate; VT, tidal volume; yo, year old.
Table 1. Summary of AHA and ERC guidelines for ventilation during resuscitation. “+” denotes “with” and “−” indicates “without” advanced airway (AA) or initiation of chest compressions (CC). Where applicable, “:” is used to denote “chest-compression-to-delivered-breath ratio” during resuscitation (for example, 30:2 would imply 30 chest compressions followed by the administration of 2 breaths). PIP, peak inspiratory pressure; RR, respiratory rate; VT, tidal volume; yo, year old.
AHA RecommendationsERC Recommendations
AdultVT500–600 mL or chest rise500–600 mL or chest rise
RR−AA30:2 or 10 breaths/min30:2 or 10 breaths/min
+AA10 breaths/min10 breaths/min
PediatricVTNo specific recommendation6–8 mL/kg, or chest rise
RR−AA30:2 (1 rescuer) or 15:2 (≥2 rescuers)15:2
+AA20–30 breaths/min25 (infants), 20 (1–8 yo), 15 (8–12) yo, or 10 (>12 yo) breaths/min
NeonatalPIPUp to 30 (term) or 20–25 cm H2O (preterm) but occasionally higher if needed30 (term) or 25 cm H2O (preterm), or 5–8 mL/kg if being monitored
RR−CC40–60 breaths/min30 breaths/min
+CC3:13:1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

White, L.A.; Conrad, S.A.; Alexander, J.S. Pathophysiology and Prevention of Manual-Ventilation-Induced Lung Injury (MVILI). Pathophysiology 2024, 31, 583-595. https://doi.org/10.3390/pathophysiology31040042

AMA Style

White LA, Conrad SA, Alexander JS. Pathophysiology and Prevention of Manual-Ventilation-Induced Lung Injury (MVILI). Pathophysiology. 2024; 31(4):583-595. https://doi.org/10.3390/pathophysiology31040042

Chicago/Turabian Style

White, Luke A., Steven A. Conrad, and Jonathan Steven Alexander. 2024. "Pathophysiology and Prevention of Manual-Ventilation-Induced Lung Injury (MVILI)" Pathophysiology 31, no. 4: 583-595. https://doi.org/10.3390/pathophysiology31040042

APA Style

White, L. A., Conrad, S. A., & Alexander, J. S. (2024). Pathophysiology and Prevention of Manual-Ventilation-Induced Lung Injury (MVILI). Pathophysiology, 31(4), 583-595. https://doi.org/10.3390/pathophysiology31040042

Article Metrics

Back to TopTop
