Full Moon Coronary Calcium Seen on Cardiac Tomography, Can It Change PCI Decision-Making and Procedure?

by
Youssef S Abdelwahed
1,2,3,*,
Carsten Skurk
1,2,3,
Patrick T. Siegrist
4,
Ulf Landmesser
1,2,3 and
Gerald S. Werner
5
1
Department of Cardiology, Charité – Universitätsmedizin Berlin, Berlin, Germany
2
DZHK (German Centre for Cardiovascular Research), Berlin, Germany
3
Berlin Institute of Health, Berlin, Germany
4
HerzZentrum Hirslanden, Department of Cardiology, Zurich, Switzerland
5
Medizinische Klinik I (Cardiology and Intensive Care), Klinikum Darmstadt GmbH, Darmstadt, Germany
*
Author to whom correspondence should be addressed.
Cardiovasc. Med. 2021, 24(6), w10108; https://doi.org/10.4414/cvm.2021.02185
Submission received: 1 August 2021 / Revised: 1 September 2021 / Accepted: 1 October 2021 / Published: 1 November 2021
We report the case of a 57-year-old mal complaining of recurrent chest pain admitted electively for a recanalisation attempt to a known chronically totally occluded right coronary artery (RCA). Angiographically, the RCA was seen to have a high-grade in-stent restenosis in its proximal part followed by complete occlusion of the vessel, starting from the mid part of the stent deployed 13 years before (Figure 1(1)). Cardiac computed tomography (CT) was performed as a preparation before the procedure. The RCA was seen to have heavy calcification in its proximal part and within the stent, indicating neoatherosclerotic disease (Figure 1(2A)). The cross-sectional image of the calcified plaque revealed a circular heavy calcified “full moon”-like structure within the middle of the occluded stent (Figure 1(2B)). A complex intervention was accordingly anticipated. An AL1 with side holes was used to engage the RCA. During the procedure, it was only possible to cross this heavily calcified plaque with a stiff chronic total occlusion (CTO) heavyweight wire (Fielder XT followed by Gaia second then finally Gaia third); all attempts to cross with various CTO microcatheters (that included Finecross MG, Tornus microcatheter and Corsair Pro XS) and balloons (0.6 mm and 0.85 mm diameters) assisted by a guide extension device failed. Finally, we could advance a rotablation wire through the occluded segment using a buddy wire approach. After four attempts we successfully crossed this heavily calcified plaque (Figure 1(3A)). Intravascular ultrasound imaging showed a heavily calcified circular plaque within the previously well-deployed stent and the cracks caused by rotablation (Figure 1(3B)).
Complexity and difficulty of successful percutaneous coronary intervention (PCI) for a CTO can be to a great extent predicted by CT evaluation [1]. Severe calcification is known to present a serious challenge to the success of the CTO PCI [2]. With severe calcification and a full moon appearance, device delivery failure and the need for rotablation or lithotripsy should be taken into consideration during procedure planning. However more evidence and more studies are needed to support this concept.

Disclosure statement

No financial support and no other potential conflict of interest relevant to this article was reported.

References

  1. Yu, C.W.; Lee, H.J.; Suh, J.; Lee, N.H.; Park, S.M.; Park, T.K.; et al. Coronary Computed Tomography Angiography Predicts Guidewire Crossing and Success of Percutaneous Intervention for Chronic Total Occlusion: Korean Multicenter CTO CT Registry Score as a Tool for Assessing Difficulty in Chronic Total Occlusion Percutaneous Coronary Intervention. Circ Cardiovasc Imaging. 2017, 10, e005800. [Google Scholar] [CrossRef] [PubMed]
  2. Luo, C.; Huang, M.; Li, J.; Liang, C.; Zhang, Q.; Liu, H.; et al. Predictors of Interventional Success of Antegrade PCI for CTO. JACC Cardiovasc Imaging. 2015, 8, 804–813. [Google Scholar] [CrossRef] [PubMed]

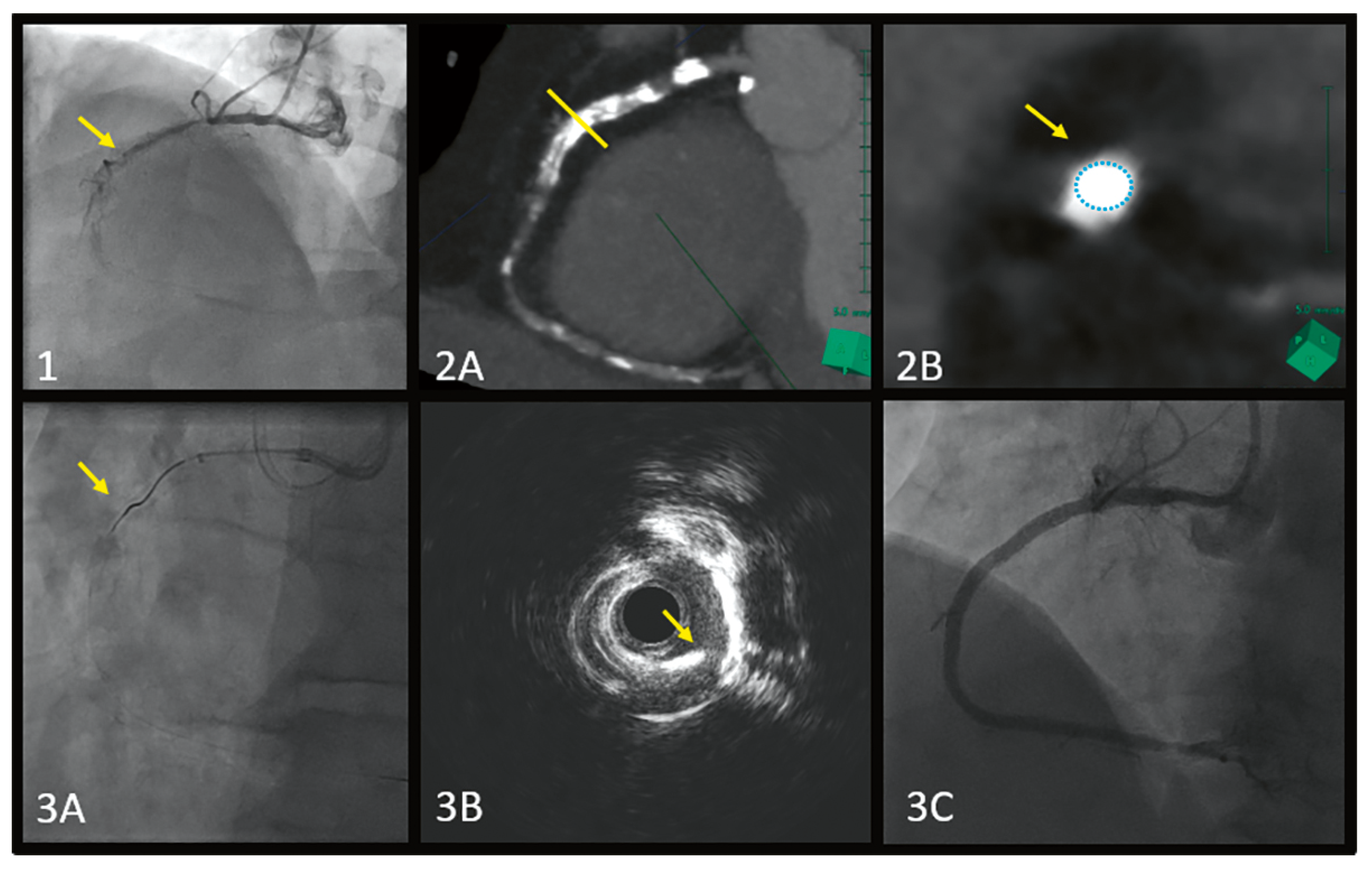

Figure 1. (1) Angiographically, showing the chronically totally occluded segment before intervention. (2A,B) Yellow arrow pointing to the maximum point of the calcified plaque as seen on computed tomography using the slice view method, and its cross-sectional image, revealing a fully obliterated lumen with a “full moon-like appearance” (blue dotted circle). (3A) Yellow arrow pointing to the tip of a bent microcatheter during an unsuccessful cross-over manoeuvre due to high resistance of the calcified plaque. (3B) Yellow arrow pointing to crack within a heavily calcified plaque caused by Rotablation as seen on intravascular ultrasound imaging. (3C) Final angiography after stent implantation.
Figure 1. (1) Angiographically, showing the chronically totally occluded segment before intervention. (2A,B) Yellow arrow pointing to the maximum point of the calcified plaque as seen on computed tomography using the slice view method, and its cross-sectional image, revealing a fully obliterated lumen with a “full moon-like appearance” (blue dotted circle). (3A) Yellow arrow pointing to the tip of a bent microcatheter during an unsuccessful cross-over manoeuvre due to high resistance of the calcified plaque. (3B) Yellow arrow pointing to crack within a heavily calcified plaque caused by Rotablation as seen on intravascular ultrasound imaging. (3C) Final angiography after stent implantation.
