Radiofrequency Ablation of Atrial Tachycardia from ''No-Man's Land"

Abstract

Atrial tachycardias can originate from almost any part of the atria, with a predilection for certain anatomical structures. Tachycardias originating from the peri-atrioventricular nodal region are rare, and can be challenging to ablate owing to the potential risk of atrioventricular block. We describe a patient with peri-nodal atrial tachycardia that was successfully ablated from the non-coronary aortic cusp.

Case report

A 78-year-old male with a history of hypertension and coronary artery disease was evaluated for frequent, daily palpitations lasting up to several hours. His basic laboratory results and 12-lead electrocardiogram (ECG) were normal and echocardiography showed normal left ventricular function. Twentyfour-hour Holter monitoring showed a narrow QRS and long RP tachycardia occurring throughout the day, more than 50% of time. Until admission, tachycardia was not verified in a 12-lead ECG.

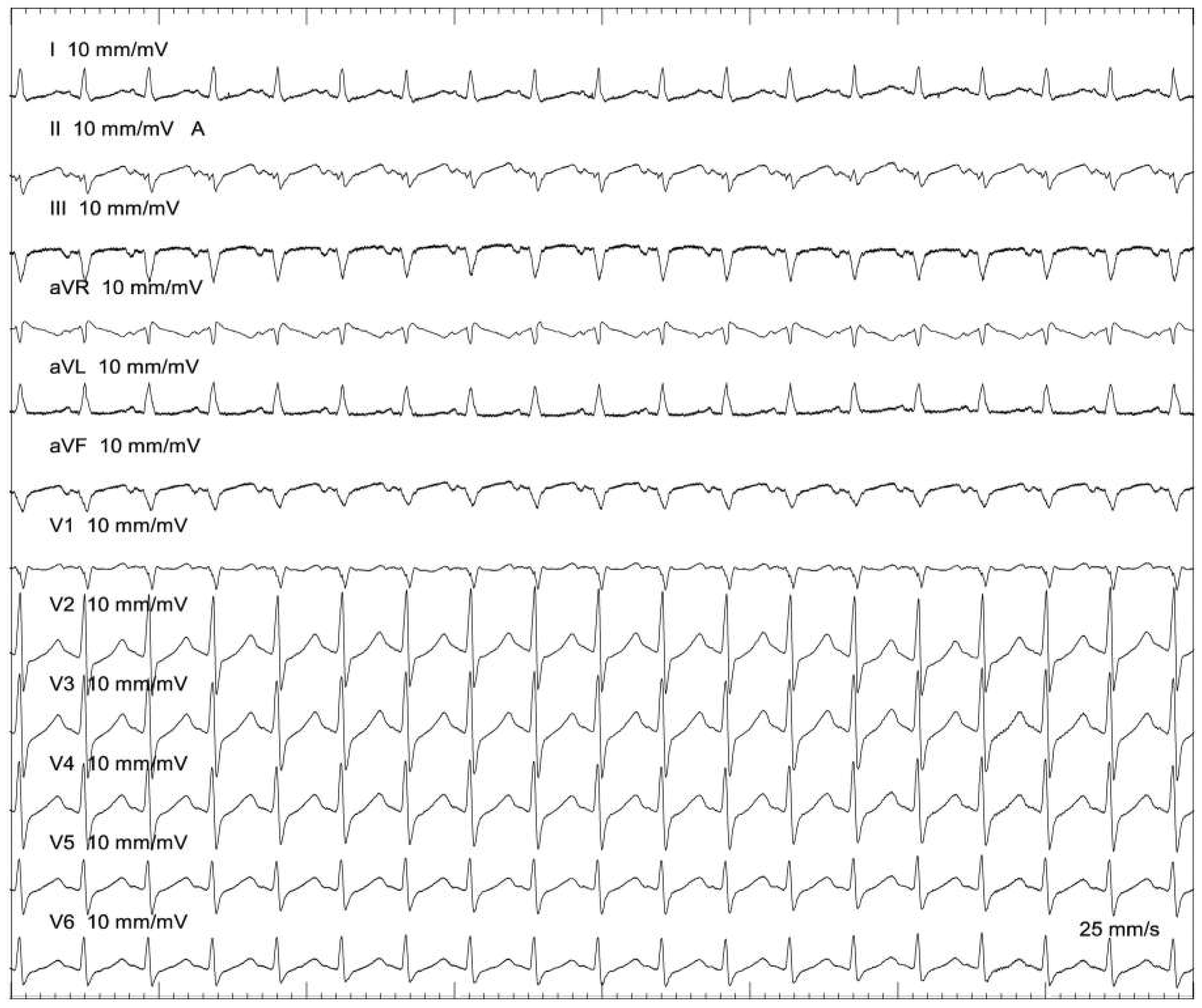

The patient was scheduled for an electrophysiological study. Catheters were placed in the high right atrium (HRA), the His bundle (His), the right ventricular apex (RVA) and coronary sinus (CS). At the beginning of the procedure, sustained tachycardia was verified with 1:1 atrioventricular (AV) conduction, a long RP interval and mostly negative P waves in the inferior leads (Figure 1). With entrainment from the RVA, tachycardia was either dissociated from the ventricle or a VAAV response was evoked as a criterion for atrial tachycardia. The tachycardia was reproducibly inducible and the earliest activation was found on the His catheter.

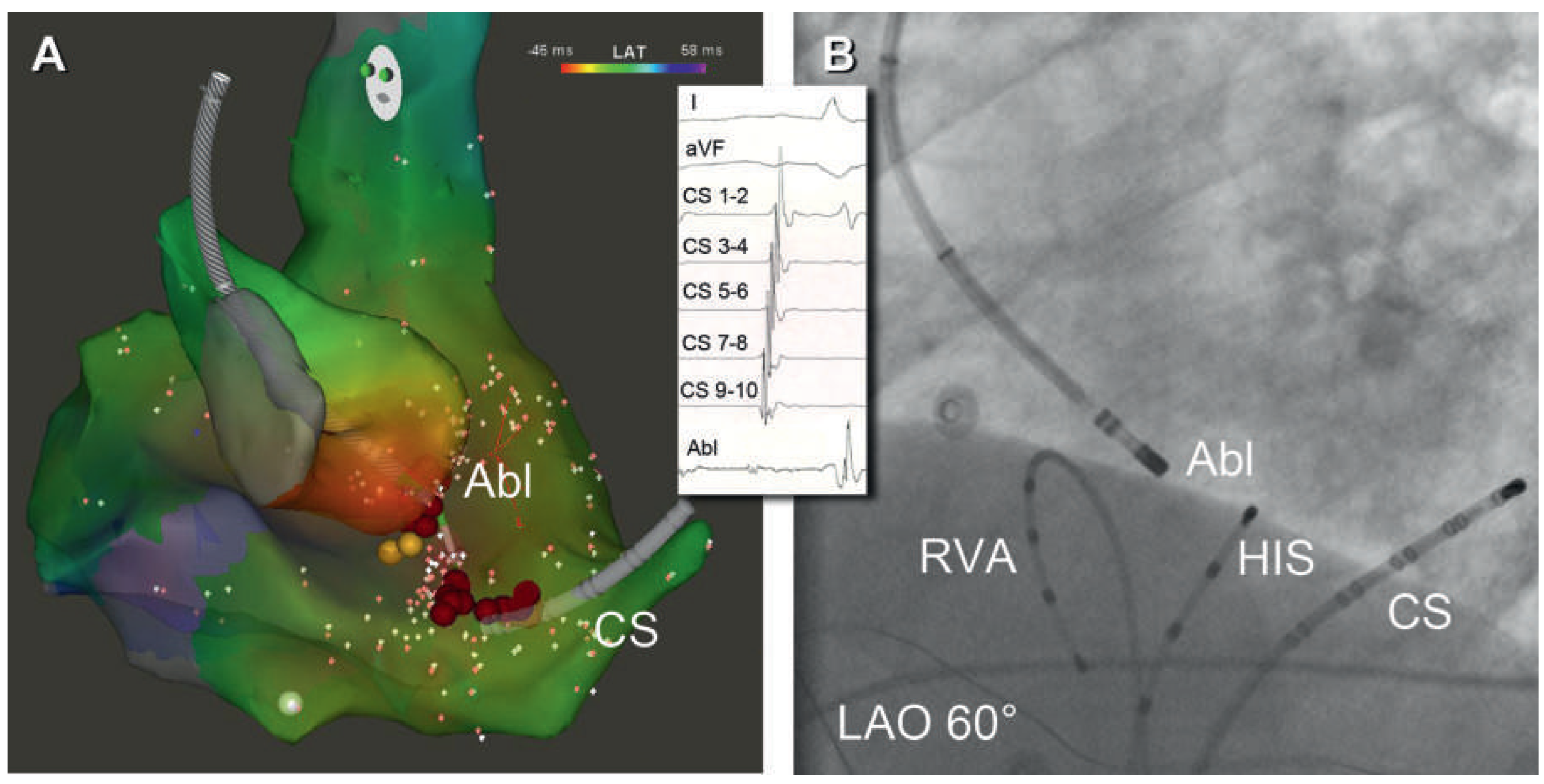

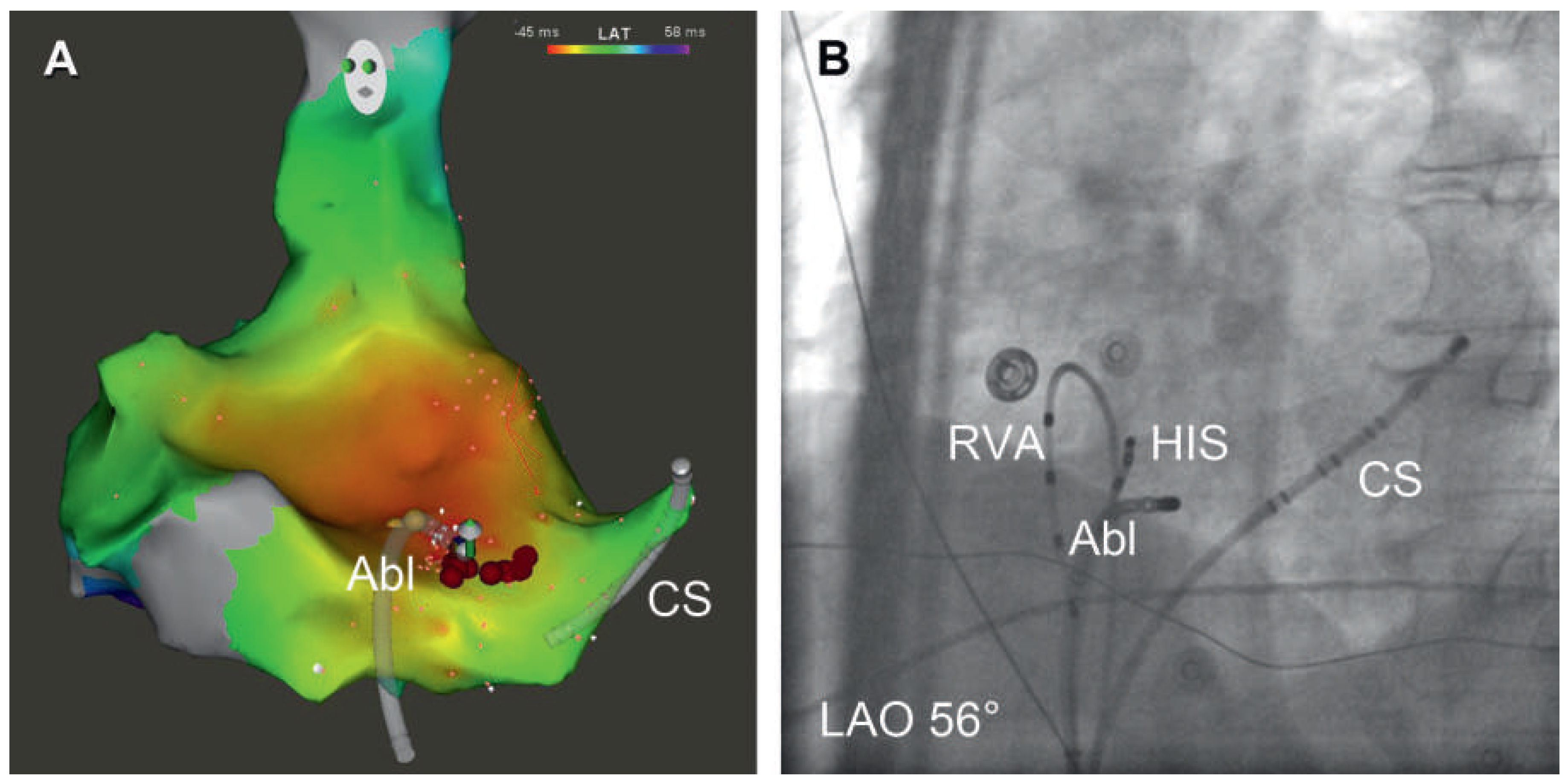

Mapping was performed with a 3.5 mm irrigated-tip catheter (7.5F, Thermocool Smart Touch, Biosense Webster, Diamond Bar, CA) in conjunction with a 3-dimensional mapping system (CARTO 3, Biosense Webster). After mapping the right atrium, earliest activation was found in the peri-AV nodal region. Since ablation in this area carries a risk of AV block, only limited ablation was performed in close proximity to the His, but without effect (Figure 2). As a next step, the aortic root was mapped using a retrograde aortic approach, and early activation was found in the non-coronary cusp (Figure 3). A low amplitude, slightly fragmented atrial electrogram was found and the activation time in the non-coronary cusp was identical to the time measured at the His region when mapping the right atrium. Ablation in the noncoronary cusp (contact force 23 g) in a power-controlled mode (15 W with increase to 25 W) terminated the tachycardia after 3 seconds of the first radiofrequency energy application (total of 183 s) and the tachycardia remained non-inducible after the ablation. The local electrogram at the successful site is shown in Figure 3. The patient was discharged the day after the procedure, and an overnight Holter ECG showed no atrial arrhythmia. The patient remained free of arrhythmia during a follow-up of three months.

Discussion

Atrial tachycardia can originate from almost any part of the atria with a predilection for certain anatomical structures such as the crista terminalis, tricuspid and mitral annulus, the coronary sinus musculature, superior vena cava and the pulmonary veins. Although tachycardias originating from the peri-AV nodal region are rare, they have been described in up to 18% of selected patients [1]. Whereas most atrial tachycardias are amenable for ablation with relatively high success rates, tachycardias from the peri-AV nodal region can be challenging owing to the potential risk of AV block [2].

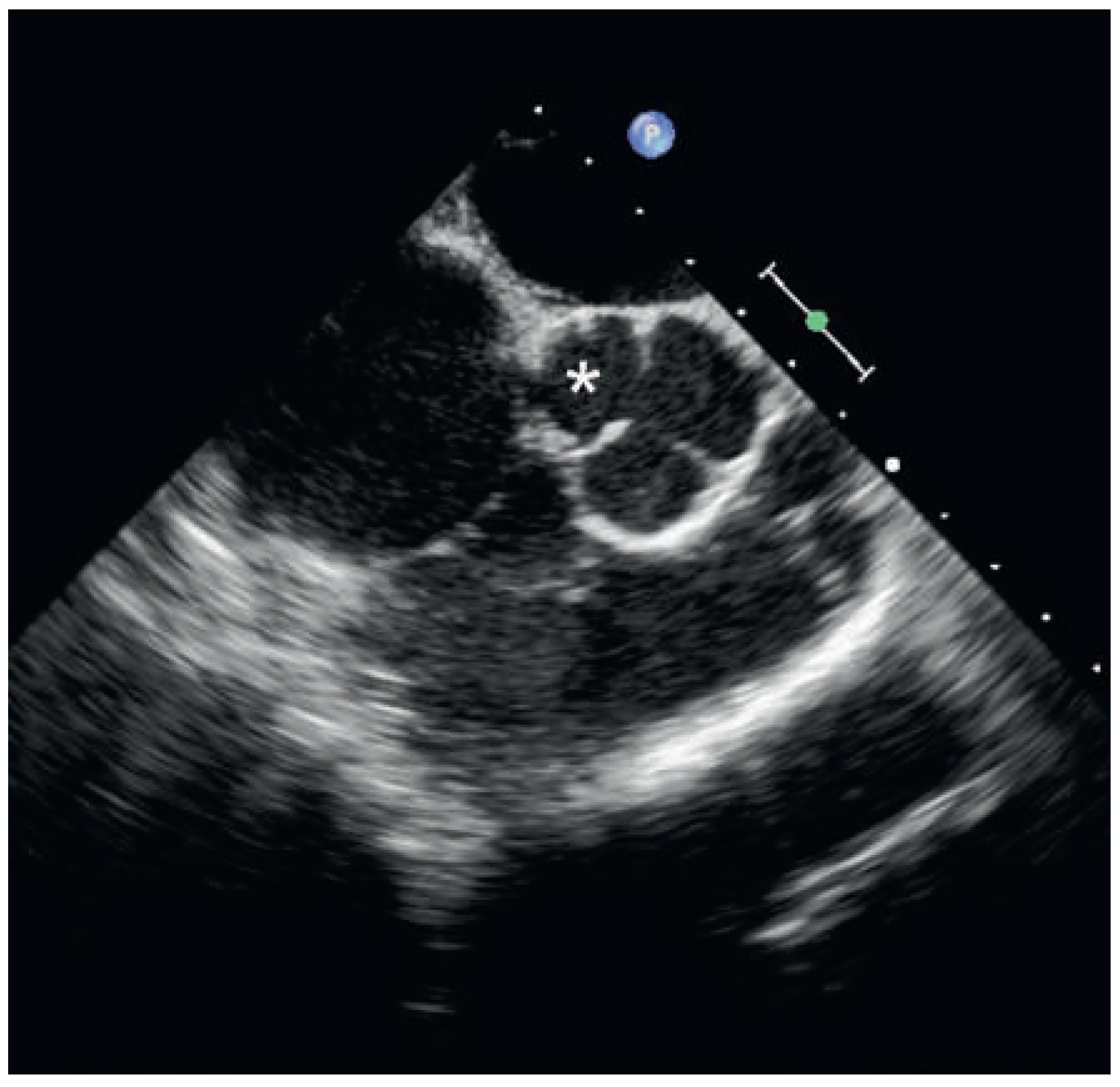

The peri-AV nodal region is the anterior part of the interatrial septum, whereas the aortic root has a central location in the heart, located antero-superior to the mitral and tricuspid annulus. Its non-coronary cusp is in contact with both the left and right atria and with the anterior part of interatrial septum [1]. If ablation of a tachycardia thought to originate from the peri-nodal region is unsuccessful when ablating from the right atrium and/or the risk of AV block is high (when a His spike is recorded at the site of earliest activation in the right atrium, as in our case), mapping the non-coronary cusp should be considered. The proximity of these structures can be appreciated in Figure 4.

Although rare, atrial tachycardias that are amenable for ablation from the non-coronary cusp have been described. There are significant differences in reported P wave morphologies. Ouyang et al. described positive P waves in lead I and aVL and biphasic P waves in V1 [3] whereas Chen et al. described biphasic P waves in V1 and positive P waves in the inferior leads [4]. In the studies performed by Das et al. [1] and Marrouche et al. [5], characteristic P wave morphologies for left septal and non-coronary cusp tachycardias could not be identified. Typical findings of these tachycardias are early activation in the His region found during mapping, and local activation in the non-coronary cusp preceding the onset of the P wave by up to 40 ms [1]. Also, these tachycardias are reported to be incessant, easily inducible by atrial stimulation and may be terminated by adenosine [6]. In our case, the local activation time was identical on the His catheter and the non-coronary cusp, suggesting an origin of the tachycardia in the non-accessible “no-man’s land” between the His catheter and the non-coronary cusp. Owing to the high risk of AV nodal injury with ablation from the right atrium and no success with limited ablation in close proximity to the His, application of radiofrequency energy from within the non-coronary cusp (where local activation preceded the P wave by 36 ms) eliminated the tachycardia. Contrast injection into the aortic root and/or diagnostic coronary angiography may enhance the safety and accuracy of the mapping and ablation procedure in this area but is not considered mandatory.

Conclusion

Atrial tachycardias arising from the peri-nodal region may not only be targeted from the right and left atria but also from the non-coronary cusp. Early activation in the peri-AV nodal or para-Hisian region should prompt the operator to map the non-coronary cusp where effective and safe ablation of the tachycardia may be feasible.
