How to Transform You into a Radialist: Tips and Tricks

by
Caroline Frangos
1 and
Stéphane Noble
2,*
1
Hôpital de La Tour, Meyrin, Genève, Switzerland
2
Département des Spécialités, Unité de cardiologie Interventionnelle, Hôpitaux Universitaires de Genève, CH-1211 Genève, Switzerland
*
Author to whom correspondence should be addressed.
Cardiovasc. Med. 2011, 14(11), 315; https://doi.org/10.4414/cvm.2011.01620
Submission received: 23 August 2011 / Revised: 23 September 2011 / Accepted: 23 October 2011 / Published: 23 November 2011

Summary

The transradial approach increases patient comfort and reduces vascular complications and major bleeding. Although modern equipment has been improved and catheter sizes reduced, there remain specific technical challenges in the practice of the transradial approach. Indeed, the transradial approach requires a longer learning curve than transfemoral access, but the transradial challenges are usually overcome with experience. Nowadays, in view of its benefits, there is no longer any justification for ignoring the transradial approach, the patient’s preferred access route for percutaneous coronary interventions. In this paper we highlight five rules which will transform you into a radialist and provide valuable tips and tricks.
As the radial artery (RA) is superficial and readily compressed, the transradial approach (TRA) reduces vascular complications and bleeding, major causes of morbidity and mortality, especially for patients undergoing percutaneous coronary interventions (PCI). However, TRA requires a longer learning curve than the transfemoral approach (TFA) due to specific technical challenges that are usually overcome with experience. After more than 1000 TRA procedures each, we felt it necessary to share some tips and tricks which will transform you into a TRA adept.

Five rules to transform you into a radialist

Blood supply to the hand is provided by two palmar arches. The superficial palmar arch and the deeper palmar arch, which are important arterial connections between their major sources, the ulnar artery and the radial artery. The RA is superficial and easily palpable. No major nerves or veins are located near the RA, thus minimising the risk of injury to these structures. Conversely, the ulnar artery is deeper and close to the ulnar nerve.

Rule N°1: be comfortable for radial artery puncture

Patient selection is described elsewhere [1]. RA puncture requires a palpable artery and a delicate touch. During the early phase of TRA experience, RA puncture is a frequent cause of failure. The groin should always be prepared in case of emergency crossover to TFA.

Arm setup

The arm can be placed on a board anchored under the shoulder at an 80° angle from the body (Figure 1) or, according to the operator’s preference, directly in a support positioned along the body. A folded sheet or roll of gauze is usually placed under the wrist to achieve hyperextension. In our opinion the former setup provides a better wrist position for RA puncture, especially in overweight patients. In this setup the arm is positioned in a support along the body once the sheath has been inserted. The operator elevates the table to its full height to perform the puncture in a comfortable standing position. Some operators prefer to be seated.

Needle selection and techniques for puncture

Two puncture techniques exist: the double-wall puncture technique with a sheath-covered needle, and the single-wall puncture technique with a bare needle, in line with the technique used by 60% of operators worldwide [2]. The choice of needle is a matter of operator’s preference. The RA should be punctured at a 30–45° angle, 1–2 cm proximal to the radial styloid process. It is important to obtain a good backflow before introducing the guide wire. Once the wire is inserted, a small skin incision at the base of the needle may facilitate sheath insertion, though, depending on the sheath used, it is not always necessary.

Rule N°2: make the patient comfortable

It is essential that the patient is comfortable and relaxed to prevent RA spasm (stress induces catecholamine release and increases the risk of spasm). The procedural steps are explained to the patient by the operator to minimise patient anxiety.

Premedication

Anxiety relievers are useful to relax the patient, especially with inexperienced operators. In experienced hands, premedication need be administered only in anxious patients.

Arm support

The arm and wrist must be placed in a support (Figure 1), along the body, allowing the operator to work in similar conditions to TFA (comfort and distance to the X-ray generator).

Local anaesthesia

Adequate local anaesthesia with subcutaneous xylocaine 1–2% (0.5 to 1.5 ml) with a 25-gauge short needle (2 ml syringe) minimises pain and helps prevent RA spasm. Infiltration of the RA should be avoided since it will increase RA spasm. Delicate massage of the wrist facilitates distribution of the xylocaine.
In a series of patients with radial spasm due to failed attempts at RA puncture [3], the investigators compared three different options: the wait and see attitude, administration of 400 mcg of sublingual nitroglycerin or injection of 1 ml (200 mcg/ml) of nitroglycerin solution on the medial and lateral aspect of the RA location. The mean time for the pulse to reappear was 18 ± 5 min, 8 ± 1 min and 3 ± 1 min respectively and subsequently the rate of successful radial cannulation was 72%, 90% and 100%. Bertrand et al. refined the technique by routinely mixing xylocaine 2% and nitroglycerin in the same syringe as the local anaesthesia [4].

Sheath size

In cases where the RA is small, a 5 French (F) sheath is preferable, especially when the procedure is expected to be a diagnostic coronary angiogram or the probability of angioplasty is low. If necessary, the angioplasty can be performed via a 5F guide catheter or sheathless guide catheter (Sheathless Eaucath, Asahi Intecc, Japan), or the sheath can be exchanged for a 6F.

Prevention of radial artery spasm

With respect to spasm prevention, success on the first attempt always achieves the best results. In addition to premedication and local anaesthesia, intraarterial administration of vasodilatators is essential. Various spasmolytic cocktails have been tried [5]. Verapamil is the most commonly used vasodilatator, being administered directly after sheath insertion in a dose of 2.5 up to 5.0 mg (diluted up to 10 ml with saline). The patient should be warned of a transient burning sensation in the forearm during injection. Mixing verapamil with blood (blood buffers reduce verapamil acidity) and slow injection reduce this unpleasant sensation.
Use of hydrophilic sheaths has been shown to reduce pain and subsequently spasm. Moreover, use of smaller catheters (5F vs. 6F) in the presence of a small RA further reduces the incidence of spasm. Thanks to automatic injectors which overcome the previous limitations of 5F catheters from the days of manual injection, the vast majority of radialists routinely perform diagnostic coronary angiograms with 5F catheters regardless of the RA calibre and without impairment of image quality. With experience the procedure takes less time and fewer catheter manipulations are necessary, resulting in a marked decrease in RA spasm incidence.

Prevention of radial artery occlusion (RAo)

RA occlusion is an infrequent (3% to 10%) and clinically silent complication of TR catheterisation (in properly selected cases). Unfortunately its occurrence precludes any future TRA. There is evidence that up to half of RA occlusions are recanalised at 30-day followup [6]. Heparin has been shown to significantly reduce the incidence of RAO and a clear relationship exists between the heparin dose and the rate of RAO [7]. 5000 IU heparin (or 70 IU/kg) is recommended, and most operators use an intraarterial route. Other potential predictive factors of RAO are procedural time, operators in their learning curve, arterial diameter ratio to the sheath and compression time and pressure [8,9].
Table 1. Most frequent upper limb artery anatomical variations in an angiographic series of 2211consecutive patients.
Table 1. Most frequent upper limb artery anatomical variations in an angiographic series of 2211consecutive patients.
Cardiovascmed 14 00315 i001

Rule N°3: use the right wire

Standard 175-cm long J-shaped 0.035′′ wire is the workhorse, as it progresses towards the arm easily and without resistance in the majority of cases. Nevertheless, navigation through the brachial and subclavian arteries may sometimes be challenging, due to vessel loops, tortuosities or anatomical variations. The rate of upper limb anatomical variations ranges between 10 and 23% in different series [10] (table 1). Below we describe commonly encountered situations and how to overcome difficulties.

Resistance advancing the wire or catheter.

Spasm or tortuosity, mostly at the level of the elbow, or the presence of a remnant artery (Figure 2) are the most common reason for resistance. The wire should never be advanced aggressively or against resistance. Instead, radiobrachial injection of diluted contrast should be performed to assess anatomy. The table can be rotated for easier visualisation of the arm.

Radial artery tortuosity or loop

A hydrophilic 0.035” J-shaped wire (Glidewire, Terumo, Japan) can cross any tortuosity or loop in the vast majority of cases, but must always be introduced under fluoroscopic guidance to ensure proper progress into the arm and ascending aorta without engaging small branches (risk of perforation) and avoid major head and neck vessels (vertebral and carotid arteries). The loop is usually straightened once crossed by the hydrophilic wire or the catheter (Figure 3). In severe radial artery loop, when the 0.035” hydrophilic wire fails, a regular 0.014” hydrophilic coronary angioplasty wire can be used under fluoroscopic guidance.

Subclavian artery tortuosity or loop

A hydrophilic 0.035” J-shaped wire is the best choice in this situation. To overcome the difficulties of catheter manipulations once the subclavian level loop is crossed, a stiff wire (eg. Supracore, Abbott vascular) may help to introduce the catheter into the ascending aorta and rotate it for ostium cannulation. In extreme cases right coronary artery (RCA) cannulation may require a 5F guide catheter in association with a stiff wire; this does not impair image quality.

Exchanging catheters

Catheter exchange should be performed over a 0.035” wire to avoid losing access (risk of spasm). A long exchange wire (220 cm or 260 cm) or a 175 cm regular wire can be used. With the latter, if the wire is on the aortic cusp at the beginning of the exchange, loss of control of approximately 10 cm of the wire is not an issue. When the ascending aorta is difficult to reach, a long exchange wire should be used.

Use of respiration

A long history of high blood pressure, especially in octogenarians, may be associated with considerable tortuosities of the brachiocephalic trunk and subclavian arteries, which may make the procedure more complex. Deep inspiration helps to reach the ascending aorta by modifying the angulation of the brachiocephalic trunk. Left anterior 30º projection is the optimal view for assessment of the ascending aorta as the different portions of the aorta are not superposed. However, when the wire repeatedly enters the descending aorta despite deep inspiration and the use of a JR4 oriented anteriorly, angiographic assessment is the next step. A retrooesophageal origin of the right subclavian artery (arteria lusoria), a rare anatomical variation, may become apparent, rendering the procedure by right TRA highly complex, whereas left TRA is easier.
Usually when catheters reach the ascending aorta they fall into the right cusp, and engagement of the left cusp requires careful withdrawal until the tip retracts over the right aortic leaflet and moves into the left coronary cusp. Gentle inspiration may also facilitate movement into the left coronary cusp and help selective left system cannulation.

Rule N°4: choose the right catheter

Selection of the catheter is important if good quality images are to be obtained and to ensure good support if PCI is necessary.

Routine diagnostic catheter selection

For diagnostic angiography, 5F Judkins left (JL) 3.5 and Judkins right (JR) 4.0 remain the most commonly used catheter types according to the First International Transradial Practice Survey [2], allowing a cannulation success rate of over 90%. Dedicated single catheters to cannulate left and right systems have been developed (eg. Tiger [Terumo] and Kimny [Boston Scientific Corp, USA] catheters). Few operators use special curves such as Amplatz left and right or multipurpose, and TRA pioneers have developed their own dedicated catheters (eg. Barbeau and Fajadet).

Routine guide catheter selection

For left coronary interventions, the majority of operators use extra backup guide catheters, the most popular being the EBU 3.5 (Medtronic Inc) or XB 3.5 (Cordis Corporation), since the JL guide catheter does not offer adequate support by TRA. For RCA PCI, JR is the most commonly used catheter. When anatomical difficulties with the RCA require better support, some operators use the Amplatz left. We rarely use this guide catheter (in 1% of our RCA PCI), because we believe the benefits of this catheter are outweighed by a higher risk of ostium dissection. Indeed, the Barbeau (Cordis Corporation, Johnson and Johnson, USA) is our guide catheter of choice, especially for vertical RCA takeoff and when more backup support is required (Figure 4).

Rule N° 5: limit compression time

Since the artery is superficial, haemostasis is simple and easy to control. After removing the catheter over a 0.035”, the sheath is gently pulled back. Forceful pulling back of the sheath may result in avulsion of the RA [11]. Although a compressive bandage (simple gauze and elastic bandage) is an option used in developing countries, the insertion of a compression device (TRBand, Hemoband, Radistop, Easy radial, Radstat) is recommended. The “airbag”-based bracelet (TR-Band, Terumo) with progressive deflation is the most commonly used dedicated radial compression device. To reduce RA occlusion, compression time should ideally be limited to 3 hours (with progressive release). The concept of patent RA haemostasis has recently been promoted (RA pulse assessment by plethysmography) to reduce the incidence of RAO, Pancholy et al. having shown a 75% RAO rate reduction at 30 days when applying patent haemostasis under guided RA compression [12]. The amount of air inflated in the TR-band usually varies between 13 to 18 ml. A Spanish study [9] showed that when the amount of air inflated was guided by mean arterial pressure (mean air volume of 8.8 ml), significantly fewer RAO were observed than when the device was routinely inflated with 15 ml air. In our experience, 13 ml air is sufficient in the vast majority of cases.
Table 2. Preferred route for each pattern of CABG.
Table 2. Preferred route for each pattern of CABG.
Cardiovascmed 14 00315 i002

How to manage specific situations Radial artery spasm

The loss of RA pulse is not only frustrating, but may render TRA nearly impossible. Spasm may occur either during puncture (increased risk with repeated punctures) or diagnostic and therapeutic procedures (usually related to excessive catheter manipulation or multiple catheter exchange). RA spasm is generally associated with severe pain in the arm, justifying the administration of anxiety relievers and/or sedation.

RA spasm during the procedure

If spasm occurs during coronary angiography, administration of anxiety relievers and a calcium-channel blocker (verapamil 2.5 mg) and/or intraarterial nitroglycerin (100 to 250 ug) is helpful. Smaller size diagnostic catheters (i.e, 4F instead of 5 or 6F) are a valid option. When a 6F or 7F guide catheter is needed, two options are available if catheter insertion is difficult or painful:

Sheathless catheter

Recently, sheathless hydrophilic guide catheters have emerged as an alternative when the RA is too small or in cases of spasm preventing the use of a 6F guide catheter. Sheathless guide catheters have an outer diameter (OD) more than 1F smaller than traditional guide catheters making 6F PCI in frail women, or complex PCI [13,14] requiring a 7F guide catheter possible (Figure 5). When using these sheathless catheters, be aware that the dilator is radiotransparent and hence the dilator should be held in place once the radioopaque sheathless guide reaches the aortic cross, to prevent any potential damage to the aortic cusps.

Telescopic technique (mother and child technique).

This involves advancing a 6 or 7F guide catheter over a long 5F diagnostic catheter (125 cm JR 4). The 5F long diagnostic catheter serves as a dilator and reduces the mismatch between the catheter and wire (Figure 6). It has the advantage of allowing the use of any guide catheters you are accustomed to. On the other hand, the sheathless system described above is hydrophilic and moves forward very easily.

Extreme spasm

Extreme radial or brachial artery spasm may prevent the removal of the catheter or sheath. On very rare occasions when anxiety relievers are not enough, deep sedation/general anaesthesia may be required to relieve spasm and allow catheter removal.

Small calibre radial artery

RA is often smaller in women but this does not preclude radial access. Spasm is more likely to occur in the presence of small RA and in women, and thus special attention must be paid to anxiety, pain relief and puncture accuracy. Operators may be restricted to smaller conventional guide catheters to perform PCI, or they can use sheathless guide catheters or the telescoping technique. Moreover, contralateral RA should be checked as asymmetry of RA diameter may be present. A left radial approach can be adopted if left RA diameter seems significantly larger and hand collaterals testing is favourable.

Patients with coronary artery bypass grafts (CABG)

TRA can be successfully used for patients with CABG. However, transradial cannulation of the saphenous vein grafts (SVG) may be technically demanding. The preferred route for each pattern of CABG is described in table 2. TRA catheterisation of left internal mammary grafts (IMA) is easier than TFA. In cases of double IMA, catheter advancement into the contralateral subclavian artery has to overcome multiple angulations and high friction in the absence of adequate support. It is therefore reasonable to favour TFA in patients with bilateral IMA grafts even though successful contralateral access (preferably by right TRA) to the IMA have been reported [15]. Double TRA may be considered in cases of inappropriate TFA access.

Local bleeding and haematoma

Vascular complications with TRA are extremely rare. Nevertheless, haematoma of the arm proximal to the elbow (non-access site related but secondary to small branch perforation or arterial laceration) must be promptly detected to ensure rapid management. Bertrand et al. [16] graded forearm haematomas according to size with a 5 grade classification and provided the appropriate strategy to manage every grade (Figure 7). In cases of large or growing haematoma, a blood pressure cuff should be rapidly inflated at the site of the haematoma at 20 mm Hg below the systolic pressure for 15 minutes, with repeated inflation if needed. This manœuvre allows sealing of the perforation, softening of the haematoma, and prevention of further swelling and the subsequent risk of compartment syndrome. In cases of late management, extensive arm haematoma may cause compartment syndrome, a very serious but fortunately very rare complication of TRA occurring in less than 0.01%. Surgical decompression may be required in this clinical situation. Interestingly, when perforation of the RA occurs during a procedure, the best treatment may be to continue the procedure. When a catheter can cross and then tamponade the area of concern, the perforation will often seal by the end of the intervention.

Left transradial approach

The vast majority of operators (90%) use the right TRA as the initial access site since it allows the procedure to be performed with similar comfort to TFA (the right arm is positioned along the patient’s body). Left TRA can be used as a routine access or as an alternative to right TRA when unsuccessful. Left TRA is similar to TFA with respect to catheter selection and manipulation, and enables easier cannulation of the ostia than right TRA. Furthermore, in patients with left IMA graft catheterisation of the IMA is easier.
Patient preparation is similar to that for right TRA with a board under the left shoulder and the wrist in hyperextension. After obtaining left RA access, the patient’s left arm is brought across the chest onto the abdomen (left wrist close to the right groin area). A cushion is placed under the left shoulder to ensure arm stability and patient comfort.
For left TRA, JL (3.5 or 4.0) and JR (4.0) catheters are the first choice. Progression of the wire can be difficult through the elbow due to the half-bent arm and temporarily straightening the arm can be helpful. Sometimes use of a hydrophilic wire under fluoroscopic guidance may be necessary. Once the catheter is introduced into the brachial artery, the arm is repositioned on the abdomen.
In obese patients and particularly for shorter operators, left TRA might be technically more demanding since the operator has to lean over the patient to reach the left wrist. Notably, since the operator stands closer to the X-ray generator in left TRA, there were some concerns regarding higher operator radiation exposure after left TRA than after right TRA. However this was not observed in the TALENT Dosimetric Substudy [17] which compared both TRA in a randomised trial including 770 patients in each group.

Conclusion

Specific technical challenges related to TRA are most often overcome with experience. When difficulties are encountered at any stage of wire progression, performance of an angiographic assessment is highly recommended. Understanding the problem will prevent complications (dissection and perforation) and allow successful management. Knowing the anatomic variations and the technical recommendations to overcome such situations will undoubtedly help new TRA converts in achieving success.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Frangos, C.; Noble, S. How to transform you into a radialist: Literature review. Part I. Cardiovascular Medicine. 2011, 14, 277–82. [Google Scholar]
  2. Bertrand, O.F.; Rao, S.V.; Pancholy, S.; et al. Transradial approach for coronary angiography and interventions. Results of the first international transradial practice survey. J Am Coll Cardiol Intv. 2010, 3, 1022–31. [Google Scholar] [CrossRef] [PubMed]
  3. Pancholy, S.B.; Coppola, J.; Patel, T. Subcutaneous administration of nitroglycerin to facilitate radial artery cannulation. Catheter Cardiovasc Interv. 2006, 68, 389–91. [Google Scholar] [PubMed]
  4. Bertrand, O.F.; Larose, E.; Rodes-Cabau, J. Sub-cutaneous nitroglycerin: Good example of the “KISS” rule! Letter to the Editor Catheter Cardiovasc Interv. 2006, 70, 161. [Google Scholar] [CrossRef] [PubMed]
  5. Varenne, O.; Jégou, A.; Cohen, R.; et al. Prevention of arterial spasm dur-ing percutaneous coronary interventions through radial artery: The SPASM study. Cathet Cardiovasc Interv. 2006, 68, 231–5. [Google Scholar]
  6. Stella, P.R.; Kiemeneij, F.; Laarman, G.J.; et al. Incidence and outcome of radial artery occlusion following transradial artery coronary angioplasty. Catheter Cardiovasc Diagn. 1997, 40, 156–8. [Google Scholar] [CrossRef]
  7. Spaulding, C.; Lefèvre, T.; Funk, F. Left radial approach for coronary an-giography: Results from a prospective study. Cathet Cardiovasc Diagn. 1996, 39, 365–70. [Google Scholar] [PubMed]
  8. Dahm, J.B.; Vogelgesang, D.; Hummel, A.; et al. A randomized trial of 5 vs. 6 French transradial percutaneous coronary interventions. Catheter Cardiovasc Interv. 2002, 57, 172–6. [Google Scholar] [CrossRef] [PubMed]
  9. Cubero, J.M.; Lombardo, J.; Perdrosa, C.; et al. Radial compression guided by mean artery pressure versus standard compression with a pneumatic device (RACOMAP). Catheter Cardiovasc Interv. 2009, 73, 467–72. [Google Scholar] [CrossRef] [PubMed]
  10. Velsecchi, O.; Vassileva, A.; Musumeci, G.; et al. Failure of transradial approach during coronary interventions : Anatomic considerations. Catheter Cardiovasc Interv. 2006, 67, 870–8. [Google Scholar] [CrossRef] [PubMed]
  11. Arzamendi, D.; Romeo, P.; Gosselin, G. Radial artery avulsion: A rare complication of percutaneous coronary intervention. Rev Esp Cardiol. 2011, 64, 62. [Google Scholar] [CrossRef]
  12. Pancholy, S.; Coppola, J.; Patel, T.; et al. Prevention of radial artery occlusion-patent hemostasis evaluation trial (PROPHET study): A randomized comparison of traditional versus patency documented hemostasis after transradial catheterization. Catheter Cardiovasc Interv. 2008, 72, 335–40. [Google Scholar] [CrossRef] [PubMed]
  13. Mamas, M.A.; Fath-Ordoubadi, F.; Fraser, D.G. Atraumatic complex transradial intervention using large bore sheathless guide catheter. Catheter Cardiovasc Interv. 2008, 72, 357–64. [Google Scholar] [CrossRef] [PubMed]
  14. Mamas, M.; D’Souza, S.; Hendry, C.; et al. Use of the sheathless guide catheter during transradial percutaneous coronary intervention: A feasibility study. Catheter Cardiovasc Interv. 2010, 75, 596–602. [Google Scholar] [CrossRef] [PubMed]
  15. Burzotta, F.; Trani, C.; Hamon, M.; et al. Transradial approach for coronary angiography and interventions in patients with coronary bypass grafts : Tips and tricks. Catheter Cardiovasc Interv. 2008, 72, 263–72. [Google Scholar] [CrossRef] [PubMed]
  16. Bertrand, O.F.; De Larochellière, R.; Rodés-Cabau, J.; et al. A randomized study comparing same-day home discharge and abciximab bolus only to overnight hospitalization and abciximab bolus and infusion after transradial coronary stent implantation. Circulation. 2006, 114, 2636–43. [Google Scholar] [CrossRef] [PubMed]
  17. Sciahbasi, A.; Romagnoli, E.; Trani, C.; et al. Operator Radiation Exposure During Percutaneous Coronary Procedures Through the Left or Right Radial Approach: The TALENT Dosimetric Substudy. Circ Cardiovasc nterv. 2011, 4, 226–31. [Google Scholar] [CrossRef] [PubMed]

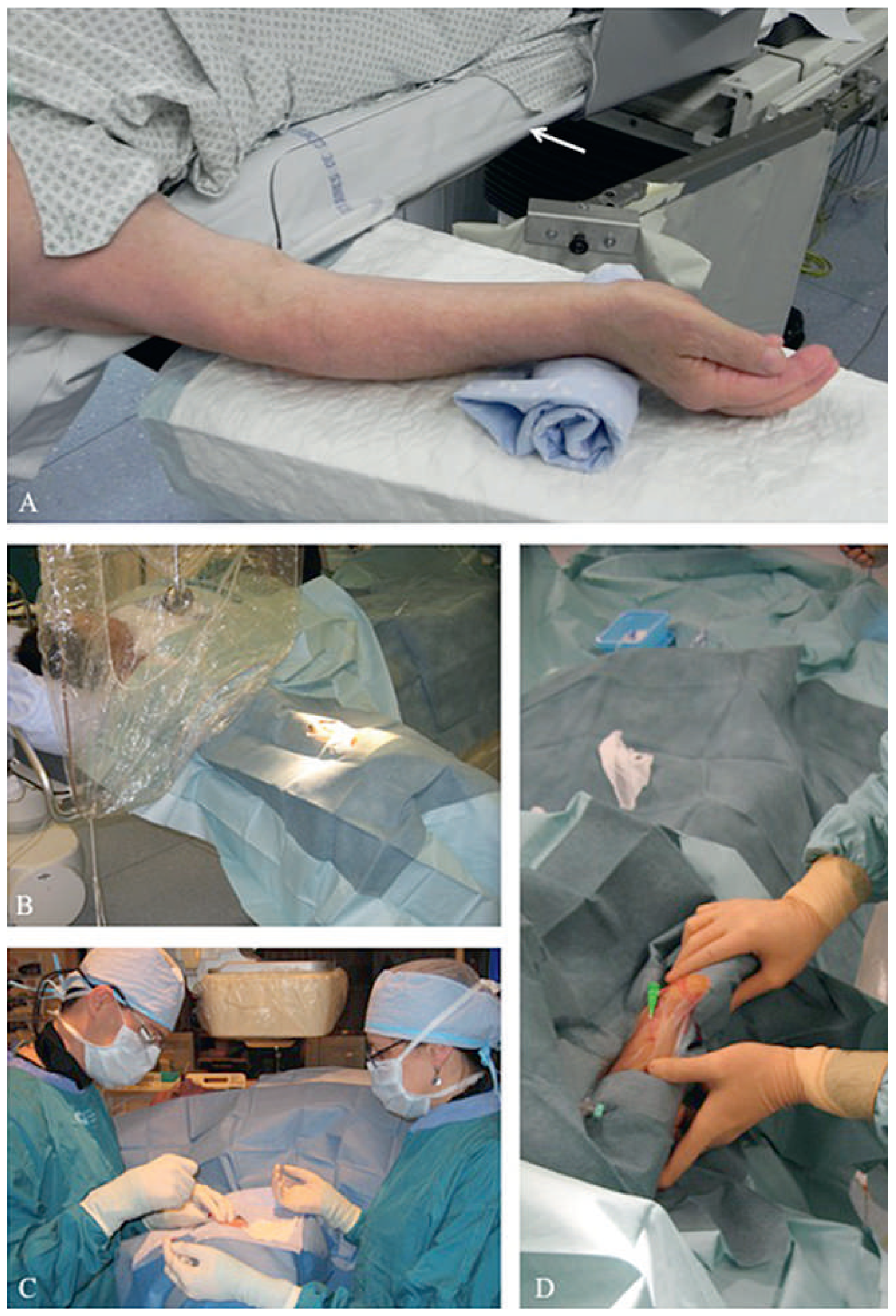

Figure 1. Arm setup for puncture. A. Arm placed on a board anchored under the shoulder at an 80 degree angle from the body. A folded sheet is placed under the wrist. No venous catheter should be inserted in the area of the radial artery or on the hand. Ideally the venous catheter should be inserted on the contralateral arm. Arrow showing the support used to place the arm along the body. B. Ready for anaesthesia and puncture. Puncture in a standing position with the table elevated to its full height. The sheath has been inserted and the arm is positioned in a support along the body.
Figure 1. Arm setup for puncture. A. Arm placed on a board anchored under the shoulder at an 80 degree angle from the body. A folded sheet is placed under the wrist. No venous catheter should be inserted in the area of the radial artery or on the hand. Ideally the venous catheter should be inserted on the contralateral arm. Arrow showing the support used to place the arm along the body. B. Ready for anaesthesia and puncture. Puncture in a standing position with the table elevated to its full height. The sheath has been inserted and the arm is positioned in a support along the body.
Cardiovascmed 14 00315 g001

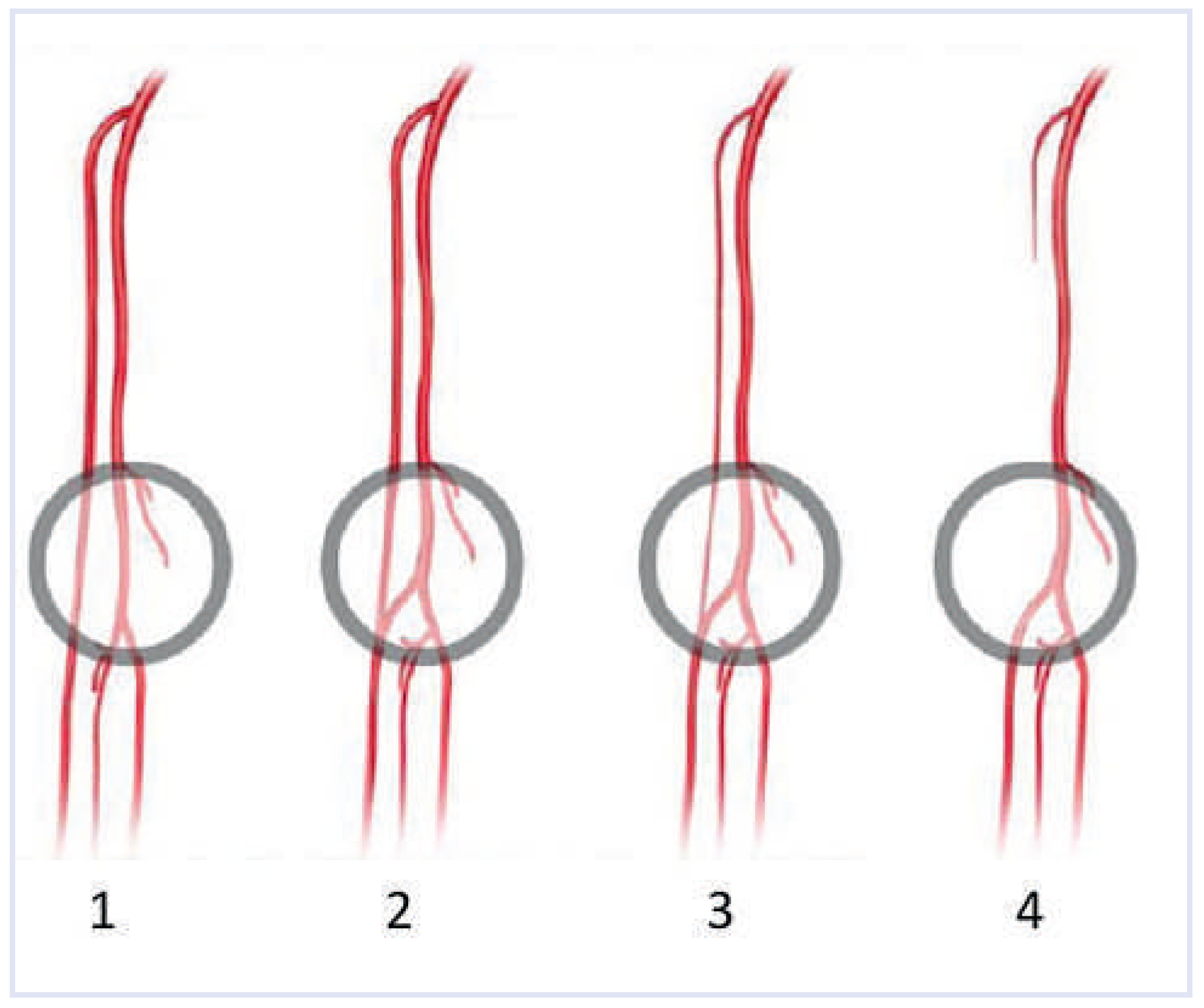

Figure 2. Anatomical variations. Anatomical variations: a wire can be introduced into a remnant artery with a small arterial diameter (type 3) but failure to advance any catheter is the rule and the incidence of spasm is very high in such anatomy.
Figure 2. Anatomical variations. Anatomical variations: a wire can be introduced into a remnant artery with a small arterial diameter (type 3) but failure to advance any catheter is the rule and the incidence of spasm is very high in such anatomy.
Cardiovascmed 14 00315 g002

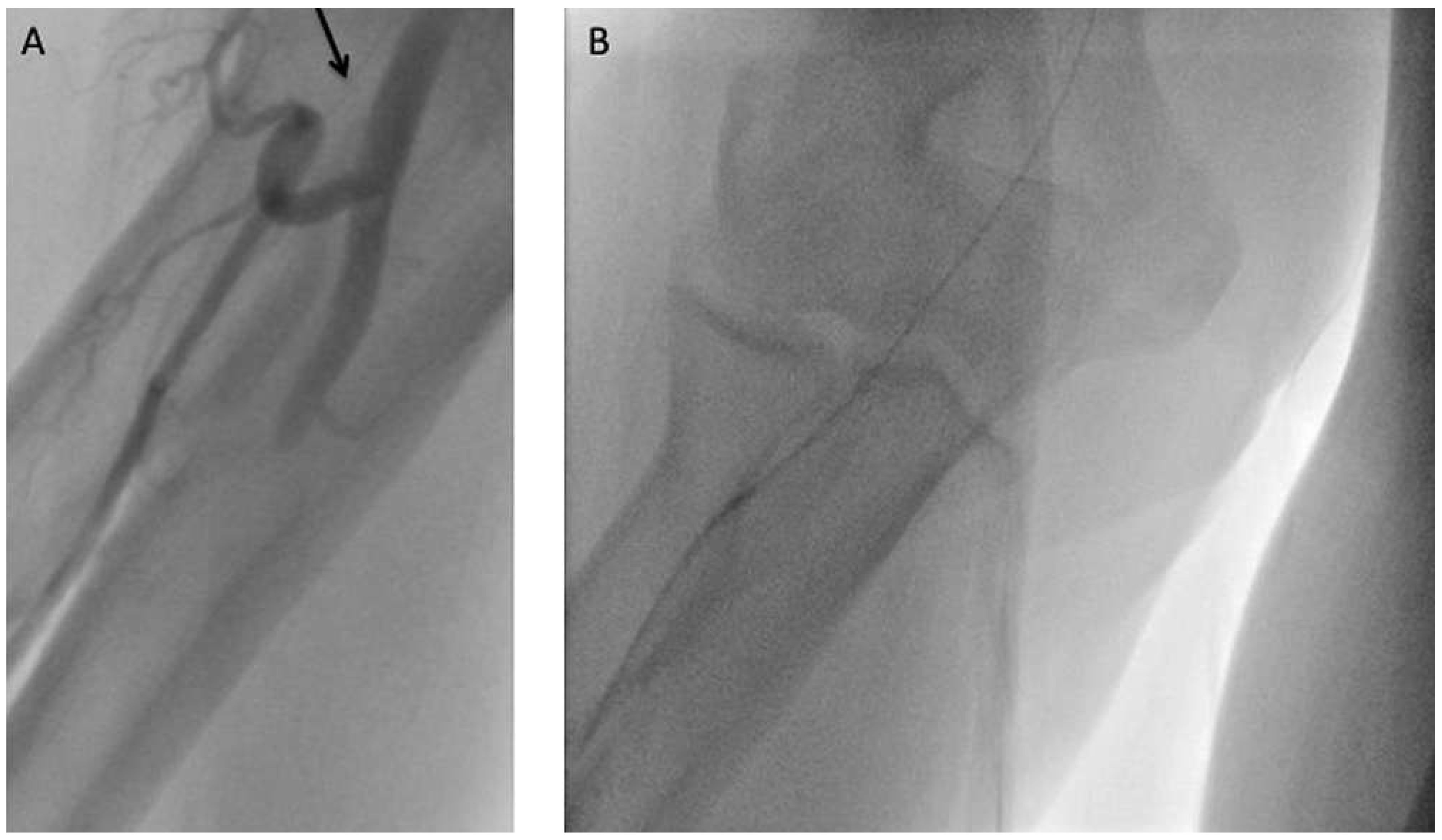

Figure 3. Radial loop. A. Large loop on the radial artery. Arrow showing a very small remnant artery. B. Loop straightened after insertion of a terumo wire and a 5F diagnostic catheter. Data supplement showing insertion of the wire.
Figure 3. Radial loop. A. Large loop on the radial artery. Arrow showing a very small remnant artery. B. Loop straightened after insertion of a terumo wire and a 5F diagnostic catheter. Data supplement showing insertion of the wire.
Cardiovascmed 14 00315 g003

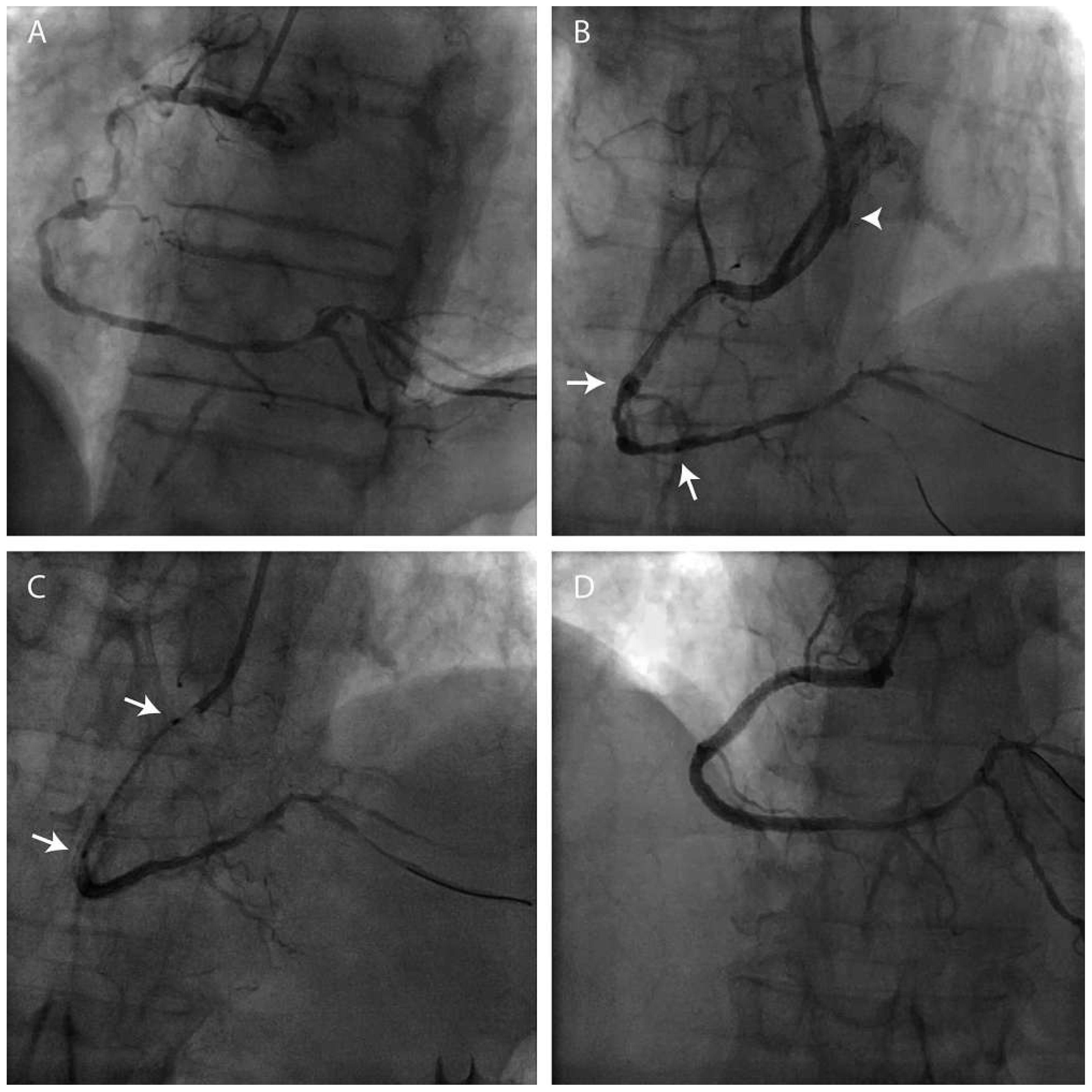

Figure 4. Barbeau guide catheter in a case of complex RCA PCI. A. Antero-posterior and cranial projection showing a tortuous and diffusely diseased RCA (diagnostic JR 4 catheter). B. RCA PCI performed with a 6F Barbeau guide catheter: after predilatation, positioning of a 3.0 × 38 mm Xience Prime drug-eluting stent (arrows) over a BMW wire. The Barbeau guide catheter provides a good backup support since it is well-seated against the posterior wall of the aorta (arrow head). A second wire (Buddy wire technique) is also used to improve stent delivery. C. Insertion of a second Xience Prime stent (3.5 × 38 mm) proximal to the first one (arrows). D. Final result.
Figure 4. Barbeau guide catheter in a case of complex RCA PCI. A. Antero-posterior and cranial projection showing a tortuous and diffusely diseased RCA (diagnostic JR 4 catheter). B. RCA PCI performed with a 6F Barbeau guide catheter: after predilatation, positioning of a 3.0 × 38 mm Xience Prime drug-eluting stent (arrows) over a BMW wire. The Barbeau guide catheter provides a good backup support since it is well-seated against the posterior wall of the aorta (arrow head). A second wire (Buddy wire technique) is also used to improve stent delivery. C. Insertion of a second Xience Prime stent (3.5 × 38 mm) proximal to the first one (arrows). D. Final result.
Cardiovascmed 14 00315 g004

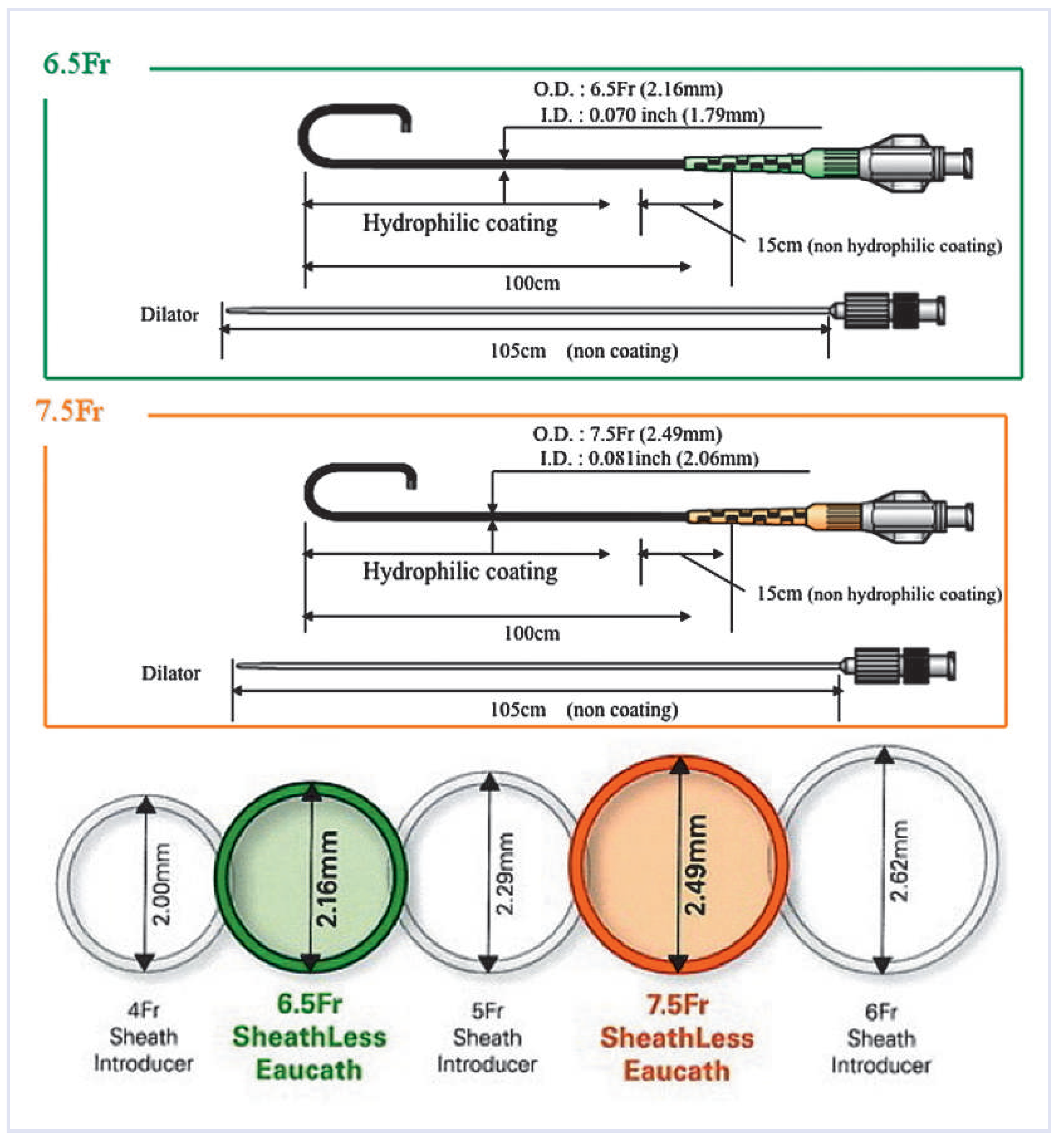

Figure 5. Sheathless catheter characteristics. The sheathless 7.5F guide catheter (Asahi Intecc) has an inner diameter equivalent to a 7F conventional guide catheter and an outer diameter (2.49 mm) inferior to a 6F sheath (2.62 mm). Similarly, the 6.5F guide catheter has an inner diameter equivalent to a 6F conventional guide catheter and an outer diameter (2.16 mm) smaller than a 5F sheath (OD 2.29 mm).
Figure 5. Sheathless catheter characteristics. The sheathless 7.5F guide catheter (Asahi Intecc) has an inner diameter equivalent to a 7F conventional guide catheter and an outer diameter (2.49 mm) inferior to a 6F sheath (2.62 mm). Similarly, the 6.5F guide catheter has an inner diameter equivalent to a 6F conventional guide catheter and an outer diameter (2.16 mm) smaller than a 5F sheath (OD 2.29 mm).
Cardiovascmed 14 00315 g005

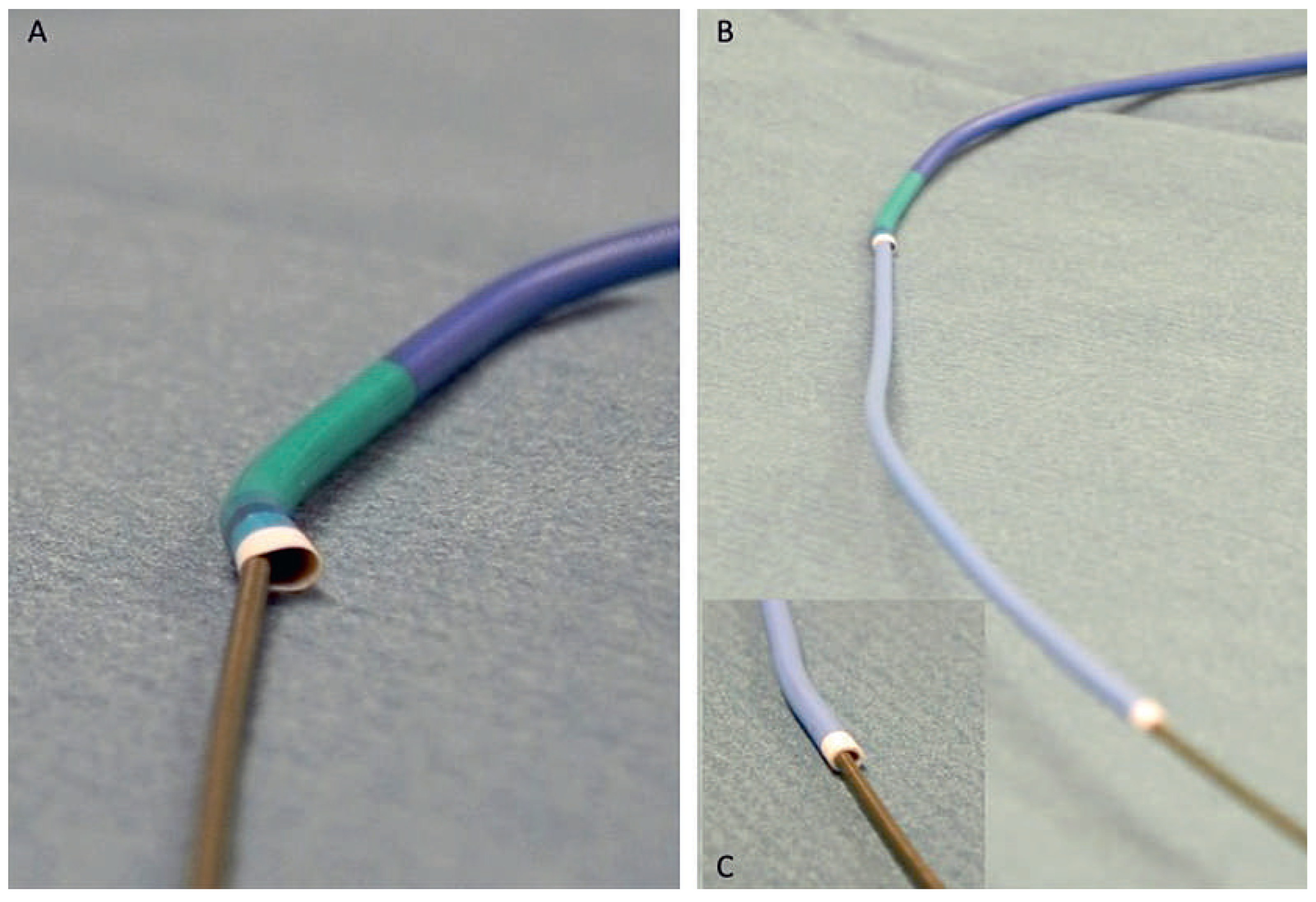

Figure 6. Telescoping technique. A. Picture showing the wide gap between an 0.035′′ wire and the 6F guide catheter. B. Picture illustrating the telescoping technique with a long (125 cm) 5F Judkins right diagnostic catheter introduced through a 6F guide catheter. C. Zoom on the distal end of the 5F diagnostic catheter. The gap from the 0.035′′ wire is undoubtedly smaller.
Figure 6. Telescoping technique. A. Picture showing the wide gap between an 0.035′′ wire and the 6F guide catheter. B. Picture illustrating the telescoping technique with a long (125 cm) 5F Judkins right diagnostic catheter introduced through a 6F guide catheter. C. Zoom on the distal end of the 5F diagnostic catheter. The gap from the 0.035′′ wire is undoubtedly smaller.
Cardiovascmed 14 00315 g006

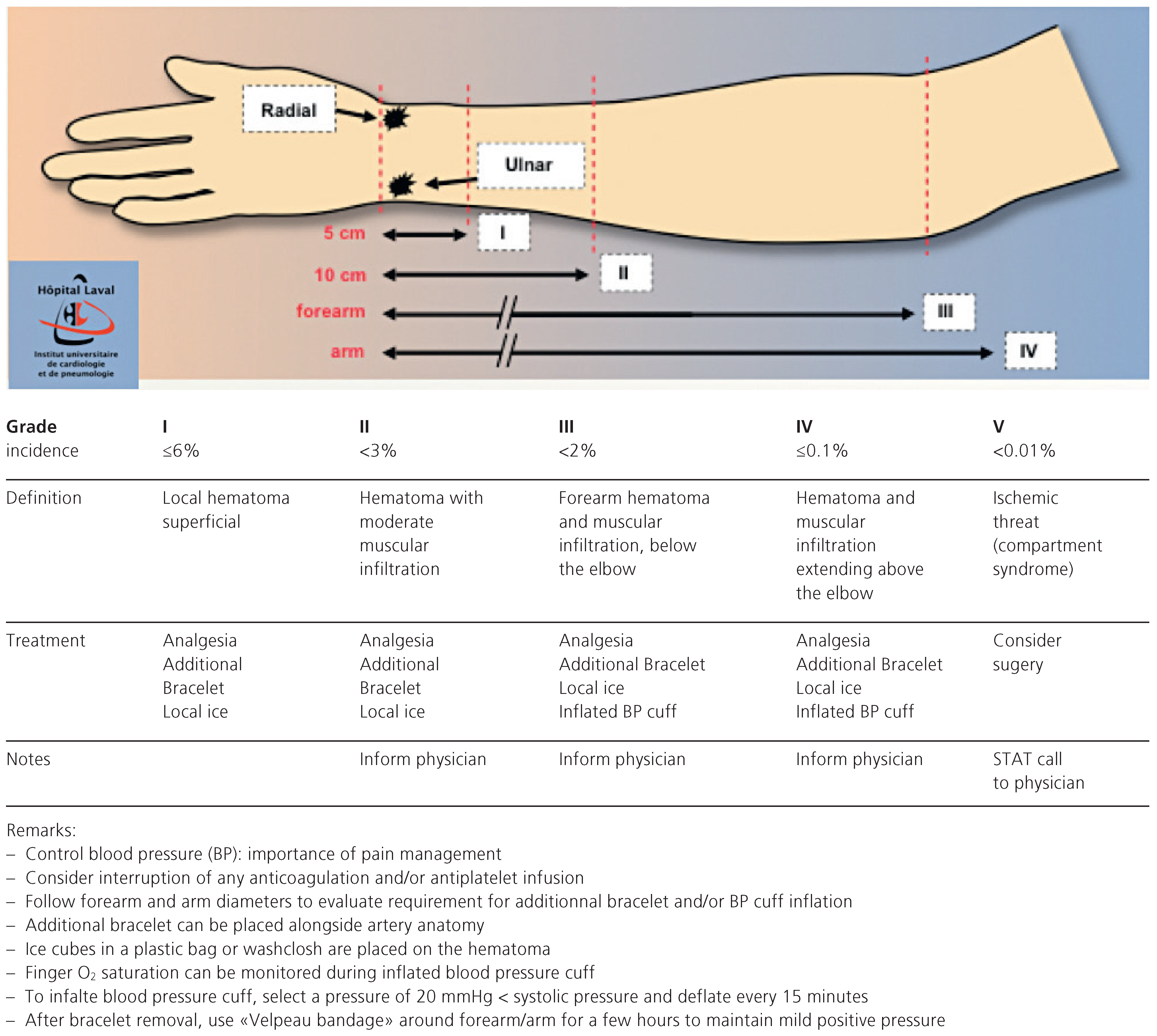

Figure 7. Haematoma classification (published with permission of Dr O. Bertrand, Laval Hospital, Quebec; Modified from Bertrand et al. Circulation 2006; 114(24):2646–53. Table realised for standardisation of post-procedural haematoma assessement in the EASY study.
Figure 7. Haematoma classification (published with permission of Dr O. Bertrand, Laval Hospital, Quebec; Modified from Bertrand et al. Circulation 2006; 114(24):2646–53. Table realised for standardisation of post-procedural haematoma assessement in the EASY study.
Cardiovascmed 14 00315 g007
