Human Blood Concentrations of Cotinine, a Biomonitoring Marker for Tobacco Smoke, Extrapolated from Nicotine Metabolism in Rats and Humans and Physiologically Based Pharmacokinetic Modeling

by
Hiroshi Yamazaki
1,2,*,
Kana Horiuchi
1,
Ryohji Takano
1,3,
Taku Nagano
1,
Makiko Shimizu
1,
Masato Kitajima
3,
Norie Murayama
1 and
Fumiaki Shono
4
1
Laboratory of Drug Metabolism and Pharmacokinetics, Showa Pharmaceutical University, 3-3165 Higashi-Tamagawa Gakuen, Machida, Tokyo 194-8543, Japan
2
High Technology Research Center, Showa Pharmaceutical University, 3-3165 Higashi-Tamagawa Gakuen, Machida, Tokyo 194-8543, Japan
3
Fujitsu Kyusyu Systems, 2-2-1 Momochihama, Sawara-Ku, Fukuoka 814-8589, Japan
4
Japan Chemical Industry Associations (JCIA), 1-4-1 Shinkawa, Chuo-Ku, Tokyo 104-0033, Japan
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2010, 7(9), 3406-3421; https://doi.org/10.3390/ijerph7093406
Submission received: 20 July 2010 / Revised: 20 August 2010 / Accepted: 31 August 2010 / Published: 1 September 2010
(This article belongs to the Special Issue Tobacco Smoking: Public Health, Science and Policy)
Browse Figures
Versions Notes

Abstract

:
The present study defined a simplified physiologically based pharmacokinetic (PBPK) model for nicotine and its primary metabolite cotinine in humans, based on metabolic parameters determined in vitro using relevant liver microsomes, coefficients derived in silico, physiological parameters derived from the literature, and an established rat PBPK model. The model consists of an absorption compartment, a metabolizing compartment, and a central compartment for nicotine and three equivalent compartments for cotinine. Evaluation of a rat model was performed by making comparisons with predicted concentrations in blood and in vivo experimental pharmacokinetic values obtained from rats after oral treatment with nicotine (1.0 mg/kg, a no-observed-adverseeffect level) for 14 days. Elimination rates of nicotine in vitro were established from data from rat liver microsomes and from human pooled liver microsomes. Human biomonitoring data (17 ng nicotine and 150 ng cotinine per mL plasma 1 h after smoking) from pooled five male Japanese smokers (daily intake of 43 mg nicotine by smoking) revealed that these blood concentrations could be calculated using a human PBPK model. These results indicate that a simplified PBPK model for nicotine/cotinine is useful for a forward dosimetry approach in humans and for estimating blood concentrations of other related compounds resulting from exposure to low chemical doses.

Graphical Abstract

1. Introduction

It has been argued internationally that appropriate use of human biomonitoring information should be made in risk assessments when creating public policy [1,2] Development and dissemination of chemical-specific methods and basic information is necessary to interpret biomonitoring results and to promote risk-based decision making [3,4]. It is of global interest to develop more advanced and accurate risk assessment systems to support appropriate interpretation and communication based on human biomonitoring results [5]. Pharmacokinetic and/or toxicokinetic parameters for a variety of chemicals have been determined in animal toxicology studies, even when limited corresponding data exist for humans [6]. Species differences of drug-metabolizing enzymes in the liver, including cytochrome P450 enzymes, are the focus for understanding qualitative and quantitative differences in blood concentrations or chemical exposures in animals and in humans [7]. It has been generally attempted to collect extensive information regarding specific physiologically based pharmacokinetic (PBPK) models found in the literature for predicting concentrations in various biological fluids following multiple dose exposures [4]. However, although simple, inexpensive, and reliable methods are needed for evaluating the accurate toxic risk, as only very complicated models have been established so far [8].
Conventional smoking and environmental tobacco smoke have significant health effects [9–12]. Levels of cotinine, a metabolite of nicotine [13–15], in the blood track exposure to tobacco smoke [9]. In the past 15 years, it has been reported that blood cotinine levels for nonsmokers in the United States population have decreased by about 70%, indicating that public health interventions to reduce exposure have been successful ( http://www.cdc.gov/exposurereport/), but such information for other groups or countries is limited [16,17]. Recently we reported that the biomonitoring of cotinine in urine was a good, easy-to-use marker for plasma levels of the sum of nicotine metabolites in Japanese smokers, independent of genetic polymorphism of the nicotine-metabolizing enzyme, P450 2A6 [18].
Therefore, the purpose of the present study was to carry out a forward dosimetry approach (shown in Figure 1), using data from chemical doses administered to animals to predict their concentrations in humans. As test substances, nicotine and its primary metabolite cotinine were selected because as mentioned, they are widely used as biomarkers for tobacco smoke, in spite of the complex metabolic fate of nicotine [19,20]. We report herein that the adjusted animal biomonitoring equivalents after orally administered doses at a no-observed-adverse-effect level (NOAEL) in rat studies were scaled to human biomonitoring equivalents using known species allometric scaling factors and human metabolic data with a simple PBPK model. A typical study of the biomonitoring of nicotine and cotinine in the a representative pooled blood of Japanese smokers [18] supported the PBPK model used in the present study.

2. Experimental Section

2.1. Chemicals, Animals, and Enzyme Preparations

Nicotine and cotinine were obtained from Wako Pure Chemicals (Osaka, Japan). Male rats (7 weeks old) were treated daily with nicotine (1.0 mg/kg body weight) orally for 14 days or interperitoneally for 3 days, based on a NOAEL dose [21]. This study was approved by the experimental animal committee of Showa Pharmaceutical University. Liver microsomes from male Sprague-Dawley rats (7 weeks old) treated with nicotine (1.0 mg/kg) and from untreated controls were prepared as described previously [22]. Microsomal P450 contents were determined spectrally by the established method [23,24]. Protein concentrations were measured by using a bicinchoninic acid (BCA) protein assay kit (Pierce, Rockford, IL, USA). Pooled liver microsomes from humans were obtained from BD Biosciences (Woburn, MA, USA). Typical P450 substrates, their reaction products, and other reagents used in this study were obtained from the sources described previously or were of the highest quality commercially available [22,25].
Typical P450-dependent marker oxidation activities were measured in liver microsomes in rats to evaluate enzyme inductions on treatment with nicotine. Activities for the O-dealkylation of ethoxyresorufin (20 μM, for P450 1A) and pentoxyresorufin (100 μM, P450 2B) and for testosterone 7α-hydroxylation (200 μM, P450 2A), tolbutamide methyl hydroxylation (1,000 μM, P450 2C), bufuralol 1′-hydroxylation (20 μM, P450 2D), chlorzoxazone 6-hydroxylation (50 μM, P450 2E), and midazolam 1′- and 4-hydroxylation (100 μM, P450 3A) were assayed according to the described high performance liquid chromatography methods [22,26,27].

2.2. Nicotine and Cotinine Determinations in Biological Samples from Rats and Human Smokers

This study was approved by the ethics committee of Showa Pharmaceutical University. Blood and urine samples from individual rats and pooled human plasma from five male Japanese smokers (22–44 years old [18]) were diluted 10-fold with water. Nicotine and cotinine concentrations in these samples were measured by a liquid chromatography/mass spectrometry (LC/MS) system [28]. A Quattro micro API mass analyzer (Waters, Tokyo, Japan) was operated in the electrospray positive ionization mode and was directly coupled to a Waters LC 2695 system with an octadecylislane C18 column (Atlantis, 3 μm, 2.1 mm × 100 mm) and MassLynx NT4.1 software for data acquisition (Waters). To tune the mass spectrometer, the cone voltage was optimized to maximize the intensity of the precursor ions for nicotine (m/z = 163) and cotinine (m/z = 177). The collision energy was then adjusted to optimize the signal. Typical tuning conditions were as follow: electrospray capillary voltage, 3.2 kV; sample cone voltage for nicotine and cotinine, 28 and 38 V; and collision energy, 19 and 23 eV, respectively, at a collision gas (Ar) pressure of 1.6 × 10−4 kPa. The gradient mobile phase consisted of 50 mM ammonium formate (pH 5.0) and CH3CN (v/v): 0–3 min with 5% CH3CN (v/v) in 50 mM ammonium formate; for 3–8 min with 5%–30% CH3CN (v/v); for 8–11 min with 30% CH3CN; and for 11–18 min with 30%–5% CH3CN (v/v), at a flow rate of 0.25 mL min−1.

2.3. Human Metabolic Study

Elimination rates of nicotine in liver microsomes from humans and rats in the presence of cytosolic fractions were measured by the LC/MS system mentioned above and were compared. Briefly, a typical incubation mixture consisted of 100 mM potassium phosphate buffer (pH 7.4), an NADPH-generating system, a substrate (1.0 μM), and liver microsomes (0.50 mg protein/mL) and cytosol (0.70 mg protein/mL, to yield cotinine, [29]) in a final volume of 0.25 mL. Incubations were carried out at 37 ºC for 30 min. The assay linearity with respect to time and protein concentration and the reproducibility (within <15%) were confirmed. The incubation was terminated by adding 0.40 mL of ice-cold acetonitrile.

2.4. Estimation of Nicotine/Cotinine Concentrations by PBPK Modeling with Suitable Parameters

A simplified PBPK model was set up as described previously [30,31]. Parameter values for the physicochemical properties of compounds (fu,p, logP, Kp,h, and Rb) are shown in Table 1. Values of fu,p and logP were obtained by in silico estimation using SimCYP and ChemDrawBioUltra software [32]; Kp,h was estimated from these two values (Appendix A), and Rb was assumed to be 1.0 (blood and plasma concentrations are assumed to be equal). Parameter values which represent the physiological properties such as hepatic volumes and blood flow rate in rats or humans were taken from the literature [30]. Experimental plasma concentrations of compounds were analyzed by WinNonlin software (Professional version 5.01) with a one-compartment model and yielded primary ka and kel values as pharmacokinetic parameters (abbreviations used are also shown in Table 1). Values of total clearance (CLtot), hepatic clearance (CLh), CLh,int, and V1 were also calculated from the results of one-compartmental model (Appendix B). Subsequently, final parameter values (ka, CLh,int and V1) for the rat PBPK model were calculated using the initial values mentioned above by the user model in WinNonlin and are shown in Table 1. Consequently, the following systems of differential equations were solved to conduct the concentrations in each compartment shown in Figure 2.
For nicotine:
d X g ( t ) d t = − k a ⋅ X g ( t )       where   at   t = 0 ,   X g ( 0 ) = Dose V h d C h d t = Q h ⋅ C b − Q h ⋅ C h ⋅ R b K p , h + k a ⋅ X g − C L h , int ⋅ C h K p , h ⋅ f u , p V 1 d C b d t = − Q h ⋅ C b + Q h ⋅ C h ⋅ R b K p , h − C L r ⋅ C b
where Xg is the substance amount in gut, Ch is the hepatic substance concentration, and Cb is the blood substance concentration.
For cotinine:
V 1 d C b d t = − Q h ⋅ C b + Q h ⋅ C h ⋅ R b K p , h − C L r ⋅ C b V h = d C h d t = Q h ⋅ C b − Q h ⋅ C h ⋅ R b K p , h − C L h , int ⋅ C h K p , h ⋅ f u , p + C L h , int , ni cot ine ⋅ C h , ni cot ine K p , h , ni cot ine ⋅ f u , p , ni cot ine
To define a simplified PBPK model for nicotine and cotinine in humans based on the rat PBPK model, we used relevant liver microsomes and physiological parameters (CLr, ka, and V1) and applied the systems approach to fit them into the traditional parallelogram (animal scale up strategy) for risk assessment [4], as shown in Figure 1 (Appendix C). The in vivo hepatic intrinsic clearance (CLh,int) of nicotine in humans was estimated by multiplying the calculated initial parameters for in vitro hepatic intrinsic clearance values in humans by the ratio of in vivo to in vitro hepatic intrinsic clearance in rats, as mentioned above for modeling in rats. Then, the final parameters for PBPK modeling in humans were calculated are shown in Table 2. As was done for the rat model, systems of differential equations were solved to achieve concentrations in each compartment in humans.

3. Results and Discussion

To obtain detailed PBPK model parameters, male rats were orally treated with nicotine according to the protocol for general repeated exposure tests. Figure 3 shows the mean levels of nicotine and cotinine in blood and urine from rats after the final treatment of 14 daily repeated doses of nicotine (1.0 mg/kg). Nicotine was rapidly absorbed and immediately cleared within a half day (Figure 3A). Nicotine was extensively biotransformed to cotinine; cotinine elimination from the blood seemed to be slower than that of nicotine (Figure 3B). Urinary excretion of nicotine and cotinine was almost complete within 24 h after the final repeated administration (Figures 3C, 3D). Renal clearance (CLr) values of nicotine and cotinine were calculated from the amounts excreted into the urine (5.32 and 8.23 μg) divided by the area under the blood curves (56.5 and 1,970 μg·h/L), giving 0.0994 and 0.00421 L/h, respectively. Primary hepatic clearance values of nicotine and cotinine were obtained by subtraction of CLr from total clearance. Values of the plasma unbound fraction (fu,p) of nicotine and cotinine were calculated to be 0.688 and 0.743, respectively, by in silico estimation with SimCYP (Table 1).
P450 induction in rat liver microsomes was investigated after intraperitoneal treatment with nicotine for 3 days (Figure 4). Judging from the typical P450-dependent drug oxidation activities, CYP2B- and CYP2C-mediated activities were slightly increased and decreased, respectively (Figure 4) as similarly described [33,34], suggesting that P450 induction or suppression by repeated treatments with nicotine was almost negligible in nicotine metabolism mediated mainly by several common and uncommon P450 isoforms in rats and humans. Consequently, final parameters such as hepatic intrinsic clearance (CLh,int), volume of systemic circulation (V1), and absorption rate constant (ka) for the rat PBPK model were recalculated from the primary values by the user-model in WinNonlin to give 5.44 L/h, 0.746 L, and 1.07 h−1 and are shown in Table 1. By running the rat PBPK model system shown in Figure 2, the blood concentration curves of nicotine and cotinine were estimated after repeated oral administration with 0.25 mg of nicotine to a rat (250 g bw); the curves are shown in Figure 5. These estimated in silico concentration curves of nicotine and cotinine are shown with the experimental in vivo data points.
It has been reported that the ratios of in vitro over in vivo intrinsic clearance values have little species differences [35]. Hepatic clearance of nicotine in vitro was determined in pooled human liver microsomes and compared with data from liver microsomes from rats pretreated with nicotine and from untreated controls (Table 3). Hepatic clearance of nicotine in human liver microsomes was calculated to be 6.7 μL/min/mg protein; this was similar to the values obtained for rat livers. Subsequently, hepatic intrinsic clearance of nicotine was found to be 24 L/h in an in vitro study using the biological coefficients already established. The intrinsic clearance values of nicotine based on rat in vivo (Table 1) and rat in vitro (Table 3) experiments were different; this ratio (5.44/0.173) was used as the compensating factor for estimating in vivo hepatic intrinsic clearance in humans. Finally, a value of 755 L/h for the nicotine hepatic intrinsic clearance (CLh,int) was adopted to represent the in vivo status in the final human PBPK model, the parameters of which are shown in Table 2. It should be mentioned that extensive hepatic clearance of nicotine assumed to be almost equal to and dependent on hepatic blood flow rate.
Figure 6 indicates the estimated human blood concentrations of nicotine and cotinine after modeling single and repeated oral administration with nicotine (1.0 mg/kg). The apparent maximum concentrations of nicotine and cotinine were estimated to be approximately 20 and 180 ng/mL, respectively. Our estimated CLtot values for nicotine in rats and humans were calculated to be 2.8 L/h/kg in rats and 81.5 L/h in humans, respectively, which were consistent with the reported CLtot values of 3.0 L/h/mg [36] in rats and 79.1 L/h [37] in humans. When daily administration of nicotine was modeled for 14 days, some accumulation of cotinine (approximately 20 ng/mL) was estimated by the present human PBPK model.
Five male Japanese smokers provided information on the numbers of cigarettes smoked daily (mean, 31.0) [8]; using a value of 1.4 mg nicotine intake per cigarette [38], the estimated daily nicotine intake was 43.4 mg. This was one of the repetitive pooled samples for biomonitoring of plasma levels of nicotine and cotinine conducted after daily cigarette smoking in a population of 92 male Japanese smokers with a mean age of 37 years who had smoked an average of 23 cigarettes per day for 16 years [8]. Nicotine and cotinine concentrations in the pooled plasma samples taken from five smokers 1 h after smoking were 15.6 and 110 ng/mL, respectively. When the intake of 43.4 mg nicotine (as one dose) through the absorption compartment was modeled in a person with a body weight of 70 kg, the estimated concentrations of nicotine and cotinine in the central compartment after 1 h from the human PBPK model were 17 and 150 ng/mL, respectively, which fell within the ranges shown in Figure 6.
It is generally accepted that PBPK modeling could be of use for understanding the relationship between chemical exposure and concentrations in body fluids (Figure 1). However, the multiple compartments and many complicated equations found in traditional PBPK modeling cause severe difficulties when applying the model. Simple and reliable methods have not yet been established, but such models are needed to explore the biological significance of a wide range of chemicals. The present study defined a simplified PBPK model for nicotine and cotinine in humans (Figure 2); the model was based on physiological parameters derived from the literature, coefficients derived in silico, metabolic parameters determined in vitro using relevant liver microsomes, and in vivo experiment-supported PBPK modeling in rats (Figure 5). The developed PBPK model for nicotine and cotinine in rats simply consisted of three compartments, including the gut as a chemical receptor compartment the liver as a metabolizing compartment, and the general circulation as central compartment for nicotine, and three equivalent compartments for cotinine (Figure 2). In the present model (Figure 2), chemicals are received first at the receptor compartment with the net absorption factor as 1 (namely, FaFg = 1 indicating no first pass effects). Although the apparent gap between the oral and pulmonary uptake models might be problematic, chemical concentrations rapid absorbed from inhalation route [39] could be treated in the similar PBPK modeling system. Furthermore, oral administration of chemicals is a key route of exposures based on the toxicology testing.
Human biomonitoring is important for many aspects of environmental health [1,2]. Recently, the Centers for Disease Control and Prevention in the United State reported several pieces of relevant data, including the 95th percentile values of serum cotinine levels (∼2 ng/mL, http://www.cdc.gov/exposurereport/). Human biomonitoring data presented in the current study using pooled plasma from male Japanese smokers revealed that plasma concentrations of nicotine and cotinine could be calculated using the developed PBPK model in humans (Figure 6). In our preliminary study, cotinine was detected in some plasma samples obtained from several male Japanese nonsmokers, resulting in approximately one cigarette equivalent per day among a one-third nonsmokers. Similarly, based on our forward dosimetry approach system, in the United States, nonsmokers (including children) receive the equivalent in nicotine of less than one cigarette per day as a result of exposure to second-hand smoke.
Evaluation of the developed rat model was performed by comparing the blood concentrations predicted by PBPK modeling in silico and experimental pharmacokinetic values from plasma and urine obtained from rats in vivo after repeated oral treatment with nicotine at a no-observed-adverse-effect level. In the present study, nicotine metabolism and disposition in rats was similar to reported findings [36] by single intra-arterial treatment. To overcome the species differences in animals and humans, the traditional parallelogram technique used in systems biology [3,4] was adapted for this study to estimate the value of in vivo human hepatic clearance from in vitro data (Table 3).

4. Conclusions

The simplified PBPK model of nicotine and cotinine, especially in the context of biomonitoring for nicotine exposure, was developed and validated with a combination of algorithms, in vitro and in vivo experimentation and literature resources. In summary, the present study indicates that simplified PBPK modeling for nicotine and cotinine is useful for a forward dosimetry approach in rats and humans to estimate blood concentrations of nicotine and other related compounds from low chemical doses such as those at the no-observed-adverse-effect level.

Acknowledgments

This work was supported in part by JCIA’s LRI program, by Smoking Research Foundation, and by a Grant-in-Aid for High Technology Research Centre Project (19–8) from the Ministry of Education, Culture, Sports, Science and Technology of Japan.

References

  1. Collins, FS; Gray, GM; Bucher, JR. Toxicology. Transforming environmental health protection. Science 2008, 319, 906–907. [Google Scholar]
  2. Toxicity Testing in the 21st Century: A Vision and a Strategy; The National Academies Press: Washington, DC, USA, 2007.
  3. Hayes, KR; Bradfield, CA. Advances in toxicogenomics. Chem. Res. Toxicol 2005, 18, 403–414. [Google Scholar]
  4. Edwards, SW; Preston, RJ. Systems biology and mode of action based risk assessment. Toxicol. Sci 2008, 106, 312–318. [Google Scholar]
  5. Wild, CP. Complementing the genome with an “exposome”: The outstanding challenge of environmental exposure measurement in molecular epidemiology. Cancer Epidem. Biomarker. Prev 2005, 14, 1847–1850. [Google Scholar]
  6. Clewell, HJ; Gentry, PR; Covington, TR; Sarangapani, R; Teeguarden, JG. Evaluation of the potential impact of age- and gender-specific pharmacokinetic differences on tissue dosimetry. Toxicol. Sci 2004, 79, 381–393. [Google Scholar]
  7. Guengerich, FP. Cytochrome P450 and chemical toxicology. Chem. Res. Toxicol 2008, 21, 70–83. [Google Scholar]
  8. Robinson, DE; Balter, NJ; Schwartz, SL. A physiologically based pharmacokinetic model for nicotine and cotinine in man. J. Pharmacok. Biopharm 1992, 20, 591–609. [Google Scholar]
  9. Benowitz, NL; Hukkanen, J; Jacob, P, III. Nicotine chemistry, metabolism, kinetics and biomarkers. Handb. Exp. Pharmacol 2009, 192, 29–60. [Google Scholar]
  10. Benowitz, NL. Pharmacology of nicotine: addiction and therapeutics. Annu. Rev. Pharmacol. Toxicol 1996, 36, 597–613. [Google Scholar]
  11. Kume, A; Kume, T; Masuda, K; Shibuya, F; Yamazaki, H. Dose-dependent effects of cigarette smoke on blood biomarkers in healthy Japanese volunteers: Observations from smoking and non-smoking. J. Health Sci 2009, 55, 259–264. [Google Scholar]
  12. Rose, JE; Behm, FM; Westman, EC; Coleman, RE. Arterial nicotine kinetics during cigarette smoking and intravenous nicotine administration: Implications for addiction. Drug Alcohol Depend 1999, 56, 99–107. [Google Scholar]
  13. Hukkanen, J; Jacob, P, III; Benowitz, NL. Metabolism and disposition kinetics of nicotine. Pharmacol. Rev 2005, 57, 79–115. [Google Scholar]
  14. Kwon, JT; Nakajima, M; Chai, S; Yom, YK; Kim, HK; Yamazaki, H; Shon, DR; Yamamoto, T; Kuroiwa, Y; Yokoi, T. Nicotine metabolism and CYP2A6 allele frequencies in Koreans. Pharmacogenetics 2001, 11, 317–323. [Google Scholar]
  15. Nakajima, M; Kwon, JT; Tanaka, N; Zenta, T; Yamamoto, Y; Yamamoto, H; Yamazaki, H; Yamamoto, T; Kokoiwa, Y; Yokoi, T. Relationship between interindividual differences in nicotine metabolism and CYP2A6 genetic polymorphism in humans. Clin. Pharmacol. Ther 2001, 69, 72–78. [Google Scholar]
  16. Feng, S; Kapur, S; Sarkar, M; Muhammad, R; Mendes, P; Newland, K; Roethig, HJ. Respiratory retention of nicotine and urinary excretion of nicotine and its five major metabolites in adult male smokers. Toxicol. Lett 2007, 173, 101–106. [Google Scholar]
  17. Roethig, HJ; Munjal, S; Feng, S; Liang, Q; Sarkar, M; Walk, RA; Mendes, PE. Population estimates for biomarkers of exposure to cigarette smoke in adult U.S. cigarette smokers. Nicotine Tob. Res 2009, 11, 1216–1225. [Google Scholar]
  18. Nagano, T; Shimizu, M; Kiyotani, K; Kamataki, T; Takano, R; Murayama, N; Shono, F; Yamazaki, H. Biomonitoring of urinary cotinine concentrations associated with plasma levels of nicotine metabolites after daily cigarette smoking in a male Japanese population. Int. J. Environ. Res. Public Health 2010, 7, 2953–2964. [Google Scholar]
  19. Benowitz, NL. Clinical pharmacology of nicotine: Implications for understanding, preventing, and treating tobacco addiction. Clin. Pharmacol. Ther 2008, 83, 531–541. [Google Scholar]
  20. Tricker, AR. Nicotine metabolism, human drug metabolism polymorphisms, and smoking behaviour. Toxicology 2003, 183, 151–173. [Google Scholar]
  21. Ribeiro, EB; Bettiker, RL; Bogdanov, M; Wurtman, RJ. Effects of systemic nicotine on serotonin release in rat brain. Brain Res 1993, 621, 311–318. [Google Scholar]
  22. Yamazaki, H; Shimizu, M; Nagashima, T; Minoshima, M; Murayama, N. Rat cytochrome P450 2C11 in liver microsomes involved in oxidation of anesthetic agent propofol and deactivated by prior treatment with propofol. Drug Metab. Dispos 2006, 34, 1803–1905. [Google Scholar]
  23. Robinson, DE; Balter, NJ; Schwartz, SL. A physiologically based pharmacokinetic model for nicotine and cotinine in man. J. Pharmacok. Biopharm 1992, 20, 591–609. [Google Scholar]
  24. Omura, T; Sato, R. The carbon monoxide-binding pigment of liver microsomes. I. Evidence for its hemoprotein nature. J. Biol. Chem 1964, 239, 2370–2378. [Google Scholar]
  25. Murayama, N; Kaneko, N; Horiuchi, K; Ohyama, K; Shimizu, M; Ito, K; Yamazaki, H. Cytochrome P450-dependent drug oxidation activity of liver microsomes from Microminipigs, a possible new animal model for humans in non-clinical studies. Drug Metab. Pharmacokinet 2009, 24, 404–408. [Google Scholar]
  26. Yamazaki, H; Mimura, M; Sugahara, C; Shimada, T. Catalytic roles of rat and human cytochrome P450 2A enzymes in testosterone 7α- and coumarin 7-hydroxylations. Biochem. Pharmacol 1994, 48, 1524–1527. [Google Scholar]
  27. Yamazaki, H; Nakamura, M; Komatsu, T; Ohyama, K; Hatanaka, N; Asahi, S; Shimada, N; Guengerich, FP; Shimada, T; Nakajima, M; Yokoi, T. Roles of NADPH-P450 reductase and apo- and holo-cytochrome b5 on xenobiotic oxidations catalyzed by 12 recombinant human cytochrome P450s expressed in membranes of Escherichia coli. Protein Expr. Purif 2002, 24, 329–337. [Google Scholar]
  28. Yamanaka, H; Nakajima, M; Nishimura, K; Yoshida, R; Fukami, T; Katoh, M; Yokoi, T. Metabolic profile of nicotine in subjects whose CYP2A6 gene is deleted. Eur. J. Pharm. Sci 2004, 22, 419–425. [Google Scholar]
  29. Yamazaki, H; Inoue, K; Hashimoto, M; Shimada, T. Roles of CYP2A6 and CYP2B6 in nicotine C-oxidation by human liver microsomes. Arch. Toxicol 1999, 73, 65–70. [Google Scholar]
  30. Plowchalk, DR; Andersen, ME; deBethizy, JD. A physiologically based pharmacokinetic model for nicotine disposition in the Sprague-Dawley rat. Toxicol. Appl. Pharmacol 1992, 116, 177–188. [Google Scholar]
  31. Kato, M; Shitara, Y; Sato, H; Yoshisue, K; Hirano, M; Ikeda, T; Sugiyama, Y. The quantitative prediction of CYP-mediated drug interaction by physiologically based pharmacokinetic modeling. Pharm. Res 2008, 25, 1891–1901. [Google Scholar]
  32. Emoto, C; Murayama, N; Rostami-Hodjegan, A; Yamazaki, H. Utilization of estimated physicochemical properties as an integrated part of predicting hepatic clearance in the early drug-discovery stage: Impact of plasma and microsomal binding. Xenobiotica 2009, 39, 227–235. [Google Scholar]
  33. Howard, LA; Micu, AL; Sellers, EM; Tyndale, RF. Low doses of nicotine and ethanol induce CYP2E1 and chlorzoxazone metabolism in rat liver. J. Pharmacol. Exp. Ther 2001, 299, 542–550. [Google Scholar]
  34. Yue, J; Khokhar, J; Miksys, S; Tyndale, RF. Differential induction of ethanol-metabolizing CYP2E1 and nicotine-metabolizing CYP2B1/2 in rat liver by chronic nicotine treatment and voluntary ethanol intake. Eur. J. Pharmacol 2009, 609, 88–95. [Google Scholar]
  35. Naritomi, Y; Terashita, S; Kimura, S; Suzuki, A; Kagayama, A; Sugiyama, Y. Prediction of human hepatic clearance from in vivo animal experiments and in vitro metabolic studies with liver microsomes from animals and humans. Drug Metab. Dispos 2001, 29, 1316–1324. [Google Scholar]
  36. Kyerematen, GA; Taylor, LH; deBethizy, JD; Vesell, ES. Pharmacokinetics of nicotine and 12 metabolites in the rat. Application of a new radiometric high performance liquid chromatography assay. Drug Metab. Dispos 1988, 16, 125–129. [Google Scholar]
  37. Benowitz, NL; Jacob, P, III. Nicotine and cotinine elimination pharmacokinetics in smokers and nonsmokers. Clin. Pharmacol. Ther 1993, 53, 316–323. [Google Scholar]
  38. Fagerstrom, K. The nicotine market: An attempt to estimate the nicotine intake from various sources and the total nicotine consumption in some countries. Nicotine Tob. Res 2005, 7, 343–350. [Google Scholar]
  39. Rose, JE; Mukhin, AG; Lokitz, SJ; Turkington, TG; Herskovic, J; Behm, FM; Garg, S; Garg, PK. Kinetics of brain nicotine accumulation in dependent and nondependent smokers assessed with PET and cigarettes containing 11C-nicotine. Proc. Natl. Acad. Sci. USA 2010, 107, 5190–5195. [Google Scholar]
  40. Poulin, P; Theil, FP. Prediction of pharmacokinetics prior to in vivo studies. 1. Mechanism-based prediction of volume of distribution. J. Pharm. Sci 2002, 91, 129–156. [Google Scholar]
  41. Amidon, GL; Sinko, PJ; Fleisher, D. Estimating human oral fraction dose absorbed: A correlation using rat intestinal membrane permeability for passive and carrier-mediated compounds. Pharm. Res 1988, 5, 651–654. [Google Scholar]

Appendix A

The liver-plasma concentration ratio (Kp,H) was calculated from Equation A1 [40]:
K p , h = P × 0.02289 + 0.72621 P × 0.00396 + 0.960581 × f u , p f u , h
where P is the water-octanol partition ratio and was estimated from the computer-calculated logP as neutral (clogP):
P = 10 log   P
fu,h is the hepatic unbound fraction for a specific binding on albumin, globulins, and lipoproteins. The tissue interstitial fluid-to-plasma concentration ratios of albumin, globulins, and lipoproteins were assumed to be 0.5:
f u , p f u , h = 0.5 × ( f u , p + 1 )

Appendix B

The initial parameter values of CLh,int′ and V1′ used to execute the fitting calculation of the PBPK model with WinNonlin software were derived from the follow equations.
Hepatic clearance (CLh) was estimated from Equation B1, which was derived from Equation B2:
C L h = Dose × Q h − AUC × C L r × Q h AUC × Q h + Dose
C L tot F = C L n + C L r 1 − C L h Q h = Dose AUC
where AUC is the area under the curve.
The bioavailability (F), fraction absorbed (Fa), and intestinal availability (Fg) are related as:
F = F a × F g × F h
where Fh is fraction unmetabolized in the liver.
In this study, we assume FaFg = 1.0; then, the bioavailability was calculated from Equation B4. (The prime represents the value under the assumption of FaFg = 1.0):
F ′ = F a F g × F h = F h = 1 − C L h Q h
The initial value of V1 was estimated from Equation B5 using the fitted calculation results of the one-compartment model (Vd/F) and the F′ value from Equation B4:
V 1 ′ = ( V d / F ) × F ′
The initial value of hepatic intrinsic clearance (CLh,int) was estimated from Equation B6, where CLh was evaluated from Equations B7,8:
C L h , int ′ = R b f u , p × Q h × C L h Q h − C L h
C L tot = ( V d / F ) × K e l × F ′
C L h = C L tot − C L r
Values of adjusted distribution volume (Vd/F) and elimination constant (Kel) were calculated from the fitting calculation of the one-compartment model, and Equation B7 was derived from Equation B9:
C L tot F = ( V d / F ) × K e l
The initial value of ka for the fitting calculation was used as the primary results of WinNonlin with the one-compartmental model.

Appendix C

The parameter values of CLr, ka, and V1 in the human PBPK model were estimated using a scale-up strategy from rats to humans as follows. Human renal clearance CLr,human was estimated from Equation C1, which was derived from Equation C2, where BWrat = 0.25 kg and BWhuman = 70 kg:
C L r , human = C L r , rat B W rat 2 / 3 × B W human 2 3
C L r = a × B W 2 3
The human systemic circulation volume (V1,human) was estimated from Equations C3 and C4, where Vh,human, blood volume (Vb,rat), and Vb,human were 1.5 L, 0.016 L, and 4.9 L, respectively:
V 1 , human = V d , human − V h , human × K p , h × F h R b
V d , human = V b , human + ( V d , rat − V b , rat ) × R b , rat f u , p , rat × f u , p , human R b , human
where physicochemical parameters such as Kp,h, Rb, and fu,p were assumed to be consistent between rats and humans The derivation of Kp,h is shown in Appendix A.
The human absorption rate constant (ka) was estimated from Equation C5 [41]:
k a , human = 0.744 × k a , rat
Ijerph 07 03406f1 1024

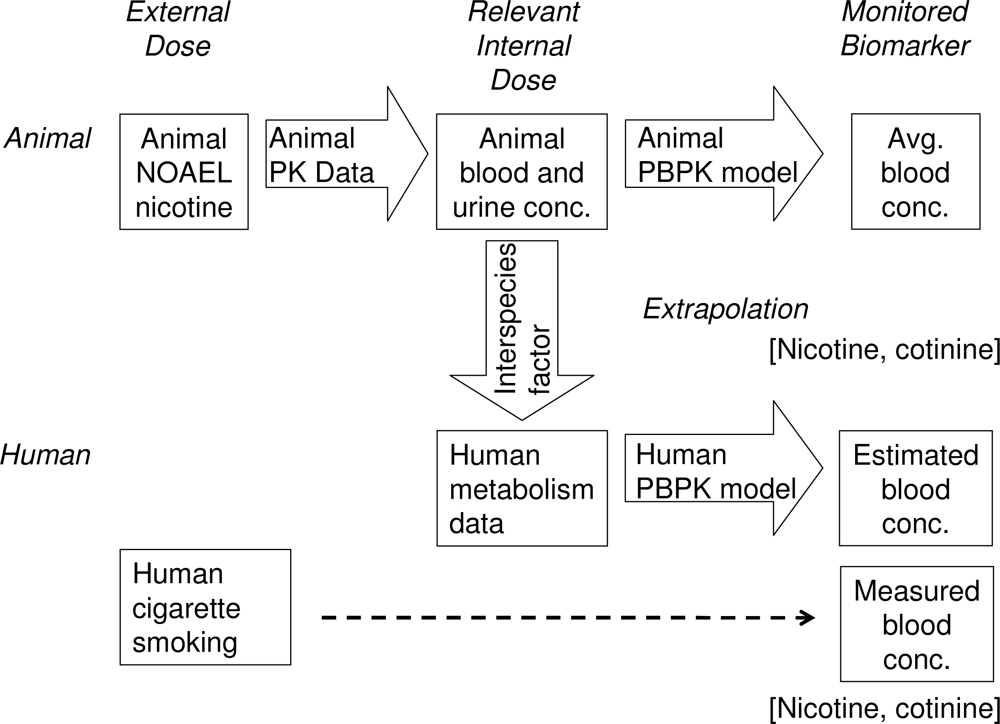

Figure 1. Approach for calculating blood-based biomonitoring equivalents for nicotine. PK, pharmacokinetics. Biomonitoring of nicotine and cotinine in plasma was carried out in male Japanese smokers.
Figure 1. Approach for calculating blood-based biomonitoring equivalents for nicotine. PK, pharmacokinetics. Biomonitoring of nicotine and cotinine in plasma was carried out in male Japanese smokers.
Ijerph 07 03406f1
Ijerph 07 03406f2 1024

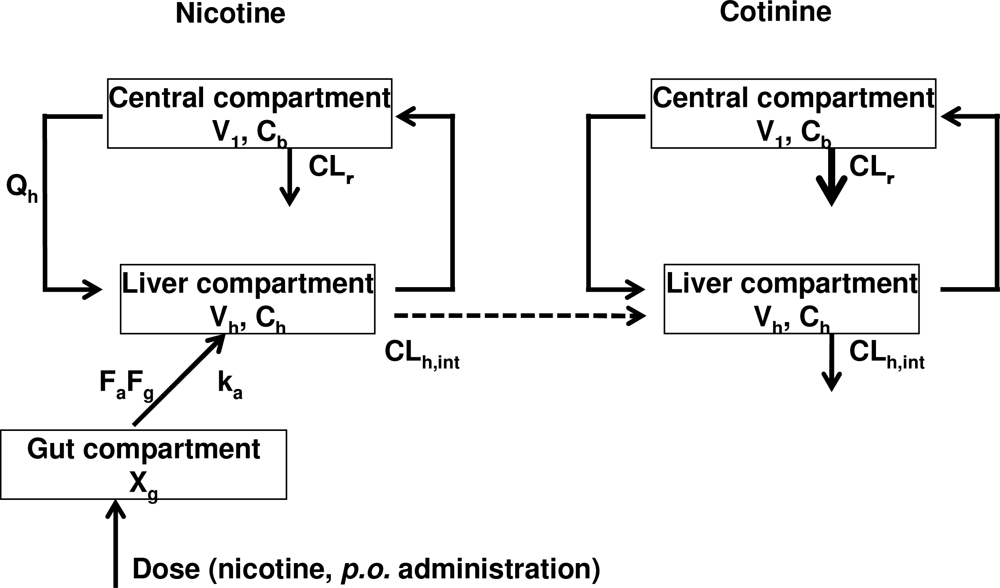

Figure 2. PBPK model established in this study for rats and humans.
Figure 2. PBPK model established in this study for rats and humans.
Ijerph 07 03406f2
Ijerph 07 03406f3 1024

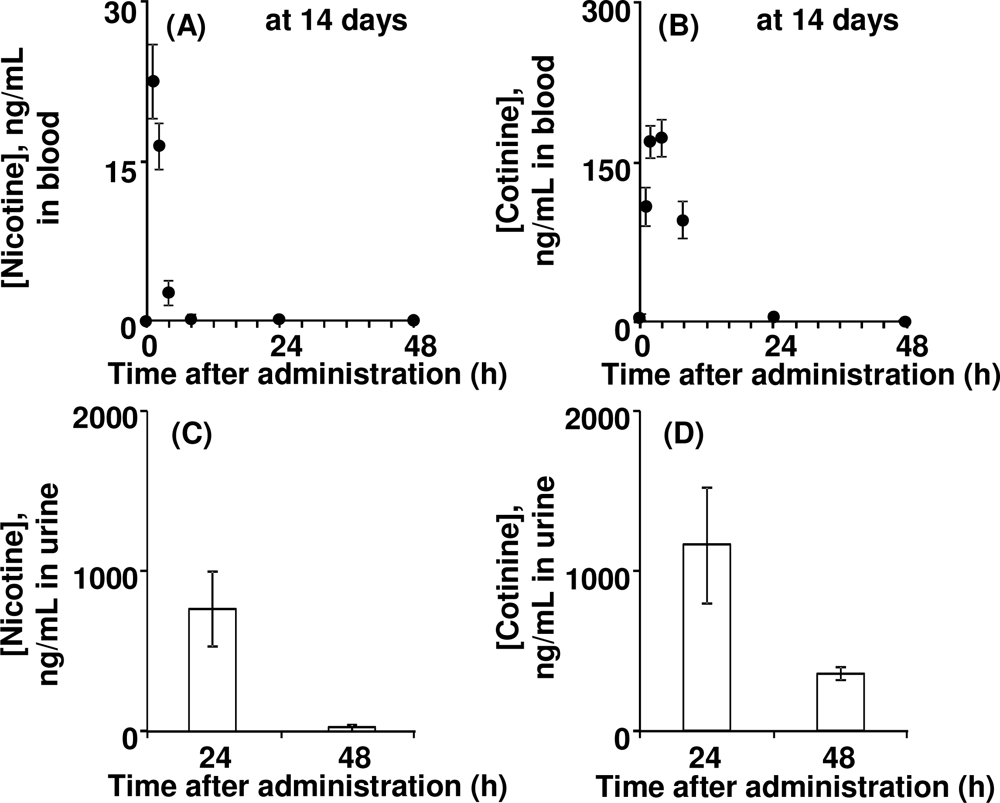

Figure 3. PK profiles in rats treated with nicotine. Nicotine (A, C) and cotinine (B, D) concentrations in blood (A, B) and urine (C, D) were determined in rats treated with nicotine (1 mg/kg/day) after the final administration of 14 daily doses.
Figure 3. PK profiles in rats treated with nicotine. Nicotine (A, C) and cotinine (B, D) concentrations in blood (A, B) and urine (C, D) were determined in rats treated with nicotine (1 mg/kg/day) after the final administration of 14 daily doses.
Ijerph 07 03406f3
Ijerph 07 03406f4 1024

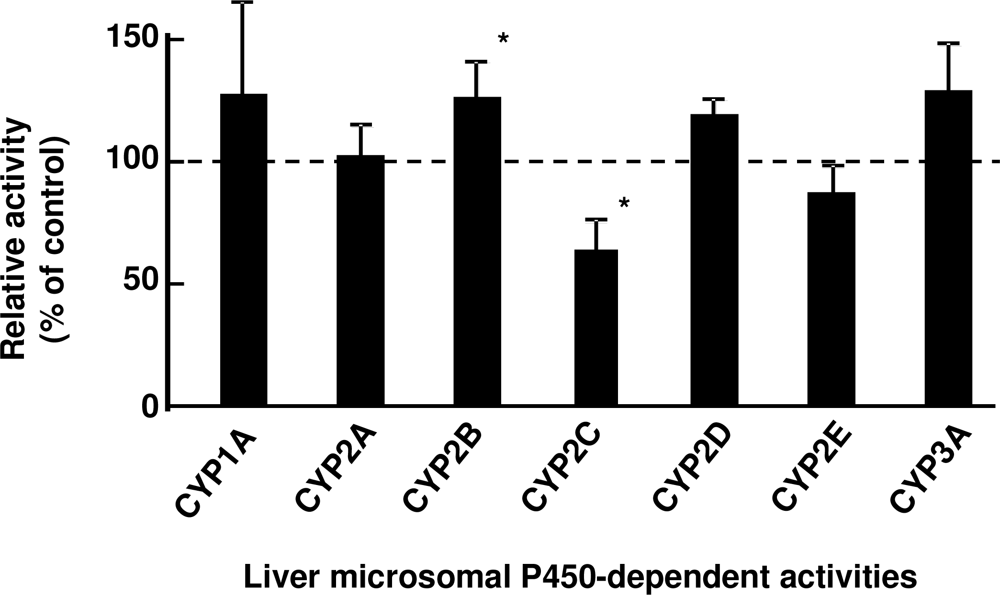

Figure 4. Liver microsomal P450-dependent activities after nicotine treatment. Control activities were taken from liver microsomes from untreated rats. Data columns with bars present means ± SDs (n = 4). Significant differences compared with the control activities: *p < 0.05.
Figure 4. Liver microsomal P450-dependent activities after nicotine treatment. Control activities were taken from liver microsomes from untreated rats. Data columns with bars present means ± SDs (n = 4). Significant differences compared with the control activities: *p < 0.05.
Ijerph 07 03406f4
Ijerph 07 03406f5 1024

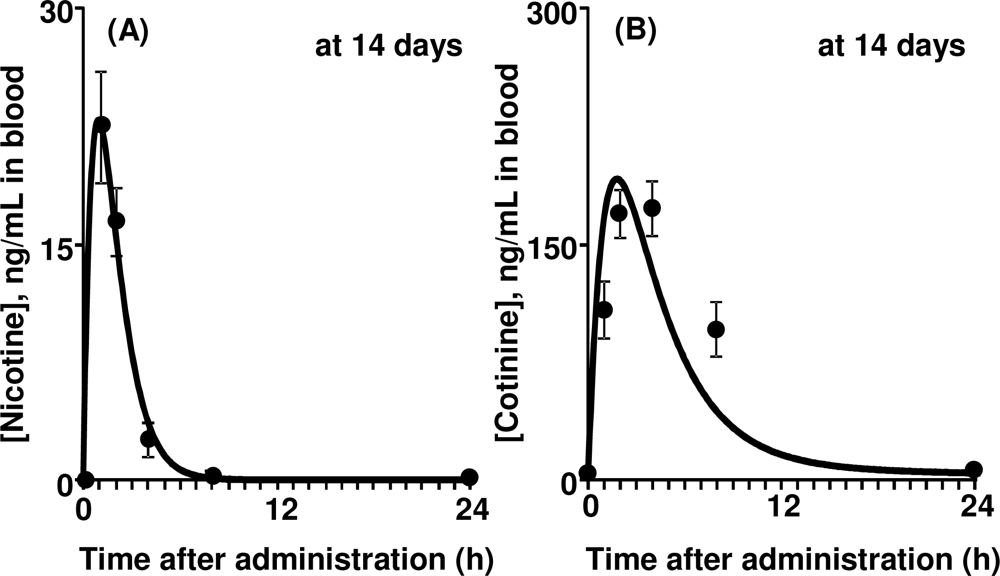

Figure 5. Measured and estimated blood concentrations in rats after oral administration of nicotine (A) and cotinine (B) for 14 days. Data points with bars represent means ± SDs (n = 5). The curves show the concentrations estimated by PBPK modeling.
Figure 5. Measured and estimated blood concentrations in rats after oral administration of nicotine (A) and cotinine (B) for 14 days. Data points with bars represent means ± SDs (n = 5). The curves show the concentrations estimated by PBPK modeling.
Ijerph 07 03406f5
Ijerph 07 03406f6 1024

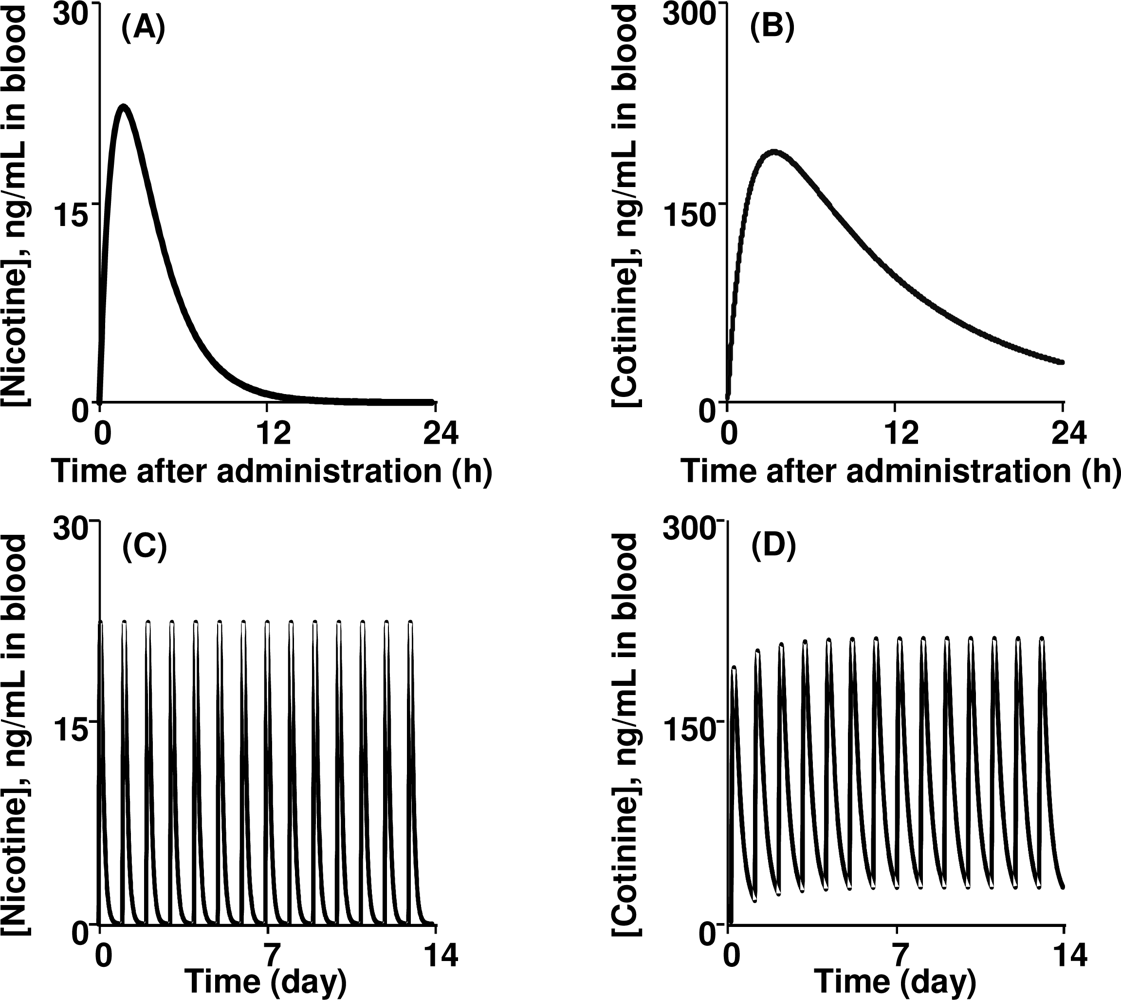

Figure 6. Nicotine (A, C) and cotinine (B, D) concentrations modeled in humans after single (A, B) or multiple (C, D) oral administration of nicotine (1 mg/kg/day) estimated using the PBPK model. Only limited accumulation was observed for multiple doses.
Figure 6. Nicotine (A, C) and cotinine (B, D) concentrations modeled in humans after single (A, B) or multiple (C, D) oral administration of nicotine (1 mg/kg/day) estimated using the PBPK model. Only limited accumulation was observed for multiple doses.
Ijerph 07 03406f6
Table
Table 1. Parameters used for the rat PBPK model.
Table 1. Parameters used for the rat PBPK model.
ParameterSymbolNicotineCotinineUnit
Octanol-water partition coefficientlogP0.9300.040
Hepatic intrinsic clearanceCLh,int5.440.208L/h
Liver-plasma concentration ratioKp,h0.7970.680-
Renal clearanceCLr0.09940.00421L/h
Plasma unbound fractionfu,p0.6880.743-
Ratio of the blood to plasma concentrationRb1.001.00-
Volume of systemic circulationV10.7460.451L
Hepatic volumeVh0.008500.00850L
Hepatic blood flow rate of systemic circulation to the tissue compartmentQh0.8530.853L/h
Absorption rate constantka1.07-h−1
Fraction absorbed × intestinal availabilityFaFg1.00--
DoseDose0.25-mg
Table
Table 2. Parameters used for the human PBPK model.
Table 2. Parameters used for the human PBPK model.
ParameterSymbolNicotineCotinineUnit
Hepatic intrinsic clearanceCLh,int75520.6L/h
Renal clearanceCLr4.250.180L/h
Volume of systemic circulationV1209127L
Hepatic volumeVh1.501.50L
Hepatic blood flow rate systemic circulation to the tissue compartmentQh96.696.6L/h
Absorption rate constantka0.795-h−1
DoseDose70-mg
Other parameters are the same as those shown in Table 1 for the rat PBPK model.
Table
Table 3. In vitro hepatic intrinsic clearance of nicotine determined using liver microsomes.
Table 3. In vitro hepatic intrinsic clearance of nicotine determined using liver microsomes.
Enzyme sourceClearance, μL/min/mg proteinL/h a
Rat livers, untreated a7.9 ± 1.40.142
Rat livers, treated with nicotine b9.6 ± 1.90.173
Pooled human livers6.724.0
Nicotine (1.0 μM) was incubated with rat or human liver microsomes in the presence of an NADPH-generating system. The reduction rates of nicotine were determined by LC/MS.
aEstimated clearance values were extrapolated using the following values: 40 mg liver microsomal protein per g liver, 10 g liver weight per 0.25 kg of rat body weight, and 1.5 kg liver per 70 kg of human body weight.
bMean ± SD (n =4) values using liver microsomes from individual rats pretreated with nicotine (1.0 mg/kg) daily for 3 days or from untreated controls.

Share and Cite

MDPI and ACS Style

Yamazaki, H.; Horiuchi, K.; Takano, R.; Nagano, T.; Shimizu, M.; Kitajima, M.; Murayama, N.; Shono, F. Human Blood Concentrations of Cotinine, a Biomonitoring Marker for Tobacco Smoke, Extrapolated from Nicotine Metabolism in Rats and Humans and Physiologically Based Pharmacokinetic Modeling. Int. J. Environ. Res. Public Health 2010, 7, 3406-3421. https://doi.org/10.3390/ijerph7093406

AMA Style

Yamazaki H, Horiuchi K, Takano R, Nagano T, Shimizu M, Kitajima M, Murayama N, Shono F. Human Blood Concentrations of Cotinine, a Biomonitoring Marker for Tobacco Smoke, Extrapolated from Nicotine Metabolism in Rats and Humans and Physiologically Based Pharmacokinetic Modeling. International Journal of Environmental Research and Public Health. 2010; 7(9):3406-3421. https://doi.org/10.3390/ijerph7093406

Chicago/Turabian Style

Yamazaki, Hiroshi, Kana Horiuchi, Ryohji Takano, Taku Nagano, Makiko Shimizu, Masato Kitajima, Norie Murayama, and Fumiaki Shono. 2010. "Human Blood Concentrations of Cotinine, a Biomonitoring Marker for Tobacco Smoke, Extrapolated from Nicotine Metabolism in Rats and Humans and Physiologically Based Pharmacokinetic Modeling" International Journal of Environmental Research and Public Health 7, no. 9: 3406-3421. https://doi.org/10.3390/ijerph7093406

APA Style

Yamazaki, H., Horiuchi, K., Takano, R., Nagano, T., Shimizu, M., Kitajima, M., Murayama, N., & Shono, F. (2010). Human Blood Concentrations of Cotinine, a Biomonitoring Marker for Tobacco Smoke, Extrapolated from Nicotine Metabolism in Rats and Humans and Physiologically Based Pharmacokinetic Modeling. International Journal of Environmental Research and Public Health, 7(9), 3406-3421. https://doi.org/10.3390/ijerph7093406

Article Metrics

Back to TopTop
