# Chemical-Mediated Microbial Interactions Can Reduce the Effectiveness of Time-Series-Based Inference of Ecological Interaction Networks

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{9}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Models

#### 2.2. Effective Interaction Matrix

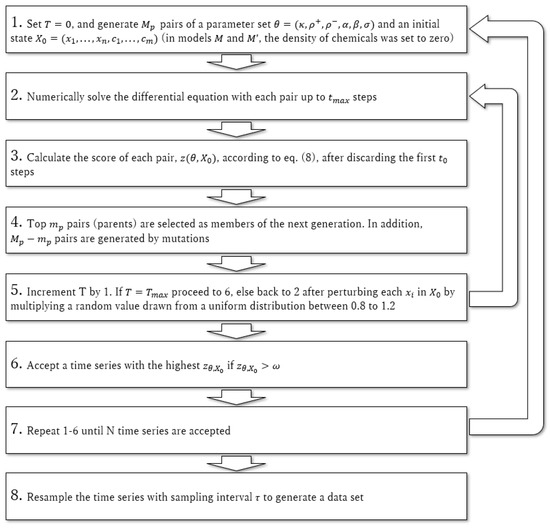

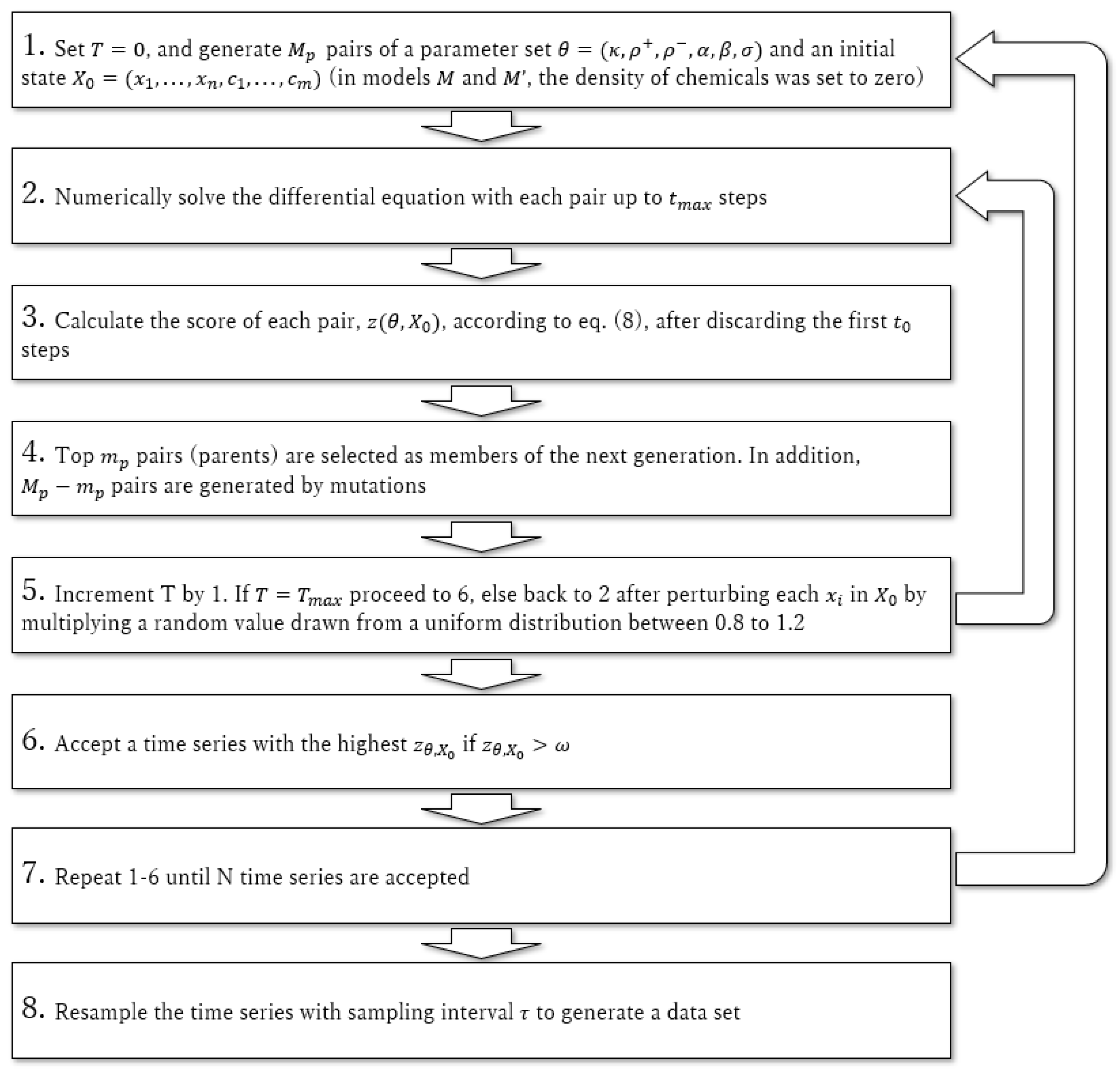

#### 2.3. Data Preparation

#### 2.4. Network Inference Methods

#### 2.4.1. Pearson and Spearman Correlation Coefficient

#### 2.4.2. Local Similarity Analysis (LSA)

#### 2.4.3. Convergent Cross Mapping (CCM)

#### 2.4.4. LIMITS

#### 2.5. Evaluation

#### 2.6. Software

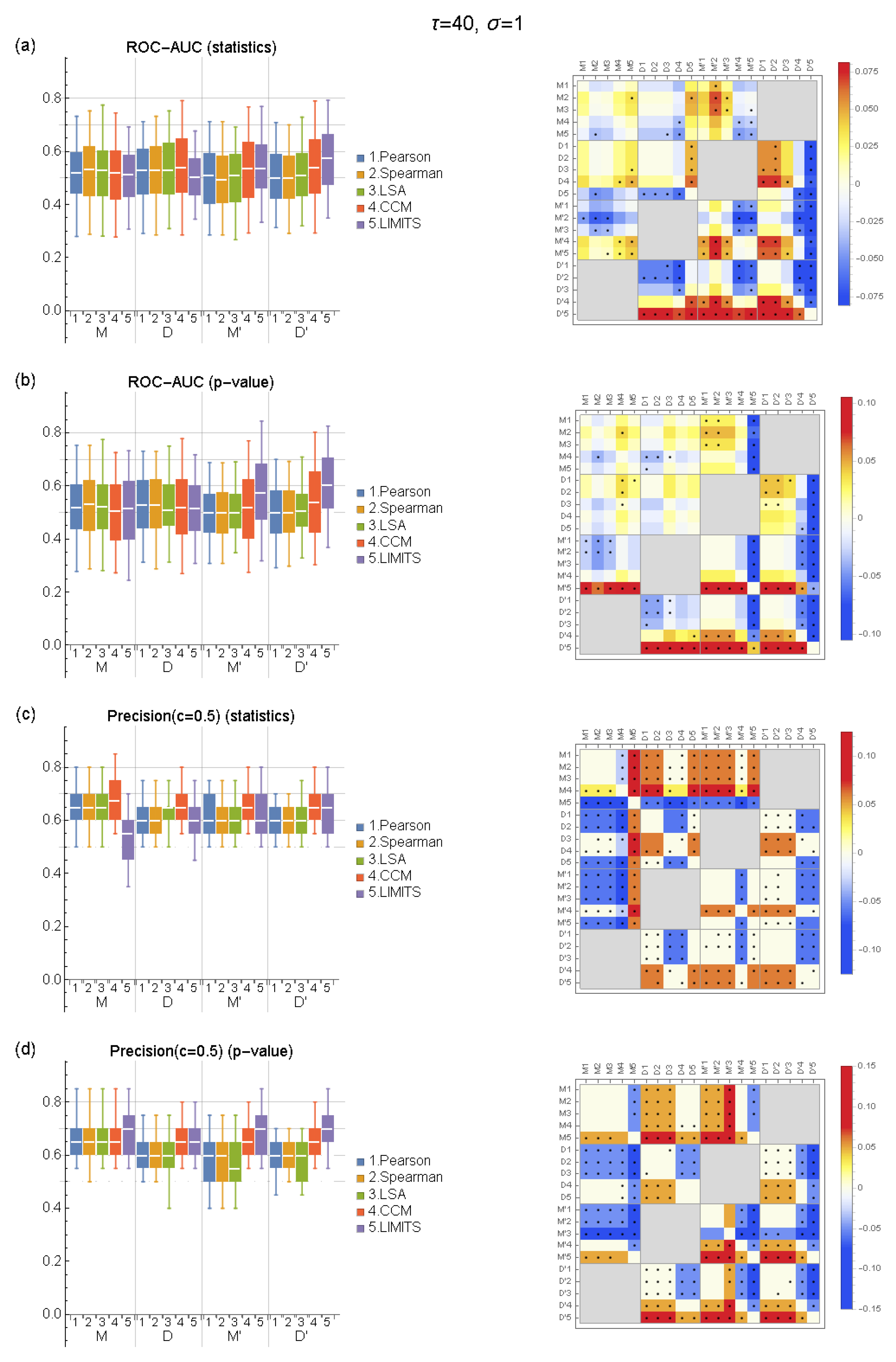

## 3. Results

## 4. Discussion

## 5. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Implementation of CCM for Network Inference

## Appendix B. Basic Characteristics of Communities

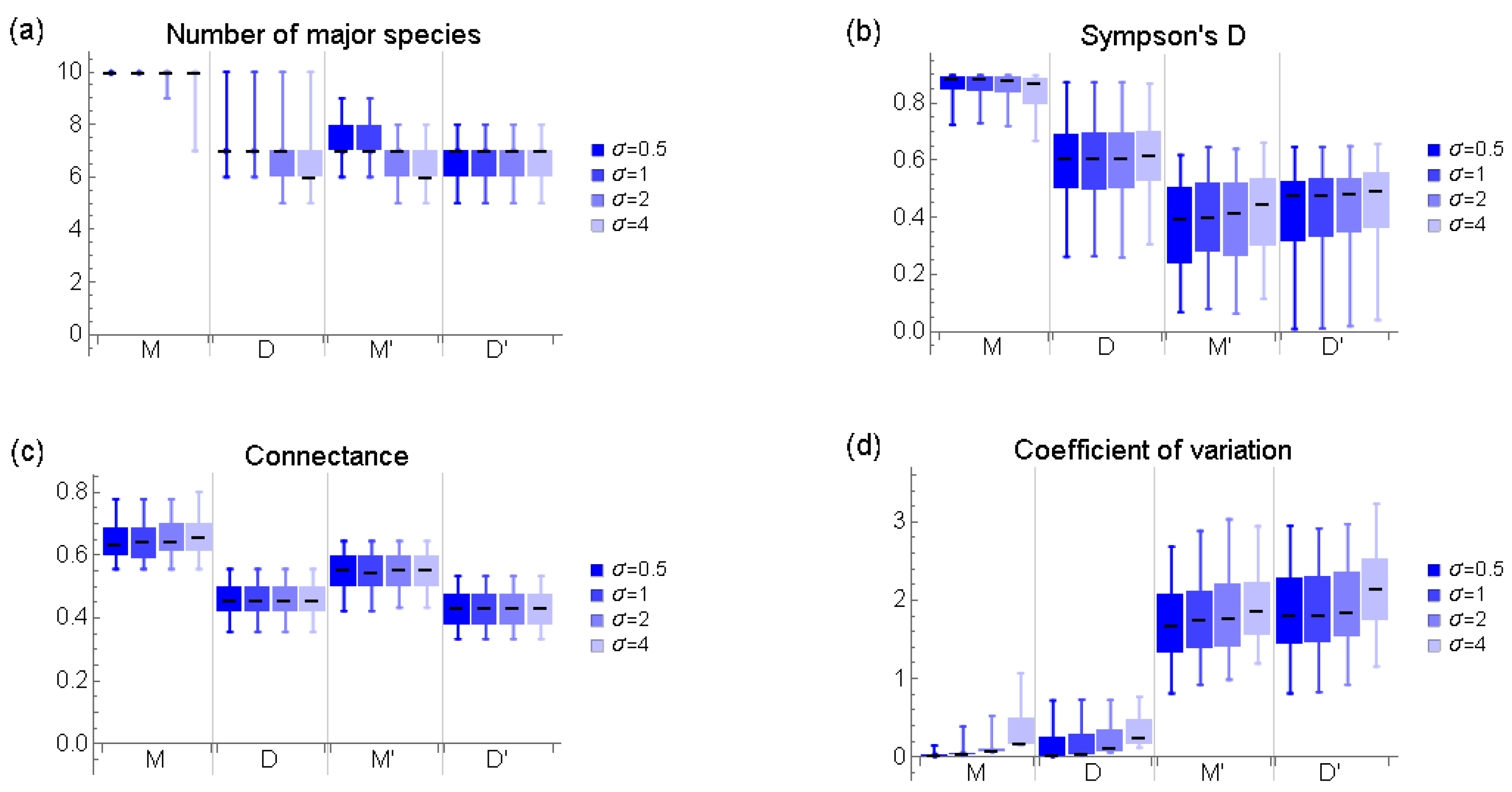

**Figure A1.**Basic characteristics of the communities we used for the evaluation. The black line indicates median, the box edges indicate first and third quartile values, and whiskers indicate maximum and minimum values. (

**a**) The number of major species, (

**b**) Simpson’s diversity index, (

**c**) connectance of effective interaction matrix, and (

**d**) coefficient of variation.

## References
