Using Pressure-Driven Membrane Processes to Remove Emerging Pollutants from Aqueous Solutions
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
- Caffeine, C8H10N4O2, molecular weight 194.9 g/mol, purchased from Sigma-Aldrich Inc.
- Metformin, C4H11N5, molecular weight 129.16 g/mol, purchased from Sigma-Aldrich Inc.
- Methyl paraben, C8H8O3, molecular weight 152.15 g/mol, purchased from Alfa Aesar.
- Sodium chloride, NaCl, molecular weight is 58.4 g/mol, supplied by Panreac.
- Hydrous magnesium chloride, MgCl2 6H2O, molecular weight is 203.30 g/mol, supplied by Panreac.

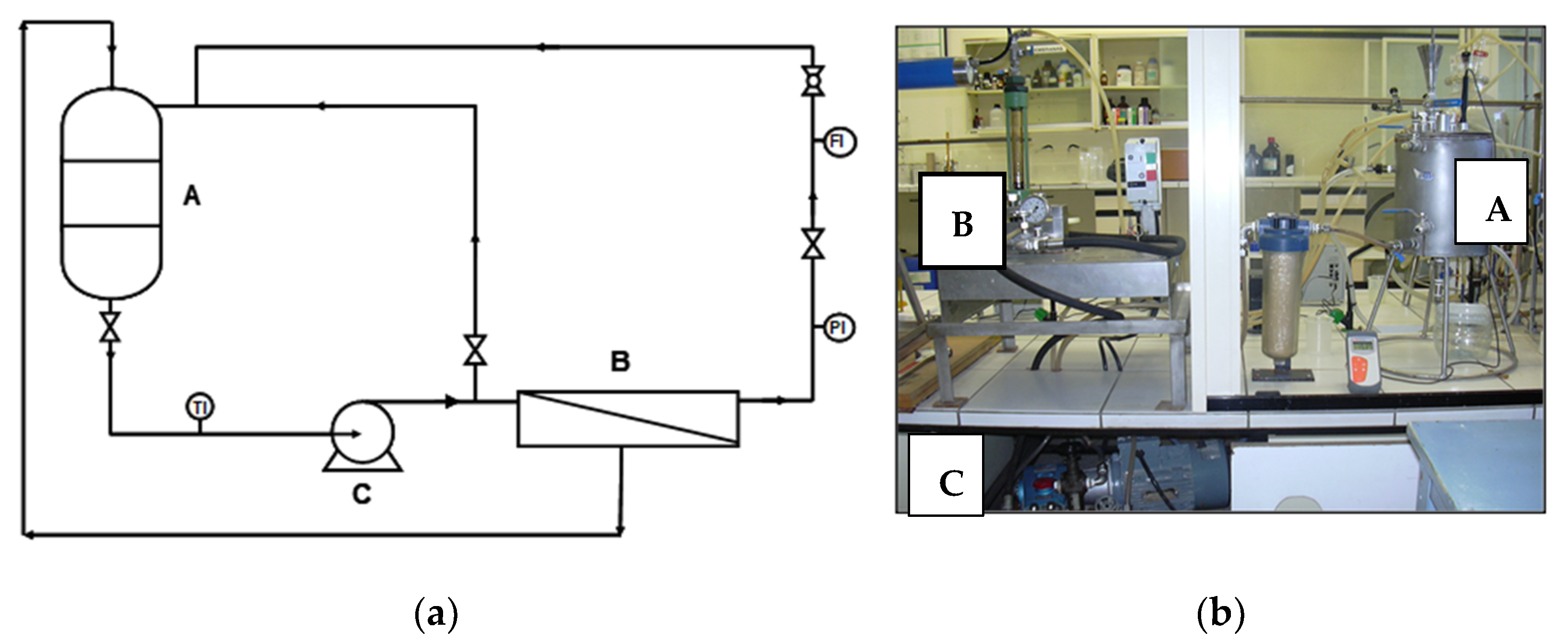

2.2. Experimental Equipment
2.3. Methods
2.4. Experimental Series
2.5. Theoretical Solution-Diffusion Model
- To obtain the solute concentration in the permeate:
- For the permeate flux:
3. Results and Discussion
3.1. Characterization of Different Membranes
3.1.1. Solvent Permeability
3.1.2. Selectivity and Performance of Different Membranes

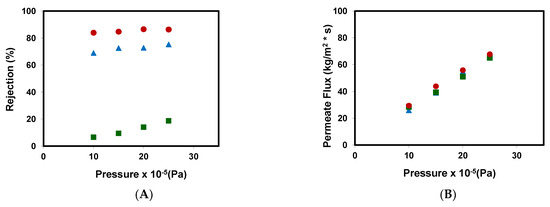

3.2. Removal of Different Emerging Pollutants Using A Polyamide NF Membrane
3.3. Screening of Different Membranes for the Removal of Methyl Paraben

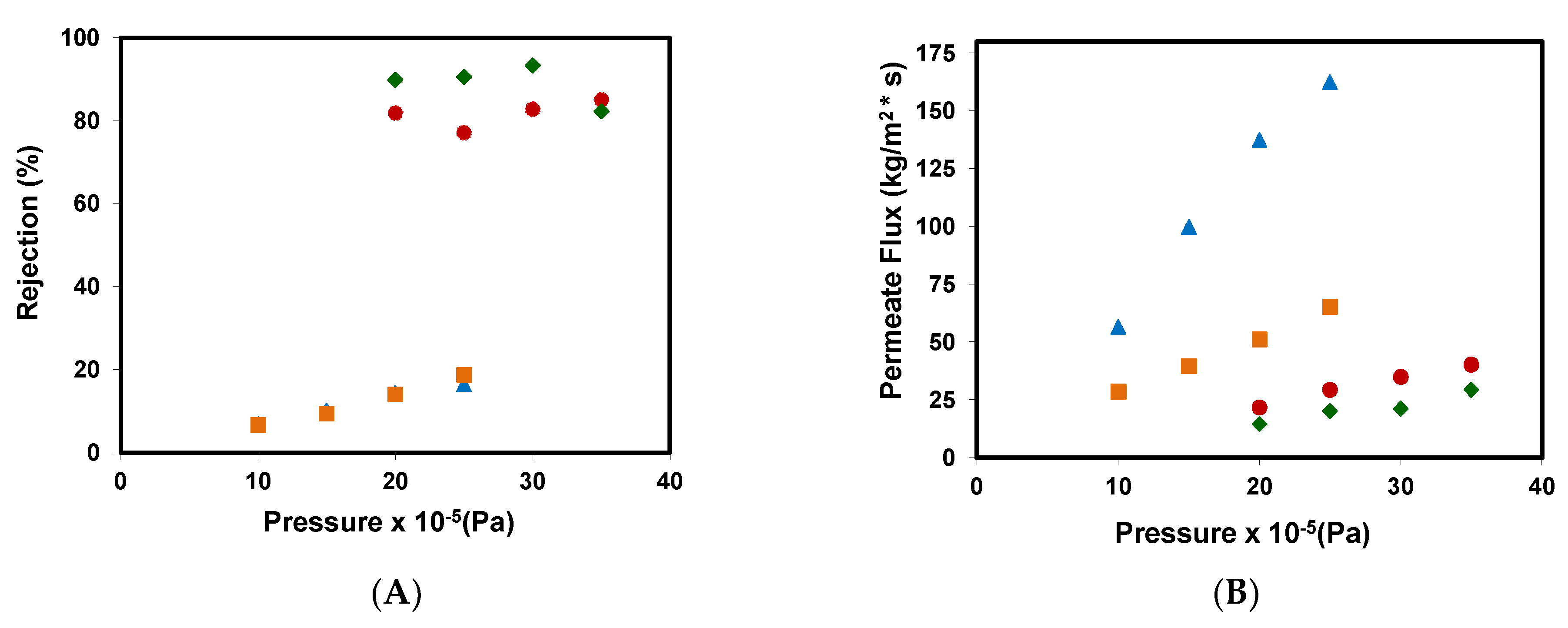

3.3.1. Influence of Pressure

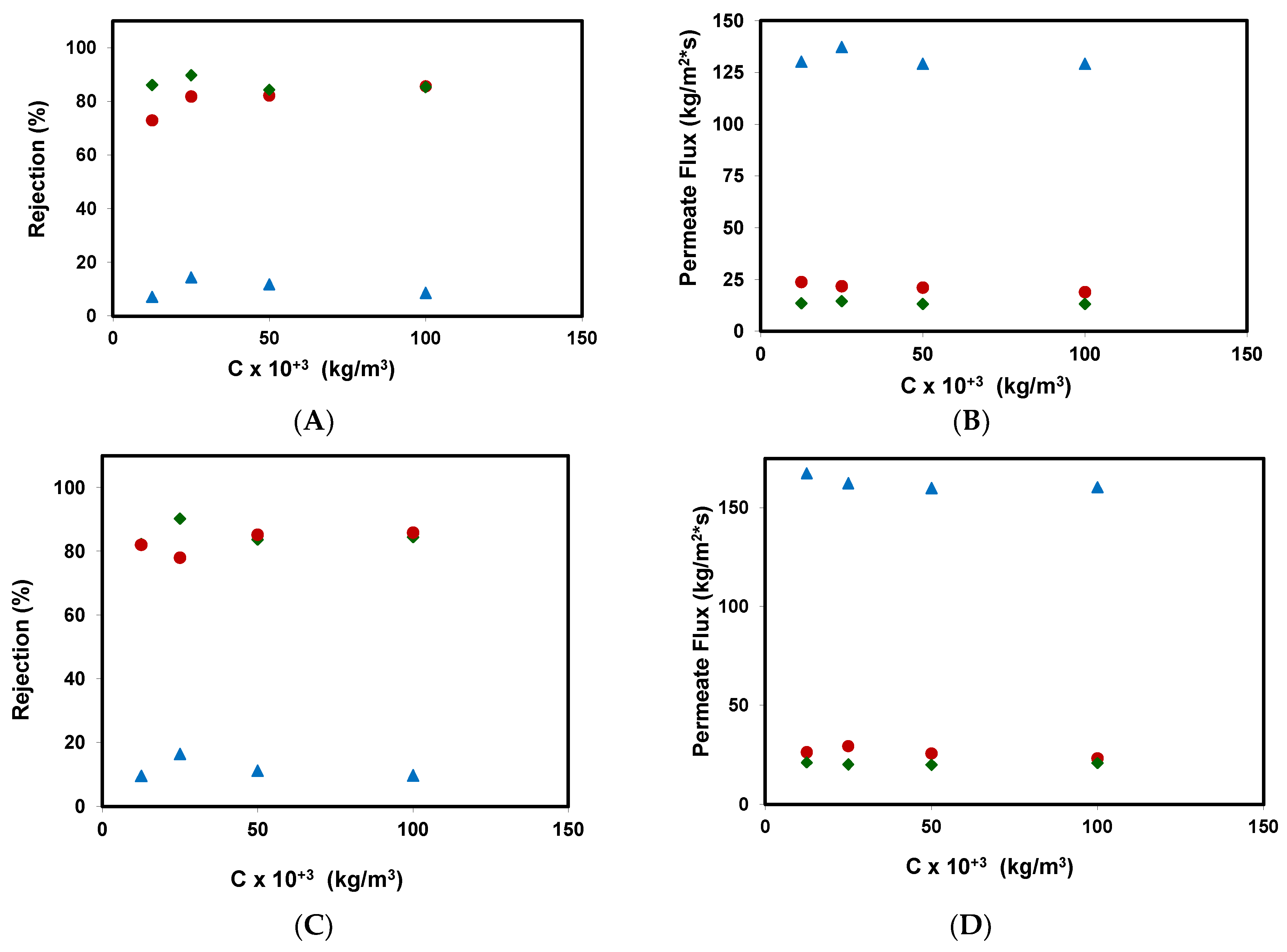

3.3.2. Influence of Methyl Paraben Feed Concentration
3.3.3. Fitting the Solution-Diffusion Model
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Vasilachi, I.C.; Asiminicesei, D.M.; Fertu, D.I.; Gavrilescu, M. Review. Occurrence and fate of emerging pollutants in water environmental and options for their removal. Water 2021, 13, 181. [Google Scholar] [CrossRef]
- Kim, S.; Chu, K.H.; Al-Hamadani, Y.A.J.; Park, C.M.; Jang, M.; Kim, D.H.; Yu, M.; Heo, J.; Yoon, Y. Removal of contaminants of emerging concern by membranes in water and wastewater: A review. Chem. Eng. J. 2018, 335, 896–914. [Google Scholar] [CrossRef]
- Visanji, Z.; Sadr, S.M.K.; Johns, M.B.; Savic, D.; Memon, F.A. Optimising wastewater treatment solutions for the removal of contaminants of emerging concern (CECs): A case study for application in India. J. Hydroinform 2020, 22, 93–110. [Google Scholar] [CrossRef]
- Sui, Q.; Huan, J.; Deng, S.; Yu, G. Seasonal variation in the occurrence and removal of pharmaceuticals and personal care products in different biological wastewater treatment processes. Environ. Sci. Technol. 2011, 45, 3341–3348. [Google Scholar] [CrossRef] [PubMed]
- Piai, L.; Blokland, M.; Van der Wal, A.; Langenhoff, A. Biodegradation and adsorption of micropollutants by biological activated carbon from a drinking water production plant. J. Hazard. Mater. 2020, 338, 122028–122036. [Google Scholar] [CrossRef]
- Ilyas, H.; Masih, I.; Van Hullebusch, E.D. Pharmaceuticals removal by constructed wetlands: A critical evaluation and meta-analysis on performance, risk reduction, and role of physicochemical properties on removal mechanisms. J. Water Health 2020, 18, 253–291. [Google Scholar] [CrossRef]
- Tisler, S.; Zwiener, C. Aerobic and anaerobic formation and biodegradation of guanyl urea and other transformation products of metformin. Water Res. 2019, 149, 130–135. [Google Scholar] [CrossRef] [PubMed]
- Cui, H.; Schröder, P. Uptake, translocation and possible biodegradation of the antidiabetic agent metformin by hydroponically grown Typha latifolia. J. Hazard. Mater. 2016, 308, 355–361. [Google Scholar] [CrossRef] [Green Version]
- Ahmed, M.B.; Zhou, J.L.; Ngo, H.H.; Guo, W.; Thomaidis, N.S.; Xu, J. Progress in the biological and chemical treatment technologies for emerging contaminant removal from wastewater: Acritical review. J. Hazard. Mater. 2017, 323, 274–298. [Google Scholar] [CrossRef]
- Acero, J.L.; Benitez, F.J.; Real, F.J.; Teva, F. Coupling of adsorption, coagulation, and ultrafiltration processes for the removal of emerging contaminants in secondary effluent. Chem. Eng. J. 2012, 210, 1–8. [Google Scholar] [CrossRef]
- Wang, Y.; Wang, X.; Li, M.; Dong, J.; Sun, C.; Chen, G. Removal of pharmaceutical and personal care products (PPCPs) from municipal wastewater with integrated membrane systems, MBR-RO/NF. Int. J. Environ. Res. Public Health 2018, 15, 269. [Google Scholar] [CrossRef] [Green Version]
- López-Ortiz, C.M.; Sentana-Gadea, I.; Varó-Galvañ, P.; Maestre-Pérez, S.E.; Prats-Rico, D. The use of combined treatments for reducing parabens in Surface wayters: Ion-exchange resin and nanofiltration. Sci. Total Environ. 2018, 639, 228–236. [Google Scholar] [CrossRef]
- Wang, Y.; Huang, H.; Wei, X. Influence of wastewater precoagulation on adsorptive filtration of pharmaceutical and personal care products by carbon nanotube membranes. Chem. Eng. J. 2018, 333, 66–75. [Google Scholar] [CrossRef]
- Taheran, M.; Brar, S.K.; Verma, M.; Surampalli, R.Y.; Zhang, T.C.; Valero, J.R. Membrane processes for removal of pharmaceutically active compounds (PhACs) from wáter and wastewater. Sci. Total Environ. 2016, 547, 60–77. [Google Scholar] [CrossRef] [PubMed]
- Cuhorka, J.; Wallace, E.; Mikuásek, P. Removal of micropollutants from water by commercially avaible nanofiltration membranes. Sci. Total Environ. 2020, 720, 137474. [Google Scholar] [CrossRef]
- Wang, X.; Li, B.; Zhang, T.; Li, X. Performance of nanofiltration membrane in rejection trace organic compounds: Experiment and model prediction. Desalination 2015, 370, 7–16. [Google Scholar] [CrossRef]
- Mahlangu, T.O.; Msagatim, T.A.M.; Hoek, E.M.V.; Verliefde, A.R.D.; Mamba, B.B. Rejection of pharmaceuticals by nanofiltration (NF) membranes: Effect of fouling on rejection behaviour. Phys. Chem. Earth 2014, 76-78, 28–34. [Google Scholar] [CrossRef]
- Foureaux, A.F.S.; Reis, E.O.; Lebron, Y.; Moreira, V.; Santos, L.V.; Amaral, M.S.; Lange, L.C. Rejection of pharmaceutical compounds from surface water by nanofiltration and reverse osmosis. Rejection of pharmaceutical compounds from surface water by nanofiltration and reverse osmosis. Sep. Purif. Technol. 2019, 212, 171–179. [Google Scholar] [CrossRef] [Green Version]
- Acero, J.L.; Benitez, F.J.; Real, F.J.; Teva, F. Removal of emerging contaminants from secondary effluents by micellar-enhanced ultrafiltration. Sep. Purif. Technol. 2017, 181, 123–131. [Google Scholar] [CrossRef]
- Al-Rifai, J.H.; Khabbaz, H.; Schäfer, A.I. Removal of pharmaceuticals and endocrine disrupting compounds in a water recycling process using reverse osmosis systems. Sep. Purif. Technol. 2011, 77, 60–67. [Google Scholar] [CrossRef]
- López-Muñoz, M.J.; Sotto, A.; Arsuaga, J.M. Nanofiltration removal of pharmaceutically active compounds. Desalin. Water. Treat. 2012, 1-3, 138–143. [Google Scholar]
- Hidalgo, A.M.; Murcia, M.D.; Gómez, E.; León, G.; Cascales, E. Influence of physicochemical parameters of organic solutes on the retention and flux in nanofiltration process. Chem. Eng. Technol. 2016, 39, 1177–1184. [Google Scholar] [CrossRef]
- Shirley, J.; Mandale, S.; Kockkodan, V. Influence of solute concentration and dipole moment on the retention of uncharged molecules with nanofiltration. Desalination 2014, 344, 116–122. [Google Scholar] [CrossRef]
- Hidalgo, A.M.; Gómez, M.; Murcia, M.D.; Serrano, M.; Rodríguez-Schmidt, R.; Escudero, P.A. Behaviour of polysulfone ultrafiltration membrane for dyes removal. Water. Sci. Technol. 2018, 77, 2093–2100. [Google Scholar] [CrossRef]
- Licona, K.P.M.; Geaquinto, L.R.O.; Nicolini, J.V.; Figueiredo, N.G.; Chiapetta, S.C.; Habert, A.C.; Yokoyama, L.J. Assessing potential of nanofiltration and reverse osmosis for removal of toxic pharmaceuticals from water. Water. Process. Eng. 2018, 25, 195–204. [Google Scholar] [CrossRef]
- Cheng, L.; Zhu, L.P.; Zhang, P.B.; Sun, J.; Zhu, B.K.; Xu, Y.Y. Molecular separation by poly (N-vinyl imidazole) gel-filled membranes. J. Membr. Sci. 2016, 497, 472–484. [Google Scholar] [CrossRef]
- Hidalgo, A.M.; León, G.; Gómez, M.; Murcia, M.D.; Gómez, E.; Macario, J.A. Removal of different dye solutions: A comparison study using a polyamide NF membrane. Membranes 2020, 10, 408. [Google Scholar] [CrossRef] [PubMed]
- Li, C.; Yang, Y.; Liu, Y.; Hou, L. Removal of PhACs and their impacts on membrane fouling in NF/RO membrane filtration. J. Membr. Sci. 2018, 548, 439–448. [Google Scholar] [CrossRef]
- Mamo, J.; García-Galán, M.J.; Stefani, M.; Rodríguez-Mozaz, S.; Barceló, D.; Monclús, H.; Rodríguez-Roda, I.; Comas, J. Fate of pharmaceuticals and their transformation products in integrated membrane systems for wastewater reclamation. Chem. Eng. J. 2018, 331, 450–461. [Google Scholar] [CrossRef] [Green Version]
- Rana, D.; Sheier, B.; Narbaitz, R.M.; Matsuura, T.; Tabe, S.; Jasim, S.Y.; Khulbe, K.C. Comparison of cellulose acetate (CA) membrane and novel CA membranes containing surface modifying macromolecules to remove pharmaceutical and personal care product micropollutants from drinking water. J. Membr. Sci. 2012, 409, 346–354. [Google Scholar] [CrossRef]
- Wei, X.; Zhang, Q.; Cao, S.; Xu, X.; Chen, Y.; Liu, L.; Yang, R.; Chen, J.; Lv, B. Removal of pharmaceuticals and personal care products (PPCPs) and environmental estrogens (EEs) from water using positively charged hollow fibber nanofiltration membrane. Environ. Sci. Pollut. Res. 2021, 28, 8486–8497. [Google Scholar] [CrossRef]
- Castro-Muñoz, R.; González-Melgoza, L.L.; García-Depraect, O. Ongoing progress on novel nanocomposite membranes for the separation of heavy metals from contaminated water. Chemosphere 2021, 270, 129421. [Google Scholar] [CrossRef]
- Mulder, M. Basic Principles of Membrane Technology; Kluwer Academic: Dordrecht, The Netherlands, 1992; pp. 7–8. [Google Scholar]
- Wijmans, J.G.; Baker, R.W. The solution-diffusion model: A review. J. Membr. Sci. 1995, 107, 1–21. [Google Scholar] [CrossRef]
- Soltanieh, M.; Gill, W.N. Review of reverse osmosis membranes and transport models. Chem. Eng. Commun. 1981, 12, 279–363. [Google Scholar] [CrossRef]
- Braeken, L.; Bettens, B.; Boussu, K.; Van der Meeren, P.; Cocquyt, J.; Vermant, J.; Van der Bruggen, B. Transport mechanisms of dissolved organic compounds in aqueous solution during nanofiltration. J. Membr. Sci. 2006, 279, 311–319. [Google Scholar] [CrossRef]
- Bódalo, A.; Gómez, J.L.; Gómez, E.; León, G.; Tejera, M. Reduction of sulphate content in aqueous solutions by reverse osmosis using cellulose acetate membranes. Desalination 2004, 162, 55–60. [Google Scholar] [CrossRef]
- Kong, F.; Yang, H.; Wu, Y.; Wang, X.; Xi, Y.F. Rejection of pharmaceuticals during forward osmosis and prediction by using the solution–diffusion model. J. Membr. Sci. 2015, 476, 410–420. [Google Scholar] [CrossRef]
- Wang, J.; Dlamini, D.S.; Mishra, A.K.; Pendergast, M.T.M.; Wong, M.C.Y.; Mamba, B.B.; Freger, V.; Verliefde, A.R.D.; Hoek, E.M.V. A critical review of transport through osmotic membranes. J. Membr. Sci. 2014, 454, 516–537. [Google Scholar] [CrossRef]
- Li, Y.; Wei, C.; Wang, W. Comparison of phenol removal in the synthetic wastewater by NF or RO membrane. Desalin. Water. Treat. 2010, 22, 211–219. [Google Scholar] [CrossRef]
- Devi, R.N.; Jelsch, C.; Israel, S.; Aubert, E.; Anzline, C.; Hosamini, A. Charge density analysis of metformin chloride, a biguanide ani-hyperglycemic agent. Desalin. Acta Cryst. 2017, B37, 10–22. [Google Scholar]
- Van der Bruggen, B.; Schaep, J.; Wilms, D.; Vandecasteele, C. Influence of molecular size, polarity and charge on the retention of organic molecules by nanofiltration. J. Membr. Sci. 1999, 156, 29–41. [Google Scholar] [CrossRef]
- Prankerd, R.J. Profiles of drug substances, excipients, and related methodology. In Critical Compilation of pKa Values for Pharmaceutical Substances; Brittain, H.G., Ed.; Academic Press: San Diego, CA, USA, 2007; Volume 33, p. 106. [Google Scholar]
Provider | Alfa Laval | Alfa Laval | Alfa Laval | Alfa Laval |
---|---|---|---|---|
Manufacturer | Dow Chemical | Dow Chemical | Dow Chemical | Dow Chemical |
Product denomination | NF99 | NF99HF | RO90 | RO99 |
Type | Thin-film composite | Thin-film composite | Thin-film composite | Thin-film composite |
Composition | Polyamide | Polyamide | Polyamide | Polyamide |
Molecular weight cut-off (MWCO) (Da) | ≤200 | ≤200 | - | - |
Membrane surface area (m2) | 0.003 | 0.003 | 0.003 | 0.003 |
Maximum pressure (N/m2) | 55 × 105 | 55 × 105 | 55 × 105 | 55 × 105 |
MgSO4 rejection (%) | ≥97 | ≥98 | ≥99 | ≥99 |
pH range | 3–10 | 3–10 | 2–11 | 2–11 |
Maximum temperature (°C) | 50 | 50 | 60 | 60 |
NF99 a | NF99HF | RO90 | RO99 | |
---|---|---|---|---|
Aw (s/m) | 1.665 × 10−8 | 6.175 × 10−8 | 8.536 × 10−9 | 7.548 × 10−9 |
Bs (NaCl) (m/s) | 6.705 × 10−6 | 2.777 × 10−6 | 1.135 × 10−6 | 6.551 × 10−7 |
Bs (MgCl2) (m/s) | 1.632 × 10−7 | 4.496 × 10−7 | 2.022 × 10−7 | 1.231 × 10−7 |
Emerging Pollutants | Caffeine | Metformin | Methyl Paraben |
---|---|---|---|
Molecular weight (g/mol) | 194.19 | 129.16 | 152.15 |
Solubility in water (25 °C) mg/L | 2.16 × 104 | 1.06 × 106 | 2.50 × 103 |
log Kow | −0.07 | 2.64 | 1.96 |
pKa | −0.13–1.22 f | 12.4 | 8.5 |
Topological polar surface area (Å2) | 58.4 | 91.5 | 46.5 |
Charge | Neutral | Positive | Neutral |
Dipole moment (D) | 3.40–3.70 a, b | 0.412 c | 1.50 |
Stokes radius (nm) | 0.318 d | 0.328 e | 0.270 d |
Chemical structure |
Emerging Pollutant | Membrane | Experimental Conditions | Jp (L/m2 h bar) | Rejection (%) | References |
---|---|---|---|---|---|
Caffeine | UF | 4 bar | 21.6 | 11.5 | Acero et al., 2012. [19] |
Caffeine | NF-270 | 7 bar | 65.0 | 84.0–86.0 | Mahlangu et al., 2014. [17] |
Caffeine | NTR 7450 | 10–800 mg/L at 16.5 bar | - | 45.4–35.0 | Shirley et al., 2014. [23] |
Caffeine | DESAL HL | - | - | 58.0 | Wang et al., 2015. [16] |
Caffeine | NF90 | 15 bar | - | 92.0 | Licona et al., 2018. [25] |
Caffeine | BW30 | 15 bar | - | 92.0–95.0 | Licona et al., 2018. [25] |
Caffeine | NF99 | 25 mg/L at 10 bar | 105.8 | 84.0 | This work |
Metformin | DK | 35.99 ng/L at 10 bar | - | 94.0 | Foureaux et al., 2019. [18] |
Metformin | NF99 | 10 mg/L at 10 bar | 79.2 | 70.0 | This work |
Methyl paraben | DESAL HL | - | - | 21.0 | Wang et al., 2015. [16] |
Methyl paraben | NF90 | - | - | 60.0 | López-Ortíz et al., 2018. [12] |
Methyl paraben | DESAL HL | - | - | 62.0 | López-Ortíz et al., 2018. [12] |
Methyl paraben | NF99 | 25 mg/L at 10 bar | 102.7 | 8.0 | This work |
Methyl paraben | NF99HF | 25 mg/L at 10 bar | 180.0 | 8.0 | This work |
Methyl paraben | RO90 | 25 mg/L at 20 bar | 50.4 | 80.0 | This work |
Methyl paraben | RO99 | 25 mg/L at 20 bar | 43.2 | 90.0 | This work |
NF99HF | RO90 | RO99 | |
---|---|---|---|
Bs (MP) (m/s) | 8.19 × 10−4 | 3.82 × 10−6 | 4.41 × 10−6 |
Ψ (MP) (m2/s2) | 4.183 × 106 | 10.28 × 106 | 2.244 × 106 |
