Review

Identification of Novel Simulants for Toxic Industrial Chemicals and Chemical Warfare Agents for Human Decontamination Studies: A Systematic Review and Categorisation of Physicochemical Characteristics

Centre for Radiation, Chemicals and Environmental Hazards (CRCE), Public Health England, Chilton OX11 0RQ, UK
*
Author to whom correspondence should be addressed.
Academic Editor: Paul B. Tchounwou
Int. J. Environ. Res. Public Health 2021, 18(16), 8681; https://doi.org/10.3390/ijerph18168681
Received: 20 July 2021 / Revised: 13 August 2021 / Accepted: 15 August 2021 / Published: 17 August 2021
(This article belongs to the Special Issue Chemical Exposures and Public Health Interventions)

Abstract

Chemical simulants have long been used in human trials of mass decontamination to determine the efficacy of decontamination interventions against more toxic agents. Until now, reliance has mostly been on individual chemicals as surrogates to specific agents (e.g., methyl salicylate for sulphur mustard). A literature review was conducted to identify chemicals that had been previously tested on human volunteers and that represent diverse physicochemical characteristics in order to create a repository for chemical simulants. Of the 171 unique chemicals identified, 78 were discounted for the risk they could pose to human volunteers, 39 were deemed suitable for use, and a further 54 were considered to be possible simulants but would require further research. Suitable simulants included both solid and liquid chemicals spanning a wide range of physicochemical properties including molecular weight, octanol/water partition coefficient, vapour pressure, and solubility. This review identifies an array of potential simulants suitable for use in human volunteer decontamination studies and is of relevance to future studies on systemic absorption and surface decontamination.
Keywords: human volunteer; mass decontamination; simulants; CWA; TIC human volunteer; mass decontamination; simulants; CWA; TIC

1. Introduction

Chemical, Biological, Radiological, and Nuclear (CBRN) incidents, whether accidental or intentional, often require some form of casualty decontamination, which in the UK, can include the following: dry or wet improvised decontamination during an Initial Operational Response (IOR); interim decontamination such as a ladder-pipe system using more structured front-line appliances; or mass decontamination during the Specialist Operational Response (SOR) [1]. Chemical incidents may involve chemical warfare agents (CWA), toxic industrial compounds (TICs), or other threat agents. To inform policy makers of best practices and optimised methods for decontamination, evidence is generated utilising a combination of ex vivo skin (in vitro), animal (in vivo), or human volunteer studies [2]. While in vitro and in vivo studies can provide valid decontamination data, controlled human trials can be used to specifically assess the effectiveness of decontamination procedures in a simulated chemical incident, leading to better understanding of the impact of human variability and operational practicality [3]. To assess the removal of chemicals from skin, or the penetration (and subsequent systemic availability) of chemicals in human volunteers, simulants that mimic the physicochemical properties of a harmful chemical are used [2,4,5]. In the context of human studies, a chemical simulant is defined as a compound that mimics relevant physicochemical properties of a more toxic agent without being toxic itself at the proposed applied dose. Naturally, simulants in other contexts can be toxic, such as 2-chloroethyl ethyl sulphide (half mustard, a simulant for sulphur mustard); however, for human studies, it is essential that simulants are of low human toxicity.
Specific information on simulants for TICs is unavailable, and decontamination studies have mostly used simulants of commonly researched CWAs including sulphur mustard (methyl salicylate) [4,6,7,8,9,10,11,12,13,14], soman (diethyl malonate) [15,16], and sarin (ethyl lactate) [11,12]. The most widely used simulant in decontamination studies is methyl salicylate; however, its high volatility makes it limited in use when investigating sequential decontamination interventions over an elongated time period [3]. Recently, two studies conducted on human hair and skin [13,14] employed a novel simulant, benzyl salicylate, to simulate more persistent agents such as VX or Novichoks. It is important to investigate simulants of lower volatility to ensure that when conducting human studies involving multiple decontamination interventions, there is not a false-positive decontamination efficacy caused by volatilisation of the simulant.
To date, all major published decontamination studies have utilised liquid simulants only, so evidence supporting strategies for the decontamination of powders from casualties is lacking. Due to the ever-increasing mass transport of agrochemicals [17] and the rise of the illicit use of potent opioid analgesics in solid form such as fentanyl and carfentanyl [18,19], methods for powder decontamination are of utmost importance. Powders can be just as physicochemically diverse as liquids in terms of water solubility, particle size, and partition into organic solvents. It is therefore important that optimisations to current decontamination methods consider the possibility that powders may be involved in an incident.
Decontamination interventions need to be applicable to chemicals with a wide range of physicochemical properties. Testing interventions on a range of physiochemically divergent simulants will ensure methods are suitable for use in incidents involving most chemical agents. This systematic literature review identifies chemicals previously applied to humans, screens them for suitability for application as simulants in human trials, and sorts them by physicochemical properties. The output is the creation of a repository of chemicals to facilitate selection of suitable simulants for future human decontamination (or related) studies.

2. Materials and Methods

2.1. Literature Search Strategy

Keywords used to build the search terms were derived from topics including human testing, skin absorption, and biomonitoring. Wildcard searches were applied to include a wide array of literature and were tailored for the syntax of each database.
For ease of translating syntaxes, the following databases were searched in order: Medline through the OVID Technologies Inc. search engine (Unrestricted date: 1946–July 2020, “in-process, in-data review, and other non-indexed citations”); SCOPUS as it covers a larger range of multidisciplinary journals than Medline; and finally, EMBASE and PubMed through the Healthcare Databases Advanced Search (HDAS) system.
Relevant papers in the reference sections of included studies were also screened. Bias was minimised through use of the PRISMA methodology for systematic reviews [20].
Full searches and results can be found in Table 1.

2.2. Inclusion Criteria and Literature Screening

Only articles written in English were included. The publication status was unrestricted (peer reviewed publications, grey literature etc.). Following the PRISMA methodology, firstly the titles of papers were screened for relevance. Those that met the criteria were subject to assessment of abstract, and any that the chemical could not be identified from were reviewed in full. The conforming articles made explicit reference to testing chemicals on humans, or they were discounted. Initially, only dermal studies were included; however, one compound (rosmarinic acid) was included based on a study of oral intake due to the large dose taken in the study and the low dermal toxicity of the compound.

2.3. Chemical Screening

To screen compounds for safety, the Globally Harmonized System of Classification and Labelling of Chemicals (GHS) statements were examined on the National Center for Biotechnology Information PubChem database [21] and the available online Material Safety Data Sheets (MSDS). A number of chemicals identified from the literature that have been studied using human volunteers in the past are no longer considered to be suitable for use in human volunteer trials. A colour coded system was applied to categorise chemicals; red for unsuitable, orange for “requires more data”, and green for potentially suitable. This system aimed to assess the risk of using the chemical as a simulant by assessing hazard alongside the assumption that simulants can be used in relatively large quantities (up to 1 mL) [22] and in an undiluted form to both simulate actual chemical incidents and to avoid any effects the diluent may have on skin penetration and/or decontamination efficacy.
Red category: Chemicals that are currently banned (either under the Stockholm Convention or through the European Union’s Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH) regulations) or classified as either carcinogenic, teratogenic, or mutagenic (or suspected) are acutely toxic, corrosive, chemical warfare agents from military trials, or are pharmaceutical products specifically tested on patients with health conditions. Acute toxicity (dermal, oral, and inhalational) was defined as any chemical with the GHS classifications H300—Fatal if swallowed, H301—Toxic if swallowed, H310—Fatal in contact with skin, H311—Toxic in contact with skin, H330—Fatal if inhaled, and H331—Toxic if inhaled. These chemicals were removed from further analysis. Chemicals that were removed because of “Dermal corrosion/irritation” were those that had the following GHS hazard statement: H314—Causes severe skin burns and eye damage.
Orange category: Chemicals with limited available data, GHS statements that included irritation and sensitisation but no further hazards, and chemicals where data sources had contradictory information. While these compounds may be used for the purpose of decontamination studies, they were not assessed in this review due to uncertainty over potential toxic effects and the requirement to conduct a comprehensive risk assessment dependent upon the doses to be utilised.
Green category: Chemicals classified as nonhazardous according to the European Chemicals Agency (ECHA), no GHS hazard statements (not including chemicals with no available data), or chemicals that had been previously used successfully in human decontamination trials (excluding any that automatically fall into the red category).

2.4. Physicochemical Property Identification

Physicochemical properties of chemicals in the green category were ascertained from scientific literature and online databases including PubChem, the ECHA registration dossier; MSDS; and peer reviewed literature that have adhered to regulated tests for physicochemical parameters (e.g., dermal toxicity measured by in vivo studies following OECD 402).
The physicochemical properties of interest and reasons for inclusion are in Table 2.
Some of the chemicals identified had specific structural isomers that are commonly misnamed within chemical searches (e.g., searches for 2-ethylhexyl salicylate (CAS #—118-60-5) regularly return information for octyl salicylate (CAS #—6969-49-9)). As a result, to identify the correct physicochemical properties, the Chemical Abstracts Service Registry Number (CAS) or the International Union of Pure and Applied Chemistry (IUPAC) name were used for all physicochemical searches. While chemicals of similar states have highly variable physicochemical properties, the largest differences were seen between solids and liquids; therefore, the results will be split by state at room temperature.

3. Results

The systematic search of all databases yielded a total of 1572 results, reduced to 1475 following deduplication. Most papers did not mention the chemical in the title, so no papers were rejected based upon title alone. All 1475 publications were assessed according to their abstract for reference to the chemical(s) name and use on human volunteers. The PRISMA flow diagram is shown in Figure 1.

3.1. Chemical Screening

Of the 170 papers included for data extraction, a total of 171 unique chemicals were identified. A total of 78 chemicals were assigned to the red category, 54 to orange, and 39 to green (Table 3 and Table 4).
The red category includes the banned organochlorine pesticide aldrin, organophosphate pesticides azinphos-methyl and monochrotophos, and the toxic metal-containing compounds hexavalent chromium and mercuric chloride. Also included in this category were lower molecular weight compounds such as the solvents ethyl acetate, dichloromethane, and toluene for their high risk to respiratory pathways and, in some cases, acute single application organ toxicity in human.
Chemicals that were mild to moderately toxic or had limited data available were placed into the orange category. These denote chemicals that may be suitable for use as simulants on human volunteers, but either require more information on their toxicity to human, or potential caveats to their use. For example, skin sensitizers could be used, but only at concentrations below those that would initiate sensitization or could induce a reaction in sensitized individuals. Due to either a lack of available toxicological data or high uncertainty in identifying doses safe to use on humans, the chemicals in the orange category were not considered further. However, depending on the dosage used, the methodological design, and the context of the study, the authors do not rule out that with proper precautions, these chemicals may be used in studies involving human dermal exposure. The full list of red and orange category chemicals can be found in Table 3.
Chemicals that fell into the green category included benzyl and methyl salicylate, which have been used in human volunteer decontamination studies [4,13,14], low toxicity insect repellent such as N,N-Diethyl-meta-toluamide (DEET), and plant secondary metabolites and derivatives such as ammonium glychryzzate, rosmarinic acid, and curcumin. Predictably, many chemicals found in commercially available topical sunscreens were also identified. These included avobenzone, octocrylene, and octyl methoxycinnamate. Figure 2 shows the reasons for removal of red and orange category chemicals and the predominant use of the green category chemicals.

3.2. Physicochemical Property Mapping

The physicochemical properties of the 40 chosen chemicals covered diverse ranges. For example, the solid compound rosmarinic acid possesses a vapour pressure ten orders of magnitude lower than the liquid methyl salicylate, the liquid diethylhexyl sebacate has a logKow of 10.08, while solid disodium sebacate has a logKow of −4.9.
Due to varying magnitude of physicochemical properties identified, quantifying values as discreet values (low, medium, high) was not suitable. Discrete magnitude categories are subjective and what would be considered, e.g., high in this study, may be low in another based on the compounds of interest. Instead, key physicochemical properties are displayed in Figure 3 as scatter plots. Dermal LD50 values were for rat, rabbit, or guinea pig and, where data was available from more than one species, the lowest is presented. There were 7 chemicals that did not have available dermal toxicity data, so LD50 values were used from alternative routes of application: Ammonium glycyrrhizate (Oral—Mouse), diethyl sebacate (Oral—Rat), diisopropyl sebacate (Oral—Mouse), diisocetyl dodecanedioate (Oral—Rat), isopropyl lactate (Intramuscular—Guinea pig), methyl lactate (Oral—Rat), and rosmarinic acid (Intravenous—Mouse).
In addition to logKow and vapour pressure, the water solubility and molecular weights of solid chemicals are represented in Figure 4.
The full physicochemical property list of green category chemicals can be found in Table 4.

4. Discussion

While this review has focussed specifically on retrieving data from studies in which chemicals have been applied to humans, it was inevitable that due to the unrestricted article publication date, that some studies would have utilised chemicals that would not be approved for use today. This is particularly the case for the series of studies conducted by Feldmann et al. [59] in which agrochemicals such as Aldrin, Monocrotophos and parathion were applied to the skin of volunteers. This study, published in 1974, reported the subsequent urinary excretion of carbon 14 radiolabelled versions of a range of pesticides also including azinphos-methyl (guthion) and diquat that were still in legal use, at the time this study was published.
The most common reason for chemicals to be excluded from this study was their subsequent identification as carcinogens, mutagens, reprotoxins and/or teratogens. While each chemical was only labelled with one reason for exclusion, many chemicals reported a combination of toxicities such as trichloroethylene which is both carcinogenic and mutagenic. Where this occurred the first reason for removal found in the literature was chosen. Although exposure levels responsible for these detrimental effects are often far greater than would be utilised in decontamination studies, there is no reason to include such hazardous chemicals when their physicochemical properties are represented by less hazardous alternatives.
Due to the nature of decontamination studies, dermal toxicity was seen as the most appropriate measure for toxicity in this review, however inhalational toxicity must be taken into account when utilising simulants with high volatility/vapour pressure. Oral toxicity is only relevant because during realistic decontamination protocols volunteers remove the contamination in indiscriminate ways, with potential for hand-to-mouth transfer or spread to more sensitive areas of the body such as the face, eyes or nose. While dermal studies are conducted to limit contact between the simulant and the mouth, it cannot be fully mitigated. Therefore, it is not advised that any chemical carrying the GHS classifications outlined in the red category are used as simulants as the risk of accidental intake cannot easily be controlled.
The chemicals removed for dermal corrosion/irritation tended to be acids such as lactic acid, or alkalines such as sodium silicate. In addition, the metal containing complex mercuric chloride was excluded for reasons of corrosion, both to skin and mucosal membranes; however, the compound is also categorised as acutely toxic, mutagenic, and reprotoxic.
Two chemicals were included in the red category for their intrinsic physiological properties. Estradiol and 5α-dihydrotestosterone are both hormones for reasons of ethical consideration and possible difficulty in identification of the exogenous contribution of the simulant during biomonitoring, use of these hormones are not considered further.
While chemicals in the orange category have been excluded from consideration for use as simulants, it is important to note that some of the chemicals may be suitable for application to humans, if the dose applied and the risk assessments in place are appropriate. Benzophenone-3 is a common ingredient in UV-protective sunscreens and is licenced for use in formulations up to 6% w/w [60] due to the low risk it poses to human health but it is placed in the orange category due to the possibility of skin, eye, and respiratory irritation, and its contact and photo-allergenic potential, especially if applied undiluted. Simulants are most commonly applied undiluted as the diluents may enhance or retard penetration due to inter-simulant interactions or through changes to the conditions of the skin (e.g., the common penetration enhancer urea causes hydration of the stratum corneum [61]). As a result, undiluted benzophenone-3 would require a thorough risk assessment to be conducted to ensure the safety of the dose used in the study. Similarly, malathion has previously been used as a simulant for VX [62] and is the active ingredient in Derbac-M, a lice shampoo at a concentration of 0.5% w/w. Malathion is an organophosphate insecticide of relatively low dermal toxicity (dermal LD50—2330 mg/kg (rabbit)) which is readily metabolised into the more toxic malaoxon. In addition to the toxicity of its metabolites, the cholinergic effects of the required dose of malathion would need to be investigated prior to its use—for example, using the benchmark dose approach of the US EPA. Using this method, based on 20% inhibition of blood ACholE activity in rabbit at 127 mg/kg/d, with an uncertainty factor of 100, the benchmark dose would be 1.27 mg/kg/d [63].
Due to the toxicity of many of the chemicals in the orange category, any study would be heavily dose-dependent. For a controlled cross-over study design in which volunteers acts as their own control across multiple study sessions, multiple applications would be required on consecutive study sessions, increasing the potential for toxicity. Naturally, controlled cross-over studies should be designed in such a way that no residual dose is still present systemically or returned to baseline levels, however the possibility for “sub- chronic” accumulation cannot be negated including in target tissues. In addition, many compounds such as 2,4-D, ethyl paraben and malathion are sensitizers that could induce allergenicity when applied neat in multiple consecutive doses.
logKow and vapour pressure are the most important physicochemical properties defining the usefulness of chemicals for assessment of dermal penetration, a commonly measured parameter in human decontamination studies. It is well known that lipophilic compounds (positive values of logKow) have the ability to “pool” within the stratum corneum and deeper layers of tissue, a phenomenon sometimes referred to as the reservoir concept [64,65] and proportional to the magnitude of logKow. Decontamination efficacy is chemical dependant, and logKow has a direct effect on this.
A high vapour pressure indicates a compound’s “readiness” to evaporate or “off-gas” while a low vapour pressure indicates that a compound is persistent and unlikely to evaporate. In the context of environmental remediation Wyke et al. [66] previously quantified high vapour pressure as anything above 1.3 Pa and low vapour pressure below 1.3 × 10−4 Pa, with the range in between gradually increasing the likelihood of volatilising. Given the varying environmental conditions during a possible mass casualty incident however, these values should be used as nothing more than a rough guide. Vapour pressure is an important consideration during casualty decontamination. High vapour pressure contaminants may pose a respiratory threat but may also “self-decontaminate” through evaporation, while low vapour pressure compounds are less likely to pose a respiratory threat, but are more likely to persist and continue to penetrate skin and/or be transferred between casualties, first responders, and health personnel for a longer period of time. Vapour pressure is of particular importance to liquid simulants as solid simulants tend to be less volatile. The vapour pressures of the liquid simulants identified in this review range over eight orders of magnitude, with octocrylene being the most persistent liquid and methyl lactate being the least. The remaining liquid simulants identified are well dispersed through the range, covering each order of magnitude, ensuring that whether a high, medium or low vapour pressure simulant is required for a particular study, there are multiple simulant options available. The identified liquid simulants also cover a wide range of lipophilicities, with diethylhexyl sebacate being highly lipophilic (logKow = 10.08) and propylene glycol being relatively hydrophilic (logKow = −0.92). Figure 3 clearly also shows a trend between increasing vapour pressure and decreasing logKow, as would be expected.
Previous studies have focussed on using simulants specifically to represent one or two live CWAs, whereas recent studies [28,29] have focussed more on physicochemical diversity as being more important. If decontamination methods are effective against wider ranges of physicochemical properties, they are more likely to be effective against chemicals with wide ranging physicochemical properties, they are more likely to be effective when the contaminant identity is unknown. Despite this, it is clear that the simulants identified in this review overlap relatively well with physicochemical properties of agents of concern. Figure 3 (upper) shows five liquid threat agents, sulphur mustard, soman, tabun, sarin and VX, while Figure 3 (lower) and Figure 4 show three solid chemical threats, fentanyl, carfentanil and DDT. The compounds are relatively clustered towards the high vapour pressure, low logKow compounds; however, they still span almost four orders of magnitude in terms of vapour pressure and two orders of magnitude with regards to logKow. Despite methyl salicylate being commonly used as a simulant for sulphur mustard, it is clear to see that the two compounds have fairly different vapour pressures and slightly different lipophilicities. It could be seen that the slightly more volatile ethyl benzoate would be a better simulant; however, this further highlights the limitations associated with choosing one simulant to represent only one agent of concern. Instead, the figure shows that a decontamination study conducted on multiple compounds of varying physicochemical characteristics would give the best understanding of the decontamination efficacy of interventions on unidentified chemicals in an emergency situation.
The Majority of published decontamination studies have focused upon removal of contaminants from skin [3,22,67] or hair [9,13,68,69]. Although this is extremely useful, especially considering transfer to first responders, other casualties, hospital staff, etc., it is less useful in interpreting likely improved outcomes for the exposed casualty. To understand this, a measure of systematic exposure such as blood or urine levels of simulants is more appropriate. When choosing simulants for a decontamination study that involves a measure of systemic exposure, the endogenous levels and exogenous sources of the proposed simulant should be taken into account together with how readily the simulant crosses the skin.
The stratum corneum is an effective barrier against ingress of chemicals, and it is commonly accepted that compounds of mw >500 are less likely to penetrate this barrier without a carrier [70]. The solid simulants identified in this review range between 122.1 Da for benzoic acid and 840 Da for ammonium glycyrrhizate. While biomonitoring of simulants is becoming more widely accepted as an accurate measurement of decontamination efficacy [28], this relies on the simulant being able to penetrate the skin and become bioavailable. Of the 12 identified solid simulants, 9 are lower than 500 Da and could possibly be used for biomonitoring studies. However, the purpose of decontamination is not to just reduce the morbidity and mortality of the afflicted casualty, but to also reduce the likelihood of external contamination from spreading to unaffected casualties, first responders, or surfaces. In that regard, any of the solids identified in this review including the three above 500 Da could be used in an assessment of surface contamination, through tape stripping [71], simulant concentration in decontamination effluent, or simulant present on dry decontamination materials.
For compounds that may be carried through the skin, the nature of the carrier can vary in composition. During wet decontamination, the potential carrier would be water or a soap–water solution which may carry chemical across the skin barrier, especially when the chemical is water soluble. It is worth noting that operational guidance and the recommended practices for the decontamination of powders by first responders varies between the UK and US. In the US, the Primary Response Incident Scene Management (PRISM) guidance [72] states that first responders should “use DRY decontamination unless contaminant is corrosive or in powder form”. This would imply that wet decontamination is recommended for the removal of solid contaminants in the US. UK recommendations, in contrast, states in respect to improvised wet decontamination that “water should only be used for decontamination where casualty signs and symptoms are consistent with exposure to caustic substances such as acids or alkalis or the contamination has been identified as biological or radiological in nature” [1]. Studies to identify the effect of water decontamination on solid contaminants would need to consider water solubility of the simulant. Comparisons could be drawn between highly water-soluble and water-insoluble powders, and effects related to hydration such as the wash-in effect [73] could be investigated. The powders identified through this review could be useful simulants as they cover a wide physicochemical range of water solubility (0–50,000 mg/L), vapour pressure (~0–0.12 Pa spread over 11 orders of magnitude), and partition coefficient (logKow range −5–18.9).
Factors not investigated in this study include the bioavailability and likelihood of penetration of the compounds and the feasibility of use of the chosen chemicals. High molecular weight compounds such as ammonium glycyrrhizate and diisocetyl dodecanedioate were included in this study as both were previously tested on humans; however, the studies they were involved in were Human Repeat Insult Patch Tests (HRIPT) evaluating skin irritation, rather than skin penetration. With molecular weights of 840 and 679.1 respectively it is unlikely that these compounds would be useful in dermal penetration studies, but they could be used for decontamination studies focused on removal from skin, hair, etc.
One limitation of this review is the lack of availability of LD50 data relating to humans or human skin surrogates (e.g., pig skin). The inclusion of such data would have given a better understanding of the likely toxicity of these compounds to humans; however, in the absence of such data, peer-reviewed and reliable LD50 values of other in vivo tests were included.
While this review recommends a particular list of chemicals for use as simulants based on their diverse physicochemical properties, it does not give any recommendations into the safe use of these chemicals, the dosages used in decontamination trials, nor the individual study design as decontamination studies can vary largely in objective and methodology. This review should therefore be seen as a tool to assist the choice of chemical simulant, which should be followed by rigorous risk assessment, ethical consideration, and study design.

5. Conclusions

Despite a wide array of chemicals being identified by this review, due to regulations, toxicities, and health hazards, the majority are not suitable for application to humans, especially in decontamination studies where volunteers routinely act as their own control over multiple conditions. A variety of chemicals were identified but not assessed due to specific requirements in risk assessment, dose control, and study methodology. The 40 chemicals identified that were deemed suitable to use (Table 4) varied greatly in lipophilicity and vapour pressure. Liquid and solid simulants represented a wide range of physicochemical properties and matched relatively well with the properties of threat agents. Whether investigating volatility, lipophilicity, solubility, liquid simulants, solid simulants, bioavailability, or surface contamination, this review has identified suitable chemical simulants that could be used in future decontamination studies.

Author Contributions

Conceptualisation, T.J., S.C., and T.M.; methodology, T.J., S.C., and T.M.; data collection: T.J., S.C., and T.M.; data processing: T.J.; writing—original draft preparation, T.J.; writing—review and editing, T.J., S.C., and T.M.; funding acquisition: S.C., and T.M. All authors contributed to all stages of the manuscript preparation. All authors have read and agreed to the published version of the manuscript.

Funding

This paper is based on independent research commissioned and funded by the National Institute for Health Research (NIHR) (NIHR130440). Samuel Collins, Tim Marczylo, and Tom James are part-funded by the NIHR Health Protection Research Unit (HPRU) in Chemicals and Radiation Threats and Hazards, a partnership between Public Health England, and Imperial College London. Tim Marczylo is also part-funded by the HPRU in Health Impacts of Environmental Hazards at Imperial College London.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data is available upon reasonable request.

Acknowledgments

The authors would like to thank Emma-Jane Goode and Charlotte Hague for their assistance with literature screening. The views expressed in the publication are those of the author(s) and not necessarily those of the NHS, the NIHR, the Department of Health and Social Care, arms-length bodies, or other Government departments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Home Office. Initial Operational Response to a CBRN Incident; Joint Emergency Services Interoperability Programme: Welwyn Garden City, UK, 2015. [Google Scholar]
  2. James, T.; Wyke, S.; Marczylo, T.; Collins, S.; Gaulton, T.; Foxall, K.; Amlôt, R.; Duarte-Davidson, R. Chemical warfare agent simulants for human volunteer trials of emergency decontamination: A systematic review. J. Appl. Toxicol. 2018, 38, 113–121. [Google Scholar] [CrossRef]
  3. Collins, S.; James, T.; Carter, H.; Symons, C.; Southworth, F.; Foxall, K.; Marczylo, T.; Amlôt, R. Mass Casualty Decontamination for Chemical Incidents: Research Outcomes and Future Priorities. Int. J. Environ. Res. Public Health 2021, 18, 3079. [Google Scholar] [CrossRef]
  4. Larner, J.; Hazem, M.; Lorna, R.; Jones, D.R.; Wakefield, J.; Chilcott, R.; Amlôt, R. Human volunteer trial of an optimised decontamination protocol using methyl salicylate as a simulant contaminant. In Evaluation and Optimisation of Emergency Mass Casualty Decontamination (ORCHIDS); Annex, C., Ed.; Technical Report 5 (Deliverable 9); Health Protection Agency (HPA): Porton Down, UK, 2010. [Google Scholar]
  5. Jenkins, R.A.; Buchanan, M.V.; Merriweather, R.; Ilgner, R.H.; Gayle, T.M.; Watson, A.P. Movement of chemical warfare agent simulants through porous media. J. Hazard. Mater. 1994, 37, 303–325. [Google Scholar] [CrossRef]
  6. Feldman, R.J. Chemical agent simulant release from clothing following vapor exposure. Acad. Emerg. Med. 2010, 17, 221–224. [Google Scholar] [CrossRef] [PubMed]
  7. Gazi, E.; Mitchell, S.J. Nuclear magnetic resonance profiling of chemical warfare agent simulant mass-transport through a multilayered polymeric coating. J. Coat. Technol. Res. 2012, 9, 735–743. [Google Scholar] [CrossRef]
  8. Matar, H.; Guerreiro, A.; Piletsky, S.A.; Price, S.C.; Chilcott, R.P. Preliminary evaluation of military, commercial and novel skin decontamination products against a chemical warfare agent simulant (methyl salicylate). Cutan. Ocul. Toxicol. 2016, 35, 137–144. [Google Scholar] [CrossRef]
  9. Spiandore, M.; Piram, A.; Lacoste, A.; Prevost, P.; Maloni, P.; Torre, F.; Asia, L.; Josse, D.; Doumenq, P. Efficacy of scalp hair decontamination following exposure to vapours of sulphur mustard simulants 2-chloroethyl ethyl sulphide and methyl salicylate. Chem. Biol. Interact. 2016, 267, 74–79. [Google Scholar] [CrossRef]
  10. Riviere, J.E.; Smith, C.E.; Budsaba, K.; Brooks, J.D.; Olajos, E.J.; Salem, H.; Monteiro-Riviere, N.A. Use of methyl salicylate as a simulant to predict the percutaneous absorption of sulfur mustard. J. Appl. Toxicol. 2001, 21, 91–99. [Google Scholar] [CrossRef] [PubMed]
  11. Ribordy, P.; Rockseấn, D.; Dellgar, U.; Persson, S.Å.; Arnoldsson, K.; Ekãlsen, H.; Häggbom, S.; Nerf, O.; Ljungqvist, Å.; Gryth, D.; et al. Mobile decontamination units-room for improvement? Prehosp. Disaster Med. 2012, 27, 425–431. [Google Scholar] [CrossRef] [PubMed]
  12. Torngren, S.; Persson, S.A.; Ljungquist, A.; Berglund, T.; Nordstrand, M.; Hagglund, L.; Rittfeldt, L.; Sandgren, K.; Soderman, E. Personal decontamination after exposure to stimulated liquid phase contaminants: Functional assessment of a new unit. J. Toxicol. Clin. Toxicol. 1998, 36, 567–573. [Google Scholar] [CrossRef] [PubMed]
  13. Collins, S.; James, T.; Southworth, F.; Davidson, L.; Williams, N.; Orchard, E.; Marczylo, T.; Amlôt, R. Human volunteer study of the decontamination of chemically contaminated hair and the consequences for systemic exposure. Sci. Rep. 2020, 10, 20822. [Google Scholar] [CrossRef] [PubMed]
  14. Southworth, F.; James, T.; Davidson, L.; Williams, N.; Finnie, T.; Marczylo, T.; Collins, S.; Amlôt, R. A controlled cross-over study to evaluate the efficacy of improvised dry and wet emergency decontamination protocols for chemical incidents. PLoS ONE 2020, 15, e0239845. [Google Scholar] [CrossRef] [PubMed]
  15. Loke, W.K.; Soo-Hway, U.; Lau, S.K.; Lim, J.S.; Tay, G.S.; Koh, C.H. Wet decontamination-induced stratum corneum hydration—Effects on the skin barrier function to diethylmalonate. J. Appl. Toxicol. 1999, 19, 285–290. [Google Scholar] [CrossRef]
  16. Reifenrath, W.G.; Mershon, M.M.; Brinkley, F.B.; Miura, G.A.; Broomfield, C.A.; Cranford, H.B. Evaluation of diethyl malonate as a simulant for 1,2,2-trimethylpropyl methylphosphonofluoridate (soman) in shower decontamination of the skin. J. Pharm. Sci. 1984, 73, 1388–1392. [Google Scholar] [CrossRef]
  17. World Health Organization. Manual for the Public Health Management of Chemical Incidents; WHO Document Production Services: Geneva, Switzerland, 2009. [Google Scholar]
  18. Hikin, L.; Smith, P.R.; Ringland, E.; Hudson, S.; Morley, S.R. Multiple fatalities in the North of England associated with synthetic fentanyl analogue exposure: Detection and quantitation a case series from early 2017. Forensic Sci. Int. 2018, 282, 179–183. [Google Scholar] [CrossRef]
  19. Taylor, S.; Annand, F.; Burkinshaw, P.; Greaves, F.; Kelleher, M.; Knight, J.; Perkins, C.; Tran, A.; White, M.; Marsden, J. Dependence and Withdrawal Associated with some Prescribed Medicines: An Evidence Review; Public Health England: London, UK, 2019. [Google Scholar]
  20. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, 71. [Google Scholar] [CrossRef]
  21. U.S. National Library of Medicine. National Center for Biotechnology Information Pubchem Compound Database. 2021. Available online: https://pubchem.ncbi.nlm.nih.gov/ (accessed on 2 May 2021).
  22. Amlôt, R.; Carter, H.; Riddle, L.; Larner, J.; Chilcott, R.P. Volunteer trials of a novel improvised dry decontamination protocol for use during mass casualty incidents as part of the UK’S Initial Operational Response (IOR). PLoS ONE 2017, 12, e0179309. [Google Scholar] [CrossRef] [PubMed]
  23. Bury, D.; Bruning, T.; Koch, H.M. Determination of metabolites of the UV filter 2-ethylhexyl salicylate in human urine by online-SPE-LC-MS/MS. J. Chromatogr. B 2019, 1110–1111, 59–66. [Google Scholar] [CrossRef] [PubMed]
  24. Hiller, J.; Klotz, K.; Meyer, S.; Uter, W.; Hof, K.; Greiner, A.; Göen, T.; Drexler, H. Toxicokinetics of urinary 2-ethylhexyl salicylate and its metabolite 2-ethyl-hydroxyhexyl salicylate in humans after simulating real-life dermal sunscreen exposure. Arch. Toxicol. 2019, 93, 2565–2574. [Google Scholar] [CrossRef] [PubMed]
  25. Roussel, L.; Gilbert, E.; Salmon, D.; Serre, C.; Gabard, B.; Haftek, M.; Maibach, H.I.; Pirot, F. Measurement, analysis and prediction of topical UV filter bioavailability. Int. J. Pharm. 2015, 478, 804–810. [Google Scholar] [CrossRef] [PubMed]
  26. Sarveiya, V.; Risk, S.; Benson, H.A. Liquid chromatographic assay for common sunscreen agents: Application to in vivo assessment of skin penetration and systemic absorption in human volunteers. J. Chromatogr. B 2004, 803, 225–231. [Google Scholar] [CrossRef] [PubMed]
  27. Andersen, F.A. Final report on the safety assessment of glycyrrhetinic acid, potassium glycyrrhetinate, disodium succinoyl glycyrrhetinate, glyceryl glycyrrhetinate, glycyrrhetinyl stearate, stearyl glycyrrhetinate, glycyrrhizic acid, ammonium glycyrrhizate, dipotassium glycyrrhizate, disodium glycyrrhizate, trisodium glycyrrhizate, methyl glycyrrhizate, and potassium glycyrrhizinate. Int. J. Toxicol. 2007, 26 (Suppl. 2), 79–112. [Google Scholar]
  28. James, T.; Collins, S.; Amlôt, R.; Marczylo, T. Analysis of Chemical Simulants in Urine: A Useful Tool for Assessing Emergency Decontamination Efficacy in Human Volunteer Studies. Prehosp. Disaster. Med. 2020, 35, 482–487. [Google Scholar] [CrossRef] [PubMed]
  29. James, T.; Collins, S.; Amlôt, R.; Marczylo, T. GC-MS/MS quantification of benzyl salicylate on skin and hair: A novel chemical simulant for human decontamination studies. J. Chromatogr. B 2019, 1129, 121818. [Google Scholar] [CrossRef]
  30. Andersen, D.F.A. Final report on the safety assessment of glycolic acid, ammonium, calcium, potassium, and sodium glycolates, methyl, ethyl, propyl, and butyl glycolates, and lactic acid, ammonium, calcium, potassium, sodium, and tea-lactates, methyl, ethyl, isopropyl, and butyl lactates, and lauryl, myristyl, and cetyl lactates. Int. J. Toxicol. 1998, 17 (Suppl. 1), 1–241. [Google Scholar]
  31. Roy, M.J.; Kraus, P.L.; Cooper, J.A.; Cherstniakova, S.; Coll, R.; Seegers, C.A.; Deuster, P.A.; Koslowe, P.; Law, W.A.; Krantz, D.S.; et al. Initial evaluation of N,N-diethyl-m-toluamide and permethrin absorption in human volunteers under stress conditions. Mil. Med. 2006, 171, 122–127. [Google Scholar] [CrossRef]
  32. Selim, S.; Preiss, F.J.; Jonkman, J.H.G.; Gabriel, K.L. Dermal absorption and mass balance of MGK 326 and reformulated MGK 326 in human volunteers. Cutan. Ocul. Toxicol. 1994, 13, 83–96. [Google Scholar] [CrossRef]
  33. Selim, S.; Gabriel, K.L.; Jonkman, J.H.G.; Preiss, F.J. Absorption and mass balance of MGK R11 and MGK R11 formulated with DEET, MGK 264, and MGK 326 following an 8 h dermal exposure in human volunteers. Cutan. Ocul. Toxicol. 1995, 14, 151–167. [Google Scholar] [CrossRef]
  34. Selim, S.; Hartnagel Jr, R.E.; Osimitz, T.G.; Gabriel, K.L.; Schoenig, G.P. Absorption, metabolism, and excretion of N,N-diethyl-m-toluamide following dermal application to human volunteers. Fundam. Appl. Toxicol. 1995, 25, 95–100. [Google Scholar] [CrossRef]
  35. Selim, S.; Gabriel, K.L.; Jonkman, J.H.G.; Preiss, F.J. Absorption and mass balance of MGK 264 alone and MGK 264 formulated with N,N-diethyl-m-toluamide (DEET) and MGK 326 following an 8 h dermal exposure in human volunteers. Cutan. Ocul. Toxicol. 1999, 18, 325–340. [Google Scholar] [CrossRef]
  36. Fradin, M.S.; Day, J.F. Comparative efficacy of insect repellents against mosquito bites. N. Engl. J. Med. 2002, 347, 13–18. [Google Scholar] [CrossRef]
  37. Golenda, C.F.; Solberg, V.B.; Burge, R.; Gambel, J.M.; Wirtz, R.A. Gender-related efficacy difference to an extended duration formulation of topical N,N-diethyl-M-toluamide (DEET). Am. J. Trop. Med. Hyg. 1999, 60, 654–657. [Google Scholar] [CrossRef]
  38. Yiin, L.M.; Tian, J.N.; Hung, C.C. Assessment of dermal absorption of DEET-containing insect repellent and oxybenzone-containing sunscreen using human urinary metabolites. Environ. Sci. Pollut. Res. 2015, 22, 7062–7070. [Google Scholar] [CrossRef] [PubMed]
  39. Fiume, M.M.; Eldreth, H.; Bergfeld, W.F.; Belsito, D.V.; Hill, R.A.; Klaassen, C.D.; Liebler, D.; Marks, J.G., Jr.; Shank, R.C.; Slaga, T.J.; et al. Final Report of the Cosmetic Ingredient Review Expert Panel on the Safety Assessment of Dicarboxylic Acids, Salts, and Esters. Int. J. Toxicol. 2012, 31, 5S–76S. [Google Scholar] [CrossRef]
  40. Janjua, N.R.; Mortensen, G.K.; Andersson, A.M.; Kongshoj, B.; Skakkebæk, N.E.; Wulf, H.C. Systemic uptake of diethyl phthalate, dibutyl phthalate, and butyl paraben following whole-body topical application and reproductive and thyroid hormone levels in humans. Environ. Sci. Technol. 2007, 41, 5564–5570. [Google Scholar] [CrossRef]
  41. Lorber, M.; Weschler, C.J.; Morrison, G.; Bekö, G.; Gong, M.; Koch, H.M.; Salthammer, T.; Schripp, T.; Toftum, J.; Clausen, G. Linking a dermal permeation and an inhalation model to a simple pharmacokinetic model to study airborne exposure to di(n-butyl) phthalate. J. Expos. Sci. Environ. Epidemiol. 2017, 27, 601–609. [Google Scholar] [CrossRef] [PubMed]
  42. Morrison, G.C.; Weschler, C.J.; Bekö, G.; Koch, H.M.; Salthammer, T.; Schripp, T.; Toftum, J.; Clausen, G. Role of clothing in both accelerating and impeding dermal absorption of airborne SVOCs. J. Expos. Sci. Environ. Epidemiol. 2016, 26, 113–118. [Google Scholar] [CrossRef] [PubMed]
  43. Weschler, C.J.; Bekö, G.; Koch, H.M.; Salthammer, T.; Schripp, T.; Toftum, J.; Clausen, G. Transdermal uptake of diethyl phthalate and di(n-butyl) phthalate directly from air: Experimental verification. Environ. Health Perspect. 2015, 123, 928–934. [Google Scholar] [CrossRef]
  44. David, R.M.; Lockhart, L.K.; Ruble, K.M. Lack of sensitization for trimellitate, phthalate, terephthalate and isobutyrate plasticizers in a human repeated insult patch test. Food Chem. Toxicol. 2003, 41, 589–593. [Google Scholar] [CrossRef]
  45. ’Becker, L.C.; Bergfeld, W.F.; Belsito, D.V.; Hill, R.A.; Klaassen, C.D.; Liebler, D.; Marks, J.G.; Shank, R.C.; Slaga, T.J.; Snyder, P.W.; et al. Safety Assessment of Alkyl Benzoates as Used in Cosmetics. Int. J. Toxicol. 2012, 31, 342S–372S. [Google Scholar] [CrossRef]
  46. James, T.; Collins, S.; Amlôt, R.; Marczylo, T. Optimisation and validation of a GC–MS/MS method for the analysis of methyl salicylate in hair and skin samples for use in human-volunteer decontamination studies. J. Chromatogr. B 2019, 1109, 84–89. [Google Scholar] [CrossRef]
  47. Hawkins, D.R.; Elsom, L.F.; Kirkpatrick, D.; Ford, R.A.; Api, A.M. Dermal absorption and disposition of musk ambrette, musk ketone and musk xylene in human subjects. Toxicol. Lett. 2002, 131, 147–151. [Google Scholar] [CrossRef]
  48. Bury, D.; Modick-Biermann, H.; Leibold, E.; Brüning, T.; Koch, H.M. Urinary metabolites of the UV filter octocrylene in humans as biomarkers of exposure. Arch. Toxicol. 2019, 93, 1227–1238. [Google Scholar] [CrossRef]
  49. Janjua, N.R.; Kongshoj, B.; Andersson, A.M.; Wulf, H.C. Sunscreens in human plasma and urine after repeated whole-body topical application. J. Eur. Acad. Dermatol. Venereol. 2008, 22, 456–461. [Google Scholar]
  50. Scalia, S.; Mezzena, M.; Ramaccini, D. Encapsulation of the UV filters ethylhexyl methoxycinnamate and butyl methoxydibenzoylmethane in lipid microparticles: Effect on in vivo human skin permeation. Skin Pharmacol. Physiol. 2011, 24, 182–189. [Google Scholar] [CrossRef]
  51. Asche, H.; Botta, L.; Rettig, H.; Weirich, E.G. Influence of formulation factors on the availability of drugs from topical preparations. Pharm. Acta Helv. 1985, 60, 232–237. [Google Scholar]
  52. Fiume, M.M.; Bergfeld, W.F.; Belsito, D.V.; Hill, R.A.; Klaassen, C.D.; Liebler, D.C.; Marks, J.G., Jr.; Shank, R.C.; Slaga, T.J.; Snyder, P.W.; et al. Safety Assessment of Tocopherols and Tocotrienols as Used in Cosmetics. Int. J. Toxicol. 2018, 37 (Suppl. 2), 61S–94S. [Google Scholar] [CrossRef]
  53. Andersen, F.A. Final report on the safety assessment of Benzyl Alcohol, Benzoic Acid, and Sodium Benzoate. Int. J. Toxicol. 2001, 20 (Suppl. 3), 23–50. [Google Scholar]
  54. Balaguer, A.; Chisvert, A.; Salvador, A. Sequential-injection determination of traces of disodium phenyl dibenzimidazole tetrasulphonate in urine from users of sunscreens by on-line solid-phase extraction coupled with a fluorimetric detector. J. Pharm. Biomed. Anal. 2006, 40, 922–927. [Google Scholar] [CrossRef]
  55. Ford, R.A.; Api, A.M.; Hawkins, D.R.; Mayo, B.C. The in vivo dermal absorption and metabolism of 14C coumarin by rats and by human volunteers under simulated conditions of use in fragrances. Food Chem. Toxicol. 2001, 39, 153–162. [Google Scholar] [CrossRef]
  56. Abraham, K.; Pfister, M.; Wöhrlin, F.; Lampen, A. Relative bioavailability of coumarin from cinnamon and cinnamon-containing foods compared to isolated coumarin: A four-way crossover study in human volunteers. Mol. Nutr. Food Res. 2011, 55, 644–653. [Google Scholar] [CrossRef]
  57. Anand, P.; Kunnumakkara, A.B.; Newman, R.A.; Aggarwal, B.B. Bioavailability of curcumin: Problems and promises. Mol. Pharm. 2007, 4, 807–818. [Google Scholar] [CrossRef]
  58. Baba, S.; Osakabe, N.; Natsume, M.; Yasuda, A.; Muto, Y.; Hiyoshi, K.; Takano, H.; Yoshikawa, T.; Terao, J. Absorption, metabolism, degradation and urinary excretion of rosmarinic acid after intake of Perilla frutescens extract in humans. Eur. J. Nutr. 2005, 44, 1–9. [Google Scholar] [CrossRef]
  59. Feldmann, R.J.; Maibach, H.I. Percutaneous penetration of some pesticides and herbicides in man. Toxicol. Appl. Pharmacol. 1974, 28, 126–132. [Google Scholar] [CrossRef]
  60. European Union. Commission Regulation (EU) 2017/238 of 10 February 2017 amending Annex VI to Regulation (EC) No 1223/2009 of the European Parliament and of the Council on cosmetic products. Document 32017R0238 2017. Available online: http://data.europa.eu/eli/reg/2017/238/oj (accessed on 4 May 2021).
  61. Mueller, J.; Oliveira, J.S.L.; Barker, R.; Trapp, M.; Schroeter, A.; Brezesinski, G.; Neubert, R.H.H. The effect of urea and taurine as hydrophilic penetration enhancers on stratum corneum lipid models. Biochim. Biophys. Acta 2016, 1858, 2006–2018. [Google Scholar] [CrossRef]
  62. Moody, R.P.; Akram, M.; Dickson, E.; Chu, I. In vitro dermal absorption of methyl salicylate, ethyl parathion, and malathion: First responder safety. J. Toxicol. Environ. 2007, 70, 985–999. [Google Scholar] [CrossRef]
  63. United States Environmental Protection Agency. Reregistration Eligibility Decision (RED) for Malathion; Case No. 0248; 2009. Available online: https://archive.epa.gov/pesticides/reregistration/web/pdf/malathion-red-revised.pdf (accessed on 16 August 2021).
  64. Yourick, J.J.; Koenig, M.L.; Yourick, D.L.; Bronaugh, R.L. Fate of chemicals in skin after dermal application: Does the in vitro skin reservoir affect the estimate of systemic absorption? Toxicol. Appl. Pharmacol. 2004, 195, 309–320. [Google Scholar] [CrossRef]
  65. Roberts, M.S.; Cross, S.E.; Anissimov, Y.G. Factors affecting the formation of a skin reservoir for topically applied solutes. Skin Pharmacol. Physiol. 2004, 17, 3–16. [Google Scholar] [CrossRef]
  66. Wyke, S.; Brooke, N.; Dobney, A.; Baker, D.; Murray, V. UK Recovery Handbook for Chemical Incidents; Version 1.1; Public Health England: Oxford, UK, 2020. [Google Scholar]
  67. Amlôt, R.; Larner, J.; Matar, H.; Jones, D.R.; Carter, H.; Turner, E.A.; Price, S.C.; Chilcott, R.P. Comparative analysis of showering protocols for mass-casualty decontamination. Prehosp. Disaster Med. 2010, 25, 435–439. [Google Scholar] [CrossRef]
  68. Spiandore, M.; Piram, A.; Lacoste, A.; Josse, D.; Doumenq, P. Hair analysis as a useful procedure for detection of vapour exposure to chemical warfare agents: Simulation of sulphur mustard with methyl salicylate. Drug Test. Anal. 2014, 6 (Suppl. 1), 67–73. [Google Scholar] [CrossRef]
  69. Josse, D.; Wartelle, J.; Cruz, C. Showering effectiveness for human hair decontamination of the nerve agent VX. Chem. Biol. Interact. 2015, 232, 94–100. [Google Scholar] [CrossRef]
  70. Bos, J.D.; Meinardi, M.M. The 500 Dalton rule for the skin penetration of chemical compounds and drugs. Exp. Dermatol. 2000, 9, 165–169. [Google Scholar] [CrossRef]
  71. Trebilcock, K.L.; Heylings, J.R.; Wilks, M.F. In vitro tape stripping as a model for in vivo skin stripping. Toxicol. Vitr. 1994, 8, 665–667. [Google Scholar] [CrossRef]
  72. Chilcott, R.P.; Larner, J.; Durrant, A.; Hughes, P.; Mahalingam, D.; Rivers, S.; Thomas, E.; Amer, N.; Barrett, M.; Matar, H.; et al. Evaluation of US Federal Guidelines (Primary Response Incident Scene Management [PRISM]) for Mass Decontamination of Casualties During the Initial Operational Response to a Chemical Incident. Ann. Emerg. Med. 2019, 73, 671–684. [Google Scholar] [CrossRef]
  73. Moody, R.P.; Maibach, H.I. Skin decontamination: Importance of the wash-in effect. Food Chem. Toxicol. 2006, 44, 1783–1788. [Google Scholar] [CrossRef]

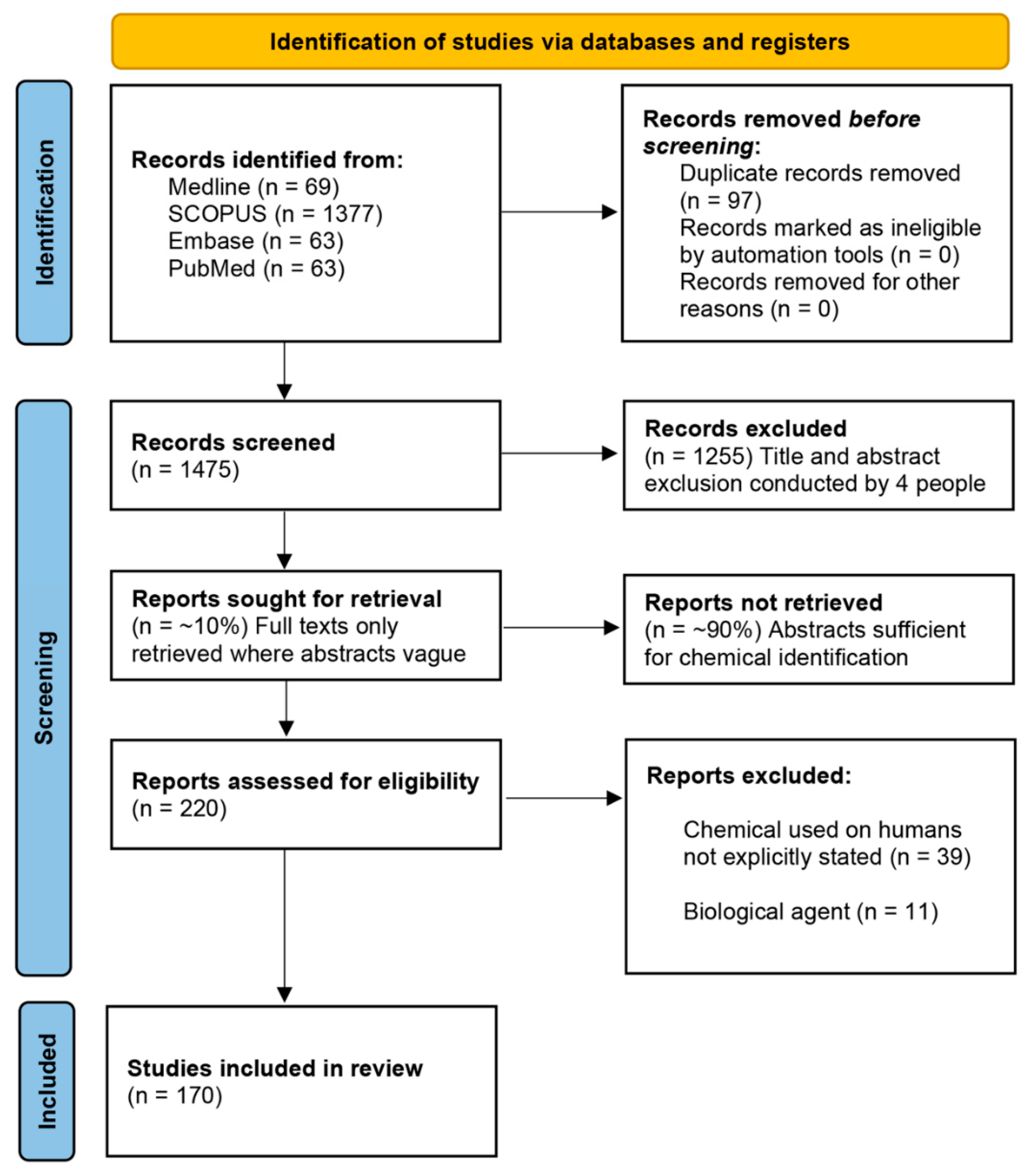

Figure 1. The PRISMA flow diagram showing the stages of screening and exclusion. From 1475 unique papers, 170 included chemicals that were assessed. This figure also shows the distribution of screened chemicals.
Figure 1. The PRISMA flow diagram showing the stages of screening and exclusion. From 1475 unique papers, 170 included chemicals that were assessed. This figure also shows the distribution of screened chemicals.
Ijerph 18 08681 g001

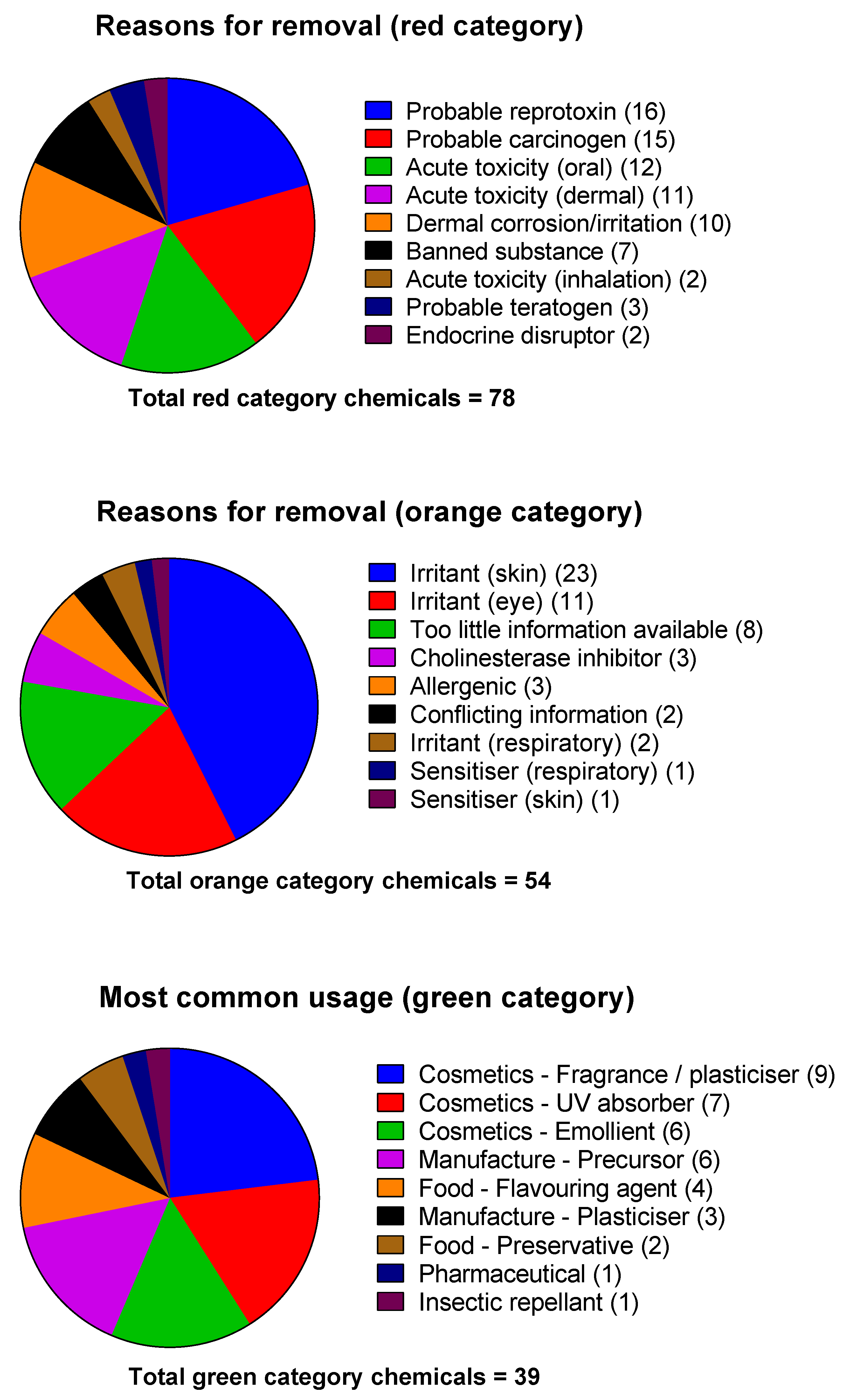

Figure 2. Exclusion characteristics of red and orange category chemicals, and the source/most-common commercial use of the green category chemicals.
Figure 2. Exclusion characteristics of red and orange category chemicals, and the source/most-common commercial use of the green category chemicals.
Ijerph 18 08681 g002

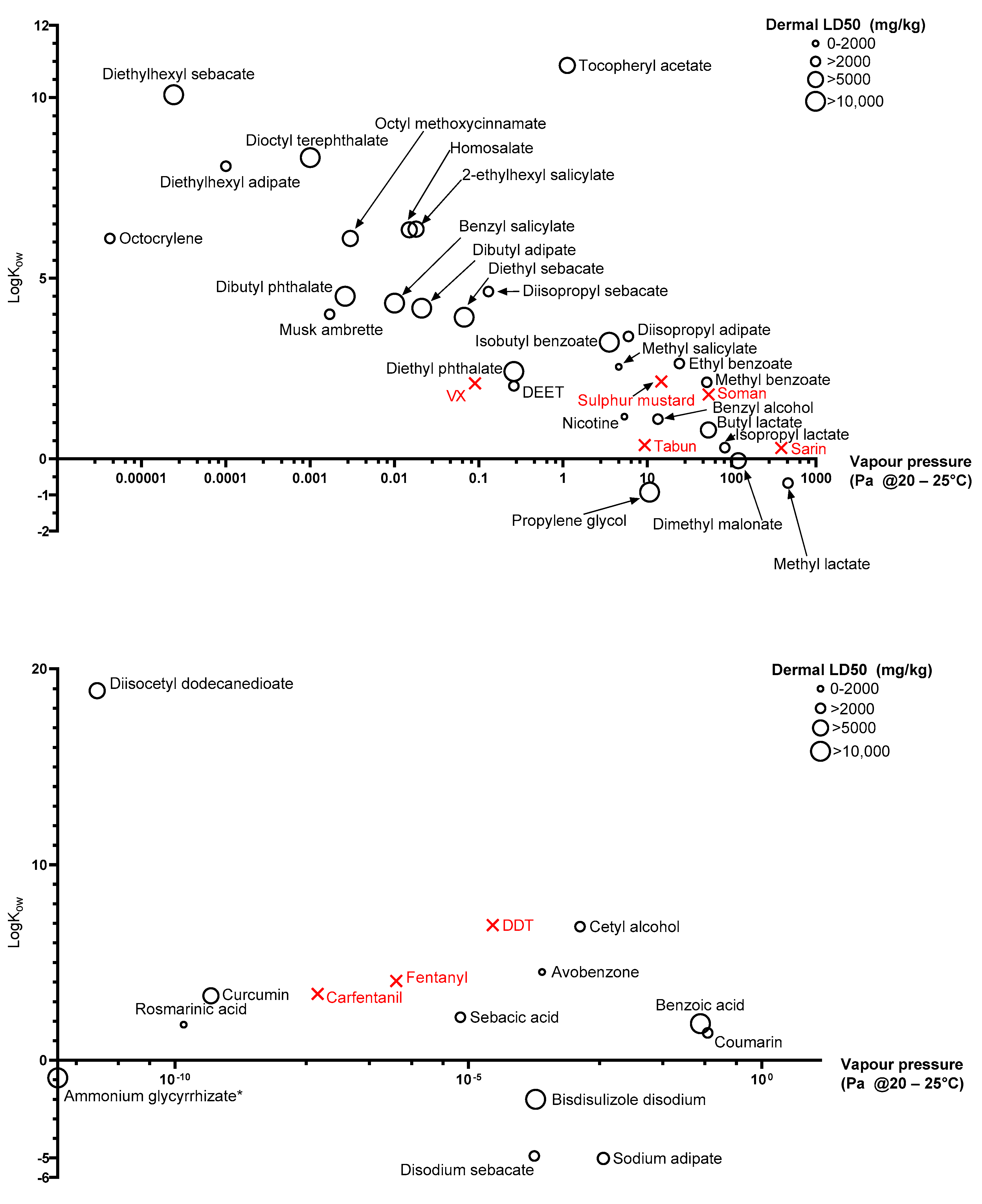

Figure 3. Physicochemical properties of room temperature liquids (top) and solids (bottom) in the green category. Ammonium glycyrrhizate (*) has 0 vapour pressure despite 0 being undefined on a logarithmic scale.
Figure 3. Physicochemical properties of room temperature liquids (top) and solids (bottom) in the green category. Ammonium glycyrrhizate (*) has 0 vapour pressure despite 0 being undefined on a logarithmic scale.
Ijerph 18 08681 g003

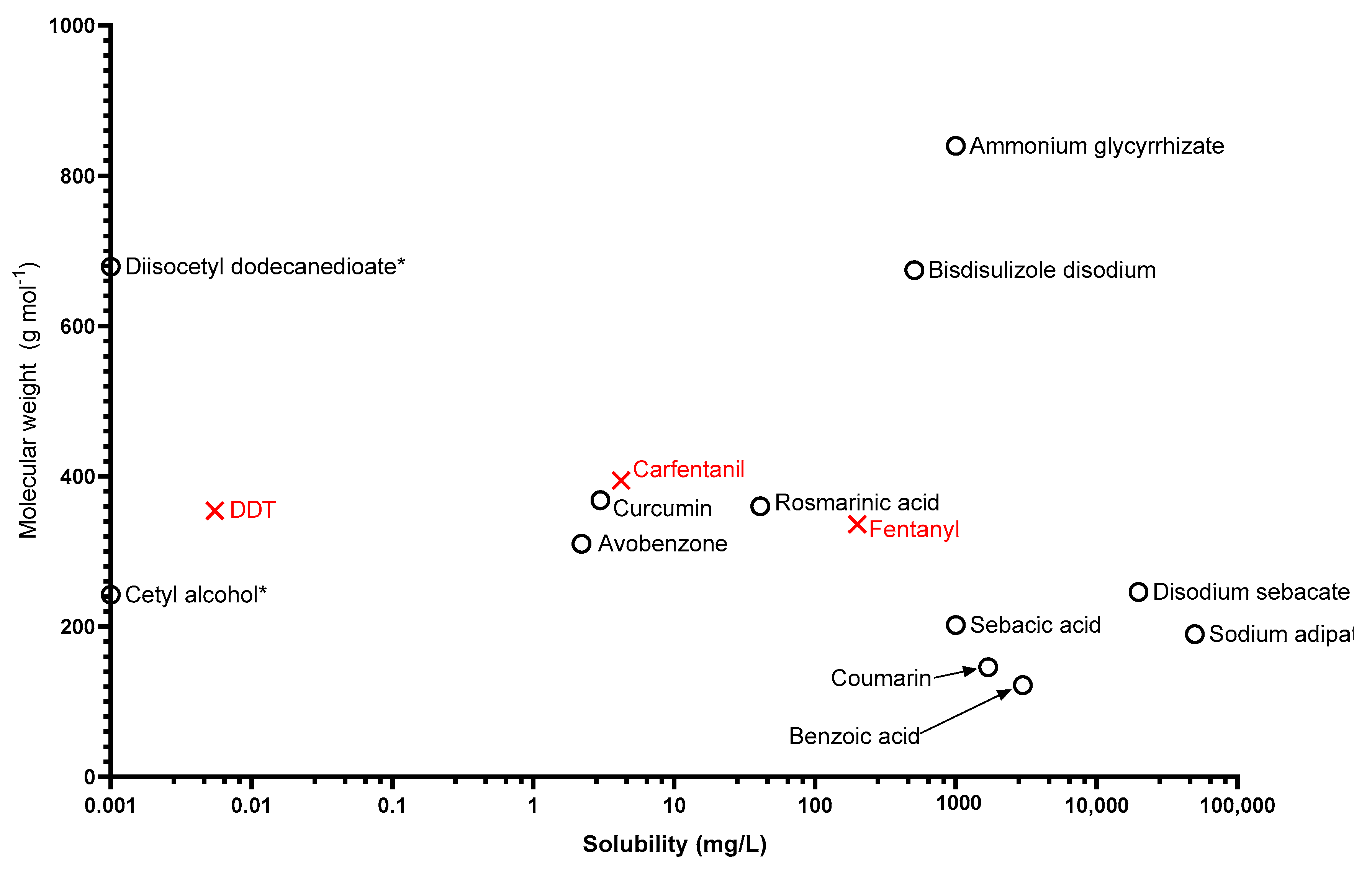

Figure 4. The solid compounds in the green category are plotted according to water solubility and molecular weight. (*) indicates 0 mg/L solubility despite 0 being undefined on a logarithmic scale.
Figure 4. The solid compounds in the green category are plotted according to water solubility and molecular weight. (*) indicates 0 mg/L solubility despite 0 being undefined on a logarithmic scale.
Ijerph 18 08681 g004
Table 1. Full systematic literature searches of the four databases. Wildcard searches are marked with an asterisk (*).
Table 1. Full systematic literature searches of the four databases. Wildcard searches are marked with an asterisk (*).
OVID—Medline (69 Results)
No.SearchResults
1“Human volunt *”.tw.9372
2“Human test *”.tw.3835
31 OR 213,183
4Skin Absorption/11,729
5Skin penetra *.tw.2250
6Dermal penetra *.tw.296
7Percutaneous absor *.tw.2109
8Skin absor *.tw.731
9Dermal absor *.tw.1002
10Skin diffus *.tw.130
11Dermal diffus *.tw.24
12Skin applica *.tw.546
13Dermal applica *.tw.712
144 OR 5 OR 6 OR 7 OR 8 OR 9 OR 10 OR 11 OR 12 OR 1315,375
15Urin *.tw.496,262
16Biomonit *.tw.7693
17Excret *.tw.178,618
1815 OR 16 OR 17584,621
193 AND 14 AND 1869
SCOPUS (1377 Results)
(ALL (Human) W/1 ALL (Volunt * OR test *)) AND (ALL(skin OR dermal OR percutan *) W/2 ALL (penetra * OR absor * OR diffus * OR applica *)) AND (All(urin * OR biomonit * OR excret *))
HDAS—Embase (63 Results) and PubMed (63 Results)
(((Human ADJ1 (Volunt * OR test *)) AND ((skin OR dermal OR percutan *) ADJ2 (penetra * OR absor * OR diffus * OR applica *))) AND (urin * OR biomonit * OR excret *)).ti,ab
Table 2. Physiochemical properties of interest for liquid and solid simulants, including the reason why that property is relevant to decontamination studies.
Table 2. Physiochemical properties of interest for liquid and solid simulants, including the reason why that property is relevant to decontamination studies.
Physicochemical PropertyReason for Interest
Molecular weightMolecules larger than 500 Da are unlikely to penetrate through skin
State (at room temperature)Ability to separate liquid and solid simulants and to reject any gaseous chemicals
logKowHydrophilicity/lipophilicity is a key parameter in skin and tissue penetration/sequestration and partitioning into water is key for wet decontamination
Vapour pressure (at 20/25 °C)An indicator of persistence and possible inhalational risk
Dermal toxicity (LD50)A measure of safety for human application; where not available, toxicity via other routes will be captured
Water solubilityTo indicate the likelihood of dissolving in water during wet decontamination
Table 3. Red and orange category chemicals and their primary reason for exclusion.
Table 3. Red and orange category chemicals and their primary reason for exclusion.
Reason for Removal (Red Category)
Probable ReprotoxinProbable CarcinogenAcute Toxicity (Oral)Acute Toxicity (Dermal)Dermal Corrosion/IrritationBanned SubstanceProbable TeratogenAcute Toxicity (Inhalation)Endocrine Disruptor
Beclomethasone dipropionate
Budesonide
Diflorasone diacetate
Dimethylacetamide
Dimethylformamide
Ethylhexyl benzoate
Fluazifop-butyl
Methotrexate
N-Methyl-2-pyrrolidone
Penconazole
Retinyl palmitate
Styrene
Tebuconazole
Titanium dioxide
Toluene
Tris(2-ethylhexyl)trimellitate
1,1,1-trichloroethane
2,4,5-Trichlorophenoxyacetic acid
Bromodichloromethane
Carbaryl
Chromium
Dichloromethane
Epoxiconazol
Halometasone
Hydroquinone
Musk Ketone
Musk Xylene
Pirimicarb
Propoxur
Tetrachloroethene
Trichloroethene
Cyfluthrin
Deltamethrin
Diclofenac sodium
Ethion
Flurbiprofen
Indomethacin
Ketoprofen
Lindane
Methyl formate
Nonane
Selenium
Triclopyr
Cyanamide
1,3-dichloropropene (cis)
Iloprost
Laurocapram
m-xylene
N-Octyl bicycloheptene dicarboximide
Nicotine
p-phenylenediamine
Promestriene
Propetamphos
Pyrethrin (unspecificed)
Ethyl glycolate
Glycolic acid
Lactic acid
Lauryldimethylamine oxide
Mercury (II) chloride
N,N-Dimethylethylamine
Sodium metasilicate
Sodium silicate
Stearamine oxide
Tripropylene glycol diacrylate
Aldrin
Dieldrin
Diquat
Guthion
MGK 11
Monocrotophos
Parathion
Dipyrithione
Furosemide
Trimethyl pentanyl diisobutyrate
3-Carene
Methyldibromo glutaronitrile
Dihydrotestosterone
Estradiol
Reason for Removal (Orange Category)
Irritant (Skin)Irritant (Eye)Not enough Available InformationMay Cause Allergic ReactionCholinesterase InhibitorConflicting InformationIrritant (Respiratory)
2-butoxyethanol
2-methyl 1,3-propanediol
2-phenylphenol
4-aminobenzoic acid
Borax
Boric acid
Butyl acetate
Butyl benzoate
Butyl paraben

Capsaicin
Captan
Hydroxycitronellal
Isopropyl alcohol
Isostearyl alcohol
Methyl glycolate
Methyl tert-butyl ether
Oxybenzone
Permethrin
Pyrene
Pyroglutamic Acid
Sodium lactate
Stearyl benzoate
Undecanedioic acid
Azelaic acid
Benzaldehyde
Butyl glycolate
Dodecanedioic acid
Dodecanol
Ethyl acetate
Ethyl butylacetylaminopropionate
Ethyl lactate
Methylparaben
Salicylic acid
Sodium benzoate
2-hexanone
Dioctyldodecyl dodecanedioate
Disodium octaborate tetrahydrate
DMPS
Isostearyl benzoate
Piperonyl butoxide
2,4-D
2,4-D amine
2,4-D isooctyl ester
Diisostearyl adipate
Ethyl paraben
Propranolol hydrochloride
Chlorpyrifos
Diazinon
Malathion
Enzacamene
Glycyrrhizic acid
MGK 326
Cypermethrin
Propylene glycol methyl ether
Table 4. Full list of the chemicals in the green category and their physicochemical properties. The table is divided by state at room temperature.
Table 4. Full list of the chemicals in the green category and their physicochemical properties. The table is divided by state at room temperature.
ChemicalCAS-NumberReferencesMolecular WeightlogKowVapour Pressure (Pa at 20–25 °C)Acute ToxicitySolubility at 20/25 °C (mg/L)
Liquids2-ethylhexyl salicylate118-60-5[23,24,25,26]250.36.360.018>5000 mg/kg—Dermal—Rat<0.5
Benzyl alcohol100-51-6[27]108.11.113.32000 mg/kg—Dermal—Rabbit40,000
Benzyl salicylate118-58-1[28,29]228.24.310.0114,150 mg/kg—Dermal—Rabbit8.8
Butyl lactate138-22-7[30]146.20.853>5000 mg/kg—Dermal—Rabbit40
DEET134-62-3[31,32,33,34,35,36,37,38]191.32.020.264280 mg/kg—Dermal—Rabbit<1000
Dibutyl adipate105-99-7[39]258.44.170.02119,000 mg/kg—Dermal—Rabbit35
Dibutyl phthalate84-74-2[40,41,42,43]278.34.50.002620,000 mg/kg—Dermal—Rabbit11.4
Diethyl phthalate84-66-2[40,41,42,43,44]222.22.420.26>22,400 mg/kg—Dermal—Rat932
Diethyl sebacate110-40-7[39]258.43.920.06714,470 mg/kg—Oral—Rat16
Diethylhexyl adipate103-23-1[39,45]370.68.10.0001>2000 mg/kg—Dermal—Rat0.0032
Diethylhexyl sebacate122-62-3[39]426.710.080.000024>15,029 mg/kg—Dermal—Rabbit<1
Diisopropyl adipate6938-94-9[39]230.33.395.946>2000 mg/kg—Dermal—Rat500
Diisopropyl sebacate7491-02-3[39]286.44.630.13>2000 mg/kg—Oral—Mouse2
Dimethyl malonate108-59-8[39]132.1−0.05120>5000 mg/kg—Dermal—Rabbit99,000
Dioctyl terephthalate4654-26-6[44]390.68.340.001>19,680 mg/kg—Dermal—Guinea pig0.0002
Ethyl benzoate93-89-0[45]150.22.6424>2000 mg/kg—Dermal—Rabbit720
Homosalate118-56-9[26]262.36.340.015>5000 mg/kg—Dermal—Rabbit0.4
Isobutyl benzoate120-50-3[45]178.23.233.5420,000 mg/kg—Dermal—Rabbit98.3
Isopropyl lactate617-51-6[30]132.20.3182.932500 mg/kg—Intramuscular—Guinea pig183,000
Methyl benzoate93-58-3[45]136.22.1250.66>2000 mg/kg—Dermal—Rat2100
Methyl lactate547-64-8[30]104.1−0.67466.6>2000 mg/kg—Oral—RatMiscible
Methyl salicylate119-36-8[11,12,14,22,46]152.22.554.57700 mg/kg—Dermal—Guinea Pig625
Musk ambrette83-66-9[47]268.340.0017>2000 mg/kg—Dermal—Rabbit2.41
Octocrylene6197-30-4[48]361.56.10.0000042>2000 mg/kg—Dermal—Rat0.04
Octyl methoxycinnamate5466-77-3[25,26,49,50]290.46.10.003>5000 mg/kg—Dermal—Rat<1
Propylene glycol57-55-6[51]76.1−0.9210.620,800 mg/kg—Dermal—RabbitMiscible
Tocopheryl acetate58-95-7[52]472.710.891.12>3000 mg/kg—Dermal—Rat<1000
SolidsAmmonium glycyrrhizate53956-04-0[27]840−0.9Presumed 012,700 mg/kg—Oral—Mouse1000
Avobenzone70356-09-1[50]310.44.510.00018>1000 mg/kg—Dermal—Rat2.2
Benzoic acid65-85-0[45,53]122.11.870.0910,000 mg/kg—Dermal—Rabbit3000
Bisdisulizole disodium180898-37-7[54]674.6−20.00014>20 000 mg/kg—Dermal—Rat509
Cetyl alcohol36653-82-4[45]242.46.830.0008>2600 mg/kg—Dermal—Rabbit0
Coumarin91-64-5[55,56]146.11.390.12>2000 mg/kg—Dermal—Rat1700
Curcumin458-37-7[57]368.43.294.1 × 10−10>5000 mg/kg—Dermal—Rabbit3
Diisocetyl dodecanedioate131252-83-0[39]679.118.94.7 × 10−12>5000 mg/kg—Oral—Rat0
Disodium sebacate17265-14-4[39]246.2−4.90.000133322>2000 mg/kg—Dermal—Rat19,880
Rosmarinic acid20283-92-5[58]360.31.821.4 × 10−10561 mg/kg—Intravenous—Mouse41
Sebacic acid111-20-6[39]202.32.20.0000073>2000 mg/kg—Dermal—Rat1000
Sodium adipate7486-38-6[39]190.1−5.030.002>7940 mg/kg—Dermal—Rabbit50,000
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
