Decreased Methane Emissions Associated with Methanogenic and Methanotrophic Communities in a Pig Manure Windrow Composting System under Calcium Superphosphate Amendment

Jiangsu Key Laboratory of Low Carbon Agriculture and GHGs Mitigation, College of Resources and Environmental Sciences, Nanjing Agricultural University, Nanjing 210095, China
Institute of Agricultural Resources and Environment, Jiangsu Academy of Agricultural Sciences, Nanjing 210014, China
Jiangsu Key Lab and Engineering Center for Solid Organic Waste Utilization, Jiangsu Collaborative Innovation Center for Solid Organic Waste Resource Utilization, Nanjing Agricultural University, Nanjing 210095, China
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(12), 6244;
Submission received: 7 April 2021 / Revised: 1 June 2021 / Accepted: 2 June 2021 / Published: 9 June 2021


With the rapid growth of livestock breeding, manure composting has evolved to be an important source of atmospheric methane (CH4) which accelerates global warming. Calcium superphosphate (CaSSP), as a commonly used fertilizer, was proposed to be effective in reducing CH4 emissions from manure composting, but the intrinsic biological mechanism remains unknown. Methanogens and methanotrophs both play a key role in mediating CH4 fluxes, therefore we hypothesized that the CaSSP-mediated reduction in CH4 emissions was attributed to the shift of methanogens and methanotrophs, which was regulated by physicochemical parameter changes. To test this hypothesis, a 60-day pig manure windrow composting experiment was conducted to investigate the response of CH4 emissions to CaSSP amendment, with a close linkage to methanogenic and methanotrophic communities. Results showed that CaSSP amendment significantly reduced CH4 emissions by 49.5% compared with the control over the whole composting period. The decreased mcrA gene (encodes the α-subunit of methyl-coenzyme M reductase) abundance in response to CaSSP amendment suggested that the CH4 emissions were reduced primarily due to the suppressed microbial CH4 production. Illumina MiSeq sequencing analysis showed that the overall distribution pattern of methanogenic and methanotrophic communities were significantly affected by CaSSP amendment. Particularly, the relative abundance of Methanosarcina that is known to be a dominant group for CH4 production, significantly decreased by up to 25.3% accompanied with CaSSP addition. Only Type I methanotrophs was detected in our study and Methylocaldum was the dominant methanotrophs in this composting system; in detail, CaSSP amendment increased the relative abundance of OTUs belong to Methylocaldum and Methylobacter. Moreover, the increased SO42− concentration and decreased pH acted as two key factors influencing the methanogenic and methanotrophic composition, with the former has a negative effect on methanogenesis growth and can later promote CH4 oxidation at a low level. This study deepens our understanding of the interaction between abiotic factors, function microbiota and greenhouse gas (GHG) emissions, as well as provides implication for practically reducing composting GHG emissions.

1. Introduction

Methane (CH4) is the second largest contributor to the radiative forcing of the atmosphere, and its global warming potential is 25 times that of carbon dioxide (CO2) on a mass basis in a 100-year time frame [1]. The CH4 emissions from livestock production accounted for 12–41% of the total agricultural CH4 emissions [2,3]. In China, CH4 emissions from manure management were estimated to be 3.2 Tg in 2014, accounting for 14.2% of agricultural total of CH4 emissions [4]. According to the “Technical specification for sanitation treatment of livestock and poultry manure” issued in 2018 [5], composting can be the key technology for the sanitation and recycling of animal manure and anaerobic digestate due to its cost-effective advantages. Additionally, compost also provides a vital link in ecological cycle agriculture model combining planting and breeding, however, its contribution to CH4 emissions is of increasing concerns [6,7].
The CH4 emissions from manure composting systems is a microbe-dominated process that depends on the balance between CH4 production and oxidation [8,9]. Generally, pathways of methanogens for generating CH4 included: (A) methanogenesis from H2/CO2 or formate; (B) methanogenesis from methanol; and (C) methanogenesis from acetate [10]. On the other hand, methanotrophs are responsible for CH4 oxidation, which can utilize CH4 as carbon source and energy, and all known species of methanotrophs were divided into two types, Type I and Type II, belonging to phylum proteobacteria in the relative classes Gammaproteobacteria and Alphaproteobacteria [11]. To analyze and quantify methanogenic and methanotrophic communities, the highly conserved mcrA and pmoA genes encoding the α-subunits of methyl-coenzyme M reductase and particulate membrane bound methane monooxygenase have been widely used [9,12,13]. Collectively, the combined performance of both methanogenic and methanotrophic microorganisms together contributes to the net yield of CH4 emissions. Numerous studies have focused on the methanogens and methanotrophs in paddy soils, water environments and rumen systems [14,15,16]. Unfortunately, few experiments have concentrated on the diversity and composition of methanogens and methanotrophs in manure composting systems, even though manure compost is an important source of CH4 [17].
Calcium superphosphate (CaSSP), as a commonly used fertilizer, was proposed to be effective in reducing CH4 emissions and improving the quality of the final product during the manure composting process [18]. In addition, the amendment of CaSSP may affect the physiochemical properties (e.g., pH, SO42− and temperature) which way induce changes in microbial community composition and their activities [19]. Peng et al. [20] has shown that in a chicken manure compost, lower pH caused by calcium superphosphate addition can significantly affect the main bacterial families. Furthermore, the increase in SO42− concentration can also inhibit methanogens growth due to the competition for organic carbon and energy source [21]. However, in manure composting, more research is needed to conduct a study about the intrinsic biological mechanism in mitigating CH4 emissions, that is what are the effects of CaSSP addition on the population and community of methanogens and methanotrophs that are sensitive to the changes in abiotic factors, and particularly, it remains unclear how the functional microbial communities interact with those abiotic factors in reducing CH4 emissions from manure composting [18,22]. Therefore, an insight into the behavior of methanogenic and methanotrophic communities following CaSSP amendment in manure composting is expected to better understand the potential mechanisms for driving GHG mitigation.
An in situ measurement of CH4 fluxes from a windrow manure composting system was conducted to investigate the effects of CaSSP on CH4 production and oxidation. The q-PCR and Illumina MiSeq sequence methods were used to measure the abundance and composition of methanogenic and methanotrophic communities during the composting process. The main objectives of this study were first to examine the abundance and communities of methanogenic and methanotrophic in response to CaSSP amendment in manure composting system; we also attempted to explore the linkage between the key abiotic factors and CH4-related functional microbes. We hypothesized that the CH4 emissions reduced following CaSSP amendment in manure composting systems could be closely associated with the combined performance of methanogenic and methanotrophic communities (i.e., abundance, composition, and activity), which are mediated by the altered physicochemical characteristics.

2. Materials and Methods

2.1. Windrow Composting Construction

The windrow composting experiment was conducted in a fertilizer company, located at Nanjing, Jiangsu province, China. The detailed composting design was referred to by Jin et al. [23]. Two treatments were designed including the control without calcium superphosphate (CaSSP) addition, and the CaSSP treatment receiving the amendment at a weight of 5% (w/w, DW) of the raw composting materials. Three replicate windrow composting piles were constructed for each treatment using a mixture of pig manure solids and straw with a mixing ratio of 6:1 on a dry weight basis. The size of the windrow in this study was about 12 m × 1.5 m × 1 m (length × width × height). Gas sampling was carried out for each pile separately, and in addition to that, composting materials samples were collected near the positions of gas sampling.

2.2. Measurement of CH4 Fluxes

Static chamber-gas chromatograph (GC) method was carried out to measure the CH4 fluxes during the composting progress [24,25]. Gas samples were collected once or twice each week. The PVC chamber collar bases (0.3 m length × 0.3 m width × 0.25 cm height) were pre-inserted 0.25 m into the pile 10–12 h before each gas sampling to minimize the disturbance [18]. The top edge of the collar had a groove (5 cm in depth) for filling with water to ensure the sealing property of the device. The opaque chamber was designed as a size of 0.3 m long × 0.3 m wide × 0.5 m tall. While gas sampling, the chamber was placed on the top of each air grid, and the edges of the chambers coincided with the grooves in the collar. Gas samples were collected at 0, 5, 10, 20 and 30 min after chamber closure between 8:00 and 10:00 am on each sampling day, respectively [25,26,27]. After gas sampling, the samples were then immediately transported to the laboratory for analysis by gas chromatograph (GC).
The mixing ratio of CH4 was analyzed by a modified gas chromatograph (Agilent 7890, Santa Clara, CA, USA) which was equipped with a flame ionization detector (FID) [28,29]. The oven was operated at 55 °C while the FID was at 200 °C. The flow rate of carrier gas (N2) was 30 mL min−1. The average flux which was taken from three parallel sections within each windrow represented the flux measurement of the sampled grid on each sampling day. For each treatment, average fluxes, and standard deviations of CH4 fluxes were calculated from three replicate windrows. CH4 emissions during composting were sequentially accumulated from the fluxes between two adjacent measurement intervals [28,29,30].

2.3. Physicochemical Parameters Determination

At each time for gas flux sampling, 300 g of composting samples were also collected and divided into three parts. The first part was air-dried and ground to pass through a 1 mm sieve and 2 mm sieve for pH, total carbon (TC) and total nitrogen (TN) analyses, respectively. The second part was used to analyze soil-based physicochemical properties. The remaining part was used at −80 °C for molecular analysis. Soil pH was determined with a soil-to-water ratio of 1:2.5 by pH electrode (PHS-3C mv/pH detector, Shanghai, China). The moisture content of each fresh sample was determined by constant weight loss upon drying at 105 °C for 24 h. Soil nitrate (NO3-N) concentrations were measured following two-wavelength ultraviolet spectrometry at 220 and 275 nm, and ammonium (NH4+-N) concentrations were measured using the indophenol blue method (HITACHI, U-2900, Tokyo, Japan). The C/N ratio was calculated based on the total carbon (TC) and total nitrogen (TN) concentrations which were determined by an auto elemental analyzer (Vario EL III, Elementar, Hanau, Germany). Dissolved organic carbon (DOC) was determined by ultraviolet-enhanced persulfate digestion and infrared detection (Phoenix 8000, Teledyne Tekmar, Cincinnati, USA) The data of physicochemical parameters are listed in Table S1 and referenced Jin et al. [23].

2.4. DNA Extraction and Real-Time Quantitative PCR (q-PCR) Assays of the Functional Genes

During the composting time, manure samples (days 1, 10, 17, 24, 31 and 38) were selected for DNA extraction at which time the gas flux was sampled. DNA samples were extracted from manure (0.5 g) with the MoBio PowerSoilTM DNA Isolation Kits (Mo Bio Laboratories, Carlsbad, CA, USA). The concentration of DNA samples was determined by a Nanodrop (Thermo Scientific, Waltham, MA, USA). After that, the DNA samples were used for quantitative polymerase chain reaction (qPCR) and Illumina Miseq sequencing analysis.
Real-time quantification of mcrA and pmoA genes was conducted in a StepOneTM real-time PCR system (Applied Biosystems, Foster City, USA). The copy number of the mcrA and pmoA genes used the primer pair mals/mcrA-rev [31] and A189F/Mb66R [32], respectively. The q-PCR amplifications were performed in a total volume of 20 μL using a SYBR@ Premix Ex TaqTM (Takara, Dalian, China), with a reaction mixture which consisted of 10 μL SYBR@ Premix Ex Taq™ (Takara, Dalian, China), 0.4 μL each primer (10 μmol L−1), 0.4 μL ROX reference dye (50×), 2 μL template DNA and 6.8 μL sterile water. The amplified fragments for each gene were cloned in pMD 18-T vector and sequenced. The standard curves of both genes were prepared by using triplicate 10-fold dilutions of linear plasmid DNA. Amplification was performed in triplicate under the following cycling conditions: 30 s at 95 °C, sequenced by 40 cycles of 95 °C, 55 °C and 72 °C for 5 s, 30 s, and 15 s, respectively, and eventually a dissociation stage by a dissociation stage at 95 °C for 15 s, 55 °C for 30 s, and 95 °C for 15 s [17,33].

2.5. Illumina MiSeq Sequencing of mcrA and pmoA Genes

The community structure of methanogens and methanotrophs were assessed by Illumina MiSeq sequencing of mcrA and pmoA genes, respectively. The mals/mcrA-rev [31] and A189F/Mb66R [34] primers were set up for the amplification of mcrA and pmoA genes, respectively. The Axyprep DNA Gel Extraction Kit (Axygen Biosciences, Union City, CA, USA) was used to purify the targeted bonds (approximately 410 bp for mcrA and 478 bp for pmoA), and QuantiFluorTM-ST (Promega, Madison, WI, USA) was employed to quantify the targeted bonds. For each sample, the PCR was repeated in triplicate, after that the three PCR products were mixed together. The PCR products of each DNA sample were evaluated by 2% agarose gel electrophoresis. The equimolar purified amplicons were pooled, and pair-end sequenced (2 × 250) on the Illumina MiSeq platform according to the standard protocols at Shanghai BIOZERON Biotechnology Co., Ltd. (Shanghai, China). The Illumina Miseq sequencing data are available in the NCBI Sequence Read Archive (SRA) database under accession number PRJNA661995.

2.6. Analysis of Illumina MiSeq Sequencing Data

According to Caporaso et al. [35], three criteria were followed for demultiplexing and quantity-filtering the raw mcrA and pmoA sequences by Quantitative Insights Into Microbial Ecology (QIIME) (Version 1.17) after sequencing was completed: (1) sequences with reads shorter than 200 bp and a quantity score below 25 were discarded from further analysis; (2) sequences were clustered into operational taxonomy units (OTUs) at 97% identity threshold; (3) chimeric sequences were identified and removed by using UCHIME [36]. The mcrA sequences were binned into species-level OTUs at 84% sequence identity which corresponded with 97% similarities based on 16S rRNA gene by using UCLUST [37] while pmoA sequences which shared 87% similarity (corresponding to 97% similarities based on 16S rRNA gene) were also binned into species-level OTUs with UCLUST [38]. The phylogenetic affiliation analysis of each mcrA and pmoA gene sequence was introduced by RDP Classifier against the silva 104 database ( (accessed on May 10 2019)) with a confidence threshold of 70%.
To calculate the alpha-diversity of a methanogen community, the abundance-based coverage estimator (ACE), Chao 1 estimator, Shannon diversity and Good’s coverage were calculated. Principal co-ordinates analysis (PCoA) was carried out to express the relationship between the structure of methanogenic and methanotrophic communities and CH4 fluxes.

2.7. Statistical Analysis

One-way analysis of variance (ANOVA) was performed to examine the effects of CaSSP on soil chemical properties over the composting time. A pairwise correlation was conducted for each pair of variables, including CH4 fluxes, the abundance of functional genes, physicochemical parameters, and the relative abundance of genera. Statistical significance was determined at the 0.05 probability level. A linear model with ordinary least squares (OLS) was used to fit the correlations of CH4 fluxes with methanogenic and methanotrophic abundances. A t-test was used to examine the statistical significance of parameter estimates in the simulated OLS model. All target variables are expressed as means of replicates. A permutational multivariate analysis of variance (PERMNOVA) was conducted using the Adonis function in R vegan package with 999 permutations to test the significance of factors which accounted for the divergence in communities of methanogen and methanotroph (standard Mantel test). Bray–Curtis-based principal co-ordinates analysis (PCoA) was employed to analyze the microbial community compositions and the treatments. Statistical analyses were carried out by SPSS 20.0 (IBM, Armonk, NY, USA) and R.

3. Results

3.1. CH4 Fluxes

During the 60-day composting, the similar trend of CH4 fluxes between control and CaSSP treatment was observed explicitly (Figure 1). The CH4 fluxes increased steadily to the largest fluxes on approximately 4–7 days after composting. After two weeks of composting, the CH4 fluxes showed a steady decrease until the end of the composting system. Total CH4 emissions mainly occurred during the early heating stage (1–10 days) of the compost, which accounted for 49.5–56.6% of the whole composting period. Compared with the control pile, the application of CaSSP significantly decreased the cumulative CH4 emissions by 33.80% (p < 0.05 by t-test) (128.27 g·m−2 vs. 193.75 g·m−2).

3.2. Methanogenic and Methanotrophic Abundances

The abundances of mcrA and pmoA genes showed a trade-off trend over the composting system (Figure 2a,b). The largest mcrA abundance was measured at Day 1 of composting, then gradually decreased and was maintained at low levels until the end of composting progress. On the contrary, the copy number of pmoA gene increased at the cooling and maturing phase of composting progress (after Day 24). The significant difference in mcrA copy number between two treatments was shown at the beginning of the compost (Day 1) while the pmoA copy number differed at the end of the composting (Day 38) (p < 0.05 by t-test). Furthermore, CaSSP amendment decreased the abundance of mcrA by 113.6% on Day 1 while increasing the abundance of pmoA by approximately 150% on Day 38. In the whole composting process, CH4 fluxes showed a positive correlation (r2 = 0.65, p < 0.01 by t-test) with mcrA abundance but showed no significant association with pmoA abundance across the two treatments. (Figure 3a,b). To be more specific, the difference in the abundance of mcrA appeared at the beginning of the compost in which time the dominant CH4 emissions occurred. Importantly, CaSSP addition caused the significant alternation of SO42− concentration and pH at this stage (p < 0.05 by t-test) (Table S1), therefore we can speculate that these two can be key factors inhibiting mcrA abundance. However, at the end of the compost, the mcrA abundance in two treatments were both kept low, thus we cannot detect the correlation between mcrA abundance and SO42− concentration or pH. Pairwise correlations indicated that mcrA abundance was significantly related to TC, C/N and DOC (Table S2), while all of the three parameters were rarely different between the two treatments (Table S1), suggesting they may not be the dominant factors involved in the CaSSP-repressed mcrA abundance (but maybe involved in the composting stage-mediated mcrA abundance alternation).

3.3. Response of Methanogenic and Methanotrophic Community to CaSSP Addition

Methanogenic and methanotrophic community structures were determined by Illumina MiSeq sequencing for mcrA and pmoA genes, respectively. CaSSP amendment did not significantly alter the α-diversity of methanogenic community (Table S3). Principal co-ordinates analysis (PCoA) recovered the differences of methanogenic and methanotrophic communities among two composting treatments (Figure 4a). The first principal component (38.33% of the contribution rate) differentiates the methanogenic communities of the control and CaSSP treatment in the bio-oxidative phase of the composting progress (Day 5), whereas non-significant variations in methanogenic community were observed on Day 31. The top nine abundant methanogenic genus in composting occupied almost 98% of all methanogenic groups on average (Figure 5a). Methanosarcina (48.3~72.3%), Methanoculleus (8.8~24%) and Methanobrevibacter (7.4~22.2%) were the three dominant genera in methanogenic community in the two composting phases (Day 5 and Day 31) of composting progress. Compared with Day 5, the relative abundance of Methanosarcina genus decreased by 35.3% on average in two treatments on Day 31, while Methanoculleus and Methanobrevibacter revealed higher relative abundances on Day 31 than Day 5. Importantly, the bio-oxidative phase (Day 5) that served as the dominant stage for CH4 emissions, and the CaSSP amendment distinctly decreased the relative abundance of Methanosarcina up to 25.3% as compared with the control. The relative abundances of these three dominant methanogen genera were similar between the two treatments on Day 31.
CaSSP amendment significantly decreased the α-diversity of methanotrophs at the cooling and maturing phase of the composting progress, as supported by ACE, Chao1 and Shannon indexes (p < 0.05 by t-test) (Table S3). For the methanotrophic composition, PCoA results revealed that about 90% of the total variability can be explained by the first two axes (Figure 4b). The results of PCoA showed that different periods of compost can affect methanotrophs. According to the phylogenetic classification, the top-9 abundant methanotrophic OTUs in this composting system all belonged to Methylocaldum and Methylobacter genus and accounted for approximately 90% of the methanotrophic community (Figure 5b). The relative abundances of these two genera were higher on the cooling and mature phase (Day 31) as compared with the bio-oxidative phage (Day 5). Methylocaldum (81.65~91.85%) was identified to be the most predominant group of methanotrophic community in this pig composting system (Figure 5b). Compared with the control, the CaSSP amendment did not alter the compositions of methanotrophic community at the genus level in the composting progress. However, in line with the results of standard Mantel test and PCoA analysis based on the OTU of methanotrophs, we speculate that different OTUs such as OTU1 and OTU2 belonging to Methylocaldum may have various degrees of influence on CH4 oxidation.
Furthermore, we performed a Mantel test to prove that both methanogenic and methanotrophic communities were significantly correlated with CH4 fluxes (999 unrestricted random permutations; p < 0.05; Table S4), revealing that the contribution of microbial composition shifting in gaseous mitigation. Within different physicochemical parameters during the composting (Table S1), TN, C/N, SO42− and DOC revealed a significant relationship with the methanogen community, while NH4+-N, pH, TN, TC and C/N were observed to correlate with methanotrophic community (Table S4). Importantly, only pH, NH4+-N and SO42− were shown to be significantly different across the two treatments (Table S1), implicating that they are likely to be involved in the CaSSP-affected microbial community shifting and CH4 mitigation.

4. Discussion

Windrow composting is one of the popular large-scale composting strategies, owing to its convenient and relatively lower cost [39]. In this study, the CaSSP-mediated significant reduction in CH4 fluxes during the composting progress was similar to previous reports [18,40,41], and both the emission peaks and substantial mitigation were observed at the bio-oxidative phase (Figure 1). The CH4 mitigation of CaSSP amendment could be attributed to the community shifts of methanogens and methanotrophs, which played important roles in CH4 emissions from composting [42].

4.1. Methane Production by Methanogenic Community

The maximal fluxes of CH4 from both Control and CaSSP treatments were observed in the first week (Figure 1), and the highest copy numbers of mcrA were also detected during the bio-oxidative phase (Figure 2a). In this phase, the decreased oxygen concentrations and increased temperatures of piles may have led to the priming effects on methanogenic activities responsible for CH4 production [43]. Importantly, the abundance of mcrA gene in CaSSP treatment were significantly lower than that in the control, which could be the main induction factor connected with lower CH4 emissions (p < 0.05 by t-test).
In addition to the population size of methanogens, their community structure also played a decisive role in CH4 production [44]. Previous research has revealed several distinct orders of methanogenic archaea associated with CH4 production, including Methanobacteriales, Methanosarcinales, Methanopyrales, Methanocellales, Methanomicrobiales, Methanococcales and Methanoplasmatales [45,46]. The predominant methanogenic orders found in our compost system were Methanosarcinales (50.5~74.5%), Methanobacteriales (15.1~29.0%) and Methanomicrobiales (9.2~24.4%), which were also detected in other manure systems and rice paddies amended with organic fertilizers [20,44,47]. Specifically, the genus Methanosarcina occupied more than 50% in the methanogenic community, suggesting that the acetoclastic methanogenic pathway may play key roles in methane production during the composting system.
Compared to control piles, CH4 emissions in the CaSSP treatment was clearly reduced by 33.8% and this reduction could be linked with the two dominant methanogenic genera, Methanosarcina and Methanobrevibacter (Figure 5a). According to Miller et al. and Mountfort et al. [48,49], Methanosarcina has a higher methane production potential than Methanobrevibacter. A previous study has revealed that population differentiation between Methanosarcina and Methanotrevibacter can lead to the decrease in CH4 emissions in cattle manure composting [44], and importantly, a higher abundance of Methanosarcina was related to more CH4 emissions. Coincidentally, in our pig manure compost system, the decrease in Methanosarcina and increase in Methanobrevibacter in response to CaSSP application should announce a lower CH4 production activity as compared with the control, which can also be verified by the significant positive correlation between CH4 fluxes and Methanosarcina abundances (p < 0.05 by t-test) (Figure 6). Generally, it can be inferred that the composition of methanogenic communities exerts an important influence on CH4 production and in this pig manure composting system, Methanosarcina, may be the key methanogenic group for CH4 fluxes from composting piles.

4.2. Methane Oxidation by Methanotrophic Community

CH4 emissions of composting progresses were reduced to a low level at the cooling and mature phase in both Control and CaSSP treatments, which may be related to the increased methanotrophic populations (Figure 2b). Consistently with our results, Chen et al. [44] also found that the abundance of pmoA showed a stably increased trend during the whole composting time. To our knowledge, CH4 emissions can be mitigated by both increasing methanotrophs and decreasing methanogens [13]. However, in this study, the copy numbers of methanotrophs did not show a clear relationship with CH4 fluxes (Figure 3b).
As a crucial group of methylotrophic bacteria, methanotrophs can use methane as their only carbon and energy source [50]. Previous studies reported that two major groups of methanotrophs, Type I and Type II, play an important role in methane oxidation [11]. Our results show that two genera, Methylocaldum and Methylobacter, in the family of Methylococcaceae, were the only two genera of Type I methanotrophs that existed in Control and CaSSP treatments, while Type II methanotrophs were not detected in the composting progress. This observation was in accordance with Chen et al. [44], but in contrast to the study performed under low CH4 and high O2 conditions [51]. In the present study, no obvious differences were obtained for the methanotrophic communities at the genus level between control and CaSSP treatment (p > 0.05 by t-test).

4.3. Physicochemical Parameters Involved in the CaSSP Affected CH4 Emissions during Composting

Based on the standard Mantel test, CH4 fluxes showed significant correlation with the community composition of methanogenic and methanotrophs in this composting system (Table S4). It can be inferred that CH4 fluxes in composting progress are mainly regulated by the methanogenic community [52]. The shifts of a methanogenic community with CaSSP amendment can be attributed to the accumulation of SO42− (p < 0.05 by t-test) (Tables S1 and S4). Linquist et al. [53] indicated that SO42− has a toxic effect on methanogens because of the competitive relationship between sulfate reducing bacteria and methanogens for organic carbon and other energy sources [54]. Reductions in SO42 can reduce substrate concentrations to a level inadaptable for the growth of methanogenesis, and for example, in this compost system, with the enhancement of SO42− concentration, the abundance of mcrA was decreased in CaSSP treatment at the beginning of the compost. Furthermore, we can also infer that the decrease in the relative Methanosarcina, to some extent, was attributed to the enhancement of SO42− concentration in CaSSP treatment (Figure 5a and Table S1). Therefore, the accumulated SO42− concentration brought by CaSSP amendment can be a primary factor that inhibited the growth of key methanogenesis genus and decreased CH4 emissions.
In addition, compared with the control pile, the pH values of CaSSP treatment were moderately lower due to the low pH values of CaSSP (pH = 4.32) [40], which was detected to be correlated with the methanotrophic community structure and can promote CH4 oxidation (Table S4). Furthermore, in this study, pmoA abundance showed a significant and negative relationship with pH value (p < 0.05 by t-test) (Table S2). On the other hand, the increased NH4+ concentration under lower pH also contributed to CH4 oxidation [18,22,55]. We developed a conceptual diagram that explains how adding CaSSP affected CH4 fluxes: in response to CaSSP application, the alternation of physicochemical parameters such as pH and SO42− concentration, play the regulated role in affecting mcrA and pmoA abundance and reshaping methanogenic and methanotrophic communities, especially the key group of methanogenic community (Figure 7).

5. Conclusions

Calcium superphosphate (CaSSP) amendment to the compost was confirmed as an innovative management method for CH4 mitigation. The reduction in CH4 emissions with the addition of CaSSP in compost could be attributed to the increased SO42− concentration which can finally reduce the population of methanogens (mcrA abundance) and affect methanogens (e.g., Methanosarcina) growth. A decrease in pH value can regulate pmoA abundance and the succession of the methanotrophic community, although there were no significant changes in methanotrophic community composition (on the level of genus). Therefore, we suggest CaSSP can change the physiochemical properties (pH and SO42− had the main effect) in manure compost which affected the population and composition of methanogenic and methanotrophic community.
In this study, pH and SO42− played an important role in regulating the population and composition of methanogenic and methanotrophic communities after adding CaSSP in manure compost. However, there were also other driving factors (e.g., phosphorus and calcium) mitigating CH4 emissions that we did not detect. When conducting subsequent studies, it is necessary to consider various factors and evaluate the influences of CaSSP addition on CH4 production and oxidation processes comprehensively. Moreover, we observed that the methanogens and methanotrophs had a different response to CaSSP amendment on different classification levels, so laboratory experiments such as culture can be conducted for further study in the future.

Supplementary Materials

The following are available online at, Table S1 Manure properties (mean ± SE, n = 3) from two treatments at different dates of the compost. Control, manure fertilizer, CaSSP, manure fertilizer in combination with superphosphate., Table S2 The diversity of methanogenic and methanotroph communities as affected by different fertilization during the compost. Different letters among treatments indicate significant difference at p < 0.05 possibility level., Table S3 Methanogenic and methanotrophic community structures for tests of manure properties using the standard Mantel test.

Author Contributions

Y.Z., X.S., S.L. (Shuqing Li) and J.Z. conceived and designed research. Y.Z., M.H., F.Z. and X.S. conducted experiments. Y.Z. and S.L. (Shuqing Li) analyzed data. S.G. investigation. Y.Z., S.L. (Shuqing Li) and S.L. (Shuwei Liu) wrote the manuscript. All authors have read and agreed to the published version of the manuscript.


This work was funded by the National Key Research and Development Projects of China (2017YFD0800201).

Institutional Review Board Statement

This article does not contain studies with human participant or animals performed by any of the authors.

Informed Consent Statement

Not applicable.

Data Availability Statement

The sequences were submitted to the National Center for Biotechnology Information (PRJNA661995). Other data generated or analyzed during this study were included in this manuscript and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Intergovernmental Panel on Climate Change (IPCC). Climate Change 2013: The Physical Science Basis: Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, MA, USA, 2013. [Google Scholar]
  2. Oenema, O.; Tamminga, S. Nitrogen in global animal production and management options for improving nitrogen use efficiency. Sci. China Ser. C Life Sci. 2005, 48, 871–887. [Google Scholar] [CrossRef]
  3. Chadwick, D.; Sommer, S.; Thorman, R.; Fangueiro, D.; Cardenas, L.; Amon, B.; Misselbrook, T. Manure management: Implications for greenhouse gas emissions. Anim. Feed Sci. Technol. 2011, 166–167, 514–531. [Google Scholar] [CrossRef]
  4. Ministry of Ecology and Environment of the People’s Republic of China. The Third National Communication on Climate Change of the People’s Republic of China. (TNCCCC). 2018. Available online: (accessed on 1 December 2018).
  5. Ministry of Agriculture and Rural Affairs of the People’s Republic of China. Technical Specification for Sanitation Treatment of Livestock and Poultry Manure; Ministry of Agriculture and Rural Affairs of the People’s Republic of China: Beijing, China, 2018.
  6. Zheng, J.; Liu, J.; Han, S.; Wang, Y.; Wei, Y. N2O emission factors of full-scale animal manure windrow composting in cold and warm seasons. Bioresour. Technol. 2020, 316, 123905. [Google Scholar] [CrossRef] [PubMed]
  7. Bai, M.; Impraim, R.; Coates, T.; Flesch, T.; Trouvé, R.; van Grinsven, H.; Cao, Y.; Hill, J.; Chen, D. Lignite effects on NH3, N2O, CO2 and CH4 emissions during composting of manure. J. Environ. Manag. 2020, 271. [Google Scholar] [CrossRef]
  8. Cai, Z.; Xu, H.; Ma, J. Methane and Nitrous Oxide Emissions from Rice-Based Ecosystems; University of Science and Technology of China Press: Hefei, China, 2019. [Google Scholar]
  9. Sonoki, T.; Furukawa, T.; Jindo, K.; Suto, K.; Aoyama, M.; Sánchez-Monedero, M.Á. Influence of biochar addition on methane metabolism during thermophilic phase of composting. J. Basic Microbiol. 2013, 53, 617–621. [Google Scholar] [CrossRef] [PubMed]
  10. Liu, Y.; Whitman, W.B. Metabolic, phylogenetic, and ecological diversity of the methanogenic archaea. Ann. N. Y. Acad. Sci. 2008, 1125, 171–189. [Google Scholar] [CrossRef]
  11. McDonald, I.R.; Radajewski, S.; Murrell, J.C. Stable isotope probing of nucleic acids in methanotrophs and methylotrophs: A review. Org. Geochem. 2005, 36, 779–787. [Google Scholar] [CrossRef]
  12. Kim, S.Y.; Lee, S.H.; Freeman, C.; Fenner, N.; Kang, H. Comparative analysis of soil microbial communities and their responses to the short-term drought in bog, fen, and riparian wetlands. Soil Biol. Biochem. 2008, 40, 2874–2880. [Google Scholar] [CrossRef]
  13. Sharma, R.; Ryan, K.; Hao, X.; Larney, F.J.; McAllister, T.A.; Topp, E. Real-Time Quantification of mcr A, pmo A for Methanogen, Methanotroph Estimations during Composting. J. Environ. Qual. 2011, 40, 199–205. [Google Scholar] [CrossRef]
  14. Wanapat, M.; Cherdthong, A.; Phesatcha, K.; Kang, S. Dietary sources and their effects on animal production and environmental sustainability. Anim. Nutr. 2015, 1, 96–103. [Google Scholar] [CrossRef]
  15. Iguchi, H.; Umeda, R.; Taga, H.; Oyama, T.; Yurimoto, H.; Sakai, Y. Community composition and methane oxidation activity of methanotrophs associated with duckweeds in a fresh water lake. J. Biosci. Bioeng. 2019, 128, 450–455. [Google Scholar] [CrossRef] [PubMed]
  16. Xu, X.; Zhang, M.; Xiong, Y.; Yuan, J.; Shaaban, M.; Zhou, W.; Hu, R. The influence of soil temperature, methanogens and methanotrophs on methane emissions from cold waterlogged paddy fields. J. Environ. Manag. 2020, 264, 110421. [Google Scholar] [CrossRef]
  17. Li, S.; Song, L.; Gao, X.; Jin, Y.; Liu, S.; Shen, Q.; Zou, J. Microbial abundances predict methane and nitrous oxide fluxes from a windrow composting system. Front. Microbiol. 2017, 8, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Yang, F.; Li, G.; Shi, H.; Wang, Y. Effects of phosphogypsum and superphosphate on compost maturity and gaseous emissions during kitchen waste composting. Waste Manag. 2015, 36, 70–76. [Google Scholar] [CrossRef] [PubMed]
  19. Bello, A.; Han, Y.; Zhu, H.; Deng, L.; Yang, W.; Meng, Q.; Sun, Y.; Egbeagu, U.U.; Sheng, S.; Wu, X.; et al. Microbial community composition, co-occurrence network pattern and nitrogen transformation genera response to biochar addition in cattle manure-maize straw composting. Sci. Total Environ. 2020, 721, 137759. [Google Scholar] [CrossRef]
  20. Peng, S.; Li, H.; Xu, Q.; Lin, X.; Wang, Y. Addition of zeolite and superphosphate to windrow composting of chicken manure improves fertilizer efficiency and reduces greenhouse gas emission. Environ. Sci. Pollut. Res. 2019, 26, 36845–36856. [Google Scholar] [CrossRef]
  21. Pennock, D.; Yates, T.; Bedard-Haughn, A.; Phipps, K.; Farrell, R.; McDougal, R. Landscape controls on N2O and CH4 emissions from freshwater mineral soil wetlands of the Canadian Prairie Pothole region. Geoderma 2010, 155, 308–319. [Google Scholar] [CrossRef]
  22. Yuan, J.; Li, Y.; Chen, S.; Li, D.; Tang, H.; Chadwick, D.; Li, S.; Li, W.; Li, G. Effects of phosphogypsum, superphosphate, and dicyandiamide on gaseous emission and compost quality during sewage sludge composting. Bioresour. Technol. 2018, 270, 368–376. [Google Scholar] [CrossRef] [PubMed]
  23. Jin, Y.; Miao, Y.; Geng, Y.; Huang, M.; Zhang, Y.; Song, X.; Li, S.; Zou, J. Calcium superphosphate-mediated reshaping of denitrifying bacteria community contributed to n2 o mitigation in pig manure windrow composting. Int. J. Environ. Res. Public Health 2021, 18, 171. [Google Scholar] [CrossRef]
  24. Hao, X.; Larney, F.J. Greenhouse gas emissions during co-composting of cattle feedlot manure with construction and demolition (C&D) waste. Front. Environ. Sci. Eng. 2017, 11, 15. [Google Scholar] [CrossRef]
  25. Zou, J.; Huang, Y.; Jiang, J.; Zheng, X.; Sass, R.L. A 3-year field measurement of methane and nitrous oxide emissions from rice paddies in China: Effects of water regime, crop residue, and fertilizer application. Glob. Biogeochem. Cycles 2005, 19, 1–9. [Google Scholar] [CrossRef]
  26. Bertora, C.; Peyron, M.; Pelissetti, S.; Grignani, C.; Sacco, D. Assessment of methane and nitrous oxide fluxes from paddy field by means of static closed chambers maintaining plants within headspace. J. Vis. Exp. 2018, 2018, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Kong, D.; Li, S.; Jin, Y.; Wu, S.; Chen, J.; Hu, T.; Wang, H.; Liu, S.; Zou, J. Linking methane emissions to methanogenic and methanotrophic communities under different fertilization strategies in rice paddies. Geoderma 2019, 347, 233–243. [Google Scholar] [CrossRef]
  28. Zou, J.; Liu, S.; Qin, Y.; Pan, G.; Zhu, D. Sewage irrigation increased methane and nitrous oxide emissions from rice paddies in southeast China. Agric. Ecosyst. Environ. 2009, 129, 516–522. [Google Scholar] [CrossRef]
  29. Qin, Y.; Liu, S.; Guo, Y.; Liu, Q.; Zou, J. Methane and nitrous oxide emissions from organic and conventional rice cropping systems in Southeast China. Biol. Fertil. Soils 2010, 46, 825–834. [Google Scholar] [CrossRef]
  30. Shang, Q.; Yang, X.; Gao, C.; Wu, P.; Liu, J.; Xu, Y.; Shen, Q.; Zou, J.; Guo, S. Net annual global warming potential and greenhouse gas intensity in Chinese double rice-cropping systems: A 3-year field measurement in long-term fertilizer experiments. Glob. Chang. Biol. 2011, 17, 2196–2210. [Google Scholar] [CrossRef]
  31. Steinberg, L.M.; Regan, J.M. Phylogenetic comparison of the methanogenic communities from an acidic, oligotrophic fen and an anaerobic digester treating municipal wastewater sludge. Appl. Environ. Microbiol. 2008, 74, 6663–6671. [Google Scholar] [CrossRef] [Green Version]
  32. Costello, A.M.; Lidstrom, M.E. Molecular characterization of functional and phylogenetic genes from natural populations of methanotrophs in lake sediments. Appl. Environ. Microbiol. 1999, 65, 5066–5074. [Google Scholar] [CrossRef] [Green Version]
  33. Wang, C.; Jin, Y.; Ji, C.; Zhang, N.; Song, M.; Kong, D.; Liu, S.; Zhang, X.; Liu, X.; Zou, J.; et al. An additive effect of elevated atmospheric CO2 and rising temperature on methane emissions related to methanogenic community in rice paddies. Agric. Ecosyst. Environ. 2018, 257, 165–174. [Google Scholar] [CrossRef]
  34. Holmes, A.J.; Costello, A.; Lidstrom, M.E.; Murrell, J.C. Evidence that participate methane monooxygenase and ammonia monooxygenase may be evolutionarily related. FEMS Microbiol. Lett. 1995, 132, 203–208. [Google Scholar] [CrossRef]
  35. Caporaso, J.G.; Kuczynski, J.; Stombaugh, J.; Bittinger, K.; Bushman, F.D.; Costello, E.K.; Fierer, N.; Peña, A.G.; Goodrich, J.K.; Gordon, J.I.; et al. QIIME allows analysis of high-throughput community sequencing data. Nat. Methods 2010, 7, 335–336. [Google Scholar] [CrossRef] [Green Version]
  36. Edgar, R.C.; Haas, B.J.; Clemente, J.C.; Quince, C.; Knight, R. UCHIME improves sensitivity and speed of chimera detection. Bioinformatics 2011, 27, 2194–2200. [Google Scholar] [CrossRef] [Green Version]
  37. Yang, S.; Liebner, S.; Alawi, M.; Ebenhöh, O.; Wagner, D. Taxonomic database and cut-off value for processing mcrA gene 454 pyrosequencing data by MOTHUR. J. Microbiol. Methods 2014, 103, 3–5. [Google Scholar] [CrossRef]
  38. Degelmann, D.M.; Borken, W.; Drake, H.L.; Kolb, S. Different atmospheric methane-oxidizing communities in European beach and Norway spruce soils. Appl. Environ. Microbiol. 2010, 76, 3228–3235. [Google Scholar] [CrossRef] [Green Version]
  39. Zhu-Barker, X.; Bailey, S.K.; Paw, U.K.T.; Burger, M.; Horwath, W.R. Greenhouse gas emissions from green waste composting windrow. Waste Manag. 2017, 59, 70–79. [Google Scholar] [CrossRef]
  40. Yang, Y.; Kumar Awasthi, M.; Du, W.; Ren, X.; Lei, T.; Lv, J. Compost supplementation with nitrogen loss and greenhouse gas emissions during pig manure composting. Bioresour. Technol. 2020, 297, 122435. [Google Scholar] [CrossRef]
  41. Zhang, D.; Luo, W.; Yuan, J.; Li, G.; Luo, Y. Effects of woody peat and superphosphate on compost maturity and gaseous emissions during pig manure composting. Waste Manag. 2017, 68, 56–63. [Google Scholar] [CrossRef] [PubMed]
  42. Ge, J.; Huang, G.; Li, J.; Han, L. Particle-scale visualization of the evolution of methanogens and methanotrophs and its correlation with CH4 emissions during manure aerobic composting. Waste Manag. 2018, 78, 135–143. [Google Scholar] [CrossRef] [PubMed]
  43. Ma, S.; Sun, X.; Fang, C.; He, X.; Han, L.; Huang, G. Exploring the mechanisms of decreased methane during pig manure and wheat straw aerobic composting covered with a semi-permeable membrane. Waste Manag. 2018, 78, 393–400. [Google Scholar] [CrossRef] [PubMed]
  44. Chen, R.; Wang, Y.; Wei, S.; Wang, W.; Lin, X. Windrow composting mitigated CH4 emissions: Characterization of methanogenic and methanotrophic communities in manure management. FEMS Microbiol. Ecol. 2014, 90, 575–586. [Google Scholar] [CrossRef] [Green Version]
  45. Angel, R.; Claus, P.; Conrad, R. Methanogenic archaea are globally ubiquitous in aerated soils and become active under wet anoxic conditions. ISME J. 2012, 6, 847–862. [Google Scholar] [CrossRef] [Green Version]
  46. Paul, K.; Nonoh, J.O.; Mikulski, L.; Brune, A. “Methanoplasmatales”, thermoplasmatales-related archaea in termite guts and other environments, are the seventh order of methanogens. Appl. Environ. Microbiol. 2012, 78, 8245–8253. [Google Scholar] [CrossRef] [Green Version]
  47. Zhou, G.; Gao, S.; Xu, C.; Dou, F.; Shimizu, K.Y.; Cao, W. Rational utilization of leguminous green manure to mitigate methane emissions by influencing methanogenic and methanotrophic communities. Geoderma 2020, 361, 114071. [Google Scholar] [CrossRef]
  48. Miller, T.L.; Currenti, E.; Wolin, M.J. Anaerobic bioconversion of cellulose by Ruminococcus albus, Methanobrevibacter smithii, and Methanosarcina barkeri. Appl. Microbiol. Biotechnol. 2000, 54, 494–498. [Google Scholar] [CrossRef] [PubMed]
  49. Mountfort, D.O.; Asher, R.A.; Bauchop, T. Fermentation of cellulose to methane and carbon dioxide by a rumen anaerobic fungus in a triculture with Methanobrevibacter sp. strain RA1 and Methanosarcina barkeri. Appl. Environ. Microbiol. 1982, 44, 128–134. [Google Scholar] [CrossRef] [Green Version]
  50. Bowman, J.P.; Sly, L.T.; Nichols, P.D.; Hayward, A.C. Erratum: Revised taxonomy of the methanotrophs: Description of Methylobacter gen. nov., emendation of Methylococcus, validation of Methylosinus and Methylocystis species, and a proposal that the family Methylococcaceae includes only the group I methanotrophs. Int. J. Syst. Bacteriol. 1994, 44, 375. [Google Scholar] [CrossRef] [Green Version]
  51. Amaral, J.A.; Knowles, R. Growth of methanotrophs in methane and oxygen counter gradients. FEMS Microbiol. Lett. 1995, 126, 215–220. [Google Scholar] [CrossRef]
  52. Kim, S.Y.; Jeong, S.T.; Ho, A.; Hong, C.O.; Lee, C.H.; Kim, P.J. Cattle manure composting: Shifts in the methanogenic community structure, chemical composition, and consequences on methane production potential in a rice paddy. Appl. Soil Ecol. 2018, 124, 344–350. [Google Scholar] [CrossRef]
  53. Linquist, B.A.; Adviento-Borbe, M.A.; Pittelkow, C.M.; van Kessel, C.; van Groenigen, K.J. Fertilizer management practices and greenhouse gas emissions from rice systems: A quantitative review and analysis. Field Crop. Res. 2012, 135, 10–21. [Google Scholar] [CrossRef]
  54. Stams, A.J.M.; Plugge, C.M. Electron transfer in syntrophic communities of anaerobic bacteria and archaea. Nat. Rev. Microbiol. 2009, 7, 568–577. [Google Scholar] [CrossRef]
  55. Sossa, K.; Alarcón, M.; Aspé, E.; Urrutia, H. Effect of ammonia on the methanogenic activity of methylaminotrophic methane producing Archaea enriched biofilm. Anaerobe 2004, 10, 13–18. [Google Scholar] [CrossRef]

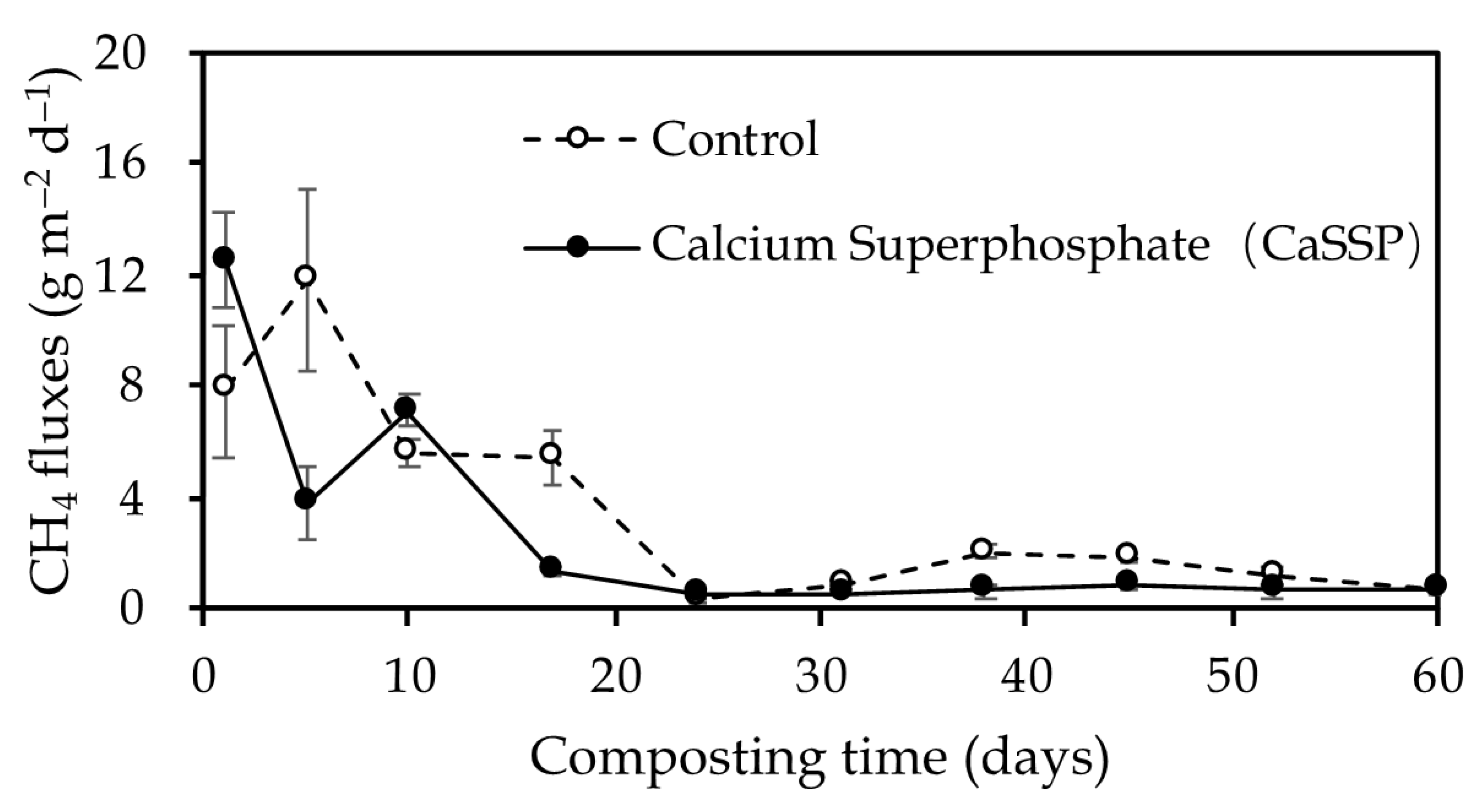

Figure 1. The dynamics of CH4 fluxes during the composting progress. Error bars show a standard error of the mean of triplicate compost windrows.
Figure 1. The dynamics of CH4 fluxes during the composting progress. Error bars show a standard error of the mean of triplicate compost windrows.
Ijerph 18 06244 g001

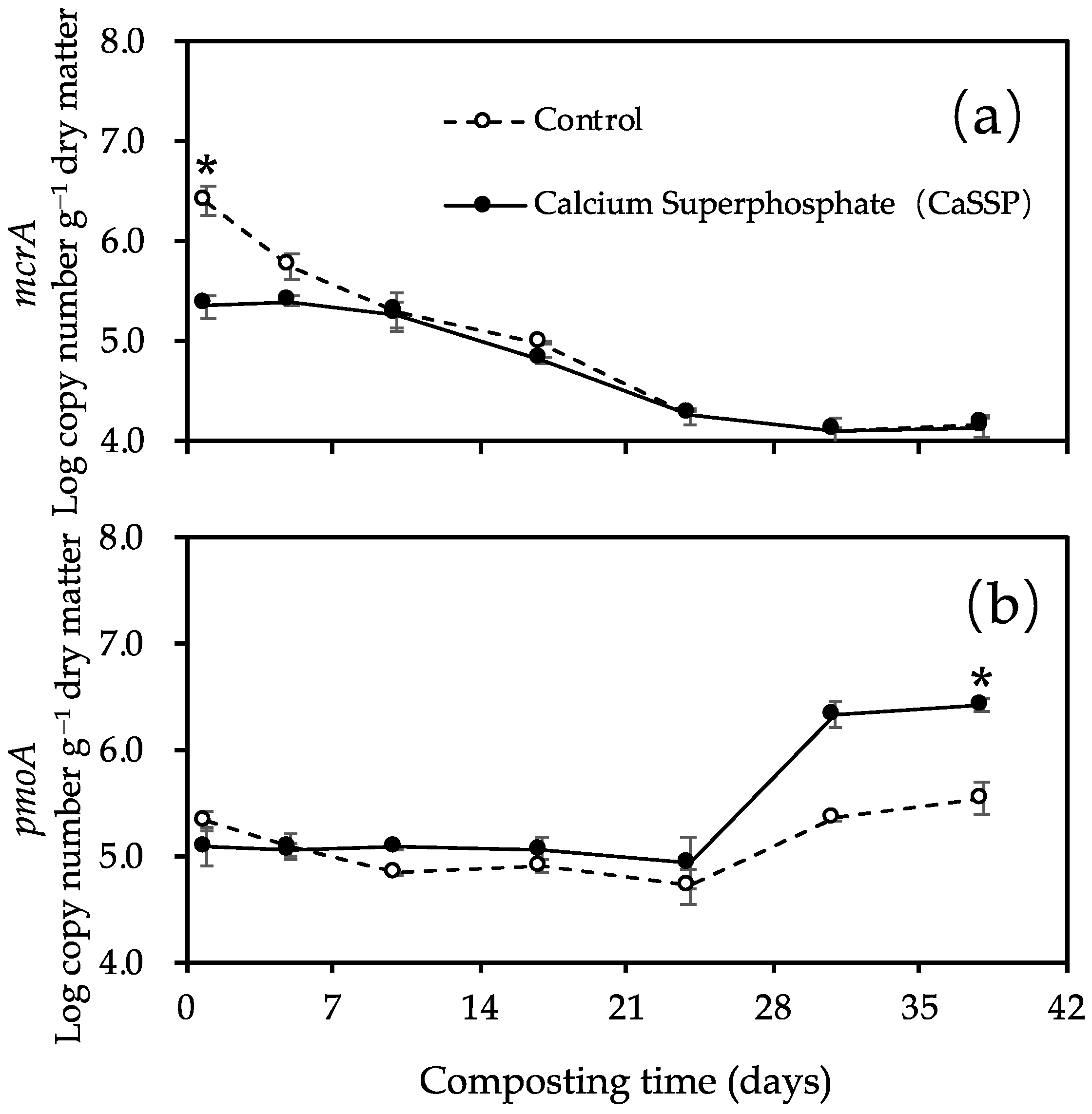

Figure 2. The mcrA (encodes the α-subunit of methyl-coenzyme M reductase) (a) and pmoA (encodes the α-subunit of particular membrane bound methane monooxygenase) (b) genes copy numbers as affected by CaSSP amendment during windrow manure composting. Control, manure composting; CaSSP, manure composting in combination with CaSSP. Vertical bars indicate standard errors of three replicates. * indicates statistically significant at p < 0.05 by t-test.
Figure 2. The mcrA (encodes the α-subunit of methyl-coenzyme M reductase) (a) and pmoA (encodes the α-subunit of particular membrane bound methane monooxygenase) (b) genes copy numbers as affected by CaSSP amendment during windrow manure composting. Control, manure composting; CaSSP, manure composting in combination with CaSSP. Vertical bars indicate standard errors of three replicates. * indicates statistically significant at p < 0.05 by t-test.
Ijerph 18 06244 g002

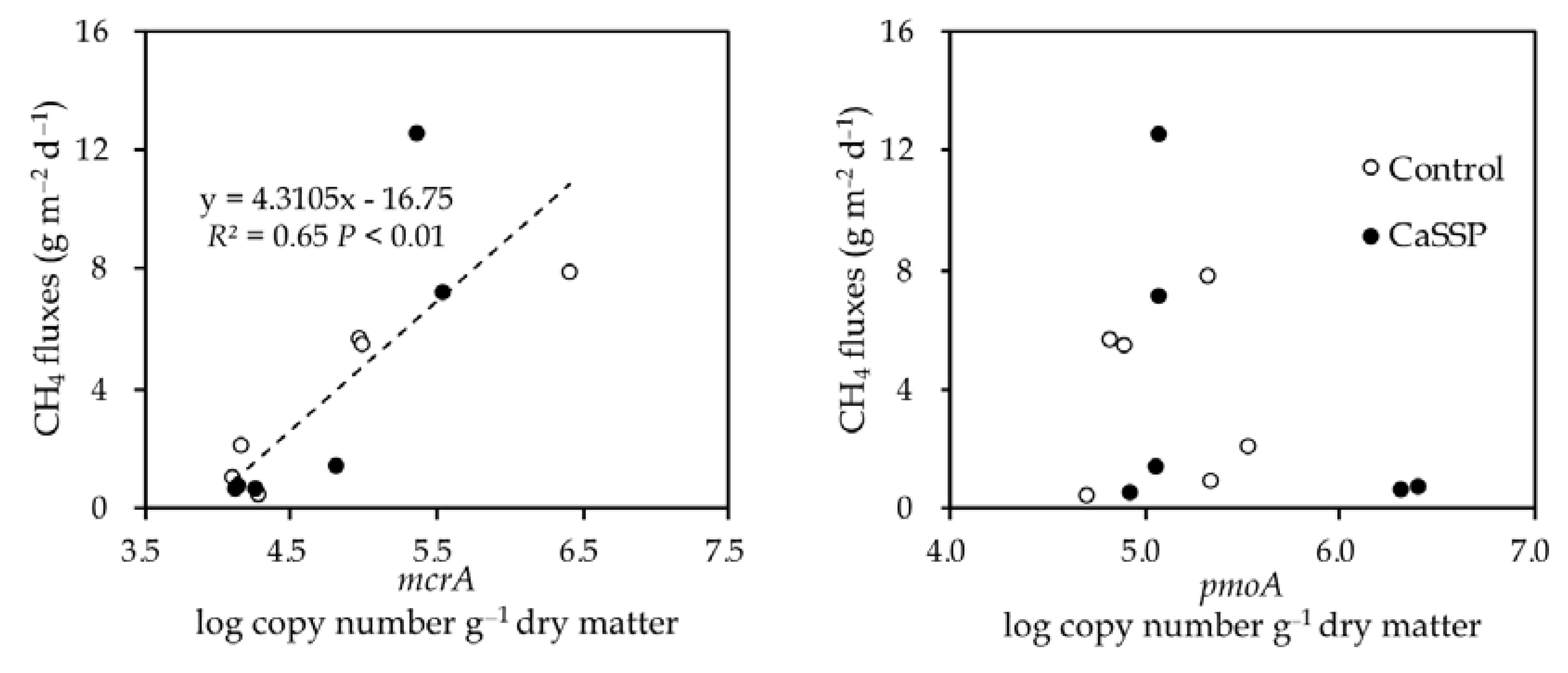

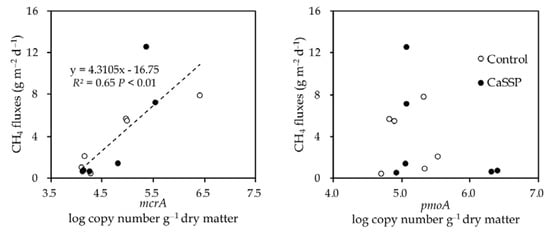

Figure 3. Dependency of CH4 fluxes on the abundance of mcrA (a) and pmoA (b) genes across different treatments. Treatments were defined as in Figure 1. SSP: superphosphate.
Figure 3. Dependency of CH4 fluxes on the abundance of mcrA (a) and pmoA (b) genes across different treatments. Treatments were defined as in Figure 1. SSP: superphosphate.
Ijerph 18 06244 g003

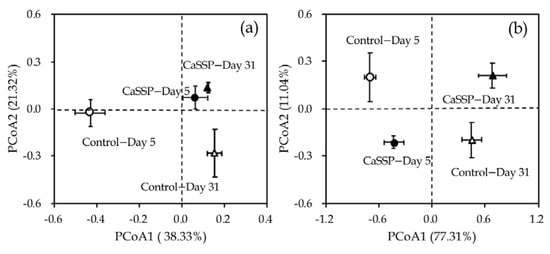

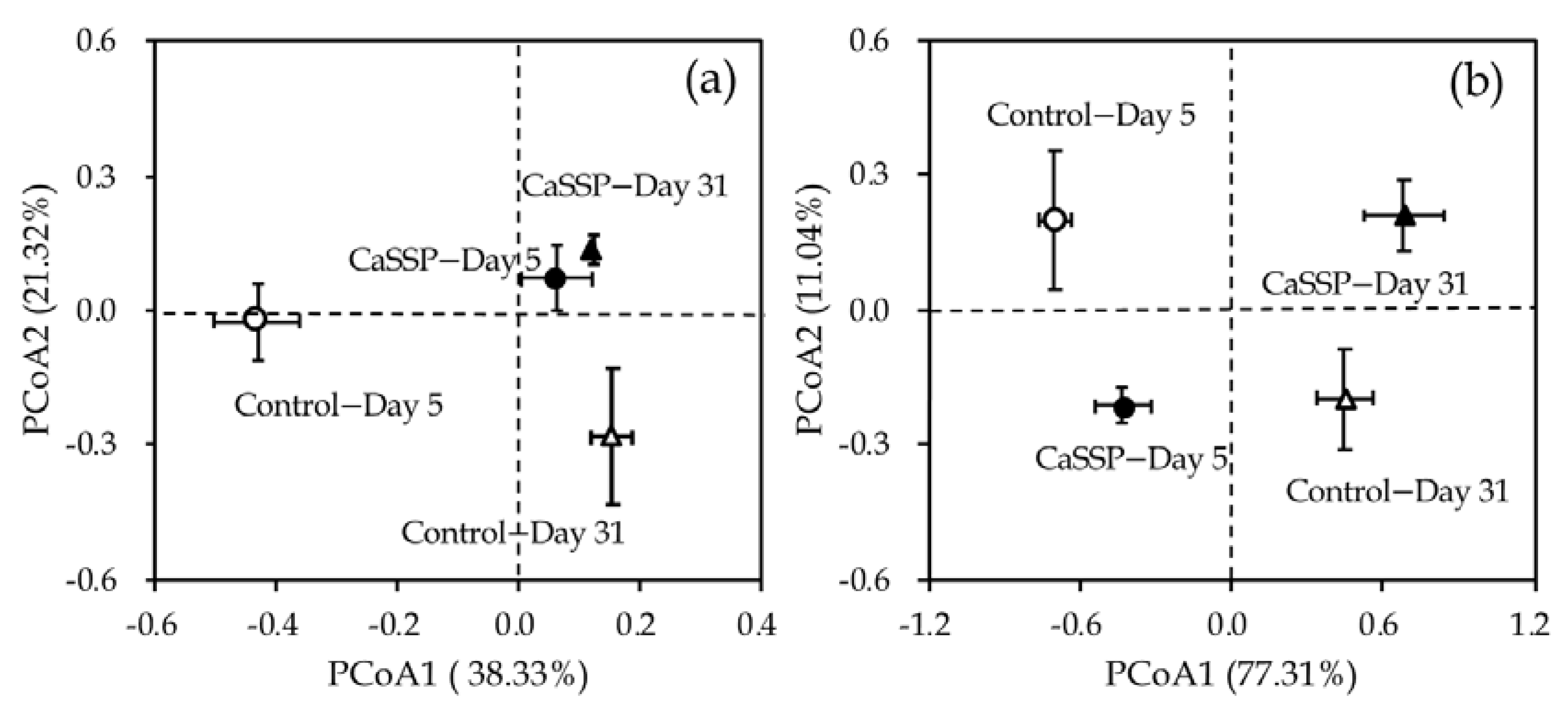

Figure 4. Methanogenic (a) and methanotrophic (b) community structures (based on relative OTU abundance) assessed by principal coordinate analysis (PCoA) based on the Bray–Curtis distance for different treatments. Treatments were defined as in Figure 1.
Figure 4. Methanogenic (a) and methanotrophic (b) community structures (based on relative OTU abundance) assessed by principal coordinate analysis (PCoA) based on the Bray–Curtis distance for different treatments. Treatments were defined as in Figure 1.
Ijerph 18 06244 g004

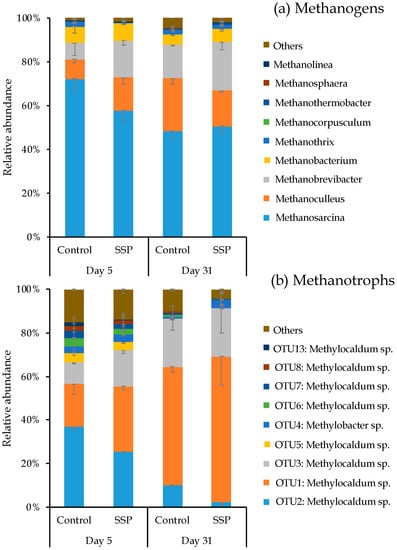

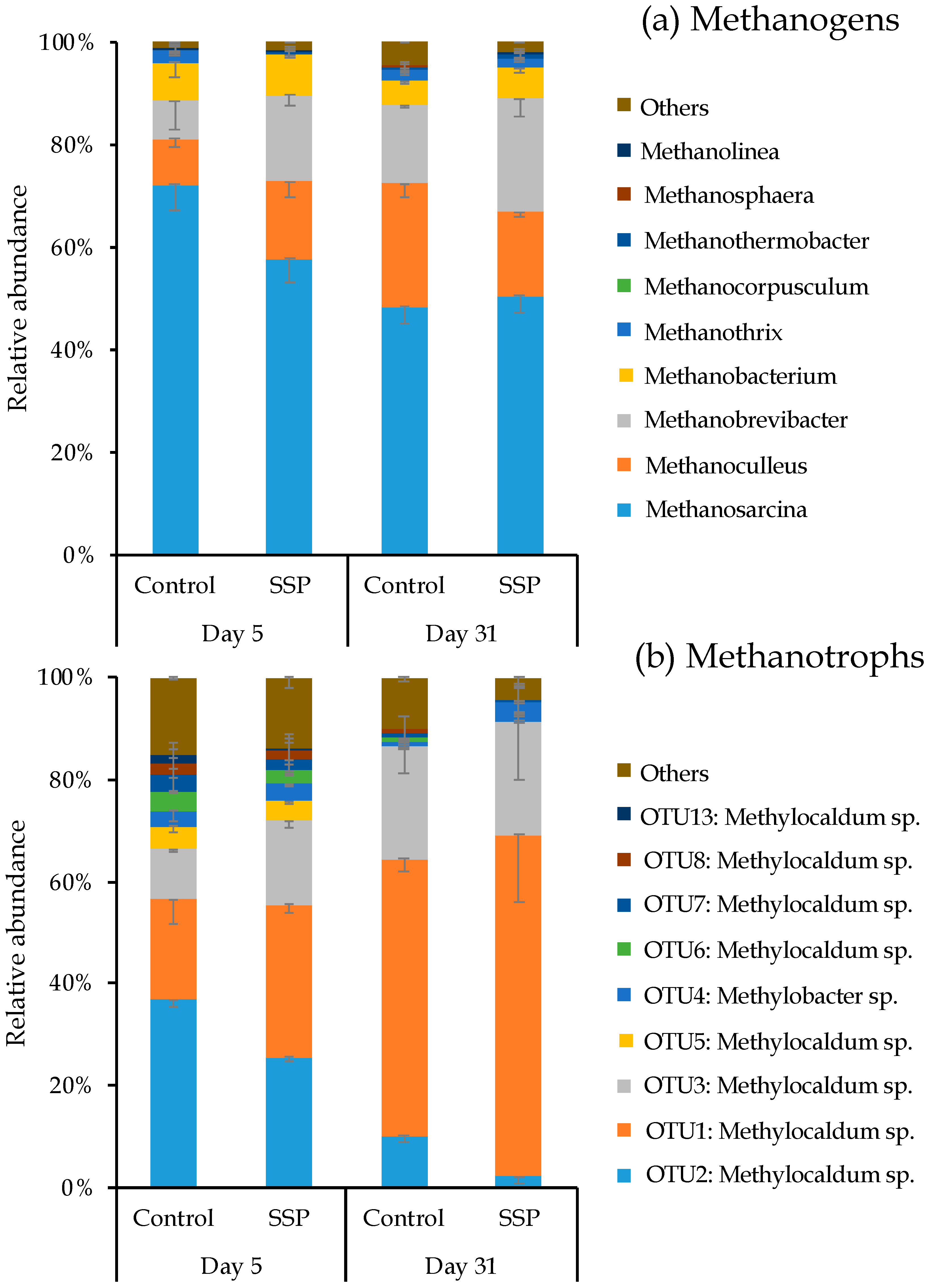

Figure 5. Relative abundance of methanogens (a) and methanotrophs (b) under different fertilization treatments. Relative abundance of methanogens and methanotrophs for the taxonomic levels of genus and OTU, respectively. Values are means ± SE (n = 3). Treatments were defined as in Figure 1.
Figure 5. Relative abundance of methanogens (a) and methanotrophs (b) under different fertilization treatments. Relative abundance of methanogens and methanotrophs for the taxonomic levels of genus and OTU, respectively. Values are means ± SE (n = 3). Treatments were defined as in Figure 1.
Ijerph 18 06244 g005

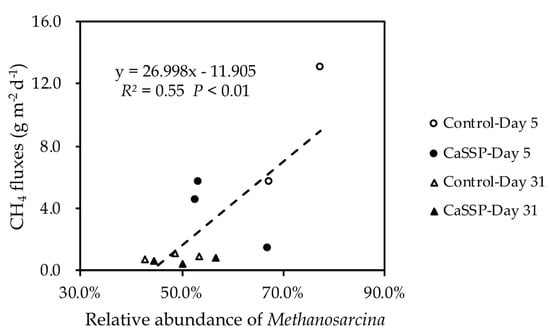

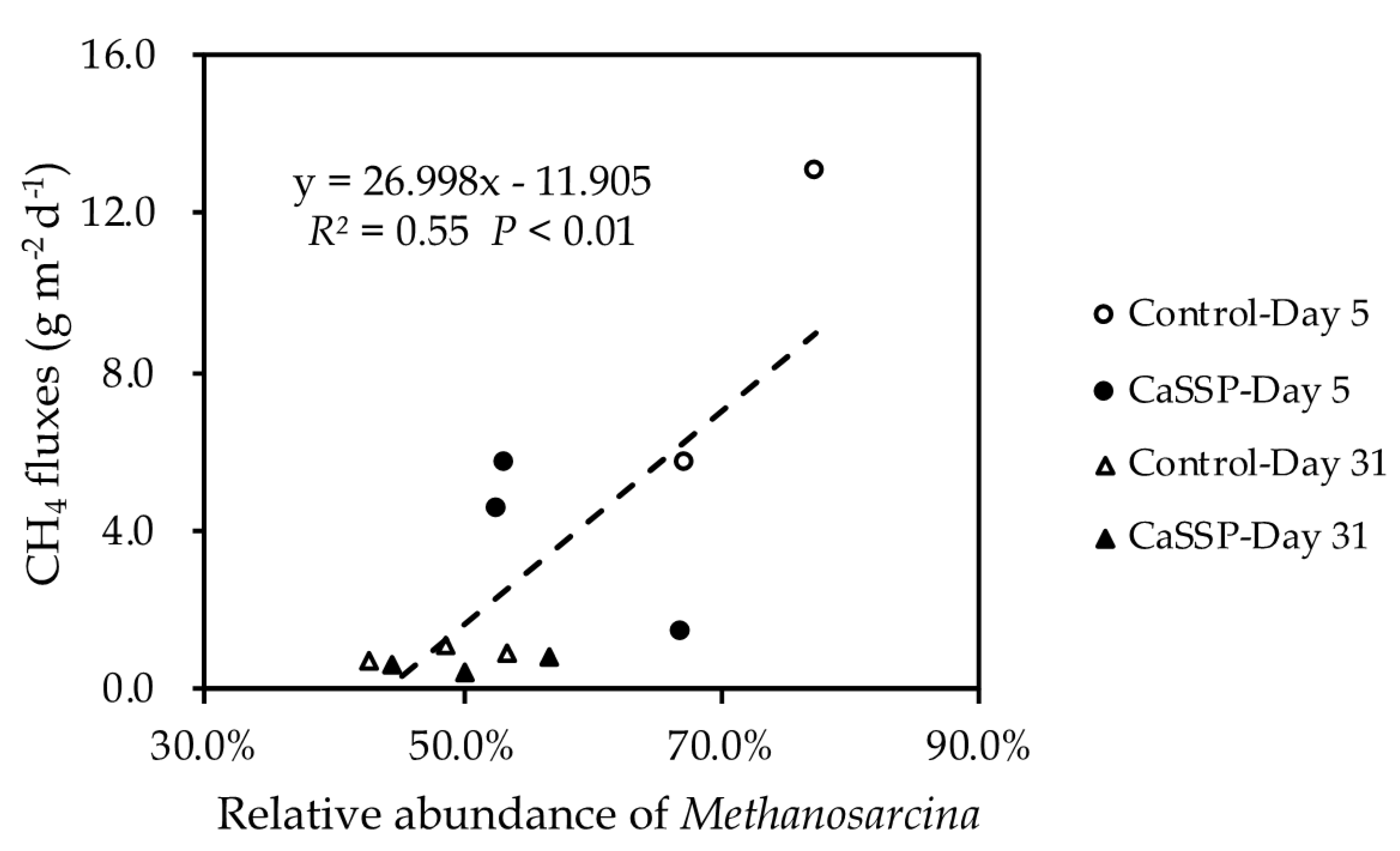

Figure 6. Dependence of CH4 fluxes on the relative abundance of Methanosarcina in the compost for different treatments. Treatments were defined as in Figure 1.
Figure 6. Dependence of CH4 fluxes on the relative abundance of Methanosarcina in the compost for different treatments. Treatments were defined as in Figure 1.
Ijerph 18 06244 g006

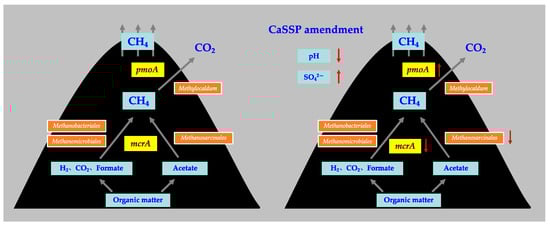

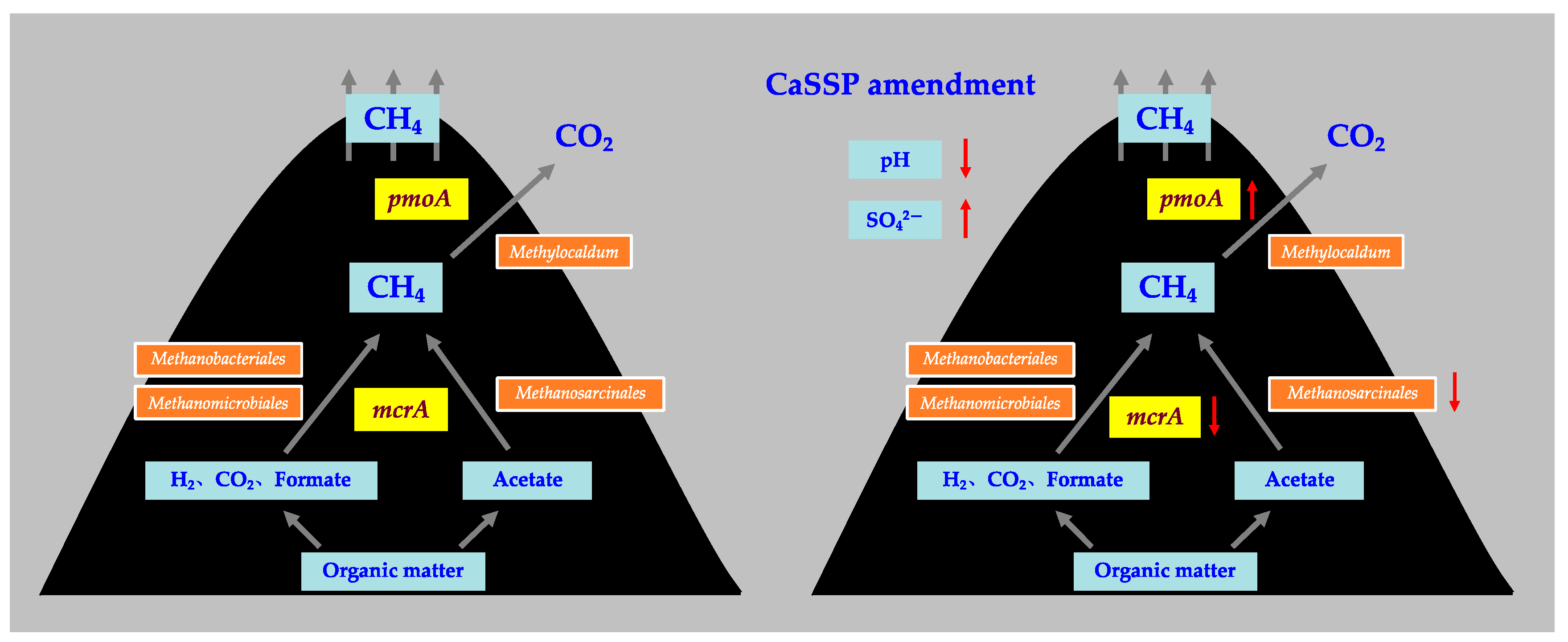

Figure 7. A conceptual diagram illustrating the effects of adding superphosphate on manure properties as well as methane fluxes.
