A Bibliometric and Visualized Overview for the Evolution of Process Safety and Environmental Protection

by
Jie Xue
1,2,3,*,
Genserik Reniers
1,4,5,
Jie Li
6,7,*,
Ming Yang
1,
Chaozhong Wu
2,3 and
P.H.A.J.M. van Gelder
1
1
Safety and Security Science Group (S3G), Faculty of Technology, Policy and Management, Delft University of Technology, 2628BX Delft, The Netherlands
2
Intelligent Transportation Systems Center (ITSC), Wuhan University of Technology, Wuhan 430063, China
3
National Engineering Research Center for Water Transport Safety (WTSC), Wuhan University of Technology, Wuhan 430063, China
4
Antwerp Research Group on Safety and Security (ARGoSS), Faculty of Applied Economics, University Antwerp, 2000 Antwerp, Belgium
5
CEDON (Center for Economics and Corporate Sustainability), KU Leuven, Campus Brussels, 1000 Brussels, Belgium
6
College of Safety Science and Engineering, Liaoning Technical University, Huludao 125105, China
7
State Key Laboratory of Explosion Science and Technology, Beijing Institute of Technology, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(11), 5985; https://doi.org/10.3390/ijerph18115985
Submission received: 12 May 2021 / Revised: 30 May 2021 / Accepted: 31 May 2021 / Published: 2 June 2021
(This article belongs to the Special Issue Industrial Safety and Risk Management)
Browse Figures
Versions Notes

Abstract

:
This paper presents a bibliometric overview of the publications in the principal international journal Process Safety and Environmental Protection (PSEP) from 1990 to 2020 retrieved in the Web of Science (WoS) database to explore the evolution in safety and environmental engineering design and practice, as well as experimental or theoretical innovative research. Therefore, based on the WoS database and the visualization of similarities (VOS) viewer software, the bibliometric analysis and scientometric mapping of the literature have been performed from the perspectives of document types, publication and citation distribution over time, leading authors, countries (regions), institutions, the corresponding collaboration networks, most cited publications and references, focused research fields and topics, research trend evolution over time, etc. The paper provides a comprehensive and quantitative overview and significant picture representation for the journal’s leading and evolutionary trends by employing specific aforementioned bibliometric analysis factors. In addition, by reviewing the evolutionary trends of the journal and the proposed investigated factors, such as the influential works, main research topics, and the research frontiers, this paper reveals the scientific literature production’s main research objectives and directions that could be addressed and explored in future studies.

Graphical Abstract

1. Introduction

Bibliometrics originated from library and information science [1]. A bibliographic analysis is mainly applied to characterize the structure and research trends of a specific field or journal by utilizing a quantitative methodology [2,3,4]. Additionally, it is a comprehensive visual analysis method augmented with network topology that could detect the influential authors, institutions, and countries in a specific research domain [5] and demonstrate a journal’s influence and productivity [1].
Moreover, scientific literature mapping by utilizing bibliometric methods is an effective complement to the traditional structured literature review, as it is able to provide a broader spectrum of research analysis [6,7]. Compared with a structured review, a bibliographic analysis provides a more wide angle on the analysis coverage breadth and the literature review depth [2]. In addition, bibliographic analysis has already been widely conducted in previous studies for analyzing various journals in different research subjects to explore and understand the specific research domain and research trends in the last few years. The typical bibliometrics analysis researches objects and topics, including journals, countries, authors, institutions, keywords, etc. Furthermore, the quantitative analysis is the fundament of bibliometric analysis, and the quantitative and qualitative are always combined during the practical analysis process. For instance, quantitative analysis is utilized with respect to the number of publications, while a qualitative analysis needs to be conducted when analyzing and summarizing a specific cluster’s theme. The quantitative analysis for the total number of citations of a particular publication could also reflect the quality and impact of the publication.
Many scholars who conducted the related research used bibliometric mapping methods. For instance, Li et al. [8] provided a bibliometric mapping review of the hotspots of lifecycle assessment for bioenergy. Zhi and Ji [9] explored the bibliometric mapping approach to give a review of quantitatively evaluated global scientific constructed wetlands research. Mao et al. [10] employed the bibliometric mapping to quantitatively analyze industrial wastewater treatment literature publications. Li et al. [11] did a preliminary overview of bibliometric mapping for the safety science community. Merigó, Miranda, Modak, Boustras, and de la Sotta [1] used bibliometric mapping to analyze forty years of safety science in terms of publications trends, leading producers (author, institutions, countries/regions), and highly cited papers and references also analyzed in the research. Additionally, as the knowledge carrier, scientific journals have published almost any research for a particular knowledge domain. The analysis of a specific journal helps understand the research of the area in some aspects. Several papers have conducted the research for journal analysis, e.g., Journal of Infection and Public Health [12], Group Decision and Negotiation [13], Mechanism and Machine Theory [14], European Journal of Operational Research [15], Resources, Conservation and Recycling [16], Transportation Research Part A: Policy and Practice [17], Computers & Industrial Engineering [18], Knowledge-Based Systems [19], International Journal of Fuzzy Systems [20], Industrial Management & Data Systems [21], etc.
Process Safety and Environmental Protection (PSEP) is the principal international journal covering the branches of engineering related to the research fields of safety of industrial processes and the protection of the environment. To explore the evolution in safety or environmental engineering design and practice, as well as experimental or theoretical innovative research, we strive to review the journal’s publication records and most significant trends through a general bibliometric analysis. Therefore, in the present study, the overview of the journal’s basic information and extraordinary contributions are recognized and analyzed in detail by the combination of qualitative and quantitative analysis, the related analyses involving the publication distribution and citation structure; leading authors, institutions, and countries (regions); influential publications; and focused research fields, as well as the research trend evolutionary process. Additionally, based on the information retrieved in the Web of Science Core (WoS) Collection database, the tool of the visualization of similarities (VOS) viewer, i.e., VOSviewer, which was developed by van Eck and Waltman [22], has been employed to perform a bibliometric analysis and scientometric mapping of publications from a visualization view.
The purpose of the present study is to (1) help related journal editors develop suitable strategies by examining more influential research types to achieve their development goals, (2) provide inspiration for academia and help them understand the most popular research fields and trends with the most publication potential, thus identifying and choosing the targeted research themes, and (3) concerning the benefits to readers, they can more intuitively and easily obtain more specific and accurate information that they are interested in from a large number of bibliometric data.
The remainder of this paper is organized as follows: first, Section 2 presents the materials and bibliometric analysis methods utilized in the paper. Second, the statistical analysis and graphical analysis results are detailed, including the publication trends and citation distribution; leading authors, institutions, and countries/regions; influential works in PSEP; and identified research fields and research evolutionary trends in the perspective of keyword co-occurrence. Additionally, the accompanying discussions are conducted in Section 3. Finally, Section 4 concludes the main findings of the paper and delivers the recommendations for the readers.

2. Materials and Methods

2.1. Bibliographic Data

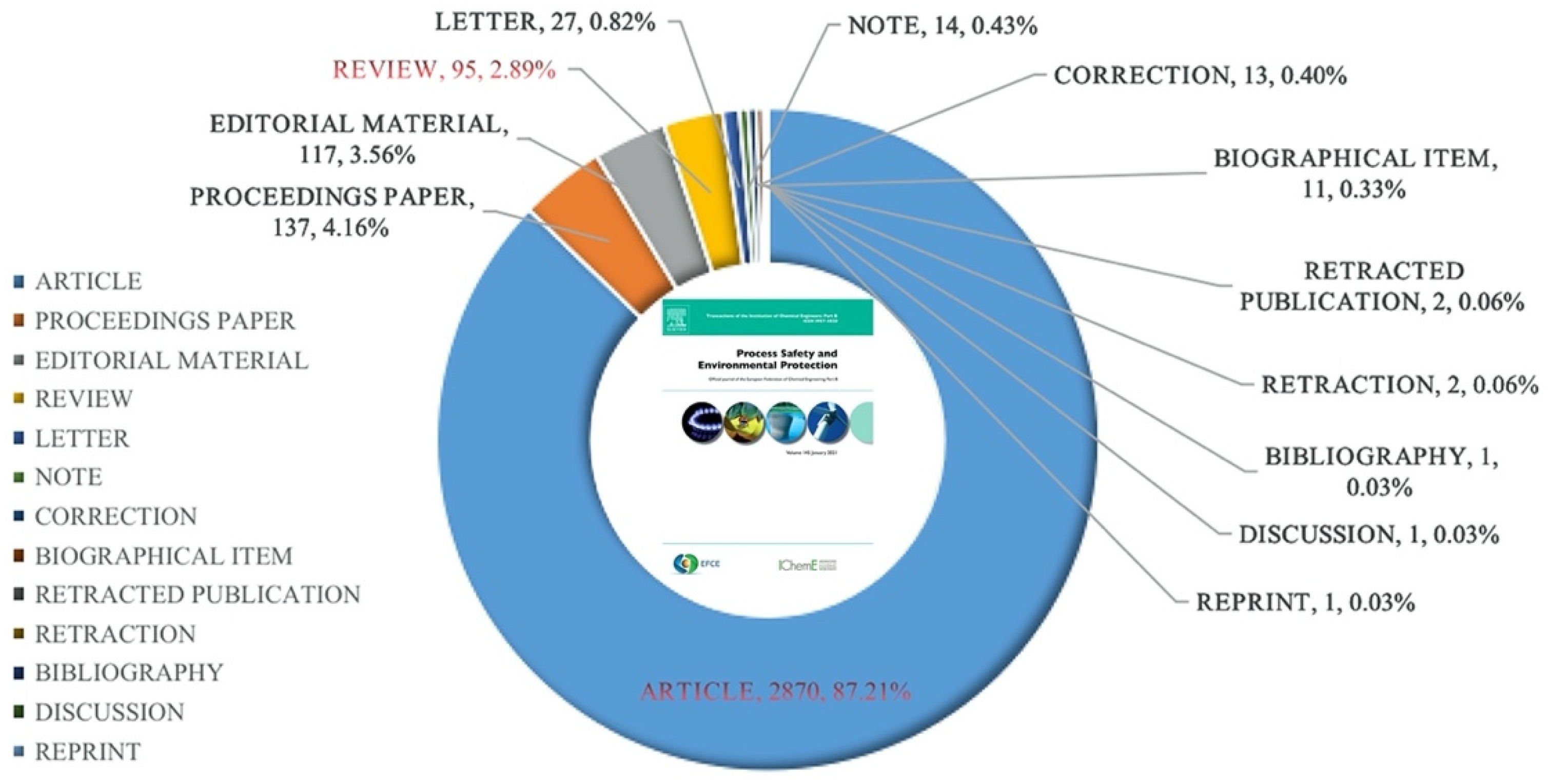

In this paper, a typical journal PSEP with a high reputation in the research fields of safety of industrial processes and protection of the environment and with a relatively rapid increase of impact factor, quick review speed, and online article publication time, etc., was selected as the candidate journal to be analyzed.
The data were retrieved on 9 January 2021 from the WoS Core Collection, which is owned by Clarivate Analytics. The advanced search module was employed, and the strategy for obtaining data was, “Publication Name: SO = (Process Safety and Environmental Protection), Indexes = SCI-EXPANDED, Timespan = 1990–2020”. In total, 3152 publications were obtained from the Web of Science, and the PSEP publications had 13 different types (some of the papers were classified into more than one category). The proportion of each document type is shown in Figure 1. Note that articles and reviews are more essential document types in scientific outputs, and these two types have nearly 90.09% (2965 articles and reviews) in PSEP. The total number of citations was 44,879, and the average number of citations per publication was 14.24.

2.2. Bibliometric Methods and Analysis Tool

In the present paper, bibliometric methods were applied, and the bibliometric mapping tool VOSviewer was used to analyze the journal papers in a visual, user-friendly way. The bibliometric analysis originated from information and library science, which was first proposed by Otlet [23]. In the data science age, bibliometric methods were combined with network analysis and data visualization techniques, and then a new area named bibliometric mapping was produced. The bibliometric mapping was about quantitative methods (mathematics and statistics) for visually representing scientific literature based on bibliographic data.
Additionally, in bibliometrics, a threshold is used to select the minimum frequency of occurrence of the knowledge unit included in the network node. In the analysis of different knowledge units, the set of the specific threshold will have individual differences. Its primary purpose is to extract the core knowledge network formed by the analyzed knowledge units. It should be noted that the related results would be different by employing different thresholds in bibliometric analysis for different research topics and analytical problems, and there is generally no clear standard. In general, scholars set the threshold and conduct the related analysis directly under the premise that the problem explained is clear and the network constructed is easy to analyze and reasonable. The threshold usually is set to 3, 5, 10, 15, 20, 30, etc. [20,24,25,26], and the smaller the threshold setting, the larger and more complex the extracted knowledge network is.
Recently, bibliometric mapping analysis became popular not only inside the scientific communities of information and library science, but also in other scientific communities. More than 30 free tools have already been developed for bibliometric mapping, and VOSviewer is a famous tool among these tools [27,28]. VOSviewer is short for Visualization of Similarity, developed by van Eck and Waltman from Leiden University, the Netherlands, in 2010. The tool has several functions for bibliometric mapping, including collaboration analysis (e.g., authors, institutions, and countries/regions), topics analysis (e.g., keyword or terms), and citation-based analysis (e.g., bibliographic coupling and co-citations). Several papers have already applied VOSviewer to do bibliometric mapping analysis in environmental protection and safety-related topics, such as climate change [29], heavy metal removal [30], carbon emissions [31], contamination of water bodies [32], carbon capture and storage [33], soil remediation [34], safety culture [25], construction safety [35,36], process safety [37], domino effect [38], laboratory safety in universities [39], road safety research [40], etc.

3. Results and Discussion

3.1. Publication Trend and Citation Distribution

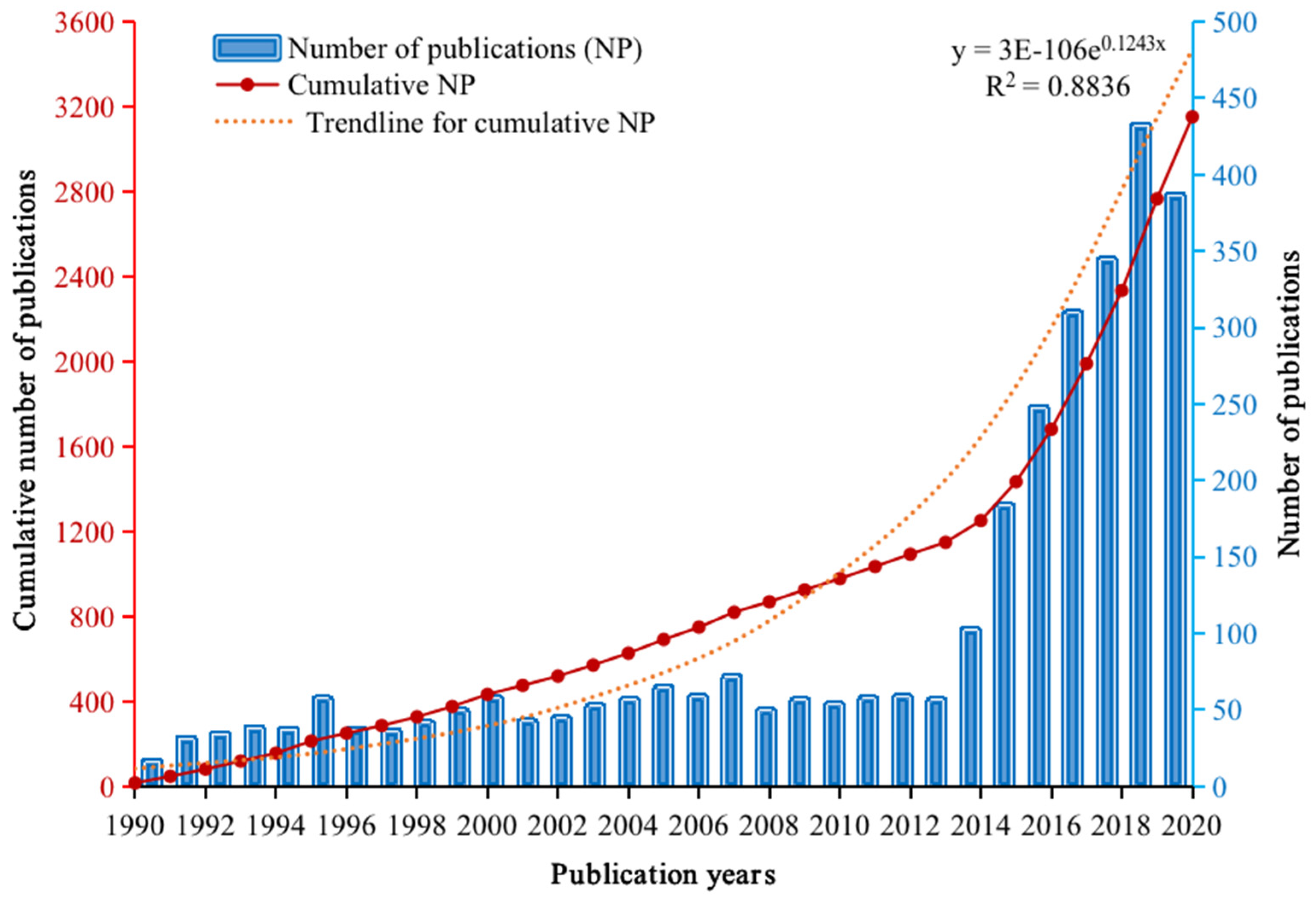

The publication trend (including the number of papers) is the mirror and indicator for reflecting and measuring the scientific activities and attention to a specific domain. Figure 2 and Table 1 show the annual increase trend of PSEP publications. The increase of the annual outputs shows the increased attention to the topic scope of the PSEP from scientific communities. PSEP, as one of the leading journals in industrial process safety and environmental protection, has released a total of 16 publications in 1990, according to its earliest record in WoS. Moreover, the number of publications has increased slowly before 2013, and the average value for the number of publications per year before 2013 was around 48. After 2013, the publication trend increased rapidly, and the outputs reached more than 100 papers per year, with the number of papers in 2019 being 432 (exceeding 400 the first time). Additionally, the cumulative percentage of the number of publications showed that nearly 50% of cumulative publications from PSEP were published after 2016, which means that the most recent five years (2016–2020) have contributed roughly half of all of the papers that have been published in PSEP from 1990 to 2020.

3.2. Leading Authors, Institutions, and Countries/Regions

3.2.1. Leading Authors and Collaborations

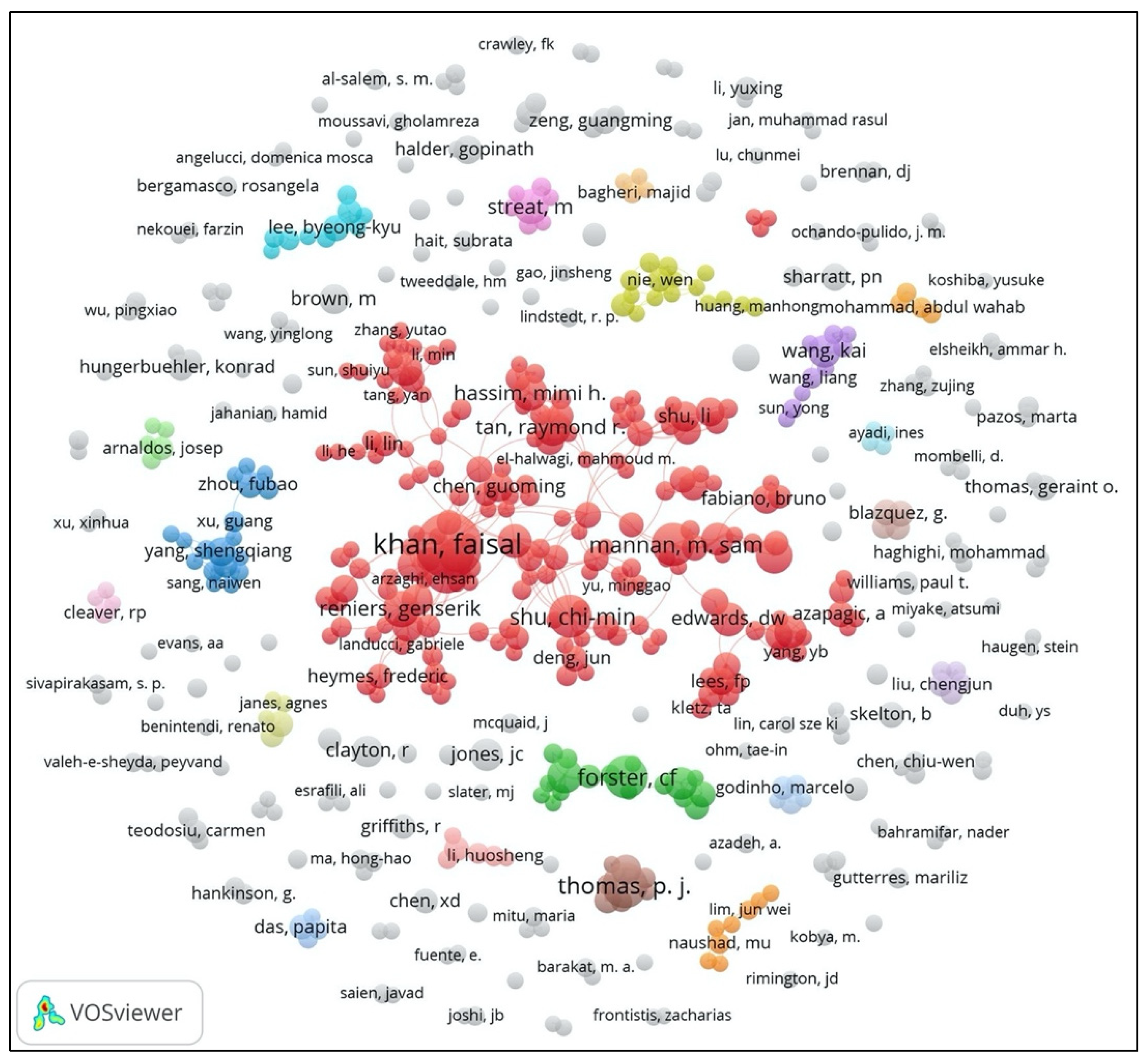

Authors are the knowledge producers of PSEP, and an author’s production and collaboration analysis can easily show the leading researchers and the author’s social connectedness in PSEP. The whole author’s collaboration network is illustrated in Figure 3, and the author who had a minimum number of publications of 10 was regarded as the leading author in PSEP. Table 2 lists the leading authors of PSEP, and indicates that there are 69.70% (23/33) of them within the giant connected component (GCC) of the authors’ collaboration network (cluster 1, the red group ( Ijerph 18 05985 i001) in Figure 3). Considering the sparsely connected network structure of other groups, only the GCC of the authors’ collaboration network was selected to analyze the author’s social connection in PSEP. Note that authors with only the publication type of editorial material are not included in Table 2. The node size is proportionate to the number of publications of an author; the node color represents the clusters of authors in the same group. Additionally, the links between authors present the collaboration relations between authors, and the wideness of the link shows the authors’ collaboration strength.
As shown in Table 2, Faisal Khan (Mem. Univ. Newfoundland, Canada) is the most productive author in PSEP with 62 publications. He is also the only author with more than 50 papers in PSEP, followed by Paul Amyotte (Dalhousie University, Canada), P.J. Thomas (University of Bristol, UK), C.F. Forster (University of Birmingham, UK), M. Sam Mannan (Texas A&M University, USA), and Chi-Min Shu (National Yunlin University of Science and Technology, Taiwan), with more than 20 papers published in PSEP, ranked in the top 2–6 positions, respectively. Furthermore, Kai Wang (China University of Mining & Technology, China) holds the largest average publication year (APY) of 2019.00, and Gordon Mckay (Hamad Bin Khalifa University, Qatar) is the author who has the most citations (2897) and the highest average number of citations (193.13). The productivity distribution of the (leading) authors was not balanced; there were just a few authors who have published a large number of papers, resulting in the uneven distribution of the total number of citations of leading authors. In addition, the highly productive editorial board members of PSEP are also highlighted in Table 2. Among the leading authors, 24.24% (8/33) are editorial board members, which indicates that the editorial board members play a relatively important role among the leading authors, as well as within the process safety and environmental protection research domain. Additionally, as shown in Table 2, 27.27% (9/33) of the leading authors originate from the United Kingdom.

3.2.2. Leading Countries/Regions and Collaboration

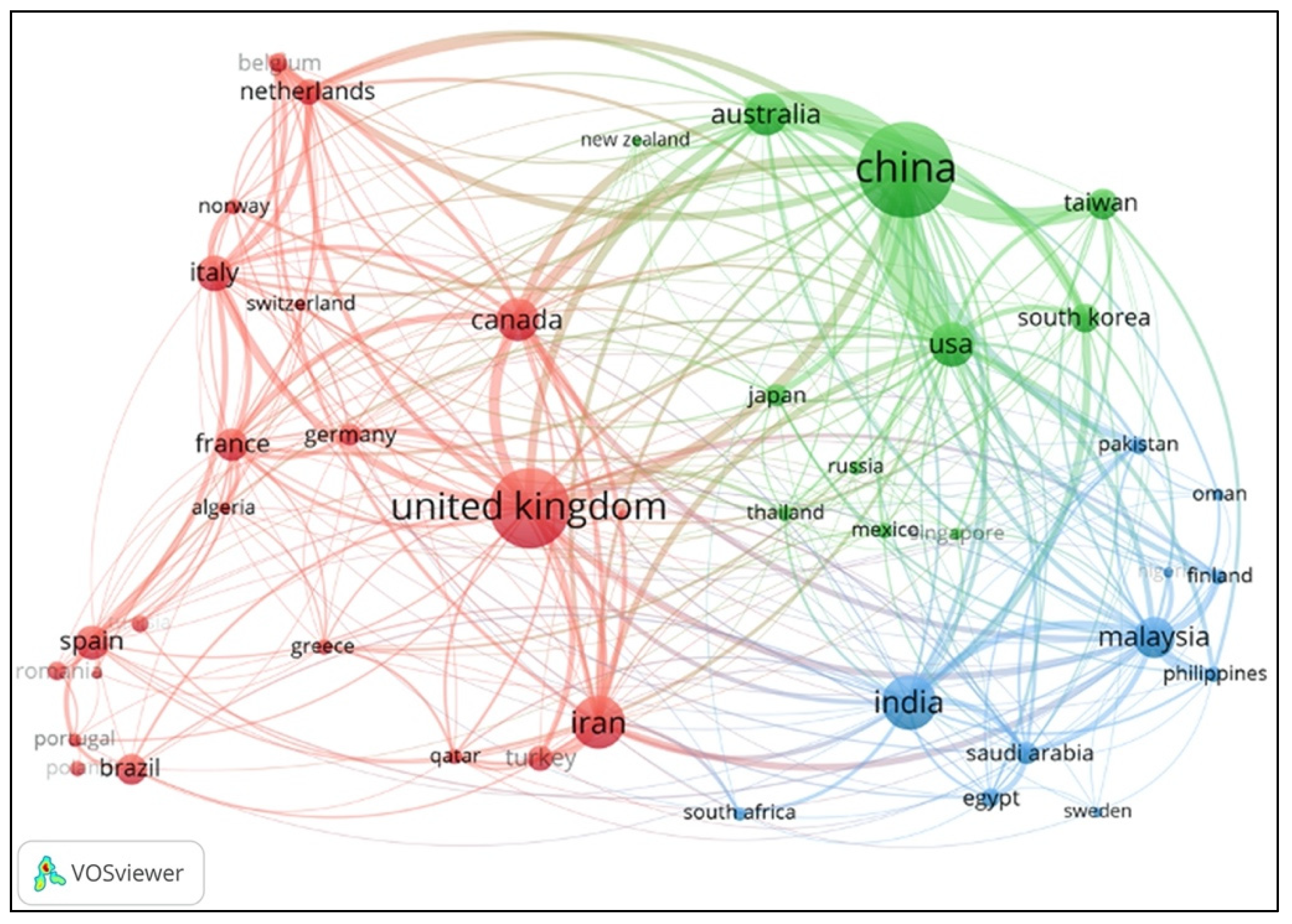

The countries/regions cooperation relation in the explored field was also visualized and analyzed by utilizing collaboration networks analysis to investigate affiliated countries and institutes through the VOSviewer software. As shown in Figure 4, the minimum number of publications was 10, and 44 countries/regions were included in the network. It should be noted that a node was apportioned to each co-author of a publication in the networks. The node’s color presents the average time for the publications of each country [41]. The node’s size denotes the related publication number, and the thickness of the links indicates the international collaboration degree [38,42], i.e., the larger the node is, the more critical the country/region is, and the thicker the line is, the closer the cooperation relationship between countries/regions.
Figure 4 indicates that China (with 678 publications and 9615 total citations) and the United Kingdom (with 476 publications and 7517 total citations) have been at the forefront and play the predominant roles in PSEP. Meanwhile, China mainly collaborates with the USA, Australia, Taiwan (region), United Kingdom, South Korea, Japan, Canada, Netherlands, etc. Similarly, the close collaboration countries/regions with the United Kingdom are Canada, China, Australia, Iran, Germany, India, Italy, Netherlands, France, etc. Additionally, among the close collaboration countries/regions, China and the USA have the most immediate cooperation and research relationship in PSEP. Moreover, as shown in Table 3, in terms of the publication time, Thailand (with the largest average publication year (APY) of 2018.14), Qatar (2017.62), and Tunisia (2017.43) are the top three relatively active research countries recently, and have the latest output in PSEP according to the investigated results from the core database of the WoS. Furthermore, the Philippines (with an average citation of 28.59), Finland (27.13), and Saudi Arabia (25.36) are the only three countries whose average citations exceeded 25. Generally, more international collaboration needs to be promoted and enhanced to share knowledge globally in the future.

3.2.3. Leading Institutions and Collaborations

Figure 5 illustrates the institution collaboration network for PSEP during the entire explored timespan. The node’s size presents the number of publications (the bigger the note is, the more publications the institution has), and the links between two nodes indicate the collaboration relationship between two institutions (the thicker the link is, the closer the cooperation they have). In addition, each institution in the network has a minimum of 10 publications in PSEP, and 77 institutions meet the threshold. As shown in Table 4, China University of Mining & Technology (China) has the highest number of publications at 73; Nanjing Tech University (China) has the largest APY at 2018.87. In Canada, the Memorial University of Newfoundland gets the highest number of total citations of 1854 among the leading institutions of PSEP, and Dalhousie University holds the highest average citations of 37.24 (the only institution whose average numbers of citations exceeded 30). With a total number of citations of 1229, Dalhousie University is also the institution whose total number of citations exceeded 1000, except Memorial University of Newfoundland. Additionally, 29.63% (8/27) of the leading institutions are from the United Kingdom.

3.3. Influential Works

3.3.1. Influential Works Published by PSEP

Publications with a large number of citations often indicate the influence of the publication in a specific research domain, i.e., the number of publications exceeding a certain citation threshold allows the identification of the number of publications that have a certain level of influence [43,44]. In this paper, the publications with more than 100 citations are identified as influential works in PSEP. Therefore, 25 publications are listed in Table 5. The paper by Ho and McKay [45] held the highest number of citations of 1530 and the biggest average number of citations per year of 66.52. Moreover, there were seven publications with a total number of citations of more than 200. Additionally, there were two papers among the first five most cited papers (2/5 = 40.00%), and 24.00% (6/25) of the top 25 most cited papers were review papers, while, as shown in Figure 1, only 2.89% of all publications were the review papers. The statistical fact that a relatively small number of publications accomplished with a relatively high total number of citations indicated that the document type of review paper was more likely to get more citations.
Furthermore, Figure 6 demonstrates the citation distribution of PSEP publications from 1990 to 2020. Overall, according to the increasing of the number of citations, the number of publications gradually decreased. In addition, there were 1924 publications, the highest number of publications among various intervals, that had no more than ten citations. Note that, among the publications cited no more than ten times, there were 447 publications with no citations. Considering that a paper’s publication requires a certain period, the citations cannot be counted in time. However, except for the 183 publications of 2020, 59.06% (264/447) of the publications had zero citations. Note that, since most of the influential works’ research topics were cross-fused with the research hotspots in Section 3.4, the related literature productions are not discussed and analyzed in detail in this section.
.

3.3.2. Influential Works Cited by PSEP

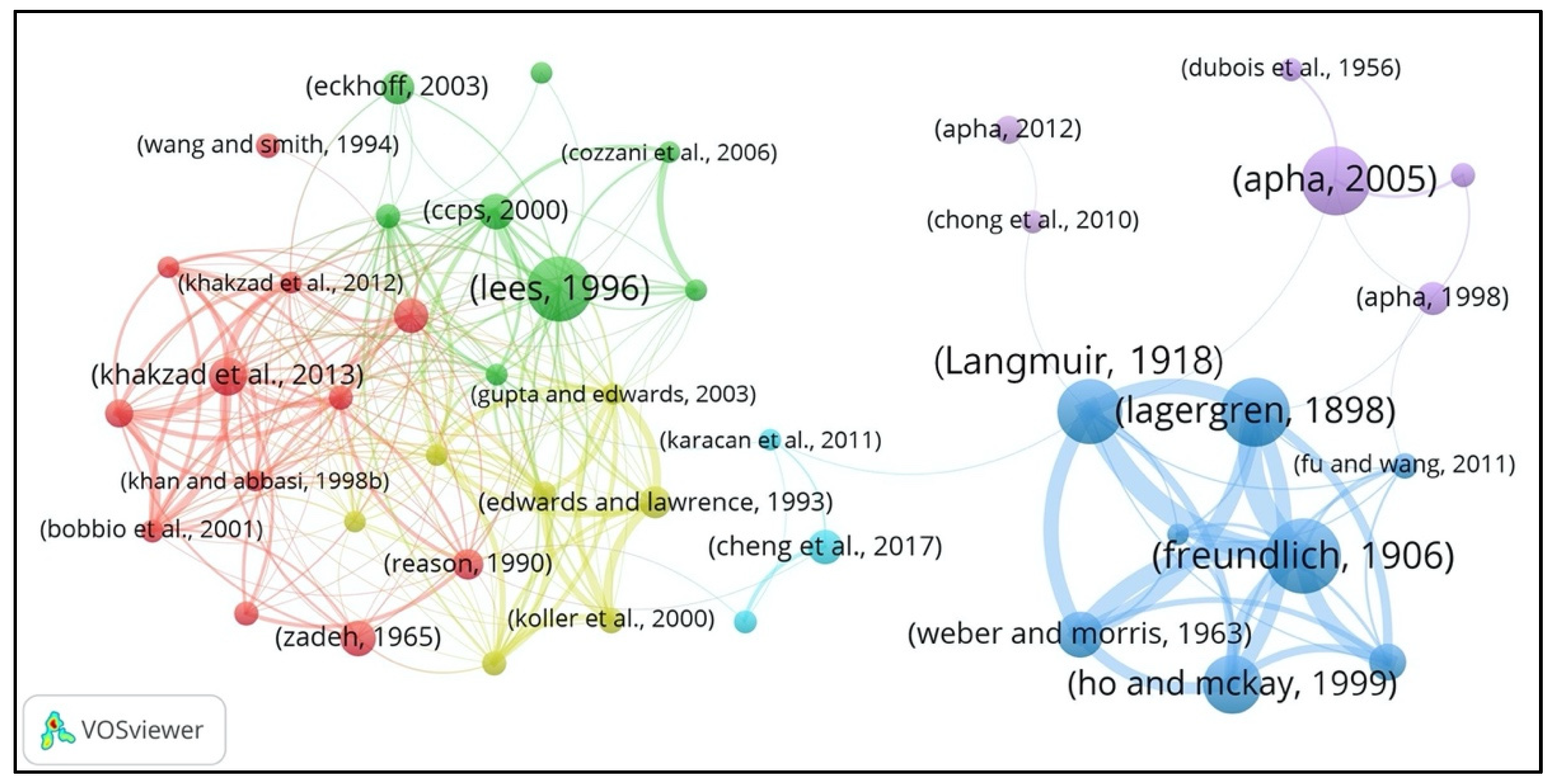

Highly cited works cited by PSEP papers in our local dataset can be considered the intellectual bases of PSEP. The co-citation network of highly cited references (the minimum number of citations of a paper was 15) was constructed. In total, 43 highly cited references were identified and obtained from the 89,287 references of PSEP. The co-citation network among these 43 papers is displayed in Figure 7. The node stands for a highly cited reference, and the size is proportional to the number of cites from the PSEP papers. The label here just shows the first author or first two authors and the publication year of a paper. In addition, links between each node present the co-citation relations of highly cited references. Link wideness indicates the co-citation strength between these references. The color shows the different groups of these references, which was clustered based on the co-citation strength of these references by using the bibliometric data analysis based on the clustering method included in the widely used VOSviewer software, as introduced in Section 2.2. Note that the investigated references can only be included in one cluster, and their position in the overall network and the connections to the references in other clusters show how closely related it is, both within its own cluster and with other clusters.
Furthermore, Table 6 lists the highly cited references of PSEP publications ranked by the number of citations. Most of the influential works cited by PSEP were journal articles, accounting for 81.40% (35/43). Additionally, the blue group ( Ijerph 18 05985 i002) was the biggest cluster with the most citations (277), and the red group ( Ijerph 18 05985 i001) was the biggest cluster with the most publications (12). As shown in Figure 7, there were six clusters (groups) for the highly cited references:
The blue group ( Ijerph 18 05985 i002) was primarily concentrated on environmental protection theories and techniques (especially adsorption theory and application). The most influential works in this group were the theory for adsorption in solution [46,47,48] and adsorption of gases [49], modeling for the sorption processes [50], and isotherms systems [51]. Moreover, the review on methodologies and techniques for removing heavy metal ions from wastewaters by Fu and Wang [52] and the fundamental theory for the constitution and properties of solids and liquids by Langmuir [53], etc., are also impactful works in this group.
The red group ( Ijerph 18 05985 i001) mainly focused on the methodologies and models for process safety and risk management in chemical and process industries. Dynamic safety analysis and risk assessment theory and models, e.g., Bayesian theory [54,55], bow-tie approach [56], etc., are developed and widely used, and the aforementioned research was recognized as the influential works. Additionally, the other impactful original research was the reviews of the available techniques and methodologies for risk analysis in chemical process industries by Khan and Abbasi [57] and the methods and models in process safety and risk management by Khan et al. [58], the research for fuzzy sets by Zadeh [59], the predictive accident model for system hazard identification, prediction, and prevention by Rathnayaka et al. [60], and the utilization of Bayesian network and fault tree approaches for the safety analysis in process facilities [61] and dependable systems [62], etc.
The yellow group ( Ijerph 18 05985 i003) mainly focused on the inherent safety and hazard identification and assessment in chemical and process industries. The group contained the early influential works by Edwards and Lawrence [63] on the exploration for the relation between plant costs and the inherent safety of chemical process routes, and the multivariate system hazard identification and ranking methods for fire and explosion and toxic chemical release hazards by Khan and Abbasi [64]. In addition, Gupta and Edwards [65] proposed a graphical methodology for inherent safety measurement, Khan and Amyotte [66] detailed the cost and system design model for integrated inherent safety index, Koller et al. [67] presented a safety, health, and environmental impact assessment methodology for selecting the most reliable data from a variety of substance databases or estimation method, and Khan et al. [68] developed a safety-weighted hazard index for chemical process industry hazard identification and risk assessment. The research mentioned above was widely cited by the publications in PSEP and identified as influential works as well.
The green group ( Ijerph 18 05985 i004) concentrated on loss prevention in process industries. The influential works were primarily focused on major accident hazards, accident causes, and consequences analysis, and some specific original contributions on managing the risk of the domino effect of chemical accidents. The most cited works in this group were the book on loss prevention in the process industry by Lees [69], the book on chemical process safety by Crowl and Louvar [70], the book on the guidelines for chemical process quantitative risk analysis by CCPS [71], and the book on the identification, assessment, and prevention of hazards for dust explosion accidents, which presented the evaluation of prevalent activities, testing methods, and design measures for safe operation techniques by Eckhoff [72]. The significant and influential articles included the research for the domino effect for chemical accident features, sequences analysis, and accidental event escalation threshold assessment, as well as the research by Khan and Abbasi [73] on the common causes or errors and consequences of major accidents in chemical process industries, etc.
The purple group ( Ijerph 18 05985 i005) was primarily about waste treatment (especially wastewater treatment). The most significant original research contributions in this group concerned the work on the examination of water and wastewater standard methods by APHA [74,75,76], and the significant overview or review articles included the analyzing and summarizing of the recent developments for the technologies of photocatalytic water treatment [77] and landfill leachate treatment [78], etc.
The azure group ( Ijerph 18 05985 i006) mainly focused on coal mine safety; it primarily contained compendia works, for instance, Cheng et al. [79] designed an intelligent gel for fire prevention and extinguishing to control coal spontaneous combustion (CSC), Wang et al. [80] established a model of airflow dust migration for underground mine tunnels and achieved a better air curtain dust suppression effect, and Karacan et al. [81] delivered an overview for the capture and utilization of coal mine methane in the perspective of mining safety and greenhouse gas reduction, etc. The aforementioned works were highly influential in this group.

3.4. Research Fields Identification and Research Trends Evolution

Keywords are one of the essential elements supplied by the authors of the paper to show the paper’s core content. Author keywords are imperative, since they are used as the topics/concepts/methods that are presented to deliver and communicate to the scientific community by the authors. The author keyword co-occurrences network demonstrates another perspective of themes in PSEP, and it can be observed that it illustrates the main author keywords that frequently occur together in PSEP.

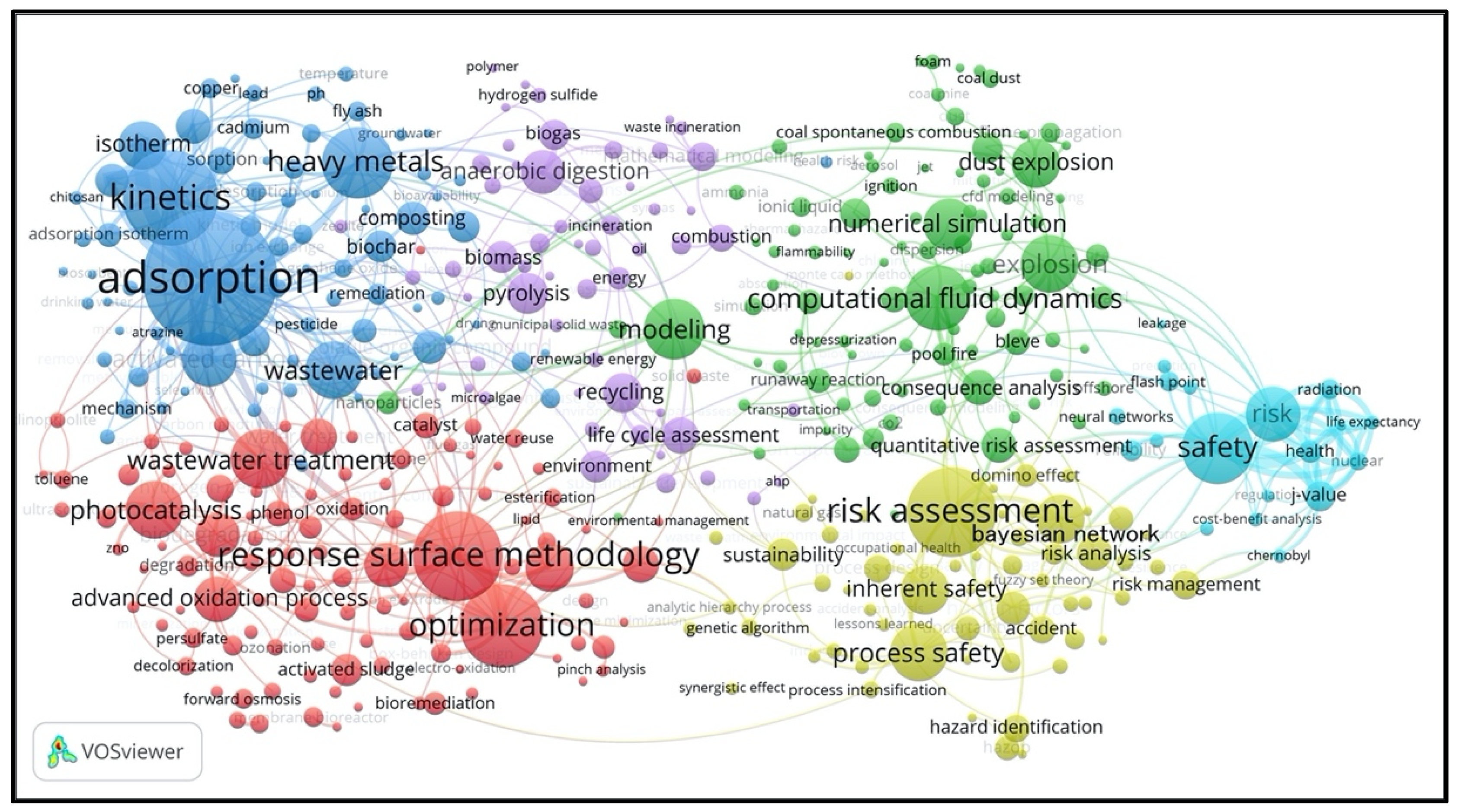

Considering the fact that many keywords only appeared a few times, they obviously have not had significant influences on the main themes of PSEP. Therefore, in the present study, to focus on the main themes, only the keywords occurring at least five times were selected to construct the co-occurrence analysis map and indicate the research topics. Thus, 407 keywords were extracted based on the threshold of the keyword’s frequencies. The keyword co-occurrence network for the clusters (groups) of PSEP is shown in Figure 8. Note that the larger the nodes and character fonts, the more often the keywords are used.
Obviously, the keyword “adsorption” is the most used author’s keyword with 122 occurrences, followed by “kinetics” (80), “response surface methodology” (74), “risk assessment” (73), “optimization” (67), “heavy metals” (56), “safety” (56), etc. There were six clusters of keywords, separated by different colors and representing the following themes:
The blue group ( Ijerph 18 05985 i002) was mainly concentrated on waste and pollutants remediation. This cluster included keywords such as “adsorption” (122), “kinetics” (80), “heavy metals” (56), “wastewater” (43), “activated carbon” (40), “isotherm” (34), “biosorption” (23), “composting” (22), “thermodynamic” (22), “volatile organic compound” (22), etc.
The red group ( Ijerph 18 05985 i001) mainly focused on environmental protection methodologies and technologies. This cluster contained keywords such as “response surface methodology” (74), “optimization” (67), “wastewater treatment” (44), “photocatalysis” (43), “biodiesel” (34), “advanced oxidation process” (32), “electrocoagulation” (31), “biodegradation” (30), “artificial neural network” (24), “water treatment” (24), etc.
The purple group ( Ijerph 18 05985 i005) was mainly about waste management and sustainable development. This cluster was represented by keywords such as “anaerobic digestion” (31), “pyrolysis” (28), “recycling” (27), “lifecycle assessment” (24), “biomass” (21), “environment” (20), “biogas” (19), “mathematical modeling” (18), “combustion” (17), “mass transfer” (15), “energy” (14), “sustainable development” (12), “emissions” (12), etc.
The green group ( Ijerph 18 05985 i004) mainly concentrated on accident prediction and hazard assessment methods and models (especially fire and explosion mitigation). This cluster was characterized by keywords such as “computational fluid dynamics” (49), “modeling” (46), “explosion” (43), “numerical simulation” (37), “dust explosion” (34), “consequence analysis” (23), “gas explosion” (19), “hydrogen” (19), etc.
The yellow group ( Ijerph 18 05985 i003) mainly focused on the process safety and risk assessment in chemical and process industries. This cluster was represented by keywords such as “risk assessment” (73), “process safety” (43), “Bayesian network” (34), “inherent safety” (34), “risk analysis” (23), “human factors” (22), “risk management” (18), “hazard identification” (17), “process design” (17), etc.
The azure group ( Ijerph 18 05985 i006) mainly focused on safety and risk management strategy and cost–benefit analysis. This cluster was composed of keywords such as “safety” (56), “risk” (40), “J-value” (19), “health” (14), “reliability” (13), “flash point” (11), “radiation” (11), “nuclear” (10), etc.
Additionally, to further understand and analyze the research topics, evolutionary process, and research frontiers for PSEP, the chronological evolution of research keywords based on the average publication date for the publications in which the keywords appeared in PSEP is demonstrated in Figure 9. Note that the VOSviewer software automatically settled the most suitable time interval and span for 407 keywords based on the publication time (i.e., average publication year) of each keyword. The main research topics in various periods could be recognized and summarized based on the occurrence frequency of the keywords in each period. Table 7 summarizes the top 20 keywords that appeared most frequently in each sub-period.
Overall, the PSEP was mainly focused on the topics related to the fields of safety of industrial processes and protection of the environment. In the present study, to explore and extract the evolutionary process and trends of the main research topics in PSEP, the special topics of publications in the separated four periods are summarized and analyzed.
Earlier publications (before 2008) were focused mainly on the topics concerned with waste incinerator design and combustion efficiency analysis [89,90,91,92], treatment and utilization of (municipal) solid waste [93,94,95], incineration residues and emissions management [96,97,98], economic and environmental impact assessments and sustainable development [99,100,101,102], reduction of flue gas emissions from fuel combustion [103], risk analysis for offshore platform-related problems [104,105], boiling liquid expanding vapor explosion (BLEVE) (especially related to liquefied petroleum gas (LPG)) [106,107], risk-based decision-making [108,109], human health risk analysis [110], thermal radiation safety assessment [111], runaway reaction inhibition system design and evaluation [112], loss prevention analysis in process industry [113], etc. The main analysis/process methods include incineration [114], biological phosphorus removal [115], catalytic combustion [116], lifecycle assessment (LCA) [117,118], hazard and operability (HAZOP) analysis [119,120], mathematical modeling [89], fuzzy logic theory [121,122], computer-aided fault tree analysis (FTA) [109], etc.
Between 2008 and 2012, publications were devoted to the research topics about the application and optimization of anaerobic digestion (especially the anaerobic digestion of organic solid wastes and wastewater sludges) [123,124], resource recycling and waste regeneration reuse [125,126], activated sludge utilization and treatment [127,128,129], biomass-derived liquid biofuels [130], optimal process design (especially based on inherent safety or under uncertainty) [131,132,133], explosion overpressures analysis and prediction (especially caused by a gas explosion) [134], explosion accident hazard assessments and prevention (especially coal combustion/gas explosion) [135], inherent safety and cost evaluation [136,137], human factors in safety management [138], J-value safety analysis [139,140], etc. Additionally, anaerobic digestion [124,141], biosorption [142], biomass gasification [143], vacuum thermal recycling [144], computational fluid dynamics (CFD) [145], principal component analysis (PCA) [132], analytic hierarchy process (AHP) [146], Monte Carlo simulation (MCS) [147], etc., became the widely used techniques/methods among scholars during this period.
Subsequently, during the period between 2013 and 2017, the research emphasis turned to topics such as pollution management framework [148], analysis of isotherms and kinetics of adsorption [149], heavy metals risk assessment and removal [150], wastewater treatment (especially based on the advanced oxidation process (AOP) and electrocoagulation (EC)) [151], biodiesel processing and production [152], process safety framework and model [153], risk-based design [154], hazardous materials transportation safety [155,156], investigation and risk analysis of fire and explosion accidents (especially dust explosion) [154,157], etc. In terms of analysis/process methods, AOP [158], EC [159], photocatalysis degradation [160], activated carbon adsorption [161], biodegradation [162], catalytic pyrolysis [163], response surface methodology (RSM) [164], quantitative risk assessment (QRA) [165,166], multi-objective optimization [167], fuzzy FTA [168], numerical simulation [169,170], and Bayesian network (BN) [154], etc., were widely applied by scholars.
In recent years (2018 and beyond), some of the focused research topics/methods were the continuation of the previously initiated research areas, e.g., BLEVE, HAZOP, AOP, EC, CFD, RSM, MCS, QRA, BN, PCA, etc. In addition, a few new research topics emerge in this period, such as catalytic degradation of organics (especially utilizing a microbial community) [171,172], application of ionic liquids [173], degradation and toxicity analysis [174,175], the application of microwave for waste treatment [176,177], safety of drinking water and its treatment [178], mineralization technology for pollutant emission control [179], Industry 4.0 [180,181,182], mine fires and CSC prevention [183,184], air leakage measurement and sealing techniques [185,186], risk analysis and prevention considering synergistic effects and domino effects [187,188], etc. It is obvious that scholars pay more attention to advanced techniques, as well as traditional methods, to conduct real-world industrial problems, for instance, catalytic ozonation [189], forward osmosis [190], photocatalytic [191], electro-oxidation [191], biochar adsorption [192], artificial neural networks [193], genetic algorithm [194], (global) sensitivity analyses [195,196], process optimization method (e.g., RSM, CCD) [197,198], bowtie analysis [199], fuzzy AHP [200,201], dynamic BN [187,202], etc., for environment protection and process safety and risk analysis.

4. Conclusions

This study presents a bibliometric journal analysis perspective to explore the evolution in safety or environmental engineering design and practice, as well as experimental or theoretical innovative research. Various bibliometric analyses, scientometric mapping, and statistical techniques are utilized to identify and unearth the evolution trends and detailed characteristics of the publications as indexed by the Web of Science. To validate the application of our purpose, the principal and influential international journal PSEP is taken as the case study journal to explore the influencing factors behind the rapid development of journals and reveal the main research trends of the safety of industrial processes and the protection of the environment.
The main findings for our case study journal could be summarized as follows: (a) until the statistical time of this paper, PSEP has published 3152 literature productions and drawn 44,879 citations, and the corresponding number keeps increasing over time. (b) Faisal Khan is the most productive author and the only author with more than 50 papers in PSEP, followed by Paul Amyotte and P. J. Thomas. Additionally, Gordon Mckay is the most influential author (with 2897 citations and the highest average number of citations of 193.13). Moreover, the editorial board members play a relatively important role among the leading authors and within the process safety and environmental protection research domain. (c) China is the leading country with the highest number of publications and citations, followed by the United Kingdom and India. Additionally, China and the USA have the closest cooperation and research relationship in PSEP. It is expected that more international collaboration could be promoted and enhanced to share knowledge globally in the future. (d) The leading institutions are China University of Mining & Technology (with the highest number of publications of 73), Nanjing University of Technology (with the largest average publication year of 2018.87), Memorial University of Newfoundland (with the highest number of total citations of 1854), and Dalhousie University (with the highest average citations of 37.24). Furthermore, 29.63% of the leading institutions are from the United Kingdom, and the most productive countries and institutions both regard China. (e) The most influential work published in PSEP held 1530 citations and the biggest average citations per year of 66.52. In addition, there are seven literature productions with the minimum citations of 200, and the document type of review paper is more likely to get more citations. However, 61.04% publications in PSEP have no more than ten citations, and there are still a certain number of publications that are not cited. Furthermore, there are 43 highly cited references (most of them are journal articles) that can be regarded as the core intellectual bases of PSEP. These works concern adsorption theory, process safety and risk management methods and models, inherent safety, loss prevention, domino effect, waste treatment, and coal mine safety. The related reviews for the highly cited references could deliver further detailed insights in the explored domain for scholars. (f) Several keywords/topics, such as “adsorption”, “kinetics”, “response surface methodology”, “risk assessment”, “optimization”, “heavy metals”, and “safety”, are the most popular hotspots of PSEP. Additionally, the popular keywords in various periods reveal the chronological evolutionary process and trends of the emerging or long-lasting research hotspots of PSEP during the last 30 years.
The topics of the selected publications from the case study journal mainly concentrate on the research fields of protection of the environment and safety of industrial processes. For specific research areas, the mainstream research areas of our case study journal, including the waste and pollutants remediation, environmental protection methodologies and technologies, waste management and sustainable development, accident prediction and hazard assessment methods and models, process safety and risk assessment, and safety and risk management strategy and cost–benefit analysis, etc., are recognized. In addition, some new emerging topics in the research community could be highlighted and recommended for scholars and stakeholders. In respect to environmental protection, some emerging topics are recognized, such as catalytic pyrolysis of waste, sustainability of the production of fuels, analysis of kinetics and adsorption mechanisms, activated carbon adsorption, supercritical water processes, climate change mitigation technology (especially catalytic conversions of greenhouse gas), catalytic degradation of organics (especially utilizing microbial community), application of microwave for waste treatment, safety of drinking water and its treatment, mineralization technology for pollutant emission control, etc. In view of industrial process safety, the mainly focused topics are failure of complex systems, mine fires and coal spontaneous combustion prevention, inherent safety and cost evaluation, risk analysis and prevention considering synergistic effects and domino effects, optimization for hazardous materials transportation, J-value analysis and assessment of accidents, safety culture and process safety education, human and organizational factors of safety, etc. As for Industry 4.0 (especially smart manufacturing and production, big data, Internet of Things), accompanied with artificial intelligence (e.g., the application of artificial intelligence for wastewater treatment and deep learning-based forecast modeling for safety/risk-related topics), are widely used as the hotspots for the research fields of PSEP. In terms of techniques/methods, heterogeneous catalysis, photocatalysis degradation, advanced oxidation process, biochar for adsorption, machine learning (especially deep learning), response surface methodology, numerical simulation, HAZOP, bowtie, dynamic Bayesian network, dynamic and computer-aided fault tree analysis, hybrid artificial neural network, genetic algorithm approach, etc., are widely used and applied advanced emerging techniques, as well as traditional methods, among global scholars for solving the environment protection, safety, and risk analysis problems. The aforementioned new future trends contribute to offering safer and cleaner living and production environments for human beings, which will further promote the harmonious coexistence of man and nature and achieve social and economic development sustainability.
This paper provides a comprehensive and quantitative overview and significant picture representation for the journal’s leading and evolutionary trends by employing specific bibliometric key impact factors, such as the document types, publication distribution and citation structure, most cited works, the trends of research topics, and prominent contributing authors, countries (regions), and institutions, etc. Additionally, by reviewing the evolution trends of the journal and the proposed investigated factors, such as the influential works, main research topics, and the research frontiers, this paper delivers various research objectives and directions that could be addressed and explored in future studies for related scholars worldwide, as well as for related journal editors, to position their journal to align with the focus topic of the safety of industrial processes and the protection of the environment. However, note that the results obtained from the present paper are dynamic, and may change over time along with the emergence of new research hotspots or mainstream subjects and some specific variables increasing/decreasing in the study.
In the follow-up research, some other data sources, e.g., Scopus, Google Scholar, and EconLit, etc., and some other document types, e.g., books, proceedings books, PhD theses, etc., could be contained as a supplement for scholars applying our proposed methodology for exploring the evolutionary trends for a particular knowledge domain. Additionally, some comparative analysis and inductive research for different journals in a specific research area could be conducted in further study. Nevertheless, some expert knowledge should be considered when selecting the most relevant journals and articles, especially for a very wide study field that may lead to a huge workload of a subsequent analysis and an overloading and time-consuming phenomena for the analysis tools.
