# Forecasting of Landslide Displacement Using a Probability-Scheme Combination Ensemble Prediction Technique

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Description of Uncertainty Sources

#### 2.2. Ensemble Prediction

#### 2.3. Quantile Regression Neural Network

#### 2.3.1. Quantile Regression

#### 2.3.2. Quantile Regression Neural Network

#### 2.4. Kernel Density Estimation (KDE)

#### 2.5. Ensemble Prediction Employing QRNNs and KDE

#### 2.6. Evaluation Metrics and Uncertainty Quantification

^{2}) MSE, RMSE, NRMSE, and MAPE—were applied to assess the performance of point prediction. R

^{2}, MSE, RMSE, NRMSE, and MAPE are defined as

## 3. Case Study: Fanjiaping Landslide

#### 3.1. Features of the Fanjiaping Landslide

^{3}.

^{3}. The Tanjiahe landslide extends from an elevation of 135 m at the toe to 420 m at the crown (Figure 4c,d). The slope surface consists of alternating gentle and comparatively steep landforms. The sliding direction of the landslide is 345°.

^{3}.

#### 3.2. Input Data

#### 3.3. Triggering Factors of the Landslide Movements

#### 3.4. QRNNs-KDE-Based Method for Ensemble Prediction

#### 3.4.1. Data Splitting and Normalization

#### 3.4.2. QRNN Modelling

#### 3.4.3. PDF Estimation by KDE

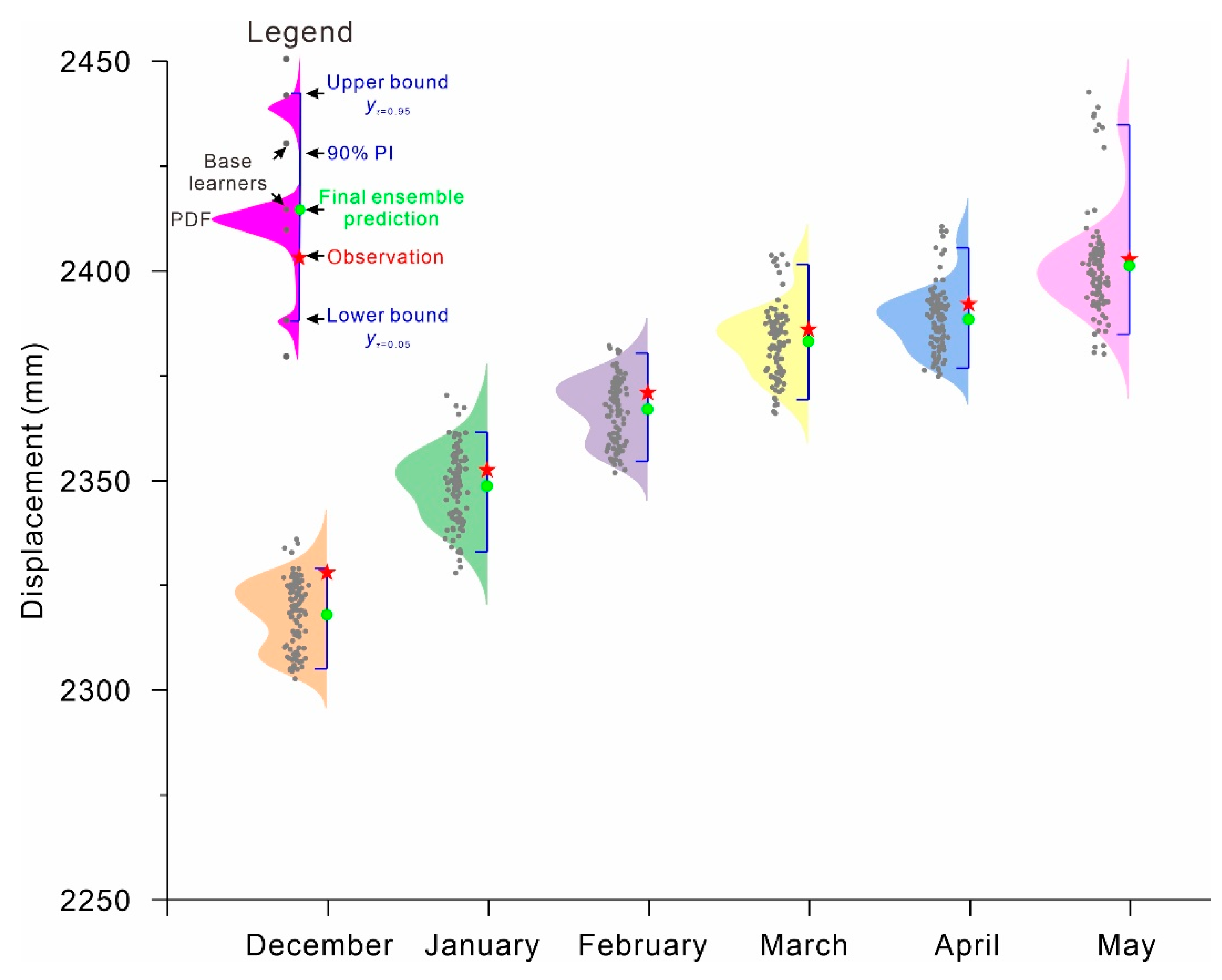

#### 3.4.4. Final Ensemble Prediction

## 4. Results

^{2}. Moreover, compared with predictions at monitoring point ZG289 using the Copula-KSVMQR approach in [3], the QRNNs-KDE approach provided more accurate prediction with smaller MAPE and RMSE.

## 5. Discussion

^{*}in Figure 11). Constructing an ensemble model (h

^{’}in Figure 11) might not be better than the single best prediction model h

^{*}, but it does reduce the risk of choosing a bad learner with poor generalizability (schematic in Figure 11a). From a computational perspective, in a single model the training algorithms might get stuck in lock optima by only performing a local search. Constructing an ensemble model by searching from different starting positions might be a better alternative (schematic in Figure 11b). From a representational perspective, it is possible that the searched hypothesis space might not contain the true model h

^{*}. Constructing an ensemble model might expand the representable space (schematic in Figure 11c).

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- CRED. EM-DAT: International Disaster Database. Available online: https://public.emdat.be/data (accessed on 9 June 2020).
- Wang, Y.; Tang, H.; Wen, T.; Ma, J. Direct Interval Prediction of Landslide Displacements Using Least Squares Support Vector Machines. Complexity
**2020**, 2020, 7082594. [Google Scholar] [CrossRef] - Ma, J.W.; Niu, X.X.; Tang, H.M.; Wang, Y.K.; Wen, T.; Zhang, J.R. Displacement Prediction of a Complex Landslide in the Three Gorges Reservoir Area (China) Using a Hybrid Computational Intelligence Approach. Complexity
**2020**, 2020, 2624547. [Google Scholar] [CrossRef] - Ma, J.W.; Tang, H.M.; Liu, X.; Wen, T.; Zhang, J.R.; Tan, Q.W.; Fan, Z.Q. Probabilistic forecasting of landslide displacement accounting for epistemic uncertainty: A case study in the Three Gorges Reservoir area, China. Landslides
**2018**, 15, 1145–1153. [Google Scholar] [CrossRef] - Pinto, F.; Guerriero, L.; Revellino, P.; Grelle, G.; Senatore, M.R.; Guadagno, F.M. Structural and lithostratigraphic controls of earth-flow evolution, Montaguto earth flow, Southern Italy. J. Geol. Soc. Lond.
**2016**, 173, 649. [Google Scholar] [CrossRef] - Guerriero, L.; Diodato, N.; Fiorillo, F.; Revellino, P.; Grelle, G.; Guadagno, F.M. Reconstruction of long-term earth-flow activity using a hydroclimatological model. Nat. Hazards
**2015**, 77, 1–15. [Google Scholar] [CrossRef] - Hu, X.; Bürgmann, R.; Schulz, W.H.; Fielding, E.J. Four-dimensional surface motions of the Slumgullion landslide and quantification of hydrometeorological forcing. Nat. Commun.
**2020**, 11, 2792. [Google Scholar] [CrossRef] - Ma, J.W.; Tang, H.M.; Hu, X.L.; Bobet, A.; Zhang, M.; Zhu, T.W.; Song, Y.J.; Ez Eldin, M.A.M. Identification of causal factors for the Majiagou landslide using modern data mining methods. Landslides
**2017**, 14, 311–322. [Google Scholar] [CrossRef] - Corominas, J.; Moya, J.; Ledesma, A.; Lloret, A.; Gili, J.A. Prediction of ground displacements and velocities from groundwater level changes at the Vallcebre landslide (Eastern Pyrenees, Spain). Landslides
**2005**, 2, 83–96. [Google Scholar] [CrossRef] - Li, S.H.; Wu, L.Z.; Chen, J.J.; Huang, R.Q. Multiple data-driven approach for predicting landslide deformation. Landslides
**2020**, 17, 709–718. [Google Scholar] [CrossRef] - Saito, M. Forecasting the time of occurrence of a slope failure. In Proceedings of the 6th International Congress of Soil Mechanics and Foundation Engineering, Montreal, QC, Canada, 8–15 September 1965; pp. 537–541. [Google Scholar]
- Hayashi, S.; Komamura, F.; Park, B.W.; Yamamori, T. On the forecast of time to failure of slope-Approximate forecast in the early period of the tertiary creep. J. Jpn. Landslide Soc.
**1988**, 25, 11–16. [Google Scholar] [CrossRef] - Federico, A.; Popescu, M.; Fidelibus, C.; Interno, G. On the prediction of the time of occurrence of a slope failure: A review. In Proceedings of the 9th International Symposium on Landslides, Rio de Janeiro, Brazil, 28 June–2 July 2004; pp. 979–983. [Google Scholar]
- Ma, J.W.; Tang, H.M.; Liu, X.; Hu, X.L.; Sun, M.J.; Song, Y.J. Establishment of a deformation forecasting model for a step-like landslide based on decision tree C5.0 and two-step cluster algorithms: A case study in the Three Gorges Reservoir area, China. Landslides
**2017**, 14, 1275–1281. [Google Scholar] [CrossRef] - Wen, T.; Tang, H.M.; Wang, Y.K.; Lin, C.Y.; Xiong, C.R. Landslide displacement prediction using the GA-LSSVM model and time series analysis: A case study of Three Gorges Reservoir, China. Nat. Hazards Earth Syst. Sci.
**2017**, 17, 2181–2198. [Google Scholar] [CrossRef][Green Version] - Huang, F.M.; Yin, K.L.; Zhang, G.R.; Gui, L.; Yang, B.B.; Liu, L. Landslide displacement prediction using discrete wavelet transform and extreme learning machine based on chaos theory. Environ. Earth Sci.
**2016**, 75, 1376. [Google Scholar] [CrossRef] - Zhang, J.; Wang, Z.P.; Zhang, G.D.; Xue, Y.D. Probabilistic prediction of slope failure time. Eng. Geol.
**2020**, 271, 105586. [Google Scholar] [CrossRef] - Yao, W.; Zeng, Z.G.; Lian, C. Generating probabilistic predictions using mean-variance estimation and echo state network. Neurocomputing
**2017**, 219, 536–547. [Google Scholar] [CrossRef] - Tehrany, M.S.; Pradhan, B.; Jebur, M.N. Flood susceptibility mapping using a novel ensemble weights-of-evidence and support vector machine models in GIS. J. Hydrol.
**2014**, 512, 332–343. [Google Scholar] [CrossRef] - Zhu, Y.J. Ensemble forecast: A new approach to uncertainty and predictability. Adv. Atmos. Sci.
**2005**, 22, 781–788. [Google Scholar] [CrossRef] - Wang, Z.Y.; Srinivasan, R.S. A review of artificial intelligence based building energy use prediction: Contrasting the capabilities of single and ensemble prediction models. Renew. Sust. Energ. Rev.
**2017**, 75, 796–808. [Google Scholar] [CrossRef] - Rigamonti, M.; Baraldi, P.; Zio, E.; Roychoudhury, I.; Goebel, K.; Poll, S. Ensemble of optimized echo state networks for remaining useful life prediction. Neurocomputing
**2018**, 281, 121–138. [Google Scholar] [CrossRef][Green Version] - Kim, M.-J.; Kang, D.-K. Ensemble with neural networks for bankruptcy prediction. Expert Syst. Appl.
**2010**, 37, 3373–3379. [Google Scholar] [CrossRef] - Prayogo, D.; Cheng, M.-Y.; Wu, Y.-W.; Tran, D.-H. Combining machine learning models via adaptive ensemble weighting for prediction of shear capacity of reinforced-concrete deep beams. Eng. Comput. Ger.
**2019**, 36, 1135–1153. [Google Scholar] [CrossRef] - Chen, K.; Jiang, J.; Zheng, F.; Chen, K. A novel data-driven approach for residential electricity consumption prediction based on ensemble learning. Energy
**2018**, 150, 49–60. [Google Scholar] [CrossRef] - Lee, D.; Baldick, R. Short-Term Wind Power Ensemble Prediction Based on Gaussian Processes and Neural Networks. IEEE Trans. Smart Grid
**2014**, 5, 501–510. [Google Scholar] [CrossRef] - Choubin, B.; Moradi, E.; Golshan, M.; Adamowski, J.; Sajedi-Hosseini, F.; Mosavi, A. An ensemble prediction of flood susceptibility using multivariate discriminant analysis, classification and regression trees, and support vector machines. Sci. Total Environ.
**2019**, 651, 2087–2096. [Google Scholar] [CrossRef] [PubMed] - Chen, J.; Li, Q.; Wang, H.; Deng, M. A Machine Learning Ensemble Approach Based on Random Forest and Radial Basis Function Neural Network for Risk Evaluation of Regional Flood Disaster: A Case Study of the Yangtze River Delta, China. Int. J. Environ. Res. Public Health
**2020**, 17, 49. [Google Scholar] [CrossRef][Green Version] - Di Napoli, M.; Carotenuto, F.; Cevasco, A.; Confuorto, P.; Di Martire, D.; Firpo, M.; Pepe, G.; Raso, E.; Calcaterra, D. Machine learning ensemble modelling as a tool to improve landslide susceptibility mapping reliability. Landslides
**2020**. [Google Scholar] [CrossRef] - Srivastav, R.K.; Sudheer, K.P.; Chaubey, I. A simplified approach to quantifying predictive and parametric uncertainty in artificial neural network hydrologic models. Water Resour. Res.
**2007**, 43, W10407. [Google Scholar] [CrossRef][Green Version] - Tiwari, M.K.; Chatterjee, C. Development of an accurate and reliable hourly flood forecasting model using wavelet-bootstrap-ANN (WBANN) hybrid approach. J. Hydrol.
**2010**, 394, 458–470. [Google Scholar] [CrossRef] - Kasiviswanathan, K.S.; He, J.; Sudheer, K.P.; Tay, J.-H. Potential application of wavelet neural network ensemble to forecast streamflow for flood management. J. Hydrol.
**2016**, 536, 161–173. [Google Scholar] [CrossRef] - Zhang, J.; Tang, W.H.; Zhang, L.M.; Huang, H.W. Characterising geotechnical model uncertainty by hybrid Markov Chain Monte Carlo simulation. Comput. Geotech.
**2012**, 43, 26–36. [Google Scholar] [CrossRef] - Cannon, A.J. Quantile regression neural networks: Implementation in R and application to precipitation downscaling. Comput. Geosci. UK
**2011**, 37, 1277–1284. [Google Scholar] [CrossRef] - Xu, Q.F.; Liu, X.; Jiang, C.X.; Yu, K.M. Quantile autoregression neural network model with applications to evaluating value at risk. Appl. Soft Comput.
**2016**, 49, 1–12. [Google Scholar] [CrossRef][Green Version] - Donaldson, R.G.; Kamstra, M. Forecast combining with neural networks. J. Forecast.
**1996**, 15, 49–61. [Google Scholar] [CrossRef] - Charlton, T.S.; Rouainia, M. Probabilistic capacity analysis of suction caissons in spatially variable clay. Comput. Geotech.
**2016**, 80, 226–236. [Google Scholar] [CrossRef][Green Version] - Gramacki, A. Nonparametric Kernel Density Estimation and Its Computational Aspects; Springer: New York, NY, USA, 2017. [Google Scholar]
- Zhang, S.; Ma, J.W.; Tang, H.M. Estimation of Risk Thresholds for a Landslide in the Three Gorges Reservoir Based on a KDE-Copula-VaR Approach. Geofluids
**2020**, 2020, 8030264. [Google Scholar] [CrossRef] - Wan, C.; Xu, Z.; Pinson, P.; Dong, Z.Y.; Wong, K.P. Probabilistic forecasting of wind power generation using extreme learning machine. IEEE Trans. Power Syst.
**2014**, 29, 1033–1044. [Google Scholar] [CrossRef][Green Version] - Wan, C.; Xu, Z.; Wang, Y.L.; Dong, Z.Y.; Wong, K.P. A hybrid approach for probabilistic forecasting of electricity price. IEEE Trans. Smart Grid
**2014**, 5, 463–470. [Google Scholar] [CrossRef] - Wang, Y.K.; Tang, H.M.; Wen, T.; Ma, J.W. A hybrid intelligent approach for constructing landslide displacement prediction intervals. Appl. Soft Comput.
**2019**, 81, 105506. [Google Scholar] [CrossRef] - Zhang, L.; Liao, M.S.; Balz, T.; Shi, X.G.; Jiang, Y.N. Monitoring landslide activities in the Three Gorges area with multi-frequency satellite SAR data sets. In Modern Technologies for Landslide Monitoring and Prediction; Scaioni, M., Ed.; Springer Berlin Heidelberg: Berlin/Heidelberg, Germany, 2015; pp. 181–208. [Google Scholar] [CrossRef]
- Fan, J.H.; Qiu, K.T.; Xia, Y.; Li, M.; Lin, H.; Zhang, H.T.; Tu, P.F.; Liu, G.; Shu, S.Q. InSAR monitoring and synthetic analysis of the surface deformation of Fanjiaping landslide in the Three Gorges Reservoir area. Geol. Bull. China
**2017**, 36, 1665–1673. [Google Scholar] - Guerriero, L.; Coe, J.A.; Revellino, P.; Grelle, G.; Pinto, F.; Guadagno, F.M. Influence of slip-surface geometry on earth-flow deformation, Montaguto earth flow, southern Italy. Geomorphology
**2014**, 219, 285–305. [Google Scholar] [CrossRef] - Guerriero, L.; Bertello, L.; Cardozo, N.; Berti, M.; Grelle, G.; Revellino, P. Unsteady sediment discharge in earth flows: A case study from the Mount Pizzuto earth flow, southern Italy. Geomorphology
**2017**, 295, 260–284. [Google Scholar] [CrossRef] - Dietterich, T.G. Ensemble Methods in Machine Learning. In Proceedings of the Multiple Classifier Systems, Cagliari, Italy, 21–23 June 2000; pp. 1–15. [Google Scholar]
- Du, J.; Yin, K.L.; Lacasse, S. Displacement prediction in colluvial landslides, Three Gorges Reservoir, China. Landslides
**2013**, 10, 203–218. [Google Scholar] [CrossRef]

**Figure 1.**General framework for ensemble prediction models. (

**a**) Homogeneous ensemble model and (

**b**) heterogeneous ensemble model.

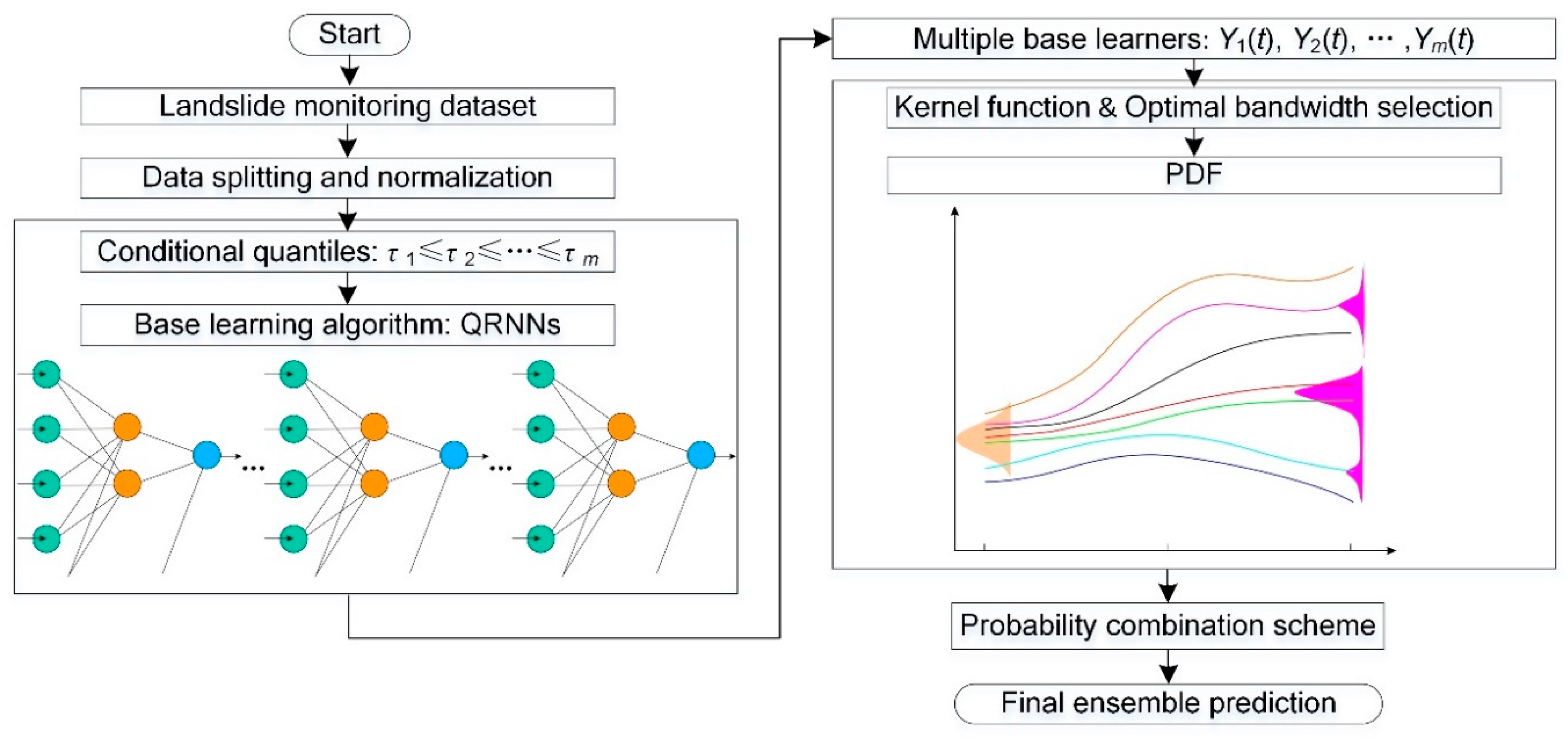

**Figure 2.**The overall flowchart of ensemble prediction based on the quantile regression neural networks and kernel density estimation (QRNNs-KDE) approach.

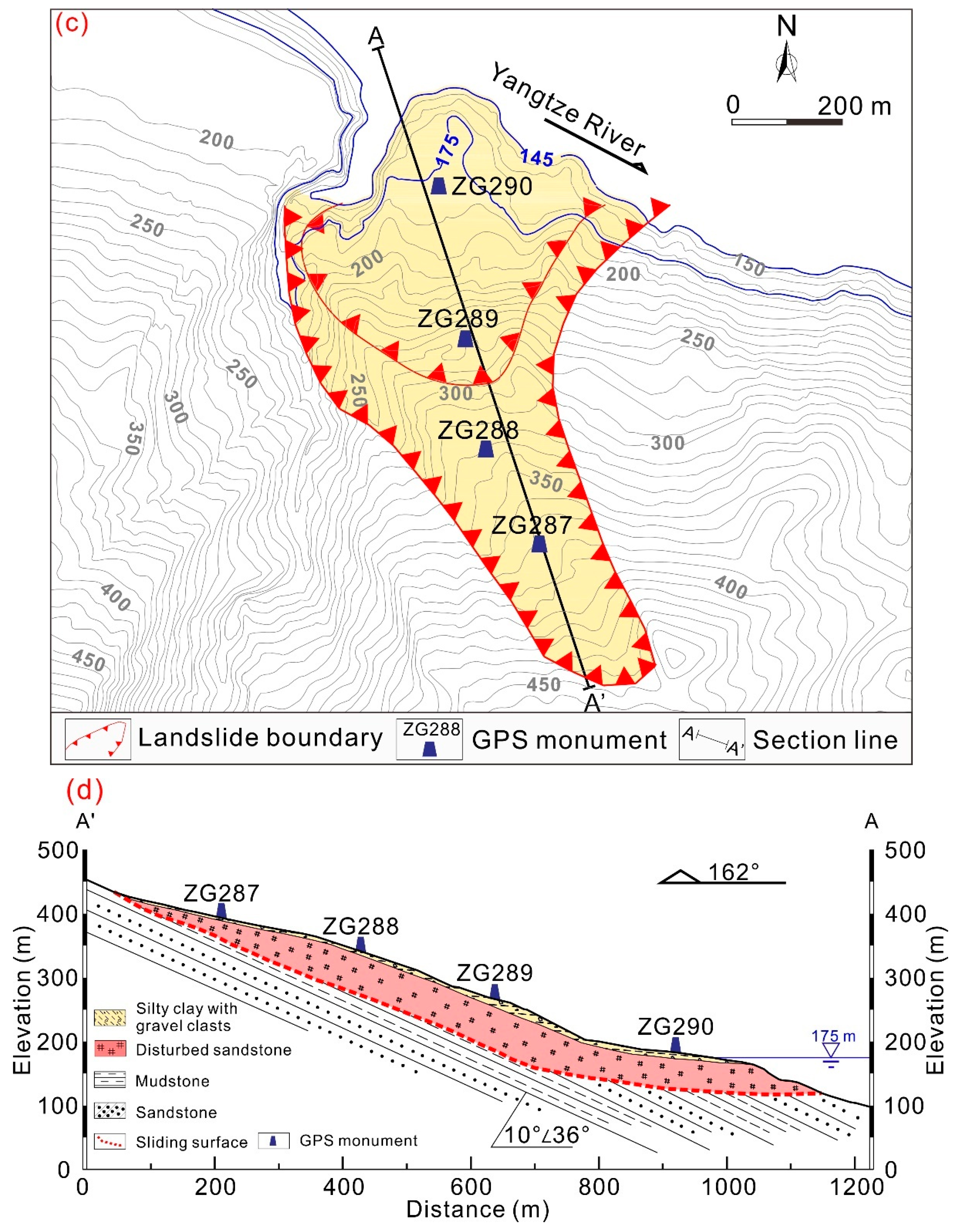

**Figure 4.**Topographic map and geological profile of the Fanjiaping landslide. (

**a**) Topographic map of the Muyubao landslide. (

**b**) Geological profile of the Muyubao landslide along sections A-A′, as recorded with monitoring instruments. (

**c**) Topographic map of the Tanjiahe landslide. (

**d**) Geological profile of the Tanjiahe landslide along sections B-B′, as recorded with monitoring instruments.

**Figure 5.**Reservoir water level, monthly rainfall intensity, and cumulative displacement from the Fanjiaping landslide area.

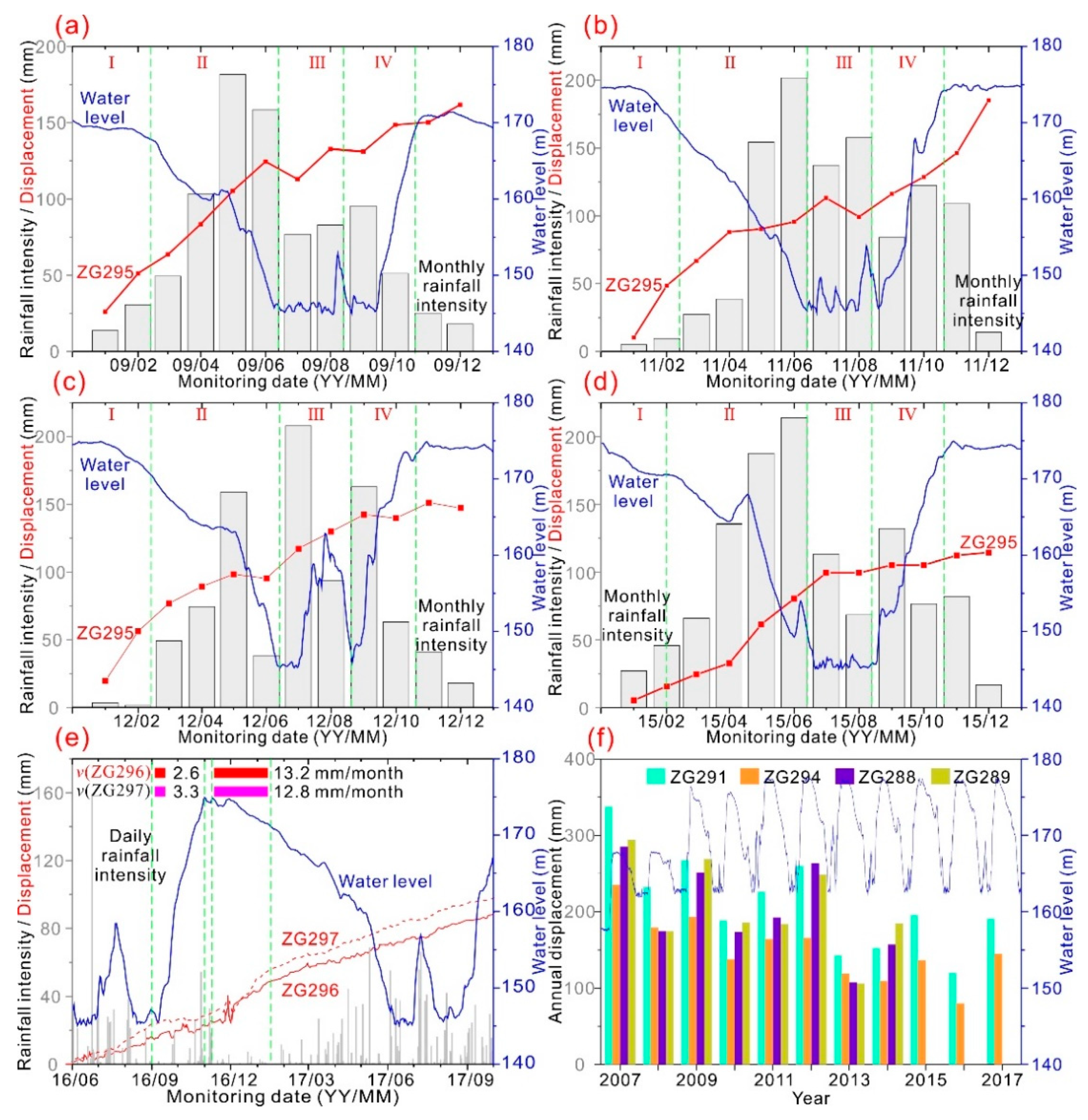

**Figure 6.**(

**a**–

**d**) Cumulative displacement at monitoring point ZG295, monthly rainfall intensity, and reservoir water level spanning the period of 2009, 2011, 2012, and 2015. (

**e**) Cumulative displacement at monitoring points ZG296 and ZG297, daily rainfall intensity, and reservoir water level spanning the period of June 2016 to October 2017. (

**f**) Annual displacement at monitoring point ZG291, ZG294, ZG288, and ZG289, and reservoir water level spanning the period of 2007 to 2017.

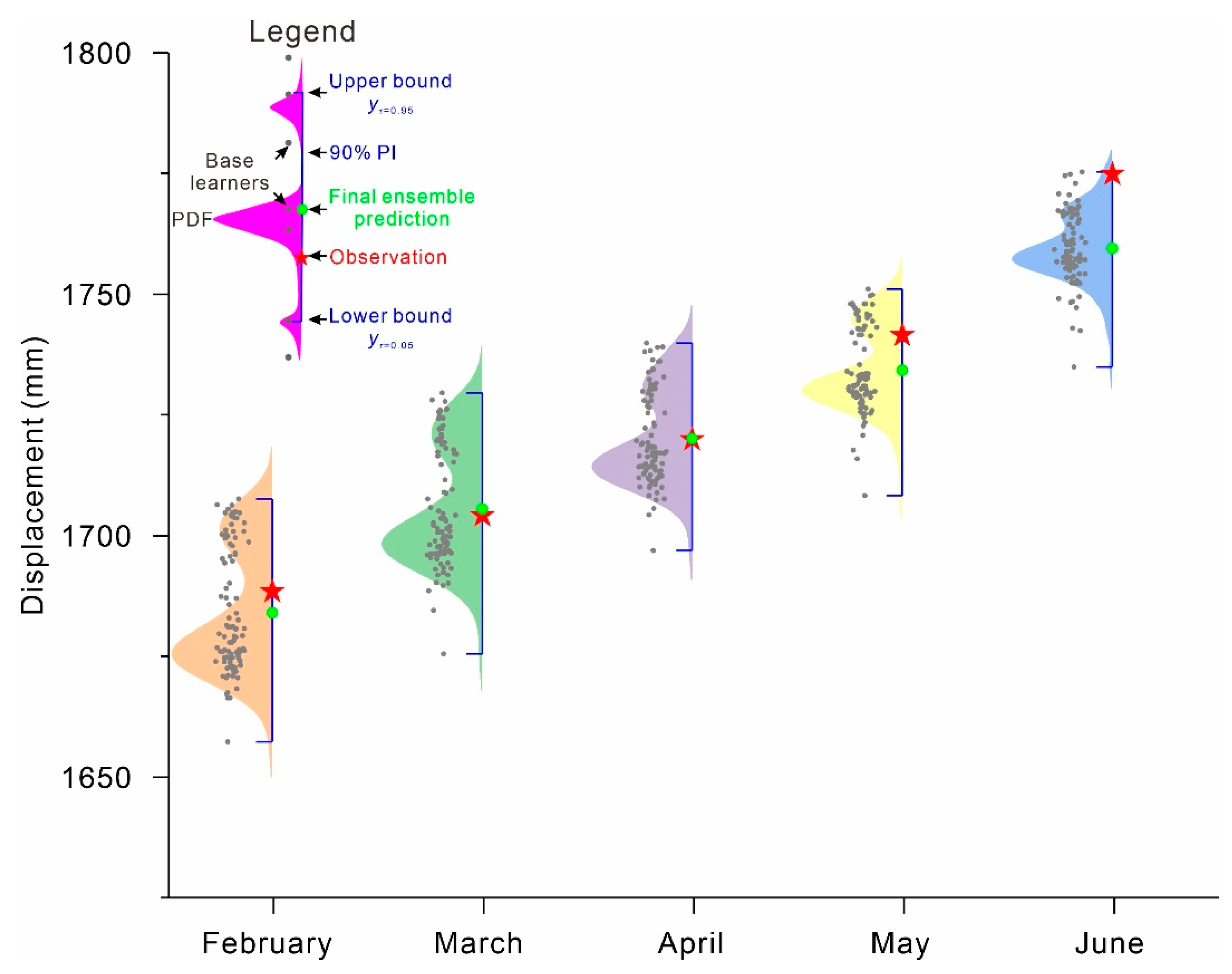

**Figure 7.**Probability density functions (PDFs) for the Fanjiaping landslide at ZG289 from February 2015 to June 2015.

**Figure 9.**Comparisons of the final ensemble predictions and observations for the Fanjiaping landslide at ZG289 and ZG291.

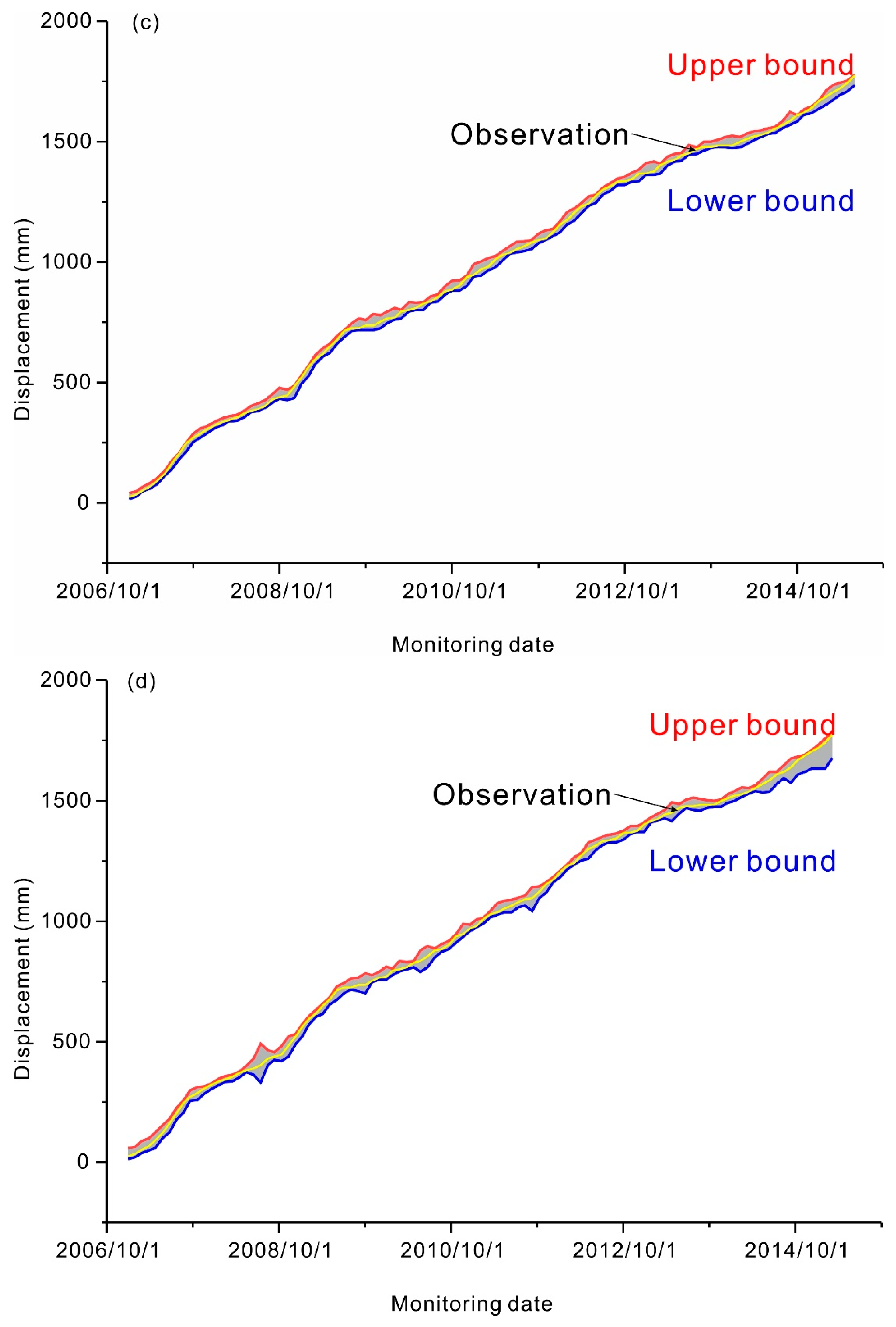

**Figure 10.**Comparisons of the observations and the constructed PIs at a 90% confidence level for the Fanjiaping landslide at ZG289 and ZG291 using QRNNs-KDE and bootstrap-ELM-ANN. (

**a**) 90% PIs at ZG291 using QRNNs-KDE; (

**b**) 90% PIs at ZG291 using bootstrap-ELM-ANN; (

**c**) 90% PIs at ZG289 using QRNNs-KDE, (

**d**) 90% PIs at ZG289 using bootstrap-ELM-ANN.

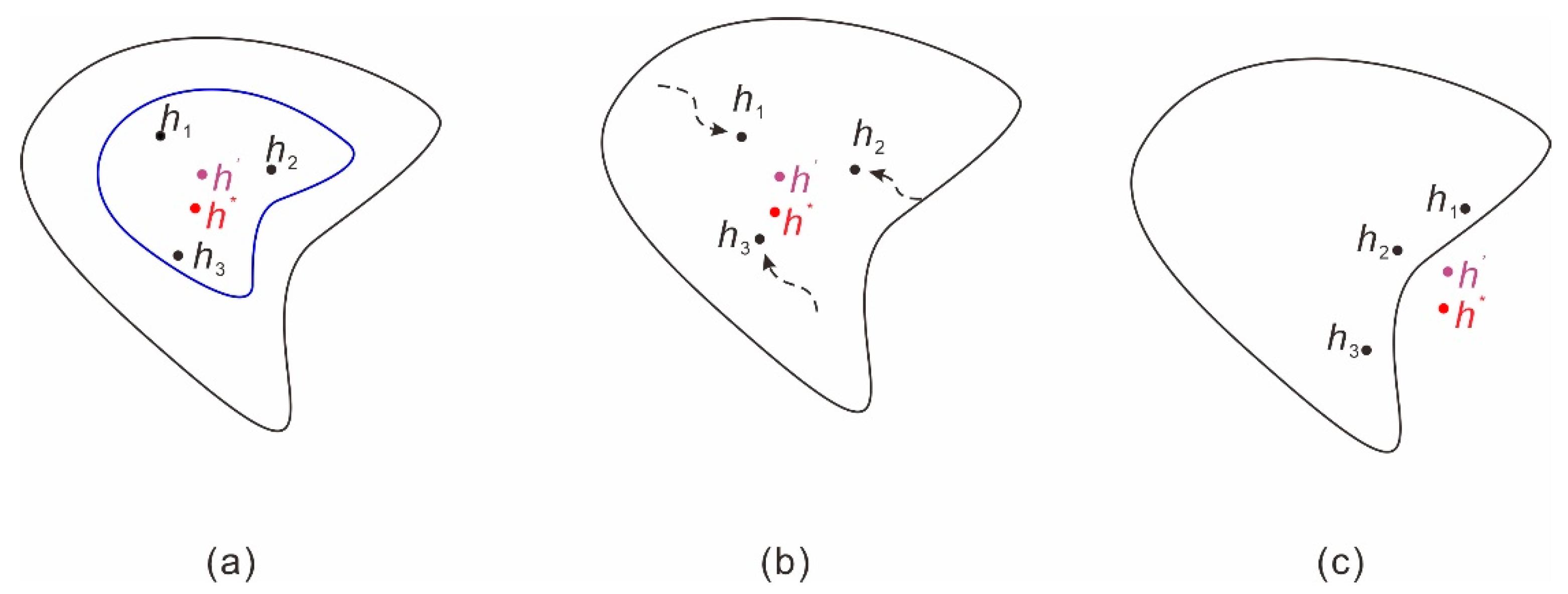

**Figure 11.**Schematic that shows the fundamental benefits of the ensemble prediction model from statistical (

**a**), computational (

**b**), and representational (

**c**) perspectives. h

^{*}is the true prediction model; h

_{1}, h

_{2}, and h

_{3}are single prediction models; and h

^{’}is the ensemble prediction model obtained by combining the single prediction models h

_{1}, h

_{2}, and h

_{3}. The outer black curve is the hypothesis space of all possible models. The inner blue curve denotes the subset of hypotheses that give reasonable accuracy with the available training data (modified from [47]).

Parameter | Value | Parameter | Value |
---|---|---|---|

Maximum number of iterations | 5000 | Penalty for weight decay regularization | 1 |

Number of quantiles | 99 | Number of input nodes | 7 |

Number of repeated trials | 5 | Number of hidden nodes | 5 |

**Table 2.**Comparisons of predictions obtained from QRNNs-KDE, BP, RBF, ELM, and SVM for the Fanjiaping landslide.

Monitoring Point | Model | BP | RBF | ELM | SVM | QRNNs-KDE | |
---|---|---|---|---|---|---|---|

Index | |||||||

ZG289 | R^{2} | 0.99730 | 0.99992 | 0.99785 | 0.99993 | 0.99997 | |

MSE | 3192.07 | 99.54 | 2538.74 | 78.12 | 30.69 | ||

RMSE | 56.50 | 9.98 | 50.39 | 8.84 | 5.54 | ||

NRMSE | 0.032263 | 0.005697 | 0.028772 | 0.005047 | 0.003163 | ||

MAPE | 2.74 | 2.00 | 1.57 | 1.27 | 1.17 | ||

ZG291 | R^{2} | 0.99991 | 0.99759 | 0.99991 | 0.99995 | 0.99997 | |

MSE | 206.32 | 5684.98 | 215.41 | 119.75 | 70.15 | ||

RMSE | 14.36 | 75.40 | 14.68 | 10.94 | 8.38 | ||

NRMSE | 0.005953 | 0.031251 | 0.006083 | 0.004536 | 0.003471 | ||

MAPE | 3.97 | 1.96 | 2.59 | 2.33 | 0.41 |

**Table 3.**Comparisons of 90% PIs obtained from Bootstrap-ELM-ANN and QRNNs-KDE for the Fanjiaping landslide.

Monitoring Point | Index | PICP | NPIW | CWC | |
---|---|---|---|---|---|

Model | |||||

ZG289 | Bootstrap-ELM-ANN | 100% | 0.27 | 0.2071 | |

QRNNs-KDE | 100% | 0.0215 | 0.1661 | ||

ZG291 | Bootstrap-ELM-ANN | 99% | 0.024 | 0.143 | |

QRNNs-KDE | 99% | 0.018 | 0.085 |
