Chemical Characterization of Seasonal PM2.5 Samples and Their Cytotoxicity in Human Lung Epithelial Cells (A549)

by
Ao Di
1,
Yun Wu
1,*,
Mindong Chen
1,*,
Dongyang Nie
2 and
Xinlei Ge
1
1
Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Jiangsu Key Laboratory of Atmospheric Environment Monitoring and Pollution Control, School of Environmental Science and Engineering, Nanjing University of Information Science & Technology, Nanjing 210044, China
2
School of Atmospheric Sciences, Nanjing University, Nanjing 210023, China
*
Authors to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(12), 4599; https://doi.org/10.3390/ijerph17124599
Submission received: 10 May 2020 / Revised: 10 June 2020 / Accepted: 17 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue The Effects of Air Pollution and Traffic Exposure in the General Population)
Browse Figures
Versions Notes

Abstract

:
In order to study the toxicity of fine particulate matter (PM2.5) sourced from different seasons on human health, we collected PM2.5 samples quarterly from March 2016 to February 2017 in Nanjing, China. The component analysis results showed that high proportions of water-soluble organic carbon (WSOC), SO42−, Ca2+ and Mg2+ were found in the summer samples, while high proportions of NO3−, NH4+ and heavy metals were observed in the spring and winter samples. Then human lung epithelial cells (A549) were exposed to the PM2.5 samples. The toxicological results indicated that reactive oxygen species (ROS) production in the spring and winter samples was higher than that in the summer and fall samples, which was related to the contribution of some heavy metals and inorganic ions (e.g., Pb and NO3−). However, the apoptosis rates of the cells showed the opposite seasonal changes as what the ROS did, which might be caused by the higher WSOC content in the summer. In addition, regression analysis also showed the importance of the PM2.5 components in ROS production and apoptosis. Particularly, Zn had the strongest correlation with ROS production (R = 0.863) and cell apoptosis (R = 0.675); thus, the specific toxicity of Zn in PM2.5 deserves further investigation. Our results could be beneficial for assessing the health risks and controlling the toxic components of PM2.5 in Nanjing.

1. Introduction

With the rapid development of the economy and society in China, a large number of particles produced by industrial activity, transportation and coal burning has caused serious air pollution problems, and poses great risks to human health [1]. The impact of fine particulate matter (PM2.5) on human health has received widespread attention in recent years. Epidemiological studies show that PM2.5 can not only reach the deepest part of the lungs through the respiratory tract, enter alveoli and form deposits, but also penetrate the blood–gas barrier and enter into the blood circulation [2]. After that, PM2.5 can cause damage or dysfunction in vascular endothelial cells, and induce cardiovascular diseases such as atherosclerosis [3]. Animal models and cell studies prove that PM2.5 can induce oxidative damage and inflammatory reactions in the lungs [4,5,6]. In addition, PM2.5 can increase membrane permeability, facilitate the release of Cytochrome-C and the formation of apoptosis bodies, lyse the downstream apoptosis execution protein, destroy cells and eventually cause apoptosis [7].
PM2.5 consists of a carbonaceous core and various absorbed chemical components, such as metals, organic compounds, salts and biological components [8]. Carbonaceous compositions account for a large proportion of PM2.5, and they can penetrate into the lungs and cause respiratory tract inflammation [9]. Although metal elements are present in relatively small amounts, they are also non-negligible toxic components in PM2.5 due to their non-degradability, bioaccumulation and high toxicity [10]. Water-soluble ions (e.g., SO42−, Cl− and NH4+) are the main chemical components in PM2.5. In addition, they can change the pH of the exposed solution and affect cell viability [11,12]. It has been widely demonstrated that the composition of PM2.5 is closely related to its toxicity [13]. Epidemiological studies have found that carbonaceous composition exposure could affect the human cardiovascular system, respiratory system, nervous system and other aspects [14]. It also has been showed that an increase in the proportion of sulfate and nitrate in PM2.5 would lead to a relative increase in mortality [15]. As for the metal components, Cd and As adsorbed by PM2.5 from traffic sources could damage the human kidney [16]. Zn, Ni, Si, Ti and elemental carbon in PM2.5 were the primary factors that induced adverse pregnancy outcomes (e.g., a low birth weight) [17,18].
In recent years, many studies have shown that the main cause of PM2.5-induced lesions involved reactive oxygen species (ROS) [19]. ROS is chemically active and has a wide range of effects. Not only can it directly cause oxidative damage to biochemical macromolecules (e.g., nucleic acids and proteins), lead to DNA cross-linking, fragmentation and DNA–Protein crosslink formation, but it can also cause lipid membrane peroxidation, lead to cell dysfunction and then apoptosis [20,21]. Apoptosis is an orderly death of cells controlled by genes in order to maintain the stability of the internal environment [22]. It involves a series of gene activation, expression and regulation. Therefore, both ROS and apoptosis are considered as important endpoint indicators of toxicity. Many studies have showed the relationship between oxidative damage or cell death with different chemical components of PM2.5 [13]. Metal elements, such as the Fe, V, Cu and Mn contained in PM2.5, can promote the production of intracellular ROS through the Fenton reaction, and then impair antioxidant enzyme function [23,24]. Some water-soluble components (SO42− and NH4+) were found to be significantly correlated with ROS production (p < 0.05, R > 0.70) [25]. However, due to the diversity in PM2.5 composition, its toxicity varies greatly and no conclusion has been reached at present. Temporal–spatial-specific analyses are necessary to understand the PM composition and variability for regional air pollution control.
As the capital of Jiangsu Province, Nanjing has experienced rapid economic development in recent years. Industrial coal combustion and motor vehicle exhaust emissions have been intensified, which brought tremendous pressure on the atmospheric environment. Most studies regarding PM2.5 focused on the physical and chemical characteristics of PM2.5, but the toxic effects of PM2.5 in this area are still not clear. Generally, emission sources and atmospheric conditions dictate the chemical composition of PM2.5 in Nanjing, resulting in seasonal differences in PM2.5 composition, which will further affect its toxic properties [26,27]. For example, the inhibition of cell viability caused by PM2.5 was higher in summer samples [28]. In this study, PM2.5 samples were collected from the northern suburbs of Nanjing in four seasons of 2016 to determine the variations in its components, including water-soluble organic carbon (WSOC), water-soluble ions and heavy metal elements. Simultaneously, the degree of oxidative damage and apoptosis in human lung epithelial cells A549 were examined. Our results could provide a scientific basis for regional health risk assessment and health protection measure formulation.

2. Materials and Methods

2.1. Reagents

A human lung epithelial cell line (A549) was obtained from the school of Public Health, Nanjing Medical University (Nanjing, China). RPMI-1640 medium and phosphate buffered saline (PBS) were purchased from Bio-Channel (Nanjing, China). Fetal bovine serum (FBS) was from Gibco (New Castle, Australia). The 2’,7’-dichlorofluorescein diacetate (DCFH-DA) was obtained from Sigma-Aldrich (St Louis, MO, USA). Annexin V-FITC/PI Apoptosis Detection Kit was purchased from Beyotime Bio-technology (Shanghai, China).

2.2. PM2.5 Collection and Preparation

Urban atmospheric particulate matter PM2.5 was collected during the four seasons of 2016 (from March 2016 to February 2017). Twenty samples from the middle month (April, July, October and January) of each quarter were selected to represent the different seasons. The sampling site was located on the campus of Nanjing University of Information Science and Technology (NUIST), China. Particles were obtained on quartz filters (203 mm × 254 mm, Whatman, Maidstone, UK) using a high-volume air sampler (Tisch Environmental, Cleves, OH, USA) [29]. The collection flow rate was 1130 L/min (24 h).
Quartz filters containing PM2.5 were cut into small strips and placed into ultrapure water. The samples were treated using ultrasonic extraction in an ice bath for 20 min and repeated 3 times to extract the PM2.5 [28,30]. Different filters of the same season were extracted, vacuum freeze-dried and pooled to have a homogeneous batch of particles, representative of the sampling season. Part of the dried samples were suspended in a phosphate-buffered saline (PBS) solution and stored at 4 °C for the cytotoxicity tests. Other dried samples were stored at −80 °C. Figure 1 shows the schematic of the experimental design.

2.3. PM2.5 Composition Analysis

After freeze-drying, particles were digested with 5 mL HNO3 in a microwave digestion instrument (GEM Corpooration, Charlotte, NC, USA). The digested solution was filtered, and diluted to 50 mL with ultrapure water. Heavy metal elements (As, Zn, Pb, Co, Cd, Ni, Mn, Cr, Cu and Al) were then detected by inductively coupled plasma mass spectrometry (ICP-MS, Thermo Fisher Scientific, Waltham, MA, USA). Two standard reference materials (GBW07403 and GBW08401) and a blank filter were analyzed in parallel with the samples. The recovery rates of all the elements were within 100 ± 15% [29].
Meanwhile, the other dry samples from each season were dissolved with 45 mL of ultrapure water and treated using ultrasonic extraction in an ice bath for 20 min. The solution was then filtered with a 0.22 µm filter to remove any particles. The cations in the solution were detected by ICS-3000 Multi Ion Chromatography (Dionex, Sunnyvale, CA, USA) equipped with the Ion Pac CS16-type separation column; the anions were detected by ICS-2000 Ion Chromatography (Dionex, Sunnyvale, CA, USA) equipped with the Ion Pac AS11-HC-type separation column. The methanesulfonate elution and KOH elution methods were used to analyze the cations and anions, respectively [31]. The total water-soluble organic carbon (WSOC) was detected using the LIGUE TOC-ANALYZER Organic Carbon Analyzer (Elementar, Hanau, Germany) [32].

2.4. Cell Culture and Exposure

A549 cells were cultured in RPMI-1640 medium supplemented with 10% FBS. They were maintained in a humidified incubator at 37 °C with 5% CO2. Logarithmic growth cells were used throughout this study. In each exposure experiment, A549 cells were seeded in six-well plates at a density of 5 × 105 cells/well. Then cells were exposed to different concentrations of PM2.5 (0, 50, 100, 200 and 400 μg/mL) for 24 h. These concentrations were selected according to our preliminary experiments with the PM2.5 concentrations ranging from 0 to 1000 μg/mL. There were three parallels for each concentration.

2.5. ROS and Apoptosis Assay

Cellular ROS levels were assessed using the fluorescent probe DCFH-DA [33]. After 24 h of exposure, DCFH-DA was diluted at a ratio of 1:1000 with serum-free medium, and the diluent was added to label the exposed cells. The cells were maintained at 37 °C in the dark for 30 min. After washing with PBS for 2–3 times, cells were collected and detected by flow cytometry (Beckman, Miami, FL, USA). The wavelength of excitation and emission were 480 nm and 525 nm, respectively.
Cellular apoptosis was measured using the Annexin V-FITC/PI kit according to the manufacturer’s protocol. Briefly, the exposed cells were harvested, washed and resuspended in a buffer solution at a density of 1 × 105 cells/well. A total of 5 µL of Annexin V-FITC and 10 µL of PI were added into each well. The treated cells were incubated in the dark at room temperature for 20 min. Afterwards, they were collected and detected by flow cytometry. FITC and PI fluorescence were both excited at 488 nm, while they were collected at 525 nm and 630 nm, respectively.

2.6. Statistical Analysis

To quantify the relationships between the PM2.5 compositions and toxic endpoints, regression analysis was performed between the heavy metals, water-soluble ions, WSOC, intracellular ROS and apoptosis rates. A t-test and one-way ANOVA were used to evaluate the differences among the treatments (SPSS 12.0) (SPSS Inc., Chicago, IL, USA). Statistical significance was accepted when p < 0.05.

3. Results and Discussion

3.1. PM2.5 Chemical Characteristics

The major toxic components of PM2.5, including water-soluble ions (SO42−, NO3−, NH4+, Na+, K+, Ca2+, Mg2+, Cl−), WSOC and heavy metal ions (As, Zn, Pb, Co, Cd, Ni, Mn, Cr, Cu, Al), were all detected in this study. Their relative proportions are shown in Figure 2, Figure 3 and Figure 4.

3.1.1. WSOC

Organic carbon is an important part of organic aerosol, which accounts for 10–70% of the total PM2.5 mass [34]. A large proportion of organic carbon (20–60%) is water-soluble [35]. In this study, the WSOC sourced from the four seasons accounted for 9.5–12.2% of all species tested. Our previous measurement in Nanjing (May 2015 to May 2016) also showed a relatively low level of WSOC, which may be related to the emission sources [36]. Our results are comparable to those found in other cities, in that organic carbon made up 5.7–8.4% and 10.0% of the PM2.5 in Thessaloniki (Greece) and São Paulo (Brazil) [37,38], respectively. In addition, the WSOC had the highest proportion in the summer and fall, followed by winter and spring. Similar measurements were also reported in our previous study [28]. High temperatures and strong sunlight facilitate the production of secondary organic aerosols, which may explain the increased organic carbon proportions in the summer [39]. It should be noted that only the WSOC components were detected in this study; the specific species of carbon-containing organic matter in the PM2.5 have not been distinguished.

3.1.2. Water-Soluble Ions

Water-soluble inorganic ions are another important chemical compositions of PM2.5. In this study, the percentage of water-soluble ions to total PM2.5 mass was the highest in winter (67.4%), followed by spring and summer (59.7% and 37.2%, respectively), and the lowest in fall (33.9%). This may be related to the unfavorable meteorological diffusion conditions in winter [40]. Further, these values in Nanjing were higher than those in Xiamen (28.7%), but comparable to those in Shenyang (55.9%) or Shanghai (55.9%) [41,42,43]. Since they come from different sources, their contents can be used to reflect the origin of the particles [38]. Generally, SO42− is a secondary pollutant produced from sulfur dioxide. NO3− mainly comes from the conversion of its gaseous precursor, NOx. NH4+ is also an indicator of secondary pollution, and is mainly formed by the emission of NH3. Cl¯, K+ and Mg+ are often derived from the combustion emission of power plants and incinerators. Besides, K+ can be used as a marker of biomass combustion. Ca+ usually comes from soil sources, and it is often used as a marker of construction dust.
SO42−, NO3− and NH4+ (collectively called SNA) were the major pollutants in PM2.5. SNA accounted for 68.1–79.8% of the total water-soluble ions, indicating that secondary pollution in this area was serious. Specifically, the proportion of SO42− was higher in the warmer seasons (spring and summer), which may be due to the enhanced oxidation of SO2 during the warm period. In contrast, the concentration of NO3− was high in spring and winter but low in summer and fall. Under high temperature conditions, NH4NO3 is easily volatilized and converted to its gaseous precursors (NH3 and HNO3), resulting in relatively low NO3− concentration in the summer. As expected, NH4+ had similar seasonal differences as NO3−. The ratio of NO3− to SO42− (NO3−/SO42−) can be used to distinguish the fixed sources (e.g., coal burning) from the mobile sources (e.g., vehicle exhaust). If the ratio is greater than 1, a mobile source would be the main factor, and vice versa. This ratio was 0.48–0.81 in our study, similar to the results of Zhou et al. (0.76) [44], indicating that the fixed source was still the main source of pollution in Nanjing. As for the cations, the content of K+ was relatively high in the winter, which may be related with winter coal emission or biomass combustion. Differently, Ca2+ and Mg2+ had relatively high amounts in the summer, which might be caused by the frequent construction and increased dust in summer.

3.1.3. Heavy Metals

Different contents and species of metals have been found in PM2.5, which may be caused by different PM2.5 sources and environmental conditions [45]. Among all the measured metals, Al and Zn were the main elements in the PM2.5 samples of all four seasons, and accounted for more than 80% of the total metals. Al is a representative element of the crust source, while Zn mainly comes from fuel combustion and diesel engine emission [46]. Other elements can also indicate different sources, such as Pb is from coal combustion and motor vehicle exhaust; Cu is from coal combustion, industrial emission, motor vehicle tires and mechanical wear; and As is from coal-fired emissions, as well as metallurgical and chemical industries [47,48]. In this study, high proportions of Zn, Pb, As and Cu were found in PM2.5, which was related to the fact that our sampling site is located in a traffic pollution area near chemical plants. Further, the percentage of heavy metals in the spring and winter samples were higher than those in the summer and fall samples. Unfavorable diffusion conditions aggravated the metal pollution in winter, while the low PM2.5 mass enhanced the proportion of heavy metals in spring.

3.2. Cytotoxicity of PM2.5

3.2.1. Cellular ROS

Oxidative and antioxidant species are in a state of dynamic equilibrium within organisms. When excessive free radicals are produced, such a balance is broken, and oxidative stress and damage may occur. The content of ROS is often used to reflect the degree of oxidative damage caused by PM2.5. Previous studies have shown that some water-soluble species (e.g., SO42− and NH4+) in particles had a significant correlation with the level of ROS [49,50]. Some metal elements (e.g., Cr, Mn, Cu, As, Cd, Pb and Zn) have also been demonstrated to induce ROS production, and ultimately cause DNA damage [51,52]. Figure 5 shows the flow cytometry images of the A549 cells with or without PM2.5 exposure (from the control treatment and the highest concentration treatment, the winter sample). The statistical results of the ROS levels of the four season samples are shown in Figure 6.
ROS production in all seasons increased with increasing levels of PM2.5, suggesting the toxic effects of the particles. Generally, at lower exposure concentrations (50 and 100 μg/mL), there was no significant difference in ROS production for each season (p > 0.05). At higher exposure concentrations (200 and 400 μg/mL), a significant increase between the concentration treatments was observed. Moreover, the relative amount of ROS in the spring and winter was higher than those in the summer and fall, indicating stronger oxidative damage in these two seasons. Such variations might be related to the differences in PM2.5 composition. Some studies indicated that Zn was the main metal element causing ROS production in A549 cells [49]; other studies also showed that intracellular ROS production was correlated with the metal components (e.g., Fe, Cr, Mn, Ni, Cu, As, Sr, Cd, Cs, Ba, Pb and Zn) in the particles [53]. In this study, the highest Zn content was found in the spring, followed by winter, which might partially explain the observed differences. The seasonal variation of the Pb, Co, Cd, Mn, Cr and Cu contents was basically the same as that of the ROS levels. Additionally, the sum of SO42− and NO3− percentages was also higher in the spring and winter, implying their contributions to ROS production [24].

3.2.2. Cell Apoptosis

Apoptosis is a programmed and a non-inflammatory form of cell death within the cells. Many components in PM2.5 (e.g., Fe, Cr, Cd and PAHs) have been reported to cause DNA damage and act as inducers of apoptosis in human cells [54]. In addition, the increase in ROS content caused by PM2.5 will lead to lipid peroxidation, increase membrane permeability, cause cell dysfunction and eventually apoptosis [19,20]. In this study, Annexin V-FITC/PI double staining reflected early and late apoptosis. Actually, both apoptosis and necrosis can be detected by this staining method. Figure 7 shows the flow cytometry images of the A549 cells with or without PM2.5 exposure (from the control treatment and the highest concentration treatment, the summer sample). Early apoptosis is the percentage of cells stained by Annexin V, and late apoptosis is the percentage of cells stained by Annexin V and PI. The total apoptosis rate was then calculated as the percentage of cells in the early and late stages of apoptosis (Figure 8).
The control treatments in the four seasons were maintained at relatively low apoptosis rates (approximately 10%), and there was no significant difference among seasons. At higher levels of PM2.5, the apoptosis rates in all seasons generally showed increasing trends. However, decreased apoptosis was found at the highest concentration (400 μg/mL) in the summer and winter samples. During our experiment, the extremely high concentration might have induced cell lysis or suspension, making the cells hard to be collected and labeled, thus leading to an underestimate in apoptosis determination. Although the spring samples had the highest apoptosis rate (63.4 ± 1.4%), at the same dose level, the apoptosis rates of the summer samples were significantly higher than those of the other seasons. Particularly, higher early apoptosis rates in the spring and summer contributed to the higher total apoptosis rates in these seasons. The late apoptosis rates were higher in the summer, followed by winter, spring and fall, which also lead to the higher total apoptosis rates in the summer. Some studies have confirmed the damage effects of organic components on cellular DNA [53]. The specific species were still not clear, but the higher WSOC contents might be related to the higher apoptosis rates in summer.

3.2.3. Correlation between the PM2.5 Components and Cytotoxicity

To further quantify the effects of the PM2.5 composition on the toxic endpoints, we performed regression analyses between the heavy metals, water-soluble ions, WSOC, intracellular ROS and apoptosis rates. The results are shown in Table 1.
It can be seen that, among all the heavy metals, Zn had the strongest correlation with ROS. This was consistent with our findings that they both had high concentrations in spring and winter. Zn accounts for a large proportion of particulate heavy metals, and it has been demonstrated that Zn in PM2.5 could promote the production of ROS [54]. As expected, other metals and the sum of the heavy metals also had strong correlations with ROS. Most of the water-soluble species (e.g., SO42−, NO3−, NH4+ and WSOC) also showed a strong correlation with ROS, indicating their contribution to ROS production [24]. In addition, Nordin et al. proved that K+ was highly related to cellular inflammatory factors, and the inflammatory response would lead to an increase in ROS production [55], which could explain the strong correlation between K+ and ROS. As for apoptosis, the correlation between the Zn and apoptosis rate was also the strongest. Excessive Zn2+ could indirectly induce the expression of the metallothionein genes (HSP70) and proto-oncogenes (e.g., C-fos, C-jun and C-myc). In addition, high concentration of Zn2+ could also decrease the activity of Cu and Zn-superoxide dismutase, increase intracellular free radicals, cause DNA damage and induce apoptosis [20]. Thus, the toxicity of Zn in PM2.5 deserves further investigation.

4. Conclusions

PM2.5 exposure increased the relative ROS production and apoptosis rates of the A549 cells, and showed obvious seasonal variations, which may be explained by the changes in PM2.5 components. Higher ROS production was found in the spring and winter samples, which was consistent with the seasonal changes in some heavy metals and water-soluble species (e.g., NO3− and NH4+). In contrast, Zn and WSOC might play important roles in apoptosis. Of course, the chemical composition of PM2.5 is extremely complex, and the relationship between its composition and toxicity is complicated. Therefore, the contributions of different components to PM2.5 toxicity and the specific toxic mechanisms of each component deserve further study.

Author Contributions

Conceptualization, Y.W.; data curation, D.N. and X.G.; formal analysis, A.D.; funding acquisition, M.C.; investigation, A.D.; methodology, A.D.; project administration, M.C.; resources, X.G.; supervision, Y.W. and M.C.; validation, D.N.; writing—original draft, A.D.; writing—review and editing, Y.W. and M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Project, grant number 2018YFC0213802; and the National Natural Science Foundation of China, grant number 21976094).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nie, D.; Chen, M.; Wu, Y.; Ge, X.; Hu, J.; Zhang, K.; Ge, P. Characterization of Fine Partiulate Matter and Associated Health Burden in Nanjing. Int. J. Environ. Res. Public Health 2018, 15, 602. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Bräuner, E.V.; Mortensen, J.; Møller, P.; Bernard, A.; Vinzents, P.; Wåhlin, P.; Glasius, M.; Loft, S. Effects of ambient air particulate exposure on blood-gas barrier permeability and lung function. Inhal. Toxicol. 2009, 21, 38–47. [Google Scholar] [CrossRef] [PubMed]
  3. Brook, R.D.; Rajagopalan, S.; Pope, C.A.; Brook, J.R.; Bhatnagar, A.; Diez-Roux, A.V.; Holguin, F.; Hong, Y.; Luepker, R.V.; Mittleman, M.A.; et al. Particulate Matter Air Pollution and Cardiovascular Disease An Update to the Scientific Statement From the American Heart Association. Circulation 2010, 121, 2331–2378. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Deng, F.; Guo, X.; Hong, L.; Xin, F.; Yang, M.; Wei, C. Effects of dust storm PM2.5 on cell proliferation and cell cycle in human lung fibroblasts. Toxicol. Vitro 2007, 21, 632–638. [Google Scholar] [CrossRef]
  5. Tao, F.; Gonzalez-Flecha, B.; Kobzik, L. Reactive oxygen species in pulmonary inflammation by ambient particulates. Free Radical. Biol. Med. 2003, 35, 327–340. [Google Scholar] [CrossRef]
  6. Yi, S.; Zhang, F.; Qu, F.; Ding, W. Water-insoluble fraction of airborne particulate matter (PM10) induces oxidative stress in human lung epithelial A549 cells. Environ. Toxicol. 2014, 29, 226–233. [Google Scholar] [CrossRef]
  7. Wu, C.; Huang, A.; Yang, J.; Liao, C.; Lu, H.; Chou, S.; Ma, C.; Hsia, T.; Ko, Y.; Chung, J. Benzyl isothiocyanate (bitc) and phenethyl isothiocyanate (peitc)-mediated generation of reactive oxygen species causes cell cycle arrest and induces apoptosis via activation of caspase-3, mitochondria dysfunction and nitric oxide (no) in human osteogenic. J. Orthop. Res. 2011, 29, 1199–1209. [Google Scholar] [CrossRef]
  8. Spurny, K.R. Chemical mixtures in atmospheric aerosols and their correlation to lung diseases and lung cancer occurence in the general population. Toxicol. Lett. 1996, 88, 271–277. [Google Scholar] [CrossRef]
  9. Ward, E.M.; Schulte, P.A.; Straif, K.; Hopf, N.B.; Caldwell, J.C.; Carreón, T.; DeMarini, D.M.; Fowler, B.A.; Goldstein, B.D.; Hemminki, K.; et al. Research recommendations for selected IARC-classified agents. Environ. Health Perspect. 2010, 118, 1355–1362. [Google Scholar] [CrossRef]
  10. Yuan, Y.; Wu, Y.; Ge, X.; Nie, D.; Wang, M.; Zhou, H.; Chen, M. In vitro toxicity evaluation of heavy metals in urban air particulate matter on human lung epithelial cells. Sci. Total Environ. 2019, 678, 301–308. [Google Scholar] [CrossRef]
  11. Huang, M.; Kang, Y.; Wang, W.; Chan, C.; Wang, X.; Wong, M. Potential cytotoxicity of water-soluble fraction of dust and particulate matters and relation to metal(loid)s based on three human cell lines. Chemosphere 2015, 135, 61–66. [Google Scholar] [CrossRef] [PubMed]
  12. Schlesinger, R.B.; Cassee, F. Atmospheric Secondary Inorganic Particulate Matter: The Toxicological Perspective as a Basis for Health Effects Risk Assessment. Inhal. Toxicol. 2003, 15, 197–235. [Google Scholar] [CrossRef] [PubMed]
  13. Morton, L. Toxicological and epidemiological studies of cardiovascular effects of ambient air fine particulate matter (PM 2.5) and its chemical components: Coherence and public health implications. Crit. Rev. Toxicol. 2014, 44, 299–347. [Google Scholar]
  14. Rosa, M.J.; Yan, B.; Chillrud, S.N.; Acosta, L.M.; Divjan, A.; Jacobson, J.S.; Miller, R.L.; Goldstein, I.F.; Perzanowski, M.S. Domestic airborne black carbon levels and 8-isoprostane in exhaled breath condensate among children in new york city. Environ. Res. 2014, 135, 105–110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Ostro, B.; Roth, L.; Malig, B.; Marty, M. The effects of fine particle components on respiratory hospital admissions in children. Environ. Health Perspect. 2009, 117, 475–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Seltenrich, N. PM2.5 and Kidney Function: Long-Term Exposures May Lead to Modest Declines. Environ. Health Perspect. 2016, 124, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Padula, A.M.; Mortimer, K.; Hubbard, A.; Lurmann, F.; Jerrett, M.; Tager, I.B. Exposure to traffic-related air pollution during pregnancy and term low birth weight: Estimation of causal associations in a semiparametric model. Am. J. Epidemiol. 2012, 176, 815–824. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Bell, M.L.; Belanger, K.; Ebisu, K.; Gent, J.F.; Leaderer, B.F. Relationship between birth weight and exposure to airborne fine particulate potassium and titanium during gestation. Environ. Res. 2012, 117, 83–89. [Google Scholar] [CrossRef] [Green Version]
  19. Hamad, S.H.; Schauer, J.J.; Antkiewicz, D.S.; Shafer, M.M.; Kadhim, A.K. Ros production and gene expression in alveolar macrophages exposed to PM2.5 from baghdad, iraq: Seasonal trends and impact of chemical composition. Sci. Total Environ. 2016, 543, 739–745. [Google Scholar] [CrossRef]
  20. Mehta, M.; Chen, L.C.; Gordon, T.; Rom, W.; Tang, M.S. Particulate matter inhibits DNA repair and enhances mutagenesis. Mutat. Res. Fund. Mol. Mech. 2008, 657, 116–121. [Google Scholar] [CrossRef] [Green Version]
  21. Lin, J.L.; Thomas, P.S. Current perspectives of oxidative stress and its measurement in chronic obstructive pulmonary disease. COPD 2010, 7, 291–306. [Google Scholar] [CrossRef] [PubMed]
  22. Meier, P.; Finch, A.; Evan, G. Apoptosis in development. Nature 2000, 136, 107. [Google Scholar] [CrossRef] [PubMed]
  23. Gehling, W.; Khachatryan, L.; Dellinger, B. Hydroxyl radical generation from environmentally persistent free radicals (epfrs) in PM2.5. Environ. Sci. Technol. 2014, 48, 4266–4272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Longhin, E.; Holme, J.A.; Gutzkow, K.B.; Arlt, V.M.; Gualtieri, M. Cell cycle alterations induced by urban PM2.5 in bronchial epithelial cells: Characterization of the process and possible mechanisms involved. Part. Fibre Toxicol. 2013, 10, 63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Wang, D.; Pakbin, P.; Shafer, M.M.; Antkiewicz, D.; Schauer, J.J.; Sioutas, C. Macrophage reactive oxygen species activity of water-soluble and water-insoluble fractions of ambient coarse, PM2.5 and ultrafine particulate matter (pm) in los angeles. Atmos. Environ. 2013, 77, 301–310. [Google Scholar] [CrossRef]
  26. Rönkkö, T.J.; Jalava, P.I.; Happo, M.S.; Kasurinen, S.; Sippula, O.; Leskinen, A.; Koponen, H.; Kuuspalo, K.; Ruusunen, J.; Väisänen, O.; et al. Emissions and atmospheric processes influence the chemical composition and toxicological properties of urban air particulate matter in Nanjing, China. Sci. Total Environ. 2018, 639, 1290–1310. [Google Scholar] [CrossRef]
  27. Chen, Q.; Luo, X.; Chen, Y.; Zhao, Z.; Hong, Y.; Pang, Y.; Huang, W.; Wang, Y.; Jin, L. Seasonally varied cytotoxicity of organic components in PM2.5 from urban and industrial areas of a Chinese megacity. Chemosphere 2019, 230, 424–431. [Google Scholar] [CrossRef]
  28. Zhang, K.; Nie, D.; Chen, M.; Wu, Y.; Ge, X.; Hu, J.; Ge, P.; Li, W.; Huang, B.; Yuan, Y.; et al. Chemical Characterization of Two Seasonal PM2.5 Samples in Nanjing and Its Toxicological Properties in Three Human Cell Lines. Environments 2019, 6, 42. [Google Scholar] [CrossRef] [Green Version]
  29. Nie, D.; Wu, Y.; Chen, M.; Hu, J.; Zhang, K.; Ge, P.; Yuan, Y.; Ge, X. Bioaccessibility and health risk of trace elements in fine participate matter in different simulated body fluids. Atmos. Environ. 2018, 186, 1–8. [Google Scholar] [CrossRef]
  30. Qi, Z.; Song, Y.; Ding, Q.; Liao, X.; Li, R.; Liu, G.; Tsang, S.; Cai, Z. Water soluble and insoluble components of PM2.5 and their functional cardiotoxicities on neonatal rat cardiomyocytes in vitro. Ecotoxicol. Environ. Saf. 2019, 168, 378–387. [Google Scholar] [CrossRef]
  31. Orsini, D.A.; Ma, Y.; Sullivan, A.; Sierau, B.; Banmann, K.; Weber, R.J. Refinements to the particle-into-liquid sampler (PILS) for ground and airborne measurements of water soluble aerosol composition. Atmos. Environ. 2003, 37, 1243–1259. [Google Scholar] [CrossRef]
  32. Zhang, B.; Zhou, T.; Liu, Y.; Yan, C.; Li, X.; Yu, J.; Wang, S.; Liu, B.; Zheng, M. Comparison of water-soluble inorganic ions and trace metals in PM2.5 between online and offline measurements in Beijing during winter. Atmos. Pollut. Res. 2019, 10, 1755–1765. [Google Scholar] [CrossRef]
  33. Chen, B.; Liu, Y.; Song, W.; Hayashi, Y.; Ding, X.; Li, W. In Vitro Evaluation of Cytotoxicity and Oxidative Stress Induced by Multiwalled Carbon Nanotubes in Murine RAW 264.7 Macrophages and Human A549 Lung Cells. Biomed. Environ. Sci. BES 2011, 24, 593–601. [Google Scholar] [PubMed]
  34. Pathak, R.K.; Wang, T.; Ho, K.F.; Lee, S.C. Characteristics of summertime PM2.5 organic and elemental carbon in four major chinese cities: Implications of high acidity for water-soluble organic carbon (wsoc). Atmos. Environ. 2011, 45, 318–325. [Google Scholar] [CrossRef]
  35. Huang, H.; Ho, K.F.; Lee, S.C.; Tsang, P.K.; Ho, S.S.H.; Zou, C.W.; Zou, S.C.; Cao, J.J.; Xu, H.M. Characteristics of carbonaceous aerosol in PM2.5: Pearl Delta River Region, China. Atmos. Res. 2012, 104–105, 227–236. [Google Scholar] [CrossRef]
  36. Chen, Y.; Ge, X.; Chen, H.; Xie, X.; Chen, Y.; Wang, J.; Ye, Z.; Bao, M.; Zhang, Y.; Chen, M. Seasonal light absorption properties of water-soluble brown carbon in atmospheric fine particles in Nanjing, China. Atmos. Environ. 2018, 187, 230–240. [Google Scholar] [CrossRef]
  37. Samara, C.; Voutsa, D.; Kouras, A.; Eleftheriadis, K.; Maggos, T.; Saraga, D.; Petrakakis, M. Organic and elemental carbon associated to PM10 and PM2.5 at urban sites of northern greece. Environ. Sci. Pollut. Res. 2014, 21, 1769–1785. [Google Scholar] [CrossRef]
  38. Souza, D.Z.; Vasconcellos, P.; Lee, H.; Aurela, M.; Saarnio, K.; Teinilä, K.; Hillamo, R. Composition of PM2.5 and PM10 Collected at Urban Sites in Brazil. Aerosol Air Qual. Res. 2014, 14, 168–176. [Google Scholar] [CrossRef]
  39. Ye, Z.; Li, Q.; Ma, S.; Zhou, Q.; Gu, Y.; Su, L.; Chen, Y.; Chen, H.; Wang, J.; Ge, X. Summertime Day-Night Differences of PM2.5 Components (Inorganic Ions, OC, EC, WSOC, WSON, HULIS, and PAHs) in Changzhou, China. Atmosphere 2017, 8, 189. [Google Scholar] [CrossRef] [Green Version]
  40. Chen, Y.; Chen, Y.; Xie, X.; Ye, Z.; Li, Q.; Ge, X.; Chen, M. Chemical Characteristics of PM2.5 and Water-Soluble Organic Nitrogen in Yangzhou, China. Atmosphere 2019, 10, 178. [Google Scholar] [CrossRef] [Green Version]
  41. Zhang, F.; Xu, L.; Chen, J.; Yu, Y.; Niu, Z.; Yin, L. Chemical compositions and extinction coefficients of PM2.5 in peri-urban of Xiamen, China, during June 2009–May 2010. Atmos. Res. 2012, 106, 150–158. [Google Scholar] [CrossRef]
  42. Hong, Y.; Li, C.; Li, X.; Ma, Y.; Zhang, Y.; Zhou, D.; Wang, Y.; Liu, N.; Chang, X. Analysis of Compositional Variation and Source Characteristics of Water-Soluble Ions in PM2.5 during Several Winter-Haze Pollution Episodes in Shenyang, China. Atmosphere 2018, 9, 280. [Google Scholar] [CrossRef] [Green Version]
  43. Du, H.; Kong, L.; Cheng, T.; Chen, J.; Du, J.; Li, L.; Xia, X.; Leng, C.; Huang, G. Insights into summertime haze pollution events over Shanghai based on online water-soluble ionic composition of aerosols. Atmos. Environ. 2011, 45, 5131–5137. [Google Scholar] [CrossRef]
  44. Zhou, D.; Li, B.; Huang, X.; Virkkula, A.; Wu, H.; Zhao, Q.; Zhang, J.; Liu, Q.; Li, L.; Li, C.; et al. The impacts of emission control and regional transport on PM2.5 ions and carbon components in Nanjing during the 2014 Nanjing Youth Olympic Games. Aerosol Air Qual. Res. 2017, 17, 730–740. [Google Scholar] [CrossRef] [Green Version]
  45. Schiliro, T.; Bonetta, S.; Alessandria, L.; Gianotti, V.; Carrao, E.; Gilli, G. PM10 in a background urban site: Chemical characteristics and biological effects. Environ. Toxicol. Pharmacol. 2015, 39, 833–844. [Google Scholar] [CrossRef]
  46. Na, K.; Iii, D.R.C. Characterization and source identification of trace elements in PM2.5 from mira loma, southern California. Atmos. Res. 2009, 93, 793–800. [Google Scholar] [CrossRef]
  47. Dall’Osto, M.; Querol, X.; Amato, F.; Karanasiou, A.; Lucarelli, F.; Nava, S.; Calzolai, G.; Chiari, M. Hourly elemental concentrations in PM2.5 aerosols sampled simultaneously at urban background and road site during sapuss—diurnal variations and pmf receptor modelling. Atmos. Chem. Phys. 2013, 13, 4375–4392. [Google Scholar] [CrossRef] [Green Version]
  48. Qi, L.; Chen, M.D.; Ge, X.L.; Zhang, Y.; Guo, B. Seasonal variations and sources of 17 aerosol metal elements in suburban Nanjing, China. Atmosphere 2016, 7, 153. [Google Scholar] [CrossRef] [Green Version]
  49. Gualtieri, M.; Mantecca, P.; Corvaja, V.; Longhin, E.; Perrone, M.G.; Bolzacchini, E.; Camatini, M. Winter fine particulate matter from Milan induces morphological and functional alterations in human pulmonary epithelial cells (A549). Toxicol. Lett. 2009, 188, 52–62. [Google Scholar] [CrossRef]
  50. Gualtieri, M.; Longhin, E.; Mattioli, M.; Mantecca, P.; Tinaglia, V.; Mangano, E.; Proverbio, M.C.; Bestetti, G.; Camatini, M.; Battaglia, C. Gene expression profiling of A549 cells exposed to milan PM2.5. Toxicol. Lett. 2012, 209, 136–145. [Google Scholar] [CrossRef]
  51. Zhou, Y.; Zhang, S.; Liu, C.; Cai, Y. The protection of selenium on ROS mediated-apoptosis by mitochondria dysfunction in cadmium-induced LLC-PK1 cells. Toxicol. In Vitro 2009, 23, 288–294. [Google Scholar] [CrossRef] [PubMed]
  52. Xiao, Y.; Zhai, Q.; Wang, G.; Liu, X.; Zhao, J.; Tian, F.; Zhang, H.; Chen, W. Metabolomics analysis reveals heavy metal copper-induced cytotoxicity in HT-29 human colon cancer cells. RSC Adv. 2016, 6, 78445–78456. [Google Scholar] [CrossRef]
  53. Perrone, M.; Gualtieri, M.; Ferrero, L.; Porto, C.L.; Udisti, R.; Bolzacchini, E.; Camatini, M. Seasonal variations in chemical composition and in vitro biological effects of fine PM from Milan. Chemosphere 2010, 78, 1368–1377. [Google Scholar] [CrossRef] [PubMed]
  54. Guan, L.; Rui, W.; Bai, R.; Zhang, W.; Zhang, F.; Ding, W. Effects of size-fractionated particulate matter on cellular oxidant radical generation in human bronchial epithelial beas-2b cells. Int. J. Environ. Res. Public Health 2016, 13, 483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Nordin, E.Z.; Uski, O.; Nyström, R.; Jalava, P.; Eriksson, A.C.; Genberg, J.; Roldin, P.; Bergvall, C.; Westerholm, R.; Jokiniemi, J.; et al. Influence of ozone initiated processing on the toxicity of aerosol particles from small scale wood combustion. Atmos. Environ. 2015, 102, 282–289. [Google Scholar] [CrossRef]
Ijerph 17 04599 g001 550
Figure 1. Schematic of the experimental design. WSOC: water-soluble organic carbon.
Figure 1. Schematic of the experimental design. WSOC: water-soluble organic carbon.
Ijerph 17 04599 g001
Ijerph 17 04599 g002 550
Figure 2. Relative percentages of different chemical components in PM2.5. WSOC: water-soluble organic carbon.
Figure 2. Relative percentages of different chemical components in PM2.5. WSOC: water-soluble organic carbon.
Ijerph 17 04599 g002
Ijerph 17 04599 g003 550
Figure 3. Relative percentages of each water-soluble ion to all water-soluble ions tested.
Figure 3. Relative percentages of each water-soluble ion to all water-soluble ions tested.
Ijerph 17 04599 g003
Ijerph 17 04599 g004 550

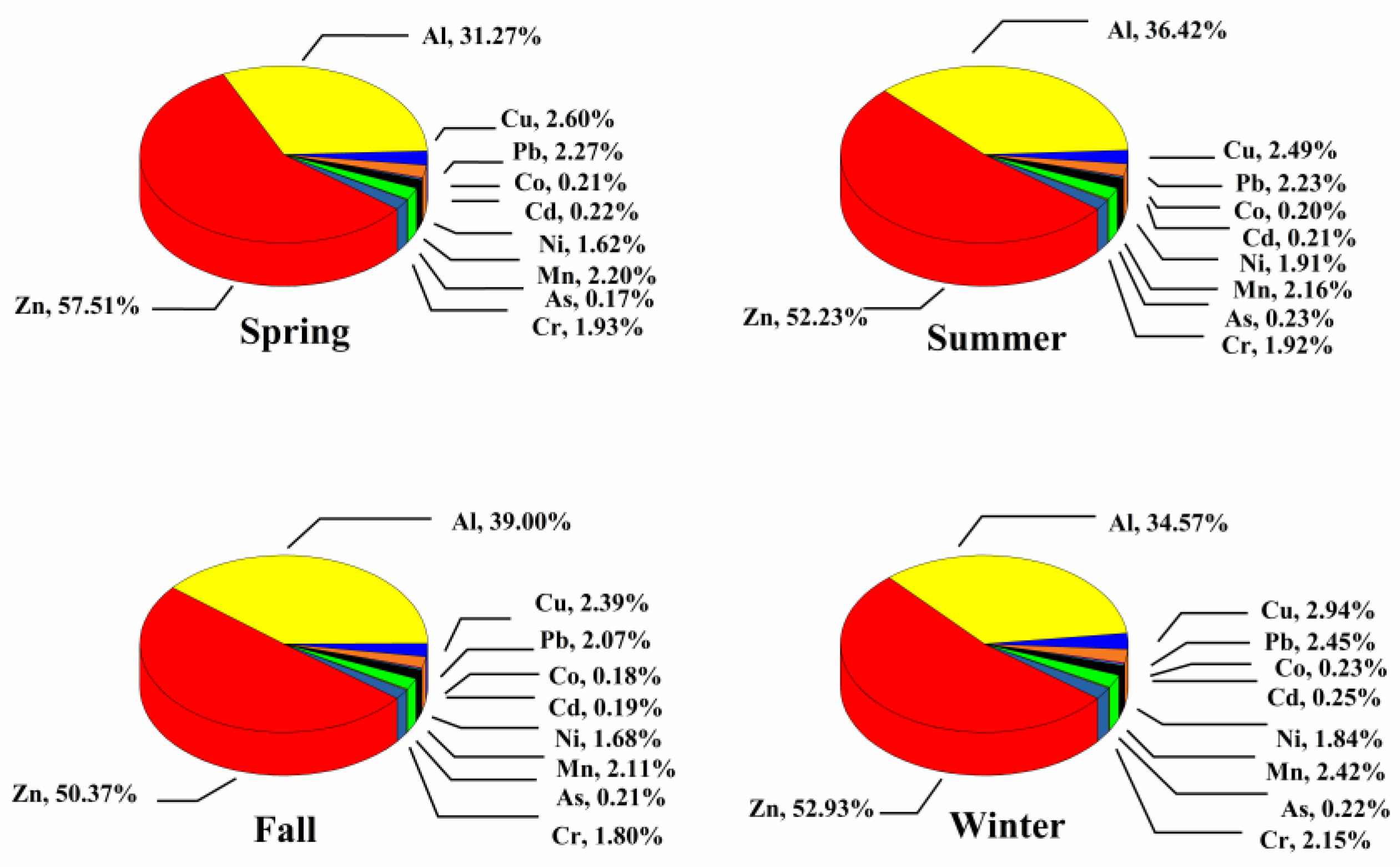

Figure 4. Relative percentages of each heavy metal to all heavy metals tested.
Figure 4. Relative percentages of each heavy metal to all heavy metals tested.
Ijerph 17 04599 g004
Ijerph 17 04599 g005 550

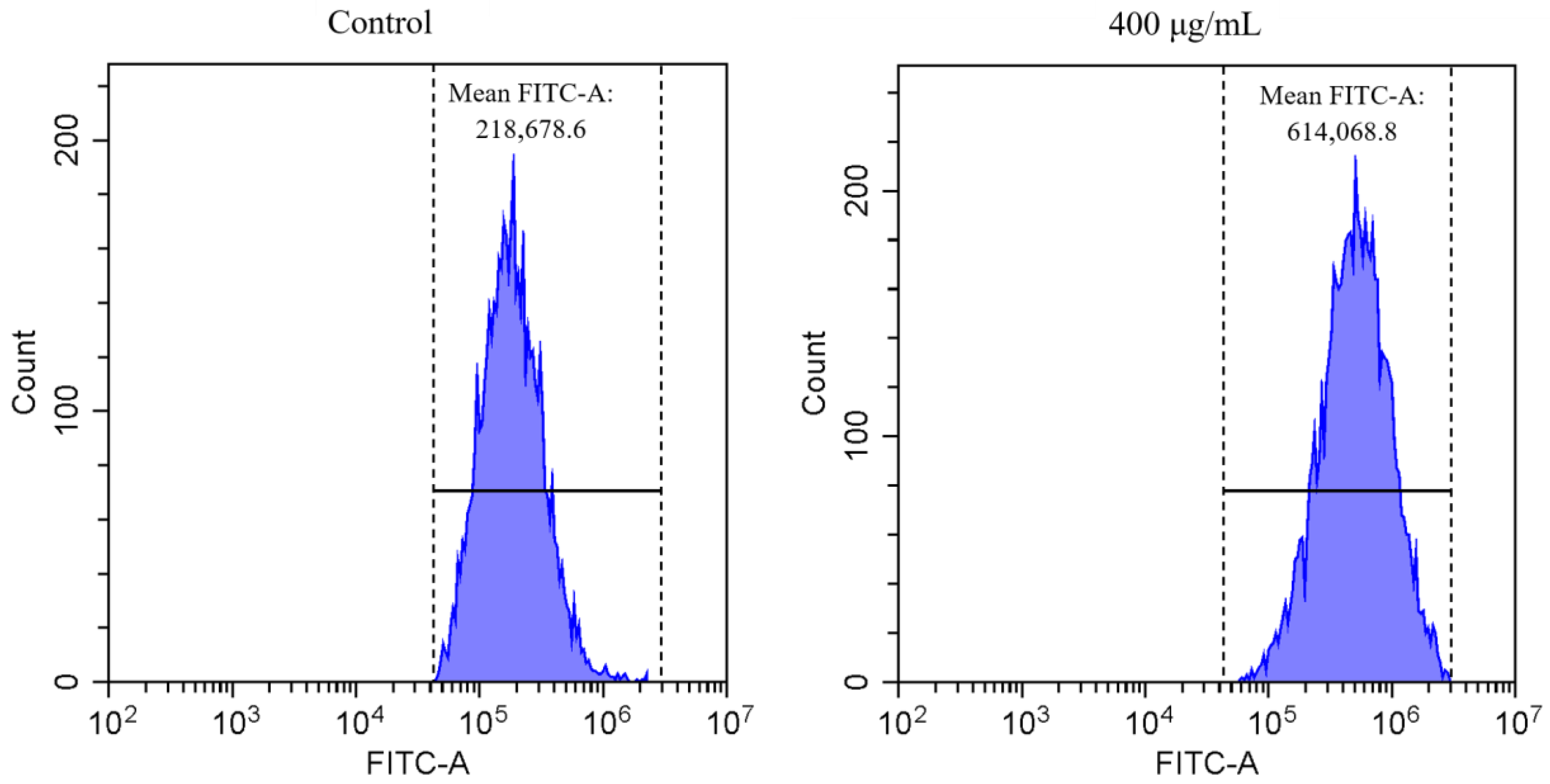

Figure 5. Representative histograms of ROS determination by flow cytometry (the winter sample). Mean FITC-A is the statistical peak area of cell fluorescence stained by the fluorescent probe DCFH-DA.
Figure 5. Representative histograms of ROS determination by flow cytometry (the winter sample). Mean FITC-A is the statistical peak area of cell fluorescence stained by the fluorescent probe DCFH-DA.
Ijerph 17 04599 g005
Ijerph 17 04599 g006 550
Figure 6. Relative ROS production in the A549 cells exposed to different concentrations of PM2.5 Different letters (a, b, c, d) indicate significant differences among the five PM2.5 treatments (p < 0.05). Each dot is one replicate (n = 3).
Figure 6. Relative ROS production in the A549 cells exposed to different concentrations of PM2.5 Different letters (a, b, c, d) indicate significant differences among the five PM2.5 treatments (p < 0.05). Each dot is one replicate (n = 3).
Ijerph 17 04599 g006
Ijerph 17 04599 g007 550
Figure 7. Representative cross quadrant images of Annexin V-FITC/PI double staining determined by flow cytometry (the summer sample).
Figure 7. Representative cross quadrant images of Annexin V-FITC/PI double staining determined by flow cytometry (the summer sample).
Ijerph 17 04599 g007
Ijerph 17 04599 g008 550

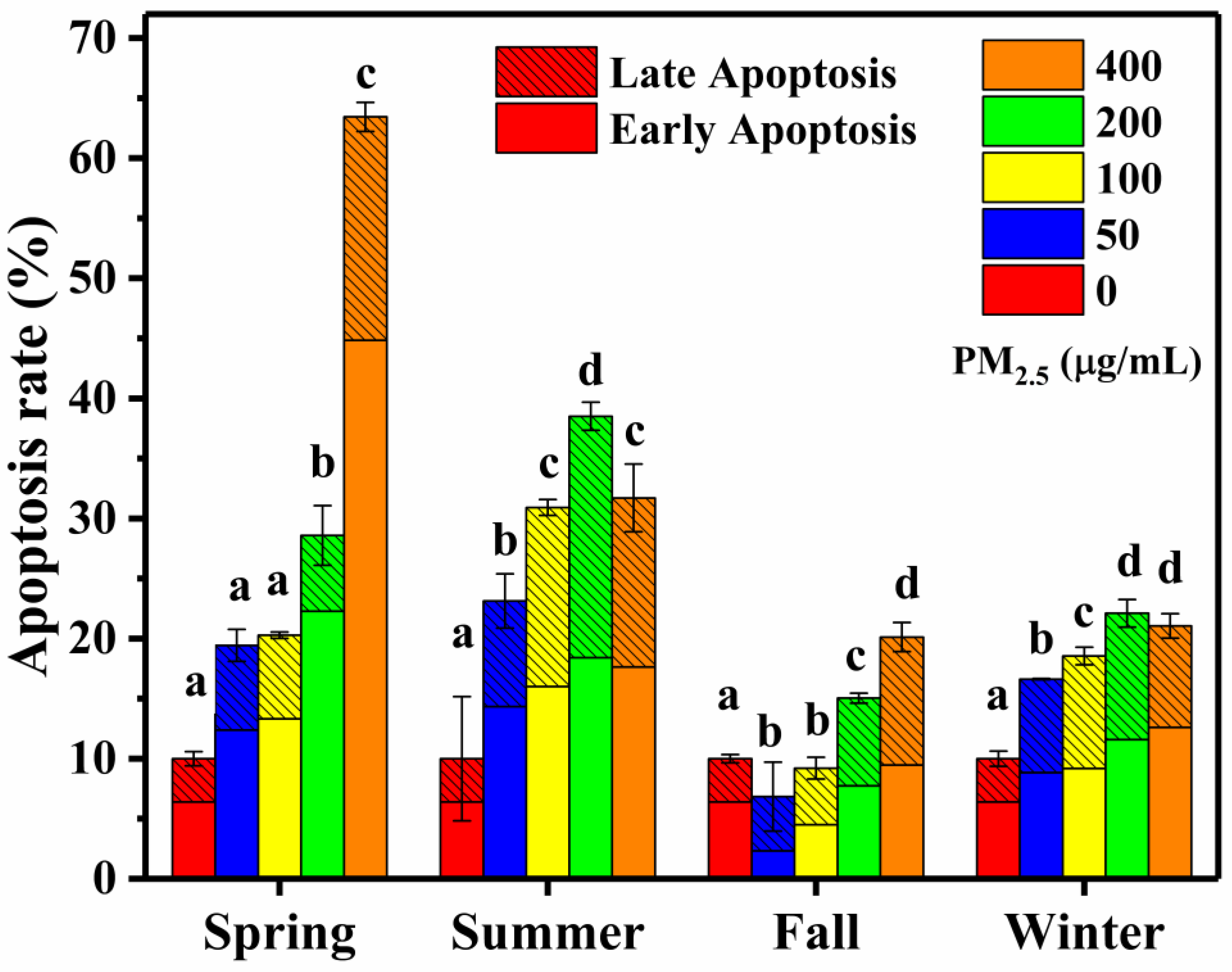

Figure 8. Apoptosis rates in the A549 cells exposed to different concentrations of PM2.5. Early apoptosis is the percentage of cells stained by Annexin V, and late apoptosis is the percentage of cells stained by Annexin V and PI. The total apoptosis rate is the percentage of cells in the early and late stages of apoptosis. Different letters (a, b, c, d) indicate significant differences among the five PM2.5 treatments in each season (p < 0.05). Data are the mean ± SD (n = 3).
Figure 8. Apoptosis rates in the A549 cells exposed to different concentrations of PM2.5. Early apoptosis is the percentage of cells stained by Annexin V, and late apoptosis is the percentage of cells stained by Annexin V and PI. The total apoptosis rate is the percentage of cells in the early and late stages of apoptosis. Different letters (a, b, c, d) indicate significant differences among the five PM2.5 treatments in each season (p < 0.05). Data are the mean ± SD (n = 3).
Ijerph 17 04599 g008
Table
Table 1. Correlation coefficients (R) between the ROS/apoptosis and PM2.5 composition.
Table 1. Correlation coefficients (R) between the ROS/apoptosis and PM2.5 composition.
RAsZnPbCoCdNiMnCrCuAl
ROS0.465 *0.863 *0.807 *0.795 *0.794 *0.793 *0.805 *0.797 *0.804 *0.803 *
Apop0.2950.675 *0.624 *0.612 *0.612 *0.618 *0.612 *0.611 *0.611 *0.596 *
RTotal MetalsCl¯SO42−NO3−Na+NH4+K+Mg2+Ca2+WSOC
ROS0.773 *0.503 *0.754 *0.708 *0.578 *0.756 *0.824 *0.722 *0.731 *0.737 *
Apop0.586 *0.3450.599 *0.514 *0.3950.567 *0.624 *0.574 *0.590 *0.569 *
ROS: reactive oxygen species; Apop: apoptosis; WSOC: water-soluble organic carbon; * indicates p < 0.05.
