Modeling the Impact of an Indoor Air Filter on Air Pollution Exposure Reduction and Associated Mortality in Urban Delhi Household

Department of Environmental Health, Rollins School of Public Health, Emory University, Atlanta, GA 30322, USA
Environmental Health Sciences, School of Public Health, University of California, Berkeley, CA 94720, USA
Author to whom correspondence should be addressed.
Both authors contributed equally to the study.
Int. J. Environ. Res. Public Health 2019, 16(8), 1391;
Submission received: 21 March 2019 / Revised: 13 April 2019 / Accepted: 14 April 2019 / Published: 17 April 2019


Indoor exposure to fine particulate matter (PM2.5) is a prominent health concern. However, few studies have examined the effectiveness of long-term use of indoor air filters for reduction of PM2.5 exposure and associated decrease in adverse health impacts in urban India. We conducted 20 simulations of yearlong personal exposure to PM2.5 in urban Delhi using the National Institute of Standards and Technology’s CONTAM program (NIST, Gaithersburg, MD, USA). Simulation scenarios were developed to examine different air filter efficiencies, use schedules, and the influence of a smoker at home. We quantified associated mortality reductions with Household Air Pollution Intervention Tool (HAPIT, University of California, Berkeley, CA, USA). Without an air filter, we estimated an annual mean PM2.5 personal exposure of 103 µg/m3 (95% Confidence Interval (CI): 93, 112) and 137 µg/m3 (95% CI: 125, 149) for households without and with a smoker, respectively. All day use of a high-efficiency particle air (HEPA) filter would reduce personal PM2.5 exposure to 29 µg/m3 and 30 µg/m3, respectively. The reduced personal PM2.5 exposure from air filter use is associated with 8–37% reduction in mortality attributable to PM2.5 pollution in Delhi. The findings of this study indicate that air filter may provide significant improvements in indoor air quality and result in health benefits.

1. Introduction

Air pollution has been linked to increased risk of numerous diseases, including respiratory tract infections [1], exacerbations of inflammatory lung conditions [2,3], cardiac events [3], cancer [4], and low birth weight [5], and is regarded as one of the largest global health risk factors [6,7]. In India, 1.24 million (95% CI: 1.09–1.39) deaths in 2017 were attributable to air pollution, which was 12.5% of the total deaths in the country. Among these, 0.67 million (95% CI: 0.55–0.79) were attributed to ambient air pollution (AAP) and 0.48 million (95% CI: 0.39–0.58) were attributed to household air pollution (HAP) [8]. Studies of fine particulate matter (PM2.5) predominate air pollution research, mainly due to the detrimental health effects and high concentrations of PM2.5 in both indoor and outdoor environments [9,10,11].
While solid fuel combustion emits high levels of HAP in rural households [12,13], the combination of HAP generated from both local and regional sources plus the AAP generated from industrial activities, the power sector, and transportation elevates the risk in urban settings [14,15]. This is especially evident in India where four of the five cities with the highest ambient PM2.5 levels worldwide are located [16]. The annual population-weighted mean exposure to ambient PM2.5 in India was 89.9 µg/m3 (95% uncertainty interval (UI) 67.0–112.0) in 2017, which was one of the highest in the world. Among all Indian states, Delhi had the highest annual population-weighted mean ambient PM2.5 level in 2017 (209.0 µg/m3 (95% UI 120.9–339.5)), far beyond the limit recommended by the National Ambient Air Quality Standards in India [8].
In many parts of the world, both ambient and indoor PM2.5 contributed to personal exposure to PM2.5 [14]. Personal exposure to PM2.5 is determined by the PM2.5 concentrations in indoor and outdoor environments, as well as the time-activity patterns of the exposed individual [9]. Many national surveys and studies have shown that Indians spend most of their time in the indoor environment [9,17,18], arguably making indoor spaces the most important environment in which to mitigate PM2.5 exposures. PM2.5 concentrations in the indoor environment are influenced by various factors, including indoor emission sources, outdoor PM2.5 levels, airflows into the home environment, and removal of the PM2.5 inside the home [19]. Many of these factors are dynamic and vary by time; thus, indoor PM2.5 levels and exposure to PM2.5 levels change over time with distinct diurnal and seasonal patterns that are modulated by individual and household level behaviors.
Previous evidence in both developed [20,21] and developing countries [22,23] show that indoor PM2.5 concentrations can be reduced effectively and substantially by using air filters. Such air filtration has also been shown to have cardiovascular and pulmonary health benefits [22,24], including reduced asthma symptoms and inflammation and improved airway mechanics [25]. Several studies in India have investigated the effectiveness of HAP interventions on personal exposure to PM2.5 and health benefits [26,27,28], and studies in urban Indian cities suggest that an air filter intervention alone cannot reduce personal exposure to PM2.5 to the interim target guideline recommended by the World Health Organization (WHO) of 35 μg/m3 [7,23]. This is mainly due to the dynamics of airborne contaminants and continued infiltration of ambient air pollution [29]. In addition, the existing air filter intervention studies only provided data on short-term health responses due to reduced exposures, such as changes in cardiovascular biomarker level [22,30] or pulmonary functions of children with asthma [21,24,31]. The profile of long-term air pollution reduction and health benefits associated with air filter use have not been assessed or evaluated.
Models that simulate indoor concentrations and personal exposure to PM2.5 levels can be used to examine the changes in personal exposure to PM2.5 and estimate the effectiveness of potential pollution reduction strategies [29,32,33,34]. One of the validated simulation tools that has been widely applied is the CONTAM program (National Institute of Standards and Technology NIST, Gaithersburg, MD, USA,, a multi-zone computer program that simulates airflow between each zone and estimates contaminant concentrations or personal exposures [35]. CONTAM has been applied extensively to assess indoor air quality in existing residential buildings, and to evaluate the effectiveness of indoor air quality control interventions in residential homes in United States cities [32,34]. The advantage of using the CONTAM simulation program is that it is a publicly available program and can simulate time-resolved ventilation rates, pollutant concentrations, and personal exposure levels based on air pollutants emission, decay rates, as well as climate and ambient air pollution levels [36]. To our knowledge, this is the first study to utilize CONTAM to assess the effectiveness of an indoor air quality intervention in residential household in developing countries.
In this study, we used CONTAM to simulate PM2.5 exposure over a one-year period for an occupant living in a typical residential apartment in urban Delhi, the dense urban area with the highest population-weight ambient PM2.5 concentration in 2017 [8]. We assessed the effectiveness of air filters at different efficiency levels and under different user scenarios. We further estimated the effects of reduced PM2.5 exposure on mortality using a customized version of the Household Air Pollution Intervention Tool (HAPIT v.3.1, University of California, Berkeley, CA, USA [37].

2. Materials and Methods

2.1. Study Overview

We used CONTAM (version 3.2) to estimate indoor air pollution concentrations and concentration reductions from an air filter running under a range of scenarios. A flowchart summarizing the study procedures is illustrated in Figure 1. We identified and defined the characteristics of a typical home in Delhi, including major PM2.5 sources and sinks and occupant schedules, and incorporated daily weather data and hourly ambient air pollution levels in 2017 as inputs for CONTAM simulations (Table 1). Then, we estimated annual indoor PM2.5 levels and indoor PM2.5 exposure for an occupant under 20 constructed scenarios based on the factorial design of the following factors: Presence/absence of an air filter at home, the efficiency of the air filter, air filter use duration, and the presence/absence of an active smoker at home. Finally, we quantified the potential health benefit associated with exposure reduction resulted from air filter use based on the indoor PM2.5 exposure differences.

2.2. Simulated Indoor Environment

We used CONTAM version 3.2 to estimate the reduction of exposure to indoor PM2.5 concentrations from an air filter running under a range of scenarios. We defined a house template in CONTAM to simulate an apartment typical of urban Delhi—one that is located on the 1st floor of a building, naturally ventilated, and contains a bedroom, living room, kitchen and bathroom, with a total area of 30 m2 (Figure 2). This is one of the most common apartment floor plans in the four main cities of India [38]. The apartment has a daily air exchange rate (AER) ranging from 0.3 to 4.5/h, with annual mean of 1.5/h. Detailed house characteristics, air exchange schedules, and the references for the assumptions are presented in Table 1.

2.3. Contaminant Sources and Sinks

Major sources of indoor PM2.5 include cooking, smoking, and outdoor infiltration through windows and wall leakages. Indoor PM2.5 removal mechanisms include deposition, exfiltration to outdoor air through exhaust fan(s), windows and wall leakage, and removal of PM2.5 by a portable air filter device, which is commonly seen on the Indian market [23]. For cooking emissions, we used the PM2.5 emission rate from the liquefied petroleum gas (LPG) stove use instead of biomass use [39], since Delhi has very high LPG coverage and traditional biomass only accounts for a small proportion of cooking energy in urban India [40,41]. We estimated the PM2.5 emission rate for smoking cigarettes at 0.33 mg/min [31] and with an average frequency of 8 cigarettes per day [42]. In addition, we assumed a PM2.5 deposition rate of 0.19/h [31] and simulated PM2.5 removal by the portable air filter devices with different minimal efficiency removal values (MERV), corresponding to different PM2.5 removal rates [43]. Table 2 summarizes the emission and removal rates used for each PM2.5 source and sink.
The hourly ambient PM2.5 data in urban Delhi were obtained from all available air pollution monitoring stations of the Central Pollution Control Board between 01/01/2017 and 12/31/2017 [46]. While India has expanded ground air pollution monitoring in recent years [47], only 9 air pollution monitoring stations are available in Delhi over the whole year of 2017 [46]. Table S1 lists the name, latitude, and longitude of all air pollution monitoring stations used in this study. The maximum distance between the monitoring stations is less than 10 km. We constructed hourly PM2.5 concentrations in 2017 over 365 days from all ambient air pollution monitoring stations (N = 9) to represent hourly PM2.5 concentrations in the urban Delhi region. Figure S1 shows the map of the Delhi region and the location of ambient air monitoring stations used in this study.
Hourly weather parameters (including temperature, wind speed, wind direction, relative humidity, and pressure) for a typical meteorological year were obtained from Energy Plus (United States Department of Energy) [45] to represent normal weather conditions in Delhi. All of these parameters are inputs to model the hourly transient airflow and PM2.5 concentrations in indoor settings.

2.4. Simulation Scenarios

We conducted a factorial design to allow inclusion of scenarios that might be observed in a typical apartment in urban Delhi. The key dimensions in our CONTAM factorial design were (i) air filter types (low-efficiency filter with minimal efficiency removal values, MERV = 8; mid-efficiency filter, MERV = 12; and HEPA filter [43]), (ii) air filter use schedule (8-hour, 15-hour, and all-day), and (iii) smoking status of household member (yes or no). We ran CONTAM modeling across all combinations of the above dimensions, resulting in 20 simulations in total (Table S2). The air filter we modeled has a clean air delivery rate (CADR) of 200 cubic feet per minute (cfm), corresponding to 5.66 m3/min. The CADR rating system was used by American National Standards Institute (ANSI), indicating the volume of filtered air by an air-filtering device over time [48]. The portable air purifier of CADR 200 with HEPA filter represents the average level of dominant commercial air filters available on the Indian market; prices range between $250 and $1500 [23]. We also modeled air filters with lower efficiency to reflect lower-quality and more affordable air filter products. Table S3 shows the detailed microenvironmental locations of indoor occupants and user schedule of air filter.
The CONTAM output files included PM2.5 concentrations in each room, PM2.5 personal exposure levels, and airflow rates into and out of each apartment wall, in hourly time increment over one year.

2.5. Statistical Analysis

We used the CONTAM Result Export Tool, an online data export tool [49], to convert CONTAM output files into txt and csv files. We used R (version 3.4, the R Foundation, Vienna, Austria) to analyze personal indoor PM2.5 exposure concentrations across all rooms in the apartment. Figure 3 shows the line plot of a one-day period of ambient PM2.5 concentrations and PM2.5 personal exposure during a heavily polluted day (9 January 2017) combined with occupant activities and air filter use schedules applied in simulations. We analyzed all year-round personal PM2.5 exposure derived from CONTAM models and assessed the reduction of annual PM2.5 personal exposure from air filter use.

2.6. Mortality Reduction Associated with Air Filter Use

To estimate mortality associated with indoor PM2.5 exposure and mortality associated with air filter use, we modeled mortality per 100,000 population over one year for a customized version of the Household Air Pollution Intervention Tool (HAPIT) [37]. Additional details on the methodology are available in the Supplemental Information, and it has been published elsewhere [37]. Briefly, HAPIT estimated averted death using standard Global Burden of Disease Methods and counted for five causes of death—chronic obstructive pulmonary disease, ischemic heart disease, stroke, and lung cancer (for all ages), and acute lower respiratory infection (ALRI) in those under five years old. The main modification to the current version of HAPIT was the utilization of sub-national background disease specific to Delhi generated as part of the 2016 GBD India Exercise [50] and calculation of benefits for a single year. We estimated averted mortality rates attributable to the scenarios outlined previously, with different air filter efficiencies, air filter uses patterns, and presence/absence of a smoker.

3. Results

Figure 4 shows a boxplot for estimated daily ambient PM2.5 concentration and personal PM2.5 exposures for all 20 simulated scenarios over a year. The annual mean personal indoor PM2.5 exposure without smoking was 103 μg/m3 (95% CI: 93–112). It was lower than the annual ambient PM2.5 mean concentration of 123 μg/m3 (95% CI: 115–131). The annual mean personal indoor PM2.5 exposure with an active smoker was 137 μg/m3 (95% CI: 125–149), higher than the ambient PM2.5 concentration. Figure 4 also shows that with increasing PM2.5 removal efficiency and air filter use time, the annual mean personal PM2.5 exposure decreased in both smoking and non-smoking households.
Based on CONTAM simulations, the highest reduction of estimated personal PM2.5 exposure occurred in scenarios with all-day air filter use. However, only all-day use of HEPA filter yielded annual mean PM2.5 personal exposure levels below 35 μg/m3, the WHO Indoor Air Quality Guideline Interim Target 1 [7]. The 15-hour air filter use scenario also reduced air pollution exposure levels significantly, especially for HEPA filters, where the exposure level was approximately 39 μg/m3 (without a smoker) and 40 μg/m3 (with a smoker at home). Scenarios involving 8-hour air filter use did not perform as well as the others, even for HEPA filters; all the annual mean PM2.5 exposures with 15-hour and 8-hour air filter use exceeded the WHO Indoor Air Quality Guideline Interim 1 Target of 35 μg/m3. This may be due to the relatively high air exchange rate (annual mean AER = 1.5/h) of the whole apartment, leading to the infiltration of ambient air pollution to the indoor environment.
Table 3 shows CONTAM simulated annual mean personal indoor PM2.5 exposures as well as mortality averted for our scenarios with varied filter use and efficiency and the presence or absence of a smoker. Using air filters can reduce PM2.5 exposures dramatically, ranging from 31%–72% for smoker-absent scenarios and 38%–78% for smoker-present scenarios. From HAPIT, we estimated 698 deaths and 895 deaths per 100,000 person/year are associated with indoor PM2.5 exposure without air filter use in Delhi, for smoker-absent and smoker-present scenarios, respectively. Based on personal PM2.5 exposure reduction from air filter use, we estimated that using an air filter all day can reduce mortality associated with indoor air pollution by between 8% and 37%.
In our sensitivity analyses, we evaluated the influence of window open time, window size, floor level, and time spent outdoors on the effectiveness of air filters (Table S4). We found that with increased duration of windows open and increased window area, annual mean AERs increased from 1.5/h to 3.3/h when windows with 1 m2 cross-sectional area were opened for 24 hours per day, and the effectiveness of the air filter decreased. Under that scenario, the annual mean PM2.5 exposure increased from 29 μg/m3 to 58 μg/m3, mainly due the infiltration of ambient air pollution from the outdoor environment. When increasing the duration of time spent outdoors by 2 hours (from 14:00–16:00), we also found an increase in annual PM2.5 personal exposure and decrease in effectiveness of air filters. The floor of the apartment building did not significantly influence PM2.5 exposure, with less than 5% difference in AERs and annual mean PM2.5 exposures. This is partly due to the fact that CONTAM simulations did not show large difference in AERs across first and fourth floor apartments, leading to similar PM2.5 personal exposure levels.

4. Discussion

We simulated use of an air filter in a residential household in urban Delhi for one year with the CONTAM program and estimated its impact on the reduction of personal exposure to PM2.5 from indoor and outdoor origins for one occupant living at home. We also estimated the effect on mortality from different air filter use scenarios through PM2.5 exposure reduction. This is the first study modeling the effectiveness of air filter use in developing countries. Results suggest that using air filters can achieve substantial reductions in air pollution exposures, and these reductions could avert significant ill-health associated with air pollution. The protective effects of the filter are greater with increased use of higher quality, high-efficiency filters.
Our simulations are based on the CONTAM modeling program that makes certain assumptions on indoor particle dynamics and on an occupant’s schedule over a year. Previous evaluations of CONTAM have shown that its simulations of airflow, AERs, and particle concentrations were in good agreement with field measurements [51,52]. In our CONTAM simulations, airflow across each room and in/out of each room was calculated hourly, as were indoor PM2.5 concentrations under a well-mixed microenvironment assumption. Our CONTAM simulation has an annual mean AER of 1.5/h (daily range 0.3 to 4.5/h) for residential homes in Delhi, which is smaller than the previously measured AER of 2.5/h–5.1/h from urban roadside homes near Agra, India [53]. Our simulated AER was also based on the assumption that the occupants would adjust their behaviors to close windows at night and reduce air exchange when the air filter was in use, leading to smaller AERs compared to the scenarios when windows are always open in previous studies [53]. Nevertheless, the AER of 1.5/h is still considered very high in urban homes in United States [31], and this also causes a relatively high infiltration of outdoor air pollution to the indoor environment. In the sensitivity analysis, we conducted simulations to allow larger window areas and longer periods with the windows open. The AERs increased to 3.3/h annual mean (daily range 0.5/h–11.1/h) when windows with 1 m2 cross-sectional area are open for 24 hours per day, and annual PM2.5 exposure levels with all-day use of HEPA air filter increased to 58 μg/m3, indicating considerable reduction in air filter effectiveness (Table S4).
The indoor PM2.5 exposure results from our study are consistent with prior studies that investigated indoor air filter use and air pollutant exposure, either by modeling [31,34] or field measurement [20,22,23,24]. Our study adds to the current evidence base by modeling the effects of air filters with different efficiencies and various user scenarios for a year, as well as by estimating mortality reduction. The relatively small health benefits, compared to larger PM2.5 exposure reduction, are mainly due to the shape of the state-of-the-science exposure-response curve used in HAPIT tool [37], indicating further reduction of PM2.5 exposure level is needed to achieve more substantial public health benefits. When the air filter is used all day, we found little difference in personal exposure to PM2.5 between smoker-absent and smoker-present scenarios (29 μg/m3 vs. 30 μg/m3). This implies minimal offset of health risks from passive smoking by using indoor air filters. This also suggests that outdoor PM2.5 infiltration may have more influence on personal exposure than other factors, including the presence of a smoker in the home. Indoor smoking in homes, however, poses numerous other risks and, naturally, use of an air filter would not abate exposures to the smoker and likely would reduce but not eliminate second-and-thirdhand smoke exposures to individuals in proximity of the smoker.
As these results are derived from hypothetical intensive air filter use, they may not fully represent real-life situations. Our model indicated 15-hour and 8-hour air filter use cannot reduce PM2.5 below 35 μg/m3. This limited exposure and health risk reduction capacity was mainly due to the relatively high AER (1.5/h) and high ambient air pollution in Delhi. Considering the fact that many residential buildings have AER higher than 1.5/h, [53] the effectiveness of air filters could be further diminished if the buildings have more leaks or windows are open for longer periods of time, as indicated in our sensitivity analysis (Table S4). Therefore, we believe that air filters may not be considered as the sole intervention strategy to reduce health risk from indoor air pollution exposure; other interventions and exposure reduction strategies targeting the sources and transport of high-level ambient air pollution in Delhi should also be in place [23]. Additionally, the price range of dominant commercial air filters on the Indian market is $250–$1500. Air filter is still a costly home appliance compared to the average monthly expenditure of urban Delhi residents [23]. Therefore, cost–benefit analyses for air filter use could be another important future research direction to maximize the potential of air filter use in combating this pressing environmental health issue.
A limitation of this study is that we did not conduct field investigations (personal PM2.5 exposure measurement and population epidemiological studies) to validate the assumptions or results. Thus, while this study is suggestive of potential reductions in exposure and associated health benefits, these must to confirmed in the field. One such study is underway in Ulaanbaatar, Mongolia, where wintertime ambient PM2.5 concentrations often exceed those of Delhi [54,55,56]. Another limitation of this study is that some of our assumptions may not fully reflect the building environment in urban Delhi and the variabilities in population behaviors, due to lack of building stock data and population time–activity pattern data. Though we conducted sensitivity analysis to model the effectiveness of air filter use in apartments with different window open schedules, AERs, and occupant schedules, there will often be gaps between simulation results and actual effectiveness assessment of air filter use in real urban Delhi homes.

5. Conclusions

Our simulation suggests that consistent use of indoor air filters can reduce indoor air pollution exposure for urban Delhi households. The reduced exposure from air filtration could avert between 8% and 37% of air pollution related mortality, depending on air filter efficiency, use time, and passive smoking behaviors. If these results were confirmed experimentally, air filters could offer significant health benefits to residents of highly polluted urban environments.

Supplementary Materials

The following are available online at, Figure S1: Map of study area and ambient air monitoring stations; Table S1: Ambient air pollution station and corresponding longitude and latitude; Table S2: Details of CONTAM simulation models; Table S3: Microenvironment schedule of occupants and user schedule for air filter; Table S4: Sensitivity analysis with different window opening times, window sizes, floors, and time spent outdoors.

Author Contributions

Conceptualization, J.L., W.Y., and T.F.C.; data curation, J.L.; formal analysis, J.L., W.Y., and A.P.; funding acquisition, T.F.C.; investigation, J.L. and W.Y.; methodology, J.L., W.Y., and A.P.; project administration, T.F.C.; resources, W.Y.; software, J.L, W.Y., and A.P.; supervision, T.F.C.; validation, J.L. and A.P.; visualization, J.L and W.Y.; writing—original draft, J.L., W.Y., A.P., and T.F.C.; writing—review and editing, W.Y. and T.F.C.


This research was partially funded by a grant from Unilever, Ltd., which manufactures and sells air filters designed for household use. The content is solely the responsibility of the authors and does not necessarily represent the official views of Unilever, Ltd.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Smith, K.R.; McCracken, J.P.; Weber, M.W.; Hubbard, A.; Jenny, A.; Thompson, L.M.; Balmes, J.; Diaz, A.; Arana, B.; Bruce, N. Effect of reduction in household air pollution on childhood pneumonia in Guatemala (RESPIRE): A randomised controlled trial. Lancet 2011, 378, 1717–1726. [Google Scholar] [CrossRef]
  2. Meng, X.; Wang, C.; Cao, D.; Wong, C.-M.; Kan, H. Short-term effect of ambient air pollution on COPD mortality in four Chinese cities. Atmos. Environ. 2013, 77, 149–154. [Google Scholar] [CrossRef]
  3. Dominici, F.; Peng, R.D.; Bell, M.L.; Pham, L.; McDermott, A.; Zeger, S.L.; Samet, J.M. Fine Particulate Air Pollution and Hospital Admission for Cardiovascular and Respiratory Diseases. JAMA 2006, 295, 1127–1134. [Google Scholar] [CrossRef] [Green Version]
  4. Iii, C.A.P.; Burnett, R.T.; Thun, M.J.; Calle, E.E.; Krewski, D.; Ito, K.; Thurston, G.D. Lung Cancer, Cardiopulmonary Mortality, and Long-term Exposure to Fine Particulate Air Pollution. JAMA 2002, 287, 1132–1141. [Google Scholar]
  5. Pope, D.P.; Mishra, V.; Thompson, L.; Siddiqui, A.R.; Rehfuess, E.A.; Weber, M.; Bruce, N.G. Risk of Low Birth Weight and Stillbirth Associated with Indoor Air Pollution From Solid Fuel Use in Developing Countries. Epidemiol. Rev. 2010, 32, 70–81. [Google Scholar] [CrossRef]
  6. Gakidou, E.; Afshin, A.; Abajobir, A.A.; Abate, K.H.; Abbafati, C.; Abbas, K.M.; Abd-Allah, F.; Abdulle, A.M.; Abera, S.F.; Aboyans, V.; et al. Global, regional, and national comparative risk assessment of 84 behavioural, environmental and occupational, and metabolic risks or clusters of risks, 1990–2016: A systematic analysis for the Global Burden of Disease Study 2016. Lancet 2017, 390, 1345–1422. [Google Scholar] [CrossRef]
  7. World Health Organization. WHO Guidelines for Indoor Air Quality: Household Fuel Combustion; World Health Organization: Geneva, Switzerland, 2014. [Google Scholar]
  8. Balakrishnan, K.; Dey, S.; Gupta, T.; Dhaliwal, R.S.; Brauer, M.; Cohen, A.J.; Stanaway, J.D.; Beig, G.; Joshi, T.K.; Aggarwal, A.N.; et al. The impact of air pollution on deaths, disease burden, and life expectancy across the states of India: The Global Burden of Disease Study 2017. Lancet Planet. Health 2019, 3, e26–e39. [Google Scholar] [CrossRef]
  9. Pant, P.; Guttikunda, S.K.; Peltier, R.E. Exposure to particulate matter in India: A synthesis of findings and future directions. Environ. Res. 2016, 147, 480–496. [Google Scholar] [CrossRef]
  10. Smith, K.R. National burden of disease in India from indoor air pollution. Proc. Natl. Acad. Sci. USA 2000, 97, 13286–13293. [Google Scholar] [CrossRef] [Green Version]
  11. Balakrishnan, K.; Ghosh, S.; Ganguli, B.; Sambandam, S.; Bruce, N.; Barnes, D.F.; Smith, K.R. State and national household concentrations of PM2.5 from solid cookfuel use: Results from measurements and modeling in India for estimation of the global burden of disease. Environ. Health 2013, 12, 77. [Google Scholar] [CrossRef]
  12. Satsangi, P.G.; Yadav, S.; Pipal, A.S.; Kumbhar, N. Characteristics of trace metals in fine (PM2.5) and inhalable (PM10) particles and its health risk assessment along with in-silico approach in indoor environment of India. Atmos. Environ. 2014, 92, 384–393. [Google Scholar] [CrossRef]
  13. Balakrishnan, K.; Sambandam, S.; Ramaswamy, P.; Mehta, S.; Smith, K.R. Exposure assessment for respirable particulates associated with household fuel use in rural districts of Andhra Pradesh, India. J. Expo. Sci. Environ. Epidemiol. 2004, 14, S14–S25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pant, P.; Habib, G.; Marshall, J.D.; Peltier, R.E. PM2.5 exposure in highly polluted cities: A case study from New Delhi, India. Environ. Res. 2017, 156, 167–174. [Google Scholar] [CrossRef] [PubMed]
  15. Conibear, L.; Butt, E.W.; Knote, C.; Arnold, S.R.; Spracklen, D.V. Residential energy use emissions dominate health impacts from exposure to ambient particulate matter in India. Nat. Commun. 2018, 9, 617. [Google Scholar] [CrossRef]
  16. WHO Global Ambient Air Quality Database. Available online: (accessed on 14 August 2018).
  17. Rajivan, A.K. Policy Implications for Gender Equity: The India Time Use Survey, 1998–1999. In Proceedings of the International Seminar on Time Use Surveys, Ahmedabad, Indian, 7–10 December 1999; p. 31. [Google Scholar]
  18. Shimada, Y.; Matsuoka, Y. Analysis of indoor PM2.5 exposure in Asian countries using time use survey. Sci. Total Environ. 2011, 409, 5243–5252. [Google Scholar] [CrossRef]
  19. Nazaroff, W.W. Indoor particle dynamics. Indoor Air 2004, 14, 175–183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Batterman, S.; Du, L.; Mentz, G.; Mukherjee, B.; Parker, E.; Godwin, C.; Chin, J.-Y.; O’Toole, A.; Robins, T.; Rowe, Z.; et al. Particulate matter concentrations in residences: An intervention study evaluating stand-alone filters and air conditioners. Indoor Air 2012, 22, 235–252. [Google Scholar] [CrossRef]
  21. Noonan, C.W.; Semmens, E.O.; Smith, P.; Harrar, S.W.; Montrose, L.; Weiler, E.; McNamara, M.; Ward, T.J. Randomized Trial of Interventions to Improve Childhood Asthma in Homes with Wood-burning Stoves. Environ. Health Perspect. 2017, 125, 097010. [Google Scholar] [CrossRef]
  22. Chen, R.; Zhao, A.; Chen, H.; Zhao, Z.; Cai, J.; Wang, C.; Yang, C.; Li, H.; Xu, X.; Ha, S.; et al. Cardiopulmonary benefits of reducing indoor particles of outdoor origin: A randomized, double-blind crossover trial of air purifiers. J. Am. Coll. Cardiol. 2015, 65, 2279–2287. [Google Scholar] [CrossRef]
  23. Vyas, S.; Srivastav, N.; Spears, D. An Experiment with Air Purifiers in Delhi during Winter 2015–2016. PLoS ONE 2016, 11, e0167999. [Google Scholar] [CrossRef]
  24. Cui, X.; Li, F.; Xiang, J.; Fang, L.; Chung, M.K.; Day, D.B.; Mo, J.; Weschler, C.J.; Gong, J.; He, L.; et al. Cardiopulmonary effects of overnight indoor air filtration in healthy non-smoking adults: A double-blind randomized crossover study. Environ. Int. 2018, 114, 27–36. [Google Scholar] [CrossRef]
  25. Xu, Y.; Raja, S.; Ferro, A.R.; Jaques, P.A.; Hopke, P.K.; Gressani, C.; Wetzel, L.E. Effectiveness of heating, ventilation and air conditioning system with HEPA filter unit on indoor air quality and asthmatic children’s health. Build. Environ. 2010, 45, 330–337. [Google Scholar] [CrossRef]
  26. Dutta, K.; Shields, K.N.; Edwards, R.; Smith, K.R. Impact of improved biomass cookstoves on indoor air quality near Pune, India. Energy Sustain. Dev. 2007, 11, 19–32. [Google Scholar] [CrossRef]
  27. Hanna, R.; Duflo, E.; Greenstone, M. Up in Smoke: The Influence of Household Behavior on the Long-Run Impact of Improved Cooking Stoves. Am. Econ. J.: Econ. Policy, Am. Econ. Assoc. 2012, 8, 80–114. [Google Scholar]
  28. Mukhopadhyay, R.; Sambandam, S.; Pillarisetti, A.; Jack, D.; Mukhopadhyay, K.; Balakrishnan, K.; Vaswani, M.; Bates, M.N.; Kinney, P.; Arora, N.; et al. Cooking practices, air quality, and the acceptability of advanced cookstoves in Haryana, India: An exploratory study to inform large-scale interventions. Glob. Health Act. 2012, 5, 19016. [Google Scholar] [CrossRef]
  29. Johnson, M.; Lam, N.; Brant, S.; Gray, C.; Pennise, D. Modeling indoor air pollution from cookstove emissions in developing countries using a Monte Carlo single-box model. Atmos. Environ. 2011, 45, 3237–3243. [Google Scholar] [CrossRef]
  30. Shao, D.; Du, Y.; Liu, S.; Brunekreef, B.; Meliefste, K.; Zhao, Q.; Chen, J.; Song, X.; Wang, M.; Wang, J.; et al. Cardiorespiratory responses of air filtration: A randomized crossover intervention trial in seniors living in Beijing: Beijing Indoor Air Purifier StudY, BIAPSY. Sci. Total Environ. 2017, 603–604, 541–549. [Google Scholar] [CrossRef] [PubMed]
  31. Fabian, M.P.; Stout, N.K.; Adamkiewicz, G.; Geggel, A.; Ren, C.; Sandel, M.; Levy, J.I. The effects of indoor environmental exposures on pediatric asthma: A discrete event simulation model. Environ. Health Glob. Access Sci. Source 2012, 11, 66. [Google Scholar] [CrossRef] [PubMed]
  32. Fabian, P.; Adamkiewicz, G.; Levy, J.I. Simulating indoor concentrations of NO2 and PM2.5 in multi-family housing for use in health-based intervention modeling. Indoor Air 2012, 22, 12–23. [Google Scholar] [CrossRef] [PubMed]
  33. Johnson, M.A.; Chiang, R.A. Quantitative Guidance for Stove Usage and Performance to Achieve Health and Environmental Targets. Environ. Health Perspect. 2015, 123, 820–826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Myatt, T.A.; Minegishi, T.; Allen, J.G.; MacIntosh, D.L. Control of asthma triggers in indoor air with air cleaners: A modeling analysis. Environ. Health 2008, 7, 43. [Google Scholar] [CrossRef] [PubMed]
  35. Polidoro, B. CONTAM. Available online: (accessed on 13 August 2018).
  36. Dols, W.S.; Polidoro, B.J. CONTAM User Guide and Program Documentation Version 3.2; Technical Note. NIST TN-1887; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2015.
  37. Pillarisetti, A.; Mehta, S.; Smith, K.R. HAPIT, the Household Air Pollution Intervention Tool, to Evaluate the Health Benefits and Cost-Effectiveness of Clean Cooking Interventions. In Broken Pumps and Promises; Springer: Cham, Switzerland, 2016; pp. 147–169. ISBN 978-3-319-28641-9. [Google Scholar]
  38. Rawal, R.; Shukla, Y. Residential Buildings in India: Energy Use Projections and Savings Potentials; Global Buildings Performance Network (GBPN): Paris, France, 2014. [Google Scholar]
  39. Shen, G.; Yang, Y.; Wang, W.; Tao, S.; Zhu, C.; Min, Y.; Xue, M.; Ding, J.; Wang, B.; Wang, R.; et al. Emission Factors of Particulate Matter and Elemental Carbon for Crop Residues and Coals Burned in Typical Household Stoves in China. Environ. Sci. Technol. 2010, 44, 7157–7162. [Google Scholar] [CrossRef] [PubMed]
  40. Ministry of Petroleum and Natural Gas, Government of India. LPG Profile - data on LPG Marketing; Ministry of Petroleum & Natural Gas: New Delhi, India, 2017.
  41. Bureau of Energy Efficiency (BEE). User Guide for India’s 2047 Energy Calculator—Cooking Sector; Ministry of Power: New Delhi, India, 2015.
  42. International Institute for Population Sciences. Global Adult Tobacco Survey—India 2009–2010; International Institute for Population Sciences: Mumbai, India, 2010. [Google Scholar]
  43. Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size: ANSI/ASHRAE Standard 52.2-2017; ASHRAE: Atlanta, GA, USA, 2017.
  44. Azimi, P.; Zhao, D.; Stephens, B. Estimates of HVAC filtration efficiency for fine and ultrafine particles of outdoor origin. Atmos. Environ. 2014, 98, 337–346. [Google Scholar] [CrossRef]
  45. EnergyPlus. Available online: (accessed on 14 April 2018).
  46. Ministry of Environment & Forests of Government of India Central Pollution Control Board (CPCB). Available online: (accessed on 15 April 2019).
  47. Gordon, T.; Balakrishnan, K.; Dey, S.; Rajagopalan, S.; Thornburg, J.; Thurston, G.; Agrawal, A.; Collman, G.; Guleria, R.; Limaye, S.; et al. Air pollution health research priorities for India: Perspectives of the Indo-U.S. Communities of Researchers. Environ. Int. 2018, 119, 100–108. [Google Scholar] [CrossRef] [PubMed]
  48. American National Standards Institute Method for Measuring Performance of Portable Household Electric Room Air Cleaners: ANSI/AHAM AC-1-2015; Association of Home Appliance Manufacturers: Washington, DC, USA, 2015.
  49. CONTAM Results Export Tool. Available online: (accessed on 20 June 2018).
  50. ICMR; PHFI; IHME Indian Council of Medical Research, Public Health Foundation of India, and Institute for Health Metrics and Evaluation. Available online: (accessed on 6 December 2018).
  51. Haghighat, F.; Megri, A.C. A Comprehensive Validation of Two Airflow Models—COMIS and CONTAM. Indoor Air 1996, 6, 278–288. [Google Scholar] [CrossRef]
  52. Emmerich, S.J.; Nabinger, S.J. Measurement and Simulation of the IAQ Impact of Particle Cleaners in a Single-Zone Building; NIST InteragencyInternal Rep. NISTIR-6461; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2000.
  53. Massey, D.; Kulshrestha, A.; Masih, J.; Taneja, A. Seasonal trends of PM10, PM5.0, PM2.5 & PM1.0 in indoor and outdoor environments of residential homes located in North-Central India. Build. Environ. 2012, 47, 223–231. [Google Scholar]
  54. Barn, P.; Gombojav, E.; Ochir, C.; Boldbaatar, B.; Beejin, B.; Naidan, G.; Galsuren, J.; Legtseg, B.; Byambaa, T.; Hutcheon, J.A.; et al. The effect of portable HEPA filter air cleaner use during pregnancy on fetal growth: The UGAAR randomized controlled trial. Environ. Int. 2018, 121, 981–989. [Google Scholar] [CrossRef]
  55. Barn, P.; Gombojav, E.; Ochir, C.; Laagan, B.; Beejin, B.; Naidan, G.; Boldbaatar, B.; Galsuren, J.; Byambaa, T.; Janes, C.; et al. The effect of portable HEPA filter air cleaners on indoor PM2.5 concentrations and second hand tobacco smoke exposure among pregnant women in Ulaanbaatar, Mongolia: The UGAAR randomized controlled trial. Sci. Total Environ. 2018, 615, 1379–1389. [Google Scholar] [CrossRef]
  56. Yuchi, W.; Gombojav, E.; Boldbaatar, B.; Galsuren, J.; Enkhmaa, S.; Beejin, B.; Naidan, G.; Ochir, C.; Legtseg, B.; Byambaa, T.; et al. Evaluation of random forest regression and multiple linear regression for predicting indoor fine particulate matter concentrations in a highly polluted city. Environ. Pollut. 2019, 245, 746–753. [Google Scholar] [CrossRef]
Figure 1. Flowchart of the study procedure and model input/output.
Figure 1. Flowchart of the study procedure and model input/output.
Ijerph 16 01391 g001
Figure 2. Simulated floor plan and corresponding CONTAM schematic.
Figure 2. Simulated floor plan and corresponding CONTAM schematic.
Ijerph 16 01391 g002

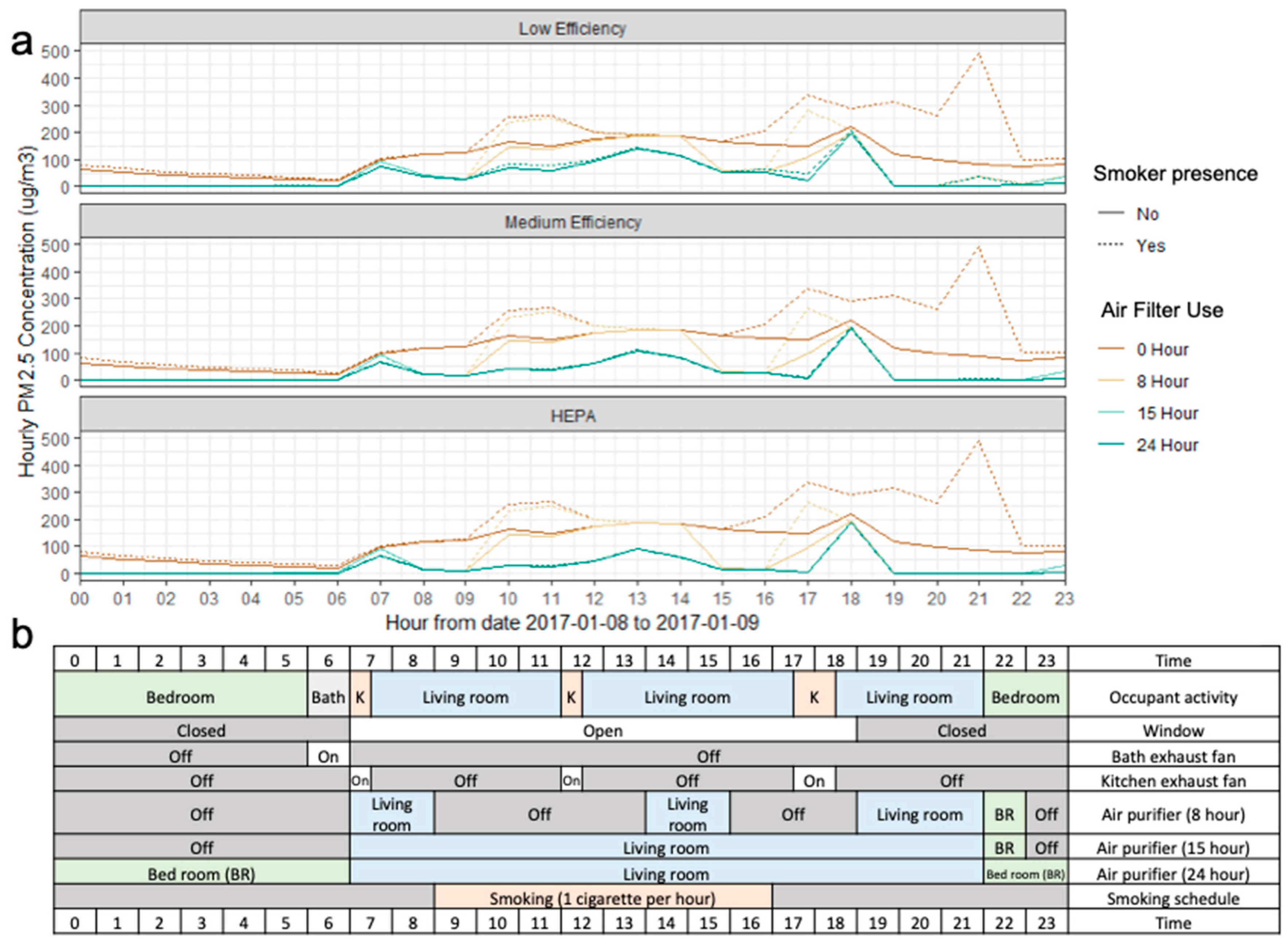

Figure 3. Illustration of CONTAM model output and data analysis from 8 January to 9 January 2017; (a) line plot of ambient PM2.5 and personal exposure to PM2.5 under different air filter efficiencies; (b) occupant schedule (K: kitchen, BR: bedroom).
Figure 3. Illustration of CONTAM model output and data analysis from 8 January to 9 January 2017; (a) line plot of ambient PM2.5 and personal exposure to PM2.5 under different air filter efficiencies; (b) occupant schedule (K: kitchen, BR: bedroom).
Ijerph 16 01391 g003
Figure 4. Boxplot for daily ambient PM2.5 concentrations and personal exposure at different air filter use schedules; (a) smoking, (b) non-smoking.
Figure 4. Boxplot for daily ambient PM2.5 concentrations and personal exposure at different air filter use schedules; (a) smoking, (b) non-smoking.
Ijerph 16 01391 g004
Table 1. Household characteristics inputs for CONTAM simulations.
Table 1. Household characteristics inputs for CONTAM simulations.
Model Input ParameterParameter DescriptionScheduleReference
Floor planApartment containing 1 living room, kitchen, bathroom, and bedroom, 30 m2 Residential buildings in India: energy use and saving potentials, Global building performance network, 2014 [38]
Wall leakageWall leakage area 5 cm2/m2 Residential buildings in India: energy use and saving potentials, Global building performance network, 2014 [38]
Window0.8 m2 open area in totalOpen: 7:00–18:00
Bath exhaust fan120 m3/h (70 cfm †)On: 6:00–7:00Fabian et al., 2011, Indoor Air [31]
Kitchen exhaust fan170 m3/h (100 cfm)On when cooking (7:00–7:30; 12:00–12:30; 17:00–18:00)Fabian et al., 2011, Indoor Air [31]
† cubic feet per minute.
Table 2. Indoor fine particulate matter (PM2.5) sources, sinks, emission/removal rates, air filter PM2.5 removal efficiency, weather, and ambient air pollution data used in CONTAM simulation.
Table 2. Indoor fine particulate matter (PM2.5) sources, sinks, emission/removal rates, air filter PM2.5 removal efficiency, weather, and ambient air pollution data used in CONTAM simulation.
Source/Sink and ParameterEmission/Removal RateScheduleSource
Cooking+0.14 mg/min2 h a day
7:00–7:30; 12:00–12:30; 17:00–18:00Shen et al., 2018, Environmental Science and Technology [39]
Smoking+0.33 mg/min8 cigarettes per day, one per hour from 9:00–14:00 in the day timeFabian et al., 2011, Indoor Air [31]
PM2.5 deposition−0.19/h Fabian et al., 2011, Indoor Air [31]
Air Filter at 200 Clean Air Delivery Rate (CADR), PM2.5 removal efficiencyHEPA filter: 0.99Either 8 h, 15 h, or 24 h a dayAzimi et al., 2014, Atmospheric Environment [44]
Medium efficiency filter: 0.65
Low efficiency filter: 0.3
Weather Typical meteorological year (TMY) hourly weather data from Energy Plus [45]
Table 3. Annual mean exposure to PM2.5 indoors and health benefits due to air filter use at different scenarios from CONTAM program.
Table 3. Annual mean exposure to PM2.5 indoors and health benefits due to air filter use at different scenarios from CONTAM program.
Annual Mean PM2.5 Exposure (μg/m3)Mortality (% of Avoidable †) Averted per Million People
Smoker AbsentSmoker PresentSmoker AbsentSmoker Present
8-hour Air Filter useNo Air Filter103137NANA
Low efficiency filter718461 (8.3)75 (10.2)
Mid efficiency filter657777 (10.3)90 (12.1)
HEPA filter627885 (11.5)88 (11.9)
15-hour Air filter useLow efficiency filter5660104 (14)134 (18.1)
Mid efficiency filter4446150 (20.2)184 (24.8)
HEPA filter3940174 (23.5)212 (28.6)
All day air filter useLow efficiency filter5056125 (16.9)146 (19.8)
Mid efficiency filter3538196 (26.5)222 (30)
HEPA filter2930235 (31.8)271 (36.6)
† Percent of the total air pollution burden in Delhi avoided by the intervention in one year.
