Int. J. Environ. Res. Public Health 2019, 16(24), 4932; https://doi.org/10.3390/ijerph16244932

Article
Spatial Variation and Controlling Factors of H and O Isotopes in Lancang River Water, Southwest China
Institute of Earth Sciences, China University of Geosciences, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 28 October 2019 / Accepted: 4 December 2019 / Published: 5 December 2019

Abstract

:
Climate changes and other human activities have substantially altered the hydrological cycle with respect to elevation. In this study, longitudinal patterns in the stable isotopic composition (δ2H and δ18O) of Lancang River water, originating from the Qinghai–Tibetan Plateau, are presented, and several controlling factors in the wet season are hypothesized. Lancang River water δ2H (−145.2‰ to −60.7‰) and δ18O (−18.51‰ to −8.49‰) were low but close to those of the Global Meteoric Water Line. In the upper reaches of the river, δ2H decreased longitudinally, potentially due to groundwater inputs and melting ground ice in the headwater zone and to an increasing proportion of glacier meltwater with decreasing elevation. In the middle reaches of the river, δ2H values increased slowly moving downstream, likely due to shifts in precipitation inputs, as evidenced by the isotopic composition of tributaries to the main stream. In the lower reaches of the river, the isotopic composition was relatively invariant, potentially related to the presence of large artificial reservoirs that increase the water resident time. The results reveal different hydrological patterns along an alpine river in central Asia associated with both natural and anthropogenic processes. Understanding the degree and type of human interference with the water cycle in this region could improve water management and water security.
Keywords:
hydrogen isotope, oxygen isotope; groundwater; glacier; dams; water cycle; Lancang River; Qinghai–Tibetan Plateau

1. Introduction

Climate changes and human activities have impacted the hydrological cycles and local environment in the Qinghai–Tibetan Plateau, which is the largest and highest plateau in the world and is called the “Water Tower of Asia” and the “Third Pole” [1,2,3]. The Lancang-Mekong river originates from the Qinghai–Tibetan Plateau and is one of ten largest Asian rivers [4]. Covering 24% of the total area of the Lancang-Mekong River basin, the Lancang River basin (LRB) has recorded the annual discharge of 61.7 km3 of water at the Jinghong station, which accounts for about 13.5% of the total annual discharge to the Lower Mekong River [5]. Under the impacts of natural and anthropogenic activities, the water cycle and distribution of water resources have been altered in the LRB [6,7,8]. In mountainous areas, global climate change is related to catchment weathering, mountain glacier shrinkage, natural hazards, and watershed hydrology [5,9,10,11,12]. Glaciers represent a local water resource in the mountains and release substantial melt water in the summer and early autumn [13]. The literature shows that the glaciers in the LRB have a comparable area loss rate compared to that of several high Asian mountain regions, and the higher rates in the LRB have been found in the Meili Snow Mountain range, west of the Deqin county [5]. The melting of glaciers have explicitly impacted the runoff variations of the Lancang River [14]. On the other hand, human activities have factually exerted an influence on watershed hydrology [15,16]. For instance, cascade dams construction has significantly influenced the hydrology, landscape, riparian functions, and carbon cycle of rivers. [3,17,18]. Owing to its particularly high mean elevation, the LRB has a considerable hydropower potential and suitability to develop hydropower; more than 50 commissioned dams are essential for providing electricity, supporting irrigation, and supplying water [19,20].
The stable hydrogen and oxygen isotopes have been widely used to trace the impacts of climate changes and other human activities on the hydrological cycles in watersheds. In the 2000s, an isotopic database named the Global Network of Isotopes in Rivers (GNIR) was launched by the International Atomic Energy Agency (IAEA) to collect H and O isotopic data from about 20 large rivers of the world [21]. Moreover, the isoscapes (i.e., the spatiotemporal isotope distributions) of river water are usually connected with those of precipitation, which are influenced by altitude, latitude, temperature, and precipitation amount [22]. The linear distribution of δ2H and δ18O in river water along the Global Meteoric Water Line (GMWL) is considered as evidence of the meteoric origin [23]. Consequently, the isotopic composition of river water can be associated with precipitation, temperature, altitude, and snow/glacier melting [24,25,26]. Also, the interaction between groundwater and surface water can be traced by H and O isotopes [27,28]. Further, stable H and O isotopes have demonstrated the influence of anthropogenic processes upon the water cycle [29,30]. Cascade dams are massively constructed on the main stream and major tributaries of the Lancang-Mekong River, which may be accelerating and magnifying the long-term effect of climate changes and global warming [31]. The spatio-temporal variation of H and O isotopes reflects the effects of trapping the river and of water regulation in some rivers [32,33]. Regarding the damming effect, the seasonal distribution of stable oxygen isotopes in the Changjiang River water shows a time lag in responding to meteoric precipitation [34], and cascade dams increase the resident time of river water and change the isotopes of surface water, bottom water, and released water in the reservoirs, which indeed shows their influence on the water cycle [35].
To investigate the impacts of climate changes and human activities on hydrological processes, the longitudinal variation of stable H and O isotopes in Lancang River water was discussed, focusing in particular on: (1) the isotopic composition of Lancang River water in comparison with those of other Asian rivers; (2) the spatial variation of isotopes with geospatial variables in the upper reaches, middle reaches, and lower reaches; (3) the main factors controlling the isotopes’ distribution in different reaches. This study examined the isotopic data of the Lancang River water from mouth to source in the main stream and tributaries to provide a scientific viewpoint on the influence of natural and anthropogenic processes upon the water cycle in mountainous areas. The results can promote further research on eco-hydrology and contribute to the water management and water security in the Lancang River basin.

2. Materials and Methods

2.1. Background of the Study Area

The Lancang River is situated in southwest China, central Asia (94°~102° E, 21°~34° N), and the length of its main channel is 2161 km (Figure 1). It originates from northwest Zaduo County, Qinghai Province, and zigzags through the Qinghai–Tibetan Plateau, the Hengduan Mountains, and the Yunnan–Guizhou Plateau. The Lancang River is the upper reaches of the Lancang-Mekong River, and many dams were constructed along its main channel (Figure 1) and some tributaries [20]. With an elevation from circa (ca.) 6000 m to 500 m, the climatic zones in the Lancang River catchment include a Frigid Zone, a Frigid–Temperate Zone, a Temperate Zone, a Sub-Tropical Zone, and a Tropical Zone [36]. Affected by the Asian monsoon systems, the LRB receives abundant precipitation in the summer. During the wet season (May to October), precipitation in the LBR varies with the geospatial variables [37]. Nevertheless, the annual precipitation generally increases from the headstream moving downstream, from 299 mm to 4925  mm, along the latitudinal gradient [37]. According to the climate, the geography, and the hydrology, the Lancang River basin can be divided into three sections, including a permafrost region (28°30′~34° N), the Hengduan region (26°~28°30′ N), and the Yunnan Region (21°~26° N).

2.2. Sampling Processes

In total, 44 river water samples were collected in the Lancang River catchment from mouth to source on 18 July–7 August 2019 (Figure 1). The water was generally taken from the river bank or the middle of the channel from bridges at a sampling depth of ca. 50 cm. In each sampling site, water temperature, dissolved oxygen, and total dissolved solids (TDS) were determined by a YSI multi-parameter meter (Pro Plus, YSI Inc. /Xylem Inc., Ohio, USA), and longitude, latitude, and altitude were recorded by GPS. The water samples were filtered through 0.22 μm cellulose acetate membranes (Yibo Factory, Haining, China) and sealed in pre-cleaned PET (polyethylene terephthalate) bottles using Parafilm ® M film (Bemis Company Inc., Wis., USA).

2.3. Isotope Analysis

The stable isotopic composition (δ2H and δ18O) was analyzed with laser spectroscopy techniques at the Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, using a Triple-Isotopic Water Analyzer (Model TIWA-45-EP, Los Gatos Research Inc., USA). For monitoring the data, one isotopic standard was inserted every three samples. Every sample/standard was analyzed six times, discarding the first two measurements to avoid the memory effect. Then, the last four measurements were averaged, providing the final value for the sample or standard. The measurement results of δ2H and δ18O were expressed as:
δ2H (‰) = [(2H/1H)sample/(2H/1H)standard − 1] × 103
δ18O (‰) = [(18O/16O)sample/(18O/16O)standard − 1] × 103
The isotope data were reported in per mill (‰) relative to the Vienna Standard Mean Ocean Water (V-SMOW), and the measurement precision was ±0.5‰ (1σ) for δ2H and ±0.1‰ (1σ) for δ18O.

3. Results and Discussion

3.1. H and O Isotopic Composition

For Lancang River water, the δ2H values ranged from −145.2‰ to −60.7‰, and the mean value was −98.4‰, whereas the δ18O values ranged from −18.51‰ to −8.49‰, and the mean value was −13.55‰ (Table 1). Equation (3) showed a significant linear correlation between δ2H and δ18O:
δ2H = 7.72 × δ18O + 6.31 (n = 44, r2 = 0.97, p < 0.01)
Figure 2 shows that the Lancang River Line was almost coincident with the GMWL, and most of the Lancang River water samples were generally located on the GMWL. Hence, Lancang River water did not experience significant evaporation.
We compared the stable isotopic composition in the wet season of the water of seven rivers in Asia, characterized by different climate types and altitudes, including the Lancang River (this study), the Yellow River, mainly in the temperate zone [38], the Huai River in the temperate–subtropical transition zone [30,39], the Yangtze River, mainly in the subtropical zone [40], the Jiulong River in the subtropical zone [29], the Pearl River in the subtropical zone [41], and the Mun River in the tropical zone [42]. In Figure 2, the mean values of the isotopic composition of different rivers were obviously different, especially when comparing the Lancang River with other rivers. The isotopic data for the Lancang River showed the lowest values. Over all, δ2H and δ18O in different rivers showed an increasing trend with decreasing latitude, except for the Jiulong River, which is close to the ocean, and the Huai River, which evaporates significantly. Therefore, the low isotopic composition of Lancang River water was most likely related to its frigid and frigid–temperate climate.

3.2. Spatial Distribution of Isotopes along the Flow Path

The spatial distribution of δ2H along the Lancang River flow path is displayed in Figure 3. In general, the δ2H values decreased rapidly along the flow path in the upper reaches and then increased slowly in the middle reaches. The δ2H values were almost homogenous in the lower reaches, except for sample No. 4, which was likely influenced by the Hei River water on the right bank. On the other hand, the differences in stable isotopic composition of river water between the left branches and the right branches were not significant.
The δ2H of river water showed obvious variability. In the upper reaches, δ2H values in the main channel increased linearly with increasing altitude (Figure 4a) and latitude (Figure 4b), while δ2H decreased with increasing longitude (Figure 4c). However, we observed an opposite linear relationship between δ2H and altitude/latitude/longitude in the main channel of the middle reaches with respect to the upper reaches (Figure 4d–f). In the lower reaches, we did not observe a linear correlation between δ2H and altitude/latitude/longitude (Figure 4g–i). In the mountain area, a negative linear relationship between the changes of δ2H in relation to precipitation and elevation indicated the “altitude effect”, which appears when river water is mainly recharged by rainwater [29]. For Lancang River water, the δ2H and altitude showed a negative correlation in the middle channel and a positive correlation in the upper channel. In addition, the relationship between latitude/longitude and δ2H can be explained by the northwest-to-southeast flow direction and elevation decrease. Therefore, it can be inferred that rainfall is the main controlling factor of river water δ2H in the middle reaches but not in the upper reaches. On the other hand, we consider that the river water in the main channel of the lower reaches is most likely affected by anthropogenic activities, such as river impounding, owing to no obvious linear relationship between δ2H and altitude [29].

3.3. Inputs of Groundwater, Ground Ice, and Glaciers Meltwater in the Permafrost Region

The presence of stable isotopes in run-off is connected with that in recent rainfall as a result of direct recharging from rainwater [29]. For example, in northwestern Tibetan Plateau, the stable isotopic composition of precipitation in the summer shows an increasing trend with decreasing elevation, i.e., the “altitude effect” [43]. Regarding the Lancang River, its water in the middle reaches is significantly recharged by local precipitation, as shown by the negative correlation between δ2H and altitude (Figure 4d).
Previous studies suggested that monsoon precipitation is the main factor sustaining the river flow up to Changdu City [44,45]. However, Figure 4a reflects the positive correlation between δ2H in Lancang River water and elevation in the upper reaches, which is in contrast with what observed for those rivers mainly recharged by precipitation [29]. In the upper reaches of the Lancang River (altitude >2000 m), the permafrost regions or glaciers are widely distributed [46]. In the central Qinghai–Tibet Plateau, δ2H of the active layer of water and of ground ice ranged from −130.2‰ to −64.2‰ and was lower than that of local precipitation [47]. On the North Slope of Alaska, δ18O of ground ice is about −24.4‰ [48]. In a word, stable isotopic value is very low in ground ice, which generally decrease as soil depth increases. In the northeastern Qinghai–Tibet Plateau, in June–August, the δ18O content of glacier snowmelt water (from −9.51‰ to −11.69‰) was lower than those of stream water, rainwater, and baseflow, and the baseflow had the highest TDS content (ca. 402 mg/L) [49]. Therefore, we tried to estimate the inputs of groundwater and glacier meltwater on river water using stable isotopes.
In the troposphere, air temperature decreases with increasing elevation. In the upper reaches of the Lancang River, water temperature and dissolved oxygen showed a similar trend to that of altitude (Figure 5a–d). It means that glaciers and ground ice in the permafrost zone melted more longitudinally. Moreover, precipitation or meltwater infiltrated into the active layer that may interact with surface water via lateral flow or overland flow [49,50]. In the upstream before the Zaduo County, the mean δ2H value of river water was −98.3‰, and the mean TDS value was 600 mg/L. Thus, it can be inferred that the upstream river is mainly recharged by ground ice water from the active layer. With elevation decrease, the TDS values and δ2H values of tributaries’ water decreased rapidly, (Figure 5e,f). This suggests that the headwater zone of the Lancang River was fed by ground ice water, groundwater, and the precipitation, and the contribution of glaciers meltwater increased longitudinally. Therefore, the isotopic composition of river water in the main channel decreased along the flow path, owing to the recharge from tributaries water which were more enriched in light isotopes as the elevation decreased. On the other hand, Figure 5c,f show that the TDS values of the Lancang River water is similar to those of rivers in a low-elevation area, suggesting that the chemical denudation rate in the alpine arid area can be comparable to the world average value [51].

3.4. Impacts of Cascade Dams on Hydrology

In the flood season, the amount of abandoned water increases due to the increase of the reservoir inflow, which augments the hydrological alteration between upstream and downstream areas [3]. In the lower reaches of the Lancang River, the content of stable isotopes of the river water was relatively invariant in the main channel (Figure 3) and did not show an obvious linear relationship with altitude/latitude/longitude (Figure 4g–i). Intensive large artificial reservoirs are present in the lower reaches, such as the Gongguoqiao, Xiaowan, and Nuozhadu hydropower stations (Figure 1). Hence, the effect of damming should be condisered as the cause of this phenomenon. The damming effect consists of the trapping effect and water regulation of reservoirs, especially in rivers with cascade dams. In many studies, the homogenous content of isotopes in river water is considered the results of cascade reservoirs [29,42]. Besides the isotopic values, water temperature and total dissolved solids in the river water were also invariant in the main channel of the lower reaches, which supports the presence of the damming effect. However, the δ2H value of the sample LCJ05 was high and unordinary, which could be caused by the sampling site being too close to the Hei River.

4. Conclusions

We examined the spatial characteristics of isotopes in the Lancang River and several controlling factors with respect to the elevation in the wet season. The results showed that the stable isotopic composition (δ2H and δ18O) of the Lancang River water was lower than that of the Yellow River, the Huai River, the Yangtze River, the Jiulong River, and the Mun River in Asia. The Lancang River Water Line was calculated as δ2H = 7.72 × δ18O + 6.31 (n = 44, r2 = 0.97) and resulted very close to the GMWL. Isotopic values differed in different reaches, for which the longitudinal trend of δ2H was different. In the upper reaches, the river water appeared to be mainly recharged by glaciers meltwater, which was enriched in lighter stable isotopes and whose contribution was greater in low-elevation areas, although the most upstream zone was also affected by ground ice water. In the middle reaches, groundwater and glacier water recharging was not obvious, and the water appeared to be mainly recharged by precipitation, as shown by the generally increasing isotopic values with decreasing elevation. In the lower reaches, the δ2H values were relatively invariant, suggesting a significant damming effect. Therefore, stable isotopes demonstrated the presence of different hydrological processes in the Lancang River catchment, including the interaction between river water and groundwater, glacier meltwater and precipitation, and the impact of anthropogenic activities (damming) on the water cycle.

Author Contributions

Conceptualization, K.Y. and G.H.; methodology, K.Y.; validation, K.Y. and G.H.; formal analysis, K.Y.; investigation, J.Z., B.L., R.Q., J.L., and M.L.; data curation, K.Y.; writing—original draft preparation, K.Y.; writing—review and editing, K.Y. and G.L.; visualization, K.Y.; supervision, G.H.; project administration, G.H.; funding acquisition, G.H.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 41661144029 and 41325010.

Acknowledgments

The authors gratefully acknowledge two anonymous reviewers for the valuable comments. We also thank Qian Zhang from China University of Geosciences, Beijing, for the isotopic analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xu, J.; Grumbine, R.E.; Shrestha, A.; Eriksson, M.; Yang, X.; Wang, Y.; Wilkes, A. The Melting Himalayas: Cascading Effects of Climate Change on Water, Biodiversity, and Livelihoods. Conserv. Biol. 2009, 23, 520–530. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, K.; Wu, H.; Qin, J.; Lin, C.; Tang, W.; Chen, Y. Recent climate changes over the Tibetan Plateau and their impacts on energy and water cycle: A review. Glob. Planet. Chang. 2014, 112, 79–91. [Google Scholar] [CrossRef]
  3. Zhao, Q.; Liu, S.; Deng, L.; Dong, S.; Wang, C.; Yang, Z.; Yang, J. Landscape change and hydrologic alteration associated with dam construction. Int. J. Appl. Earth Obs. Geoinf. 2012, 16, 17–26. [Google Scholar] [CrossRef]
  4. Dong, G.; Weng, B.; Qin, T.; Yan, D.; Wang, H.; Gong, B.; Bi, W.; Wang, J. Study on the stable isotopes in surface waters of the Naqu River basin, Tibetan Plateau. Scienceasia 2018, 44, 402–411. [Google Scholar] [CrossRef]
  5. Liu, Q.; Liu, S.; Guo, W.; Nie, Y.; Shangguan, D.; Xu, J.; Yao, X. Glacier changes in the Lancang River Basin, China, between 1968–1975 and 2005–2010. Arct. Antarct. Alp. Res. 2015, 47, 335–344. [Google Scholar]
  6. Zhong, R.; He, Y.; Chen, X. Responses of the hydrological regime to variations in meteorological factors under climate change of the Tibetan plateau. Atmos. Res. 2018, 214, 296–310. [Google Scholar] [CrossRef]
  7. Räsänen, T.A.; Someth, P.; Lauri, H.; Koponen, J.; Sarkkula, J.; Kummu, M. Observed river discharge changes due to hydropower operations in the Upper Mekong Basin. J. Hydrol. 2017, 545, 28–41. [Google Scholar] [CrossRef]
  8. Liu, J.; Han, G.; Liu, M.; Zeng, J.; Liang, B.; Qu, R. Distribution, Sources and Water Quality Evaluation of the Riverine Solutes: A Case Study in the Lancangjiang River Basin, Tibetan Plateau. Int. J. Environ. Res. Public Health 2019, 16, 4670. [Google Scholar] [CrossRef]
  9. Han, G.L.; Liu, C.Q. Water geochemistry controlled by carbonate dissolution: A study of the river waters draining karst-dominated terrain, Guizhou Province, China. Chem. Geol. 2004, 204, 1–21. [Google Scholar] [CrossRef]
  10. Han, G.; Tang, Y.; Xu, Z. Fluvial geochemistry of rivers draining karst terrain in Southwest China. J. Asian Earth Sci. 2010, 38, 65–75. [Google Scholar] [CrossRef]
  11. Zeng, J.; Han, G.; Wu, Q.; Tang, Y. Effects of agricultural alkaline substances on reducing the rainwater acidification: Insight from chemical compositions and calcium isotopes in a karst forests area. Agric. Ecosyst. Environ. 2020. [Google Scholar]
  12. Liu, M.; Han, G.; Zhang, Q. Effects of agricultural abandonment on soil aggregation, soil organic carbon storage and stabillization: Results from observation in a small karst catchment, southwest China. Agric. Ecosyst. Environ. 2020, 288, 106719. [Google Scholar] [CrossRef]
  13. Bolch, T.; Kulkarni, A.; Kääb, A.; Huggel, C.; Paul, F.; Cogley, J.G.; Frey, H.; Kargel, J.S.; Fujita, K.; Scheel, M.; et al. The State and Fate of Himalayan Glaciers. Science 2012, 336, 310–314. [Google Scholar] [CrossRef] [PubMed]
  14. Yang, B.; Chen, X.; He, Y.; Wang, J.; Lai, C. Reconstruction of annual runoff since CE 1557 using tree-ring chronologies in the upper Lancang-Mekong River basin. J. Hydrol. 2019, 569, 771–781. [Google Scholar] [CrossRef]
  15. Han, G.; Song, Z.; Tang, Y.; Wu, Q.; Wang, Z. Ca and Sr isotope compositions of rainwater from Guiyang city, Southwest China: Implication for the sources of atmospheric aerosols and their seasonal variations. Atmos. Environ. 2019, 214. [Google Scholar] [CrossRef]
  16. Han, G.; Tang, Y.; Wu, Q.; Liu, M.; Wang, Z. Assessing Contamination Sources by Using Sulfur and Oxygen Isotopes of Sulfate Ions in Xijiang River Basin, Southwest China. J. Environ. Qual. 2019, 48, 1507–1516. [Google Scholar] [CrossRef]
  17. Chen, J.; Wang, P.; Wang, C.; Wang, X.; Miao, L.; Liu, S.; Yuan, Q. Dam construction alters function and community composition of diazotrophs in riparian soils across an environmental gradient. Soil Biol. Biochem. 2019, 132, 14–23. [Google Scholar] [CrossRef]
  18. Li, Y.; Hu, J.; Han, X.; Li, Y.; Li, Y.; He, B.; Duan, X. Effects of past land use on soil organic carbon changes after dam construction. Sci. Total Environ. 2019, 686, 838–846. [Google Scholar] [CrossRef]
  19. Zhong, R.; Zhao, T.; He, Y.; Chen, X. Hydropower change of the water tower of Asia in 21st century: A case of the Lancang River hydropower base, upper Mekong. Energy 2019, 179, 685–696. [Google Scholar] [CrossRef]
  20. WLE. Mekong Dams Observatory. Available online: https://wle-mekong.cgiar.org/ (accessed on 19 September 2019).
  21. Halder, J.; Terzer, S.; Wassenaar, L.I.; Araguas-Araguas, L.J.; Aggarwal, P.K. The Global Network of Isotopes in Rivers (GNIR): Integration of water isotopes in watershed observation and riverine research. Hydrol. Earth Syst. Sci. 2015, 19, 3419–3431. [Google Scholar] [CrossRef]
  22. Penna, D.; Meerveld, H.J.V.; Zuecco, G.; Fontana, G.D.; Borga, M. Hydrological response of an Alpine catchment to rainfall and snowmelt events. J. Hydrol. 2016, 537, 382–397. [Google Scholar] [CrossRef]
  23. Craig, H. Isotopic Variations in Meteoric Waters. Science 1961, 133, 1702–1703. [Google Scholar] [CrossRef] [PubMed]
  24. Wassenaar, L.I.; Athanasopoulos, P.; Hendry, M.J. Isotope hydrology of precipitation, surface and ground waters in the Okanagan Valley, British Columbia, Canada. J. Hydrol. 2011, 411, 37–48. [Google Scholar] [CrossRef]
  25. Birkel, C.; Helliwell, R.; Thornton, B.; Gibbs, S.; Cooper, P.; Soulsby, C.; Tetzlaff, D.; Spezia, L.; Esquivel-Hernandez, G.; Sanchez-Murillo, R.; et al. Characterization of surface water isotope spatial patterns of Scotland. J. Geochem. Explor. 2018, 194, 71–80. [Google Scholar] [CrossRef]
  26. Hao, S.; Li, F.; Li, Y.; Gu, C.; Zhang, Q.; Qiao, Y.; Jiao, L.; Zhu, N. Stable isotope evidence for identifying the recharge mechanisms of precipitation, surface water, and groundwater in the Ebinur Lake basin. Sci. Total Environ. 2019, 657, 1041–1050. [Google Scholar] [CrossRef] [PubMed]
  27. Kalbus, E.; Reinstorf, F.; Schirmer, M. Measuring methods for groundwater—Surface water interactions: A review. Hydrol. Earth Syst. Sci. 2006, 10, 873–887. [Google Scholar] [CrossRef]
  28. Laonamsai, J.; Putthividhya, A. Preliminary Assessment of Groundwater and Surface Water Characteristics in the Upper Chao Phraya River Basin Land Using a Stable Isotope Fingerprinting Technique; ASCE: Virginia, VI, USA, 2016. [Google Scholar]
  29. Yang, K.; Han, G.; Liu, M.; Li, X.; Liu, J.; Zhang, Q. Spatial and Seasonal Variation of O and H Isotopes in the Jiulong River, Southeast China. Water 2018, 10, 1677. [Google Scholar] [CrossRef]
  30. Yang, K.; Han, H.; Song, C.; Zhang, P. Stable H-O Isotopic Composition and Water Quality Assessment of Surface Water and Groundwater: A Case Study in the Dabie Mountains, Central China. Int. J. Environ. Res. Public Health 2019, 16, 4076. [Google Scholar] [CrossRef]
  31. Cronin, R. Hydropower Dams on the Mekong: Old Dreams, New Dangers. Asia Policy 2013, 16, 32–38. [Google Scholar] [CrossRef]
  32. Jiang, R.; Bao, Y.; Shui, Y.; Wang, Y.; Hu, M.; Cheng, Y.; Cai, A.; Du, P.; Ye, Z. Spatio-Temporal Variations of the Stable H-O Isotopes and Characterization of Mixing Processes between the Mainstream and Tributary of the Three Gorges Reservoir. Water 2018, 10, 563. [Google Scholar] [CrossRef]
  33. Reckerth, A.; Stichler, W.; Schmidt, A.; Stumpp, C. Long-term data set analysis of stable isotopic composition in German rivers. J. Hydrol. 2017, 552, 718–731. [Google Scholar] [CrossRef]
  34. Li, C.; Yang, S.; Lian, E.; Yang, C.; Deng, K.; Liu, Z. Damming effect on the Changjiang (Yangtze River) river water cycle based on stable hydrogen and oxygen isotopic records. J. Geochem. Explor. 2016, 165, 125–133. [Google Scholar] [CrossRef]
  35. Wang, B.; Zhang, H.; Liang, X.; Li, X.; Wang, F. Cumulative effects of cascade dams on river water cycle: Evidence from hydrogen and oxygen isotopes. J. Hydrol. 2019, 568, 604–610. [Google Scholar] [CrossRef]
  36. Li, B.; Chen, F.; Liu, X. Sensitivity of the Penman-Monteith reference evapotranspiration to sunshine duration in the Upper Mekong River Basin. Hydrol. Sci. J. 2017, 62, 830–842. [Google Scholar] [CrossRef]
  37. Zhang, J.; Fan, H.; He, D.; Chen, J. Integrating precipitation zoning with random forest regression for the spatial downscaling of satellite-based precipitation: A case study of the Lancang-Mekong River basin. Int. J. Climatol. 2019, 39, 3947–3961. [Google Scholar] [CrossRef]
  38. Su, X.S.; Lin, X.Y.; Liao, Z.H.; Wang, J.S. The main factors affecting isotopes of Yellow River water in China. Water Int. 2004, 29, 475–482. [Google Scholar] [CrossRef]
  39. Zhang, L.; Yuan, R.; Song, X.; Xia, J. Spatial variation of stable isotopic composition in surface waters of the Huai River basin, China and the regional hydrological implication. Hydrol. Res. 2018, 49, 1452–1466. [Google Scholar] [CrossRef]
  40. IAEA. Global Network of Isotopes in Rivers. Available online: https://nucleus.iaea.org/wiser (accessed on 19 September 2019).
  41. Han, G.; Lv, P.; Tang, Y.; Song, Z. Spatial and temporal variation of H and O isotopic compositions of the Xijiang River system, Southwest China. Isot. Environ. Health Stud. 2018, 54, 137–146. [Google Scholar] [CrossRef]
  42. Yang, K.; Han, G. Controls over Hydrogen and Oxygen Isotopes of Surface Water and Groundwater in the Mun River catchment, Northeast Thailand: Implications for Water Cycle. Hydrol. J. 2019, in press. [Google Scholar]
  43. Sun, C.; Chen, Y.; Li, J.; Chen, W.; Li, X. Stable isotope variations in precipitation in the northwesternmost Tibetan Plateau related to various meteorological controlling factors. Atmos. Res. 2019, 227, 66–78. [Google Scholar] [CrossRef]
  44. Zhang, L.; Su, F.; Yang, D.; Hao, Z.; Tong, K. Discharge regime and simulation for the upstream of major rivers over Tibetan Plateau. J. Geophys. Res. Atmos. 2013, 118, 8500–8518. [Google Scholar] [CrossRef]
  45. Su, F.; Zhang, L.; Ou, T.; Chen, D.; Yao, T.; Tong, K.; Qi, Y. Hydrological response to future climate changes for the major upstream river basins in the Tibetan Plateau. Glob. Planet. Chang. 2016, 136, 82–95. [Google Scholar] [CrossRef]
  46. Zhang, H.; Zhu, Y. Survey and research on gas hydrate in permafrost region of China. Geol. Bull. China 2011, 30, 1809–1815. [Google Scholar]
  47. Wang, W.; Wu, T.; Chen, Y.; Li, R.; Xie, C.; Qiao, Y.; Zhu, X.; Hao, J.; Ni, J. Spatial variations and controlling factors of ground ice isotopes in permafrost areas of the central Qinghai-Tibet Plateau. Sci. Total Environ. 2019, 688, 542–554. [Google Scholar] [CrossRef]
  48. Abbott, B.W.; Jones, J.B.; Godsey, S.E.; Larouche, J.R.; Bowden, W.B. Patterns and persistence of hydrologic carbon and nutrient export from collapsing upland permafrost. Biogeosciences 2015, 12, 3725–3740. [Google Scholar] [CrossRef]
  49. Chang, Q.; Ma, R.; Sun, Z.; Zhou, A.; Hu, Y.; Liu, Y. Using Isotopic and Geochemical Tracers to Determine the Contribution of Glacier-Snow Meltwater to Streamflow in a Partly Glacierized Alpine-Gorge Catchment in Northeastern Qinghai-Tibet Plateau. J. Geophys. Res. Atmos. 2018, 123, 10037–10056. [Google Scholar] [CrossRef]
  50. Han, T.; Pu, H.; Cheng, P.; Jiao, K. Hydrological effects of alpine permafrost in the headwaters of the Urumqi River, Tianshan Mountains. Sci. Cold Arid Reg. 2016, 8, 241–249. [Google Scholar]
  51. Li, S.; Xia, X.; Zhou, B.; Zhang, S.; Zhang, L.; Mou, X. Chemical balance of the Yellow River source region, the northeastern Qinghai-Tibetan Plateau: Insights about critical zone reactivity. Appl. Geochem. 2018, 90, 1–12. [Google Scholar] [CrossRef]

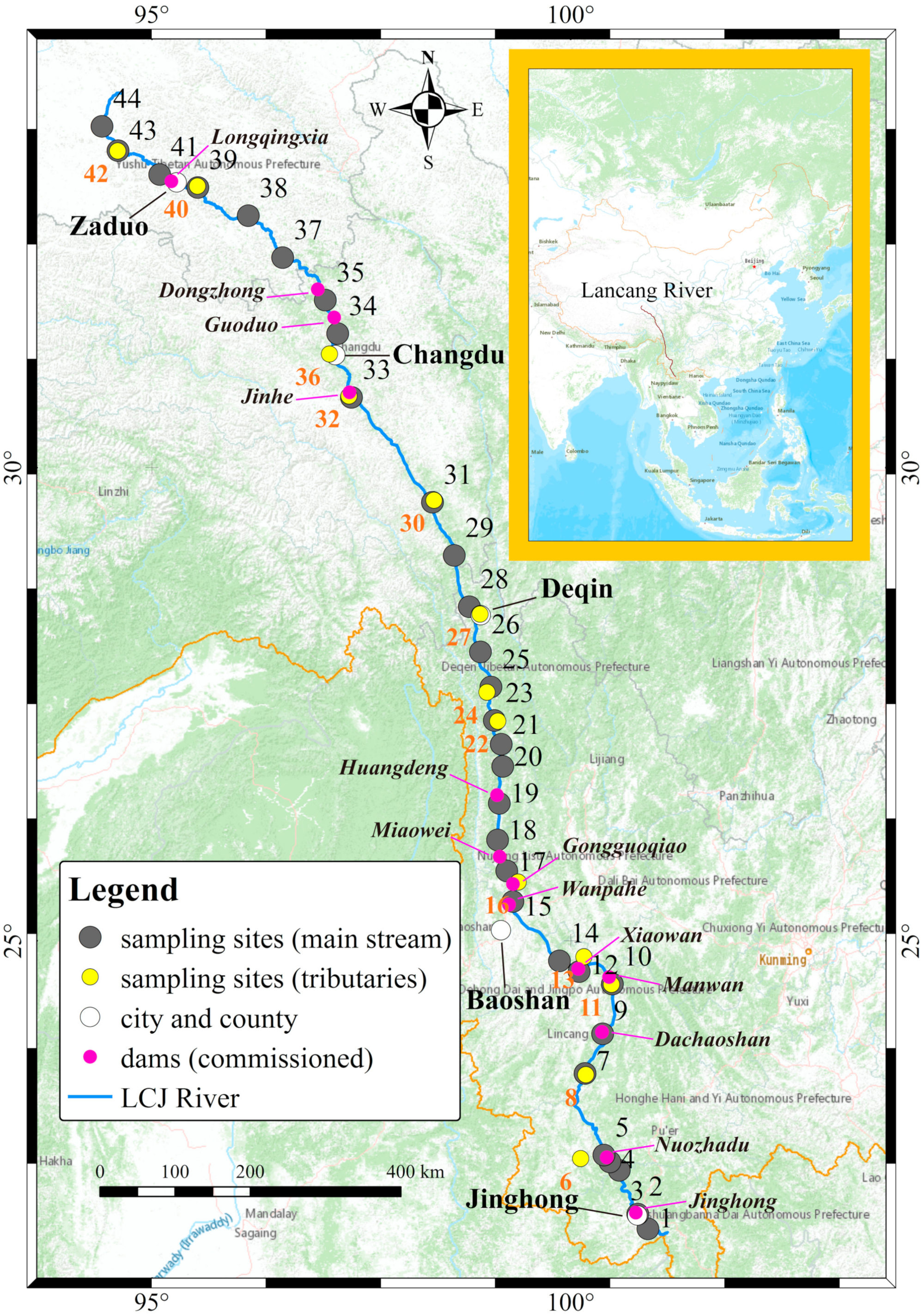

Figure 1. Location of the Lancang River and sampling sites and distribution of commissioned dams along the main channel.
Figure 1. Location of the Lancang River and sampling sites and distribution of commissioned dams along the main channel.
Ijerph 16 04932 g001
Figure 2. Scatter plots of δ18O and δ2H in the wet season in the river water of the Lancang River (this study), the Yellow River [38], the Huai River [30,39], the Yangtze River [40], the Jiulong River [29], the Pearl River [41], and the Mun River [42].
Figure 2. Scatter plots of δ18O and δ2H in the wet season in the river water of the Lancang River (this study), the Yellow River [38], the Huai River [30,39], the Yangtze River [40], the Jiulong River [29], the Pearl River [41], and the Mun River [42].
Ijerph 16 04932 g002

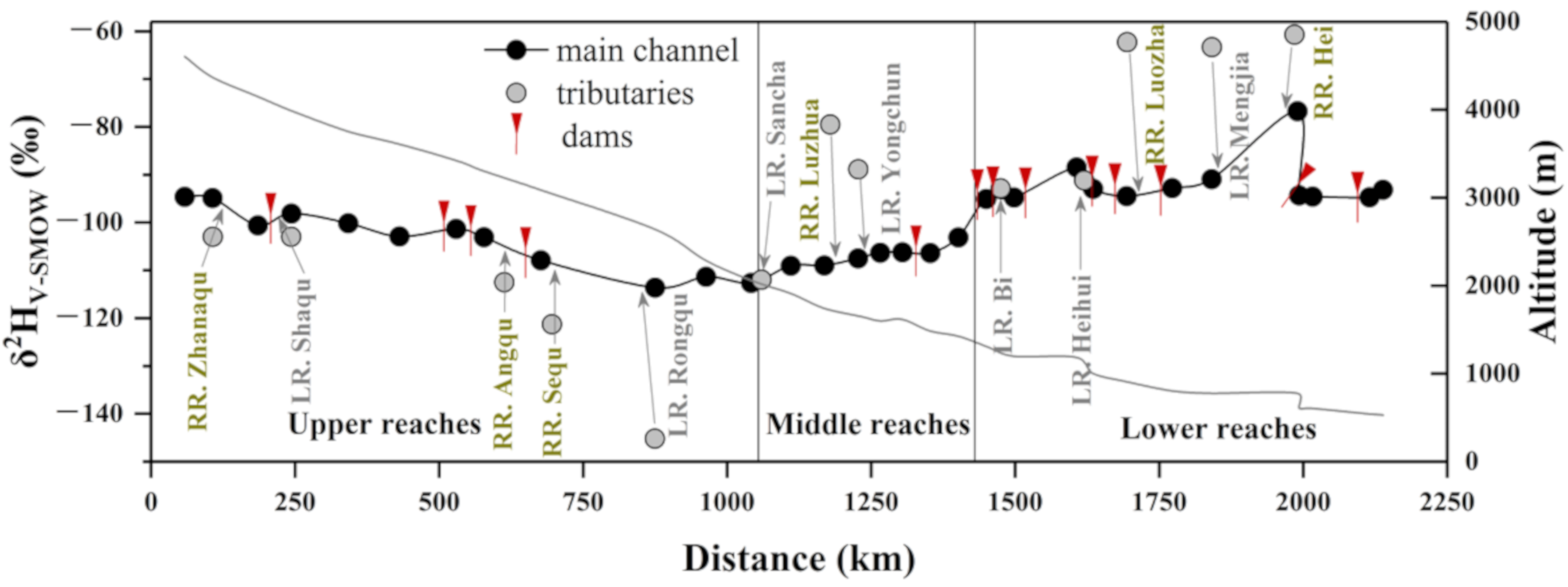

Figure 3. Hydrogen isotopic composition of river water along the flow path. LR represents the left bank of the river, and RR represents the right bank of the river.
Figure 3. Hydrogen isotopic composition of river water along the flow path. LR represents the left bank of the river, and RR represents the right bank of the river.
Ijerph 16 04932 g003
Figure 4. Differences among three reaches in the relationship between δ2H of river water in the main channel and altitude/latitude/longitude. (a) Positive correlation between δ2H and altitude in the upper reaches. (b) Positive correlation between δ2H and latitude in the upper reaches. (c) Negative correlation between δ2H and longitude in the upper reaches. (d) Negative correlation between δ2H and altitude in the middle reaches. (e) Negative correlation between δ2H and latitude in the middle reaches. (f) Positive correlation between δ2H and longitude in the middle reaches. (g) No obvious linear correlation between δ2H and altitude in the lower reaches. (h) No obvious linear correlation between δ2H and latitude in the lower reaches. (i) No obvious linear correlation between δ2H and longitude in the lower reaches.
Figure 4. Differences among three reaches in the relationship between δ2H of river water in the main channel and altitude/latitude/longitude. (a) Positive correlation between δ2H and altitude in the upper reaches. (b) Positive correlation between δ2H and latitude in the upper reaches. (c) Negative correlation between δ2H and longitude in the upper reaches. (d) Negative correlation between δ2H and altitude in the middle reaches. (e) Negative correlation between δ2H and latitude in the middle reaches. (f) Positive correlation between δ2H and longitude in the middle reaches. (g) No obvious linear correlation between δ2H and altitude in the lower reaches. (h) No obvious linear correlation between δ2H and latitude in the lower reaches. (i) No obvious linear correlation between δ2H and longitude in the lower reaches.
Ijerph 16 04932 g004
Figure 5. Relationship between δ2H and water temperature/dissolved oxygen/total dissolved solid of river water in the main channel and tributaries in the upper reaches. (a) Cross plot of δ2H and water temperature of the river water in the main channel. (b) Cross plot of δ2H and dissolved oxygen in the river water in the main channel. (c) Cross plot of δ2H and total dissolved solid of the river water in the main channel. (d) Cross plot of δ2H and water temperature of the river water in the tributaries. (e) Cross plot of δ2H and dissolved oxygen of the river water in the tributaries. (f) Cross plot of δ2H and total dissolved solid of the river water in the tributaries.
Figure 5. Relationship between δ2H and water temperature/dissolved oxygen/total dissolved solid of river water in the main channel and tributaries in the upper reaches. (a) Cross plot of δ2H and water temperature of the river water in the main channel. (b) Cross plot of δ2H and dissolved oxygen in the river water in the main channel. (c) Cross plot of δ2H and total dissolved solid of the river water in the main channel. (d) Cross plot of δ2H and water temperature of the river water in the tributaries. (e) Cross plot of δ2H and dissolved oxygen of the river water in the tributaries. (f) Cross plot of δ2H and total dissolved solid of the river water in the tributaries.
Ijerph 16 04932 g005
Table 1. Locations, water temperature (T), dissolved oxygen (DO), total dissolved solid (TDS), and isotope composition of river water samples.
Table 1. Locations, water temperature (T), dissolved oxygen (DO), total dissolved solid (TDS), and isotope composition of river water samples.
ReachesSectionSamplesLatitudeLongitudeAltitudeTDOTDSδ2Hδ18O
° N° Em%mg/L
upper reachesMain channelLCJ4433.46 94.40 460411.5 57.0 346.5 −12.99−94.7
LCJ4333.22 94.60 43688.6 59.2 257.4 −13.72−94.9
LCJ4132.98 95.09 41489.6 61.2 487.5 −14.27−100.6
LCJ3932.84 95.55 398612.5 63.6 552.5 −13.69−98.1
LCJ3832.56 96.15 375112.2 62.8 507.0 −14.01−100.2
LCJ3732.14 96.56 360613.8 65.2 455.0 −14.29−102.9
LCJ3531.71 97.07 342015.7 65.9 360.1 −13.75−101.4
LCJ3431.37 97.22 330015.4 74.6 353.6 −14.06−103.1
LCJ3330.72 97.38 308716.0 70.1 337.4 −14.67−107.9
LCJ3129.64 98.35 263916.6 79.7 304.2 −15.22−113.7
LCJ2929.09 98.61 228417.9 84.1 297.7 −15.35−111.4
LCJ2828.55 98.79 205817.9 77.2 293.8 −15.60−112.7
TributariesLCJ4233.21 94.59 43828.4 59.0 1313.0 −14.15−103.0
LCJ4032.86 95.55 398013.4 61.3 455.0 −14.33−103.0
LCJ3631.16 97.12 324314.0 63.2 330.9 −15.21−112.5
LCJ3230.73 97.35 317515.2 69.2 194.4 −16.09−121.3
LCJ3029.66 98.37 285316.2 72.5 204.8 −18.51−145.2
middle reachesMain channelLCJ2628.08 98.92 190816.9 90.1 267.8 −14.94−109.1
LCJ2527.71 99.05 174117.2 87.3 254.8 −14.99−109.0
LCJ2327.36 99.09 165417.3 85.1 250.3 −14.90−107.5
LCJ2127.10 99.17 159719.7 88.8 257.4 −14.87−106.4
LCJ2026.87 99.19 161524.5 93.9 251.6 −14.83−106.3
LCJ1926.48 99.15 148218.1 84.5 258.1 −14.58−106.4
LCJ1826.09 99.13 142418.4 89.0 241.8 −14.22−103.2
TributariesLCJ2728.47 98.92 310412.3 72.1 137.8 −15.36−112.0
LCJ2427.65 99.00 174115.9 84.0 52.7 −10.65−79.5
LCJ2227.35 99.13 172019.9 79.6 120.9 −12.36−88.9
lower reachesMain channelLCJ1725.75 99.24 130718.4 87.3 232.1 −13.43−95.1
LCJ1525.42 99.31 119718.8 95.1 233.4 −13.41−94.8
LCJ1424.78 99.87 118123.2 107.0 234.0 −12.42−88.5
LCJ1224.67 100.10 100120.0 84.6 247.7 −13.06−93.0
LCJ1024.53 100.50 90620.7 82.5 252.9 −13.34−94.5
LCJ923.99 100.38 80221.6 79.9 245.7 −13.21−92.8
LCJ723.56 100.17 77622.4 83.0 239.9 −12.88−91.0
LCJ522.67 100.40 77428.4 102.2 181.4 −10.35−76.7
LCJ422.59 100.47 60520.6 62.8 237.3 −12.80−94.4
LCJ322.50 100.58 60320.7 59.3 241.2 −12.89−94.6
LCJ222.02 100.80 54022.1 70.6 224.7 −12.84−94.8
LCJ121.85 100.92 52722.2 68.7 236.0 −12.36−93.2
TributariesLCJ1625.63 99.37 129322.7 83.3 202.2 −12.68−92.9
LCJ1324.83 100.16 118924.1 96.5 238.6 −12.86−91.2
LCJ1124.53 100.49 90125.1 81.5 98.2 −8.95−62.3
LCJ823.54 100.18 77628.6 91.0 156.0 −8.49−63.3
LCJ622.63 100.12 82724.8 84.7 100.8 −8.71−60.7
