Landscape Pattern Changes in the Xingkai Lake Area, Northeast China
Key Laboratory of Wetland Ecology and Environment, Northeast Institute of Geography and Agroecology (IGA), Chinese Academy of Sciences, Changchun 130102, China
Key Laboratory of Geographic Information Science (Ministry of Education), School of Geographic Sciences, East China Normal University, Shanghai 200241, China
China National Environmental Monitoring Center (CNEMC), Beijing 100012, China
Northeast Institute of Geography and Agroecology (IGA), Chinese Academy of Sciences, Changchun 130102, China
Jillin Provincial Joint Laboratory of Changbai Mountain Wetland and Ecology, Northeast Institute of Geography and Agroecology (IGA), Chinese Academy of Sciences, Changchun 130102, China
Author to whom correspondence should be addressed.
Received: 9 September 2019 / Accepted: 8 October 2019 / Published: 10 October 2019


Understanding landscape change is important for ecologically sustainable development. In this paper, we assessed the spatiotemporal variations of landscape pattern in the Xingkai Lake area using remote sensing data from 1982, 1995, 2000, 2005, 2010, and 2015. Landscape patterns of marshlands, paddy fields, dry farmlands, and their combinations were analyzed at class and landscape levels. We examined the stability of landscape types through principal component analysis based on class level indices for landscape types. The results indicated that marshland areas decreased significantly by 33.87% but paddy fields increased by 1.84 times from 1982 to 2015. The largest conversion of dry farmlands to paddy fields was 90.88 km2 during the period 2010–2015. In contrast, the largest conversion of paddy fields to dry farmlands was 86.03 km2 during the period 2000–2005. The difference in relative change revealed that dry farmlands had experienced a greater relative change than paddy fields since 2000. The interspersion and juxtaposition index decreased, while the number of patches grew. This showed that landscape fragmentation was increasing and the landscape pattern was becoming dispersed. Marshlands were more stable than paddy fields and dry farmlands across all time periods, except for the year 2005.
spatiotemporal variations of landscape pattern; landscape fragmentation; landscape stability; land use changes; the Xingkai Lake area

1. Introduction

The increasing exploitation of natural resources has led to an excessive depletion of resources and has changed the environment [1]. This unfolding ecological crisis can directly affect landscape pattern changes [2]. The rapid transformation in land use from land development directly affects landscape patterns [3,4]. The interaction between land use change and landscape pattern change is a focus of environmental change research because of the rapid land transformation [5]. The landscape pattern and its changes reflect the combined influence of natural and human systems [6,7].
Wetland ecosystems have experienced the most rapid decline among different ecosystems in the world [8]. Agricultural expansion has caused half of the world’s wetlands to be lost over the past century, and population growth had put additional pressure on wetlands [9,10]. Wetland loss and degradation has affected the well-being of many local communities [11,12,13]. However, effective restoration is often hindered by limited information on the historical process of landscape change. Therefore, key features of the spatial and temporal variations of landscape patterns among marshlands, paddy fields, and dry farmlands are still uncertain.
Landscape ecology deals with the patterning of ecosystems in space [14]. Landscape patterns indicate the actual spatial composition of landscape elements. Landscape pattern change is the most intuitive reflection of land use changes [15]. In the early 1950s, descriptive research on landscape patterns was carried out by Forman, and quantitative research in the field began in the 1970s [16,17]. Landscape stability is an important part of landscape ecology research, considered as a landscape that has been stable (the tendency of a perturbed system to return toward an undisturbed state) and which will not undergo tremendous structural changes in the short term [18,19]. This also means the natural processes that contribute to the functions and sustainability will not be disrupted. However, when analyzing landscape stability, it is difficult to make a quantitative analysis of landscape stability only considering landscape heterogeneity, diversity, and landscape pattern. As such, it was assessed quantitatively in this study. The landscape pattern index (LPI) is commonly used in landscape pattern research. The LPI is a quantitative index that can condense landscape pattern information and reflect landscape structural compositions and spatial allocation. Several landscape pattern indices have been developed to evaluate landscape stability, and principal component analysis is often used to construct a model that can accurately reflect landscape stability. The spatial arrangement of a landscape also has a decisive influence on landscape stability in space [20].
The conflicts between wetland conservation and cropland development are increasingly prominent, but less attention has been paid to the relationships between marshlands, paddy fields, and dry farmlands. It is useful to investigate the spatial and temporal dynamics of these landscape classes, especially over recent years. Further, the influence of landscape dynamics on landscape stability needs to be determined. Remote sensing and geographic information system technologies are often used to analyze land use changes. We aimed to analyze the transformation of marshlands into paddy fields or dry farmlands, or the relationships between paddy fields and dry farmlands along a time series in our study. The Xingkai Lake area, Northeast China, acted as the case study area. The area has typical natural marshlands and a history of reclamation to support a nationally important grain commodity base.
This study is focused on the landscape pattern changes experienced in the Xingkai lake area over the past thirty years. Land use changes around Xiangkai Lake in 1982, 1995, 2000, 2005, 2010, and 2015 were quantified by remote sensing data analysis. The spatiotemporal variations of landscape pattern at class and landscape levels were revealed by landscape pattern indices in Fragstats software. Based on the landscape pattern indices, we analyzed landscape stability using principal components analysis. Our findings are applicable for the effective planning and management of land resources.

2. Materials and Methods

2.1. Study Area

The Xingkai Lake area (45°01′–47°34′N, 131°58′–133°07′E) covers 2.59 × 103 km2 within the Sanjiang Plain, Northeast China. This region lies in a temperate monsoon climate zone [21]. The annual mean temperature is 3 °C, with an average temperature of −18 °C in January and 21 °C in July. The annual mean precipitation is 654 mm. Precipitation is concentrated in summer, accounting for about 70% of the mean annual precipitation. The mean annual evaporation is 1450 mm [22,23].
Our study area contains seven types of land use: marshland, paddy field, dry farmland, forestland, grassland, residence, and lake. The vegetation in the marshland area is mainly Deyeuxia angustifolia and Carex plants. The main species of crops in the Xingkai Lake area are soybean, corn, and rice.
The implementation of China’s agricultural modernization policy since 1978 and rapid socioeconomic development has led to marshland reclamation in the Sanjiang Plain [24,25], resulting in the exploitation of marshlands and development of croplands in this region. Based on the history of reclamation of wetlands, three land use types, namely, marshland, paddy field, and dry farmland, were analyzed in our study.

2.2. Data Sources

The land use data in 1982 were derived from the Institute of Remote Sensing and Geographic Information Research Center of the Northeast Institute of Geography and Agroecology ( Data for the other five periods, namely 1995, 2000, 2005, 2010, and 2015, were derived from Landsat images ( covering this region at a resolution of 30 m. The phases of images were selected from June to October, as this was convenient for discrimination of land use type characteristics [26,27]. Using ArcGIS10.2.1 software, we obtained the information about land cover categories using supervised classification based on the Landsat TM432 band composite images. Information was acquired regarding spatiotemporal distribution and different land use types. From this, we analyzed the landscape pattern changes combined with landscape pattern indices.

2.3. Relative Land Use Change

We define the relative land use change in Equation (1), which expresses the land use changes for different periods from 1982 to 2015. The positive and negative values show whether the landscape area is expanding or decreasing.
R S = U f U i U i × 1 T × 100 %
where RS is relative land use change, Ui and Uf are land use types at the beginning and end stages, and T is time interval.

2.4. Landscape Pattern and Stability

Class- and landscape-level indices were used to characterize the landscape pattern changes in this study. Landscape pattern indices help to determine digital information about landscape composition, the dynamics of landscape patterns, and the spatial configuration among landscape types. Indices were calculated by Fragstats version 4.2.1 software. The indices were NP, LPI, FRAC_AM, COHESION, SPLIT, and AI for the class level, and CONTAG, IJI, SHDI, SHEI, NP, and COHESION for the landscape level. Descriptions for these indices are outlined in Table 1.
We established the model for evaluating landscape type stability using principal component analysis [28]. The six indices at the class level were used to assess landscape type stability. We constructed a standard matrix and then gained the eigenvalue and contribution ratios from principal component analysis to assess relative importance using PASW (Predictive Analytics Software) Statistics 18 software. We also obtained the load matrix and correlation coefficient matrix from principle component analysis. The weight of the principal component and landscape type stability can be calculated using the following equations.
W i = λ i i = 1 n λ i
where Wi is weight of the ith principal component and λi is eigenvalue of the ith principal component.
F i = a i X 1 + b i X 2 + c i X 3 + d i X 4 + e i X 5 + f i X 6
where Fi is the ith principal component; Xi is an index at the class level (i = 6); and ai, bi, ci, di, ei, and fi are correlation coefficient matrices for the ith principle component.
F = i = 1 n W i F i
where F is the grading score for landscape type stability, Wi is the weight of the ith principal component, and Fi is the ith principal component.

3. Results

3.1. Land Use Changes

We measured the spatial distribution and area ratios of marshlands, paddy fields, and dry farmlands for the years 1982, 1995, 2000, 2005, 2010, and 2015. Marshlands occupied 787.2 km2 (30.42%) of the total study area in 1982 (Figure 1).
Our analysis showed that the marshlands decreased by 33.87% and dry farmlands decreased by 64.72% from 1982 to 2015, but paddy fields increased by 1.84 times during this period (Table 2). The ratio of paddy fields and dry farmlands together (25.71%) has exceeded that of marshlands (20.58%) since 2005. The ratio of paddy fields increased much more than marshlands decreased from 1982 to 2015.
The relative changes in marshlands and dry farmlands was negative during 1995–2000 and 2005–2010, but that of paddy fields was always positive (Table 3). Trends for marshlands, paddy fields, and dry farmlands for different years can be divided into three stages (Figure 2). Firstly, before 1995, the original marshlands declined because of increasing land reclamation. Secondly, from 1995 to 2005, the marshland area was reduced sharply, but the paddy fields and dry farmlands fluctuated, with both tending toward the opposite trend. Thirdly, after 2005, the marshlands area was relatively stable, while paddy fields and dry farmlands showed opposite trends. The total paddy fields area reached a maximum in 2015. The area of dry farmlands converted to paddy fields was 76.22 km2 during 2005–2010 and 90.88 km2 during 2010–2015 (Table 3), which were the highest values across the different periods.
The two conversion processes of dry farmlands to paddy fields and of marshlands to paddy fields were very significant in every time period. The largest conversion of paddy fields to dry farmlands was 86.03 km2 for the period 2000–2005, while the largest conversion of dry farmlands to paddy fields was 90.88 km2 for the period 2010–2015 (Table 3). The relative change of dry farmlands was –12.86%, but for paddy fields it was 4.96%, so there was a bigger amplitude of dry farmland changes between 2010 and 2015. The conversion of marshlands to paddy fields was significantly higher than that of marshlands to dry farmlands across the different periods, except 2000–2005. Compared with the relative change of paddy fields, the changing range of dry farmlands was greater than that of paddy fields after 2000. This might be influenced by the initial conversion of dry farmlands to paddy fields in the late 1990s.
As shown in Table 3, marshland conversion to paddy fields totaled 253.24km2 for the period 1982–2015, with a relative change of 5.58%. In particular, the area of marshlands converted to paddy fields occupied 32.17% of the total marshland area in 1982. The area of dry farmlands converted to paddy fields was 82.01% of the total dry farmland area in 1982.

3.2. Landscape Pattern Changes

The Δ means the difference of indices between 1982 and 2015. The ΔLPI and ΔFRAC_AM values for marshlands were both higher than those for paddy fields and dry farmlands for the period 1982–2015 in Table 4, which showed greater human disturbance and severe landscape fragmentation. In terms of ΔNP, values for paddy fields and dry farmlands were significantly higher than for marshlands, which indicated that the development intensity of paddy fields and dry farmlands had increased, especially after 1995. Dry farmlands were greatly dispersed compared with the marshlands and paddy fields according to the ΔSPLIT, which was the highest. The ΔAI of marshlands was the smallest at 0.2237%, while the ΔCOHESION of dry farmlands was the largest at up to 1.4776, so the patch connectivity in the landscape was not compact between 1982 and 2015.
We obtained a standard matrix for NP, LPI, FRAC_AM, COHENSION, SPLIT, and AI, as shown in Table 5. The two principal components were extracted and the eigenvalues were 4.598 and 1.402, respectively. From this we produced a correlation coefficient matrix (Table 6 and Table 7).
Expressions of two principal components are listed according to Equation (3) (Table 7). The first principal component (F1) had remarkable higher loads for LPI, FRAC_AM, COHESION, and SPLIT. The second principal component (F2) had high loads for NP and AI. Using Equations (2) and (4), landscape type stability could be expressed. The grading values for landscape type stability are shown in Table 8.
F 1   = 0.1354 X 1 + 0.2168 X 2 + 0.1965 X 3 + 0.2076 X 4 0.2143 X 5 + 0.1567 X 6 F 2   = 0.5580 X 1 + 0.0562 X 2 + 0.3060 X 3 0.2132 X 4 + 0.1219 X 5 0.4946 X 6 F = 76.63 % F 1 + 23.37 % F 2
The marshland area ratio was higher (30.42%) in 1982 than the other two landscape types (paddy fields and dry farmlands). The highest LPI (93.9018) and SPLIT (1.1333) values were for marshlands in 1982, which had the highest score (0.89) for relatively stable land type in 1982. However, the maximum difference for marshlands was 0.50 and the stability of marshlands varied over different years. Marshlands were more stable than paddy fields and dry farmlands across all years examined, except for 2005.
Landscape-level indices for the three landscape types together (marshlands, paddy fields, and dry farmlands) are analyzed in Table 9. At the landscape level, clear evidence of the fragmentation process was observed (Table 9). IJI significantly decreased (5.3509%), implying a more dispersed landscape pattern from 1982 to 2015. Meanwhile, NP rapidly increased by 1.7167 times, which led to a clear fragmentation process.
CONTAG showed several differences with a range of 0.3074%, and there were more fragmented patches because our CONTAG was concentrated at 50% (a range of 0–100). COHESION was about 99.8, with no particularly obvious change over different years, which showed that landscape connectivity had been sustained.
SHDI and SHEI were both at their maximum in 2005, which meant that the landscape tended to become more heterogeneous over time and there was a more even distribution of the patch types in the landscape.

4. Discussion

The study presented the changes in landscape pattern over different time periods in the Xingkai Lake area. The time period with the largest land use conversion was found. The study revealed that landscape fragmentation was further aggravated until 2015. Human disturbances are the important reason for landscape fragmentation [29]. The building of artificial canals for paddy field cultivation and the increase in canal densities has led to a decrease of plant community diversity in the wetlands of the Sanjiang Plain. The natural and seminatural areas have been gradually replaced by artificial and semiartificial areas [6,30]. These human activities have influenced the water circulation and the landscape pattern. Reclamation has put great pressure on marshlands in the Xingkai Lake area. This mirrors human disturbance to peatlands, where approximately 15% globally and over 50% of peatlands in Europe have been drained for agricultural use [31].
In our study, landscape pattern indices were selected from the literature and combined with our own understanding of landscape patterns. This means that there was some subjectivity in the selected process. Our selection might not necessarily show the complete relationship between landscape type stability and landscape pattern indices. We used principal component analysis to evaluate landscape type stability based on landscape pattern indices. Notably, landscape pattern indices focus on calculating the geometric relationship between patch types, but do not involve the measurement of biomass or species diversity within patches. Therefore, the results cannot fully reflect the characteristics of landscape stability. There are two main considerations in this paper, as follows. Landscape pattern indices can be used to quantitatively reflect the spatial distribution characteristics of the landscape, and on this basis, principal component analysis could be used to reveal the landscape type stability. However, the spatial scale is very important for landscape stability analysis [17]. Further research should be undertaken to improve the accuracy of ecosystem stability classification criteria or construct a new ecosystem stability index system. In other words, a more innovative approach should be proposed for studying ecosystem stability and the landscape pattern indices influencing it.
The landscape pattern was obviously fragmented in our study over the past thirty years. It was characterized by a sharp increase of NP and decrease of IJI. Our results provide support for studying landscape pattern changes at a class level. Therefore, it was a remarkable increase in scale from the previous study [32]. Marshlands were more dispersed and had poor patch connectivity, and marshland stability declined. These findings are consistent with the conclusions of other related studies [28,33,34].
Compared to the loss of abundant resources, the loss and degradation of limited resources has an even stronger impact on human well-being [13]. To protect natural wetland ecosystems and landscape stability, ecological compensation pilot studies have been launched since 2014 in China [35]. The scope of compensation mainly includes internationally important wetlands or national natural reserves and their surrounding areas along the migration routes of waterfowl (Ministry of Finance, Ministry of Agriculture (2014) 9). Xingkai Lake National Natural Reserve is the first ecological compensation pilot in China and the largest waterfowl migration stopover in Northeast Asia. The numbers of wild ducks and goose occupied 70%–90% of the total number of water birds, and the ecological compensation ranged from 19.78 × 103 to 27.91 × 103 yuan per hectare [36]. The willingness to protect natural ecosystems should be improved with the increasing public recognition of nonmarket service values [37,38,39]. Wetlands in the Xingkai Lake area and other areas may not be restored to their original state by depending only on restoration programs [36,40]. Human interventions related to biodiversity have great impacts on wetland ecosystems. Preventing or reversing these influences should be the main direction for restoration efforts. China proposes to establish a natural protected area system, which would be mainly composed of national parks. The first national park on earth was established in 1872. In 2016, China’s first national park, Sanjiangyuan National Park, marked the first step for this country.

5. Conclusions

This study revealed the time periods with the largest land use conversions, namely for marshland conversion to paddy fields or dry farmlands, during the period 1982–2015. We also quantitatively identified the key landscape pattern indices that reflected the landscape changes in this region. Landscape fragmentation increased until 2015. The marshlands were the most stable land use type, followed by paddy fields and dry farmlands. Investigating the dynamics of wetland landscape patterns can explain changes in wetland landscapes over time, as well as provide theoretical support for wetland resource use, conservation, and management.

Author Contributions

All the authors have contributed significantly to the paper. The tasks were distributed in the following way. X.L. designed the study and drafted the manuscript. G.D. and G.H. performed the acquisition of remote sensing data. Y.Z. and M.J. performed a critical revision.


This research was funded by the National Natural Science Foundation of China (41771106, 41571410), the National Key Research and Development Program of China (2018YFD1100101), and the Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences (IGA-135-05).


We thank Leonie Seabrook, PhD, from Liwen Bianji, Edanz Group China, for editing the English text of a draft of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Naveh, Z. From biodiversity to ecodiversity: A landscape-ecology approach to conservation and restoration. Restor. Ecol. 1994, 2, 180–189. [Google Scholar] [CrossRef]
  2. Li, Y.F.; Sun, X.; Zhu, X.D.; Cao, H.H. An early warning method of landscape ecological security in rapid urbanizing coastal areas and its application in Xiamen, China. Ecol. Model. 2010, 221, 2251–2260. [Google Scholar] [CrossRef]
  3. Zhao, X.Q.; Wang, X.Y.; Xie, P.F.; Zhang, L.F. Spatio-temporal changes of landscape eco-security based on structure and function safety: A case study of a large artificial forest planted area in Ximeng county. China Geogr. Res. 2015, 34, 1581–1591. [Google Scholar]
  4. Xiao, Y.; Zhu, F.W.; Zhou, S.L.; Shen, C.Z.; Wang, J. Key landscape pattern factors affecting land ecological quality in developed areas: A case study of Kunshan City in Jiangsu province. J. Nat. Resour. 2017, 32, 1731–1743. [Google Scholar]
  5. Feng, Y.X.; Luo, G.P.; Zhou, D.C.; Han, Q.F.; Lu, L.; Xu, W.Q.; Zhu, L.; Yin, C.Y.; Dai, L.; Li, Y.Z. Effects of land use change on landscape pattern of a typical arid watershed in the recent 50 years: A case study on Manas river watershed in Xinjiang. Acta Ecol. Sin. 2010, 30, 4295–4305. [Google Scholar]
  6. Ma, L.B.; Bo, J.; Li, X.Y.; Fang, F.; Cheng, W.J. Identifying key landscape pattern indices influencing the ecological security of inland river basin: The middle and lower reaches of Shule River Basin as an example. Sci. Total Environ. 2019, 674, 424–438. [Google Scholar] [CrossRef]
  7. Xie, H.L. Regional eco-risk analysis of based on landscape structure and spatial statistics. Acta Ecol. Sin. 2008, 28, 5020–5026. [Google Scholar]
  8. Balmford, A.; Bruner, A.; Copper, P.; Costanza, R.; Farber, S.; Green, R.E.; Jenkins, M.; Jefferiss, P.; Jessamy, V.; Madden, J.; et al. Economic reasons for conserving wild nature. Science 2002, 297, 950–953. [Google Scholar] [CrossRef]
  9. Robichaux, R.; Harrington, L.M.B. Environmental conditions, irrigation reuse pits, and the need for restoration in the rainwater basin wetland complex, Nebraska. Pap. Appl. Geogr. Conf. 2009, 32, 217–225. [Google Scholar]
  10. Davidson, N.C. How much wetland has the world lost? Long-term and recent trends in global wetland area. Mar. Freshw. Res. 2014, 65, 936–941. [Google Scholar] [CrossRef]
  11. Spaling, H. Analyzing cumulative environmental effects of agricultural land drainage in southern Ontario, Canada. Agric. Ecosyst. Environ. 1995, 53, 279–292. [Google Scholar] [CrossRef]
  12. Mensing, D.M.; Galatowitsch, S.M.; Tester, J.R. Anthropogenic effects on the biodiversity of riparian wetlands of a northern temperate landscape. J. Environ. Manag. 1998, 53, 349–377. [Google Scholar] [CrossRef]
  13. Ghermandi, A.; van den Bergh, J.C.J.M.; Brander, L.M.; de Groot, H.L.F.; Nunes, P.A.L.D. The values of natural and human-made wetlands: A meta-analysis. Water Resour. Res. 2010, 46, 1–12. [Google Scholar] [CrossRef]
  14. O’Neill, R.V.; Krummel, J.R.; Gardner, R.H.; Sugihara, G.; Jackson, B.; DeAngelis, D.L.; Milne, B.T.; Turner, M.G.; Zygmunt, B.; Christensen, S.W.; et al. Indices of landscape pattern. Landsc. Ecol. 1988, 1, 153–162. [Google Scholar] [CrossRef]
  15. Zhou, Z.Z. Landscape changes in a rural area in China. Landsc. Urban Plan. 2000, 47, 33–38. [Google Scholar]
  16. Forman, R.T.T.; Godron, M. Landscape Ecology; Wiley & Sons: New York, NY, USA, 1986. [Google Scholar]
  17. Turner, M.G.; Gardner, R.H. Quantitative Methods in Landscape Ecology; Springer-Verlag: New York, NY, USA, 1991. [Google Scholar]
  18. Golley, F.B. Structural and functional properties as they influence ecosystem stability. In Proceedings of the First Conference of the International Association for Ecology: Structure, Functioning and Management of Ecosystems, The Hague, The Netherlands, 8–14 September 1974; pp. 97–102. [Google Scholar]
  19. Xie, G.D.; Zhen, L.; Yang, L.; Guo, G.M. Landscape stability and its pattern transition in Jinghe watershed. Chin. J. Appl. Ecol. 2005, 16, 1693–1698. [Google Scholar]
  20. Lipsky, Z. The changing face of the Czech rural landscape. Landsc. Urban Plan. 1995, 31, 39–45. [Google Scholar] [CrossRef]
  21. Huo, L.L.; Zou, Y.C.; Lyu, X.G.; Zhang, Z.S.; Wang, X.H.; An, Y. Effect of wetland reclamation on soil organic carbon stability in peat mire soil around Xingkai Lake in Northeast China. Chin. Geogr. Sci. 2018, 28, 325–336. [Google Scholar] [CrossRef]
  22. Sun, W.W.; Zhang, E.L.; Chen, R.; Shen, J. Lacustrine carbon cycling since the last interglaciation in northeast China: Evidence from n-alkanes in the sediments of Lake Xingkai. Quatern. Int. 2019, 523, 101–108. [Google Scholar] [CrossRef]
  23. Sun, W.W.; Zhang, E.L.; Liu, E.F.; Chang, J.; Shen, J. Linkage between Lake Xingkai sediment geochemistry and Asian summer monsoon since the last interglacial period. Palaeogeogr. Palaeocl. 2018, 512, 71–79. [Google Scholar] [CrossRef]
  24. Wang, Z.M.; Zhang, B.; Zhang, S.Q.; Li, X.Y.; Liu, D.W.; Song, K.S.; Li, J.P.; Li, F.; Duan, H.T. Changes of land use and of ecosystem service values in Sanjiang Plain, Northeast China. Environ. Monit. Assess. 2006, 112, 69–91. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, X.T.; Ma, X.H. Effects of large-scale reclamation on environments and regional environment protection in Sanjiang Plain. Sci. Geogr. Sin. 2000, 20, 14–19. [Google Scholar]
  26. Liu, X.H.; Dong, G.H.; Wang, X.G.; Xue, Z.S.; Jiang, M.; Lu, X.G.; Zhang, Y. Characterizing the spatial pattern of marshlands in the Sanjiang Plain, Northeast China. Eco. Eng. 2013, 53, 335–342. [Google Scholar] [CrossRef]
  27. Liu, X.H.; An, Y.; Dong, G.H.; Jiang, M. Land use and landscape pattern changes in the Sanjiang Plain, Northeast China. Forests 2018, 9, 637. [Google Scholar] [CrossRef]
  28. Wang, J.M.; Wang, Y.C.; Jin, Y.X.; Wang, C.C.; Zhao, Y.R.; Zhang, Y. Landscape stability study: The urban agglomeration of middle Zhejiang based on spatial pattern in land use. J. Ningbo Univ. 2018, 31, 88–96. [Google Scholar]
  29. Liu, J.; Linderman, M.; Ouyang, Z.; An, L.; Yang, J.; Zhang, H. Ecological degradation in protected areas: The case of Wolong nature reserve for giant pandas. Science 2001, 292, 98–101. [Google Scholar] [CrossRef] [PubMed]
  30. Lu, T.; Ma, K.M.; Ni, H.W.; Fu, B.J.; Zhang, J.Y.; Lu, Q. Variation in species composition and diversity of wetland communities under different disturbance intensity in the Sanjiang Plain. Acta Ecol. Sin. 2008, 28, 1893–1900. [Google Scholar] [CrossRef]
  31. Harpenslager, S.F.; Van den Elzen, E.; Kox, M.A.R.; Smolders, A.J.P.; Ettwig, K.F.; Lamers, L.P.M. Rewetting former agricultural peatlands: Topsoil removal as a prerequisite to avoid strong nutrient and greenhouse gas emissions. Ecol. Eng. 2015, 84, 159–168. [Google Scholar] [CrossRef]
  32. Varga, D.; Subiros, J.V.; Barriocanal, C.; Pujantell, J. Landscape transformation under global environmental change in Mediterranean mountains: Agrarian lands as a guarantee for maintaining their multifunctionality. Forests 2018, 9, 27. [Google Scholar] [CrossRef]
  33. Shi, H.P.; Yu, K.Q.; Feng, Y.J.; Dong, X.C.; Zhao, H.Y.; Deng, X.M. RS and GIS-based analysis of landscape pattern changes in urban-rural ecotone: A case study of Daiyue district, Tai’an city, China. J. Landsc. Res. 2012, 4, 20–23. [Google Scholar]
  34. Wu, Z.H.; Lei, S.G.; Lu, Q.Q.; Bian, Z.F. Impacts of large-scale open-pit coal base on the landscape ecological health of semi-arid grasslands. Remote Sens. 2019, 11, 1820. [Google Scholar] [CrossRef]
  35. Ernoul, L.; Mesléard, F.; Gaubert, P.; Béchet, A. Limits to Agri-environmental schemes uptake to mitigate human-wildlife conflict: Lessons learned from flamingos in the Camargue, southern France. Int. J. Agric. Sustain. 2013, 12, 23–36. [Google Scholar] [CrossRef]
  36. Liu, X.H.; Yan, S.T.; Wang, R.C.; Jiang, M.; Wang, L.; Zhang, S.J. Discussion on wetland ecological compensation standard: A case study in Xingkai Lake wetlands of international importance. Wetl. Sci. 2016, 14, 289–294. [Google Scholar]
  37. Chan, K.M.A.; Satterfield, T.; Goldstein, J. Rethinking ecosystem services to better address and navigate cultural values. Ecol. Econ. 2012, 74, 8–18. [Google Scholar] [CrossRef]
  38. Marre, J.B.; Brander, L.; Thebaud, O.; Boncoeur, J.; Pascoe, S.; Coglan, L.; Pascal, N. Non-market use and non-use values for preserving ecosystem services over time: A choice experiment application to coral reef ecosystems in New Caledonia. Ocean Coast. Manag. 2015, 105, 1–14. [Google Scholar] [CrossRef]
  39. Scholte, S.S.K.; Todorova, M.; van Teeffelen, A.J.A.; Verburg, P.H. Public support for wetland restoration: What is the link with ecosystem service values. Wetlands 2016, 36, 467–481. [Google Scholar] [CrossRef]
  40. Audet, J.; Elsgaard, L.; Kjaergaard, C.; Larsen, S.E. Greenhouse gas emissions from a Danish riparian wetland before and after restoration. Ecol. Eng. 2013, 57, 170–182. [Google Scholar] [CrossRef]

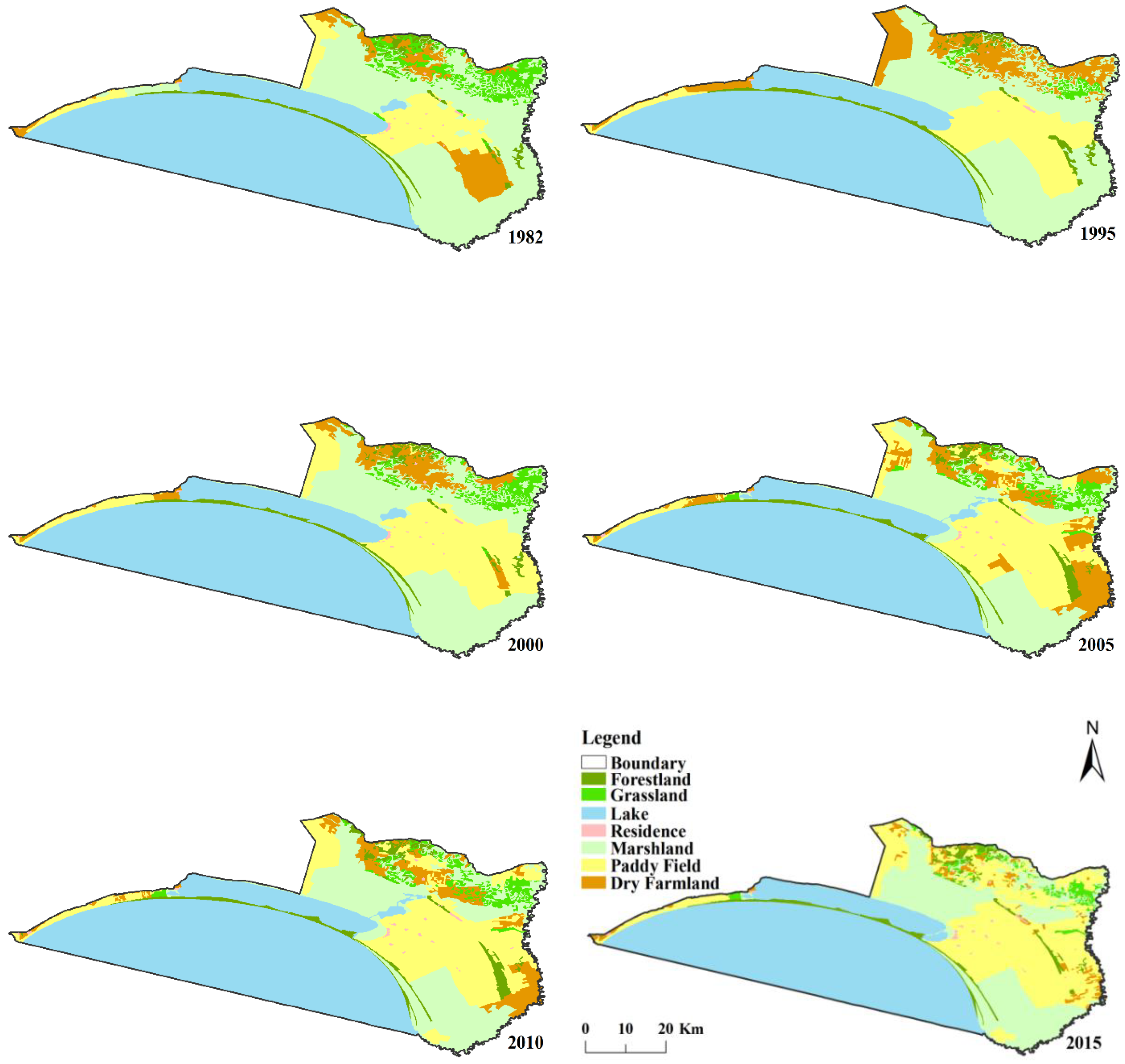

Figure 1. Spatial distribution of land use in the Xiangkai Lake area from 1982 to 2015.
