Selection of Level-Dependent Hearing Protectors for Use in An Indoor Shooting Range
Abstract
:1. Introduction
2. Materials and Methods
2.1. Hearing Protectors Included in the Assessment

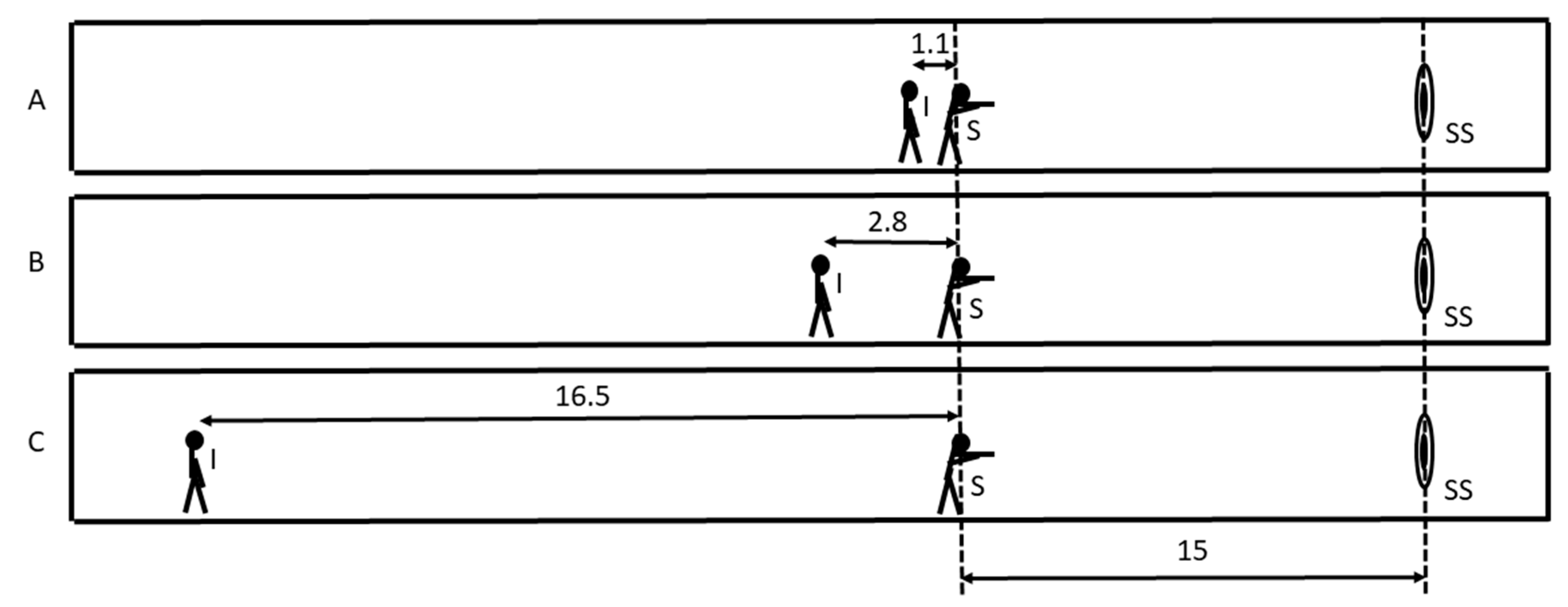

2.2. Locations of Noise Parameter Measurements
2.3. Type of Weapon/Ammunition
- Glock 17 pistol (9 × 19 mm Parabellum calibre) and Walther P99 (9 × 19 mm Parabellum calibre), hereinafter referred to as the ‘pistols’;
- PM-98 Glauberyt submachine gun (9 × 19 mm Parabellum calibre), hereinafter referred to as the ‘submachine gun’;
- Mossberg 590 smooth-bore shotgun (12/70 calibre: flash-bang ammunition and rubber ammunition), hereafter referred to as ‘shotgun 1’;
- Mossberg 590 smooth-bore shotgun (12/70 calibre: slug load ammunition and buckshot ammunition), hereafter referred to as ‘shotgun 2’.
2.4. Measurement Method
- SPL in octave bands with center frequencies: 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz, 8000 Hz.
- A-weighted equivalent SPL (LAeq),
- C-weighted equivalent SPL (LCeq),
- C-weighted peak SPL (LCpeak).
2.5. Criteria for Assessing Exposure to Noise at the Workplace

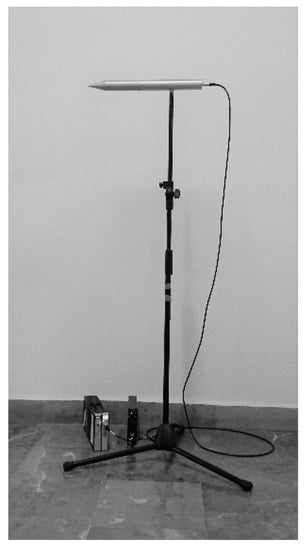

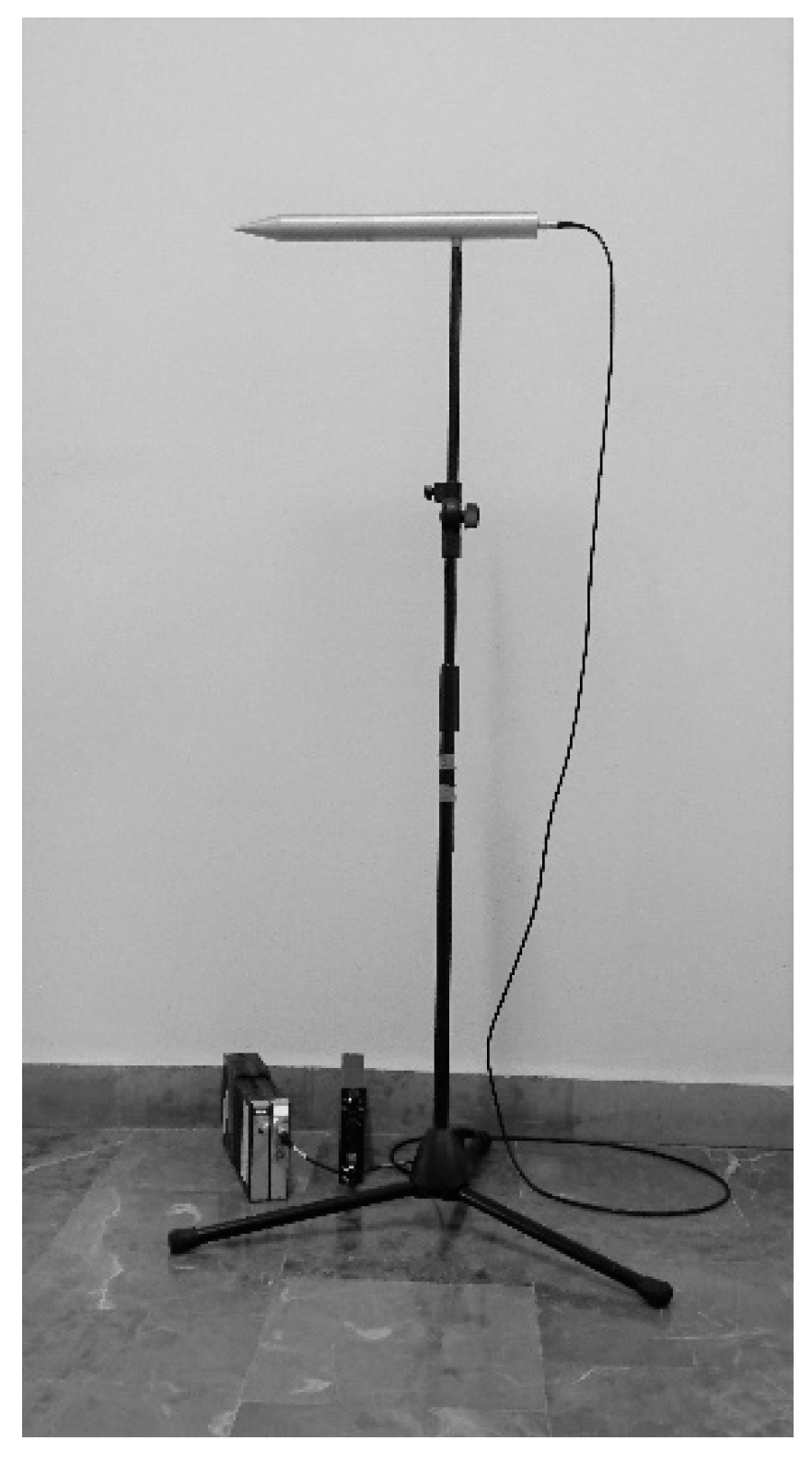

2.6. Measuring Equipment
2.7. Methods for the Selection of Hearing Protectors
2.8. Criteria for the Assessment of Hearing Protectors
2.9. Statistical Analysis
3. Results

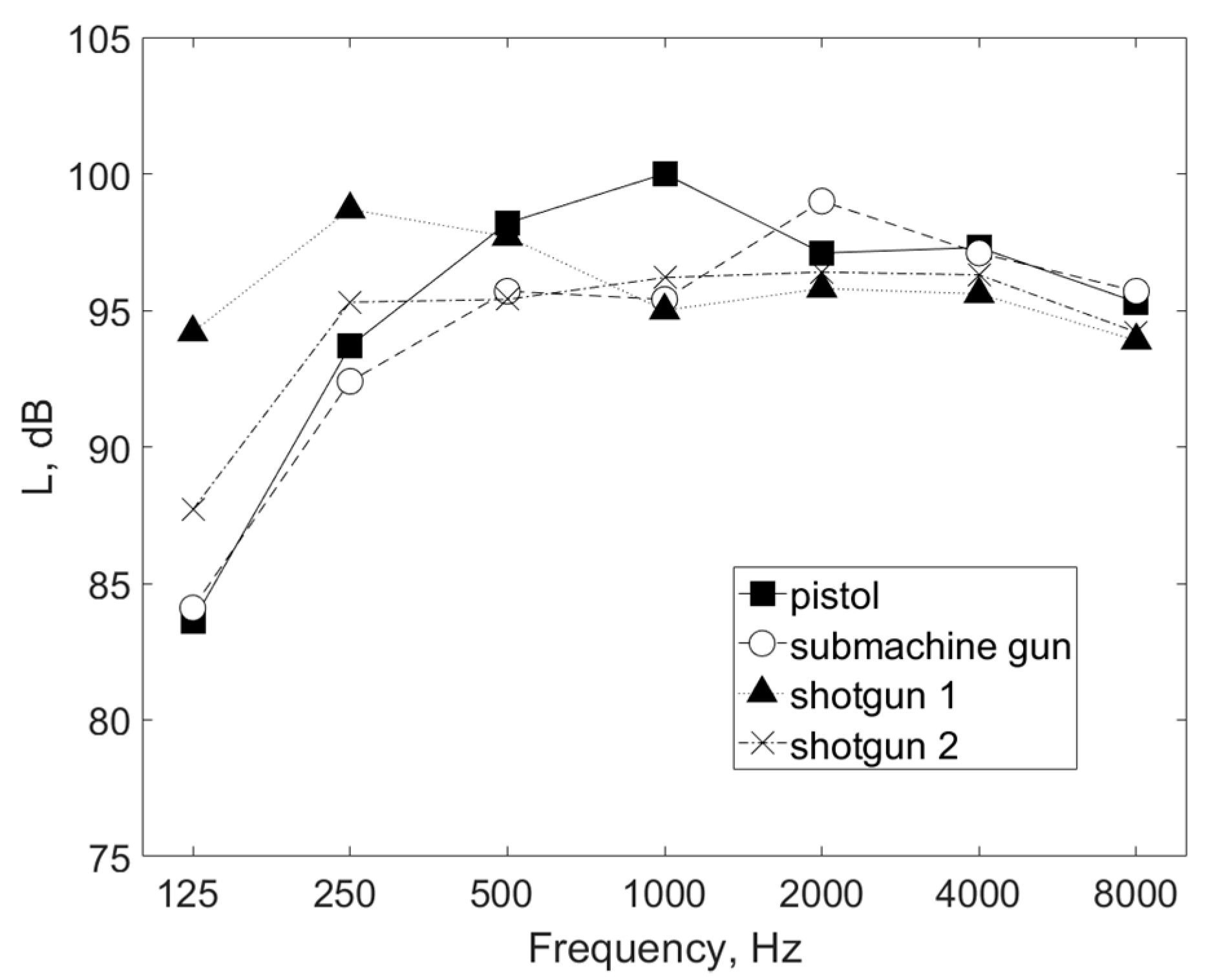

3.1. Firearm-Related Noise

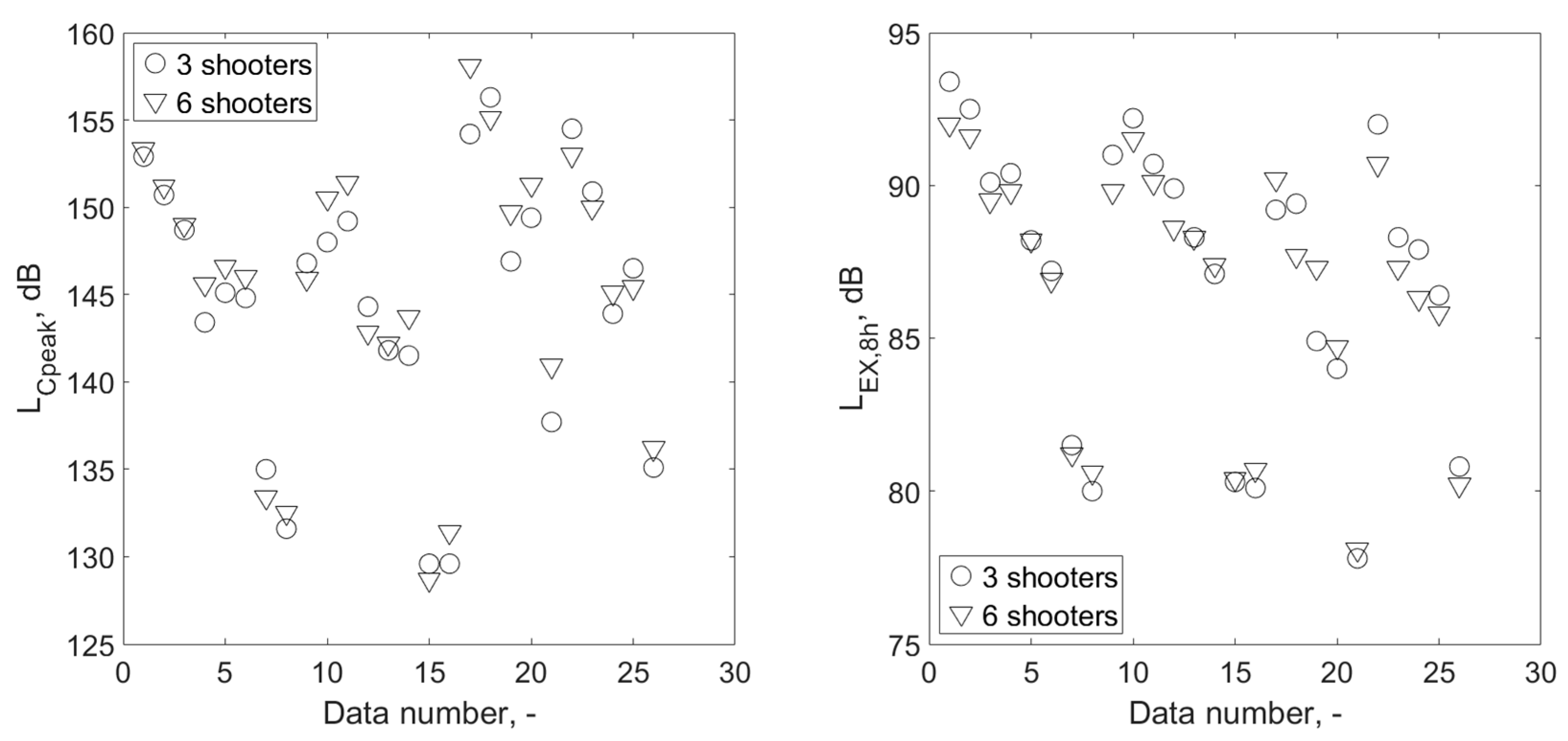

3.2. Impact of the Number of Shooters

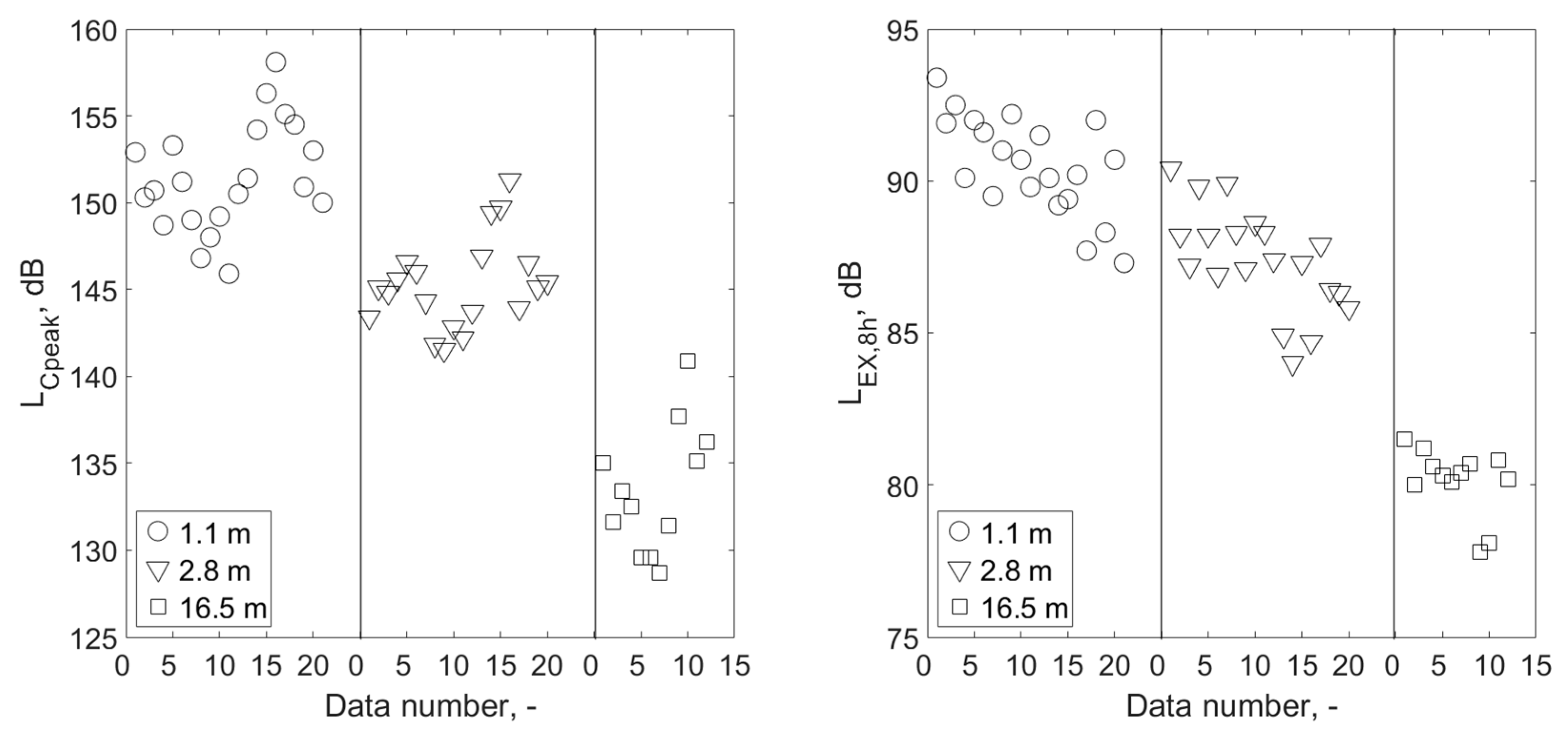

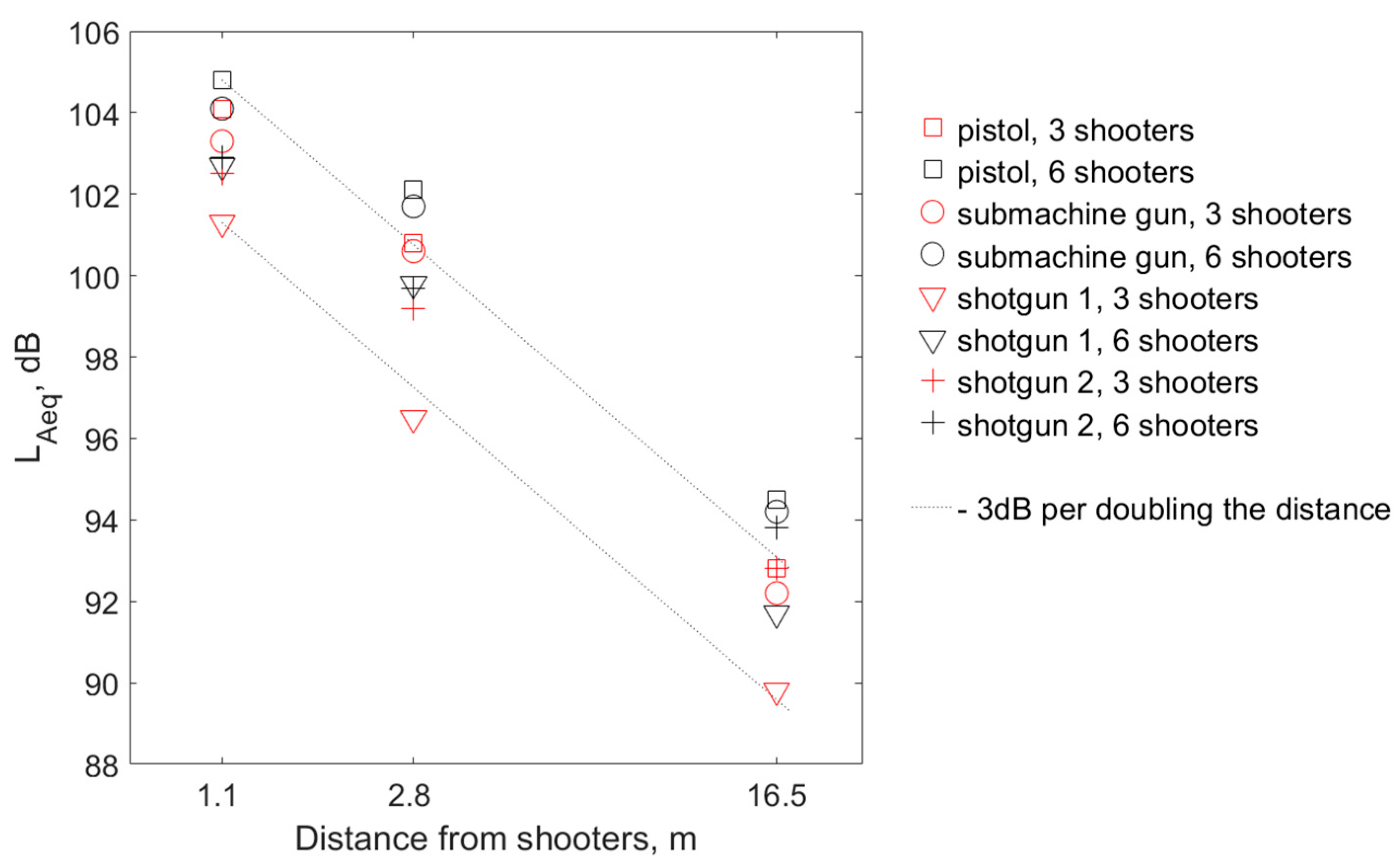

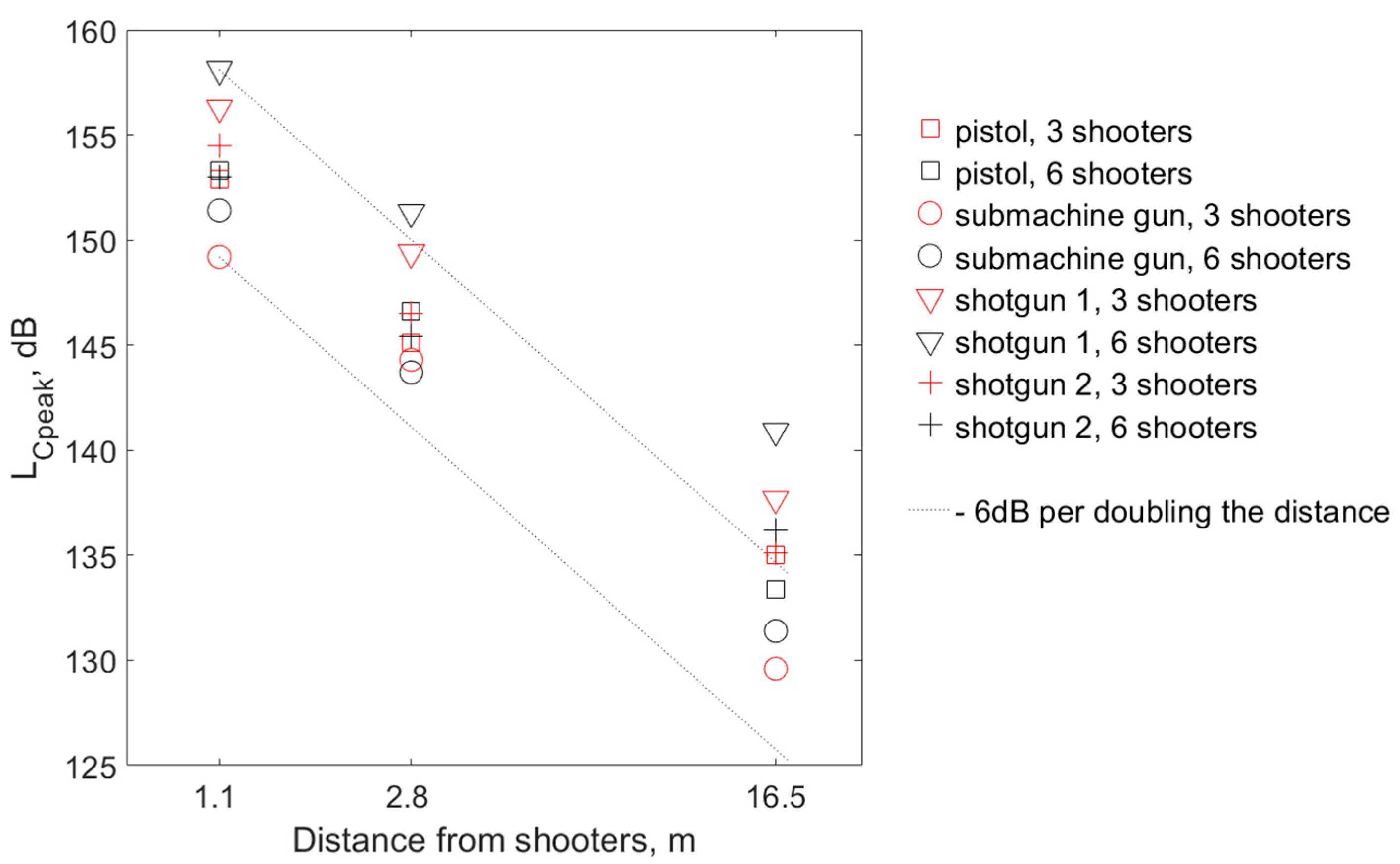

3.3. Impact of Changing the Distance from Shooters

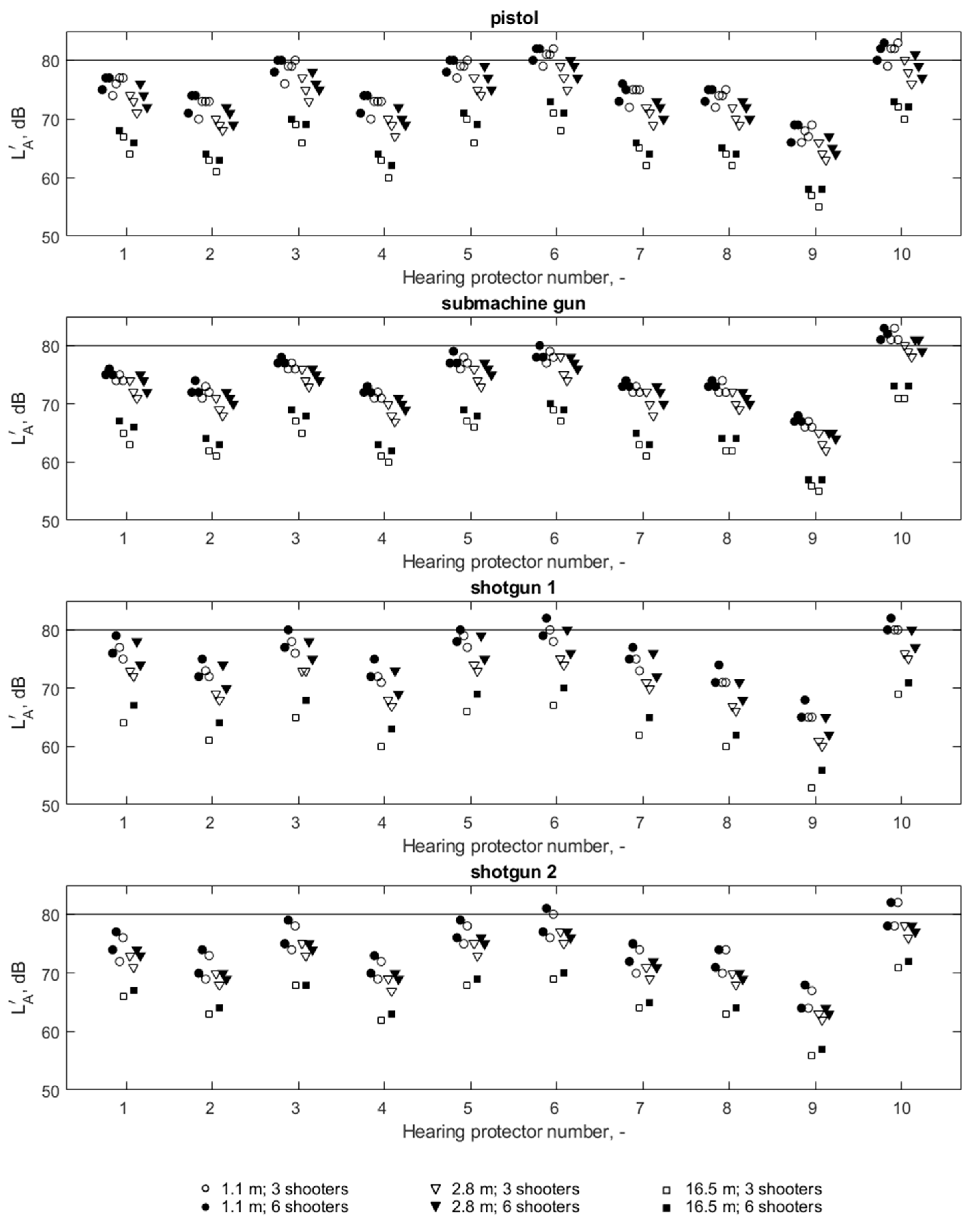

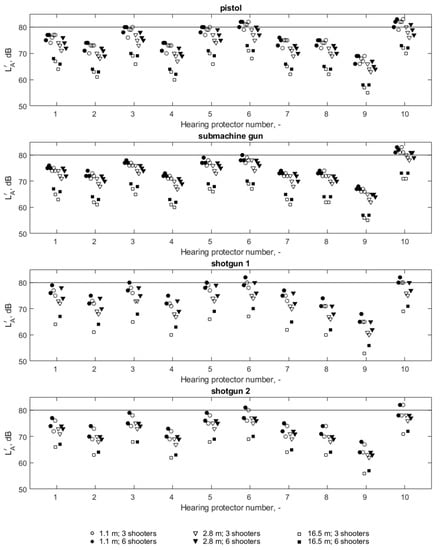

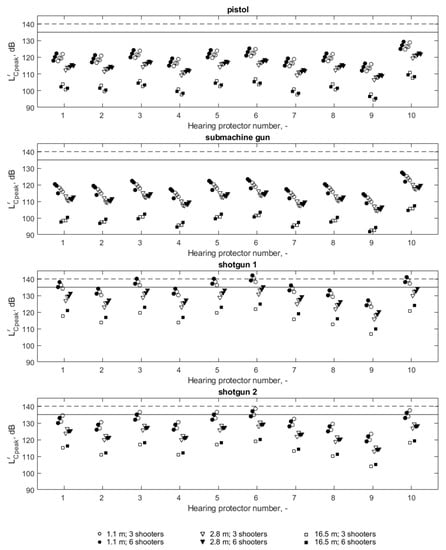

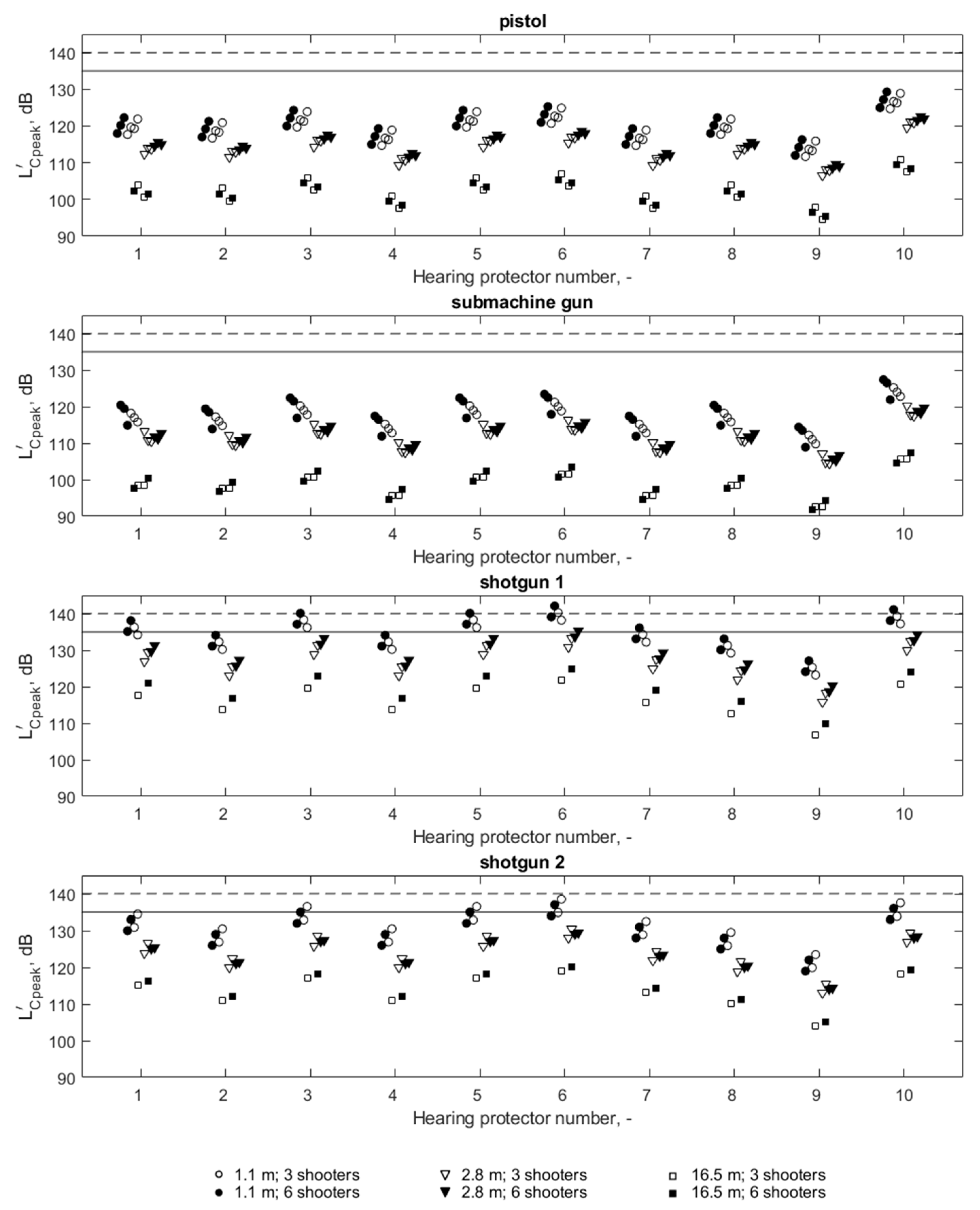

3.4. Assessment of Hearing Protectors
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Hale, M.E. Exposure to recreational/occupational shooting range noise vs. industrial impulsive noise. In Proceedings of the 24th National Conference on Noise Control Engineering 2010 (Noise-CON): Held jointly with the 159th meeting of the Acoustical Society of America, Baltimore, MD, USA, 19–21 April 2010. [Google Scholar]
- Cho, S.I.; Gao, S.S.; Xia, A.; Wang, R.; Salles, F.T.; Raphael, P.D.; Abaya, H.; Wachtel, J.; Baek, J.; Jacobs, D.; et al. Mechanisms of hearing loss after blast injury to the ear. PLoS ONE 2013, 8, e67618. [Google Scholar] [CrossRef] [PubMed]
- Altschuler, R.A.; Halsey, K.; Kanicki, A.; Martin, C.; Prieskorn, D.; DeRemer, S.; Dolan, D.F. Small arms fire-like noise: Effects on hearing loss, gap detection and the influence of preventive treatment. Neuroscience 2019, 407, 32–40. [Google Scholar] [CrossRef] [PubMed]
- Murphy, W.J.; Flamme, G.A.; Campbell, A.R.; Zechmann, E.L.; Tasko, S.M.; Lankford, J.E.; Meinke, D.K.; Finan, D.S.; Stewart, M. The reduction of gunshot noise and auditory risk through the use of firearm suppressors and low-velocity ammunition. Int. J. Audiol. 2018, 57, S28–S41. [Google Scholar] [CrossRef]
- Branch, M.P. Comparison of muzzle suppression and ear-level hearing protection in firearm use. Otolaryngol. Head Neck Surg. 2011, 144, 950–953. [Google Scholar] [CrossRef]
- Lobarinas, E.; Scott, R.; Spankovich, C.; Le Prell, C.G. Differential effects of suppressors on hazardous sound pressure levels generated by AR-15 rifles: Considerations for recreational shooters, law enforcement, and the military. Int. J. Audiol. 2016, 55, S59–S71. [Google Scholar] [CrossRef]
- Moon, I.S.; Park, S.-Y.; Park, H.J.; Yang, H.-S.; Hong, S.-J.; Lee, W.-S. Clinical characteristics of acoustic trauma caused by gunshot noise in mass rifle drills without ear protection. J. Occup. Environ. Hyg. 2011, 8, 618–623. [Google Scholar] [CrossRef]
- Rezaee, M.; Mojtahed, M.; Ghasemi, M.; Saedi, B. Assessment of impulse noise level and acoustic trauma in military personnel. Trauma Mon. 2011, 16, 182–187. [Google Scholar] [CrossRef]
- Nondahl, D.M.; Cruickshanks, K.J.; Wiley, T.L.; Klein, R.; Klein, B.E.; Tweed, T.S. Recreational firearm use and hearing loss. Arch. Fam. Med. 2000, 9, 352–357. [Google Scholar] [CrossRef] [PubMed]
- Koskinen, H.; Toppila, E.; Mäkinen, H. Selection of hearing protectors—How to ensure that the end user will get best possible protection? In Proceedings of the 9th European Conference on Noise Control, EURONOISE, Prague, Czech Republic, 10–13 June 2012. [Google Scholar]
- Canetto, P. Hearing Protectors: Topicality and Research Needs. Int. J. Occup. Saf. Ergon. 2009, 15, 141–153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Regulation (EU) 2016/425 of the European Parliament and of the Council of 9 March 2016 on Personal Protective Equipment and Repealing Council Directive 89/686/EEC. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32016R0425&rid=4 (accessed on 31 March 2016).
- EN ISO 9612:2009. Acoustics—Determination of Occupational Noise Exposure—Engineering Method; European Committee for Standardization: Brussels, Belgium, 2009. [Google Scholar]
- ANSI/ASA S12.42-2010. Methods for the Measurement of Insertion Loss of Hearing Protectors in Continuous or Impulsive Noise Using Microphone-in-Real-Ear or Acoustic Test Fixture Procedures; Acoustical Society of America: New York, NY, USA, 2010. [Google Scholar]
- EN ISO 4869-1:2018. Acoustics—Hearing Protectors—Part 1: Subjective Method for the Measurement of Sound Attenuation; European Committee for Standardization: Brussels, Belgium, 2018. [Google Scholar]
- EN ISO 4869-2:1995. Acoustics—Hearing Protectors—Part 2: Estimation of Effective A-Weighted Sound Pressure Levels When Hearing Protectors are Worn; European Committee for Standardization: Brussels, Belgium, 1995. [Google Scholar]
- EN ISO 4869-2:2018. Acoustics—Hearing Protectors—Part 2: Estimation of Effective A-Weighted Sound Pressure Levels When Hearing Protectors are Worn; European Committee for Standardization: Brussels, Belgium, 2018. [Google Scholar]
- Directive 2003/10/EC of the European Parliament and of the Council of 6 February 2003 on the Minimum Health and Safety Requirements Regarding the Exposure of Workers to the Risks Arising from Physical Agents (Noise). Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2003:042:0038:0044:EN:PDF (accessed on 15 February 2003).
- Regulation of the Minister of Family, Labor and Social Policy of 12 June 2018 on the Maximum Admissible Concentrations and Intensities of Factors Harmful to Health in the Workplace. Available online: http://prawo.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20180001286 (accessed on 16 May 2019).
- ISO 1999:2013. Acoustics—Estimation of Noise-Induced Hearing Loss; International Organization for Standardization: Geneva, Switzerland, 2013. [Google Scholar]
- Zagadou, B.; Chan, P.; Ho, K. An Interim LAeq8 Criterion for Impulse Noise Injury. Mil. Med. 2016, 181, 51–58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- EN 458:2016. Hearing Protectors—Recommendations for Selection, Use, Care and Maintenance—Guidance Document; European Committee for Standardization: Brussels, Belgium, 2016. [Google Scholar]
- Nakashima, A.; Hu, Y. Impulse noise exposure during personal weapons testing on an outdoor shooting range. Can. Acoust. 2007, 35, 192–193. [Google Scholar]
- Nakashima, A.; Farinaccio, R. Review of weapon noise measurement and damage risk criteria: Considerations for auditory protection and performance. Mil. Med. 2015, 180, 402–408. [Google Scholar] [CrossRef] [PubMed]
- Fackler, C.J.; Berger, E.H.; Murphy, W.J.; Stergara, M.E. Spectral analysis of hearing protector impulsive insertion loss. Int. J. Audiol. 2017, 56, 13–21. [Google Scholar] [CrossRef] [PubMed]
- Smalt, C.J.; Lacirignola, J.; Davis, S.K.; Calamia, P.T.; Collins, P.P. Noise dosimetry for tactical environments. Hear Res. 2017, 349, 42–54. [Google Scholar] [CrossRef] [PubMed]
- Meinke, D.K.; Finan, D.S.; Flamme, G.A.; Murphy, W.J.; Stewart, M.; Lankford, J.E.; Tasko, S. Prevention of Noise-Induced Hearing Loss from Recreational Firearms. Semin. Hear. 2017, 38, 267–281. [Google Scholar] [CrossRef]
- Murphy, W.J.; Flamme, G.A.; Meinke, D.K.; Sondergaard, J.; Finan, D.S.; Lankford, J.E.; Khan, A.; Vernon, J.; Stewart, M. Measurement of impulse peak insertion loss for four hearing protectors in field conditions. Int. J. Audiol. 2012, 51, 31–42. [Google Scholar] [CrossRef]
- Nakashima, A.; Sarray, S.; Fink, N. Insertion loss of hearing protectors for military impulse noise. Can. Acoust. 2017, 45, 148–149. [Google Scholar]
- Wu, C.C.; Young, Y.H. Ten-year longitudinal study of the effect of impulse noise exposure from gunshot on inner ear function. Int. J. Audiol. 2009, 48, 655–660. [Google Scholar] [CrossRef] [PubMed]
Designation | mf/sf [dB] | Frequency [Hz] | H [dB] | M [dB] | L [dB] | SNR [dB] | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 | ||||||
HP1 | mf | 11.5 | 17.9 | 27.8 | 30.0 | 32.1 | 36.2 | 40.3 | 31 3 | 25 | 16 | 28 |
sf | 2.5 | 2.7 | 1.8 | 2.3 | 3.0 | 2.0 | 3.1 | |||||
HP2 | mf | 13.8 | 21.5 | 30.9 | 36.6 | 35.9 | 35.5 | 39.0 | 32 | 29 | 20 | 31 |
sf | 1.8 | 0.9 | 1.3 | 1.5 | 5.5 | 3.1 | 2.3 | |||||
HP3 | mf | 21.1 | 17.9 | 27.0 | 26.8 | 30.5 | 38.3 | 36.4 | 29 | 23 | 16 | 26 |
sf | 4.3 | 3.1 | 3.8 | 3.0 | 3.0 | 3.7 | 5.4 | |||||
HP4 | mf | 17.0 | 24.0 | 29.5 | 36.9 | 37.3 | 39.3 | 35.4 | 34 | 29 | 22 | 32 |
sf | 3.2 | 2.0 | 2.6 | 3.3 | 4.9 | 3.2 | 3.9 | |||||
HP5 | mf | 13.3 | 17.4 | 22.3 | 28 | 30.8 | 37.6 | 37.0 | 29 | 23 | 17 | 26 |
sf | 3.2 | 1.8 | 2.3 | 3.2 | 3.4 | 2.8 | 4.8 | |||||
HP6 | mf | 13.5 | 15.5 | 23.7 | 24.1 | 30.4 | 36.6 | 38.6 | 28 | 21 | 16 | 25 |
sf | 3.2 | 1.9 | 3.9 | 2.7 | 3.2 | 4.4 | 4.2 | |||||
HP7 | mf | 18.4 | 21.1 | 27.7 | 36.9 | 36.1 | 42.1 | 38.8 | 34 | 27 | 20 | 30 |
sf | 4.5 | 4.2 | 3.5 | 4.0 | 3.6 | 3.5 | 5.4 | |||||
HP8 | mf | 34.5 | 31.5 | 36.2 | 33.4 | 34.8 | 34.9 | 38.8 | 31 | 30 | 29 | 32 |
sf | 6.0 | 5.4 | 5.6 | 4.3 | 3.8 | 5.0 | 4.0 | |||||
HP9 | mf | 37.8 | 36.0 | 40.5 | 41.2 | 41.3 | 39.6 | 46.1 | 37 | 36 | 34 | 38 |
sf | 4.3 | 5.5 | 4.2 | 4.7 | 3.2 | 4.3 | 3.6 | |||||
HP10 | mf | 15.7 | 19.1 | 22.9 | 27.0 | 22.4 | 38.4 | 40.9 | 24 | 22 | 18 | 25 |
sf | 3.0 | 3.1 | 2.9 | 2.3 | 3.3 | 3.0 | 3.4 |
Hearing Protector Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|---|---|---|---|---|
, dB | 138.1 | 134.1 | 140.1 | 134.1 | 140.1 | 142.1 | 136.1 | 133.1 | 127.1 | 141.1 |
, dB | 79 | 75 | 80 | 75 | 80 | 821 | 77 | 75 | 69 | 83 |
