Assessment of Metalloid and Metal Contamination in Soils from Hainan, China
Abstract
:1. Introduction
2. Materials and Methods

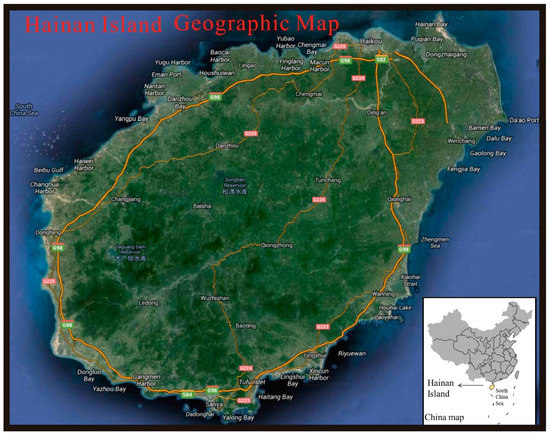

2.1. Study Area

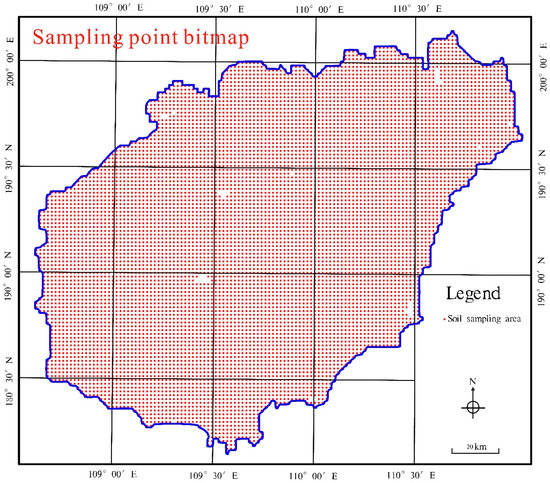

2.2. Sample Collection and Analysis
2.3. Statistical Analysis
2.4. Potential Ecological Risk Assessment
3. Results and Discussion

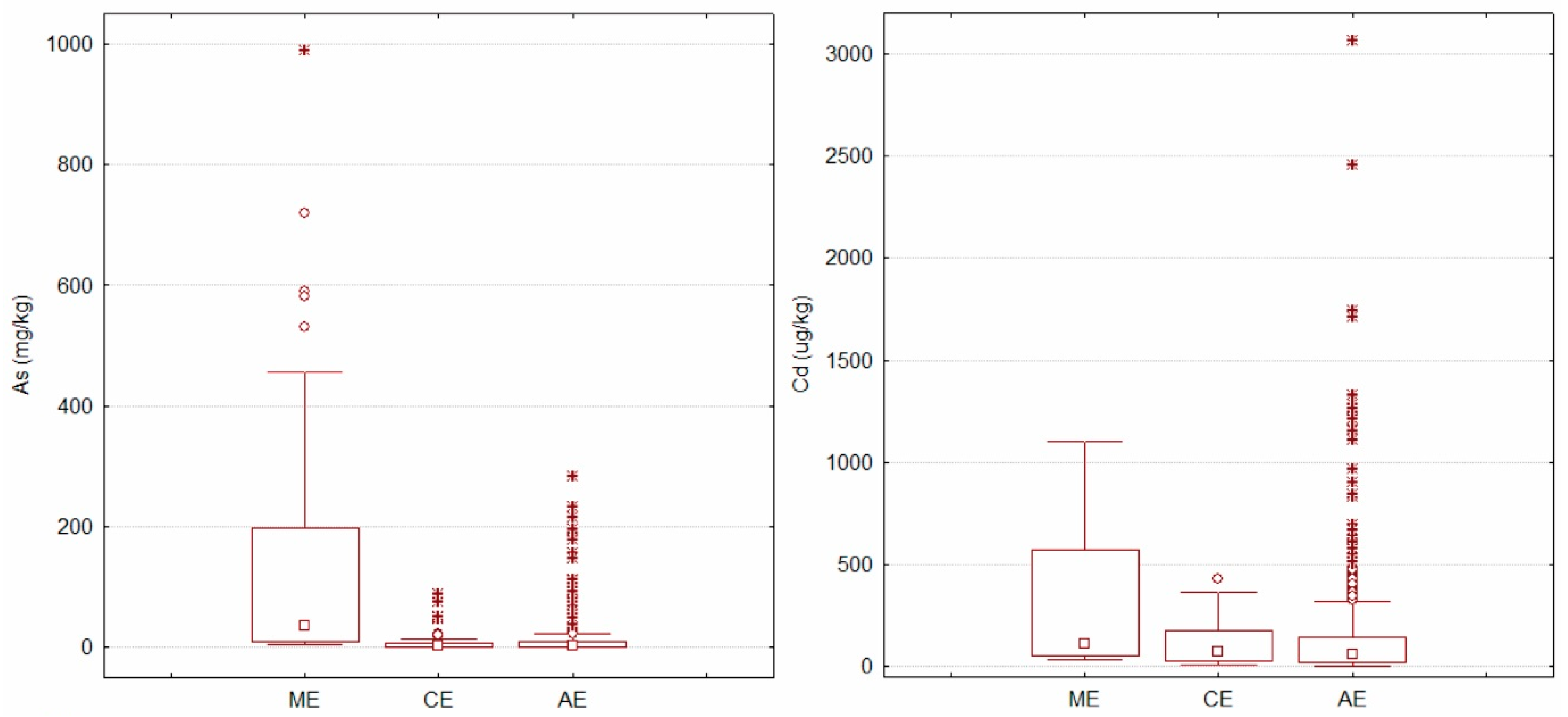

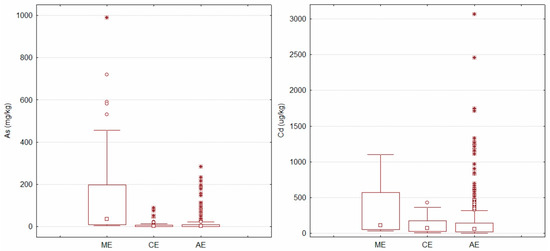

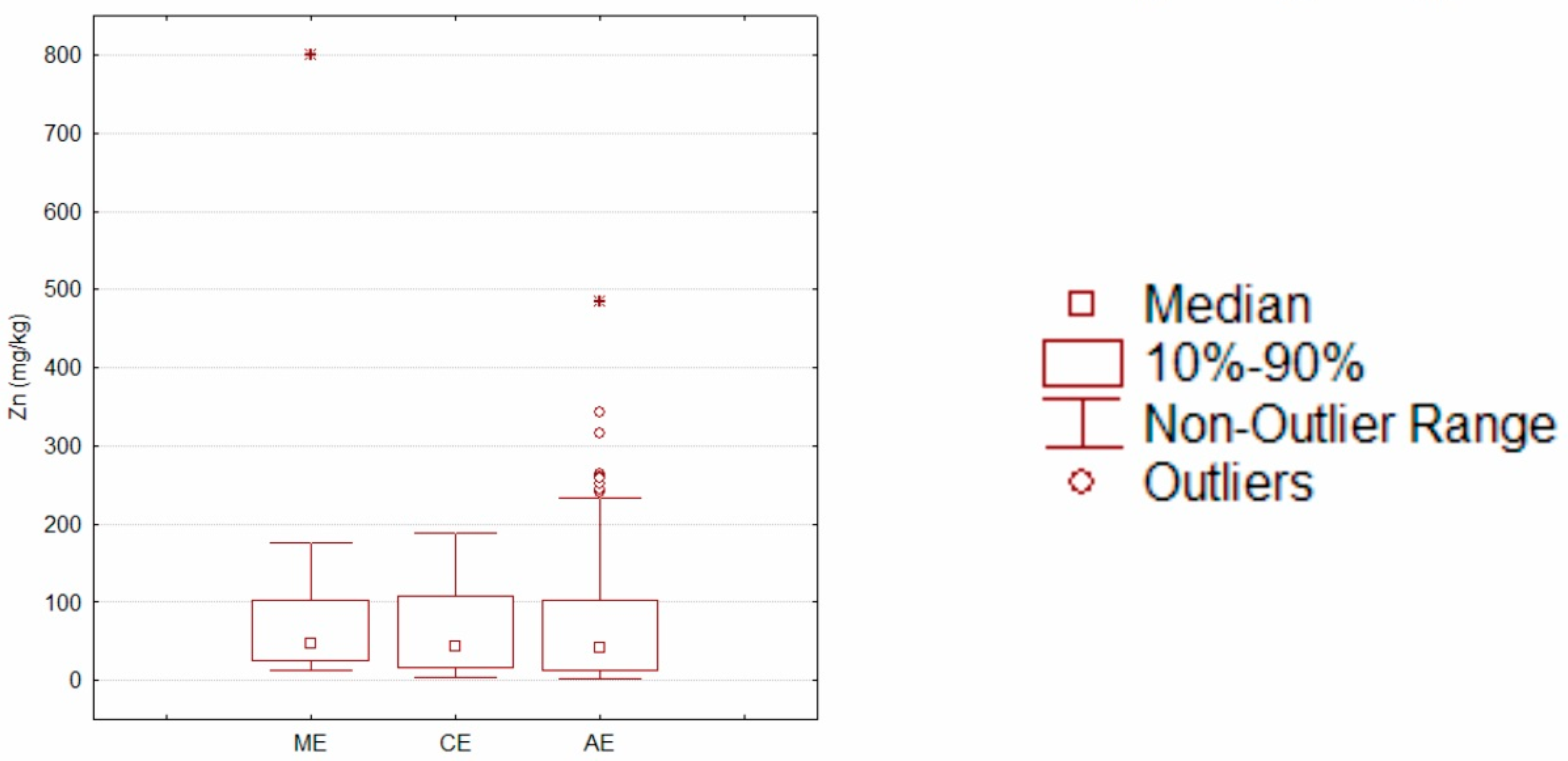

3.1. Concentrations of Metal(loid)s
3.2. Source Identification

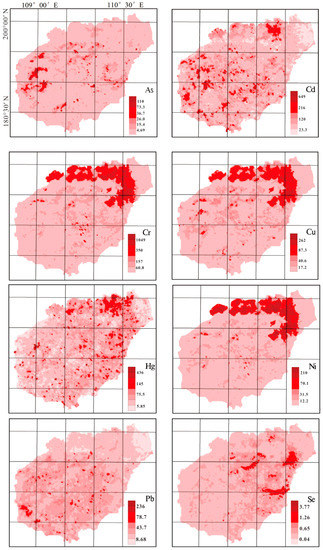

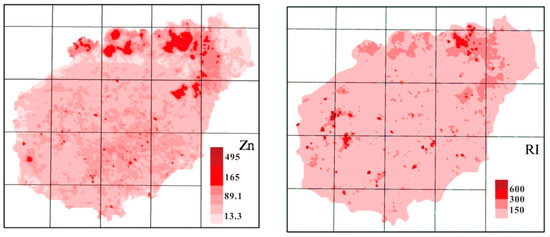

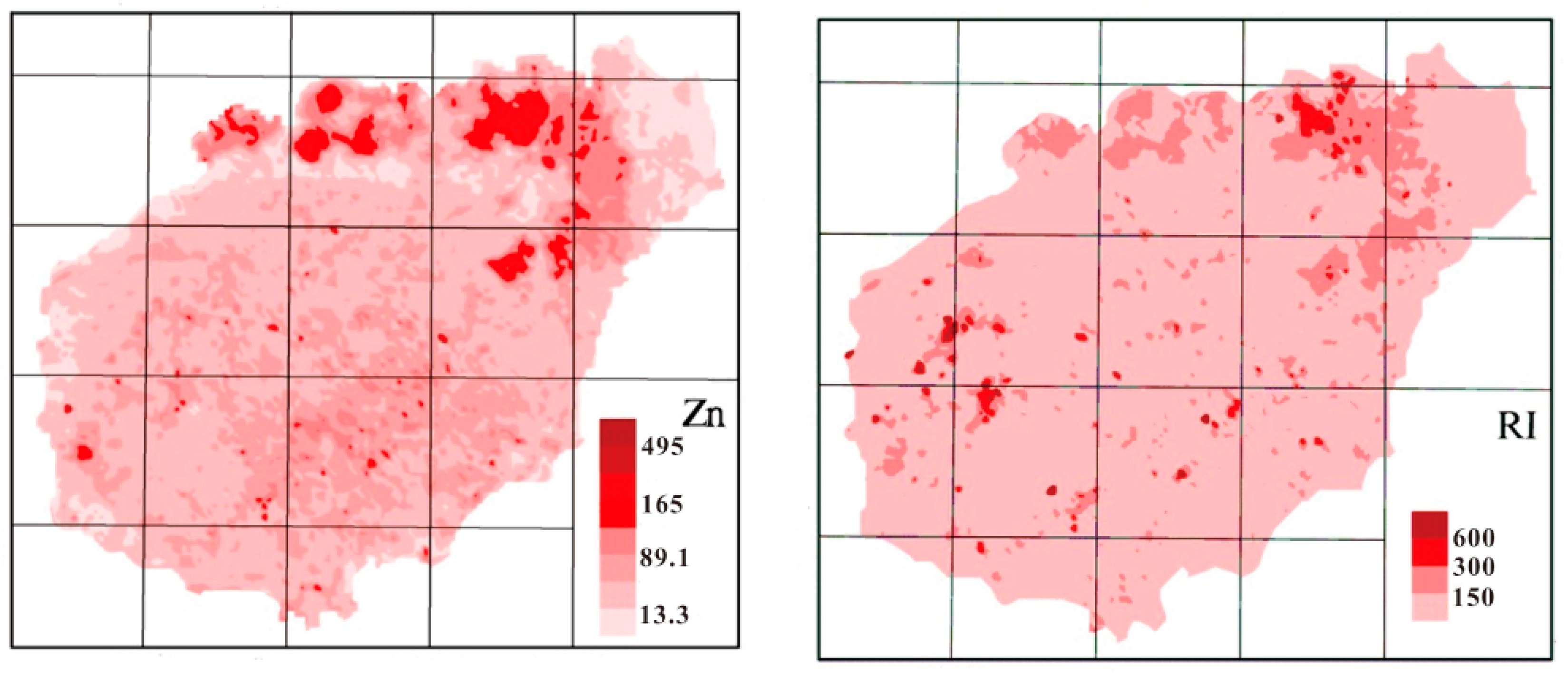

3.3. Spatial Distributions and Risk Assessment
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- USDA (United States Department of Agriculture Natural Resources Conservation Soils Quality Institute). Urban Technical Note; USDA: Washington, DC, USA, 2001.
- Rahman, S.H.; Khanam, D.; Tanveer, M.A.; Islam, M.S.; Ahsan, M.A.; Akbor, M.A. Assessment of heavy metal contamination of agricultural soil around Dhaka export processing zone (DEPZ), Bangladesh: Implication of seasonal variation and indices. Appl. Sci. 2012, 2, 584–601. [Google Scholar] [CrossRef]
- Thuy, H.T.T.; Tobschall, H.J.; An, P.V. Distribution of heavy metals in urban soils—A case study of Danang-Hoian area (Vietnam). Environ. Geogr. 2000, 39, 603–610. [Google Scholar] [CrossRef]
- Abrahams, P.W. Soils: Their implications to human health. Sci. Total Environ. 2002, 291, 1–32. [Google Scholar] [CrossRef]
- De Miguel, E.; De Grado, M.J.; Llamas, J.F.; Martín-Dorado, A.; Mazadiego, L.F. The overlooked contribution of compost application to the trace elements in playgrounds in Madrid (Spain). Sci. Total Environ. 1998, 215, 113–122. [Google Scholar] [CrossRef]
- Madrid, L.; Díaz-Barrientos, F.; Madrid, F. Distribution of heavy metal contents of urban soils in parks of Seville. Chemosphere 2002, 49, 1301–1308. [Google Scholar] [CrossRef]
- Meza-Montenegro, M.M.; Gandolfi, A.J.; Santana-Alcántar, M.E.; Klimecki, W.T.; Aquilar-Apodaca, M.G.; Del Río-Salas, R.; De la O-Villanueva, M.; Gómez-Alvarez, A.; Mendivil-Quijada, H.; Valencia, M.; et al. Metals in residential soils and cumulative risk assessment in Yaqui and Mayo agricultural valleys, northern Mexico. Sci. Total Environ. 2012, 433, 472–481. [Google Scholar] [CrossRef] [PubMed]
- Sun, G.Y.; Li, Z.G.; Bi, X.Y.; Chen, Y.P.; Lu, S.F.; Yuan, X. Distribution, sources and health risk assessment of mercury in kindergarten dust. Atmos. Environ. 2013, 73, 169–176. [Google Scholar] [CrossRef]
- Liu, W.X.; Shen, L.F.; Liu, J.W.; Wang, Y.W.; Li, S.R. Uptake of toxic heavy metals by rice (Oryza sativa L.) cultivated in the agricultural soils near Zhengzhou City. People’s Republic of China. Bull. Environ. Contam. Toxicol. 2007, 79, 209–213. [Google Scholar] [CrossRef] [PubMed]
- Sun, G.Y.; Chen, Y.P.; Bi, X.Y.; Yang, W.; Chen, X.S.; Zhang, B.; Cui, Y.J. Geochemical assessment of agricultural soil: A case study in Songnen-Plain (Northeastern China). Catena 2013, 111, 56–63. [Google Scholar] [CrossRef]
- Sezgin, N.; Ozcan, H.K.; Demir, G.; Nemlioglu, S.; Bayat, C. Determination of heavy metal concentrations in street dusts in Istanbul E-5 highway. Environ. Int. 2003, 29, 979–985. [Google Scholar] [CrossRef]
- Montagne, D.; Cornu, S.; Bourennane, H.N.; Baize, D.; Ratié, C.; King, D. Effect of agricultural practices on trace-element distribution in soil. Commun. Soil Sci. Plant Anal. 2007, 38, 473–491. [Google Scholar] [CrossRef]
- Li, Y.; Gou, X.; Wang, G.; Zhang, Q.; Su, Q.; Xiao, G. Heavy metal contamination and source in arid agricultural soils in central Gansu province, China. J. Environ. Sci. 2008, 20, 607–612. [Google Scholar] [CrossRef]
- Morton-Bermea, O.; Hernández-Alvarez, E.; González-Hernández, G.; Romero, F.; Lozano, R.; Beramendi-Orosco, L.E. Assessment of heavy metal pollution in urban topsoils from the metropolitan area of Mexico City. J. Geochem. Explor. 2009, 101, 218–224. [Google Scholar] [CrossRef]
- Ji, K.; Kim, J.K.; Lee, M.J.; Park, S.Y.; Kwon, H.J.; Cheong, H.K.; Jang, J.Y.; Kim, D.S.; Yu, S.; Kim, Y.W.; et al. Assessment of exposure to heavy metals and health risks among residents near abandoned metal mines in Goseong, Korea. Environ. Pollut. 2013, 178, 322–328. [Google Scholar] [CrossRef] [PubMed]
- Liu, H.; Probst, A.; Liao, B. Metal contamination of soils and crops affected by the Chenzhou lead/zinc mine spill (Hunan, China). Sci. Total Environ. 2005, 339, 153–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kim, S.; Cho, Y.M.; Choi, S.H.; Kim, H.J.; Choi, J. The effect of exposure factors on the concentration of heavy metals in residents near abandoned metal mines. J. Prev. Med. Public Health 2011, 44, 41–47. [Google Scholar] [CrossRef] [PubMed]
- Kachenko, A.G.; Singh, B. Heavy metals contamination in vegetables grown in urban and metal smelter contaminated sites in Australia. Water Air Soil Pollut. 2006, 169, 101–123. [Google Scholar] [CrossRef]
- China National Environmental Monitoring Centre (CNEMC). The Background Values of Chinese Soils; Environmental Science Press of China: Beijing, China, 1990; p. 501. [Google Scholar]
- Chinese Environmental Protection Administration (CEPA). Environmental Quality Standards for Soil (GB15618-1995); Chinese Environmental Protection Administration: Beijing, China, 1995.
- Dutch Ministry of Housing, Spatial Planning and Environment (VROM). Circular on Target Values and Intervention Values for Soil Remediation Annex A: Target Values, Soil Remediation Intervention Values and Indicative Levels for Serious Contamination; Dutch Ministry of Housing, Spatial Planning and Environment (VROM): Dutch, The Netherlands, 2000. [Google Scholar]
- CCME. Canadian Soil Quality Guidelines for the Protection of Environmental and Human Health: Summary Table; Canadian Council of Ministers of the Environment, Ed.; CCME: Winnipeg, MB, Canada; pp. 1999–2015.
- Bi, X.Y.; Ren, L.M.; Gong, M.; He, Y.S.; Wang, L.; Ma, Z.D. Trasfer of cadmium and lead from soil to mangoes in an uncontaminated area, Hainan Island, China. Geoderma 2010, 155, 115–120. [Google Scholar] [CrossRef]
- Qiu, P.H.; Xu, S.J.; Xie, G.Z.; Tang, B.N.; Bi, H.; Yu, L.S. Analysis of the ecological vulnerability of the western Hainan Island based on its landscape pattern and ecosystem sensitivity. Acta Ecol. Sin. 2007, 27, 1257–1264. [Google Scholar]
- Sun, G.; Sommar, J.; Feng, X.; Lin, C.; Ge, M.; Wang, W.; Yin, R.; Fu, X.; Shang, L. Mass-Dependent and -Independent Fractionation of Mercury Isotope during Gas-Phase Oxidation of Elemental Mercury Vapor by Atomic Cl and Br. Environ. Sci. Technol. 2016, 50, 9232–9241. [Google Scholar] [CrossRef] [PubMed]
- Håkanson, L. An ecological risk index for aquatic pollution control: A sediment logical approach. Water Res. 1980, 8, 975–1001. [Google Scholar] [CrossRef]
- Li, Z.G.; Feng, X.B.; Li, G.H.; Bi, X.Y.; Sun, G.Y.; Zhu, J.M.; Qin, H.B.; Wang, J.X. Mercury and other metal and metalloid soil contamination near a Pb/Zn smelter in east Hunan province, China. Appl. Geochem. 2011, 26, 160–166. [Google Scholar] [CrossRef]
- Xu, Z.Q.; Ni, S.J.; Tuo, X.G.; Zhang, C.J. Calculation of heavy metals’ toxicity coefficient in the evaluation of potential ecological risk index. Environ. Sci. Technol. 2008, 31, 112–115. [Google Scholar]
- Yang, Z.P.; Lu, W.Z.; Long, Y.Q.; Bao, X.H.; Yang, Q.C. Assessment of heavy metals contamination in urban topsoil from Changchun City, China. J. Geochem. Explor. 2011, 108, 27–38. [Google Scholar] [CrossRef]
- Feng, X.B.; Hong, Y. Modes of occurrence of mercury in coals from Guizhou, PR China. Fuel 1999, 78, 1181–1188. [Google Scholar] [CrossRef]
- Ren, D.Y.; Zhao, F.H.; Dai, S.F.; Zhang, J.Y.; Luo, K.L. Geochemistry of Trace Elements in Coal; Science Press: Beijing, China, 2006. [Google Scholar]
- Statistic Bureau of Hainan. Hainan Statistics Yearbook; Chinese Statistics Press: Hainan, China, 2012. [Google Scholar]
- Lu, X.W.; Wang, L.J.; Li, L.; Lei, K.; Huang, L.; Kang, D. Multivariate statistical analysis of heavy metals in street dust of Baoji, NW China. J. Hazard. Mater. 2010, 173, 744–749. [Google Scholar] [CrossRef] [PubMed]
- Nriagu, J.O.; Pacyna, J.M. Quantitative assessment of worldwide contamination of air, water and soils by trace metals. Nature 1988, 333, 134–139. [Google Scholar] [CrossRef] [PubMed]
- Pacyna, J.M.; Pacyna, E.G. An assessment of global and regional emissions of trace metals to the atmosphere from anthropogenic sources worldwide. Environ. Rev. 2001, 9, 269–298. [Google Scholar] [CrossRef]
- Lu, X.W.; Li, L.Y.; Wang, L.J.; Lei, K.; Huang, J.; Zhai, Y.X. Contamination assessment of mercury and arsenic in roadway dust from Baoji, China. Atmos. Environ. 2009, 43, 2489–2496. [Google Scholar] [CrossRef]
- Yin, H.Q. Source Apportionment of Atmospheric Dustfall and Its Effect on Heavy Metal Accumulation in Tongling City; HeFei University of Technology: Hefei, China, 2006. (In Chinese) [Google Scholar]
- Al-Khashman, O.A. Determination of metal accumulation in deposited street dusts in Amman Jordan. Environ. Geochem. Health 2007, 29, 1–10. [Google Scholar] [CrossRef] [PubMed]
- Zhu, Z.M.; Sun, G.Y.; Bi, X.Y.; Li, Z.G.; Yu, G. Identification of trace metal pollution in urban dust from kindergartens using magnetic, geochemical and lead isotopic analyses. Atmos. Environ. 2013, 77, 9–15. [Google Scholar] [CrossRef]
- Lee, C.S.L.; Li, X.D.; Shi, W.Z.; Cheung, S.C.N.; Thornton, I. Metal contamination in urban, suburban, and country park soils of Hong Kong: A study based of GIS and multivariate statistics. Sci. Total Environ. 2006, 356, 45–61. [Google Scholar] [CrossRef] [PubMed]
- Zhu, Z.M.; Li, Z.G.; Bi, X.Y.; Han, Z.X.; Yu, G.H. Responese of magnetic properties to heavy metal pollution in dust from three industrial cities in China. J. Hazard. Mater. 2013, 246–247, 189–198. [Google Scholar]
- Zhu, Z.M.; Xue, J.H.; Deng, Y.Z.; Chen, L.; Liu, J.F. Trace metal contamination in surface sediments of intertidal zone from Qinhuangdao, China, revealed by geochemical and magnetic approaches: Distribution, sources, and health risk assessment. Mar. Pollut. Bull. 2016, 105, 422–429. [Google Scholar] [CrossRef] [PubMed]
As | Cd a | Cr | Cu | Hg a | Ni | Pb | Se | Zn | |
---|---|---|---|---|---|---|---|---|---|
N | 8713 | 8713 | 8713 | 8713 | 8713 | 8713 | 8713 | 8713 | 8713 |
Minimum | 0.01 | 2 | 0.1 | 0.25 | 1 | 0.1 | 1 | 0.02 | 2 |
Maximum | 988.04 | 3064 | 860.3 | 192.9 | 3540 | 327.1 | 619.6 | 4.68 | 800 |
Geometrical mean | 2.17 | 60.19 | 26.50 | 9.43 | 33.34 | 8.74 | 22.20 | 0.26 | 39.64 |
Variation coefficient | 4.05 | 1.16 | 1.58 | 1.35 | 1.77 | 1.91 | 0.67 | 0.88 | 0.74 |
Std. Deviation | 21.42 | 93.61 | 96.32 | 23.34 | 75.20 | 48.18 | 17.51 | 0.30 | 37.91 |
Skewness | 24.91 | 10.52 | 2.65 | 2.35 | 29.30 | 2.74 | 7.79 | 3.39 | 2.51 |
Kurtosis | 858.68 | 219.08 | 7.09 | 4.97 | 1127.52 | 6.93 | 191.20 | 22.67 | 22.31 |
China BK b | 9.20 | 74.00 | 53.90 | 20.00 | 40.00 | 23.40 | 23.60 | 0.22 | 67.70 |
Threshold of the first grate c | 15 | 200 | 90 | 35 | 150 | 40 | 35 | 100 | |
Canadian soil quality guidelines d | 12 | 10000 | 64 | 63 | 6600 | 45 | 140 | 1 | 200 |
Target value of Dutch soil guidelines e | 29 | 800 | 100 | 36 | 300 | 35 | 85 | 140 |
Soil Types | Number of Samples | As | Cd a | Cr | Cu | Hg a | Ni | Pb | Se | Zn |
---|---|---|---|---|---|---|---|---|---|---|
Coastal sandy soil | 311 | 2.69 | 44.76 | 21.72 | 5.87 | 29.22 | 7.08 | 14.20 | 0.11 | 18.61 |
Coastal saline soil | 12 | 1.40 | 28.42 | 16.30 | 3.19 | 65.75 | 3.66 | 11.53 | 0.10 | 14.45 |
Latosolic red soil | 890 | 5.14 | 110.62 | 24.16 | 9.48 | 39.00 | 8.15 | 34.26 | 0.31 | 58.85 |
Yellow soil | 255 | 7.24 | 131.18 | 25.15 | 9.39 | 42.60 | 8.32 | 33.86 | 0.31 | 57.66 |
Volcanic ash soil | 5 | 2.00 | 177.64 | 293.07 | 65.06 | 90.97 | 154.88 | 15.45 | 0.33 | 143.07 |
Chisley soil | 50 | 3.00 | 223.30 | 240.41 | 52.13 | 96.64 | 128.77 | 16.62 | 0.47 | 129.30 |
Paddy soil | 874 | 3.07 | 60.27 | 74.11 | 19.44 | 41.60 | 30.71 | 18.56 | 0.28 | 42.19 |
Alluvial soil | 90 | 3.71 | 96.24 | 28.87 | 11.36 | 39.30 | 10.03 | 25.91 | 0.19 | 38.91 |
Dry red soil | 250 | 1.96 | 73.70 | 12.68 | 5.30 | 24.43 | 3.40 | 26.27 | 0.12 | 23.00 |
Latosol | 5726 | 6.01 | 74.35 | 62.63 | 18.02 | 43.01 | 25.30 | 26.90 | 0.39 | 51.12 |
Purple soil | 76 | 3.50 | 79.51 | 32.50 | 12.77 | 29.45 | 8.93 | 21.21 | 0.28 | 34.96 |
Components | CE Samples | ME Samples | ||||
---|---|---|---|---|---|---|
PC1 | PC2 | PC3 | PC1 | PC2 | PC3 | |
As | 0.036 | 0.853 | −0.001 | 0.304 | 0.753 | −0.096 |
Ba | −0.023 | 0.721 | 0.380 | −0.293 | 0.165 | −0.631 |
Cd | 0.110 | 0.314 | 0.797 | 0.261 | 0.470 | 0.681 |
Co | 0.936 | −0.017 | 0.135 | 0.939 | 0.074 | −0.074 |
Cr | 0.966 | −0.084 | −0.049 | 0.875 | 0.297 | 0.240 |
Cu | 0.752 | 0.513 | 0.212 | 0.802 | 0.329 | 0.248 |
Fe | 0.964 | 0.177 | 0.041 | 0.938 | 0.125 | 0.131 |
Hg | 0.003 | 0.097 | 0.366 | 0.047 | 0.861 | 0.086 |
Ni | 0.961 | −0.116 | 0.043 | 0.951 | 0.171 | 0.154 |
Pb | −0.142 | 0.707 | 0.427 | 0.057 | 0.867 | 0.116 |
S | 0.030 | −0.120 | 0.679 | 0.216 | 0.834 | 0.273 |
Sb | 0.065 | 0.879 | 0.193 | 0.298 | 0.822 | 0.150 |
Se | 0.214 | 0.536 | −0.214 | 0.716 | 0.346 | 0.025 |
V | 0.954 | 0.093 | −0.077 | 0.939 | 0.016 | 0.205 |
Zn | 0.627 | 0.254 | 0.579 | −0.031 | 0.268 | 0.728 |
Eigenvalue | 5.62 | 3.32 | 2.05 | 5.86 | 4.12 | 1.73 |
Total variance (%) | 37.44 | 22.12 | 13.67 | 39.05 | 27.45 | 11.51 |
Cumulative eigenvalue | 5.62 | 8.94 | 10.99 | 5.86 | 9.98 | 11.71 |
Cumulative percentage | 37.44 | 59.56 | 73.23 | 39.05 | 66.5 | 78.01 |
