Antimony, Arsenic and Chromium Speciation Studies in Biała Przemsza River (Upper Silesia, Poland) Water by HPLC-ICP-MS

Department of Waste Management and Environmental Analyses, Institute of Environmental Engineering, Polish Academy of Sciences, 34 Skłodowskiej-Curie St., 41-819 Zabrze, Poland
Int. J. Environ. Res. Public Health 2015, 12(5), 4739-4757; https://doi.org/10.3390/ijerph120504739
Submission received: 16 March 2015 / Revised: 21 April 2015 / Accepted: 23 April 2015 / Published: 30 April 2015

Abstract

:
In this paper the total concentration of As, Cr, Sb, pH and the red-ox potential of water and sediment samples of the Biała Przemsza River were determined. The arsenic (AB, MMA, DMA, As(III), As(V)), chromium (Cr(III), Cr(VI)) and antimony (Sb(III), Sb(V)) forms were studied by HPLC-ICP-MS. Ions were successfully separated on Hamilton PRP-X100: (AB, MMA, DMA, As(III), As(V)), Dionex Ion Pac AS-7 (Sb(III), Sb(V)) and Dionex IonPac AG7 columns: Cr(III), Cr(VI) with LOD 0.16 μg/L, 0.08 μg/L, 0.09 μg/L, 0.012 μg/L, 0.08 μg/L, 0.12 μg/L, 0.009 μg/L, 0.012 μg/L, 0.19 μg/L, 0.37 μg/L, respectively. The simplified BCR three-step sequential chemical extraction was performed on the bottom sediment samples. The samples were collected monthly, between April and December 2014, at five sampling points. Large contents of manganese, lead, cadmium and zinc were found in the Biała Przemsza River water. In December 2014, the lead content in the bottom sediment in Sławków was nearly 6000 mg/kg. In the river water, only the inorganic arsenic speciation forms were found. Sb(V), As(V) and Cr(III) were dominant. Studies have shown that arsenic, antimony and chromium were mainly bound to oxides, organic matter and sulphides in the bottom sediments.

1. Introduction

The 21st century is a time of new challenges in the analytical chemistry field, and thus in the environmental analysis. There is new information on the toxicological characteristics of elements and their forms of occurrence. It is also necessary to detect and determine lower and lower analyte concentrations, often in complex matrix samples. The occurrence of various chemical and physical forms of a given element is known as “speciation” (a term borrowed from biology). Determining such forms is defined as speciation analysis [1]. However, following the IUPAC Recommendation 2000 [2], the term of “speciation” is used to determine the analytical activity to identify chemical individuals and measure their distribution in particular samples or matrices. Chemical speciation can also be defined as the process of identification and determination of specific chemical individuals, which helps to thoroughly understand the availability and mobility of metals so that their chemical behaviour can be comprehended. Speciation defines chemical forms, whereas fractionation is the process of classifying analytes or analyte groups in a given sample in terms of their physicochemical characteristics. Chemical speciation is an important research subject in environmental protection [3] and toxicological and analytical research as the toxicity, availability and reactivity of the trace elements depends on the chemical forms in which they occur. Within speciation analysis, the following aspects can be differentiated: determining substances produced and emitted into the environment by people, and analyzing natural compounds formed due to biochemical transformations in living organisms or in the environment. The former group is interesting for the environmental analysis, whereas the latter one is mainly studied by biochemists and eco-toxicologists.
Elements such as arsenic, antimony and chromium are the most interesting for toxicologists and analysts [4]. Depending on their oxidation states, they differ in characteristics. Antimony is common in the natural environment. It comes from natural processes and anthropogenic activity. Over the years, human activity has caused a large increase in the antimony concentration in the environment due to its use in the car industry (e.g., as an additive in the car tyre vulcanization). Antimony is similar to arsenic and bismuth in its geochemical behavior. Arsenic is a toxic metalloid that is common in the environment and various biological systems. The number of its speciation forms is constantly increasing due to the economic progress as the pollution caused by industry has not decreased in recent decades. On the contrary, the arsenic emissions from steel works, industry, animal waste and dust from fossil fuel combustion are rising at present. Arsenic is very mobile. Consequently, it occurs in all the environment elements. Its toxicity depends on the chemical form. Importantly, its inorganic speciation forms are 100 times more toxic than the organic ones. The contact with arsenic can cause various health effects, such as dermatological, inhalatory, cardiologic, genetic, genotoxic or mutagenic lesions [5]. The great interest in the Cr(III) and Cr(VI) forms is related to their different toxicological characteristics. Small amounts of chromium compounds are present in all living organisms in which Cr(III) plays an important role in the metabolic processes. It is a component of some enzymes and stimulates other organism activities. On the other hand, the Cr(VI) compounds are a serious threat for the environment due to their mutagenic and genotoxic characteristics. They are readily soluble, mobile and more bioavailable than Cr(III) compounds [6,7,8].
It turns out that the element form, rather than its total content, determines the influence the element has on living organisms. For that reason, the research into the toxic forms, such as As(III) and As(V), Sb(III), or Cr(VI), is so important. As those ions can cause many diseases/conditions, investigating their genotoxicity or metabolizing processes of these ions in living organisms has become popular. It is necessary to mention metabolomics here, which is a new science investigating all the metabolites present in organisms, tissues or cells. Analysing analytes at low concentration levels, particularly in complex matrix samples, requires more complex and sophisticated analytical methods and techniques. The latest trends in this field concern the so-called hyphenated methods (such as high performance liquid chromatography-inductively coupled plasma-mass spectrometry—HPLC-ICP-MS), in which the separation and detection methods are coupled [9,10,11].
Due to the long-term neglect, Upper Silesia is still “an environmental bomb”, and its rivers are a potential pollution source for other Polish regions. The Upper Silesian Rivers are among the most polluted ones in Poland. As they are tributaries to the main rivers (the Vistula and the Oder), they spread pollutants over the entire country area. Moreover, these rivers pose a serious threat for the inhabitants during floods that are often severe and cause permanent pollution of the flooded areas. The Biała Przemsza River is the last river in the Upper Silesian urban area which still maintains its natural character despite centuries of mining exploitation in its catchment area [12,13,14] leading to irreversible changes in the water environment. Nevertheless, the natural area in the river vicinity has been preserved and constitutes one of the most valuable areas in Silesia. The mining and metallurgic industries of the lead-zinc ores have developed in the Biała Przemsza catchment area and have had a strong influence on the surface water and bottom sediment condition.
As one of the stages of the MoSpeSil research project (Small Grant Scheme 2012; the Polish-Norwegian Research Programme) conducted in the Polish-Norwegian cooperation in 2013–2015, this study presents the research results for total contents of metals/metalloids using ICP-MS and arsenic, antimony and chromium speciation forms in the Biała Przemsza River water determined with HPLC-ICP-MS. Bottom sediments were extracted with the simplified BCR three-step sequential chemical extraction [15], and microwave digested, and then determined by ICP-MS. The research objective was to determine the mobility and seasonal changes of the arsenic, antimony and chromium speciation forms in the water and bottom sediments of highly polluted Upper Silesia river ecosystems using the Biała Przemsza River example.

2. Materials and Methods

2.1. Researched Area

The Biała Przemsza River flows through the Lesser Poland and Silesian Voivodships. It begins its course in the central part of the Polish Jura, i.e., in the Olkuska Upland. It flows through the unique (on a European scale) Błędowska Desert and divides it into two parts. Close to Dąbrowa Górnicza, it mainly flows through marshes and swamps. These places are among the most wild and inaccessible ones. Despite the decrease in the water flow (typical for lowland waters), it has become a mountain river. The neighboring areas (forests, swamps) are inhabited by water organisms typical for the mountain ecosystems. The river character changes close to the point where it embraces its largest tributary, i.e., the left-bank Biała River. The Biała Przemsza Valley visibly expands and becomes deeper. Below the Biała River mouth, the Biała Przemsza River changes radically. At present, the Biała River does not have its own natural sources, or they are only seasonal. The vast majority of the Biała River water is the mine water from the Pomorzany lead-zinc ore, discharged through the Dąbrówka canal. The remaining part comes from the wastewater treatment plant in Olkusz and small tributaries (a number of water fluxes on the left river side). The Biała River heavily pollutes the Biała Przemsza River, particularly in terms of heavy metal contents and suspension. In Okradzionów, the Biała Przemsza River radically changes its direction to the southern one. It starts meandering in Sławków and it gradually changes its direction to south-western one. Finally, it flows west. It flows through a thick and inaccessible forest, far away from the urbanized areas. There is another water tributary in the Burki residential area vicinity—the Sztoła River, which comes from the lead and zinc ore mine. In Mysłowice, the Biała Przemsza River flows into the Przemsza River (a left-bank tributary of the Vistula).

2.2. Sampling

The water and bottom sediment samples were collected monthly (April-December 2014) at five sampling points (BP1-BP5) shown in Figure 1. Directly after sampling in situ, the basic physicochemical parameters (pH, Eh, conductivity and temperature) were determined.
Figure 1. Location of the sampling points along the Biała Przemsza River.
Figure 1. Location of the sampling points along the Biała Przemsza River.
Ijerph 12 04739 g001

2.3. Sample Preparation

Directly after being transported into the laboratory, the water samples to be determined with ICP-MS were acidified with spectral grade nitric acid (V). Afterwards, they were filtered through a 0.22 µm PES syringe filter. The water samples for antimony speciation analysis were preserved with Na2EDTA. All the samples were kept at −22 °C (for no longer than a month). Finally, the samples were analyzed with the ICP-MS spectrometer to determine total analyte contents. After being averaged, the bottom sediment samples were air-dried, sieved through a sieve (2-mm mesh) and ground in a mortar. Next, they were mineralized in the Mars X microwave mineralizer (CEM Corporation, Matthews, NC, USA). The bottom sediment mineralization was optimized with the certified reference material (CRM) NCS DC 733309. The most effective mineralization was obtained when a mixture of 5 mL of HNO3 65% (Merck, Darmstadt, Germany), 3 mL of 40% HF (Merck) and 2 mL of H2O2 (Merck) were used. The total concentration of metals and metalloids were determined in the obtained digests with ICP-MS spectrometer. The sieve analysis was performed in accordance with the Polish standard [16].

2.4. Research Methodology

The Elan 6100 DRC-e ICP-MS spectrometer (Perkin Elmer, Waltham, MA, USA) was used for quantitative analyses of the total arsenic, antimony and chromium concentrations in the samples of water, digests, and bottom sediment extracts. The device was equipped with a standard ICP quartz torch, cross-flow nebulizer, and nickel cones. The samples and standards were fed with a peristaltic pump. The spectrometer was optimized daily with 10 µg/Lsolution (Mg, Cu, Rh, Cd, In, Ba, Ce, Pb, U) in 1% HNO3 Elan 6100 Setup Solution (Perkin-Elmer). The 53Cr, 75As and 123Sb concentrations were measured with the Rh as internal standard. The operating parameters for the ICP-MS spectrometer are given in Table 1. The simplified BCR three-step sequential chemical extraction [16] helped to determine the forms of arsenic, antimony and chromium in the bottom sediments and the way in which they were bound. The conditions under which the sequential extraction was performed are given in Table 2. The concentration speciation of chromium (Cr(III), Cr(VI)), arsenic (As(III), As(V), AsB, MMA, DMA)) and antimony (Sb(III), Sb(V)) forms were determined by HPLC-ICP-MS. The optimized separation and determination parameters for the arsenic, antimony and chromium forms are given in Table 3. The method validation parameters are shown in Table 4. The following substances were used for analyses: ultrapure ammonium nitrate (Merck, Darmstadt, Germany), ultrapure potassium dichromate (Merck), 1000 mg/L Cr(III) standard solution (Merck), sodium dihydrogen arsenate heptahydrate (Sigma-Aldrich, St Louis, MO, USA), sodium arsenite (Sigma-Aldrich), disodium methyl arsenate (Supelco, Bellefonte, PA, USA), arsenobetaine (Sigma-Aldrich, St Louis, MO, USA), dimethylarsinic acid (Supelco), potassium hexahydroantimonate(V) (Aldrich), phthalic acid (POCH, Gliwice, Poland). The calibration solutions were prepared each time through diluting suitable standard solutions on an analytical balance. The multi-element standards no. XXI and VI (Merck) were used when determining total arsenic, antimony and chromium with ICP-MS. Solutions made from salts were employed for calibration during quantitative determinations of arsenic, antimony and chromium speciation forms. All solutions and standards were prepared with the Milli-Q-Gradient ultrapure deionized water (Millipore, Merck Darmstadt, Germany), whose electrolytic conductivity was <0.05 µS/cm.
Table 1. ICP-MS spectrometer operating parameters.
Table 1. ICP-MS spectrometer operating parameters.
ICP-MS ParameterSettings
Generator power RF (W)1125
Plasma gas flow (l/min)15
Nebulizer gas flow (l/min)0.76–0.82
Auxiliary gas flow (l/min)1.15–1.16
Nebulizercross
Torchquartz
Scanning modePeak hopping
Dwell time (ms)250
Sweeps/Reading1
Number of replicates830
Table 2. BCR sequential chemical extraction procedure.
Table 2. BCR sequential chemical extraction procedure.
FractionThe Extraction SolutionAssociated With
F1
Exchangeable
Acetic acid: 0.11 M CH3COOH, pH = 2.85,
shaking for 16 h, the ratio of solid / solution 1:40
Room temperature
Loosely adsorbed cations and anions on sediments and carbonates and very reactive oxy-hydroxides
F2
Reducible
Hydroxyl ammonium chloride: 0.1 M NH2OH.HCl, pH = 2.0
shaking for 16 h, the ratio of solid / solution 1:40 Temperature 85 ± 2 °C
Iron/manganese oxides (mostly amorphous or poorly crystallized)
F3
Oxidisable
Perhydrol: H2O2 8.8 M, CH3COONH4 1.0 M pH = 2.0Organic substance and sulphides
ResidualAqua regia: 3HCl + HNO3Non silicate bound metals
Table 3. Separation parameters.
Table 3. Separation parameters.
ParameterValue
Chromium
ColumnIon Pac AG-7; 50 mm × 4 mm, 10 µm
Temperature35 °C
Mobile phaseA: 0.1M NH4NO3 pH = 4;
B: 0.8M HNO3
Elution program0–0.5 min 100% A,
1.5–3.5 min 100% B
rinsing 3.5–5.0 min. 100% A
Flow rate during the analysis (mL/min)1.7
Flow rate during the rinsing (mL/min)2.0
Volume of sample (µL)170
Antimony
ColumnIon Pac AS-7; 200 mm × 4 mm, 10 µm
Temperature35 °C
Mobile phase1mM phthalic acid, 10mM EDTANa2; pH = 4.5
Elution time3 min
Flow rate during the analysis (mL/min)1.2
Volume of sample (µL)80
Arsenic
ColumnHamilton PRP-X100; 100 mm x 4 mm, 10 µm
Temperature30 °C
Mobile phaseA: 20mM NH4NO3 pH = 8.7
B: 60mM NH4NO3 pH = 8.7
Elution time0–2.0 min. 100% A
2.0–3.0 min from 100% A to 100% B
3.0–6.5 min 100% B
rinsing 6.5–9.5 min 100% A
Flow rate during the analysis (mL/min)1.1
Volume of sample (µL)100
Table 4. Validation parameters.
Table 4. Validation parameters.
AnalyteLimit of detection
(µg/L)
Recovery (%)Relative Standard Deviation of Repeatability
(%)
Uncertainty
(%)
Cr (total)0.0131165.923
Cr(III)0.19992.014
Cr(VI)0.371022.311
Sb (total)0.0051063.212
Sb(III)0.0091051.98
Sb(V)0.0121012.48
As (total)0.096884.829
As(III)0.08962.912
As(V)0.121042.411
AB0.16933.717
MMA0.08953.112
DMA0.09952.711

3. Results

The measurements of the basic physicochemical parameters demonstrated that the lowest pH was found in the Biała Przemsza River water samples in Chrząstowice (BP1), whereas the highest pH values were measured in Klucze (BP2). The pH value decreased at the following water sampling points (BP3-BP5; downward direction of the river course). Similarly to pH, the redox potential had the lowest value at BP1. It gradually rose along the river course. The highest conductivity value was observed at BP5 in Sosnowiec, where the highest ion concentrations were found. Figure 2 shows the variation of physical and chemical parameters of Biała Przemsza water samples.
As shown in Figure 3, the highest chromium concentration was observed at the BP5 sampling point. It was nearly 14 µg/L. The highest arsenic concentrations in the Biała Przemsza River water were measured in Sławków and Dąbrowa Górnicza Okradzionów. In the case of antimony, the highest concentrations were observed at BP1 and BP5. These analyte contents were low enough to assign the Biała Przemsza River water to Class I [17]. Unfortunately, the low trace concentrations of arsenic, antimony and chromium were accompanied by high contents of manganese, lead, cadmium or zinc (Figure 4). The Biała Przemsza River flows through areas rich in the zinc ores. What is more, the highly-developed mining and metallurgic industries of the lead-zinc ores are present in its catchment area. They strongly influence the condition of the surface water and bottom sediments.

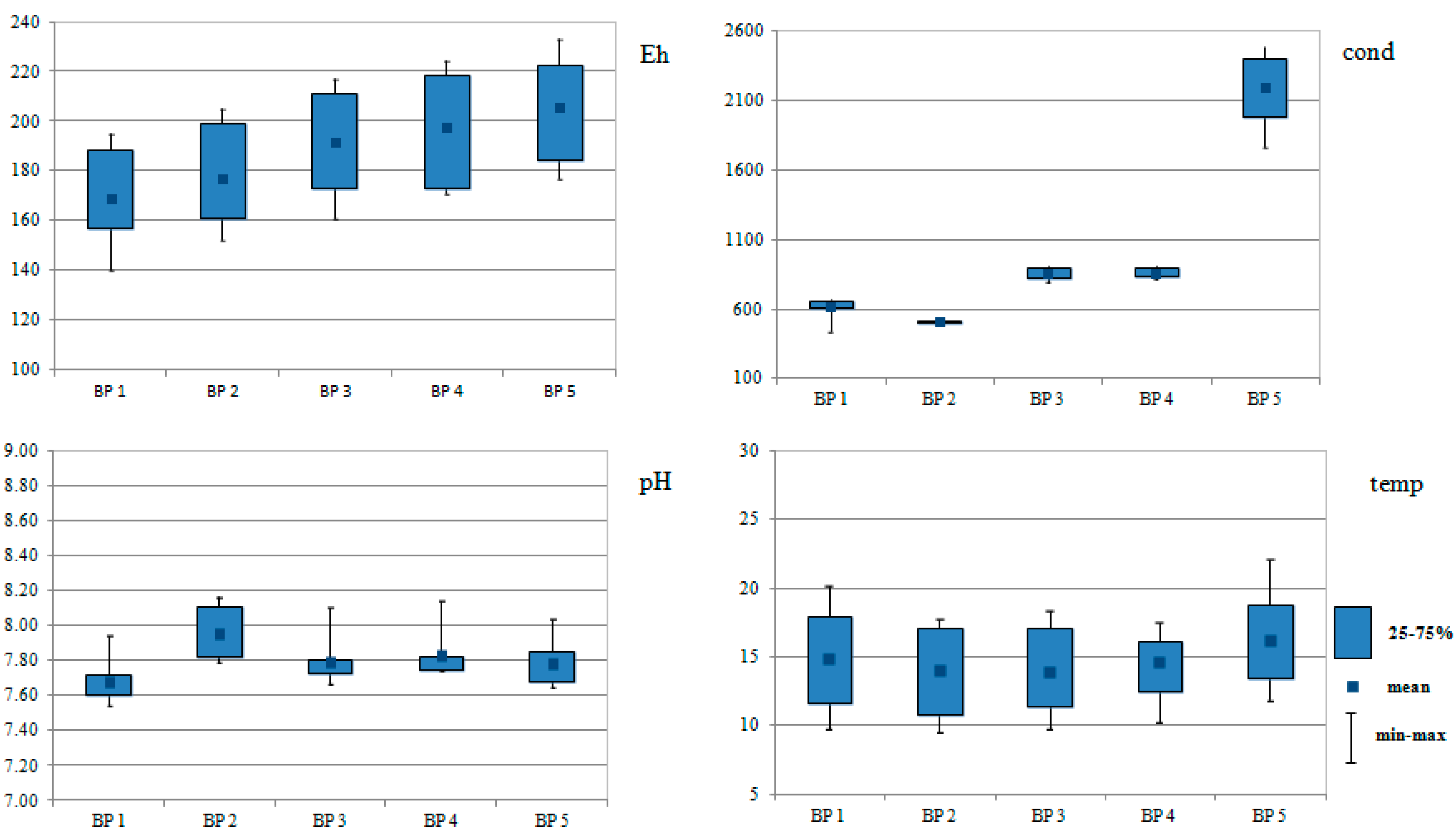

Figure 2. Box plots of pH, conductivity (µS) (cond), temperature (°C) (temp) and redox potential (Eh) data for Biała Przemsza river monitoring (five sampling points BP1-BP5, samples taken from April to December 2014 Biała Przemsza River water).
Figure 2. Box plots of pH, conductivity (µS) (cond), temperature (°C) (temp) and redox potential (Eh) data for Biała Przemsza river monitoring (five sampling points BP1-BP5, samples taken from April to December 2014 Biała Przemsza River water).
Ijerph 12 04739 g002

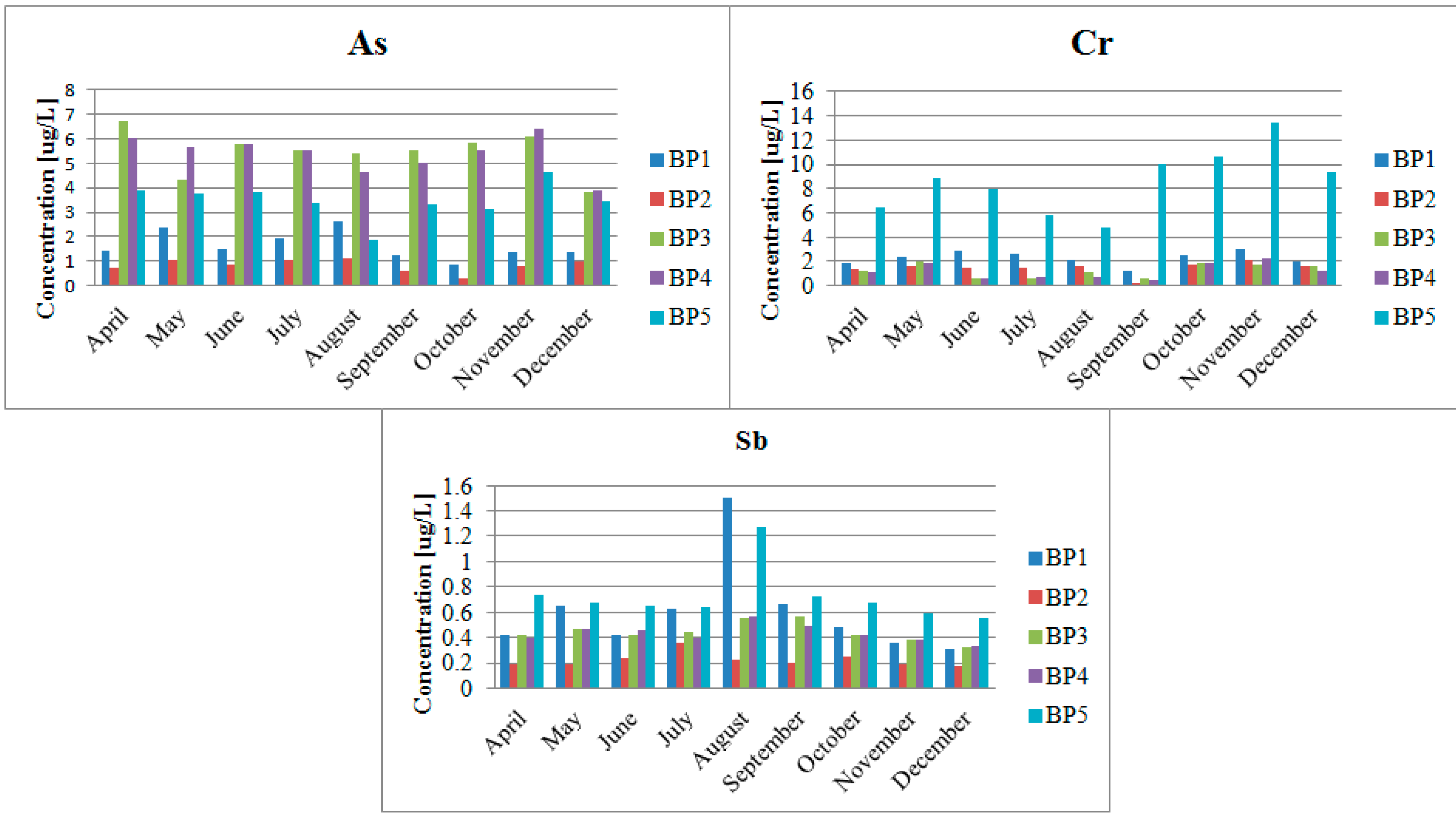

Figure 3. Total contents of arsenic, antimony and chromium in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Figure 3. Total contents of arsenic, antimony and chromium in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Ijerph 12 04739 g003

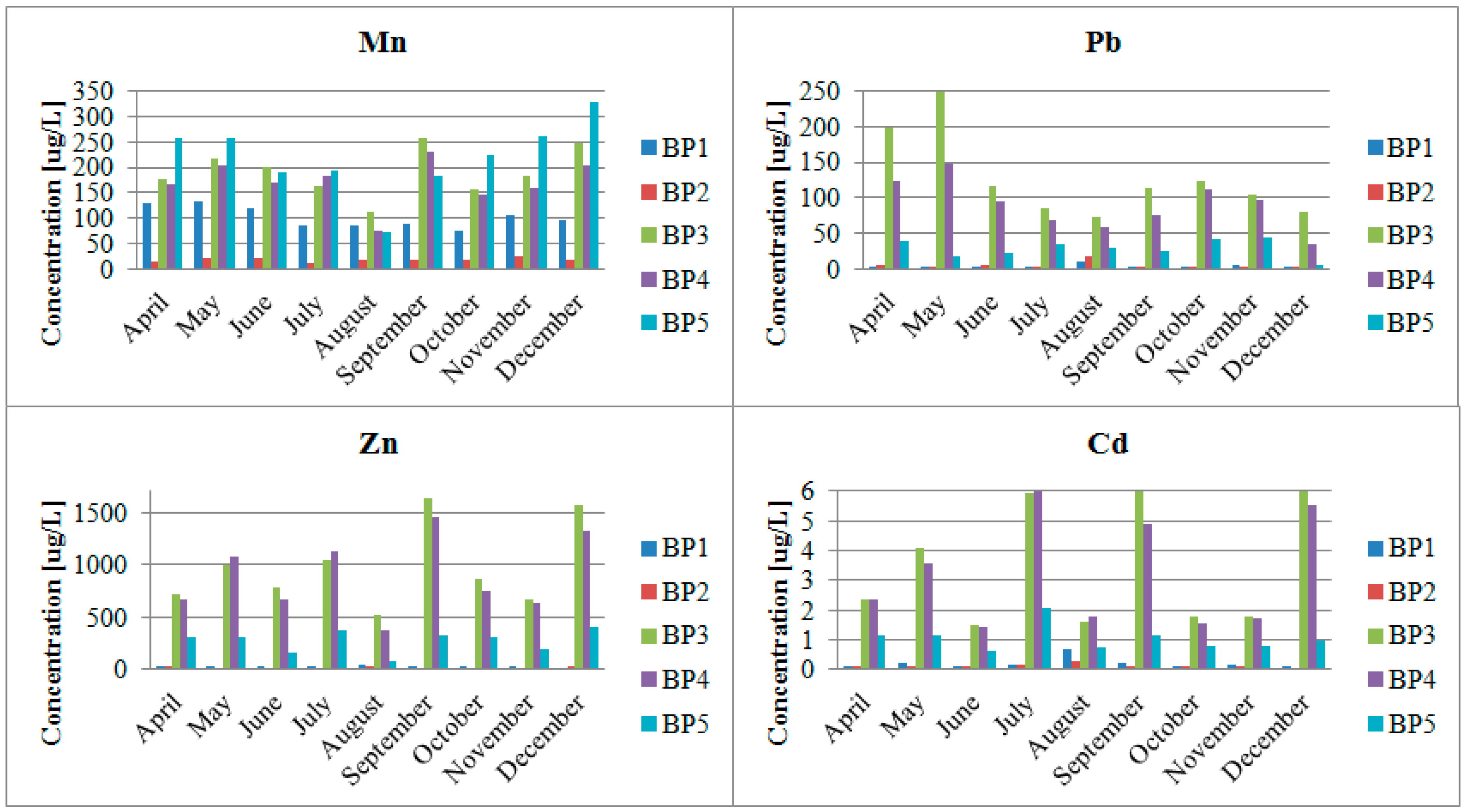

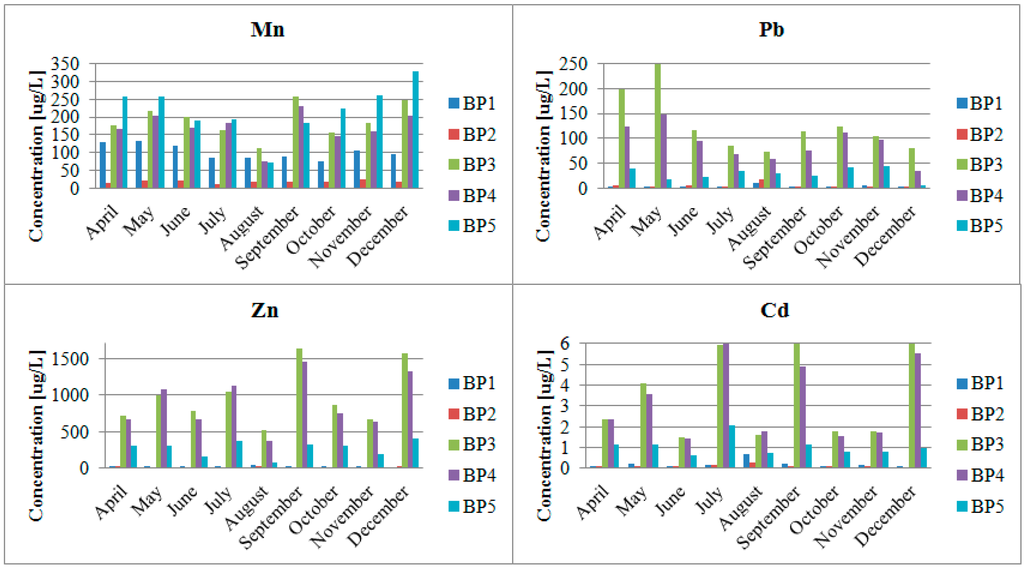

Figure 4. Total contents of manganese, lead, cadmium and zinc in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Figure 4. Total contents of manganese, lead, cadmium and zinc in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Ijerph 12 04739 g004
Figure 5 presents total contents of arsenic, antimony, chromium and lead in the Biała Przemsza bottom sediments. The highest arsenic and antimony contents were observed at BP3 and BP4 in April. In the same month, very high chromium content was found at BP4 (Sławków). The bottom sediments were highly polluted with lead. The highest concentrations were measured in Sławków (nearly 6000 mg/kg in December) and Dąbrowa Górnicza.
The results of a simplified three-step sequential chemical extraction showed Figure 6. The sieve analysis (Table 5) showed that the Biała Przemsza River bottom sediments mainly contained the particle fractions of 0.5–0.2 mm, i.e., medium and fine sand.
The application of HPLC-ICP-MS helped determine five organic and inorganic arsenic speciation forms, two antimony speciation forms and two chromium speciation forms. Figure 7 presents chromatograms of the standard solutions used for calibration. The concentration of arsenic, antimony and chromium speciation forms were determined with low limits of detection (Table 4) [18].
Table 6 presents the minimum, maximum and median contents of the arsenic and chromium speciation forms in the Biała Przemsza River water. Figure 8 shows concentrations of Sb(III)/Sb(V), As(III)/As(V) and Cr(III)/Cr(V) in the Biała Przemsza River water.

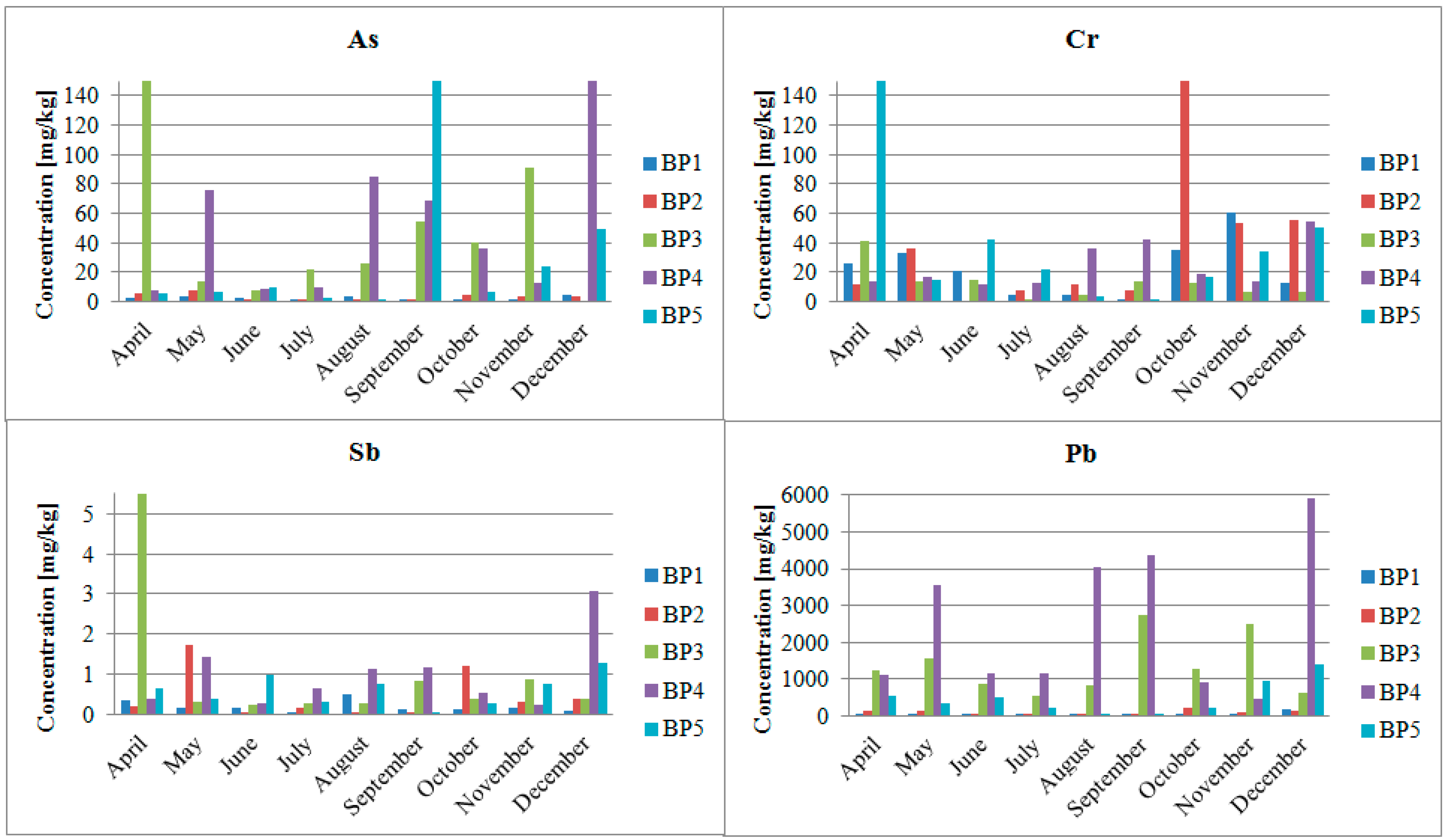

Figure 5. Total contents of arsenic, antimony, chromium and lead in the Biała Przemsza River bottom sediments; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Figure 5. Total contents of arsenic, antimony, chromium and lead in the Biała Przemsza River bottom sediments; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Ijerph 12 04739 g005
Table 5. The sieve analysis of the Biała Przemsza River bottom sediments; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Table 5. The sieve analysis of the Biała Przemsza River bottom sediments; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Date of SamplingSampling Point>2.0 mm2.0–1.0 mm1.0–0.5 mm0.5–0.2 mm0.2–0.1 mm<0.1 mmUnit
AprilBP10.160.2215.7977.853.640.17%
BP20.290.1715.5473.7710.060.18%
BP35.5111.9412.4731.8925.8512.34%
BP40.000.012.2788.878.780.08%
BP50.070.232.0080.8515.441.41%
JulyBP10.160.2215.7977.853.640.17%
BP22.432.456.3263.0823.173.68%
BP31.300.751.0236.3634.9326.94%
BP40.000.000.3978.4320.220.96%
BP51.261.488.7780.187.550.76%
OctoberBP10.070.119.2584.216.090.28%
BP211.973.195.7438.0831.429.60%
BP30.080.000.9259.9133.036.06%
BP40.180.110.3132.1030.2837.02%
BP50.520.764.4682.3810.821.05%

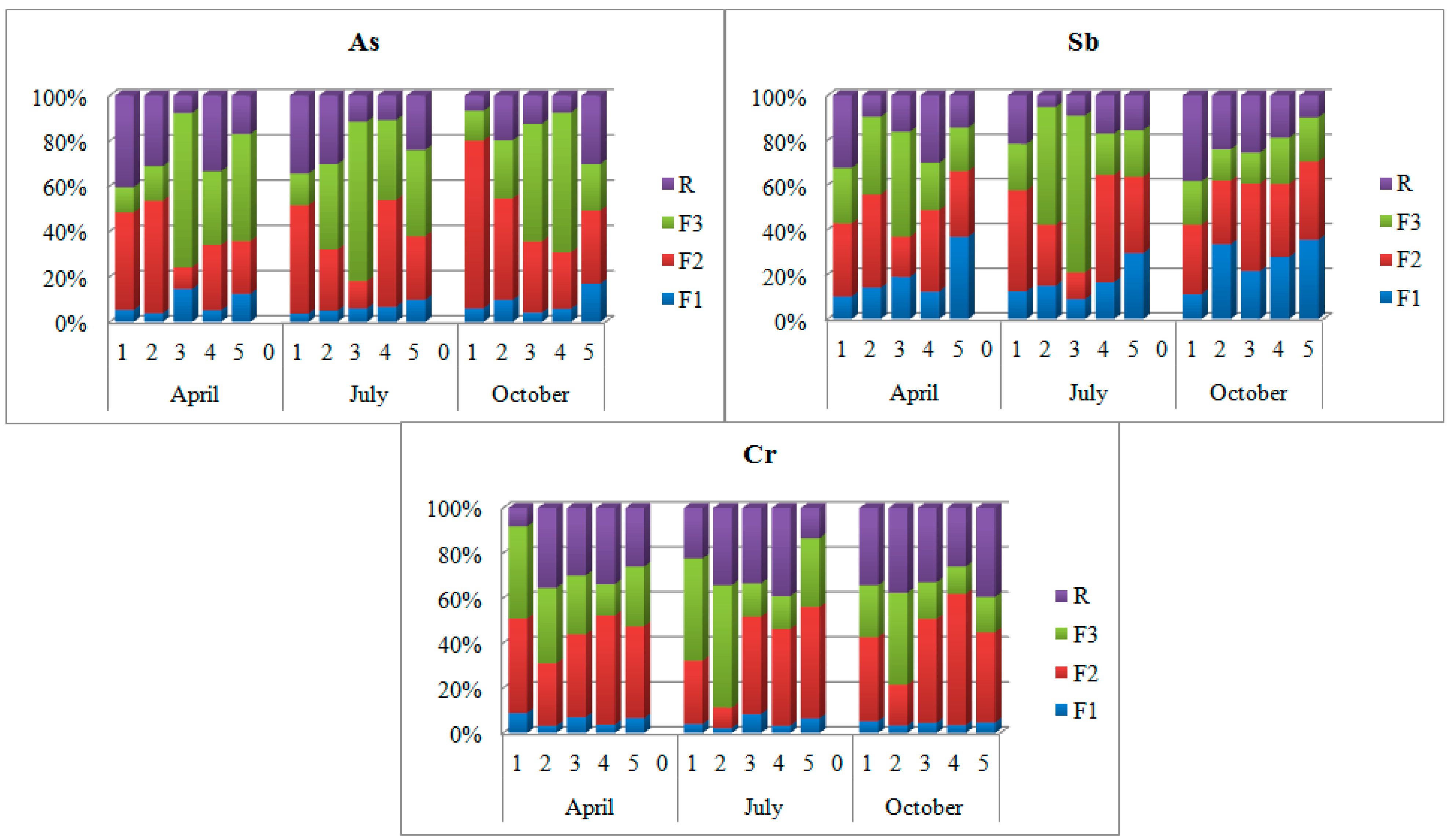

Figure 6. Simplified BCR three-step sequential extraction [15]. F1—ion-exchange and carbonate fraction; F2—oxide fraction; F3—organic and sulphide fraction; R—residual; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Figure 6. Simplified BCR three-step sequential extraction [15]. F1—ion-exchange and carbonate fraction; F2—oxide fraction; F3—organic and sulphide fraction; R—residual; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Ijerph 12 04739 g006
Table 6. Minimum, maximum and median contents of the arsenic and chromium speciation forms in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Table 6. Minimum, maximum and median contents of the arsenic and chromium speciation forms in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
(µg/L) N = 30BP1BP2BP3BP4BP5
As(III)minimum<0.08<0.08<0.080.26<0.08
maximum0.210.080.990.563.83
median0.110.080.720.391.24
As(V)minimum<0.12<0.120.130.160.17
maximum1.350.563.673.832.22
median0.550.261.712.051.45
Cr(VI)minimum<0.37<0.37<0.37<0.37<0.37
maximum0.950.970.931.191.07
median<0.37<0.37<0.370.510.67
Cr(III)minimum0.440.410.860.511.07
maximum2.594.633.333.413.65
median2.241.742.132.511.92

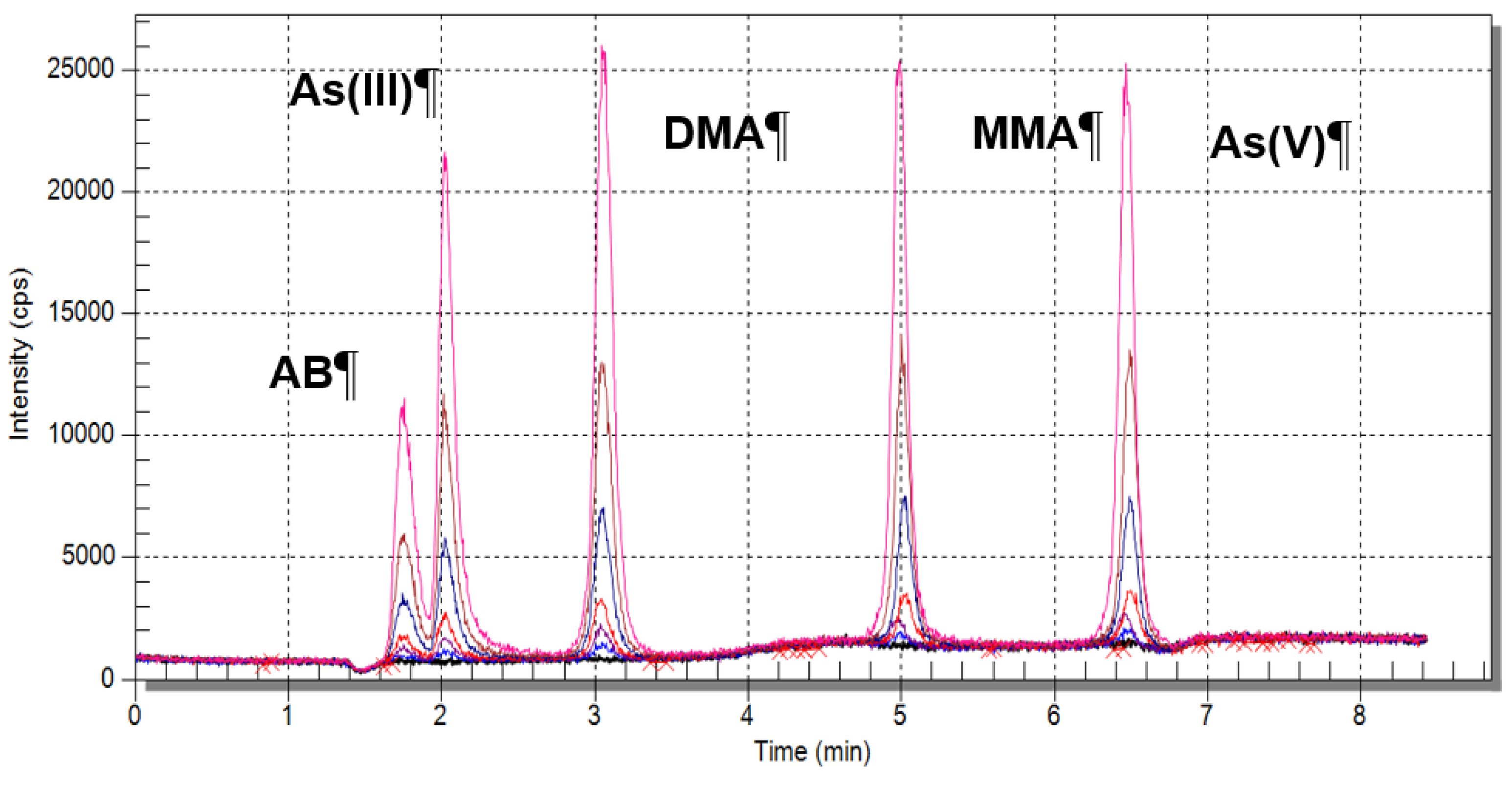

Figure 7. Chromatograms of the arsenic speciation form standard solutions with concentrations of 20 µg/L, 10 µg/L, 5 µg/L, 2 µg/L, 1 µg/L, 0.1 µg/L.
Figure 7. Chromatograms of the arsenic speciation form standard solutions with concentrations of 20 µg/L, 10 µg/L, 5 µg/L, 2 µg/L, 1 µg/L, 0.1 µg/L.
Ijerph 12 04739 g007

4. Discussion

4.1. Impact of the Physicochemical Parameters on the Concentration of Metal (Loid)s and their Forms in Biała Przemsza River Waters

The influence of physicochemical parameters on the variability of an element forms concentrations is complex, and depends on the pH, conductivity, redox potential and temperature. The pH decrease led to the dissolution of carbonates and hydroxides, and the metal ions were displaced with the hydrogen ions. The increase in the salt content in water caused the shift of the sorption isotherm into the higher pH direction or led to the formation of the soluble metal-chloride ion complexes. The change in the redox potential caused the change in the metal binding forms in the solid phase and the pH drop, which increased the metal mobility. The pH value decreased downward direction of the river course. Similarly to pH, the redox potential had the lowest value at first sampling point.
Thus, the increase in the concentration of metal(lod)s and their forms in the Biała Przemsza River waters is probably also assisted by occurring at the same time increase the redox potential and pH decrease along the river. The effect of specific physicochemical conditions and a general increase in pollution in the last water sampling point (in Sosnowiec, just before Biała Przemsza River estuary), is the highest observed concentration of chromium and antimony in the Biała Przemsza waters.
The highest conductivity value observed at last sampling points, was concerned with the highest ion concentrations (mainly chlorides and sulphates). Such a finding confirms the high salt contents in the supplying mine water. Mine water discharges in the Upper Silesian Rivers are a big problem not only in this area [19].

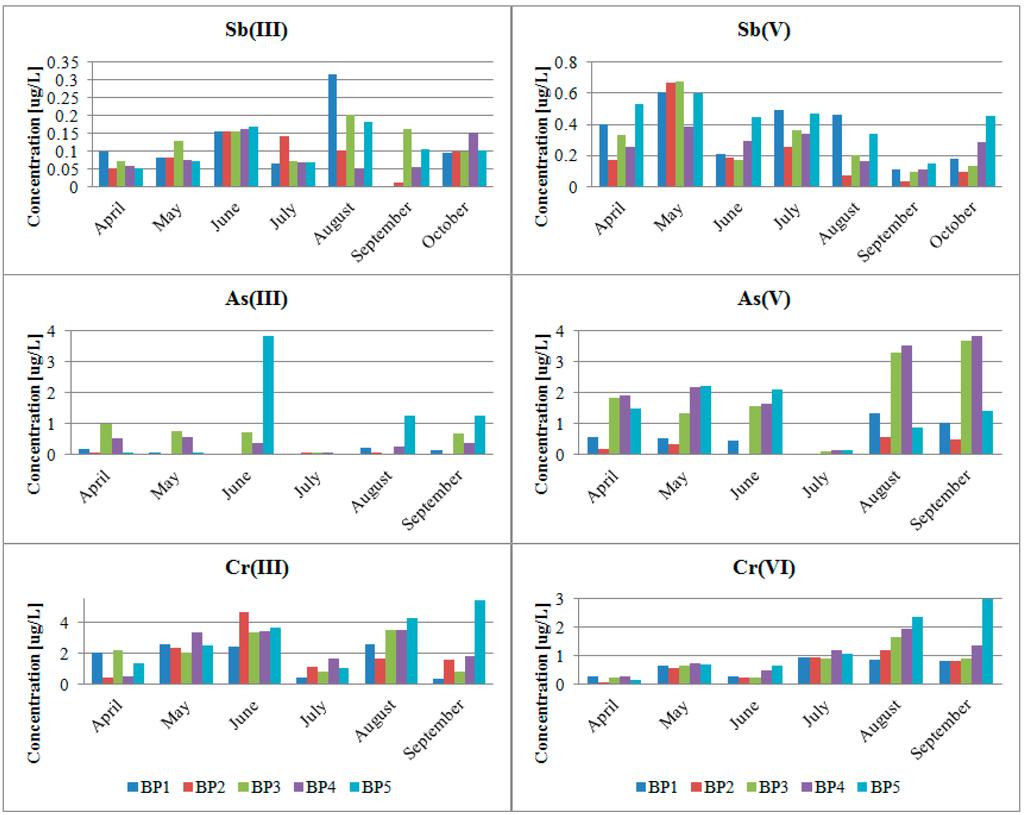

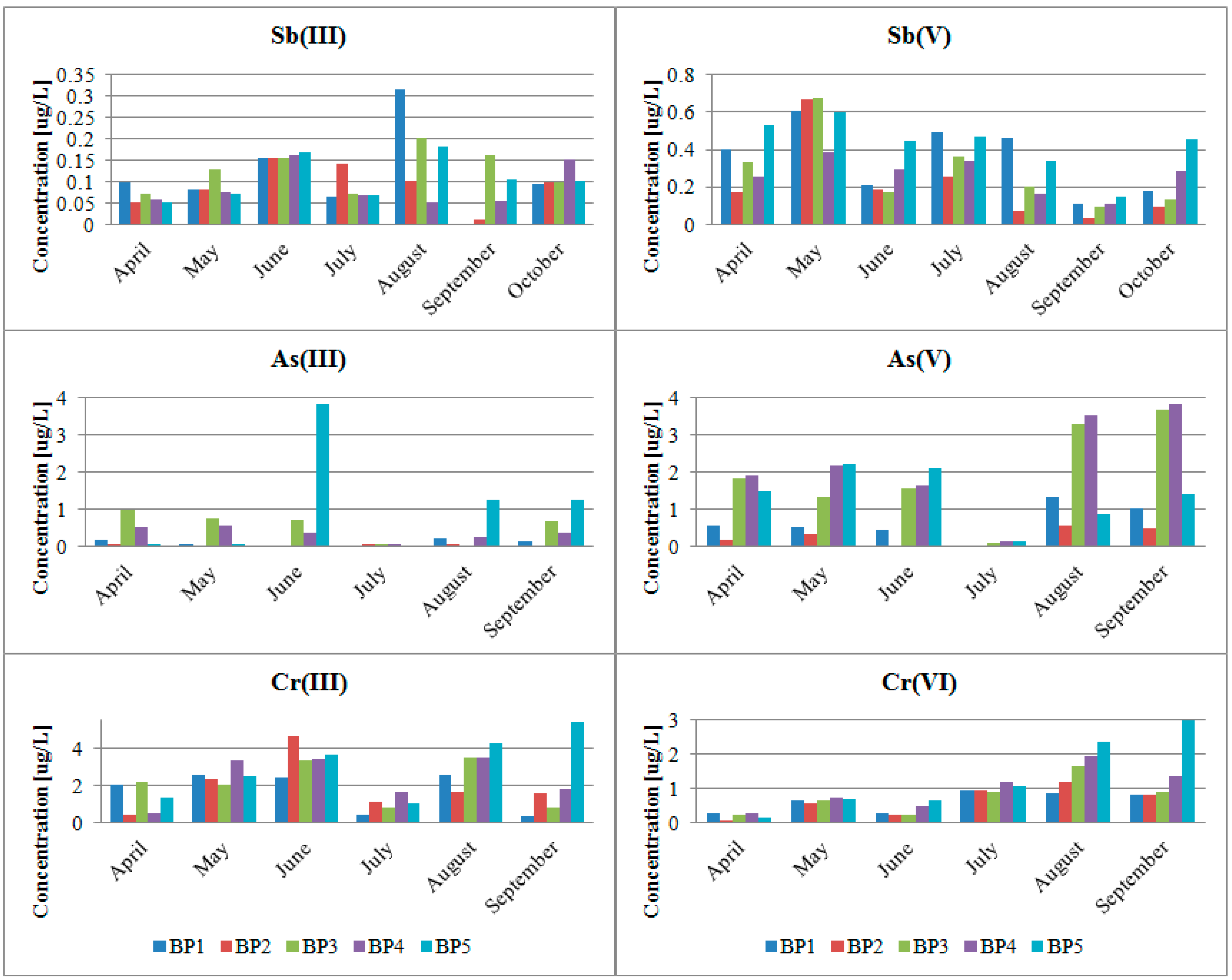

Figure 8. Concentrations of Sb(III)/Sb(V), As(III)/As(V) and Cr(III)/Cr(V) in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Figure 8. Concentrations of Sb(III)/Sb(V), As(III)/As(V) and Cr(III)/Cr(V) in the Biała Przemsza River water; sampling points: BP1—Chrząstowice; BP2—Klucze Osada; BP3—Dąbrowa Górnicza Okradzionów; BP4—Sławków; BP5—Sosnowiec.
Ijerph 12 04739 g008

4.2. Impact of the Pb and Zn Ore Mining Industry on the Pollution of the Biała Przemsza River

The aim of the study was to investigate the content of arsenic, antimony and chromium and their forms in water and bottom sediments of the White Przemsza. However, a very important parameter is also during the study holistic approach to the subject, containing also a very rich martix of samples taken from the Biała Przemsza River. The largest industrial facility in the Biała Przemsza River catchment area is ZGH “Bolesław” in the Olkusz area, which is known for its lead-zinc ore exploitation. That is why the particularly high contents of cadmium, lead and zinc were found in Dąbrowa Górnicza (Okradzionów) and Sławków. High contents of manganese were accompanied by high contents of cadmium and zinc in September (Figure 4). The lowest manganese concentration was found in Klucze. A slightly higher one was observed at BP1 in Chrząstowice (approximate 100 µg/L). The Biała Przemsza River demonstrated mountain character at these two sampling points. Its water was clear and the current was rapid. Over the whole year, the manganese concentration demonstrated a downward trend between April and August. Afterwards, it increased until December 2014, when it reached 326 µg/L at BP5 (Sosnowiec). Due to the total manganese content in the Biała Przemsza River water, it can be classified within Classes II and III of surface water purity. In terms of the manganese content, the water quality was very good (Class I) [20] only at BP2 (Klucze). Polich-Latawiec et al. [12] showed that the mean manganese content in the Sztoła River water (the left-bank Biała Przemsza River tributary) was 30–40 µg/L. The Sztoła River which additionally pollutes the researched river with manganese, lead, cadmium and zinc flows into the Biała Przemsza River at Sławków. The Biała River and Sztoła River supplied the mine water from the Pomorzany lead-zinc ore mine, wastewater from the ZGH “Bolesław” in Bukowno and wastewater treatment plant in Olkusz. Below their mouth, the Biała Przemsza River water became seriously polluted with heavy metals and other elements. Importantly, the manganese content largely exceeded 1 mg/L in May, July, September and December. According to the regulations [17], the zinc content in the river water should also be lower than 1 mg/L. In its lower part, the mean contents of manganese, lead and zinc in the Biała Przemsza River water were 160 µg/L, 35 µg/L and 540 µg/L, respectively [21].
The manganese content was 18–89 µg/L [22] in Chinese rivers such as the TongYu River, Taidong River or Mangshe River. In comparison, the manganese content in the Biała Przemsza River was relatively high (100–350 µg/L), except for the low manganese content at BP2 in Klucze.
The zinc content varied. In Chrząstowice, the river water was Class I. On the other hand, it was Class III–IV in Dąbrowa Górnicza and Sławków [20]. The cadmium content was 0.11–6.67 µg/L. Consequently, the Biała Przemsza River water could be classified within Classes I–III for surface water purity [20]. Due to large lead contents (significantly exceeding 50 µg/L), the river water could not be assigned to any Class.
The highest contents of cadmium, lead and zinc were observed at BP3 and BP4. Such a situation was caused by the Biała Przemsza tributaries. The Biała River, which flows in the Biała Przemsza just ahead of BP3 in Okradzionów, does not have natural sources at present, or they appear seasonally. The majority of the Biała River water is constituted by the mine water from the Pomorzany lead-zinc ore mine, discharged through the Dąbrówka canal. The remaining part comes from the wastewater treatment plant in Olkusz and small tributaries (a number of water fluxes on the left river side). The Biała River heavily pollutes the Biała Przemsza River, particularly in terms of heavy metal contents and suspension.

4.3. Metal (Loid)s and their Forms in Biała Przemsza Bottom Sediments

4.3.1. BCR Extraction Procedure

The results show that arsenic was mainly bound to the oxide and organic-sulphide fractions in the Biała Przemsza bottom sediments. At BP1 and BP2, arsenic was mainly bound to oxides and residual fractions in spring season. At BP2 (Klucze), arsenic occurred in the oxide form, except for summer when it was mainly bound to the organic fraction of the plant origin. At the remaining points, arsenic was bound to the oxide and organic-sulphide fractions. Small arsenic amounts were also bound to the ion-exchange fraction. In third sampling point, arsenic was mainly bound to the organic-sulphide fraction. According to other authors generally, arsenic and antimony are mainly bound to iron hydroxides in the river bottom sediments [23]. The bottom sediment research in the Biała Przemsza River confirmed this information. The highest arsenic concentration was observed in the oxide fraction, particularly at BP1 and BP2.
For antimony, there were seasonal changes in the ion-exchange fraction percentage. It increased during the year and the highest value was found at BP5. The antimony percentage was fairly averaged in particular fractions. The only exception was the sample collected at BP3 in July, where the antimony demonstrated the highest percentage in the organic-sulphide fraction as the bottom sediment was rich in the organic matter at that time. In comparison to arsenic and chromium, the proportion of antimony concentration in the ion exchange fractions was greatest.
Chromium at BP3-BP5 sampling points, was mainly bound to the oxide and residual fractions. At the first two sampling points chromium was also strongly associated with the organic-sulphide fractions.
The Biała Przemsza River is the last river in the Upper Silesian urban area which still maintains its natural character despite centuries of mining exploitation in its catchment area. The mining works have caused irreversible changes in the water environment. Nevertheless, the natural area in the river vicinity has been preserved and constitutes one of the most valuable areas in Silesia. The Biała Przemsza River bottom sediments are rich in lead, cadmium and zinc. They also contain significant amounts of the demobilized arsenic, antimony and chromium which are mainly bound to oxides, organic matter and sulphides. From the biological viewpoint, metals/metalloids bound to the ion-exchange fraction are the most harmful due to their bioavailability.
Due to the surface water self-purification processes, dissolved heavy metal forms are transported into the bottom sediments during sorption and other biochemical processes. Consequently, the water quality could be improved, but the metal concentrations in the bottom sediments increase. The heavy metal content in the bottom sediments is a good indicator for the water environment pollution level [24,25]. At present, it is very popular to calculate the heavy metal pollution index (HPI) [26]. The HPI represents the total water quality in respect to heavy metals.
There are many literature reports on the research into metal and metalloid contents in the river ecosystems [27,28,29,30]. The metal and metalloid speciation from bottom sediments mainly concerns various fractionation procedures, such as BCR [31], Tessier [32] and their modifications [33].

4.3.2. Speciation Analysis Using HPLC-ICP-MS Technique

Only the inorganic arsenic forms were found in the Biała Przemsza River water. The content of the organic arsenic speciation forms (e.g., MMA, DMA and AB) was below the limit of quantification. The fact that there were only inorganic arsenic forms present proves that the Biała Przemsza environmental condition was quite good. The oxidised arsenic form dominated, particularly at BP1 and BP2. In Chrząstowice and Klucze, the Biała Przemsza had still the character of a clear mountain river. From Dąbrowa Górnicza Okradzionów on, the Biała Przemsza River became much more polluted, mainly by its tributaries. That is why, there were large contents of the reduced arsenic form in its water. The highest As(V) concentration was observed at BP3 and BP4 in August and September. Special situation was observed in June 2014, when reported an extremely high concentration of As(III) 3.83 µg/L in a water sample taken from the last sampling point (BP5). Concentration of reduced, ten times more toxic, arsenic form, almost double exceeded the concentration of the oxidized arsenic forms. The obtained results are supported with the total arsenic content in water (Figure 3).
The reduced chromium form dominated in the Biała Przemsza River water. The Cr(VI) content dominated only at BP1. It was comparable at the remaining points in Spring 2014. Such a situation was not random and could have been related to the favourable redox conditions at that time.
Results show that the oxidised antimony form dominated in the Biała Przemsza water. Its maximum value was measured in May 2014. Afterwards, it gradually decreased until September 2014. There was an increase in the reduced antimony form in August-September. The highest Sb(III) concentration (0.31 µg/L) was observed at BP1 in August.
There are not many environmental river studies discussing metal and metalloid speciation determined with hyphenated analysis methods. HPLC-ICP-MS was successfully used for studying the water of the Kamo-Ichinokawa river system in Japan [34]. The oxidation state of antimony in all the river samples determined with HPLC-ICP-MS was pentavalent, possibly dissolved as Sb(OH)6. When Miyashita et al. [35] investigated the Hayakawa River (Japan), they found only the As(V) content. The organic speciation arsenic forms (e.g., MMA, DMA, AsB or arsenosugars) were only found in the researched fish and other aquatic living organisms. The dominant arsenic oxidation state in the river water was pentavalent. The chromium forms in research conducted in the Sacramento River (California, CA, USA) [36] demonstrated the presence of both speciation analyte forms. Similar results were obtained for the Biała Przemsza River. On average, the Cr(III) content was 2–3 times higher than the Cr(VI) one. Nonetheless, the Cr(VI) level was approx. 1 µg/L in the Biała Przemsza River water.

5. Conclusions

The application of HPLC-ICP-MS enabled speciation analysis of arsenic, antimony and chromium forms at the ultra-trace levels. The optimized method was selective and has a low detection limits. The repeatability, intermediate precision and accuracy allow for its use in trace analysis of environmental samples.
The obtained results confirm prior literature studies. Apart from a few exceptions, due to the contents of the toxic Cr(VI), Sb(III) or As(III) forms, the Biała Przemsza River can be classified as a river that does not pose environmental threat and significant ecological hazard. On the other hand, contents of cadmium, lead, manganese or zinc were also observed. Their presence was caused by well-developed mining and metallurgic industries in the Biała Przemsza catchment area. These industries influenced the condition of the surface water and bottom sediments. The largest industrial facility present in the Biała Przemsza catchment area is ZGH “Bolesław” (known for lead-zinc ore exploitation), located in the Olkusz area. Unfortunately, due to its activity, large amounts of elements were found in the Biała Przemsza River water and bottom sediments.

Acknowledgments

The study is a part of the MoSpeSil research project (Small Grant Scheme 2012; the Polish-Norwegian Research Programme) executed in 2013–2015. The project is financed with the Norwegian funds as a part of the Polish-Norwegian Research Programme carried out by the National Centre for Research and Development.

Author Contributions

The author declares that has made a substantial contribution to the design of the study, to the production, analysis and interpretation of the results. Author has been involved in the preparation and has approved the submitted manuscript.

Conflict of Interests

The author declares no conflict of interest.

References

  1. Cornelis, R.; Caruso, J.; Crews, H.; Heumann, K. Handbook of Elemental Speciation: Techniques and Methodology; John Wiley & Sons Ltd.: Chichester, UK, 2005; pp. 47–85. [Google Scholar]
  2. Templeton, D.M.; Ariese, F.; Cornelis, R.; Danielsson, L.; Muntau, G.H.; Van Leeuwen, H.P.; Lobinski, R. Guidelines for terms related to chemical speciation and fractionation of elements definitions, structural aspects, and methodological approaches. Pure Appl. Chem. 2000, 72, 1453–1470. [Google Scholar] [CrossRef]
  3. Jabłońska-Czapla, M.; Szopa, S.; Grygoyć, K.; Łyko, A.; Michalski, R. Development and validation of HPLC-ICP-MS method for the determination inorganic Cr, As and Sb speciation forms and its application for Pławniowice reservoir (Poland) water and bottom sediments variability study. Talanta 2014, 120, 475–483. [Google Scholar] [CrossRef]
  4. Das, A.K.; Guardia, M.; Cervera, M.L. Literature survey of on-line elemental speciation in aqueous solutions. Talanta 2001, 55, 1–28. [Google Scholar] [CrossRef]
  5. Chou, J.; De Rosa, C.T. Case studies—Arsenic. Int. J. Hyg. Environ. Health 2003, 206, 381–386. [Google Scholar] [CrossRef]
  6. Kotaś, J.; Stasicka, Z. Chromium occurrence in the environment and methods of its speciation. Environ. Pollut. 2000, 107, 263–283. [Google Scholar] [CrossRef]
  7. Nriagu, J.O.; Nioboer, E. Chromium in Natural and Human Environments; Wiley Interscience: New York, NY, USA, 1988; pp. 51–62. [Google Scholar]
  8. Kabata-Pendias, A.; Pendias, H. Biogeochemia Pierwiastków Śladowych; Wydawnictwo Naukowe Polskie Wydawnictwo Naukowe: Warszawa, Poland, 1999; pp. 246–257. [Google Scholar]
  9. Michalski, R.; Jabłońska-Czapla, M.; Łyko, A.; Szopa, S. Hyphenated methods for speciation analysis. In Encyclopedia of Analytical Chemistry; John Wiley & Sons. Ltd.: Chechester, UK, 2013; pp. 1–17. [Google Scholar]
  10. Michalski, R.; Jabłońska, M.; Szopa, S. Role and importance of hyphenated techniques in speciation analysis. In Speciation Studies in Soil Sediment and Environmental Samples; Bakirdere, S., Ed.; CRC Press: Boca Raton, FA, USA, 2013; pp. 242–262. [Google Scholar]
  11. Michalski, R.; Jabłońska, M.; Szopa, S.; Łyko, A. Application of ion chromatography with ICP-MS or MS detection to the determination of selected halides and metal/metalloids species. Crit. Rev. Anal. Chem. 2011, 41, 133–150. [Google Scholar] [CrossRef]
  12. Policht-Latawiec, A.; Kanownik, W.; Grubka, K. Characteristics of selected physicochemical indices of upland carbonate stream water with coarse-grained substrate. J. Ecol. Eng. 2014, 4, 23–28. [Google Scholar]
  13. Nocoń, W.; Nocoń, K.; Barbusiński, K.; Kernert, J. The influence of zinc-lead ore mining industry on the level of the Biała Przemsza bottom sediments contamination. ACEE 2012, 1, 1–6. [Google Scholar] [CrossRef]
  14. Lis, J.; Pasieczna, A. Detailed Geochemical Map of Upper Sile—Sia. Pilot Sheet Sławków; Państwowy Instytut Geologiczny: Warszawa, Poland, 1999; pp. 1–21. [Google Scholar]
  15. Tokalioglu, S.; Kartal, S.; Birol, G. Application of three stage sequential extraction procedure for the determination of extractable metal contents in highway soils. Turk. J. Chem. 2003, 27, 333–346. [Google Scholar]
  16. Geotechnical studies—laboratory testing soil—Part 4: Determination of particle size. Available online: http://sklep.pkn.pl/pkn-cen-iso-ts-17892-4-2009p.html (accessed on 23 April 2015).
  17. Regulation of Minister of Environment on 22 October 2014. Available online: http://isap.sejm.gov.pl/DetailsServlet?id=WDU20140001482 (accessed on 30 October 2014).
  18. Jabłońska-Czapla, M. Arsenic, antimony and chromium speciation using HPLC-ICP-MS technique in selected rivers ecosystems of Upper Silesia. In Proceedings of Poland-Validation of Methodology—the 38th International Symposium on Environmental Analytical Chemistry, Lausanne, Switzerland, 17–20 June 2014.
  19. Policht-Latawiec, A.; Kapica, A. Influence of hard coal mine on water quality in the vistula river. Rocz. Ochr. Sr. 2013, 15, 2640–2651. [Google Scholar]
  20. Regulation of Minister of Environment on 11 February 2004. Available online: http://isap.sejm.gov.pl/DetailsServlet?id=WDU20040320284 (accessed on 11 February 2004).
  21. Pasieczna, A.; Dusza-Dobek, A.; Markowski, W. Effect of coal mining and steel metal water quality in Biała Przemsza and Bobrek River. Min. Geol. 2010, 5, 181–190. [Google Scholar]
  22. Wang, J.; Li, A.; Wang, Q.; Zhou, Y.; Fu, L.; Li, Y. Assessment of the manganese content of the drinking water source in Yancheng, China. J. Hazard. Mater. 2010, 182, 259–265. [Google Scholar] [CrossRef]
  23. Landrum, J.T.; Bennett, P.C.; Engel, A.S.; Alsina, M.A.; Pasten, P.A.; Miliken, K. Partitioning geochemistry of arsenic and antimony, El Tatio Geyser, Chile. App. Geochem. 2009, 24, 664–676. [Google Scholar] [CrossRef]
  24. Ciszewski, D. Heavy metals in vertical profiles of the middle Odra River overbank sediments: Evidence for pollution changes. Water Air Soil Pollut. 2003, 143, 81–98. [Google Scholar] [CrossRef]
  25. Giri, S.; Singh, A.K. Assessment of surface water quality using heavy metal pollution index in Subarnarekha River, India. Water Qual. Expos. Health 2014, 5, 173–182. [Google Scholar] [CrossRef]
  26. Yang, X.; Duan, J.; Wang, L.; Wei, L.; Guan, J.; Beecham, S.; Mulcahy, D. Heavy metal pollution and health risk assessment in the Wei River in China. Environ. Monit. Assess. 2015, 187, 111–121. [Google Scholar] [CrossRef]
  27. Ciszewski, D. Flood-related changes in heavy metal concentrations within sediments of the Biała Przemsza River. Geomorphology 2001, 40, 205–218. [Google Scholar] [CrossRef]
  28. Wardas, M.; Budek, L.; Helios-Rybicka, E. Variability of heavy metals content in bottom sediments of the Wilga River, a tributary of the Vistula River (Kraków area, Poland). Appl. Geochem. 1996, 11, 197–202. [Google Scholar] [CrossRef]
  29. Taylor, M.P.; Kesterton, R.G.H. Heavy metal contamination of arid river environment: Gruben River, Namibia. Geomorphology 2002, 42, 311–327. [Google Scholar] [CrossRef]
  30. Samarina, V.P. The effect of a mining and smelting plant on the dynamics of heavy metals in small river basins in the zone of Kursk-Belgorod magnetic anomaly. Water Resour. 2003, 30, 550–558. [Google Scholar] [CrossRef]
  31. Jiang, B.F.; Sun, W.L. Assessment of heavy metal pollution in sediment from Xiangjiang River (China) using sequential extraction and lead isotope analysis. J. Cent. South Univ. Technol. 2014, 21, 2349–2358. [Google Scholar] [CrossRef]
  32. Wang, L.; Yu, R.; Hu, G.; Tu, X. Speciation an assessment of heavy metals in surface sediments of Jinjiang River tidal reach, southeast of China. Environ. Monit. Assess. 2010, 165, 491–499. [Google Scholar] [CrossRef]
  33. Lasheen, M.R.; Ammar, N.S. Speciation of some heavy metals in River Nile sediments, Cairo, Egypt. Environmentalist 2009, 29, 8–16. [Google Scholar] [CrossRef]
  34. Asoaka, S.; Taakahashi, Y.; Araki, Y.; Tanimizu, M. Comparison of antimony and arsenic behavior in an Ichinokawa River water-sediment system. Chem.Geol. 2012, 334, 1–8. [Google Scholar] [CrossRef]
  35. Miyashita, S.; Shimoya, M.; Kamidate, Y.; Kuroiwa, T.; Shikino, O.; Fujiwara, S.; Francesconi, K.A.; Kaise, T. Rapid determination of arsenic species in freshwater organisms from the arsenic-rich Hayakawa River in Japan using HPLC-ICP-MS. Chemosphere 2009, 75, 1065–1073. [Google Scholar] [CrossRef]
  36. Bednar, A.J.; Kirgan, R.A.; Jones, W.T. Comparison of standard and reaction cell inductively coupled plasma mass spectrometry in the determination of chromium and selenium species by HPLC-ICP-MS. Anal.Chim. Acta 2009, 632, 27–34. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Jabłońska-Czapla, M. Antimony, Arsenic and Chromium Speciation Studies in Biała Przemsza River (Upper Silesia, Poland) Water by HPLC-ICP-MS. Int. J. Environ. Res. Public Health 2015, 12, 4739-4757. https://doi.org/10.3390/ijerph120504739

AMA Style

Jabłońska-Czapla M. Antimony, Arsenic and Chromium Speciation Studies in Biała Przemsza River (Upper Silesia, Poland) Water by HPLC-ICP-MS. International Journal of Environmental Research and Public Health. 2015; 12(5):4739-4757. https://doi.org/10.3390/ijerph120504739

Chicago/Turabian Style

Jabłońska-Czapla, Magdalena. 2015. "Antimony, Arsenic and Chromium Speciation Studies in Biała Przemsza River (Upper Silesia, Poland) Water by HPLC-ICP-MS" International Journal of Environmental Research and Public Health 12, no. 5: 4739-4757. https://doi.org/10.3390/ijerph120504739

Article Metrics

Back to TopTop
