Isolation and Biological Activity of Iezoside and Iezoside B, SERCA Inhibitors from Floridian Marine Cyanobacteria
1
Department of Medicinal Chemistry and Center for Natural Products, Drug Discovery and Development (CNPD3), University of Florida, 1345 Center Drive, Gainesville, FL 32610, USA
2
Smithsonian Marine Station at Ft. Pierce, 701 Seaway Drive, Fort Pierce, FL 34949, USA
*
Author to whom correspondence should be addressed.
Mar. Drugs 2023, 21(7), 378; https://doi.org/10.3390/md21070378
Submission received: 30 May 2023
/
Revised: 20 June 2023
/
Accepted: 23 June 2023
/
Published: 27 June 2023
(This article belongs to the Special Issue Bioactive Products from Marine Cyanobacteria and Their Potential Therapeutic Applications 2022)
Abstract
:Marine cyanobacteria are a rich source of bioactive natural products. Here, we report the isolation and structure elucidation of the previously reported iezoside (1) and its C-31 O-demethyl analogue, iezoside B (2), from a cyanobacterial assemblage collected at Loggerhead Key in the Dry Tortugas, Florida. The two compounds have a unique skeleton comprised of a peptide, a polyketide and a modified sugar unit. The compounds were tested for cytotoxicity and effects on intracellular calcium. Both compounds exhibited cytotoxic activity with an IC50 of 1.5 and 3.0 μΜ, respectively, against A549 lung carcinoma epithelial cells and 1.0 and 2.4 μΜ against HeLa cervical cancer cells, respectively. In the same cell lines, compounds 1 and 2 show an increase in cytosolic calcium with approximate EC50 values of 0.3 and 0.6 μΜ in A549 cells and 0.1 and 0.5 μΜ, respectively, in HeLa cells, near the IC50 for cell viability, suggesting that the increase in cytosolic calcium is functionally related to the cytotoxicity of the compounds and consistent with their activity as SERCA (sarcoplasmic/endoplasmic reticulum Ca2+-ATPase) inhibitors. The structure–activity relationship provides evidence that structural changes in the sugar unit may be tolerated, and the activity is tunable. This finding has implications for future analogue synthesis and target interaction studies.
1. Introduction
Calcium ions (Ca2+) regulate various cellular processes by activating gene transcription, cell proliferation and migration [1,2]. The cytosolic levels of calcium are maintained at sub-micromolar concentrations, while the extracellular levels are at high millimolar concentrations. Most of the intracellular Ca2+ is stored in the endoplasmic reticulum (ER), which is enriched in calcium-binding proteins [1]. Calcium is exchanged between the cytosol and the ER in three different ways: channels, which allow transport from the ER to the cytosol; exchangers of Na+/Ca2+, which use the Na+ gradient to transport Ca2+; and pumps (sarcoplasmic/endoplasmic reticulum Ca2+-ATPase, SERCA), which transport Ca2+ against the concentration gradient into the ER [2,3]. In recent years, it has been reported that cancer cells have altered expression of SERCA pumps, making them a potential target. Inhibition of the SERCA pump leads to high levels of Ca2+ in the cytosol, which is toxic and, if prolonged, results in growth arrest and apoptosis of the cells [4,5].
Over 30,000 marine natural products have been identified, with many of them demonstrating some type of biological activity and marine cyanobacteria emerging as an important source of drug leads [6,7,8]. To date, there are several natural products that inhibit the different isoforms of SERCA, including thapsigargin, cyclopiazonic acid, biselyngbyasides, kurahyne and iezoside (1) [9,10,11,12,13,14,15,16,17]. Thapsigargin, a sesquiterpene lactone isolated from Thapsia garganica, is a potent SERCA inhibitor that binds irreversibly and results in cell apoptosis [4,18]. An analogue of thapsigargin, mipsagargin is currently in clinical trials against hepatocellular carcinoma [18,19,20,21]. Biselyngbyasides are a family of cyanobacterial secondary metabolites that inhibit SERCA. The binding site of biselyngbyasides was identified through co-crystallization with the Ca2+ pump and was shown to be in a distinct site from that of thapsigargin [22].
Iezoside (1) (Figure 1) was previously isolated from a filamentous marine cyanobacterium collected from Ie Island, Okinawa, Japan, that was identified based on morphology as Leptochromothrix valpauliae. Molecular phylogenetic analysis indicated that while the cyanobacterium was related to Leptochromothrix spp., it was phylogenetically distinct and likely represented a new species (Figure S1 in [13]). Iezoside consists of three moieties: a polyketide unit, a peptide unit and a rhamnose sugar. The planar structure, double bond geometry and relative configuration of the sugar unit were determined by NMR. The absolute configuration of the molecule was determined by amino acid analysis, Mosher’s method for the sugar moiety and circular dichroism for the polyketide unit. The uncertain C18–C19 configuration required the total synthesis (16 steps LLS, 4.4% total yield) to conclusively assign the complete 3D structure. Using computational methods and electronic circular dichroism (ECD), the compound was limited to two potential isomers, 18R,19R or 18S,19R. The total synthesis indicated that 1 had the 18R,19R configuration. Iezoside (1) was identified as a SERCA inhibitor that promotes cell cycle delay and induces apoptosis pathways, with an IC50 for cell viability of 6.8 nM against HeLa cells and a Ki of 7.1 nM on SERCA1a [13].
We previously reported the discovery of lagunamide D (3) (Figure 1), a 26-membered macrocycle from a collection of marine cyanobacteria comprised of mainly Dichothrix sp. and Lyngbya sp. Compound 3 was shown to be a mitochondrial cytotoxin, with potent antiproliferative activity and an IC50 of 7.1 nM against A549 lung adenocarcinoma cells [23,24]. The same extract and fraction that yielded 3 was further investigated based on its NMR profile. Here, we report the isolation of iezoside (1) and a new, O-demethyl analogue, iezoside B (2) (Figure 1) [13]. Both compounds were isolated in sub-milligram quantities. Iezoside (1) was four-fold more abundant than iezoside B (2), and logically, we first determined the structure of the major compound, which provided clues about the structural differences of the new minor analogue. Our structure determination of iezoside B (2) relied on the NMR comparison in DMSO-d6, which required us to first conclusively demonstrate that the structures (except the methylation pattern) are identical. Since iezoside (1) from Japan was shown to be a cytotoxic and potent SERCA inhibitor, 2 was tested for its cytotoxicity and its effect on intracellular calcium. We compared the potencies of 1 and 2 side-by-side to interrogate the effect of the methylation pattern in the sugar moiety on its activity.
2. Results
2.1. Isolation and Structure Elucidation
The cyanobacterial assemblage was lyophilized and extracted using 1:1 EtOAc/MeOH followed by 1:1 EtOH:H2O and further partitioned between EtOAc and H2O, followed by partitioning the polar layer between n-BuOH and H2O. The EtOAc soluble portion was further subjected to fractionation using reversed-phase chromatography to yield 0.8 mg of iezoside (1) and 0.2 mg of iezoside B (2).
Iezoside (1) was isolated as a colorless oil with a molecular formula of C37H59N3O7S ([M+H]+ 690.4104, calcd. for C37H60N3O7S, 690.4152) as determined by HRESIMS. The structure was established in three parts by NMR analysis in DMSO-d6, while data for iezoside (1) from the Okinawan cyanobacterium were published in acetone-d6 after we had completed our analysis [13]. Briefly, a tripeptide unit was determined by COSY and HMBC correlations as Thz-Leu-N-Me-Ala (Table 1, Figure 2). The broadening of the H-10 (δH 4.83), H-11 (δH 1.29) and H-12 (δH 2.78) as well as the lack of HSQC signals were observed in DMSO-d6, similarly to the published 1 [13]. The broadening was attributed to the slow conformational exchange of the N-Me-Ala residue. The polyketide unit was established using the COSY and HMBC correlations in Figure 2 and Table 1, similarly as described [13]. H-21 (δH 6.14) had to be part of a trans double bond (J = 15.7 Hz) with H-20 (δH 5.29). H-16 (δH 6.09) was part of a conjugated diene with s-trans configuration (J = 11.2) with H-15 (δH 6.32), which also showed HMBC correlation to C-26 (δC 14.3). To complete the polyketide unit, H-26 (δH 1.83) showed HMBC correlations to C-14 (δC 130.2) and C-13 (δC 173.0). The two units were connected based on the HMBC correlations of H-26 and H-12 (δH 2.78) to C-13. Finally, the sugar moiety was determined as a 2,3-O-dimethyl-methylpentose, based on COSY and HMBC correlations and connected to the rest of the structure based on the HMBC correlations of H-30 (δH 4.69) to C-19 (δC 78.2), completing the planar structure.
Iezoside B (2) was isolated from the same fraction as iezoside (1) and had a molecular formula of C36H57N3O7S as determined by HRESIMS ([M+H]+ 676.3990 calcd. 676.3954) with 10 degrees of unsaturation. Compound 2 differs by 14 mass units (CH2) from 1, which is attributed to the lack of the methoxy group at C-31 (Figure 1, Figure 2 and Figure 3), as detailed below.
The structure of 2 was established based on 1D and 2D NMR analysis in DMSO-d6 (Table 1, Figure 3). The thiazole ring was established based on characteristic 1H and 13C NMR chemical shifts (Table 1), coupled with COSY and HMBC data. H-1 (δH 7.70) showed a COSY correlation to H-2 (δH 7.58) and an HMBC correlation to C-3 (δC 173.6), supporting the thiazole structure. The HMBC correlation of H-4 (δH 5.19) to C-3 extended the structure by a leucine unit, based on the COSY correlations of H-4 to 4-NH (δH 8.56) and to H-5 (δH 1.77) and of H-5 to H-6 (δH 1.65). H-6 showed COSY correlations to H-7 (δH 0.91) and H-8 (δH 0.87).
The adjacent N-Me alanine unit was connected based on the HMBC correlation of H-11 (δH 1.28) and 4-NH to C-9 (δC 170.6). Similarly, as observed and reported for 1, broadening of the proton signals occurred, and the unit also did not show correlations in the HSQC spectrum [13].
The polyketide unit (C13–C29) was established as three spin systems with three trisubstituted double bonds and one disubstituted double bond that could be connected due to HMBC correlations. The first unit (C22–C25) was established from the COSY correlations of H-25 (δH 0.93) to H-24 (δH 2.07) and of H-24 to H-23 (δH 5.48), which belonged to a trisubstituted double bond. The HMBC from H-23 to C-29 (δC 12.1) and of H-29 (δH 1.63) to the non-protonated C-22 (δC 131.8) established that C-22 was methylated.
The COSY correlations of H-21 (δH 6.11) to H-20 (δH 5.26), of H-20 to H-19 (δH 3.91), of H-19 to H-18 (δH 2.43) and finally of H-18 to H-28 (δH 1.10) established a linear 5-carbon chain (methylated C18–C21), which was connected to the methylated C22–C25 unit as shown by HMBC correlation of H-29 to C-21 (δC 138.0). E-configuration of the C20–C21 double bond was confirmed by proton–proton coupling constant (J = 15.7 Hz).
The remaining α,β,γ,δ-unsaturated carbonyl system of the polyketide unit, consisting of two trisubstituted double bonds, was connected based on the HMBC correlations of H-18 and H-27 (δH 1.64) to the quaternary C-17 (δC 142.2). H-27 showed further HMBC correlations to C-16 (δC 121.0), and H-16 (δH 6.10) showed a COSY correlation to H-15 (δH 6.31), which in turn has an HMBC correlation to C-26 (δC 14.6). Finally, H-26 (δH 1.82) showed an HMBC correlation to C-14 (δC 130.4) and to C-13 (δC 173.1), which positioned the polyketide unit next to the N-Me alanine unit based on the HMBC correlation of H-12 (δH 2.78) to C-13. The configuration of the conjugated diene was established by NOESY (Figure 2).
The remaining unit was determined as a 3-O-methyl-methylpentose based on the COSY correlations of H-30 (δH 4.55) to H-31 (δH 3.75) and of that to H-32 (δH 3.12), which in turn had a COSY correlation to H-33 (δH 3.28), and that to H-34 (δH 3.48), which finally had a COSY correlation to H-35 (δH 1.13). The HMBC correlation of H-37 (δH 3.31) to C-32 (δC 80.7) guided the positioning of the O-Me, while the HMBC correlation of H-30 to C-19 (δC 78.0) completed the planar structure.
The configuration of C-20/C-21 and C-15/C-16 for both 1 and 2 was determined as trans and s-trans, respectively, based on the J coupling constants (15.7 Hz and 11.2 Hz, respectively). The absolute configuration of C-18/C-19 was determined by comparison of its circular dichroism (CD) spectra to the literature, as shown in Figure 4 [13]. Compound 2 shows a similar Cotton effect as 1. Iezoside (1) shows a negative Cotton effect at 258 nm (Δε −3.6) and a positive at 234 nm (Δε +5.9), while iezoside B (2) shows a negative Cotton effect at 272 nm (Δε −1.2) and a positive at 232 nm (Δε +8.9). According to the published data for 1, the C18/C19 configuration would be either 18R,19R or 18S,19R [13]. The NMR data for 1 was initially collected in DMSO-d6 and later compared and matched to the literature values for iezoside (1) in acetone-d6 as the planar structures and relative configuration of the compounds were identical (Figure S8, Table S1) [13]. By comparison of the 1H NMR spectra, the isolated compound matched the natural iezoside and not the 18S,19R-unnatural analogue; therefore, the absolute configuration was determined as 18R,19R [13]. The key differences between the two diastereomers were the H-27 and H-29 shifts as well as the upfield shift of the H-28 from δH 1.12 to δH 0.96. Coupling constants and NOESY data supported the relative configuration of the sugar moiety as rhamnose (Figure 2 and Figure 3), indicating the presence of 2,3-O-dimethyl-α-l-rhamnose in 1 and 3-O-methyl-α-l-rhamnose in 2. For 1, the sugar moiety was determined as rhamnose using the coupling constant between H-30 and H-31 (J 1.8 Hz) as well as the NOE correlations between H-31/H-34 and H-32/H-34. For 2, the relative configuration was established using the coupling constant of H-34 to H-33 (J 11.8 Hz), and the NOE correlations between H-31/H-32 and H-31/H-30. H-30 is a broad singlet, indicating a small coupling constant to H-31 and further supporting the relative configuration. Amino acid analysis following ozonolysis and acid hydrolysis revealed L-Leu and N-Me-Ala as in published 1 [13]. Finally, the optical rotation ([α]20D = +18.2 (c 0.05, CHCl3)) was compared to the reported data for 1 ([α]25D = +56 (c 0.38, CHCl3)), [13] suggesting the same absolute configuration. The data for 2 ([α]20D = +18.7 (c 0.013, CHCl3)) matched closely and in sign with those of 1, suggesting 2 has the same absolute configuration as 1 [13].
2.2. Cytotoxicity and Effect on Intracellular Calcium
Since compounds 1 and 2 were isolated from the same fraction as the cytotoxic lagunamide D (3), they were originally tested for their cytotoxicity against A549 cells as described for 3 [23]. Iezoside (1) and B (2) were shown to possess micromolar activity against A549 cells. Iezoside (1) was shown to be two-fold more active than 2 with IC50 values of 1.5 and 3.0 μΜ, respectively (Figure 5A). Both compounds were shown to be non-cytotoxic against primary human small airway epithelial cells (HSAEC), showing over 70% viability at the highest tested concentration (10 μM) compared to the ~20% shown in the A549 line (Figure 5D), suggesting a potential preference for lung cancer cells over normal small airway epithelial cells. Thapsigargin showed a similar reduced cytotoxicity in HSAEC as shown in Figure S20.
The antiproliferative activity of 1 was originally observed in HeLa cells, concomitant with a change in morphology, an increase in cells in G1 phase and a decrease in cells in S phase, indicating a cell cycle delay [13]. Furthermore, 1 was tested in 39 human cancer cell lines by the Japanese Foundation for Cancer Research 39 (JFCR39), and the fingerprint showed similarities to that of thapsigargin and A23187. Iezoside (1) shows a similar phenotype in HeLa cells as thapsigargin and cyclopiazonic acid, both of which are SERCA inhibitors [14,16,17]. To further investigate that SERCA was the presumptive functional target of 1, the compound was evaluated for its inhibitory effect of SERCA1a via a coupled enzyme assay and downstream effect on the expression of cell cycle regulation and apoptosis proteins [13].
With the prior knowledge of 1 being a SERCA inhibitor, both compounds were tested for their effect on cytosolic calcium oscillations in A549 cells, alongside thapsigargin. An increase in cytosolic calcium was observed near the IC50 for 1 and 2 (0.32 and 1 μΜ) with an approximate ΕC50 of 0.3 μM and 0.6 μM, respectively (Figure 5B,C, following the same trend as the antiproliferative activity for both compounds (Table 2).
The compounds were also tested for their cytotoxicity in HeLa cells, similarly as described in the literature [13]. The compounds showed an IC50 of 1.0 and 2.4 μΜ, respectively, at 48 h (Figure 5E), with compound 1 being 2.3-fold more potent than 2. Our IC50 values are somewhat higher than reported (6.8 nM), although the precise experimental condition differed, including incubation time (72 h) and, possibly, genetic variations in the cell line [13]. Both compounds were shown to reduce cell viability of primary cervical epithelial cells with an IC50 of 0.02 and 0.05 μΜ, respectively (Figure 5H), while thapsigargin was two-fold more potent against primary cervical epithelial cells compared to HeLa cells (0.06 ± 0.04 μΜ in HeLa cells and 0.03 ± 0.01 μΜ in the primary cells). This data suggests substantial cell type-dependent differences and that the preference for cancer cells over normal cells cannot be generalized. The spindle-like morphology of HeLa cells that was previously observed for 1 was also noticeable in our experiments (Figure 6A), suggesting that 2 has a similar mechanism of action [13]. At the tested concentration, 26.5 ± 1.0% of the cells treated with 1 and 14.3 ± 0.4% of the cells treated with 2 showed the spindle-like morphology after 24 h of exposure (Figure 6B). In the calcium assay using HeLa cells, a similar fold difference was detected with activity at an approximate ΕC50 of 0.1 μM and 0.5 μM for 1 and 2, respectively (Figure 5F,G, Table 2).
The effective concentration observed for both in the intracellular calcium assay is in the same order of magnitude as the viability assay and shows the same fold difference between the two compounds. These data indicate that the O-methyl in position C-31 is not essential for the activity of the compound class (Figure 5B,C,E,F) (Table 2), but that the C-31 O-Me group has incremental contribution to the overall activity at the level of target engagement and calcium flux as well as antiproliferative activity. This structure-activity relationship (SAR) suggests that the activity is potentially tunable through modification in the sugar moiety.
3. Materials and Methods
3.1. General Experimental Procedures
The optical rotations were recorded on a Rudolph Research Analytical Autopol III automatic polarimeter. NMR data were collected on a Bruker Avance II 600 MHz, high resolution 5-mm cryoprobe spectrometer operating at 600 MHz for 1H and 150 MHz for 13C, using residual solvent signals (δH 2.50; δC 39.5 ppm DMSO-d6, δH 2.50 ppm (CD3)2CO) as internal standards. The edited HSQC and HMBC experiments were optimized for 1JCH = 140 Hz nJCH = 8 Hz, unless indicated otherwise (3 Hz HMBC). HRMS data were obtained using a Bruker Daltonics, Impact II QTOF with electrospray ionization (ESI). Chiral analysis was performed using an Agilent 6230 ESI-ToF and an Applied Biosystems 3200 QTRAP triple quad/linear trap. The effect on intracellular calcium was measured using a Molecular Devices Flexstation instrument. Circular Dichroism data were collected on a Chirascan™ Circular Dichroism Spectrometer (Applied Photophysics, Surrey, UK), with the Pro-Data Chirascan and Pro-Data viewer software 4.7.0.
3.2. Biological Material
The cyanobacterial tufts (DRTO 85) were collected from the shallow reef at Loggerhead Key, FL, on 9 May 2015. The cyanobacterial assemblage was microscopically identified as a mixture of Dichothrix sp., Lyngbya sp. and Rivularia sp. [23]. The Smithsonian Marine Station, Fort Pierce, FL, USA, maintains a voucher.
3.3. Extraction and Isolation
The cyanobacterium was lyophilized and extracted using 1:1 EtOAc:MeOH followed by 1:1 EtOH:H2O to provide 9.22 g and 11.88 g of extract, respectively. The extract was partitioned between EtOAc and H2O, followed by partitioning the polar layer between n-BuOH and H2O. The EtOAc fraction was subjected to a silica column using hexanes and increasing amounts of EtOAc, followed by increasing amounts of MeOH in EtOAC to give thirteen fractions. The SiO2 fraction eluting with 25% MeOH in EtOAc was further purified using a snap C18 column with increasing amounts of MeOH in H2O. The fraction eluting at 100% MeOH was further purified using a H2O/MeOH gradient (80–90% for 30 min, followed by 100% over 15 min) by HPLC (Phenomenex Synergi 4 μ Hydro-RP 80 Å, 250 × 10 mm, 4 μm; flow rate, 2.0 mL/min; UV detection at 200 nm and 220 nm), from which the fractions at tR 18 min and tR 24 min were further purified. The first fraction was purified using a H2O/ACN gradient (60–70% for 30 min, followed by 100% over 10 min) by HPLC (Phenomenex Synergi 4μ Hydro-RP 80 Å column, 250 × 10 mm, 4 μm UV detection at 200 nm, 2 mL/min) and yielded iezoside B (2) (0.2 mg) at tR 25.5 min. The second fraction was further purified using a H2O/ACN gradient (60–80% for 30 min, followed by 100% over 10 min) by HPLC (Phenomenex Synergi 4μ Hydro-RP 80 Å column, 250 × 10 mm, 4 μm UV detection at 200 nm, 2 mL/min) which yielded iezoside (1) (0.8 mg) at tR 30.1 min.
Iezoside (1): colorless oil, [α]20D = +18.2 (c 0.05, CHCl3), reported [α]25D = +56 (c 0.38, CHCl3), [13] CD (MeOH) Δε234 +5.9, Δε258 −3.6, 1H NMR, 13C NMR, COSY, and HMBC data in DMSO-d6, see Table 1; 1H NMR data in acetone-d6, see Table S1; HRESIMS m/z ([M+H]+ 690.4104 (calcd. for C37H60N3O7S, 690.4152).
Iezoside B (2): colorless oil, [α]20D = +18.7 (c 0.013, CHCl3), CD (MeOH) Δε232 +8.9, Δε272 −1.2, 1H NMR, 13C NMR, COSY, and HMBC data in DMSO-d6 see Table 1; HRESIMS m/z ([M+H]+ 676.3990 (calcd. for C36H58N3O7S, 676.3954).
Ozonolysis and acid hydrolysis: A portion (50 μg) of 1 and 2 were dissolved in 3 mL of DCM, and O3 was bubbled in at −78 °C for 20 min. The samples were dried under nitrogen and were subjected to oxidative workup (2:1 FA:H2O2, 70 °C, 30 min). The samples were dried under vacuum, subjected to acid hydrolysis (6 N HCl, 110 °C, 18 h) and then evaporated to dryness. The samples were reconstituted in 50 μL H2O and subjected to chiral analysis using three separate conditions. Condition 1: (Chirobiotic TAG (4.6 mm × 250 mm), Supelco; solvent, MeOH −10 mM NH4OAc (40:60); flow rate, 0.5 mL/min; detection by ESIMS in positive mode)]. The retention times (tR, min) were as follows: L-Leucine (8.7 min). Both N-Me-L-Alanine (9.9 min) and N-Me-D-Alanine (47.0 min) were observed at a 1:5 ratio, indicating the presence of N-Me-D-Alanine. The authentic standards eluted at L-Leucine (8.7 min), D-Leucine (15.21 min), N-Me-L-Alanine (9.9 min), N-Me-D-Alanine (47.0 min).
3.4. Cell Viability Assay
A549 (American Type Culture Collection, ATCC), HSAEC (ATCC), HeLa (ATCC) and primary cervical epithelial (ATCC) cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum at 37 °C humidified air and 5% CO2. Cells were seeded (7500/well (A549, HSAEC) and 2000/well (HeLa, primary cervical epithelial cells)) in 96-well plates and allowed to attach overnight before being treated with the compounds or the solvent control (0.5% DMSO). The cells were incubated for 48 h followed by addition of MTT dye, according to the manufacturer’s protocol (Promega). IC50 values were calculated using GraphPad prism software 9.2.0.
3.5. HeLa Cell Morphology Study
HeLa (ATCC) cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum at 37 °C humidified air and 5% CO2. Cells were seeded 700/well in 384-well plates and allowed to attach overnight before being treated with the compounds or the solvent control (0.5% DMSO). The cells were incubated for 24 h followed by observation under the microscope to quantify the morphological changes.
3.6. Intracellular Calcium Assay
A549 and HeLa cells were seeded (10,000/well and 20,000/well, respectively) overnight in black plates. The cells were allowed to attach overnight before the compounds or the solvent control (0.5% DMSO) was added. The FLIPR calcium 6 assay kit was used following the manufacturer’s protocol (FLIPR Ca 6, Molecular Devices, San Jose, CA, USA). For the calculation of the approximate EC50 values, the vehicle control was used as the minimum response, and the maximum detected response before saturating the detector was used as the maxima.
4. Conclusions
In conclusion, we report the isolation of iezoside (1) and iezoside B (2), the second member of the peptide-polyketide hybrid glycoside, from a collection of a marine cyanobacterial assemblage from Florida. Iezoside (1) was previously isolated from Okinawa, Japan, and now isolated from the Dry Tortugas, Florida, indicating the broad distribution of the compound. Lagunamide D (3), also isolated from the same extract, was proven to be a mitochondrial cytotoxin, which further supports the richness of cyanobacterial extracts [24]. Compound 2 shows similar but slightly weaker activity than 1 in the assays performed, indicating that the methylation on the sugar moiety only minorly impacts the biological effect. The SAR provides evidence that structural changes in the sugar unit may be tolerated and that the activity of this compound class is tunable. This finding has implications for future analogue synthesis and potential target interaction studies.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/md21070378/s1, Figures S1–S15: 1D/2D NMR data of iezoside and iezoside B in DMSO-d6 and acetone-d6; Figures S16–S21: Bioassay data for thapsigargin, Table S1: Comparison of experimental and literature 1H NMR data of iezoside in acetone-d6.
Author Contributions
Sample collection: D.L., V.J.P. and H.L.; designing experiments: S.K., D.L. and H.L.; performing experiments: S.K. and D.L.; writing—original draft preparation: S.K.; writing—review and editing: H.L. and V.J.P. All authors have read and agreed to the published version of the manuscript.
Funding
This research was supported by the National Institutes of Health (NIH), NCI grant R01CA172310 and the Debbie and Sylvia DeSantis Chair Professorship (H.L.). Mass spectrometry analysis was supported by NIH grant S10OD021758-01A1.
Data Availability Statement
Data is contained within the article or supplementary materials. Raw data will be made available upon request.
Acknowledgments
We thank the Florida Institute of Oceanography for supporting use of the R/V Bellows and the National Park Service for granting permission to collect within Dry Tortugas National Park (permit # DRTO-2015-SCI-0008). We would like to acknowledge the crew of R/V Bellows, D. Kallifidas, L. Imperial, L. Spiers and L. Johnston for help with the collection, L. J. Houk for help examining the cyanobacterial sample and M. Putra for pilot structural analysis.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Carafoli, E. Intracellular Calcium Homeostasis. Annu. Rev. Biochem. 1987, 56, 395–433. [Google Scholar] [CrossRef] [PubMed]
- Carafoli, E. Calcium signaling: A tale for all seasons. Proc. Natl. Acad. Sci. USA 2002, 99, 1115–1122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Blaustein, M.P.; Lederer, W.J. Sodium/calcium exchange: Its physiological implications. Physiol. Rev. 1999, 79, 763–854. [Google Scholar] [CrossRef] [PubMed]
- Denmeade, S.R.; Isaacs, J.T. The SERCA pump as a therapeutic target: Making a “smart bomb” for prostate cancer. Cancer Biol. Ther. 2005, 4, 21–29. [Google Scholar] [CrossRef] [Green Version]
- Chemaly, E.R.; Troncone, L.; Lebeche, D. SERCA control of cell death and survival. Cell Calcium 2018, 69, 46–61. [Google Scholar] [CrossRef] [PubMed]
- Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine natural products. Nat. Prod. Rep. 2021, 38, 362–413. [Google Scholar] [CrossRef]
- Salvador-Reyes, L.A.; Luesch, H. Biological targets and mechanisms of action of natural products from marine cyanobacteria. Nat. Prod. Rep. 2015, 32, 478–503. [Google Scholar] [CrossRef] [Green Version]
- Mi, Y.; Zhang, J.; He, S.; Yan, X. New peptides isolated from marine cyanobacteria, an overview over the past decade. Mar. Drugs 2017, 15, 132. [Google Scholar] [CrossRef] [Green Version]
- Teruya, T.; Sasaki, H.; Kitamura, K.; Nakayama, T.; Suenaga, K. Biselyngbyaside, a macrolide glycoside from the marine Cyanobacterium Lyngbya sp. Org. Lett. 2009, 11, 2421–2424. [Google Scholar] [CrossRef]
- Morita, M.; Ohno, O.; Teruya, T.; Yamori, T.; Inuzuka, T.; Suenaga, K. Isolation and structures of biselyngbyasides B, C, and D from the marine cyanobacterium Lyngbya sp., and the biological activities of biselyngbyasides. Tetrahedron 2012, 68, 5984–5990. [Google Scholar] [CrossRef]
- Iwasaki, A.; Ohno, O.; Sumimoto, S.; Suda, S.; Suenaga, K. Kurahyne, an acetylene-containing lipopeptide from a marine cyanobacterial assemblage of Lyngbya sp. RSC Adv. 2014, 4, 12840–12843. [Google Scholar] [CrossRef] [Green Version]
- Iwasaki, A.; Ohno, O.; Katsuyama, S.; Morita, M.; Sasazawa, Y.; Dan, S.; Simizu, S.; Yamori, T.; Suenaga, K. Identification of a molecular target of kurahyne, an apoptosis-inducing lipopeptide from marine cyanobacterial assemblages. Bioorganic Med. Chem. Lett. 2015, 25, 5295–5298. [Google Scholar] [CrossRef] [PubMed]
- Kurisawa, N.; Iwasaki, A.; Teranuma, K.; Dan, S.; Toyoshima, C.; Hashimoto, M.; Suenaga, K. Structural Determination, Total Synthesis, and Biological Activity of Iezoside, a Highly Potent Ca2+-ATPase Inhibitor from the Marine Cyanobacterium Leptochromothrix valpauliae. J. Am. Chem. Soc. 2022, 144, 11019–11032. [Google Scholar] [CrossRef] [PubMed]
- Lytton, J.; Westlin, M.; Hanley, M.R. Thapsigargin inhibits the sarcoplasmic or endoplasmic reticulum Ca-ATPase family of calcium pumps. J. Biol. Chem. 1991, 266, 17067–17071. [Google Scholar] [CrossRef]
- Sehgal, P.; Szalai, P.; Olesen, C.; Praetorius, H.A.; Nissen, P.; Christensen, S.B.; Engedal, N.; Møller, J.V. Inhibition of the sarco/endoplasmic reticulum (ER) Ca2-ATPase by thapsigargin analogs induces cell death via ER Ca2 depletion and the unfolded protein response. J. Biol. Chem. 2017, 292, 19656–19673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Seidler, N.W.; Jona, I.; Vegh, M.; Martonosi, A. Cyclopiazonic acid is a specific inhibitor of the Ca2+-ATPase of sarcoplasmic reticulum. J. Biol. Chem. 1989, 264, 17816–17823. [Google Scholar] [CrossRef]
- Uyama, Y.; Imaizumi, Y.; Watanabe, M. Cyclopiazonic acid, an inhibitor of Ca2+-ATPase in sarcoplasmic reticulum, increases excitability in ileal smooth muscle. Br. J. Pharmacol. 1993, 110, 565–572. [Google Scholar] [CrossRef] [Green Version]
- Doan, N.T.Q.; Paulsen, E.S.; Sehgal, P.; Møller, J.V.; Nissen, P.; Denmeade, S.R.; Isaacs, J.T.; Dionne, C.A.; Christensen, S.B. Targeting thapsigargin towards tumors. Steroids 2015, 97, 2–7. [Google Scholar] [CrossRef] [Green Version]
- Jaskulska, A.; Janecka, A.E.; Gach-Janczak, K. Thapsigargin—From Traditional Medicine to Anticancer Drug. Int. J. Mol. Sci. 2020, 22, 4. [Google Scholar] [CrossRef]
- Isaacs, J.T.; Brennen, W.N.; Christensen, S.B.; Denmeade, S.R. Mipsagargin: The beginning—Not the end—Of thapsigargin prodrug-based cancer therapeutics. Molecules 2021, 26, 7469. [Google Scholar] [CrossRef]
- Andersen, T.; López, C.; Manczak, T.; Martinez, K.; Simonsen, H. Thapsigargin—From Thapsia L. to Mipsagargin. Molecules 2015, 20, 6113–6127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Morita, M.; Ogawa, H.; Ohno, O.; Yamori, T.; Suenaga, K.; Toyoshima, C. Biselyngbyasides, cytotoxic marine macrolides, are novel and potent inhibitors of the Ca2+ pumps with a unique mode of binding. FEBS Lett. 2015, 589, 1406–1411. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Luo, D.; Putra, M.Y.; Ye, T.; Paul, V.J.; Luesch, H. Isolation, Structure Elucidation and Biological Evaluation of Lagunamide D: A New Cytotoxic Macrocyclic Depsipeptide from Marine Cyanobacteria. Mar. Drugs 2019, 17, 83. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Luo, D.; Ratnayake, R.; Atanasova, K.R.; Paul, V.J.; Luesch, H. Targeted and functional genomics approaches to the mechanism of action of lagunamide D, a mitochondrial cytotoxin from marine cyanobacteria. Biochem. Pharmacol. 2023, 213, 115608. [Google Scholar] [CrossRef]

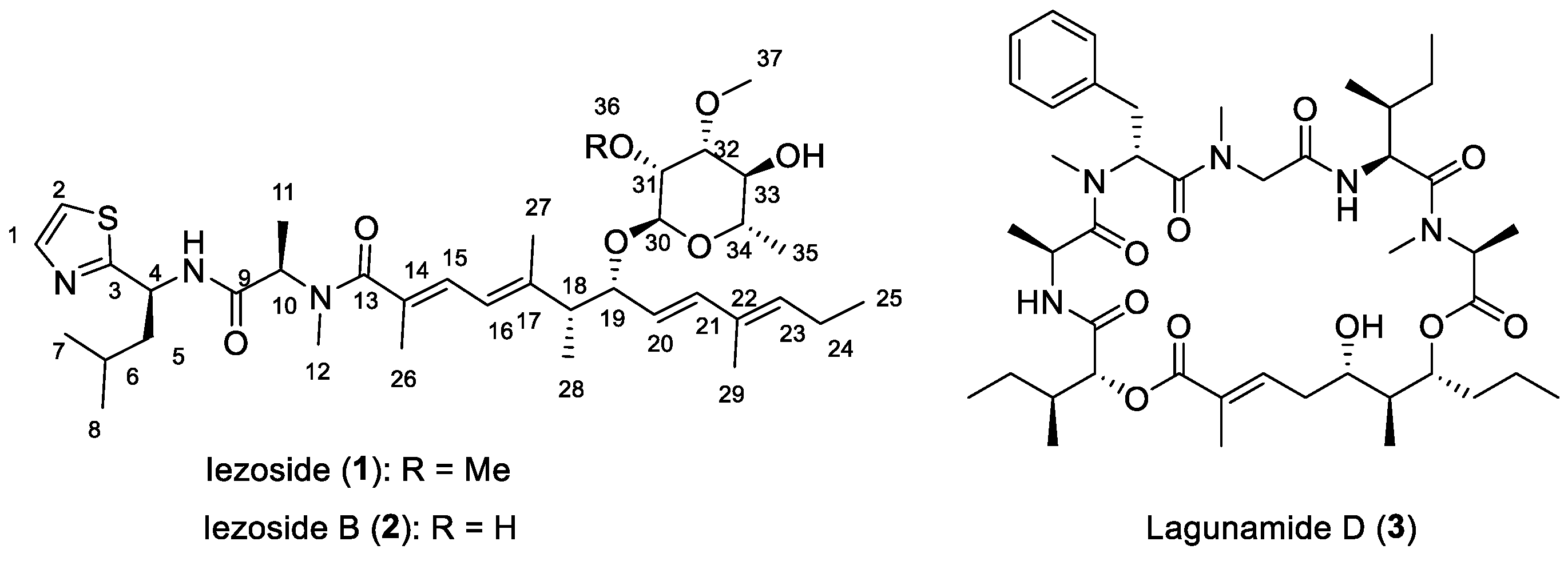

Figure 1.
Structures of iezoside (1), iezoside B (2) and lagunamide D (3).
Figure 2.
Key COSY, HMBC and NOESY data for iezoside (1).
Figure 3.
Key COSY, HMBC and NOESY data for iezoside B (2).

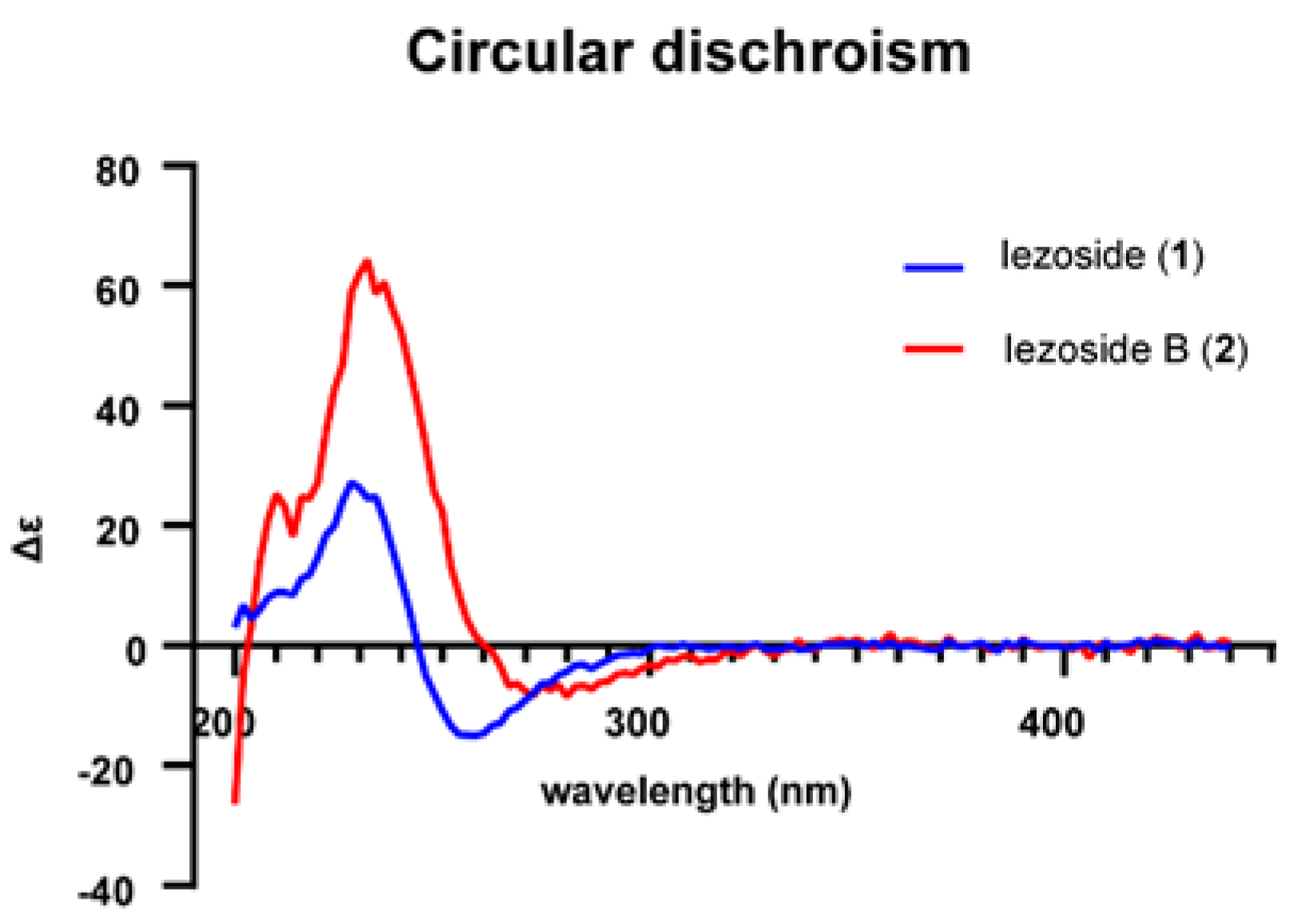

Figure 4.
Circular dichroism data for iezoside (1) and iezoside B (2).

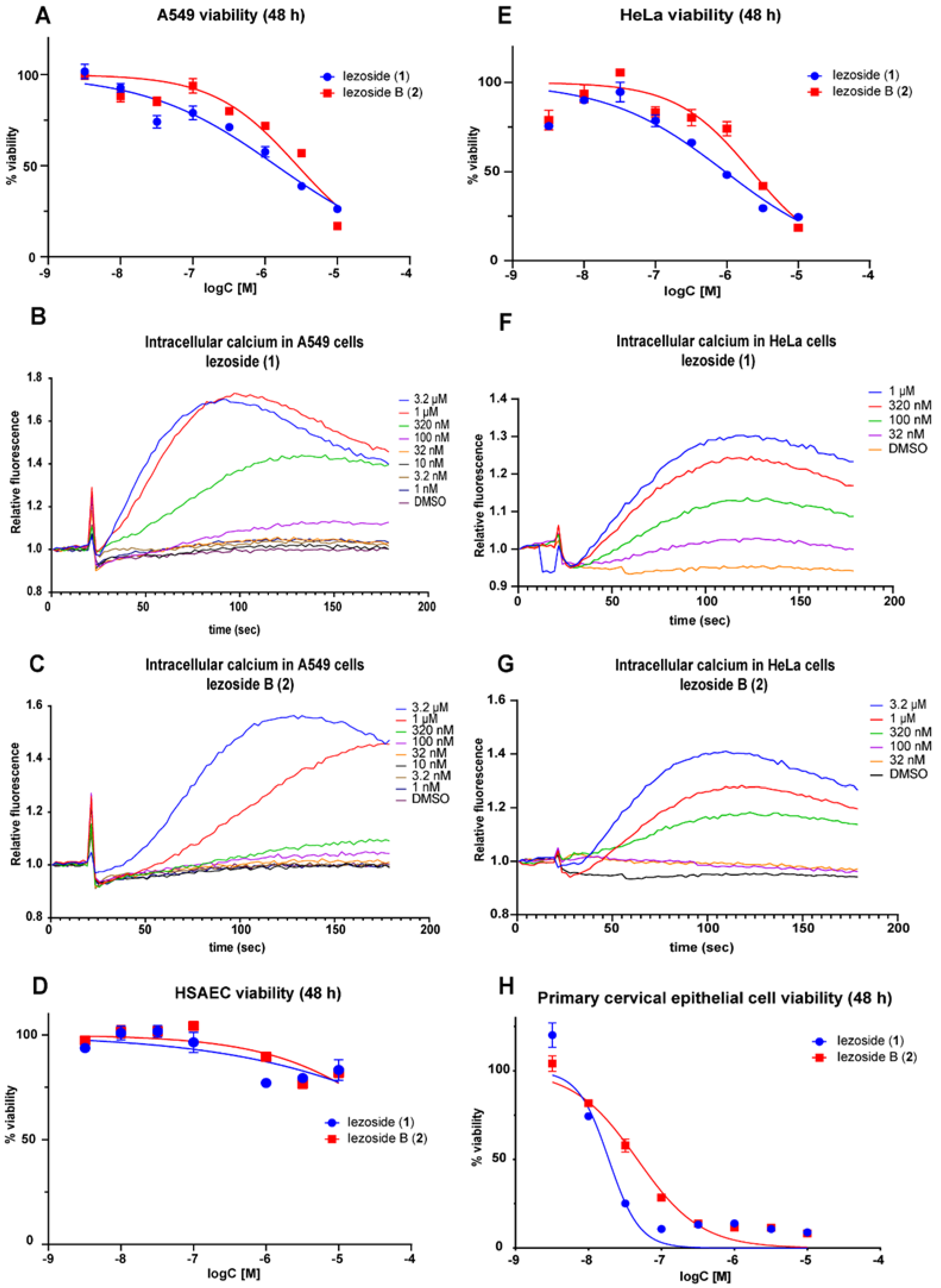

Figure 5.
Biological activities of 1 and 2. (A,E) Antiproliferative effect against A549 cells and against HeLa cells using the MTT assay after 48 h treatment. (B,F) Effect of 1 on intracellular calcium in A549 cells and HeLa cells. (C,G) Effect of 2 on intracellular calcium in A549 and HeLa cells. (D,H) Antiproliferative effect against HSAEC and against primary cervical epithelial cells using the MTT assay after 48 h treatment. All experiments were performed in n = 3.
Figure 5.
Biological activities of 1 and 2. (A,E) Antiproliferative effect against A549 cells and against HeLa cells using the MTT assay after 48 h treatment. (B,F) Effect of 1 on intracellular calcium in A549 cells and HeLa cells. (C,G) Effect of 2 on intracellular calcium in A549 and HeLa cells. (D,H) Antiproliferative effect against HSAEC and against primary cervical epithelial cells using the MTT assay after 48 h treatment. All experiments were performed in n = 3.
Figure 6.
Effects on cell morphology. (A) Effect of 1, 2 and thapsigargin on HeLa cell morphology after 24 h of treatment. Vehicle treatment (0.4 ± 0.0% of the cells show spindle like morphology), 3.2 μM of thapsigargin (24.5 ± 2.1% of the cells show spindle like morphology), 10 μΜ of 1 (26.5 ± 1.0% of the cells show spindle like morphology), 3.2 μΜ of 2 (14.3 ± 0.4% of the cells show spindle like morphology). Scale bar 100 μm. (B) Quantification of morphological changes by visual scoring. Statistical analysis was performed using one-way ANOVA (**** p < 0.0001). All experiments were performed in triplicate (n = 3). For each individual experiment, three images/well were collected and counted with a total of 150–200 cells/image for 1, 2 and thapsigargin, and 300–350 cells/image for the vehicle control.
Figure 6.
Effects on cell morphology. (A) Effect of 1, 2 and thapsigargin on HeLa cell morphology after 24 h of treatment. Vehicle treatment (0.4 ± 0.0% of the cells show spindle like morphology), 3.2 μM of thapsigargin (24.5 ± 2.1% of the cells show spindle like morphology), 10 μΜ of 1 (26.5 ± 1.0% of the cells show spindle like morphology), 3.2 μΜ of 2 (14.3 ± 0.4% of the cells show spindle like morphology). Scale bar 100 μm. (B) Quantification of morphological changes by visual scoring. Statistical analysis was performed using one-way ANOVA (**** p < 0.0001). All experiments were performed in triplicate (n = 3). For each individual experiment, three images/well were collected and counted with a total of 150–200 cells/image for 1, 2 and thapsigargin, and 300–350 cells/image for the vehicle control.
Table 1.
NMR data for iezoside and iezoside B (2) in DMSO-d6.
| Iezoside (1) | Iezoside B (2) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Position | δH, mult., J (Hz) a | δC b | HMBC | COSY | NOESY | δH, mult., J (Hz) a | δC b | HMBC | COSY | NOESY |
| 1 | 7.70, d (3.3) | 142.1 | 2, 3 | 2 | 7.70, d (3.3) | 142.2 | 2, 3 | 2 | ||
| 2 | 7.58, d (3.3) | 119.1 | 1 | 1 | 7.58, d (3.3) | 119.4 | 1 | |||
| 3 | 173.6 | 173.6 | ||||||||
| 4 | 5.19, m | 49.2 | 3, 5 | 5, 8-NH | 5.19, m | 49.2 | 3, 5 | 5, 8-NH | ||
| 5 | 1.77, m | 43.2 | 4 | 4, 6 | 1.77, m | 43.2 | 3, 4, 6, 7, 8 | 4, 6 | ||
| 6 | 1.65, m | 24.4 | 7, 8 | 1.65, m | 24.3 | 6, 7, 8 | ||||
| 7 | 0.90, d (6.7) | 23.0 | 5, 6, 8 | 6 | 0.91, d (7.0) | 22.9 | 5, 6, 8 | 6 | ||
| 8 | 0.87, d (6.5) | 21.4 | 5, 6, 7 | 6 | 0.87, d (6.5) | 21.3 | 5, 6, 7 | 6 | ||
| NH | 8.58, d (8.4) | 9 | 4 | 8.56, d (8.5) | 9 | 4 | ||||
| 9 | 170.5 | 170.6 | ||||||||
| 10 | 4.83, br | c | 11 | 4.80, br | c | |||||
| 11 | 1.29, br d (7.2) | c | 9 | 10 | 1.28, br d (7.1) | c | 9 | 12 | ||
| 12 | 2.78, s | c | 13 | 2.78, s | c | 13 | 11 | |||
| 13 | 173.0 | 173.1 | ||||||||
| 14 | 130.2 | 130.4 | ||||||||
| 15 | 6.32, d (11.2) | 121.0 | 13, 17, 26 | 16 | 27 | 6.31, d (11.2) | 121.0 | 13, 26 | 16 | 27 |
| 16 | 6.09, d (11.2) | 121.1 | 14, 18, 27 | 15 | 18, 26, 28 | 6.10, d (11.2) | 121.0 | 18, 27 | 15 | 18, 26 |
| 17 | 142.6 | 142.2 | ||||||||
| 18 | 2.43, p (6.7) | 47.7 | 16, 17, 19, 20 | 19, 28 | 2.43, p (6.7) | 47.7 | 16, 17, 19, 28 | 19, 28 | 16 | |
| 19 | 3.95, t (8.0) | 78.2 | 18, 21, 28, 30 | 18, 20 | 27 | 3.91, t (8.0) | 78.0 | 18, 21, 28, 30 | 18, 20 | 21, 27, 28, 30 |
| 20 | 5.29, dd (15.7, 8.4) | 124.4 | 22 | 19, 21 | 29 | 5.26, dd (15.7, 8.4) | 124.6 | 22 | 19, 21 | 29 |
| 21 | 6.14, d (15.7) | 138.1 | 19, 22, 23, 29 | 20 | 6.11, d (15.7) | 138.0 | 19, 22, 23, 29 | 20 | 19 | |
| 22 | 131.8 | 131.8 | ||||||||
| 23 | 5.49, t (7.2) | 134.7 | 21, 24, 29 | 24 | 24 | 5.48, t (7.2) | 134.9 | 21, 24, 25, 29 | 24 | 24 |
| 24 | 2.08, m | 21.0 | 22, 23, 25 | 23, 25 | 2.07, m | 20.9 | 22, 23, 25 | 23, 25 | 23, 29 | |
| 25 | 0.93, t (7.5) | 14.0 | 23, 24 | 24 | 0.93, t (7.5) | 13.8 | 23, 24 | 24 | ||
| 26 | 1.83, s | 14.3 | 13, 14 | 1.82, s | 14.6 | 13, 14 | 16 | |||
| 27 | 1.65, s | 14.8 | 16, 17, 18 | 1.64, s | 14.3 | 16, 17, 18 | 15, 19 | |||
| 28 | 1.10, d (7.0) | 15.4 | 17, 18, 19 | 18 | 1.10, d (7.0) | 15.5 | 17, 18, 19 | 18 | ||
| 29 | 1.64, s | 12.1 | 21, 22 | 1.63, s | 12.1 | 21, 22, 23 | 20 | 24 | ||
| 30 | 4.69, d (1.8) | 93.0 | 19, 32, 34 | 31 | 31 | 4.55, br s | 96.2 | 19, 31, 32, 34 | 31 | 19, 31 |
| 31 | 3.47, m | 76.7 | 32, 33, 36 | 30 | 30 | 3.75, m | 66.6 | 30, 32 | 30, 32 | |
| 31-OH | - | 4.71, d (4.5) | 30, 31, 32 | 37 | ||||||
| 32 | 3.21, m | 81.0 | 31 | 34 | 3.12, dd (9.3, 3.2) | 80.7 | 33, 36 | 31, 33 | 31 | |
| 33 | 3.21, m | 70.9 | 3.28, m | 70.6 | 34, 35 | 32, 34 | ||||
| 33-OH | 4.97, br | 4.87, d (5.5) | 33, 34, 35 | |||||||
| 34 | 3.47, m | 69.0 | 32, 33 | 35 | 32, 36 | 3.48, dq (11.8, 6.0) | 68.9 | 33, 35 | 35 | |
| 35 | 1.12, d (6.2) | 18.0 | 33, 34 | 34 | 1.13, d (6.0) | 17.9 | 33, 34 | 34 | 34 | |
| 36 | 3.27, m | 58.3 | 31 | 34 | - | |||||
| 37 | 3.32, m | 56.8 | 32 | 3.31, m | 56.2 | 32 | ||||
a Recorded at 600 MHz; b Recorded at 150 MHz; c These signals were not detected.
Table 2.
Cell viability IC50 values and approximate EC50 values for intracellular calcium flux for iezoside (1), iezoside B (2) in μΜ.
Table 2.
Cell viability IC50 values and approximate EC50 values for intracellular calcium flux for iezoside (1), iezoside B (2) in μΜ.
| A549 | HeLa | HSAEC | Primary Cervical Epithelial Cells | |||
|---|---|---|---|---|---|---|
| IC50 | EC50 | IC50 | EC50 | IC50 | IC50 | |
| Iezoside (1) | 1.5 ± 0.5 | ~0.3 | 1.0 ± 0.4 | ~0.1 | >10 | 0.02 ± 0.01 |
| Iezoside B (2) | 3.0 ± 0.9 | ~0.6 | 2.4 ± 0.9 | ~0.5 | >10 | 0.05 ± 0.01 |
