Article

New Metabolites from the Marine Sponge Scopalina hapalia Collected in Mayotte Lagoon

1
Laboratoire de Chimie et de Biotechnologie des Produits Naturels, Faculté des Sciences et Technologies, Université de La Réunion, 15 Avenue René Cassin, CS 92003, CEDEX 09, 97744 Saint-Denis, France
2
CNRS, Centrale Marseille, FSCM, Spectropole, Aix Marseille Université, Campus de St Jérôme-Service 511, 13397 Marseille, France
3
CNRS 7263, IRD 237, IMBE, Aix Marseille Université, Avignon Université, 13331 Marseille, France
4
Naturalis Biodiversity Center, Darwinweg 2, 2333 CR Leiden, The Netherlands
5
Institute of Environmental Sciences, Leiden University, Einsteinweg 2, 2333 CC Leiden, The Netherlands
6
Department of Cell Biology and Biophysics, Faculty of Biology, National and Kapodistrian University of Athens, 15784 Athens, Greece
7
Institut de Chimie des Substances Naturelles, CNRS UPR 2301, Université Paris-Saclay, 1, Av. de la Terrasse, 91198 Gif-sur-Yvette, France
*
Author to whom correspondence should be addressed.
Mar. Drugs 2022, 20(3), 186; https://doi.org/10.3390/md20030186
Received: 14 February 2022 / Revised: 25 February 2022 / Accepted: 25 February 2022 / Published: 2 March 2022

Abstract

:
The biological screening of 44 marine sponge extracts for the research of bioactive molecules, with potential application in the treatment of age-related diseases (cancer and Alzheimer’s disease) and skin aging, resulted in the selection of Scopalina hapalia extract for chemical study. As no reports of secondary metabolites of S. hapalia were found in the literature, we undertook this research to further extend current knowledge of Scopalina chemistry. The investigation of this species led to the discovery of four new compounds: two butenolides sinularone J (1) and sinularone K (2), one phospholipid 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) and one lysophospholipid 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4) alongside with known lysophospholipids (5 and 6), alkylglycerols (710), epidioxysterols (11 and 12) and diketopiperazines (13 and 14). The structure elucidation of the new metabolites (14) was determined by detailed spectroscopic analysis, including 1D and 2D NMR as well as mass spectrometry. Molecular networking was also explored to complement classical investigation and unravel the chemical classes within this species. GNPS analysis provided further information on potential metabolites with additional bioactive natural compounds predicted.

Graphical Abstract

1. Introduction

Marine sponges are known as an extensive source of novel natural products with a wide variety of biological activities [1]. As a hotspot of biodiversity, the Comoros Archipelago, situated off the southeastern coast of Africa, in the Mozambique channel, is poorly explored for natural products chemistry [2]. Hence, the archipelago represents a great potential for the discovery of original biologically active metabolites [3,4]. In the course of our research aimed at the discovery of bioactive metabolites with potential application in the treatment of age-related diseases and skin aging such as anti-CDK7, anti-tyrosinase or sirtuin 1 activators substances, 44 marine sponges were collected from the lagoon of Mayotte and evaluated. This screening effort revealed 19 marine sponges potentially producing anti-aging metabolites. These bioactive marine sponges include highly studied genera such as Haliclona [5] and Jaspis, as well as less studied ones like Scopalina and Svenzea. Amongst this last category, the Scopalina hapalia (Order Scopalinida) [6] extract exhibited significant inhibitory activities against the protein kinase FynB and elastase, respectively, involved in neurodegenerative diseases [7,8] and skin aging [9]. Therefore, it was selected for further chemical investigation. This extract gained special attention mainly as, at this moment, only six metabolites were reported from a specimen of S. ruetzleri (formerly known as Ulosa ruetzleri) collected in Harrington Sound, Bermuda [10]. The first compounds reported were an unusual lipid 17Z-tetracosenyl 1-glycerol ether along with batyl alcohol and 4-(4-hydroxyphenyl)-3-buten-2-one [10]. However, the last compound is suspected to be an artifact derived from the aldol condensation of the extraction solvent acetone with p-hydroxybenzaldehyde [10]. In 1986, the new compound 4-hydroxy-5-(indole-3-yl)-5-oxo-pentan-2-one with plant regulatory activity was isolated [11]. The last two novel compounds reported were a phosphorylated hydantoin, ulosantoin, and a structurally related compound, dimethyl N2-creatininylphosphate [12]. While ulosantoin exhibited significant insecticidal property, dimethyl N2-creatininylphosphate showed no activity in the insecticidal screening [12]. More recently, organic extracts or fractions of S. ruetzleri collected near Brazilian and Colombian coasts exhibited anti-proliferative effects on human breast cancer cells [13], antifungal effects against Candida albicans [14], antioxidant effect [15] as well as cytotoxic activities against human glioma and neuroblastoma cell lines [15]. An ethanolic extract of S. hapalia collected from the reefs of Zanzibar also demonstrated antibacterial and concentration-dependent cytotoxic activities [16] opening up interesting perspectives for this understudied species. The species Scopalina hapalia is largely distributed in the southwestern region of the Indian Ocean (Zanzibar, Mayotte). It was also reported in Australia, Papua New Guinea [17] and Singapore [18].
In this study, we report the isolation of two new 2,3-dimethyl butenolide derivatives (1 and 2), one new phospholipid (3), one new lysophospholipid (4) alongside with known lysophospholipids (5 and 6), alkylglycerols (710), epidioxysterols (11 and 12) and diketopiperazines (13 and 14) (Figure 1). While the extract showed inhibition activity in the Fyn kinase and elastase bioassays, indicating the presence of bioactive compounds, most of the isolated compounds were obtained in insufficient amounts for biological testing. Contrary to our expectations, the few tested compounds (6, 8, 9) did not show significant biological activity. This paper reports the structural elucidation of the new compounds. Further, in an attempt to thoroughly assess the molecular potential of this less studied genus, we use a GNPS molecular networking approach. This approach revealed several chemical classes, among which some were isolated.

2. Results and Discussion

2.1. Chemical Investigation

Sponge specimens were extracted with CH2Cl2/CH3OH (1:1) and the resulting extracts were evaluated against molecular targets involved in age-related diseases and skin aging. The CH2CL2/CH3OH extract of Scopalina hapalia was found to inhibit 48% and 44% of the elastase activity, respectively, at the concentration of both 10 µg/mL and 1 µg/mL. The same extract also inhibited the activity of the protein kinase FynB in a concentration dependent manner at 111 µg/mL, 11.1 µg/mL, and 1.1 µg/mL. Consequently, the CH2CL2/CH3OH (1:1) extract was fractionated by MPLC, however, none of the obtained fractions exhibited anti-aging activities. Despite the loss of bioactivity, the chemical investigation was pursued. The CH2CL2/CH3OH extract was, first, subjected to partition between cyclohexane and CH3OH. The CH3OH-soluble portion was chromatographed over C-18 silica gel, followed by semipreparative C-18 silica HPLC purification, yielding compounds (1, 1214). In a second phase, the whole CH2CL2/CH3OH extract was also fractionated by MPLC over silica gel. Fractions of interest were further purified by either analytical or semipreparative C-18 silica HPLC to give metabolites (211).
The known compounds were identified by comparing their spectroscopic and/or spectrometric data with those reported in the literature (for structures and NMR data, see Supplementary Material). Compounds 5 and 6 were, respectively, identified as the known lysophospholipids 1-O-octadecyl-sn-glycero-3-phosphocholine [19] and 1-palmitoyl-sn-glycero-3-phosphocholine [20]. Compounds 7 to 10 correspond to known monoalkyl glycerol ethers previously isolated from marine sponges: 1-O-hexadecylglycerol (chimyl alcohol 7) [21], 1-O-octadecylglycerol (batyl alcohol 8) [21], 3-nonadecyloxy-1,2-propanediol (glycerol 1-nonadecyl ether 9) [22] and 3-icosoxypropane-1,2-diol (glycerol 1-eicosyl ether 10) [22]. Compounds 11 and 12 were determined, respectively, as a mixture of 5α,8α-epidioxy-24(R/S)-hydroperoxystigmasta-6,28-dien-3β-ol [23] and a mixture of 5α,8α-epidioxy-24(R/S)-stigmasta-6,22E-dien-3β-ol [24]. These two epidioxysterols were previously isolated from marine sponges Lendenfeldia chondrodes [23] and Thalysias juniperina [24]. The last two known compounds identified were diketopiperazines cyclo(Val-Leu) (13) and cyclo(Val-Phe) (14) [25]. These two compounds have previously been isolated from marine microorganisms Streptomyces fungicidicus and Paecilomyces marquandii [26,27].
Compound 1 was isolated as a yellow oil. High-resolution mass spectrometry (HRMS) analysis revealed a sodium adduct ion at m/z 349.1985 [M + Na]+ consistent with molecular formula C18H30O5 and incorporating four unsaturations. It provided a negative specific rotation [ a ] 589 25 40 (c 0.024, CH3OH). Analysis of the 1H NMR and HSQC data (Table 1) indicated that 1 contained two olefinic methyl singlets H-16 (δH 1.84) and H-17 (δH 1.90), one oxygenated methyl protons H-18 (δH 3.07), two methylene protons near heteroatom H-5 (δH 1.73, 1.95) and H-14 (δH 2.15) and eight methylene protons (δH 1.13−1.59). A comprehensive analysis of the 13C NMR revealed two olefinic carbons C-2 (δC 128.4) and C-3 (δC 158.4), one ketone C-1 (δC 173.8), one carboxylic acid carbonyl C-15 (δC 183.0), one methoxy carbon C-18 (δC 50.5) and one acetal C-4 (δC 111.9). HMBC correlations from H-16 to C-1, C-2, C-3 and from H-17 to C-2, C-3 and C-4 were observed (Figure 2). These correlations along with the additional HMBC correlation between H-18 and C-4 disclosed a substitued α,β-unsaturated 2,3-dimethyl-γ-lactone moiety, similar to that of the known butenolide 13-(2-hydroxy-3,4-dimethyl-5-oxo-2,5-dihydrofuran-2-yl) tridecanoic acid methyl ester and sinularones [28,29]. In the COSY spectrum, H-5, H-12, and H-13 showed correlations, respectively, to H-6, H-13, and H-14. In combination with the HMBC correlations between H-5 and C-4, C-6, C-7 in one hand, as well as H-14 and C-12, C-13, C-15 in the other hand, a carboxylic acid side chain from C-5 to C-15 was confirmed. In regard to the absolute configuration of carbon C-4, some of the known butenolides with α,β-unsaturated 2,3-dimethyl-γ-lactone moiety were reported to have R configuration at their stereogenic center and to show negative optical rotation, such as caulerpalide B [30]. Therefore, as compound 1 exhibited a negative optical rotation ( [ a ] 589 25 40 ) , we tentatively assumed C-4 to be 4R configuration. Consequently, compound 1 was identified as sinularone J, a new butenolide, analogue to sinularones [29].
Compound 2 was isolated as a colorless oil. High-resolution mass spectrometry (HRMS) analysis revealed a sodium adduct ion at m/z 433.2921 [M + Na]+ consistent with molecular formula C24H42O5 and incorporating four unsaturations. It provided a negative specific rotation [ a ] 589 25 75 (c 0.021, CH3OH). The NMR data of compound 2 (Table 2) were similar to those of 1 with the exception of the carboxylic acid side chain length. This information was supported by the molecular weight of 2 (m/z 433.2921) [M + Na]+, which is 84 amu more than that of 1 (m/z 349.1985) [M + Na]+ consistent with a difference of six methylenes. HMBC interactions from H-5 to C-4, C-6, C-7 and from H-20 to C-18, C-19, C-21 helped to establish the attachment of the carboxylic acid side chain made of 16 methylenes to the α,β-unsaturated 2,3-dimethyl-γ-lactone moiety (Figure 3). In regard to the absolute configuration of carbon C-4, we supposed C-4 to be 4R configuration as well. Therefore, compound 2 was identified as sinularone K, a structural analog of 1.
Compound 3 was isolated as an amorphous powder. Its molecular formula was established as C31H63NO9P+ based on a protonated molecule ion at m/z 624.4235 [M + H]+ consistent with molecular formula C31H62NO9P, incorporating three unsaturations. HRMS/MS readily allowed the recognition of a phosphatidylcholine skeleton. MS/MS fragmentations decompose compound 3 to produce ions at m/z 510.4 [M + H]+ consistent with molecular formula C26H56NO6P (1-O-octadecyl-sn-glycero-3-phosphocholine), m/z 184.1 [M + H]+ consistent with molecular formula C5H14NO4P (protonated phosphocholine ion), m/z 125.0 [M + H]+ consistent with molecular formula C2H5O4P (protonated phosphate), m/z 86.1 [M + H]+ consistent with molecular formula C5H11N (phosphocholine head) that are diagnostic fragments for glycerophosphatidylcholine species [31]. Analysis of 1H NMR, HSQC and HMBC (Table 3) showed oxygenated methylene and methine proton signals C-1 (δH 3.59, 3.61; δC 70.2), C-2 (δH 5.17; δC 73.2), C-3 (δH 3.97, 4.03; δC 65.5) belonging to a glycerol unit, methylene proton signals attached to heteroatoms C-1’’ (δH 4.27; δC 60.5), C-2’’ (δH 3.65; δC 67.4) as well as a singlet signal integrated to nine methyl protons corresponding to three N-methyl groups (δH 3.23; δC 54.7) indicated the presence of choline. The presence of a linear alkyl chain was also shown by methylene proton signals (δH 1.25-1.54; δC 23.8-30.8). One methylene is attached to a heteroatom C-1’ (δH 3.43, 3.48; δC 72.7) and another one is a terminal methyl group C-18 (δH 0.90; δC 14.5). The connectivity between the glycerol unit at C-1 and the alkyl chain portion through the ether bond was determined from HMBC correlations between H-1 and C-2, C-3, C-1’ and between H-1’ and C-1 (Figure 4). Characteristic coupling between phosphorus and relevant protons (H-3 and H-1’’) were observed with 1H-31P HMBC correlations confirming the connectivity between the choline and the glycerol (C-3) units through phosphate. HMBC correlations from H-2 to C-1’’’ and from H-2’’’ to C-1’’’ indicated the presence of an ester-linked alkyl chain at C-2. The molecular formula of the residue at C-2 (C5H6O3) was deduced from HRMS/MS. The 1H NMR spectrum, along with HSQC and HMBC experiments (Table 3), showed one ester carbonyl C-1’’’ (δC 174.4), one carboxylic acid carbonyl C-5’’’ (δC 178.7) and three methylene carbons. Moreover, the COSY cross-peaks between H-2’’’, H-3’’’ and H-4’’’, in association with HMBC interactions of these protons to the carbonyl carbon C-5’’’ allowed to secure the carboxylic acid function. Therefore, the structure of 3 was determined as 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine.
Compound 4 was isolated as an amorphous powder. Its molecular formula was established as C23H49NO8P+ based on a protonated molecule ion at m/z 498.3188 [M + H]+ (calcd for C23H49NO8P+ 498.3190), incorporating 2 unsaturations. MS/MS fragmentations of compound 4 produce several diagnostic fragments ions of glycerophosphocholine [31], amongst which ions at m/z 258.1 [M + H]+ consistent with molecular formula C8H20NO6P (protonated glycerophosphocholine moiety)), m/z 184.1 [M + H]+ consistent with molecular formula C5H14NO4P (protonated phosphocholine ion), m/z 125.0 [M + H]+ consistent with molecular formula C2H5O4P (protonated phosphate), m/z 104.1 [M + H]+ and m/z 86.1 [M + H]+ consistent with molecular formula C5H13NO+ and C5H11N (phosphocholine head group fragments). Further information on the structure of the phospholipid was deduced from 1H NMR, COSY and HSQC data (Table 4). Analysis of the 1H NMR spectrum of compound 4, along with HSQC experiment, showed the resonances of methylene and methine protons belonging to a glycerol moiety acylated at C-1 (δH 4.19, 4.13; δC 66.0), non-acylated at C-2 (δH 3.98; δC 69.4) and phosphorylated at C-3 (δH 3.90; δC 67.4). The shift in the oxygenated methylene protons signals observed at δH 3.59 and 3.61 (H-1) in 3 to δH 4.19 and 4.13 indicated the presence of an ester linkage instead of an ether linkage. The phosphocholine moiety was revealed by methylene proton signal attached to heteroatoms C-1’’ (δH 4.29; δC 60.1), C-2’’ (δH 3.65; δC 67.0) and a singlet signal integrated to nine methyl protons corresponding to three N-methyl groups (δH 3.23; δC 54.3). The presence of a linear alkyl chain was also observed in the 1H NMR spectrum along with characteristic proton and carbon signals arising from oxymethyl group (δH 3.34 and δC 56.9). Due to the low quantities obtained for 4, the HMBC experiment could not be conducted. However, COSY correlations from H-2’ to H-3’ and HSQC correlation between H-3’ (δH 3.66) and C-3’ (δC 78.8) showed that the oxymethyl group is located at C-3’ (Figure 5). Therefore, the structure of 4 was determined as 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine.

2.2. Molecular Networking

In an effort to fully capture the chemical space of this Scopalina hapalia specimen, molecular networking was used to complement the traditional chemical investigation. The former approach provides a method to rapidly assess the diversity and the chemical relatedness of metabolites based on similarities in MS/MS parent ion fragmentation patterns [32]. Fractions were prepared after removal of the major nonpolar lipids from Scopalina hapalia crude extract and analyzed by UHPLC-HRMS/MS in positive mode. Obtained MS/MS data were then used to generate molecular networks using the online plateform Global Natural Products Social Molecular Networking (GNPS). Molecular networks of the fractions (Figure 6A) revealed the presence of clusters related to different chemical classes (see Supplementary Material): polar lipids (lysophospholipids and fatty acids derivatives); amino acids derivatives (peptides and diketopiperazines); alkaloids (purines and β-carbolines) and terpenoids; reflecting at some points the results from the isolation procedure. The dereplication process highlighted three specific ion clusters (MN1–MN3). Interestingly, the isolated compounds 1 and 2 were detected in cluster MN1 (Figure 6B). Therefore, they were used as “seed molecules” in the analysis. Although no library hit was found for this cluster through the GNPS workflow, the dictionary of natural products database provided fruitful information for manual dereplication based on the molecular formulae proposed from HRMS and MS/MS fragmentation patterns. In that respect, two other 2,3-dimethyl-4-methoxybutenolides and two β-hydroxybutenolides (tetronic acid derivatives) were detected in cluster MN1. This partial annotation suggests that cluster MN1 aggregate different types of butenolide along with potential new butenolide analogues. The small number as well as the low amount of butenolide derivatives yielded by traditional detection and isolation techniques point to the probability that these compounds could be produced by the microbial symbionts of Scopalina hapalia. Typically associated with Gram-positive bacteria, butenolides are signaling molecules known to regulate morphological development and secondary metabolism, especially antibiotic production in the genus Streptomyces [33]. Commonly produced in low amounts (their biological concentration range from micro- to nano-molar), their isolation has proven difficult [34]. Furthermore, the analysis of the MS spectra from nodes belonging to clusters MN2 and MN3 revealed isotopic patterns that pointed toward brominated compounds (Figure 6C). Manual dereplication of cluster MN2 and MN3 based on the molecular formula matched, respectively, with six bromotyrosine alkaloids and two bromotyramine derivatives. Bromotyrosine-derived alkaloids are bioactive metabolites (antiviral, antibacterial, anticancer) typically found in sponges belonging to the Verongida order [35]. Given that this finding is based on the analysis of one specimen, additional work on Scopalina species would help to unambiguously demonstrate that these compounds can be detected in sponges belonging to the genus Scopalina. However, bromotyrosine derivatives have also been found in phylogenetically unrelated organisms like Tetractinellida sponges [36], ascidians [37,38] and the marine obligate bacterium Pseudovibrio denitrificans isolated from the marine sponge Arenosclera brasiliensis (order Haplosclerida) [39]. The occurrence of bromotyrosine across taxonomically distant group of organisms suggests that these metabolites might be produced by symbiont microorganisms. Hence, to prove the microbial origin of these metabolites (butenolides and bromotyrosines), future work based on molecular networking dereplication of the culturable microbial symbiont extracts need to be performed.
To sum up, in our preliminary investigation of marine sponge crude extracts for their anti-aging activities, the organic extract from S. hapalia inhibited the activity of the elastase and the protein kinase FynB. However, the screening of the fractions obtained subsequently did not show any biological activity. This lack of follow-up activity suggest that the strong inhibition observed for the crude extract might be the result of synergistic effect from metabolites. It is relevant to note that in spite of the multiple biological activities (antiproliferative, cytotoxic, antioxidant, antibacterial and antifungal) exhibited by either S. ruetzleri or S. hapalia crude extracts or fractions [13,14,15,16], there is only six metabolites reported from S. ruetzleri. Therefore, the fractionation of S. hapalia was pursued, independently of bioactivity, in order to gain a better understanding of its chemical composition. This work led to the isolation of fourteen metabolites, including two new butenolides derivatives sinularones J and K (1 and 2), one new phospholipid 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) and one new lysophospholipid 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4). The absolute configuration at C-4 of the new butenolides remains to be confirmed as we supposed it to be of R form. The compounds reported here, with the exception of 8, represent new additions to the literature of this poorly studied genus. However, given the too low amounts obtained during isolation, most of the compounds (14, 6 and 7, 1014) could not be evaluated against the selected molecular targets (elastase, tyrosinase, CDK7, FynB and proteasome). In particular, the new compounds were present in concentrations too low to be efficiently purified. To address these shortcomings, a collection of a new specimen of Scopalina hapalina is being considered. Compounds 5, 8 and 9 were primary screened against CDK7, FynB and proteasome at three different concentrations (33 µg/mL, 3.3 µg/mL, 0.33 µg/mL) to identify inhibitors of these molecular targets. Compound 5 showed a weak inhibitory activity to proteasome, however only at the lowest concentration tested suggesting an eventual artifact. Consequently, compounds 5, 8 and 9 were not further investigated for IC50 experimentation. These compounds were also evaluated for their activities in an elastase and tyrosinase bioassays at the concentrations of 1 and 10 µg/mL. None of these compounds displayed significant inhibition of elastase and tyrosinase activities. Compound 5 exhibited the highest inhibition by 7% at 1 µg/mL and 11% at 10 µg/mL for elastase bioassay; this activity is much lower compared to the active extract (inhibition by 44% at 1 µg/mL and 48% at 10 µg/mL in a cell-based elastase bioassay). Since these compounds were not significantly active, cell-based bioassays were not performed. As the current study was unable to identify bioactive compounds, an important question remains to be resolved for future studies, namely which metabolites are responsible for S. hapalia anti-elastase and anti-fynB activities, or are there synergistic effects of several compounds leading to the observed bioactivities. However, according to the literature, compounds 5, 8, 9, 12, 13 and 14 are already known to possess activities such as cytotoxicity, antifouling, antibacterial, immunomodulatory and quorum sensing sensors [23,27,40,41,42,43,44,45,46]. These bioactive compounds with antimicrobial and cytotoxic activities might explain the biological activities displayed by the Scopalina specimens. In addition, applying molecular networking for dereplication has proven to be useful. Based on the molecular network, several diketopiperazines and butenolides analogues were dereplicated. The most striking result to emerge from our data is the presence of bromotyrosine compounds in the fractions of S. hapalia. Additional work on the isolation of these predicted metabolites would be of great interest in order to confirm their presence. In conclusion, our results are encouraging and should be validated by further research on other Scopalina species.

3. Materials and Methods

3.1. General Experimental Procedure

NMR spectra were recorded on a Bruker Avance III-600 spectrometer (600 MHz for 1H and 150 MHz for 13C) equipped with de TCI Cryoprobe in 2.0 mm o.d. capillary tube at 300 K. Chemical shifts were referenced using the corresponding solvent signals (δH 3.31 and δC 49.00 for CD3OD 99.96%-d). The spectra were processed using 1D and 2D NMR TopSpin software.
High Resolution MS spectra of isolated compounds were measured using a Waters SYNAPT G2 HDMS TOF mass spectrometer with an electrospray ionization (ESI) source. Samples were solubilized in 300 µL of CH3OH and then diluted to 1/100 in a solution of 3 mM ammonium acetate in CH3OH.
Optical rotations were measured on an MCP 200 Anton Paar modular circular polarimeter at 25 °C (CH3OH, c in g/100 mL) in a 10 × 5 mm i.d., 0.2 mL sample cell at 589 nm (Na D-line).
MPLC separations were carried out on Buchi Sepacore flash systems C-605/C-615/C-660 and glass column (230 × 15 mm) packed with Macherey-Nagel MN Kieselgel silica gel (60−200 μm) or Acros Organic C-18 reverse phase. Analytical and semi-preparative HPLC were performed using either a Thermo Scientific Dionex Ultimate 3000 system equipped with a diode array detector (DAD) and a Corona detector or an Agilent 1200 system with DAD for analytical HPLC and a Gilson PLC 2020 with DAD for semipreparative HPLC. Analytical work was conducted using a Phenomenex Gemini C18 reversed-phased column (150 × 4.6 mm, 3 µm) and semi-preparative HPLC was undertaken using a Phenomenex Gemini C18 reversed-phased column (250 × 10 mm, 5 µm). UHPLC was carried out on Dionex Ultimate 3000 system connected to Bruker Impact II TOF mass spectrometer equipped with a Zorbax Eclipse Plus C18 (100 × 2.1 mm, 1.8 µm, Agilent) column. All solvents were analytical or HPLC grade and were used without further purification. The sponge was lyophilized with a CRYOTEC Cosmos 20K freeze dryer.

3.2. Animal Material

Scopalina hapalia (order Scopalinida, family Scopalinidae) was collected in May 2013 by scuba diving at the depths of 2–10 m around the south east coasts of Mayotte (Kani tip, GPS (12°57.624′ S; 45°04.697′ E). The sponge sample was levered off with a thin-bladed knife to prevent damage, transferred to a plastic bag and kept at −20 °C before being transported to the laboratory. The taxonomic identification was performed by Nicole de Voogd and a voucher specimen was preserved in 80% ethanol and is deposited at Naturalis Biodiversity Center, Leiden the Netherlands as RMNH POR.8376. Scopalina hapalia was originally described with some reservation as Hymeniacidon hapalia by Hooper et al., (1997) from Australia, however was transferred to the genus Scopalina by Alvarez and Hooper in 2010. The species is orange in coloration with a prominent spiky surface and its consistency is very fragile, soft and slimy. The skeleton is composed of ill-defined spongin fibres cored by spicules and obscured by granular material. The spicules are slightly curved styles with rough and uneven endings with a dimension of 338–462–566 × 5–8–10 µm (as min–mean–max). We compared our species with the related species Scopalina australiensis and Scopalina rubra. The present species is very similar to Scopalina australiensis from the Great Barrier Reef, however in addition to styles the spicules have oxeote modifications and are thinner and slightly larger in dimension. Another similar species is Scopalina rubra (originally described as Ulosa rubra) from Madagascar by Vacelet and Vasseur (1971), which is very close to our collection site. A type slide was examined (MNHN DJV32) and although the spicule dimensions are very similar to S. hapalia, namely 330–550 × 10–15 µm, the skeleton is very different. The skeleton is composed of regular thick multispicular spongin tracks and is not obscured by granular material. The outer morphology appears also very different, not as soft as our specimen with clear large oscules after preservation.

3.3. Extraction and Isolation Procedure

The lyophilized sponge (74.3 g, dry weight) was extracted overnight, once with Water to remove excess salt and three times using CH3OH/CH2Cl2 (1:1, v:v). The organic solvent was filtered and evaporated under reduced pressure to yield an orange/brown residue (7.82 g). A mass of 6.57 g of the extract was then partitioned between cyclohexane and aqueous CH3OH (10% water) (1:1, v:v). The methanolic layers were evaporated affording 2.76 g of a crude residue. A mass of 2.24 g of this extract was subjected to fractionation by medium pressure liquid chromatography MPLC. The sample was absorbed on silica gel C18 (<five times the mass of the sample), dry-loaded onto a sintered glass silica C18 a column (230 × 15 mm), and eluted using a gradient solvent system of H2O and CH3OH (10 mL∙min−1). Eighteen fractions of 45 mL each were collected. Fraction 7 (18.4 mg) was separated using reverse-phase C18 semipreparative HPLC, eluting with a gradient elution from 10% to 78% H2O/CH3CN (+0.1% formic acid F.A) over 55 min (3 mL∙min−1), yielding 1 (0.4 mg), 13 (0.1 mg) and 14 (0.3 mg). Fraction 16 (13.6 mg) was subjected to reverse-phase C18 semipreparative HPLC using a gradient elution from 78% to 97% H2O/CH3CN (+0.1% F.A) (3 mL∙min−1) yielding 12 (0.2 mg). Another portion of the crude extract CH3OH/CH2Cl2 (1:1, v:v) was fractionated by MPLC on silica gel using a combination of solvent with increasing polarity (2-methylpentane, EtOAc, CH2Cl2, CH3OH) yielding eleven fractions (15 mL∙min−1) (2-methylpentane/EtOAc 95:5; 2-methylpentane/EtOAc 90:10; 2-methylpentane/EtOAc 85:15; 2-methylpentane/EtOAc 80:20; 2-methylpentane/EtOAc 70:30; 2-methylpentane /EtOAc 50:50; EtOAc 100%; CH2CL2 100%, 3 × CH3OH 100%). Fractions 4 and 5 eluted at 20 and 30 % EtOAc were combined to give a major fraction F4–F5 (~73.1 mg). An aliquot of this fraction (59.1 mg) was further separated using open column chromatography over silica gel, using isohexane with increasing proportions of EtOAc as eluent. Fractions eluted at 50% EtOAc were combined (13.7 mg) and subjected to reverse-phase C18 analytical HPLC. Elution was conducted with a linear gradient from 65% to 100% H2O/CH3CN (+0.1% F.A) over 30 min and held at 100% CH3CN (+0.1% F.A) for 20 min (0.7 mL∙min−1) yielding 2 (0.1 mg) and 11 (0.1 mg). An aliquot of F10-F11 (68.7 mg), eluted at 100% CH3OH, was separated using reverse-phase C18 semipreparative HPLC with a linear gradient from 5% to 100% H2O/CH3CN (+0.1% F.A) over 38 min and maintained at 100% CH3CN (+0.1% F.A) for 10 min (4.5 mL∙min−1) yielding 3 (0.1 mg), 4 (0.1 mg), 5 (0.1 mg), 6 (0.1 mg). An aliquot of fraction 6 (28.7 mg), eluted at 50% EtOAc, was separated via reverse-phase C18 semipreparative HPLC, eluting with an isocratic solvent system of H2O:CH3CN (+ 0.1% F.A) 10:90 (v:v) held for 45 min followed by 100% CH3CN + 0.1% F.A maintained for 10 min (4.5 mL∙min−1), yielding 7 (0.8 mg), 8 (4.0 mg), 9 (1.5 mg) and 10 (0.3 mg).

3.4. Compound Characterization

Sinularone J (1): yellow oil; [ a ] 589 25 40 (c 0.024, CH3OH); 1H and 13C NMR, see Table 1; HRMS m/z 349.1985 [M + Na]+ (calcd for C18H30O5Na+ 349.1985).
Sinularone K (2): colorless oil; [ a ] 589 25 75 (c 0.021, CH3OH); 1H and 13C NMR, see Table 2; HRMS m/z 433.2924 [M + Na]+ (calcd for C24H42O5Na+ 433.2924).
1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3): amorphous powder; 1H and 13C NMR, see Table 3; ESI-MS m/z 624.4 [M + H]+ (6), 510.4 (1), 184.1 (100), 125.0 (3), 86.1 (4); HRMS m/z 624.4235 [M + H]+ (calcd for C31H63NO9P+ 624.4235).
1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4): amorphous powder; 1H and 13C NMR, see Table 4; ESI-MS m/z 498.3 [M + H]+ (40), 258.1 (4), 184.1 (100), 125.0 (4), 104.1 (13), 86.1 (5); HRMS m/z 498.3188 [M + H]+ (calcd for C23H49NO8P+ 498.3190).

3.5. Elastase and Tyrosinase Activity Assays

For the in vitro screening of the elastase enzyme activity, we used elastase from porcine pancreas (PPE) type IV and N-succinyl-Ala-Ala-Ala-p-nitroanilide as substrate; the assay was conducted as described before in Said Hassane et al. (2020) [47]. Elastatinal was used as positive control.
To evaluate the inhibitory potency of the extract and compounds against tyrosinase, the oxidation of l-DOPA to dopachrome was determined against mushroom tyrosinase (92 U/mL), as previously described [47]. Kojic acid was used as positive control.
In both assays, experiments were performed in duplicates and negative control contained PBS and the substrate. Blanks contained all the assay components except the enzyme.

3.6. CDK7 Inhibition Assay

CDK7 activity was evaluated using CDK7 (Crelux construct CZY3, PC11452). The inhibitory potency of the compounds against CDK7 was determined by using the ADP-Glo Kinase Assay (Promega, Madison, WI, USA) and CDKtide as substrate. The assay was carried out according to the method previously described [5]. An IC50 of 203 nM was determined for staurosporine using XLfit. It can generally be stated that the assay worked properly, as the control compound staurosporine, which was run in parallel to the assay, provided the expected results.

3.7. Fyn Kinase Inhibition Assay

FynB activity was evaluated using FynB wt (Crelux construct CTX4, PC09815-1). The inhibitory potency of the compounds against FynB was determined by using the ADP-Glo Kinase Assay (Promega) and Fyn kinase substrate (Enzo Life Sciences, P215). The assay was carried out according the method previously described [5]. An IC50 of 0.191 µM was determined for staurosporine using XLfit. In general, it can be stated that the assay worked properly, as the control compound staurosporine, which was run in parallel to the assay, exhibited good results.

3.8. Proteasome Inhibition Assay

Proteasome activity was evaluated using yeast proteasome (TUM Groll group) in its storage buffer: 20 mM Tris/HCl pH 7.5. The inhibitory potency of the isolated compounds to yeast proteasome was assessed by using the Fluorescence Intensity Assay and Suc-Leu-Leu-Val-Tyr-AMC as substrate (Enzo Life Sciences, BML-P802-0005). The assay was carried out according to the method previously described [5]. An IC50 of 0.0366 nM was calculated for ONX-0914 using XLfit. It can generally be stated that the Fluorescence Intensity Assay worked properly, as the control compound ONX-0914, which was run in parallel to the assay, showed the expected results.

3.9. Global Natural Product Social Molecular Networking

A molecular network was created using the online workflow (https://ccms-ucsd.github.io/GNPSDocumentation/, accessed on 23 June 2020) on the GNPS website (http://gnps.ucsd.edu, accessed on 23 June 2020) [32]. The data was filtered by removing all MS/MS fragment ions within ±17 Da of the precursor m/z. MS/MS spectra were window filtered by choosing only the top six fragment ions in the ±50 Da window throughout the spectrum. The precursor ion mass tolerance was set to 0.02 Da and an MS/MS fragment ion tolerance of 0.02 Da. A network was then created where edges were filtered to have a cosine score above 0.7 and more than six matched peaks. Furthermore, edges between two nodes were kept in the network if and only if each of the nodes appeared in each other’s respective top 10 most similar nodes. Finally, the maximum size of a molecular family was set to 100, and the lowest scoring edges were removed from molecular families until the molecular family size was below this threshold. The spectra in the network were then searched against GNPS’ spectral libraries. The library spectra were filtered in the same manner as the input data. All matches kept between network spectra and library spectra were required to have a score above 0.7 and at least six matched peaks. Mass spectrometry data of all H2O/CH3OH Scopalina hapalia fractions used in this study were added to the Public Massive datasets in GNPS (Massive ID MSV000085622).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md20030186/s1, Figure S1. HRMS-ESI+ spectrum of sinularone J (1), Figure S2. 1H NMR spectrum of sinularone J (1) (600 MHz, in CD3OD), Figure S3. 13C NMR spectrum of sinularone J (1) (150 MHz, in CD3OD), Figure S4. 1H-1H COSY spectrum of sinularone J (1) (600 MHz, in CD3OD), Figure S5. HSQC spectrum of sinularone J (1) (600 MHz, in CD3OD), Figure S6. HMBC spectrum of sinularone J (1) (600 MHz, in CD3OD), Figure S7. HRMS-ESI+ spectrum of sinularone K (2), Figure S8. 1H NMR spectrum of sinularone K (2) (600 MHz, in CD3OD), Figure S9. 1H-1H COSY spectrum of sinularone K (2) (600 MHz, in CD3OD), Figure S10. HSQC spectrum of sinularone K (2) (600 MHz, in CD3OD), Figure S11. HMBC spectrum of sinularone K (2) (600 MHz, in CD3OD), Figure S12. HRMS-ESI-TOF spectrum of 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3), Figure S13. 1H NMR spectrum of 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) (600 MHz, in CD3OD), Figure S14. 1H-1H COSY spectrum of 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) (600 MHz, in CD3OD), Figure S15. HSQC spectrum of 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) (600 MHz, in CD3OD), Figure S16. HMBC spectrum of 1-O-octadecyl-2-pentanoyl-sn-glycero-3-phosphocholine (3) (600 MHz, in CD3OD), Figure S17. HRMS ESI-TOF spectrum of 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4), Figure S18. 1H NMR spectrum of 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4) (600 MHz, in CD3OD), Figure S19. 1H-1H COSY spectrum of 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4) (600 MHz, in CD3OD), Figure S20. HSQC spectrum of 1-O-(3-methoxy-tetradecanoyl)-sn-glycero-3-phosphocholine (4) (600 MHz, in CD3OD), Figure S21. HRMS ESI-TOF of 1-O-octadecyl-sn-glycero-3-phosphocholine (5), Figure S22. 1H NMR spectrum of compound 1-O-octadecyl-sn-glycero-3-phosphocholine (5) (600 MHz, in CD3OD), Figure S23. HRMS-ESI+ spectrum of compound 1-palmitoyl-sn-glycero-3-phosphocholine (6), Figure S24. 1H NMR spectrum of compound 1-palmitoyl-sn-glycero-3-phosphocholine (6) (600 MHz, in CD3OD), Figure S25. HRMS-ESI+ spectrum of compound 1-O-hexadecylglycerol (7), Figure S26. 1H NMR spectrum of compound 1-O-hexadecylglycerol (7) (600 MHz, in CD3OD), Figure S27. HRMS-ESI+ spectrumof compound 1-O-octadecylglycerol (8), Figure S28. 1H NMR spectrum of compound 1-O-octadecylglycerol (8) (600 MHz, in CD3OD), Figure S29. HRMS-ESI+ spectrum of compound 3-nonadecyloxy-1,2-propanediol (9), Figure S30. 1H NMR spectrum of compound 3-nonadecyloxy-1,2-propanediol (9) (600 MHz, in CD3OD), Figure S31. HRMS-ESI+ spectrum of compound 3-icosoxypropane-1,2-diol (10), Figure S32. 1H NMR spectrum of compound 3-icosoxypropane-1,2-diol (10) (600 MHz, in CD3OD), Figure S33. HRMS-ESI+ spectrum of compound 5α,8α-epidioxy-24(R/S)-hydroperoxystigmasta-6,28-dien-3β-ol (11), Figure S34. 1H NMR spectrum of compound 5α,8α-epidioxy-24(R/S)-hydroperoxystigmasta-6,28-dien-3β-ol (11) (600 MHz, in CD3OD), Figure S35. HRMS-ESI+ spectrum of compound 5α,8α-epidioxy-24(R/S)-stigmasta-6,22E-dien-3β-ol (12), Figure S36. 1H NMR spectrum of compound 5α,8α-epidioxy-24(R/S)-stigmasta-6,22E-dien-3β-ol (12) (600 MHz, in CD3OD), Figure S37. 1H NMR spectrum of compound cyclo(Val-Leu) (13) (600 MHz, in CD3OD), Figure S38. 1H NMR spectrum of compound cyclo(Val-Phe) (14) (600 MHz, in CD3OD), Figure S39. Dereplication of Scopalina hapalia fractions using LC-MS/MS molecular networking, Figure S40. Dereplication of Scopalina hapalia fractions using LC-MS/MS molecular networking.

Author Contributions

Conceptualization, funding acquisition and project administration, A.G.-B. and J.O.; bioassays (elastase and tyrosinase) methodology and validation, I.P.T.; formal analysis, C.S.H. and S.G., chemical investigation (extraction, isolation, and structural identification of the compounds), C.S.H., G.H., E.G., F.M. and P.C.; resources, A.G.-B. (sponge collections) and N.J.d.V. (sponge identification); writing—original draft preparation, C.S.H.; writing—review and editing, C.S.H., G.H., E.G., S.G., A.G.-B., M.F. and L.D.; visualization, C.S.H.; supervision, B.B., E.O. and A.G.-B. All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by the Regional Council of Reunion Island and by the TASCMAR project, which is funded by the European Union under grant agreement number 634674.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the main text and the supplementary material of this article. 1D and 2D NMR raw data of compounds 1–4 are made freely available at https://doi.org/10.5281/zenodo.6301017.

Acknowledgments

The authors acknowledge the contribution of Crelux GmbH, Am Klopferspitz 19a, 82152 Martinsried, Germany for bioassays (CDK7, FynB and proteasome) methodology and validation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mehbub, M.F.; Lei, J.; Franco, C.; Zhang, W. Marine Sponge Derived Natural Products between 2001 and 2010: Trends and Opportunities for Discovery of Bioactives. Mar. Drugs 2014, 12, 4539–4577. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Myers, N.; Mittermeier, R.A.; Mittermeier, C.G.; da Fonseca, G.A.B.; Kent, J. Biodiversity Hotspots for Conservation Priorities. Nature 2000, 403, 853–858. [Google Scholar] [CrossRef] [PubMed]
  3. Pettit, G.R.; Tan, R.; Gao, F.; Williams, M.D.; Doubek, D.L.; Boyd, M.R.; Schmidt, J.M.; Chapuis, J.C.; Hamel, E. Isolation and Structure of Halistatin 1 from the Eastern Indian Ocean Marine Sponge Phakellia carteri. J. Org. Chem. 1993, 58, 2538–2543. [Google Scholar] [CrossRef]
  4. Samy, M.N.; Le Goff, G.; Lopes, P.; Georgousaki, K.; Gumeni, S.; Almeida, C.; González, I.; Genilloud, O.; Trougakos, I.; Fokialakis, N.; et al. Osmanicin, a Polyketide Alkaloid Isolated from Streptomyces osmaniensis CA-244599 Inhibits Elastase in Human Fibroblasts. Molecules 2019, 24, 2239. [Google Scholar] [CrossRef][Green Version]
  5. Campos, P.-E.; Herbette, G.; Chendo, C.; Clerc, P.; Tintillier, F.; de Voogd, N.J.; Papanagnou, E.-D.; Trougakos, I.P.; Jerabek, M.; Bignon, J.; et al. Osirisynes G-I, New Long-Chain Highly Oxygenated Polyacetylenes from the Mayotte Marine Sponge Haliclona sp. Mar. Drugs 2020, 18, 350. [Google Scholar] [CrossRef]
  6. Morrow, C.; Cárdenas, P. Proposal for a Revised Classification of the Demospongiae (Porifera). Front. Zool. 2015, 12, 7. [Google Scholar] [CrossRef][Green Version]
  7. Nygaard, H.B.; van Dyck, C.H.; Strittmatter, S.M. Fyn Kinase Inhibition as a Novel Therapy for Alzheimer’s Disease. Alzheimer’s Res. Ther. 2014, 6, 8. [Google Scholar] [CrossRef][Green Version]
  8. Kaufman, A.C.; Salazar, S.V.; Haas, L.T.; Yang, J.; Kostylev, M.A.; Jeng, A.T.; Robinson, S.A.; Gunther, E.C.; van Dyck, C.H.; Nygaard, H.B.; et al. Fyn Inhibition Rescues Established Memory and Synapse Loss in Alzheimer Mice: Fyn Inhibition by AZD0530. Ann. Neurol. 2015, 77, 953–971. [Google Scholar] [CrossRef][Green Version]
  9. Tsuji, N.; Moriwaki, S.; Suzuki, Y.; Takema, Y.; Imokawa, G. The Role of Elastases Secreted by Fibroblasts in Wrinkle Formation: Implication through Selective Inhibition of Elastase Activity. Photochem. Photobiol. 2001, 74, 283–290. [Google Scholar] [CrossRef]
  10. Cardellina, J.H.; Graden, C.J.; Greer, B.J.; Kern, J.R. 17Z-Tetracosenyl 1-Glycerol Ether from the Sponges Cinachyra alloclada and Ulosa ruetzleri. Lipids 1983, 18, 107–110. [Google Scholar] [CrossRef]
  11. Cardellina, J.H.; Nigh, D.; VanWagenen, B.C. Plant Growth Regulatory Indoles from the Sponges Dysidea etheria and Ulosa ruetzleri. J. Nat. Prod. 1986, 49, 1065–1067. [Google Scholar] [CrossRef]
  12. VanWagenen, B.C.; Larsen, R.; Cardellina, J.H.; Randazzo, D.; Lidert, Z.C.; Swithenbank, C. Ulosantoin, a Potent Insecticide from the Sponge Ulosa ruetzleri. J. Org. Chem. 1993, 58, 335–337. [Google Scholar] [CrossRef]
  13. Prado, M.P.; Torres, Y.R.; Berlinck, R.G.S.; Desiderá, C.; Sanchez, M.A.; Craveiro, M.V.; Hajdu, E.; da Rocha, R.M.; Machado-Santelli, G.M. Effects of Marine Organisms Extracts on Microtubule Integrity and Cell Cycle Progression in Cultured Cells. J. Exp. Mar. Biol. Ecol. 2004, 313, 125–137. [Google Scholar] [CrossRef]
  14. Galeano, E.; Martínez, A. Antimicrobial Activity of Marine Sponges from Urabá Gulf, Colombian Caribbean Region. J. Mycol. Méd. 2007, 17, 21–24. [Google Scholar] [CrossRef]
  15. Biegelmeyer, R.; Schröder, R.; Rambo, D.F.; Dresch, R.R.; Stout, E.P.; Carraro, J.L.F.; Mothes, B.; Moreira, J.C.F.; Molinski, T.F.; da Frota Junior, M.L.C.; et al. Cytotoxic Effects on Tumour Cell Lines of Fatty Acids from the Marine Sponge Scopalina ruetzleri. J. Pharm. Pharmacol. 2015, 67, 746–753. [Google Scholar] [CrossRef]
  16. Helber, S.B.; Hoeijmakers, D.J.J.; Muhando, C.A.; Rohde, S.; Schupp, P.J. Sponge Chemical Defenses Are a Possible Mechanism for Increasing Sponge Abundance on Reefs in Zanzibar. PLoS ONE 2018, 13, e0197617. [Google Scholar] [CrossRef]
  17. Alvarez, B.; Hooper, J.N. Taxonomic Revision of the Order Halichondrida (Porifera: Demospongiae) of Northern Australia. Family Halichondriidae. Beagle Rec. Mus. Art Galleries North. Territ. 2011, 27, 55–84. [Google Scholar] [CrossRef]
  18. Lim, S.-C.; de Voogd, N.J.; Tan, K.-S. Biodiversity of Shallow-Water Sponges (Porifera) in Singapore and Description of a New Species of Forcepia (Poecilosclerida: Coelosphaeridae). Contrib. Zool. 2012, 81, 55–71. [Google Scholar] [CrossRef][Green Version]
  19. Shin, B.A.; Kim, Y.R.; Lee, I.-S.; Sung, C.K.; Hong, J.; Sim, C.J.; Im, K.S.; Jung, J.H. Lyso-PAF Analogues and Lysophosphatidylcholines from the Marine Sponge Spirastrella abata as Inhibitors of Cholesterol Biosynthesis. J. Nat. Prod. 1999, 62, 1554–1557. [Google Scholar] [CrossRef]
  20. Nishikawa, Y.; Furukawa, A.; Shiga, I.; Muroi, Y.; Ishii, T.; Hongo, Y.; Takahashi, S.; Sugawara, T.; Koshino, H.; Ohnishi, M. Cytoprotective Effects of Lysophospholipids from Sea Cucumber Holothuria atra. PLoS ONE 2015, 10, e0135701. [Google Scholar] [CrossRef][Green Version]
  21. Do, M.N.; Erickson, K.L. Branched Chain Mono-Glycerol Ethers from a Taiwanese Marine Sponge of the Genus Aaptos. Tetrahedron Lett. 1983, 24, 5699–5702. [Google Scholar] [CrossRef]
  22. Quijano, L.; Cruz, F.; Navarrete, I.; Gómez, P.; Rios, T. Alkyl Glycerol Monoethers in the Marine Sponge Desmapsamma anchorata. Lipids 1994, 29, 731–734. [Google Scholar] [CrossRef] [PubMed]
  23. Sera, Y.; Adachi, K.; Shizuri, Y. A New Epidioxy Sterol as an Antifouling Substance from a Palauan Marine Sponge, Lendenfeldia chondrodes. J. Nat. Prod. 1999, 62, 152–154. [Google Scholar] [CrossRef] [PubMed]
  24. Gunatilaka, A.A.L.; Gopichand, Y.; Schmitz, F.J.; Djerassi, C. Minor and Trace Sterols in Marine Invertebrates. 26. Isolation and Structure Elucidation of Nine New 5.Alpha.,8.Alpha.-Epidoxy Sterols from Four Marine Organisms. J. Org. Chem. 1981, 46, 3860–3866. [Google Scholar] [CrossRef]
  25. Stark, T.; Hofmann, T. Structures, Sensory Activity, and Dose/Response Functions of 2,5-Diketopiperazines in Roasted Cocoa Nibs (Theobroma Cacao). J. Agric. Food Chem. 2005, 53, 7222–7231. [Google Scholar] [CrossRef]
  26. Li, X.; Dobretsov, S.; Xu, Y.; Xiao, X.; Hung, O.S.; Qian, P. Antifouling Diketopiperazines Produced by a Deep-Sea Bacterium, Streptomyces fungicidicus. Biofouling 2006, 22, 187–194. [Google Scholar] [CrossRef]
  27. Cabrera, G.M.; Butler, M.; Rodriguez, M.A.; Godeas, A.; Haddad, R.; Eberlin, M.N. A Sorbicillinoid Urea from an Intertidal Paecilomyces marquandii. J. Nat. Prod. 2006, 69, 1806–1808. [Google Scholar] [CrossRef]
  28. Lee, J.; Wang, W.; Hong, J.; Lee, C.-O.; Shin, S.; Im, K.S.; Jung, J.H. A New 2,3-Dimethyl Butenolide from the Brittle Star Ophiomastix mixta. Chem. Pharm. Bull. 2007, 55, 459–461. [Google Scholar] [CrossRef][Green Version]
  29. Shi, H.; Yu, S.; Liu, D.; van Ofwegen, L.; Proksch, P.; Lin, W. Sinularones A-I, New Cyclopentenone and Butenolide Derivatives from a Marine Soft Coral Sinularia sp. and Their Antifouling Activity. Mar. Drugs 2012, 10, 1331–1344. [Google Scholar] [CrossRef][Green Version]
  30. Li, D.; Yang, Y.; Zhang, B.; Liao, X.; Jiang, Z.; Xu, S.; Zhao, B. Three New Butenolides from the Green Alga Caulerpa racemosa var. turbinata. Chem. Biodivers. 2020, 17, e2000022. [Google Scholar] [CrossRef]
  31. Colsch, B.; Fenaille, F.; Warnet, A.; Junot, C.; Tabet, J.-C. Mechanisms Governing the Fragmentation of Glycerophospholipids Containing Choline and Ethanolamine Polar Head Groups. Eur. J. Mass Spectrom. 2017, 23, 427–444. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, M.; Carver, J.J.; Phelan, V.V.; Sanchez, L.M.; Garg, N.; Peng, Y.; Nguyen, D.D.; Watrous, J.; Kapono, C.A.; Luzzatto-Knaan, T.; et al. Sharing and Community Curation of Mass Spectrometry Data with Global Natural Products Social Molecular Networking. Nat. Biotechnol. 2016, 34, 828–837. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Takano, E. Gamma-Butyrolactones: Streptomyces Signalling Molecules Regulating Antibiotic Production and Differentiation. Curr. Opin. Microbiol. 2006, 9, 287–294. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Joo, H.-S.; Yang, Y.-H.; Lee, C.-S.; Kim, J.-H.; Kim, B.-G. Fragmentation Study on Butanolides with Tandem Mass Spectrometry and Its Application for the Screening of ScbR-Captured Quorum Sensing Molecules in Streptomyces coelicolor A3(2). Rapid Commun. Mass Spectrom. 2007, 21, 764–770. [Google Scholar] [CrossRef]
  35. Peng, J.; Li, J.; Hamann, M.T. The Marine Bromotyrosine Derivatives. Alkaloids Chem. Biol. 2005, 61, 59–262. [Google Scholar]
  36. Moodie, L.W.K.; Žužek, M.C.; Frangež, R.; Andersen, J.H.; Hansen, E.; Olsen, E.K.; Cergolj, M.; Sepčić, K.; Hansen, K.Ø.; Svenson, J. Synthetic Analogs of Stryphnusin Isolated from the Marine Sponge Stryphnus fortis Inhibit Acetylcholinesterase with No Effect on Muscle Function or Neuromuscular Transmission. Org. Biomol. Chem. 2016, 14, 11220–11229. [Google Scholar] [CrossRef][Green Version]
  37. Lindsay, B.S.; Battershill, C.N.; Copp, B.R. Isolation of 2-(3′-Bromo-4′-Hydroxyphenol)Ethanamine from the New Zealand Ascidian Cnemidocarpa bicornuta. J. Nat. Prod. 1998, 61, 857–858. [Google Scholar] [CrossRef]
  38. Aiello, A.; Fattorusso, E.; Imperatore, C.; Menna, M.; Müller, W.E.G. Iodocionin, a Cytotoxic Iodinated Metabolite from the Mediterranean Ascidian Ciona ddwardsii. Mar. Drugs 2010, 8, 285–291. [Google Scholar] [CrossRef]
  39. Nicacio, K.J.; Ióca, L.P.; Fróes, A.M.; Leomil, L.; Appolinario, L.R.; Thompson, C.C.; Thompson, F.L.; Ferreira, A.G.; Williams, D.E.; Andersen, R.J.; et al. Cultures of the Marine Bacterium Pseudovibrio denitrificans Ab134 Produce Bromotyrosine-Derived Alkaloids Previously Only Isolated from Marine Sponges. J. Nat. Prod. 2017, 80, 235–240. [Google Scholar] [CrossRef]
  40. Müller, W.E.G.; Klemt, M.; Thakur, N.L.; Schröder, H.C.; Aiello, A.; D’Esposito, M.; Menna, M.; Fattorusso, E. Molecular/Chemical Ecology in Sponges: Evidence for an Adaptive Antibacterial Response in Suberites domuncula. Mar. Biol. 2004, 144, 19–29. [Google Scholar] [CrossRef]
  41. Andresen, T.L.; Jensen, S.S.; Madsen, R.; Jørgensen, K. Synthesis and Biological Activity of Anticancer Ether Lipids That Are Specifically Released by Phospholipase A2 in Tumor Tissue. J. Med. Chem. 2005, 48, 7305–7314. [Google Scholar] [CrossRef] [PubMed]
  42. Han, A.-R.; Song, J.-I.; Jang, D.S.; Min, H.-Y.; Lee, S.K.; Seo, E.-K. Cytotoxic Constituents of the Octocoral Dendronephthya gigantea. Arch. Pharm. Res. 2005, 28, 290–293. [Google Scholar] [CrossRef]
  43. Li, S.-Q.; Yang, Y.-B.; Yang, X.-Q.; Jiang, Y.; Li, Z.-J.; Li, X.-Z.; Chen, X.; Li, Q.-L.; Qin, S.-H.; Ding, Z.-T. Two New Cyclic Tetrapeptides of Streptomyces rutgersensis T009 Isolated from Elaphodus davidianus Excrement. Helv. Chim. Acta 2016, 99, 210–214. [Google Scholar] [CrossRef]
  44. Guo, X.; Zheng, L.; Zhou, W.; Cui, Z.; Han, P.; Tian, L.; Wang, X. A Case Study on Chemical Defense Based on Quorum Sensing: Antibacterial Activity of Sponge-Associated Bacterium Pseudoalteromonas sp. NJ6-3-1 Induced by Quorum Sensing Mechanisms. Ann. Microbiol. 2011, 61, 247–255. [Google Scholar] [CrossRef]
  45. Qian, L.; Zhang, M.; Wu, S.; Zhong, Y.; Van Tol, E.; Cai, W. Alkylglycerols Modulate the Proliferation and Differentiation of Non-Specific Agonist and Specific Antigen-Stimulated Splenic Lymphocytes. PLoS ONE 2014, 9, e96207. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Díaz, Y.M.; Laverde, G.V.; Gamba, L.R.; Wandurraga, H.M.; Arévalo-Ferro, C.; Rodríguez, F.R.; Beltrán, C.D.; Hernández, L.C. Biofilm Inhibition Activity of Compounds Isolated from Two Eunicea Species Collected at the Caribbean Sea. Rev. Bras. Farmacogn. 2015, 25, 605–611. [Google Scholar] [CrossRef][Green Version]
  47. Said Hassane, C.; Fouillaud, M.; Le Goff, G.; Sklirou, A.D.; Boyer, J.B.; Trougakos, I.P.; Jerabek, M.; Bignon, J.; de Voogd, N.J.; Ouazzani, J.; et al. Microorganisms Associated with the Marine Sponge Scopalina hapalia: A Reservoir of Bioactive Molecules to Slow Down the Aging Process. Microorganisms 2020, 8, 1262. [Google Scholar] [CrossRef]

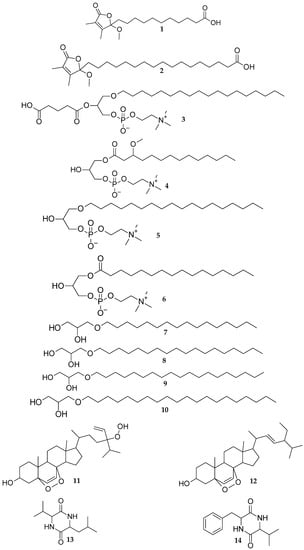

Figure 1. Chemical structures of new (14) and known (514) metabolites isolated from Scopalina hapalia.
Figure 1. Chemical structures of new (14) and known (514) metabolites isolated from Scopalina hapalia.
Marinedrugs 20 00186 g001

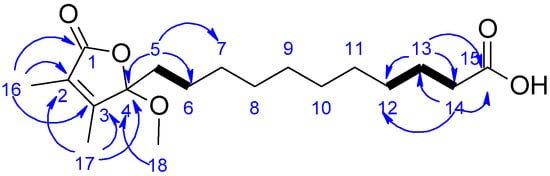

Figure 2. Key COSY (bold bonds) and HMBC (blue arrows) correlations for compound 1.
Figure 2. Key COSY (bold bonds) and HMBC (blue arrows) correlations for compound 1.
Marinedrugs 20 00186 g002

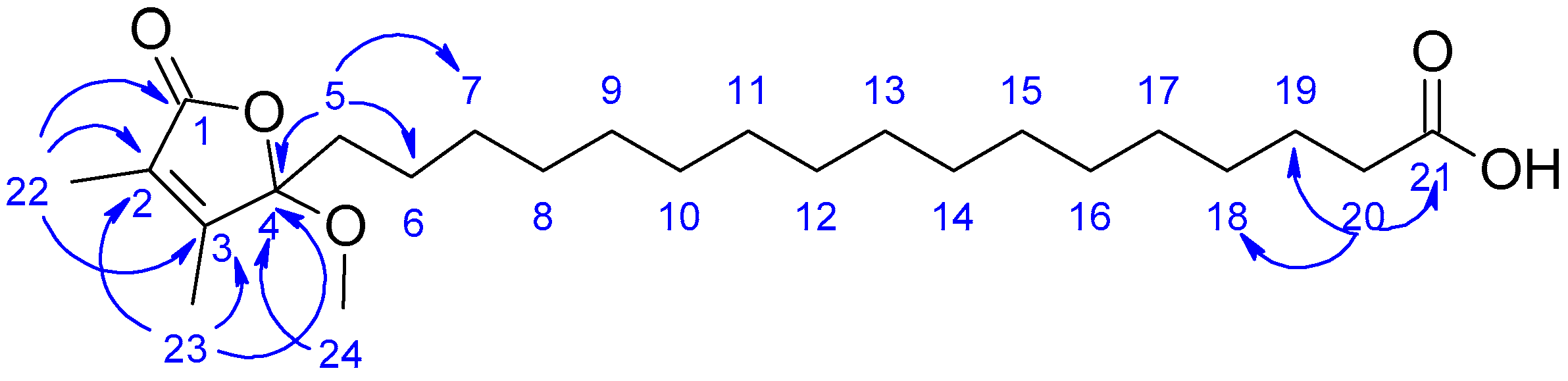

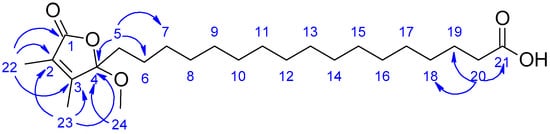

Figure 3. HMBC (blue arrows) correlations for compound 2.
Figure 3. HMBC (blue arrows) correlations for compound 2.
Marinedrugs 20 00186 g003

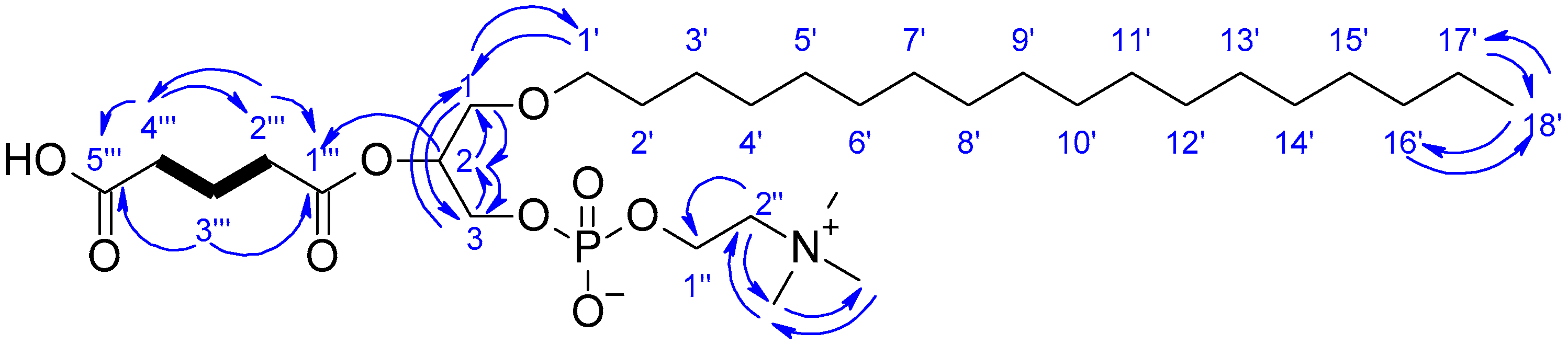

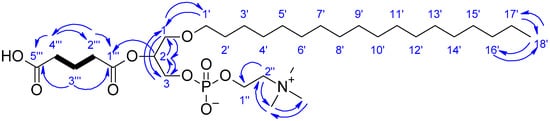

Figure 4. Key COSY (bold bonds) and HMBC (blue arrows) correlations for compound 3.
Figure 4. Key COSY (bold bonds) and HMBC (blue arrows) correlations for compound 3.
Marinedrugs 20 00186 g004

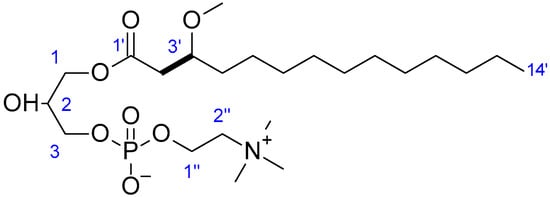

Figure 5. Key COSY (bold bonds) correlation for compound 4.
Figure 5. Key COSY (bold bonds) correlation for compound 4.
Marinedrugs 20 00186 g005

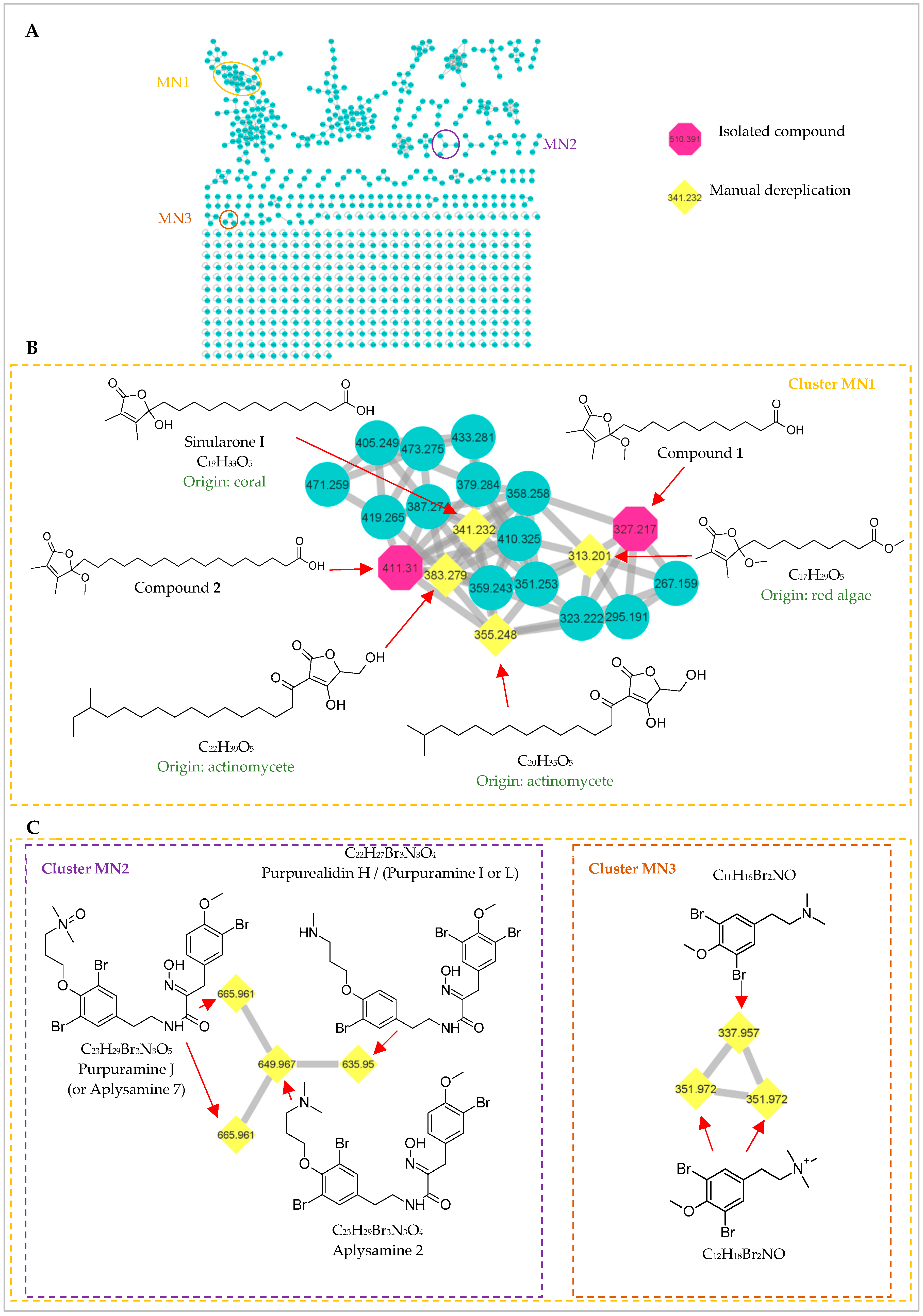

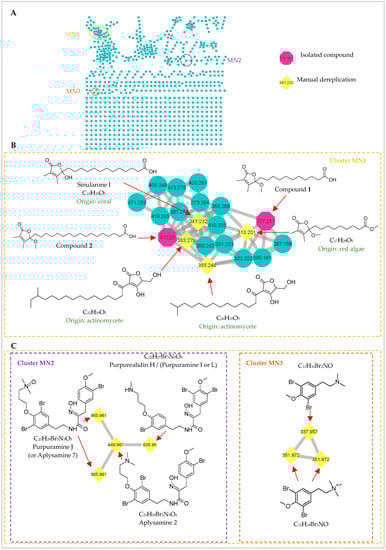

Figure 6. (A) Molecular Network constructed using MS/MS data from fractions of Scopalina hapalia, obtained after the removal of non-polar lipids of organic crude extract, with a cosine similarity cutoff of 0.7. Edge thickness corresponds to relative cosine score similarity between nodes. Annotated clusters are enlarged. (B) Cluster MN1 based on compounds 1 and 2 (octagonal nodes) related to butenolide derivatives. (C) Cluster MN2 and MN3 related to bromotyrosine metabolites.
Figure 6. (A) Molecular Network constructed using MS/MS data from fractions of Scopalina hapalia, obtained after the removal of non-polar lipids of organic crude extract, with a cosine similarity cutoff of 0.7. Edge thickness corresponds to relative cosine score similarity between nodes. Annotated clusters are enlarged. (B) Cluster MN1 based on compounds 1 and 2 (octagonal nodes) related to butenolide derivatives. (C) Cluster MN2 and MN3 related to bromotyrosine metabolites.
Marinedrugs 20 00186 g006
Table 1. NMR Spectroscopic data for 1 in CD3OD at 600 (1H) and 150 (13C) MHz.
Table 1. NMR Spectroscopic data for 1 in CD3OD at 600 (1H) and 150 (13C) MHz.
No.1
δC, TypeδH (J in Hz)HMBC, H → C
1173.8, OC=O
2128.4, =CH
3158.4, =CH
4111.9, C
536.5, CH21.95 (m)
1.73 (m)
C-4, C-6, C-7
623.8, CH21.24 (m)
1.13 (m)
7–1230.8–30.5, CH21.33–1.27 (m)
1327.7, CH21.59 (brqt 7.4)C-12, C-14, C-15
1439.1, CH22.15 (brt7.8)C-12, C-13, C-15
15183.0, C
168.2, CH31.84 (q, 1.2)C-1, C-2, C-3
1710.9, CH31.90 (q, 1.2)C-2, C-3, C-4
1850.5, CH33.07 (s)C-4
Table 2. NMR Spectroscopic data for 2 in CD3OD at 600 (1H) and 150 (13C) MHz.
Table 2. NMR Spectroscopic data for 2 in CD3OD at 600 (1H) and 150 (13C) MHz.
No.2
δC a, TypeδH (J in Hz)HMBC, H → C
1173.8, OC=O
2128.4, =CH
3158.4, =CH
4111.9, C
536.6, CH21.96 (m)
1.73 (m)
C-4, C-6, C-7
623.9, CH21.24 (m)
1.14 (m)
7–1831.0–30.6, CH21.33–1.27 (m)
1927.8, CH21.59 (qt, 7.5)
2039.2, CH22.16 (t, 7.5)C-18, C-19, C-21
21182.9, C
228.3, CH31.83 (q, 1.1)C-1, C-2, C-3
2310.9, CH31.90 (q, 1.1)C-2, C-3, C-4
2450.5, CH33.07 (s)C-4
a δC were determined from HSQC and HMBC experiments.
Table 3. NMR Spectroscopic data for 3 in CD3OD at 600 (1H) and 150 (13C) MHz.
Table 3. NMR Spectroscopic data for 3 in CD3OD at 600 (1H) and 150 (13C) MHz.
No.3
δC a, TypeδH (J in Hz)HMBC, H → C
170.2, CH23.59 (1H, dd 10.9, 5.9)
3.61 (1H, dd 10.9, 4.7)
C-2, C-3, C-1’
273.2, CH5.17 (1H, m)C-1, C-3, C-1’’’
365.5, CH23.97 (1H, dt 11.1, 6.1 b)
4.03 (1H, ddd 11.1, 5.7, 4.2 b)
C-1, C-2
1’72.7, CH23.43 (1H, dt 9.3, 6.6)
3.48 (1H, dt 9.3, 6.7)
C-1, C-2’, C-3’
2’30.8, CH21.54 (2H, brqt 6.8)
3’27.6, CH21.35–1.25 (30H, ov c)
4’–15’30.7, CH21.33–1.27 (m)
16’33.2, CH21.59 (qt, 7.5)
17’23.8, CH22.16 (t, 7.5)
18’14.5, CH30.90 (3H, t 7.1)C-16’, C-17’
1’’60.5 (d 5.4) b, CH24.27 (2H, m b)
2’’67.4 (m) b, CH23.65 (2H, m)C-1’’, N+(CH3)3
N+(CH3)354.7 (m) b, CH33.23 (brs)C-2’’, N+(CH3)3
1’’’174.4, C
2’’’34.6, CH22.42 (2H, brt 7.5)C-1’’’, C-4’’’
3’’’22.1, CH21.90 (2H, brqt 7.5)C-1’’’, C-5’’’
4’’’35.9, CH22.31 (2H, brt 7.3)C-2’’’, C-5’’’
5’’’178.7, C
a δC were determined from HSQC and HMBC experiments; b 1H−31P couplings; c overlapping signals.
Table 4. NMR Spectroscopic data for 4 in CD3OD at 600 (1H) and 150 (13C) MHz.
Table 4. NMR Spectroscopic data for 4 in CD3OD at 600 (1H) and 150 (13C) MHz.
No. a4
δC b, TypeδH (J in Hz)COSY, H → H
166.0, CH24.19 (dd, 10.9; 4.7)
4.13 (dd, 10.9; 5.9)
269.4, CH3.98 (m)
367.4, CH23.90 (m)
1’no-
2’39.9, CH22.54 (dd, 15.3; 7.3)
2.51 (dd, 15.3; 5.6)
3’
3’78.8, CH3.66 (m)2’
4’34.5, CH21.53 (m)
5’–12’33.2, CH21.35–1.25 (ov c)14’
13’23.4, CH22.16 (t, 7.5)
14’14.1, CH20.90 (t, 7.1)13’
OCH356.9, CH33.34 (s)
1’’60.1, CH24.29 (m)2’’
2’’67.0, CH23.65 (m)1’’
N+(CH3)354.3, CH33.23 (s)
a All assignments are based on 1H NMR and 2D NMR measurements (COSY, HSQC); b δC were determined from HSQC experiment; c overlapping signals.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Saïd Hassane, C.; Herbette, G.; Garayev, E.; Mabrouki, F.; Clerc, P.; de Voogd, N.J.; Greff, S.; Trougakos, I.P.; Ouazzani, J.; Fouillaud, M.; Dufossé, L.; Baghdikian, B.; Ollivier, E.; Gauvin-Bialecki, A. New Metabolites from the Marine Sponge Scopalina hapalia Collected in Mayotte Lagoon. Mar. Drugs 2022, 20, 186. https://doi.org/10.3390/md20030186

AMA Style

Saïd Hassane C, Herbette G, Garayev E, Mabrouki F, Clerc P, de Voogd NJ, Greff S, Trougakos IP, Ouazzani J, Fouillaud M, Dufossé L, Baghdikian B, Ollivier E, Gauvin-Bialecki A. New Metabolites from the Marine Sponge Scopalina hapalia Collected in Mayotte Lagoon. Marine Drugs. 2022; 20(3):186. https://doi.org/10.3390/md20030186

Chicago/Turabian Style

Saïd Hassane, Charifat, Gaëtan Herbette, Elnur Garayev, Fathi Mabrouki, Patricia Clerc, Nicole J. de Voogd, Stephane Greff, Ioannis P. Trougakos, Jamal Ouazzani, Mireille Fouillaud, Laurent Dufossé, Béatrice Baghdikian, Evelyne Ollivier, and Anne Gauvin-Bialecki. 2022. "New Metabolites from the Marine Sponge Scopalina hapalia Collected in Mayotte Lagoon" Marine Drugs 20, no. 3: 186. https://doi.org/10.3390/md20030186

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
