Article

Structure and Absolute Configuration of Phenanthro-perylene Quinone Pigments from the Deep-Sea Crinoid Hypalocrinus naresianus

by
Sahithya Phani Babu Vemulapalli
1,2,†,
Juan Carlos Fuentes-Monteverde
1,†,
Niels Karschin
1,†,
Tatsuo Oji
3,
Christian Griesinger
1,* and
Klaus Wolkenstein
1,4,*
1
Department of NMR-Based Structural Biology, Max Planck Institute for Biophysical Chemistry, Am Fassberg 11, 37077 Göttingen, Germany
2
Institute for Chemistry and Biology of the Marine Environment, University of Oldenburg, Carl-von-Ossietzky-Str. 9-11, 26129 Oldenburg, Germany
3
Nagoya University Museum, Nagoya University, Nagoya 464-8601, Japan
4
Department of Geobiology, Geoscience Centre, University of Göttingen, Goldschmidtstraße 3, 37077 Göttingen, Germany
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally.
Mar. Drugs 2021, 19(8), 445; https://doi.org/10.3390/md19080445
Submission received: 9 July 2021 / Revised: 23 July 2021 / Accepted: 28 July 2021 / Published: 3 August 2021
(This article belongs to the Special Issue Configurational and Conformational Studies on the Structures of Marine Natural Products)
Browse Figures
Versions Notes

Abstract

:
Two new water-soluble phenanthroperylene quinones, gymnochrome H (2) and monosulfated gymnochrome A (3), as well as the known compounds gymnochrome A (4) and monosulfated gymnochrome D (5) were isolated from the deep-sea crinoid Hypalocrinus naresianus, which had been collected in the deep sea of Japan. The structures of the compounds were elucidated by spectroscopic analysis including HRMS, 1D 1H and 13C NMR, and 2D NMR. The absolute configuration was determined by ECD spectroscopy, analysis of J-couplings and ROE contacts, and DFT calculations. The configuration of the axial chirality of all isolated phenanthroperylene quinones (2–5) was determined to be (P). For gymnochrome H (2) and monosulfated gymnochrome A (3), a (2′S,2″R) configuration was determined, whereas for monosulfated gymnochrome D (5) a (2′R,2″R), configuration was determined. Acetylated quinones are unusual among natural products from an echinoderm and gymnochrome H (2) together with the recently reported gymnochrome G (1) represent the first isolated acetylated phenanthroperylene quinones.

1. Introduction

Recently, a series of amido- and aminoanthraquinones, amidoanthraquinone biaryls, as well as non-nitrogen-containing anthraquinones have been isolated from the deep-sea crinoid Hypalocrinus naresianus collected off Japan in a water depth of 763 to 852 m [1]. Preliminary analysis of an ethanolic extract of one specimen also indicated the presence of a series of brominated phenanthroperylene quinones [2]. The structure of one of these phenanthroperylene quinones, gymnochrome G (1), has been described elsewhere [3].
While the determination of the absolute configuration of the phenanthroperylene quinone moiety is straightforward from ECD [4] due to the inherent axial chirality of sterically hindered phenanthroperylene quinone chromophores, the determination of configuration of chiral side chains at the chromophore needs other methods than ECD. As the chromophore can be used as chiral reference, these other methods need to be only diastereodiscriminating, such as NMR. In their impressive work, De Riccardis et al. [5] have determined the configuration of phenanthroperylene quinones from the stalked crinoid Neogymnocrinus richeri, named gymnochromes, by applying the empirical approach of Horeau [6] and using proton shielding effects established on the related cercosporin family [7]. The configuration of chiral centers of side chains of further gymnochromes from the stalked deep-water crinoid Holopus rangii have been tentatively assigned [8] using arguments similar to those of Nasini et al. [7] and De Riccardis et al. [5] based on the observation of shielding (or the lack of shielding) for the side chain protons.
In this study, we report the isolation, structure, and absolute configuration of those phenanthroperylene quinone pigments from H. naresianus that have been isolated in addition to gymnochrome G (1). We determined the configurations from J-couplings and ROE contacts and found that the empirical rules applied to the previously studied gymnochromes apply also to the gymnochromes described in this work.

2. Results and Discussion

The methanol-soluble pigments of the MeOH/CH2Cl2 extract of H. naresianus were combined with the MeOH/H2O (9:1), MeOH/H2O (1:1), and H2O extracts of the crinoid and subjected to semipreparative HPLC [1]. Fractions were then desalted by solid phase extraction to give the previously reported gymnochrome G (1) [3], the new phenanthro-perylene quinone pigments gymnochrome H (2) and monosulfated gymnochrome A (3), as well as the known compounds gymnochrome A (4) and monosulfated gymnochrome D (5) (Figure 1).
Gymnochrome H (2) was isolated as a violet solid. It showed UV/vis absorption maxima (MeOH) at 220, 236, 258, 301, 331, 404, 496, 554, and 598 nm (Figure 2), very similar to those of phenanthroperylene quinones. The ESIMS spectrum showed a complex multiplet at m/z 1081, 1083, 1085, 1087, and 1089 (relative intensities 1.0:3.7:6.0:4.2:1.4) for the deprotonated molecular ion, indicating the presence of four bromine atoms. HRESIMS data of 2 suggested the molecular formula C40H30Br4O14S (m/z 1080.7993 [M – H]–). The characteristic fragment peak (monoisotopic) at m/z 983 [M – H3SO4]– suggested the presence of a sulfate group. The 1H NMR spectrum of 2 (Table 1) showed no aromatic proton signals, indicating a highly condensed aromatic structure. The 13C APT NMR spectrum (Table 1) revealed the presence of 40 carbon signals: two carbonyl carbons at δC 185.9 and 185.8, 26 non-protonated aromatic carbons, including six phenolic carbons at δC 170.4, 170.3, 166.47, 166.46, 160.9, and 160.7 consistent with a substituted phenanthroperylene quinone structure, as well as one acetyl carbonyl carbon at δC 171.5 and 11 aliphatic carbons at δC 80.0 and 74.1 (methine groups), δC 44.2, 42.5, 38.8, 35.4, 18.9, and 18.1 (methylene groups), and δC 20.6, 14.4, and 13.4 (methyl groups). HMBC and COSY correlations indicated the presence of two pentyl side chains located in position 3 and 4 (Figure 3). The chemical shift of C2″ (δC 80.0) compared to that of C2′ (δC 74.1) indicated the presence of the sulfate group attached to C2″. An HMBC correlation from H2′ to 2′-OCOCH3 (δC 171.5) revealed the presence of an acetate group. Variable temperature 1H NMR spectra (Figure S9) of 2 acquired in MeOH-d3 showed broad resonances of peri-hydroxy protons at high temperature, while sharp signals with high intensity occurred at low temperature. Consequently, a further HMBC spectrum was recorded at 280 K, which allowed for the direct assignment of the peri-hydroxy groups 1-OH, 6-OH, 8-OH, and 13-OH by HMBC correlations from the corresponding hydroxy protons. The bay-hydroxy groups 10-OH and 11-OH gave no signal in the 1H NMR spectrum (likely because no hydrogen-bonding to a carbonyl group is possible at this positions), however could be indirectly assigned by weak 4J HMBC correlations from the nearby hydroxy protons 8-OH and 13-OH to the phenolic carbons C10 and C11, respectively. Although assignment of aromatic carbons is generally difficult in substituted phenanthroperylene quinones, the low temperature HMBC spectrum enabled the unambiguous assignment of the majority of aromatic carbons through long-range 2J, 3J, and 4J correlations either from hydroxy protons or from H1′ and H1″ to aromatic carbons (Table 1, Figure 3C). Only C10a, C10b, and the central carbons C14d, C14e, C14f, and C14g were assigned based on plausibility.
Monosulfated gymnochrome A (3) was found to have the molecular formula C36H24Br4O13S, as established by HRESIMS data (m/z 1010.7562 [M – H]–). The 1H NMR and 13C NMR signals of 3 (Table 1) were very similar to those of the previously described gymnochrome A (4) [5]. However, the 1H NMR spectrum of 3 showed almost identical signals for a 2″-sulfoxypentyl side chain as observed in 2, suggesting that 3 is the monosulfated derivative of gymnochrome A (4).
Gymnochrome A (4) and monosulfated gymnochrome D (5), the latter being the most abundant phenanthroperylene quinone in Hypalocrinus, have previously been reported from the crinoid Neogymnocrinus richeri [5]. Spectroscopic data were in agreement with previously published values with exception of the ECD spectra that showed much higher Δε values (Figure 2) than previously reported. As compound 5 has only been partially characterized by NMR, we further confirmed the structure by 13C NMR and HMBC. It has been supposed that monosulfated gymnochrome D (5) (and monosulfated isogymnochrome D) were artifacts produced by partial hydrolysis of gymnochrome D (and isogymnochrome D) during extraction under slightly acidic conditions [5]. However, because extraction of Hypalocrinus was not performed under acidic conditions, it appears that monosulfated gymnochrome D (5) in fact may be an original natural product.
The ECD spectra of all isolated phenanthroperylene quinones (2–5) show a high similarity, independent from the length and configuration of the alkyl side chains (Figure 2). This strongly indicates that the ECD effect is dominated by the aromatic chromophore with only little influence from the alkyl side chains. Analysis of ECD spectra revealed that the configuration of the axial chirality of 2–5 is (P) (Figure 2). The propeller conformation of the gymnochromes with positive axial chirality was unambiguously confirmed by comparison of the measured ECD spectrum of gymnochrome H (2) with the calculated ECD curve of 2 (Figure 4) and those of the aromatic chromophore of the gymnochromes without alkyl side chains in propeller conformation with positive (P) and negative (M) axial chirality (Figure S10).
Determination of relative configuration of the side chains of 2 and 5 was done by determining the major staggered conformer from J-couplings as originally introduced by Pachler [9,10] and described for the natural product community 30 year later as Murata’s method [11]. The chain of arguments is very similar to the case of gymnochrome G (1) [3]. First, the only visible inter-side chain ROE contacts are between H1′ and H1″, which confirms the intuitive assumption that the side chains point away from each other and the chromophore (Figure 5). Second, the geminal protons H1a’/b’ and H1a″/b″ are assigned using J-couplings to C2/C5 and C3a/C3b (Table 2 and Table 3). Here, the relative coupling size can differentiate between syn- and antiperiplanar arrangements (antiperiplanar show a larger 3JCH-coupling). Finally, the couplings of the two protons H1′ to H2′, C2′, and C3′ (and H1″ to H2″, C2″, and C3″) are used: In all cases, H2′ (H2″) has a large and a small coupling to the two protons at position 1′ (1″), which indicate an antiperiplanar arrangement in the former and a synclinal arrangement in the latter case. The same connection between coupling size and arrangement applies to the coupling of C3′ (C3″) to the two protons H1′ (H1″), which allows us to deduce the arrangement of C3′ (C3″). Finally, the coupling of C2′ (C2″) to the protons indicates the dihedral angle between H1′ (H1″) and the electronegative substituent OR. However, here a large coupling indicates a synclinal arrangement and a small coupling an antiperiplanar arrangement. For both 2 and 5, this yields the arrangement of the substituents at C2′ and C2″ and thus the configuration and dominant conformation. This is illustrated as a Newman projection in Figure 6, including the values of the couplings used in the deduction. These side chain configurations are relative to the configuration of the aromatic system. As the absolute configuration of the aromatic system is known to be (P), this therefore also establishes the absolute configurations of the side chains. The configuration is (2′S,2″R) for gymnochrome H (2), while it is (2′R,2″R) for monosulfated gymnochrome D (5) which is in agreement with previous results on 5 determined by De Riccardis et al. [5]. We corroborated these configurations using DP4+ [12,13], an approach based on Bayesian statistics that compares measured chemical shifts with those predicted by density functional theory (DFT). This confirmed the configurations determined via ROE and J-couplings with high confidence, and it allowed us to determine the configuration of the low-abundance monosulfated gymnochrome A (3) to be (2′S,2″R) (Table 4).
Our results further show that the proton chemical shifts in the propyl and pentyl side chains indeed are indicative of the configuration of gymnochromes as suggested by [5] and applied by [8]. In (P)-configured gymnochromes, the methyl group of propyl and the methyl groups of pentyl are in the range of 0 ppm for (S) configuration and in the range of 0.9 ppm in the case of (R) configuration, whereas in (M)-configured gymnochromes the methyl group of propyl and the methyl groups of pentyl are in the range of 0.9 ppm for (S) configuration and in the range of 0 ppm in the case of (R) configuration. This pattern also reaffirms the configuration of monosulfated gymnochrome A (3), which was only determined via DP4+. The propyl side chain methyl of 3 is shielded (δH −0.15) and therefore lies above the aromatic ring system. As axial chirality of 3 reveals (P) configuration, (S) configuration is suggested for the chiral center C2′. The smaller shielding (δH 0.88) of terminal methyl protons relative to the previously mentioned δH = −0.15 indicate that the pentyl side chain of 3 is directed away from the aromatic ring system, thus suggesting (R) configuration for the chiral center C2″.
It can be generally observed that in gymnochromes, independent from their axial chirality, chiral centers of propyl side chains have the (S) configuration, while chiral centers of pentyl side chains have the (R) configuration [3,5,8]. Possibly this is the result of their polyketide biosynthesis. This pattern can also be found in the gymnochromes described in this work, however, with the exception of gymnochrome H (2) whose 2-hydr-oxypentyl group is acetylated and is found in the (S) configuration.
Acetylated quinones are not common among natural products, especially among echinoderms. However, acetylated anthraquinones have recently been isolated from the crinoid Pterometra venusta [14]. Gymnochrome G (1) and H (2) represent the first acetylated phenanthroperylene quinone pigments. Previous HPLC-MS analysis of a crude extract of Hypalocrinus, also revealing the ion signals of 1 and 2 [2], proves that they are original natural products and no artifacts that may have formed during isolation of compounds.
As cytotoxic effects have been reported for gymnochrome E and F isolated from the crinoid Holopus [8], the cytotoxic activities of monosulfated gymnochrome D (5) were tested against the cell lines HT29, A549, MDA-MB-231, and PSN1, however, no inhibition at 25 μg/mL could be observed. Although the biological activities of the new gymnochromes have not been further investigated in this study, it is likely that they exhibit antiviral activity as observed for other gymnochromes and brominated hypericins. For example, gymnochrome D and isogymnochrome D were found to have activity against dengue virus [15,16], and gymnochrome B was found to have activity against herpes simplex virus and influenza virus [17].
Our results further confirm previous observations that many quinone pigments in crinoids occur as water-soluble sulfate esters [1,3,18,19,20], and the majority of quinones from stalked deep-sea crinoids are brominated in contrast to their relatives living in shallow water [19]. The diversity of pigments in the deep-sea crinoid Hypalocrinus is remarkable comprising highly substituted anthraquinones and biaryl quinones [1] as well as phenanthroperylene quinones, in total at least fifteen quinones with ten of them having never been observed before.

3. Materials and Methods

3.1. General Experimental Procedures

UV spectra were recorded on a Jasco V-630 UV–visible spectrophotometer, CD spectra were recorded on a Jasco J-810 spectropolarimeter, and IR spectra were measured on a Jasco 4100 FT-IR spectrometer equipped with a Pike Gladi ATR (attenuated total reflection) accessory. 1D and 2D NMR spectra were recorded in MeOH-d3 (with the exception of the known compound 4 that was recorded in MeOH-d4) at 298 K on Bruker Avance III HD spectrometers at 600, 800, and 900 MHz and an Avance Neo 800 MHz spectrometer, equipped with TCI (800/900) and QCI (600) probes. Measurement of NMR spectra with MeOH-d3 as the solvent facilitated the observation of peri-hydroxy (1-OH, 6-OH, 8-OH, and 13-OH) protons and thereby the assignment of aromatic carbons, which however is not possible using MeOH-d4. Chemical shifts were referenced using residual solvent peaks (MeOH: δH = 3.31 ppm, δC = 49.0 ppm). Standard pulse sequences for 13C–1H HSQC and 13C–1H HMBC experiments were used. The refocusing delays for the inverse heterocorrelations were set to 3.57 and 71.4 ms, corresponding to 1JC,H = 140 Hz and nJC,H = 7 Hz, respectively. For compound 2, an additional HMBC (optimized for 2 Hz carbon-proton long-range coupling) spectrum was recorded at 280 K. The 2D ROESY spectrum of compound 2 was recorded using the Bruker standard pulse sequence (roesyphpr.2) with an alternating phase (180x 180-x) spin-lock pulses, a mixing time of 200 ms, and a spin-lock field strength of 2.8 kHz. A matrix of 8 k × 1 k complex points was used with 6600 Hz spectral width in both dimensions. A recovery delay of 2 s and 32 scans per increment were employed. JHH-couplings were determined from 1D 1H spectra. nJCH-couplings were determined using a J-HMBC [21] spectrum for compound 2 and a modified HMBC following the approach from Edden et al. [22] for compound 5. High-resolution MS spectra were obtained using a Bruker micrOTOF mass spectrometer with electrospray ionization in the negative-ion mode. HPLC was performed on an Agilent 1200 Series system using a Phenomenex Gemini C18 column (250 × 10 mm i.d., 5 μm).

3.2. Animal Material

Two specimens of H. naresianus were collected in 2004 and 2008 by beam trawling from Shima Spur, Kumano-nada Sea, Japan from depths of 763 to 852 m. Voucher samples were deposited in the collection of the Systematische Zoologie am Museum für Naturkunde Berlin (ZMB Ech 7415 and ZMB Ech 7416).

3.3. Extraction and Isolation

Lyophilized H. naresianus material (9.0 and 10.1 g) was successively extracted with MeOH/CH2Cl2 (1:1), MeOH/H2O (9:1), MeOH/H2O (1:1), and distilled water. The methanol-soluble pigments of the MeOH/CH2Cl2 extract were combined with the other extracts and subjected to semipreparative HPLC using a linear gradient of acetonitrile/20 mM aqueous ammonium acetate (45:55) to 85% acetonitrile in 40 min at a flow rate of 4.5 mL/min. Those fractions containing compound 2 and 3 were further purified by semi-preparative HPLC using a linear gradient of MeOH/20 mM aqueous ammonium acetate (65:35) to 85% MeOH in 40 min at a flow rate of 4.5 mL/min. Fractions were concentrated using solid phase extraction (Bondesil C18, 40 µm). Pigments were washed with water and eluted with MeOH/H2O (9:1) followed by evaporation of the eluates to dryness to give the compounds 2 (2.1 mg), 3 (0.8 mg), 4 (0.4 mg), and 5 (4.1 mg).
Gymnochrome H (2): violet solid; UV (MeOH) λmax (log ε) 220 (4.70), 236 (4.72), 258 (4.68), 301 (4.55), 331 (4.47), 404 (3.95), 496 (4.18), 554 (4.31), 598 (4.60); ECD (MeOH) λ (Δε) 218 (+47.86), 239 (−16.08), 255 (+28.80), 296 (−49.97), 324 (+35.40), 364 (−10.13), 445 (+42.80), 489 (+30.99), 555 (−17.83), 599 (–39.43); IR (ATR) νmax 1569, 1449, 1236, 1128 cm–1; 1H NMR (MeOH-d3, 800 MHz) and 13C NMR (MeOH-d3, 200 MHz), see Table 1; HRESIMS m/z 1080.7993 [M − H]– (calcd for C40H29Br4O14S, 1080.8017), 982.8343 [M − H3SO4]– (calcd for C40H27Br4O10, 982.8343), 539.8985 [M − 2H]2– (calcd for 0.5 · C40H28Br4O14S, 539.8972).
Monosulfated gymnochrome A (3): violet solid; UV (MeOH) λmax (log ε) 221 (4.68), 236 (4.71), 257 (4.66), 300 (4.53), 331 (4.44), 404 (3.92), 495 (4.15), 554 (4.28), 598 (4.58); ECD (MeOH) λ (Δε) 218 (+44.59), 239 (−13.36), 254 (+22.52), 295 (−47.25), 324 (+31.57), 364 (−7.50), 443 (+39.47), 489 (+27.98), 555 (–15.95), 599 (–35.46); IR (ATR) νmax 1572, 1451, 1240, 1128 cm–1; 1H NMR (MeOH-d3, 800 MHz) and 13C NMR (MeOH-d3, 200 MHz), see Table 1; HRESIMS m/z 1010.7562 [M − H]– (calcd for C36H23Br4O13S, 1010.7598), 912.7894 [M − H3SO4]– (calcd for C36H21Br4O9, 912.7925), 504.8765 [M − 2H]2– (calcd for 0.5 · C36H22Br4O13S, 504.8763).
Monosulfated gymnochrome D (5): violet solid; UV (MeOH) λmax (log ε) 220 (4.65), 235 (4.67), 299 (4.48), 330 (4.40), 405 (3.86), 493 (4.10), 554 (4.24), 598 (4.53); ECD (MeOH) λ (Δε) 217 (+39.38), 239 (−13.63) 255 (+18.19), 295 (−39.46), 323 (+28.27), 363 (−7.05), 442 (+36.67), 489 (+25.49), 555 (−14.36), 599 (–31.98); IR (ATR) νmax 1572, 1452, 1239, 1128 cm–1; 1H NMR (MeOH-d3, 800 MHz) and 13C NMR (MeOH-d3, 200 MHz), see Table 1; HRESIMS m/z 1038.7889 [M − H]– (calcd for C38H27Br4O13S, 1038.7911), 940.8193 [M − H3SO4]– (calcd for C38H25Br4O9, 940.8238), 518.8913 [M − 2H]2– (calcd for 0.5 · C38H26Br4O13S, 518.8919).

3.4. DP4+ Analysis

The starting geometries were built in Maestro 11.4 [23]. For all configurations, the quinoid carbonyl acted as H-bond acceptor for the 1-, 6-, 8-, and 13-OH; the 11-OH group acted as H-bond acceptor for 10-OH; and 12-Br acted as H-bond acceptor for 11-OH. In all following steps, this OH conformation was kept fixed to greatly reduce sampling complexity. The sulfate group was built in its deprotonated form. The aromatic ring was built in propeller conformation (P). All four combinations of configuration at the two stereogenic centers were generated.
The conformational search was performed with Macromodel 11.8 [24] using the MMFF forcefield [25] in vacuum. The method was a Monte Carlo torsional sampling [26] of all non-terminal rotatable sidechain bond with 100,000 steps, a minimization convergence of 1.0 kJ/mol/Å, and an energy threshold of 21 kJ/mol. The resulting conformers were subjected to a finer minimization with 0.001 kJ/mol/Å convergence, and structures with a maximum atom deviation below 0.5 Å were discarded as duplicates. The conformers were clustered using torsional RMSD to 50 clusters, and the lowest energy conformation of each cluster was accepted as member of the conformational ensemble. This ensured the feasibility of the following, computationally expensive procedure.
All conformers from the ensemble were geometry optimized at the B3LYP [27,28,29,30]/6-31G [31] level of theory with Gaussian09 [32], and all conformers below 8.4 kJ/mol of the minimum energy (zero-point and free energy corrected) were discarded. The shielding constants were calculated at the MPW1PW91 [33,34]/6-31+G(d,p) level of theory using GIAO [35] and an implicit solvent model. The resulting shieldings were then averaged assuming a Boltzmann distribution and the energies from the geometry optimization, and the DP4+ probability was calculated using these averaged shieldings from all sidechain H- and C-atoms and the ipso- and ortho-C-atoms of the aromatic system. Unassigned methylene protons were assigned to the better-fitting value for each configuration.

3.5. ECD Calculations

TDDFT ECD [36] calculations were performed on 13 low-energy conformers of gymnochrome H (2) with propeller-(P) and (2′S,2″R) configurations of aromatic core and alkyl side chains, respectively, at PBE0 [37,38,39] /def2-tzvpp [40,41] /def2tzv level of theory with 150 excited states. A polarizable continuum model (iefpcm [42], solvent: methanol) was employed for the ECD calculations. The extraction of ECD curve of each conformer followed by Boltzmann averaging were carried out using SpecDis v1.71 [43,44]. The entire Boltzmann weighted ECD curve is shifted by 15 nm so-called “UV-shift” to compare with the experimental ECD of gymnochrome H (2). TDDFT ECD calculations were also performed on propeller-(P) and propeller-(M) conformations of aromatic chromophore of gymnochromes without alkyl side chains by employing the above-mentioned procedure.

3.6. Biological Assays

The cytotoxic activities of compound 5 were tested against NSLC A-549 human lung carcinoma cells, MDA-MB-231 human breast adenocarcinoma cells, HT-29 human colorectal carcinoma cells, and PSN1 human pancreatic carcinoma cells. The assays were performed according to the procedure described in Skehan et al. [45].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md19080445/s1, Figures S1–S23: HRESIMS and NMR spectra of 2, 3, and 5.

Author Contributions

Conceptualization, C.G. and K.W.; methodology, S.P.B.V., J.C.F.-M., N.K., C.G., and K.W.; investigation, S.P.B.V., J.C.F.-M., N.K., and K.W.; resources, T.O. and C.G.; writing—original draft preparation, K.W.; writing—review and editing, S.P.B.V., J.C.F.-M., N.K., T.O., C.G., and K.W.; supervision, C.G. and K.W.; funding acquisition, C.G. and K.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Deutsche Forschungsgemeinschaft (WO 1491/4-1 and WO 1491/4-2), the DFG-CAPES Collaborative Research Initiative (project 418729698), and the Max-Planck-Gesellschaft.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Material.

Acknowledgments

We are grateful to Heinz Falk for helpful discussions, Holm Frauendorf for HRESIMS, Nilamoni Nath and Simon Kohlmann for initial NMR measurements, and Rogelio Fernández and Carmen Cuevas (PharmaMar) as well as Jaime Rodríguez (Universidade da Coruña) for testing cytotoxic activities.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Wolkenstein, K.; Fuentes-Monteverde, J.C.; Nath, N.; Oji, T.; Griesinger, C. Hypalocrinins, taurine conjugated anthraquinone and biaryl pigments from the deep sea crinoid. Hypalocrinus Naresianus J. Nat. Prod. 2019, 82, 163–167. [Google Scholar] [CrossRef] [Green Version]
  2. Wolkenstein, K. Persistent and widespread occurrence of bioactive quinone pigments during post-Paleozoic crinoid diversification. Proc. Natl. Acad. Sci. USA 2015, 112, 2794–2799. [Google Scholar] [CrossRef] [Green Version]
  3. Karschin, N.; Wolkenstein, K.; Griesinger, C. Magnetically induced alignment of natural products for stereochemical structure determination via NMR. Angew. Chem. Int. Ed. 2020, 59, 15860–15864. [Google Scholar] [CrossRef]
  4. Altmann, R.; Etzlstorfer, C.; Falk, H. Chiroptical properties and absolute configurations of the hypericin chromophore propeller enantiomers. Monatsh. Chem. 1997, 128, 785–793. [Google Scholar] [CrossRef]
  5. De Riccardis, F.; Iorizzi, M.; Minale, L.; Riccio, R.; Richer de Forges, B.; Debitus, C. The gymnochromes: Novel marine brominated phenanthroperylenequinone pigments from the stalked crinoid Gymnocrinus Richeri. J. Org. Chem. 1991, 56, 6781–6787. [Google Scholar] [CrossRef]
  6. Horeau, A. Principe et applications d’une nouvelle methode de determination des configurations dite “par dedoublement partiel”. Tetrahedron Lett. 1961, 2, 506–512. [Google Scholar] [CrossRef]
  7. Nasini, G.; Merlini, L.; Andreetti, G.D.; Bocelli, G.; Sgarabotto, P. Stereochemistry of cercosporin. Tetrahedron 1982, 38, 2787–2796. [Google Scholar] [CrossRef]
  8. Kemami Wangun, H.V.; Wood, A.; Fiorilla, C.; Reed, J.K.; McCarthy, P.J.; Wright, A.E. Gymnochromes E and F, cytotoxic phenanthroperylenequinones from a deep-water crinoid, Holopus Rangii. J. Nat. Prod. 2010, 73, 712–715. [Google Scholar] [CrossRef] [Green Version]
  9. Pachler, K.G.R. Nuclear magnetic resonance study of some α-amino acids—I: Coupling constants in alkaline and acidic medium. Spectrochim. Acta 1963, 19, 2085–2092. [Google Scholar] [CrossRef]
  10. Pachler, K.G.R. Nuclear magnetic resonance study of some α-amino acids—II. Rotational isomerism. Spectrochim. Acta 1964, 20, 581–587. [Google Scholar] [CrossRef]
  11. Matsumori, N.; Kaneno, D.; Murata, M.; Nakamura, H.; Tachibana, K. Stereochemical determination of acyclic structures based on carbon−proton spin-coupling constants. J. Org. Chem. 1999, 64, 866–876. [Google Scholar] [CrossRef]
  12. Smith, S.G.; Goodman, J.M. Assigning stereochemistry to single diastereoisomers by GIAO NMR calculation: The DP4 probability. J. Am. Chem. Soc. 2010, 132, 12946–12959. [Google Scholar] [CrossRef] [PubMed]
  13. Grimblat, N.; Zanardi, M.M.; Sarotti, A.M. Beyond DP4: An improved probability for the stereochemical assignment of isomeric compounds using quantum chemical calculations of NMR shifts. J. Org. Chem. 2015, 80, 12526–12534. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, A.J.; Gorka, A.P.; Bokesch, H.R.; Wamiru, A.; O’Keefe, B.R.; Schnermann, M.J.; Gustafson, K.R. Harnessing natural product diversity for fluorophore discovery: Naturally occurring fluorescent hydroxyanthraquinones from the marine crinoid Pterometra Venusta. J. Nat. Prod. 2018, 81, 2750–2755. [Google Scholar] [CrossRef]
  15. Laille, M.; Gerald, F.; Debitus, C. In vitro antiviral activity on dengue virus of marine natural products. Cell. Mol. Life Sci. 1998, 54, 167–170. [Google Scholar] [CrossRef]
  16. Laurent, D.; Baumann, F.; Benoit, A.G.; Mortelecqe, A.; Nitatpattana, N.; Desvignes, I.; Debitus, C.; Laille, M.; Gonzalez, J.-P.; Chungue, E. Structure-activity relationships of dengue antiviral polycyclic quinones. Southeast Asian J. Trop. Med. Public Health 2005, 36, 901–905. [Google Scholar] [PubMed]
  17. Hudson, J.B.; Delaey, E.; de Witte, P.A. Bromohypericins are potent photoactive antiviral agents. Photochem. Photobiol. 1999, 70, 820–822. [Google Scholar] [CrossRef]
  18. Takahashi, D.; Maoka, T.; Tsushima, M.; Fujitani, K.; Kozuka, M.; Matsuno, T.; Shingu, T. New quinone sulfates from the crinoids Tropiometra afra macrodiscus and Oxycomanthus japonicus. Chem. Pharm. Bull. 2002, 50, 1609–1612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Wolkenstein, K.; Schoefberger, W.; Müller, N.; Oji, T. Proisocrinins A–F, brominated anthraquinone pigments from the stalked crinoid Proisocrinus ruberrimus. J. Nat. Prod. 2009, 72, 2036–2039. [Google Scholar] [CrossRef] [PubMed]
  20. Feng, Y.; Khokhar, S.; Davis, R.A. Crinoids: Ancient organisms, modern chemistry. Nat. Prod. Rep. 2017, 34, 571–584. [Google Scholar] [CrossRef]
  21. Meissner, A.; Sørensen, O.W. Measurement of J(H,H) and long-range J(X,H) coupling constants in small molecules. Broadband XLOC and J-HMBC. Magn. Reson. Chem. 2001, 39, 49–52. [Google Scholar] [CrossRef]
  22. Edden, R.A.E.; Keeler, J. Development of a method for the measurement of long-range 13C–1H coupling constants from HMBC spectra. J. Magn. Reson. 2004, 166, 53–68. [Google Scholar] [CrossRef] [PubMed]
  23. Schrödinger Release 2017-4: Maestro; Schrödinger, LLC: New York, NY, USA, 2019.
  24. Schrödinger Release 2017-4: Macromodel; Schrödinger, LLC: New York, NY, USA, 2019.
  25. Halgren, T.A. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490–519. [Google Scholar] [CrossRef]
  26. Chang, G.; Guida, W.C.; Still, W.C. An internal-coordinate Monte Carlo method for searching conformational space. J. Am. Chem. Soc. 1989, 111, 4379–4386. [Google Scholar] [CrossRef]
  27. Vosko, S.H.; Wilk, L.; Nusair, M. Accurate spin-dependent electron liquid correlation energies for local spin density calculations: A critical analysis. Can. J. Phys. 1980, 58, 1200–1211. [Google Scholar] [CrossRef] [Green Version]
  28. Lee, C.T.; Yang, W.T.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  30. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  31. Hehre, W.J.; Ditchfield, R.; Pople, J.A. Self-consistent molecular orbital methods. XII. Further extensions of Gaussian-type basis sets for use in molecular orbital studies of organic molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  32. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision C.01; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  33. Adamo, C.; Barone, V. Exchange functionals with improved long-range behavior and adiabatic connection methods without adjustable parameters: The mpw and mpw1pw models. J. Chem. Phys. 1998, 108, 664–675. [Google Scholar] [CrossRef]
  34. Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B 1992, 46, 6671–6687. [Google Scholar] [CrossRef]
  35. Ditchfield, R. Self-consistent perturbation theory of diamagnetism. Mol. Phys. 1974, 27, 789–807. [Google Scholar] [CrossRef]
  36. Pescitelli, G.; Bruhn, T. Good computational practice in the assignment of absolute configurations by TDDFT calculation of ECD spectra. Chirality 2016, 28, 466–474. [Google Scholar] [CrossRef] [Green Version]
  37. Perdew, J.P.; Ernzerhof, M.; Burke, K. Rationale for mixing exact exchange with density functional approximations. J. Chem. Phys. 1996, 105, 9982–9985. [Google Scholar] [CrossRef]
  38. Carlo, A.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 1999, 110, 6158–6170. [Google Scholar]
  39. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Weigend, F. Accurate coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef] [PubMed]
  41. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  42. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum mechanical continuum solvation models. Chem. Rev. 2005, 105, 2999–3094. [Google Scholar] [CrossRef] [PubMed]
  43. Bruhn, T.; Schaumlöffel, A.; Hemberger, Y.; Pescitelli, G. SpecDis Version 1.71, Berlin, Germany. 2017. Available online: http://specdis-software.jimdo.com (accessed on 20 November 2017).
  44. Bruhn, T.; Schaumlöffel, A.; Hemberger, Y.; Bringmann, G. SpecDis: Quantifying the comparison of calculated and experimental electronic circular dichroism spectra. Chirality 2013, 25, 243–249. [Google Scholar] [CrossRef]
  45. Skehan, P.; Storeng, R.; Scudiero, D.; Monks, A.; McMahon, J.; Vistica, D.; Warren, J.T.; Bokesch, H.; Kenney, S.; Boyd, M.R. New colorimetric cytotoxicity assay for anticancer-drug screening. J. Natl. Cancer Inst. 1990, 82, 1107–1112. [Google Scholar] [CrossRef] [PubMed]
Marinedrugs 19 00445 g001 550

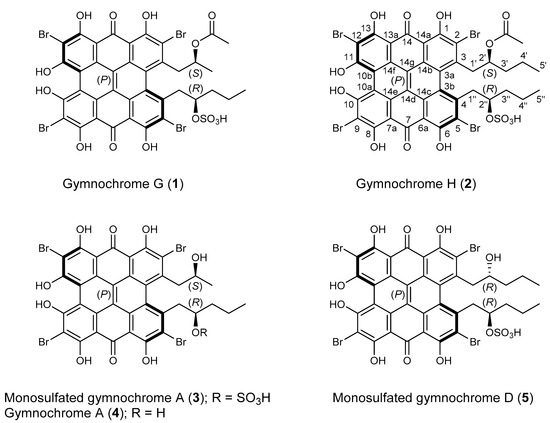

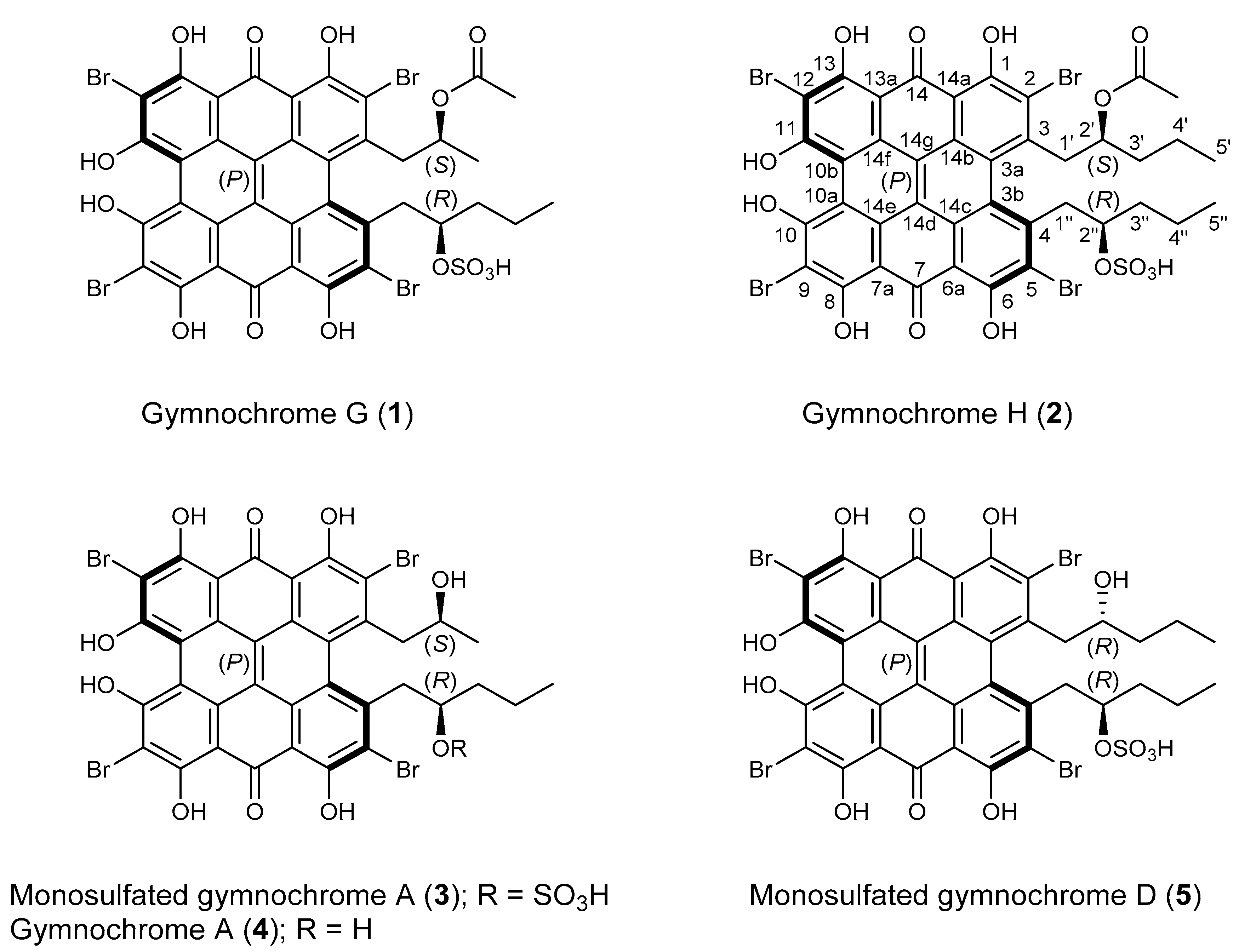

Figure 1. Chemical structures of gymnochromes isolated from Hypalocrinus naresianus.
Figure 1. Chemical structures of gymnochromes isolated from Hypalocrinus naresianus.
Marinedrugs 19 00445 g001
Marinedrugs 19 00445 g002 550

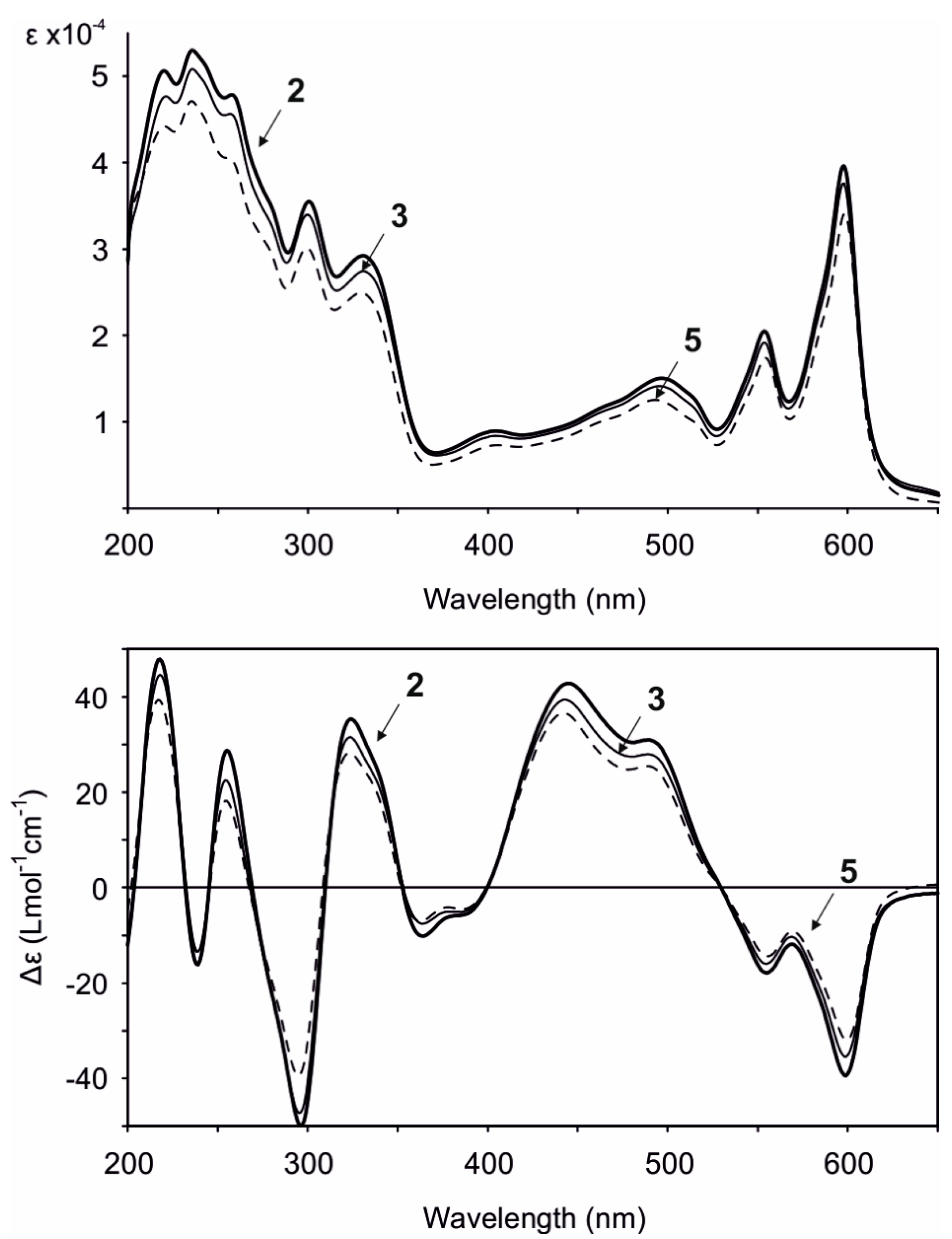

Figure 2. UV/vis (top) and ECD (bottom) spectra (MeOH) of gymnochrome H (2), monosulfated gymnochrome A (3), and monosulfated gymnochrome D (5).
Figure 2. UV/vis (top) and ECD (bottom) spectra (MeOH) of gymnochrome H (2), monosulfated gymnochrome A (3), and monosulfated gymnochrome D (5).
Marinedrugs 19 00445 g002
Marinedrugs 19 00445 g003 550

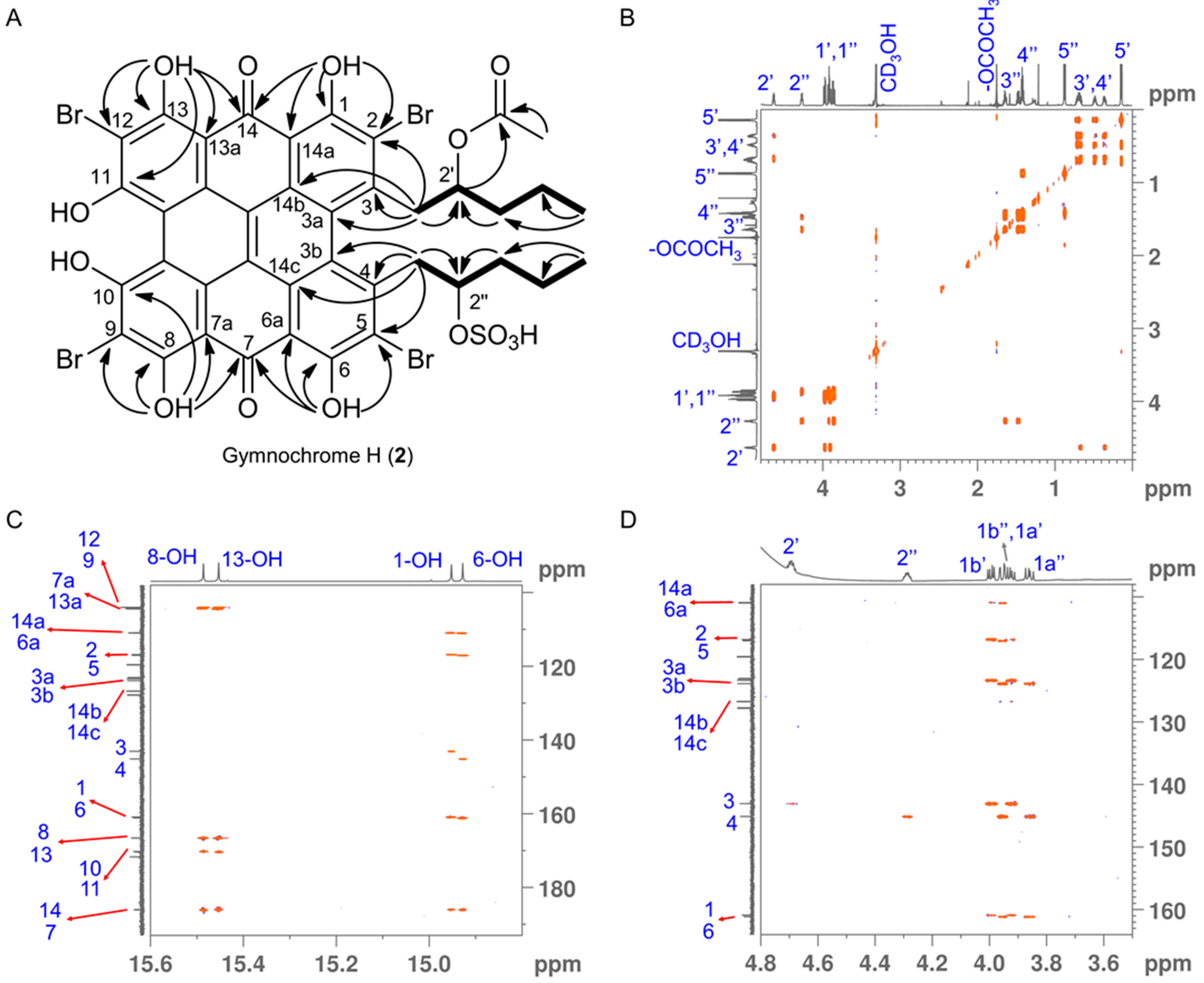

Figure 3. (A) 1H-1H COSY (bold lines) and key 13C-1H HMBC (H→C, OH→C and OH→CO) correlations for gymnochrome H (2). (B) Fully assigned 1H-1H COSY spectrum of gymnochrome H (2). (C,D) Selected regions of 13C-1H HMBC spectrum of gymnochrome H (2) recorded at 280 K highlighting the long-range carbon-proton (2J, 3J, and 4J) correlations that are crucial for the assignment of aromatic carbons. Proton and carbon assignments are shown on the 1D spectra.
Figure 3. (A) 1H-1H COSY (bold lines) and key 13C-1H HMBC (H→C, OH→C and OH→CO) correlations for gymnochrome H (2). (B) Fully assigned 1H-1H COSY spectrum of gymnochrome H (2). (C,D) Selected regions of 13C-1H HMBC spectrum of gymnochrome H (2) recorded at 280 K highlighting the long-range carbon-proton (2J, 3J, and 4J) correlations that are crucial for the assignment of aromatic carbons. Proton and carbon assignments are shown on the 1D spectra.
Marinedrugs 19 00445 g003
Marinedrugs 19 00445 g004 550

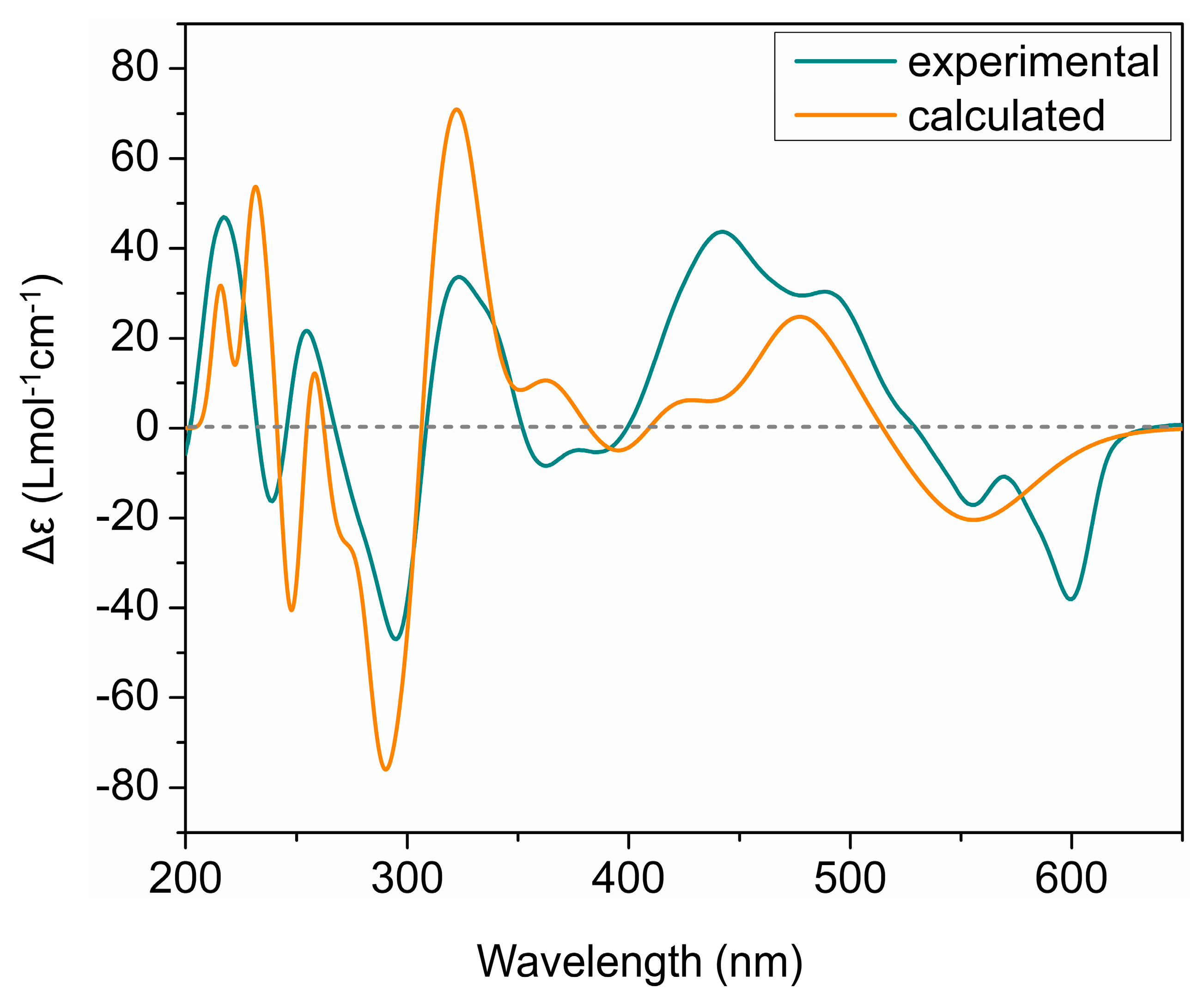

Figure 4. Comparison of experimental and calculated ECD curves of gymnochrome H (2) in MeOH. TDDFT ECD calculations were performed on low-energy conformations of 2 at PBE0/def2-tzvpp/def2tzv level of theory.
Figure 4. Comparison of experimental and calculated ECD curves of gymnochrome H (2) in MeOH. TDDFT ECD calculations were performed on low-energy conformations of 2 at PBE0/def2-tzvpp/def2tzv level of theory.
Marinedrugs 19 00445 g004
Marinedrugs 19 00445 g005 550

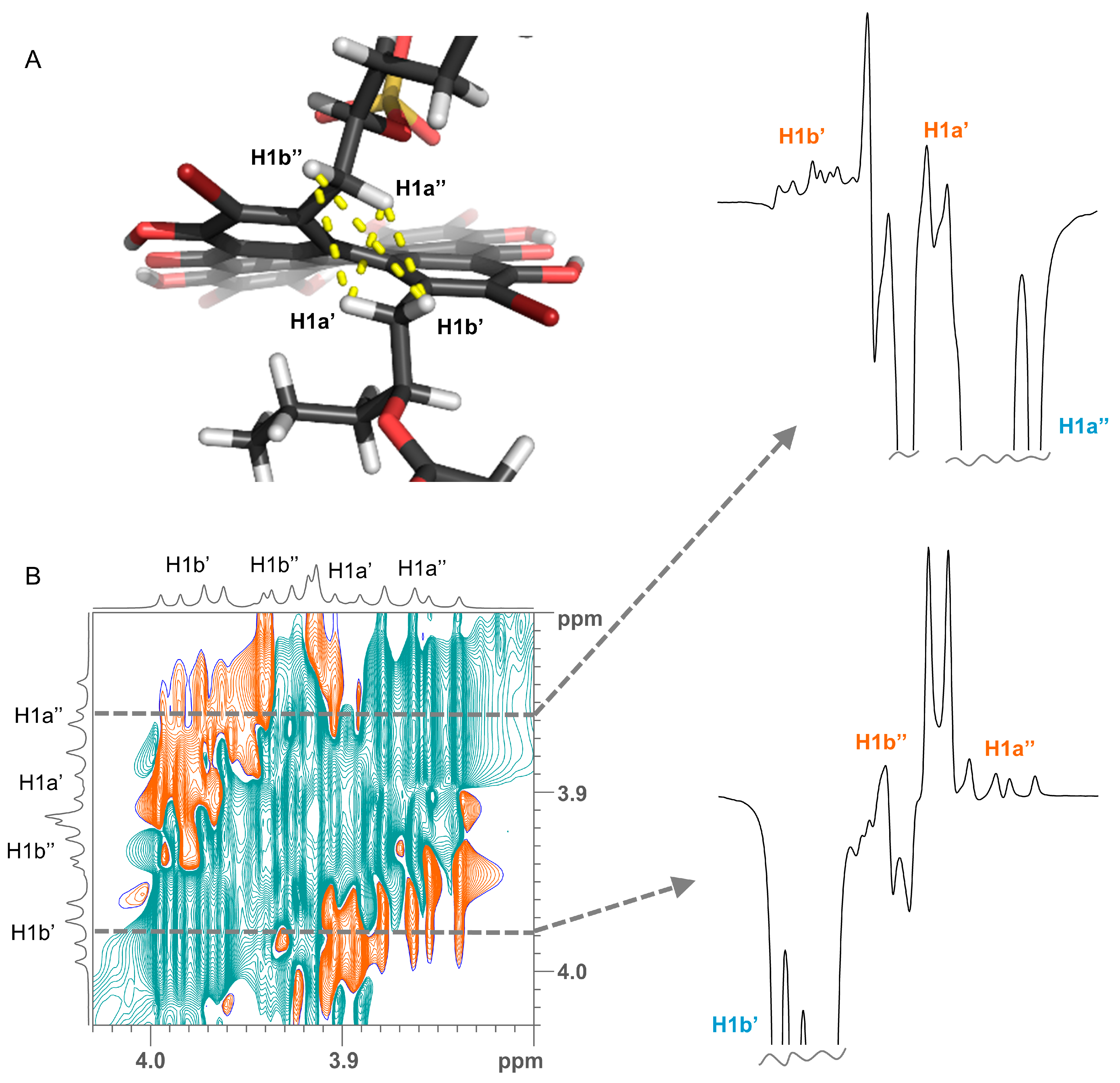

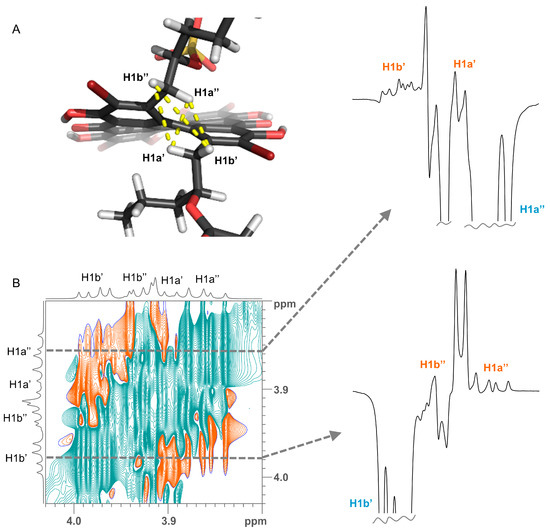

Figure 5. (A) Crucial ROE contacts for determining the orientation of side chains (yellow lines) shown on the example of a conformer of gymnochrome H (2). (B) A selected region of 2D 1H-1H ROESY spectrum of gymnochrome H (2). Slices extracted through the diagonal peaks of H1a″ and H1b’ (dashed lines) are shown on the right side. Proton assignments are denoted on the resonances.
Figure 5. (A) Crucial ROE contacts for determining the orientation of side chains (yellow lines) shown on the example of a conformer of gymnochrome H (2). (B) A selected region of 2D 1H-1H ROESY spectrum of gymnochrome H (2). Slices extracted through the diagonal peaks of H1a″ and H1b’ (dashed lines) are shown on the right side. Proton assignments are denoted on the resonances.
Marinedrugs 19 00445 g005
Marinedrugs 19 00445 g006 550

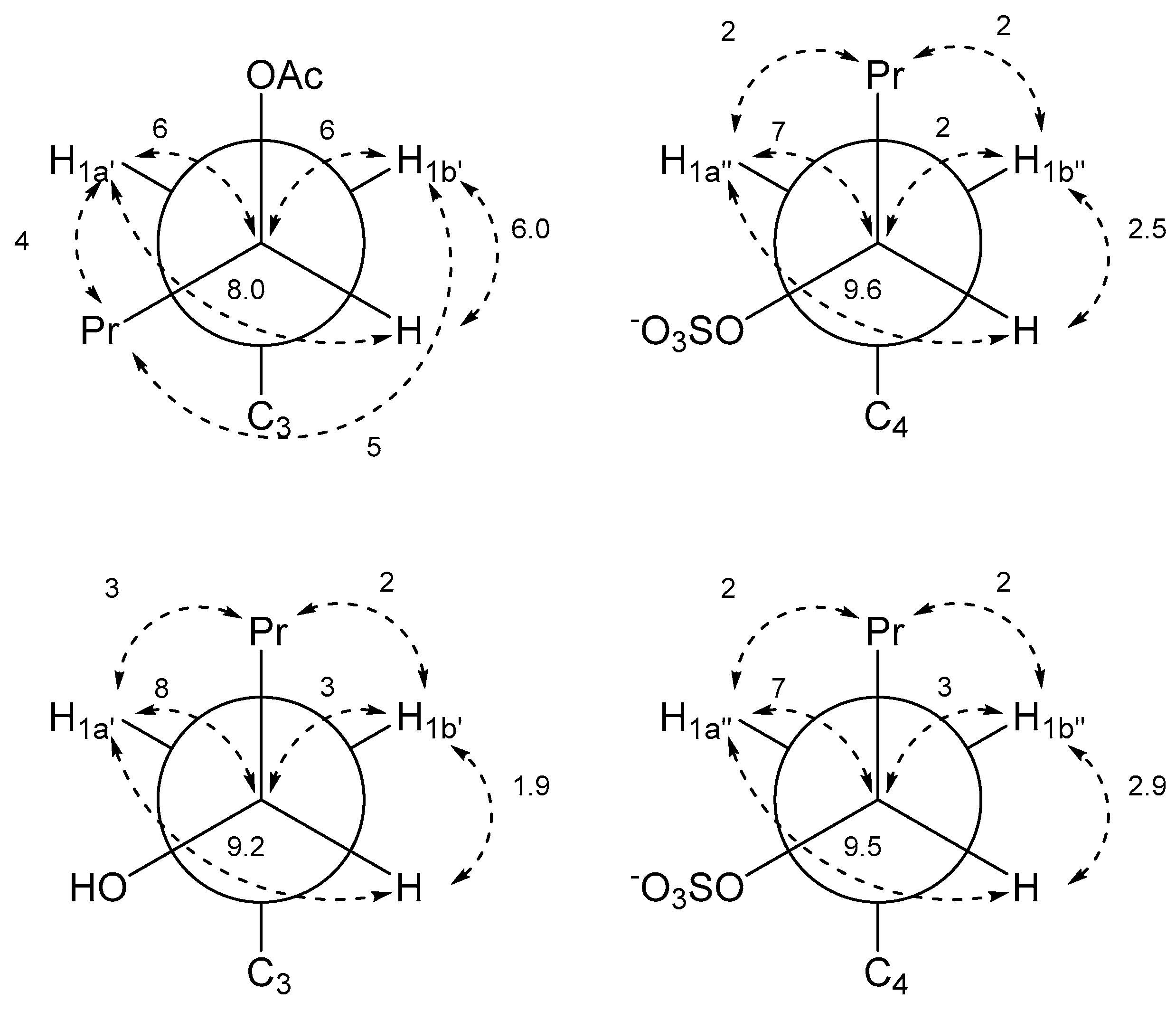

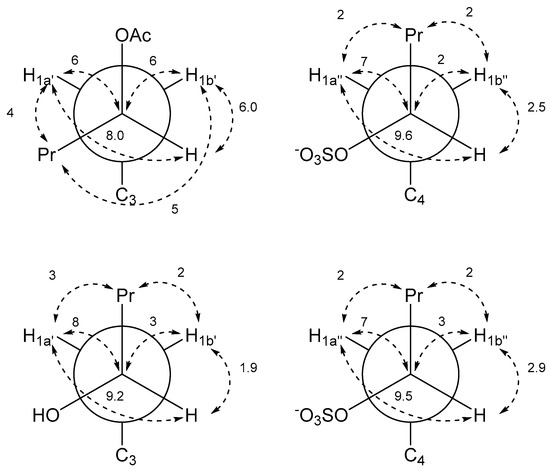

Figure 6. Newman projections of gymnochrome H (2) (top) and monosulfated gymnochrome D (5) (bottom) with measured J-couplings in Hz. Left projections are along C2′-C1′ and right projections are along C2″-C1″.
Figure 6. Newman projections of gymnochrome H (2) (top) and monosulfated gymnochrome D (5) (bottom) with measured J-couplings in Hz. Left projections are along C2′-C1′ and right projections are along C2″-C1″.
Marinedrugs 19 00445 g006
Table
Table 1. NMR spectroscopic data for gymnochrome H (2), monosulfated gymnochrome A (3), and monosulfated gymnochrome D (5) a.
Table 1. NMR spectroscopic data for gymnochrome H (2), monosulfated gymnochrome A (3), and monosulfated gymnochrome D (5) a.
235
PositionδC, mult.δH, mult. (J in Hz)δC, mult.δH, mult. (J in Hz)δC, mult.δH, mult. (J in Hz)
1/6160.7, C/160.9, C 160.8, C/160.9, C 160.75, C/160.73, C
2/5116.7, C/116.9, C 116.0, C/116.9, C 116.2, C/116.6, C
3/4142.9, C/144.9, C 144.1, C/145.4, C 146.1, C/144.6, C
3a/3b123.2, C/123.7, C 123.4, C/124.0, C 124.1, C/124.4, C
6a/14a110.84, C/110.75, C 110.7, C/110.6, C 111.0, C/110.6, C
7/14185.9, C/185.8, C 185.9, C/185.8, C 185.9, C/185.5, C
7a/13a104.2, C/104.3, C 104.19, C/104.24, C 104.1, C/104.0 C
8/13166.46, C/166.47, C 166.4, C/166.4, C 166.0, C/165.9, C
9/12103.81, C/103.80, C 103.82, C/103.80, C 103.6, C/103.3, C
10/11170.3, C/170.4, C 170.2, C/170.3, C 169.3, C/169.5, C
10a/10b119.54, C b/119.48, C b 119.44, C b/119.43, C b 118.8, C b/118.8, C b
14b/14c126.59, C/126.60, C 126.45, C/126.47, C 126.3, C/126.7, C
14d/14g127.7, C b/127.6, C b 127.7, C b/127.6, C b 127.5, C b/127.4, C b
14e/14f123.0, C b/122.9, C b 122.94, C b/122.91, C b 123.1, C b/122.9, C b
1′42.5 CH23.91 dd (13.6; 7.9), 3.98 dd (13.7; 6.1)48.8, CH23.62 dd (12.9; 9.8), 4.06 dd (12.8; 3.9)48.3, CH23.68 dd (13.9; 9.0), 3.93 dd (13.9; 1.3)
2′74.1, CH4.63 m68.2, CH3.69 m73.1, CH3.75 m
2′-OCOCH3171.5, C
2′-OCOCH320.6, CH31.75 s
3′35.4, CH20.36 m, 0.68 m21.1, CH3–0.15 d (6.0)41.2, CH21.47 m, 1.56 m
4′18.1, CH20.48 m, 0.71 m 19.9, CH21.36 m, 1.43 m
5′13.4, CH30.14 t (7.2) 14.2, CH30.90 t (7.2)
1″44.2, CH23.86 dd (14.1; 9.6), 3.93 dd (14.2; 2.4)44.1, CH23.87 m, 3.92 m44.1, CH23.84 m, 3.89 m
2″80.0, CH4.27 m79.9, CH4.30 m80.0, CH4.27 m
3″38.8, CH21.47 m, 1.64 m38.8, CH21.49 m, 1.65 m38.6, CH21.39 m, 1.59 m
4″18.9, CH21.42 m18.9, CH21.43 m18.8, CH21.38 m
5″14.4, CH30.87 t (7.3)14.4, CH30.88 t (7.3)14.4, CH30.83 t (7.1)
1-OH 14.92 s 14.92 s 14.88 s
6-OH 14.90 s 14.91 s 14.93 s
8-OH 15.48 s 15.49 s 15.47 s
13-OH 15.43 s 15.46 s 15.40 s
a Spectra were recorded in MeOH-d3 at 800 MHz for 1H NMR and 200 MHz for 13C NMR. b Most plausible assignments are given, since no correlations to protons were found for these signals.
Table
Table 2. 13C-1H and 1H-1H coupling constants for gymnochrome H (2).
Table 2. 13C-1H and 1H-1H coupling constants for gymnochrome H (2).
Pentyl Acetate Side ChainPentyl Sulfate Side Chain
J-HMBC CorrelationJ in Hz aJ-HMBC CorrelationJ in Hz a
3JC3a–H1a′53JC3b–H1a″4
3JC3a–H1b′53JC3b–H1b″5
3JC2–H1a′83JC5–H1a″8
3JC2–H1b′53JC5–H1b″5
3JH2′–H1a′8.03JH2″–H1a″9.6
3JH2′–H1b′6.03JH2″–H1b″2.5
3JC3–H2′23JC4–H2″
3JC3′–H1a′43JC3″–H1a″2
3JC3′–H1b′53JC3″–H1b″2
2JC2′–H1a′62JC2″–H1a″7
2JC2′–H1b′62JC2″–H1b″2
a Coupling constants are absolute values without sign. The differences in significant digits in the coupling constants are due to the lower measurement accuracies of HMBC-based approaches compared to the extraction from 1D 1H NMR spectra.
Table
Table 3. 13C-1H and 1H-1H coupling constants for monosulfated gymnochrome D (5).
Table 3. 13C-1H and 1H-1H coupling constants for monosulfated gymnochrome D (5).
Hydroxypentyl Side ChainPentyl Sulfate Side Chain
J-HMBC CorrelationJ in Hz aJ-HMBC CorrelationJ in Hz a
3JC3a–H1a′43JC3b–H1a″4
3JC3a–H1b′53JC3b–H1b″5
3JC2–H1a′83JC5–H1a″8
3JC2–H1b′43JC5–H1b″4
3JH2′–H1a′9.23JH2″–H1a″9.5
3JH2′–H1b′1.93JH2″–H1b″2.9
3JC3–H2′ 3JC4–H2″
3JC3′–H1a′33JC3″–H1a″2
3JC3′–H1b′23JC3″–H1b″2
2JC2′–H1a′82JC2″–H1a″7
2JC2′–H1b′32JC2″–H1b″3
a Coupling constants are absolute values without sign. The differences in significant digits in the coupling constants are due to the lower measurement accuracies of HMBC-based approaches compared to the extraction from 1D 1H NMR spectra.
Table
Table 4. DP4+ probabilities in percent for compounds 2, 3, and 5.
Table 4. DP4+ probabilities in percent for compounds 2, 3, and 5.
(2′R,2″R)(2′R,2″S)(2′S,2″R)(2′S,2″S)
Gymnochrome H (2)0.000.0097.362.64
Monosulfated gymnochrome A (3)0.000.00100.000.00
Monosulfated gymnochrome D (5)99.990.010.000.00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vemulapalli, S.P.B.; Fuentes-Monteverde, J.C.; Karschin, N.; Oji, T.; Griesinger, C.; Wolkenstein, K. Structure and Absolute Configuration of Phenanthro-perylene Quinone Pigments from the Deep-Sea Crinoid Hypalocrinus naresianus. Mar. Drugs 2021, 19, 445. https://doi.org/10.3390/md19080445

AMA Style

Vemulapalli SPB, Fuentes-Monteverde JC, Karschin N, Oji T, Griesinger C, Wolkenstein K. Structure and Absolute Configuration of Phenanthro-perylene Quinone Pigments from the Deep-Sea Crinoid Hypalocrinus naresianus. Marine Drugs. 2021; 19(8):445. https://doi.org/10.3390/md19080445

Chicago/Turabian Style

Vemulapalli, Sahithya Phani Babu, Juan Carlos Fuentes-Monteverde, Niels Karschin, Tatsuo Oji, Christian Griesinger, and Klaus Wolkenstein. 2021. "Structure and Absolute Configuration of Phenanthro-perylene Quinone Pigments from the Deep-Sea Crinoid Hypalocrinus naresianus" Marine Drugs 19, no. 8: 445. https://doi.org/10.3390/md19080445

APA Style

Vemulapalli, S. P. B., Fuentes-Monteverde, J. C., Karschin, N., Oji, T., Griesinger, C., & Wolkenstein, K. (2021). Structure and Absolute Configuration of Phenanthro-perylene Quinone Pigments from the Deep-Sea Crinoid Hypalocrinus naresianus. Marine Drugs, 19(8), 445. https://doi.org/10.3390/md19080445

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
