Article

Extraction, Enrichment, and LC-MSn-Based Characterization of Phlorotannins and Related Phenolics from the Brown Seaweed, Ascophyllum nodosum

by
J. William Allwood
1,
Huw Evans
2,
Ceri Austin
1 and
Gordon J. McDougall
1,*
1
Plant Biochemistry and Food Quality Group, Environmental and Biochemical Sciences Department, The James Hutton Institute, Dundee DD2 5DA, UK
2
Byotrol Ltd., Thornton Science Park, Chester CH2 4NU, UK
*
Author to whom correspondence should be addressed.
Mar. Drugs 2020, 18(9), 448; https://doi.org/10.3390/md18090448
Submission received: 30 July 2020 / Revised: 17 August 2020 / Accepted: 24 August 2020 / Published: 27 August 2020
(This article belongs to the Special Issue Marine Phenolics: Extraction and Purification, Identification, Characterization and Applications)
Browse Figures
Versions Notes

Abstract

:
Phenolic components from the edible brown seaweed, Ascophyllum nodosum, have been associated with considerable antioxidant activity but also bioactivities related to human health. This study aims to select and identify the main phlorotannin components from this seaweed which have been previously associated with potential health benefits. Methods to enrich phenolic components then further select phlorotannin components from ethanolic extracts of Ascophyllum nodosum were applied. The composition and phenolic diversity of these extracts were defined using data dependent liquid chromatography mass spectroscopic (LC-MSn) techniques. A series of phlorotannin oligomers with apparent degree of polymerization (DP) from 10 to 31 were enriched by solid phase extraction and could be selected by fractionation on Sephadex LH-20. Evidence was also obtained for the presence of dibenzodioxin linked phlorotannins as well as sulphated phlorotannins and phenolic acids. As well as diversity in molecular size, there was evidence for potential isomers at each DP. MS2 fragmentation analyses strongly suggested that the phlorotannins contained ether linked phloroglucinol units and were most likely fucophlorethols and MS3 data suggested that the isomers may result from branching within the chain. Therefore, application of these LC-MSn techniques provided further information on the structural diversity of the phlorotannins from Ascophyllum, which could be correlated against their reported bioactivities and could be further applied to phlorotannins from different seaweed species.

Graphical Abstract

1. Introduction

Phlorotannins are dehydro-polymers of phloroglucinol units particularly associated with brown seaweeds (Phaeophyceae) [1,2,3]. They appear to play a defensive role in the seaweeds, protecting against herbivory [4,5,6] and UV-B radiation e.g., [7]. Their levels vary with season, developmental stages and abiotic stresses [8,9,10,11] and it has been suggested that there is balance between a structural role in the algal cell wall and these protective roles [12]. They exist in structurally different forms depending on how the phloroglucinol units are interlinked [2]. If the phloroglucinol units are only linked by phenyl -C-C bonds, they are termed fucols; if they are only linked by -C-O-C- aryl ether bonds, they are termed phlorethols and if both linkages are present they are termed fucaphlorethols. Some phlorotannins also have dibenzodioxin linkages and these are generally termed as eckols. The type of inter-linkages of phlorotannins vary notably between species as is suggested by their names, Fucus species are rich in fucols and fucophlorethols and Ecklonia species notably contain eckols. Molecular size or the degree of polymerization of phlorotannins also varies greatly between species and may also be affected by biotic and abiotic stresses [2].
The phlorotannins have considerable antioxidant activity e.g., [13,14,15] and have been mooted as food-grade additives to prevent spoilage [16]. They have also been associated with specific health beneficial effects in related to disease states such as inflammation [17], cancers [18], diabetes [19] and hyperlipidemia associated with cardiovascular issues [20], which may be independent of their antioxidant activity. They have also been suggested to have valuable antimicrobial effects [21], with some efficacy against viruses e.g., [22]. The link between phlorotannin structure and activity has not particularly been well defined as many studies use extracts with varying extents of enrichment.
Their potential bioactivities are particularly relevant as brown seaweeds are generally edible and have formed part of the food culture of humans across the world, but notably in the Far East [23]. The edible brown seaweed Ascophyllum nodosum is common around the coasts of the UK and reaches high abundance around Scotland. Our previous work indicated that phlorotannins from Ascophyllum can inhibit digestive enzymes and thereby could modulate glycemic responses or reduce calorie intake from fats [18,24,25]. In this paper, we report on the enrichment and fractionation of phlorotannins and related phenolics from Ascophyllum nodosum and apply a series of liquid chromatography mass spectrometric (LC-MSn) methods to define their structural diversity.

2. Results and Discussion

2.1. Fractionation of Phenolic Material Using Solid Phase Extraction (SPE) and Sephadex LH-20

The total phenol content (TPC) of the Ascophyllum extract was mainly retained in the SPE-bound fraction with an overall recovery of ~90% of applied material in the fractionation (see Supplementary Data; Figure S1). The reasonably high TPC in the unbound material may be due to non-phenolic material that cross-reacts with the non-specific Folin reagent [26]. In the Sephadex LH-20 fractionation, the majority of the phenolic material was recovered in the first 80% acetone fraction and >80% of the total in the fractions released by acetone. The requirement for higher concentrations of acetone for release of bound material has been noted before [24]. Once again, the TPC in the unbound material may be due to non-phenolic material that cross-reacts with the non-specific Folin reagent.

2.2. Liquid Chromatography Mass Spectrometric (LC-MSn) Analysis

Using the LC-MS data acquired on the LCQ Fleet MS system, the SPE bound sample was enriched in later eluting UV-absorbing peaks (Figure 1A) whereas the unbound fraction was essentially devoid of these peaks. The MS spectrum across the retention time of the UV peaks from 12–21 min (Figure 1B) gave a set of m/z signals in negative mode which were characteristic of phlorotannins. These could be thought of as two series of m/z values that differ by 124 amu, an extension unit mass equivalent to phloroglucinol minus 2 H atoms, which have been noted previously in our laboratory [18,24,25], or indeed as a single series that differ by 62 amu (124 divided by 2). If the m/z values from 621, 745, 869, 993, 1117, 1241, 1365 and 1489 were single charged then they could arise from successive phloroglucinol additions to a phloroglucinol dimer with m/z [M − H]- of 249 (such as diphlorethol) and working on this basis, the signals at m/z 621 and 745 could be pentaphloroethol and hexaphloroethol structures and the major signal noted at m/z 1117 could be a nonaphloroethol derivative (see Figure 2) [2]. However, if we assume singly charged ions then the possible nature of the m/z series at 683, 807, 931, 1055, 1179, 1303 etc. is not apparent unless all the signals were from double charged species. However, it was not possible to confirm the charge status of the ions as the resolution of the Fleet LCQ MS cannot discern this in normal mode function.
The phlorotannin series outlined above is based on a phlorethol structure, oligomers of phloroglucinol attached through aryl ether (-C-O-C) bonds but the addition of phloroglucinol units (124 amu) to achieve this series could also be achieved through phenyl (-C-C-) linkages (see Figure 3). In fact, this series of m/z values could arise from phloroglucinol units linked by all phenyl linkages (called fucols), all aryl ether linkages (called phlorethols) or a mixture of both (called fucophlorethols) [2,15].
It was notable that these “phlorotannin” MS signals were approximately 4-fold enriched in the bound fraction obtained after SPE (see FSD in Figure 1B). Also, the bound acetone fractions from the Sephadex LH-20 separation also showed this enrichment in UV-absorbing peaks between 12 and 21 min (Figure 4A). However, in this case, the enrichment was less apparent as the phlorotannins were spread over the three acetone fractions and there was a dilution factor inherent in the procedure. However, these UV peaks contain the same set of m/z signals characteristic of phlorotannins (Figure 4B) and these are sufficient at this stage to follow the enrichment of these phlorotannin species.

2.3. Differences between Positve and Negative Mode MS Data

Using the Fleet LCQ MS system, the MS profiles of the phlorotannin peaks in the SPE bound sample were different in negative and positive mode (Figure 5A, panels A–C). In general, intensities were lower in positive mode but there were qualitative differences in the ionization of different peaks. For example, the major peak in negative mode is at 17.46 min and the MS profile largely matches the UV profile (compare panel A and B). In positive mode, it is notable that the later eluting major UV peaks (e.g., RT = 16.8 and 17.4) have lower relative MS intensity then the negative mode data. The negative mode MS data across RT 10–21 min showed the series of major peaks that differ by 62 amu (panel D). The positive mode MS data over the same retention range showed a series beginning at m/z 747 that increased by 124 amu through 871, 995, 1119, etc. However, there was also a minor series of m/z signals that began at 1180 (in grey) and also increased by 124 amu. When the MS data under specific phlorotannin peaks was examined, the situation became clearer. The spectra under the MS peaks shown in bold in Figure 5A are shown in negative mode then positive mode in Figure 5B. The MS peak at ~14.8 in positive mode had three main signals at m/z 1243, 1491 and 1739. In negative mode, the same peak gave the corresponding m/z [M − H]− signals at 1241, 1489 and 1737 but also had strong signals at 620, 746 and 868 which were effectively half the values of the other signals. The other major peak at RT 15.6 showed a similar picture. Therefore, in both examples, the negative mode MS spectra contained m/z signals that are effectively half the m/z value of the positive mode signals. This disparity can be explained if the phlorotannins ionise mainly as singly charged ions in positive mode (i.e., as m/z [M + H]+ ions) but they have a propensity to ionise as doubly charged ions (i.e., as [M − 2H]2− ions) in negative mode. In fact, this can be neatly illustrated by the co-chromatography of peaks with base peaks at m/z [M − H]2− values against [M + H]+ ions in the SPE bound sample (see example in Figure S2).
As noted above, operating in normal full scan mode, the Fleet MS system cannot discriminate between single and double charged ions. Therefore, we re-examined the samples using the FT-MS detector of an LTQ Orbitrap XL system that has sufficient resolution to differentiate 0.5 amu isotope spacing, as observed in double charged ions.

2.4. Re-Examination of Data Using the LTQ-Orbitrap XL FT-MS System

When analyzed on the LTQ-Orbitrap XL system in ESI negative mode, the major peak at RT 17.8 showed revealed ions that differed by 0.5 amu, indicating that they are double charged ions (i.e., m/z [M − 2H]2−, Figure 6). As a double charged ion, the true mass would be twice as high at 2234, and this suggests that the main UV peak at RT 17.8 actually contained an oligomer of 18 phloroglucinol (PG) units rather than the nonaphloroethol suggested before. In fact, all of the m/z values in the negative mode series from m/z 621 upwards were doubly double charged which indicates that they are all double the MW than first suggested by the original LCQ-Fleet MS data. It also confirms that the original observed peak spacing of 62 amu observed upon the LCQ-Fleet MS system, when accounting for the ions being double charged, in fact represents a single series of ions with peak spacing of 124 amu, corresponding to phloroglucinol minus 2 H atoms. Peaks for all the ion species with apparent double charged [M − 2H]2− ions from m/z 621 through to m/z 1429 were identified in the MS profiles of the SPE bound samples (see Figure S3). At least two main peaks were apparent for each m/z species which suggests the presence of isomers of the different oligomers of each DP.
For quantification, we summed the areas for the major putative isomer peaks but ignored other small peaks which may be due to in-source fragmentation within the MS spectra of other oligomers. The relative abundance of these putative phlorotannin oligomers from DP 10 to 24 are shown in Figure 7. Plotted against DP, the oligomers of DP 11–18 were the most abundant with a drop-off at DP > 18. In fact, although some peaks areas for m/z values for phlorotannin oligomers >24 DP could be discerned, they were not significantly above baseline values. However, there were indications that phlorotannins of larger DP were present in the region between RT 19–21 min where triple charged m/z signals could be discerned (see Supplementary Data, Figure S4) that suggested the presence of oligomers of up to DP 31 (e.g., a triple charged ion at 1281.42 yields an estimated MW of 3846). However, these were in much lower abundance and did not yield MS2 data. Previously, the presence of triple charged phlorotannin species has been indicated [27] and the distribution and range of DP noted in our work fits in the range noted by this group.
It is important to note that as well as having more intense signals, the negative mode data with its double and triple charged ions actually allowed the detection of molecular species with MWs > 2000 amu that would not have been detected in positive mode. The positive mode analysis would have been limited to the detection and quantification of phlorotannins with DP = 16 PG units (m/z [M + H]+ = 1987). This also explains why the later eluting phlorotannins noted above had such poor MS spectra in positive mode as their signals were effectively outside the detectable MS range of 100–2000 m/z. Indeed, Tierney et al. [28] reported that phlorotannins from Ascophyllum had a lower DP range, with a maximum of 16 PG units. Although they applied a dialysis step which may have altered the MW range, they crucially used an MS detector which limited detection at DP 16 (i.e., a m/z value = 1987). However, a previous paper by this group [29] detected phlorotannins of up to DP 20 in low molecular weight extracts of Ascophyllum nodosum by using direct infusion of SPE-purified extracts into a Q-Tof Premier mass spectrometer with detector mass range of m/z 100 to m/z 3000.
The MS data obtained on the LTQ-Orbitrap XL system also provided evidence for the presence of other phlorotannin components. For example, there was a peak at RT = 12.96 (see Figure 1B, bound sample, bold blue peaks), which preceded the cluster of phlorotannin oligomers. This gave m/z [M − H]− = 591.2 with fragmentation yielding MS2 fragments of 511 & 385 and an accurate mass of 591.0075 derived a molecular formula of C24H15O16S at < 1 ppm error (Table 1). The neutral loss of 80 amu can be assigned to loss of a sulphate group (SO3) to a compound with formula m/z [M − H]− of C24H15O13, which matches with diphlorethohydroxycarmalol (Pub Chem 16075395), a phlorotannin component noted in the brown seaweed, Ishige okamurae [30]. The presence of this diphlorethohydroxycarmalol derivative was suggested but not confirmed in our previous studies of Ascophyllum [23,24]. In fact, a peak attributable to diphlorethohydroxycarmalol itself (RT = 14.48; m/z [M − H]− = 511.0506, predicted formula of C24H15O13 and sole MS2 fragment at 385; Table 1). was also present later in the separation. There was also evidence for the presence of a component with m/z = 246.9914, MS2 = 203, 121, with a predicted formula C12H7O6, that matched with the dimer, dibenzodioxin-1,3,6,8-tetraol, which has been reported previously in Fucus species e.g., [27]. These three phlorotannin components contain a dibenzodioxin-ring structure which has not been noted previously in Ascophyllum. There were also other components which appeared to be sulphated phenolic acids and another whose MS and MS2 properties matched with a DOPA-sulphate-like component. However, confirmation of the identity of these components requires further isolation and characterization by techniques such as 2D NMR. It was notable that all these components were enriched by the SPE procedure but were greatly reduced by the selection of the phlorotannin oligomers on Sephadex LH-20.

2.5. Structural Information from MS2 Fragmentation Data

Different collision energies were assessed to maximize the yield of MS2 fragments and to increase the likelihood of providing useful structural data for the phlorotannin structures. The NCE of 45% applied in our standard MS2 method often only provided weak fragmentation spectra and overall, better fragmentation required an NCE of 65% which was adopted for further analyses. The higher energies required for effective fragmentation probably reflect the stable nature of the phlorotannin oligomers. Fragmentation data was available for all peaks corresponding to phlorotannin oligomers up to DP = 23 at m/z [M − 2H]2− = 1427, which did not provide MS2 data as it was below the MSn minimum trigger intensity (Table 2). The fragmentation data for the phlorotannins was characterized by several common factors. Firstly, as all the target m/z values were double charged, there were fragments greater than the m/z [M − 2H]2− value. Secondly, often the major fragment resulted from the m/z [M − 2H]2− value minus H2O (neutral loss of 18 amu). Overall, the MS2 data gave fragments and neutral losses previously noted in reports of phlorotannin structures [31,32,33,34,35,36]. Notably, the neutral losses obtained through fragmentation showed patterns between the different phlorotannin structures with repeated neutral losses being observed (Table 2), which could largely be assigned to the loss of a fixed numbers of phloroglucinol (PG) groups or PG groups + H2O. It was also notable that major fragments noted for different phlorotannin components that differed by 124 amu in full scan MS, also generated fragment ions that differed by 124 amu, suggesting that a consistent fragmentation mechanism was occurring. Other undefined fragmentations in Table 1 could arise through ring fission events within PG units. It was also notable that major fragments noted for different phlorotannin components that differed by 124 amu also differed by 124 amu, which suggests that a consistent fragmentation mechanism was occurring. Other undefined fragmentations in Table 2 could arise through ring fission events within PG units [28,29,34].
Another important finding was the commonality of fragmentations that could be explained by the presence of a tetrahydroxylbenzene structure in the neutral loss (also called O-phloroglucinol moieties previously e.g., [34]. For example, a neutral loss of 514 amu was noted in the MS2 spectra of many of the phlorotannin species (Table 2) and this could arise if the phlorotannin molecule fragmented at an ether bond and formed a phloroglucinol with an extra hydroxyl group linked to a trimer of PG units (i.e., 3PG + THB = 374 + 140; see Figure 3). In fact, this neutral loss (514 amu) is the same as the molecular weight of tetrafuhalol, a trimer of phloroglucinol units linked to a tetrahydroxybenzene unit [2], an example of another type of phlorotannin found in other brown seaweeds. Indeed, neutral losses consistent with one PG unit attached to one THB unit (i.e., 266 amu) up to 16 PG units attached to a THB group (i.e., 2126 amu) were indicated in the MS2 fragments of the phlorotannins (Table 2). The only fragments missing from this series were those which represent 9, 10 and 12 PG units linked to a THB group and a THB group itself. THB-containing neutral losses were present in the MS2 of every phlorotannin at each DP examined (Table 2) and since they can only occur at -C-O-C- ether linkages [31,32,33,34], this strongly suggests that the phlorotannins in Ascophyllum are fucophlorethol-type components. Certainly, evidence of at least one aryl ether bond in the oligomers means that they cannot be fucol oligomers, which are composed of only phenyl linked PG units. The possibility that cleavage of C-C phenyl bonds requires more energy than cleavage of C-O-C ether bonds has been discussed previously [2,34] and this may explain the preponderance of cleavages at ether bonds.

2.6. Structural Information from MS3 Fragmentation Data

Further information was sought by acquiring MS3 fragmentation data from the MS2 fragments for each phlorotannin species. Once again, application of 45% NCE as defined in our original method did not provide strong and consistent compound fragmentation, therefore the NCE was increased to 65% for each MS2 target. Using the [M − 2H]2− ion at m/z 1116.6 as an example (Figure 8), there was a major and a minor peak at m/z 1116.6 at RT 17.7 and RT 16.3 respectively which may represent isomers (Figure 8A). Indeed, the presence of 2 or 3 isomers for each phlorotannin signal was noted previously (Figure S3) and the different chromatographic behaviour of these apparent isomers suggests structural differences. The different peaks gave different MS2 patterns. The more abundant isomer gave m/z 1098 as the predominant fragment whereas the less abundant isomer gave mainly m/z 1098 and 1089 but with other MS2 products in more equal amounts. Once again, both isomers gave MS2 products greater than the original target m/z value (e.g., m/z values of 1223, 1719 and 1949) due to their double charged nature. Similarly, the major and minor isomers of the other phlorotannin peaks gave different MS2 patterns (results not shown).
The MS3 fragments obtained by fragmentation of the dominant MS2 signal at m/z 1098 for the two m/z 1117 isomers are shown in Figure 8B. As expected, many of these MS3 fragments were also found as minor fragments in the MS2 spectra. It was noticeable that the MS3 products of the m/z 1098 MS2 fragment for the different isomers were also different. The more minor isomer at RT 16.3 gave a simpler MS3 pattern than the isomer at RT 17.8. The major isomer gave MS3 products for m/z 1098 which were spread across apparent losses of 1, 2, 3, 4 and 5 PG units whereas the MS3 products from the m/z 1098 MS2 fragment from the minor isomer gave a major neutral loss of H2O to m/z 1080 with smaller amounts of fragments resulting from losses of apparent 2, 4 and 5 PG units (see arrows, Figure 8B). The different pattern of losses at the MS3 level suggest that these apparent phlorotannin isomers differ in their inter-linkages. For example, the major isomer seems to break into smaller fragments which could mean a more branched structure, perhaps with more ether bonds. However, confirmation of such differences would require purification of the isomers and further studies, perhaps using 2D-NMR approaches.
MS3 fragmentation data from the other notable MS2 fragments from the m/z 1116.6 isomers could yield further information, but due to their lower ion intensities, MS3 fragmentation data was not obtainable. The MS2 product of m/z 1719 gave a single product ion at m/z 892 which suggests a clean fragmentation with a neutral loss of 827. However, the MS3 DDA of the MS2 product at m/z 1223 gave multiple MS3 ions. Given that the intensities of these MS2 products varied in abundance between the two isomers, this further suggests differences in structure. Overall, the MS2 evidence (Table 2) strongly suggested that the phlorotannin oligomers were fucophlorethols as they contained aryl ether linkages [2]. Due to the three-way symmetry of the phloroglucinol molecule, -C-C- phenyl linkages are always effectively meta-orientated [15]. However, PG units attached through aryl ether bridges can occur at hydroxyls at ortho, meta or para positions on the rings so the possibilities for different isomeric structures are large especially as the DP increases. For example, extending from a diphorethol structure to a triphlorethol structure can produce structurally discernible triphlorethol A and B isomers [2] depending on the positioning of the “new” aryl ether bond. Also, branching can also occur within fucol type phlorotannins composed of only phenyl linkages if one of the PG units has 3 rather than 2 linkages to other PGs [2,15]. Indeed, other studies have reported multiple apparent isomers of phlorotannin oligomers from Ascophyllum [28,29,31] and other brown seaweeds [37]. In fact, the presence of only two (perhaps three maximum) major isomers as noted in this paper seems unusual compared to the 70 apparent isomers for a DP 10 oligomer reported in one study [29]. However, it is also possible that some of the isomers noted result from in-source fragments of larger phlorotannins, or from a greater number of different charge states being generated in ESI and higher MS scan ranges, which might be more apparent under the different MS conditions used in each study. Indeed, it is also possible that our chromatographic procedure did not separate all these different putative isomers, but the chromatographic conditions used similar C18 reverse phase conditions. It also seems particularly unlikely that our extraction procedure would have so drastically influenced isomer diversity.

3. Conclusions

The biosynthetic pathway by which brown seaweeds produce phloroglucinol via the acetate-malonate pathway, also known as the polyketide pathway, is understood, in a process which involves a specific polyketide synthase-type enzyme [37]. However, the mechanisms by which phloroglucinol groups are combined in such a controlled manner, especially to yield the diversity of phlorotannin structures found in different species [2], and the extent that the oligomers extend are less well understood. The LC-MSn techniques used here have yielded useful information of the possible structural diversity of the phlorotannin oligomers in Ascophyllum, and further advances could be made, especially if ion-tree based fragmentation methods [38] could also be employed. However, the level of complexity for the major phlorotannin component (m/z [M − 2H]2− = 1117; apparent MW 2234; possible fucaphlorethol of DP 18) highlighted in this paper illustrates the daunting extent of data interpretation required to make inferences of overall structure. Also, MS-based analyses are inherently limited by their mass range and cannot deal with the high molecular weight phlorotannin species known to be present in brown seaweeds [2,15]. However, the molecular range could be extended by using other MS systems with higher MW ranges such as MALDI-TOF, as described previously e.g., [32]. Further work could focus effort on the main phlorotannin oligomers as these are most likely to be those most associated with specific bioactivities noted for the phlorotannin samples. In addition, future work could use these techniques to examine phlorotannins from different species of brown seaweed and begin to correlate their structural diversity with potential biological effectiveness.

4. Materials and Methods

4.1. Materials and General Methods

Dried and milled Ascophyllum nodosum powder was obtained from Hebridean Seaweeds in 2017 and stored at −20 °C until use. The ASCO extract was prepared from this dried powder using a propriety hydro-ethanolic extraction procedure carried out by Byotrol plc. The extract was filtered then reduced in volume by rotary evaporation until it could be freeze dried to a powder. The freeze-dried extract was soluble at 10% (w/v) in ultra-pure water.
Total phenol content (TPC) was assessed using the Folin-Ciocalteu method [24]. The TPC of the original extract was 0.394 ± 0.18 g GAE/g DW. It should be noted that the Folin method is not totally specific and these values probably over-estimate the yield of phenolic components.

4.2. Solid Phase Extraction

The method used was developed and scaled up from that reported previously [18]. In brief, a SPE unit (Strata C18-E GIGA tube, 10 g capacity & 60 mL volume; Phenomenex Ltd., Macclesfield, UK) was washed with 2 × 50 mL volumes of acetonitrile (ACN) containing 0.1% formic acid (FA) then equilibrated with 3 × 50 mL of UPW containing 0.1% FA.
The FD extract was dissolved at 5% (w/v) in UPW containing 0.1% FA and applied to the SPE unit, the unbound fraction was recovered, then the SPE unit was washed with 2 × volumes of UPW + 0.1% (v/v) FA, collected as the wash fraction. The bound fraction was obtained by eluting the unit with 2 volumes of 80% ACN + 0.1% (v/v) FA. The unit was then re-equilibrated for further use by washing with UPW + 0.1% (v/v) FA. At this stage, it was noted that the eluted fraction was cloudy so this bound-RW (rewash) fraction was also collected. The fractions were tested for total phenol content. Aliquots of each fraction were completely dried by speed vacuum concentration for LC-MSn analysis.

4.3. Fractionation on Sephadex LH-20

A portion of the Ascophyllum extract was fractionated using Sephadex LH-20 applying a technique [23] well-known to select for phlorotannin-like components (https://www.users.miamioh.edu/hagermae/). In brief, a 25 mg/mL solution of the FD material in UPW was produced and then 5 mL was added to 5 mL ethanol and mixed well. This solution was added to 5 mL of a slurry of Sephadex LH-20 in 50% ethanol and mixed well for 10 min at room temperature. After centrifugation at 2500× g for 5 min at 5 °C, the unbound fraction was removed, and 5 mL of 50% ethanol added. The centrifugation procedure was repeated to give the wash fraction then similarly with 50% acetone and then two washes with 80% acetone to provide the bound fractions. The total phenol contents were measured as before, and aliquots of each fraction completely dried by centrifugal evaporation in a Speed Vac prior to LC-MSn analysis.

4.4. Liquid Chromatography-Mass Spectrometry (LC-MSn) Analysis

The samples were first analyzed on an LCQ Fleet Ion Trap mass spectrometer (Thermo Scientific Ltd., Hemel Hempstead, UK) attached to an HPLC system consisting of an Accela 600 quaternary pump and Accela photodiode array detector (PDAD) and autosampler. Spectra were collected in wavelength/absorbance mode 200–600 nm (1nm filter bandwidth and wavelength step, 1 s filter rise time, 10 Hz sample rate). Additionally, three UV channel set points were employed (A: 280 nm, B: 365 nm, C: 520 nm, 9 nm bandwidth, 10 Hz sample rate). Samples (20 μL injection volumes) were eluted on a Synergi Hydro C18 2.0 mm × 150 mm, 4 µm particle size column (Phenomenex Ltd., Macclesfield, UK) applying mobile phase A, HPLC grade water + 0.1% FA, and mobile phase B, HPLC grade Acetonitrile + 0.1% FA, at a flow-rate of 0.3 mL/min. The gradient was as follows: 0–2 min hold 2% B, 2–5 min 2–5% B, 5–25 min 5–45% B; 25–26 min 45–100% B, 26–29 min hold 100% B, 29–30 min 100–2% B, 30–35 min hold 2% B for HPLC equilibration. Mass spectra were collected with a primary full scan event (m/z 80–2000, profile mode) and a secondary data-dependent analysis (DDA) MS/MS scan (centroid mode) for the top three most intense ions. Helium was applied as a collision gas for collision-induced dissociation at a normalized collision energy (NCE) of 45%, a trapping window width of 2 (+/−1) m/z was applied, an activation time of 30 ms and activation Q of 0.25 were applied, only singly charged ions were selected for DDA, isotopic ions were excluded. The Automatic Gain Control was set to 1 × 104, scan speed to 0.1 s, the following settings were applied to ESI: Spray voltage −3.5 kV (ESI−) and +4.0 kV (ESI+); Sheath gas 60; Auxiliary gas 30; Capillary voltage at −35 V (ESI−) +35 V (ESI+); Tube lens voltage −100 V (ESI−) and +100 V (ESI+); Capillary temperature 280 °C; ESI probe temperature 100 °C.
Selected samples were separated using the same chromatographic conditions and PDA set points, but with a Thermo Dionex U3000 UHPLC-PDA (Thermo Fisher Scientific UK), coupled to a Thermo LTQ-Orbitrap XL mass spectrometry system capable of full scan accurate mass FT-MS (30,000 FWHM resolution defined at m/z 400), as well as DDA at MS2 and MS3 levels. The Orbitrap XL applied identical settings as the LCQ-Fleet, but with a scan speed of 0.1 s and 0.4 s and AGC of 1 × 105 and 5 × 105 for the LTQ-IT and FT-MS respectively. For selected samples, in addition to full scan accurate mass FT-MS and LTQ-IT MS2, LTQ-IT MS3 data were also collected in DDA mode for the top three most intense ions detected in each MS2 scan. MS2 and MS3 data were collected at collision energies of 45% and 65% NCE.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/18/9/448/s1, Figure S1. Recovery of TPC after fractionation by Solid Phase Extraction and Sephadex LH-20; Figure S2. Co-chromatography of m/z [M − H]− peaks at 745 and m/z [M + H]+ peaks at 1491 in SPE bound samples. Figure S3. Peak areas of even DP phlorotannin oligomers from DP10-24. Figure S4. Evidence for triple charged phlorotannin species.

Author Contributions

Conceptualization, H.E., J.W.A. and G.J.M.; methodology, J.W.A. and G.J.M.; software, J.W.A.; validation, J.W.A. and G.J.M.; formal analysis, C.A. and J.W.A.; investigation, C.A., J.W.A. and G.J.M.; resources, G.J.M., J.W.A. and H.E.; data curation, C.A., J.W.A. and G.J.M.; writing—original draft preparation, C.A., H.E., J.W.A. and G.J.M.; writing—review and editing, H.E., J.W.A. and G.J.M.; visualization, J.W.A.; supervision, H.E., J.W.A. and G.J.M.; project administration, G.J.M. and H.E.; funding acquisition, G.J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Byotrol PLC. The James Hutton Institute is grateful for support through the Strategic Research Portfolio from the Rural Affairs Food and Environment Strategic Research Group of the Scottish Government.

Acknowledgments

The authors acknowledge the support of the Environmental and Biochemical Sciences group at the James Hutton Institute.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ragan, M.A.; Glombitza, K.W. Phlorotannins, brown algal polyphenols. Prog. Phycol. Res. 1986, 4, 129–241. [Google Scholar]
  2. Martínez, J.H.; Castaneda, H.G. Preparation and chromatographic analysis of phlorotannins. J. Chromat. Sci. 2013, 51, 825–838. [Google Scholar] [CrossRef] [Green Version]
  3. Li, S.-X.; Wijesekara, I.; Li, Y.; Kim, S.-K. Phlorotannins as bioactive agents from brown algae. Process Biochem. 2011, 46, 2219–2224. [Google Scholar] [CrossRef]
  4. Jormalainen, V.; Honkanen, T.; Koivikko, R.; Eränen, J. Induction of phlorotannin production in a brown alga: Defense or resource dynamics? Oikos 2003, 103, 640–650. [Google Scholar] [CrossRef] [Green Version]
  5. Amsler, C.D.; Fairhead, V.A. Defensive and sensory chemical ecology of brown algae. Adv. Bot. Res. 2006, 43, 1–91. [Google Scholar]
  6. Svensson, C.J.; Pavia, H.; Toth, G.B. Do plant density, nutrient availability, and herbivore grazing interact to affect phlorotannin plasticity in the brown seaweed Ascophyllum nodosum. Marine Biol. 2007, 151, 2177–2181. [Google Scholar] [CrossRef]
  7. Creis, E.; Delage, L.; Charton, S.; Goulitquer, S.; Leblanc, C.; Potin, P.; Ar Gall, E. Constitutive or inducible protective mechanisms against UV-B radiation in the brown alga Fucus vesiculosus? A study of gene expression and phlorotannin content responses. PLoS ONE 2015, 10, e0128003. [Google Scholar] [CrossRef] [Green Version]
  8. Steinberg, P.D. Seasonal variation in the relationship between growth rate and phlorotannin. production in the kelp Ecklonia radiata. Oecologia 1995, 102, 169–173. [Google Scholar] [CrossRef]
  9. Ragan, M.A.; Jensen, A. Quantitative studies on brown algal phenols. II. Seasonal variation in polyphenol content of Ascophyllum nodosum (L.) Le Jol. and Fucus vesiculosus (L.). J. Exp. Mar. Biol. Ecol. 1978, 34, 245–258. [Google Scholar] [CrossRef]
  10. Pavia, H.; Toth, G.B. Influence of light and nitrogen on the phlorotannin content of the brown seaweeds Ascophyllum nodosum and Fucus vesiculosus. Hydrobiology 2000, 440, 299–307. [Google Scholar] [CrossRef]
  11. Parys, S.; Kehraus, S.; Pete, R.; Küpper, F.C.; Glombitza, K.-W.; König, G.M. Seasonal variation of polyphenolics in Ascophyllum nodosum (Phaeophyceae). Eur. J. Phycol. 2009, 44, 331–338. [Google Scholar] [CrossRef]
  12. Arnold, T.M.; Targett, N.M. To grow and defend: Lack of tradeoffs for brown algal phlorotannins. Oikos 2003, 100, 406–408. [Google Scholar] [CrossRef]
  13. Nakamura, T.; Nagayama, K.; Uchida, K.; Tanaka, R. Antioxidant activity of phlorotannins isolated from the brown alga Eisenia bicyclis. Fisheries Sci. 1996, 62, 923–926. [Google Scholar] [CrossRef] [Green Version]
  14. Farvin, S.K.H.; Jacobsen, C. Phenolic compounds and antioxidant activities of selected species of seaweeds from Danish coast. Food Chem. 2013, 138, 1670–1681. [Google Scholar] [CrossRef] [PubMed]
  15. Erpel, F.; Mateos, R.; Pérez-Jiménez, J.; Pérez-Correa, J.R. Phlorotannins: From isolation and structural characterization, to the evaluation of their antidiabetic and anticancer potential. Food Res. Int. 2020, 137, 109589. [Google Scholar] [CrossRef]
  16. Kirke, D.A.; Smyth, T.J.; Rai, D.K.; Kenny, O.; Stengel, D.B. The chemical and antioxidant stability of isolated low molecular weight phlorotannins. Food Chem. 2017, 221, 1104–1112. [Google Scholar] [CrossRef]
  17. Yang, Y.I.; Woo, J.H.; Seo, Y.J.; Lee, K.T.; Lim, Y.; Choi, J.H. Protective effect of brown alga phlorotannins against hyper-inflammatory responses in lipopolysaccharide-induced sepsis models. J. Agric. Food Chem. 2016, 64, 570–578. [Google Scholar] [CrossRef]
  18. Lopes, G.; Andrade, P.B.; Valentão, P. Phlorotannins: Towards new pharmacological interventions for Diabetes Mellitus Type 2. Molecules 2016, 22, 56. [Google Scholar] [CrossRef] [Green Version]
  19. Cardoso, S.M.; Pereira, O.R.; Seca, A.M.; Pinto, D.C.; Silva, A.M. Seaweeds as preventive agents for cardiovascular diseases: From nutrients to functional foods. Mar. Drugs 2015, 13, 6838–6865. [Google Scholar] [CrossRef] [Green Version]
  20. Eom, S.-H.; Kim, Y.-M.; Kim, S.-K. Antimicrobial effect of phlorotannins from marine brown algae. Food Chem. Toxicol. 2012, 50, 3251–3255. [Google Scholar] [CrossRef]
  21. Vo, T.S.; Kim, S.K. Potential anti-HIV agents from marine resources: An overview. Mar. Drugs 2010, 8, 2871–2892. [Google Scholar] [CrossRef] [Green Version]
  22. Cherry, P.; O’Hara, C.; Magee, P.J.; McSorley, E.M.; Allsopp, P.J. Risks and benefits of consuming edible seaweeds. Nutr. Rev. 2019, 77, 307–329. [Google Scholar] [CrossRef] [Green Version]
  23. Nwosu, F.; Morris, J.; Lund, V.A.; Stewart, D.; Ross, H.A.; McDougall, G.J. Anti-proliferative and potential anti-diabetic effects of phenolic-rich extracts from edible marine algae. Food Chem. 2011, 126, 1006–1012. [Google Scholar] [CrossRef]
  24. Pantidos, N.; Boath, A.; Lund, V.; Conner, S.; McDougall, G.J. Phenolic-rich extracts from the edible seaweed, Ascophyllum nodosum, inhibit α-amylase and α-glucosidase: Potential anti-hyperglycemic effects. J. Funct. Foods 2014, 10, 201–209. [Google Scholar] [CrossRef]
  25. Austin, C.; Stewart, D.; Allwood, J.W.; McDougall, G.J. Extracts from the edible seaweed, Ascophyllum nodosum, inhibit lipase activity in vitro: Contributions of phenolic and polysaccharide components. Food Funct. 2018, 24, 502–510. [Google Scholar] [CrossRef]
  26. Georgé, S.; Brat, P.; Alter, P.; Amiot, M.J. Rapid Determination of polyphenols and vitamin c in plant-derived products. J. Agric. Food Chem. 2005, 53, 1370–1373. [Google Scholar] [CrossRef]
  27. Catarino, M.D.; Silva, A.M.S.; Mateus, N.; Cardoso, S.M. Optimization of phlorotannins extraction from Fucus vesiculosus and evaluation of their potential to prevent metabolic disorders. Mar. Drugs 2019, 17, 162–170. [Google Scholar] [CrossRef] [Green Version]
  28. Tierney, M.S.; Soler-Vila, A.; Rai, D.K.; Croft, A.K.; Brunton, N.P.; Smyth, T.J. UPLC-MS profiling of low molecular weight phlorotannin polymers in Ascophyllum nodosum, Pelvetia canaliculata and Fucus spiralis. Metabolomics 2014, 10, 524–535. [Google Scholar] [CrossRef]
  29. Tierney, M.S.; Smyth, T.J.; Hayes, M.; Soler-Vila, A.; Croft, A.K.; Brunton, N. Influence of pressurized liquid extraction and solid–liquid extraction methods on the phenolic content and antioxidant activities of Irish macroalgae. Int. J. Food Sci. Technol. 2013, 48, 860–869. [Google Scholar] [CrossRef]
  30. Heo, S.-J.; Hwang, J.-Y.; Choi, J.-I.; Han, J.-S.; Kim, H.-J.; Jeon, Y.-J. Diphlorethohydroxycarmalol isolated from Ishige okamurae, a brown algae, a potent α-glucosidase and α-amylase inhibitor, alleviates postprandial hyperglycemia in diabetic mice. Eur. J. Pharmacol. 2009, 615, 252–256. [Google Scholar] [CrossRef]
  31. Steevensz, A.J.; Mackinnon, S.L.; Hankinson, R.; Craft, C.; Connan, S.; Stengel, D.B.; Melanson, J.E. Profiling phlorotannins in brown macroalgae by liquid chromatography-high resolution mass spectrometry. Phytochem. Anal. 2012, 23, 547–553. [Google Scholar] [CrossRef]
  32. Vissers, A.M.; Caligiani, A.; Sforza, S.; Vincken, J.-P.; Gruppen, H. Phlorotannin composition of Laminaria digitata. Phytochem. Anal. 2017, 28, 487–495. [Google Scholar] [CrossRef]
  33. Li, Y.; Fu, X.; Duan, D.; Liu, X.; Xu, J.; Gao, X. Extraction and identification of phlorotannins from the brown alga, Sargassum fusiforme (Harvey) Setchell. Mar. Drugs 2017, 15, 49. [Google Scholar] [CrossRef] [Green Version]
  34. Lopes, G.; Barbosa, M.; Vallejo, F.; Gil-Izquierdo, A.; Valentão, P.; Pereira, D.M.; Ferreres, F. Profiling phlorotannins from Fucus spp. of the Northern Portuguese coastline: Chemical approach by HPLC-DAD-ESI/MS and UPLC-ESI-QTOF/MSn. Algal Res. 2018, 29, 113–120. [Google Scholar] [CrossRef]
  35. Catarino, M.D.; Silva, A.M.S.; Cardoso, S.M. Fucaceae: A source of bioactive phlorotannins. Int. J. Mol. Sci. 2017, 18, 1327. [Google Scholar] [CrossRef] [Green Version]
  36. Heffernan, N.; Brunton, N.P.; FitzGerald, R.J.; Smyth, T.J. Profiling of the molecular weight and structural isomer abundance of macroalgae-derived phlorotannins. Mar. Drugs 2015, 13, 509–528. [Google Scholar] [CrossRef]
  37. Meslet-Cladière, L.; Delage, L.; Leroux, C.J.; Goulitquer, S.; Leblanc, C.; Creis, E.; Gall, E.A.; Stiger-Pouvreau, V.; Czjzek, M.; Potin, P. Structure/function analysis of a type III polyketide synthase in the brown alga Ectocarpus siliculosus reveals a biochemical pathway in phlorotannin monomer biosynthesis. Plant Cell 2013, 25, 3089–3103. [Google Scholar] [CrossRef] [Green Version]
  38. Kasper, P.T.; Rojas-Chertó, M.; Mistrik, R.; Reijmers, T.; Hankemeier, T.; Vreeken, R.J. Fragmentation trees for the structural characterization of metabolites. Rapid Comms. Mass Spectr. 2012, 26, 2275–2286. [Google Scholar] [CrossRef] [Green Version]
Marinedrugs 18 00448 g001 550

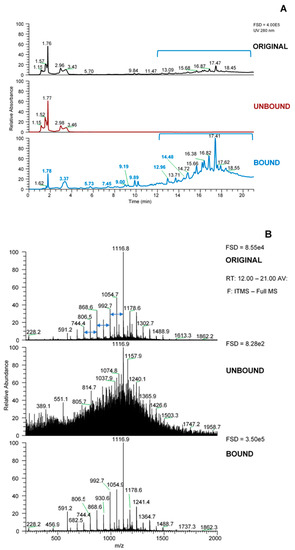

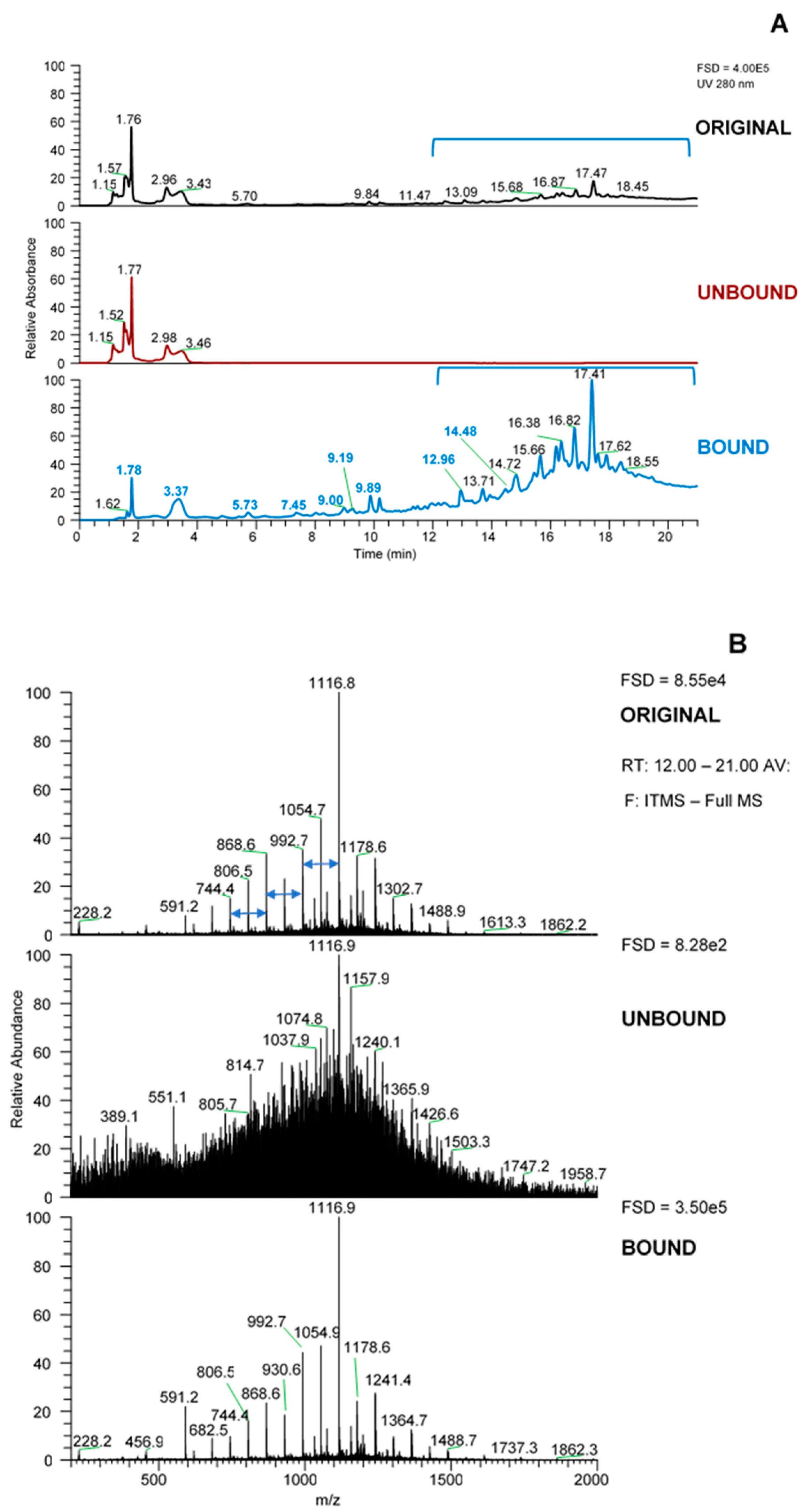

Figure 1. Profiles of the fractions from the SPE procedure. (A) UV profiles, (B) MS spectra from 12–21 min for each sample. Blue bracket in (A) represents area for MS spectra in (B). Arrows show 124 amu differences between peaks. FSD = full scale deflection.
Figure 1. Profiles of the fractions from the SPE procedure. (A) UV profiles, (B) MS spectra from 12–21 min for each sample. Blue bracket in (A) represents area for MS spectra in (B). Arrows show 124 amu differences between peaks. FSD = full scale deflection.
Marinedrugs 18 00448 g001
Marinedrugs 18 00448 g002 550

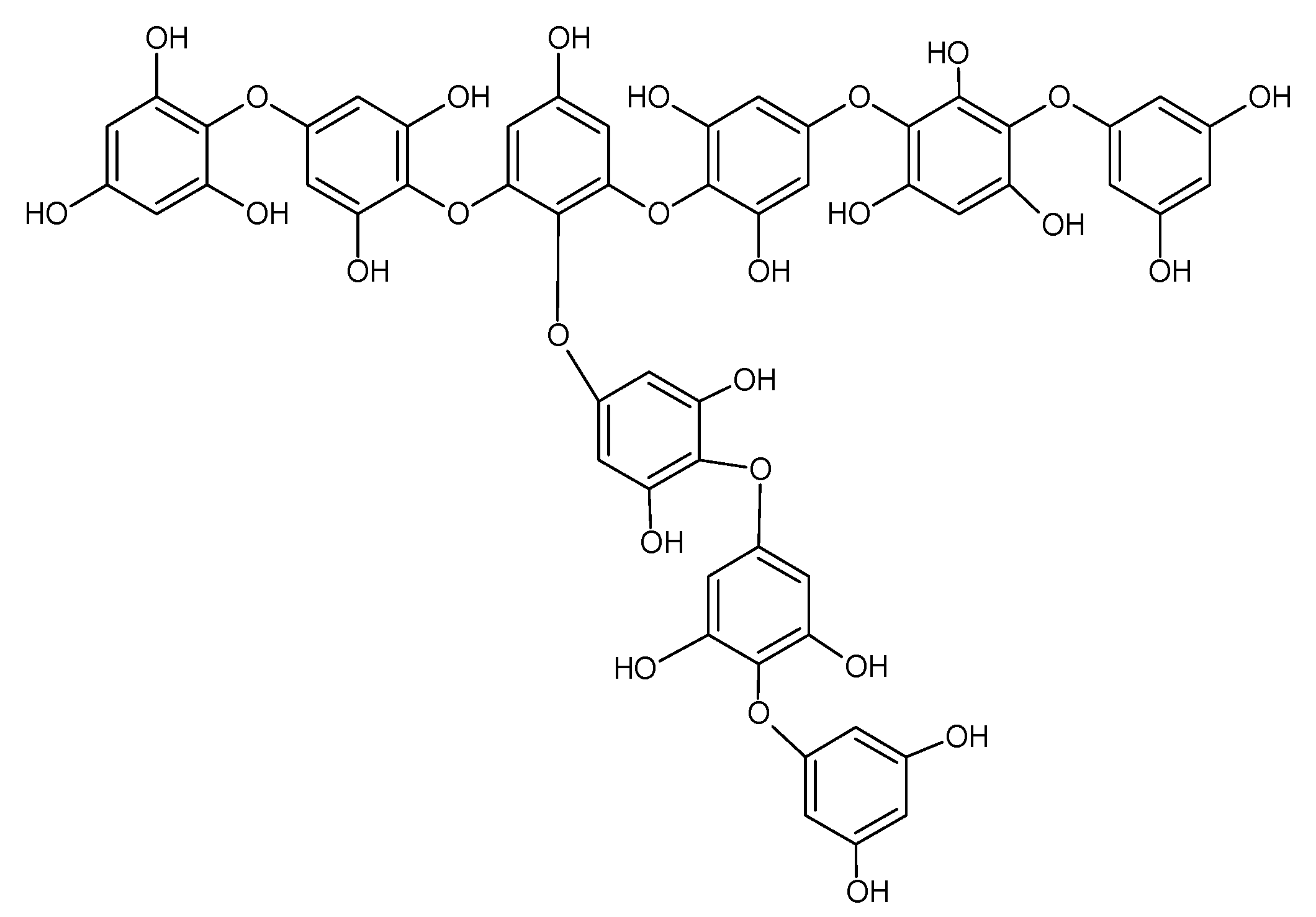

Figure 2. Possible nonaphorethol structure.
Figure 2. Possible nonaphorethol structure.
Marinedrugs 18 00448 g002
Marinedrugs 18 00448 g003 550

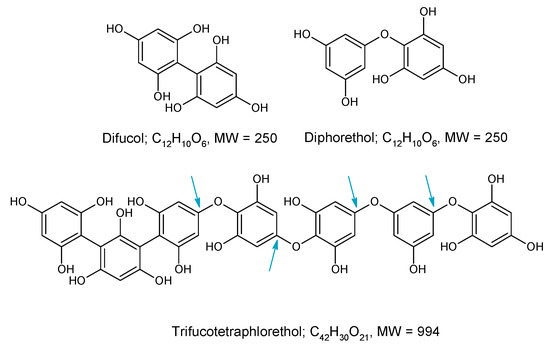

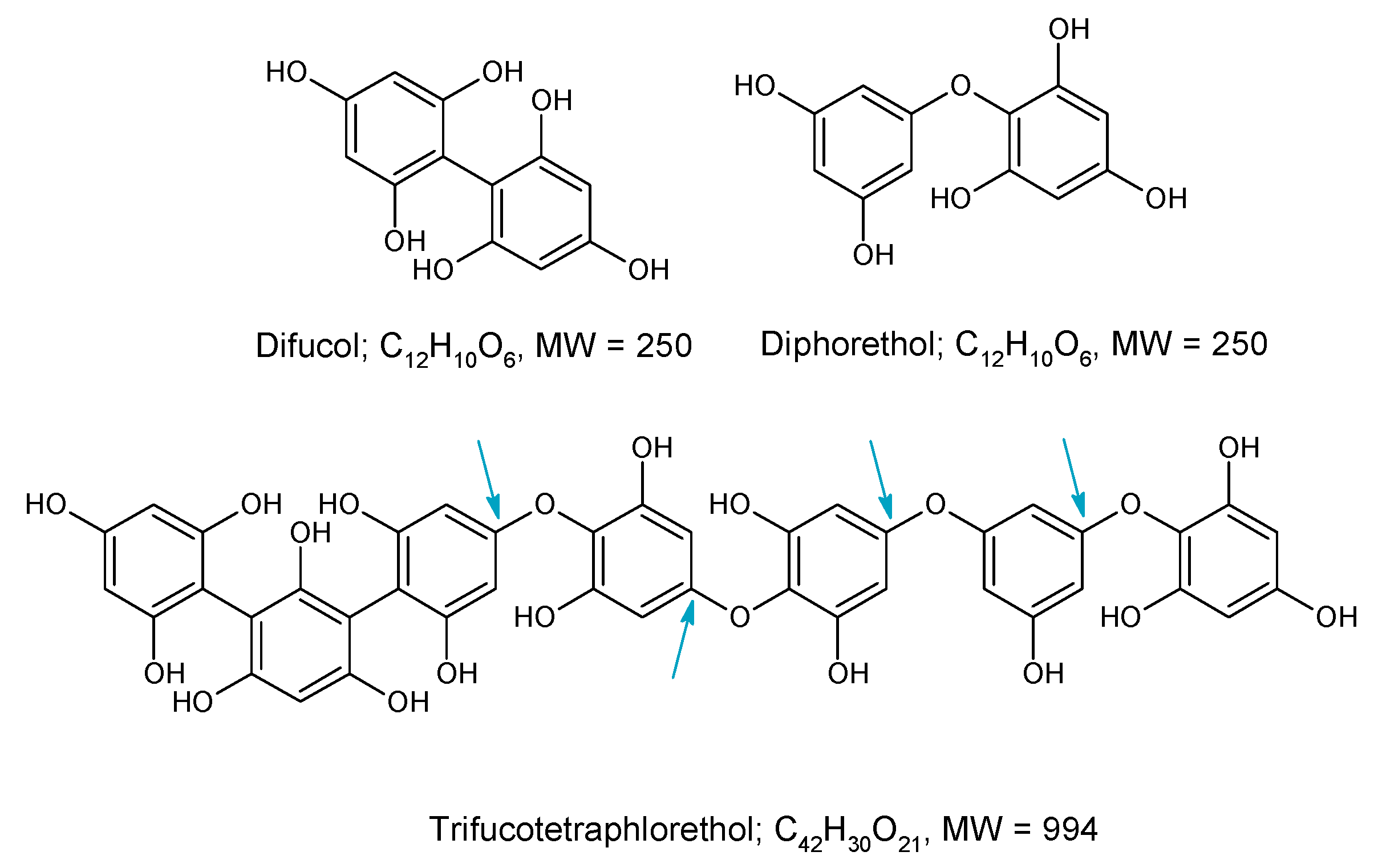

Figure 3. Structures of difucol, diphlorethol and trifucotetraphlorethol. These structures are discussed in the text. Fragmentation at the positions noted with blue arrows would produce THB containing fragments with neutral losses of 142 amu = THB, 266 amu = PG-THB, 390 amu = 2PG-THB and 514 amu = 3PG-THB respectively from right to left.
Figure 3. Structures of difucol, diphlorethol and trifucotetraphlorethol. These structures are discussed in the text. Fragmentation at the positions noted with blue arrows would produce THB containing fragments with neutral losses of 142 amu = THB, 266 amu = PG-THB, 390 amu = 2PG-THB and 514 amu = 3PG-THB respectively from right to left.
Marinedrugs 18 00448 g003
Marinedrugs 18 00448 g004 550

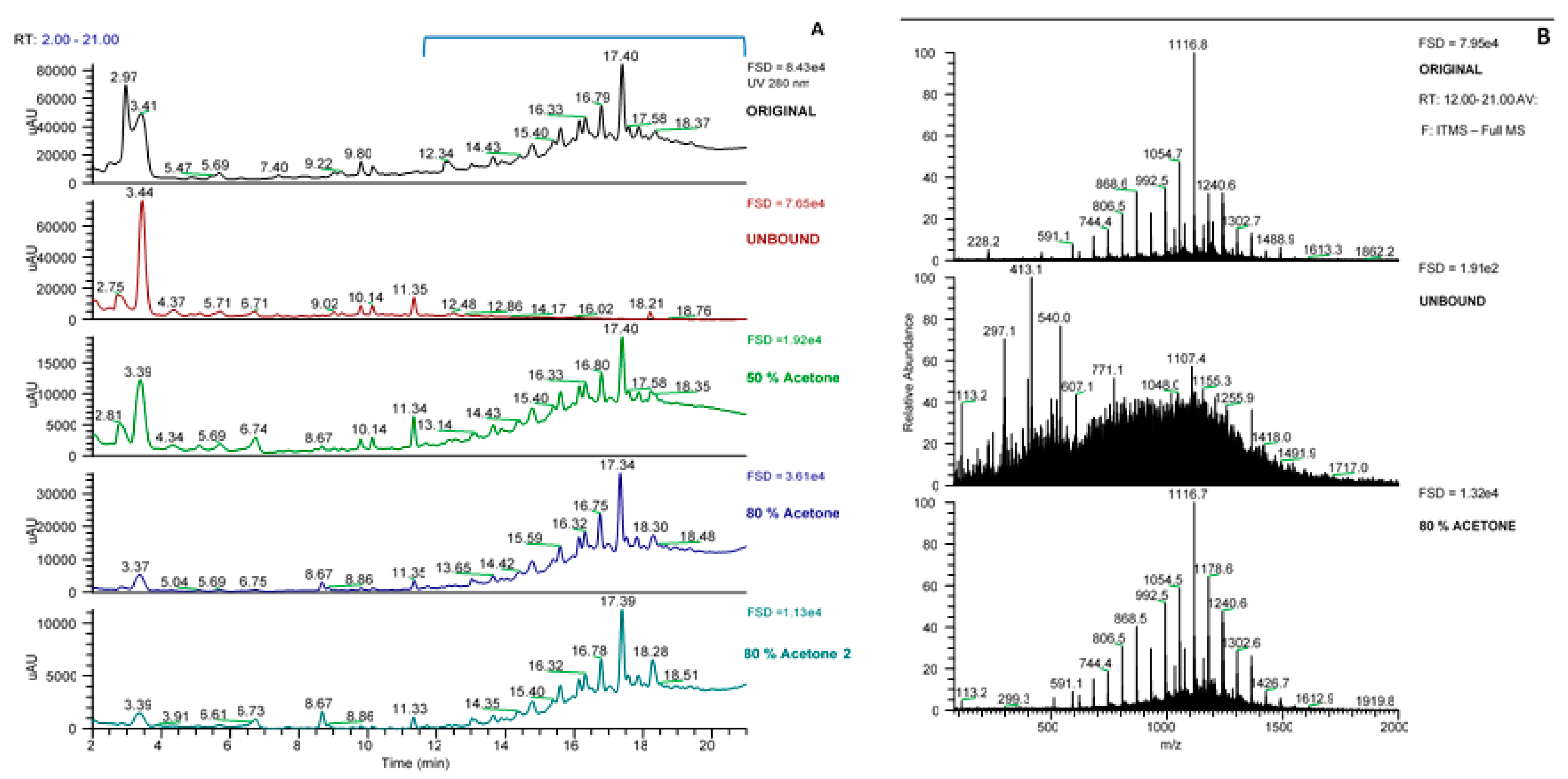

Figure 4. Profiles of the fractions from the Sephadex LH-20 procedure. (A) UV profiles, (B) MS spectra from 12–21 min for each sample. FSD = full scale deflection.
Figure 4. Profiles of the fractions from the Sephadex LH-20 procedure. (A) UV profiles, (B) MS spectra from 12–21 min for each sample. FSD = full scale deflection.
Marinedrugs 18 00448 g004
Marinedrugs 18 00448 g005 550

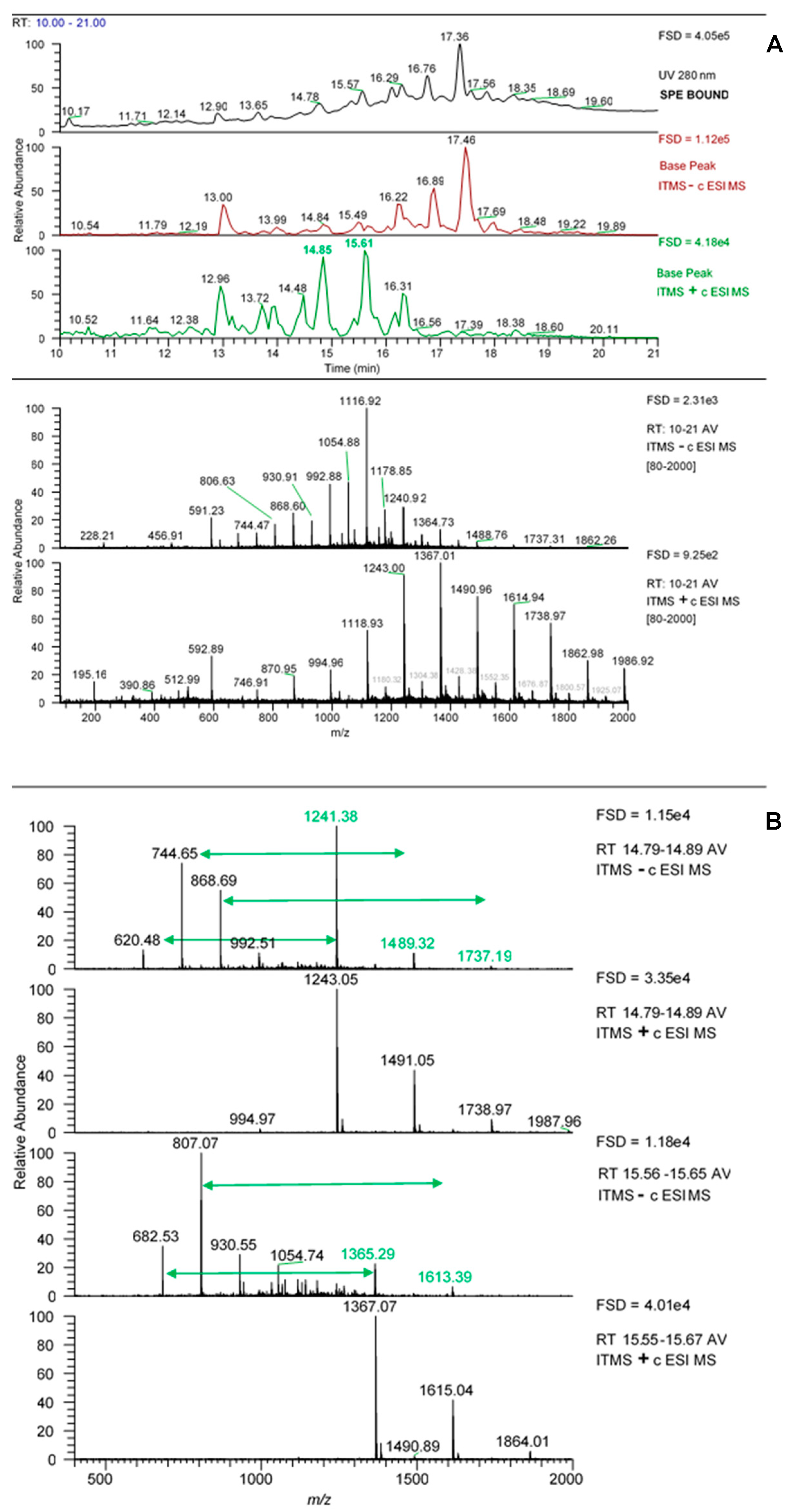

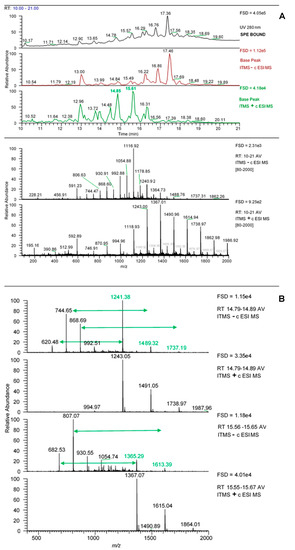

Figure 5. (A) MS properties of phlorotannin peaks in negative and positive mode. The top panel shows the UV spectra of the SPE bound sample from 10–21 min, the next shows the MS spectra in negative mode from 10–21 min and the third panel shows the MS spectra in positive mode from 10–21 min. The fourth panel shows the MS spectrum over 10–21 min in negative mode and the last panel shows the same in positive mode. FSD = full scale deflection. The peaks denoted in bold green were examined further (Figure 5B). (B). MS spectra of selected phlorotannin peaks in negative and positive mode. Examples of negative and positive MS spectra of specific peaks labelled in bold in Figure 5A. Green arrows denote m/z signals discussed in the text.
Figure 5. (A) MS properties of phlorotannin peaks in negative and positive mode. The top panel shows the UV spectra of the SPE bound sample from 10–21 min, the next shows the MS spectra in negative mode from 10–21 min and the third panel shows the MS spectra in positive mode from 10–21 min. The fourth panel shows the MS spectrum over 10–21 min in negative mode and the last panel shows the same in positive mode. FSD = full scale deflection. The peaks denoted in bold green were examined further (Figure 5B). (B). MS spectra of selected phlorotannin peaks in negative and positive mode. Examples of negative and positive MS spectra of specific peaks labelled in bold in Figure 5A. Green arrows denote m/z signals discussed in the text.
Marinedrugs 18 00448 g005
Marinedrugs 18 00448 g006 550

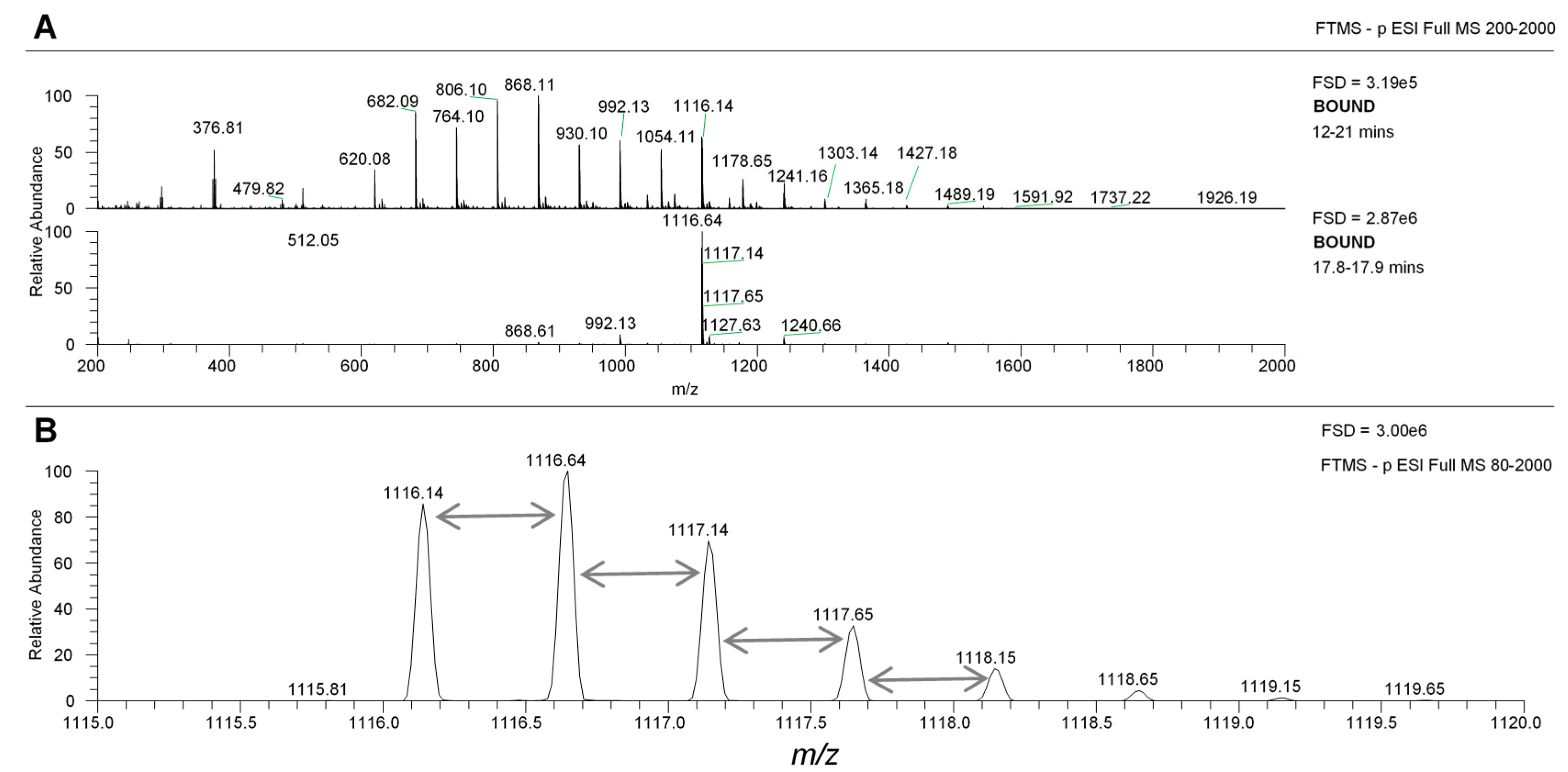

Figure 6. The phlorotannin peaks yield doubly charged MS signals in negative mode. The top panel (A) shows the MS spectra across 12–21 min of the SPE bound sample and the second panel shows the MS spectra of the main UV peak. The third panel (B) shows the zoom spectra across the m/z 1116 peak.
Figure 6. The phlorotannin peaks yield doubly charged MS signals in negative mode. The top panel (A) shows the MS spectra across 12–21 min of the SPE bound sample and the second panel shows the MS spectra of the main UV peak. The third panel (B) shows the zoom spectra across the m/z 1116 peak.
Marinedrugs 18 00448 g006
Marinedrugs 18 00448 g007 550

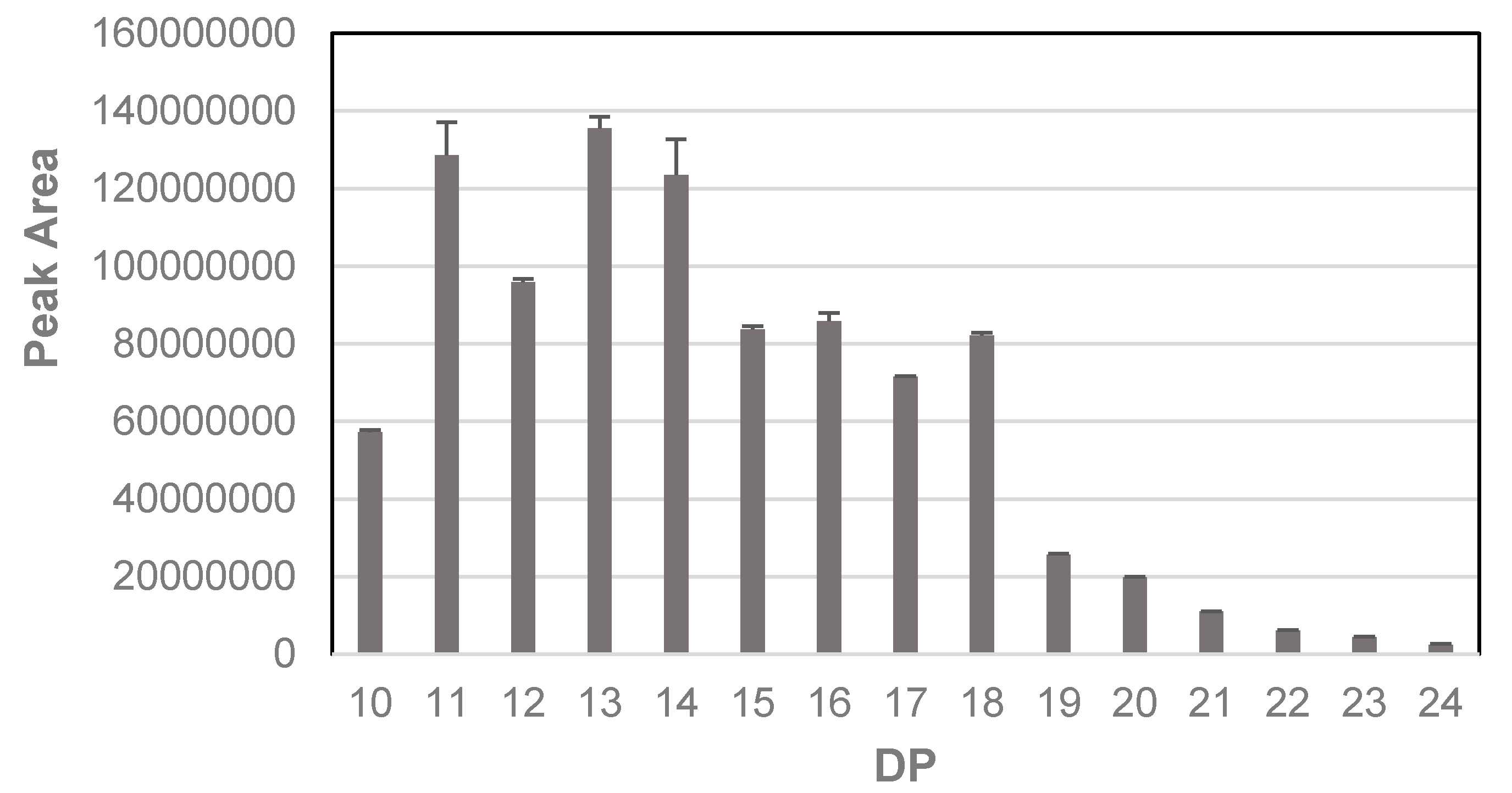

Figure 7. Relative abundance of phlorotannin oligomers in the SPE bound fraction.
Figure 7. Relative abundance of phlorotannin oligomers in the SPE bound fraction.
Marinedrugs 18 00448 g007
Marinedrugs 18 00448 g008 550

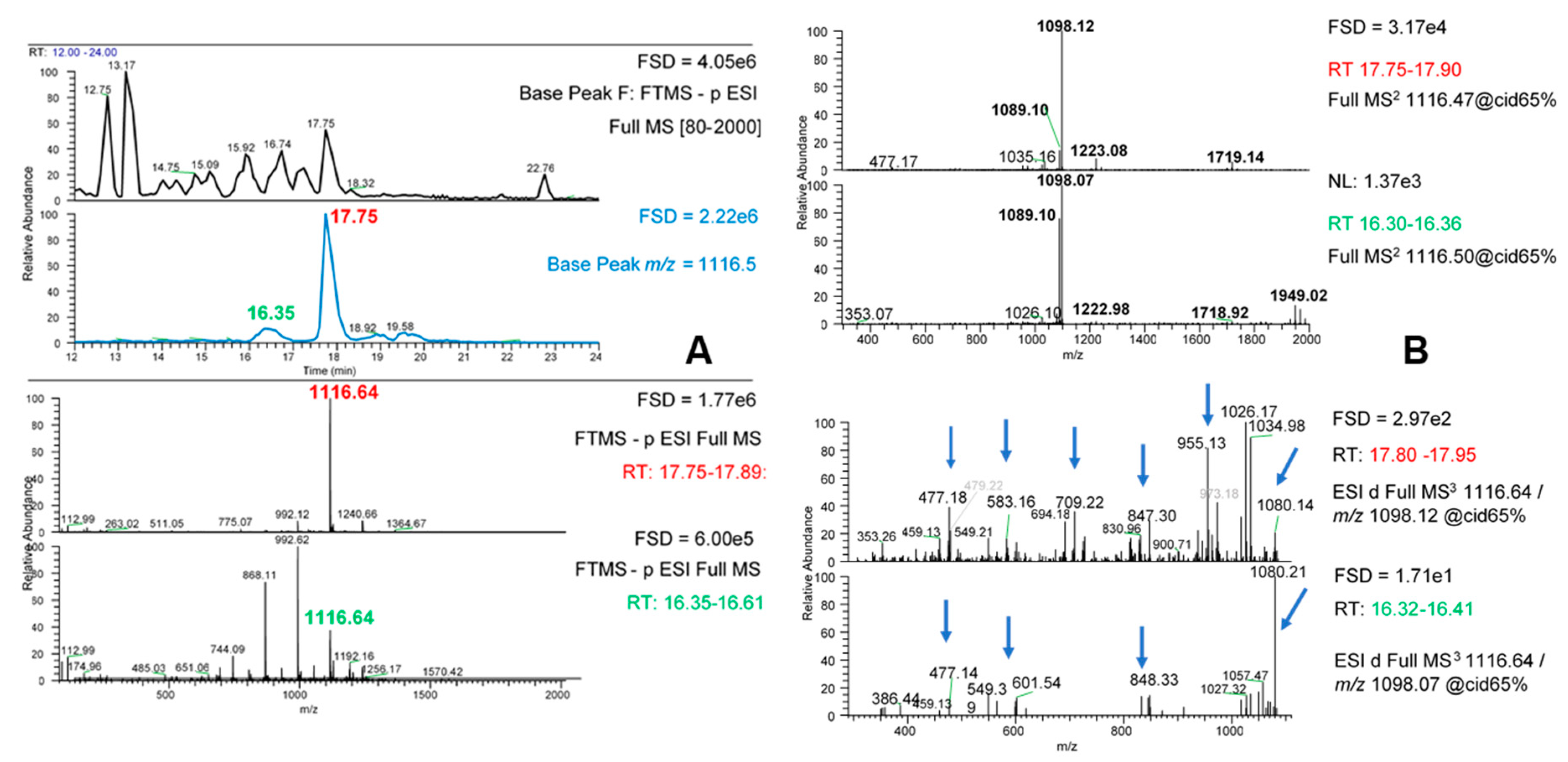

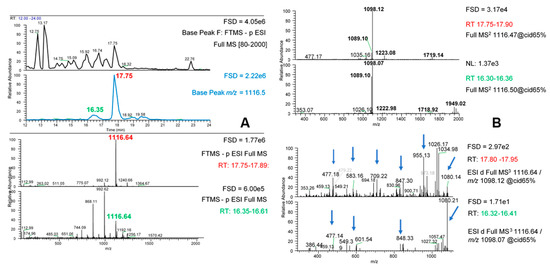

Figure 8. MS2 and MS3 data of major phlorotannin isomers at m/z 1116.6. (A) The top panel shows the MS profile between RT = 21–21 min, the second panel shows the profile for base peak at m/z 1116.6 and the bottom two panels show the MS spectra at the two peaks at 17.75 min and 16.35 min respectively. (B) The top panel shows the MS3 fragments from the main MS2 peak (m/z 1098) derived from the major m/z 1116.6 peak at RT = 17.75. The bottom panel shows the MS3 fragments from the main MS2 peak (m/z 1098) derived from the minor m/z 1116.6 peak at RT = 16.35.
