Distribution, Contents, and Types of Mycosporine-Like Amino Acids (MAAs) in Marine Macroalgae and a Database for MAAs Based on These Characteristics

by
Yingying Sun
1,2,3,*,
Naisheng Zhang
1,
Jing Zhou
4,
Shasha Dong
1,
Xin Zhang
1,
Lei Guo
1,2 and
Ganlin Guo
2
1
State Key Laboratory of Food Science and Technology, Jiangnan University, Wuxi 214122, China
2
Jiangsu Key Laboratory of Marine Bioresources and Eco-Environment, Jiangsu Ocean University, Lianyungang 222005, China
3
A Co-Innovation Center of Jiangsu Marine Bio-industry Technology, Lianyungang 222005, China
4
Lianyungang of Products Quality Supervision and Inspection, Lianyungang 222006, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2020, 18(1), 43; https://doi.org/10.3390/md18010043
Submission received: 27 November 2019 / Revised: 28 December 2019 / Accepted: 1 January 2020 / Published: 7 January 2020
(This article belongs to the Special Issue Mycosporine-Like Amino Acids from Marine Resource)
Browse Figures
Versions Notes

Abstract

:
Mycosporine-like amino acids (MAAs), maximally absorbed in the wavelength region of 310–360 nm, are widely distributed in algae, phytoplankton and microorganisms, as a class of possible multi-functional compounds. In this work, based on the Web of Science, Springer, Google Scholar, and China national knowledge infrastructure (CNKI), we have summarized and analyzed the studies related to MAAs in marine macroalgae over the past 30 years (1990–2019), mainly focused on MAAs distribution, contents, and types. It was confirmed that 572 species marine macroalgae contained MAAs, namely in 45 species of Chlorophytes, 41 species of Phaeophytes, and 486 species of Rhodophytes, and they respectively belonged to 28 orders. On this basis, we established an open online database to quickly retrieve MAAs in 501 species of marine macroalgae. Furthermore, research concerning MAAs in marine macroalgae were analyzed using CiteSpace. It could easily be seen that the preparation and purification of MAAs in marine macroalgae have not been intensively studied during the past 10 years, and therefore it is necessary to strengthen the research in the preparation and purification of MAA purified standards from marine macroalgae in the future. We agreed that this process is not only interesting, but important due to the potential use of MAAs as food and cosmetics, as well as within the medicine industry.

1. Introduction

MAAs (mycosporine-like amino acids) are natural compounds with low molecular weight and exist in diverse aquatic organisms, from algae [1,2,3,4,5,6,7] to phytoplankton [2,7,8,9,10,11,12], cyanobacteria [2,7,13,14,15], microorganisms [16,17], and marine animals [18,19,20,21].
MAAs have maxima absorption ranging between 310 and 360 nm [22]. They constitute a class of more than 30 related UV-absorbing compounds with molecules constituted by imino-carbonyl derivatives of mycosporine cyclohexenone chromophore [7,23]. MAAs exhibited the scavenging effects of oxygen free radicals [24,25], anti-lipid oxidation activity [26], a regulatory role in plant growth and development [27], and so on [28]. Meanwhile, MAAs may also possess many physiological functions, including the protection of antitumor activity [29], embryonic and larval development [30], reproduction regulation [23], and osmotic regulation [31].
MAAs were found in marine organisms in the 1960s [17]. However, research pertaining to MAAs in marine macroalgae gradually attracted the attention of researchers in the 1990s [32,33,34]. More exactly, most studies concerning MAAs in marine macroalgae focused on the period of 1998–2009 [2,4,5,7,35,36]. During this period, MAAs in more than 300 species of marine macroalgae were determined, for example, the green algae Acrosiphonia arcta [4], Boodlea composite [5], Prasiola crispa ssp. antarctica [3], Prasiola crispa [35] and others macroalgae [4,5,7] in Chlorophyta; a class of the brown algae in Phaeophyta, Ecklonia radiata [37], Halopteris scoparia [4], Hydroclathrus clathratus [5], Laminaria saccharina [38], and others brown algae [4,5,7]; many red algae of Rhodophyta, Ahnfeltiopsis devoniensis [39], Apophlaea lyallii [37], Bangia atropurpurea [40], Chondrus crispus [41], Gracilaria chilensis [42], Iridaea sp. [43], Palmaria palmata [44], Porphyra umbilicalis [1] and etc. [4,5,7,45,46]. From 2009 to 2019, MAAs in less than 200 species, such as Bangia atropurpurea [47], Calliarthron tuberculosum [48], Catenella repens [49], Gelidium lingulatum [50], Gloiopeltis furcate [51], Palmaria palmata [52], Pyropia plicata [53], Solieria chordalis [54] and others macroalgae [55,56,57,58], were found.
Marine macroalgae as marine primary productivity have developed complex and unique metabolic pathways. Therefore, they have been become the target of exploiting natural bioactive components. To date, MAAs in more than 500 marine macroalgae have been reported. However, unfortunately, the summary and generalization about these researches were lacked. This made it very difficult to provide relevant information on MAAs of marine macroalgae. Therefore, this paper will provide an overview of MAAs in marine macroalgae since 1990 and focus on the contents and types of MAAs, and their distribution in marine macroalgae. The two databases related MAAs in marine macroalgae have been showed [2,59]. Although these two databases were not specific databases for MAAs in marine macroalgae, and provide less information regarding MAAs, the lack of total MAAs contents and specific MAA content, these works provided us with a good idea. Therefore, further in paper we established an open online database for MAAs in 501 species of marine macroalgae to quickly retrieve some related information regarding MAAs in marine microalgae since 1990. A lot of information, such as the source (field/culture) and collection site of marine macroalgae, the total MAAs contents, specific MAA content, and/or MAAs composition etc., were included in this online database (http://210.28.32.218/MAAs/).
CiteSpace was a software used in scientific literature to identify and display new trends of scientific development [60]. Finally, in this review, the development tendency of the studies about MAAs in marine macroalgae will be analyzed using CiteSpace to point out future research directions for researchers in related fields. This is not only very interesting, but also can promote the development of MAAs in marine macroalgae.

2. Results

2.1. MAAs Distribution, Contents and Types in Marine Macroalgae

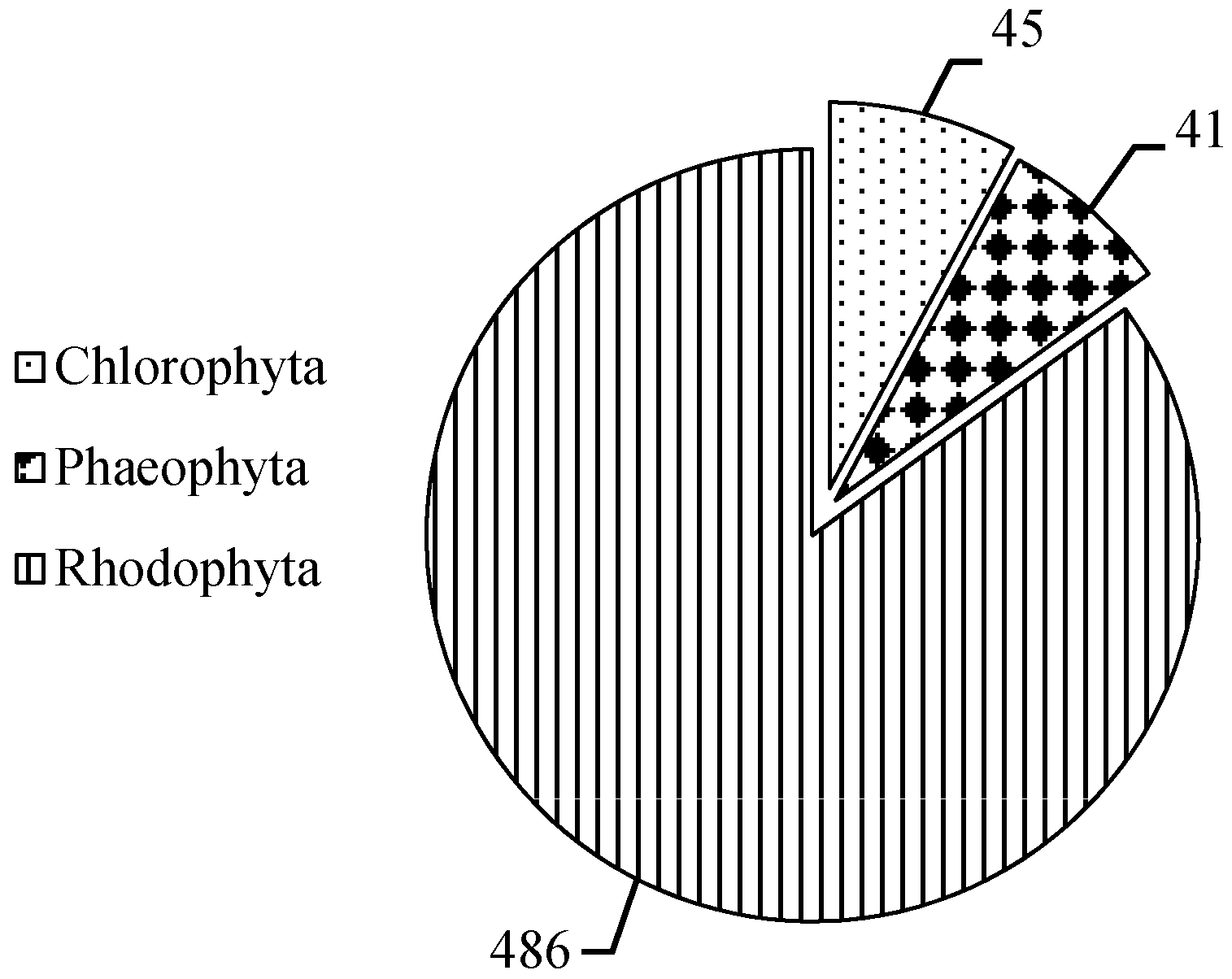

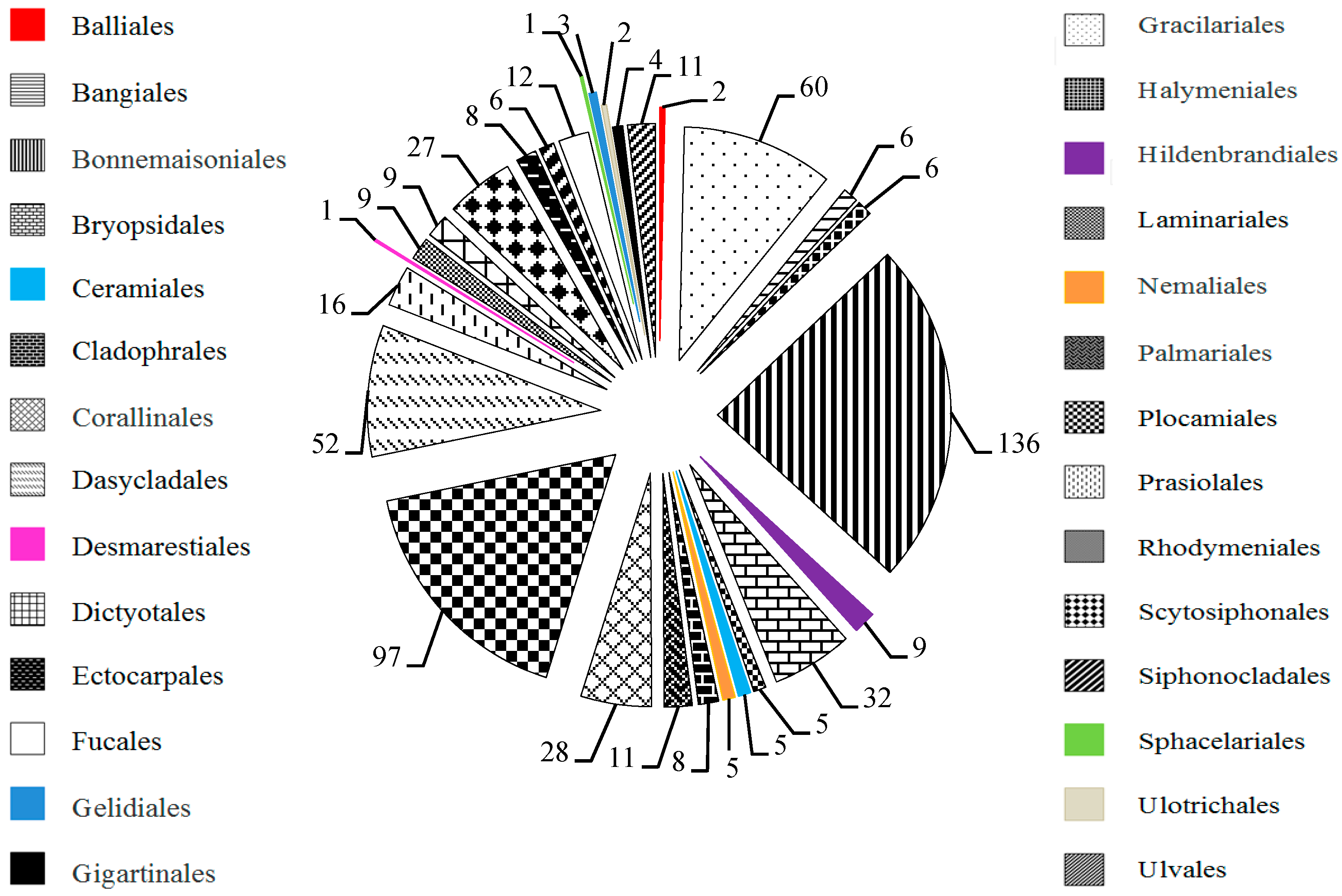

In our survey that summarized of more than 660 species, 572 species of marine macroalgae contained MAAs, found namely in 45 species in Chlorophyta, 41 species in Phaeophyta, and 486 species in Rhodophyta (Figure 1), and they respectively belonged to 28 orders (Figure 2). Among them, marine macroalgae which contained MAAs mainly distributed in orders Bangiales, Ceramiales, Gigartinales, and Gracilariales. MAAs rfepresent a class of the secondary metabolites in marine macroalgae [61,62], and in addition to antioxidant [24,25,26,27,28] and anti-ultraviolet radiation activities [22,23,63], likely possess many physiological activities, such as capacity to inhibit the proliferation of tumor cells [29], protecting embryonic and larval development [30], and regulating reproduction [23] and osmosis [31].
The research efforts made pertaining to MAAs in marine macroalgae have drawn signifficant attention since 1990. The contents and composition of MAAs in marine macroalgae were important in developing MAAs. Therefore, the summary and analysis of total MAAs contents and MAAs composition in marine macroalgae have been conducted according to different orders in this paper (Figure 2, Figure 3 and Figure 4).
MAAs have been found in 45 species of the green algae in Chlorophyta [2,3,4,5,7,35,64]. Among them, total MAAs contents were determinied in only 12 species. The green algae with high total MAAs contents belong to Prasiolales, and contents were more than 3.5 mg/g DW (Figure 3a), such as Prasiola crispa ssp. antarctica [3], Prasiola crispa collected from South Shetlands [40] and Kongsfjorden [35] respectively. The total MAAs contents in other macroalgal Chlorophytes were very low, with values ranging between 0.0045 and 0.275 mg/g DW. Therefore, some bars which represent the total MAAs contents in different marine Chlorophytes were almost on the ordinate.
The brown algae (41 species) in Phaeophyta also were confirmed to contain MAAs [2,3,4,5,32,37,38] (Table 1). Further, for eight species, namely Chorda tomentosa [4], Desmarestia menziesii [32], Dictyota bartayresii [5], Dictyosiphon foeniculaceus [4], Pilayella littoralis [4], Ecklonia radiata [37], Halopteris scoparia [4], Hydroclathrus clathratus [5] and Sargassum oligocystum [5], the total MAAs contents were pointed out. These values were very low and less than 0.2 mg/g DW (Figure 3b).
A total of 486 MAA-containing strains of macroalgal Rhodophytes were detected. In order to present these reports from 1990 to 2019 more clearly, they are shown in two maps in Figure 3c,d, with 2009 as the cut-off time point. Among them, the total MAAs contents in 323 red algae were determined, and their MAAs contents were usually higher compared with macroalgal Chlorophytes and Phaeophytes [2,3,4,5,40,65]. For example, some members of orders Bangiales [5,40,65], Gracilariales [3,32,66], Gigartinales [5,40,42], and Gelidiales [48,67], their total MAAs contents ranges from 2 mg/g DW to nearly 20 mg/g DW. Of course, there were also many macroalgal Rhodophytes with lower total MAAs contents, such as Actinotrichia fragilis [5], Asparagopsis taxiformi [5], Galaxaura oblongata [5], Gelidium corneum [68], and Georgiella confluens [3], etc. [3,4,5,69], and these values were even less than 0.1 mg/g DW. Further, we classified these red algae into three groups according to their total MAAs contents. The first group, including 65 species belong to order Balliales, Ceramiales, Corallinales, Nemaliales and Rhodymeniales, exhibited low total MAAs contents (< 1 mg/g DW). A second group with the higher concentration of total MAAs and 52 species showed 1~2 mg/g DW MAAs. The last group that included 216 species, such as the orders Bangiales, Gelidiales, Gigartinales, and Gracilariales macroalgae showed the highest total MAAs contents and these values are all above 2 mg/g DW. Of note, Rhodymenia spp. Belonging to order Rhodymeniales had a surprisingly high MAAs contents (8.8–142.9 mg/g DW, average value 75.85 mg/g DW) [37]. This is clearly displayed in Figure 2c with another axe (maximum value of abscissa 80). In addition, the MAAs content value in each marine macroalgae could be obtained using the database (http://210.28.32.218/MAAs/) built by our team, which we will explain in detail later.

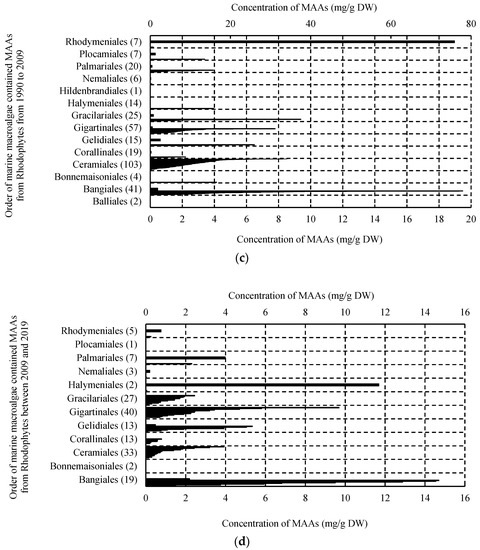

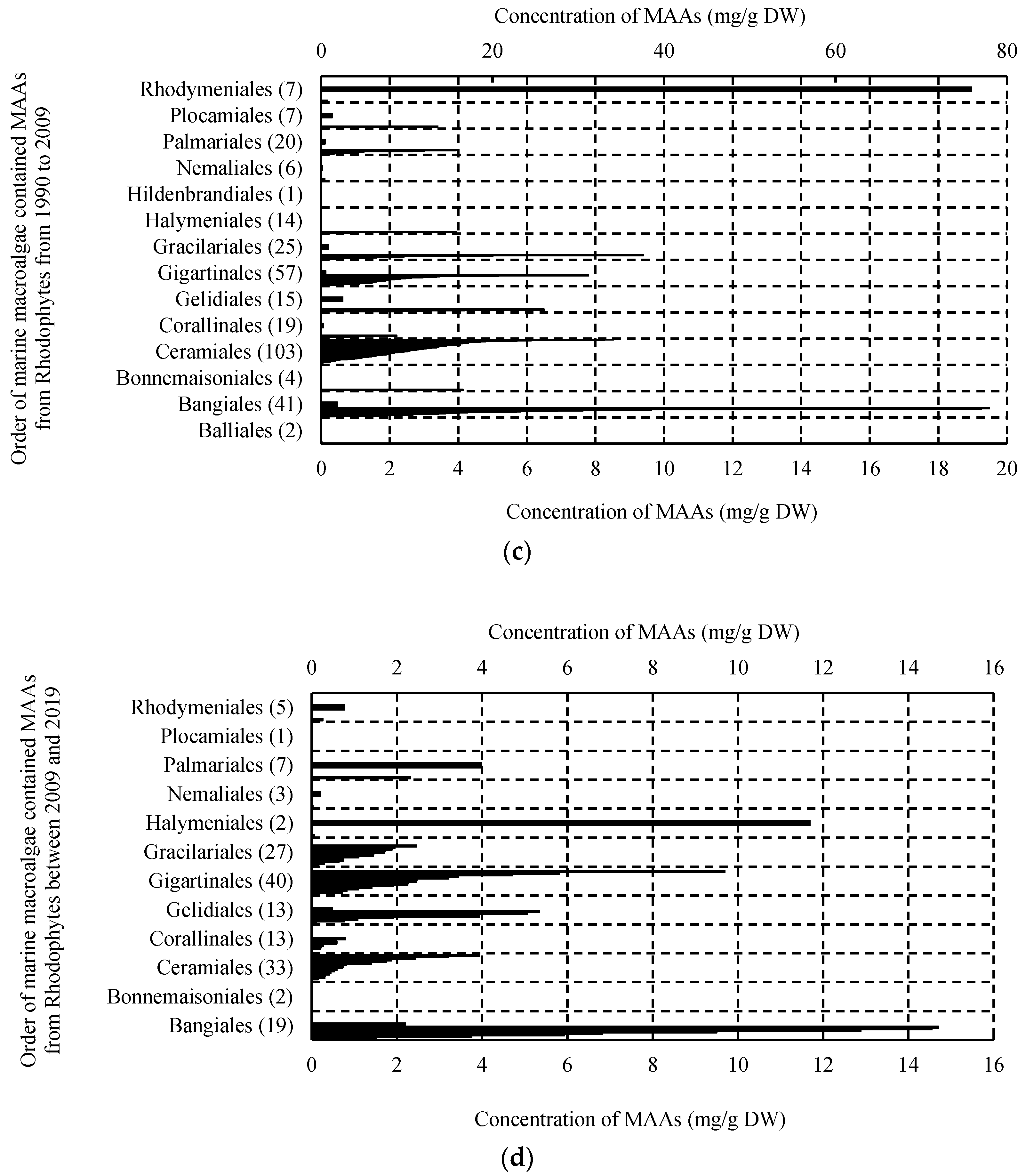

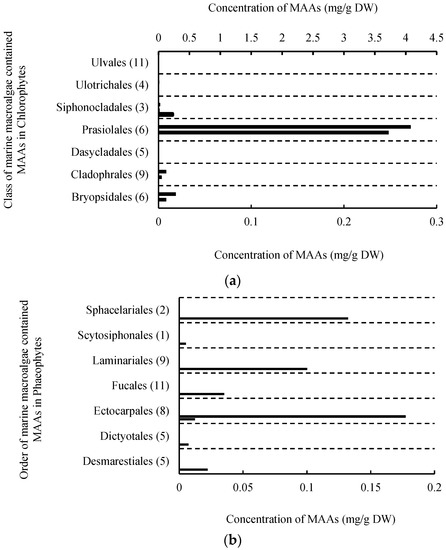

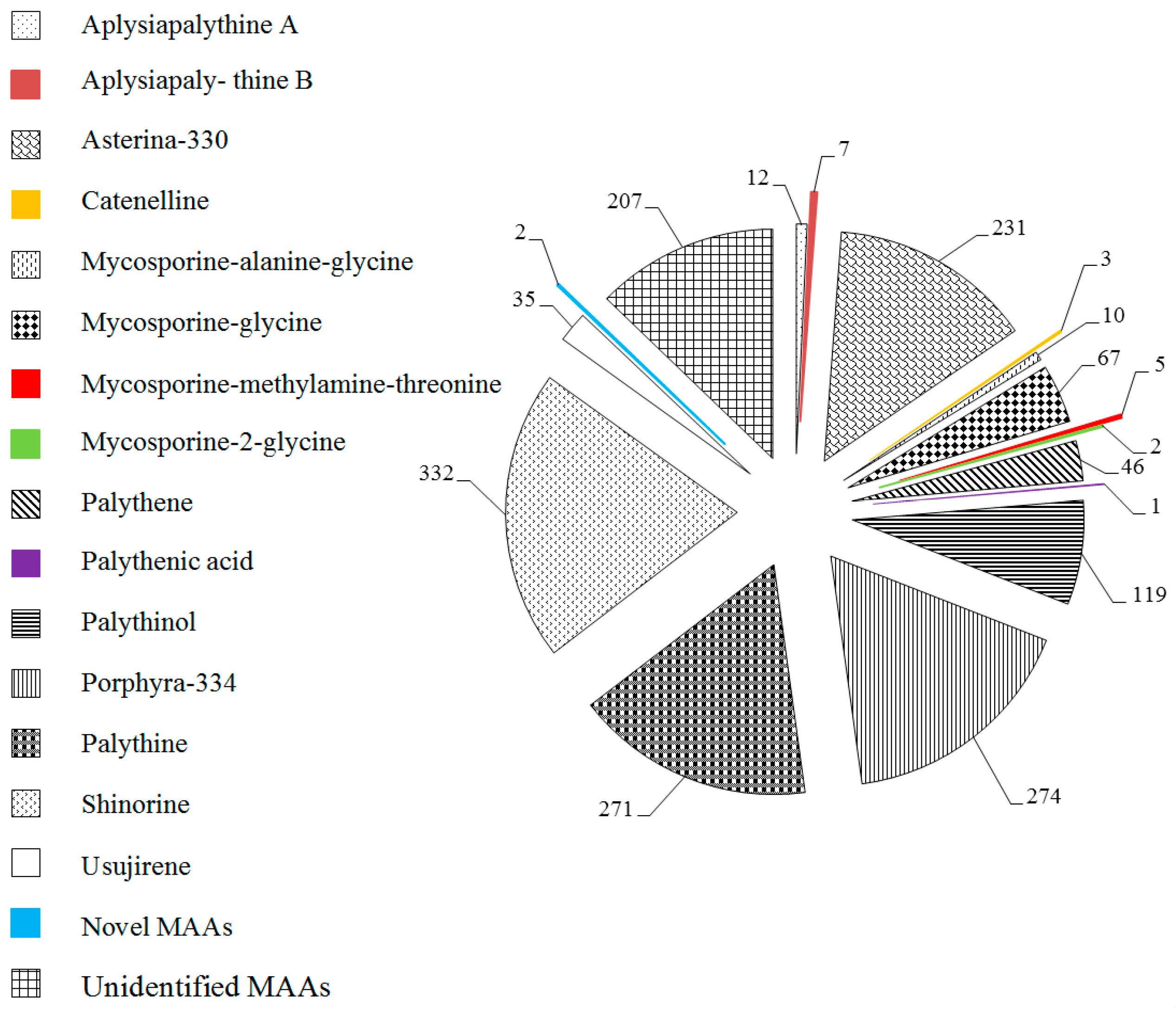

From 1990 to 2019, the survey found that MAAs in marine macroalgae mainly focus on macroalgal Rhodophytes (Figure 1), therefore, MAAs types in Rhodophytes have been pointed out according to different orders of macroalgal Rhodophytes in this review (Figure 4). Identified MAAs in macroalgal Rhodophytes included 22 types, namely Aplysiapalythine A, Aplysiapalythine B, asterina-330, catenelline, mycosporine-alanine-glycine, mycosporine-glycine, mycosporine-methylamine-threonine, mycosporine-2-glycine, palythene, palythenic acid, palythinol, porphyra-334, palythine, shinorine, usujirene, and new MAAs prasiolin [70] and bostrychines A–F [71]. Among them, shinorine, porphyra-334, palythine and asterina-330 were more abundant, followed by palythinol; catenelline, mycosporine-2-glycine, mycosporine-methylamine-threonine and palythenic acid were very few. Among them, aplysiapalythine A, aplysiapaly thine B, catenelline, and novel MAAs (prasiolin and bostrychines A–F) were only found in macroalgal Rhodophytes [49,70,71,72]. Moreover, it is noted that MAAs have not yet been identified in many species of macroalgal Rhodophytes, and therefore it is quite possible that new MAAs will be discovered from those macroalgae. Seven MAAs, such as asterina-330, mycosporine-glycine, palythene, palythinol, porphyra-334, palythine, and shinorine were found in macroalgal Chlorophytes and Phaeophytes, however other types MAAs have not been found in them except for unidentified MAAs. These results can be queried through the database mentioned above.
In Figure 5, main MAAs in macroalgal Rhodophytes, such as asterina-330, mycosporine-glycine, palythene, palythinol, porphyra-334, palythine, shinorine and usujirene, were listed according to different orders. It can be clearly shown that these MAAs were common in marine macroalgae belonging to orders Ceramiales and Gigartinales macroalgae. Further, porphyra-334, palythine and shinorine were commonly found in orders Bangiales and Gracilariales macroalgae. And porphyra-334 and shinorine were also the most common in macroalgal Chlorophytes and Phaeophytes, but they usually occurred in lower concentrations. Meanwhile, mycosporine-glycine seemed to have the highest concentration in Chlorophytes and Phaeophytes species [4,5,73], for example, the proportion of mycosporine-glycine in MAAs for Chlorophytes Boodlea composita [5], Chaetomorpha aerea [4], Codium fragile [73], Enteromorpha intestinalis [73], Halimeda polentia [73], Rhizoclonium tortuosum [73], Spongomorpha spinescens [73], and Ulva lactuca [73] is more than 53%; in Phaeophytes Agarum cribosum [73], Alaria esculenta [73], Ascophyllum nodosum [73], Chorda filum [73], Drsmarestia aculeata [73], Elachista fucicola [73], Fucus vesiculosis [73], Laminaria saccharina [73], Laminariocolas tomentosoides [73], and Sargassum fluitans [73], this proportion was higher than 87%, even as high as 100% in Alaria esculenta [73], Elachista fucicola [73], Fucus vesiculosis [73], Laminaria saccharina [73], and Laminariocolas tomentosoides [73]. In Rhodophytes, such as Acanthophora specifera [5], Chondrus crispus [73], Corallina officinalis [73], Cystoclonium purpureum [73], Lomentaria orcadensis [73], Mastocarpus stellata [73], Phycodrys rubens [73], Porphyra umbilicalis [73], and other red algae [2,3,4,5,6,7,32,33,34,35,40,42,43,44,45,55,69,71,74,75,76,77,78], the proportion of mycosporine-glycine in MAAs was lower than 50%; and relatively numerous species (more than 260 species) did not detect this MAA, for instance, Actinotrichia fragilis [5], Ahnfeltiopsis devoniensis [39], Amphiroa rigida [2], Asparagopsis armata [4], and Bangia atropurpurea [3], etc. [1,2,3,4,5,40,41,42,44,55,58,65,67,68,69,70,71,72,74,76,79,80,81,82,83,84,85,86,87]. However, in Rhodophytes Apophlaea lyallii [37] and Palmaria palmata [73], the proportion of mycosporine-glycine in MAAs was very high. Therefore, those Chlorophytes [4,5,73], Phaeophytes [73], and two Rhodophytes [37,73] species mentioned above were good sources of mycosporine-glycine. Some reports have determined that mycosporine-glycine, porphyra-334, and shinorine have better antioxidants properties [29,39,88,89], and therefore many macroalgal Rhodophytes species which belonged to the orders Bangiales, Ceramiales, Gigartinales, and Gracilariales have been considered to constitute prolific sources of porphyra-334 and shinorine, e.g., Acanthophora specifera [5], Bangia atropurpurea [65], Caloglossa apomeiotica [5], Porphyra dioica [57], Bostrychia radicans [40], Ceramium nodulosum [4], Catenella impudica [40], Curdiea racovitzae [32], Gracilaria domingensis [90], Gymnogongrus griffithsiae [4], and Mastocarpus stellatus [4], etc. [3,5,32,40,48,50,74,85,91,92,93].
In addition, it is worth mentioning that the difference of the total MAAs or MAA value between cultivated marine macroalgae and field material existed from same collection location. For exsample, cultured Stictosiphonia tangatensi [40] exhibited only 47.8% of the total MAAs found in the field sample [5]. Chondrus crispus, which in culture esposured to green or blue light radiation, exhibited asterina-330, palythene, palythinol and shinorine that were lack of MAAs in the field sample. Similary phenomenons also occurred in other seaweeds, such as Bostrychia radicans [5,40], Caloglossa stipitata [5,49], Chondrus crispus [60,72], Kallymenia antarctica [3], Mazzaella laminarioides [74], Neuroglossum ligulatum [3], Palmaria decipiens [3], Plocamium cartilagineum [3], Porphyra columbina [6,43], and Porphyra endiviifolium [3]. In the database that we set up later, we made clear the source of marine macroalgae that was field or culture, or commercial provision.
The specific parameters of 10 types of MAAs in marine macroalgae, such as structure, extinction coefficient, retention time and maximum absorption wavelength, have been showed in Table 1. Unfortunately, some parameters of these MAAs have not been determined, for instance, the extinction coefficient of mycosporine-2-glycine and usujirene. This should be due to the lack of commercially available MAAs standards.

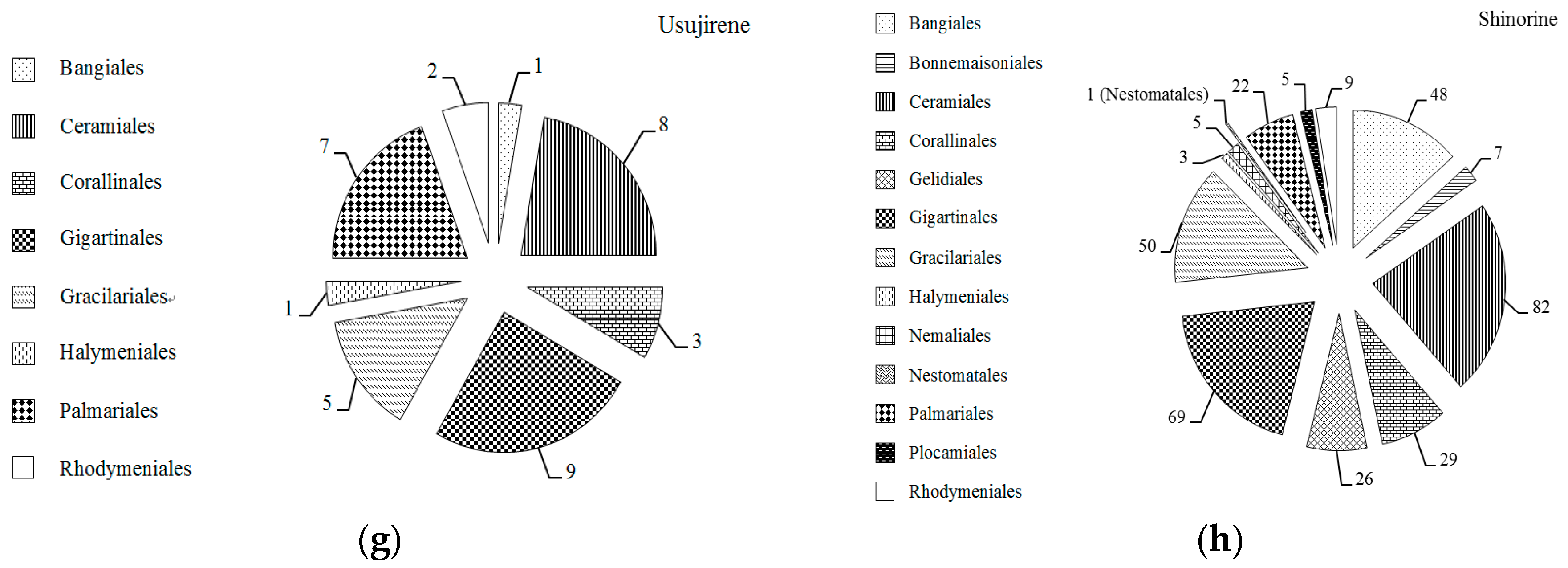

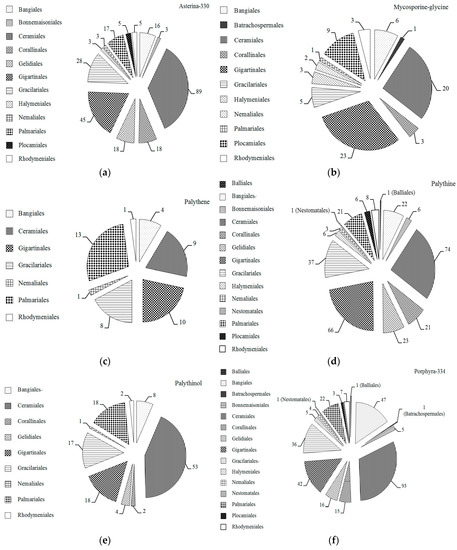

In order to clearly present the distribution of specific MAA in each marine macroalgae, based on the literature information from the Web of Science, Springer, Google Scholar, and CNKI, Table 2 and Table 3 are presenteed. In these two tables, all marine macroalgae were grouped according to the types of MAAs that they contained.

2.2. An Open Database for MAAs in Marine Macroalgae

In order for the scientists in the field to have a more comprehensive and clearer understanding of MAAs in marine macroalgae, it was necessary to establish a corresponding database. Therefore, our project team established a database (http://210.28.32.218/MAAs/) of MAAs in marine macroalgae over the past nearly 30 years utilizing data information from the Web of Science, Springer, Google Scholar and CNKI. In this database, more detailed information in relation to algal MAAs, such as the total contents of MAAs, content of specific MAA, type of MAAs, origin of marine macroalgae, and/or composition of specific MAA in MAAs, was listed. This was the comprehensive summary database of MAAs in marine macroalgae at home and abroad, and it was open and free.
Up to now, it has been determined that 572 species of marine macroalgae contained MAAs. Among them, MAAs contents and/or MAAs composition in 501 species have been reported. Therefore, related informations of MAAs in 501 species of marine macroalgae since 1990 have been getted using our database for MAAs in marine macroalgae. In the following work process, we will try to expand the sources of the reports collection and its published time in order to provide more complete data about MAAs in marine macroalgae.

2.3. Marine Macroalgae with No Detectable MAAs Concentrations

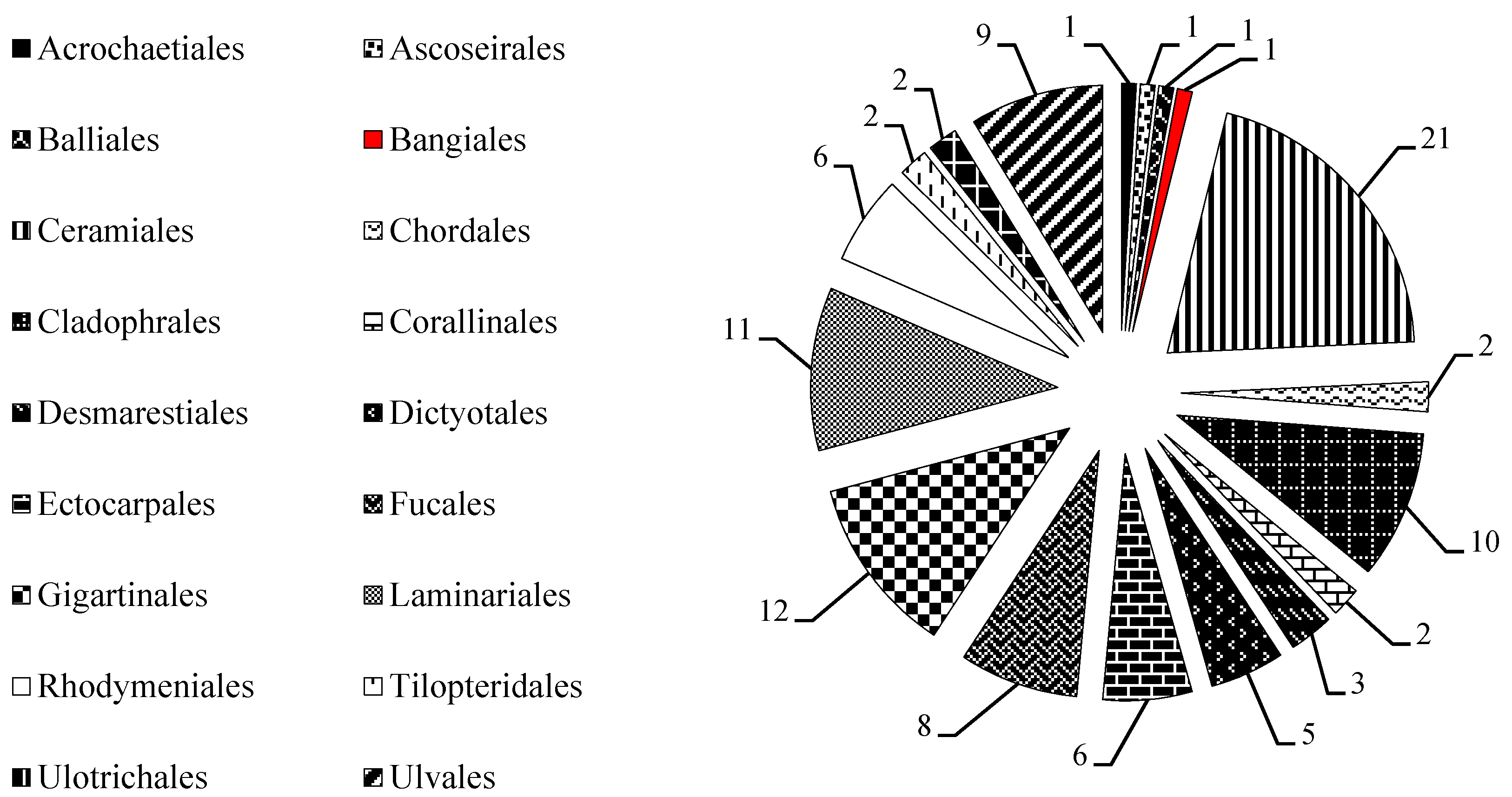

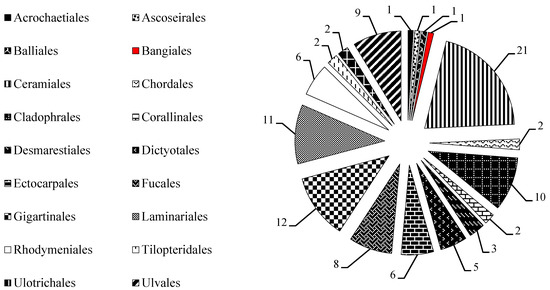

MAAs accumulation in marine macroalgae were widespread and but not ubiquitous characteristics, and some marine macroalgae did not contain MAAs with detectable concentrations. We found that these marine macroalgae distributed in 18 orders (Figure 6) and its numbers were more than 100 species (Table 4) in the past 30 years. From Figure 6 it appeared that marine macroalgae with no detectable MAA concentrations have a wide taxonomic distribution.
The green algae (21 species) in Chlorophyta, the brown algae (37 species) in Phaeophyta, and the red algae (45 species) in Rhodophyta were confirmed to have no detectable MAAs concentrations (Table 4), such as macroalgal Chlorophytes Acrosiphonia arcta [3], Acrosiphonia penicilliformis [3], Anadyomene wrightii [3], and etc. [3]; macroalgal Phaeophytes Adenocystis utricularis [3], Alaria esculenta [3], Ascoseira mirabilis [3], and others brown algae [3]; macroalgal Rhodophytes Antarcticothamnion polysporum [3], Heterosiphonia plumosa [70], Odonthalia dentate [4], and so on [3,70].
MAAs were an important class of bioactive secondary metabolites in marine macroalgae [67,68], their types and accumulation were variable with some environmental variables, including radiation [6,74,77,81,116], nutrients [6,74,77,81], salinity [44], temperature [116], and desiccation [113,117]. These studies were not included in this paper.

2.4. Trends in Research on MAAs in Marine Macroalgae

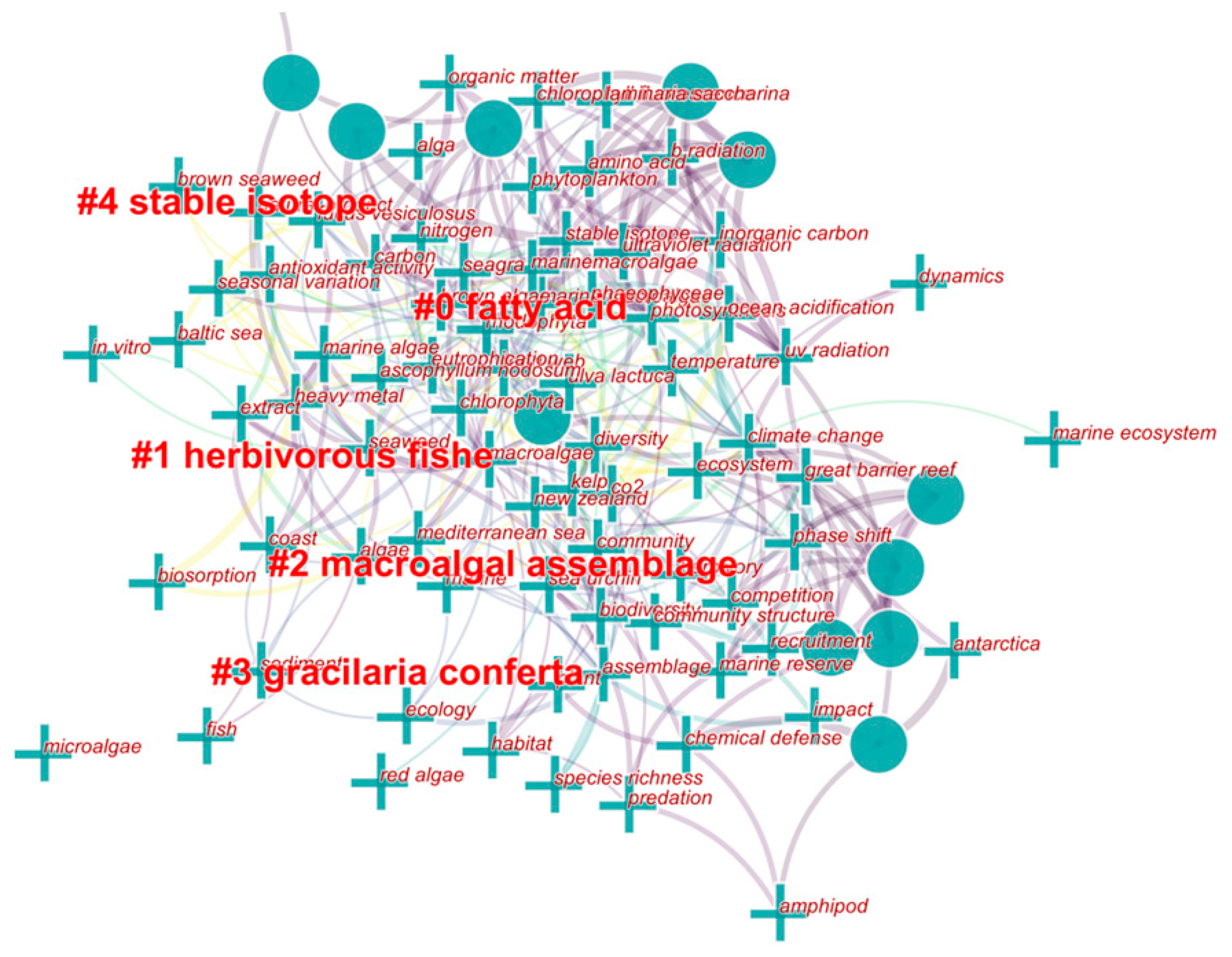

Figure 7 shows a cluster view of studies about MAAs in marine macroalgae in the past 10 years (2009–2019). Cluster analysis demonstrated that these works were still dispersive (these larger dots and crosses don’t overplay and combine) and did not form a very concentrated research direction. For example, these investigations mainly included effects of ultraviolet radiation, nitrogen, temperature and climate change on MAAs contents and composition, the physiological activity and seasonal variation of MAAs, MAAs profile and distribution, and so on. And five clusters formed (#0-#4) presented some researches about MAAs can cluster in these several areas. It was very clear that the preparation and purification of MAAs in marine macroalgae did not catch enough attention of researchers in these studies between 2009 and 2019.
MAAs were multi-functional compounds, namely included UV-photoprotective activity [54], antioxidant properties [90,118], and other possible activities, such as anti-desiccant, protective agents against temperature variations [119], and etc. [23,27,28,29,30,31]. Therefore, MAAs could be widely used in food, cosmetics, and medicine in the future [96]. Note that in this application, it becomes very important to study the preparation and purification of MAAs.
In fact, the extraction of MAAs in marine macroalgae has been involved in many studies which were mainly concentrated on the distribution [64,69,92,95,114], profile [119], physiological activity [55,67,71,103,120,121,122,123], properties [56,81,92,124,125], chemical characterization [54] of MAAs and effects of some environment factors on MAAs [36,54,66,74,79,80,86,101,102,103,109,125,126]. However, further their isolation and purification did not conduct.
Until now, there were few studies on the isolation, purification, and preparation of MAAs in marine macroalgae. Six novel mycosporine-like amino acids, bostrychines A–F, were obtained from Bostrychia scorpioides [71]. A new MAA catenelline was isolated from Catenella repens [49]. MAAs in Chondrus crispus [57], Palmaria palmata [57], Porphyra dioica [57], Porphyra haitanensis [126] and Rhodymenia pseudopalmata [103] have been separated and identified. The preparation of porphyra-334 in Bangia atropurpurea [47], Eucheuma [127], Gracilaria changii [94], Porphyra vietnamensis [78], Porphyra yezoensis [128], and Rhodymenia pseudopalmata [103] has been reported. Isolation and purification of others MAAs in Agarophyton chilense [104], Ahnfeltiopsis devoniensis [39,129], Bostrychia scorpioides [76,77], Champia novae-zelandiae [104], Chlamydomonas hedlyei [123], Chondracanthus chamissoi [50], Chondrus crispus [41,57], Gelidium corneum [39,129], Gelidium lingulatum [50], Gracilaria changii [108,130], Gracilaria cornea [87], Mastocarpus stellatus [76,77], Palmaria decipiens [123], Palmaria palmata [57,131], Porphyra dioica [57], Porphyra rosengurttii [39,119], Porphyra sp. [32,131], Porphyra tenera [123,132], Porphyra yezoensis [76,77,105,128], Pyropia leucosticte [39] and Pyropia plicata [104], such as palythine, palythinol, shinorine, usujirene and etc., that were often used as standards for identification and quantification of MAAs, also have been researched. The extraction process of MAAs in Eucheuma [124,133], Gloiopeltis furcata [51], Gracilaria chilensis [105], Porphyra sp., [134,135], Porphyra haitanensis [135] and Porphyra yezoensis [136] has been pointed. Therefore, the purification and preparation of MAAs in marine macroalgae need to be explored in future studies.

3. Materials and Methods

3.1. Methods

Utilizing data obtained from the Web of Science, Springer, Google Scholar, and CNKI, the reliable material sources of this systematic manuscript paper were obtained from literature published during the last thirty years. Further, to provide more explicit knowledge, the development tendency of the studies about MAAs in marine macroalgae has been analyzed by using CiteSpace (4.0) [60]. Corresponding data on MAAs in marine macroalgae was extracted from related studies collected using the Web of Science during 2009 and 2019 years.

3.2. Total MAAs Contents and Specific MAA Concentration

In this work, total MAAs content and/or specific MAA concentration in each marine macroalgae species was not clearly listed, however, they were obtained using an online database (http://210.28.32.218/MAAs/), which was built by our team. A great deal of reports which were collected from the Web of Science, Springer, Google Scholar, and CNKI were built for this database.

4. Conclusions

This review summed up the basic situation of MAAs in 572 species of marine macroalgae which belonged to 28 orders, from 1990 to 2019, in particular, 45 species in Chlorophyta, 41 species in Phaeophyta, and 486 species in Rhodophyta, and found the existence of 22 fully characterized MAAs and a large number of unidentified MAA(s) in them. Five MAAs, namely shinorine, porphyra-334, palythine, asterina-330, and palythinol were the most common in Rhodophytes, followed by mycosporine-glycine, palythene, and usujirene. Among them, seven MAAs, including asterina-330, mycosporine-glycine, palythene, palythinol, porphyra-334, palythine, and shinorine, were found in Chlorophytes and Phaeophytes. In addition, so far, aplysiapalythine A, aplysiapaly thine B, catenelline, prasiolin and bostrychines A–F only have been found in Rhodophytes. According to different orders of marine macroalgae, the total MAAs contents in 12 species macroalgal Chlorophytes, 8 species macroalgal Phaeophytes and 323 species macroalgal Rhodophytes were pointed out in this work. Meanwhile, we detailed the structure, extinction coefficient, retention time, and maximum absorption wavelength of 10 common MAAs.
Further, an open online database (http://210.28.32.218/MAAs/) for MAAs in 501 species of marine macroalgae was established on datas metioned above to quickly retrieve information related to MAAs in marine macroalgae since 1990. In this database, the source (field/culture) and collection site of marine macroalgae, total MAAs content, MAA type and/or content have been listed.
Finally, the studies about MAAs in marine macroalgae were analyzed using CiteSpace considering the past 10 years, and the result demonstrated that the purification and preparation of MAA purified standards from marine macroalgae constitute a domain worthy to be penetratingly explored in future studies.
In order to gain better knowledge about the current states and progress of MAAs in marine macroalgae, more reports have to be collected regarding MAAs from other sources of data. Overall, based on data from the last 30 years, our work provided more a comprehensive reference and fast inquiry about MAAs in marine macroalgae for relevant researchers.

Author Contributions

Software, Y.S.; investigation, N.Z. and X.Z.; data curation, N.Z.; writing—original draft preparation, Y.S.; writing—review and editing, Y.S. and J.Z.; visualization, Y.S. and N.Z.; supervision, L.G. and G.G.; project administration, Y.S. and S.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Open Project Program of State Key Laboratory of Food Science and Technology, Jiangnan University (SKLF-KF-201904); Supported by Natural Science Fund for Colleges and Universities in Jiangsu Province (19KJA430010); the Priority Academic Program Development of Jiangsu Higher Education Institutions; Special Foundation for Excellent Young Teachers and Principals Program of Jiangsu Province, China; and Postgraduate Research and Innovation Plan Project in Jiangsu Province (SJCX19_1002).

Conflicts of Interest

The authors declare no conflict of interest.
