Acid-soluble collagen (ASC) and pepsin-soluble collagen (PSC) from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP) were extracted and physicochemically examined. Denaturation temperature (Td) for all the collagens was found to be 25.5–29.5 °C, which was lower than that of calf skin collagen (35.9 °C). Electrophoretic patterns indicated all four samples were type I collagen with molecular form of (α1)2α2. FTIR spectra confirmed the extracted collagens had a triple-helical structure, and that the degree of hydrogen bonding in ASC was higher than PSC. All the extracted collagens could aggregate into fibrils with D-periodicity. The fibril formation rate of ASC-RP and PSC-RP was slightly higher than ASC-TP and PSC-TP. Turbidity analysis revealed an increase in fibril formation rate when adding a low concentration of NaCl (less than 300 mM). The fibril formation ability was suppressed with further increasing of NaCl concentration, as illustrated by a reduction in the turbidity and formation degree. SEM analysis confirmed the well-formed interwoven structure of collagen fibrils after 24 h of incubation. Summarizing the experimental results suggested that the extracted collagens from the skin of river puffer and tiger puffer could be considered a viable substitute to mammalian-derived collagens for further use in biomaterial applications.
puffer fish; acid-soluble collagen (ASC); pepsin-soluble collagen (PSC); fibril formation; fibril morphologies

1. Introduction

Puffer has been widely regarded as top cuisine in East Asia for their palatable taste and abundant nutrition. In particular, river puffer (Takifugu obscurus) and tiger puffer (Takifugu rubripes) are the two most common edible puffer species in China. However, the consumption of puffer had been limited in China for 26 years due to the potential threat of tetrodotoxin (TTX). TTX in wild puffer is accumulated mainly in the liver and ovary, through the food chain, starting from bacteria [1,2]. It has been reported that farmed puffer becomes nontoxic when fed with nontoxic diets in a cultivation environment where TTX-bearing organisms have been eliminated [3]. With the success of modern breeding technology, the production of farmed puffer is growing rapidly. In China, the production of puffer was approximately 22,993 tons in 2016, most of which was exported to Japan, South Korea and other Southeast Asian countries [4,5,6,7].
In 2016, the prohibition on consumption of farmed river puffer and tiger puffer was lifted by the Ministry of Agriculture and China Food and Drug Administration. Puffer aquaculture is now a thriving industry in China, and it is predicted that there will be a significant increase in puffer production in the next decade. Puffer skin is very thick and covered with tiny spines on the dorsal and ventral regions, which could be due to the fact that puffer inflate their anterior body to repel predators when a threatening situation arises [8]. However, thickness and small spines lead to a rough taste and make the skin undesirable among consumers. Therefore, it is expected that future food processing developments will isolate value-added biopolymers such as collagen from puffer skin in order to reduce the wasting of resources.
Collagen is the predominant structural protein found in animal connective tissues, including skin, bone, tendon, corneas and other load-bearing tissues [9]. Until now, at least 29 different types of collagen (type I-XXIX) consisting of polypeptide chains with distinct amino acid sequences have been identified. Collagen-based biopolymers have been ubiquitously applied in food and pharmaceutical fields, including food-packaging films, tissue scaffolds, cell culture systems, drug delivery vectors and artificial skins [10,11,12]. It has been reported that fibrillar collagen molecules are capable of spontaneously forming well-organized fibrils in vitro under ideal conditions via hydrophobic, electrostatic and hydrogen bonding interactions [13,14]. Fibril formation improves the specific surface area, enhances the resistance to enzyme degradation and strengthens the thermal stability of collagen-based materials [15]. Researchers have also demonstrated that collagen networks with nativelike fibrils exhibited better cellular response due to its analogous nature to extracellular matrix (ECM). Therefore, it is necessary to develop biomimetic collagen materials with nativelike fibrils for tissue engineering purposes [16,17].
Traditionally, the main sources of industrial collagen are the skin or tendon of bovine and porcine. However, because of the prevalence of zoonosis including bovine spongiform encephalopathy (BSE), foot-and-mouth disease (FMD), transmissible spongiform encephalopathy (TSE) and religious restrictions, the demand for collagen from alternative sources, especially from aquatic origin, has been increasing in recent years [18]. At present, aquatic collagens have been extracted and characterized from various species. Vertebrate sources include Nile tilapia, channel catfish, small-spotted catshark and golden pompano [19,20,21,22]. Invertebrate sources include jellyfish, squid and sponge [18,23,24]. However, previous reports have confirmed that collagens from different raw materials may have varying structures and characteristics, and exhibit very different fibril formation abilities, which have limited their wide-spread use. Fish collagen has a similar amino acid composition as conventional collagens with a decreased amount of imino acid and increased serine and threonine, and carries no disease risk [25]. To the best of our knowledge, there have been few reports comparing the characteristics of collagen from different puffer species. Thus, the aim of this study is to isolate and describe the physicochemical characteristics and in vitro fibril formation ability of collagens from the skin of farmed river puffer and tiger puffer in order to explore the possibility for applications in biomedical fields. In addition, the degree of fibril formation with different NaCl concentration has been investigated.

2. Results and Discussion

2.1. Amino Acid Composition and Thermal Denaturation Temperature (Td)

The amino acid composition of four collagen samples were expressed as amino acid residues per 1000 total amino acid residues (residues/1000 residues) and shown in Table 1. All four samples demonstrated the characteristic amino acid composition of collagen, with glycine (Gly) as the most abundant amino acid, followed by alanine (Ala), proline (Pro), glutamic acid (Glu) and arginine (Arg). The high Gly content is consistent with the understanding that the collagen molecule is featured with typical tripeptide repetitions (Gly-X-Y), except for the telopeptide regions (first 10 amino acid residues at the C-terminus and the last 14 of the N-terminus) [26].
In addition, the imino acid (Pro + Hyp) contents of collagens extracted from the skin of river puffer and tiger puffer were 196–199 and 190–192 residues/1000 residues respectively, which were similar to those of Bester sturgeon skin collagen (PSC: 192 residues/1000 residues) and giant croaker skin collagen (ASC: 194 residues/1000 residues, PSC: 191 residues/1000 residues) [27,28], whilst significantly higher than that of deep-sea redfish skin collagen (ASC: 165 residues/1000 residues) and Pacific cod skin collagen (ASC: 157 residues/1000 residues, PSC: 159 residues/1000 residues) [29,30]. However, the imino acid content was lower than collagens from striped catfish skin (ASC: 206 residues/1000 residues, PSC: 211 residues/1000 residues), calf skin (215 residues/1000 residues) and porcine skin (220 residues/1000 residues) [26,31,32]. The pyrrolidine rings of imino acids has been confirmed to play an important role in the structural integrity of triple helix by imposing restrictions on secondary structure changes of the polypeptide chains. Moreover, hydroxyproline contributes to the molecular stability by forming intramolecular hydrogen bond. Thus, higher imino acid content could lead to better thermal stability [33].
As shown in Figure 1, the denaturation temperature (Td) of ASC-RP, PSC-RP, ASC-TP and PSC-TP were 29.5, 27.5, 28.0 and 25.5 °C respectively, which were higher than cold-water species such as deep-sea redfish (16.1 °C) and Pacific cod (14.5–16 °C) [29,30]. Meanwhile, the Td values of collagens extracted from river puffer and tiger puffer skins were lower than those of calf skin (35.9 °C) [34]. This result was consistent with the amino acid composition mentioned above. Td values of pepsin-soluble collagens in this study were slightly lower than those of corresponding acid-soluble collagens, which might be caused by the molecular weight reduction due to the pepsin hydrolysis, especially in the telopeptide region [35]. Low thermal stability could lead to inferior mechanical strength of collagen-based materials, which limit their use in particular tissues. Although Td values of river puffer and tiger puffer skin collagen are lower than those of land-based mammals, they are higher than those of cold water species, which is an advantage for application in the biomedical materials field [25].

2.2. Sodium Dodecyl Sulfate Polyacrylamide Gel Electrophoresis (SDS-PAGE)

Protein patterns of extracted collagens determined by SDS-PAGE are shown in Figure 2. Collagens from the skin of river puffer and tiger puffer exhibited a similar pattern, mainly consisting of at least two α-chains (α1 and α2), β-chains (dimers) and small amounts of γ-chains (trimers). The band intensity ratio of α1-chain to α2-chain was approximately 2:1, which indicated that the major collagens in river puffer and tiger puffer skins were most likely to be type I collagen, a heterotrimer containing two identical α1-chains and one α2-chain in the molecular form of (α1)2α2 [9]. This finding was similar to previous reports of skin collagens from other fish species [25,26,27,28]. Moreover, the amount of γ-chains in ASC-RP and PSC-RP was higher than that of ASC-TP and PSC-TP, suggesting that collagen extracted from river puffer skin contained more intermolecular and intramolecular cross-links. This result was also consistent with the better thermal stability of ASC-RP and PSC-RP mentioned above.

2.3. Fourier Transform Infrared Spectroscopy (FTIR)

The major absorption bands in the FTIR spectra are shown in Figure 3. Amide A is associated with the N–H stretching frequency which occurs in the range of 3400 cm−1 to 3440 cm−1. With the N–H groups involved in the formation of hydrogen bonds, the wavenumber shifts to a lower frequency [36]. The Amide A bands of ASC-RP, PSC-RP, ASC-TP and PSC-TP were measured at 3307.79, 3321.29, 3319.37 and 3327.08 cm−1, respectively. This result suggested that the number of hydrogen bonds in acid-soluble collagens was higher than the number of bonds in the corresponding pepsin-soluble collagens. The peaks at 2931.69–2943.26 cm−1 were denoted as Amide B band associating with asymmetrical stretching vibrations of CH2 [37].
Amide I, II and III bands are related to the degree of molecular order and therefore involved with the triple-helical structure of collagen. Amid I band, which is mainly associated with the C=O stretching vibrations and hydrogen bonds coupled with COO, usually occurs within the range of 1600–1700 cm−1 [38]. Amid II band is responsible for the N–H bending coupled with C-N stretching vibrations, with a characteristic absorption peak near 1550 cm−1. Amide III band generally appears at 1200–360 cm−1, and arises from the C–N stretching, N–H bending vibration as well as the wagging vibration of CH2 groups of the glycine backbone and the proline side-chains [19]. As shown in Figure 3, there were no obvious differences in Amide I (1656.79–1658.72 cm−1), Amide II (1548.78–1550.71 cm−1) and Amide III peaks (1238.25–1240.18 cm−1) among ASC-RP, PSC-RP, ASC-TP and PSC-TP, which indicated a high extent of helical structure maintained in extracted collagens. Moreover, absorption bands around 1390–1455 cm−1 were also found, which extensively corresponded to pyrrolidine ring vibration of hydroxyproline and proline. The absorption ratio between Amide III and 1452.34 cm−1 of all four samples was approximately 1.0, further confirming the presence of a native helical structure [39].

2.4. Fibril Formation Ability

Turbidity is a simple and effective method to investigate the mechanism and kinetics of fibril formation in solution. During formation process, turbidity changes from a nearly transparent solution into an opaque suspension full of fibrils that scatters large amounts of light [40]. In this study, the fibril formation of extracted collagens during an incubation at 25 °C was monitored by turbidity changes at 310 nm. As shown in Figure 4, there was no lag time in all four samples, suggesting a high speed of fibril nucleation. The river puffer skin collagens exhibited a higher rate of turbidity increase compared with tiger puffer skin collagens. Similar curves were found in collagens extracted from tilapia, Bester sturgeon and grass carp skin [27,41,42]. Although the ultimate turbidity was somewhat higher, the fibril formation speed of pepsin-soluble collagens was slightly lower than their corresponding acid-soluble collagens, which suggested that the nucleation time might be prolonged for the hydrolysis of pepsin. According to the literature report, telopeptide sequences are important in stabilizing the initial nucleation. Enzymatic hydrolysis of the telopeptide regions prior to fibril formation may suppress the fibril formation process [43,44,45].
Figure 5 shows the fibril formation curves of ASC-RP and ASC-TP solutions with increasing ionic strength by the addition of NaCl. The fibril formation speed of ASC-RP and ASC-TP was obviously sped up with the addition of NaCl (0–300 mM). The increase in fibril formation speed demonstrated an acceleration effect of low concentration of NaCl. Fibril formation curves of PSC-RP and PSC-TP with different concentrations of NaCl exhibited similar tendencies (Data not shown). This result was consistent with the previous report of collagen from Bester sturgeon skin [27]. A possible explanation is that there are many positively charged (e.g., lysine and arginine) or negatively charged (e.g., aspartic and glutamic acid) functional side-chains of amino acid residues on the surface of the collagen triple-helical structure. At low ionic strength, the addition might bind with these groups on the collagen surface, which would renormalize the effective charge distribution of the triple-helical surface, thereby reducing the electrostatic repulsion and enhancing the fibril formation process [46]. However, with the continuing increase of NaCl concentration, the fibril formation ability of both collagens began to decrease, suggesting that high ionic strength could suppress the fibril formation process. The collagens from barramundi and tilapia skin were also inhibited by high NaCl concentrations [47]. It is reported that the addition of higher concentrations of inorganic ions would increase the net charge in the triple-helical surface, leading to greater electrostatic repulsion. Therefore, the collagen aggregates in the solution tended to disperse as the NaCl concentrations continued to increase [48,49].
When comparing the fibril formation degree (Figure 6), it could be found that both ASC-RP and ASC-TP showed degree values higher than 90% without NaCl addition. This result was similar to collagen from Bester sturgeon skin [27], while higher than those of collagens from grass carp skin (28.0%) [42], catla and rohu skin (36–78%) [50]. Furthermore, the fibril formation degree of ASC-RP and ASC-TP remained high (>90%) with NaCl concentration ranging from 150 to 300 mM. However, at the high NaCl concentration of 600 mM, the degree values of both samples had decreased to 80.95% and 77.82%, which was consistent with the turbidity measurement result (Figure 5). Collagen monomers, which failed to aggregate into fibrils with the increasing NaCl concentration, present as random and clustered accumulation of collagen assemblies without nucleation [46]. In contrast to this result, the fibril formation degree of salmon skin collagen and jellyfish collagen continuously decreased with the increasing NaCl concentration [51,52]. The conflicting degree values might be explained in part by the species differences and the experimental conditions under which fibril formation is initiated [53]. Overall, the present study demonstrated that collagen from river puffer and tiger puffer skin had an impressive fibril formation ability under the positive effect of NaCl, but the extent of its influence varied greatly depending on the concentration. For the industrial use of puffer skin collagen in biomedical fields, it will be necessary to further optimize the fibril formation conditions.

2.5. Transmission Electron Micrographs (TEM) of Collagen Fibrils

TEM images of fibrils from river puffer and tiger puffer are illustrated in Figure 7. All four samples could aggregated into fibrils with a periodic cross-striped structure (D-periodicity). The average D-periodicity of ASC-RP (68.83 ± 2.79 nm), PSC-RP (69.20 ± 2.57 nm), ASC-TP (68.77 ± 2.48 nm) and PSC-TP (68.05 ± 1.50 nm) was similar to collagen isolated from porcine skin (approximately 67 nm) [54]. Previous studies have shown that intrafibrillar mineralization occurs only when the collagen fibrils are well organized with native D-periodicity, this organization results in the proper alignment of the positively charged amino acids of neighboring molecules into domains that, in turn, are able to interact with amorphous calcium phosphate and mediate its infiltration into the gap zones of fibrils [46,55]. Therefore, collagen extracted from the river puffer and tiger puffer holds great promise as suitable biomaterials for bone tissue engineering scaffolds.

2.6. Scanning Electron Micrographs (SEM) of Collagen Fibrils

The SEM morphologies of collagen fibrils after 1 h of incubation are shown in Figure 8A–D. All four samples showed a complex characterization. The diameter of resultant fibrils was approximately in the range of 70–140 nm. Thick fibril bundles with diameter larger than 200 nm were also observed, which was formed by the side-to-side association of fibril monomers. After 24 h of incubation, it was evident that the slender fibrils of all four samples fused into interwoven three-dimensional networks which were compact and well-formed (Figure 8E–H). This result indicated that the fusion of collagen fibrils needed longer time than fibril formation itself. The SEM ultrastructure of the resultant fibrils was similar with those of collagens from Egyptian Nile tilapia scale and Bester sturgeon skin [27,31]. It is widely recognized that the uniform and consistent reticular structure of fibrils serves as a significant favorable property for biomedical and pharmaceutical application of collagen [56]. These results suggested that fibril recombined collagen from the skin of rive puffer and tiger puffer have the potential to be an alternative source for valuable biopolymers. Further studies on the biocompatibility and immune response of these collagen-based biomaterials with human cells are needed for practical applications [57].

3. Materials and Methods

3.1. Materials and Chemicals

The skins of river puffer (T. obscurus) were obtained from Jiangsu Zhongyang Co., Ltd., in Nantong City, Jiangsu Province of China. The skins of tiger puffer (T. rubripes) were collected from Dalian Tianzheng Co., Ltd., in Dalian City, Liaoning Province of China. These skins were cleaned with cold distilled water and stored at −20 °C before being used. Porcine pepsin (500 U/mg, dry matter) was purchased from Beijing Biotopped Science and Technology Co., Ltd. (Beijing, China). High-molecular weight protein marker and bovine type I collagen were purchased from Solarbio Science and Technology Co., Ltd. (Beijing, China). Other reagents used were of analytical grade.

3.2. Extraction of Acid-Soluble Collagen (ASC)

All procedures were conducted at 4 °C to reduce chain fragmentation according to the method of Li et al. with a slight modification [35]. Thawed skins were soaked with 0.1 M NaOH at a solid to liquid ratio of 1:20 (w/v) for 12 h to remove non-collagenous protein and pigment, and then washed with pre-cooling distilled water until pH was neutral. The pretreated skins were homogenized and soaked with 0.5 M acetic acid in a ratio of 1:50 (w/v) for 48 h with continuously gentle stirring. The mixture was centrifuged (ST16R, Thermo Scientific, IL, USA) at 8500 r/min for 20 min. The residues were re-extracted for 48 h and the supernatants were combined. The precipitate was slowly salted-out by adding grinded NaCl to a final concentration of 0.9 M, and collected by centrifuging at 8500 r/min for 20 min. The precipitate was re-dissolved in a minimum volume of 0.5 M acetic acid. The resulting solution was dialyzed against 0.1 M acetic acid for 24 h and replaced with distilled water for 48 h. Both dialysates were renewed every 8 h. The collagen sample was freeze-dried (CoolSafe 55, ScanLaf A/S, Lynge, Denmark) and referred to as acid-soluble collagen from tiger puffer (ASC-TP) and acid-soluble collagen from river puffer (ASC-RP).

3.3. Extraction of Pepsin-Soluble Collagen (PSC)

The pretreatment procedures were similar to that of ASC. The fish skins after alkali treatment and homogenization were extracted with 0.5 M acetic acid (1:50 w/v) in the presence of 0.5% (w/w) pepsin. The mixture was continuously stirred for 48 h, followed by centrifugation and precipitation as described above. The resulting precipitate after centrifugation was re-dissolved in 0.5 M acetic acid and dialyzed against 0.02 M Na2HPO4 for 24 h to inactivate pepsin before being further dialyzed against distilled water. The obtained collagens were referred to as pepsin-soluble collagen from tiger puffer (PSC-TP) and pepsin-soluble collagen from river puffer (PSC-RP).

3.4. Amino Acid Composition

Tested samples were hydrolyzed under reduced pressure in 6 M HCl at 110 °C, and then vaporized. The hydrolysates were dissolved in 25 mL citric acid buffer and applied to an amino acid analyzer (Hitachi 835-50, Hitachi High-Technology Corporation, Tokyo, Japan). The hydroxyproline (Hyp) content was determined according to the chloramine T method described by Sun et al. [14].

3.5. Determination of Denaturation Temperature (Td)

The denaturation temperature (Td) was determined by measuring the viscosity change using a MCR101 viscometer (Anton Parr Co., Ltd., Shanghai, China) [58,59]. The lyophilized sample was dissolved in 0.1 M acetic acid to a concentration of 4 mg/mL. Fractional viscosity was calculated by the formula:
Fractional viscosity = (ηsp(measured) − ηsp(minimum))/(ηsp(maximum) − ηsp(minimum))
where ηsp is the specific viscosity. Td was determined as the temperature at which the change in fractional viscosity was 50% decreased.


Electrophoretic patterns of collagens were determined using a previously published method with 7.5% running gel and 4% stacking gel [60]. The sample solutions were neutralized and centrifuged at 9200 g for 20 min. The resulting supernatants were mixed with loading buffer (60 mM Tris-HCl, pH 8.0, containing 25% glycerol, 2% SDS, 0.1% bromophenol blue) at a ratio of 4:1 (v/v) in the presence of β–ME, and electrophoresed in an electrophoresis system (DYCZ-25D, Liuyi Corporation, Beijing, China). A high molecular weight protein maker was used to estimate the molecular weight of the proteins. After electrophoresis, the gel was stained in Coomassie blue R-250 (0.1%, w/v) staining solution for 1 h and discolored overnight.

3.7. FTIR Spectral Analysis

FTIR spectra were measured from discs containing 2 mg of lyophilized sample mixed with 100 mg of dried spectrum pure potassium bromide (KBr). The spectra results were recorded using a FTIR spectrophotometer (Bruker Optik GmbH, Ettlingen, Germany) with a 2 cm−1 resolution in the 4000–400 cm−1 range.

3.8. Determination of Fibril Formation Ability

Fibril formation ability was measured according to a modified previously published method [27]. Samples were dissolved in 0.5 M acetic acid to 1 mg/mL concentration. The solution was mixed with equal volumes of 0.1 M Na-phosphate buffer (pH 7.2) with various NaCl concentrations (0, 150, 300 and 600 mM). The mixture was kept at 25 ± 1 °C. The fibril formation curve was observed by measuring the turbidity change of the mixture at 310 nm via a spectrophotometer (UV-2550, Shimadzu Co., Ltd., Kyoto, Japan). After the fibril formation experiment, the mixture was centrifuged at 8500 r/min for 15 min. Fibril formation degree was calculated as the percentage of the decrease of hydroxyproline content in the supernatant.

3.9. Transmission Electron Microscopy (TEM)

After the turbidimetric assay, one drop of fibril mixture was loaded on a 200-mesh copper grid and stained with 1% (w/v) phosphotungstic acid, according to the method of Yousefi [33]. TEM images of skin collagen fibrils were observed using a transmission electron microscopy (JSM-1200, JEOL Ltd., Tokyo, Japan).

3.10. Scanning Electron Microscopy (SEM)

The SEM observations of centrifugated fibrils were obtained by the method of Zhang et al. [27] with slight modifications. Fibril samples were fixed with 2.5% (v/v) glutaraldehyde in 0.1 M phosphate buffer (pH 7.2) for 3 h, and then rinsed with distilled water. Dehydration was performed in a graded series of ethanol concentration (70, 80, 90, 95 and 100%). Thereafter, fibrils were soaked in two 30 min changes of t-butyl alcohol solution, and then freeze-dried. The lyophilized samples were pasted on a blade with double side adhesive tape and then coated with gold using a fine coater (JFC-1200, JEOL Ltd., Tokyo, Japan). The ultrastructure was observed using a scanning electron microscope (JSM-840, JEOL Ltd., Tokyo, Japan).

4. Conclusions

River puffer and tiger puffer are the major puffer varieties produced in China. The processing of these puffer varieties generates large quantities of skin by-products. In this report, ASC and PSC from the skin of river puffer and tiger puffer were successfully extracted and characterized for their potential as biomaterials. The proline and hydroxyproline contents of ASC-RP, PSC-RP, ASC-TP and PSC-TP were 196, 199, 190 and 192 residues/1000 residues, respectively. Thermal stability of river puffer and tiger puffer skin collagen was found to be lower than calf skin collagen, while higher than cold-water fish species. SDS-PAGE profile and FTIR spectra indicated all four samples were undenatured type I collagen with two different α chains, the amount of γ chains in ASC-RP and PSC-RP was higher than that in ASC-TP and PSC-TP. All the collagens were capable of aggregating into fibrils in vitro. The fibril formation rate of river puffer skin collagen was slightly higher than the collagen from tiger puffer skin. Turbidity assay revealed that a low concentration of NaCl had a positive effect of promoting fibril formation. The striped D-periodicities of resultant fibrils could be observed via TEM, which could contribute to the mechanical stability and biological functions of collagen-based materials. SEM observation confirmed that all four collagens could form branched and interlaced slender fibrils, and the fibrils could further develop into a more compact reticular structure after 24 h of incubation. Overall, these results suggest that the extracted collagens from river puffer and tiger puffer skin could be utilized as alternatives to terrestrial collagens as a biomedical material, and may enhance the added value of this fish species.

Author Contributions

Conceptualization, S.-S.W. and D.-Q.Z.; Funding acquisition, D.-Q.Z.; Methodology, S.-S.W. and Y.Y.; Resources, Y.S. and N.L.; Writing—Original draft, S.-S.W.; Writing—Review and Editing, D.-Q.Z.


This research was funded by Central Public-interest Scientific Institution Basal Research Fund, CAFS (NO. 2019ZY11).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Noguchi, T.; Arakawa, O.; Takatani, T. Toxicity of pufferfish Takifugu rubripes cultured in netcages at sea or aquaria on land. Comp. Biochem. Physiol. Part D Genom. Proteom. 2006, 1, 153–157. [Google Scholar]
  2. Noguchi, T.; Arakawa, O. Tetrodotoxin—Distribution and accumulation in aquatic organisms, and cases of human intoxication. Mar. Drugs 2008, 6, 220–242. [Google Scholar]
  3. Ikeda, K.; Murakami, Y.; Emoto, Y.; Ngy, L.; Taniyama, S.; Yagi, M.; Takatani, T.; Arakawa, O. Transfer profile of intramuscularly administered tetrodotoxin to non-toxic cultured specimens of the pufferfish Takifugu rubripes. Toxicon 2009, 53, 99–103. [Google Scholar]
  4. Tao, N.P.; Wang, L.Y.; Gong, X.; Liu, Y. Comparison of nutritional composition of farmed pufferfish muscles among Fugu obscurus, Fugu flavidus and Fugu rubripes. J. Food Compos. Anal. 2012, 28, 40–45. [Google Scholar]
  5. Tao, N.P.; Wu, R.; Zhou, P.G.; Gu, S.Q.; Wu, W. Characterization of odor-active compounds in cooked meat of farmed obscure puffer (Takifugu obscurus) using gas chromatography–mass spectrometry–olfactometry. J. Food Drug Anal. 2014, 22, 431–438. [Google Scholar]
  6. Zhang, M.X.; Wang, X.C.; Liu, Y.; Xu, X.L.; Zhou, G.H. Isolation and identification of flavour peptides from Puffer fish (Takifugu obscurus) muscle using an electronic tongue and MALDI-TOF/TOF MS/MS. Food Chem. 2012, 135, 1463–1470. [Google Scholar]
  7. Zhang, X.-L. China Fishery Statistical Yearbook; China Agriculture Press: Beijing, China, 2017; p. 22. [Google Scholar]
  8. Byeon, M.S.; Park, J.Y.; Yoon, S.W.; Kang, H.W. Structure and development of spines over the skin surface of the river puffer Takifugu obscurus (Tetraodontidae, Teleostei) during larval growth. J. Appl. Ichthyol. 2011, 27, 67–72. [Google Scholar] [CrossRef]
  9. Gelse, K. Collagens—Structure, function, and biosynthesis. Adv. Drug Deliv. Rev. 2003, 55, 1531–1546. [Google Scholar]
  10. Parenteau-Bareil, R.; Gauvin, R.; Berthod, F. Collagen-based biomaterials for tissue engineering applications. Materials 2010, 3, 1863–1887. [Google Scholar]
  11. Ferreira, A.M.; Gentile, P.; Chiono, V.; Ciardelli, G.; Ferreira-Duarte, A. Collagen for bone tissue regeneration. Acta Biomater. 2012, 8, 3191–3200. [Google Scholar]
  12. Chieruzzi, M.; Pagano, S.; Moretti, S.; Pinna, R.; Milia, E.; Torre, L.; Eramo, S. Nanomaterials for tissue engineering in dentistry. Nanomaterials 2016, 6, 134. [Google Scholar]
  13. Fang, M.; Goldstein, E.L.; Matich, E.K.; Orr, B.G.; Holl, M.M.B. Type I collagen self-assembly: The roles of substrate and concentration. Langmuir 2013, 29, 2330–2338. [Google Scholar]
  14. Shen, L.; Tian, Z.; Liu, W.; Li, G. Influence on the physicochemical properties of fish collagen gels using self-assembly and simultaneous cross-linking with the N-hydroxysuccinimide adipic acid derivative. Connect. Tissue Res. 2015, 56, 244–252. [Google Scholar]
  15. Petersen, S.B.; Jonson, V.; Fojan, P.; Wimmer, R.; Pedersen, S. Sorbitol prevents the self-aggregation of unfolded lysozyme leading to an up to 13 °C stabilisation of the folded form. J. Biotechnol. 2004, 114, 269–278. [Google Scholar]
  16. Grinnell, F.; Petroll, W.M. Cell Motility and mechanics in three-dimensional collagen matrices. Annu. Rev. Cell Dev. Biol. 2010, 26, 335–361. [Google Scholar]
  17. Sang, L.; Wang, X.; Chen, Z.; Lu, J.; Gu, Z.; Li, X. Assembly of collagen fibrillar networks in the presence of alginate. Carbohydr. Polym. 2010, 82, 1264–1270. [Google Scholar]
  18. Cozza, N.; Bonani, W.; Motta, A.; Migliaresi, C. Evaluation of alternative sources of collagen fractions from Loligo vulgaris squid mantle. Int. J. Biol. Macromol. 2016, 87, 504–513. [Google Scholar]
  19. Sun, L.; Hou, H.; Li, B.; Zhang, Y. Characterization of acid- and pepsin-soluble collagen extracted from the skin of Nile tilapia (Oreochromis niloticus). Int. J. Biol. Macromol. 2017, 99, 8–14. [Google Scholar]
  20. Tan, Y.; Chang, S.K. Isolation and characterization of collagen extracted from channel catfish (Ictalurus punctatus) skin. Food Chem. 2018, 242, 147–155. [Google Scholar]
  21. Blanco, M.; Vázquez, J.A.; Pérez-Martín, R.I.; Sotelo, C.G. Collagen extraction optimization from the skin of the small-spotted catshark (S. canicula) by response surface methodology. Mar. Drugs 2019, 17, 40. [Google Scholar]
  22. Weng, W.; Wang, Y. Partial characterization and primary structure of collagen subunits from golden pompano skins. Process. Biochem. 2018, 70, 98–103. [Google Scholar]
  23. Zhang, J.; Duan, R.; Huang, L.; Song, Y.; Regenstein, J.M. Characterisation of acid-soluble and pepsin-solubilised collagen from jellyfish (Cyanea nozakii Kishinouye). Food Chem. 2014, 150, 22–26. [Google Scholar]
  24. Rahman, A.M. Collagen of extracellular matrix from marine invertebrates and its medical applications. Mar. Drugs 2019, 17, 118. [Google Scholar] [CrossRef]
  25. Song, W.-K.; Liu, D.; Sun, L.-L.; Li, B.-F.; Hou, H. Physicochemical and biocompatibility properties of type I collagen from the skin of Nile Tilapia (Oreochromis niloticus) for biomedical applications. Mar. Drugs 2019, 17, 137. [Google Scholar]
  26. Singh, P.; Benjakul, S.; Maqsood, S.; Kishimura, H. Isolation and characterisation of collagen extracted from the skin of striped catfish (Pangasianodon hypophthalmus). Food Chem. 2011, 124, 97–105. [Google Scholar]
  27. Zhang, X.; Ookawa, M.; Tan, Y.; Ura, K.; Adachi, S.; Takagi, Y. Biochemical characterisation and assessment of fibril-forming ability of collagens extracted from Bester sturgeon Huso huso×Acipenser ruthenus. Food Chem. 2014, 160, 305–312. [Google Scholar]
  28. Tang, Y.; Jin, S.; Li, X.; Li, X.; Hu, X.; Chen, Y.; Huang, F.; Yang, Z.; Yu, F.; Ding, G. Physicochemical properties and biocompatibility evaluation of collagen from the skin of Giant Croaker (Nibea japonica). Mar. Drugs 2018, 16, 222. [Google Scholar]
  29. Wang, L.; An, X.; Yang, F.; Xin, Z.; Zhao, L.; Hu, Q. Isolation and characterisation of collagens from the skin, scale and bone of deep-sea redfish (Sebastes mentella). Food Chem. 2008, 108, 616–623. [Google Scholar]
  30. Sun, L.; Li, B.; Song, W.; Si, L.; Hou, H. Characterization of Pacific cod (Gadus macrocephalus) skin collagen and fabrication of collagen sponge as a good biocompatible biomedical material. Process. Biochem. 2017, 63, 229–235. [Google Scholar]
  31. El-Rashidy, A.A.; Gad, A.; Abu-Hussein, A.E.-H.G.; Habib, S.I.; Badr, N.A.; Hashem, A.A. Chemical and biological evaluation of Egyptian Nile Tilapia (Oreochromis niloticas) fish scale collagen. Int. J. Biol. Macromol. 2015, 79, 618–626. [Google Scholar]
  32. Zhang, J.; Duan, R. Characterisation of acid-soluble and pepsin-solubilised collagen from frog (Rana nigromaculata) skin. Int. J. Biol. Macromol. 2017, 101, 638–642. [Google Scholar]
  33. Yousefi, M.; Ariffin, F.; Huda, N. An alternative source of type I collagen based on by-product with higher thermal stability. Food Hydrocoll. 2017, 63, 372–382. [Google Scholar]
  34. Li, L.Y.; Zhao, Y.Q.; He, Y.; Chi, C.F.; Wang, B. Physicochemical and antioxidant properties of acid- and pepsin-soluble collagens from the scales of Miiuy Croaker (Miichthys Miiuy). Mar. Drugs 2018, 16, 394. [Google Scholar]
  35. Li, Z.R.; Wang, B.; Chi, C.F.; Zhang, Q.H.; Gong, Y.D.; Tang, J.J.; Luo, H.Y.; Ding, G.F. Isolation and characterization of acid soluble collagens and pepsin soluble collagens from the skin and bone of Spanish mackerel (Scomberomorous niphonius). Food Hydrocoll. 2013, 31, 103–113. [Google Scholar]
  36. Doyle, B.B.; Bendit, E.G.; Blout, E.R. Infrared spectroscopy of collagen and collagen-like polypeptides. Biopolymers 1975, 14, 937–957. [Google Scholar]
  37. Abe, Y.; Krimm, S. Normal vibrations of crystalline polyglycine I. Biopolymers 1972, 11, 1817–1839. [Google Scholar]
  38. Payne, K.J.; Veis, A. Fourier transform ir spectroscopy of collagen and gelatin solutions: Deconvolution of the amide I band for conformational studies. Biopolymers 1988, 27, 1749–1760. [Google Scholar]
  39. Zhao, W.H.; Chi, C.F.; Zhao, Y.Q.; Wang, B. Preparation, physicochemical and antioxidant properties of acid- and pepsin-soluble collagens from the swim bladders of Miiuy Croaker (Miichthys miiuy). Mar. Drugs 2018, 16, 161. [Google Scholar]
  40. Zhu, J.; Kaufman, L.J. Collagen I self-assembly: Revealing the developing structures that generate turbidity. Biophys. J. 2014, 106, 1822–1831. [Google Scholar]
  41. Yan, M.; Qin, S.; Li, J. Study on the self-assembly property of type I collagen prepared from tilapia (Oreochromis niloticus) skin by different extraction methods. Int. J. Food Sci. Technol. 2015, 50, 2088–2096. [Google Scholar]
  42. Liu, Y.; Ma, D.; Wang, Y.; Qin, W. A comparative study of the properties and self-aggregation behavior of collagens from the scales and skin of grass carp (Ctenopharyngodon idella). Int. J. Biol. Macromol. 2018, 106, 516–522. [Google Scholar]
  43. Li, Y.; Douglas, E.P. Effects of various salts on structural polymorphism of reconstituted type I collagen fibrils. Colloids Surf. B Biointerfaces 2013, 112, 42–50. [Google Scholar]
  44. Haworth, R.A.; Chapman, J.A. A study of the growth of normal and iodinated collagen fibrilsin vitro using electron microscope autoradiography. Biopolymers 1977, 16, 1895–1906. [Google Scholar]
  45. Doyle, B.B.; Hukins, D.W.; Hulmes, D.J.; Miller, A.; Woodhead-Galloway, J. Collagen polymorphism: Its origins in the amino acid sequence. J. Mol. Biol. 1975, 91, 79–99. [Google Scholar]
  46. Shen, L.; Bu, H.; Yang, H.; Liu, W.; Li, G. Investigation on the behavior of collagen self-assembly in vitro via adding sodium silicate. Int. J. Biol. Macromol. 2018, 115, 635–642. [Google Scholar]
  47. Liao, W.; Guanghua, X.; Li, Y.; Shen, X.R.; Li, C. Comparison of characteristics and fibril-forming ability of skin collagen from barramundi (Lates calcarifer) and tilapia (Oreochromis niloticus). Int. J. Biol. Macromol. 2018, 107, 549–559. [Google Scholar]
  48. Freudenberg, U.; Behrens, S.H.; Welzel, P.B.; Müller, M.; Grimmer, M.; Salchert, K.; Taeger, T.; Schmidt, K.; Pompe, W.; Werner, C. Electrostatic interactions modulate the conformation of collagen, I. Biophys. J. 2007, 92, 2108–2119. [Google Scholar]
  49. Li, Y.; Asadi, A.; Monroe, M.R.; Douglas, E.P. pH effects on collagen fibrillogenesis in vitro: Electrostatic interactions and phosphate binding. Mater. Sci. Eng. C 2009, 29, 1643–1649. [Google Scholar]
  50. Pal, G.K.; Nidheesh, T.; Suresh, P. Comparative study on characteristics and in vitro fibril formation ability of acid and pepsin soluble collagen from the skin of catla (Catla catla) and rohu (Labeo rohita). Food Res. Int. 2015, 76, 804–812. [Google Scholar]
  51. Yunoki, S.; Nagai, N.; Suzuki, T.; Munekata, M. Novel biomaterial from reinforced salmon collagen gel prepared by fibril formation and cross-linking. J. Biosci. Bioeng. 2004, 98, 40–47. [Google Scholar]
  52. Hoyer, B.; Bernhardt, A.; Lode, A.; Heinemann, S.; Sewing, J.; Klinger, M.; Notbohm, H.; Gelinsky, M. Jellyfish collagen scaffolds for cartilage tissue engineering. Acta Biomater. 2014, 10, 883–892. [Google Scholar]
  53. Tang, L.; Chen, S.; Su, W.; Weng, W.; Osako, K.; Tanaka, M. Physicochemical properties and film-forming ability of fish skin collagen extracted from different freshwater species. Process. Biochem. 2015, 50, 148–155. [Google Scholar]
  54. Chen, S.; Ikoma, T.; Ogawa, N.; Migita, S.; Kobayashi, H.; Hanagata, N. In vitro formation and thermal transition of novel hybrid fibrils from type I fish scale collagen and type I porcine collagen. Sci. Technol. Adv. Mater. 2010, 11, 35001. [Google Scholar]
  55. Nudelman, F.; Bomans, P.H.H.; George, A.; De With, G.; Sommerdijk, N.A.J.M. The role of the amorphous phase on the biomimetic mineralization of collagen. Faraday Discuss. 2012, 159, 357–370. [Google Scholar]
  56. Gaurav Kumar, P.; Nidheesh, T.; Govindaraju, K.; Jyoti; Suresh, P.V. Enzymatic extraction and characterisation of a thermostable collagen from swim bladder of rohu (Labeo rohita). J. Sci. Food Agr. 2017, 97, 1451–1458. [Google Scholar] [CrossRef]
  57. Pagano, S.; Chieruzzi, M.; Balloni, S.; Lombardo, G.; Torre, L.; Bodo, M.; Cianetti, S.; Marinucci, L. Biological, thermal and mechanical characterization of modified glass ionomer cements: The role of nanohydroxyapatite, ciprofloxacin and zinc l-carnosine. Mater. Sci. Eng. C 2019, 94, 76–85. [Google Scholar]
  58. Adibzadeh, N.; Aminzadeh, S.; Jamili, S.; Karkhane, A.A.; Farrokhi, N. Purification and characterization of pepsin-solubilized collagen from skin of sea cucumber Holothuria parva. Appl. Biochem. Biotechnol. 2014, 173, 143–154. [Google Scholar]
  59. Usha, R.; Ramasami, T. The effects of urea and n-propanol on collagen denaturation: using DSC, circular dicroism and viscosity. Thermochim. Acta 2004, 409, 201–206. [Google Scholar]
  60. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar]

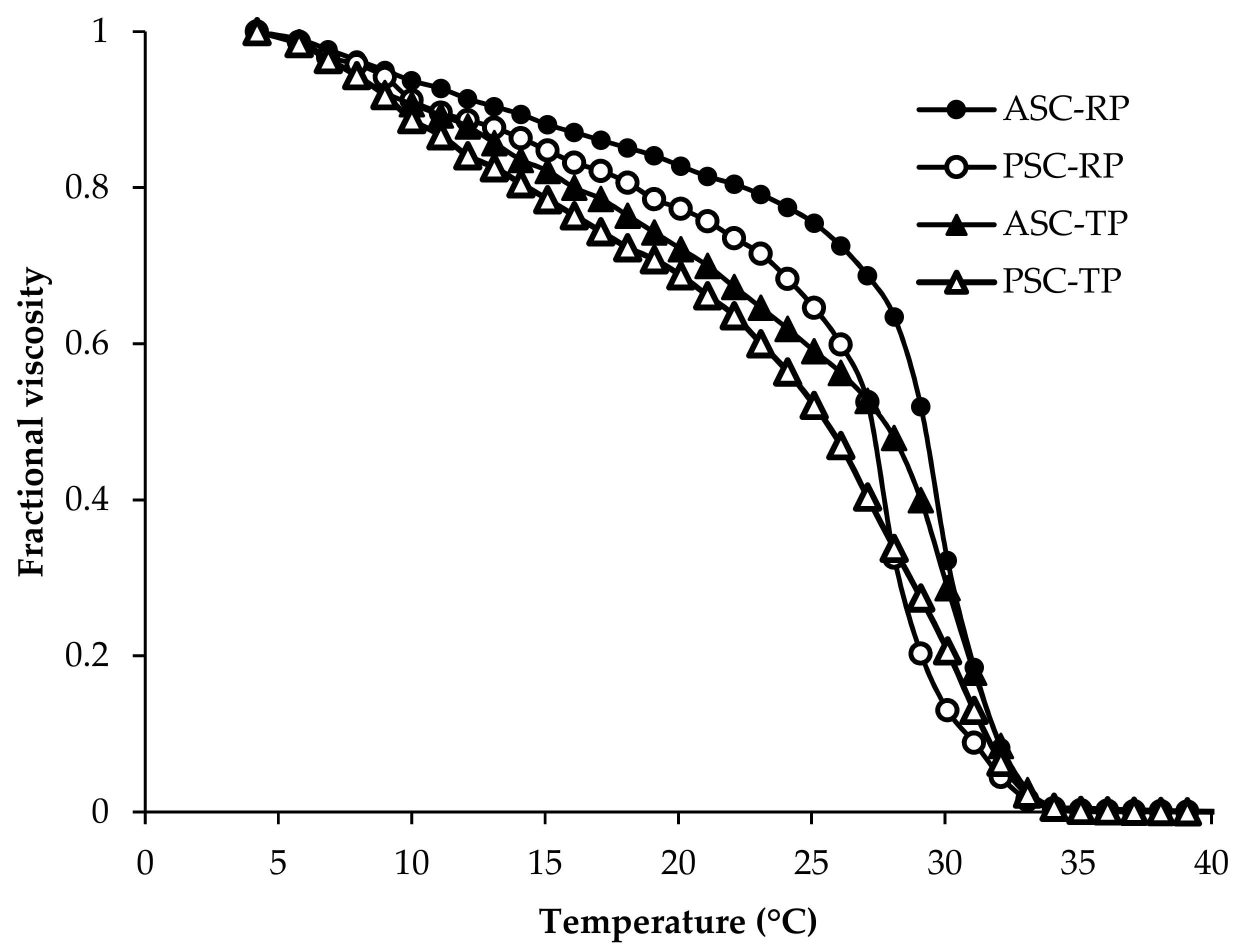

Figure 1. Thermal denaturation curves of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP), as shown by changes in fractional viscosity.
Figure 1. Thermal denaturation curves of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP), as shown by changes in fractional viscosity.
Marinedrugs 17 00462 g001
Figure 2. SDS-PAGE patterns of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). Lane 1: ASC-RP; lane 2: PSC-RP; lane 3: ASC-TP; lane 4: PSC-TP; lane 5: protein marker; lane 6: bovine type I collagen.
Figure 2. SDS-PAGE patterns of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). Lane 1: ASC-RP; lane 2: PSC-RP; lane 3: ASC-TP; lane 4: PSC-TP; lane 5: protein marker; lane 6: bovine type I collagen.
Marinedrugs 17 00462 g002

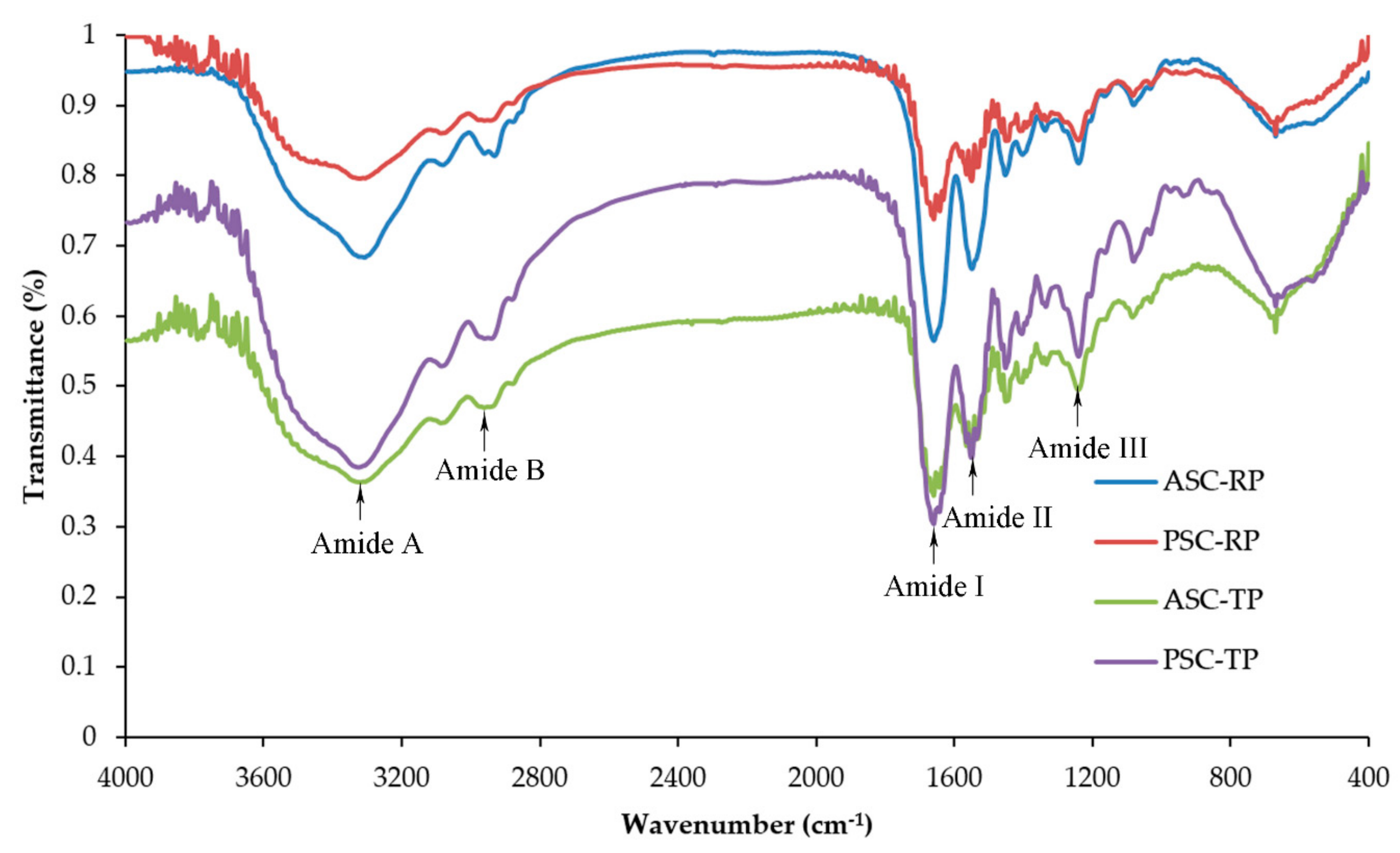

Figure 3. FTIR spectra of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP).
Figure 3. FTIR spectra of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP).
Marinedrugs 17 00462 g003

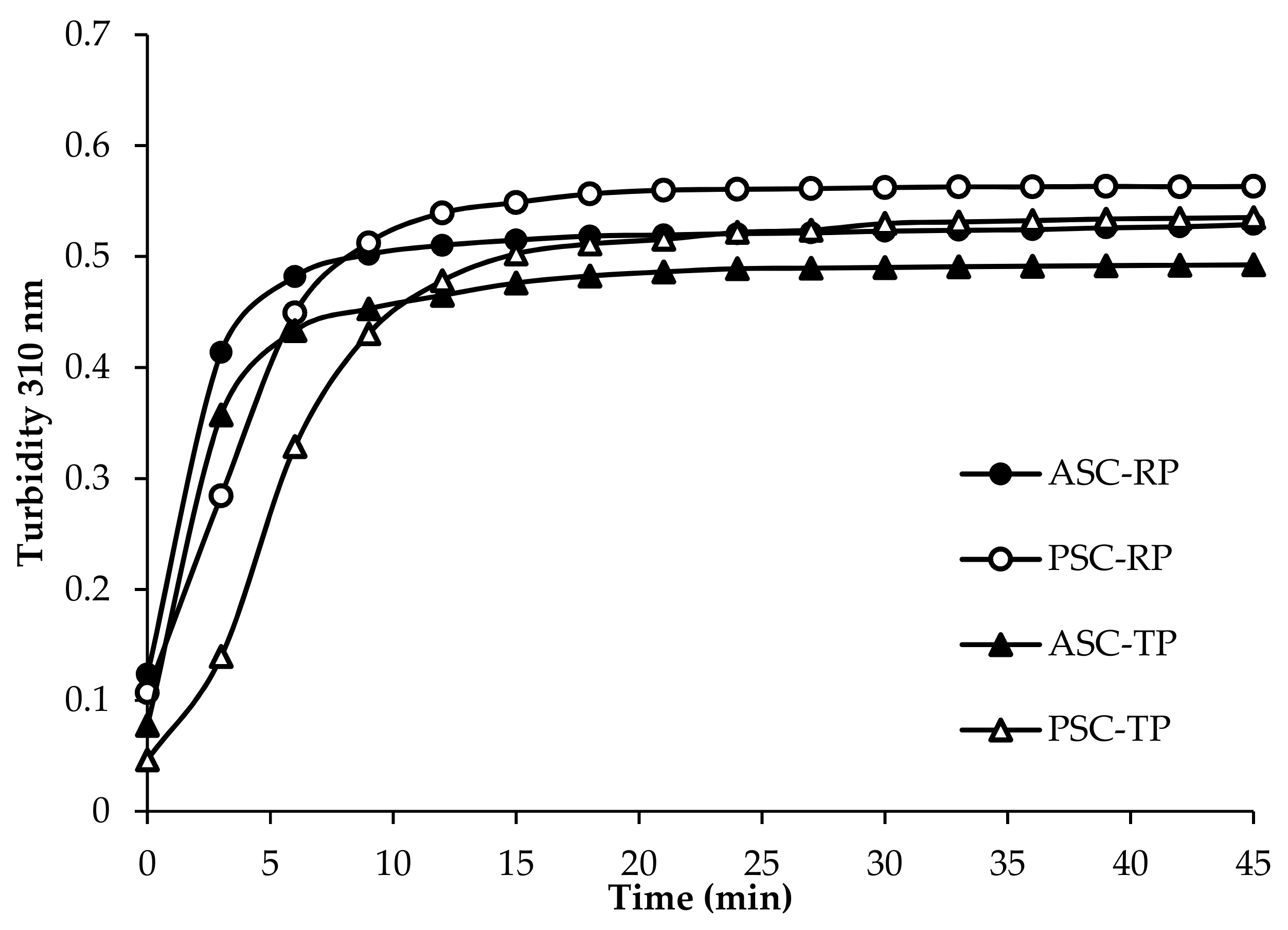

Figure 4. Fibril formation curves of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). Fibril formation was monitored by the increase in turbidity at 310 nm.
Figure 4. Fibril formation curves of collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). Fibril formation was monitored by the increase in turbidity at 310 nm.
Marinedrugs 17 00462 g004

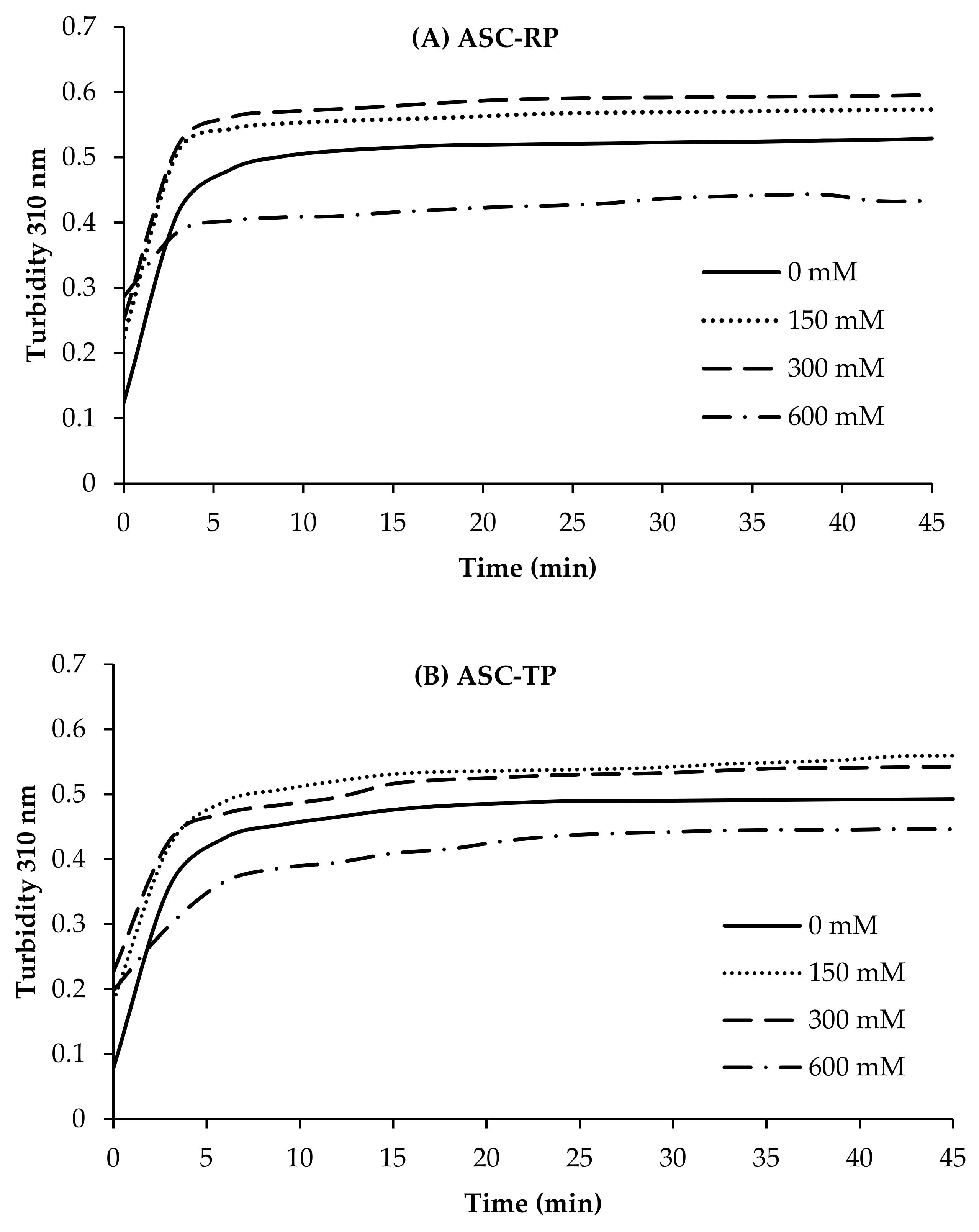

Figure 5. Effect of NaCl concentration on the fibril formation ability of collagens from the skin of river puffer (A) (ASC-RP) and tiger puffer (B) (ASC-TP).
Figure 5. Effect of NaCl concentration on the fibril formation ability of collagens from the skin of river puffer (A) (ASC-RP) and tiger puffer (B) (ASC-TP).
Marinedrugs 17 00462 g005

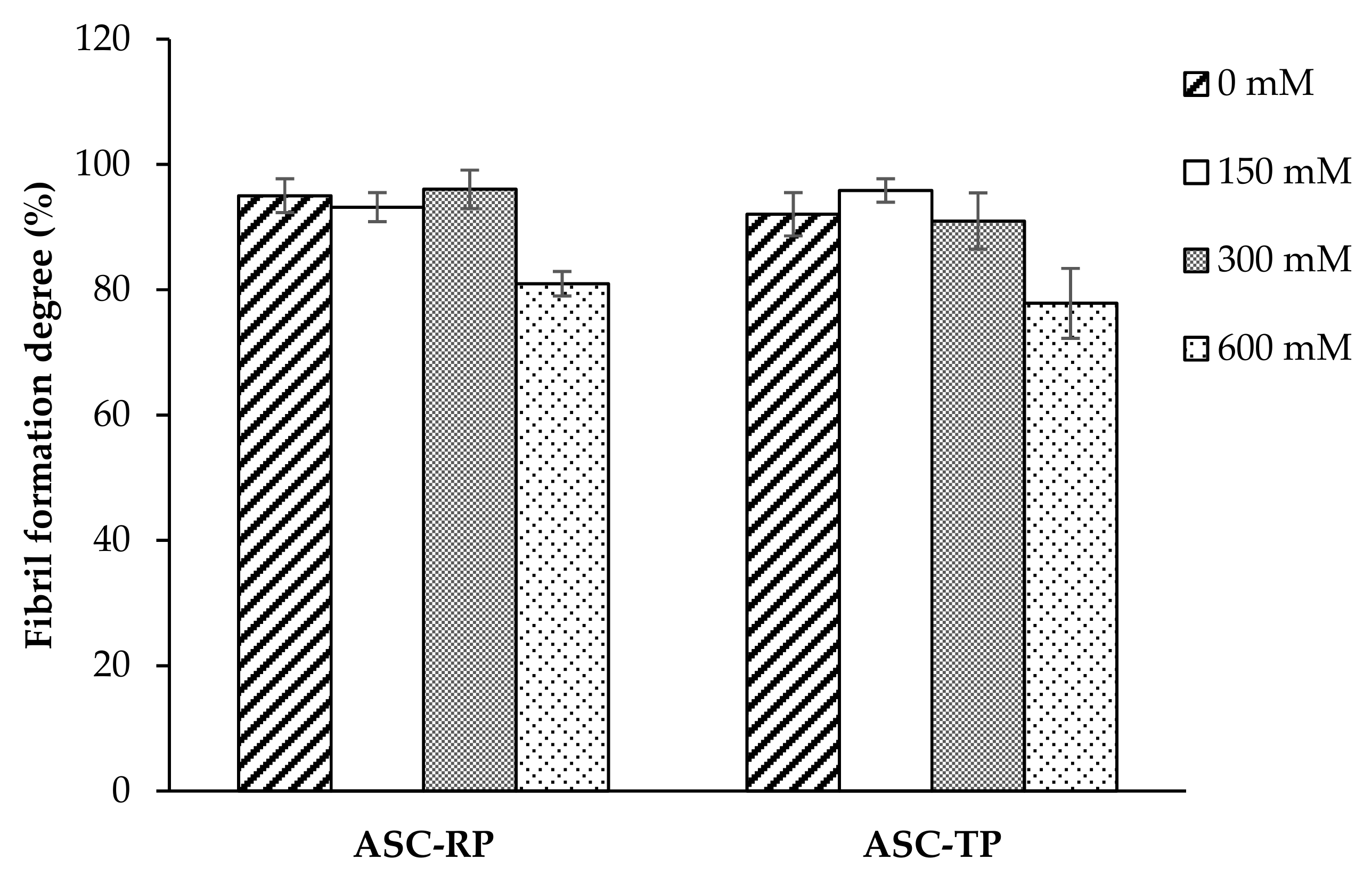

Figure 6. Effect of NaCl concentration on fibril formation degree of collagens from the skin of river puffer (ASC-RP) and tiger puffer (ASC-TP). Error bars show standard deviation.
Figure 6. Effect of NaCl concentration on fibril formation degree of collagens from the skin of river puffer (ASC-RP) and tiger puffer (ASC-TP). Error bars show standard deviation.
Marinedrugs 17 00462 g006

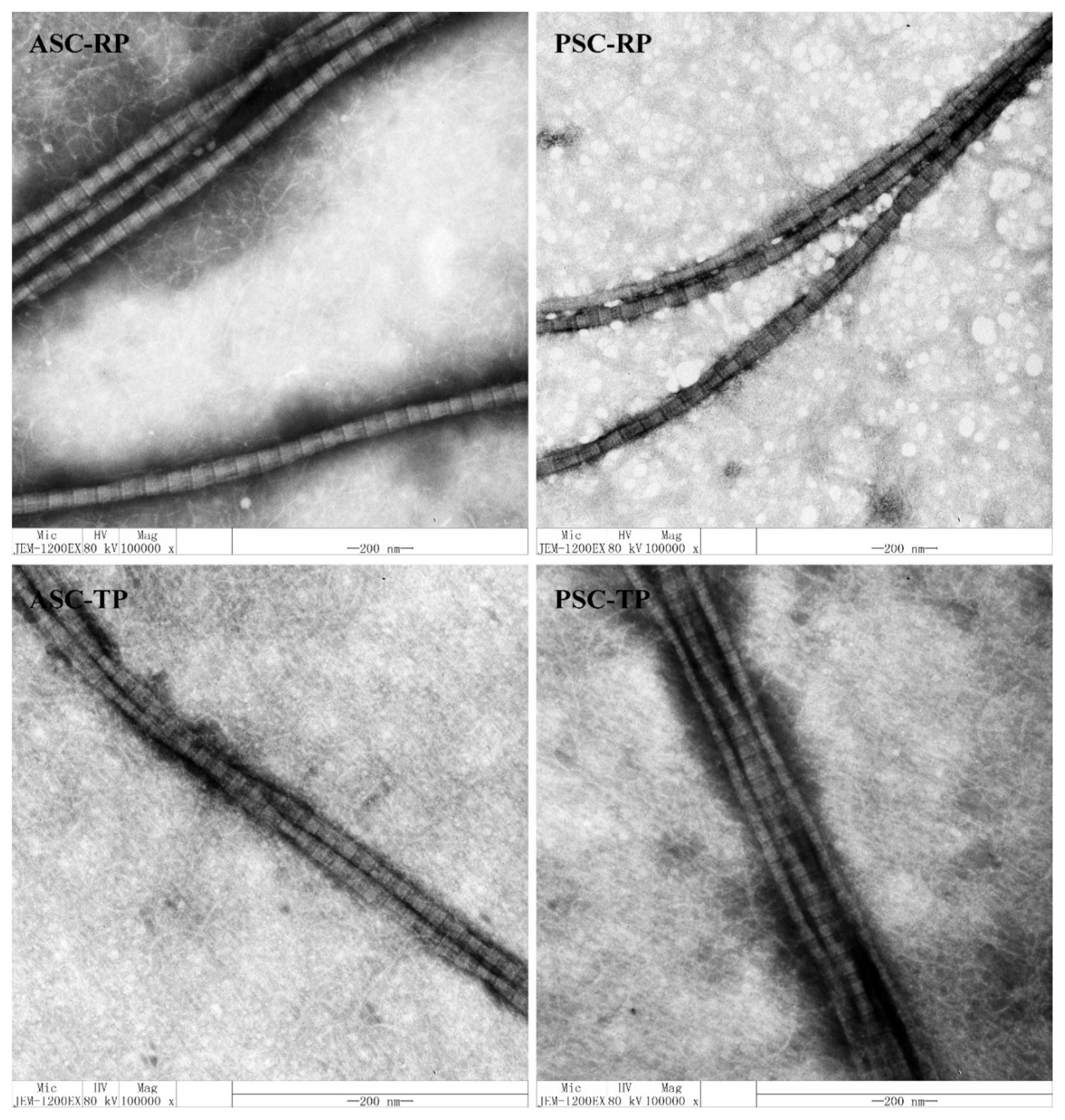

Figure 7. TEM observations of fibrils formed by collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP).
Figure 7. TEM observations of fibrils formed by collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP).
Marinedrugs 17 00462 g007

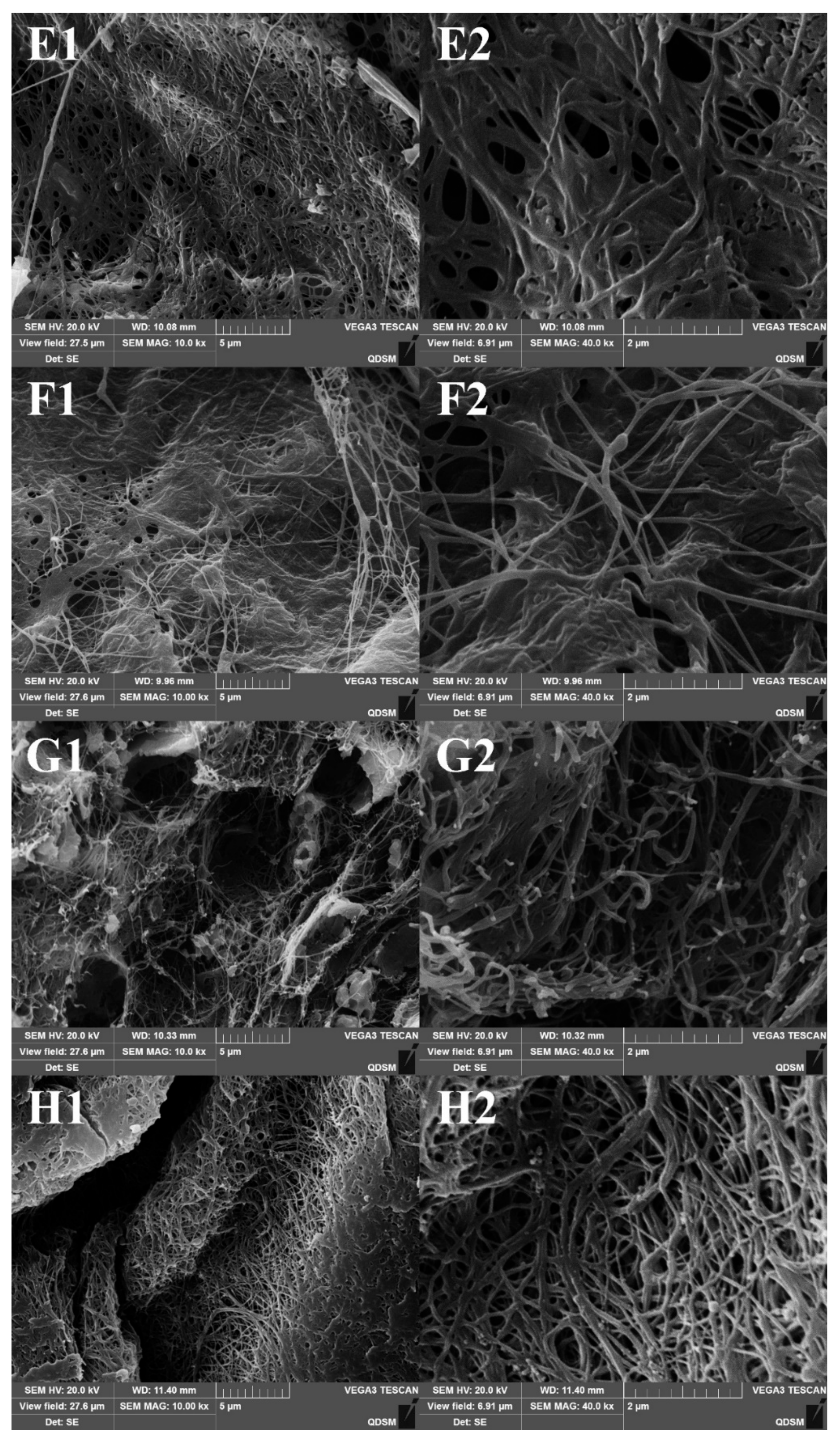

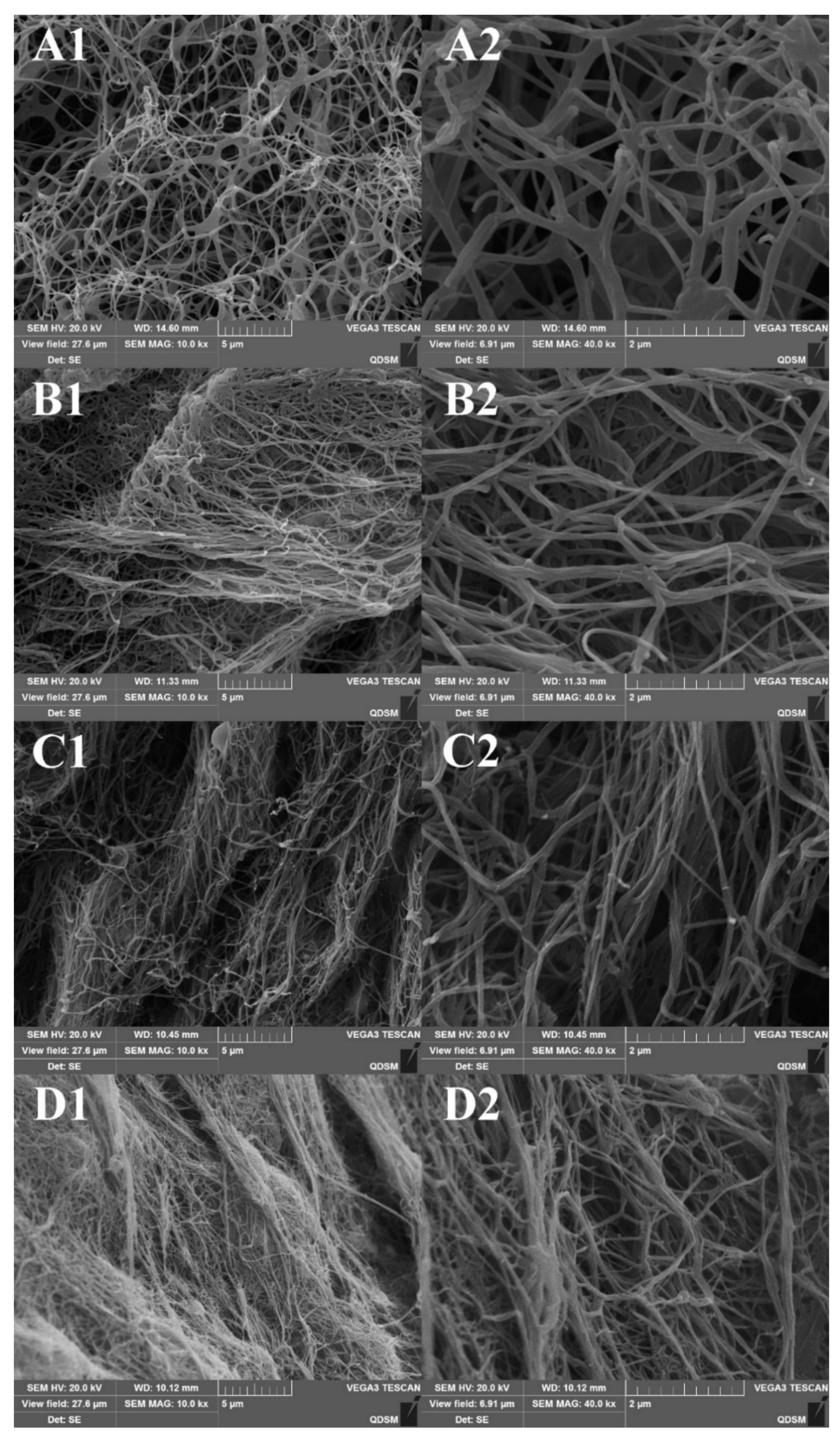

Figure 8. SEM observations of fibrils formed by collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). (AD): ASC-RP, PSC-RP, ASC-TP and PSC-TP incubated for 1 h; (EH): ASC-RP, PSC-RP, ASC-TP and PSC-TP incubated for 24 h.
Figure 8. SEM observations of fibrils formed by collagens from the skin of river puffer (ASC-RP and PSC-RP) and tiger puffer (ASC-TP and PSC-TP). (AD): ASC-RP, PSC-RP, ASC-TP and PSC-TP incubated for 1 h; (EH): ASC-RP, PSC-RP, ASC-TP and PSC-TP incubated for 24 h.
Marinedrugs 17 00462 g008aMarinedrugs 17 00462 g008b
Table 1. Amino acid composition of collagens from the skin of river puffer (acid-soluble collagen river puffer (ASC-RP) and pepsin-soluble collagen river puffer (PSC-RP)) and tiger puffer (acid-soluble collagen tiger puffer (ASC-TP) and pepsin-soluble collagen tiger puffer (PSC-TP)) (residues/1000 residues).
Table 1. Amino acid composition of collagens from the skin of river puffer (acid-soluble collagen river puffer (ASC-RP) and pepsin-soluble collagen river puffer (PSC-RP)) and tiger puffer (acid-soluble collagen tiger puffer (ASC-TP) and pepsin-soluble collagen tiger puffer (PSC-TP)) (residues/1000 residues).
Amino AcidASC-RPPSC-RPASC-TPPSC-TPCalf Skin Collagen [31]Porcine Skin Collagen [32]
Aspartic acid (Asp)464445474544
Threonine (Thr)222322211816
Serine (Ser)393840383333
Glutamic acid (Glu)726973747572
Glycine (Gly)326331332339330341
Alanine (Ala)126124127122119115
Cysteine (Cys)212100
Valine (Val)282827242122
Methionine (Met)911101466
Isoleucine (Ile)109991110
Leucine (Leu)181717182322
Tyrosine (Tyr)433231
Phenylalanine (Phe)10151013312
Histidine (His)675755
Lysine (Lys)292830272627
Arginine (Arg)575358525048
Proline (Pro)116116114115121123
Hydroxyproline (Hyp)808376779497
Imino acid (Pro + Hyp)196199190192215220
