Article

Antiamoebic Activities of Indolocarbazole Metabolites Isolated from Streptomyces sanyensis Cultures

by
Luis Cartuche
1,2,
María Reyes-Batlle
3,
Ines Sifaoui
3,
Iñigo Arberas-Jiménez
3,
José E. Piñero
3,
José J. Fernández
1,4,
Jacob Lorenzo-Morales
3,* and
Ana R. Díaz-Marrero
1,*
1
Instituto Universitario de Bio-Orgánica Antonio González (IUBO AG), Centro de Investigaciones Biomédicas de Canarias (CIBICAN), Universidad de La Laguna (ULL), Avda. Astrofísico F. Sánchez 2, 38206 La Laguna, Tenerife, Spain
2
Departamento de Química y Ciencias Exactas, Sección Química Básica y Aplicada, Universidad Técnica Particular de Loja (UTPL), San Cayetano alto s/n, A.P. 1101608 Loja, Ecuador
3
Instituto Universitario de Enfermedades Tropicales y Salud Pública de Islas Canarias, Departamento de Obstetricia y Ginecología, Pediatría, Medicina Preventiva y Salud Pública, Toxicología, Medicina Legal y Forense y Parasitología, Universidad de La Laguna, Avda. Astrofísico F. Sánchez s/n, 38206 La Laguna, Tenerife, Spain
4
Departamento de Química Orgánica, Universidad de La Laguna (ULL), Avda. Astrofísico F. Sánchez, 2, 38206 La Laguna, Tenerife, Spain
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2019, 17(10), 588; https://doi.org/10.3390/md17100588
Submission received: 30 September 2019 / Revised: 11 October 2019 / Accepted: 15 October 2019 / Published: 17 October 2019
(This article belongs to the Special Issue Marine Natural Products with Antiprotozoal Activity)

Abstract

:
Indolocarbazoles are a family of natural alkaloids characterized by their potent protein kinase and topoisomerase I inhibitory activity. Among them, staurosporine (1) has exhibited promising inhibitory activity against parasites. Based on new insights on the activity and mechanism of action of STS in Acanthamoeba parasites, this work reports the isolation, identification, and the anti-Acanthamoeba activity of the minor metabolites 7-oxostaurosporine (2), 4′-demethylamino-4′-oxostaurosporine (3), and streptocarbazole B (4), isolated from cultures of the mangrove strain Streptomyces sanyensis. A clear correlation between the antiparasitic activities and the structural elements and conformations of the indolocarbazoles 14 was observed. Also, the study reveals that 7-oxostaurosporine (2) affects membrane permeability and causes mitochondrial damages on trophozoites of A. castellanii Neff.

1. Introduction

Indolocarbazoles (ICZs) are a large family of alkaloid natural compounds characterized by their protein kinase, particularly tyrosine kinase, inhibitory activity. These enzymes are responsible for regulating essential aspects of cell metabolism including cell cycle progression; consequently, ICZs exert potent cytotoxic effect on cancer cells [1,2,3].
ICZs have been isolated from several sources including bacteria, slime molds, cyanobacteria, and marine invertebrates [1]. The first isolated compound, staurosporine (STS), was obtained from a culture of a soil actinomycete (Streptomyces staurosporeus) in 1977 [4] at the Kitasato Institute (Mizusawa City, Japan) and nine years later, its mechanism of action was discovered through non-selective protein kinase inhibition [5,6]. Related compounds demonstrated the same effect, thus opening the route for the discovery of a new class of antincancer drugs [7,8]. In addition, two synthetic derivatives of the ICZ antibiotic, K252a, were proven to be potent inducers of DNA cleavage complex by interacting with topoisomerase I, increasing the interest of pharmaceutical industries in this family of compounds [9].
STS has exhibited promising inhibitory activity against parasites [10,11,12]; since protein kinases (PKs) play critical roles in the growth and mechanism of infection of some parasites such as Trypanosoma and Leishmania spp., and parasitic PKs differ from their mammal counterparts, these antibiotics result attractive for the development of specific inhibitors [13]. Additionally, it has been demonstrated that STS induced cell death in blood forms of Trypanosoma brucei in a dose-dependent manner, stimulating the activation of apoptosis by releasing EndoG from mitochondrial disruption under ROS production [14]; however, to the best of our knowledge there is no information about the antiparasitic effect of streptocarbazole B, 4′-demethylamino-4′-oxostaurosporine, and 7-oxostaurosporine which are the focus of this research.
Derivative 7-oxostaurosporine (7OSTS) was first isolated from Streptomyces platensis [15]. 4′-demethylamino-4′-oxostaurosporine (4′D4′OSTS) from S. longisporoflavus [16] and more recently, streptocarbazoles A (SCZ A) and B (SCZ B) from Streptomyces sp. FMA strain [17], all of them exerting strong protein kinase inhibitory effects and consequently, acting as anticancer agents.
Infections caused by Acanthamoeba spp. affect millions of people worldwide as well as the deficiency of satisfactory treatments. The lack of effectiveness due to drug resistance and high toxicity are the main drawbacks of currently used chemotherapeutics, which evidence that the search for new chemical entities to fight parasitic infections remains a critical need. Recently, we have reported a detailed study on the activity and mechanism of action of STS in Acanthamoeba and the programmed cell death via mitochondrial pathway [18]. The aim of this research is based on the isolation and identification of the minor metabolites 7OSTS (2), 4′D4′OSTS (3), and SCZB (4) (Figure 1) from a mangrove-derived bacterium S. sanyensis PBLC04 strain collected in the coast of Ecuador, and to value their anti-Acanthamoeba activity. Mangroves are singular ecosystems, characterized for their high biodiversity and, hence, ideal for the discovery of new drugs from microbial sources.

2. Results and Discussion

2.1. Strain Isolation, Culture, and Identification of Indolocarbazol Metabolites

Streptomyces sanyensis PBLC04 strain was isolated from sediment samples collected in Jambelí mangrove at the southwest coast of Ecuador. 30 L of the strain were cultured using Fernbach bottles and seawater-based modified A1 medium. Cultures of S. sanyensis were centrifuged, and the biomass pellet was extracted using a mixture of MeOH:EtOAc:Acetone (2:7:3). Resulting extracts were combined, filtered, and dried in vacuo at 30 °C in a rotary evaporator.
The salt-free biomass extract was chromatographed by filtration on Sephadex-LH-20 with methanol as eluent. The bioassay-guided analysis of the fractions led us to the active fraction SF3 and SF4 against Acanthamoeba castellanii Neff with IC50 values of 10.68 ± 0.41 µg/mL and 0.44 ± 0.03 µg/mL, respectively. These fractions ware further chromatographed on a RP18 prepacked cartridge applying a gradient elution system of H2O:MeOH, buffered with 5 mM NH4OAc. The active fractions exhibited characteristic signals for ICZs in the 1H-NMR spectrum. Final purification on a silica-gel open column using CHCl3:MeOH (9:1) yielded pure staurosporine (1) (STS), the major compound, which represents 0.52% of the total content of the biomass extract, whereas pure minor compounds 7-oxostaurosporine (2) (7OSTS), 4′-demethylamino-4′-oxostaurosporine (3) (4′D4′OSTS), and streptocarbazole B (4) (SCZ B) required elution with n-Hex:EtOAc:MeOH (2:7:1). The NMR spectra, mass spectrometry, and optical rotation data for compounds 14 were compared with those previously reported in the chemical literature to confirm their structures [4,15,16,17]. Spectral data and detailed tables with the chemical shifts and HMBC and ROESY correlations are included in the Supplementary Materials.

2.2. Anti-Acanthamoeba Activity on Parasite Trophozoites

The antiamoebic activities of natural indolocarbazole metabolites identified in Streptomyces sanyensis, compounds 14, were tested against trophozoites of the strains: A. castellanii Neff, A. griffini and A. polyphaga. The inhibitory concentrations (IC50) were calculated in µM concentrations and are shown in Table 1, and compared with those of chlorhexidine and voriconazole, reference drugs for the treatment of amoebic keratitis (AK), an infection caused by Acanthamoeba sp. [19]. Compound 7OSTS (2) showed to be as effective as its congener STS (1) and the reference compound voriconazole against all tested Acanthamoeba spp. Compounds 3 and 4 showed a similar activity and selectivity against the three tested strains, being more active for A. castellanii Neff.
Additionally, three commercially available indolocarbazole compounds rebeccamycin (5), K252c (6), and arcyriaflavin A (7) were tested. Compounds 57 showed to be less active than 1 and 2, while K252c (6) seems to be selective against A. griffini.

2.3. Cytotoxicity Assays in Murine Macrophages

On the other hand, the potential effectiveness of compounds as antiparasitics depends on their toxicity. As well established in our laboratory [20,21], the toxicity of all compounds was evaluated at the concentration that inhibits 50% of murine macrophages (Table 2).
Compound 2, 7OSTS, turned out to be the most cytotoxic with a CC₅₀ of 5.20 ± 1.75 µM. Nevertheless, this CC50 value was significantly higher than the IC50 values obtained against the strains A. castellanii and A. graffini. 4′D4′OSTS (3) and ICZ B (4) were the least toxic among all tested compounds against murine macrophage J774A.1.

2.4. In Vitro Activity against Acanthamoeba castellanii Neff Cysts

When 7OSTS (2) was incubated with mature cysts of A. castellanii Neff, non-viable cysts were observed after incubation up to 144 h. In Figure 2, the activity of 7OSTS (2) against A. castellanii Neff cysts is observed, with an IC50 of 0.92 ± 0.33 µM. Non-viable cysts were observed when compared to a negative control of trophozoites and not treated mature cysts.

2.5. Evaluation of the Mechanism of Action of 7OSTS

Among minor compounds, 7OSTS (2) was the selected molecule to continue the studies on the mode of action on A. castellanii Neff based on the activity values. The search for new therapies which do not produce necrotic cell death is necessary in order to avoid an excessive inflammatory response. Therefore, events involved during programmed cell death or apoptosis-like processes are subject of study and include several morphological stages such as nuclear DNA fragmentation, chromatin condensation or damages at mitochondrial level, among others [22]. Consequently, our next objective was to recognize the mechanism of action of 7OSTS (2), through the evaluation of changes in the mitochondrial membrane potential, ATP cell levels, chromatin condensation, and plasmatic membrane integrity.
A double-stain assay was performed to determine the effect on chromatin condensation. 7OSTS-treated cells at the IC90 concentration (2.91 ± 0.67 µM) stained positive in the assay as shown by the bright-blue nuclei stain in Figure 3A, which indicates 7OSTS induces chromatin condensation. Moreover, it is important to highlight that the morphology of the trophozoites treated with IC90 of 7OSTS (2) (Figure 3A) show rounded and smaller shape compared to the negative control (Figure 3B). which are common events when a cell is under a programmed cell death pathway [22].
7OSTS (2) also showed an induction of mitochondrial malfunction. Figure 4 shows that A. castellanii Neff cells treated with 7OSTS (IC90) exhibit higher green fluorescence (A) when compared with the negative control (B). The green fluorescence indicates the presence of JC-1 (5,5′,6,6′-Tetrachloro-1,1′,3,3′-tetraethyl-imidacarbocyanine iodide) monomers, which reveals a decrease of the mitochondrial membrane potential. In the negative control, the mitochondrial membrane potential is unaltered, showing a red fluorescence caused by JC-1 dimers.
On the other hand, after incubation of A. castellanii Neff with the IC90 of 7OSTS (2) for 24 h, the ATP level was reduced to 45% compared to the negative control (Figure 5). This result reveals that the cells maintained one half of the ATP level after treatment with 7OSTS, and confirms the mitochondrial damage.
7OSTS (2) caused plasma membrane permeability in treated cells. Membrane permeabilization experiment on A. castellanii Neff cells treated with the IC90 of 7OSTS (2), showed plasmatic membrane damage after 24 h of treatment. Nevertheless, it is also important to reference that even though the membrane was damaged, cell integrity was maintained as confirmed in Figure 6.
ICZ derivatives have been the focus of numerous research groups, mainly in the area of chemotherapeutics against cancer, Alzheimer’s disease, and other neurodegenerative disorders [1,2,3]. Thus, several STS analogues have advanced in clinical trials, broadly subdivided into two groups based on their target profile. The first group is represented by STS and includes compounds that are potent inhibitors of protein kinases. On the other hand, the second group are STS analogues modified in the sugar moiety and therefore do not inhibit protein kinases, but instead are used as potent stabilizers of DNA topoisomerase I. Among the natural and biosynthetically produced STS analogues, the 7-hydroxy-derivatives has been tested for clinical phase for several forms of cancer such as pancreas, breast, and lymphoma [23].
The initial studies on the STS-PK complex were directed towards the kinase models PKA and CDK2. These studies and those completed later have indicated the crucial hydrogen bond interactions between the heteroatoms of the lactam moiety of the alkaloids with a conserved glutamic acid residue (Glu). On the other side, the methyl amino group at C-4′ of the sugar moiety is involved in the formation of two hydrogen bonds with amino acid residues such as Glu and aspartic acid (Asp), part of the protein catalytic site. These interactions force a boat conformation of the sugar ring of the ligand and a perpendicular orientation to the planar aromatic indolocarbazole nucleus when the ICZ-family of compounds inhibit protein kinases. Another important point is that the binding affinity of ICZs increases with the presence of hydrogen bonds between the nitrogen of the methyl amino moiety at C-4′ with neighboring protein residues [6,24].
Commercial ICZ compounds obtained from their natural sources are available for biochemical studies (Figure 7). Rebeccamycin (5) is an indolocarbazole antibiotic produced, among other actinomycetes, by Saccharothrix aerocolonigenes [25]. It is a DNA-binding molecule that inhibits topoisomerase I activity [26,27,28,29]. Rebeccamycin shows cytotoxic activity against human lung, colon, and nasopharyngeal carcinoma cell lines with IC50 values that range from 0.4–98 µM [30]. The STS aglycon is known as K252c (6). It is an efficient protein kinase C (PKC) inhibitor (IC50 2.45 µM) compared to its inhibitory protein kinase A (PKA) activity (IC50 25.7 µM) [26]. Arcyriaflavin A (7), the 7OSTS aglycon, is an inhibitor of cyclin-dependent kinase 4 (CDK4) with an IC50 = 140 nM, and calcium/calmodulin-dependent protein kinase II (CaMKII; IC50 = 25 nM), showing selectivity for CDK4 and CaMKII over protein kinase A (PKA; IC50 > 2 µM) and PKC (IC50 >100 µM) [2,31].
In this work, we have found a clear correlation between the antiparasitic activities observed and the structural elements and conformations of the indolocarbazole molecules under study (Figure 8). Thus, both STS (1) and the 7-oxo derivative (2) showed potent activities against the tested species. This fact could be explained based on the conserved interactions reported for many protein kinases, which establish interactions between the lactam group and methyl amine at the C-4′ position of both compounds. This result agrees with a similar orientation and conformation of 1 and 2. In addition, in the particular case of A. polyphaga, a difference of activity between STS (1) and 7OSTS (2) was observed, that could be justified based on the positive or negative interaction with the active site of the target PKs, due to the additional functionalization at C-7 position of 2.
On the other hand, compounds 4′D4′OSTS (3) and SCZ B (4) showed moderate antiamoebic activity compared to 1 and 2. In the case of 3, it might be consequence of the absence of the expected hydrogen bond with the methyl amine group at C-4′ in the PKs inhibition mechanism by ICZs (Figure 8). For compound 4, a significant structural change in the sugar ring is observed which eliminate all these conserved interactions at C-4′ position. Furthermore, the different orientation of the sugar moiety could produce strong steric impediments at the active site. Similarly, this structural feature seems to be the cause of the reduced toxicity of 3 and 4 (CC50 > 40 μM), which confer these compounds a similar selective index to the active 7OSTS (2) in treatments against the A. castellanii Neff strain. The results obtained with commercial ICZs (57) reinforce the relevance of the interactions due to the sugar moiety of STS (1) and the 7OSTS (2) to improve the antiamoeboid activity.

3. Materials and Methods

3.1. General Experimental Procedures

NMR spectra were recorded on a Bruker AVANCE 500 MHz or 600 MHz (Bruker Biospin, Falländen, Switzerland), as required. NMR spectra were obtained dissolving samples in CDCl3 (99.9%) and chemical shifts are reported relative to solvent (δH 7.26 and δC 77.0 ppm). Bruker AVANCE 600 MHz instrument is equipped with a 5 mm TCI inverse detection cryoprobe (Bruker Biospin, Falländen, Switzerland). Standard Bruker NMR pulse sequences were utilized. Optical rotations were measured in CHCl3 on a PerkinElmer 241 polarimeter (Waltham, MA, USA) by using a Na lamp. HR-ESI-MS data were obtained on a Waters LCT Premier XE Micromass (Manchester, UK) and VG-AutoSpec Micromass spectrometers (Manchester, UK), respectively. IR spectra were recorded on a Bruker IFS66/S (Ettlingen, Germany) equipped with an ATR accessory using CHCl3 solutions. EnSpire ® Multimode Reader (Perkin Elmer, Waltham, MA, USA) using absorbance values of alamarBlue® reagent (Bio-Rad Laboratories, Oxford, UK). HPLC (high performance liquid chromatography) separations were carried out with an Agilent 1260 Infinity Quaternary LC equipped with a Diode Array Detector (Waldbronn, Germany). TLC (Thin layer chromatography) (Merck, Darmstadt, Germany) was visualized by UV light (254 nm) and spraying with cobalt chloride reagent (2% in sulfuric acid, 10%) and heating.

3.2. Biological Material

Streptomyces sanyensis PBLC04 strain was collected in Jambelí mangrove (3°15′792″ S, 80°00′739″ W–03°17′711″ S, 80°01′924″ W), Ecuador. The strain is included in the microbial collection of Universidad Técnica Particular de Loja (UTPL, Loja-Ecuador). Samples of marine sediment were collected in 15 mL Falcon tubes from 1 to 3 m depth and put into sterile polythene bags. Stamps of pulverized samples were seeded on agar plates of a sea water-based medium (10 g starch, 4 g yeast extract, 2 g peptone, 1 g CaCO 3, 40 mg Fe2(SO 4)3 4H2O, 100 mg KB, 15 g Bacto Agar, per liter), acidic gauze medium, humic acid medium, and TCG medium, all of them containing 1% of polymyxin B and cycloheximide as inhibitors of undesired growth. The plates were incubated at 30 °C and observed periodically. Gram staining was used to identify branched filamentous Gram-positive bacteria.

3.3. Cultures and Preparation of Crude Extracts

Streptomyces sanyensis PBLC04 strain was cultured in Fernbach bottles using a modified seawater-based medium (A1) that consisting of 75% seawater containing 10 g starch, 4 g yeast extract, 2 g proteose peptone, 1 g calcium carbonate, supplemented with 5 mL/L of a solution of potassium bromide (67 mM) and ferric sulfate (20 mM). Fernbach flasks with 1 L each were maintained in an orbital shaker at 30 °C and 200 rpm for 7 days. Cultures of S. sanyensis PBLC04 were then centrifuged at 5000 rpm for 10 min at 4 °C to collect the cell biomass. Supernatant was treated by Amberlite® XAD7-HP resin (20 g/L) addition and stirred for 3 h for the recuperation of excreted substances. After filtration, both the resin and the biomass pellet were separately extracted using a mixture of MeOH:EtOAc:Acetone (2:7:3) for 12 h at 120 rpm in an orbital shaker. Resulting extracts were filtered, dried in vacuo at 30 °C in a rotary evaporator and stored a −80 °C until used.

3.4. Isolation of Indolocarbazole Metabolites

The obtained crude extract 12.6 g was fractionated by gel filtration on Sephadex LH-20 column, eluting with methanol to yield 10 fractions that were finally gathered in four final fractions according to TLC and 1H-NMR analysis. Thin layer chromatography (TLC) monitoring was used with cobalt chloride (2%) as spraying reagent. The bioassay-guided analysis of the Sephadex LH-20 fractions led us to an active fraction SF3 and SF4 against Acanthamoeba castellanii Neff with IC50 values of 10.68 ± 0.41 µg/mL and 0.44 ± 0.03 µg/mL, respectively; and against Leishmania amazonensis with IC50 values of 0.43 ± 0.07 µg/mL and 0.08 ± 0.01 µg/mL. These fractions were then chromatographed using a flash chromatography on a RP18 prepacked cartridge (25–40 µm, 70 g, Götec-Labortechnik GmbH) operating in a gradient elution protocol of H2O:MeOH, 5mM NH4OAc, (20% to 100% MeOH) at 2 mL/min flow. All process was monitored by UV detection at 254 nm. The active fractions those exhibited characteristic signals for ICZs in the 1H-NMR spectrum and bioactivities against cited parasites were separated by elution on Si-60 open column (230–400 mesh, 60 Å) using CHCl3:MeOH (9:1) yielding 65.9 mg of pure staurosporine (1) (STS, 65.6 mg, 0.521%) from SF3; and n-Hex:EtOAc:MeOH (2:7:1) to obtained pure the compounds 7-oxostaurosporine (2) (1.01 mg, 0.008%), 4′-demethylamino-4-oxostaurosporine (3), (1.13 mg, 0.009%) and streptocarbazole B (4) (SCZ B, 0.91 mg, 0.007%) from SF4.

3.4.1. Staurosporine, (STS), (1)

Yellow powder, [α] D 20 + 43 (c 0.3, CHCl3); UV (CHCl3) λmax (log ε) 297 (4.48) nm. IR υmax 2920, 2851, 1713, 1568, 1463, and 1318 cm−1. HRESIMS m/z 489.1908 [M + Na]+, calc. 489.1897 for C28H24N4O3Na. 1H and 13C NMR data see Table S1. 1H and 13C NMR spectra, see Supplementary Materials (Figures S2 and S3).

3.4.2. 7-Oxostaurosporine, (7OSTS), (2)

Yellow powder, [α] D 20 +32.0° (c 0.1, CHCl3); UV (CHCl3) λmax (log ε) 243, 265, 288, 305, 319 nm (ε 319 nm: 20513.39 L mol−1 cm−1) nm. IR υmax 2920, 2851, 1713, 1568, 1463, and 1318 cm−1. HRESIMS m/z 481.1875 [M + H]+ calcd. 481.1876 for C28H25N4O4. 1H and 13C NMR data see Table S2. 1H and 13C NMR spectra, see Supplementary Materials (Figures S5 and S6).

3.4.3. 4’-Demethylamino-4′-oxostaurosporine, (4′D4′OSTS), (3)

Yellow powder, [α] D 20 22° (c 0.12, CHCl3); UV (CHCl3) λmax (log ε) 248, 268, 293, 319, 335, 352, 368 nm (ε293nm 23106.25 cm−1M−1) nm. IR υmax 2922, 2853, 2362, 1682., 1456 and 1317 cm−1. HRESIMS m/z 474.1425 [M + Na]+ calcd. 474.1430 for C27H21N3O4Na. 1H and 13C NMR data, see Table S3. 1H and 13C NMR spectra, see Supplementary Materials (Figures S8 and S9).

3.4.4. Streptocarbazole B, (SCZ B), (4)

Pale yellow powder, [α] D 20 −27° (c 0.09, CHCl3); UV (CHCl3) λmax (log ε) Its UV spectrum show bands at 245, 268, 291, 318, 334, 348, 366 nm (ε 291nm: 22458.82 cm−1M−1) nm. IR υmax 2928, 1682, and 1456 cm−1. HRESIMS m/z 488.1513 [M + Na]+ calcd. 488.1586 for C28H23N3O4Na. 1H and 13C NMR data see Table S4. 1H and 13C NMR spectra, see Supplementary Materials (Figures S11 and S12).

3.5. Commercial ICZ Analogs 57

Indolocarbazole derivatives rebeccamycin (5) (CAS no. 93908-02-2), K252c (6) (CAS no. 85753-43-1), and arcyriaflavin A (7) (CAS no. 118458-54-1), were all acquired from Cayman Chemical (Ann Arbor, MI, USA).

3.6. Cell Culture

The amoeba strain used in this study was the type strain: Acanthamoeba castellanii Neff (ATCC 30010) which was axenically grown in PYG medium (0.75% (w/v) proteose peptone, 0.75% (w/v) yeast extract and 1.5% (w/v) glucose) containing 40 µg/mL of gentamicin (Biochrom AG, Cultek, Granollers, Barcelona, Spain). The murine macrophages J774A.1 (ATCC TIB-67) cell line was cultured in RPMI 1640 medium supplemented with 10% fetal bovine serum at 37 °C and 5% CO2 atmosphere, was used for the cytotoxicity assays. Successively, the evaluated molecules were also tested against two clinical isolates, Acanthamoeba griffini, genotype T3 obtained in a previous study [32], and Acanthamoeba polyphaga genotype T4 ATCC 30461, both axenically grown in the same medium as A. castellanii Neff.

3.7. In Vitro Activity Against Acanthamoeba spp. Trophozoites

To evaluate the biological activity of the fractions and molecules, the anti-Acanthamoeba experiments were carried out using the alamarBlue® colorimetric assay, as it was previously described [22]. Briefly, Acanthamoeba strain was seeded in triplicate on 96-well microtiter plates (ThermoFisher™, Waltham, MA, USA) with 50 µL from a stock solution of 5 × 104 cells/mL and 50 µL of serial dilutions of the evaluated molecules in each well (1% DMSO was used to dissolve the highest dose of the compounds with no effects on the parasites). Two reference treatments [33] such as chlorhexidine (chlorhexidine digluconate; Alfa Aesar) and voriconazole (Sigma), were used as positive controls. Finally, the alamarBlue® Reagent (Life Technologies, Madrid, Spain) was placed into each well at an amount equal to 10% of the final volume. Plates were incubated for 96 h at 26 °C with a slight agitation until their measurement in the EnSpire® Multimode Plate Reader (Perkin Elmer, Madrid, Spain) using fluorescence, at 570/585 nm.

3.8. In Vitro Activity against Acanthamoeba Castellanii Neff Cysts

On the other side, cysticidal activity of 7OSTS (2) was determined also using the alamarBlue™ reagent and confirmed visually by inverted microscopy. Cysts of A. castellaniii Neff were prepared as previously described [34,35]. First of all, trophozoites were transferred from PYG medium based cultures (trophozoite medium) to Neff’s encystment medium (NEM; 0.1 M KCl, 8 mM MgSO4·7H2O, 0.4 mM CaCl2·2H2O, 1 mM NaHCO3, 20 mM ammediol [2-amino-2-methyl-1,3-propanediol; Sigma Aldrich Chemistry Ltd., Madrid, Spain], pH 8.8, at 25 °C) and were cultured in this medium with gently shaking for a week in order to obtain mature cysts. In order to carry out the cysticidal assay, mature cysts were harvested and washed twice with PYG medium. Serial dilutions of 7OSTS (2) were made in PYG and place onto sterile 96-well microtiter plates. 5·104 mature cysts of Acanthamoeba/mL were added to the wells with 50 µL of 7OSTS (2) dilutions. After 7 days of incubation, the plate was centrifuged at 3000 rpm for 10 min. The supernatant was removed and replaced with 100 µL of fresh PYG medium in each well. Finally, 10 μL of the alamarBlue® Reagent was placed into each well. The plates were then incubated for 144 h at 28 °C and the emitted fluorescence was measured with the EnSpire® Multimode Plate Reader (Perkin Elmer, Madrid, Spain) using fluorescence, at 570/585 nm.

3.9. Cytotoxicity Test

The cytotoxicity effect of active molecules was evaluated in murine macrophage J774A.1 cell line (ATCC # TIB-67) following the same protocol described above for Acanthamoeba trophozoites. Then, plates containing alamarBlue® were incubated for 24 h at 37 °C in presence of CO2 at 5%.

3.10. Statistical Analysis

The percentage of the growth inhibition, 50% inhibitory concentration (IC50 or CC50), was calculated by nonlinear regression analysis with 95% confidence limits using Sigma Plot 12.0 statistical analysis software (Systat Software). All experiments were performed three times, and the mean values were also calculated. A paired two-tailed t-test was used for analysis of the data. Values of p < 0.05 were considered significant.

3.11. Double-Stain Assay for Programmed Cell Death Determination

105 amoebas/well were incubated in a 24-well plate with the previously calculated IC90 of 7OSTS for 24 h. A double-stain apoptosis detection kit (Hoechst 33342/PI) (ThermoFisher™, Waltham, MA, USA) was used to carry out the experiment following the manufacturer’s recommendations. The images were obtained using the EVOS FL Cell Imaging System AMF4300, Life Technologies, USA. The double-staining pattern allows the identification of live cells with low level of fluorescence, cells undergoing PCD with a higher level of blue fluorescence (as chromatin condenses), and dead cells which will show low-blue and high-red fluorescence (as the propidium iodide stain enters the nucleus of dead cells).

3.12. Analysis of Mitochondrial Membrane Potential

The use of JC-1 mitochondrial membrane potential detection kit (Cayman Chemical) it is possible to detect the collapse of an electrochemical gradient across the mitochondrial membrane during apoptosis process. 105 amoebas/mL were treated with IC90 of 7OSTS (2) for 24 h, the cells were centrifuged (1000 rpm × 10 min) and suspended in JC-1 buffer. Images were taken on the EVOS FL inverted microscope. The staining pattern allows the identification of two groups in a cellular population: live cells will show only red fluorescence, but cells with low mitochondrial potential (undergoing PCD) will show a higher level of green fluorescence.

3.13. Measurement of ATP Levels

An appropriate level of ATP is necessary to maintain the cell metabolism. The effect of the drug on the ATP production was evaluated by incubating (105) of cells/mL with the previously calculated IC90 of 7OSTS (2) using the CellTiter-Glo Luminescent Cell Viability Assay. The luminescence of each assay was measured on the EnSpire®.

3.14. Plasma Membrane Permeability

In order to detect alterations of the membrane permeability in treated cells, the SYTOX Green (ThermoFischerTM) assay was performed. Briefly, 105 trophozoite were washed and incubated in saline solution with SYTOX Green at a final concentration of 1 μM for 15 min in darkness. After that, IC90 of 7OSTS (2) was added to the cells and incubated for 24 h. Cells were observed and pictures were taken on the EVOS FL inverted microscope.

4. Conclusions

It is known that infections caused by Acanthamoeba spp. affect millions of people worldwide as well as the deficiency of satisfactory treatments. The lack of effectiveness due to drug resistance, and high toxicity are the main drawbacks of currently used drugs. Current therapeutic options against AK rely on the application of biguanides (mainly chlorhexidine or polyhexamethylene biguanide (PHMB)) and azoles (voriconazole) both as eye drops and/or topical. These agents are able to eliminate the trophozoite stage, however the concentrations needed to kill the cysts are usually higher and thus toxic to the eye of the patients. Moreover, these options are lengthy and require application even each hour complicating patients’ healing [28]. Therefore, there is an urgent need to develop new agents to treat AK.
Based on the knowledge of indolocarbazole-type metabolites and their interactions with protein kinases, in this work we have been able to hypothesize about their response against Acanthamoeba parasites. Thus, assuming STS (1) as a leader compound, it is possible to conclude that in Acanthamoeba spp., both 1 and 2, seem to present similar interactions with the parasite PKs and, therefore, both compounds show similar ranges of inhibition. Similar structural analysis allowed to predict that, for compounds 3 and 4, minor activities should be expected. Among minor metabolites, 7OSTS (2) was the most active. The study of its mode of action on A. castellanii Neff trophozoites showed that 7OSTS (2) induced chromatin condensation and triggered important morphological changes of cells, affecting membrane permeability, and causing mitochondrial damage.
This study reveals the ICZ family as potential molecules or biological tools to explore the mechanism of action and the structure of other families of protein kinases. At the moment, there are not known drugs targeting protein kinases of Acanthamoeba spp., fact that increases the value of ICZ compounds. Protein kinases could be an alternative and relevant target to fight against amoeboid infections.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/10/588/s1, Scheme S1: Isolation and purification of metabolites from Streptomyces sanyensis; Figure S1: Chemical structure, atom carbon position numbers and physical data for staurosporine (STS) 1; Table S1: NMR data for staurosporine (STS) 1 in CD2Cl2 (600 MHz, 298 K), Figure S2: 1H NMR spectrum of staurosporine (1) in CD2Cl2 (600 MHz, 298 K); Figure S3: 13C NMR spectrum of staurosporine (1) in CD2Cl2 (150 MHz, 298 K); Figure S4: Chemical structure, atom carbon position numbers and physical data for 7-oxostaurosporine (2); Table S2: NMR data for 7-oxostaurosporine (2) in CD2Cl2 (600 MHz, 298 K); Figure S5: 1H NMR spectrum of 7-oxostaurosporine (2) in CD2Cl2 (600 MHz, 298 K); Figure S6: 13C NMR spectrum of 7-oxostaurosporine (2) in CD2Cl2 (150 MHz, 298 K); Figure S7: Chemical structure, atom carbon position numbers and physical data for 4′-demethylamino-4′-oxostaurosporine (3); Table S3: NMR data for 4′-demethylamino-4′-oxostaurosporine (3) in CD2Cl2 (600 MHz, 298 K); Figure S8: 1H NMR spectrum of 4′-demethylamino-4′-oxostaurosporine (3) in CD2Cl2 (600 MHz, 298 K); Figure S9: 13C NMR spectrum of 4′-demethylamino-4′-oxostaurosporine (3) in CD2Cl2 (150 MHz, 298 K); Figure S10: Chemical structure, atom carbon position numbers and physical data for streptocarbazole B (SCZ B, 4); Table S4: NMR data for streptocarbazole B (SCZ B, 4) in CD2Cl2 (600 MHz, 298 K); Figure S11: 1H NMR spectrum of streptocarbazole B (SCZ B, 4) in CD2Cl2 (600 MHz, 298 K); Figure S12: 13C NMR spectrum of streptocarbazole B (SCZ B, 4) in CD2Cl2 (150 MHz, 298 K).

Author Contributions

J.L.-M., A.R.D.-M., J.E.P., and J.J.F. conceived and designed the experiments. L.C., A.R.D.-M., and J.J.F. conducted the isolation, culturing, phytochemical and spectral analysis of the chemical compounds. J.L.M., M.R.-B., J.E.P., I.A.-J., and I.S. contributed with the amoebicidal activity and their interpretation assays, Programmed Cell Death analysis and biological data compilation. All authors contributed equally to the final version of the manuscript.

Funding

This work was funded by PI18/01380 from Instituto de Salud Carlos III, Spain and RICET (RD16/0027/0001 project, from Programa Redes Temáticas de Investigación Cooperativa), FIS (Ministerio Español de Salud, Madrid, Spain), FEDER and INTERREG-MAC/1.1b/042 (BIOTRANSFER2).

Acknowledgments

IS and ARDM were funded by the Agustín de Betancourt Programme (Cabildo de Tenerife-ULL). Authors acknowledge the use of General Research Support Services of University of La Laguna (SEGAI-ULL).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sánchez, C.; Mendez, C.M.; Salas, J.A. Indolocarbazole natural products: Occurrence, biosynthesis, and biological activity. Nat. Prod. Rep. 2006, 23, 1007–1045. [Google Scholar] [CrossRef] [PubMed]
  2. Nakano, H.; Omura, S. Chemical biology of natural indolocarbazole products: 30 years since the discovery of staurosporine. J. Antibiot. 2009, 62, 17–26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yanosik, T.; Rannug, A.; Rannug, U.; Whalström, N.; Slätt, J. Chemistry and properties of Indolocarbazoles. Chem. Rev. 2018, 118, 9058–9128. [Google Scholar] [CrossRef] [PubMed]
  4. Omura, S.; Iwai, Y.; Hirano, A.; Nakagawa, A.; Awaya, J.; Tsuchiya, H.; Takahashi, Y.; Masuma, R. A new alkaloid AM-2282 of Streptomyces origin. Taxonomy, fermentation, isolation and preliminary characterization. J. Antibiot. 1977, 30, 275–282. [Google Scholar] [CrossRef]
  5. Tamaoki, T.; Nomoto, H.; Takahashi, I.; Kato, Y.; Morimoto, M.; Tomita, F. Staurosporine, a potent inhibitor of phospholipid/Ca++dependent protein kinase. Biochem. Biophys. Res. Commun. 1986, 135, 397–402. [Google Scholar] [CrossRef]
  6. Lawrie, A.M.; Noble, M.E.M.; Tunnah, P.; Brown, N.R.; Johnson, L.N.; Endicott, J.A. Protein kinase inhibition by staurosporine revealed in details of the molecular interaction with CDK2. Nat. Struct. Biol. 1997, 4, 796–801. [Google Scholar] [CrossRef]
  7. Kase, H.; Iwahashi, K.; Nakanishi, S.; Matsuda, Y.; Yamada, K.; Takahashi, M.; Murakata, C.; Sato, A.; Kaneko, M. K-252 compounds, novel and potent inhibitors of protein kinase C and cyclic nucleotide-dependent protein kinases. Biochem. Biophys. Res. Commun. 1987, 30, 436–440. [Google Scholar] [CrossRef]
  8. Tapley, P.; Lamballe, F.; Barbacid, M. K252a is a selective inhibitor of the tyrosine protein kinase activity of the trk family of oncogenes and neurotrophin receptors. Oncogene 1992, 7, 371–381. [Google Scholar]
  9. Yamashita, Y.; Fujii, N.; Murakata, C.; Ashizawa, T.; Okabe, M.; Nakano, H. Induction of Mammalian DNA Topoisomerase I Mediated DNA Cleavage by Antitumor Indolocarbazole Derivatives. Biochemistry 1992, 31, 12069–12075. [Google Scholar] [CrossRef]
  10. Welburn, S.; Macleod, E.; Figarella, K.; Duzensko, M. Programmed cell death in African trypanosomes. Parasitology 2006, 132 (Suppl. 1), S7–S18. [Google Scholar] [CrossRef]
  11. Yin, J.; Howe, J.; Tan, K. Staurosporine-induced programmed cell death in Blastocystis occurs independently of caspases and cathepsins and is augmented by calpain inhibition. Microbiology 2010, 156, 1284–1293. [Google Scholar] [CrossRef] [Green Version]
  12. Bruges, G.; Betancourt, M.; March, M.; Sanchez, E.; Mijares, A. Apoptotic-like activity of staurosporine in axenic cultures of Trypanosoma evansi. Rev. Inst. Med. Trop. 2012, 54, 103–118. [Google Scholar] [CrossRef]
  13. Naula, C.; Parsons, M.; Mottram, J. Protein kinases as drug targets in trypanosomes and Leishmania. Biochim. Biophys. Acta 2005, 1754, 151–159. [Google Scholar] [CrossRef]
  14. Barth, T.; Bruges, G.; Meiwes, A.; Mogk, S.; Mudogo, C.; Duszenko, M. Staurosporine-Induced Cell Death in Trypanosoma brucei and the Role of Endonuclease G during Apoptosis. Open J. Apoptosis 2014, 3, 16–31. [Google Scholar] [CrossRef]
  15. Osada, H.; Koshino, H.; Kudo, T.; Onose, R.; Isono, K. A new inhibitor of protein kinase c, rk- 1409 (7-oxostaurosporine) I. Taxonomy and biological activity. J. Antibiot. 1992, 45, 189–194. [Google Scholar] [CrossRef]
  16. Cai, Y.; Fredenhagen, A.; Hug, P.; Meyer, T. Further minor metabolites of Staurosporine produced by a Streptomyces longisporoflavus strain. J. Antibiot. 1996, 49, 519–526. [Google Scholar] [CrossRef]
  17. Fu, P.; Yang, C.; Wang, Y.; Liu, P.; Ma, Y.; Xu, L.; Su, M.; Hong, K.; Zhu, W. Streptocarbazoles A and B, Two Novel Indolocarbazoles from the Marine-Derived Actinomycete Strain Streptomyces sp. FMA. Org. Lett. 2012, 14, 2422–2425. [Google Scholar] [CrossRef]
  18. Cartuche, L.; Sifaoui, I.; Cruz, D.; Reyes-Batlle, M.; Lopez-Arencibia, A.; Fernández, J.J.; Diaz-Marrero, A.R.; Piñero, J.E.; Lorenzo-Morales, J. Staurosporine from Streptomyces sanyensis activates Programmed Cell Death in Acanthamoeba via the mitochondrial pathway and presents low cytotoxicity levels to vertebrate cells. Sci. Rep. 2019, 9, 11651. [Google Scholar] [CrossRef]
  19. Taravaud, A.; Loiseau, P.M.; Pomel, S. In vitro evaluation of antimicrobial agents on Acanthamoeba sp. and evidence of a natural resilience to amphotericin B. Int. J. Parasitol. Drugs Drug Resist. 2017, 7, 328–336. [Google Scholar] [CrossRef]
  20. García-Davis, S.; Sifaoui, I.; Reyes-Batlle, M.; Viveros-Valdez, E.; Piñero, J.E.; Lorenzo-Morales, J.; Fernández, J.J.; Díaz-Marrero, A.R. Anti-Acanthamoeba Activity of Brominated Sesquiterpenes from Laurencia johnstonii. Mar. Drugs 2018, 16, 443. [Google Scholar] [CrossRef]
  21. Lorenzo-Morales, J.; Díaz-Marrero, A.R.; Cen-Pacheco, F.; Sifaoui, I.; Reyes-Batlle, M.; Souto, M.L.; Hernández Daranas, A.; Piñero, J.E.; Fernández, J.J. Evaluation of Oxasqualenoids from the Red Alga Laurencia viridis against Acanthamoeba. Mar. Drugs 2019, 17, 420. [Google Scholar] [CrossRef] [PubMed]
  22. Kaczanowski, S.; Sajid, M.; Reece, S.E. Evolution of apoptosis-like programmed cell death in unicellular protozoan parasites. Parasites Vectors 2011, 4, 2–9. [Google Scholar] [CrossRef] [PubMed]
  23. Gani, O.A.S.M.; Engh, R.A. Protein kinase inhibition of clinically important staurosporine analogues. Nat. Prod. Rep. 2010, 27, 489–498. [Google Scholar] [CrossRef] [PubMed]
  24. Tanramluk, D. On the Origins of Enzyme Inhibitor Selectivity and Promiscuity: A Case of Study of Protein Kinase Binding to Staurosporine. Ph.D. Thesis, University of Cambridge, Cambridge, UK, 2009. [Google Scholar]
  25. Long, B.H.; Rose, W.C.; Vyas, D.M.; Matson, J.A.; Forenza, S. Discovery of antitumor indolocarbazoles: Rebeccamycin, NSC 655649, and fluoroindolocarbazoles. Curr. Med. Chem. Anticancer Agents 2002, 2, 255–266. [Google Scholar] [CrossRef] [PubMed]
  26. Pereira, E.R.; Belin, L.; Sancelme, M.; Prudhomme, M.; Ollier, M.; Rapp, M.; Sevère, D.; Riou, F.-F.; Fabbro, D.; Meyer, T. Structure-activity relationships in a series of substituted indolocarbazoles: Topoisomerase I and protein kinase C inhibition and antitumoral and antimicrobial properties. J. Med. Chem. 1996, 39, 4471–4477. [Google Scholar] [CrossRef]
  27. Cinelli, M.A. Topoisomerase 1B poisons: Over a half-century of drug leads, clinical candidates and serendipitous discoveries. Med. Res. Rev. 2019, 39, 1294–1337. [Google Scholar] [CrossRef]
  28. Bhaduri, S.; Ranjan, N.; Arya, D.P. An overview of recent advances in duplex DNA recognition by small molecules. Beilstein J. Org. Chem. 2018, 14, 1051–1086. [Google Scholar] [CrossRef]
  29. Sánchez, C.; Zhu, L.; Braña, A.F.; Salas, A.P.; Rohr, J.; Méndez, C.; Salas, J.A. Combinatorial Biosynthesis of Antitumor Indolocarbazole Compounds. Proc. Natl. Acad. Sci. USA 2005, 102, 46–466. [Google Scholar] [CrossRef]
  30. Bush, J.A.; Long, B.H.; Catino, J.J.; Bradner, W.T.; Tomita, K. Production and biological activity of rebeccamycin, a novel antitumor agent. J. Antibiot. (Tokyo) 1987, 40, 668–678. [Google Scholar] [CrossRef]
  31. Sanchez-Martinez, C.; Shih, C.; Faul, M.M.; Zhu, G.; Paal, M.; Somoza, C.; Li, T.; Kumrich, C.A.; Winneroski, L.L.; Xun, Z.; et al. Aryl[a]pyrrolo[3,4-c]carbazoles as selective cyclin D1-CDK4 inhibitors. Bioorg. Med. Chem. Lett. 2003, 13, 3835–3839. [Google Scholar] [CrossRef]
  32. González-Robles, A.; Salazar-Villatoro, L.; Omaña-Molina, M.; Reyes-Batlle, M.; Martín-Navarro, C.M.; Lorenzo-Morales, J. Morphological Features and In Vitro Cytopathic Effect of Acanthamoeba griffini Trophozoites Isolated from a Clinical Case. J. Parasitol. Res. 2014, 2014, 256310. [Google Scholar] [CrossRef]
  33. McBride, J.; Ingram, P.R.; Henriquez, F.L.; Roberts, C.W. Development of colorimetric microtiter plate assay for assessment of antimicrobials against Acanthamoeba. J. Clin. Microbiol. 2005, 43, 629–634. [Google Scholar] [CrossRef]
  34. Lorenzo-Morales, J.; Khan, N.A.; Walochnik, J. An update on Acanthamoeba keratitis: Diagnosis, pathogenesis and treatment. Parasite 2015, 22, 10. [Google Scholar] [CrossRef]
  35. Lorenzo-Morales, J.; Kliescikova, J.; Martinez-Carretero, E.; De Pablos, L.M.; Profotova, B.; Nohynkova, E.; Osuna, A.; Valladares, B. Glycogen phosphorylase in Acanthamoeba spp.: Determining the role of the enzyme during the encystment process using RNA interference. Eukaryot. Cell 2008, 7, 509–517. [Google Scholar] [CrossRef]

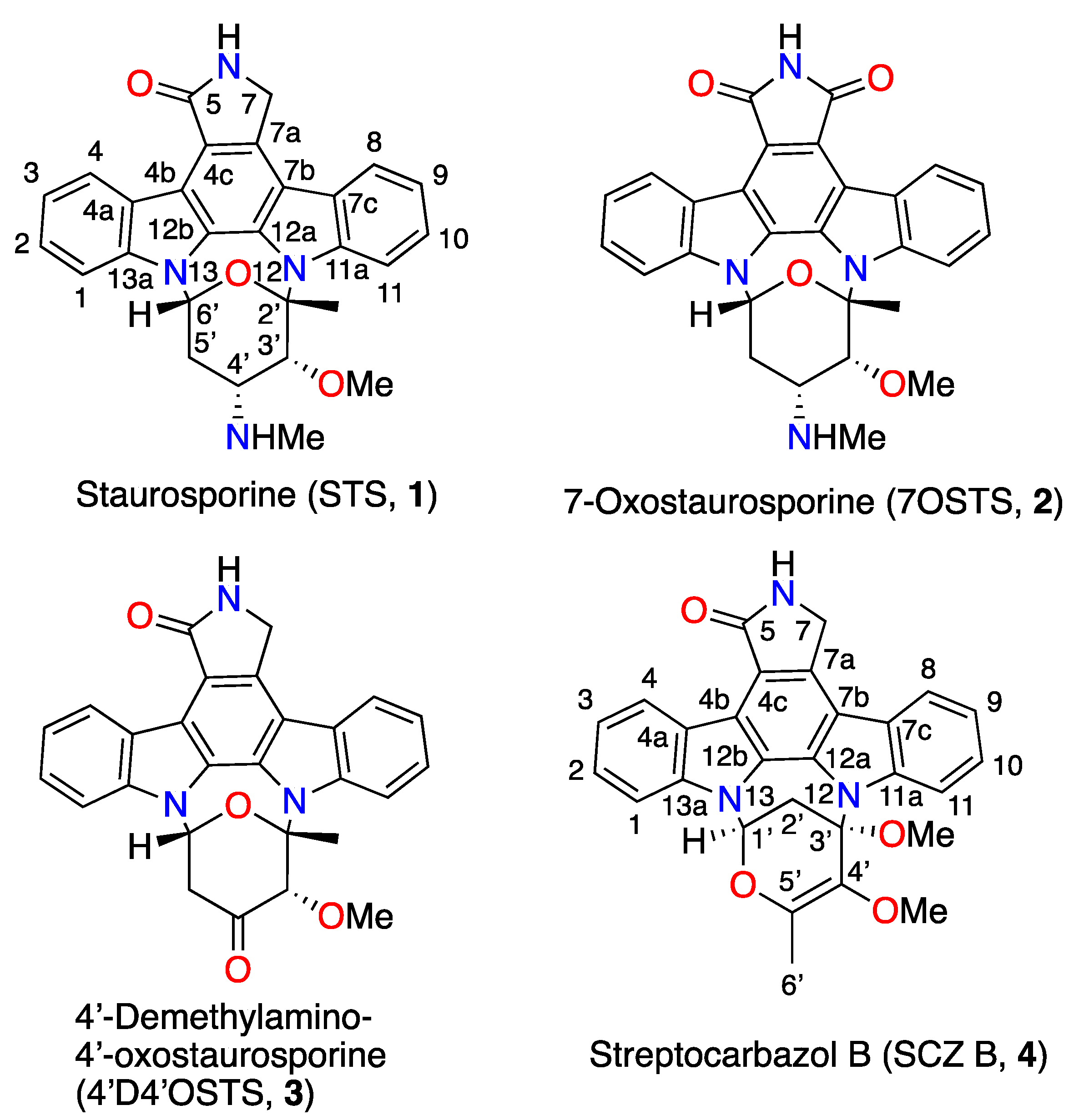

Figure 1. Chemical structures of indolocarbazole (ICZs) metabolites isolated from cultures of Streptomyces sanyensis PBLC04 strain.
Figure 1. Chemical structures of indolocarbazole (ICZs) metabolites isolated from cultures of Streptomyces sanyensis PBLC04 strain.
Marinedrugs 17 00588 g001
Figure 2. Effect of 7OSTS (2) on the cyst of A. castellanii Neff at 10 µM (A), 2.6 µM (B), 0.65 µM (C), and negative control (D). All images (10×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Figure 2. Effect of 7OSTS (2) on the cyst of A. castellanii Neff at 10 µM (A), 2.6 µM (B), 0.65 µM (C), and negative control (D). All images (10×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Marinedrugs 17 00588 g002
Figure 3. Effect of the IC90 concentration of 7OSTS (2) on the chromatin condensation at 24 h (A) and negative control (B) (overlay channels). All images (20×) are representative of the population of treated amoeba and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Figure 3. Effect of the IC90 concentration of 7OSTS (2) on the chromatin condensation at 24 h (A) and negative control (B) (overlay channels). All images (20×) are representative of the population of treated amoeba and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Marinedrugs 17 00588 g003
Figure 4. Effect on the mitochondrial potential in amoeba treated with the IC90 of 7PSTS for 24 h (A) compared with the negative control (B) (overlay channels). JC-1 dye remained in the cytoplasm in its monomeric form, green fluorescence, and indicates the collapse of mitochondrial potential (A). In negative control (B) JC-1 dye accumulates in the mitochondria of healthy cells as aggregates (red fluorescence). All images (20×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Figure 4. Effect on the mitochondrial potential in amoeba treated with the IC90 of 7PSTS for 24 h (A) compared with the negative control (B) (overlay channels). JC-1 dye remained in the cytoplasm in its monomeric form, green fluorescence, and indicates the collapse of mitochondrial potential (A). In negative control (B) JC-1 dye accumulates in the mitochondria of healthy cells as aggregates (red fluorescence). All images (20×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Marinedrugs 17 00588 g004

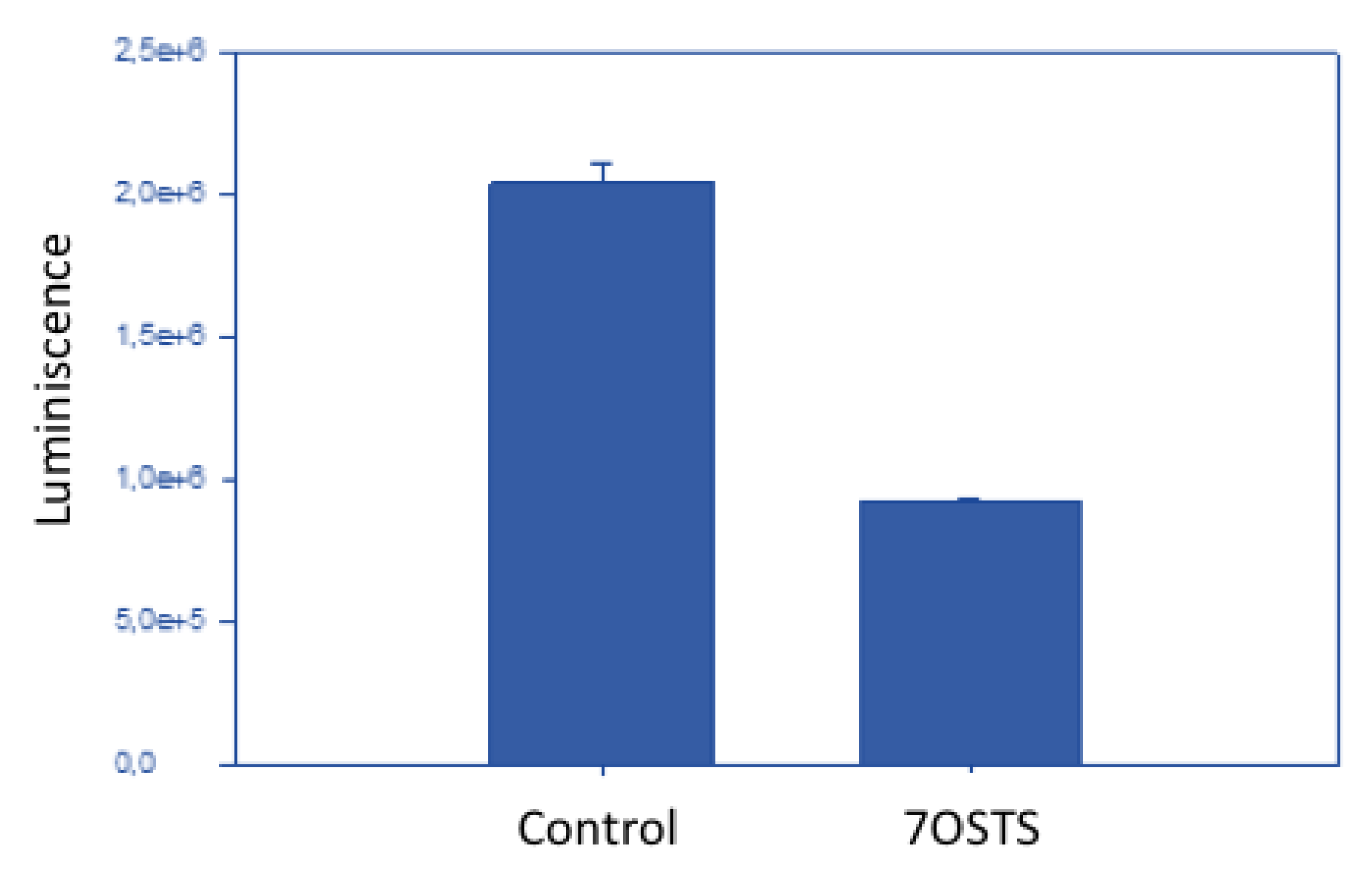

Figure 5. ATP measurement assay with negative control and 7OSTS (2).
Figure 5. ATP measurement assay with negative control and 7OSTS (2).
Marinedrugs 17 00588 g005
Figure 6. Permeabilization of the A. castellanii Neff plasmatic membrane to SYTOX® Green dye caused by addition of IC90 of 7OSTS (2) (A) comparing with the negative control (B) (overlay channels). All images (20×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Figure 6. Permeabilization of the A. castellanii Neff plasmatic membrane to SYTOX® Green dye caused by addition of IC90 of 7OSTS (2) (A) comparing with the negative control (B) (overlay channels). All images (20×) are representative of the population of treated amoeba, and are based on Live Cell Imaging Microscope EVOS FL Cell Imaging System.
Marinedrugs 17 00588 g006

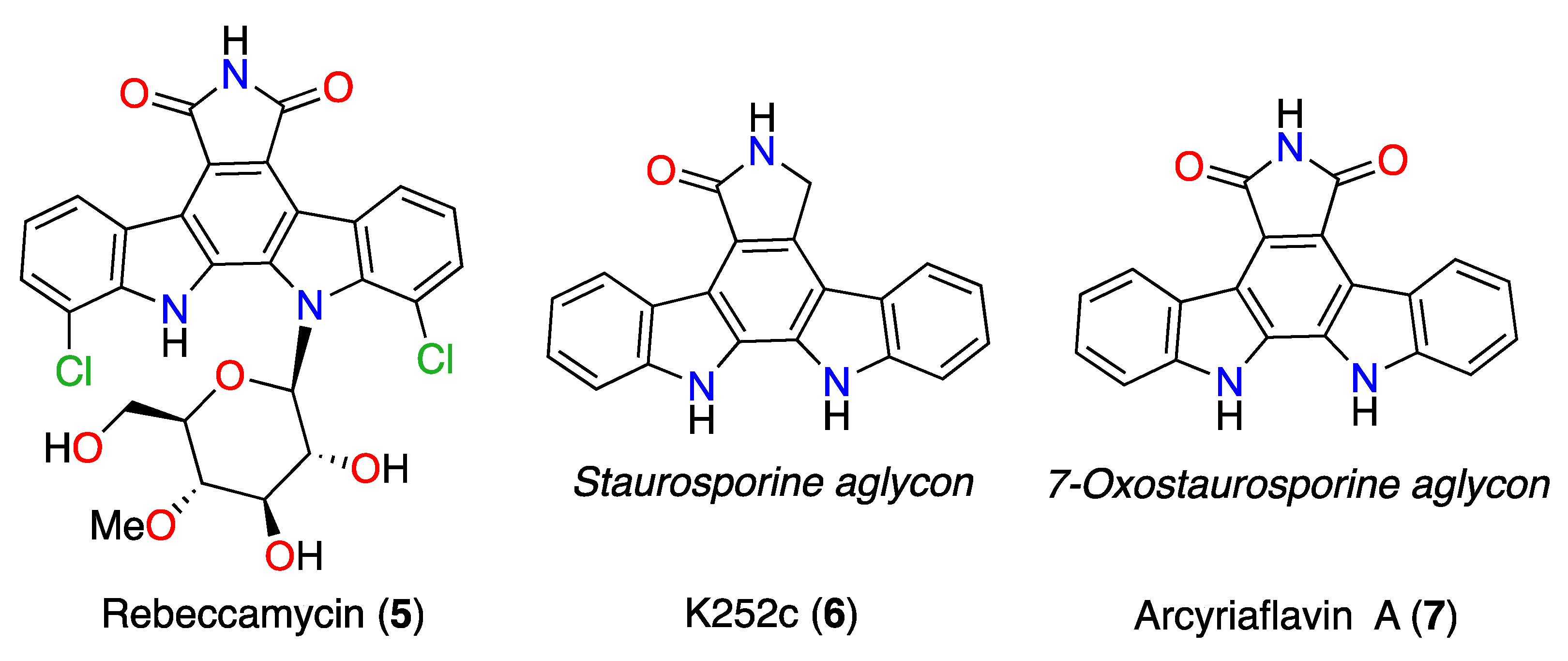

Figure 7. Commercial ICZs: rebeccamycin (5), K252c (6), and arcyriaflavin A (7).
Figure 7. Commercial ICZs: rebeccamycin (5), K252c (6), and arcyriaflavin A (7).
Marinedrugs 17 00588 g007

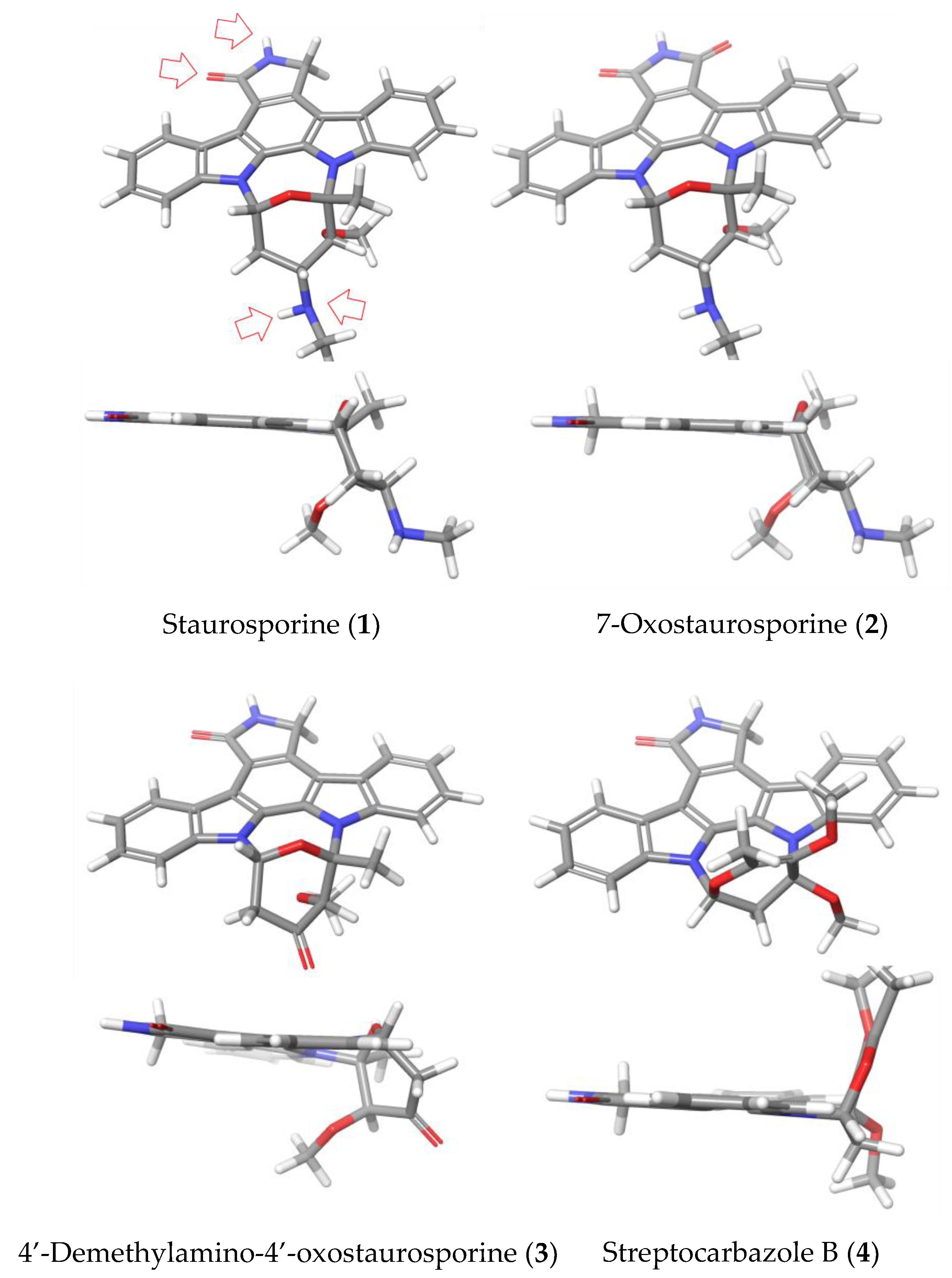

Figure 8. 3D Chemical structures for (ICZs) metabolites isolated from Streptomyces sanyensis cultures. Top and perpendicular views to the indol system. Red arrows indicate the interaction sites of stauroporine (STS, 1) with protein kinase type CDK2 models. Minimized structures were obtained using Maestro, version 10.2, Schrödinger, LLC, New York, NY, 2015.
Figure 8. 3D Chemical structures for (ICZs) metabolites isolated from Streptomyces sanyensis cultures. Top and perpendicular views to the indol system. Red arrows indicate the interaction sites of stauroporine (STS, 1) with protein kinase type CDK2 models. Minimized structures were obtained using Maestro, version 10.2, Schrödinger, LLC, New York, NY, 2015.
Marinedrugs 17 00588 g008
Table 1. Effects of ICZ metabolites isolated from Streptomyces sanyensis against Acanthamoeba species. IC50 are reported in µM concentrations (Mean concentration ± SD). * Reference compounds.
Table 1. Effects of ICZ metabolites isolated from Streptomyces sanyensis against Acanthamoeba species. IC50 are reported in µM concentrations (Mean concentration ± SD). * Reference compounds.
CompoundsA. castellanii NeffA. griffiniA. polyphaga
STS (1) [18]0.57 ± 0.120.97± 0.122.25 ± 0.42
7OSTS (2)0.83 ± 0.090.96 ± 0.195.51 ± 0.09
4’D4’OSTS (3)7.53 ± 0.7323.86 ± 0.55>40
ICZ B (4)6.83 ± 2.6014.51 ±0.38>40
Rebeccamycin (5)5.37 ± 0.235.02 ± 0.187.47 ± 0.61
K252c (6)6.17 ± 0.732.25 ± 0.325.59 ± 0.34
Arcyriaflavin A (7)7.32 ± 0.457.53 ± 1.117.59 ± 0.73
Chlorhexidine *3.02 ± 0.893.73 ± 0.984.76 ± 0.08
Voriconazole *0.94 ± 0.290.10 ± 0.0210.10 ± 2.21
Table 2. Toxicity of compounds 14 against murine macrophage J774A.1 (CC50) measured by alamarBlue® assay; and CC50 are reported in µM concentrations (Mean concentration ± SD). *Reference compounds.
Table 2. Toxicity of compounds 14 against murine macrophage J774A.1 (CC50) measured by alamarBlue® assay; and CC50 are reported in µM concentrations (Mean concentration ± SD). *Reference compounds.
CompoundsMacrophage J774A.1 CC50 (µM)
STS (1)8.74 ± 0.72
7OSTS (2)5.20 ± 1.75
4’D4’OSTS (3)>40
ICZ B (4)>40
Chlorhexidine *7.40 ± 0.39
Voriconazole *7.56 ± 0.77
