Mar. Drugs 2018, 16(8), 267; https://doi.org/10.3390/md16080267

Article
Orally Administered Phlorotannins from Eisenia arborea Suppress Chemical Mediator Release and Cyclooxygenase-2 Signaling to Alleviate Mouse Ear Swelling
1
Laboratory of Food Function and Biochemistry, Department of Food Science and Technology, National Research and Development Agency, Japan Fisheries Research and Education Agency, National Fisheries University, Shimonoseki 759-6595, Japan
2
Laboratory of Bioorganic Chemistry, Graduate School of Bioresources, Mie University, Tsu 514-8507, Japan
3
Laboratory of Marine Biochemistry, Graduate School of Bioresources, Mie University, Tsu 514-8507, Japan
*
Author to whom correspondence should be addressed.
Received: 3 July 2018 / Accepted: 28 July 2018 / Published: 2 August 2018

Abstract

:
Phlorotannin is the collective term for polyphenols derived from brown algae belonging to the genera Ascopyllum, Ecklonia, Eisenia, Fucus and Sargassum etc. Since the incidence of allergies is currently increasing in the world, there is a focus on phlorotannins having anti-allergic and anti-inflammatory effects. In this study, six purified phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol; phlorofucofuroeckol (PFF)-A and PFF-B) from Eisenia arborea, orally administered to mice, were examined for their suppression effects on ear swelling. In considering the suppression, we also examined whether the phlorotannins suppressed release of chemical mediators (histamine, leukotriene B4 and prostaglandin E2), and mRNA expression and/or the activity of cyclooxygenase-2 (COX-2), using RBL-2H3 cells, a cultured mast cell model. Results showed that the phlorotnannins exhibited suppression effects in all experiments, with 6,8′-bieckol, 8,8′-bieckol and PFF-A showing the strongest of these effects. In conclusion, orally administered phlorotannins suppress mouse ear swelling, and this mechanism apparently involves suppression of chemical mediator release and COX-2 mRNA expression or activity. This is the first report of the anti-allergic effects of the orally administered purified phlorotannins in vivo. Phlorotannins show potential for use in functional foods or drugs.
Keywords:
brown algae; phlorotannins; anti-allergy; mouse ear swelling; arachidonic acid cascade; chemical mediators

1. Introduction

In developed countries, an increase in the incidence of allergies such as food allergy, asthma, atopic dermatitis and hay fever, has become an acute problem [1]. In particular, according to the Health, Labour and Welfare Ministry of Japan, half of the Japanese population may suffer allergies of some kind [2]. In Japan, where allergies are a societal problem, natural remedies and foods possessing anti-allergic and anti-inflammatory effects are needed, and much research into compounds and products with anti-allergic effects is underway. Phenolic compounds (polyphenols) are a well-known class of natural anti-allergic natural compounds that are derived from food materials. Polyphenols in terrestrial plants include tea catechins, flavonoids and tannins. In particular, the anti-allergenic mechanisms of tea catechins are well reported [3].
Polyphenols are also present in seaweed and the collective term for seaweed polyphenol is phlorotannins. Phlorotannins, such as eckol, dieckol, 6,6′-bieckol, 8,8′-bieckol and phlorofucofuroeckol (PFF)-A, are well-known components of brown algae [4]. They are secondary metabolites of photosynthesis and protect algae from ultraviolet (UV) radiation and from consumption by herbivores. In humans, phlorotannins incorporated into health foods or used as drugs are useful physiologically-active compounds that can be used to prevent lifestyle-related diseases, such as cancer and diabetes [5]. There are, therefore, several reports of their anti-allergenic and anti-inflammatory effects. In recent reports, phlorotannin extracts from Fucales inhibited lipoxygenase activity and nitrite oxide production from RAW 264.7 cells, and some phlorotannins from Ecklonia cava, Ecklonia stolonifera and Eisenia bicyclis suppressed inflammation through the MAPK cascade or through chemical mediator production in BV-2, HaCaT and RAW 264.7 cells [6,7,8,9,10]. In our previous study, we isolated six phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol; PFF-A and PFF-B, Figure 1) from the brown alga Eisenia arborea [11,12], and reported the anti-allergenic and anti-inflammatory effects of their phlorotannins [13,14]. Validation studies of effective extraction or purification methods of them using supercritical fluid extraction, pressurized liquid extraction, liquid–liquid or solid–liquid separation, chromatographic methods and liquid chromatography high-resolution mass spectrometry have also been reported since publication of the usefulness of phlorotannins [15,16,17,18].
While the anti-allergenic effects of terrestrial plant polyphenols are well documented, there are fewer published studies on phlorotannins on the anti-allergenic and anti-inflammatory effects of phlorotannins and most reports concern in vitro studies. In this context, we aimed to the efficacy of phlorotannins as anti-allergenic and anti-inflammatory compounds in vivo. In a previous study, we had investigated the inhibitory effects of six pirified phlorotannins on allergic inflammation-related enzymatic activities [13,14] and their efficacy in suppressing mouse ear swelling [19,20]. When percutaneously administered, the phlorotannins suppressed the mouse ear swelling by sensitizers including arachidonic acid (AA), 12-O-tetradecanoylphorbol-13-acetate (TPA) and oxazolone (OXA) [19,20]. However, the therapeutic effects of phlorotannins remains to be investigated. In addition, the efficacy of phlorotanins when given in food (intestinal absorption) or when taken as an anti-allergenic drug needs to be investigated. In fact, fucoxanthin, a marine carotenoid, and isoflavonoids possess bioactive properties to convert to fucoxanthinol and equol, respectively, in the intestine [21,22]. Therefore, in this study, we also examined whether the six purified phlorotannins were administered orally suppressed mouse ear swelling that was induced by AA, TPA and OXA in vivo. Moreover, the ear swelling induced by the three sensitizers we used involves cyclooxygenase (COX)-2 expression or activity, which is attributed to chemical mediator release such as histamine, leukotrienes and prostaglandins [23,24,25]. Accordingly, to investigate the suppression mechanism in vitro, we examined the effects of the six phlorotannins on chemical mediator release and COX-2 expression or activity in a cultured mast cell line, rat basophile leukemia (RBL)-2H3.

2. Results

2.1. Suppression of Mouse Ear Swelling

To investigate the anti-inflammatory effects of the six purified phlorotannins in vivo, we induced ear swelling in Institute of Cancer Research (ICR) mice using three sensitizers (AA, TPA and OXA), and we administered orally the purified phlorotannins. In parallel, we used terrestrial plant polyphenol epigallocatechin gallate (EGCG) well-known for its anti-allergenic and anti-inflammatory properties [3].
As shown in Table 1, the six phlorotannins suppressed AA-induced mouse ear swelling. Ear swelling values for 6,6′-bieckol, 6,8′-bieckol, PFF-A and PFF-B were significantly (p < 0.05) lower than they were for controls. The suppression ratios for 6,6′-bieckol, 6,8′-bieckol and PFF-B tended to be higher than they were for epigallocatechin gallate (EGCG). The six phlorotannins also suppressed TPA-induced mouse ear swelling. Ear swelling values for the six phlorotannins were significantly (p < 0.05) lower than controls. The suppression ratio for 6,8′-bieckol was significantly (p < 0.05) higher, and the ratios for eckol and PFF-B tended to be higher than for EGCG. Moreover, the six phlorotannins suppressed OXA-induced mouse ear swelling. Ear swelling values for 6,8′-bieckol, 8,8′-bieckol and PFF-B were significantly (p < 0.05) lower than for those of controls. The suppression ratios for 6,8′-bieckol and PFF-B were significantly (p < 0.05) higher, and the ratio of 8,8′-bieckol tended to be higher than for EGCG. In spite of the weakest suppression by EGCG at 75 nmol (5.7%), 6,8′-bieckol at 75 nmol exhibited the strongest suppression (77.8%). EGCG at 200 nmol suppressed ear swelling by 34.3% (data not shown).
The apparent suppression ratios of the six purified phlorotannins except for eckol in AA sensitization were higher than those of EGCG, in each sensitizer experiment. Difference of suppression effects of eckol or 6,6′-bieckol on each ear swelling induced by the three sensitizers was observed. Using any of the three sensitizers, 8,8′-bieckol and PFF-A exhibited a reasonable suppression ratio in the range of 21.0%–32.3%. However, 6,8′-bieckol and PFF-B clearly suppressed the ear swelling induced by all three sensitizers, suggesting that these two phlorotannins have potency as anti-inflammatory compounds.

2.2. Suppression of Chemical Mediator Release in RBL-2H3 Cells

To investigate the mouse ear swelling suppression mechanism conveyed by the six purified phlorotannins, we tested the potential degranulation or chemical mediator release in RBL cultured mast cells. The RBL cells were stimulated by antigen-antibody reaction or A23187. According to previously reported phlorotannin concentration ranging 1 to 200 μM in cultured model cell experiments [7,8,10,26,27,28,29], we chose a concentration range from 10 to 200 μM in our experiments.

2.2.1. Anti-Degranulation in RBL Cells Stimulated by Antigen-Antibody or A23187

As shown in Table 2, at concentrations of either 10 or 100 μM, 8,8′-bieckol and PFF-A significantly suppressed degranulation in RBL cells (p < 0.01), at a better efficacy than EGCG (in fact, no degranulation in RBL cells treated with these two phlorotannins at 100 μM was observed). At 100 μM, eckol and 6,8′-bieckol suppressed degranulation in RBL cells, compared with EGCG. At 1 μM, although 8,8′-bieckol did not suppress degranulation, the suppression ratio for PFF-A was 13.9% (data not shown). In RBL cells stimulated by A23187, 8,8′-bieckol suppressed degranulation in RBL cells significantly (p < 0.01) more than in EGCG at 10 μM concentrations. No suppression by eckol, 6,6′-bieckol, PFF-A and PFF-B was observed. At 100 μM, suppression by PFF-A tended to be higher than for EGCG, and suppression of 8,8′-bieckol was comparable to that of EGCG.
The apparent suppression ratios of the six purified phlorotannins at 100 μM were lower when stimulation was performed by A23187 than by the anti-antibody, a difference particularly striking in the case if eckol.

2.2.2. Suppression of Chemical Mediator Release from RBL Cells

As shown in Table 3, five phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol and PFF-A) and EGCG at 100 μM suppressed histamine release. The effect of PFF-B was weaker than that of these five phlorotannins, showing a suppressive ratio at 200 μM of 37.1%. Thus, with respect to the suppression of histamine release, the effects of phlorotannins (other than PFF-B) appear comparable to or significantly stronger than for EGCG. The suppression effects of phlorotannins (except for 6,6′-bieckol) on leukotriene B4 release were comparable to EGCG. At 200 μM, a suppression effect for 6,6′-bieckol was observed. The phlorotannins and EGCG at concentrations of both 10 and 100 μM also exhibited suppression effects on prostaglandin E2 release. At 100 μM, the suppression ratio of PFF-A was comparable to that of EGCG.
In leukotriene B4 and prostaglandin E2 release, the apparent effect of 6,6′-bieckol was weakest compared with the other five phlorotannins and EGCG. In histamine release, that of PFF-B was weakest. At 100 μM, eckol, 8,8′-bieckol and PFF-A exhibited definite suppression with ratios over 60%.

2.3. Inhibition of Cyclooxygenase-2 (COX-2) mRNA Expression and COX-2 Activity

The ear swelling induced by the three sensitizers (AA, TPA and OXA) closely involves an increase in cyclooxygenase (COX)-2 expression or activity [23,24,25]. In this study, we therefore investigated inhibitory effects of phlorotannins on each step: COX-2 mRNA expression and COX-2 enzymatic activity. Since the suppression effect of phlorotannins on COX-2 mRNA expression was examined using RBL cells, the concentration of the phlorotannins were 10 μM and 100 μM. On the contrary, since COX-2 reagent and not RBL cells were used in the experiment for inhibitory effects of the phlorotannins on COX-2 activity, it was conducted at the higher concentration.
At the concentration of 10 μM, only 6,8′-bieckol significantly (p < 0.01) inhibited COX-2 mRNA expression in RBL cells, but at 100 μM all six phlorotannins and EGCG showed significant inhibition effects (Figure 2).
Since no inhibition effects on COX-2 activity was observed at 400 μM with 6,6′-bieckol and 6,8′-bieckol [14], the phlorotannins were examined at a concentration of 500 μM. As shown in Figure 3, 6,6′-bieckol and 6,8′-bieckol also inhibited COX-2 activity, with inhibition ratios of 9.8% and 40.4%, respectively, while inhibition with 8,8′-bieckol (96.6%) and PFF-A (96.8%) was comparable to that of EGCG (95.8%). The inhibition ratios of eckol and PFF-B were 82.1% and 47.9%, respectively, and were significantly lower than that of EGCG.

3. Discussion

This is the first reported account that orally administered purified phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol; phlorofucofuroeckol (PFF)-A and PFF-B) suppress mouse ear swelling induced by the three sensitizers AA, TPA and OXA. In our previous study, these percutaneously administered phlorotannins also suppressed ear swelling [19,20]. In the case of percutaneous administration, the phlorotannins directly influence the ear swelling reaction in tissues. However, when considering phlorotannins as health food ingredients, experiments involving oral administration are necessary to demonstrate whether the phlorotannins are absorbed from the intestinal tract to exert their suppression effects and this was shown to be the case in our study (Table 1). Results from a clinical trial using phlorotannin extract of a brown alga, Ascophyllum nodosum, reported that metabolites of phlorotannins composed of phloroglucinol oligomer were found in urine and plasma [30]. Therefore, it might be the metabolites of the phlorotannins that suppressed ear swelling. On the other hand, the inflammation mechanisms of the three sensitizers are divided into two types; immediate-acting (AA or TPA) and a delayed allergic reaction (OXA). The inflammation caused by AA and TPA follows topical application, while the reaction caused by OXA is systemic via immune reactions [25,31]. Whether the suppression effects of the phlorotannins on inflammation seen here can be attributed to a topical effect (such as suppression of chemical mediator release) or, in the case of OXA-induced inflammation to an effect regulating the immune system is unclear. Regarding orally administered terrestrial plant polyphenols, tea theaflavins decreased levels of IL-12 and IFN-γ in mouse ear swelling induced by OXA, and isoflavones suppressed IFN-γ and CCL24 mRNA expression and OXA-specific IgG levels in mice with delayed-type hypersensitivity response induced by OXA or 2,4-dinitrofluorobenzene [32,33,34]. Therefore, phlorotannins might also modulate the immune response following OXA-induced ear swelling, regulating levels of antibodies and cytokines. With respect to the suppression effects of phlorotannins on delayed-type hypersensitivity response induced by OXA, further studies using ICR mice are required. Thus, the novel fact that the six orally administered purified phlorotannins suppressed ear swelling in this study indicates their potential to be active compounds of health foods.
Inflammation caused by AA, TPA and OXA is associated with cyclooxygenase (COX)-2 expression or activity, and attributed to the release of chemical mediator such as histamine, leukotrienes and prostaglandins [23,24,25]. Mast cells aggregate in inflamed tissue and are involved in inflammatory reactions [35]. Therefore, we investigated the mechanism of the suppression effects of the six phlorotannins on mouse ear swelling using a rat mast cell line (RBL-2H3 cells). Using enzyme-linked immunosorbent assay (ELISA) or polymerase chain reaction (PCR), we evaluated the suppression of phlorotnnins on COX-2 expression, COX-2 activity and chemical mediator release. In a previous study, phlorotannin extracts at concentration of 1 mg/mL, including the six purified phlorotannins from Eisenia arborea, strongly suppressed chemical mediator release [14]. In a novel discovery, the suppression effect of the six purified phlorotannins was confirmed (Table 2 and Table 3) in this study. The suppression effects could be attributed to a potentiation involving both the suppression of chemical mediator release and the inhibition of enzymatic activity (phospholipase A2 [PLA2], lipoxygenase [LOX] and COX-2) involved in eicosanoid synthesis [14]. In particular, COX-2 expression and activity is critical for inflammation induced by the three sensitizers [23,24,25]. The six purified phlorotannins at 100 μM suppressed COX-2 mRNA expression in RBL cells. In particular, only 6,8′-bieckol at 10 μM was able to suppress COX-2 mRNA expression (Figure 2). Although the suppression effects of purified phlorotannins on COX-2 mRNA expression in the mouse macrophage cell line RAW 264.7 were already demonstrated in a previous study [8,26,36], this is the first report in mast cell line RBL-2H3. The six phlorotannins at 500 μM inhibited COX-2 enzymatic activity (Figure 3). There are reports that purified phlorotannins reduce COX-2 signaling via suppression of MAPK/NF-κB signaling [8,26,27]. Accordingly, the suppression effects of the six purified phlorotannins tested here could be attributed to COX-2 mRNA expression via suppression of MAPK/NF-κB signaling and inhibition of COX-2 activity in mast cells accumulated in inflamed tissues. In this study, although orally administered 6,6′-bieckol and 6,8′-bieckol suppressed ear swelling (Table 1), at 500 μM they inhibited COX-2 activity (Figure 3) less than they inhibited the other four phlorotannins. The same two phlorotannins at 100 μM suppressed COX-2 mRNA expression in RBL cells, compared with the other four phlorotannins (Figure 2). It has been reported that the anti-inflammatory effect of 6,6′-bieckol is via the inhibition of COX-2 expression and activity through suppression of NF-κB and ERK 1/2 signaling [28,29]. The suppression effect of 6,6′-bieckol on ear swelling could be attributable to greater suppression of COX-2 mRNA expression than to inhibition of COX-2 activity. On the other hand, percutaneously administered 6,8′-bieckol tended to suppress ear swelling more strongly than did 6,6′-bieckol [20], and when orally administered it strongly suppressed the ear swelling induced by TPA and OXA (Table 2 and Table 3). The reason would be that the inhibitory effect of 6,8′-bieckol on COX-2 activity at 500 μM and on mRNA expression at 10 μM is significantly stronger than the inhibitory effects of 6,6-bieckol (Figure 2 and Figure 3). As with 6,6′-bieckol, suppression by 6,8′-bieckol of NF-κB and ERK1/2 signaling in COX-2 signaling might be strengthened. The significant suppression by 6,8′-bieckol of COX-2 mRNA expression is a first report.
There is likely to be a relationship between degranulation (Table 2) and chemical mediator release (Table 3). The suppression effects of eckol, 8,8′-bieckol and PFF-A on degranulation or on the chemical mediator release of each were significant or comparable to the suppression effects of EGCG. The suppression effects of 8,8′-bieckol and PFF-A on degranulation stimulated by A23187 were also comparable to those of EGCG (Table 2). The moderate effect of 6,8′-bieckol is also likely to possess such a relationship. The location of hydroxyl groups in polyphenols is critical for anti-allergenic and inflammatory effects [37,38]. The three bieckols used here are dimers of eckol, the bieckols are isomers, and PFF-A and PFF-B are isomers. Among the phlorotannins, the locations of hydroxyl groups and of the electro-organic interaction are different. Considering their structures and the data presented in Figure 2, Table 2 and Table 3, the location of the C-4-OH or C-4′-OH in eckol and the bieckols might be critical for the suppression effect on degranulation and COX-2 mRNA expression. Regarding the relationship between PFF-A and PFF-B, the C-8-OH of PFF-A and the C-11-OH of PFF-B might be critical for suppression of degranulation and chemical mediator release. It could be that, in PFF-B, the interaction between C-11-OH and C-14-OH reduced the suppression effects compared with PFF-A (Table 2 and Table 3). In addition, the geometry of the aromatic ring and main configuration of the eckol skeleton might be critical for the suppression properties of the six phlorotannins. The geometry and configuration could be dictated by interaction among hydroxyl groups in the phlorotannin molecule, hydroxyl bonding between molecules and π–π bonding among the aromatic rings of the molecules. Since some covalent bonds exist between aromatic rings in the dioxin skeleton, biphenyl bond and phenolic ether bond, the 3-dimensional structures of the phlorotannins are rigid and stable. Therefore, the six purified phlorotannins sould exhibit the anti-allergenic and anti-inflammatory effects. To explain a relationship between the structural variation of the phlorotannins and the differences in suppression effects seen in this study, a further demonstration of interactions between stable structures such as phlorotannins and functional proteins involved in inflammatory reactions would be needed.
In this study, the mechanisms of the suppression effects on mouse ear swelling induced by AA, TPA and OXA of the six orally administered purified phlorotannins are partially demonstrated in experiments with RBL cells and in the evaluation for COX-2 signaling. However, since there is not always a relationship between the in vivo data (Table 1) and the in vitro data (Table 2 and Table 3; Figure 2 and Figure 3), evaluations of intestinal absorption and metabolism of the phlorotannins are needed. Moreover, since an immunomodulating effect of phlorotannin extract on mouse ear swelling induced by TPA has been reported [39], measurement of antibodies and cytokines is needed in mice for which phlorotannins are orally administered.

4. Materials and Methods

4.1. Materials

E. arborea samples were collected from the coast of Mugizaki, Mie Prefecture, Japan. Harvested algae were dried and ground into powder according to the procedure outlined by Sugiura et al. [40]. Previously, six phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol; phlorofucofuroeckol (PFF)-A and PFF-B) (Figure 1) were isolated from powdered algae via methanol/chloroform (M/C) extraction and high performance liquid chromatography (HPLC) (Develosil ODS-5, Nomura Chemical Co., Ltd., Seto, Aichi, Japan) purification [14]. The samples were stored at −80 °C in methanol. Owing to the length of the storage period, we conducted HPLC analysis and 1,1-diphenyl-2-picrylhydrazyl radical scavenging assay [13] to check for phlorotannin decomposition; no decomposition was observed (data not shown). Safety and the absence of toxicity of phlorotannins derived from Ecklonia cava were demonstrated [41,42]. And, in our previous study, we observed no diarrhea or abnormal symptoms in any of the experimental animals fed on the dried powder of E. arborea [40]. Therefore, we considered that the six purified phlorotannins were adequate as material in functional foods and drugs. For a typical natural inhibitor, epigallocatechin gallate (EGCG; Sigma-Aldrich, St. Louis, MO, USA), well-known for exhibiting anti-allergenic and anti-inflammatory properties [3], was used.

4.2. Animals

The ICR strain mouse as a carcinoma model was established by Hauschka et al. [43], and is usually used for evaluating inflammation in primarily immunology, toxicology and pharmacology studies [44]. Accordingly, we used ICR mice as an ear swelling model. The mice (male, four weeks old) were purchased from KBT Oriental Co., Ltd. (Tosu, Saga, Japan) and housed in individual cages kept at 23–26 °C under a 12 h light/dark cycle until testing. A solid AIN-93G diet (KBT Oriental) and tap water were freely available. Throughout the experimental periods, the mice maintained a good appetite. Among all groups, no diarrhea or abnormal symptoms were observed. Among the mice tested, no significant difference of food intake or body weight gain was observed. All of the animal experiments were conducted after receiving permission from the Committee for Use and Care of Laboratory Animals of the National Fisheries University, and in compliance with the Guidelines for Animal Experiments in Research Institutes under the Jurisdiction of the Ministry of Agriculture, Forestry and Fisheries (Approval number, 17-8; 31 March, 2017).

4.3. Anti-Inflammatory Effects on Mouse Ear Swelling

4.3.1. Arachidonic Acid (AA)

AA-induced ear swelling was performed according to the method described by Young et al [45], with some modifications. At 18 h after oral administration of the phlorotannins (75 nmol) dissolved in 400 μL of 10% Tween 60 solution using a stainless feeding needle, 10 μL of AA (12.5 mg/mL in acetone, stored at −20 °C until use; Wako Pure Chemical Industries, Ltd., Osaka, Japan) was spread on the mouse ear. After 1 h, the extent of ear swelling was determined using a thickness gage (547 series, Mitsutoyo Corporation, Kawasaki, Kanagawa, Japan). The relative ratio of the ear swelling suppression was calculated according to the following formula:
  Suppression   ratio   ( % )   =   [ 1   ( T   T 0 ) ( C   C 0 ) ] ×   100
where C0 is the ear thickness without the test sample before spreading AA, C is the ear thickness without the test sample after spreading AA, T0 is the ear thickness with the test sample before spreading AA and T is the ear thickness with the test sample after spreading AA.

4.3.2. 12-O-Tetradecanoylphorbol-13-Acetate (TPA)

TPA-induced ear swelling was conducted according to Young et al. [45], with some modifications. The test sample (400 μL) was orally administered at 3 h and 21 h prior to spreading TPA (10 μL) on the mouse’s ear. Immediately before use, a stock solution of TPA (800 μg/mL in acetone, stored at −20 °C until use; Wako) was diluted to 80 μg/mL with acetone. At 4 h after spreading the TPA, the extent of ear swelling was determined using a thickness gage. The relative ratio of the ear swelling suppression was calculated as described for AA above.

4.3.3. Oxazolone (OXA)

OXA-induced ear swelling was performed as described by Suzuki et al. [46], with some modifications. The OXA solution (Sigma-Aldrich) was stored at −20 °C until use. First, 400 μL of the test sample was administered orally at 1 h before spreading 1% OXA dissolved in ethanol (50 μL) on the clean-shaven abdominal region of the mouse. After five days, 400 μL of the test sample was orally administered once again at 1 h before the spreading of 0.5% OXA dissolved in acetone (10 μL) on the mouse’s ear. At 24 h after spreading the OXA, the extent of ear swelling was determined using a thickness gage. The relative ratio of the ear swelling suppression was calculated as described for AA above.

4.4. Suppression Effect on Chemical Mediator Release

4.4.1. Cell Culture

RBL-2H3 cells provided by the Health Science Research Resources Bank (JCRB0023, Tokyo, Japan) were cultured in Eagle’s Modified Essential Medium (EMEM, Sigma-Aldrich) supplemented with fetal bovine serum (FBS) (10%; Lot, AAJ208538; HyClone Laboratories, Inc., South-Logan, UT, USA), penicillin (105 U/L; Wako) and streptomycin (100 mg/L; Wako). The cells were transferred every three or four days by trypsinization until they attained confluence.

4.4.2. Cell Stimulation and Anti-Degranulation Assay

The amount of degranulation by the mast cells is known to be proportional to the activity of β-hexosaminidase (β-Hex) [47], therefore the anti-degranulation assay was conducted using stimulated RBL cells based on measurement of the activity of the released β-Hex. RBL cells (2 × 105 cells/well) were precultured and sensitized overnight with 0.2 μg of anti-DNP IgE (Sigma-Aldrich) in a 24-well plate. After removing the anti-DNP IgE, the test samples were added and the cells were incubated for 10 min. Subsequently, the cells were stimulated with 4 μg of DNP-BSA (LSL Co., Ltd., Tokyo, Japan) for 30 min. In the case of stimulation by the calcium ionophore A23187 (Sigma-Aldrich), the precultured cells were treated with the stimulant (1 μM) dissolved in dimethyl sulfoxide (DMSO) for 30 min without the antigen-antibody reaction. The stimulatory reaction was stopped by cooling the reaction vessel on ice for 10 min. The culture medium was divided into three wells of a 96-well plate, and the substrate solution (1 mM p-nitrophenyl-N-acetyl-β-d-glucosaminide, Wako) was added to each well. After incubation for 60 min at 37 °C, 100 mM sodium bicarbonate was added to each solution to alkalize them and develop a yellow color. The developed color was measured at an optical density of 405 nm to determine the amount of p-nitrophenol freed from the substrate by the action of the released enzyme using a microplate reader (Infinite F50, TECAN Austria GmbH, Grodig, Austria). The inhibition ratio of the β-Hex was calculated using the following equation.
  Inhibition   ratio   ( % )   =   [ 1     ( T     B ) ( C     B ) ]   ×   100
where B is the OD405 of the blank cell medium with neither the test sample nor stimulant, C is the OD405 of the cell medium without the test sample but with the stimulant, and T is the OD405 of the cell medium with both test sample and stimulant.
The potential induction of cell death by the phlorotannins was tested for by Trypan blue exclusion. In the phlorotannin-treated cells, cell death was not observed (data not shown). Moreover, inhibition of the activity of β-Hex in the test samples was not observed.

4.4.3. Determination of Released Chemical Mediators

ELISA methods were employed for determining the amount of chemical mediator released from RBL cells stimulated by the antigen-antibody reaction, as described above, using kits for leukotriene B4 and prostaglandin E2 (Cayman Chemical Co., Ann Arbor, MI, USA), and histamine (SPI-BIO, Montigny Le Bretonneux, France), according to the protocols recommended by the manufacturers.

4.5. Suppression of COX-2 Gene Expression and Enzymatic Activity

4.5.1. Cell Stimulation

The RBL cells were stimulated with A23187, according to the method of Matsui et al. [48], with some modifications. The RBL cells suspended in EMEM were inoculated in each well of a 24-well plate (2 × 105 cells/well) and precultured overnight. The cells were exposed to phlorotannins for 30 min and then stimulated with A23187 (2 μM). After being cultured for 3 h, the cell suspension was collected with a cell scraper.

4.5.2. Quantitative Real-Time Polymerase Chain Reaction (qPCR)

Total RNA was isolated from RBL cells with ISOGEN reagent (Nippon Gene Co. Ltd., Tokyo, Japan), according to the manufacturer’s instructions, and quantified by spectrophotometry at 260 nm. Single-strand cDNA was synthesized using an oligo (dT) primer and High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems, Foster City, CA, USA). The cDNA was used for real-time quantitative polymerase chain reaction (qPCR) using SYBR Premix Ex TaqTM II (Tli RNaseH Plus) (Takara Bio, Inc., Otsu, Shiga, Japan) with the TP870 Thermal Cycler Dice Real Time System (Takara Bio). Relative mRNA levels were calculated by the comparative threshold cycle method. The following specific forward and reverse primers were used for real-time qPCR: COX-2, sense, 5′-CCC ATG TCA AAA CCG TGG TG-3′ and antisense, 5′-CTG TGT TTG GGG TGG GCT TC-3′; and GAPDH, sense, 5′-TGT GTC CGT CGT GGA TCT GA-3′ and antisense, 5′- CCT GCT TCA CCA CCT TCT TGA T-3′.

4.5.3. Inhibitory Effect on COX-2 Activity

Assays for the inhibitory effects of phlorotannins on COX-2 activity as well as ELISA for prostaglandin E2 produced from COX-2 enzymatic reaction were conducted using a kit for cyclooxygenase inhibitor screening (Cayman Chemical). The inhibitory effects assay and the ELISA for prostaglandin E2 were conducted according to the protocols recommended by the manufacturers.

4.6. Statistical Analysis

Data are expressed as mean ± standard deviation (SD). Multiple comparisons between groups were performed with Dunnett’s test using the software Excel Statistics 2016 (Social Survey Research Information Co., Ltd., Tokyo, Japan), with p < 0.05 considered statistically significant. In the study of COX-2 activity inhibition, multiple comparisons between groups were performed with the Tukey–Kramer test with the same software, with p < 0.05 considered statistically significant.

5. Conclusions

In this study, the suppression effect of six phlorotannins (eckol; 6,6′-bieckol; 6,8′-bieckol; 8,8′-bieckol; PFF-A and PFF-B) isolated from Eisenia arborea on allergic inflammation were investigated. Using ICR mice sensitized by AA, TPA and OXA as an allergic inflammatory model, the orally administered phlorotannins suppressed ear swelling. To investigate the mechanism of the suppression effect, experiments using a rat mast cell line (RBL-2H3 cells) were performed, and the inhibition effect on COX-2 activity was evaluated with ELISA. Results showed that the phlorotannins suppressed degranulation, the release of chemical mediators (histamine, leukotriene B4 and prostaglandin E2) and COX-2 mRNA expression, and inhibited COX-2 activity at a concentration of 500 μm. In particular, 6,8′-bieckol exhibited significant suppression on mouse ear swelling and COX-2 mRNA expression, and this result is a first report. In conclusion, these phlorotannins alleviate allergic inflammation via suppression or inhibition of degranulation, release of chemical mediators and COX-2 activation by inflammatory lymphocytes.

Author Contributions

The authors’ contributions were as follows: Y.S. performed all the experiments, analysis and interpretation of data, and drafted the manuscript; M.U. performed the animal experiments and collected the data; K.I. and H.K. prepared the phlorotannins and checked their decomposition; H.A. and M.K. performed the in vitro experiments and collected the data; M.M. performed analysis and interpretation of data, and drafted the manuscript.

Funding

This work was founded by the grant of JSPS KAKENHI (Grant Number 25850099 and 17K07951).

Acknowledgments

We thank Ryogo Ota and Rie Tanaka (National Fisheries University) for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Platts-Mills, T.A.E. The allergy epidemics: 1870–2010. J. Allergy Clin. Immunol. 2015, 136, 3–13. [Google Scholar] [CrossRef] [PubMed]
  2. Taniguchi, M. Measures for allergic disease and medical network in Japan. Jpn. J. Allegol. 2012, 61, 913–918. [Google Scholar]
  3. Tachibana, H. Green tea polyphenol sensing. Proc. Jpn. Acad. Ser. B 2011, 87, 66–80. [Google Scholar] [CrossRef][Green Version]
  4. Ragan, M.; Glombitza, K. Phlorotannins, brown algal polyphenols. Prog. Phycol. Res. 1986, 4, 129–241. [Google Scholar]
  5. Kim, S.-K.; Himaya, S.W.A. Chapter 8: Medicinal effects of phlorotannins from marine brown algae. In Advances in Food and Nutrition Research; Kim, S.-K., Ed.; Academic Press: Cambridge, MA, USA, 2011; Volume 64, pp. 97–109. [Google Scholar]
  6. Barbosa, M.; Lopes, G.; Ferreres, F.; Andrade, P.B.; Pereira, D.M.; Gil-Izquierdo, Á.; Valentão, P. Phlorotannin extracts from Fucales: Marine polyphenols as bioregulators engaged in inflammation-related mediators and enzymes. Algal Res. 2017, 28, 1–8. [Google Scholar] [CrossRef]
  7. Eom, S.-H.; Lee, E.-H.; Park, K.; Kwon, J.-Y.; Kim, P.-H.; Jung, W.-K.; Kim, Y.-M. Eckol from Eisenia bicyclis inhibits inflammation through the Akt/NF-κB signaling in propionibacterium acnes-induced human keratinocyte HaCat cells. J. Food Biochem. 2017, 41, e12312. [Google Scholar] [CrossRef]
  8. Lee, S.-H.; Eom, S.-H.; Yoon, N.-Y.; Kim, M.-M.; Li, Y.-X.; Ha, S.K.; Kim, S.-K. Fucofuroeckol-A from Eisenia bicyclis inhibits inflammation in lipopolysaccharide-induced mouse macrophages via downregulation of the MAPK/NF-κB signaling pathway. J. Chem. 2016, 2016, 6509212. [Google Scholar] [CrossRef]
  9. Yang, Y.-I.; Woo, J.-H.; Seo, Y.-J.; Lee, K.-T.; Lim, Y.; Choi, J.-H. Protective effect of brown alga phlorotannins against hyper-inflammatory responses in lipopolysaccharide-induced sepsis models. J. Agric. Food Chem. 2016, 64, 570–578. [Google Scholar] [CrossRef] [PubMed]
  10. Yu, D.-K.; Lee, B.; Kwon, M.; Yoon, N.; Shin, T.; Kim, N.-G.; Choi, J.-S.; Kim, H.-R. Phlorofucofuroeckol-B suppresses inflammatory responses by down-regulating nuclear factor κB activation via Akt, ERK, and JNK in LPS-stimulated microglial cells. Int. Immunopharmacol. 2015, 28, 1068–1075. [Google Scholar] [CrossRef] [PubMed]
  11. Sugiura, Y.; Matsuda, K.; Yamada, Y.; Nishikawa, M.; Shioya, K.; Katsuzaki, H.; Imai, K.; Amano, H. Isolation of a new anti-allergic phlorotannin, phlorofucofuroeckol-B, from an edible brown alga, Eisenia arborea. Biosci. Biotechnol. Biochem. 2006, 70, 2807–2811. [Google Scholar] [CrossRef] [PubMed]
  12. Sugiura, Y.; Matsuda, K.; Yamada, Y.; Nishikawa, M.; Shioya, K.; Katsuzaki, H.; Imai, K.; Amano, H. Anti-allergic phlorotannins from the edible brown alga, Eisenia arborea. Food Sci. Technol. Res. 2007, 13, 54–60. [Google Scholar] [CrossRef]
  13. Sugiura, Y.; Matsuda, K.; Yamada, Y.; Imai, K.; Kakinuma, M.; Amano, H. Radical scavenging and hyaluronidase inhibitory activities of phlorotannins from the edible brown alga Eisenia arborea. Food Sci. Technol. Res. 2008, 14, 595–598. [Google Scholar] [CrossRef]
  14. Sugiura, Y.; Matsuda, K.; Okamoto, T.; Yamada, Y.; Imai, K.; Ito, T.; Kakinuma, M.; Amano, H. The inhibitory effects of components from a brown alga, Eisenia arborea, on degranulation of mast cells and eicosanoid synthesis. J. Funct. Foods 2009, 1, 387–393. [Google Scholar] [CrossRef]
  15. Gall, E.; Lelchat, F.; Hupel, M.; Jégou, C.; Stiger-Pouvreau, V. Extraction and purification of phlorotannins from brown algae. In Natural Products from Marine Algae; Stengel, D.B., Connan, S., Eds.; Springer: New York, NY, USA, 2015; Volume 1308, pp. 131–143. [Google Scholar]
  16. Kim, J.; Yoon, M.; Yang, H.; Jo, J.; Han, D.; Jeon, Y.-J.; Cho, S. Enrichment and purification of marine polyphenol phlorotannins using macroporous adsorption resins. Food Chem. 2014, 162, 135–142. [Google Scholar] [CrossRef] [PubMed]
  17. Lee, J.-H.; Ko, J.-Y.; Oh, J.-Y.; Kim, C.-Y.; Lee, H.-J.; Kim, J.; Jeon, Y.-J. Preparative isolation and purification of phlorotannins from Ecklonia cava using centrifugal partition chromatography by one-step. Food Chem. 2014, 158, 433–437. [Google Scholar] [CrossRef] [PubMed]
  18. Montero, L.; Herrero, M.; Ibáñez, E.; Cifuentes, A. Separation and characterization of phlorotannins from brown algae Cystoseira abies-marina by comprehensive two-dimensional liquid chromatography. Electrophoresis 2014, 35, 1644–1651. [Google Scholar] [CrossRef] [PubMed]
  19. Sugiura, Y.; Tanaka, R.; Katsuzaki, H.; Imai, K.; Matsushita, T. The anti-inflammatory effects of phlorotannins from Eisenia arborea on mouse ear edema by inflammatory inducers. J. Funct. Foods 2013, 5, 2019–2023. [Google Scholar] [CrossRef]
  20. Sugiura, Y.; Usui, M.; Katsuzaki, H.; Imai, K.; Miyata, M. Anti-inflammatory effects of 6,6′-bieckol and 6,8′-bieckol from Eisenia arborea on mouse ear swelling. Food Sci. Technol. Res. 2017, 23, 475–480. [Google Scholar] [CrossRef]
  21. Sugawara, T.; Baskaran, V.; Tsuzuki, W.; Nagao, A. Brown algae fucoxanthin is hydrolyzed to fucoxanthinol during absorption by Caco-2 human intestinal cells and mice. J. Nutr. 2002, 132, 946–951. [Google Scholar] [CrossRef] [PubMed]
  22. Yuan, J.P.; Wang, J.H.; Liu, X. Metabolism of dietary soy isoflavones to equol by human intestinal microflora—Implications for health. Mol. Nutr. Food Res. 2007, 51, 765–781. [Google Scholar] [CrossRef] [PubMed]
  23. Kujubu, D.A.; Fletcher, B.S.; Varnum, B.C.; Lim, R.W.; Herschman, H.R. TIS10, a phorbol ester tumor promoter-inducible mRNA from Swiss 3T3 cells, encodes a novel prostaglandin synthase/cyclooxygenase homologue. J. Biol. Chem. 1991, 266, 12866–12872. [Google Scholar] [PubMed]
  24. Meurer, R.; Opas, E.E.; Humes, J.L. Effects of cyclooxygenase and lipoxygenase inhibitors on inflammation associated with oxazolone-induced delayed hypersensitivity. Biochem. Pharmacol. 1988, 37, 3511–3514. [Google Scholar] [CrossRef]
  25. Rao, T.S.; Currie, J.L.; Shaffer, A.F.; Isakson, P.C. Comparative evaluation of arachidonic acid (AA)- and tetradecanoylphorbol acetate (TPA)-induced dermal inflammation. Inflammation 1993, 17, 723–741. [Google Scholar] [CrossRef] [PubMed]
  26. Kim, A.R.; Lee, M.-S.; Shin, T.-S.; Hua, H.; Jang, B.-C.; Choi, J.-S.; Byun, D.-S.; Utsuki, T.; Ingram, D.; Kim, H.-R. Phlorofucofuroeckol A inhibits the LPS-stimulated iNOS and COX-2 expressions in macrophages via inhibition of NF-κB, Akt, and p38 MAPK. Toxicol. In Vitro 2011, 25, 1789–1795. [Google Scholar] [CrossRef] [PubMed]
  27. Choi, H.-J.; Park, J.-H.; Lee, B.; Chee, H.; Lee, K.; Oh, S.-M. Suppression of NF-κB by Dieckol Extracted from Ecklonia cava Negatively Regulates LPS Induction of Inducible Nitric Oxide Synthase Gene. Appl. Biochem. Biotechnol. 2014, 173, 957–967. [Google Scholar] [CrossRef] [PubMed]
  28. Paudel, U.; Lee, Y.-H.; Kwon, T.-H.; Park, N.-H.; Yun, B.-S.; Hwang, P.-H.; Yi, H.-K. Eckols reduce dental pulp inflammation through the ERK1/2 pathway independent of COX-2 inhibition. Oral Dis. 2014, 20, 827–832. [Google Scholar] [CrossRef] [PubMed]
  29. Yang, Y.-I.; Shin, H.-C.; Kim, S.H.; Park, W.-Y.; Lee, K.-T.; Choi, J.-H. 6,6′-Bieckol, isolated from marine alga Ecklonia cava, suppressed LPS-induced nitric oxide and PGE2 production and inflammatory cytokine expression in macrophages: The inhibition of NFκB. Int. Immunopharmacol. 2012, 12, 510–517. [Google Scholar] [CrossRef] [PubMed]
  30. Corona, G.; Ji, Y.; Anegboonlap, P.; Hotchkiss, S.; Gill, C.; Yaqoob, P.; Spencer, J.P.E.; Rowland, I. Gastrointestinal modifications and bioavailability of brown seaweed phlorotannins and effects on inflammatory markers. Br. J. Nutr. 2016, 115, 1240–1253. [Google Scholar] [CrossRef] [PubMed]
  31. Xu, H.; DiIulio, N.A.; Fairchild, R.L. T cell populations primed by hapten sensitization in contact sensitivity are distinguished by polarized patterns of cytokine production: Interferon gamma-producing (Tc1) effector CD8+ T cells and interleukin (Il) 4/Il-10-producing (Th2) negative regulatory CD4+T cells. J. Exp. Med. 1996, 183, 1001–1012. [Google Scholar] [PubMed]
  32. Nagano, T.; Wu, W.; Tsumura, K.; Yonemoto-Yano, H.; Kamada, T.; Haruma, K. The inhibitory effect of soybean and soybean isoflavone diets on 2,4-dinitrofluorobenzene-induced contact hypersensitivity in mice. Biosci. Biotechnol. Biochem. 2016, 80, 991–997. [Google Scholar] [CrossRef] [PubMed]
  33. Verdrengh, M.; Jonsson, I.M.; Holmdahl, R.; Tarkowski, A. Genistein as an anti-inflammatory agent. Inflamm. Res. 2003, 52, 341–346. [Google Scholar] [CrossRef] [PubMed]
  34. Yoshino, K.; Yamazaki, K.; Sano, M. Preventive effects of black tea theaflavins against mouse type IV allergy. J. Sci. Food Agric. 2010, 90, 1983–1987. [Google Scholar] [CrossRef] [PubMed]
  35. Gurish, M.F.; Austen, K.F. Developmental origin and functional specialization of mast cell subsets. Immunity 2012, 37, 25–33. [Google Scholar]
  36. Yang, Y.-I.; Jung, S.-H.; Lee, K.-T.; Choi, J.-H. 8,8′-Bieckol, isolated from edible brown algae, exerts its anti-inflammatory effects through inhibition of NF-κB signaling and ROS production in LPS-stimulated macrophages. Int. Immunopharmacol. 2014, 23, 460–468. [Google Scholar] [CrossRef] [PubMed]
  37. Matsuo, N.; Yamada, K.; Shoji, K.; Mori, M.; Sugano, M. Effect of tea polyphenols on histamine release from rat basophilic leukemia (RBL-2H3) cells: The structure–inhibitory activity relationship. Allergy 1997, 52, 58–64. [Google Scholar] [CrossRef] [PubMed]
  38. Takano-Ishikawa, Y.; Goto, M.; Yamaki, K. Structure–activity relations of inhibitory effects of various flavonoids on lipopolysaccharide-induced prostaglandin E2 production in rat peritoneal macrophages: Comparison between subclasses of flavonoids. Phytomedicine 2006, 13, 310–317. [Google Scholar] [CrossRef] [PubMed]
  39. Ahn, G.; Park, E.-J.; Kim, D.-S.; Jeon, Y.-J.; Shin, T.-K.; Park, J.-W.; Woo, H.-C.; Lee, K.-W.; Jee, Y.-H. Anti-inflammatory effects of enzymatic extract from Ecklonia cava on TPA-induced ear skin edema. Food Sci. Biotechnol. 2008, 17, 745–750. [Google Scholar]
  40. Sugiura, Y.; Matsuda, K.; Okamoto, T.; Kakinuma, M.; Amano, H. Anti-allergic effects of the brown alga Eisenia arborea on Brown Norway rats. Fish. Sci. 2008, 74, 180–186. [Google Scholar] [CrossRef]
  41. Dominique, T.; Jean-Louis, B.; Barbara, B.; Tara, D.; Susan, F.-T.; Marina, H.; Ildico, H.-E.K.; Inge, M.; Androniki, N.; Monika, N.-B.; et al. Safety of Ecklonia cava phlorotannins as a novel food pursuant to Regulation (EC) No 258/97. EFSA J. 2017, 15, e05003. [Google Scholar]
  42. Hwang, H.; Terada, M.; Shin, H.-C. Single dose oral toxicity and 4-weeks repeated oral toxicity studies of Ecklonia cava extract. Seikatsu Eisei 2008, 52, 282–289. [Google Scholar]
  43. Evans, J.T.; Hauschka, T.S.; Mittelman, A. Differential susceptibility of four mouse strains to induction of multiple large-bowel neoplasms by 1,2-dimethylhydrazine2. JNCI J. Natl. Cancer Inst. 1974, 52, 999–1000. [Google Scholar] [CrossRef] [PubMed]
  44. Kim, J.E.; Nam, J.H.; Cho, J.Y.; Kim, K.S.; Hwang, D.Y. Annual tendency of research papers used ICR mice as experimental animals in biomedical research fields. Lab. Anim. Res. 2017, 33, 171–178. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Young, J.M.; Spires, D.A.; Bedord, C.J.; Wagner, B.; Ballaron, S.J.; de Young, L.M. The mouse ear inflammatory response to topical arachidonic acid. J. Investig. Dermatol. 1984, 82, 367–371. [Google Scholar] [CrossRef] [PubMed]
  46. Suzuki, M.; Yoshino, K.; Maeda-Yamamoto, M.; Miyase, T.; Sano, M. Inhibitory effects of tea catechins and O-methylated derivatives of (−)-epigallocatechin-3-O-gallate on mouse type IV allergy. J. Agric. Food Chem. 2000, 48, 5649–5653. [Google Scholar] [CrossRef] [PubMed]
  47. Schwartz, L.B.; Lewis, R.A.; Seldin, D.; Austen, K.F. Acid hydrolases and tryptase from secretory granules of dispersed human lung mast cells. J. Immunol. 1981, 126, 1290–1294. [Google Scholar] [PubMed]
  48. Matsui, T.; Ito, C.; Itoigawa, M.; Okada, T.; Furukawa, H. Effect of natsudaidain isolated from Citrus plants on TNF-α and cyclooxygenase-2 expression in RBL-2H3 cells. J. Pharm. Pharmacol. 2009, 61, 109–114. [Google Scholar] [CrossRef] [PubMed]

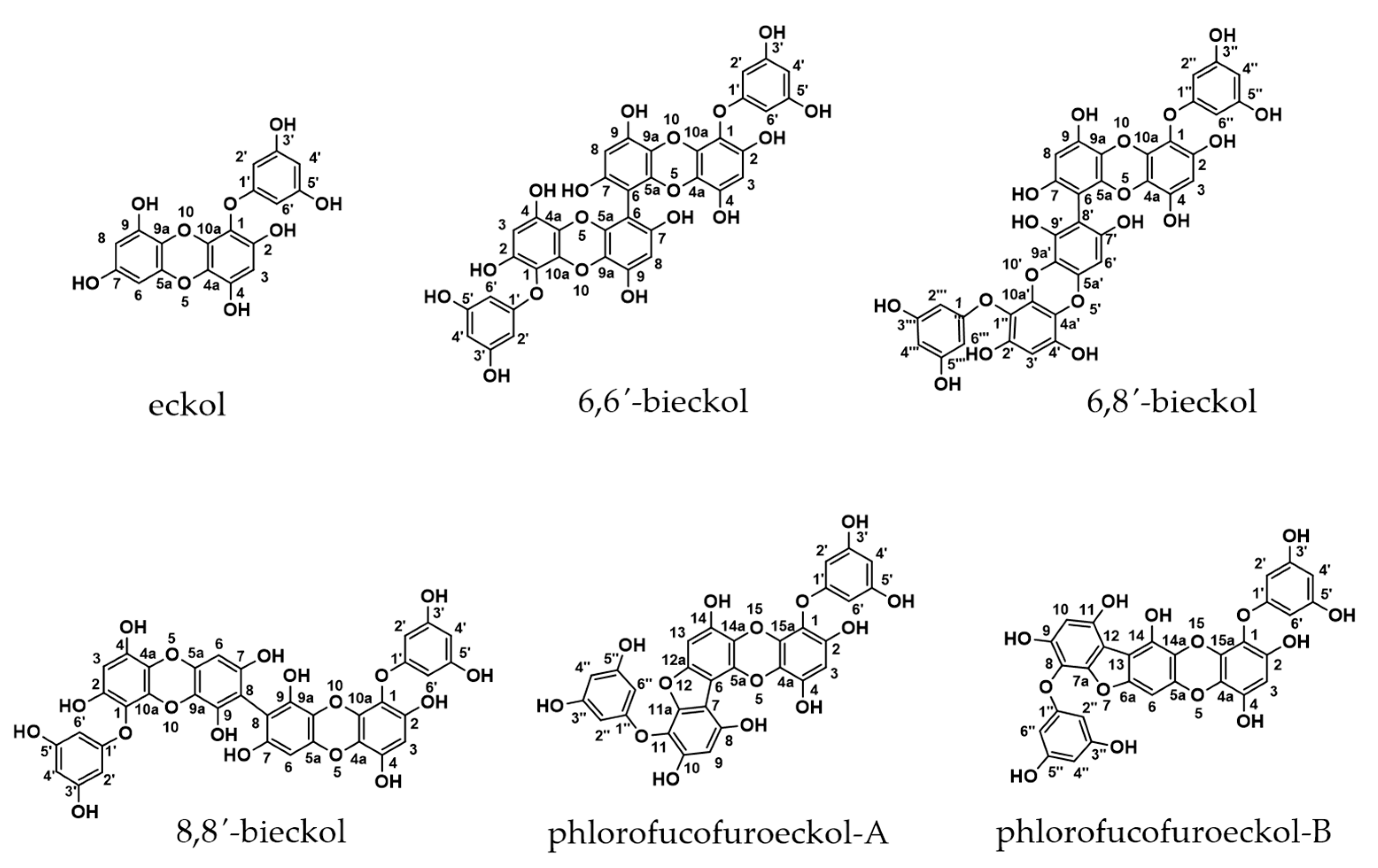

Figure 1. The chemical structures of six phlorotannins.
Figure 1. The chemical structures of six phlorotannins.
Marinedrugs 16 00267 g001
Figure 2. The suppression effect of phlorotannins on COX-2 mRNA expression in RBL cells stimulated by A23187. Values were calculated from the results of triplicate experiments and are expressed as mean ± SD. Reproducibility was confirmed by repeated runs. Asterisks indicate that mRNA level of the test group was significantly lower than mRNA level of PC (** p < 0.01). NC, negative control without A23187; PC, positive control with A23187; PFF, phlorofucofuroeckol; and EGCG, epigallocatechin gallate.
Figure 2. The suppression effect of phlorotannins on COX-2 mRNA expression in RBL cells stimulated by A23187. Values were calculated from the results of triplicate experiments and are expressed as mean ± SD. Reproducibility was confirmed by repeated runs. Asterisks indicate that mRNA level of the test group was significantly lower than mRNA level of PC (** p < 0.01). NC, negative control without A23187; PC, positive control with A23187; PFF, phlorofucofuroeckol; and EGCG, epigallocatechin gallate.
Marinedrugs 16 00267 g002

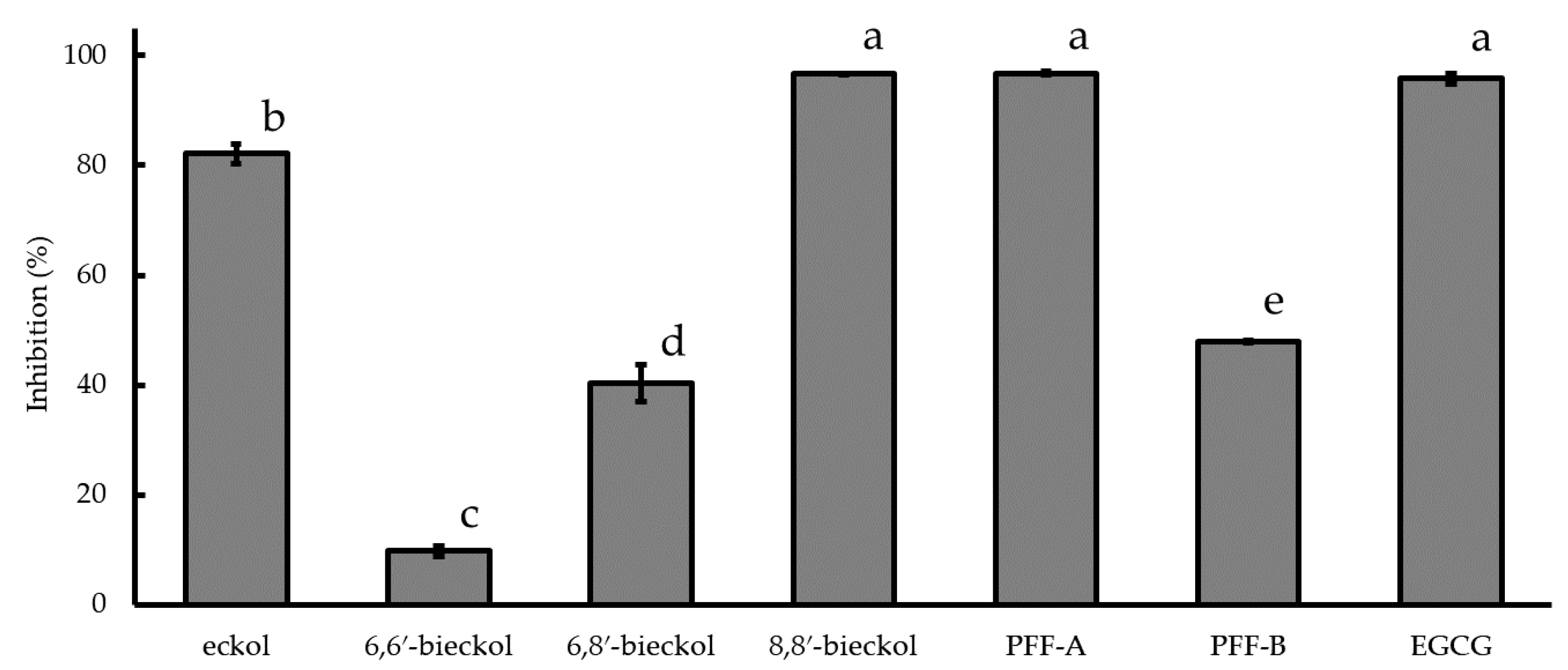

Figure 3. The inhibitory effects of phlorotannins at 500 µM on COX-2 activity. Values were calculated from the results of triplicate experiments and are expressed as mean ± SD. Reproducibility was confirmed by repeated runs. Differences between groups indicated by different letters are statistically significant (p < 0.01). PFF, phlorofucofuroeckol; and EGCG, epigallocatechin gallate.
Figure 3. The inhibitory effects of phlorotannins at 500 µM on COX-2 activity. Values were calculated from the results of triplicate experiments and are expressed as mean ± SD. Reproducibility was confirmed by repeated runs. Differences between groups indicated by different letters are statistically significant (p < 0.01). PFF, phlorofucofuroeckol; and EGCG, epigallocatechin gallate.
Marinedrugs 16 00267 g003
Table 1. The suppression effects of phlorotannins on sensitizer-induced mouse ear swelling.
Table 1. The suppression effects of phlorotannins on sensitizer-induced mouse ear swelling.
SensitizerTest GroupsControlEckol6,6′-Bieckol6,8′-Bieckol
AAEar swelling (mm)0.193 ± 0.0260.169 ± 0.0110.112 ** ± 0.0490.116 ** ± 0.036
Suppression (%)12.7 ± 5.441.9 # ± 25.439.8 # ± 18.7
TPAEar swelling (mm)0.194 ± 0.0380.116 ** ± 0.0090.174 * ± 0.0160.098 ** ± 0.032
Suppression (%)40.0 # ± 4.534.2 ± 25.249.4 * ± 16.4
OXAEar swelling (mm)0.223 ± 0.0240.180 ± 0.0200.183 ± 0.0300.049 ** ± 0.044
Suppression (%)19.3 ± 9.117.8 ± 13.577.8 ** ± 19.7
SensitizerTest groups8,8′-bieckolPFF-APFF-BEGCG
AAEar swelling (mm)0.153 ± 0.0110.134 * ± 0.0210.112 ** ± 0.0300.168 ± 0.008
Suppression (%)21.0 ± 5.530.5 ± 10.642.2 # ± 15.712.9 ± 4.2
TPAEar swelling (mm)0.132 * ± 0.0140.132 * ± 0.0070.119 ** ± 0.0310.167 ± 0.008
Suppression (%)31.7 ± 7.431.7 ± 3.838.4 # ± 16.113.8 ± 4.4
OXAEar swelling (mm)0.151 * ± 0.0300.171 ± 0.0190.131 ** ± 0.0320.210 ± 0.001
Suppression (%)32.3 # ± 13.623.4 ± 8.641.0 * ± 14.55.7 ± 0.1
Suppression effects at a dose of 75 nmol/mouse were calculated from the results of quadruplicate experiments (n = 4). Controls were stimulated by sensitizer without phlorotannins. Values are shown as means ± standard deviations. In each sensitizer experiment, the presence of an asterisk in “Ear swelling” indicates that the ear swelling was significantly lower than that of control (*, p < 0.05; **, p < 0.01). An asterisk in “Suppression” indicates that the suppression ratio was significantly higher than that of EGCG (*, p < 0.05; **, p < 0.01), and “#” indicates that it tended to be higher than that of EGCG (0.5 < p < 1.0). Abbreviations: AA, arachidonic acid; TPA, 12-O-tetradecanoylphorbol-13-acetate; OXA, oxazolone; PFF, phlorofucofuroeckol; EGCG, epigallocatechin gallate.
Table 2. The suppressive effects of phlorotannins on degranulation in RBL-2H3 cells stimulated by antigen-antibody or A23187.
Table 2. The suppressive effects of phlorotannins on degranulation in RBL-2H3 cells stimulated by antigen-antibody or A23187.
StimulantSamplesEckol6,6-Bieckol6,8-Bieckol8,8-Bieckol
Antigen-antibodySuppression ratio (%)10 μM17.3 ± 0.23.8 ± 2.35.7 ± 3.968.2 ** ± 15.8
100 μM76.3 ± 4.614.5 ± 4.168.2 ± 5.899.7 ** ± 11.9
A23187Suppression ratio (%)10 μMNANA4.2 ± 2.019.3 ** ± 2.3
100 μM11.5 ± 5.111.2 ± 1.835.5 ± 3.382.5 ± 2.2
StimulantSamplesPFF-APFF-BEGCG
Antigen-antibodySuppression ratio (%)10 μM70.1 ** ± 6.8NA21.2 ± 10.4
100 μM127.8 ** ± 5.644.9 ± 2.675.4 ± 2.1
A23187Suppression ratio (%)10 μMNANA5.2 ± 0.1
100 μM85.2 # ± 0.734.5 ± 1.280.0 ± 2.0
The suppression effects of phlorotannins were calculated from the results of triplicate experiments (n = 3). Values are shown as means ± standard deviations. In each stimulant experimant, the presence of an asterisk indicates that the suppression ratio was significantly (p < 0.01) higher than that of EGCG, and “#” indicates that it tended to be higher than that of EGCG (0.5 < p < 1.0). “NA” indicates no activity. Abbreviations: PFF, phlorofucofuroeckol; EGCG, epigallocatechin gallate.
Table 3. The suppression effects of phlorotannins on chemical mediator release in RBL-2H3 cells stimulated by antigen-antibody.
Table 3. The suppression effects of phlorotannins on chemical mediator release in RBL-2H3 cells stimulated by antigen-antibody.
Chemical mediatorSamplesEckol6,6-Bieckol6,8-Bieckol8,8-Bieckol
HistamineSuppression ratio (%)10 μM15.6 ± 1.2NANA58.4 ± 19.5
100 μM85.1 ** ± 2.933.3 ± 2.829.4 ± 9.884.4 ** ± 4.5
200 μM
Leukotriene B4Suppression ratio (%)10 μM10.3 ± 2.3NA12.2 ± 0.113.4 ± 0.4
100 μM66.6 ± 3.4NA57.9 ± 1.662.7 ± 4.9
200 μM19.2 ± 3.0
Prostaglandin E2Suppression ratio (%)10 μM10.3 ± 0.74.3 ± 1.66.9 ± 5.312.7 ± 0.3
100 μM60.7 ± 0.915.3 ± 2.736.6 ± 2.763.3 ± 3.4
Chemical mediatorSamplesPFF-APFF-BEGCG
HistamineSuppression ratio (%)10 μM23.9 ± 15.4NANA
100 μM94.2 ** ± 2.0NA36.1 ± 0.1
200 μM37.1 ± 24.7
Leukotriene B4Suppression ratio (%)10 μM8.9 ± 0.63.4 ± 0.412.4 ± 7.1
100 μM61.3 ± 5.172.5 ± 2.271.7 ± 4.3
200 μM
Prostaglandin E2Suppression ratio (%)10 μM14.4 ± 1.87.1 ± 2.017.4 ± 0.2
100 μM82.9 ± 1.341.5 ± 11.280.3 ± 3.1
The suppression effects of phlorotannins were calculated from the results of triplicate experiments (n = 3). Values are shown as means ± standard deviations. In the histamine release assay, an asterisk indicates that the suppression ratio was significantly (p < 0.01) higher than that of EGCG. “NA” indicates no activity. “—” indicates without examinations. Abbreviations: PFF, phlorofucofuroeckol; EGCG, epigallocatechin gallate.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
