Marine Drugs 2017, 15(12), 382; doi:10.3390/md15120382

Review
Terpenoids from Octocorals of the Genus Pachyclavularia
1,2,3,4
,
4,* , 5,6,7,* and 1,4,5,8,9,*
1
National Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
2
Greenhouse Systems Technology Center, Central Region Campus, Industrial Technology Research Institute, Nantou 540, Taiwan
3
Forcean Marine International Corporation, Kaohsiung 800, Taiwan
4
Department of Marine Biotechnology and Resources, National Sun Yat-sen University, Kaohsiung 804, Taiwan
5
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
6
Research Center for Natural Products and Drug Development, Kaohsiung Medical University, Kaohsiung 807, Taiwan
7
Department of Medical Research, Kaohsiung Medical University Hospital, Kaohsiung 807, Taiwan
8
Graduate Institute of Marine Biology, National Dong Hwa University, Pingtung 944, Taiwan
9
Chinese Medicine Research and Development Center, China Medical University Hospital, Taichung 404, Taiwan
*
Authors to whom correspondence should be addressed.
Received: 2 November 2017 / Accepted: 4 December 2017 / Published: 5 December 2017

Abstract

:
In this paper, we reviewed natural compounds isolated from octocorals belonging to the genus Pachyclavularia, including 20 cembrane-, 39 briarane-, and eight briarellin-related diterpenoids, and one secosterol. The chemical constituents of these 68 secondary metabolites, and their names, structures, and bioactivities, along with studies of their biological activities, are summarized in this review. Based on the literature, many of these compounds possess bioactivities, including anti-inflammation properties, cytotoxicity, and ichthyotoxicity, suggesting that they may have the potential to be developed into biomedical agents for treatment.
Keywords:
Pachyclavularia; octocoral; cembrane; briarane; briarellin; secosterol; bioactivity

1. Introduction

Octocorals of the genus Pachyclavularia (phylum Cnidaria, class Anthozoa, order Alcyonacea, family Briareidae) [1], which originally belonged to the family Tubiporidae [2], distributed in the subtropical and tropical waters of the Indo-Pacific Ocean, have been investigated. Since the initial study in 1979 discovered a cembranoid diterpene, pachyclavulariadiol (1), from the Australian octocoral P. violacea [3], subsequent studies over the past few decades have yielded a series of interesting secondary metabolites, particularly diterpenoids originally synthesized from cyclized cembranoids, including briarane- and briarellin-related analogues (Scheme 1) [4]. In this article, we have listed the different types of compounds isolated from two Indo-Pacific octocorals, Pachyclavularia violacea (Scheme 1) and Pachyclavularia sp., and summarized their chemical constituents and research into the biological activities of these metabolites.

2. Cembranoids from Pachyclavularia violacea (Quoy and Gaimard, 1833) (=Clavularia violacea, Briareum violaceum)

The Pachyclavularia genus includes one very common species, Pachyclavularia violacea [2,3]. Bowden and colleagues [3] isolated several compounds, including three new cembrane-type diterpenes, pachyclavulariadiol (1), and its naturally-derived mono- and di-acetylated derivatives (2 and 3), from octocoral P. violacea collected in Australia (Figure 1). The study also established the structures, including the relative configurations, of new furanocembranoids 13 and determined the configuration of 1 by spectroscopic/chemical methods and X-ray diffraction, respectively.
In 1989, Inman and Crews [5] reported the isolation of a new cembranolide from P. violacea collected from Vanuatu waters, and named the compound pachyclavularolide (4) (Figure 2). Later, the structure of 4, including the relative configuration, was determined using spectroscopic methods and molecular mechanics calculations, and further confirmed by single-crystal X-ray analyses in a study by Sheu et al. [6]. The former study was the first to present a detailed conformational analysis of a 14-membered cembrane ring [5].
Two new cembranes, pachyclavulariolides E (5) and F (6) (Figure 2), were isolated from P. violacea samples collected from waters off Madang in Papua New Guinea in 2000 [7]. The structures of 5 and 6, including the relative configurations, which were elucidated from spectroscopic data [7], and the structure, including the relative configuration of 5, was further confirmed from single-crystal X-ray analysis by Sheu et al. [6]. A cytotoxic assay showed that compound 6 had an IC50 value of 1.0 μg/mL in the treatment of murine leukemia P388 cells [7], though this compound was claimed to be an artifact due to methanol used in the extraction procedure [7].
Twelve new cembranolides, pachyclavulariolides G–R (718) (Figure 3), and two known analogues, pachyclavulariolide (4) and pachyclavulariolide E (5) [5,7] (Figure 2), were obtained from P. violacea specimens collected from Kenting Coast, Taiwan [6,8]. The structures, including the relative configurations, of cembranolides 718 were established by spectroscopic/chemical methods [6,8], and the structures of 4, 5, 7, and 8 were also verified by single-crystal analyses [6]. However, the hydroxy group at C-2 in briarane 11 was still unconfirmed at that stage [6], and information regarding the reasonable biosynthetic pathway suggested that briarane 12 could be the precursor of briarane 16 [8]. Cytotoxic assays revealed that pachyclavulariolide K (11) had ED50 values of 2.8, 3.3, 6.7, and 7.6 μg/mL against P388 (mouse lymphoma), HT-29 (human colorectal adenocarcinoma), A549 (human epithelial carcinoma), and KB cells (human nasopharynx carcinoma), respectvively, while pachyclavulariolides E (5), I (9), J (10), and M (13) had ED50 values against P388 cells of 4.0, 1.3, 2.5, and 3.2 μg/mL, respectively [6,8].
A new cytotoxic cembranoid, claviolide (19) (Figure 4), was isolated from the dichloromethane extract of Clavularia violacea, collected at a depth of 5–6 m off Green Island, Taiwan. The structure, including the relative configuration, of 19 was established using a spectroscopic approach, and this compound was found to exhibit significant cytotoxicity towards P388 and HT-29 tumor cells, with ED50 values of 0.84 and 0.38 μg/mL, respectively [9].
Chang and coworkers isolated a new cembranoid, briaviodiol A (20) (Figure 5), from the organic extract of Briareum violaceum [2] collected off Pingtung Coast, Southern Taiwan, and confirmed its structure, including the relative configuration, by single-crystal X-ray diffraction analysis [10].
Interestingly, with the exception of cembranoids 6 (pachyclavulariolide F) and 19 (claviolide), cembranoids (18/20) from P. violacea have been found to possess a tetrahydrofuran moiety, and these furanocembranoids are likely to be chemical markers of cembranoids obtained from P. violacea. Among the furanocembranoids, the α,β-unsaturated ketone moiety in pachyclavulariolide K (11) seems to enhance cytotoxicity toward various tumor cells.

3. Briaranes from Pachyclavularia sp. and Pachyclavularia violacea

Uchio and colleagues [11] identified three new unnamed briaranes, 2123 (Figure 6), from specimens of the octocoral Pachyclavularia sp. collected off the Great Barrier Reef, Australia. The authors established the structures of 2123, including the relative configurations, using a spectroscopic approach, and also found that briarane 21 exhibited ichthyotoxicity towards the mosquito fish Gambusia affinis.
Five briarane diterpenoids, including three new metabolites 2β-acetoxy-2-(debutyryloxy)-stecholide E (24), 9-deacetylstylatulide lactone (25), and 4β-acetoxy-9-deacetylstylatulide lactone (26), along with two known metabolites, brianthein W (27) [12] and 9-deacetylbriareolide H (28) [13,14] (Figure 7), were isolated from a Taiwanese soft coral Briareum sp., which was originally identified as Pachyclavularia violacea collected off the coast of Kenting, Taiwan [15]. The structures of new briaranes 2426, including the relative configurations, were established by chemical/spectroscopic methods. Cytotoxic assays were performed on briaranes 2428 to assess their toxicity against P388, HT-29, KB, and A549 tumor cells, and the results showed that all briaranes except 26 exhibited cytotoxicity against P388 cells, with ED50 values of 0.61, 1.12, 0.76 and 0.28 μg/mL, respectively [15], indicating that the acetoxy group at C-4 in 26 redeuce the cytotoxicity. Briaranes 25 and 28 showed cytotoxicity towards HT-29 and KB cells, with ED50 values of 1.79 and 0.27 μg/mL, respectively [15]. The cytotoxicities of 9-hydroxybriaranes 24, 25, and 28 were not significantly different to their corresponding 9-acetyl derivatives, 2β-acetoxy-2-(debutyryloxy)-stecholide E acetate, stylatulide lactone [16], and briareolide H [13], respectively [15].
In 2000, Xu et al. [7] isolated four new briarane derivatives, pachyclavulariolides A–D (2932) (Figure 8), from P. violacea specimens collected from reefs off Madang, Papua New Guinea. The authors used a spectroscopic approach to determine the structures, including the relative configurations, of 2932, and further employed single-crystal X-ray diffraction analysis to identify the structure, including the relative configuration, of briarane 30 (pachyclavulariolide B). They also found that briaranes 2932 were the first briaranes of this type to possess an 11,14-ether bridge that resulted in an oxanorbornane structure.
Research by a group in Japan identified nine new briaranes, pachyclavulides A–I (3341) (Figure 9), from P. violacea collected off Okinawa, and determined their structures, including the relative configurations, using spectroscopic methods [17,18]. The absolute configuration of pachyclavulide A (33) was determined by single-crystal X-ray diffraction analysis of its p-bromobenzoyl ester [17]. Pachyclavulides B (34) and E (37) were found to show cytotoxicity against human central neural system (CNS) SNB-75 and A549 (human alveolar epithelial carcinoma) tumor cells, with GI50 values of 5.2 and 5.1 μM, respectively [18] and pachyclavulide C (35) was not cytotoxic toward SNB-75 cells. It seems that the hydroxy group at C-16 in briarane 34 will enhance the cytotoxity. Enantioselective preparation of the six-membered ring of pachyclavulide B (34) was also achieved [19].
In addition, another group of researchers isolated four new briaranes, brianodins A–D (4245), from soft coral identified as Pachyclavularia sp. from Okinawa, Japan [20]. They established the structures, including the relative configurations, of briaranes 4245 by interpretation of spectroscopic data, and determined the absolute configurations of brianodins C (44) and D (45) by the modified Mosher’s method (Figure 10). The 1,2-diol moiety at C-8 and C-17 in 4345 is rarely found in briarane analogues [21,22,23,24,25,26].
Sixteen briarane analogues, including ten new metabolites briaviolides A–J (4655), along with six known briaranes, solenolides A (56) and D (57) [27], excavatolide A (58) [28], briaexcavatolide I (59) [29] (Figure 11), 4β-acetoxy-9-deacetylstulatulide lactone (26) and 9-deacetylstylatulide lactone (25) [15] (Figure 7), were isolated from Briareum violaceum [2] collected in the waters of Taiwan [30]. Using spectroscopic/chemical methods, the structures, including the relative configurations, of new briaranes 4655 were determined, and the absolute configuration of briaviolide A (46) was further confirmed by X-ray crystallographic analysis [30]. In anti-inflammatory activity assays, briaviolides E (50) and I (54) were found to possess inhibitory effects against the production of superoxide anions by human neutrophils in vitro (inhibition rates = 34.17% and 28.66%, respectively), and inhibited the release of elastase (inhibition rates = 26.03% and 28.81%, respectively) at a concentration of 10 μg/mL; while the monobenzoyl derivative of 46 was found to possess selective activity to inhibit elastase release (inhibition rate = 28.60%) at a concentration of 10 μg/mL [30]. By comparison of the structure-activity relationships between briaranes 53 (briaviolide H) and 54 (briaviolide I), indicating that the hydroperoxy group at C-12 in 54 enhance the activity to inhibit the elastase release and the generation of superoxide anions.
A study performed by Cheng et al. revised the structure of solenolide D (57) [31], and this compound was later found to be a potent anti-inflammatory agent with an efficacy comparable to that of indomethacin [27]. Potency in excess of a 70% reduction of edema was observed at a concentration of approximately 15 μg/per ear (mouse ear assay) [27].

4. Briarellins from Pachyclavularia violacea

Eight novel briarellins, including pachyclavulariaenones A–G (6066) [32,33] and secopachy-clavulariaenone A (67) [6] (Figure 12), were isolated from P. violacea collected off Kenting Coast, Taiwan. Pachyclavulariaenone B (61) was also isolated from P. violacea specimens collected in the Togian Islands near Sulawesi Island, Indonesia [34]. The structures, including the relative configurations, of briarellins 6067 were established by spectroscopic methods, and the structures, including the relative configurations, of briarellins 62 (pachyclavulariaenone C) [32] and 65 (pachyclavulariaenone F) [33] were further confirmed by single-crystal X-ray diffraction analyses. Briarellins 6067 were found to be unprecedented examples of this type of compound, as they possess a six-membered carbocyclic ring cis-fused to both the ten-membered carbocyclic ring and seven-membered ether ring, making three ring-junction protons cis to each other [6,32,33]. Cytotoxic assays revealed that pachyclavulariaenone G (66) exhibited cytotoxicity towards P388 and HT-29 tumor cells, with ED50 values of 0.2 and 3.2 μg/mL, respectively [33]. It is obvious to note that the hydroxy groups at C-4 and C-6 in 66 caused this compound to be more cytotoxic than its analogues 62, 64, and 65.

5. Secosterol from Pachyclavularia violacea

A new 9,11-secosterol, (24S*)-3β,11-dihydroxy-5β,6β-epoxy-24-methyl-9,11-secocholestan-9-one (68) (Figure 13), was isolated from P. violacea specimens collected off the Togian Islands, Indonesia, and its structure, including the relative configurations, was elucidated on the basis of spectroscopic data [34].

6. Conclusions

Ever since pachyclavulariadiol (1) was obtained from a specimen of the octocoral P. violacea collected in Australia [4], 68 interesting secondary metabolites, including 20 cembranes (29.41%), 39 briaranes (57.35%), eight briarellins (11.76%), and one secosterol (1.47%), have been isolated from octocorals belonging to the genus Pachyclavularia. Many studies have reported that compounds obtained from Pachyclavularia spp. possess various biologic activities, such as cytotoxicity (seven cembranes, six briaranes, and one briarellin), anti-inflammatory activity (three briaranes), and ichthyotoxicity (one briarane). It is interesting to note that all compounds from Pachyclavularia spp. reported as having been isolated between 1979 and 2014 were collected from octocorals distributed in the Indo-Pacific Ocean. The briarane-type natural products act as a chemical marker of octocorals belonging to the family Briareidae. Up to date, 379 briaranes [35,36,37,38,39,40], 13 eunicellins, 34 asbestinane, one cembrane, and one pyranone [4], have been isolated from the octocorals belonging to the family Briareidae, including the genera Briareum and Erythropodium. As more than 50% of the compounds obtained from the Pachyclavularia genus are briarane-type diterpenoids, we support that the taxonomic position of the Pachyclavularia genus should be readjusted and placed under the family Briareidae. Based on above findings, these results suggest that continuing investigation of new terpenoid analogues with the potential bioactivities from this marine organism are worthwhile for further development. The octocoral Pachyclavularia violacea had been transplanted to culturing tanks located in the National Museum of Marine Biology and Aquarium, Taiwan, for extraction of additional natural products to establish a stable supply of bioactive material.

Acknowledgments

This research was supported by grants from the National Museum of Marine Biology and Aquarium; the National Dong Hwa University; the National Sun Yat-sen University; and the Ministry of Science and Technology (grant nos. MOST 106-2320-B-291-001-MY3 and 104-2320-B-291-001-MY3), Taiwan, awarded to Ping-Jyun Sung.

Author Contributions

Yu-Chia Chang contributed in terms of writing the manuscript. Jyh-Horng Sheu, Yang-Chang Wu, and Ping-Jyun Sung conceived and designed the format of the manuscript. All the authors contributed in terms of critical reading and discussion of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Samimi-Namin, K.; van Ofwegen, L.P. Overview of the genus Briareum (Cnidaria, Octocorallia, Briareidae) in the Indo-Pacific, with the description of a new species. ZooKeys 2016, 557, 1–44. [Google Scholar] [CrossRef] [PubMed]
  2. Bayer, F.M. Key to the genera of octocorallia exclusive of Pennatulacea (Coelenterata: Anthozoa), with diagnoses of new taxa. Proc. Biol. Soc. Wash. 1981, 94, 902–947. [Google Scholar]
  3. Bowden, B.F.; Coll, J.C.; Mitchell, S.J.; Raston, C.L.; Stokie, G.J.; White, A.H. Studies of Australian soft corals. XV. The structure of pachyclavulariadiol, a novel furano-diterpene from Pachyclavularia violacea. Aust. J. Chem. 1979, 32, 2265–2274. [Google Scholar] [CrossRef]
  4. Sung, P.-J.; Chen, M.-C. The heterocyclic natural products of gorgonian corals of genus Briareum exclusive of briarane-type diterpenoids. Heterocycles 2002, 57, 1705–1715. [Google Scholar] [CrossRef]
  5. Inman, W.; Crews, P. The structure and conformational properties of a cembranolide diterpene from Clavularia violacea. J. Org. Chem. 1989, 54, 2526–2529. [Google Scholar] [CrossRef]
  6. Sheu, J.-H.; Wang, G.-H.; Sung, P.-J.; Duh, C.-Y.; Chiang, M.Y. Pachyclavulariolides G–L and secopachyclavulariaenone A, seven novel diterpenoids from the soft coral Pachyclavularia violacea. Tetrahedron 2001, 57, 7639–7648. [Google Scholar] [CrossRef]
  7. Xu, L.; Patrick, B.O.; Roberge, M.; Allen, T.; van Ofwegen, L.; Andersen, R.J. New diterpenoids from the octocoral Pachyclavularia violacea collected in Papua New Guinea. Tetrahedron 2000, 56, 9031–9037. [Google Scholar] [CrossRef]
  8. Sheu, J.-H.; Wang, G.-H.; Duh, C.-Y.; Soong, K. Pachyclavulariolides M–R, six novel diterpenoids from a Taiwanese soft coral Pachyclavularia violacea. J. Nat. Prod. 2003, 66, 662–666. [Google Scholar] [CrossRef] [PubMed]
  9. Duh, C.-Y.; El-Gamal, A.A.H.; Chu, C.-J.; Wang, S.-K.; Dai, C.-F. New cytotoxic constituents from the Formosan soft corals Clavularia viridis and Clavularia violacea. J. Nat. Prod. 2002, 65, 1535–1539. [Google Scholar] [CrossRef] [PubMed]
  10. Chang, Y.-C.; Huang, I.-C.; Chiang, M.Y.-N.; Hwang, T.-L.; Kung, T.-H.; Lin, C.-S.; Sheu, J.-H.; Sung, P.-J. Briaviodiol A, a new cembranoid from a soft coral Briareum violacea. Chem. Pharm. Bull. 2010, 58, 1666–1668. [Google Scholar] [CrossRef] [PubMed]
  11. Uchio, Y.; Fukazawa, Y.; Bowden, B.F.; Coll, J.C. New diterpenes from an Australian Pachyclavularia species (Coelenterata, Anthozoa, Octocorallia). Tennen Yuki Kagobutsu Toronkai Koen Yoshishu 1989, 31, 548–553. [Google Scholar]
  12. Cardellina, J.H., II; James, T.R., Jr.; Chen, M.H.M.; Clardy, J. Structure of brianthein W, from the soft coral Briareum polyanthes. J. Org. Chem. 1984, 49, 3398–3399. [Google Scholar] [CrossRef]
  13. Pordesimo, E.O.; Schmitz, F.J.; Ciereszko, L.S.; Hossain, M.B.; van der Helm, D. New briarein diterpenes from the Caribbean gorgonians Erythropodium caribaeorum and Briareum sp. J. Org. Chem. 1991, 56, 2344–2357. [Google Scholar] [CrossRef]
  14. Bowden, B.F.; Coll, J.C.; König, G.M. Studies of Australian soft corals. XLVIII. New briaran diterpenoids from the gorgonian coral Junceella gemmacea. Aust. J. Chem. 1990, 43, 151–159. [Google Scholar] [CrossRef]
  15. Sheu, J.-H.; Sung, P.-J.; Huang, L.-H.; Lee, S.-F.; Wu, T.; Chang, B.-Y.; Duh, C.-Y.; Fang, L.-S.; Soong, K.; Lee, T.-J. New cytotoxic briaran diterpenes from the Formosan gorgonian Briareum sp. J. Nat. Prod. 1996, 59, 935–938. [Google Scholar] [CrossRef] [PubMed]
  16. Wratten, S.J.; Faulkner, D.J. Some diterpenes from the sea pen Stylatula sp. Tetrahedron 1979, 35, 1907–1912. [Google Scholar] [CrossRef]
  17. Iwasaki, J.; Ito, H.; Aoyagi, M.; Sato, Y.; Iguchi, K. Briarane-type diterpenoids from the Okinawan soft coral Pachyclavularia violacea. J. Nat. Prod. 2006, 69, 2–6. [Google Scholar] [CrossRef] [PubMed]
  18. Ito, H.; Iwasaki, J.; Sato, Y.; Aoyagi, M.; Iguchi, K.; Yamori, T. Marine diterpenoids with a briarane skeleton from the Okinawan soft coral Pachyclavularia violacea. Chem. Pharm. Bull. 2007, 55, 1671–1676. [Google Scholar] [CrossRef] [PubMed]
  19. Iwasaki, J.; Ito, H.; Nakamura, M.; Iguchi, K. A synthetic study of briarane-type marine diterpenoid, pachyclavulide B. Tetrahedron Lett. 2006, 47, 1483–1486. [Google Scholar] [CrossRef]
  20. Ishiyama, H.; Okubo, T.; Yasuda, T.; Takahashi, Y.; Iguchi, K.; Kobayashi, J. Brianodins A–D, briarane-type diterpenoids from soft coral Pachyclavularia sp. J. Nat. Prod. 2008, 71, 633–636. [Google Scholar] [CrossRef] [PubMed]
  21. Iwagawa, T.; Takayama, K.; Okamura, H.; Nakatani, M.; Doe, M.; Takemura, K.; Shiro, M. Cytotoxic briarane diterpenes from a gorgonacean Briareum sp. Heterocycles 1999, 51, 2619–2625. [Google Scholar] [CrossRef]
  22. Iwagawa, T.; Hirose, T.; Takayama, K.; Okamura, H.; Nakatani, M.; Doe, M.; Takemura, K. Violides N–P, new briarane diterpenes from a gorgonacean Briareum sp. Heterocycles 2000, 53, 1789–1792. [Google Scholar] [CrossRef]
  23. Sung, P.-J.; Su, J.-H.; Duh, C.-Y.; Chiang, M.Y.; Sheu, J.-H. Briaexcavatolides K–N, new briarane diterpenes from the gorgonian Briareum excavatum. J. Nat. Prod. 2001, 64, 318–323. [Google Scholar] [CrossRef] [PubMed]
  24. Sung, P.-J.; Hu, W.-P.; Wu, S.-L.; Su, J.-H.; Fang, L.-S.; Wang, J.-J.; Sheu, J.-H. Briaexcavatolides X–Z, three new briarane-related derivatives from the gorgonian coral Briareum excavatum. Tetrahedron 2004, 60, 8975–8979. [Google Scholar] [CrossRef]
  25. Iwagawa, T.; Babazono, K.; Nakatani, M.; Doe, M.; Morimoto, Y.; Takemura, K. Briarane diterpenes from a gorgonian Briareum sp. Heterocycles 2005, 65, 607–617. [Google Scholar] [CrossRef]
  26. Sung, P.-J.; Su, Y.-D.; Li, G.-Y.; Chiang, M.Y.; Lin, M.-R.; Huang, I.-C.; Li, J.-J.; Fang, L.-S.; Wang, W.-H. Excavatoids A–D, new polyoxygenated briaranes from the octocoral Briareum excavatum. Tetrahedron 2009, 65, 6918–6924. [Google Scholar] [CrossRef]
  27. Groweiss, A.; Look, S.A.; Fenical, W. Solenolides, new antiinflammatory and antiviral diterpenoids from a marine octocoral of the genus Solenopodium. J. Org. Chem. 1988, 53, 2401–2406. [Google Scholar] [CrossRef]
  28. Sheu, J.-H.; Sung, P.-J.; Cheng, M.-C.; Liu, H.-Y.; Fang, L.-S.; Duh, C.-Y.; Chiang, M.Y. Novel cytotoxic diterpenes, excavatolides A–E, isolated from the Formosan gorgonian Briareum excavatum. J. Nat. Prod. 1998, 61, 602–608. [Google Scholar] [CrossRef] [PubMed]
  29. Sheu, J.-H.; Sung, P.-J.; Su, J.-H.; Liu, H.-Y.; Duh, C.-Y.; Chiang, M.Y. Briaexcavatolides A–J, new diterpenes from the gorgonian Briareum excavatum. Tetrahedron 1999, 55, 14555–14564. [Google Scholar] [CrossRef]
  30. Liaw, C.-C.; Cheng, Y.-B.; Lin, Y.-S.; Kuo, Y.-H.; Hwang, T.-L.; Shen, Y.-C. New briarane diterpenoids from Taiwanese soft coral Briareum violacea. Mar. Drugs 2014, 12, 4677–4692. [Google Scholar] [CrossRef] [PubMed]
  31. Cheng, J.-F.; Yamamura, S.; Terada, Y. Stereochemistry of the brianolide acetate (=solenolide D) by the molecular mechanics calculations. Tetrahedron Lett. 1992, 33, 101–104. [Google Scholar] [CrossRef]
  32. Wang, G.-H.; Sheu, J.-H.; Chiang, M.Y.; Lee, T.-J. Pachyclavulariaenones A–C, three novel diterpenoids from the soft coral Pachyclavularia violacea. Tetrahedron Lett. 2001, 42, 2333–2336. [Google Scholar] [CrossRef]
  33. Wang, G.-H.; Sheu, J.-H.; Duh, C.-Y.; Chiang, M.Y. Pachyclavulariaenones D–G, new diterpenoids from the soft coral Pachyclavularia violacea. J. Nat. Prod. 2002, 65, 1475–1478. [Google Scholar] [CrossRef] [PubMed]
  34. Anta, C.; González, N.; Rodríguez, J.; Jiménez, C. A new secosterol from the Indonesian octocoral Pachyclavularia violacea. J. Nat. Prod. 2002, 65, 1357–1359. [Google Scholar] [CrossRef] [PubMed]
  35. Sung, P.-J.; Sheu, J.-H.; Xu, J.-P. Survey of briarane-type diterpenoids of marine origin. Heterocycles 2002, 57, 535–579. [Google Scholar] [CrossRef]
  36. Sung, P.-J.; Chang, P.-J.; Fang, L.-S.; Sheu, J.-H.; Chen, W.-C.; Chen, Y.-P.; Lin, M.-R. Survey of briarane-type diterpenoids-Part II. Heterocycles 2005, 65, 195–204. [Google Scholar] [CrossRef]
  37. Sung, P.-J.; Sheu, J.-H.; Wang, W.-H.; Fang, L.-S.; Chung, H.-M.; Pai, C.-H.; Su, Y.-D.; Tsai, W.-T.; Chen, B.-Y.; Lin, M.-R.; et al. Survey of briarane-type diterpenoids-Part III. Heterocycles 2008, 75, 2627–2648. [Google Scholar] [CrossRef]
  38. Sung, P.-J.; Su, J.-H.; Wang, W.-H.; Sheu, J.-H.; Fang, L.-S.; Wu, Y.-C.; Chen, Y.-H.; Chung, H.-M.; Su, Y.-D.; Chang, Y.-C. Survey of briarane-type diterpenoids-Part IV. Heterocycles 2011, 83, 1241–1258. [Google Scholar] [CrossRef]
  39. Sheu, J.-H.; Chen, Y.-H.; Chen, Y.-H.; Su, Y.-D.; Chang, Y.-C.; Su, J.-H.; Weng, C.-F.; Lee, C.-H.; Fang, L.-S.; Wang, W.-H.; et al. Briarane diterpenoids isolated from gorgonian corals between 2011 and 2013. Mar. Drugs 2014, 12, 2164–2181. [Google Scholar] [CrossRef] [PubMed]
  40. Su, Y.-D.; Su, J.-H.; Hwang, T.-L.; Wen, Z.-H.; Sheu, J.-H.; Wu, Y.-C.; Sung, P.-J. Briarane diterpenoids isolated from octocorals between 2014 and 2016. Mar. Drugs 2017, 15, 44. [Google Scholar] [CrossRef] [PubMed]

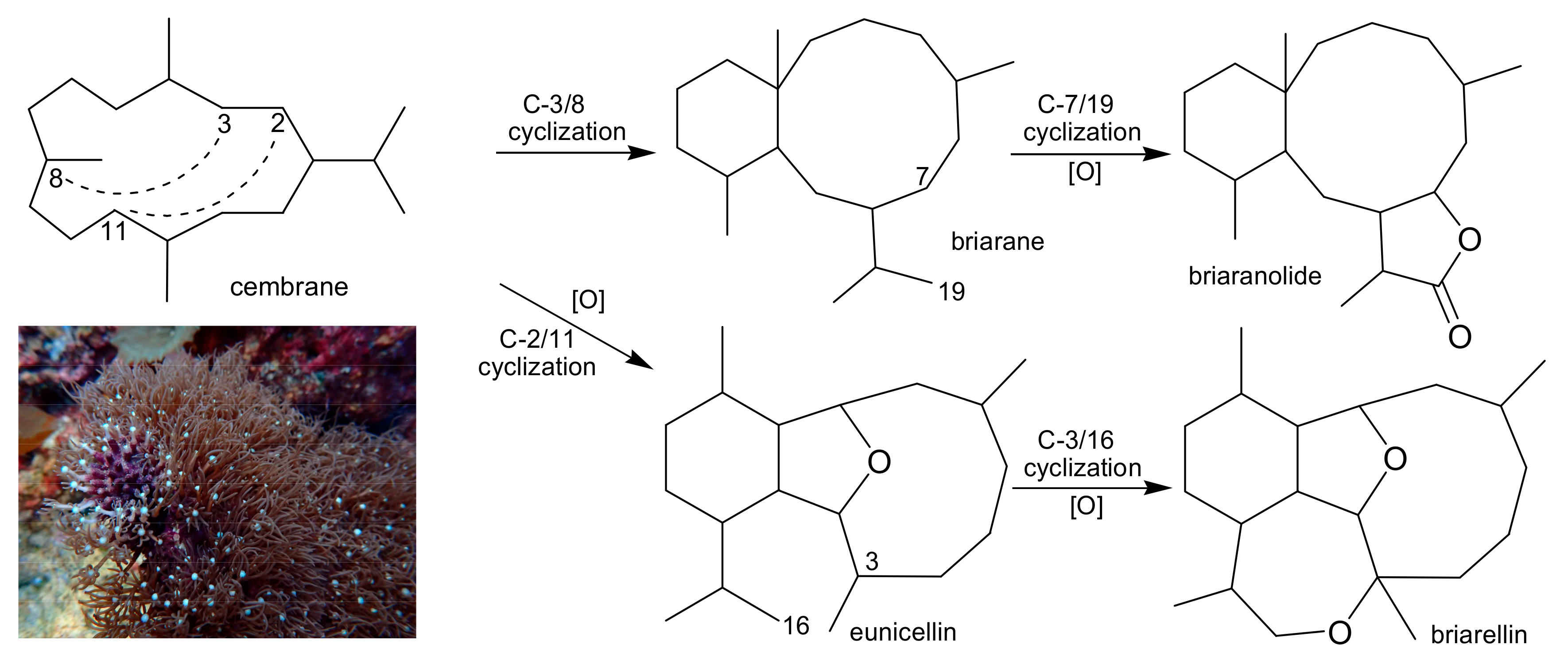

Scheme 1. Octocoral P. violacea and the proposed biosynthetic pathways of the cembrane, briarane, and briarellin carbon skeletons [4].
Scheme 1. Octocoral P. violacea and the proposed biosynthetic pathways of the cembrane, briarane, and briarellin carbon skeletons [4].
Marinedrugs 15 00382 sch001

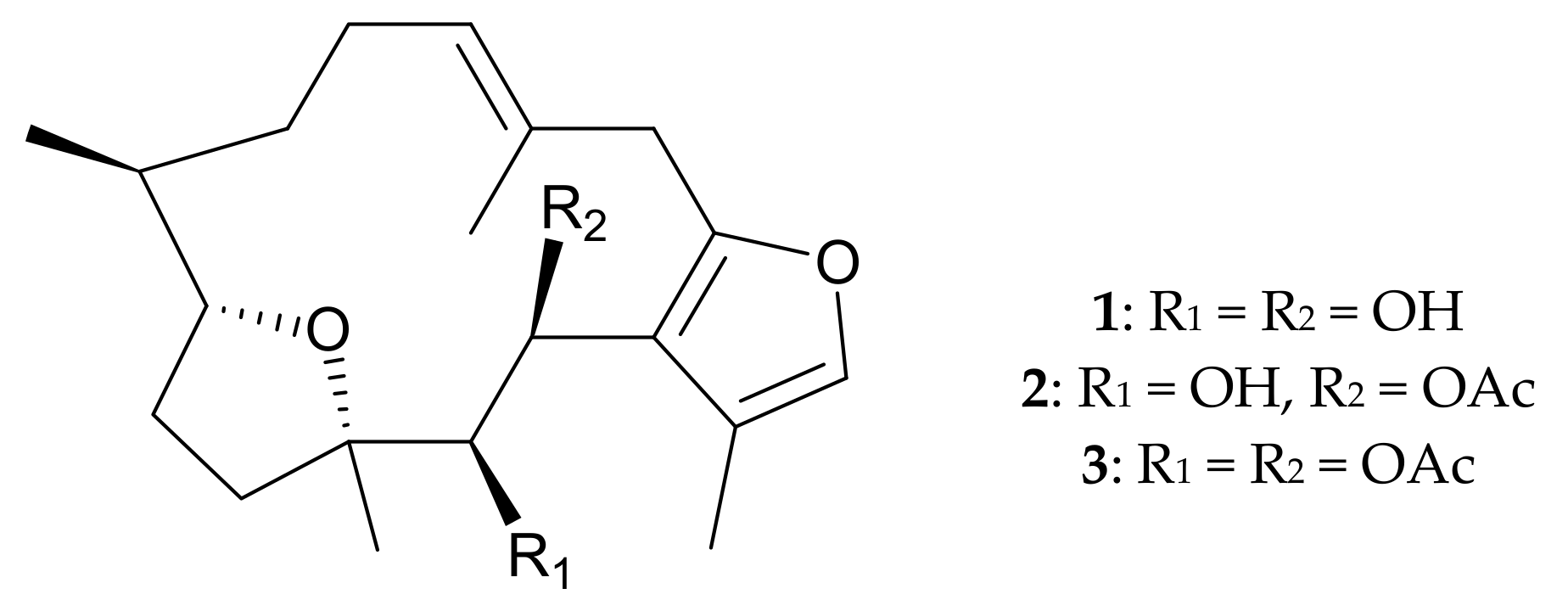

Figure 1. Structures of pachyclavulariadiol (1) and its natural mono- and di-acetylated derivatives 2 and 3.
Figure 1. Structures of pachyclavulariadiol (1) and its natural mono- and di-acetylated derivatives 2 and 3.
Marinedrugs 15 00382 g001

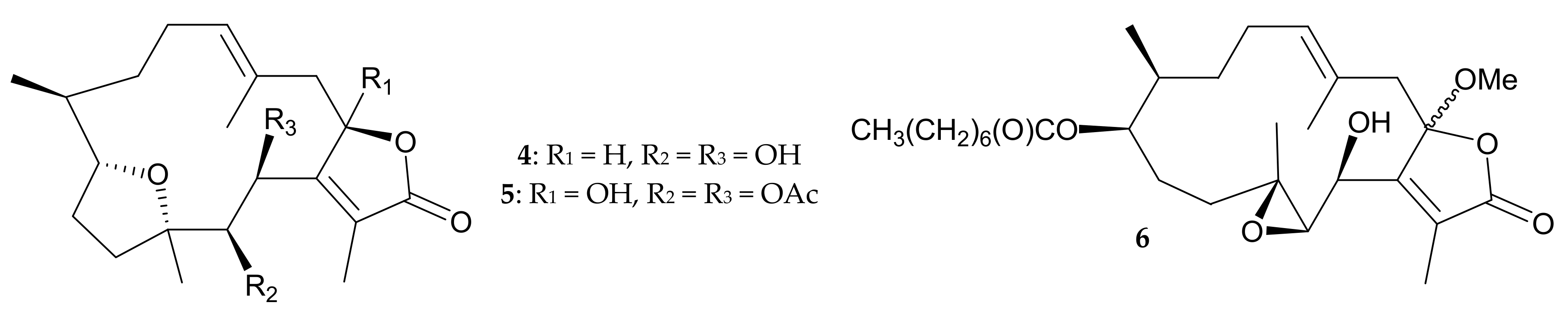

Figure 2. Structures of pachyclavularolide (4) and pachyclavulariolides E (5) and F (6).
Figure 2. Structures of pachyclavularolide (4) and pachyclavulariolides E (5) and F (6).
Marinedrugs 15 00382 g002

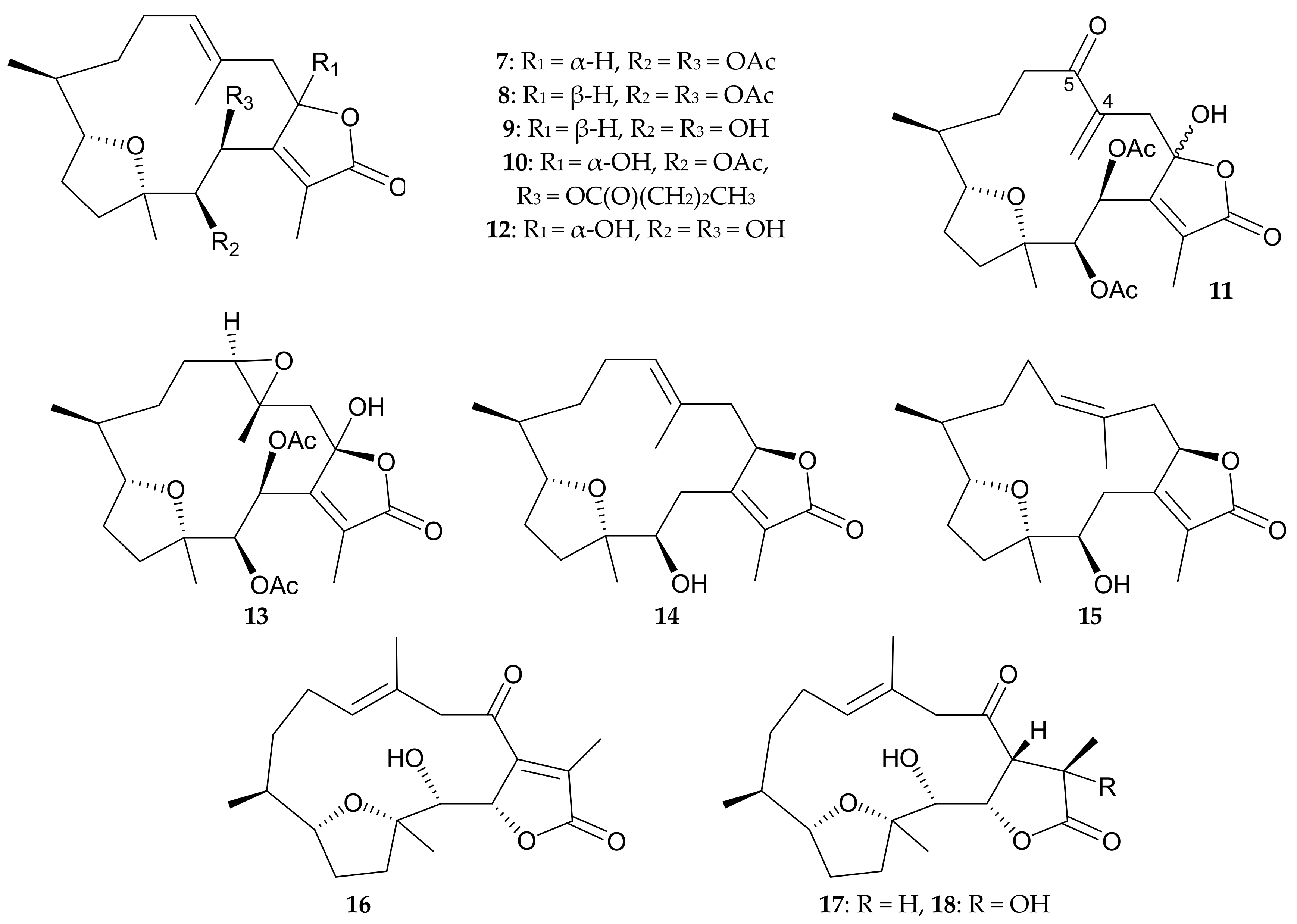

Figure 3. Structures of pachyclavulariolides G–R (718).
Figure 3. Structures of pachyclavulariolides G–R (718).
Marinedrugs 15 00382 g003

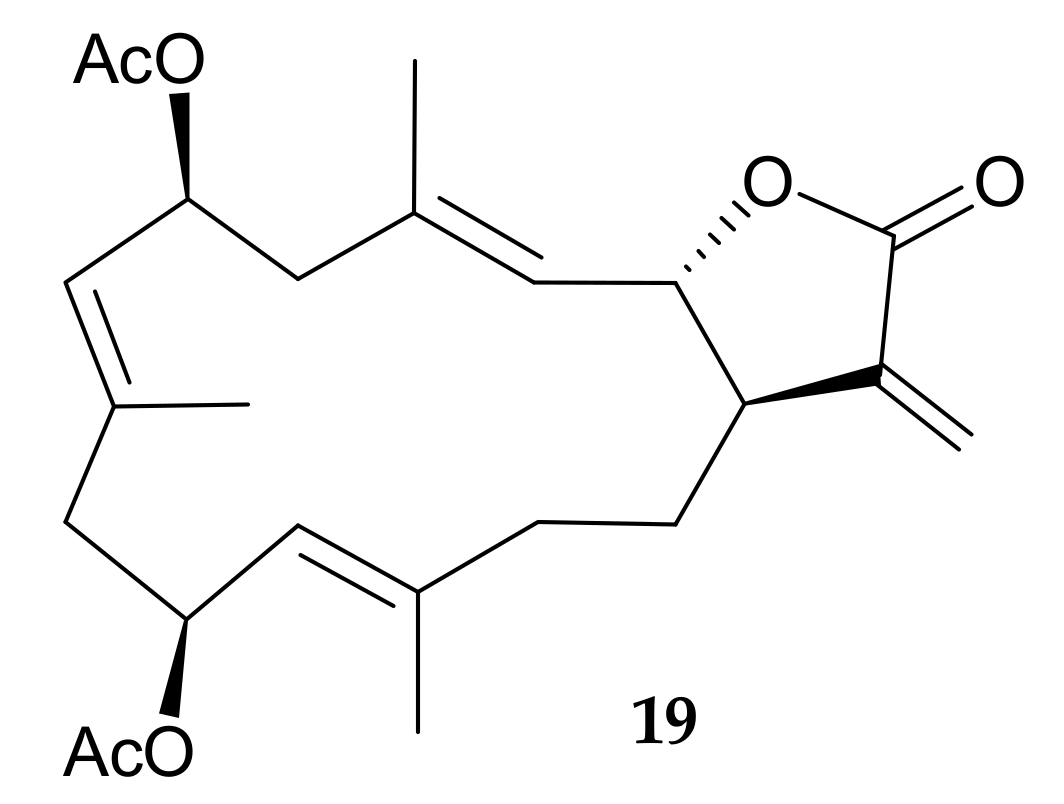

Figure 4. Structure of claviolide (19).
Figure 4. Structure of claviolide (19).
Marinedrugs 15 00382 g004

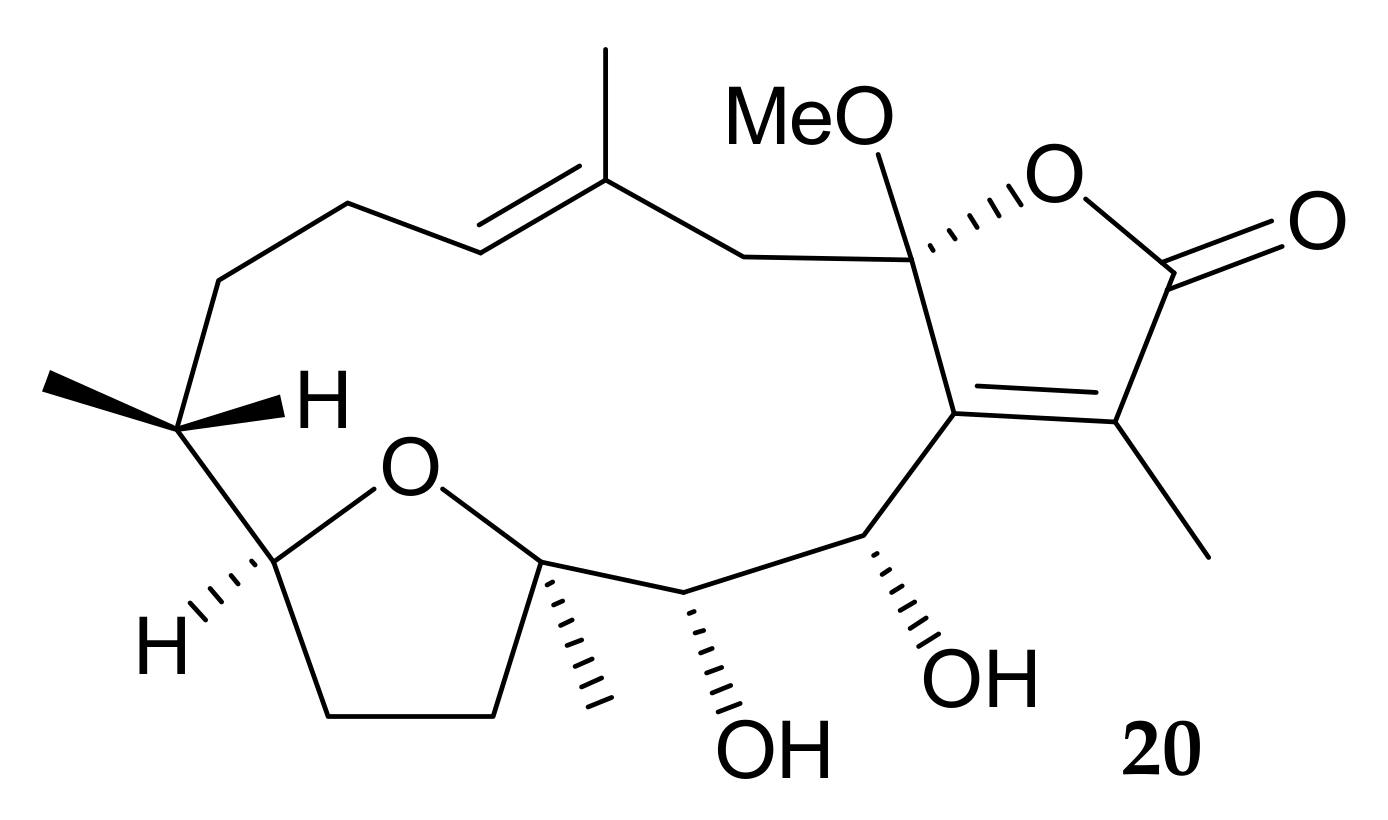

Figure 5. Structure of briaviodiol A (20).
Figure 5. Structure of briaviodiol A (20).
Marinedrugs 15 00382 g005

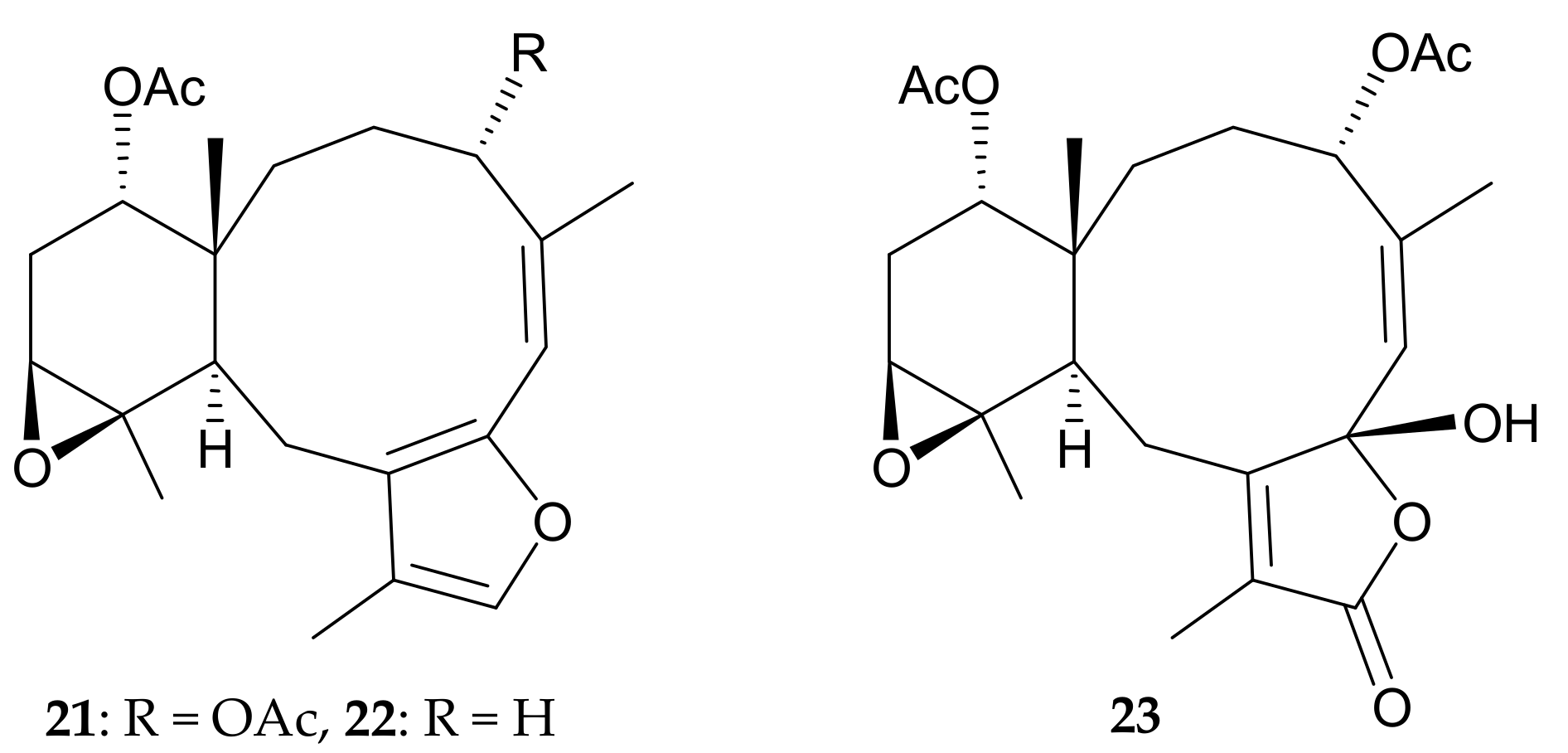

Figure 6. Structures of briaranes 2123.
Figure 6. Structures of briaranes 2123.
Marinedrugs 15 00382 g006

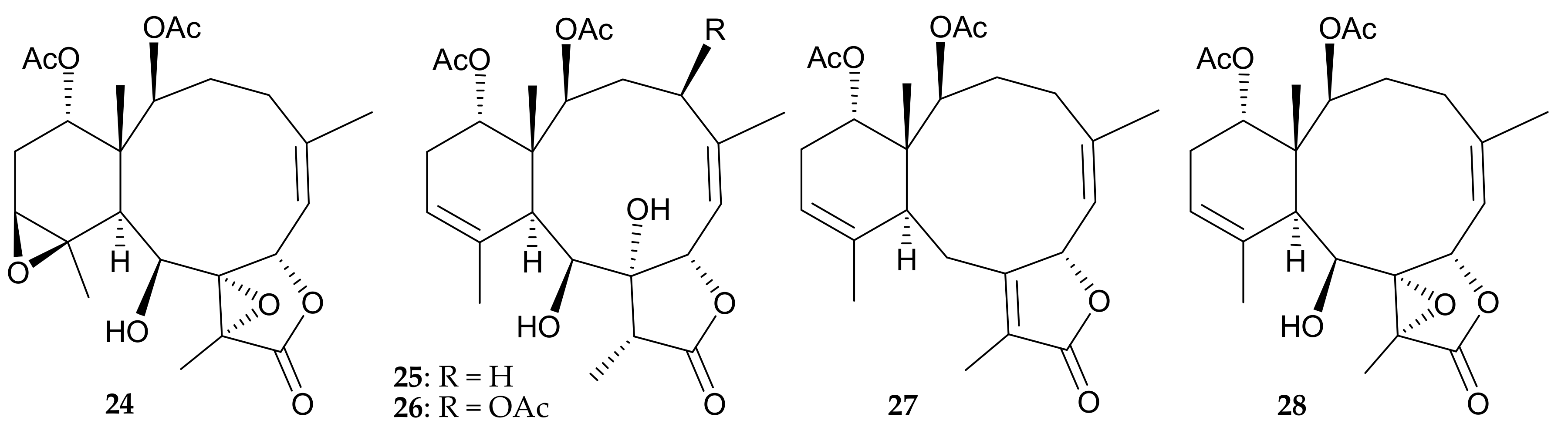

Figure 7. Structures of 2β-acetoxy-2-(debutyryloxy)stecholide E (24), 9-deacetylstylatulide lactone (25), 4β-acetoxy-9-deacetylstylatulide lactone (26), brianthein W (27), and 9-deacetylbriareolide H (28).
Figure 7. Structures of 2β-acetoxy-2-(debutyryloxy)stecholide E (24), 9-deacetylstylatulide lactone (25), 4β-acetoxy-9-deacetylstylatulide lactone (26), brianthein W (27), and 9-deacetylbriareolide H (28).
Marinedrugs 15 00382 g007

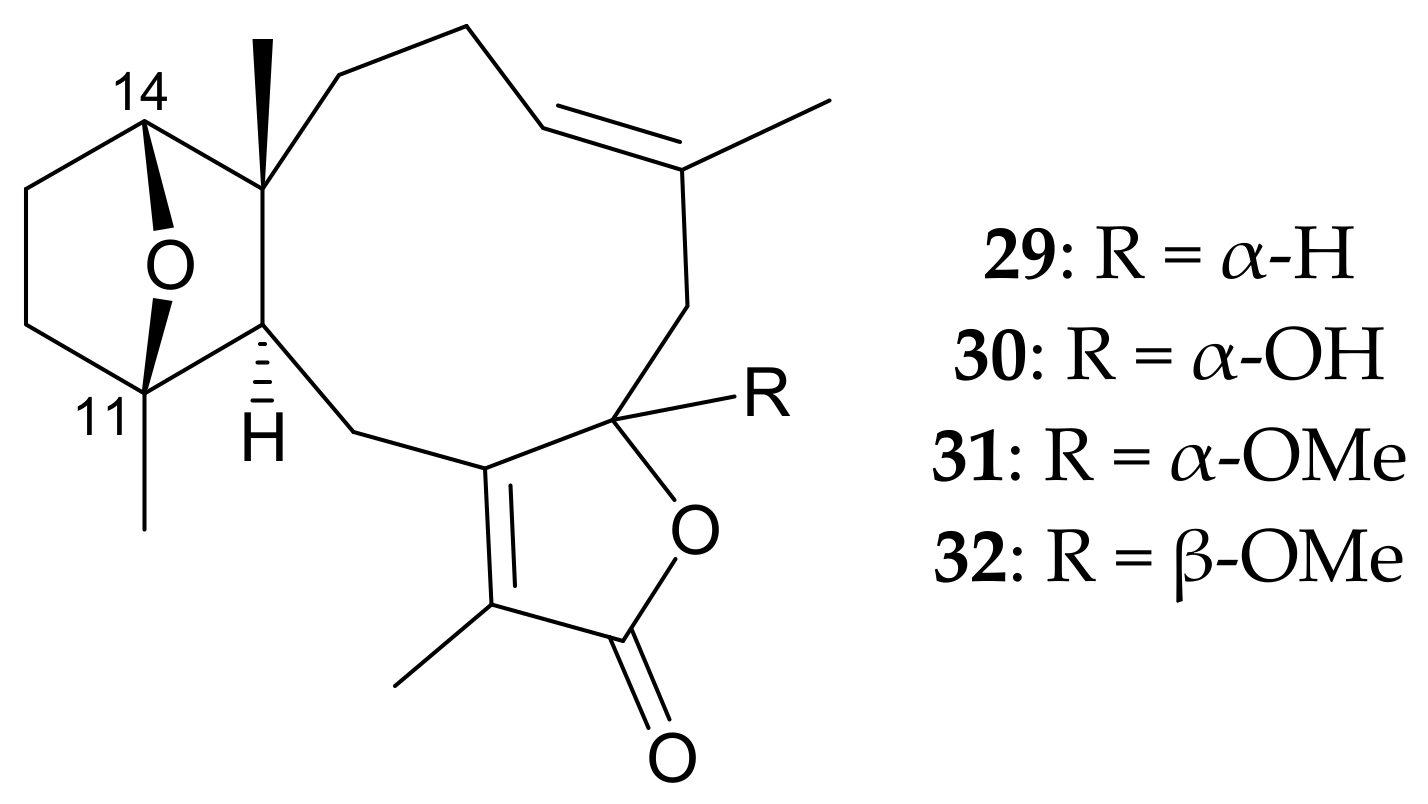

Figure 8. Structures of pachyclavulariolides A–D (2932).
Figure 8. Structures of pachyclavulariolides A–D (2932).
Marinedrugs 15 00382 g008

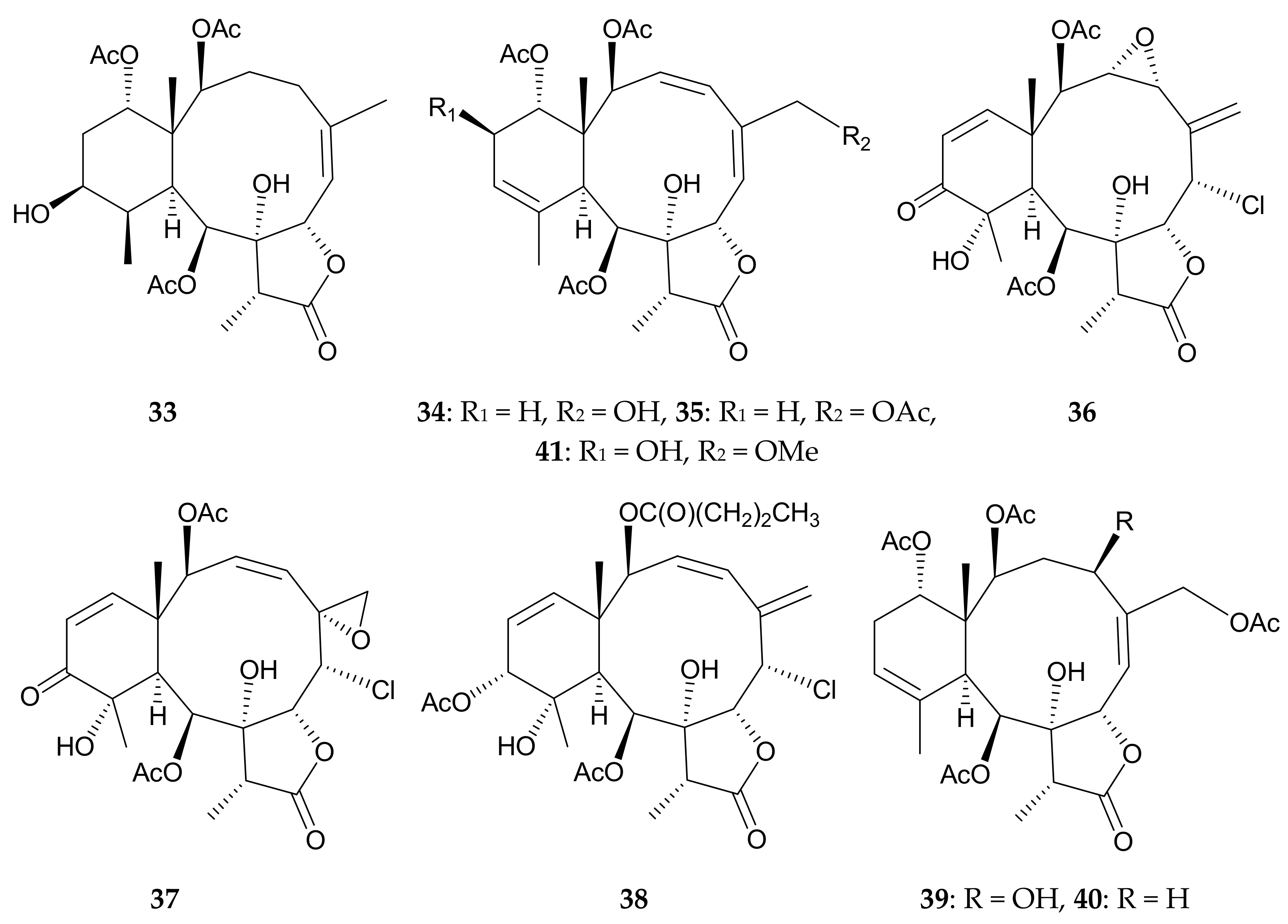

Figure 9. Structures of pachyclavulides A–I (3341).
Figure 9. Structures of pachyclavulides A–I (3341).
Marinedrugs 15 00382 g009

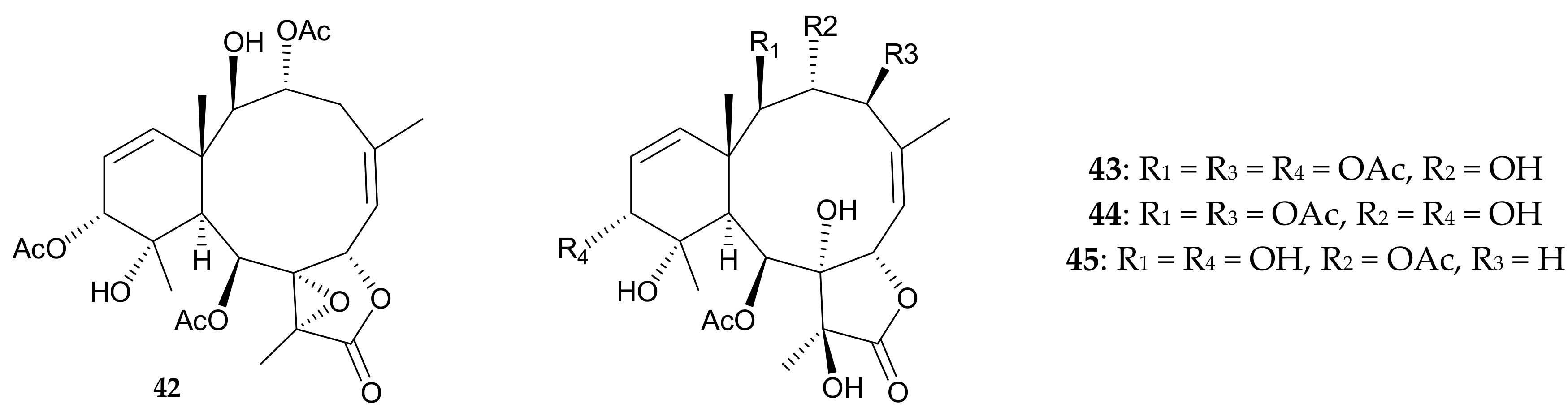

Figure 10. Structures of brianodins A–D (4245).
Figure 10. Structures of brianodins A–D (4245).
Marinedrugs 15 00382 g010

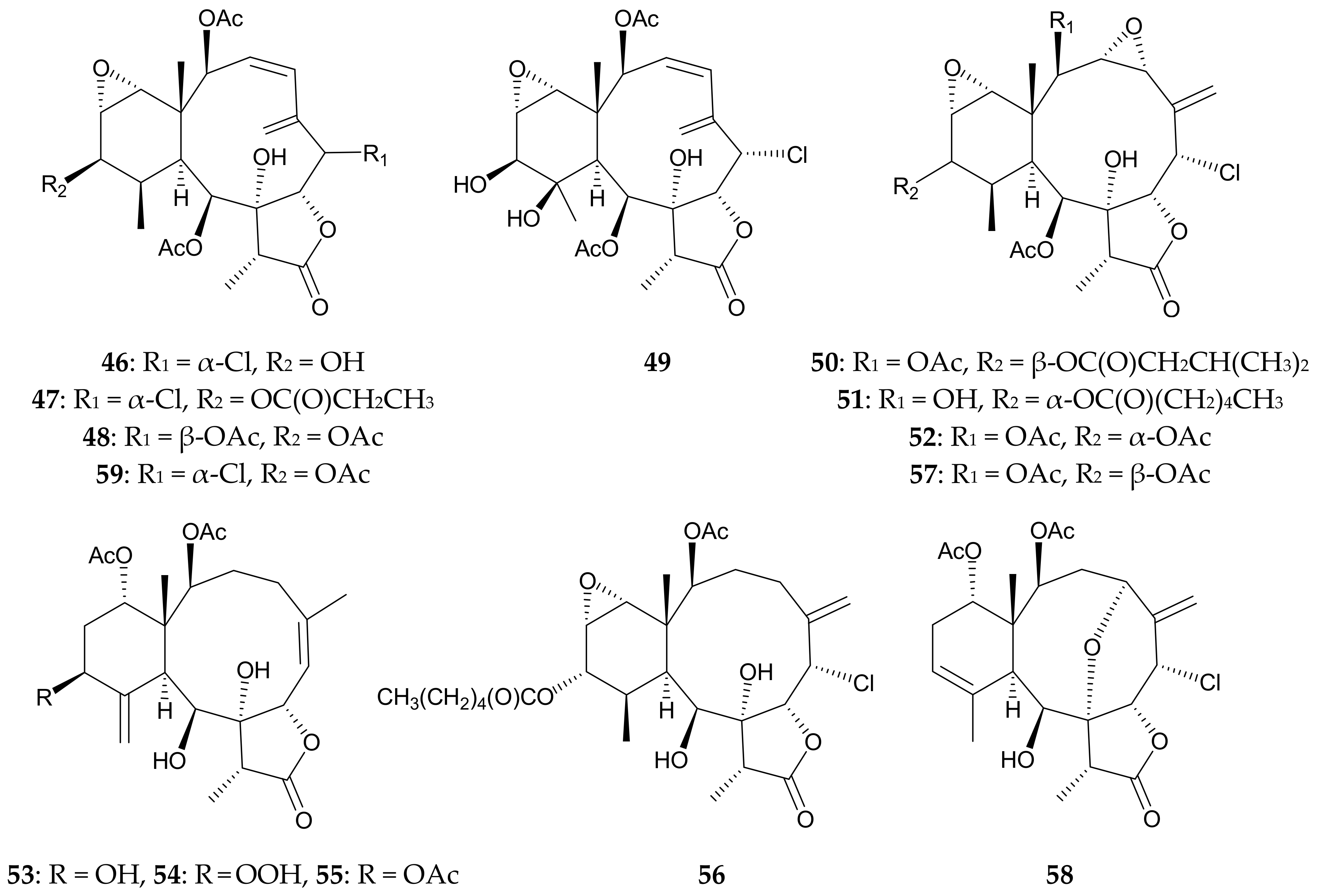

Figure 11. Structures of briaviolides A–J (4655), solenolides A (56) and D (57), excavatolide A (58), and briaexcavatolide I (59).
Figure 11. Structures of briaviolides A–J (4655), solenolides A (56) and D (57), excavatolide A (58), and briaexcavatolide I (59).
Marinedrugs 15 00382 g011

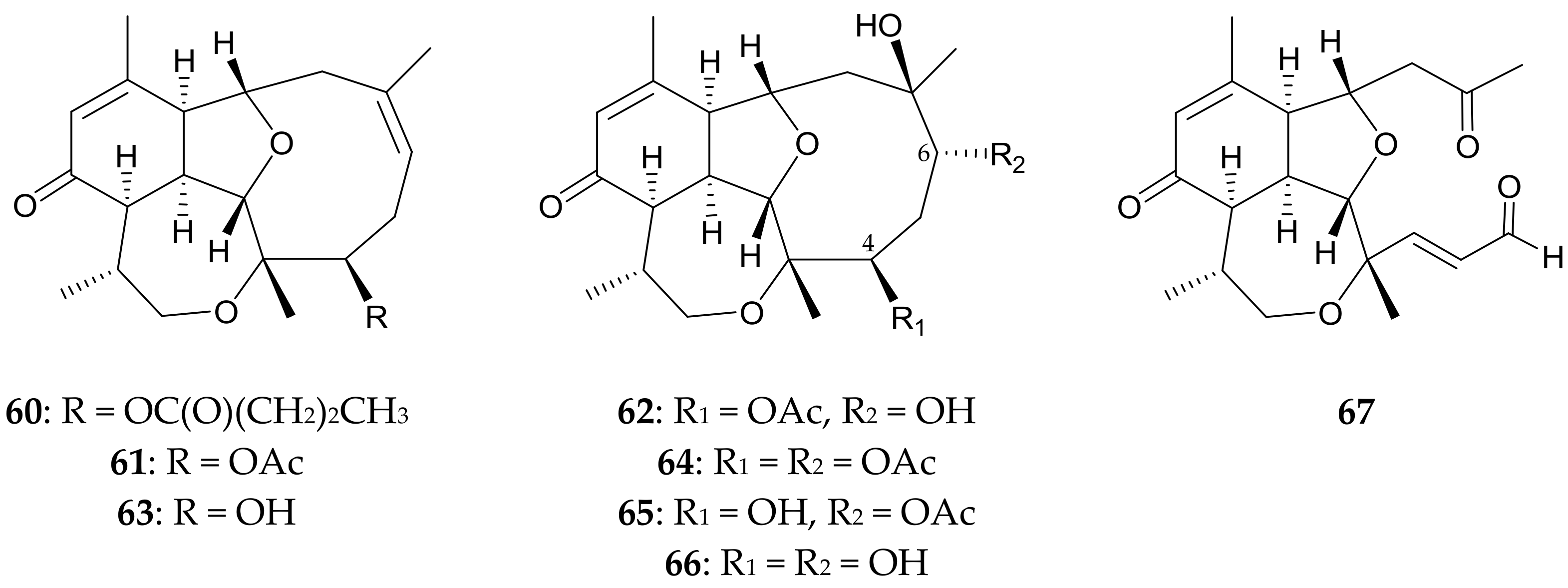

Figure 12. Structures of pachyclavulariaenones A–G (6066) and secopachyclavulariaenone A (67).
