Mar. Drugs 2016, 14(7), 134; https://doi.org/10.3390/md14070134

Article
New Polyketides and New Benzoic Acid Derivatives from the Marine Sponge-Associated Fungus Neosartorya quadricincta KUFA 0081
1
ICBAS—Instituto de Ciências Biomédicas Abel Salazar, Universidade do Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
2
Interdisciplinary Centre of Marine and Environmental Research (CIIMAR), Rua dos Bragas 289, 4050-313 Porto, Portugal
3
Department of Plant Pathology, Faculty of Agriculture, Kasetsart University, 10900 Bangkok, Thailand
4
Instituto de Biologia Molecular e Celular (IBMC), Universidade do Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
5
Department of Chemistry, University of Leicester, University Road, Leicester LE 7 RH, UK
6
Departamento de Química & QOPNA, Universidade de Aveiro, 3810-193 Aveiro, Portugal
7
Laboratório de Química Orgânica, Departamento de Ciências Químicas, Faculdade de Farmácia Universidade do Porto, Rua de Jorge Viterbo Ferreira, 228, 4050-313 Porto, Portugal
*
Author to whom correspondence should be addressed.
Academic Editor: Russell Kerr
Received: 30 June 2016 / Accepted: 12 July 2016 / Published: 16 July 2016

Abstract

:
Two new pentaketides, including a new benzofuran-1-one derivative (1) and a new isochromen-1-one (5), and seven new benzoic acid derivatives, including two new benzopyran derivatives (2a, b), a new benzoxepine derivative (3), two new chromen-4-one derivatives (4b, 7) and two new benzofuran derivatives (6a, b), were isolated, together with the previously reported 2,3-dihydro-6-hydroxy-2,2-dimethyl-4H-1-benzopyran-4-one (4a), from the culture of the marine sponge-associated fungus Neosartorya quadricincta KUFA 0081. The structures of the new compounds were established based on 1D and 2D NMR spectral analysis, and in the case of compounds 1, 2a, 4b, 5, 6a and 7, the absolute configurations of their stereogenic carbons were determined by an X-ray crystallographic analysis. None of the isolated compounds were active in the tests for antibacterial activity against Gram-positive and Gram-negative bacteria, as well as multidrug-resistant isolates from the environment (MIC > 256 μg/mL), antifungal activity against yeast (Candida albicans ATTC 10231), filamentous fungus (Aspergillus fumigatus ATTC 46645) and dermatophyte (Trichophyton rubrum FF5) (MIC > 512 µg/mL) and in vitro growth inhibitory activity against the MCF-7 (breast adenocarcinoma), NCI-H460 (non-small cell lung cancer) and A375-C5 (melanoma) cell lines (GI50 > 150 µM) by the protein binding dye SRB method.
Keywords:
Neosartorya quadricincta KUFA 0081; marine-derived fungus; polyketides; pentaketides; benzoic acid derivatives; Clathria reinwardti

1. Introduction

Aspergillus section Fumigati and its teleomorph Neosartorya include many important species because they can be pathogenic or allergenic to man, as well as causing food spoilage and producing mycotoxins. Certain species are also found to produce interesting bioactive secondary metabolites that can be considered to have potential for drug development [1]. For this reason, we have investigated the bioactive secondary metabolites produced from the cultures of four Neosartorya species collected from soil in Thailand, i.e., Neosartorya glabra KUFC 6311 [2], N. pseudofischeri KUFC 6422 [3], N. siamensis KUFC 6349 [4] and N. fischeri KUFC 6344 [5], as well as six marine-derived species of Neosartorya, including N. paulistensis KUFC 7898 [6], N. laciniosa KUFC 7896 [5], N. spinosa KUFC 8104, N. tsunodae KUFC 9213 [5], N. siamensis KUFA 0017 and N. takakii KUFC 7898 [7], as well as one marine-derived Aspergillus species (Aspergillus similanensis KUFA 0013) [8,9]. Recently, we have also reported the antifungal activity of the crude extract of N. quadricincta KUFA 0064, isolated from an agricultural soil in Southern Thailand, against plant pathogenic fungi, which are causative agents of diseases of economically-important plants of Thailand [10]. So far, the only report on secondary metabolites of N. quadricincta was by Ozoe et al., who described the isolation of dihydroisocoumarin derivative, PF1223, from the culture of N. quadricincta strain PF1223 (unidentified source). This compound was shown to inhibit the [3H] EBOB binding by 65% [11]. Thus, in our ongoing search for bioactive secondary metabolites from marine-derived fungi from Thai waters, we have investigated the culture of N. quadricincta KUFA 0081, isolated from the marine sponge Clathria reinwardti, which was collected from the Coral reef at Samae San Island in the Gulf of Thailand. The ethyl acetate extract of the culture of this fungus yielded, besides the previously described 2,3-dihydro-6-hydroxy-2,2-dimethyl-4H-1-benzopyran-4-one (4a) [12], two new polyketide derivatives (1, 5) and seven new benzoic acid derivatives (2a, 2b, 3, 4b, 6a, 6b and 7) (Figure 1). All of the isolated compounds were tested for their antibacterial activity against Gram-positive and Gram-negative bacteria, as well as multidrug-resistant isolates from the environment and for their antifungal activity against yeast (Candida albicans ATCC 10231), filamentous fungus (Aspergillus fumigatus ATCC 46645) and dermatophyte (Trichophyton rubrum FF5). Additionally, these compounds were also evaluated for their in vitro growth inhibitory activity against the MCF-7 (breast adenocarcinoma), NCI-H460 (non-small cell lung cancer) and A375-C5 (melanoma) cell lines by the protein binding dye SRB method.

2. Results and Discussion

Compound 1 was isolated as white crystals (mp, 176–177 °C), and its molecular formula C14H18O5 was established on the basis of the (+)-HRESIMS m/z 267.1243 [M + H]+ (calculated 267.1332), indicating six degrees of unsaturation. The IR spectrum showed absorption bands for hydroxyl (3455 cm−1), conjugated ester carbonyl (1723 cm−1) and aromatic (1612, 1596 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 1, Supplementary Information, Figures S2 and S4) exhibited the signals of one conjugated ester carbonyl (δC 168.2), five quaternary sp2C 164.6, 158.3, 152.8, 111.7, 105.5), one methine sp2C 94.5), one oxygen bearing quaternary sp3C 88.8), one oxygen bearing methine sp3C 70.8), two methoxyl (δC 56.1 and 56.0) and three methyl (δC 21.5, 17.8 and 11.2) groups. The 1H NMR spectrum (Table 1, Supplementary Information, Figure S1) revealed the presence of, besides a singlet of one aromatic proton at δH 6.41, a quartet of the oxymethine proton at δH 4.22 (J = 6.4 Hz), two singlets of the methoxyl groups at δH 3.97 s and 3.92 s, two methyl singlets at δH 2.12 s and 1.76 s, a methyl doublet at δH 0.87 (J = 6.4 Hz) and a broad band of the hydroxyl proton at δH 2.15. The 1H and 13C data (Table 1) revealed the presence of a pentasubstituted benzene ring. That this pentasubstituted benzene ring was part of the 5,7-dimethoxy-3,4-dimethyl-2-benzofuran-1(3H)-one ring system was corroborated by the HMBC correlations (Table 1, Figure 2a, Supplementary Information, Figure S5) of H-6 (δH 6.41, s) to C-7a (δC 105.3), C-4 (δC 111.7), C-7 (δC 158.3), C-5 (δC 164.6) and C-1 (δC 168.2), of OMe-5 (δH 3.92, s) to C-5, of OMe-7 (δH 3.97, s) to C-7, of H3-8 (δH 2.12, s) to C-4, C-3a (δC 152.8) and C-5, of H3-9 (δH 1.76, s) to C-3a and of the NOESY correlations of H-6 to OMe-5 and OMe-7. That another substituent of C-3 was a 1-hydroxyethyl group was supported by the COSY correlations of H-10 (δH 4.22, q, J = 6.4 Hz) to H3-11 (δH 0.87, d, J = 6.4 Hz), by the HMBC correlations of H3-9 to C-10 (δC 70.8), C-3 (δC 88.8) and C-3a and of H3-11 (δH 0.87, d, J = 6.4 Hz) to C-3 and C-10 (Table 1, Figure 2a), as well as by the NOESY correlations of H3-8 to H-10, H3-9, of H3-11 to H-10, OH-10 and of H3-9 to H-10 (Table 1, Figure 2b, Supplementary Information, Figure S6). Final proof of the structure and the stereochemistry assigned to compound 1 was provided by its X-ray analysis (Figure 3), and since the diffraction data were collected with a Gemini PX Ultra equipped with CuKα radiation, it was possible to establish the absolute configurations of C-3 and C-10, respectively, as 3R and 10S. Since 1 is a new compound, we have named it quadricinctone A.
Compound 2a was also isolated as white crystals (mp. 147–148 °C), and its molecular formula C12H12O4 was determined based on the (+)-HRESIMS m/z 221.0820 [M + H]+ (calculated 221.0814), indicating seven degrees of unsaturation. The IR spectrum showed absorption bands for hydroxyl (3447 cm−1), a conjugated carbonyl (1696 cm−1), aromatic (1609 cm−1) and olefin (1647 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 2, Supplementary Information, Figures S8 and S10) exhibited the signals of one conjugated carboxyl carbonyl (δC 167.0), three quaternary sp2C 156.8, 123.0, 120.5), five methine sp2C 130.8, 128.6, 127.9, 122.8, 115.7), one oxy-quaternary sp3C 80.5), one oxymethylene sp3C 67.1) and one methyl (δC 23.3) groups. The 1H NMR spectrum (Table 2, Supplementary Information, Figures S7) revealed, besides the presence of three aromatic protons of the 1,2,4 trisubstituted benzene ring at δH 6.79, d (J = 8.4 Hz), 7.65, d (J = 2.1 Hz) and 7.69, dd (J = 8.4, 2.1 Hz), two doublets of the protons of a cis-double bond at δH 6.56, d (J = 10.0 Hz) and 5.74, d (J = 10.0 Hz), a methyl singlet at δH 1.31, a singlet of two protons at δH 3.46 and two broad signals of the hydroxyl protons at δH 12.59 and 5.07, respectively. The COSY spectrum (Table 2, Figure 4a, Supplementary Information, Figures S9) exhibited cross-peaks of H-4 (δH 6.56, d, J = 10.0 Hz) to H-3 (δH 5.74, d, J = 10.0 Hz), of H-7 (δH 7.69, dd, J = 8.4, 2.1 Hz) to H-5 (δH 7.65, d, J = 2.1 Hz) and H-8 (δH 6.79, d, J = 8.4 Hz), confirming the presence of the 1,2,4 trisubstituted benzene ring and the cis-double bond. That the 1,2,4-trisubsituted benzene ring and the cis-double bond were part of the 2H-chromene-6-carboxylic acid moiety was corroborated by the HMBC correlations (Figure 4a, Supplementary Information, Figures S11) of H-5 to C-4 (δC 122.8), C-7 (δC 130.8), C-8a (δC 156.8) and C-11 (δC 167.0), of H-7 to C-5 (δC 127.9), C-8a, C-11, of H-8 to C-4a (δC 120.5), C-6 (δC 123.0) and C-8a, as well as of H-3 to C-4a and of H-4 to C-4a, C-5 and C-8a. As the HMBC spectrum also exhibited correlations of the methyl singlet at δH 1.31 (H3-9) to C-3, C-2 (δC 80.5) and C-10 (δC 67.1) and of the singlet at δH 3.46 (H-10) to C-2, C-3 and CH3-9 (δC 23.3), the methyl and hydroxymethyl groups were placed on C-2. The NOESY correlations (Figure 4b, Supplementary Information, Figures S12) of H-4 to H-3 and H-5, of H-3 to H-4, H3-9 and H2-10, of H-8 to H-7, H2-10 and H3-9 and of H3-9 to H-8, H-10 also confirmed this hypothesis. Since compound 2a was obtained in a suitable crystal, X-ray analysis was carried out, and the ORTEP view shown in Figure 5 revealed that the absolute configuration of C-2 is S. A literature search indicated that 2a has never been previously reported; therefore, it was named quadricinctapyran A.
Compound 2b was isolated as a white solid (mp. 118–119 °C), and its molecular formula C14H14O5 was established on the basis of the (+)-HRESIMS m/z 263.0971 [M + H]+ (calculated 263.0919), indicating eight degrees of unsaturation. The 1H and 13C NMR spectral features (Supplementary Information, Figures S13 and S14) of compound 2b resembled those of compound 2a, except for an additional carbonyl carbon at δC 170.8 and a methyl group at δC 20.7 (δH 1.98, s), characteristic of the acetoxyl group (Table 2). Moreover, since the signals of the oxymethylene protons (H2-10) of compound 2b appeared as two doublets at δH 4.13 (J = 11.7 Hz) and 4.24 (J = 11.7 Hz), ca. 0.7 ppm higher than that of H2-10 in compound 2a, it was clear that the acetoxyl group was on C-10. This was also corroborated by the HMBC correlations (Table 2, Figure 6a, Supplementary Information, Figure S17) of H2-10 and the methyl singlet at δH 1.98 to the carbonyl of the acetoxyl group (δC 170.8). Since Compound 2b could not be obtained as a suitable crystal for X-ray analysis, the absolute configuration of its C-3 could not be determined with certainty. However, as compound 2b is the acetate derivative of compound 2a, it was speculated that the stereochemistry of its C-2 should be the same as that of C-2 of compound 2a, i.e., 2S. In order to confirm this hypothesis, the NOESY experiments were carried out. The NOESY spectrum of compound 2b showed a weak correlation of H-8 to H3-9 and not to H2-10 (Figure 6b, Supplementary Information, Figure S18), similar to what has been observed for compound 2a. Acid hydrolysis of 2b gave the product whose structure was confirmed as 2a by 1H and 13C NMR data, as well as the optical rotation. Therefore, the absolute configuration of C-2 of 2b is assigned as 2S. Compound 2b is also a new compound, thus we named it quadricinctapyran B.
The molecular formula C12H12O4 of compound 3, a white solid (mp 189–191 °C), was established based on the (+)-HRESIMS m/z 221.0819 [M + H]+ (calculated 221.0814), and thus, it is an isomer of compound 2a. Furthermore, the general features of its 1H and 13C NMR spectra resembled those of compound 2a. However, the chemical shift values of some of the proton and carbon signals were slightly different from those observed in compound 2a. The 13C NMR, DEPT and HSQC spectra (Table 3, Supplementary Information, Figures S20 and S22) exhibited the signals of one conjugated carboxyl carbonyl (δC 166.7), three quaternary sp2C 161.2, 125.3, 125.0), five methine sp2C 139.5, 134.6, 129.8, 123.5, 119.8), one oxy-quaternary sp3C 70.7), one oxymethylene sp3C 77.0) and one methyl (δC 26.1) groups. The 1H NMR spectrum (Table 3, Supplementary Information, Figure S19) revealed the existence of three aromatic protons of the 1,2,4-trisubstituted benzene ring, similar to that of compound 2a, at δH 7.05, d (J = 8.4 Hz), 7.74, dd (J = 8.4, 2.1 Hz), 7.89, d (J = 2.1 Hz), two olefinic protons of the cis-double bond at δH 5.95, dd (J = 12.0, 1.2 Hz) and 6.31, d (J = 12.0 Hz), two oxymethylene protons at δH 3.84, d (J = 11.1 Hz) and 4.02, dd (J = 11.1, 1.6 Hz), and a methyl singlet at δH 1.26. That the carboxylic acid functionality was on C-7, and the substituent with a cis-double bond was on C-5a was substantiated by the HMBC correlations of H-6 (7.89, d, J = 2.1 Hz) to C-10 (δC 166.7), C-9a (δC 161.2), C-8 (δC 129.8) and C-5 (δC 123.5), of H-5 (δH 6.31, d, J = 12.0 Hz) to C-6 (δC 134.5) and C-9a and of H-4 (δH 5.95, dd, d, J = 12.0, 1.2 Hz) to C-5a (δC 125.0) (Table 3 and Figure 7a, Supplementary Information, Figure S23). However, contrary to compound 2a, compound 3 showed the HMBC correlations of H2-2 (δH 3.84, d, J = 11.1 Hz and 4.02, dd, J = 11.1, 1.6 Hz) to not only C-4 (δC 139.5), but also to C-9a (Table 3 and Figure 7a). Consequently, the benzoic acid moiety was fused with the 2,3,6,7-tetrahydro-oxepine ring through C-5a and C-9a. That the methyl group and the hydroxyl group were on C-3 of the oxepin ring was confirmed by the HMBC correlations of the methyl singlet at δH 1.26 (H-11) to C-3 (δC 70.7), C-2 (δC 77.0) and C-4, as well as of H2-2 to C-11 (δC 26.1) and C-3 (Table 3 and Figure 7). This was also corroborated by the NOESY correlations of H3-11 to OH-3 (δH 3.39, br), H2-2 and H-4 (Table 3 and Figure 7b, Supplementary Information, Figure S24). Therefore, Compound 3 was identified as 3-hydroxy-3-methyl-2,3-dihydro-1-benzoxepine-7-carboxylic acid.
As compound 3 could not be obtained as a suitable crystal for X-ray analysis, an effort to tentatively determine the relative configuration of the stereogenic carbon (C-3) by molecular mechanics conformation analysis and the NOESY experiments was carried out. Stochastic conformational search on the computational models of the structure of 3 with C-3 in R configuration, followed by energy minimization, converged to two half-chair conformations for the seven-membered ring C1 and C2, as depicted in Figure 8, regardless of the modelling level of the theory used (MP2/6-311G, PM3, MMFF and MM2). All methods, except for PM3, also agree that conformation C2, with the methyl group in the equatorial position, is more stable by ca. 2 kcal/mol. However, this difference can be attributed to a weak intramolecular hydrogen bond in conformation C2, between HO-3 and O-1, which is not possible in conformation C1. The semi-empirical PM3 method gives less weight to non-ideal intramolecular hydrogen bonds, as compared to the other methods, and assigns virtually the same energy to both conformations of 3, while still orienting HO-3 towards the seven-membered ring. Since DMSO solvent molecules compete for HO-3 hydrogen bonding, it is more likely that the intramolecular bond is not an important feature of ring conformation C2 and that, in reality, both conformations have approximately the same energy.
Both model conformations of 3 predict hydrogen-hydrogen distances that are similar to within 0.2 Å, with the exception of some distances to the methyl group (H3-11). The most notable are to the diastereotopic hydrogens (H2-2), partially presented in Figure 8. While both conformations show almost the same distance between H-2a and H-11, a difference is predicted between H-2b and H-11 if the conformation C1 predominates, which should be apparent in the build-up rate of NOESY cross-peaks for small mixing times. Alternatively, the predominance of the conformation C2 would be indicated by two equal strength cross-peaks for H-2a and H-2b in cross-relaxation with H-11. It is observed that the H-2b (δH 3.84, d, J = 11.1 Hz)/H-11 NOESY cross-peak is weak while the H-2a (δH 4.02, dd, J = 11.1, 1.6 Hz)/H-11 is medium, suggesting that the conformation C1 predominates. NOE effective distances, reff, are calculated by [13] :
r e f f = ( 1 3 i r H 2 / H 10 i 6 ) 1 / 6
The average effective positions of the three methyl H-11i protons are relative to H-2a or H-2b. The predicted ratio reff (H-2a/H-11)/reff (H-2b/H-11) is 1.40 (1.36, if r−3 averages are used instead of r−6). Assuming that the cross-relaxation rate is similar in both cases, the NOE intensities should also have a similar ratio [14]. Since the observed intensities ratio is actually closer to two, the evidence points towards the predominance of the conformation C1. Since, as stated previously, both conformations have similar conformational energy, the higher stability of 3R-C1 of 3 (or of its stereoisomer 3S-C2) must originate from the ready interaction of the equatorial HO-3 with the hydrogen-bonding solvent and also from a higher entropic rotational freedom of the hydroxyl and methyl groups. The NOESY spectrum also revealed the correlations of both H2-2 to H-9. However, only one of the H2-2, i.e., the doublet at δH 3.84 (J = 11.1 Hz), showed a weak cross-peak to H-4, while the double doublet at δH 4.02 (J = 11.1, 1.6 Hz) did not give any cross-peak to H-4. This observation led to the conclusion that the plucked oxepin ring should adopt the conformation in which H-2 at δH 3.84 is near H-4, i.e., in the α (axial), while H-2 at δH 4.02 is in β (equatorial) positions, which is in agreement with our conformational analysis. A literature search revealed that compound 3 is also a new compound, so we named it quadricinctoxepine.
Compound 4b was isolated as white crystals (mp, 227–228 °C), and its molecular formula C12H14O4S was established on the basis of the (+)-HRESIMS m/z 255.0694 [M + H]+ (calculated 255.0691). The IR spectrum showed absorption bands for hydroxyl (3442 cm−1), conjugated ketone carbonyl (1690 cm−1) and aromatic (1622 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 4, Supplementary Information, Figures S26 and S28) exhibited the signals of one conjugated ketone carbonyl (δC 191.2), four quaternary sp2C 151.6, 147.4, 135.7, 120.8), two methine sp2C 118.0, 112.4), one oxy-quaternary sp3C 80.9), one methylene sp2C 48.0) and three methyl (δC 40.8, 26.1 and 25.7) groups. The 1H NMR spectrum (Table 4, Supplementary Information, Figure S25) exhibited, besides a broad singlet of the phenolic hydroxyl group at δH 9.85, the signals of two meta-coupled aromatic protons at δH 7.17, d (J = 3.1 Hz) and δH 7.35, d (J = 3.1 Hz), two geminally-coupled methylene protons at δH 2.80, d (J = 16.6 Hz) and 2.82, d (J = 16.6 Hz) and three methyl singlets at δH 1.38, s, 1.39, s, and 2.77, s. The chemical shift value of the methyl singlet at δH 2.77, s (δC 40.8), indicated that it was on the electron-withdrawing moiety. That compound 4b was a 2,2,6,8-tetrasubstituted 2,3-dihydro-4H-chromen-4-one derivative was supported by the HMBC correlations of H-5 (δH 7.17, d, J = 3.1 Hz) to C-4 (δC 191.2), C-7 (δC 118.0) and C-8a (δC 147.4), of H-7 (δH 7.35, d, J = 3.1 Hz) to C-5 (δC 112.4), C-8 (δC135.7), C-8a, as well as of H-2 (δH 2.80, d, J = 16.6 Hz and 2.82, d, J = 16.6 Hz) to C-3 (δC 80.9) and C-4 (Table 4, Figure 9, Supplementary Information, Figure S28). As the HMBC spectrum also exhibited cross-peaks of a broad singlet of the phenolic hydroxyl proton at δH 9.85 to C-5, C-6 (δC 151.6) and C-7 and of the singlets of the methyl groups at δH 1.38 and 1.39 to C-2 (δC 48.0) and C-3, the hydroxyl group was placed on C-6, and the two methyl groups were placed on C-2. Since this partial structure accounted for only C11H11O3, another portion of the molecule must contain CH3SO. That the methyl sulfoxide group was on C-8 was supported by the presence of the deshielded methyl group at δH 2.77, s (δC 40.8), as well as by the HBMC cross-peak of H3-11 (δH 2.77, s) to C-8. Final proof of the structure of compound 4b was provided by its X-ray analysis, and its ORTEP view is shown in Figure 10. Moreover, the ORTEP view also revealed that the absolute configuration of the sulfoxide group in compound 4b is R. A literature search showed that compound 4b is a new compound, and thus, we have named it quadricinctone B.
The molecular formula C12H14O6 of compound 5 was determined based on the (+)-HRESIMS m/z 255.0875 (calculated 255.0869), indicating six degrees of unsaturation. The IR spectrum exhibited absorption bands for hydroxyl (3439 cm−1), conjugated ester carbonyl (1660 cm−1) and aromatic (1643 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 5, Supplementary Information, Figures S31 and S33) exhibited the signals of one conjugated ester carbonyl (δC 168.8), five quaternary sp2C 162.9, 161.3, 144.6, 113.5, 98.9), one methine sp2C 99.9), one quaternary sp3 of a hemiketal (δC 104.8), one methine sp3C 34.9), one oxymethylene sp3C 63.7) and two methyl (δC 16.3 and 9.8) carbons. The 1H NMR spectrum (Table 5, Supplementary Information, Figure S30) exhibited, besides a singlet of one aromatic proton at δH 6.27, a singlet of a hydrogen-bonded phenolic hydroxyl at δH 11.24 and a broad signal of another phenolic hydroxyl at δH 10.62, two broad signals of the hydroxyl groups at δH 5.26 and 7.07, one broad doublet of two methylene protons at δH 3.65 (J = 16.6 Hz), a broad signal of one methine proton at δH 3.26, one methyl doublet at δH 1.06 (J = 7.2 Hz) and one methyl singlet at δH 1.98. That compound 5 was a 3,3,4,5,6,8-hexasubstituted 3,4-dihydro-1H-isochromen-1-one was supported by the HBMC correlations of OH-8 (δH 11.24, s) to C-8 (δC 161.3), C-7 (δC 99.9), C-8a (δC 98.9) and of H-7 (δH 6.27, s) to C-5 (δC 113.5), C-6 (δC 162.9), C-8 and C-8a (Table 5, Figure 11, Supplementary Information, Figure S34). Since the methyl singlet at δH 1.98 gave HMBC cross-peaks to C-5 and the carbons at δC 144.6 and 162.9 (Table 5, Figure 11), the methyl group (δH 1.98; δC 9.8) and another hydroxyl group (δH 10.62, br) were placed on C-5 and C-6, respectively, and the carbon signals at δC 144.6 and 162.9 were assigned for C-4a and C-6, respectively. On the other hand, the COSY spectrum (Table 5, Supplementary Information, Figure S32) showed cross-peaks of the broad signal at δH 3.26 to the methyl doublet at δH 1.06 (J = 7.2 Hz) and of the broad signal at δH 5.26 to the broad doublet at δH 3.65 (J = 16.6 Hz), while the HMBC spectrum (Table 5, Figure 11) gave cross-peaks of the methyl doublet at δH 1.06 (J = 7.2 Hz) to C-4a, C-4 (δC 34.9), and the signal of the quaternary carbon at δC 104.8 (C-3), the methyl and the hydroxymethyl substituents were placed on C-4 and C-3, respectively. Therefore, another hydroxyl group (δH 7.07, br) was on C-3. This was supported by the chemical shift value of C-3, which is typical for a hemiketal carbon. Since compound 5 could be obtained as a suitable crystal (mp. 223–224 °C), its X-ray analysis was performed. The ORTEP view of compound 5, shown in Figure 12, not only confirmed the proposed structure, but also determined the absolute configuration of C-3 and C-4 as 3S, 4R. Since compound 5 is a new compound, it was named quadricinctone C.
Compound 6a was also isolated as white crystals (mp. 149–150 °C), and its molecular formula C12H14O4 was determined based on the (+)-HRESIMS m/z 223.9067 [M + H]+ (calculated 223.9070), indicating six degrees of unsaturation. The IR spectrum showed absorption bands for hydroxyl (3417 cm−1), a conjugated carbonyl (1681 cm−1) and aromatic (1634 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 6, Supplementary Information, Figures S36 and S38) exhibited the signals of one conjugated carboxyl carbonyl (δC 167.2), two quaternary sp2C 128.2, 122.6), one oxy-quaternary sp2C 163.7), three methine sp2C 130.4, 126.4, 108.4), one oxy-quaternary sp3C 70.0), one oxymethine sp3C 90.2), one methylene sp2C 29.3) and two methyl (δC 25.9 and 24.9) carbons. The 1H NMR spectrum (Table 6, Supplementary Information, Figure S35) showed signals of three aromatic protons of the 1,2,4-trisubstituted benzene ring at δH 7.75, d (J = 1.8 Hz), 7.72, dd (J = 8.3, 1.8 Hz), 6.80, d (J = 8.3 Hz), in addition to a broad signal of the hydroxyl proton at δH 12.49, a triplet of one proton at δH 4.64 (J = 8.9 Hz), a doublet of two protons at δH 3.17 (J = 8.9 Hz) and two methyl singlets at δH 1.13 and 1.14. That the 1,2,4-trisubstituted benzene ring was part of 2,5-disubstituted 2,3-dihydro-1-benzofuran was supported by the COSY correlations of H-6 (δH 7.72, dd, J = 8.3, 1.8 Hz) to H-4 (δH 7.75, d, J = 1.8 Hz) and H-7 (δH 6.80, d, J = 8.3 Hz) and of H-2 (δH 3.17, J = 8.9 Hz) to H-3 (δH 4.64, J = 8.9 Hz)(Table 6, Figure 13a, Supplementary Information, Figure S37), as well as of the HMBC correlations of H-4 to C-6 (δC 130.4) and C-7a (δC 163.7), of H-6 to C-4 (δC 126.4), of H-3 to C-2 (δC 90.2), C-3a (δC 128.2) and C-7a and of H-7 to C-3a, C-7a and C-5 (δC 122.6) (Table 6, Figure 13a, Supplementary Information, Figure S39). That the carboxyl group was on C-5 was supported by the HMBC correlations of H-4 and H-6 to the conjugated carbonyl at δC 167.2 (Table 6, Figure 13a), along with the presence of a broad signal at δH 12.49, which is characteristic of a hydroxyl group of carboxylic acid. In the same manner, that the 2-hydroxypropyl substituent was placed on C-2 was evidenced by the HMBC correlations of H-2 (δH 4.64, J = 8.9 Hz) to C-3 (δC 29.3), C-1′ (δC 70.0), C-2′ (δC 24.9), C-3′ (δC 25.9) (Table 6, Figure 13a), as well as by the NOESY correlations of H-2 to H-3, H3-2′ (δH 1.14, s) and H3-3′ (δH 1.13, s)(Figure 13b). Therefore, compound 6a was identified as 2-(2-hydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-carboxylic acid. A literature search revealed that compound 6a has the same flat structure as anodendroic acid (2-(1-hydroxy-1-methylethyl)-2,3-dihydrobenzofuran-5-carboxylic acid), which was first isolated from the stem of Anodendron affine Durce [15]. Anodendroic acid was later synthesized by Yamaguchi et al. [16]; however, its 1H NMR data (DMSO-d6) were slightly different from those reported by Shima et al. [15]. Anodendroic acid was also obtained by basic hydrolysis of its methyl ester, a constituent of Eriodictyon sessilifolium [17], and also by biotransformation of 3-(γ,γ-dimethylallyl)-p-coumaric acid [18]. It is interesting to note that, in all of these reports, the identity of anodendroic acid was achieved by comparing its melting point, 1H NMR and MS data with those reported by Shima et al. [15], while no stereochemistry of C-2 was indicated. However, when compared to the 1H NMR and other physical data of compound 6a with those reported for anodendroic acid by Shima et al. [15], it was found that the 1H NMR data of anodendroic acid (in pyridine-d6) [15] were slightly different from those of compound 6a (in DMSO-d6). Therefore, it was not possible to compare these 1H NMR data, since they were obtained in different solvents. Interestingly, the 1H NMR data, obtained in DMSO-d6 by Yamaguchi et al. [16], were also slightly different from those of compound 6a. The obvious differences between anodendroic acid [15] and compound 6a are their melting points and optical rotations. While anodendroic acid (mp. 212–214 °C) is laevorotatory ( [ α ] D 26 −19°, c 0.7, EtOH) [15], compound 6a (mp. 149–150 °C) is dextrorotatory ( [ α ] D 20 +74°, c 0.03, MeOH). Consequently, we concluded that the structure of compound 6a is different from that of anodendroic acid. This fact has prompted us to investigate the stereochemistry of compound 6a. Since Compound 6a was obtained as a suitable crystal for X-ray diffraction, its X-ray analysis was carried out. The ORTEP view of compound 6a shown in Figure 14 not only confirmed its proposed structure, but also revealed the absolute configuration for C-2 as 2R. Therefore, compound 6a is a new compound, and we have named it quadricinctafuran A. Since anodendroic acid exhibited the opposite sign of rotation to that of compound 6a, it is probable that the absolute configuration of its C-2 is 2S. This is not unusual, since fomannoxin, another 2,3-dihydrobenzofuran derivative, also showed the opposite optical rotation and has the opposite absolute configuration to tremetone, even though they have very similar structures [16].
The (+)-HRESIMS of compound 6b gave the [M + H]+ at m/z 239.0919 (calculated 239.0919), indicating its molecular formula C12H14O5 and, therefore, six degrees of unsaturation. The general features of its 1H and 13C NMR spectra resembled those of compound 6a. The 13C NMR, DEPT and HSQC spectra (Table 6, Supplementary Information, Figures S42 and S44) exhibited the signals of one conjugated carboxyl carbonyl (δC 167.2), two quaternary sp2C 128.4, 122.6), one oxy-quaternary sp2C 163.6), three methine sp2C 130.8, 126.4, 108.4), one oxy-quaternary sp3C 72.5), one oxymethine sp3C 86.5), one methylene sp2C 28.7), one oxymethylene sp2C 66.7) and one methyl (δC 20.0) carbons. The 1H NMR and COSY spectra (Table 6, Supplementary Information, Figures S41 and S43) showed similar proton signals of the 2,3-dihydro-1-benzofuran-5-carboxylic acid nucleus to those of 6a. However, it exhibited only one methyl singlet at δH 1.09 and another singlet of oxymethylene protons at δH 3.33, instead of two methyl singlets as in compound 6a. Therefore, the difference between the structures of compounds 6a and 6b resides in the substitutions on C-2. That the substituent on C-2 of compound 6b was 1,2-dihydroxypropyl was evidenced by not only its molecular formula (C12H14O5), which has one more oxygen atom than that of compound 6a (C12H14O4), but also the presence of the oxymethylene carbon at δC 66.7 (C-2′; δH 3.33, s). Moreover, the chemical shift value of C-2 (δC 86.5) was nearly 4 ppm lower than that of compound 6aC 90.2). Thus, compound 6b was identified as 2-(1,2-dihydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-carboxylic acid. This was confirmed by the HMBC correlations of H3-3′ (δH 1.09) to C-1′ (δC 72.5) and C-2′ (δC 66.7), as well of H2-2′ (δH 3.33, s) to C-1′ (δC 72.5) and C-3′ (δC 20.0) (Figure 15, Supplementary Information, Figure S45). Since compound 6b could not be obtained as suitable crystals for X-ray crystallography, it was not possible to determine the absolute configuration of C-2 by X-ray analysis. Moreover, as compound 6b also has a tertiary hydroxyl group on C-1′ and a primary hydroxyl group on C-2′, it was not possible to determine the absolute configurations of C-2 and C-1′ by Mosher’s method. On the other hand, since the methyl group on C-1 in compound 6a was replaced by the hydroxymethyl group incompound 6b, it is legitimate to postulate that compounds 6b is derived from compound 6a. Consequently, the absolute configuration of C-2 of compound 6b should be the same as that of compound 6a, i.e., 2R. However, it is not yet possible to determine the absolute configuration of C-1′. Compound 6b is also a new compound, and we have named it quadricinctafuran B.
Compound 7 was also isolated as white crystals (mp. 196–197 °C), and its molecular formula C14H12O5 was established on the basis of the (+)-HRESIMS m/z 237.0792 [M + H]+ (calculated 237.0763), indicating seven degrees of unsaturation. The IR spectrum showed absorption bands for hydroxyl (3404 cm−1), conjugated ketone carbonyl (1708 cm−1), conjugated carboxyl carbonyl (1670 cm−1) and aromatic (1558, 1540 cm−1) groups. The 13C NMR, DEPT and HSQC spectra (Table 7, Supplementary Information, Figures S48 and S50) exhibited the signals of one conjugated ketone carbonyl (δC 191.1), one conjugated carboxyl carbonyl (δC 166.4), one oxy-quaternary sp2C 162.9), two quaternary sp2C 123.0, 119.6), three methine sp2C 136.4, 127.5, 118.5), one oxy-quaternary sp3C 83.0), one oxymethylene sp2C 66.8), one methylene sp2C 43.4) and one methyl (δC 21.2) carbons. The 1H NMR spectra (Table 7, Supplementary Information, Figure S47) exhibited, besides the signals of three aromatic protons of the 1,2,4-trisubstituted benzene ring at δH 8.26, d (J = 2.3 Hz), 8.04, dd (J = 8.7, 2.3 Hz), 7.07, d (J = 8.7 Hz), a methyl singlet at δH 1.30, two pairs of geminally-coupled methylene protons at δH 2.74, d (J = 16.7 Hz)/3.00, d (J = 16.7 Hz) and δH 3.49, dd (J = 11.6, 4.5 Hz)/3.59, dd (J = 11.6, 4.2 Hz); the latter showed COSY correlations with the broad triplet of the hydroxyl proton at δH 5.26 (Table 7, Figure 16a, Supplementary Information, Figure S49). As the HMBC spectrum exhibited correlations of the aromatic proton signal at δH 8.26, d (J = 2.3 Hz, H-5) to the oxy-quaternary sp2 carbon at δC 162.9 (C-8a), as well as to the conjugated ketone carbonyl carbon at δC 191.1 (C-4) and the methine sp2 at δC 136.4 (C-7) (Table 7, Figure 16a, Supplementary Information, Figure S51), the ketone moiety was placed on C-4a. Additionally, the HMBC spectrum also showed correlations of H-8 (δH 7.07, d, J = 8.7 Hz) to C-8a and the quaternary sp2 carbons at δC 123.0 and 119.6; they were therefore assigned to C-4a and C-6, respectively (Table 7, Figure 16a). The presence of the 1-hydroxy-2-methyl-2-oxypropyl moiety was supported by the HMBC correlations of the methyl singlet at δH 1.30 (CH3-9) to the oxy-quaternary sp3 carbon at δC 83.0 (C-2), the oxymethylene sp3 carbon at δC 66.8 (C-10) and the methylene sp3 carbon at δC 43.4 (C-3), as well as of the H2-3 (δH 2.74, d, J = 16.7 Hz/3.00, d, J = 16.7 Hz) to C-2, C-9 (δC 21.2) and C-10 (Table 7, Figure 16a). Since H2-3 also gave a HMBC cross-peak to C-4, the 1-hydroxy-2-methyl-2-oxypropyl moiety was linked to C-4. Due to the fact that these two moieties accounted for only C11H12O4, it was concluded that the carboxyl group (δC 166.4, δH 12.69 br) was on C-6. Therefore, compound 7 was identified as 2-(hydroxymethyl)-2-methyl-4-oxo-3,4-dihydro-2H-chromene-6-carboxylic acid. As compound 7 was obtained as a suitable crystal for an X-ray diffraction, its X-ray analysis was carried out. The ORTEP view of compound 7, shown in Figure 17, revealed the absolute configuration for C-2 as 2S. A literature search revealed that compound 7 is also a new compound, so we named it quadricinctone D.
In order to establish the conformation of the 2,3-dihydro-4H-pyran-4-one, analysis of the NOESY correlations was carried out. The NOESY spectrum (Table 7, Figure 16b, Supplementary Information, Figure S52) exhibited not only a strong correlation of H-7 to H-8, but also week correlations of H3-9 to H-5 and H-8. Therefore, CH3-9 is in the α-axial position. Additionally, since H3-9 also exhibited a strong cross-peak with the signal of the methylene proton at δH 2.74, d (J = 16.7 Hz), and a weak cross-peak with the proton signal at δH 3.00, d (J = 16.7 Hz), the former was assigned to H-3α and the latter to H-3β. It is interesting to observe that the structure of compound 7 is analogous to the structure of compound 3 in that it also exhibits the same methyl-methylene bridge structural feature (at C-9 and C-3), with the same relative intensity of NOESY cross-peaks between the protons of the two groups and with similar conformational energies for the two half-chair conformations of the non-aromatic ring. Therefore, the conclusions drawn for compound 3 are also valid for compound 7, whose stereochemistry is unequivocally defined by X-ray analysis.
Compounds 1 and 5 can be hypothesized as originating from the pentaketide intermediate (I). Methylation (by SAM) gives II, which undergoes cyclization and enolization to give the intermediate III. Methylation of the phenolic hydroxyl groups and the α-carbon of the carbonyl ketone leads to the intermediate IV. Enolization, followed by a lactonization, originates V, which undergoes hydration to give VI, and oxidation of one of the methyl groups gives rise to compound 5. Alternatively, oxidation of the α-carbon of the side chain of IV leads to the intermediate VII, which, after lactonization and reduction of the ketone carbonyl, gives rise to compound 1 (Figure 18).
Biosynthetically, compounds 2a, 2b, 4a, 4b, 6a, 6b and 7 are of mixed origin, i.e., shikimic acid and mevalonic acid pathways, similar to that proposed for fomannoxin [19], as depicted in Figure 19. Elimination of pyruvate from chorismate (IX) by chorismate pyruvate lyase leads to the formation of p-hydroxybenzoic acid (X), which after prenylation by DMAPP (XI), originates the intermediate XII. Epoxidation and cyclization of XII, via Route a, leads to a formation of the furan ring in compound 6a and after oxidation of one of the methyl groups leads to compound 6b. On the other hand, cyclization via Route b leads to the formation of the pyran ring in XIV. Dehydration and oxidation of one of the methyl groups originates compound 2a, which after acetylation of the primary alcohol function of the side chain will originate compound 2b. Alternatively, the intermediate XIV can also undergo dehydration, reduction and oxidation to give the ketone function in compound 7. Oxidative decarboxylation of compound 7 leads to the formation of compound 4a, which after sulfinylation of the benzene ring originates compound 4b. However, it is possible that the introduction of the methyl sulfoxide group to the aromatic ring could happen before cyclization.
Compound 3 is also derived from a prenylation of p-hydroxybenzoic acid (X); however, it can occur with IPP (XVI) instead of DMAPP (XI). Epoxidation of the double bond of the side chain of XVII, followed by cyclization of XVIII leads to the formation of an oxepin ring in XIX. Oxidation and dehydration of the oxepin ring will lead to the formation of compound 3, as depicted in Figure 20.
Compounds 17 were evaluated for their antibacterial activity against Gram-positive and Gram-negative bacteria, as well as multidrug-resistant isolates from the environment, according to the previously described protocol [6], as well as for their antifungal activity against yeast (Candida albicans ATCC 10231), filamentous fungus (Aspergillus fumigatus ATCC 46645) and dermatophyte (Trichophyton rubrum FF5) in the antifungal assay [20]. The results showed that none of the tested compounds exhibited significant antibacterial activity (MIC > 256 μg/mL) or antifungal activity (MIC > 512 μg/mL). These compounds were also evaluated for their in vitro growth inhibitory activity against the MCF-7 (breast adenocarcinoma), NCI-H460 (non-small cell lung cancer) and A375-C5 (melanoma) cell lines by the protein binding dye SRB method [21], and they did not show any activity in this assay (GI50 > 150 mM).

3. Experimental Section

3.1. General Procedure

Melting points were determined on a Bock monoscope and are uncorrected. Optical rotations were measured on an ADP410 Polarimeter (Bellingham + Stanley Ltd., Tunbridge Wells, Kent, U.K.). Infrared spectra were recorded in a KBr microplate in a FTIR spectrometer Nicolet iS10 from Thermo Scientific (Waltham, MA, USA) with the Smart OMNI-Transmission accessory (Software 188 OMNIC 8.3). UV spectra were taken in CHCl3 and were recorded on a Varian CARY 100 spectrophotometer. 1H and 13C NMR spectra were recorded at ambient temperature on a Bruker AMC instrument (Bruker Biosciences Corporation, Billerica, MA, USA) operating at 300.13 and 75.4 MHz, respectively. High resolution mass spectra were measured with a Waters Xevo QToF mass spectrometer (Waters Corporations, Milford, MA, USA) coupled to a Waters Acquity UPLC system. A Merck (Darmstadt, Germany) silica gel GF254 was used for preparative TLC, and a Merck Si gel 60 (0.2–0.5 mm) was used for column chromatography.

3.2. Extraction and Isolation

The strain KUFA 0081 was isolated from the marine sponge Clathria reinwardti, which was collected, by scuba diving at a depth of 15–20 m, from the coral reef at Samae San Island (12°34′ 36.64″ N 100°56′ 59.69″ E) in the Gulf of Thailand, Chonburi Province, in July 2013. The sponge was washed with 0.06% sodium hypochlorite solution for 1 min, followed by sterilized seawater 3 times and then dried on sterile filter paper, cut into small pieces (5 × 5 mm) and placed on a malt extract agar (MEA) medium containing 70% seawater and 300 mg/L of streptomycin sulphate, then incubated at 28 °C for 7 days, after which the hyphal tips were transferred onto a slant MEA and maintained as pure culture for further identification. The fungus was identified as Neosartorya quadricincta (E. Yuill) Malloch & Cain by one of us (T.D.), based on morphological characteristics, such as colony growth rate and growth pattern on standard media, namely Czapek’s agar, Czapek yeast autolysate agar and malt extract agar. Microscopic characteristics, including size, shape and the ornamentation of ascospores, were examined under light and scanning electron microscopes. This identification was supported by sequence analysis of the β-tubulin, calmodulin and actin genes as described in the previous report [22]. Neosartorya quadricincta was also confirmed by the analysis sequence of the internal transcribed spacer (ITS) gene according the procedure previously described by us [7]. Its gene sequences were deposited in GenBank with Accession Numbers KM095492 and KT201525, respectively. The pure cultures were deposited as KUFA0081 at Kasetsart University Fungal Collection, Department of Plant Pathology, Faculty of Agriculture, Kasetsart University, Bangkok, Thailand.
The fungus was cultured for one week at 28 °C in 10 Petri dishes (i.d. 90 mm) containing 25 mL of MEA. In order to obtain the mycelial suspension, the mycelial plugs were transferred to two 500-mL Erlenmeyer flasks containing 200 mL of potato dextrose broth and then incubated on a rotary shaker at 120 rpm at 28 °C for 4 days. Fifty 1000-mL Erlenmeyer flasks, each containing 300 g of cooked rice, were autoclaved at 121 °C for 15 min, then inoculated with 20 mL of mycelial suspension of N. quadricincta and incubated at 28 °C for 30 days, after which the mouldy rice was macerated in ethyl acetate (25 L total) for 7 days and then filtered. The ethyl acetate solution was concentrated under reduced pressure to yield 176.5 g of crude ethyl acetate extract, which was dissolved in 500 mL of CHCl3 and then washed with H2O (3 × 500 mL). The organic layers were combined and dried with anhydrous Na2SO4, filtered and evaporated under reduced pressure to give 31.1 g of the crude chloroform extract, which was applied on a column of silica gel (440 g) and eluted with mixtures of petrol-CHCl3 and CHCl3-Me2CO; 250-mL fractions were collected as follows: Frs 1–15 (petrol-CHCl3, 1:1), 16–55 (petrol-CHCl3, 3:7), 56–118 (petrol-CHCl3, 1:9), 119–284 (CHCl3-Me2CO, 9:1), 285–329 (CHCl3-Me2CO, 7:1), 330–359 (CHCl3-Me2CO, 1:1). Frs 175–181 were combined (250 mg) and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 3:2:0.01) to give 86.8 mg of 1 and 15.0 mg of 2b. Frs 182–197 were combined (565.1 mg) and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 17:3:0.02) to give 35.1 mg of 1 and 14.3 mg of 2b. Frs 224–235 were combined (249.3 mg) and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 4:1:0.01) to give 11.4 mg of 4a [12]. Frs 236–285 were combined (1.2 g), applied over a column chromatography of silica gel (42 g) and eluted with mixtures of petrol-CHCl3 and CHCl3-Me2CO, wherein 100-mL subfractions were collected as follows: sfrs 1–17 (petrol-CHCl3, 1:9), 18–61 (CHCl3-Me2CO,9:1). Sfrs 24–33 were combined (423.4 mg) and precipitated in a mixture of CHCl3 and Me2CO to give a white solid (46.2 mg), which was further recrystallized in a mixture of CHCl3 and Me2CO to give 9.4 mg of white crystals of 6a, and the mother liquor was purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 9:1:0.01) to give 23.2 mg of 6a and 4.9 mg of 2a. The mother liquor of sfrs 24–33 (133.0 mg) was purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 7: 3:0.01) to give 41.1 mg of 2a and 12.4 mg of 3. Sfrs 34–39 were combined (77.7 mg) and purified with TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 3: 1:0.01) to give 7.9 mg of 4b and 17.1 mg of 2a. Sfrs 40–61 were combined (496.4 mg) and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 4: 1:0.01) to give 22.7 mg of 5. Frs 307–315 were combined (291.0 mg), applied over a column chromatography of Sephadex LH-20 (10 g) and eluted with a 1:1 mixture of CHCl3: MeOH to give twelve 1-mL sub-fractions. Sfrs 9–12 were combined and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 3: 2:0.01) to give 13.4 mg of 6b and 9.4 mg of 7. Frs 316–359 were combined (1.2 g), applied over a column chromatography of Sephadex LH-20 (10 g) and eluted with a 1:1 mixture of CHCl3: MeOH to give twenty-one 1-mL sub-fractions. Sfrs 12–21 were combined (645.7 mg), applied over a column chromatography of Sephadex LH-20 (10 g) and eluted with a 1:1 mixture of CHCl3: MeOH to give sixteen 1-mL fractions. Ssfrs 5–16 were combined (597.5), applied over a column chromatography of silica gel (15 g) and eluted with a mixture of petrol-CHCl3 and CHCl3-Me2CO, wherein 100-mL fractions were collected as follows: frs 1–8 (petrol-CHCl3, 1:9), 9–28 (CHCl3-Me2CO, 9:1), 29–41 ((CHCl3-Me2CO, 7:3). Frs 17–18 were combined (47.4 mg) and purified by TLC (silica gel G254, CHCl3-Me2CO-HCO2H, 3: 2:0.01) to give 20.8 mg of 6b.

3.2.1. Quadricinctone A: 3-(1-Hydroxyethyl)-5,7-dimethoxy-3,4-dimethyl-2-benzofuran-1(3H)-one (1)

White crystals; mp 176–177 °C (petrol/CHCl3); [ α ] D 20 −59° (c 0.05, CHCl3); UV (MeOH) λmax (log ε) 233 (4.39), 260 (4.03), 298 (3.78) nm; IR (KBr) υmax 3455, 2981, 2490, 1723, 1612, 1596, 1499, 1467, 1432, 1228 cm−1; 1H and 13C NMR, see Table 1; HRESIMS m/z 267.1243 [M + H]+ (calculated for C14H19O5, 267.1332).

3.2.2. Quadricinctapyran A: 2-(Hydroxymethyl)-2-methyl-2H-chromene-6-carboxylic acid (2a)

White crystals; mp 147–148 °C (CHCl3/Me2CO); [ α ] D 20 +30° (c 0.03, MeOH); UV (MeOH) λmax (log ε) 237 (4.61) nm; IR (KBr) υmax 3447, 2922, 2359, 2341, 1696, 1647, 1609, 1578, 1490, 143, 1301, 1267 cm−1; 1H and 13C NMR, see Table 2; HRESIMS m/z 221.0820 [M + H]+ (calculated for C12H13O4, 221.0814).

3.2.3. Quadricinctapyran B: 2-[(Acetyloxy)methyl]-2-methyl-2H-chromene-6-carboxylic acid (2b).

White solid; mp 118–119 °C (petrol/CHCl3); [ α ] D 20 +58° (c 0.07, CHCl3); UV (MeOH) λmax (log ε) 201 (4.13), 237 (4.47) nm; IR (KBr) υmax 3441, 2986, 2943, 1745, 1678, 1640, 1607, 1574, 1453, 1419, 1297, 1264, 1228 cm−1; 1H and 13C NMR, see Table 2; HRESIMS m/z 263.0971 [M + H]+ (calculated for C14H15O5, 263.0919).

3.2.4. Quadricinctoxepine: 3-Hydroxy-3-methyl-2,3-dihydro-1-benzoxepine-7-carboxylic acid (3)

White solid; mp 189–191 °C (CHCl3/Me2CO); [ α ] D 20 +21° (c 0.07, MeOH); UV (MeOH) λmax (log ε) 234 (4.50) nm; IR (KBr) υmax 3404, 2921, 2359, 2342, 1701, 1606, 1574, 1497, 1384, 1297, 1259, 1117 cm−1; 1H and 13C NMR, see Table 3; HRESIMS m/z 221.0819 [M + H]+ (calculated for C12H13O4, 221.0814).

3.2.5. Quadricinctone B: 6-Hydroxy-2,2-dimethyl-8-(methylsulfinyl)-2,3-dihydro-4H-chromen-4-one (4b)

White crystals; mp 227–228 °C (CHCl3/Me2CO); [ α ] D 20 +30° (c 0.03, MeOH); UV (MeOH) λmax (log ε) 205 (4.27), 234 (4.22), 358 (3.64) nm; IR (KBr) υmax 3442, 2975, 2922, 1690, 1622, 1484, 1441, 1417, 1326, 1251, 1177 cm−1; 1H and 13C NMR, see Table 4; HRESIMS m/z 255.0694 [M + H]+ (calculated for C12H15O4S, 255.0691).

3.2.6. Quadricinctone C: 3,6,8-Trihydroxy-3-(hydroxymethyl)-4,5-dimethyl-3,4-dihydro-1H-isochromen-1-one (5)

White crystals; mp 223–224 °C (CHCl3/Me2CO); [ α ] D 20 +64° (c 0.06, MeOH); UV (MeOH) λmax (log ε) 214 (4.23), 271 (3.96), 312 (3.70) nm; IR (KBr) υmax 3439, 3006, 2976, 2360, 2342, 1660, 1644, 1600, 1494, 1472, 1448, 1385, 1157 cm−1; 1H and 13C NMR, see Table 5; HRESIMS m/z 255.0875 [M + H]+ (calculated for C12H15O6, 255.0869).

3.2.7. Quadricinctafuran A: (2R)-(2-Hydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-carboxylic acid (6a)

White crystals; mp 149–150 °C (CHCl3/Me2CO); [ α ] D 20 +74° (c 0.03, MeOH); UV (MeOH) λmax (log ε) 203 (3.40), 254 (3.49) nm; IR (KBr) υmax 3417, 2920, 1681, 1634, 1491, 1261 cm−1; 1H and 13C NMR, see Table 6; HRESIMS m/z 223.9067[M + H]+ (calculated for C12H15O4, 223.0970).

3.2.8. Quadricinctafuran B: (2R)-2-(1,2-Hihydroxypropan-2-yl)-2,3-dihydro-1-benzofuran-5-carboxylic acid (6b)

White solid; mp 209–210 °C (CHCl3/Me2CO); [ α ] D 20 +20° (c 0.05, MeOH); UV (MeOH) λmax (log ε) 205 (4.27), 261 (4.03) nm; IR (KBr) υmax 3328, 2984, 2941, 1673, 1610, 1599, 1495, 1362, 1290, 1247 cm−1; 1H and 13C NMR, see Table 6; HRESIMS m/z 239.0919[M + H]+ (calculated for C12H15O5, 239.0919).

3.2.9. Quadricinctone D: 7-Hydroxy-3-(hydroxymethyl)-3-methyl-3,4-dihydro-2-benzoxepine-1, 5-dione (7)

White crystals; mp 196–197 °C (CHCl3/Me2CO); [ α ] D 20 +19° (c 0.05, MeOH); UV (MeOH) λmax (log ε) 232 (4.21), 254 (3.84) nm; IR (KBr) υmax 3404, 2934, 2360, 2341, 1708, 1670, 1614, 1492, 1466, 1250 cm−1; 1H and 13C NMR, see Table 7; HRESIMS m/z 237.0792 [M + H]+ (calculated for C12H15O5, 237.0763).

3.3. X-Ray Crystal Structure of Compounds 1, 2a, 4b, 5, 6a and 7

Diffraction data were collected at 293 K with a Gemini PX Ultra equipped with CuKα radiation (λ = 1.54184 Å). The structures were solved by direct methods using SHELXS-97 and refined with SHELXL-97 [23]. Carbon, oxygen and sulphur atoms were refined anisotropically. Hydrogen atoms were either placed at their idealized positions using appropriate HFIX instructions in SHELXL and included in subsequent refinement cycles or were directly found from difference Fourier maps and were refined freely with isotropic displacement parameters. Full details of the data collection and refinement and tables of atomic coordinates, bond lengths and angles and torsion angles have been deposited with the Cambridge Crystallographic Data Centre.
Quadricinctone A (1): Crystals were triclinic, space group P1, cell volume 663.27(7) Å3 and unit cell dimensions a = 7.3973(5)Å, b =8.4830(6)Å and c = 11.2438(6) Å and angles α = 107.541(5)°, β = 92.005(5)° and γ = 98.365(6)° (uncertainties in parentheses). The refinement converged to R (all data) = 3.68% and wR2 (all data) = 9.54%. The absolute structure was established with confidence (flack x parameter 0.028(18)). CCDC 1465376.
Quadricinctapyran A (2a): Crystals were orthorhombic, space group Pbcn, cell volume 2189.45(9) Å3 and unit cell dimensions a = 21.3981(5)Å, b = 14.5017(3)Å and c = 7.05561(18)Å. The refinement converged to R (all data) = 15.06% and wR2 (all data) = 40.39%. CCDC 1468869.
Quadricinctone B (4b): Crystals were orthorhombic, space group Iba2, cell volume 2469.66(11) Å3 and unit cell dimensions a = 8.52510(19)Å, b = 30.2340(7)Å and c = 9.5817(3)Å. The refinement converged to R (all data) = 5.90% and wR2 (all data) = 15.62%. The absolute structure was established with confidence (flack x parameter −0.04(4)). CCDC 1468868.
Quadricinctone C (5): Crystals were monoclinic, space group P21, cell volume 1116.25(5) Å3 and unit cell dimensions a = 12.1131(3)Å, b = 7.0501(2)Å and c = 13.2091(3)Å and β = 98.291(2)°. The refinement converged to R (all data) = 6.85% and wR2 (all data) = 17.04%. CCDC 1468170.
Quadricinctafuran A (6a): Crystals were monoclinic, space group P21/n, cell volume 1066.67(10)Å3 and unit cell dimensions a = 11.6064(7)Å, b = 5.9593(2)Å and c = 15.8588(8)Å and β = 103.481(6)°. The refinement converged to R (all data) = 11.08% and wR2 (all data) = 24.01%. CCDC 1468171.
Quadricinctone D (7): Crystals were orthorhombic, space group Pca21, cell volume 1081.35(13) Å3 and unit cell dimensions a = 19.5607(13)Å, b = 7.4646(5)Å and c = 7.4058(5)Å. The refinement converged to R (all data) = 3.81% and wR2 (all data) = 8.57%. CCDC 1468166.

3.4. Molecular Mechanics Conformation Analysis of 3 and 7

Molecular simulations for Structures 3 and 7 were carried out in ChemBio3D Ultra 14 (Perkin-Elmer). Molecular mechanics energy minimizations used the MM2 and MMFF force fields with the ChemBio3D most recent default parameters and implementation, adequate for small to medium carbon-based models. Ab initio MP2/6-311G and semi-empirical PM3 molecular modelling was done using CS GAMESS interfaced by ChemBio3D. The conformational search was done by stochastic, dihedral driver and molecular dynamics methods. Around 60 conformations were stochastically created and then minimized using the PM3, MMFF and PM3 methods. The resulting models were then grouped under the resultant two seven-membered ring conformations (exemplified in Figure 8 for 3). A minimal energy for each model set was found by driving by 360° the dihedral angles of the single bonds that attach substituent groups to the rings. Molecular dynamics runs were also applied to the models to confirm the convergence to a minimal energy conformation for each model set.

4. Conclusions

Although Ozoe et al. had first reported the isolation of an isocoumarin derivative from the culture of the fungus N. quadricincta strain PF1223, using a GABA receptor ligand as a screening target, the source of the fungus was not revealed. Therefore, this is the first report on the secondary metabolites of the culture of a marine-derived N. quadricincta (KUFA 0081). Among the nine new isolated compounds, two are polyketide derivatives, and seven are benzoic acid derivatives. The isolation of these structurally-unique, but related, metabolites from this fungus has allowed us to propose the biosynthetic pathways leading to these metabolites. Interestingly, the unprecedented structure of quadricinctone B (4b), which possesses a methyl sulfinyl group in the benzopyran nucleus, reflects the capacity of this marine-derived strain to introduce sulphur into the aromatic ring. Therefore, this marine strain of N. quadricincta (KUFA 0081) can have potential for biotechnological transformation. Even though the isolated metabolites did not exhibit either antifungal/antibacterial activities or growth inhibitory activity against the three cancer cell lines in our assay protocols, it does not mean that they are devoid of other interesting biological activities. Therefore, it is necessary to investigate these metabolites in other target-based assay protocols.

Supplementary Materials

The supplementary materials are available online at www.mdpi.com/1660-3397/14/7/134/s1.

Acknowledgments

This work was developed in the Natural Products Research Laboratory of the Department of Chemistry, Instituto de Ciências Biomédicas Abel Salazar (ICBAS), of the University of Porto and partially supported through national funds provided by FCT-Foundation for Science and Technology and European Regional Development Fund (ERDF) and COMPETE, under the projects PEst-C/MAR/LA0015/2013, PTDC/MAR-BIO/4694/2014, as well as by the project INNOVMAR (Innovation and Sustainability in the Management and Exploitation of Marine Resources) (Reference NORTE-01-0145-FEDER-000035, within Research Line NOVELMAR/INSEAFOOD/ECOSERVICES), supported by the North Portugal Regional Operational Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF). We thank Mrs. Júlia Bessa and Sara Cravo for technical support.

Author Contributions

A. Kijjoa and M. Pinto conceived, designed the experiments and wrote the paper; C. Prompanya performed isolation and purification of the compounds; T. Dethoup collected, isolated, identified and cultured the fungus; L. Gales performed X-ray analysis; J. Pereira performed molecular mechanics conformation analysis; A. Silva provided NMR spectra; M. Lee provided HRMS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hong, S.-B.; Shin, H.-D.; Hong, J.; Frisvad, J.C.; Nielsen, P.V.; Varga, J.; Samson, R.A. New taxa of Neosartorya and Aspergillus in Aspergillus section Fumigati. Antonie Van Leeuwenhoek 2008, 93, 87–98. [Google Scholar] [CrossRef] [PubMed]
  2. Kijjoa, A.; Santos, S.; Dethoup, T.; Manoch, L.; Almeida, A.P.; Vasconcelos, M.H.; Silva, A.; Gales, L.; Herz, W. Sartoryglabrins, Analogs of the Ardeemins from Neosartorya glabra. Nat. Prod. Commun. 2011, 6, 807–812. [Google Scholar] [PubMed]
  3. Eamvijarn, A.; Anake Kijjoa, A.; Bruyère, C.; Mathieu, V.; Manoch, L.; Lefranc, F.; Silva, A.; Kiss, R.; Herz, W. Secondary Metabolites from a Culture of the Fungus Neosartorya pseudofischeri and Their in Vitro Cytostatic Activity in Human Cancer Cells. Planta Med. 2012, 28, 167–176. [Google Scholar] [CrossRef] [PubMed]
  4. Buttachon, S.; Chandrapatya, A.; Manoch, L.; Silva, A.; Gales, L.; Bruyére, C.; Kiss, R.; Kijjoa, A. Sartorymensin, a New Indole Alkaloid, and New Analogues of Tryptoquivaline and Fiscalins Produced by Neosartorya siamensis (KUFC 6349). Tetrahedron 2012, 68, 3253–3262. [Google Scholar] [CrossRef]
  5. Eamvijarn, A.; Gomes, N.M.; Dethoup, T.; Buaruang, J.; Manoch, L.; Silva, A.; Pedro, M.; Marini, I.; Roussis, V.; Kijjoa, A. Bioactive Meroditerpenes and Indole Alkaloids from the Soil Fungus Neosartorya fischeri (KUFC 6344) and the Marine-derived Fungi Neosartorya laciniosa (KUFC 7896) and Neosartorya tsunodae (KUFC 9213). Tetrahedron 2013, 69, 8583–8591. [Google Scholar] [CrossRef]
  6. Gomes, N.M.; Bessa, L.J.; Buttachon, S.; Costa, P.M.; Buaruang, J.; Dethoup, T.; Silva, A.M.S.; Kijjoa, A. Antibacterial and Antibiofilm Activity of Tryptoquivalines and Meroditerpenes from Marine-Deived Fungi Neosartorya paulistensis, N. laciniosa, N. tsunodae, and the soil fungi N. fischeri and N. siamensis. Mar. Drugs 2014, 12, 822–839. [Google Scholar] [CrossRef] [PubMed]
  7. May Zin, W.W.; Buttachon, S.; Buaruang, J.; Gales, L.; Pereira, J.A.; Pinto, M.M.M.; Silva, A.M.S.; Kijjoa, A. A New Meroditerpene and a New Tryptoquivaline from the Algicolous Fungus Neosartorya takakii KUFC 7898. Mar. Drugs 2015, 13, 3776–3790. [Google Scholar] [CrossRef] [PubMed]
  8. Prompanya, C.; Dethoup, T.; Bessa, L.J.; Pinto, M.M.M.; Gales, L.; Costa, P.M.; Silva, A.M.S.; Kijjoa, A. New Isocoumarin Derivatives and Meroterpenoids from the Marine Sponge-Associated Fungus Aspergillus similanensis sp. nov. KUFA 0013. Mar. Drugs 2014, 12, 5160–5173. [Google Scholar] [CrossRef] [PubMed]
  9. Prompanya, C.; Fernandes, C.; Cravo, S.; Pinto, M.M.; Dethoup, T.; Silva, A.M.; Kijjoa, A. A New Cyclic Hexapeptide and a New Isocoumarin Derivative from the Marine Sponge-Associated Fungus Aspergillus similanensis KUFA 0013. Mar. Drugs 2015, 13, 1432–1450. [Google Scholar] [CrossRef] [PubMed]
  10. Boonsang, N.; Dethoup, T.; Singburaudom, N.; Gomes, N.G.M.; Kijjoa, A. In Vitro Antifungal Activity Screening of Crude Extracts of Soil Fungi against Plant Pathogenic Fungi. J. Biopest. 2014, 7, 156–166. [Google Scholar]
  11. Ozoe, Y.; Kuriyama, T.; Tachibana, Y.; Harimaya, K.; Takahashi, N.; Yaguchi, T.; Suzuki, E.; Imamura, K.; Oyama, K. Isocoumarin Derivative as a Novel GABA Receptor Ligand from Neosartorya quadricincta. J. Pestic. Sci. 2004, 29, 328–331. [Google Scholar] [CrossRef]
  12. Lourenço, T.O.; Akisue, G.; Roque, N.F. Reduced Acetophenone Derivatives from Calea cuneifolia. Phytochemistry 1981, 20, 773–776. [Google Scholar] [CrossRef]
  13. Fletcher, C.M.; Jones, D.N.M.; Diamond, R.; Neuhaus, D. Treatment of NOE constraints involving equivalent or nonstereoassigned protons in calculations of biomolecular structures. J. Biomol. NMR 1996, 8, 292–310. [Google Scholar] [CrossRef] [PubMed]
  14. Butts, C.P.; Jones, C.R.; Towers, E.C.; Flynn, J.L.; Appleby, L.; Barron, N. Interproton distance determinations by NOE—Surprising accuracy and precision in a rigid organic molecule. J. Org. Biomol. Chem. 2011, 9, 177–184. [Google Scholar] [CrossRef] [PubMed]
  15. Shima, K.; Hisada, S.; Inagaki, I. Studies on the constituents of Anodendron affine Durce. V. Isolation and structure of two new constituents. Yakugaku Zasshi 1972, 92, 1410–1414. [Google Scholar] [PubMed]
  16. Yamaguchi, S.; Kondo, S.; Shimokawa, K.; Inoue, O.; Sannomiya, M.; Kawase, Y. The synthesis of racemic fomannoxin, anodendroic acid, and 5-acetyl-2-[1-(hydroxymethyl)vinyl]-2,3-dihydrobenzofuran. Bull. Chem. Soc. Jpn. 1982, 55, 2500–2503. [Google Scholar] [CrossRef]
  17. Arriaga-Giner, F.J.; Wollenweber, E.; Schober, I.; Yatskievych, G. Three New Benzoic Acid Derivatives from the Glandular Excretion of Eriodictyon sessilifolium (Hydrophyllaceae). Z. Naturforch. 1988, 43c, 337–340. [Google Scholar]
  18. Bisogno, F.; Mascoti, L.; Sanchez, C.; Garibotto, F.; Giannini, F.; Kurina-Sanz, M.; Enriz, R. Structure-antifungal activity relationship of cinnamic acid derivatives. J. Agric. Food Chem. 2007, 55, 10635–10640. [Google Scholar] [CrossRef] [PubMed]
  19. Hansson, D.; Menkis, A.; Olson, Å.; Stenlid, J.; Broberg, A.; Karlsson, M. Biosynthesis of fomannoxin in the root rotting pathogen Heterobasidion occidentale. Phytochemistry 2012, 84, 31–39. [Google Scholar] [CrossRef] [PubMed]
  20. Wattanadilok, R.; Sawangwong, P.; Rodrigues, C.; Cidade, H.; Pinto, M.; Pinto, E.; Silva, A.; Kijjoa, A. Antifungal activity evaluation of the constituents of Haliclona baeri and H. cymaeformis, collected from the Gulf of Thailand. Mar. Drugs 2007, 5, 40–51. [Google Scholar] [CrossRef] [PubMed]
  21. Cidade, H.M.; Nascimento, M.S.J.; Pinto, M.M.M.; Kijjoa, A.; Silva, A.M.S.; Herz, W. Artelastocarpin and carpelastofuran, two new flavones, and cytotoxicities of prenyl flavonoids from Artocarpus elasticus against three cancer cell lines. Planta Med. 2001, 67, 867–870. [Google Scholar] [CrossRef] [PubMed]
  22. Matsuzawa, T.; Horie, Y.; Abliz, P.; Gonoi, T.; Yaguchi, T. Aspergillus huiyaniae sp. nov., a new teleomorphic species in Aspergillus section Fumigati isolated from desert soil in China, and described using polyphasic approach. Mycoscience 2014, 55, 213–220. [Google Scholar] [CrossRef]
  23. Sheldrick, G.M.A. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef] [PubMed]

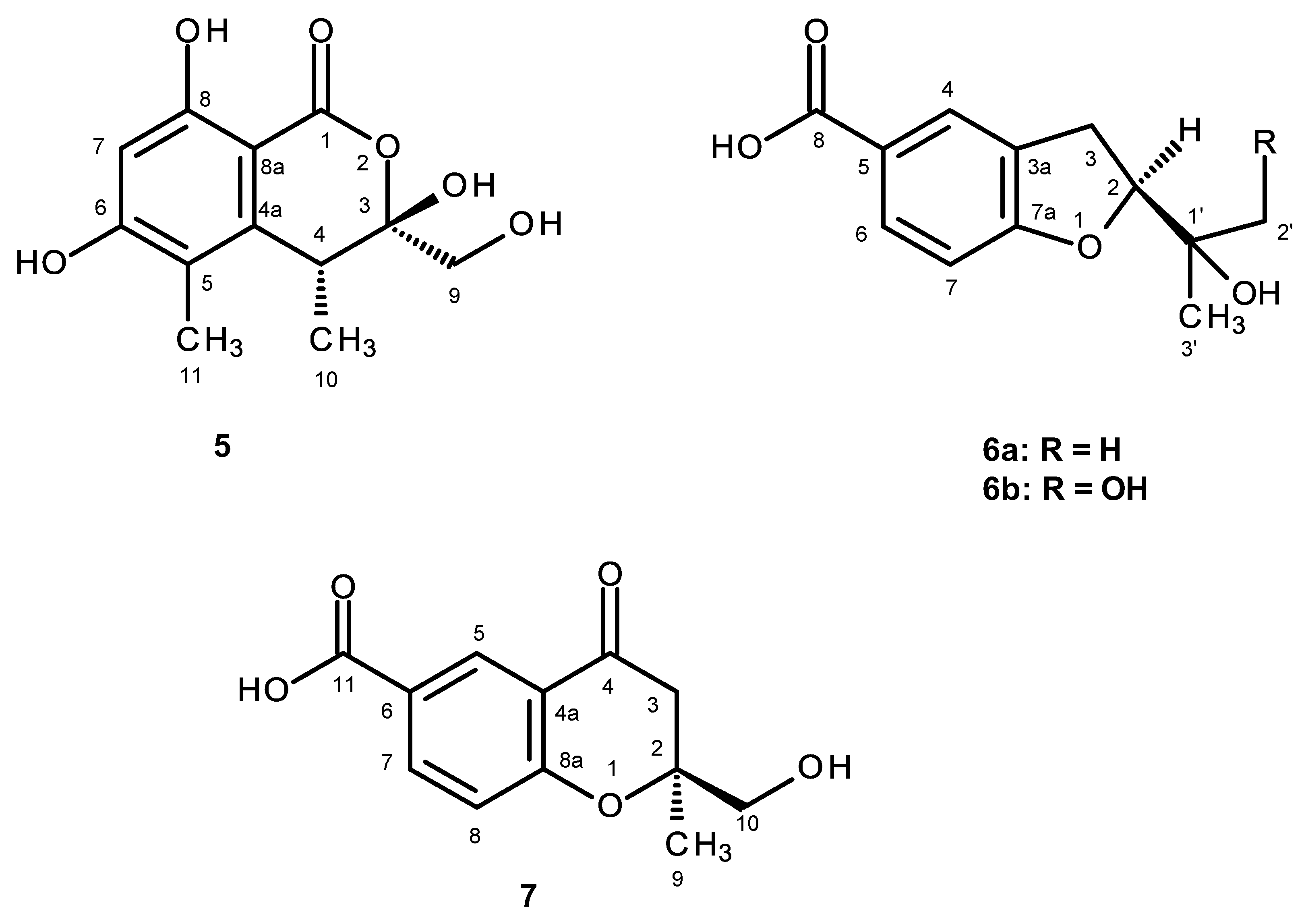

Figure 1. Secondary metabolites of N. quadricincta KUFA0081.
Figure 1. Secondary metabolites of N. quadricincta KUFA0081.
Marinedrugs 14 00134 g001aMarinedrugs 14 00134 g001b

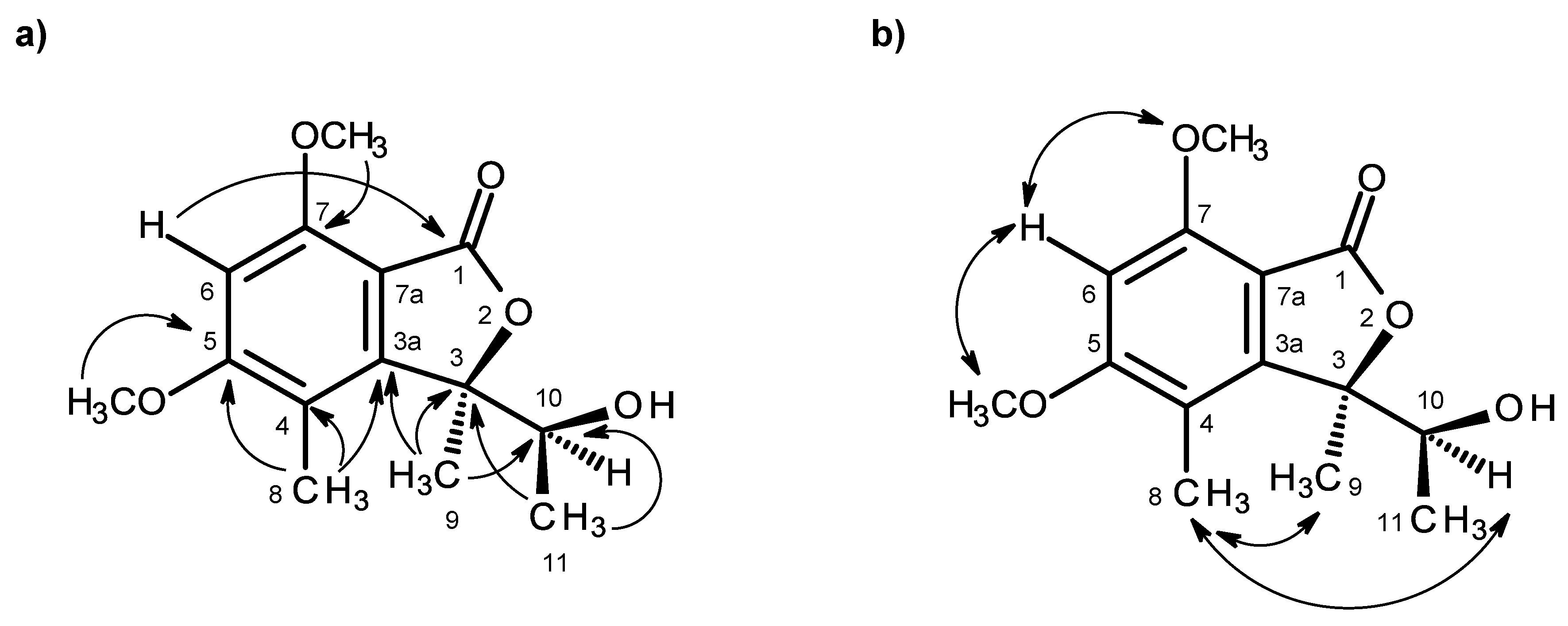

Figure 2. Key HMBC () (a) and NOESY () (b) correlations for compound 1.
Figure 2. Key HMBC () (a) and NOESY () (b) correlations for compound 1.
Marinedrugs 14 00134 g002

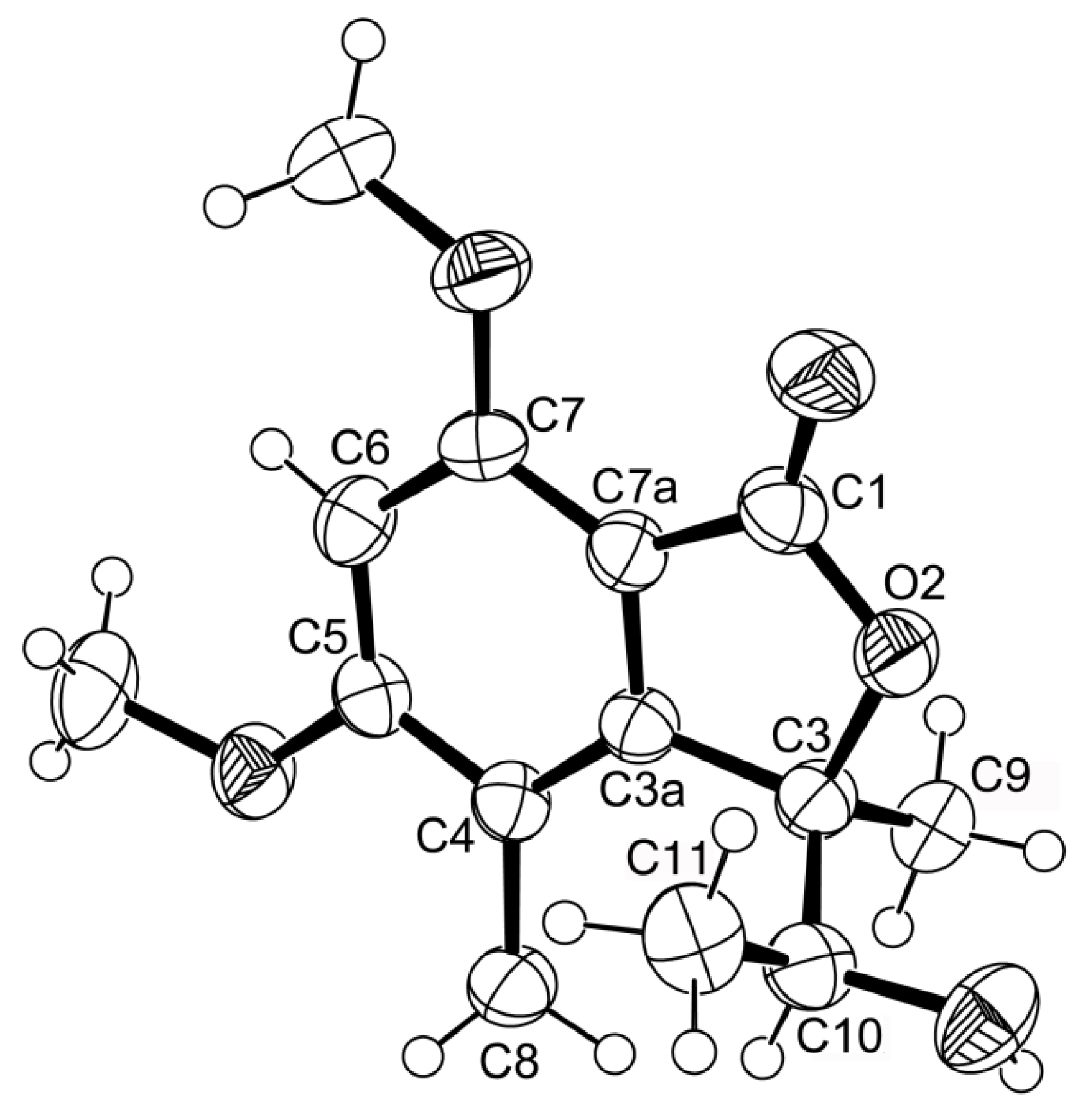

Figure 3. ORTEP diagram of compound 1.
Figure 3. ORTEP diagram of compound 1.
Marinedrugs 14 00134 g003

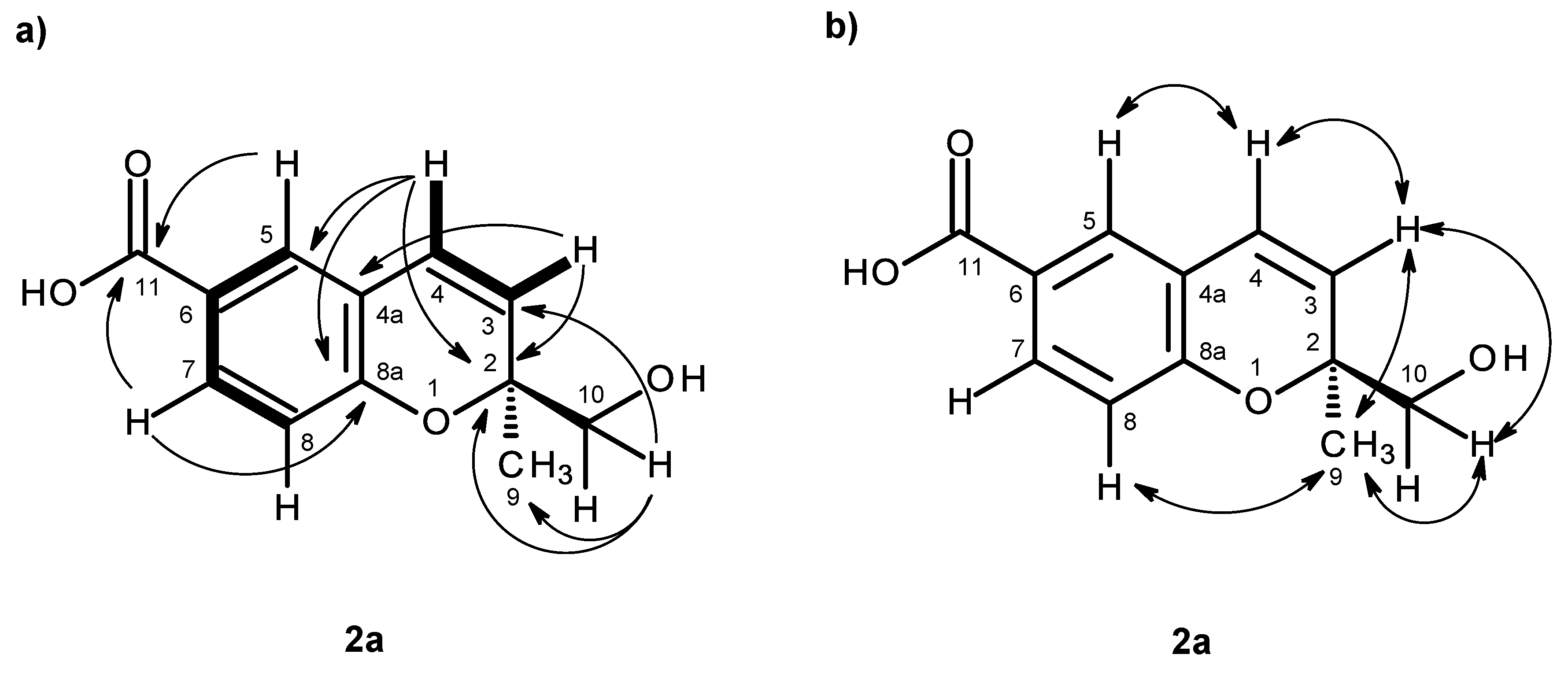

Figure 4. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 2a.
Figure 4. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 2a.
Marinedrugs 14 00134 g004

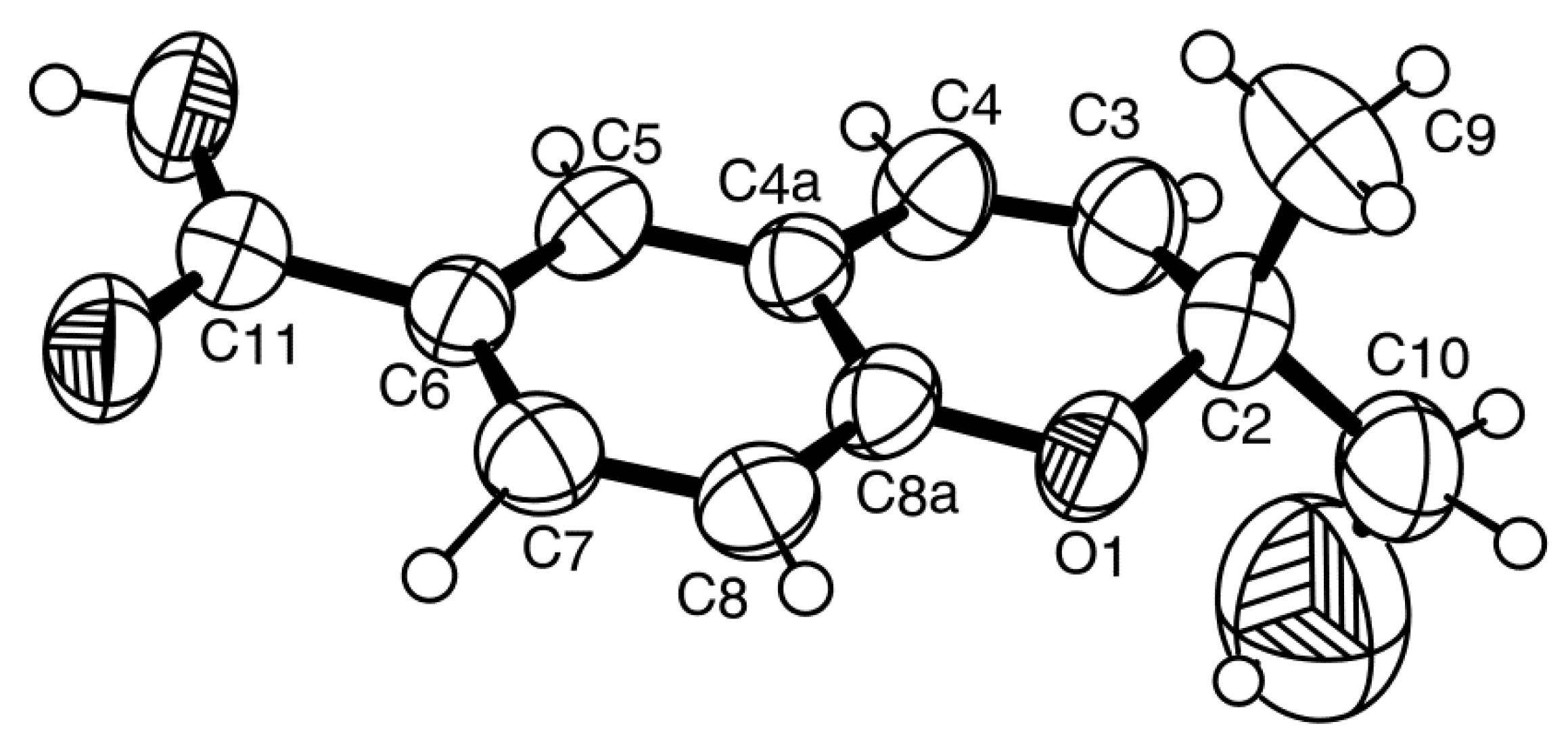

Figure 5. ORTEP diagram of compound 2a.
Figure 5. ORTEP diagram of compound 2a.
Marinedrugs 14 00134 g005

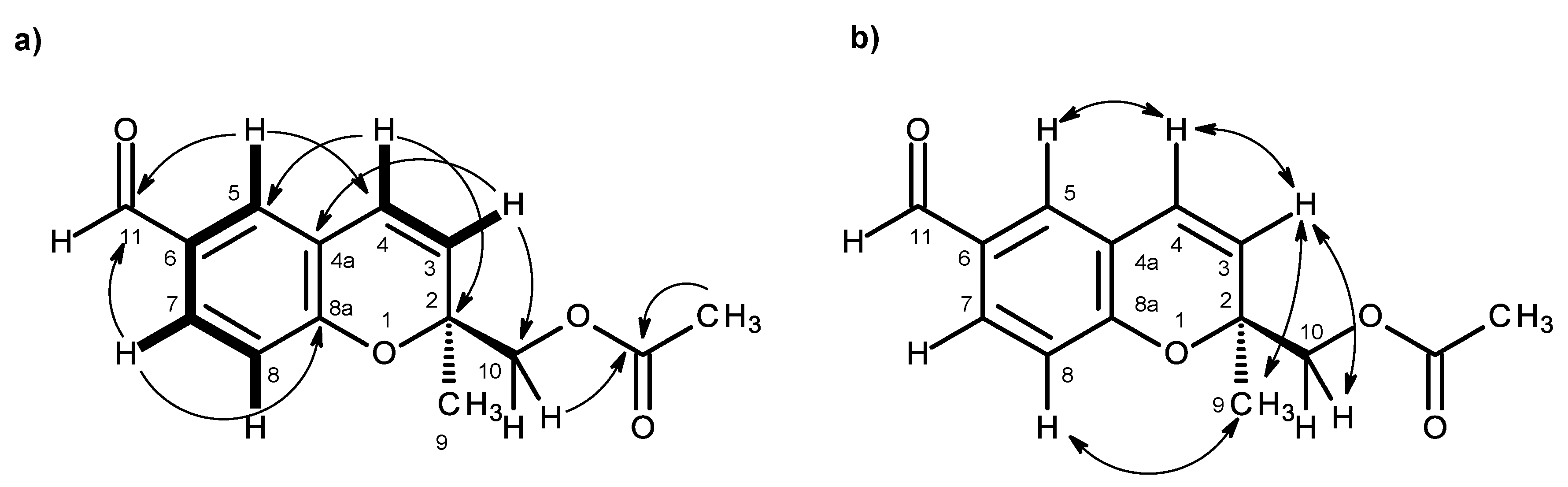

Figure 6. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 2b.
Figure 6. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 2b.
Marinedrugs 14 00134 g006

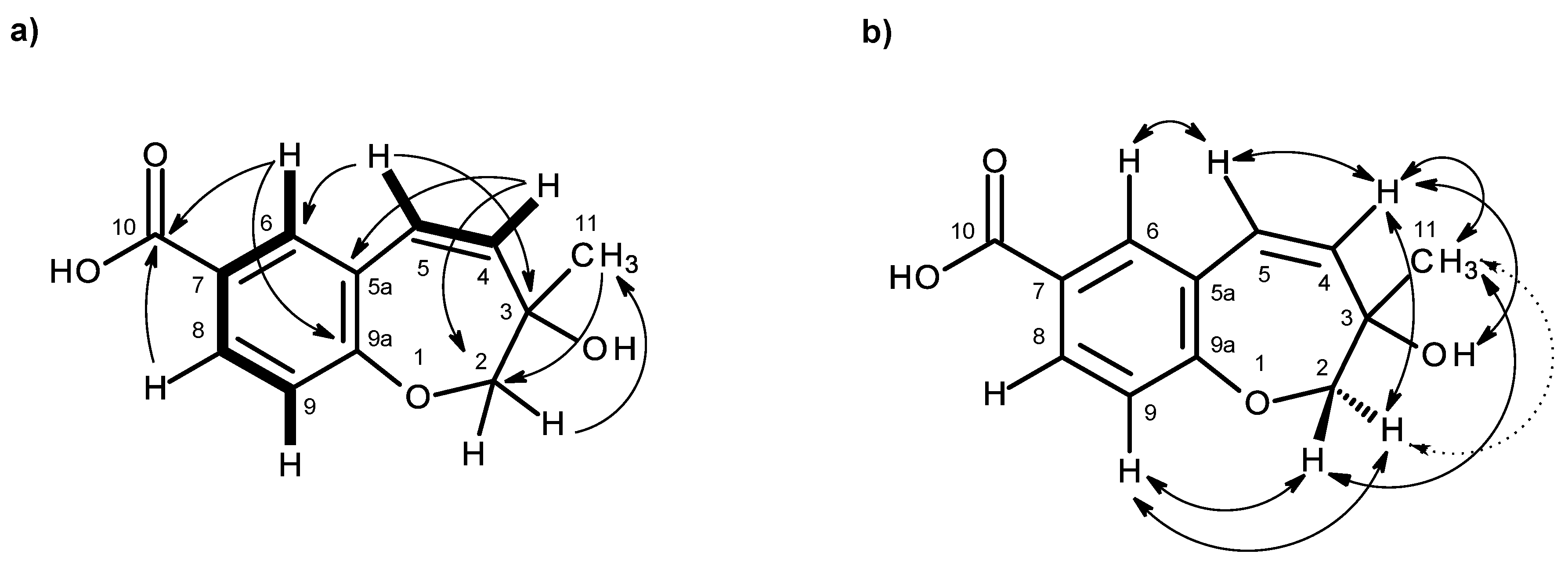

Figure 7. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 3.
Figure 7. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 3.
Marinedrugs 14 00134 g007

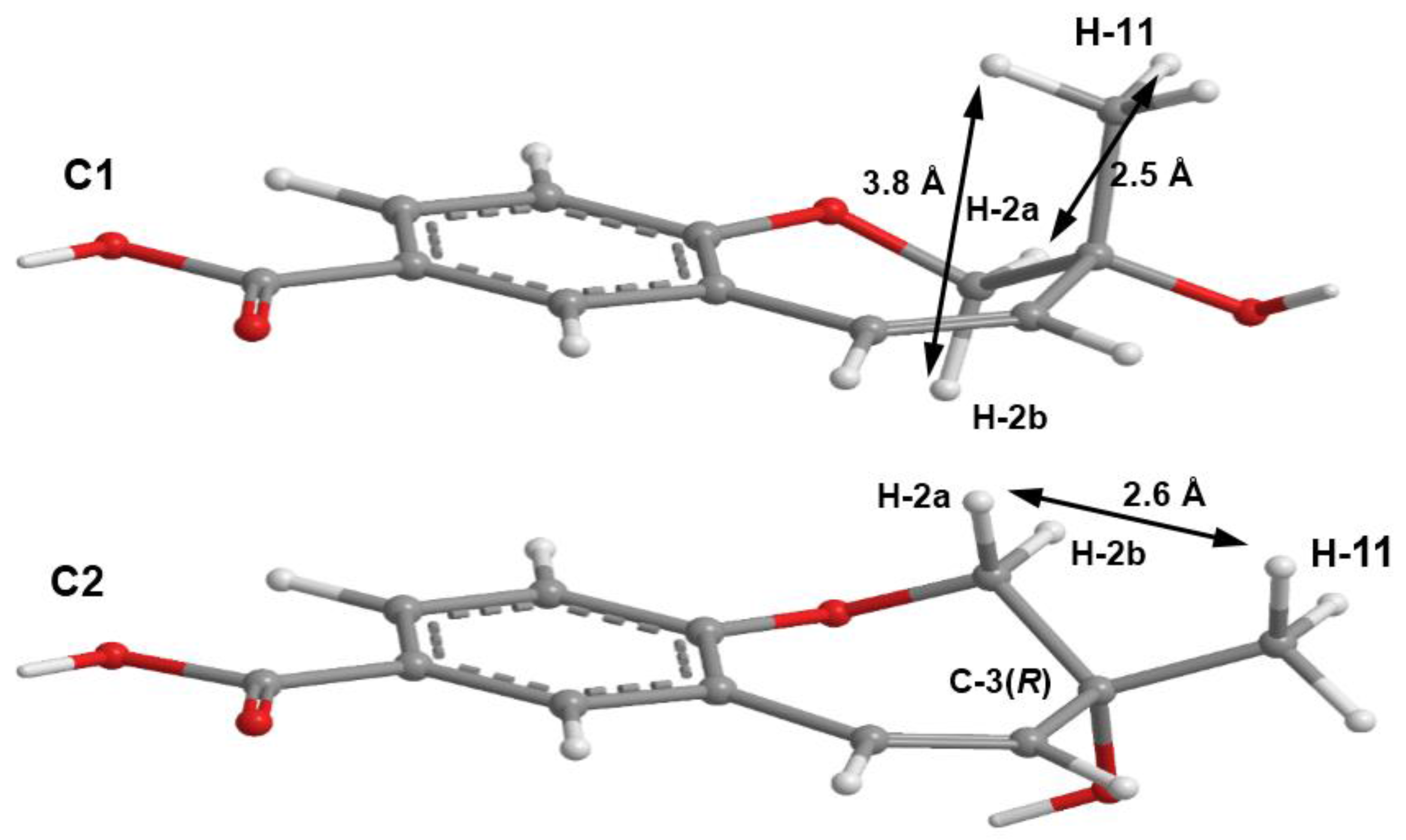

Figure 8. The two minimal energy conformations, C1 and C2, for the structure of 3, with R configuration for C-3. All calculated distances and energies are exactly the same for the pairs 3R-C1/3S-C2 and 3R-C2/3S-C1. The shorter predicted inter-hydrogen distances H-2/H-11 are presented; for a discussion of the average, NOE effective distances, please refer to the main text.
Figure 8. The two minimal energy conformations, C1 and C2, for the structure of 3, with R configuration for C-3. All calculated distances and energies are exactly the same for the pairs 3R-C1/3S-C2 and 3R-C2/3S-C1. The shorter predicted inter-hydrogen distances H-2/H-11 are presented; for a discussion of the average, NOE effective distances, please refer to the main text.
Marinedrugs 14 00134 g008

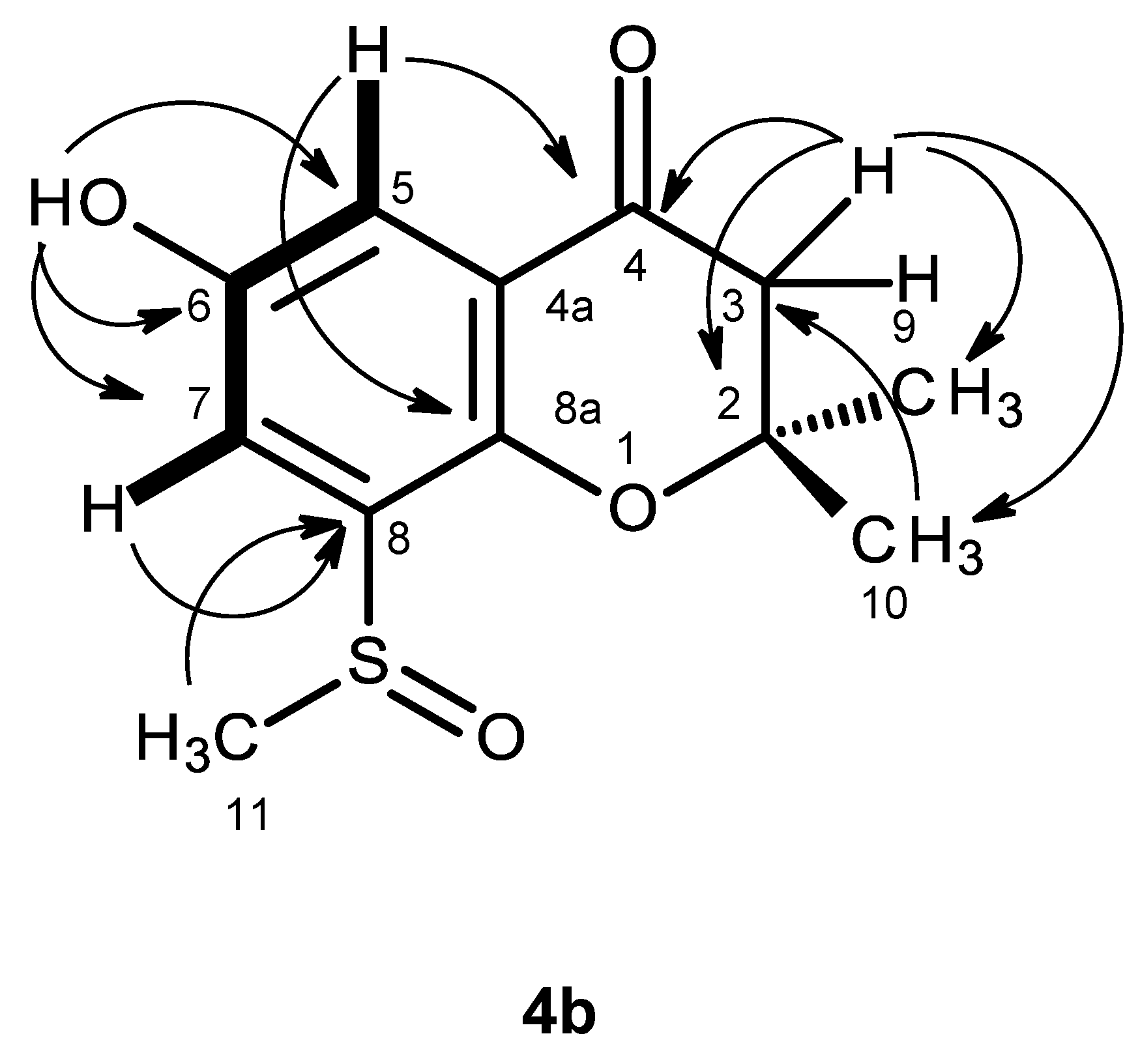

Figure 9. Key COSY () and HMBC () correlations for compound 4b.
Figure 9. Key COSY () and HMBC () correlations for compound 4b.
Marinedrugs 14 00134 g009

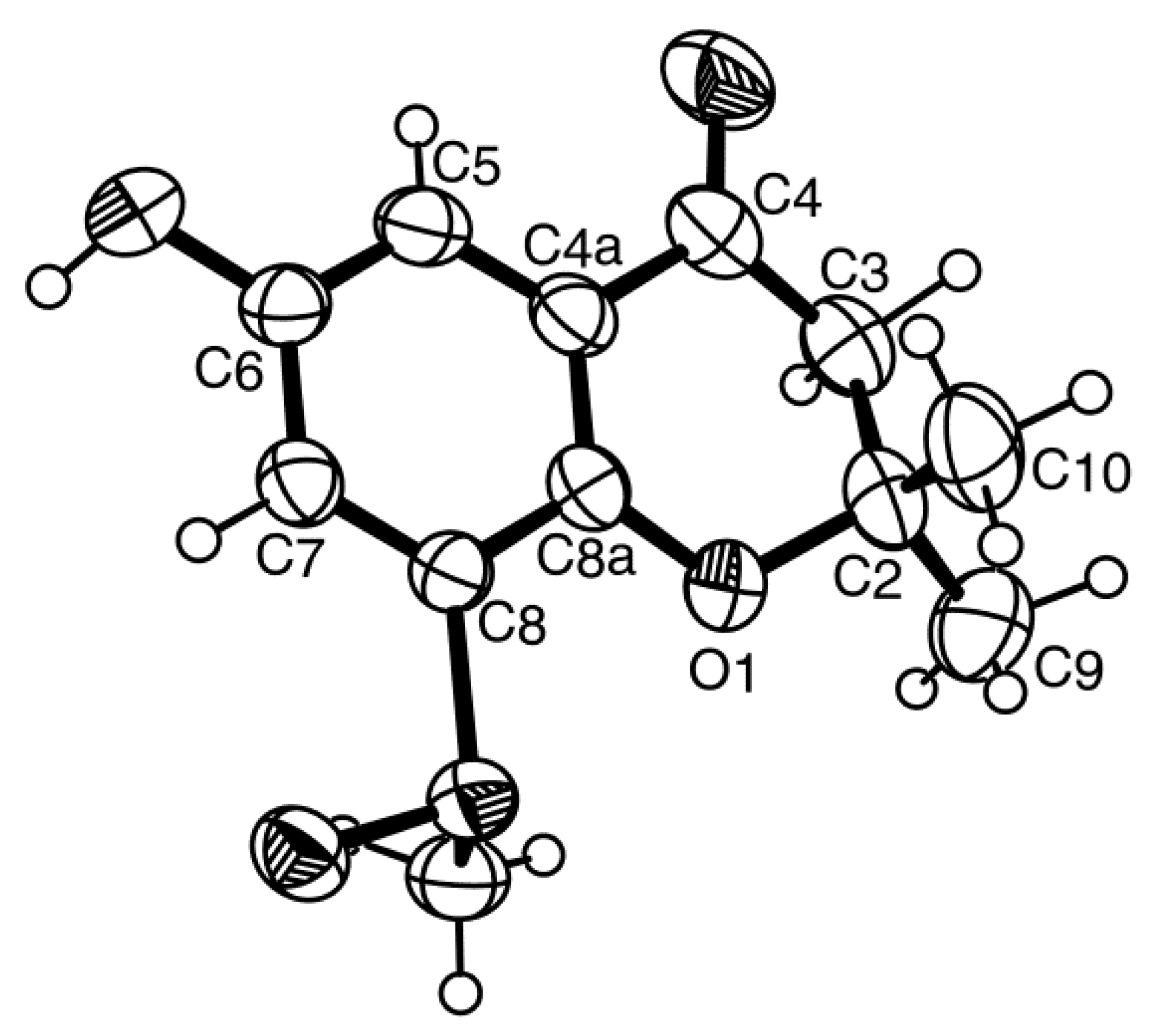

Figure 10. ORTEP diagram of compound 4b.
Figure 10. ORTEP diagram of compound 4b.
Marinedrugs 14 00134 g010
Figure 11. Key HMBC (→) correlations for compound 5.
Figure 11. Key HMBC (→) correlations for compound 5.
Marinedrugs 14 00134 g011

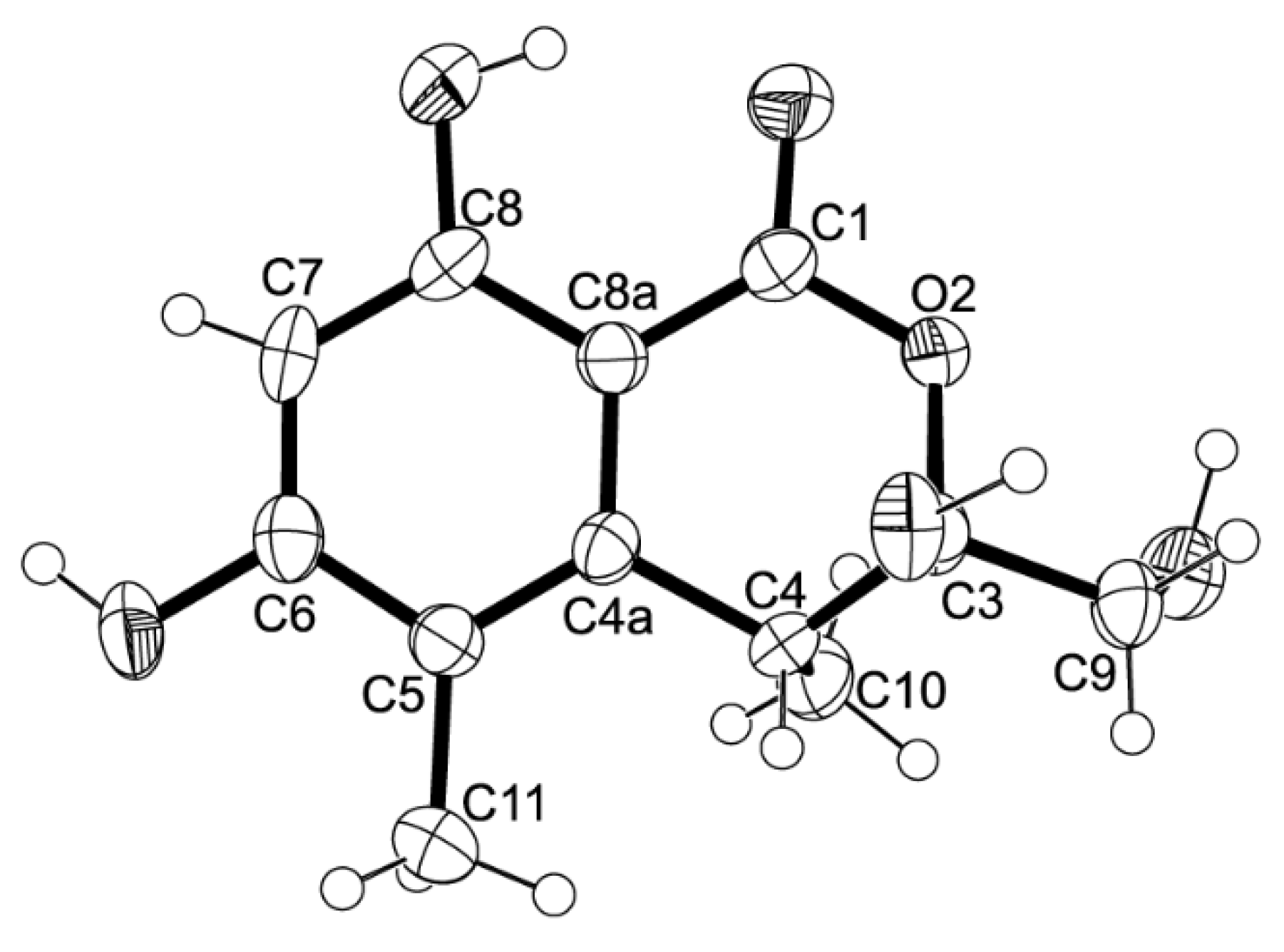

Figure 12. ORTEP diagram of compound 5.
Figure 12. ORTEP diagram of compound 5.
Marinedrugs 14 00134 g012

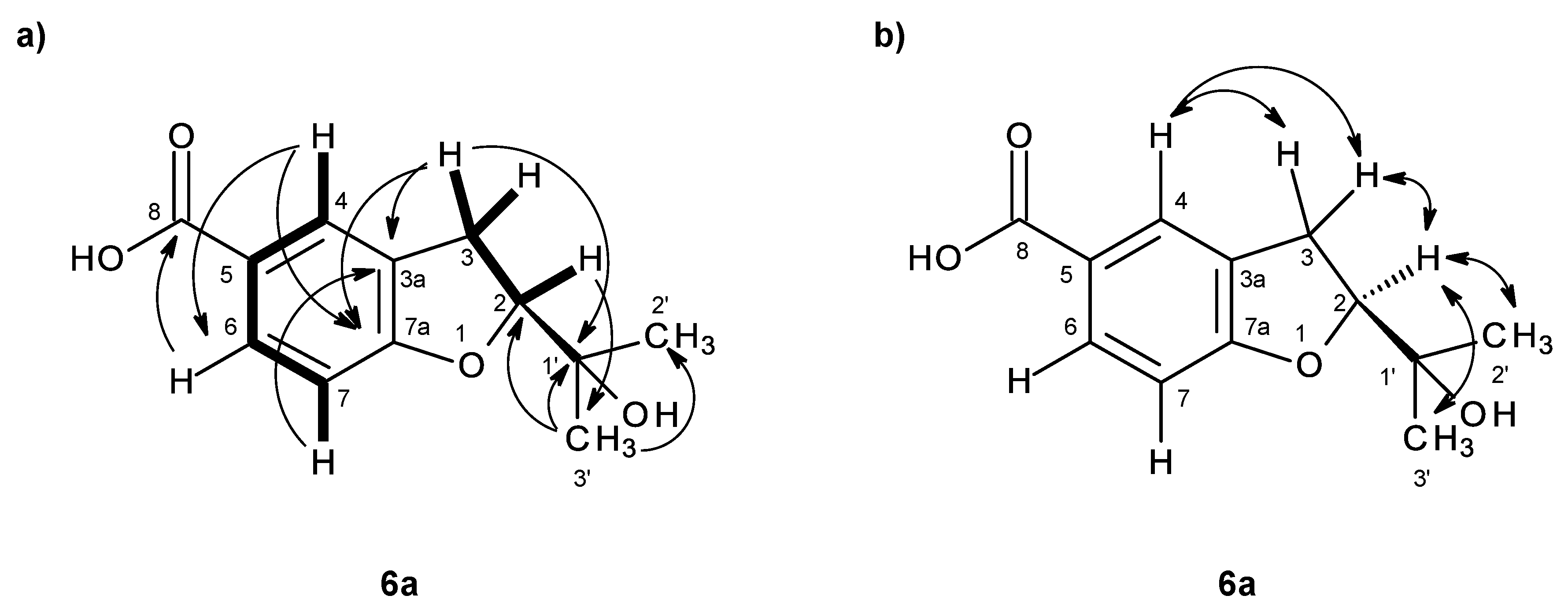

Figure 13. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 6a.
Figure 13. Key COSY (–), HMBC (→) (a) and NOESY (↔) (b) correlations for compound 6a.
Marinedrugs 14 00134 g013
Figure 14. ORTEP diagram of 6a.
Figure 14. ORTEP diagram of 6a.
Marinedrugs 14 00134 g014

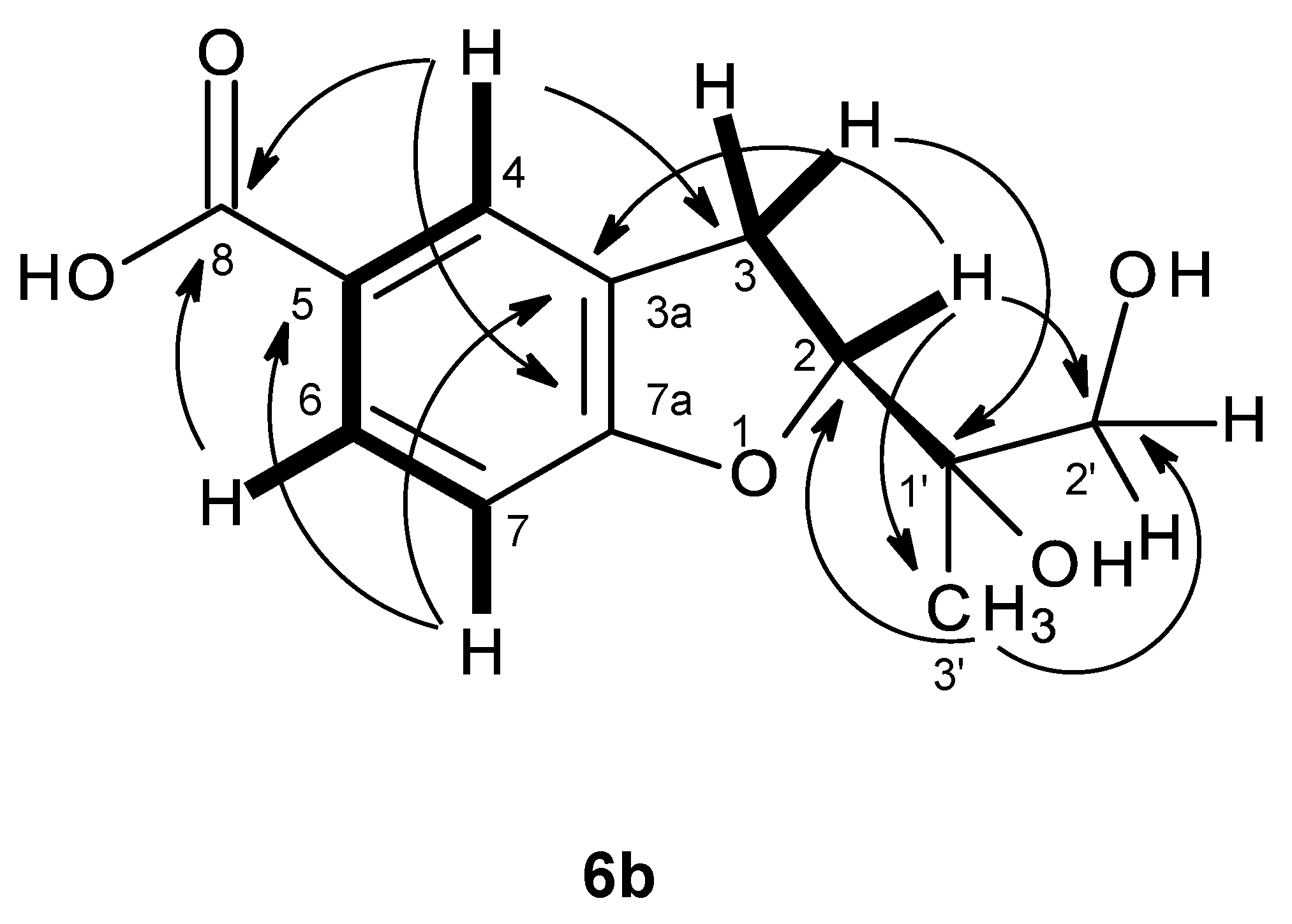

Figure 15. Key COSY () and HMBC () correlations for compound 6b.
Figure 15. Key COSY () and HMBC () correlations for compound 6b.
Marinedrugs 14 00134 g015
Figure 16. Key COSY (–), HMBC (→) (a) and NOESY C-2 (↔) (b) C-2 for compound 7.
Figure 16. Key COSY (–), HMBC (→) (a) and NOESY C-2 (↔) (b) C-2 for compound 7.
Marinedrugs 14 00134 g016
Figure 17. ORTEP diagram of compound 7.
Figure 17. ORTEP diagram of compound 7.
Marinedrugs 14 00134 g017

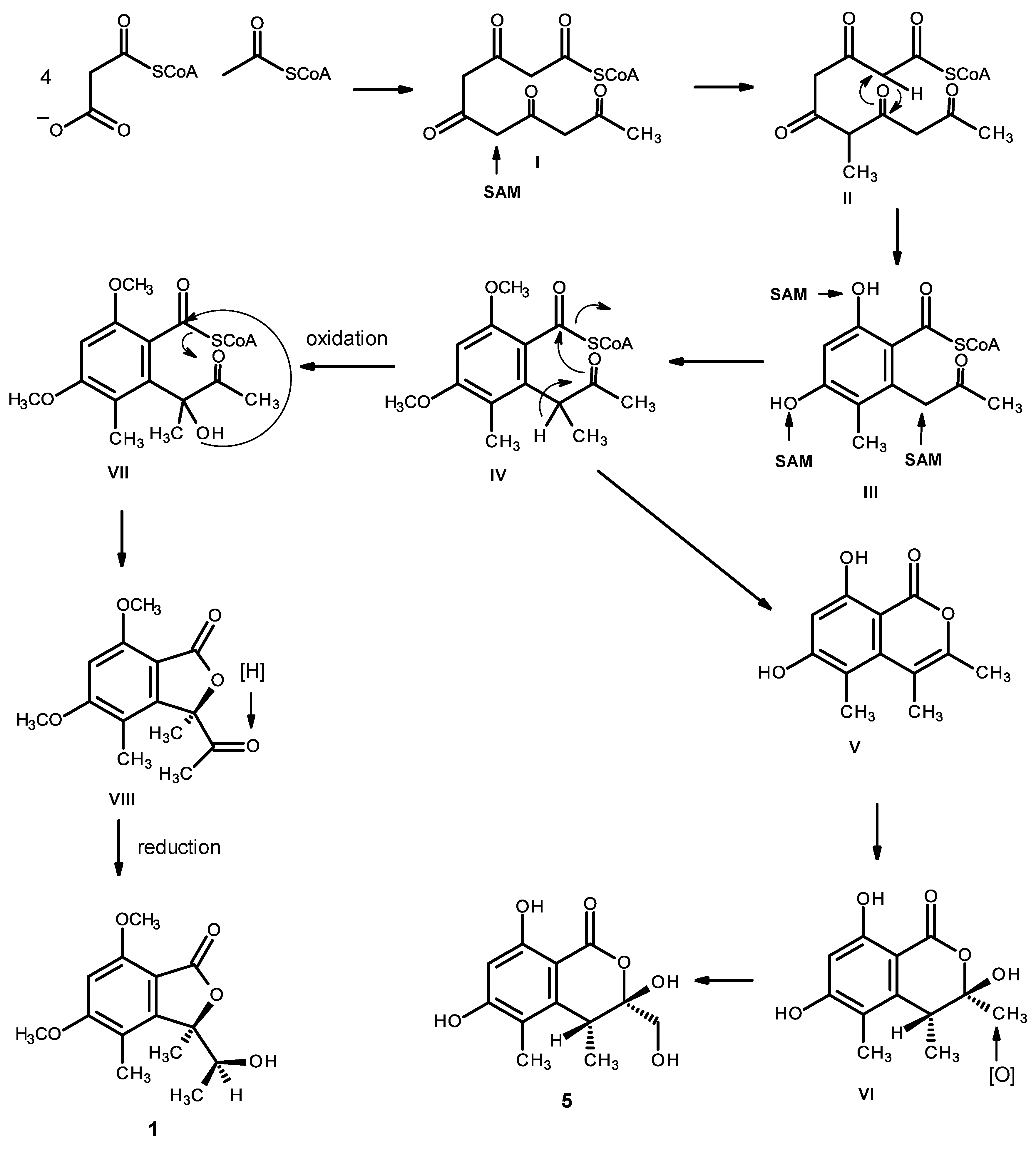

Figure 18. Proposed biosynthetic pathways for compounds 1 and 5.
Figure 18. Proposed biosynthetic pathways for compounds 1 and 5.
Marinedrugs 14 00134 g018

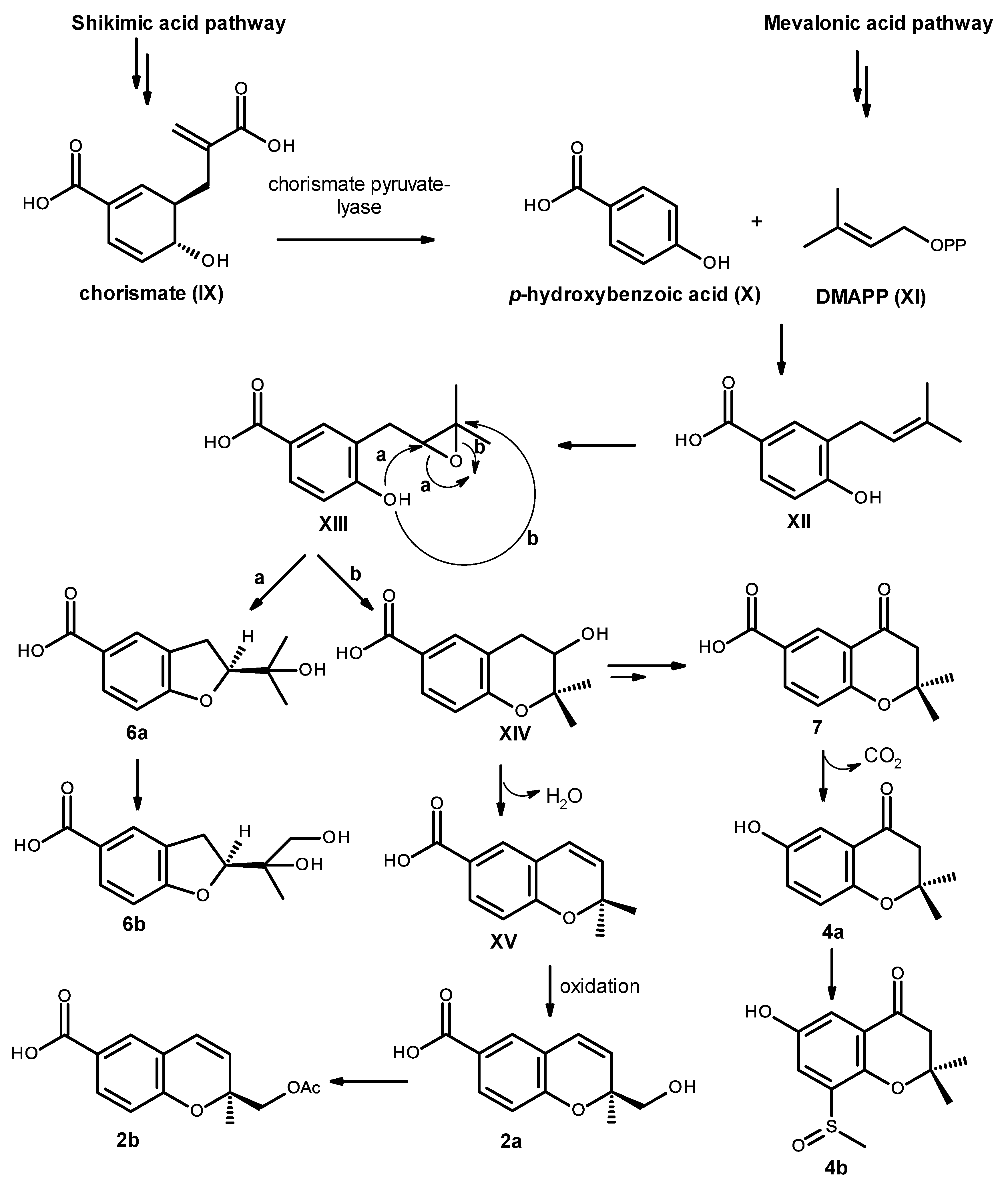

Figure 19. Proposed biosynthetic pathway for compounds 2a, 2b, 4a, 4b, 6a, 6b and 7.
Figure 19. Proposed biosynthetic pathway for compounds 2a, 2b, 4a, 4b, 6a, 6b and 7.
Marinedrugs 14 00134 g019

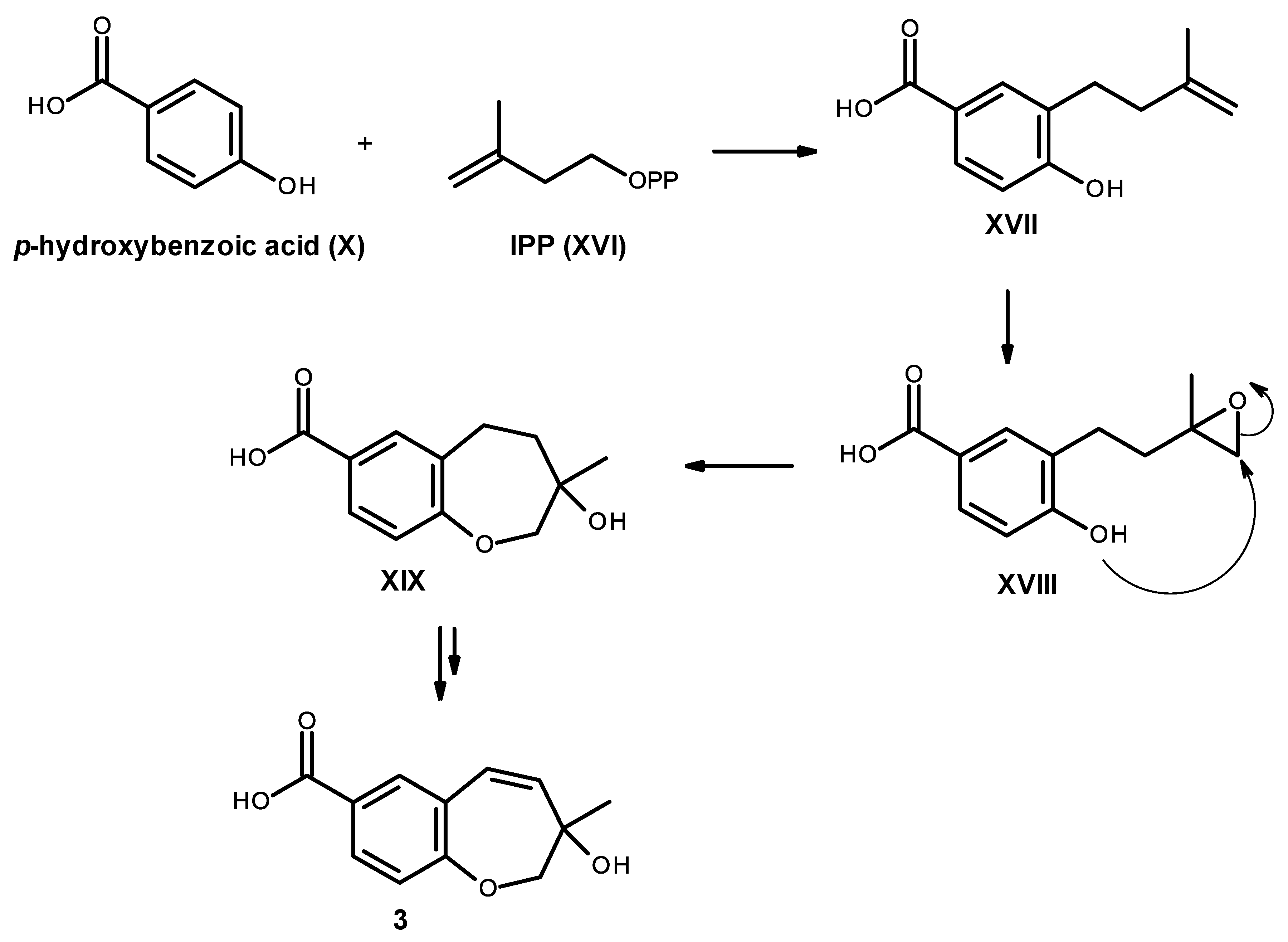

Figure 20. Proposed biosynthetic pathway for compound 3.
Figure 20. Proposed biosynthetic pathway for compound 3.
Marinedrugs 14 00134 g020
Table 1. 1H and 13C NMR (CDCl3, 300.13 MHz and 75.4 MHz), HMBC and NOESY assignments for 1.
Table 1. 1H and 13C NMR (CDCl3, 300.13 MHz and 75.4 MHz), HMBC and NOESY assignments for 1.
PositionδC, typeδH, (J in Hz)HMBCNOESY
1168.2, CO-
388.8, C-
3a152.8, C-
4111.7, C-
5164.6, C-
694.5, CH6.41, sC-1, 4, 5, 7, 7aOMe-5, 7
7158.3, C-
7a105.3, C-
811.2, CH32.12, sC-3a, 4, 5, 7H-9, 10
921.5, CH31.76, sC-3, 3a, 10H-8, 9
1070.8, CH4.22, d (6.4)C-11H-8, 9, 10
1117.8, CH30.87, d (6.4)C-3, 10H-10
OMe-556.1, CH33.92, sC-5H-6
OMe-756.0, CH33.97, sC-7H-6
OH-10-2.15, br-H-11
Table 2. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) for 2a and 2b.
Table 2. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) for 2a and 2b.
Position2a 2b
δC, typeδH, (J in Hz)COSYHMBC δC, typeδH, (J in Hz)COSYHMBC
280.5, C- 78.5, C-
3128.6, CH5.74, d (10.0)H-4C-2, 4a, 5, 9, 10 126.2, CH5.59, d (10.0)H-4C-2, 4a, 10
4122.8, CH6.56, d (10.0)H-3C-2, 5, 8a 124.3, CH6.51, d (10.0)H-3C-2, 5, 8a
4a120.5, C- 120.2, C-
5127.9, CH7.65, d (2.1)H-7C-4, 8a, 11 128.9, CH7.75, d (2.1)H-7C-4, 7, 8a, 11
6123.0, C- 122.0, C-
7139.8, CH7.69, dd (8.4, 2.1)H-5, 8C-5, 8a, 11 132.2, CH7.90, dd (8.5, 2.1)H-5, 8C-5, 8a, 11
8115.7, CH6.79, d (8.4)H-7C-4a, 6, 8a 116.1, CH6.83, d (8.5)H-7C-4a, 6, 8a
8a156.8, C- 157.8, C-
923.3, CH31.31, s-C-2, 3, 10 24.0, CH31.48, s-C-2, 3, 10
1067.1, CH23.45, s-C-2, 3, 9 68.8, CH24.13, d (11.7)H-10C-2, 3, 9
4.24, d (11.7)H-10C-2, 3, 9
11167.0, CO- 171.7, CO-
OH-10-5.07, br- --
OH-11-12.59, br- -12.79, br-
OAc- 170.8, CO-
20.7, CH31.98, s-CO (Ac)
Table 3. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 3.
Table 3. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 3.
PositionδC, typeδH, (J in Hz)COSYHMBCNOESY
77.0, CH23.84, d (11.1)H-2βC-3, 4, 9a, 11H-2β, 4 (w), 11 (w)
β 4.02, dd (11.1, 1.6)H-2αC-3, 4, 9a, 11H-2α, 4 (w), 11 (str)
370.7, C-
4139.5, CH5.95, dd (12.0, 1.2)H-5C-2, 5aH-2α (w), 5, 9 (w), 11
5123.5, CH6.31, d (12.0)H-4C-3, 5a, 6, 9aH-4, 6 (str)
5a125.0, C-
6134.5, CH7.89, d (2.1)H-8C-5, 8, 9a, 10H-5
7125.3, C-
8129.8, CH7.74, dd (8.4, 2.1)H-6, 9C-6, 9aH-9
9119.8, CH7.05, d (8.4)H-8C-5a, 7, 9aH-8
9a161.2, C-
10166.7, C-
1126.1, CH31.26, s-C-2, 3, 4H-2α (w), 2β (str)
OH-3-3.39, br- H-4, 11
COOH-12.79, br-
Table 4. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 4b.
Table 4. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 4b.
PositionδC, typeδH, (J in Hz)COSYHMBC
280.9, C-
348.0, CH22.80, d (16.6)H-3C-2, 4, 9, 10
2.85, d (16.6)H-3C-2, 4, 9, 10
4191.2, CO-
4a120.8, C-
5112.4, CH7.17, d (3.1)H-7C-4, 6, 7, 8a
6151.6, C-
7118.7, CH7.35, d (3.1)H-5C-5, 6, 8, 8a
8135.7, C-
8a147.4, C-
926.1, CH31.39, s-C-2, 3, 10
1025.7, CH31.38, s-C-2, 3, 9
1140.8, CH32.77, s-C-8
OH-6-9.85, s C-5, 6, 7
Table 5. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 5.
Table 5. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 5.
PositionδC, typeδH, (J in Hz)COSYHMBC
1168.8, C-
3104.8, C-
434.9, CH3.26, mH3-10
4a144.6, C-
5113.5, C-
6162.9, C-
799.9, CH6.27, s-C-1 (w), 5, 6, 8, 8a
8161.3, C-
8a98.9, C-
963.7, CH23.65, brd (16.6)OH-9
1016.3, CH31.06, d (7.2)H-4C-3, 4, 4a
119.8, CH31.98, s-C-4a, 5, 6
OH-3-7.07, br-
OH-5-10.62, br-
OH-8-11.24, s-C-7, 8, 8a
OH-9-5.26, br-
Table 6. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 6a and 6b.
Table 6. 1H and 13C NMR (DMSO, 300.13 MHz and 75.4 MHz) and HMBC assignment for 6a and 6b.
Position6a 6b
δC, typeδH, (J in Hz)COSYHMBC δC, typeδH, (J in Hz)COSYHMBC
290.2, CH4.64, t (8.9)H-3C-1′, 2′, 3′ 86.5, CH4.83, dd (9.7, 8.1)H-3
329.3, CH23.17, d (8.9)H-2C-1′, 2, 3a, 7a 28.7, CH23.19, mH-2C-1′, 3a
3a128.2, C- 128.4, C-
4126.4, CH7.75, d (1.8)H-6C-6, 7a, 8 126.4, CH7.76, d (1.8)H-6C-3, 6, 7a
5122.6, C- 122.6, C-
6130.4, CH7.72, dd (8.3, 1.8)H-4, 7C-4, 7a, 8 130.8, CH7.71, dd (8.3, 1.8)H-4, 7C-4, 7a, 8
7108.4, CH6.80, d (8.3)H-6C-3a, 5, 7a 108.4, CH6.79, d (8.3)H-6C-3a, 5, 7a
7a163.7, C- 163.6, C-
8167.2, C- 167.2, C-
1′70.0, C- 72.5, C-
2′24.9, CH31.14, s-C-1′, 2, 3′ 66.7, CH23.33, s-C-1′, 2, 3′
3′25.9, CH31.13, s-C-1′, 2, 2′ 20.0, CH31.09, s C-1′, 2, 2′
OH-8-12.49, br- -12.47, br-
Table 7. 1H and 13C NMR (CDCl3, 300.13 MHz and 75.47 MHz) and HMBC assignment for 7.
Table 7. 1H and 13C NMR (CDCl3, 300.13 MHz and 75.47 MHz) and HMBC assignment for 7.
PositionδC, TypeδH, (J in Hz)COSYHMBCNOESY
280.3, C-
434, CH22.74, d (16.7)H-3C-2, 4, 10, 11H3-11 (str)
β 3.00, d (16.7)H-3C-2, 4, 10, 11H3-11 (w)
4191.1, CO-
4a123.0, C-
5127.5, CH8.26, d (2.3)H-7C-4, 7, 8a
6119.6, C-
7136.4, CH8.04, dd (8.7, 2.3)H-5, 8C-5, 8a
8118.5, CH7.07, d (8.7)H-7C-4a, 6, 8
8a162.9, C-
921.2, CH31.30, s-C-2, 3, 10H-3α (str), H3β (w), H-5, 8 (w)
1066.8, CH23.49, dd (11.6, 4.5)OH-10
3.59, dd (11.6, 4.2)
11166.4, CO-
OH-10-5.26, brt (5.4)-
OH-11-12.69, br-
Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
