Natural Products from Microalgae with Potential against Alzheimer’s Disease: Sulfolipids Are Potent Glutaminyl Cyclase Inhibitors

Stephanie Hielscher-Michael
Carola Griehl
Mirko Buchholz
Hans-Ulrich Demuth
Norbert Arnold
3 and
Ludger A. Wessjohann
Group Algae Biotechnology, Department of Applied Biosciences and Process Technology, Anhalt University of Applied Sciences, 06366 Köthen, Germany
Department of Bioorganic Chemistry, Leibniz Institute of Plant Biochemistry, 06120 Halle (Saale), Germany
Department of Drug Design and Target Validation, Fraunhofer Institute for Cell Therapy and Immunology IZI, 06120 Halle (Saale), Germany
Authors to whom correspondence should be addressed.
Mar. Drugs 2016, 14(11), 203;
Submission received: 16 September 2016 / Revised: 20 October 2016 / Accepted: 25 October 2016 / Published: 2 November 2016
(This article belongs to the Special Issue Enzyme Inhibitors of Marine Origin)


In recent years, many new enzymes, like glutaminyl cyclase (QC), could be associated with pathophysiological processes and represent targets for many diseases, so that enzyme-inhibiting properties of natural substances are becoming increasingly important. In different studies, the pathophysiology connection of QC to various diseases including Alzheimer’s disease (AD) was described. Algae are known for the ability to synthesize complex and highly-diverse compounds with specific enzyme inhibition properties. Therefore, we screened different algae species for the presence of QC inhibiting metabolites using a new “Reverse Metabolomics” technique including an Activity-correlation Analysis (AcorA), which is based on the correlation of bioactivities to mass spectral data with the aid of mathematic informatics deconvolution. Thus, three QC inhibiting compounds from microalgae belonging to the family of sulfolipids were identified. The compounds showed a QC inhibition of 81% and 76% at concentrations of 0.25 mg/mL and 0.025 mg/mL, respectively. Thus, for the first time, sulfolipids are identified as QC inhibiting compounds and possess substructures with the required pharmacophore qualities. They represent a new lead structure for QC inhibitors.

1. Introduction

Glutaminyl cyclases (QC, EC belong to the class of acyl transferases (EC 2.3.2). These enzymes catalyze the intramolecular cyclization of N-terminal l-glutamine residues of peptides and proteins into pyroglutamic acid (5-oxo-prolyl, pGlu*, pE) releasing ammonia, as well as the intramolecular cyclization of N-terminal glutamate residues into pyroglutamic acid [1,2,3]. Such a type of post-translational modification stabilizes the peptides and proteins, protects them from proteolytic degradation, and can be important for their biological activity [4,5].
The enzyme QC was first isolated and described by Messer and Ottesen from the latex of the plant Carica papaya in 1964 [6]. However, the physiological functions of the plant QC are not completely studied. It was suggested, that this enzyme may plays a role in the plant defense against pathogenic microorganisms [7]. Furthermore, different types of QCs were identified in bacteria, plants and animals [1,2,8,9], as well as in mammalian tissues [10,11,12]. In the latter case, QC is expressed especially in areas of the central nervous system, such as the pituitary, hypothalamus, hippocampus, striatum and exocrine glands like thyroid and thymus [1,2,10]. A number of peptide hormones and chemokines such as Orexin A, gastrin, gonadotropin, TRH, MCP-1 to 4, FPP, fibronectin and neurotensin are substrates of QC.
Although the physiological function of several QC enzymes is still ambiguous, different studies described the pathophysiological connection of human QC to various diseases like arthritis, osteoporosis and Alzheimer’s disease (AD) [13,14]. QC are responsible for the formation of pGlu-modified Aβ peptides in AD, which are more neurotoxic, hydrophobic and resistant to aminopeptidase degradation compared to unmodified Aβ peptides and thus accumulate in AD brains [15,16,17,18,19]. Recent work revealed that the N-terminal pGlu-formation is catalyzed by QC not only in vitro but also in vivo [20,21,22,23]. Moreover, QC is detected in neuronal populations with a highly reduced number of synapses and neurons, which are biochemical characteristics of AD. A direct correlation between the overexpression of QC and the vulnerability of neuronal populations could be described [24]. Inhibition of QCs may have therapeutic potential to treat disorders associated with protein aggregation and (neuro) inflammation and thus might be regarded as a therapeutic approach in the treatment of AD [25].
The aim of this study was the identification, characterization and isolation of new QC inhibiting compounds from algae. Preliminary studies showed a positive effect of some algal extracts in QC inhibition. However, all attempts to identify the bioactive principles(s) by the traditional methods, i.e., bio-activity guided isolation or total separation and high-throughput screening of constituents, failed. For the identification of the active constituent in complex extracts this is not uncommon. Therefore, a new technique developed in house (by LAW) termed “reverse metabolomics” was used, in which metabolomics methods are combined with strategies of natural product isolation. The methodology is based on the correlation of chromatographic or spectroscopic profiles of total or partial extracts, especially metabolite profiles, with bioactivity profiles of extracts by chemo-informatic methods (activity correlation analysis, AcorA). This approach enables the direct identification of known and unknown activity-relevant metabolite signals in complex mixtures without their prior separation, and the subsequent directed isolation of the most relevant hit compounds based on this information [26,27].
Therefore, the metabolite profiles obtained by ultra-performance liquid chromatography electrospray ionization mass spectrometry (UPLC-ESI-MS) and direct infusion electrospray ionization Fourier transform ion cyclotron resonance mass spectrometry (FTICR-MS) were correlated with QC inhibiting data.

2. Results

The application of the activity correlation analysis (AcorA) for the identification of QC inhibitors from algae necessitates both homologies and variances in the metabolite compositions of the algae extracts, i.e., extracts should be different but also have some common constituents in varied quantities for optimal deconvolution later, referring here specifically to differential mass spectral data and bioactivities among samples. The necessary variations and homologies were achieved by different sources of the biological extracts, using (six) not too distinct but still different, algae species from different classes, families, and genera as well as by harvesting the biomasses at two different growth phases (exponential growth and stationary growth phase). Additional variations were introduced by modifications of the extraction procedure, where the algal biomass of the exponential growth phase (GP) and stationary growth phase (SP) of each species were extracted by two solid-liquid-extraction procedures (Single solvent extraction (s) and multi-step solvent extraction (m)) using n-hexane, methanol and water. A pre-screening of different algae extracts resulting from the solvents n-hexane, methanol and water demonstrates that crude methanolic extracts constitute the most frequent and prominent inhibition properties. Methanol extracts of several algae strains seem to be particularly rich in effective compounds and produce the most promising metabolite profiles [28]. From 24 methanol extracts of the algae Scenedesmus rubescens, Scenedesmus producto-capitatus, Scenedesmus accuminatus, Scenedesmus pectinatus, Tetradesmus wisconsinensis and Eustigmatos magnus from exponential growth phase (GP) and stationary growth phase (SP), 24 chlorophyll-free methanolic solutions were prepared and were selected for correlation analyses at a concentration of 0.2 mg/mL. The results of the QC assay are given in the following Table 1.
A total number of 22 extracts showed QC inhibition in a range of 15% to 72%. The results (Table 1) obtained by the QC-assay were directly correlated with the MS-based metabolite profiles using AcorA [26,27]. The metabolite profiles of the extracts were determined in triplicate by UPLC/ESI-MS and ESI-FTICR-MS both in the positive and negative ion mode. Based on the pre-processed mass spectrometric data and the QC inhibition data, the resulting hit lists from activity correlation analysis were evaluated regarding bioactivity relevant peak clusters (Table 2). Due to the fact that the QC inhibitors were identified by the correlations with the negative ion mode UPLC/ESI-MS and ESI-FTICR-MS data, only these are presented. Comparison of the hit lists from UPLC/(−)ESI-MS and ESI-FTICR-MS, shown in Table 2, after annotation of the MS spectra exhibited a positive correlation of similar activity relevant peak clusters to the bioactivity. The hit list of the UPLC/ESI-MS data in the negative ion mode consisted of 4652 peaks, of which 131 peaks possessed a correlation coefficient >0.6. The hit list of the ESI-FTICR-MS data in the negative ion mode showed only 41 peaks, of which 27 had a correlation coefficient >0.5 and therefore exhibit a positive correlation with the QC inhibition activity. Based on three equal activity relevant peak clusters, compounds 13 could be identified using AcorA. The first activity relevant compound 1 at m/z 815.49982 (815.49827) ([M − H], calcd. m/z 815.498472 for C43H76O12S) correlates on rank 1 (correlation coefficient 0.75) of the negative ion ESI-FTICR-MS data hit list together with its isotope peaks at m/z 816.50348 on rank 7 with a correlation coefficient of 0.68. The same compound 1 correlates on rank 4 at m/z 815.49982 with a correlation coefficient of 0.83 together with its isotope peaks at m/z 817.6333 on rank 22 with a correlation coefficient of 0.74 in the hit list of the negative ion UPLC/ESI-MS data. A further bioactivity relevant compound 2 at m/z 817.51617 (817.51596) ([M − H], calcd. m/z 817.514122 for C43H78O12S) shows a correlation on rank 13 with a correlation coefficient of 0.63 in the negative ion ESI-FTICR-MS data hit list as well as on rank 8 in the negative UPLC/ESI-MS data hit list with a correlation coefficient of 0.80. In addition, its isotope peaks at m/z 819.53126 correlate on rank 14 in the negative ion ESI-FTICR-MS hit list and at m/z 818.5999 with an equal correlation coefficient of 0.80 on rank 9 in the negative ion UPLC/ESI-MS hit list. A compound 3 at m/z 793.51536 (793.51441) ([M − H], calcd. m/z 793.514122 for C41H78O12S) correlates on rank 19 of the negative ion ESI-FTICR-MS data hit list with its isotope peaks at m/z 794.52123 on rank 9 as well as at m/z 795.52035 with a correlation coefficient of 0.64 on rank 10.
These identified activity relevant compounds 13 were further investigated by targeted UPLC/ESI-MSn fragmentation studies. The characteristic fragment ions are listed in Table 3. In their MS2 spectra, the fragment ion [b] at m/z 537.2 ([M–H–C16H32O2]) could be detected and indicated a loss of a C16:0 fatty acid chains. Furthermore the mass spectral fragmentation of the compounds 1 and 2 shows ions at m/z 559.2 [a1] ([M–H–C18H30O2]) and at m/z 561.2 [a2] ([M–H–C18H32O2]), which indicates the loss of a second fatty acid chain. Moreover, a key ion at m/z 225 [d] could be detected in the MS3 spectra of compounds 13. This fragment ion [d] results after loss of the fatty acid chains and a glyceride ester bond and is proposed to be the [M − H] of C6H9O7S. Furthermore the fragment ions [c] from double loss of C16/18 fatty acid moieties at m/z 283 ([M–H–C16H32O2–C16H32O2], [M–H–C16H32O2–C18H30O2], or [M–H–C16H32O2–C18H32O2]) was also present in the MS3 spectra of the compounds 1, 2, or 3. Beyond the MS3 and MS4, fragmentation studies of compounds 13 represent key ions at m/z 207 [e] (C6H7O6S), m/z 165 [f] (C4H5O5S), m/z 125 [g] (C6H5O3S) and m/z 81 [h] (HO3S).
The compounds 13 show similar fragmentation patterns to the SQDG standard. A common mass spectral fragmentation pattern for the [M − H] ion of compound 1 (C43H76O12S) at m/z 815.498472, [M − H] ion of compound 2 (C43H78O12S) at m/z 817.51617 and the [M − H] ion of compound 3 (C41H78O12S) at m/z 793.51536 is proposed in Scheme 1.
Based on the compared mass spectrometric data (high resolution ESI-FTIC-MS, e.g., comparison of the isotope pattern of the compounds and their theoretically calculated values, postulated fragmentation patterns and database analogy), the compounds 13 could be identified as 1,2-di-O-palmitoyl-3-O-(6′-deoxy-6′-sulfo-d-glycopyranosyl)-glycerol (1), 1-O-palmitoyl-2-O-linolenyl-3-O-(6′-deoxy-6′-sulfo-d-glucopyranosyl)-glycerol (2) and 1-O-linolyl-2-O-palmitoyl -3-O-(6′-deoxy-6′-sulfo-d-glucopyranosyl)-glycerol (3), i.e., the compounds are sulfolipids. Targeted UPLC/ESI-MSn fragmentation studies of a SQDG standard (Lipid Products (GB)) shows the molecular ion [M − H] at m/z 815 such as compound 1. In the MS2 spectra of the SQDG standard the fragment ion [b] at m/z 537.2 ([M–H–C16H32O2]) and the fragment ion at m/z 559.2 [a1] ([M–H–C18H30O2]) could be also detected, being caused by the loss of two fatty acid chains. Equally the key ion at m/z 225 [d] ([M − H] of C6H9O7S), which represents the sulfoquinovosyl head group—an identification structure element of SQDG—could be detected in the MS3 spectra. Sulfoquinovosyldiacylglyceride (1,2-di-O-acyl-3-O-(6′-deoxy-6′-sulfo-d-glycolpyranosyl)-sn-glycerols) are esterified with two fatty acids. In their mass spectra the neutral losses of the respective fatty acids (palmitic acid, linoleic acid or linolenic acid) with the formation of the characteristic fragment C6H9O7S at m/z 225 may be found [29,30,31,32]. The natural SQDGs have an α-anomeric glycoside conformation [33]. An exact assignment of the position of the acyl groups on the glyceride, is not unequivocally possible by mass spectrometric investigations. Taking this into account [34], possibly the higher peak intensity of fragment ion [b] at m/z 537.2 in comparison to fragment ion [a] suggests the position of the palmitic acid to be at the sn-2-postion. Based on this and other references the positions postulated in the literature are assumed also here [29,35,36,37]. Thus for compound 1 at sn-1-position linolenic acid (C18:3) and at sn-2-position palmitic acid (C16:0), for compound 2 at sn-1-position linoleic acid (C18:2) and at sn-2-position palmitic acid (C16:0) and for compound 3 at sn-1-position and sn-2-position palmitic acid (C16:0) are proposed.
Because reverse metabolomics only gives the most likely correlation, a causal relationship of compound and effect has to be proven. To confirm an inhibitory effect against the QC, of the sulfolipids 13, it was necessary to isolate them and to examine them in detail. For this purpose, the methanolic extract of Sc. accuminatus eSP was selected and the sulfolipids were isolated using NH2 cartridges (SPE) [36]. 25 mg of methanolic extract of Sc. accuminatus eSP was added to NH2-conditioned cartridges and a two-step elution was conducted. Subsequently, a Folch wash was carried out to eliminate the salts, like ammonium acetate, and to transfer the sulfolipids into the organic methanol/dichloromethane phase. The sulfolipids thus obtained (6.5 mg) were investigated by UPLC-MS. For reference, a SQDG standard (Lipid Products) was used. The mass spectrometric analysis of the sulfolipids by UPLC-MS in the negative ion mode showed a characteristic base peak at RT of 9.9 min in the chromatogram. The MS1 confirmed molecular ions [M − H] at m/z 794 and 815 is congruent with sulfolipids 3 and 1. These and the SQDG standard were tested at two concentrations in the QC assay. Both, isolated sulfolipids and the SQDG standard, were able to inhibit QC at concentrations of 0.25 mg/mL and 0.025 mg/mL with 81%/76% and 77%/76%, respectively. The results of the QC assay confirmed that these sulfolipids act as QC inhibitors and thus have potential as lead compounds against diseases associated with QC, namely Alzheimer’s disease.

3. Discussion

The reverse metabolomics approach with AcorA was applied to identify QC inhibiting metabolites produced by different algae strains. The applied method allowed the identification and characterization directly from complex crude extracts without further purification steps. It is strongly suggested, that the identified QC inhibitors are sulfolipids, which are already identified from various microalgae (mainly Rhodophyta) like Porphyridium purpureum [35], Heterosigma carterae, Phaeodactylum tricorntum [37], Heterosigma caterae [38], and Pavlova lutheri [39], as well as from the macroalgae Gigartina tenella [40] and Caulerpa racemosa [41]. Furthermore, the occurrence of sulfolipids is known from cyanobacteria e.g., Lyngbya lagerheimii [42], Oscillatoria raoi [43], Arthrospira platensis, Nostoc punctiforme, Scytonema hofmanni [36], and from spinach (Spinacia oleeracea) [44]. In photosynthetic organisms, SQDGs are important compounds of the thylakoid membrane and they are necessary for the unrestricted function of the photosystem II [45,46,47,48,49,50,51,52]. Sulfolipids demonstrate a broad activity spectrum like immunosuppressive [43] and antiviral effects (e.g., against HIV) [36,42,53]. Furthermore, antineoplastic effects and inhibitory activity of the enzymatic activities of DNA polymerases pol α and pol β as well as the α-glucosidase and the caspase are known [40,54,55,56,57]. Brahmi et al. detected a telomerase inhibitory activity (anticarcinogenic) of SQDGs isolated from the cyanobacterium Microcystis aeruguinosa [58]. In addition, anti-inflammatory activity and anti-proliferative effects on various human (cancer) cell lines are described [59,60,61,62,63,64] as well as a prophylactic effect against Mycobacterium tuberculosum infection is known [44]. As part of a patent, the effect of sulfolipids in inflammatory skin diseases, especially psoriasis is described [65]. In the present study, we could demonstrate for the first time that SQDGs exhibit QC inhibitory effects. The new activity for this compound class could be elucidated by application of AcorA, a new chemoinformatic method which allows the direct identification of known and unknown activity-relevant metabolites and their spectroscopic clusters in complex mixtures like algal crude extracts. The evidence for an actual QC inhibition of sulfolipids (13) could be provided through a successful isolation with subsequent testing of QC inhibition.
Previously known QC inhibitors are primarily described in patents of the company Probiodrug AG. The application of QC inhibitors for the treatment of Alzheimer’s disease has proven to be successful in different transgenic animal models [20,66,67]. One competitive QC inhibitor PQ912 for the treatment of Alzheimer’s disease successfully completed clinical trial phase 1 [68] and currently is tested in clinical trial phase 2 [23]. All known QC inhibitors were synthesized or achieved by structure based design and bioisosteric replacement as well as homology modeling. In publications by Buchholz et al., 2006, 2009 [69,70] studies of substructures of QC inhibitors were performed. From this it can be deduced that for QC inhibitors following substructures with pharmacophore characteristics are necessary:
  • Metal binding group (MBG)
  • Flexible linker with minimum length (propyl-linker)
  • Core structure (scaffold) decorated with functional groups at certain positions e.g., 3,4-dimethoxyphenylthiourea, which additionally can form hydrogen bonds and lipophilic interactions within the enzyme pocket.
The QC inhibiting sulfolipids (13) have suitable structural characteristics for a QC inhibitor. In Figure 1, the structures of a known QC inhibitor (4) and of the sulfolipids are compared.
As shown in Figure 1, the identified sulfolipids in principal provide structural characterizations (substructures) suitable for known QC inhibitors. The negatively charged sulfonate group at the 6-hydroxyl position of the glucose probably acts as a metal binding group. Of course, the polyhydroxy elements may also bound to the metal ion; the ether portion acts as a linker in this very preliminary comparison. However, the assumption depicted in Figure 1 could be enforced by docking studies (not shown). Thus the sulfonate group suggests itself as a metal binding group, not known before for QC inhibitors. The glucose probably acts as core structure (scaffold). The hydroxyl groups may acting as hydrogen acceptors and donors and allow directed interactions in the active site of the enzyme. Starting from the metal binding group it links the scaffold and has an optimal length of 3 methylene units to the 5-hydroxy group of glucose. The necessary flexible linker between the metal binding group and the core structure is also present in the sulfolipid structure. The QC inhibitor 4 has an even more flexible linker with a length of three methylene units to the NH group of the core structure (N1 of the thiourea moiety). The 5-hydroxy group, as well as the NH group, according to the models, will probably act as hydrogen bond donors. By reason of the experimental proof, supported by substructures with somewhat similar pharmacophore qualities, they present a new lead structure for QC inhibitors.
In summary sulfolipids share common, necessary substructures with pharmacophore characteristics of known QC inhibitors and they may be an initial point in developing new QC inhibitors.

4. Materials and Methods

4.1. Cultivation of the Microalgae

The microalgae strains Scenedesmus rubescens (SAG 5.95), Scenedesmus producto-capitatus (SAG 21.81), Scenedesmus accuminatus (SAG 38.81), Scenedesmus pectinatus (SAG 2003), Tetradesmus wisconsinensis (SAG 3.99), and Eustigmatos magnus (SAG 36.89) were originally purchased from the culture collection of Göttingen University Germany (SAG). The algae were cultivated by using Setlik medium (2.02 g/L KNO3, 0.34 g/L KH2PO4, 0.99 g/L MgSO4·7H2O, 0.0185 g/L Fe-EDTA, 0.01 g/L Ca(NO3)2∙4H2O, 0.00309 g/L H3BO3, 0.0012 g/L MnSO4∙4H2O, 0.0014 g/L CoSO4, 0.00124 g/L CuSO4·5H2O, 0.00143 g/L ZnSO4, and 0.00184 g/L (NH4)6Mo7O24∙4H2O) in a 100 L tubular photobioreactor (IGV GmbH, Nuthetal, Germany) 100 GS/PL with constant illumination of a photon flux density of 90 μmol/m2·s (<OD 20) respectively 150 μmol/m2·s (>OD 20) at pH 7. The pH value was regulated by the addition of CO2.
The harvests of biomass of the growth phase were carried out between day 7–10 by centrifugation. For obtaining the biomass of the stationary growth phase new Setlik medium was applied to the rest of the algae culture after harvesting and the culturing continued (fed-batch-method). After reaching the stationary phase (SP), which was achieved between 9 and 14 days depending from the alga, the biomass was harvested by centrifugation.

4.2. Preparation of Crude Extracts

The freeze-dried algal biomasses of the exponential growth phase (GP) and stationary growth phase (SP) of each algae species were extracted by two solid-liquid-extraction procedures (single solvent extraction (s) and multi-step solvent extraction (m)).
In the first extraction procedure (s) each biomass (10 g) was ground with mortar and pestle using sea sand (biomass:sea sand = 1:2) and extracted triply with 600 mL each of methanol. In the second extraction procedure (m), each ground and with n-hexane pre-extracted biomass (10 g), was extracted triply with each 600 mL of methanol. The methanol extracts of both procedures were concentrated to dryness in a rotary evaporator under reduced pressure and re-dissolved with methanol to a defined concentration [28].

4.3. Sample Preparation

Chromabond SA-cartridges (Macherey & Nagel, Düren, Germany) were used to remove chlorophyll from the crude extracts (Macherey & Nagel Application-No.: 300010). The resulting pre-cleaned extracts were evaporated to dryness and redissolved in methanol followed by a solid phase extraction on Chromabond C18ec-cartridge (Macherey & Nagel) using methanol as a solvent. The obtained processed extracts were evaporated to dryness and dissolved in methanol for assaying and mass spectrometry measurements.
SQDG standard were purchased from Lipid Products (Nutfield, Redhill, UK).

4.4. Glutaminyl Cyclase (QC) Inhibition Assay

The determination of the catalytic QC-enzyme activity was accomplished by utilization of the fluorogenic substrate Gln-AMC (N-glutaminyl-7-amino-4-methyl-coumarin) and the supporting enzyme pyroglutaminyl aminopeptidase (pGAP), as well as purified human QC.
QC cyclizes Gln-AMC to pGlu-AMC which serves in a second step as substrate for pGAP. The removal of AMC from pGlu-AMC is than detected at λex = 380 nm; λem = 460 nm [71].
In this coupled optical assay the increase of the free AMC was continuously analyzed for more than 12 min at 30 °C. The assay was conducted in microtiter plates by adding 100 μL 0.25 mM substrate, 50 μL 0.2 mg·mL−1 extract, 25 μL supporting enzyme pGAP and 25 μL QC with a final volume of 250 μL per well. Because of the QC pH value dependency, 50 μL Tris buffer (0.1 M; pH 8) was added. The exact procedure was published by Schilling et al. [72,73].
All assay investigations were done in triplicate and if inhibition activities were more than 20% vs. control, it was classified as QC-active.
An influence of an inhibition of the supporting enzyme pyroglutaminyl aminopeptidase (pGAP) could be excluded by investigations.

4.5. Mass Spectrometry

4.5.1. UPLC/ESI-MS

The mass spectrometry analysis of the methanol crude extracts were obtained by an Acquity UPLC-system (Waters GmbH, Eschborn, Germany) equipped with an ion trap (LCQ Deca XP MAX, Thermo Finnigan, Thermo Fisher Scientic Inc., San Jose, CA, USA). The ionization was effected by electro spray ionization (4 kV, 275 °C, 27 V, nitrogen flow rate 35–40 arb. units). The separation on a RP-18 HSS T3 1.8 μm, 1.0 × 100 mm (PartNo: 186003536, Serial No.: 01183023815308; Waters) column were accomplished by using a gradient system starting from water/acetonitrile 95:5 (each of them containing 0.2% CH3COOH) to 100% acetonitrile within 7.5 min. After continuous flow of 100% acetonitrile to 8.2 min the solvent gradient system of water/acetonitrile 95:5 was reached at 12 min. The measurements were done at a flow rate of 0.150 mL/min and a column temperature of 40 °C. The sample was introduced with partial injection in needle overfill modus and with an injection volume of 1 μL. ESI-MS spectra were acquired in negative and positive ion electrospray ionization mode by scanning over the m/z range 100–1000 Da in triplicate. Data dependent MS2 and MS3 experiments were performed by selection of the ions of the highest intensity, whereas the intensity had to be larger than 105 a.i., and using a normalized collision energy of 35% or 45% in negative ion mode and 35% in the positive ion mode (activation Q: 0.250; activation time: 30.0 msec). Isolation width was set at ±2 Da. The data were evaluated by the software Xcalibur 2.0 and 2.0.7 (Thermo Scientific, Waltham, MA, USA).


The high resolution ESI mass spectra of the extracts were obtained from a Bruker Apex III Fourier transform ion cyclotron resonance (FTICR) mass spectrometer (Bruker Daltonics, Billerica, MA, USA) equipped with an Infinity™ cell, a 7.0 Tesla superconducting magnet (Bruker, Karlsruhe, Germany), an RF-only hexapole ion guide and an external APOLLO electrospray ion source (Agilent, off axis spray, voltages: endplate, 3.700 V; capillary, −4.200 V; capillary exit, 100 V; skimmer 1, 15.0 V; skimmer 2, 10.0 V). Nitrogen was used as drying gas at 150 °C. The sample solutions were introduced continuously via a syringe pump with a flow rate of 120 μL·h−1. All data were acquired with 512 k data points and zero filled to 2048 k by averaging 32 scans. The XMASS Software (Bruker, Version 6.1.2) was used for evaluating the data.

4.6. MS Data Processing and Activity Correlation Analysis (AcorA)

The ESI-FTICR MS files were converted to CDF format (Thermo) whereas the UPLC-MS files converted to mzXML format using ProteoWizard. The software-package XCMS was implemented in R (version 2.10.0, Data were processed using XCMS with the following parameters for peakpicking and alignment: method = “MSV”, SNR.method = “data.mean”, winSize.noise = 500, peakThr = 80,000, snthresh = 3, amp.Th = 0.005, scales = c (1, seq(7,9,3)); minsamp = 2, mzppm = 7 for FT-ICR-MS and method = “centWave”, mzdiff = 0.3, peakwidth = c (5, 12), snthr = snthr, verbose.columns = F, prefilter = c (2, 500); minsamp = 2, bw = 5, mzwid = 1 for UPLC-MS. The data output effected as aligned data matrix, which used for correlation of the bioactivity data and peak intensities using Spearman rang correlation coefficient (α = 5%). The results were viewed as tables in Excel (Microsoft) and plots in PDF (Adobe).

4.7. Isolation of Sulfolipids

Sulfolipids were purified with aminopropyl modified silica gel cartridges (NH2-cartridges; Macherey & Nagel, Düren, Germany). These were pre-conditioned in several steps with 2 mL methanol, 2 mL water, 4 mL 0.1 M hydrochloric acid (incubation for 1 h), 2 mL water, 2 mL methanol, 2 mL dichloromethane/isopropanol/methanol (15:30:50; v/v/v). Samples have been dissolved in dichloromethane/methanol (1:1; v/v) at a concentration of 20 mg to be put on the cartridge. Subsequently, a two-step elution was accomplished. In the first step unloaded compounds were eluted with 9 ml dichloromethane/isopropanol/methanol 15:30:50 (v/v/v) and discarded. The elution of sulfolipids was realized in a second step with 5 mL dichloromethane/acetonitrile/isopropanol/methanol/0.1 M aqueous NH4OAc (10:10:10:50:15; v/v/v/v/v) [36].
The obtained sulfolipids were evaporated to dryness and subsequently desalted. Therefore dichloromethane/methanol/0.1 M NaOAc-Puffer pH = 4.0 (8:4:3, v/v/v) was added and vigorously shaken. After overnight incubation at 4 °C, a two-phase system was formed, where the sulfolipids accumulate in the lower lipophilic phase. This lower sulfolipid phase was removed with a Pasteur pipette, transferred to a round bottom flask, and concentrated to dryness using a vacuum rotary evaporator.

5. Conclusions

Algae extracts of different species were investigated regarding their QC inhibiting activity. Since traditional methods were unsuccessful to identify the active principle, a new approach called Reverse Metabolomics with Activity-correlation Analysis (AcorA) was carried out, as this method does allow the identification of active principles in complex mixtures, and even additive or synergistic relationships can be discovered. Thereby a direct correlation of the mass spectrometry metabolite profiles (fingerprints) of the UPLC/ESI-MS or ESI-FTICR-MS data with the QC inhibition value of each extract was applied. The correlation analysis of the UPLC/ESI-MS and ESI-FTICR-MS data showed similar metabolite peak clusters for three significantly correlated compounds in the negative ion mode. By additional targeted mass spectrometric fragmentation analyses, the correlated compounds could be structurally characterized directly from the complex extracts without purification. Based on these results, the QC inhibiting compounds were specifically isolated and, by comparison with a reference compound, verified as sulfolipids, specifically suggested to be 1,2-di-O-palmitoyl-3-O-(6′-deoxy-6′-sulfo-d-glycopyranosyl)-glycerol (1), 1-O-palmitoyl-2-O-linolenyl-3-O-(6′-deoxy-6′-sulfo-d-glucopyranosyl)-glycerol (2), and 1-O-linolyl-2-O-palmitoyl-3-O-(6′-deoxy-6′-sulfo-d-glucopyranosyl)-glycerol (3). The evidence for an actual QC inhibition of sulfolipids (13) could be provided through their successful isolation with subsequent testing of QC inhibition. Thus, for the first time QC inhibitors from algae were identified, characterized and isolated. Likewise, for the first time the inhibitory effect of sulfolipids from algae against QC was demonstrated. Until now, no natural product with QC inhibitor activity is known, thus this is the first description of a natural QC inhibitor, present in algae species.


The authors thank Jürgen Schmidt and Ramona Heinke for mass spectrometric measurement and their support. Further the authors are grateful to the Ministry for Economy and Sciences of Saxony Anhalt for the financial support of this study.

Author Contributions

S.H.-M. performed the algae cultivation, harvesting and extraction of the algae biomass, sample preparation as well as determining the QC inhibition activities, identifying the QC inhibiting compound using mass spectral data and isolating the sulfolipids, and drafted the manuscript. L.A.W. invented the Reverse Metabolomics approach with AcorA; L.A.W., C.G., H.-U.D. designed and supervised the project and edited the manuscript. N.A. participated in the writing of the manuscript and provided help in the identification and isolation of the QC inhibiting compounds. M.B. participated in successful determinations in the QC assay and editing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
AcorAActivity-correlation Analysis
AChEacetylcholine esterase
APPamyloid precursor protein
ADAlzheimer’s disease
BACE-1Beta-secretase 1; beta-site amyloid precursor protein cleaving enzyme 1
CH3COOHacetic acid
ESI-FTICR MSelectrospray ionization Fourier transform ion cyclotron mass spectrometry
GPexponential growth phase
Isotope p.isotope peak
MBGmetal binding group
NaOAcsodium acetat
NH4OAcammonium acetate
pGAPpyroglutaminyl aminopeptidase
rsSpearman’s rank correlation coefficient
RTretention time
SPstationary growth phase
QCglutaminyl cyclase
UPLC-MSUltra performance liquid chromatography mass spectrometry


  1. Busby, W.H.; Quackenbush, G.E.; Humm, J.; Youngblood, W.W.; Kizers, J.S. An Enzyme (s) That Converts Glutaminyl-peptides into pyroglutamyl-petides. J. Biol. Chem. 1987, 262, 8532–8536. [Google Scholar] [PubMed]
  2. Fischer, W.H.; Spiess, J. Identification of a mammalian glutaminyl cyclase converting glutaminyl into pyroglutamyl peptides. Proc. Natl. Acad. Sci. USA 1987, 84, 3628–3632. [Google Scholar] [CrossRef] [PubMed]
  3. Schilling, S.; Niestroj, A.J.; Rahfeld, J.-U.; Hoffmann, T.; Wermann, M.; Zunkel, K.; Wasternack, C.; Demuth, H.-U. Identification of human glutaminyl cyclase as a metalloenzyme. Potent inhibition by imidazole derivatives and heterocyclic chelators. J. Biol. Chem. 2003, 278, 49773–49779. [Google Scholar] [CrossRef] [PubMed]
  4. Abraham, G.N.; Podell, D.N. Pyroglutamic acid-Non-metabolic formation, function in proteins and peptides, and characteristics of the enzymes effecting its removal. Mol. Cell. Biochem. 1981, 38, 181–190. [Google Scholar] [CrossRef] [PubMed]
  5. Folkers, K.; Chang, J.K.; Currie, B.L.; Bowers, C.Y.; Weil, A.; Schally, A.V. Synthesis and relationship of l-glutaminyl-l-histidyl-l-prolinamide to the thyrotropin releasing hormone. Biochem. Biophys. Res. Commun. 1970, 39, 110–113. [Google Scholar] [CrossRef]
  6. Messer, M.; Ottesen, M. Isolation and properties of glutamine cyclotransferase of dried papaya latex. Biochim. Biophys. Acta (BBA)-Spec. Sect. Enzymol. Subj. 1964, 92, 409–411. [Google Scholar] [CrossRef]
  7. El Moussaoui, A.; Nijs, M.; Paul, C.; Wintjens, R.; Vincentelli, J.; Azarkan, M.; Looze, Y. Revisiting the enzymes stored in the laticifers of Carica papaya in the context of their possible participation in the plant defence mechanism. Cell. Mol. Life Sci. 2001, 58, 556–570. [Google Scholar] [CrossRef] [PubMed]
  8. Böckers, T.M.; Kreutz, M.R.; Pohl, T. Glutaminyl-Cyclase Expression in the Bovine/Porcine Hypothalamus and Pituitary. J. Neuroendocrinol. 1995, 7, 445–453. [Google Scholar] [CrossRef] [PubMed]
  9. Dahl, S.W.; Slaughter, C.; Lauritzen, C.; Bateman, R.C.; Connerton, I.; Pedersen, J. Carica papaya glutamine cyclotransferase belongs to a novel plant enzyme subfamily: Cloning and characterization of the recombinant enzyme. Protein Expr. Purif. 2000, 20, 27–36. [Google Scholar] [CrossRef] [PubMed]
  10. Pohl, T.; Zimmer, M.; Mugele, K.; Spiess, J. Primary structure and functional expression of a glutaminyl cyclase. Proc. Natl. Acad. Sci. USA 1991, 88, 10059–10063. [Google Scholar] [CrossRef] [PubMed]
  11. Song, I.; Chuang, C.Z.; Bateman, R.C.J. Molecular cloning, sequence analysis and expression of human pituitary glutmaniyl cyclase. J. Mol. Endocrinol. 1994, 13, 77–86. [Google Scholar] [CrossRef] [PubMed]
  12. Schilling, S.; Hoffmann, T.; Rosche, F.; Wasternack, C.; Demuth, H.; Manhart, S. Heterologous Expression and Characterization of Human Glutaminyl Cyclase: Evidence for a Disulfide Bond with Importance for Catalytic Activity. Biochemistry 2002, 41, 10849–10857. [Google Scholar] [CrossRef] [PubMed]
  13. Batliwalla, F.M.; Baechler, E.C.; Xiao, X.; Li, W.; Balasubramanian, S.; Khalili, H.; Damle, A.; Ortmann, W.; Perrone, A.; Kantor, B.; et al. Peripheral blood gene expression profiling in rheumatoid arthritis. Genes Immun. 2005, 6, 388–397. [Google Scholar] [CrossRef] [PubMed]
  14. Ezura, Y.; Kajita, M.; Ishida, R.; Yoshida, S.; Yoshida, H.; Suzuki, T.; Hosoi, T.; Inoue, S.; Shiraki, M.; Orimo, H.; et al. Association of multiple nucleotide variations in the pituitary glutaminyl cyclase gene (QPCT) with low radial BMD in adult women. J. Bone Miner. Res. 2004, 19, 1296–1301. [Google Scholar] [CrossRef] [PubMed]
  15. Schilling, S.; Hoffmann, T.; Manhart, S.; Hoffmann, M.; Demuth, H.-U. Glutaminyl cyclases unfold glutamyl cyclase activity under mild acid conditions. FEBS Lett. 2004, 563, 191–196. [Google Scholar] [CrossRef]
  16. Cynis, H.; Schilling, S.; Bodnár, M.; Hoffmann, T.; Heiser, U.; Saido, T.C.; Demuth, H.-U. Inhibition of glutaminyl cyclase alters pyroglutamate formation in mammalian cells. Biochim. Biophys. Acta 2006, 1764, 1618–1625. [Google Scholar] [CrossRef] [PubMed]
  17. Cynis, H.; Scheel, E.; Saido, T.C.; Schilling, S.; Demuth, H.U. Amyloidogenic processing of amyloid precursor protein: Evidence of a pivotal role of glutaminyl cyclase in generation of pyroglutamate-modified amyloid-β. Biochemistry 2008, 47, 7405–7413. [Google Scholar] [CrossRef] [PubMed]
  18. Saido, T.C. Alzheimer’s disease as proteolytic disorders: Anabolism and catabolism of β-amyloid. Neurobiol. Aging 1998, 19, 69–75. [Google Scholar] [CrossRef]
  19. Russo, C.; Violani, E.; Salis, S.; Venezia, V.; Dolcini, V.; Damonte, G.; Benatti, U.; D’Arrigo, C.; Patrone, E.; Carlo, P.; et al. Pyroglutamate-modified amyloid ß-peptides—AβN3(pE)—Strongly affect cultured neuron and astrocyte survival. J. Neurochem. 2002, 82, 1480–1489. [Google Scholar] [CrossRef] [PubMed]
  20. Schilling, S.; Zeitschel, U.; Hoffmann, T.; Heiser, U.; Francke, M.; Kehlen, A.; Holzer, M.; Hutter-Paier, B.; Prokesch, M.; Windisch, M.; et al. Glutaminyl cyclase inhibition attenuates pyroglutamate Abeta and Alzheimer’s disease-like pathology. Nat. Med. 2008, 14, 1106–1111. [Google Scholar] [CrossRef] [PubMed]
  21. Schilling, S.; Appl, T.; Hoffmann, T.; Cynis, H.; Schulz, K.; Jagla, W.; Friedrich, D.; Wermann, M.; Buchholz, M.; Heiser, U.; et al. Inhibition of glutaminyl cyclase prevents pGlu-Abeta formation after intracortical/hippocampal microinjection in vivo/in situ. J. Neurochem. 2008, 106, 1225–1236. [Google Scholar] [CrossRef] [PubMed]
  22. Jawhar, S.; Wirths, O.; Schilling, S.; Graubner, S.; Demuth, H.-U.; Bayer, T. Overexpression of glutaminyl cyclase, the enzyme responsible for pyroglutamate Aβ formation, induces behavioral deficits, and glutaminyl cyclase knock-out rescues the behavioral phenotype in 5XFAD mice. J. Biol. Chem. 2011, 286, 4454–4460. [Google Scholar] [CrossRef] [PubMed]
  23. Demuth, H.-U.; Schilling, S.; Roßner, S.; Morawski, M.; Hartlage-Rübsamen, M.; Lues, I.; Glund, K. Toxic Pglu-Abeta Is Enhanced and Glutaminyl Cyclase (Qc) Up-Regulated Early in Alzheimer’s Disease (Ad): Inhibitors of Qc Blocking Pglu-Abeta Formation Are in Clinical Development. Alzheimer’s Dement. 2014, 10, P149. [Google Scholar] [CrossRef]
  24. Kreuzberger, M. Neuronale Verteilung des Enzyms Glutaminylzyklase im Kortex und der hippocampalen Formation des humanen Gehirns. Ph.D. Thesis, Universität Leipzig, Leipzig, Germany, January 2015. [Google Scholar]
  25. Höfling, C.; Indrischek, H.; Höpcke, T.; Waniek, A.; Cynis, H.; Koch, B.; Schilling, S.; Morawski, M.; Demuth, H.-U.; Roßner, S.; et al. Mouse strain and brain region-specific expression of the glutaminyl cyclases QC and isoQC. Int. J. Dev. Neurosci. 2014, 36, 64–73. [Google Scholar] [CrossRef] [PubMed]
  26. Wessjohann, L.A. Reverse metabolomics—Metabolomics in drug discovery: Connecting metabolomic profiles with phylogenetic, medicinal and flavoring properties. Metab. Syst. Biol. 2014, 4, 70. [Google Scholar]
  27. Degenhardt, A.; Wittlake, R.; Steilwind, S.; Liebig, M.; Runge, C.; Hilmer, J.M.; Krammer, G.; Gohr, A.; Wessjohann, L. Quantification of important flavour compounds in beef stocks and correlation to sensory results by “Reverse Metabolomics”. In Flavour Science; Ferreira, V., Ed.; Elsevier: Amsterdam, The Neatherland, 2013; pp. 15–19. [Google Scholar]
  28. Krause-Hielscher, S.; Demuth, H.; Wessjohann, L.; Arnold, N.; Griehl, C. Microalgae as a source for potential anti-Alzheimer’s disease directed compounds—Screening for glutaminyl cyclase (QC) inhibiting metabolites. Int. J. Pharm. Biol. Sci. 2015, 5, 164–170. [Google Scholar]
  29. Zianni, R.; Bianco, G.; Lelario, F.; Losito, I.; Palmisano, F.; Cataldi, T.R.I. Fatty acid neutral losses observed in tandem mass spectrometry with collision-induced dissociation allows regiochemical assignment of sulfoquinovosyl-diacylglycerols. J. Mass Spectrom. 2013, 48, 205–215. [Google Scholar] [CrossRef] [PubMed]
  30. Benson, A.A.; Daniel, H.; Wiser, R. A Sulfolipid in Plants. Biochemistry 1959, 45, 1582–1587. [Google Scholar] [CrossRef]
  31. Lepage, M.; Daniel, H.; Benson, A.A. The Plant Sulfolipid.—Isolation and Properties of Sulfoglycosyl Glycerol. J. Am. Chem. Soc. 1961, 3735, 1958–1960. [Google Scholar]
  32. Miyano, M.; Benson, A.A. The Plant Sulfolipid. VI. Configuration of the Glycerol Moiety. J. Am. Chem. Soc. 1962, 84, 57–59. [Google Scholar] [CrossRef]
  33. Matsumoto, Y.; Sahara, H.; Fujita, T.; Shimozawa, K.; Takenouchi, M.; Torigoe, T.; Hanashami, S.; Yamazaki, T.; Takahashi, H.; Sugawara, F.; et al. An immunosuppressive effect by synthetic sulfonolipids deduced from sulfonoquinovosyldiacylglycerols of sea urchin. Transplantation 2002, 74, 261–267. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, J.; Chen, D.; Yan, X.; Chen, J.; Zhou, C. Global characterization of the photosynthetic glycerolipids from a marine diatom Stephanodiscus sp. by ultra performance liquid chromatography coupled with electrospray ionization-quadrupole-time of flight mass spectrometry. Anal. Chim. Acta 2010, 663, 60–68. [Google Scholar] [CrossRef] [PubMed]
  35. Naumann, I.; Darsow, K.H.; Walter, C.; Lange, H.A.; Buchholz, R. Identification of sulfoglycolipids from the alga Porphyridium purpureum by matrix-assisted laser desorption/ionisation quadrupole ion trap time-of-flight mass spectrometry. Rapid Commun. Mass Spectrom. 2007, 21, 3185–3192. [Google Scholar] [CrossRef] [PubMed]
  36. Naumann, I. Sulfoquinovosyldiacylglyceride-Antiviral Aktive Substanzen. Ph.D. Thesis, Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen, Germany, March 2009. [Google Scholar]
  37. Naumann, I.; Klein, B.; Bartel, C.; Darsow, S.J.; Buchholz, R.; Lange, H.A. Identification of sulfoquinovosyldiacyglycerides from Phaeodactylum tricornutum by matrix-assisted laser desorption/ionization QTrap time-of-flight hybrid mass spectrometry. Rapid Commun. Mass Spectrom. 2011, 25, 2517–2523. [Google Scholar] [CrossRef] [PubMed]
  38. Keusgen, M.; Curtis, J.M.; Thibault, P.; Walter, J.A.; Windust, A.; Ayer, S.W. Sulfoquinovosyl Diacylglycerols from the Alga Heterosigma carterae. Lipids 1997, 32, 1101–1112. [Google Scholar] [CrossRef] [PubMed]
  39. Makewicz, A.; Gribi, C.; Eichenberger, W. Lipids of Ectocarpus fasciculatus (Phaeophyceae). Incorporation of Oleate and the Role of TAG and MGDG in Lipid Metabolism. Plant Cell Physiol. 1997, 38, 952–960. [Google Scholar] [CrossRef]
  40. Ohta, K.; Mizushina, Y.; Hirata, N.; Takemura, M.; Sugawara, F.; Matsukage, A.; Sakaguchi, K. Sulfoquinovosyldiacylglycerol, KM043, a new potent inhibitor of eukaryotic DNA polymerases and HIV-reverse transcriptase type 1 from a marine red alga, Gigartina tenella. Chem. Pharm. Bull. 1998, 46, 684–686. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, H.; Li, Y.-L.; Shen, W.-Z.; Rui, W.; Ma, X.-J.; Cen, Y.-Z. Antiviral activity of a sulfoquinovosyldiacylglycerol (SQDG) compound isolated from the green alga Caulerpa racemosa. Bot. Mar. 2007, 50, 185–190. [Google Scholar] [CrossRef]
  42. Gustafson, K.R.; John, H.; Ii, C.; Fuller, R.W.; Weislow, O.S.; Rebecca, F.; Snader, K.M.; Patterson, G.M.L.; Boyd, M.R. AIDS-Antiviral Sulfolipids From Cyanobacteria (Blue-Green Algae). J. Natl. Cancer Inst. 1989, 81, 1254–1258. [Google Scholar] [CrossRef] [PubMed]
  43. Reshef, V.; Mizrachi, E.; Maretzki, T.; Silberstein, C.; Loya, S.; Hizi, A.; Carmeli, S. New acylated sulfoglycolipids and digalactolipids and related known glycolipids from cyanobacteria with a potential to inhibit the reverse transcriptase of HIV-1. J. Nat. Prod. 1997, 60, 1251–1260. [Google Scholar] [CrossRef] [PubMed]
  44. Gage, D.A.; Huang, Z.H.; Benning, C. Comparison of sulfoquinovosyl diacylglycerol from spinach and the purple bacterium Rhodobacter spaeroides by fast atom bombardment tandem mass spectrometry. Lipids 1992, 27, 632–636. [Google Scholar] [CrossRef] [PubMed]
  45. Heinz, E.; Schmidt, H.; Hoch, M.; Jung, K.H.; Binder, H.; Schmidt, R.R. Synthesis of different nucleoside 5′-diphospho-sulfoquinovoses and their use for studies on sulfolipid biosynthesis in chloroplasts. Eur. J. Biochem. 1989, 184, 445–453. [Google Scholar] [CrossRef] [PubMed]
  46. Seifert, U.; Heinz, E. Enzymatic characteristics of UDP-sulfoquinovose: Diacylglycerol sulfoquinovosyl-transferase from chloroplast envelopes. Bot. Acta 1992, 105, 197–205. [Google Scholar] [CrossRef]
  47. Pugh, C.E.; Roy, B.; Hawkes, T.; Harwood, J.L. A new pathway for the synthesis of the plant sulpholipid, sulphoquinovosyldiacylglycerol. Biochem. J. 1995, 309, 513–519. [Google Scholar] [CrossRef] [PubMed]
  48. Bandurski, R. The mechanism of “active sulfate” formation. J. Am. Soc. 1956, 78, 6408–6409. [Google Scholar] [CrossRef]
  49. Robbins, P.; Lipmann, F. The enzymatic sequence in the biosynthesis of active sulfate. J. Am. Chem. Soc. 1956, 78, 6409–6410. [Google Scholar] [CrossRef]
  50. Mercer, E.I.; Thomas, G. Occurrence of ATP-adenylsulfate 3′-phosphotransferase in the chloroplasts of higher plants. Phytochemistry 1969, 8, 2281–2285. [Google Scholar] [CrossRef]
  51. Webb, M.S.; Green, B.R. Biochemical and biophysical properties of thylakoid acyl lipids. Biochim. Biophys. Acta-Bioenerg. 1991, 1060, 133–158. [Google Scholar] [CrossRef]
  52. Benning, C. Biosynthesis and Function of the Sulfolipid Sulfoquinovosyl Diacylglycerol. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1998, 49, 53–75. [Google Scholar] [CrossRef] [PubMed]
  53. Gordon, D.M.; Danishefsky, S.J. Synthesis of a Cyanobacterial Sulfolipid: Confirmation of Its Structure, Stereochemistry, and Anti-HIV-1 Activity. J. Am. Chem. Soc. 1992, 51, 659–663. [Google Scholar] [CrossRef]
  54. Hanashima, S.; Mizushina, Y.; Yamazaki, T.; Ohta, K.; Takahashi, S.; Koshino, H.; Sahara, H.; Sakaguchi, K.; Sugawara, F. Structural determination of sulfoquinovosyldiacylglycerol by chiral syntheses. Tetrahedron Lett. 2000, 41, 4403–4407. [Google Scholar] [CrossRef]
  55. Hanashima, S.; Mizushina, Y.; Yamazaki, T.; Ohta, K.; Takahashi, S.; Sahara, H.; Sakaguchi, K.; Sugawara, F. Synthesis of sulfoquinovosylacylglycerols, inhibitors of eukaryotic DNA polymerase alpha and beta. Bioorg. Med. Chem. 2001, 9, 367–376. [Google Scholar] [CrossRef]
  56. Kurihara, H.; Mitani, T.; Kawabata, J.; Hatano, M. Inhibitory Effect on the α-Glucosidase Reaction by Aggregates State of Sulfoquinovosyldiacylglycerol. Biosci. Biotechnol. Biochem. 1997, 61, 536–538. [Google Scholar] [CrossRef]
  57. Matsumoto, K.; Sakai, H.; Takeuchi, R.; Tsuchiya, K.; Ohta, K.; Sugawara, F.; Abe, M.; Sakaguchi, K. Effective form of sulfoquinovosyldiacyglycerol (SQDG) vesicles for DNA polymerase inhibition. Colloids Surf. B Biointerfaces 2005, 46, 175–181. [Google Scholar] [CrossRef] [PubMed]
  58. Brahmi, M.M.; Portmann, C.; D’Ambrosio, D.; Woods, T.M.; Banfi, D.; Reichenbach, P.; da Silva, L.; Baudat, E.; Turcatti, G.; Lingner, J.; et al. Telomerase Inhibitors from Cyanobacteria: Isolation and Synthesis of Sulfoquinovosyl Diacylglycerols from Microcystis aeruguinosa PCC 7806. Chemistry 2013, 19, 4596–4601. [Google Scholar] [CrossRef] [PubMed]
  59. Bergé, J.P.; Debiton, E.; Dumay, J.; Durand, P.; Barthomeuf, C. In vitro anti-inflammatory and anti-proliferative activity of sulfolipids from the red alga Porphyridium cruentum. J. Agric. Food Chem. 2002, 50, 6227–6232. [Google Scholar] [CrossRef] [PubMed]
  60. Bruno, A.; Rossi, C.; Marcolongo, G.; di Lena, A.; Venzo, A.; Berrie, C.P.; Corda, D. Selective in vivo anti-inflammatory action of the galactolipid monogalactosyldiacylglycerol. Eur. J. Pharmacol. 2005, 524, 159–168. [Google Scholar] [CrossRef] [PubMed]
  61. Chatterjee, R.; Singh, O.; Pachuau, L.; Malik, S.P.; Paul, M.; Bhadra, K.; Paul, S.; Kumar, G.S.; Mondal, N.B.; Banerjee, S. Identification of a sulfonoquinovosyldiacylglyceride from Azadirachta indica and studies on its cytotoxic activity and DNA binding properties. Bioorg. Med. Chem. Lett. 2010, 20, 6699–6702. [Google Scholar] [CrossRef] [PubMed]
  62. Murakami, C.; Yamazaki, T.; Hanashima, S.; Takahashi, S.; Ohta, K.; Yoshida, H.; Sugawara, F.; Sakaguchi, K.; Mizushina, Y. Structure-function relationship of synthetic sulfoquinovosyl-acylglycerols as mammalian DNA polymerase inhibitors. Arch. Biochem. Biophys. 2002, 403, 229–236. [Google Scholar] [CrossRef]
  63. Noguchi, S.; Akiyama, J.; Hada, A.; Inoue, Y.; Araki, A.; Yukino, T.; Hayashi, M.; Tada, M.; Takahata, K. Effect of Sulfoquinovosyldiacylglycerol (SQDG) extracted from Sea alga (Porphyra yezoensis) on Morphological Differentiation and Apoptosis in Neuro2a Neuroblastoma Cells. Jpn. J. Food Chem 2003, 10, 8530. [Google Scholar]
  64. Ohta, K.; Miura, M.; Sakaguchi, K. Sulfonated Sugar Compounds, Pharmaceutical Compositions Which contain the Same, and Methods of Treating Tumors with the Same. U.S. Patent 7,973,145 B2, 5 July 2011. [Google Scholar]
  65. Vasänge, M.; Rolfsen, W.; Bohlin, L. Sulpholipid Composition and Methods for Treating Skin Disorders. U.S. Patent 6,124,266 A, 26 September 2000. [Google Scholar]
  66. Demuth, H.-U.; Cynis, H.; Alexandru, A.; Jagla, W.; Graubner, S.; Schilling, S. Inhibition of Glutaminyl Cyclase: Pharmacology and steps towards clinical development. Alzheimer’s Dement. 2010, 6, S571–S572. [Google Scholar] [CrossRef]
  67. Jawhar, S.; Wirths, O.; Bayer, T. A Pyroglutamate amyloid-β (Aβ): A hatchet man in Alzheimer disease. J. Biol. Chem. 2011, 286, 38825–38832. [Google Scholar] [CrossRef] [PubMed]
  68. Lues, I.; Weber, F.; Meyer, A.; Bühring, U.; Hoffmann, T.; Kühn-Wache, K.; Manhart, S.; Heiser, U.; Pokorny, R.; Chiesa, J.; et al. A phase 1 study to evaluate the safety and pharmacokinetics of PQ912, a glutaminyl cyclase inhibitor, in healthy subjects. Alzheimer’s Dement. Transl. Res. Clin. Interv. 2015, 1, 182–195. [Google Scholar] [CrossRef]
  69. Buchholz, M.; Heiser, U.; Schilling, S.; Niestroj, A.J.; Zunkel, K.; Demuth, H.-U. The first potent inhibitors for human glutaminyl cyclase: Synthesis and structure-activity relationship. J. Med. Chem. 2006, 49, 664–677. [Google Scholar] [CrossRef] [PubMed]
  70. Buchholz, M.; Hamann, A.; Aust, S.; Brandt, W.; Böhme, L.; Hoffmann, T.; Schilling, S.; Demuth, H.-U.; Heiser, U. Inhibitors for human glutaminyl cyclase by structure based design and bioisosteric replacement. J. Med. Chem. 2009, 52, 7069–7080. [Google Scholar] [CrossRef] [PubMed]
  71. Zimmerman, M.; Yurewicz, E.; Patel, G. A new fluorogenic substrate for chymotrypsin. Anal. Biochem. 1976, 70, 258–262. [Google Scholar] [CrossRef]
  72. Schilling, S.; Hoffmann, T.; Wermann, M.; Heiser, U.; Wasternack, C.; Demuth, H.-U. Continuous spectrometric assays for glutaminyl cyclase activity. Anal. Biochem. 2002, 303, 49–56. [Google Scholar] [CrossRef] [PubMed]
  73. Schilling, S. Charakterisierung der Humanen Glutaminyl-Cyclase im Vergleich mit dem Analogen Enzym aus Carica papaya. Ph.D. Thesis, Martin-Luther-Universität Halle-Wittenberg, Halle, Germany, May 2004. [Google Scholar]

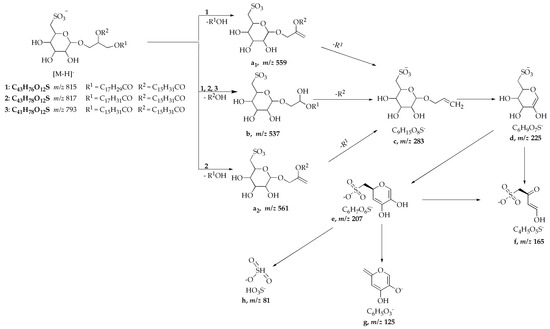

Scheme 1. Proposed fragmentation scheme for [M − H] ions of the compounds 13 observed in the MS1, MS2, MS3 and MS4 experiments in the negative ion mode.
Scheme 1. Proposed fragmentation scheme for [M − H] ions of the compounds 13 observed in the MS1, MS2, MS3 and MS4 experiments in the negative ion mode.
Marinedrugs 14 00203 sch001

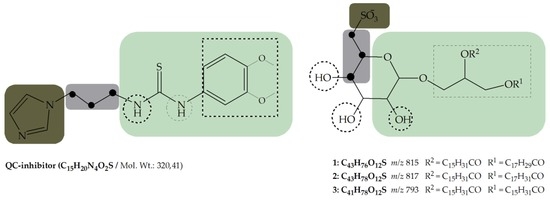

Figure 1. Comparison of the structural characteristics of the QC inhibitor 1-(3-(1H-imidazol-1-yl)propyl)-3-(3,4-dimethoxyphenyl)thio-urea with the QC inhibiting sulfolipids (13). [brown box: metal binding group; grey box: flexible linker; green box: scaffold incl. decoration].
Figure 1. Comparison of the structural characteristics of the QC inhibitor 1-(3-(1H-imidazol-1-yl)propyl)-3-(3,4-dimethoxyphenyl)thio-urea with the QC inhibiting sulfolipids (13). [brown box: metal binding group; grey box: flexible linker; green box: scaffold incl. decoration].
Marinedrugs 14 00203 g001
Table 1. QC inhibition activities [%] of the chlorophyll-free methanol extracts of 6 different algae species harvested at two growth phases (exponential growth phase (GP) and stationary growth phase (SP)) by two extraction procedures (s = single solvent extraction, and m = multi-step solvent extraction).
Table 1. QC inhibition activities [%] of the chlorophyll-free methanol extracts of 6 different algae species harvested at two growth phases (exponential growth phase (GP) and stationary growth phase (SP)) by two extraction procedures (s = single solvent extraction, and m = multi-step solvent extraction).
Algae ExtractInhibition of QC Enzyme Activity [%] *
cextract = 0.2 mg/mL
Algae ExtractInhibition of QC Enzyme Activity[%] *
cextract = 0.2 mg/mL
Sc. producto-capitatus sGP59Sc. pectinatus mGP32
Sc. producto-capitatus mGP24Sc. pectinatus sGP43
Sc. producto-capitatus sSP15Sc. pectinatus mSP21
Sc. producto-capitatus mSP35Sc. pectinatus sSP63
Sc. rubescens sGP65Tetradesmus wiscon. mGP39
Sc. rubescens mGP23Tetradesmus wiscon. sGP72
Sc. rubescens sSP56Tetradesmus wiscon. mSP19
Sc. rubescens mSP22Tetradesmus wiscon. sSP16
Sc. accuminatus sGP44Eustigmatos magnus mSP0
Sc. accuminatus mGP26Eustigmatos magnus sSP0
Sc. accuminatus sSP57Eustigmatos magnus mGP56
Sc. accuminatus mSP22Eustigmatos magnus sGP61
* Inhibition of QC enzyme activity = QC activity without inhibitor/extract − residual QC activity after measurement; (QC enzyme activity [%] − residual activity [%]).
Table 2. Hit list of the top ranked (depending on Spearman’s rank correlation coefficient rs) activity relevant peak clusters based on UPLC/ESI-MS data and ESI-FTICR-MS data both in the negative ion mode correlated with the QC inhibition activity.
Table 2. Hit list of the top ranked (depending on Spearman’s rank correlation coefficient rs) activity relevant peak clusters based on UPLC/ESI-MS data and ESI-FTICR-MS data both in the negative ion mode correlated with the QC inhibition activity.
Rankrs[M − H]
Possible CompoundRankrs[M − H]
Possible CompoundElemental CompositionCalcd. [M − H]
815.49827 *
1C43H76O12S815.498472 *5.0
7.0.68816.50348Isotope p.
m/z 815.50
9.0.80818.59997.70Isotope p.
m/z 817.67
9.0.64794.52123Isotope p.
m/z 793.52
10.0.64795.52035Isotope p.
m/z 793.52
817.51596 *
14.0.63819.53126Isotope p.
m/z 817.52
15.0.75794.73338.86Isotope p.
m/z 793.73
793.51441 *
22.0.74817.63337.22Isotope p.
m/z 815.73
* The elemental formulas were calculated based on the elemental composition of high-resolution FT-ICR-MS data out of m/z by repeated direct measurement of the extracts.
Table 3. Negative ion UPLC/ESI-MSn data of compounds 13 and a SQDG standard (Lipid Products (GB)).
Table 3. Negative ion UPLC/ESI-MSn data of compounds 13 and a SQDG standard (Lipid Products (GB)).
Compound[M − H]
Scan Mode
m/z Relative Intensity (%)
[Fragment Ion Schema 1]
1815MS2 [815]
MS3 [815 → 537]
537 ([b], 100), 559 ([a1], 38)
225 ([d], 100), 207 ([e], 7), 165 ([f], 12), 283 ([c], 26)
2817MS2 [817]
MS3 [817 → 537]
537 ([b]), 100), 561 ([a2], 32)
225 ([d]), 100), 165 ([f], 30), 207 ([e], 9), 283 ([c], 3)
3793MS2 [793]
MS3 [793 → 537]
MS4 [793 → 537 → 225]
537 ([b], 100), 225 ([d], 20)
283 ([c], 42), 207 ([e], 53), 225 ([d], 100)
207 ([e], 52), 165 ([f], 60), 125 ([g], 100), 81 ([h], 27)
SQDG standard815MS2 [815]
cMS3 [815 → 537]
MS3 [815 → 559]
537 ([b], 100), 559 ([a1], 90)
225 ([d], 100), 165 ([f], 58), 207, ([e],30)
225 ([d], 100), 283 ([c], 38)

Share and Cite

MDPI and ACS Style

Hielscher-Michael, S.; Griehl, C.; Buchholz, M.; Demuth, H.-U.; Arnold, N.; Wessjohann, L.A. Natural Products from Microalgae with Potential against Alzheimer’s Disease: Sulfolipids Are Potent Glutaminyl Cyclase Inhibitors. Mar. Drugs 2016, 14, 203.

AMA Style

Hielscher-Michael S, Griehl C, Buchholz M, Demuth H-U, Arnold N, Wessjohann LA. Natural Products from Microalgae with Potential against Alzheimer’s Disease: Sulfolipids Are Potent Glutaminyl Cyclase Inhibitors. Marine Drugs. 2016; 14(11):203.

Chicago/Turabian Style

Hielscher-Michael, Stephanie, Carola Griehl, Mirko Buchholz, Hans-Ulrich Demuth, Norbert Arnold, and Ludger A. Wessjohann. 2016. "Natural Products from Microalgae with Potential against Alzheimer’s Disease: Sulfolipids Are Potent Glutaminyl Cyclase Inhibitors" Marine Drugs 14, no. 11: 203.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
