Assessing the Effect of Irrigation with Reclaimed Water Using Different Irrigation Techniques on Tomatoes Quality Parameters

by
Mahmoud S. Hashem
1,2,
Wei Guo
1,
Xuebin Qi
1,* and
Ping Li
1
1
Farmland Irrigation Research Institute, Chinese Academy of Agricultural Sciences, Xinxiang 453003, China
2
Agricultural Research Center, Agricultural Engineering Research Institute (AEnRI), Giza 256, Egypt
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(5), 2856; https://doi.org/10.3390/su14052856
Submission received: 19 December 2021 / Revised: 9 February 2022 / Accepted: 22 February 2022 / Published: 1 March 2022
(This article belongs to the Special Issue Strategies and Management to Improve Irrigation Water Productivity)
Browse Figures
Versions Notes

Abstract

:
As the most important resource for life, water has been a central issue in the international agenda for several decades. Yet, the world’s clean freshwater supply is steadily decreasing due to climate change and extensive agricultural water demand for irrigated lands. Therefore, in addition to rational water use, we should use non-traditional water resources like Reclaimed Wastewater (RW). The present experiment was carried out in China over three years (2017, 2018, and 2019) to study the effects of two types of water qualities (reclaimed wastewater (RW) and clean water (CW)), two types of irrigation methods (Full irrigation (FI) and alternate partial root-zone irrigation (APRI)), and two types of irrigation techniques (Furrow irrigation (FUI) and subsurface drip irrigation (SDI)) on the main tomato fruit quality parameters. The APRI treatments obtained 70% of the FI irrigation water volume. The irrigation treatments of this study were: (1) SDI with APRI; (2) SDI with FI; (3) FUI with APRI; and (4) FUI with FI. These treatments were under RW and CW. Thus, the experiment consisted of eight treatments. The tomato fruit quality parameters studied were vitamin C (VC), total acidity (TA), protein content (PC), and total soluble sugar content (TSS). The results reveal that many measurements under reclaimed water (RW) had the highest values compared with clean water (CW), except in protein content (PC). The vast majority of values measured for PC under CW were slightly greater than the values under RW. Moreover, the results reveal that tomato quality in many measurements under APRI treatments increased compared with FUI. The statistical analysis generally shows that the fruit quality parameters were not significantly (p > 0.05) affected by the interaction between the irrigation treatments. In conclusion, the treatment SDI-APRI under RW can be an efficient irrigation method to reduce the consumption of clean water. Additionally, SDI-APRI offers a safe option because the physical contact between the wastewater, crops, and the farmers is minimized compare with the FUI treatment.

1. Introduction

The world’s supply of clean fresh water is steadily decreasing. In many areas around the world, the water demand exceeds the supply. The world’s populations and water demand continue to increase, leading to scarcity of freshwater. [1,2,3]. Irrigation is considered the main user of freshwater because it withdrawals approximately 80% of the total freshwater [3] with 15% extra withdrawal expected by the year 2030 [4,5], which will create water crises in many regions around the world. Therefore, this highlights the necessity for reusing wastewater as an essential water source for agriculture [6]. The reuse of Reclaimed wastewater (RW) could be one of the essential alternatives to develop and manage the water resource [7,8], particularly in arid areas, as it expresses different renewable water resources [9]. China is considered the largest producer of wastewater. Approximately 108.16 billion cubic meters of wastewater are being released yearly in China [10,11]. Therefore, treating some of these huge quantities of wastewater and using it in irrigation will save huge amounts of fresh water. Wastewater reuse for irrigation of agriculture has higher acceptability compared to its re-use in other fields [8,12,13].
Tomatoes (Lycopersicon esculentum Miller) are considered the most important vegetable globally and has high water requirements. Tomato irrigation demands an understanding of both irrigation systems and scheduling approaches. More efficient irrigation techniques can save irrigation water without reducing quality or yield. Many researchers around the world have demonstrated the positive effects of RW irrigation on crop growth and product [14,15,16]. According to several studies, irrigation using treated wastewater (TW) has no negative effects on plants and the food chain [17,18,19]. Ref. [20] stated that the agro-industrial TW considered another alternative irrigation source for industrial tomato production. Ref. [21] indicated that there was a positive influence in the yield and growth of tomatoes that were irrigated with TW comparing with groundwater irrigation, suggesting that TW irrigation can probably replace groundwater irrigation.
TSS, Vitamin C, lycopene, protein content and titratable acidity contents are commonly considered as fruit-quality-determining properties in tomato [22]. Many methods have been used by researchers to determine these quality parameters [23,24,25,26,27,28,29]. Many researchers demonstrated that there is no significant effect on vegetable quality (vitamin C, soluble sugar, coarse ash, amino acid content, and nitrate levels) when using RW irrigation [30]. Ref. [31] pointed out that RW irrigation enhances taste indexes of tomatoes, such as titratable acidity and soluble sugar of fruit to a certain extent.
Refs. [32,33] mentioned that TW irrigation enhanced most of the tomato quality parameters slightly compared to freshwater due to the high availability of nutrients.
According to [34], irrigation systems can be classified into two categories, both of which are used for RW irrigation, as follows: (1) surface irrigation and (2) pressurized irrigation. Border and furrow irrigations are the most commonly used methods in surface irrigation systems [35]. Drip irrigation is the most suitable irrigation system in the case of using saline or reclaimed water [36,37]. According to [38], subsurface drip irrigation (SDI) provided more trustworthy yield and growth data than surface drip irrigation. Almost one and a half times higher tomato yield was obtained under drip irrigation than under furrow irrigation along with saving 30 percent of irrigation water [39].
Ref. [40] wrote that SDI is the most suitable irrigation technique for using wastewater because it has proven to be effective in declining the number of pathogens in irrigation water and limiting their presence on the soil’s surface.
Alternate partial root-zone irrigation (APRI) is an irrigation technique that cuts some irrigation amount from the full irrigation requirement of crops and generally increases the productivity of water. These reduction amounts depend on the type of plant as well as the growing season [41]. Ref. [42] stated that compared to the full irrigation, APRI treatment improved tomato fruit quality. Deficit irrigation methods can enhance tomato fruit quality in terms of VC and acidity when compared to full irrigation [43,44].
This study hypothesized that the use of RW using some irrigation techniques will not affect the quality of tomatoes and will lead to a reduction in the use of fresh water in irrigation. Therefore, this study aims to assess the effect of RW and clean water (CW) on tomato quality factors under furrow irrigation (FUI) and SDI systems with full irrigation (FI) and APRI in arid climatic conditions.

2. Materials and Methods

2.1. Experimental Site

The experiment was carried out over three years (2017, 2018, and 2019) in greenhouses at the Agriculture Water and Soil Environment Field Science Research Station, Chinese Academy of Agricultural Sciences (35°19′0″ N, 113°53′0″ E, elevation 73.2 m), Xinxiang City, Henan Province, People’s Republic of China, in the continental monsoon climate area of the temperate zone. The annual mean air temperature of the site is 14.1 C. The site has 588.8 mm of precipitation annually and 2398.8 h of sunlight per year, and a 210-day frost-free period. The soil properties including organic matter, extractable phosphorus, and total nitrogen were 19.90, 0.02467, and 0.85 g kg−1, respectively. The soil texture was silty clay loam, Bulk density was 1.40 g cm−3, and soil pH was 8.00. In this study, we selected a research area irrigation with RW from Luotuo Wan Reclamation Plant in Xinxiang city (35°15′09″ N, 113°55′05′′ E, and altitude 73.2 m), undergoing an anaerobic-anoxic-oxic denitrification biofilter and ozone oxidation process.
The purpose of this experiment was to study the impact of two types of water quality, two types of irrigation methods, and two types of irrigation techniques on the main quality parameters of tomato fruit (Lycopersicon esculentum L.). The two types of water qualities were RW and CW, the two types of irrigation methods were FI and APRI, and the two types of irrigation techniques were FUI and SDI.
The plots employed RW and tap-water irrigation. The reclaimed water was taken from the Camel Bay sewage treatment plant after secondary treatment, a source of municipal sewage. The typical factors of RW met the National Standard for Farmland Irrigation Water Quality (GB5084-2005) [45]. The quality of RW and tap water are shown in Table 1.

2.2. Irrigation Treatments

The irrigation treatments were: (1) SDI with APRI; (2) SDI with FI; (3) FUI with APRI; and (4) FUI with FI. These treatments were under RW and CW, so the experiment consisted of eight treatments. The APRI treatments obtained 70% of the FI irrigation water volume. Each treatment was replicated three times. The statistical design used was a Completely Random Block Design (CRBD). The experimental unit number was 24 units. All irrigation water of treatments was applied either from aside as in FI treatment or from both sides as in APRI treatment.
In the SDI treatments, drip irrigation lines were laid at the centers of crop rows and separated by a 0.7-m distance in the experimental FI treatments plots. On the other hand, in the APRI treatments plots, each row of tomato had two lateral lines with a distance of 0.4 between them and with a nested shape for the emitters. The distance between the treatments was 0.75 m, as demonstrated in Figure 1. To achieve a long-term APRI effect on ABA signaling and leaf gas exchange in the tomato crop, irrigation with the treatment of APRI was shifted from one side of the plants to the other every 7 days [46].
Based on the climatic data received from the meteorological station on the site, the water irrigation requirement was calculated as potential crop evapotranspiration using the ETo FAO Penman-Monteith equation [47] (Equation (1)) after adapting its parameter to the greenhouse climate conditions [48] (Equations (2)–(5)), and Kc, as shown in Equation (6). Then, the daily crop water requirement (CWRd) can be calculated using the Equation (6) [48]:
ET O = 0.408 Δ ( R n − G + y 900 t mean + 273 u 2 e s − e a Δ + y 1 + 0.3 u 2
where ETO is the reference evapotranspiration (mm day−1); Δ is the slope of saturation vapor pressure curve (kPa °C−1); Rn is the net radiation at the crop surface (MJ m−2 day−1); G is the soil heat flux density (MJ m−2 day−1); y is the psychrometric constant (kPa °C−1). U2 is the wind speed at 2-m height (m s−1); T is the mean daily air temperature at 2-m height (°C); es is the mean Saturation vapor pressure (kPa); ea is the actual vapor pressure (kPa).
Tmaxi = Tmaxo + 4
Tmini = Tmino + 2
Tmeani = (Tmaxi + Tmini)/2
Rsi = Rs × t
where Tmaxo and Tmino are the maximum and minimum temperatures outside the greenhouse. Tmaxi and Tmini are the maximum and minimum temperatures inside the greenhouse. Tmeani is the mean temperature inside the greenhouse. Rsi is the incoming global radiation, Rs is the outside global radiation, and t is the transmittance of the greenhouse (0.6–0.7 for single plastic film covered greenhouses).
ETC = KC × ETo
where ETC is crop evapotranspiration (mm day−1), and KC is crop coefficient.
The Kc for all growth stages of the tomato was taken from FAO-56.
CWRd = ETC (1 + li) ACrop/AG
where li is the loss factor for irrigation (0.03–0.1 for drip irrigation systems) and ACrop/AG is the ratio of the crop-covered area to the greenhouse floor area (0.9 for vegetables).
Fertilizer application, disease, insect, pest control, and other common cultural practices were implemented.

2.3. Fruit Quality Characteristics

Tomato crop was harvested many times every year. We collected the fruits manually from each line and weighed them to find the fresh weight of fruit (Mg hectare−1) per each treatment. The tomato fruit quality parameters that were studied in this experiment were Vitamin C (VC), Total Acidity (TA), Protein Content (PC), and Total Soluble Sugar Content (TSS).
Throughout the harvest, five ripe fruits were sampled from the third-fourth trusses, representing each sub-plot for analysis of the fruit quality (VC (mg g−1), TA (%), PC (mg 100 g−1), TSS (%)). An extract was obtained by blending and filtering the flesh of each fruit sample. The VC (mg g−1, as ascorbic acid) of tomato extracted was determined using the 2.6 dichlorophenol-indophenol dye [49]. Ten grams of extracted juice was carefully mixed with 50 mL of distilled water to determine TA. Then, the pH of the mixture was adjusted with 0.1 N NaOH until it reached 8.1.
To estimate TA as a percentage of citric acid equivalents in the fruit juice, the amount of sodium hydroxide applied to the solution was multiplied by a correction factor of 0.064 [50]. The content of TSS (%) was also estimated by using the following standard analysis methods (AOAC, 1999) [51]. The PC estimation was done using the Coomassie brilliant blue method [52].

2.4. Statistical Analysis of the Data

The statistical analysis of the present study’s measured data was conducted using the SPSS software (IBM, Armonk, New York, NY, USA). The data were subjected to a multivariate analysis of variance (MNOVA). The MNOVA was conducted to compare the main effects of irrigation water qualities (CW and RW), irrigation methods (FI and APRI), and irrigation techniques (FUR and SDI), as well as their interaction effects on VC, TA, PC, and TSS. The Tukey test at p < 0.05 was applied to find any significant difference between the means of irrigation treatments.

3. Results and Discussion

3.1. Fresh Fruit Yield

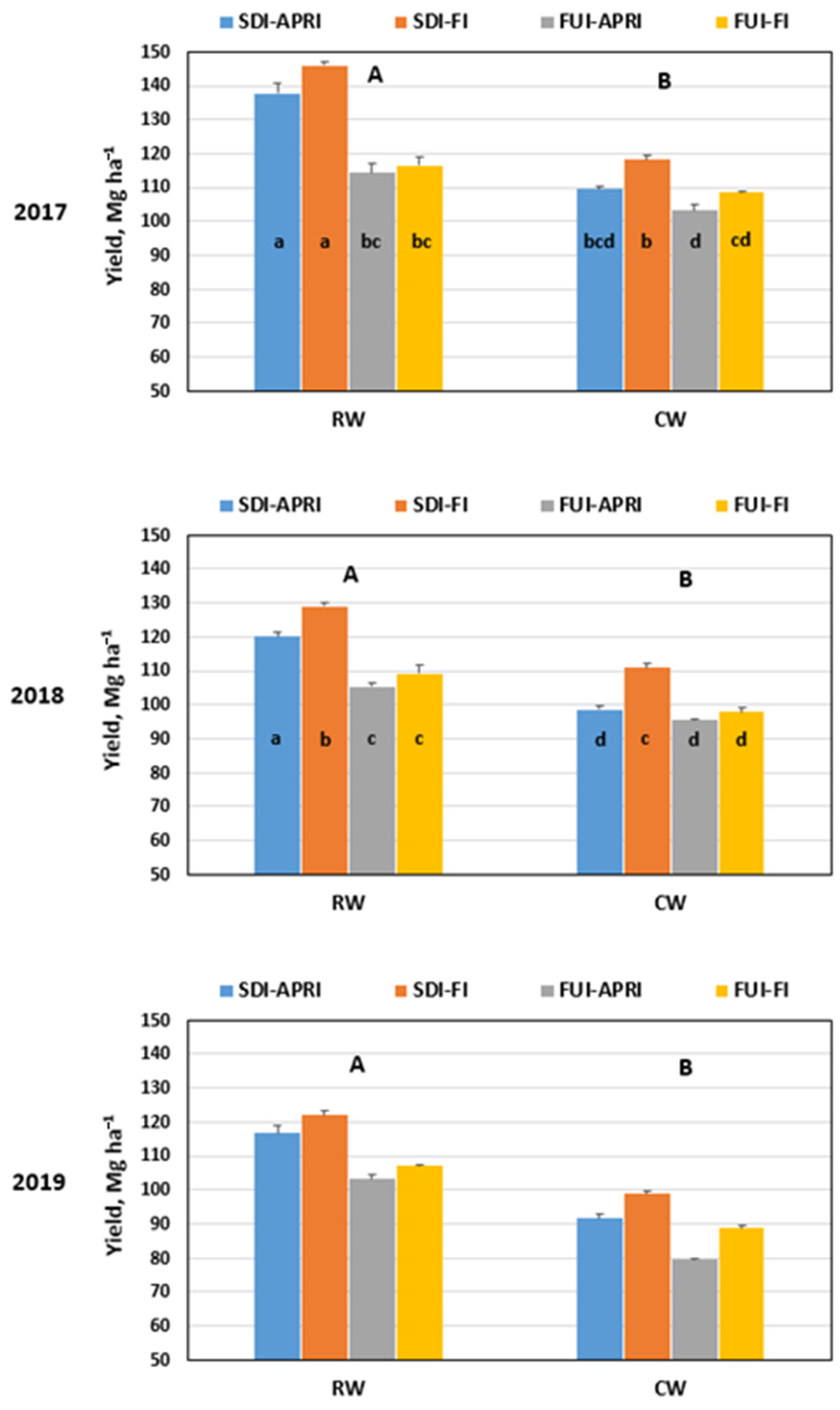

Fresh fruit yield per hectare (FW) for the different irrigation treatments throughout the three years is shown in Figure 2. Generally, the highest value of FW was obtained under RW throughout the three years. FW in 2017 (first year) ranged from 143.84 to 113.17 Mg ha−1 under RW, while it was from 117.54 to 103.20 Mg ha−1 under CW. The values of FW in the second year ranged from 126.40 to 103.05 Mg ha−1 under RW, while it was 111.13 to 94.86 Mg ha−1 under CW. In the third year, it ranged from 124.32 to 101.75 Mg ha−1 under RW, and from 98.17 to 79.83 Mg ha−1 under CW (Figure 2). The highest value was obtained under the SDI-FI, SDI-APRI, FUI-FI, and FUI-APRI, respectively, under RW and CW (Figure 2).
The results illustrate that the FW values under SDI-FI were more increased under RW than the values under SDI-APRI by 5.56%, 6.91%, and 4.32% in first year, second year, and third year, respectively. However, this increase is not significant (p > 0.05) in the first and third years. Moreover, under both RW and CW, the FW values under FUI-FI were increased compared to the values under FUI-APRI throughout the three years, but this increase is not significant (p > 0.05).
The analysis of variances in the three years of the experimental period showed a significant effect (p < 0.05) of irrigation water qualities, irrigation methods, and irrigation techniques on the yield throughout the three years. In addition, there was a significant effect (p > 0.05) of the interaction between the experimental factors on the yield throughout the first and second years. Table 2 summarizes the results of the three-year analysis of variances on tomato quality parameter values across the experimental factors. Table 2 shows that the means of the yield under RW were higher than those under CW in all three years. Moreover, the means under FI were higher than under APRI. The same was the case under SDI compared to FU.
These results agree with the findings of [49,53]. They pointed out that the marketable yield under FI treatment gave the highest values compared with APRI. Ref. [54] observed that the highest tomato fruit yield was obtained under the full irrigation treatment, and they attributed that to exceeding the soil water content under full irrigation compared with deficit irrigation treatments. Ref. [55] reported that the highest marketable tomato yields were observed with full irrigation and decreasing irrigation rate. One can suppose that the higher fresh weight of FI fruits resulted from a longer ripening period that allowed a higher accumulation of water in these fruits compared to deficit irrigation fruits [56]. Ref. [57] concluded that the total tomato yield increased linearly with the seasonal irrigation depth and ETa. Similar findings on relationships between tomato fruit yields to irrigation depth or Eta were also illustrated [58,59,60]. These results were in agreement with the findings of [61] who pointed out that the total fresh mass of fruit was not affected by the regime treatments.
The increase in the yield under RW is in agreement with many researchers [15,62,63], who stated that crop production can considerably increase under RW. Ref. [64] reported that tomatoes under irrigation with TW achieved higher yields than plants irrigated with tap water. This increase in production can be because the RW consider a steady water source that can supply a large amount of nutrients [65,66]. Moreover, the result agreed with Ref. [67] who assessed the impacts of using RW and CW on soybean and maize growth, and they revealed that the yield of soybean and maize under TW treatment was clearly improved. Ref. [68] stated that under TW irrigation, the yield production of corn was increased, and they attributed this rise to the soil’s physical characteristics improvement and enhanced nutrient uptake.
The present study results show that the highest yield under the three years was companied with SDI compared to FUI, both under CW and RW. This result is consistent with [69] who conducted a study to assess the impact of using TW with different irrigation systems on tomato, and they reported that the maximum yield of tomato was gained under drip irrigation treatments compared with other irrigation systems, which may result in a better soil moisture and increased content of the available nitrogen in the root zone. Moreover, this may be due to SDI reducing weed and grass growth and limiting the leaching of plant nutrients down in the soil [70]. Ref. [71] stated that the largest amounts of nutrients elements were recorded under SDI compared with surface irrigation.

3.2. Vitamin C

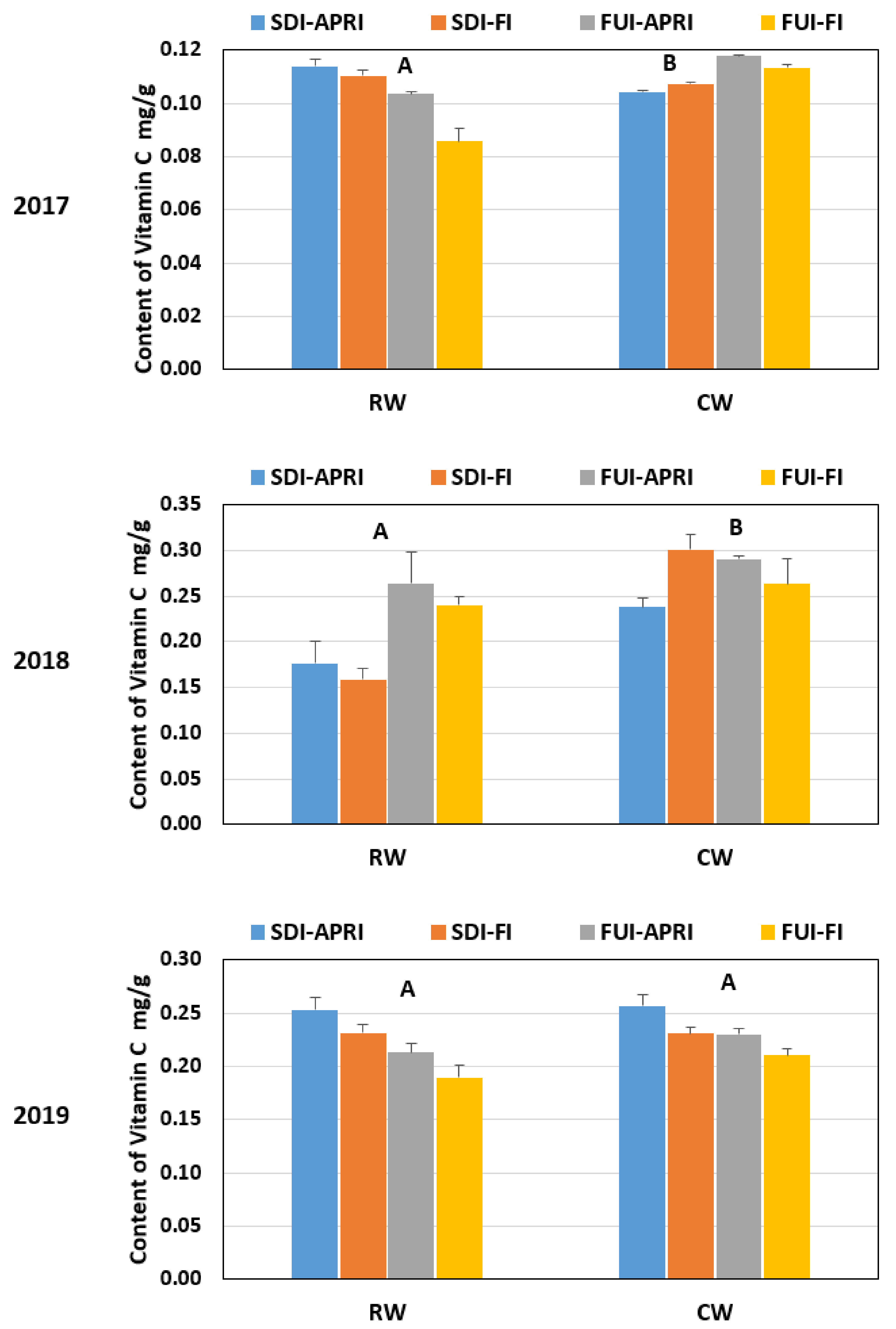

Vitamin C (VC) is an important antioxidant that represents the nutritional value of the fruit [72]. VC content in 2017 (first year) ranged from 0.114 mg g−1 to 0.086 mg g−1 under RW, while it was from 0.118 mg g−1 to 0.104 mg g−1 under CW. In 2018 (second year), the VC content ranged from 0.16 mg g−1 to 0.26 mg g−1 under RW, while it was from 0.24 mg g−1 to 0.30 mg g−1 under CW. In 2019 (third year), the VC content ranged from 0.19 mg g−1 to 0.25 mg g−1 under RW and from 0.21 mg g−1 to 0.26 mg g−1 under CW, as shown in Figure 3.
In the first year, the results revead that water-saving treatment APRI under FUI with CW and under SDI with RW increased the VC content of tomato compared with the other treatments (Figure 3). The mean value of FUI-APRI under CW was increased by 3.69% compared with FUI-FI under the same type of water. The values of VC under SDI-APRI with RW were more than FUI-FI, FUI-APRI, and SDI-FI values, by 32.87, 10.04, and 3.19%, respectively. The highest value of VC in the second year was with SDI-FI under CW, whereas it was with FUI-APRI under RW, while in the third year, the highest value was with SDI-APRI, both under RW and CW. In the third year, the contents of VC in SDI-APRI under RW and CW were increased by 33.85% and 22.25% respectively, as compared to FUI-FI under RW and CW.
The results demonstrate that under CW, the highest values for all quality parameters under FUI were with APRI compared with FI in most of the readings. From the above, we note that the highest values of the VC were mostly under the APRI, whether under CW or RW. The results further illustrate that the VC of the tomato fruit was increased under the water-saving treatments. This implies that water stress can affect tomato fruit VC content positively, as observed by findings of [49,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74]. They proved that the VC of tomato fruit was higher under the conditions of limited soil water.
The higher VC concentration in the APRI treatment could be attributed to the decreased in fruit water content [74]. The results were consistent with [72,75] who reported that APRI improved the percentage of tomato fruit VC when compared to conventional drip irrigation. Deficit irrigation methods like APRI can enhance tomato fruit quality in terms of VC and acidity, when compared to full irrigation [43,44].
The analysis of variances in the three years of the experimental period showed a significant effect (p < 0.05) of irrigation water qualities, irrigation methods, and irrigation techniques on VC, except the irrigation methods in the second year and irrigation water qualities in the third year. However, there was no significant effect (p > 0.05) of the interaction between the experimental factors on VC through the three years.
Table 2 shows that the means under RW were less than that under CW in all three years, except in the third year. These results agree to some extent with [76], who found a negative impact on organic acid, protein, and vitamin C content in tomato crops subjected to RW irrigation.
However, [77,78] found that using RW had no significant impact on tomato fruit quality. These contradictory results depend on several factors such as the concentration of nutrients in the RW as well as the length of time this sort of water was utilized for irrigation [30], different species, different climatic conditions, cultivars, cultural practices, stages of maturity, and growing conditions. According to the irrigation methods, the mean under APRI was significantly (p < 0.05) higher in the first and third years than under FI. The mean for SDI in the first and third years was significantly (p < 0.05) higher than FUR.
According to the irrigation methods, the mean under APRI was significantly (p < 0.05) higher than that under FI, with a significant effect in the first and third years. The mean for all readings under SDI in the first and third years was higher than FUR, with a significant effect in the three years.

3.3. Total Acidity

In most readings, the total acidity (TA) of tomato fruit was enhanced during APRI treatments. The values of TA content in the 1st year ranged from 2.45–2.69% under RW, while it was 2.36–2.61% under CW. In the second year, the TA content ranged from 1.40 to 1.45% under RW, while it was 1.30–1.43% under CW. In the third year, it ranged from 0.52 to 0.61% under RW, and from 0.53 to 0.62% under CW (Figure 4).
The TA maximum value in the first year was with SDI-APRI under RW, which was 8.38%, 9.79%, and 6.46% higher than SDI-FI, FUI-APRI, and FUI-FI, respectively. Similarly, the maximum value of TA under CW was with FUI-APRI, which was increased by 3.71%, 10.60%, and 5.81% as compared with FUI-FI, SDI-APRI and SDI-FI, respectively.
In the second year, the results revealed that the TA value of FUI-APRI under RW was the highest amongst all the treatments. It increased slightly by 2.11%, 3.71%, and 0.81% compared with SDI-APRI, SDI-FI, and FUI-FI under RW, respectively. The highest value of TA under CW was with SDI-APRI and increased by 9.78% more than FUI-FI and by 1.30% more than the other treatments.
In the third year, the TA values under SDI-APRI, both under CW and RW, were the highest compared with the other treatment. The value of TA under SDI-APRI with RW increased more than the SDI-FI, FUI- APRI, and FUI-FI under RW by 18.51%, 15.46%, and 5.76%, respectively. The TA value under SDI-APRI with CW was increased by 17.64% more than SDI-FI, and by 11.50 and 15.33% more than FUI-APRI and FUI-FI under CW, respectively.
It was noticed that the TA’s highest values mostly were under RW, and that is in agreement with [79], who emphasized that the TA of tomato increased under the treatment of RW. That may be because the RW can supply sufficient nutrients for plants [65]. According to references [80,81,82], RW irrigation is helpful because of the large amount of nutrients required to maintain soil fertility and raise plant quality, productivity, and growth.
According to statistical analysis, there were no significant differences observed (p > 0.05) among the levels of each factor on tomato TA in the three years, except the irrigation methods in the third year, where there was a significant difference (p < 0.05) between FUR and SDI on tomato TA. The statistical analysis demonstrated no significant effect (p > 0.05) in the interaction between the experimental factors on TA through the second and third years. Still, there was a significant effect (p < 0.05) in the first year. Figure 4 in the first year shows the significant differences between the treatments means.
Our finding is consistent with that of [83], who concluded that water sources and the irrigation practices had no significant (p > 0.05) effect on tomato TA. Moreover, this result is consistent with [84], who expressed that compared with tap water, the tomato VC and fruit acidity content under reclaimed municipal wastewater had no significant difference. Many previous studies demonstrated non-significant changes in the quality of tomato fruit when the tomato was irrigated with RW [20,77,78,83,85].
Our study results show that most readings of TA value were increased under APRI treatments, which is consistent with [43,55,57], who pointed out that the tomato acidity values under deficit irrigation treatments were improved compared to FI.
Refs. [43,55,57] reported that the smaller fruit size and low dilution caused by lower water levels within the fruits resulted in accumulation of the assimilates, thereby improving the quality parameters.
Our results agree with the finding of [75], who stated that increasing fructose, glucose, sucrose, citric acid, and malic in tomatoes under water stress improved fruit quality. Ref. [73] manifested that TA curvilinearly increased as the soil water deficit increased. Ref. [86] also found that the restriction of water supply throughout the development or maturation stages of fruit growth resulted in a considerable rise in fruit acidity.
A similar trend for values of TA in response to water deficit was reported by [87] for processing tomatoes under various water regimes. Ref. [49] also found that the treatments of deficit irrigation improved TA compared to full irrigation treatment.
The present study agreed with [20], who emphasized that the acidity of tomatoes was not significantly affected by the different water types. Ref. [88] reported that RW significantly increased TA and VC, whereas fewer irrigation quantities provided significantly lower TA, VC. That findings agree with our results because the interaction between the RW and APRI resulted in no significant effect on the TA and VC of tomato (Table 2).

3.4. Protein Content

Protein Content (PC) in tomato fruit is an important quality parameter. PC value in the first year ranged from 6.39 mg 100 g−1 to 20.45 mg 100 g−1, while it ranged from 36.16 mg 100 g−1 to 46.32 mg 100 g−1 in the 2nd year and ranged from 44.74 mg 100 g−1 to 63.70 mg 100 g−1 in the 3rd year, (Figure 5).
Our study showed that in the first year, the highest value of PC under RW was with FUI-APRI while it was with FUI-FI under CW. Among the eight treatments in the second year, SDI-APRI under CW had the highest PC, followed by FUI-FI under RW, with the values of 46.32 and 45.96%, respectively. In the third year, the SDI-APRI treatment had the highest PC value, whether under CW or RW, with 63.70 and 56.54%, respectively.
We noticed that during the first two years, the PC content was sometimes higher under APRI and sometimes higher under FI, while in the third year, the PC content under APRI was higher than that under FI. The higher PC concentration in the APRI treatments could be attributed to reduction in the water content of the fruit under APRI treatments. Ref. [89] reported that the APRI method improved secondary root growth, thereby enhancing the plants’ ability to absorb the nutrients from the soil and thus enhancing nutrient use efficiency. Ref. [90] also stated that APRI could enhance nutrient-use efficiency. Ref. [91] studied the effect of APRI and secondary-treated wastewater on soil nitrogen, and they found that APRI enhanced nitrogen use efficiency.

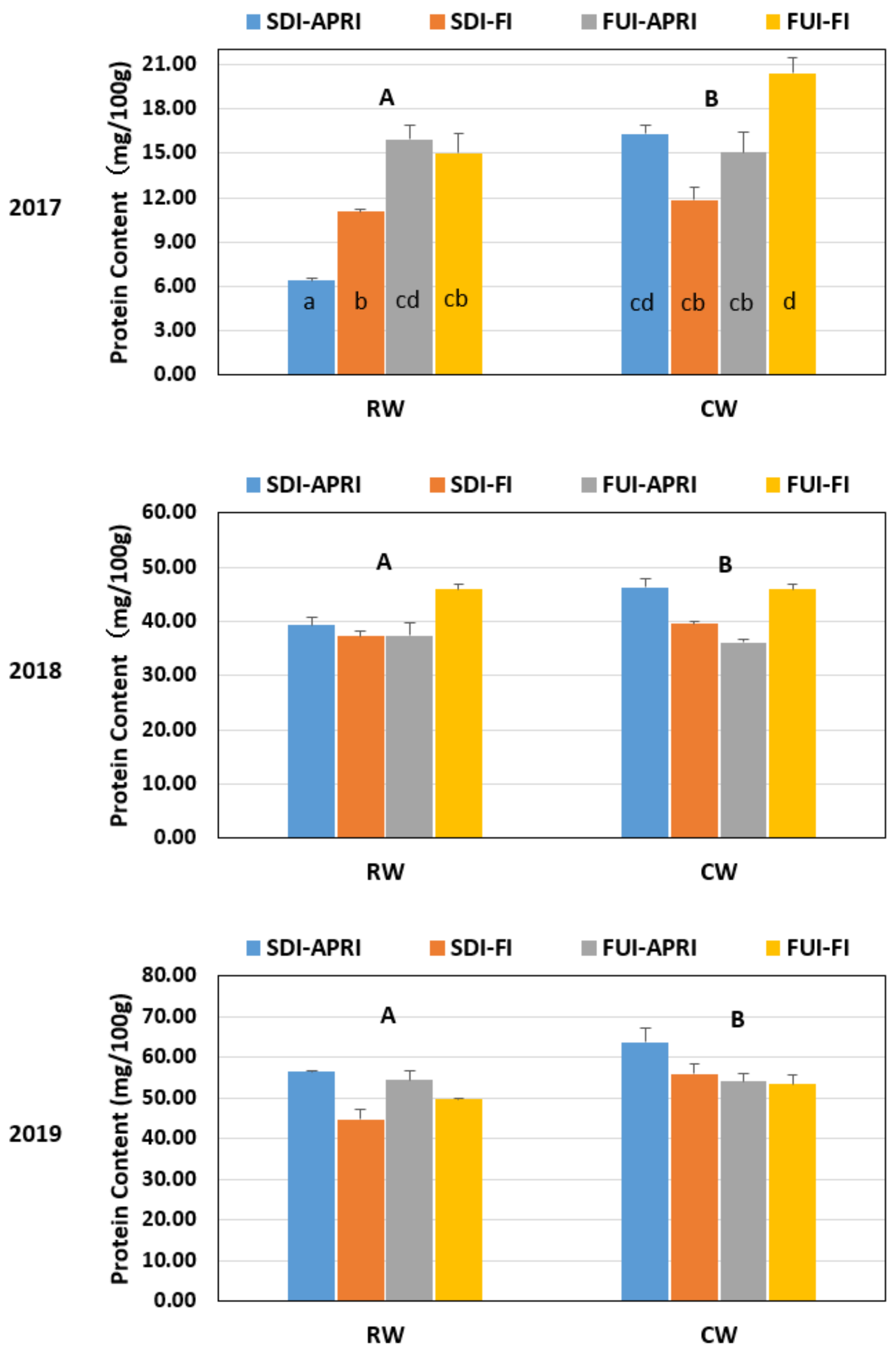

Figure 5 shows that under the CW, the most measured values of PC were slightly higher than the corresponding values under the RW. However, in much research, the authors illustrated that the RW irrigation increased the PC of some plants such as sorghum, grass, forage, corn, wheat, and millet [92,93,94]. This result was expected because RW is high in nutrients, particularly nitrogen, which is essential for plant protein synthesis. [95].
Statistical analyses during the three years illustrated a significant effect (p < 0.05) pf water qualities on the PC. Table 2 shows that the mean value was higher under the CW than under RW in the three years. In addition, there were significant differences observed in tomato PC between the irrigation methods in the second and third years. The highest mean in the second year was with FI, while it was with APRI in the third year (Table 2). The irrigation techniques had no significant effects (p > 0.05) on tomato PC except in the 1st year. Moreover, there was no significant effect (p < 0.05) on the interaction between the experimental factors on PC through the second and third years. Figure 5 at the first year shows which of treatments means have a significant difference.

3.5. Total Soluble Sugar Content

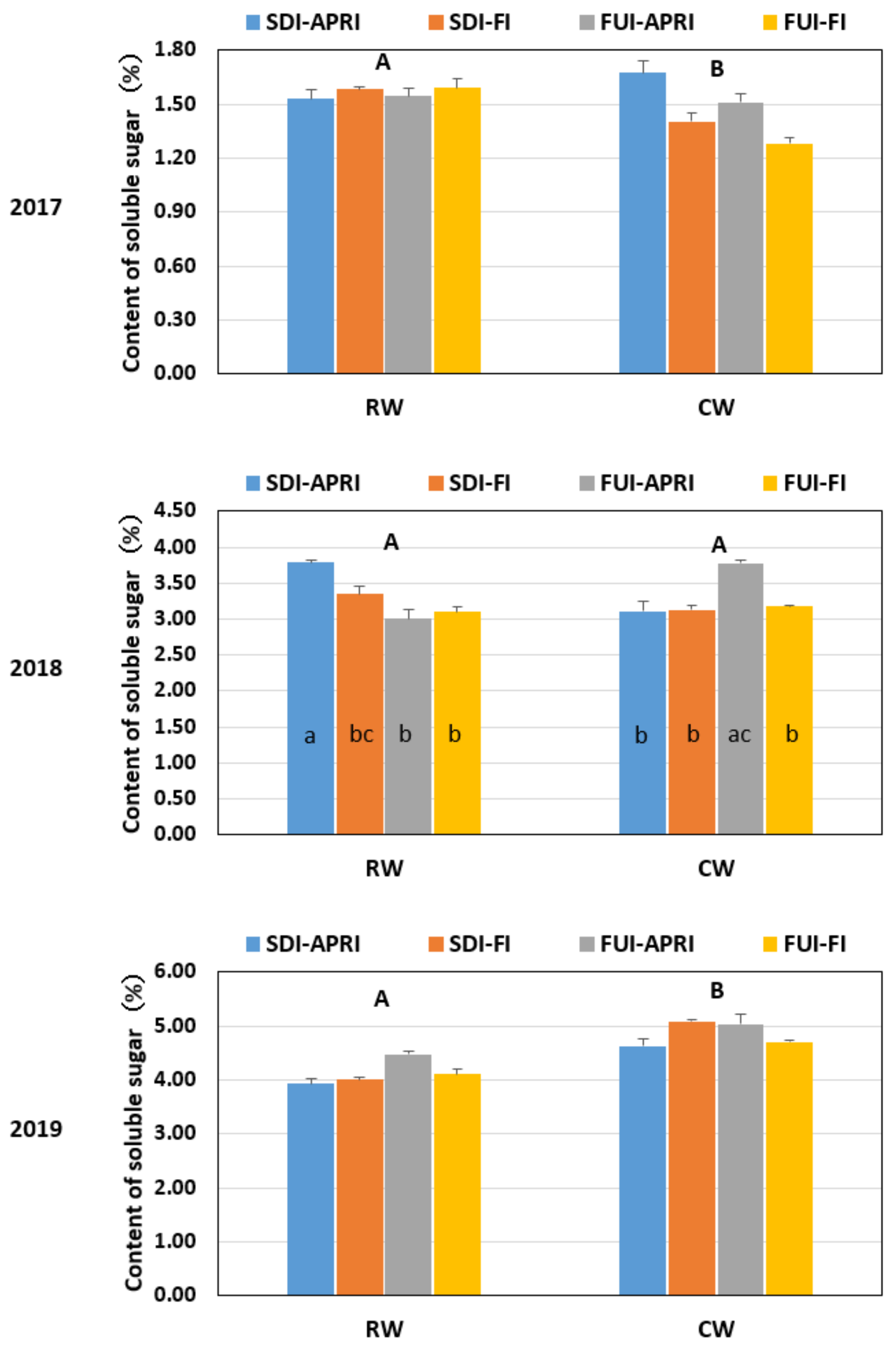

Our study found that the total soluble sugar content value (TSS) in the first year ranged from 1.28 to 1.67%, and ranged from 3.01 to 3.79% in the second year, while it ranged from 3.93 to 5.08% in the third year, as shown in Figure 6.
In the first year, the results illustrate that SDI-APRI under CW had the highest TSS value (1.67%), followed by FUI-FI under RW (1.59%). The results in the second year show increasing the TSS for SDI-APRI under RW compared with all treatments. It was increased by 22.42 and 19.38%, respectively, over the value of FUI-FI under RW and CW, whereas in the third year, the highest value under RW was with the FUI-APRI (4.47%), and the highest value under CW was with the SDI-FI (5.08%).
Therefore, the highest TSS value through the three years was with the APRI, both under RW and CW, which is in agreement with what [74] reported. They reported that the TSS concentrations under water-saving treatments were higher than the TSS value under full irrigation treatment, and they attributed that to a lower fruit water content, whereas the net dry matter accumulation was less affected.
The analysis of variances showed a significant effect (p < 0.05) of water qualities on TSS through the first and third years. Table 2 shows that in the first year, the mean of all measurements under RW was higher than under CW, while the opposite was in the third year.
RW irrigation enhances taste indexes of tomatoes, such as titratable acidity and soluble sugar of fruit to a certain extent [31]. However, [84] illustrated that the TSS under reclaimed municipal wastewater was no significantly different compared with tap water. Moreover, [32] found that using RW had a negligible effect on the TSS in tomato fruit after irrigation with RW. Ref. [30] demonstrated that the researchers pointed out that there is no significant effect on vegetable quality (vitamin C, soluble sugar, coarse ash, amino acid content, and nitrate levels) when using RW irrigation.
Analysis of variances showed a significant effect of irrigation methods on TSS through the first and second years. The highest mean was in the APRI compared with FI as shown in Table 2. Ref. [96] found a negative linear relationship between irrigation water quantity and TSS. The soil water manipulation by applying APRI throughout the growing season or from flowering onwards increased the TSS content of the fruits [53].
Ref. [97] illustrated that the TSS will rise in the fruit under water deficit because of a higher conversion of starch to sugars. The high content of TSS in tomatoes is favorable for the tomato processing industry because it improves the processing efficiency [98].
There was no significant effect (p > 0.05) due to irrigation techniques on TSS in the first and second years. Moreover, no significant effect (p < 0.05) to the interaction between the experimental factors on TSS through the first and third years. There was a significant interaction between the factors on TSS in the second year. Figure 6 at the second year shows the significant difference between the treatment means.
Overall, the summary of the analysis of variances on tomato quality parameter across the experimental factors in the three years shows that there was mostly a significant effect (p < 0.05) due to water qualities as well as irrigation methods on the studied parameter of tomato quality, except TA. Moreover, notice that there is no observable trend for the irrigation techniques effect. As a general trend, there was no significant effect (p > 0.05) of the interaction between the experimental factors on tomato fruit quality.
In short, the results can be summarized as follows: In many readings, the tomato fruit quality was increased under APRI treatments. Moreover, many measurements under RW had higher values compared with CW; many measurements under CW had higher values compared with RW. The most measured values of the PC under CW were slightly greater than the values under RW. In addition, the treatment of SDI-APRI resulted in increased values of tomato quality parameters in many readings, whether under RW or CW.

4. Conclusions

Using reclaimed wastewater to irrigate crops is a sustainable practice that helps to decrease freshwater wastage and conserve water supply. In this research, we studied the effects of two types of water qualities (reclaimed wastewater (RW) and clean water (CW)), two types of irrigation methods (Full irrigation (FI) and alternate partial root-zone irrigation (APRI)), and two types of irrigation techniques (Furrow irrigation (FUI) and subsurface drip irrigation (SDI)) on the main tomato fruit quality parameters. The experimental results from all the three years show that treatment of SDI-APRI under RW can be an effective irrigation method to reduce the consumption of clean water since there is no significant effect of the interaction between the experimental factors on tomato fruit quality. Thus, we recommend using the treatment of SDI-APRI under RW with effective management. We also recommend conducting future studies to investigate the environmental and economic aspects of treated wastewater irrigation under different irrigation techniques.

Author Contributions

Conceptualization, M.S.H., W.G., X.Q. and P.L.; methodology, M.S.H., W.G., X.Q. and P.L.; formal analysis, M.S.H., W.G., X.Q. and P.L.; investigation, M.S.H., W.G., X.Q. and P.L.; resources, M.S.H., W.G., X.Q. and P.L.; writing—original draft preparation, M.S.H., W.G., X.Q. and P.L.; writing—review and editing, M.S.H., W.G., X.Q. and P.L.; visualization, M.S.H., W.G., X.Q. and P.L.; supervision, X.Q.; project administration, X.Q.; funding acquisition, X.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China, grant number 51679241, 51709265 and Agricultural Science and Technology Innovation Program, grant number CAAS-ASTIPFIRI-03.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
