Investigation of an Impedimetric LaSrMnO₃-Au/Y₂O₃-ZrO₂-Al₂O₃ Composite NO_x Sensor

Abstract

Composite NO_x sensors were fabricated by combining partially and fully stabilized yttria-doped zirconia with alumina forming a composite electrolyte, Y₂O₃-ZrO₂-Al₂O₃, and strontium-doped lanthanum manganese oxide mixed with gold to form the composite sensing electrode, La_0.8 Sr_0.2MnO₃-Au. A surface chemistry analysis of the composite sensor was conducted to interpret defects and the structural phases present at the Y₂O₃-ZrO₂-Al₂O₃ electrolyte, as well as the charge conduction mechanism at the LaSrMnO₃-Au electrode surface. Based on the surface chemistry analysis, ionic and electronic transport properties, and microstructural features of sensor components, the working principle was described for NO_x sensing at the composite sensor. The role of the composite materials on the NO_x sensing response, cross-sensitivity to O₂, H₂O, CO, CO₂, and CH₄, and the response/recovery rates relative to sensor accuracy were characterized by operating the composite NO_x sensors via the impedimetric method. The composite sensors were operated at temperatures ranging from 575 to 675 °C in dry and humidified gas environments with NO and NO₂ concentrations varying from 0 to 100 ppm, where the balance gas was N₂. It was found that the microstructure of the composite NO_x sensor electrolyte and sensing electrode had a significant effect on interfacial reactions at the triple phase boundary, as well as the density of active sites for oxygen reactions. Overall, the composite NO_x sensor microstructure enabled a high NO_x sensing response, along with low cross-sensitivity to O₂, CO, CO₂, and CH₄, and promoted NO detection down to 2 ppm.

1. Introduction

As emission laws become more stringent, modern diesel engines are becoming more environmentally friendly, while offering greater torque, increased durability, higher fuel economy, and lower CO₂ emissions than their predecessors. Additionally, while the range capacity, battery lifetime, and availability of nationwide charging stations currently limit electric vehicle feasibility for long-distance commercial trucking operations, the demand for diesel engines continues. However, despite the benefits of modern diesel engines, the exhaust generated contains nitric oxides (i.e., NO_x) that contribute to air pollution. Efforts to substantially reduce NO_x emissions are necessitated by the push toward near-zero emissions by regulatory agencies in the United States and other countries [1,2,3,4,5]. Progress in diesel exhaust remediation has created the need for higher-accuracy NO_x sensors for onboard diagnostic systems to monitor and regulate diesel engine operation. Key factors that restrict higher-accuracy NO_x sensing include limited sensitivity to the analyte gas, cross-sensitivity to other exhaust gases, and sluggish sensor response and recovery rates. Conventional NO_x sensors are based on single-phase materials for the electrolyte and sensing electrode. However, composite materials for NO_x sensing components are attractive for promoting higher-accuracy NO_x sensing, as specific sensing characteristics can be tuned based on the composition of the composite electrolyte and composite sensing electrode to target multiple key factors governing the sensor response toward the analyte gas.

The sensing behavior of various metals and metal oxides has been studied in exhaust gas environments for potential composite electrode materials for NO_x sensors [6,7,8,9,10,11,12,13,14]. The resistance of the nanostructured grain–grain boundaries of the metal oxide change as a function of the NO_x gas upon surface adsorption of NO_x molecules, which influences the depletion layer and potential barrier. Thus, the overall electrical conductivity enhances the overall NO_x sensitivity [9,14]. Some of these studies have found that combining a noble metal with a metal oxide can enhance the sensing response to the analyte gas. Furthermore, high sensitivity to NO_x was achieved by varying the noble metal to metal oxide ratio composition, which was found to tailor the sensor response while achieving significantly less cross-sensitivity from interfering gases, thereby improving sensor accuracy for analyte gas [10,14,15]. For example, in work by Romanytsia et al., it was reported that composite sensing electrodes containing Au with 10 wt% yttria-stabilized zirconia (YSZ) produced significantly higher sensitivity to NO₂ with a more rapid response rate for NO₂ concentrations as low as 20 ppm, in comparison to NO_x sensors, which were utilizing pure Au sensing electrodes [12]. Studies on La-based perovskites indicated that LaSrMnO₃ (LSM) caused the sensing electrode to become extremely sensitive to NO_x due to the Sr component [16]. Pal et al. later demonstrated that adding 10 wt% gold to LSM to form an LSM-Au composite sensing electrode promoted NO sensitivity down to 5 ppm and cross-sensitivity to H₂O, CO, CO₂, and CH₄ was substantially reduced [10]. Another benefit of the metal oxide composite electrode was greater fabrication compatibility. Since Au has a relatively low melting temperature (~1060 °C), incorporating Au with the metal oxide resulted in a composite electrode that was more tolerant to the high-temperature firing processes generally associated with solid-state gas sensor fabrication. Moreover, the metal oxide component of the composite aided the stability of the Au particles within the sensing electrode during sensor operation.

Although composite electrolytes have been considered for other devices, such as solid oxide fuel cells, they have received less attention for solid-state NO_x sensor applications [17,18,19]. Composite electrolytes can increase the mechanical integrity of the device, as well as improve the ionic conductivity through the bulk material and along grain boundaries. Among the limited studies relevant to sensing NO_x, it has been reported that adding low amounts (i.e., 0.5–2 wt%) of Al₂O₃ to YSZ removes SiO₂ impurities from grain boundaries, thereby facilitating ionic conductivity along the grain boundaries [20,21]. Porous composite electrolyte supported NO_x sensors evaluated by Kharashi et al. found that adding 2 wt% Al₂O₃ to the partially stabilized zirconia (PSZ) electrolyte promoted greater NO_x sensitivity compared to the non-composite PSZ supported sensors [22]. Increasing the Al₂O₃ concentration beyond 2 wt% adversely impacted sensor sensitivity to NO as the insulating properties of Al₂O₃ became apparent [23]. Related composite electrolyte studies suggested that the presence of PSZ in the sensor electrolyte may be beneficial for reducing water cross-sensitivity, thereby promoting NO_x sensor accuracy [24].

The present study explores the influence of composite electrode and composite electrolyte materials on the impedimetric response of NO_x sensors to further NO_x gas-sensing capabilities in the single ppm detection range. LaSrMnO₃-Au was selected as the composite sensing electrode, since these materials have demonstrated high sensitivity and selectivity to NO_x [10,12,16]. The composite NO_x sensors included a porous composite electrolyte composed of fully stabilized and partially stabilized ZrO₂ (i.e., FSZ and PSZ) along with Al₂O₃. The authors selected these materials, as prior studies suggested that composite electrolytes contributed to greater NO_x sensing capabilities, along with reduced water cross-sensitivity [22,24]. To the authors’ knowledge, other studies have not evaluated the behavior of NO_x sensors entirely composed of composite materials. The electrochemical behavior, NO_x sensitivity, cross-sensitivity to interfering gases, and the gas sensing response/recovery rates are discussed relative to the composite microstructures, defect formation, and structural phase influencing the working mechanism of the composite NO_x sensor.

2. Experimental

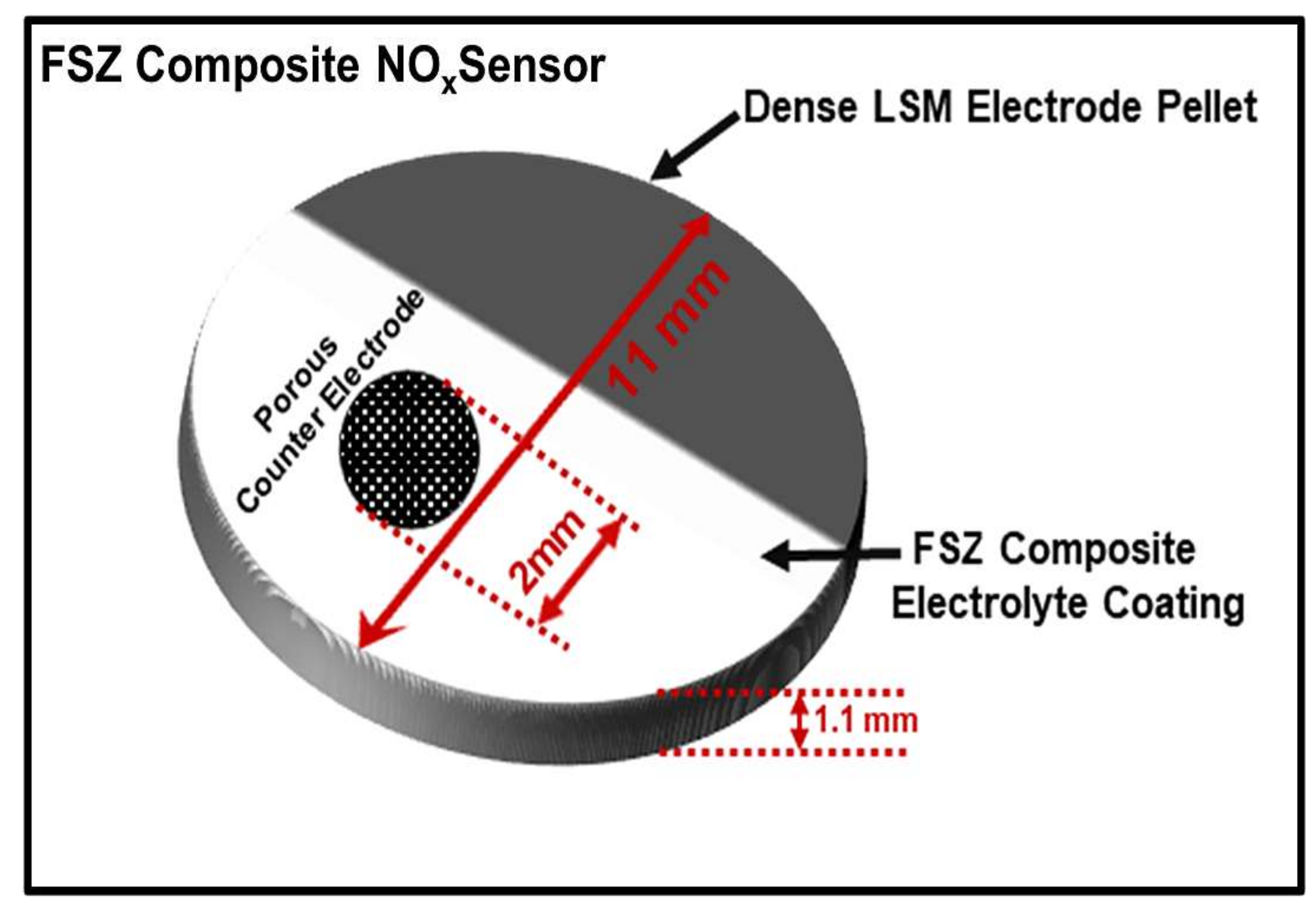

The composite NO_x sensors comprised an electrode support composed of 90 wt% La_0.8Sr_0.2MnO₃ (LSM–Inframat Advanced Materials, Manchester, CT, USA) and 10 wt% gold (Au–Alfa, Aesar Haverhill, MA, USA). The electrode powders were dry mixed, pressed into pellets, and fired at 1400 °C for 1 h. Further details concerning electrode processing are discussed elsewhere [10]. The resulting electrodes were disc-shaped with a diameter of 11 mm and a thickness of about 1.1 mm (Figure 1). Archimedes measurements performed on LSM-Au electrode pellets indicated the electrodes tended to be 93 ± 2% dense. Fully stabilized zirconia (FSZ, 8 mol% Y₂O₃-ZrO₂, Tosoh Corporation, Tokyo, Japan), partially stabilized zirconia (PSZ, 4.7 mol% Y₂O₃-ZrO₂, Advanced Ceramics, Tucson, AZ, USA), and alumina (α-Al₂O₃, Alfa Aesar) were used to fabricate the FSZ composite electrolytes. A slurry was made using a 50:50 vol% mixture of FSZ and PSZ ceramic powders, along with a 3 wt% polyvinyl butyral (Butvar B-76) binder and ethanol as the solvent. Moreover, 2 wt% Al₂O₃ added to the slurry was relative to the weight of the FSZ and PSZ powders. The composite electrolyte slurry was tumbled with zirconia media for 16 h. Several dense LSM-Au pellets were partially coated with the composite electrolyte slurry and fired at 1000 °C for 1 h to achieve a porous electrolyte microstructure. A porous counter electrode was fabricated by painting a slurry made from the LSM-Au powders onto the electrolyte surface. The counter electrode was approximately 2 mm in diameter. Following the counter electrode application, the samples were again fired at 1000 °C for 1 h. The resulting LSM-Au_dense/FSZ-PSZ-Al₂O₃/LSM-Au_porous cells were identified as the FSZ composite sensors. For comparison purposes, LSM-Au_dense/FSZ/LSM-Au_porous cells were fabricated and noted as the FSZ sensors.

The microstructure, morphology, and elemental analysis of the FSZ composite sensors and FSZ sensors were evaluated by using scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS), using a Hitachi SU8230 and Hitachi FESEM S4800 (Hitachi, Chiyoda City, Tokyo, Japan). The crystalline phases of the NO_x sensors were determined via X-ray diffraction (XRD) analysis that was performed by using a Bruker D8 Discover system (Bruker, Billerica, MA, USA) with a scanning rate of 2°/min with 2θ varied from 10° to 85°, using CuKα radiation (λ = 1.54056 Å). The anode current and operation voltage during XRD was 40 mA and 40 kV, respectively. The surface analysis and chemical state of the FSZ composite sensor were evaluated by using X-ray photoelectron spectroscopy (XPS) performed with a Scienta Omicron ESCA 2SR XPS (Scienta Omicron, Taunusstein, Germany) at a chamber pressure of 3.6 × 10⁻⁹ mbar. During XPS, the pass energy for survey and region scans was 50 and 30 eV, respectively. The X-ray source in XPS was monochromated AlKα with an operating condition of 15 kV/450 W. The XPS calibration was performed with reference C1s 284.8 eV, and the measurement area was about 3 mm in diameter before sample evaluation. The peak fitting and deconvolution of obtained spectra in these samples was performed by using CasaXPS software (CASA Software Ltd., Cheshire, UK) with a line shape: GL (30) (Gaussian/Lorentzian product formula, where the mixing was 30/100 = 30%, peak fitting Gaussian/Lorentzian ~30/70). No Argon sputtering was used during XPS measurements.

In order to electrochemically characterize the NO_x response, the sensors were placed in a quartz tube, loaded into a tube furnace, and operated at temperatures ranging from 575 to 675 °C. The gases exposed to the sensors contained NO and NO₂ concentrations varying from 0 to 100 ppm, where O₂ concentrations were 5–18 vol% in dry and humidified (10 vol% H₂O) gas conditions with N₂ as the balance gas. The variation in O₂ and the addition of H₂O was carried out to evaluate cross-sensitivity. The interference of CH₄, CO₂, and CO gases found in diesel exhaust was also tested. Gas-flow rates of 100 sccm were maintained by using a standard gas handing system. Electrochemical characterization of the NO_x sensors was carried out by using a Gamry Reference 600 (Gamry, Warminster, PA, USA). Impedimetric operation of the sensors was performed by applying a signal amplitude of 100 mV over a frequency range of 1 Hz–1 MHz and measuring the electrical response. Impedimetric measurements were taken in triplicate to ensure that the data were stable and reproducible. The equivalent circuit fitting was performed by EC-lab Software V10.40 (BioLogic, Seyssinet-Pariset, France) via the nonlinear least-squares method, with circuit parameters and error range listed in Section 3.2.3. The error values associated with circuit parameters in the table in Section 3.2.3 were the standard deviation calculated by the EC-lab software V10.40. Origin Pro software (ver. 2021b) (OriginLab Corp, Northampton, MA, USA) was used for the statistical calculations as well as graphical presentation of the experimental data.

3. Results and Discussion

3.1. Microstructure and Morphology of NO_x Sensors

3.1.1. Surface Structure and Elemental Mapping via SEM and EDS

The comparisons of the SEM images shown in Figure 2a,b for typical FSZ and FSZ composite electrolytes indicated that the FSZ electrolyte possessed a fine and relatively uniform microstructure. In contrast, the FSZ composite electrolyte was composed of both coarse and fine irregularly shaped particles. The SEM images of the FSZ composite electrolyte cross-section are shown in Figure 2c–f, along with corresponding elemental mapping by EDS. The microstructure shown in Figure 2g–i corresponds to the cross-section of LSM-Au pellets and includes backscattered imaging in Figure 2g. Elemental mapping verified that the circular particles were Au (see Figure 2i). The EDS analysis exposed the presence of various elemental phases of the LSM-Au electrode. Figure S1 (details in Supplementary Materials Section S1) shows that the Sr doping level was ~0.22 mole and La ~0.44 mole, which indicated a lack of La/Sr ordering consistency. The oxygen excess nonstoichiometric isotropic properties at the LSM-Au surface benefit charge transfer [25,26]. The $\mathrm{EDS}$ analysis showed (Table S1) Sr/La ~0.5, indicating less propensity of Sr depletion, which can minimize the formation of resistive SrZrO₃ phases. Less formation of such a resistive phase was consistent with other reported findings (Supplementary Materials Section S1) [26,27]. The perovskite La_(1−x)Sr_xMnO₃ with a Sr doping level (x) was approximately ≥0.15 mole, resulting in hole hopping along the Mn sublattice. Such a scenario happens results from an energetically favorable double-exchange mechanism [25].

3.1.2. Defect Estimation and Structural Phase Behavior via XRD

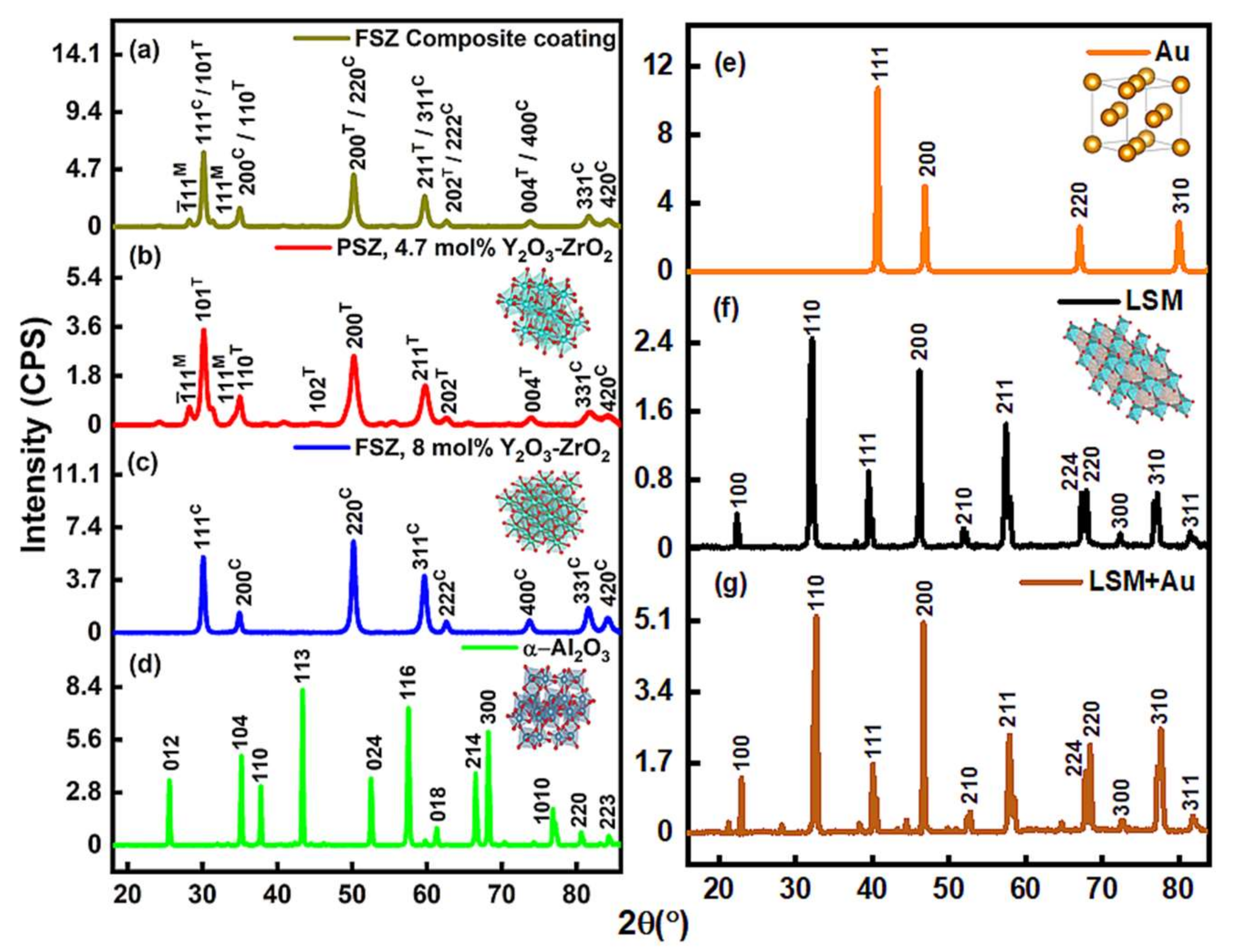

The XRD analysis in Figure 3 revealed that the FSZ composite electrolyte contained cubic phases and trace amounts of monoclinic and tetragonal phases. The combination of tetragonal-cubic phases in the FSZ composite was advantageous for stability against aging [28]. The tetragonal grains doped with yttria showed a heterogeneity match with the cubic phase that maintained a unimodal microstructure [28]. Due to the higher mol% of yttria in FSZ, the monoclinic peaks associated with PSZ became negligible in the FSZ composite electrolyte, and peak positions of tetragonal phases shifted toward more distorted cubic phases (see Figure 3b,c) [29]. Thus, PSZ with ~5 mol% yttria presented less volumetric monoclinic content than other PSZ with comparatively lower mol% of yttria [28,30].

The intrinsic stable defect formation at cubic phases of FSZ was mostly of Schottky type [31]. The porous FSZ composite electrolyte possessed Y_Zr^′, which was the Y³⁺ impurity in the Zr⁴⁺ site in the FSZ composite lattice [32]. The cubic phases in the FSZ composite had maximum Y_Zr^′-Y_Zr^′ interactions, with Y atoms occupying sites near the free lattice oxygen vacancy, V_Ö^″ (i.e., less Y_Zr^′-V_Ö^″ separations within the Y_Zr^′-V_Ö^″-Y_Zr^′ defect clusters) [33]. The XRD data indicated that the FSZ composite contained structural phases that favored oxygen ion transport on aliovalent Y doping [33]. The FSZ non-composite electrolyte had more extrinsic oxygen vacancies in defect clusters Y_Zr^′-V_Ö^″-Y_Zr^′. Compared to the FSZ composite electrolyte, the defect clusters in the FSZ non-composite electrolyte facilitated rapid refilling of surface oxygen vacancies and activation of molecular oxygen. Such rapid refilling of oxygen vacancies, in turn, accelerated lattice diffusion of oxygen ions [33,34]. The lattice oxygen vacancies (V_Ö^″) were along the (111) plane in FSZ, while PSZ had such vacancies (V_Ö^″) along the (211) and (110) planes [33]. For PSZ, the ($\overline{1}$01^M) plane attributed to ZrO₂ possessed 3-fold more V_Ö^″, and the ($\overline{1}$11^M) plane possessed 2-fold more V_Ö^″, in comparison to the (211) and (110) planes. Figure 3a shows the absence of the ($\overline{1}$01^M) and presence of the ($\overline{1}$11^M) plane in the FSZ composite electrolyte signifying the reduced proportion of V_Ö^″. Such a condition results in difficulty in removing oxygen from the surface, thereby making the FSZ composite electrolyte less reducible and more stable [35]. The XRD patterns of as-received ∝-Al₂O₃ (Figure 3d) corresponded to a wide range of Bragg’s angles (18° ≤ 2θ ≤ 89°) attributed to a hexagonal phase (reference JCPD’s file no. 71-1123) with space group R$\overline{3}$c [36,37,38]. The average crystallite size obtained for ∝-Al₂O₃ via the Scherrer equation was near 26 nm [36,39].

Figure 3e,f shows that the diffraction patterns collected for Au and LSM did not register the presence of amorphous phases of gold oxide. Figure 3e shows a typical Au powder pattern with a preferred orientation along the (111) plane. The average crystallite size obtained for the Au particles was approximately 5 nm [40,41]. The LSM diffraction peaks indicated a perovskite structure with high crystallinity and a mixture of cubic and tetragonal phases [42]. The peak around 38.3° presented in both LSM and LSM-Au samples indicated the (202) plane (Sr doping level x ~0.22) that was consistent with a Sr doping level where x ≤ 0.3 in both cases [43]. As observed in Figure 3g, some weak features were detected at 21.2°, 28.2°, 44.4°, and 66.7° with 10 wt% loadings of $\mathrm{Au}$ powder, indicating the Au particles were well-dispersed over the LSM-Au electrode surface [42]. No signature for resistive La₂Zr₂O₇ and SrZrO₃ phases were observed in LaSrMnO₃-Au/FSZ-PSZ-Al₂O₃ samples [41,44]. Such bimodal diffraction peaks in LSM-Au show less-improved crystalline symmetry, leading to the localization of the majority of the electrons, resulting in a hopping conduction mechanism at low-frequency regions [43]. The XRD data revealed the crystal phases and allied defects associated with the different crystal planes in the FSZ composite sensor material that impacted the overall oxygen vacancies and charge conduction mechanism, which affected the NO_x sensing. Further details on structural analysis can be found in Supplementary Materials Section S2.

3.1.3. Estimating the Chemical State of Structural Elements via XPS

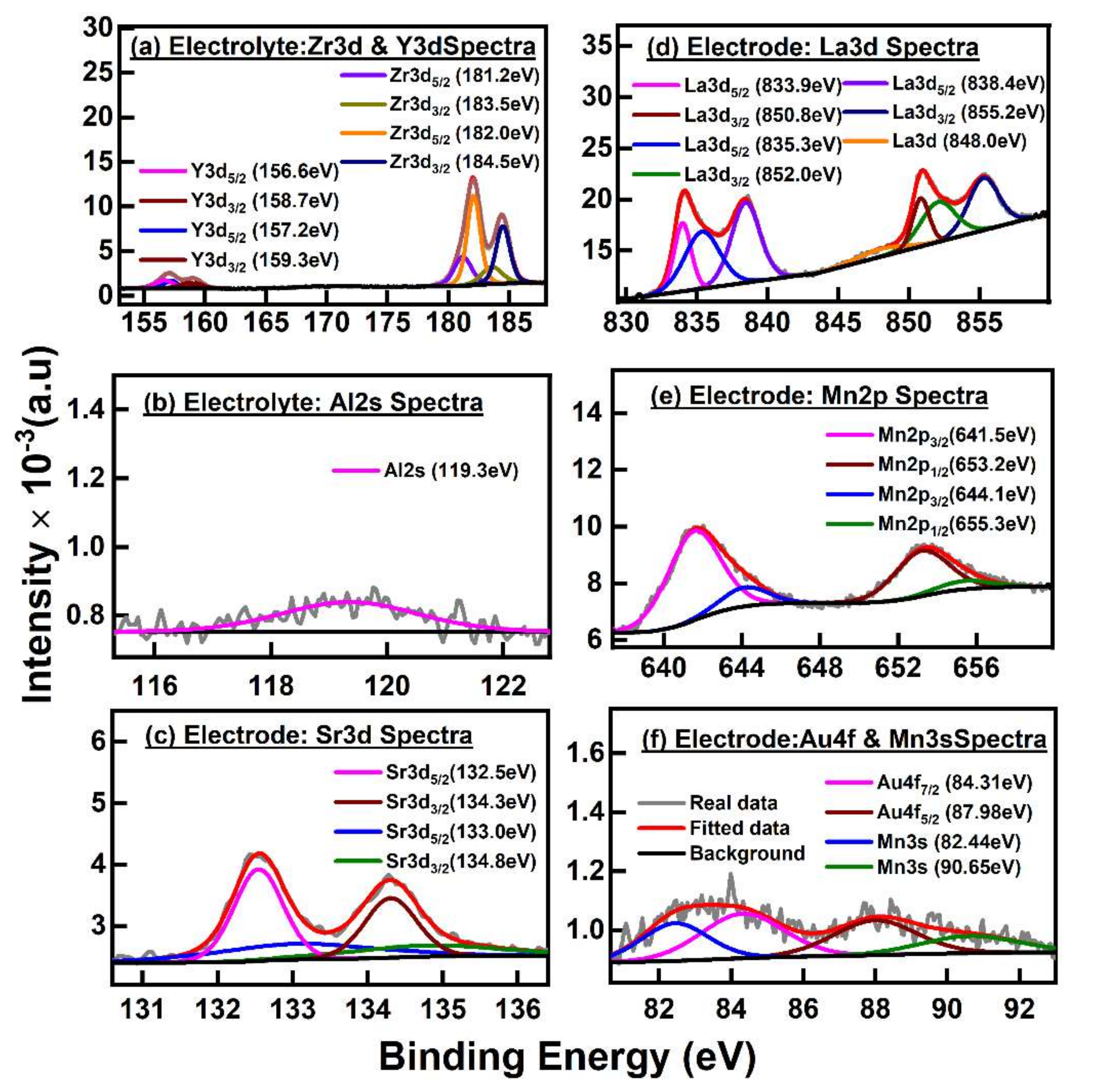

The XPS in Figure 4a that contained the zirconia spectra with doublets Zr3d_5/2 band (181.2 eV) and Zr3d_3/2 band (183.5 eV) indicated the zirconia primarily consisted of monoclinic phases, as similarly observed in the XRD of PSZ (Figure 3b) [45]. Another doublet, Zr3d_5/2 band (182.0 eV), and Zr3d_3/2 band (184.5 eV) from the Zr-O bond was likely due to the FSZ composite electrolyte possessing tetragonal/cubic phases. Both doublets indicated that the zirconia present in the electrolyte had a Zr⁴⁺ state [45,46]. Figure 4a also shows Y3d_5/2 (156.6 eV) and Y3d_3/2 (158.7 eV), which corresponded to the tetragonal phase of the FSZ composite electrolyte [45,47]. The Y3d_5/2 (157.2 eV) and Y3d_3/2 (159.3 eV) indicated that the Y₂O₃ in the FSZ composite electrolyte primarily had cubic phases with Y³⁺ state cations within the yttria [45,47]. Figure 4b shows the Al2s peak, corresponding to the ∝-Al₂O₃ present in the FSZ composite electrolyte [48]. Figure 4c shows Sr3d_5/2 (132.5 eV) and Sr3d_3/2 (134.3 eV) peaks ascribed to the strontium (Sr²⁺) ions in the LSM lattice. Additionally, Sr3d_5/2 (133.0 eV) and Sr3d_3/2(134.8 eV) peaks were both associated with segregated SrO species on the LSM surface [42,49]. Figure 4d shows the primary lanthanum spectra of the LSM-Au sensing electrode, where doublets La3d_5/2 (833.9 eV) and La3d_3/2 (850.8 eV) lines occurred due to spin–orbit interaction and the electron transfer from oxygen ligands to the empty level La4f [49,50]. The double peaks for spin–orbital interaction reflected the La3d state configuration, which has an “M” mainline (ascribed to 3d⁹4f⁰L, L ascribed to oxygen ligand) and a satellite line S (ascribed to a charge transfer 3d⁹4f¹L, where L represents the hole in a ligand site) at higher binding energies (see Figure 4d) [49,50]. The first splitting had a separation of ~16.9 eV attributed to LSM at the outer surface of the LSM-Au electrode. Another doublet La3d_5/2 (835.3 eV) and La3d_3/2 (852.0 eV) had a splitting separation of ~16.7eV, and the difference between the two La3d_5/2 peaks was 1.4 eV for La₂ O₃, and that was attributed to LSM at the inner LSM-Au electrode surface [49,50]. Such spectral signatures were similar in detecting La at the LSM situated near the yttria-stabilized zirconia surface [51,52]. The additional doublet La3d_5/2 (838.4 eV) and La3d_3/2 (855.2 eV) peak lines were ascribed to shake up satellite features. The doublet of the La3d state separated by ~16.8 eV originated from the LSM-Au outer surface [50,51,52]. The La3d_5/2 peaks had a difference (838.4−833.9 ~4.5 eV) ascribed to the La³⁺ state [52]. Another La3d satellite peak (848.0 eV) developed from a strong mixing of 3d⁹4f² and 3d⁹4f³ states at the LSM-Au surface [50]. Figure 4e shows Mn2p_3/2 (641.5 eV) and Mn2p_1/2 (653.2 eV) were from the surface LaMn³⁺O₃ species of the LSM-Au electrode. The Mn2p_3/2 (644.1 eV) and Mn2p_1/2 (655.3 eV) were ascribed to SrMn⁴⁺O₃ species from the LSM-Au surface. The 2p_3/2 and 2p_1/2 spectral lines for Mn³⁺ species were separated by 11.7 eV, whereas the separation recorded for Mn⁴⁺ species was 11.2 eV [42,50,53]. The Sr²⁺ doping in lanthanum manganite affected the charge equilibrium by reducing the Mn⁴⁺ species to Mn³⁺ species in both LSM and LSM-Au materials. Such activity increased the overall relative at% of Mn³⁺ species to keep both materials electrically neutral (for details, see in Supplementary Materials Table S2) [42]. Figure 4f illustrates the spectral line Au4f_7/2 (84.31 eV) with a difference of 3.67 eV with Au4f_5/2 (87.98 eV) due to spin–orbit splitting attributed to reduced bulk metallic Au from the LSM-Au surface. Such splitting indicated the presence of some nanosized Au particles in the LSM-Au matrix [54]. The higher spin component Mn3s₁ (82.44 eV) and lower spin component Mn3s₂ (90.65 eV) with a splitting ~ 8.21 eV were much higher than the reported value. Such a scenario indicated relatively more Mn⁴⁺ oxygen complexes than Mn³⁺ complexes within the LSM-Au lattice structure [53]. The overabundance of Mn⁴⁺ species formed structural heterogeneity and clusters. Such heterogeneity resulted in over stoichiometric oxygen, suggesting interstitial oxygen within the cubic perovskite structure of LSM-Au, and thereby preserving sublattice oxygen and new oxygen structures [42]. The collective evidence from the XPS of the FSZ composite sensor revealed that the presence of ionic species associated with the materials provided more conducive pathways for electronic and ionic conduction, thereby facilitating interfacial electrochemical reactions during sensing at the FSZ composite NO_x sensor. Further details of XPS analysis are provided in Supplementary Materials Section S3.

3.2. Working Principle for FSZ Composite NO_x Sensor

Conventional NO_x sensors typically incorporate a dense electrolyte and porous sensing electrode. However, enhanced sensing behavior has been observed at NO_x sensors composed of a porous electrolyte accompanied by a dense sensing electrode. The porous electrolyte enables gas diffusion and oxygen ion transport, while avoiding heterogeneous catalysis reactions observed at porous sensing electrodes. Heterogeneous catalysis can alter the concentration of the analyte gas and consequently reduce the accuracy of the NO_x response. The operating strategy and microstructural and compositional features are known to influence the working principles of solid-state gas sensors [32,55,56,57]. In the following paragraphs, the roles of the FSZ porous composite electrolyte and dense composite sensing electrode are discussed relative to impedimetric NO_x sensing. Oxygen ion transport, oxygen partial-pressure dependence, and charge-transfer mechanisms, which are understood to govern the materials composing the composite sensor, were used to describe the working principle of the FSZ composite NO_x sensor.

3.2.1. Oxygen Ion Transport through the Porous FSZ Composite Electrolyte

The porous microstructure of the FSZ composite electrolyte enables two types of transport pathways. One pathway provided oxygen ion transport through the bulk material, and another allowed gas diffusion through the pores. Oxygen ion movement is understood to occur via the vacancy diffusion mechanism in the electrolyte. Here, the Y_Zr^′ impurity has a relative charge of −1, and the V_Ö^″ contains a relative charge of +2. The $\mathrm{FSZ}$ composite electrolyte under the electroneutrality condition results in (Y_Zr^’) ^≫(e⁻). The electroneutrality condition is vital for retaining a constant oxygen vacancy concentration under reducing gas conditions. In the FSZ composite electrolyte, FSZ regions with high yttria doping could have trapped V_Ö^″ in Y_Zr^’ impurities (see Figure 5a), due to Coulombic interactions, thereby forming a quasi-stable defect pair as follows [32]:

$${\mathrm{Y}}_{\mathrm{Zr}}^{\prime }+{\mathrm{V}}_{\ddot{\mathrm{o}}}^{″}\leftrightarrow {({\mathrm{Y}}_{\mathrm{Zr}}^{\prime }+{\mathrm{V}}_{\ddot{\mathrm{o}}}^{″})}^{\prime }$$

(1)

Such a defect pair may influence the free vacancy concentration and, thus, affect the ionic conductivity of the FSZ composite electrolyte [32]. As the ionic conductivity of FSZ was about 50% higher than that of PSZ [24], oxygen ion transport would not be as rapid via the PSZ particles within the FSZ composite electrolyte. Therefore, limited oxygen ion transport at PSZ particles, along with the presence of Al₂O₃ particles, may restrict electrochemical reactions with interfering gases in the composite electrolyte. A similar occurrence was reported for porous PSZ-based NO_x sensors where the presence of PSZ appeared to limit H₂O cross-sensitivity in related studies [24]. Additional details regarding defects influencing ion transport through the FSZ composite electrolyte is provided in Supplementary Materials Section S4.

3.2.2. Charge Transport at LSM-Au Electrode and NO_x Sensing Mechanism

The electronic bandgap, the electron density of states at the surface, and the oxygen surface exchange properties of the LSM surface depend on strain, grain–grain boundary orientations, and extended defects of the sensor surface [25,26]. The strontium (Sr) doping introduced holes in the LSM lattice that helped in oxidizing NO. Doping of bivalent Sr²⁺ ions into the A-site for La³⁺ in the crystal lattice of lanthanum manganite resulted in the formation of equivalent amounts of Mn⁴⁺ ions or holes (see Figure 5b) [58]. The hole-hopping mechanism is usually prevalent in thermally activated charge transport of LSM at elevated temperatures >500 °C. Moreover, Sr²⁺ ion doping elevates the conduction pathway via oxygen species (Mn³⁺ ⇆ O²⁻ ⇆ Mn⁴⁺) near the triple-phase-boundary (TPB) region of the surface reaction site (see Figure 5b) [26,58]. The electron transfer occurred from a Mn³⁺ ion across intervening O²⁻ ion to the adjacent Mn⁴⁺ ion, or between two adjacent Mn³⁺ ions. Oxygen non-stoichiometry and electrical conductivity of the LSM-Au electrode agree with the random-defect model, as the oxygen reduction reaction resulted in the maximum current flow through the TPB region at the LSM surface. The hole formation enhanced electrical conductivity via a double-exchange phenomenon facilitating the Mn⁴⁺ ions to migrate to the TPB region of LSM to oxidize the NO to produce NO₂ [58]. During the consumption of NO along with oxygen species O²⁻, the electron trapped by O²⁻ is transferred to the TPB region at the LSM-Au surface, thus reducing the number of hole carriers via electron–hole recombination [58,59]. One-third of the active holes are concentrated within the Mn sublattice, while the remaining two-third of holes are in the oxygen sublattice [26]. The oxygen sublattice serves as a dynamic source of holes during electron–hole recombination. Such recombination occurs during lattice oxygen vacancy formation that is prevalent in perovskites [25,26,27]. The Au particles integrated within the LSM electrode act as an electron sink, separating electrons and holes and, thus, reducing the charge carrier recombination rate within the LSM-Au matrix [42,58]. Another benefit of Au as a composite sensor material is that it is chemically inert, and, in contrast to Ag or Pt, Au does not catalyze oxygen reduction reactions [59].

3.2.3. Operating Mechanism of Solid-State Electrochemical FSZ Composite NO_x Sensor

During impedimetric sensor operation, NO_x, and O₂ gases adsorb onto the electrolyte surface and undergo dissociation, as well as diffuse through the porous electrolyte of the FSZ composite NO_x sensor to the active sites at the TPB where interfacial electrochemical reactions take place. At a temperature >500 °C, electrochemical reactions and oxygen reduction reactions proceed more readily, thereby aiding O²⁻ ion transport through the electrolyte bulk; and O²⁻ ion generation occurs via charge transfer reactions at TPB.

In studies by Rheaume et al., the NO_x sensing mechanism was reported to be governed by competitive molecular dissociative adsorption of both NO_x and O₂ at the active sites at TPB, causing a suppressed impedance arc [60]. Such competitive adsorption results in the charge transfer process at the TPB that is mapped at lower frequencies. The lower-frequency-arc width associated with charge-transfer resistance from redox reaction consists of adsorption, dissociation, and interfacial electrochemical reactions due to NO_x and O₂ sensitivity at the TPB active sites. Upon exposure to NO_x, the charge-transfer resistance reduces with an inward shift in the lower-frequency arc. Such a shift is primarily caused by reversible adsorption of NO_x species at the TPB active sites. The inward shift can also occur due to increased O₂ diffusion via saturating the TPB active sites. Saturation may result in decreasing magnitude in the phase angle during NO_x sensing, thus resulting in less sensitivity. The rate-determining step of NO_x sensing also depends on other oxygen-species-related reactions at TPB, such as the electron transfer occurring in the LSM-Au surface between two adjacent Mn⁺ ions and trapped O²⁻ ion, which is transported through the FSZ composite electrolyte.

Electrochemical Behavior LSM-Au/FSZ Composite NO_x Sensor

The electrochemical responses of the FSZ composite sensors were characterized by using the impedimetric method. For comparison purposes, the non-composite FSZ sensors were also evaluated. The sensors were operated with 10.5% O₂, both with and without 100 ppm NO and NO₂ present, where N₂ served as the background gas. Since the electrochemical response of the sensors exposed to NO and NO₂ was similar, the impedance-based results presented for the sensor focused on operation with NO.

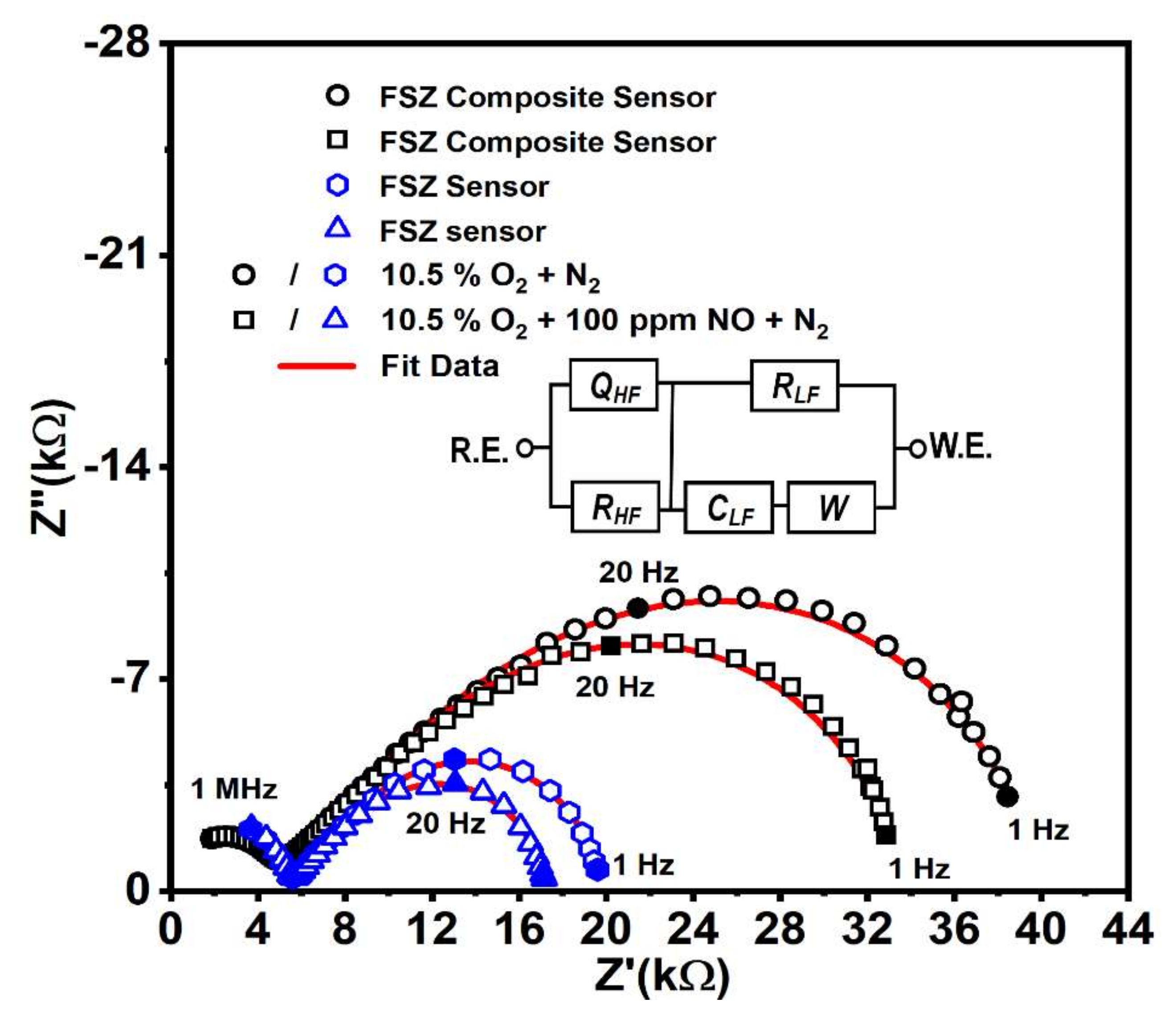

For each sensor type, two distinct frequency regimes were apparent, as shown by the arcs at high (i.e., >10 kHz) and low (i.e., <1000 Hz) frequencies in the impedance data of Figure 6. The FSZ composite sensor resulted in a more significant impedance response than the FSZ sensor response. It was also observed that adding 100 ppm NO to the gas stream caused the magnitude of the low-frequency impedance arc to decrease for both the FSZ composite and FSZ sensors.

The equivalent circuit model is included in Figure 6. The high-frequency data were described by R_HF∥Q_HF, where R_HF, the electrolyte resistance, and Q_HF represent non-ideal capacitive effect. The low-frequency data were denoted by R_LF∥(C_LF + W), where the resistance, R_LF, was modeled in parallel with a capacitor, C_LF, in series with a Warburg (W) diffusion element. The Q_HF arises from the inhomogeneous nature of the porous electrolyte that can be traced in respective bode plots (see details in Supplementary Materials Section S5) [10,60]. In addition, the irregularly shaped coarse particles evident in SEM images of the FSZ composite (see Figure 2b,c) also contributed to the inhomogeneous microstructure of the FSZ composite sensors.

The impedance describing the high-frequency data, Z_HF, in the equivalent circuit model of FSZ composite electrolyte is described by the following complex equation [22,24,32,61]:

$${\mathrm{Z}}_{\mathrm{HF}}=\frac{{\mathrm{R}}_{\mathrm{HF}}}{1+{\mathrm{R}}_{\mathrm{HF}}{\mathrm{Q}}_{\mathrm{HF}}{\left(\mathrm{j}\mathsf{\omega }\right)}^{\mathrm{n}}}$$

(2)

where j = √−1, ω = 2πf, and f is the sensor operating frequency. The non-ideality factor, n, determines the fit of Q_HF and represents the depressed semicircle nature of the arc in the porous electrolyte. At high frequencies where 1 ≪ R_HFQ_HF(jω)ⁿ, oxygen ions usually cannot penetrate through the porous pathways of the electrolyte [61,62]. The impedance ZQ_HF contributed by Q_HF is described below:

$${\mathrm{Z}}_{{\mathrm{Q}}_{\mathrm{HF}}}=\frac{1}{{\mathrm{Q}}_{\mathrm{HF}}{\left(\mathrm{j}\mathsf{\omega }\right)}^{\mathrm{n}}}$$

(3)

For the high-frequency regime measurement, the Q_HF value was ~3.1 nF.sⁿ⁻¹ for the FSZ composite sensors operating with 0 and 100 ppm NO_x, as the rate-limiting mechanism was independent of the gas concentration (see

Table 1. Circuit fitting parameters for the Nyquist plot of the FSZ composite and FSZ sensor with and without NO_x.

Circuit Parameters
The FSZ Composite Electrolyte with the LSM-Au Electrode
NOx	Electrolyte Impedance			Electrode-Electrolyte Interface
	RHF (kΩ)	QHF (nF.sn−1)	n	CLF (μF)	RLF (kΩ)	AW (kΩ.s−0.5)
0 ppm	4.97 ± 0.75	3.17 ± 0.01	0.75 ± 0.5	0.62 ± 0.0	34.7 ± 0.5	240.6 ± 0.04
100 ppm	4.95 ± 0.8	3.17 ± 0.09	0.75 ± 0.5	0.40 ± 0.0	28.5 ± 0.9	239.5 ± 0.05
The FSZ electrolyte with the LSM-Au electrode
NOx	RHF (kΩ)	QHF (nF.sn−1)	n	CLF (μF)	RLF (kΩ)	AW (kΩ.s−0.5)
0 ppm	5.43 ± 0.54	0.215 ± 0.00	0.84 ± 0.5	0.61 ± 0.0	14.3 ± 0.7	118.1 ± 0.04
100 ppm	5.46 ± 0.59	0.176 ± 0.00	0.85 ± 0.5	0.46 ± 0.0	11.7 ± 0.8	122.1 ± 0.06
The capacitance calculated for Electrolytes from Equation (4)
NOx	FSZ composite electrolyte			FSZ electrolyte
	CHF (fF)			CHF (fF)
0 ppm	40.9			13.6
100 ppm	42.2			14.3

). The FSZ sensors had comparably a substantially lower Q_HF value of ~0.21 nF.sⁿ⁻¹ on account of the fine particles and pores composing the FSZ electrolyte microstructure. The n value of ~0.75 for the FSZ composite sensors indicated the dispersive nature of the capacitive dielectric coupling in the FSZ composite electrolyte. It also indicated a decrease in charge conduction at a higher frequency region, due to the skin effect, where charged ions are more scattered at the surface than the bulk of the FSZ composite electrolyte [43]. In contrast, the FSZ electrolyte had an n value of ~0.84, indicating a stronger hopping charge conduction mechanism [43].

The capacitance at high frequency for the FSZ composite sensors can be calculated from circuit parameters R_HF and Q_HF via the following formula [32]:

$${\mathrm{C}}_{\mathrm{HF}}={\mathrm{R}}_{\mathrm{HF}}^{1-\mathrm{n}}\times {\mathrm{Q}}_{\mathrm{HF}}^{\frac{1}{\mathrm{n}}}$$

(4)

The C_HF values for both the FSZ and FSZ composite electrolytes were in the Femto farad range, signifying charges diffused through both electrolytes. The FSZ composite electrolyte resulted in ~3-fold higher C_HF values (see Table 1) that indicated the inclusion of PSZ and ∝-Al₂O₃ caused a comparably higher time constant for the ion-transfer process, which signifies the faster ion-transfer rate in the FSZ composite sensor [32].

The impedance data at low frequencies described electrode and electrode/electrolyte interfacial reactions occurring within the sensors. The formation of surface oxygen vacancies, O_o^x, at the LSM-Au electrode relied on adsorbed oxygen release and Mn⁴⁺ ions reduction. The O_o^x promoted dissociative adsorption of oxygen and increased the oxygen rate at the LSM-Au surface, resulting in enhanced migration of surface oxygen species, thus leading to charge transfer at the triple phase boundary [10,32]. The charge-transfer resistance (R_LF) value was in the range of ~34.7 kΩ (at 0 ppm NO) and to ~28.5 kΩ (at 100 ppm NO), showing an increase in rate-transfer kinetics for the LSM-Au electrode and the FSZ composite electrolyte interface. Since R_LF was more extensive in magnitude at 0 ppm, in comparison to 100 ppm, the dense LSM-Au surface likely contributed toward the higher impedance observed in bode plots (Figure S2 in Supplementary Materials Section S5). The interfacial double-layer capacitance, C_LF, arose primarily from grains at the dense surface LSM-Au at the interface. The C_LF value varied from 0.62 µF (at 0 ppm NO) to 0.40 µF (at 100 ppm NO). The fitting of the interface with capacitance indicated a hopping type of conduction mechanism with localized electrons at the interface [43].

The low-frequency impedance, Z_LF, was described according to the following equation:

$${\mathrm{Z}}_{\mathrm{LF}}=\frac{{\mathrm{R}}_{\mathrm{LF}}}{1+{\mathrm{j}\mathsf{\omega }\mathrm{R}}_{\mathrm{LF}}{\mathrm{C}}_{\mathrm{LF}}}$$

(5)

The fitting data in Table 1 show that the R_LF values are on the order of kΩ, and C_LF values are on the order of microfarads. So, for all frequency ranges, the denominator of Equation (5) satisfies 1 ≫ ωR_LFC_LF condition, which simplified the relation to Z_LF ≈ R_LF [61,62]. Such a scenario arises from the less electroactive region of the dense LSM-Au surface, where the impedance was not dependent on the frequency of the AC signal. The input current in such a region was equal to the output current, signifying the resistive region. The R_LF was also associated with the exchange current, I₀, under equilibrium conditions, according to the following equation [63]:

$${\mathrm{R}}_{\mathrm{LF}}=\frac{\mathrm{RT}}{{\mathrm{nFI}}_0}$$

(6)

where R is the universal gas constant, F is Faraday’s constant, T is the temperature in Kelvin, and n represents the number of electrons transferred. The exchange current varied proportionally with the heterogeneous electron transfer rate constant, k₀, as shown in the following equation [63]:

$${\mathrm{I}}_0=\mathrm{n}\mathrm{F}\mathrm{A}{\mathrm{k}}_0{\left(\mathrm{C}\right)}_{\mathrm{bulk}}$$

(7)

For sensors in the present study, the number of electrons transferred per molecule of NO_x was n, the active area of LSM-Au under NO_x sensing was A, and the analyte (NO_x) concentration was (C)_bulk. During NO_x exposure, both the FSZ composite and FSZ sensors response indicated low R_LF values, in comparison to sensor operation without NO_x, which signified enhancement in the electron transfer rate, k₀, at the electrode-electrolyte interface [10,63]. Moreover, the charge transfer kinetics were more rapid for FSZ composite sensors, as the corresponding R_LF value was about 17 kΩ lower than R_LF determined for FSZ sensors, as shown in Table 1, thereby indicating that k₀ was approximately 2.4 times faster for the FSZ composite sensors at the interface.

The Warburg circuit element, W, included in the circuit model shown in Figure 6, was associated with a Warburg impedance, Z_w, resulting from the mass transfer at the electrode/electrolyte interface [10,61,62]. The concentration of NO_x influenced the diffusion at lower frequencies. The following equation describes Z_w as follows:

$${\mathrm{Z}}_w={\mathrm{A}}_{\mathrm{w}}\left(1-\mathrm{j}\right){\mathsf{\omega }}^{-\frac{1}{2}}$$

(8)

where A_w is the Warburg coefficient based on a semi-infinite diffusion model, j is the unit imaginary number, and ω is the angular frequency [10,62]. At the lower frequency range, A_w for 0 ppm NO was ∼240 kΩ∙s^−0.5 and ∼118 kΩ∙s^−0.5, for the FSZ composite and FSZ sensors, respectively. Minimal variation in A_w was observed upon NO_x diffusion for 100 ppm NO indicated high-oxygen surface-exchange properties at the LSM-Au sensing electrode [43]. The lower A_w values obtained for the FSZ sensors indicated that mass transport was more rapid at the electrode/electrolyte interface than the FSZ composite sensors. Such rapid mass transport was most likely due to the faster diffusion of oxygen ions through the FSZ electrolyte to the electrode/electrolyte interface, where NO_x sensing reactions took place. Since the XRD and XPS (details in Section 3.1.2 and Section 3.1.3) did not show any signatures of resistive phases, such as La₂Zr₂O₇ or SrZrO₃, it was assumed that the Warburg impedance and the charge transfer resistance had no contributions from such resistive phases [41,44]. As the LSM-Au electrode is not an oxygen ion conductor, the oxygen reactions were localized to the surface regions at the TPB [43].

3.2.4. NO Sensitivity of FSZ Composite NO_x Sensor

We used angular phase response, θ, to evaluate NO sensitivity, as it can provide a more accurate and stable measure of the sensor response to the analyte gas, in comparison to other impedance components, such as the modulus, |Z| [7,10,56]. The change in the angular phase response that occurred when NO was added was used to determine the sensitivity to NO based on the following equation:

$${\mathrm{NO}}_{\mathrm{sensitivity}}=\frac{\Delta \mathsf{\theta }}{\Delta \mathrm{NO}} \left(\frac{\mathrm{degrees} \left(°\right)}{\mathrm{ppm}}\right)$$

(9)

where Δθ = θ_O2 − θ_NO, and the terms θ_O2 and θ_NO correspond to the angular phase response when the sensor was exposed to O₂ + N₂ and O₂ + NO + N₂, respectively. The angular phase response with and without 100 ppm NO was measured for sensors operating at temperatures ranging from 575 to 675 °C, as shown in Figure 7. The largest Δθ values were obtained by operating the sensors at a frequency of 20 Hz and a temperature of 575 °C. Thus, these conditions were chosen to assess the NO sensitivity of the NO_x sensors.

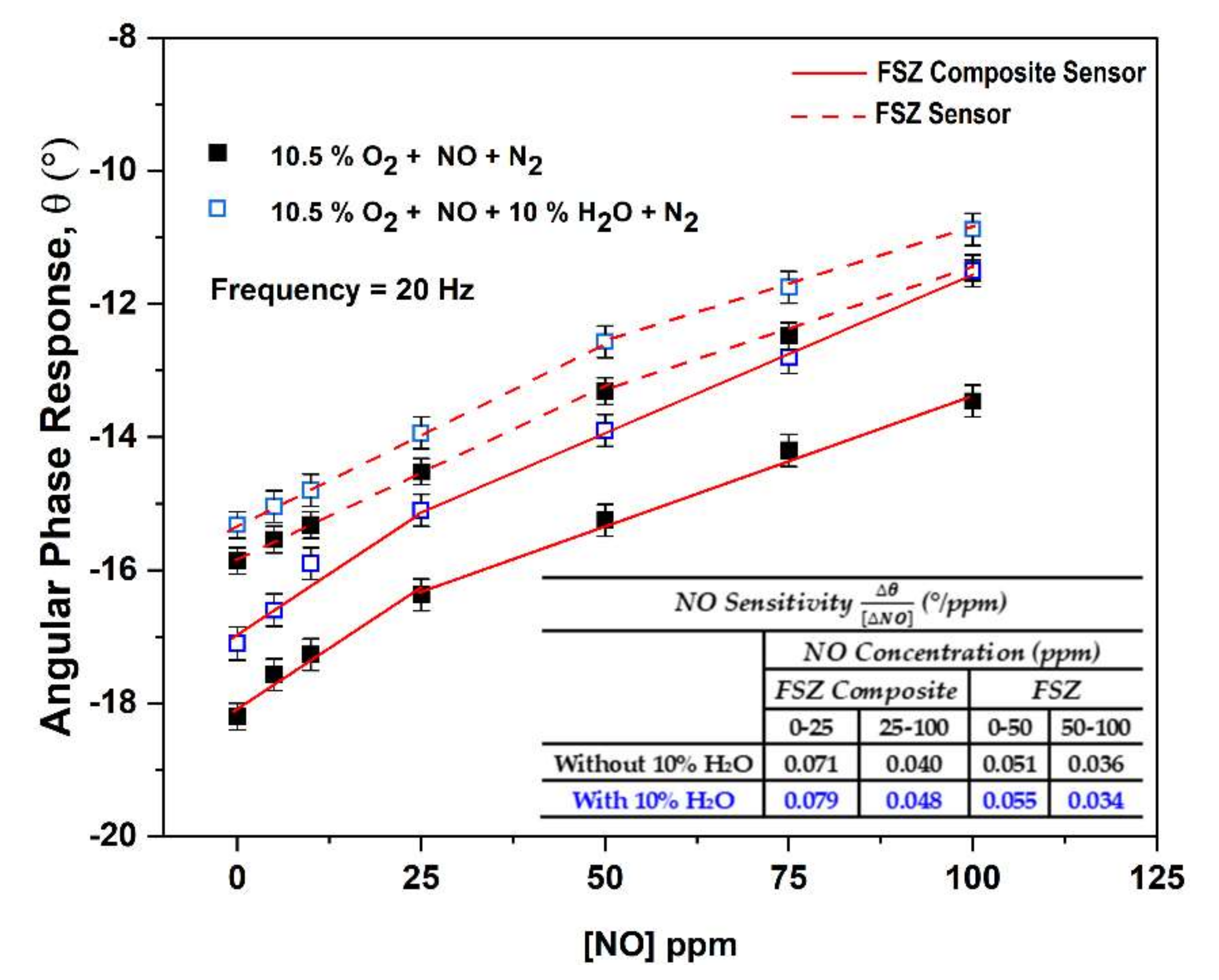

The angular phase response for both FSZ composite and FSZ sensors is shown in Figure 8 for dry and humidified gas conditions with NO concentrations ranging from 0 to 100 ppm for sensor operation at 20 Hz and 575 °C. Both types of sensors followed linear trends and had a high and low sensitivity range. The related R² values are presented in Supplementary Materials Section S6. The FSZ composite sensors demonstrated the most significant sensing response to NO, which was about 0.071°/ppm for NO concentrations ≤25 ppm under dry gas conditions. As the NO concentration increased, the sensing response decreased to approximately 0.040°/ppm. The decrease in the sensing response indicated gas-saturation effects. Under similar conditions, the FSZ sensors demonstrated a more comprehensive high sensitivity range that extended up to 50 ppm NO, but such high sensitivity was accompanied by a lower NO sensing response of 0.051°/ppm that decreased to about 0.036°/ppm for the higher NO concentration range.

Adding water to the gas stream caused the NO sensitivity to increase for both sensor types (see Figure 8). The water cross-sensitivity of the FSZ composite sensors diminished with increasing operating temperatures beyond 575 °C (details in Supplementary Materials Section S7). However, NO sensitivity also decreased as the sensor operating temperature increased (see Figure 7). In other studies, the authors explored the influence of particle size on water cross-sensitivity [24]. The study was carried out by comparing the impedance response of porous electrolyte NO_x sensors composed of fine PSZ particles to coarse PSZ particles for operation in dry and humidified gas conditions [22,24]. The data observed indicated that these sensors behaved similarly in the presence of water [24]. The water cross-sensitivity study suggests that the size of the PSZ particles composing the porous electrolyte did not influence water cross-sensitivity at these sensors. Water-adsorption experiments conducted in other studies have reported that molecular water can strongly adsorb onto the Y₂O₃ phases and hydroxyl groups form due to surface reactions [64,65]. In addition, computational studies have indicated that molecular water dissociation is a mechanism for hydroxyl species formation at Y₂O₃-ZrO₂ surfaces and interfacial reactions involving the oxide and hydroxyl groups can enhance oxygen ion conductivity [66]. The enhanced oxygen ion conductivity for both sensors in the present study promoted the water cross-sensitivity. The humidified gas environment impacted FSZ composite sensors more than FSZ (see Figure 8). Reducing water cross-sensitivity may be possible by altering the composition of Au particles in the LSM-Au sensing electrode, as Au electrodes have been found to limit water cross-sensitivity [15].

3.2.5. The O₂ Influence on NO Sensitivity of The Composite NO_x Sensor

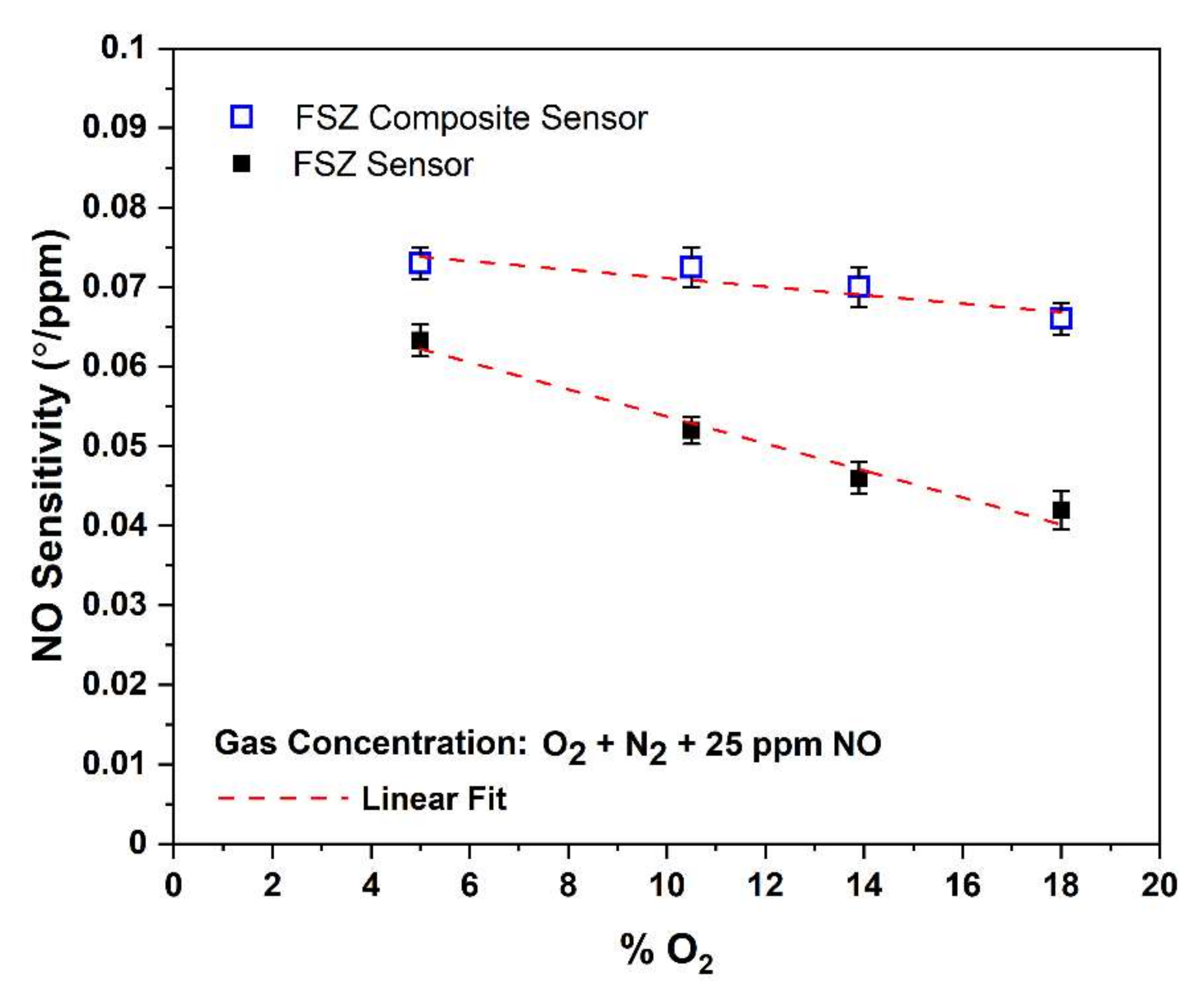

Although oxygen reactions resulting in oxygen ions contribute to electrochemical NO_x reactions, competition between O₂ and NO for active sites along the TPB can interfere with the NO sensitivity. Such an interference can limit sensor accuracy. Thus, the influence of oxygen on NO sensitivity was evaluated by operating the sensors under various oxygen environments. Figure 9 shows a graph of the NO sensitivity for the oxygen concentration present in the gas stream for both types of sensors. Compared to the FSZ sensors, the FSZ composite sensors were far less sensitive to oxygen concentration changes over a range of 5–18 vol%. Such results indicate that the oxygen cross-sensitivity was comparatively less significant for the FSZ composite sensors. (In Supplementary Materials Section S8, the rate-limiting mechanisms due to the low oxygen dependence are discussed.)

The FSZ sensors had a higher density of TPB sites relative to the FSZ composite sensors, where the Al₂O₃ addition blocked electrochemical reaction sites between the electrolyte and LSM-Au sensing electrode [23]. Thus, the FSZ sensors provided more opportunities for O₂ reactions to proceed at the electrode/electrolyte interface, promoting oxygen dependence. In other NO_x sensor studies, mixed conductivity (i.e., ionic, and electronic conducting) sensing electrodes were found to have greater cross-sensitivity to oxygen relative to gas sensors with purely electronic sensing electrodes [10]. The mixed conductivity of the electrode enlarged the TPB region, providing a greater density of sites where oxygen reactions proceeded readily. The conductivity data, along with the observations of the present study, suggested that NO_x sensors with a sufficiently high density of active sites for oxygen reactions could be more prone to O₂ cross-sensitivity.

3.2.6. The Influence of CH₄, CO₂, and CO on NO sensitivity

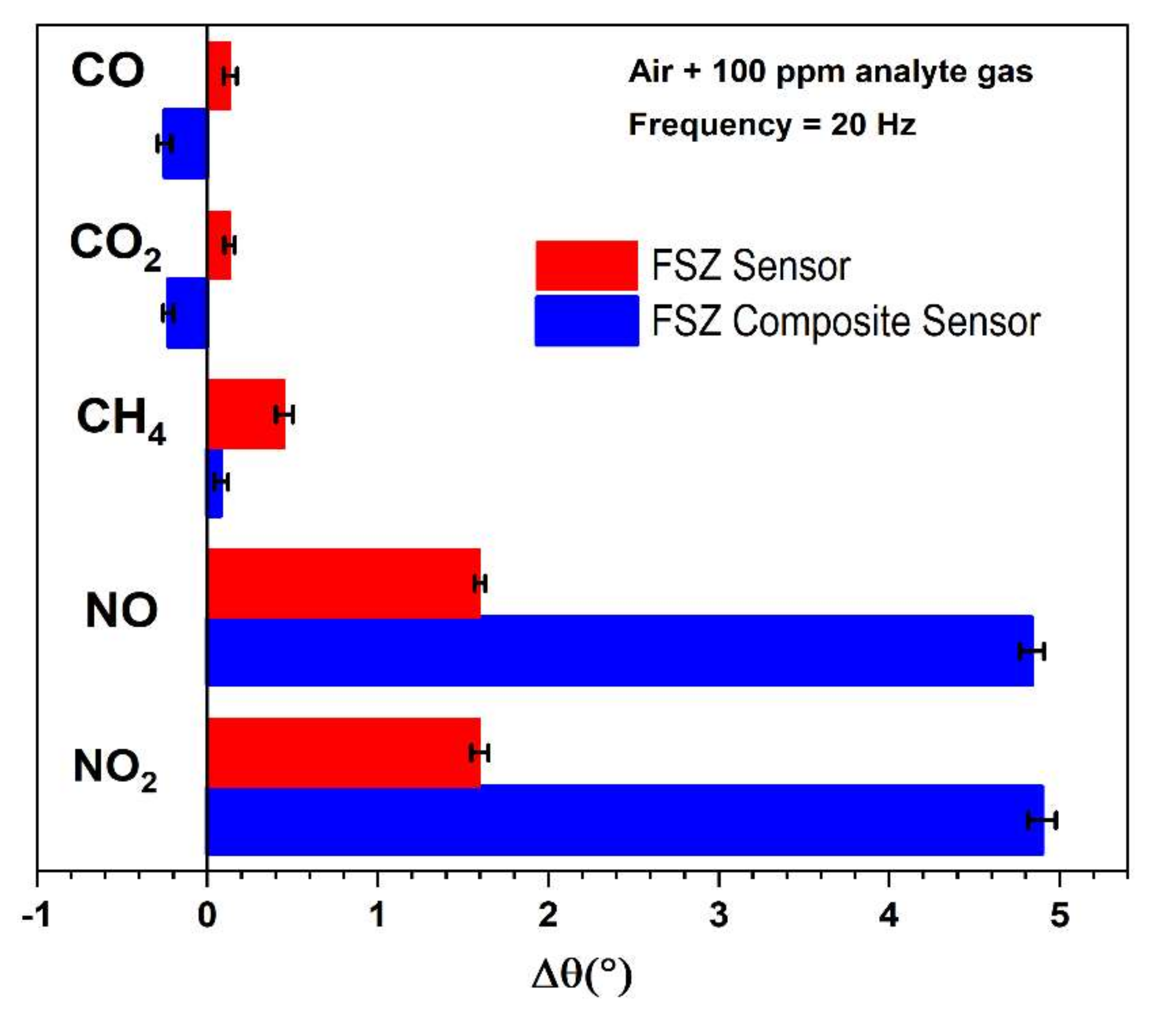

In addition to O₂ cross-sensitivity, interference from other exhaust gases can limit the NO_x sensor response accuracy. The NO_x sensitivity was evaluated under operation with CH₄, CO, and CO₂ gases, as shown in Figure 10, where the response to these gases was compared to the sensitivity measured for NO and NO₂ gases. The Δθ measurements shown in Figure 10 are based on the gas response with and without 100 ppm of the analyte gas (NO) present and air as the background gas. Both sensor types showed negligible responses to CO and CO₂, although the change of the angular phase response was in the opposite direction of the NO and NO₂ response. The FSZ composite sensors were also less prone to CH₄ cross-sensitivity in comparison to the FSZ sensors. The response to NO and NO₂ was approximately 3 times greater for FSZ composite sensors than FSZ sensors.

More yttria in the FSZ sensor decreased the surface lattice oxygen ions, essentially removing surface oxygen ions and promoting partial catalytic methane oxidation [33]. Moreover, CO₂ reforming of methane to carbon monoxide (CH₄ + CO₂ → 2CO + H₂O) and the reverse water gas shift reaction (CO₂ + H₂ → CO + H₂O) could simultaneously occur [42]. The presence of Al₂O₃ in the FSZ composite electrolyte limited the active sites along with the electrode/electrolyte interface, which subsequently reduced the activity for CO and CO₂ oxidation. Difficulty in removing lattice oxygen from the surface of the FSZ composite electrolyte caused it to be less reducible and more stable, and, thus, not conducive for CO and CO₂ partial oxidation at the sensor surface [35].

Such susceptibility toward oxidation of CO and CO₂ indicates that operating the FSZ sensor in the air can substantially hinder its NO_x sensing capability. Such an observation agreed with the findings in Figure 9, which indicated that the composite sensors were less susceptible to variations in the oxygen concentration. Moreover, LSM-based sensing electrodes are known to promote high NO_x sensitivity and selectivity in high-oxygen environments [67]. Such characteristics and the low oxygen dependence of the FSZ composite sensors most likely contribute to the sensor selectivity. The dominant sensing behavior of the FSZ composite sensors relative to the FSZ sensors demonstrated that the composite sensors could provide a more accurate NO_x sensing response.

3.2.7. Composite NO_x Sensor Response/Recovery Rates

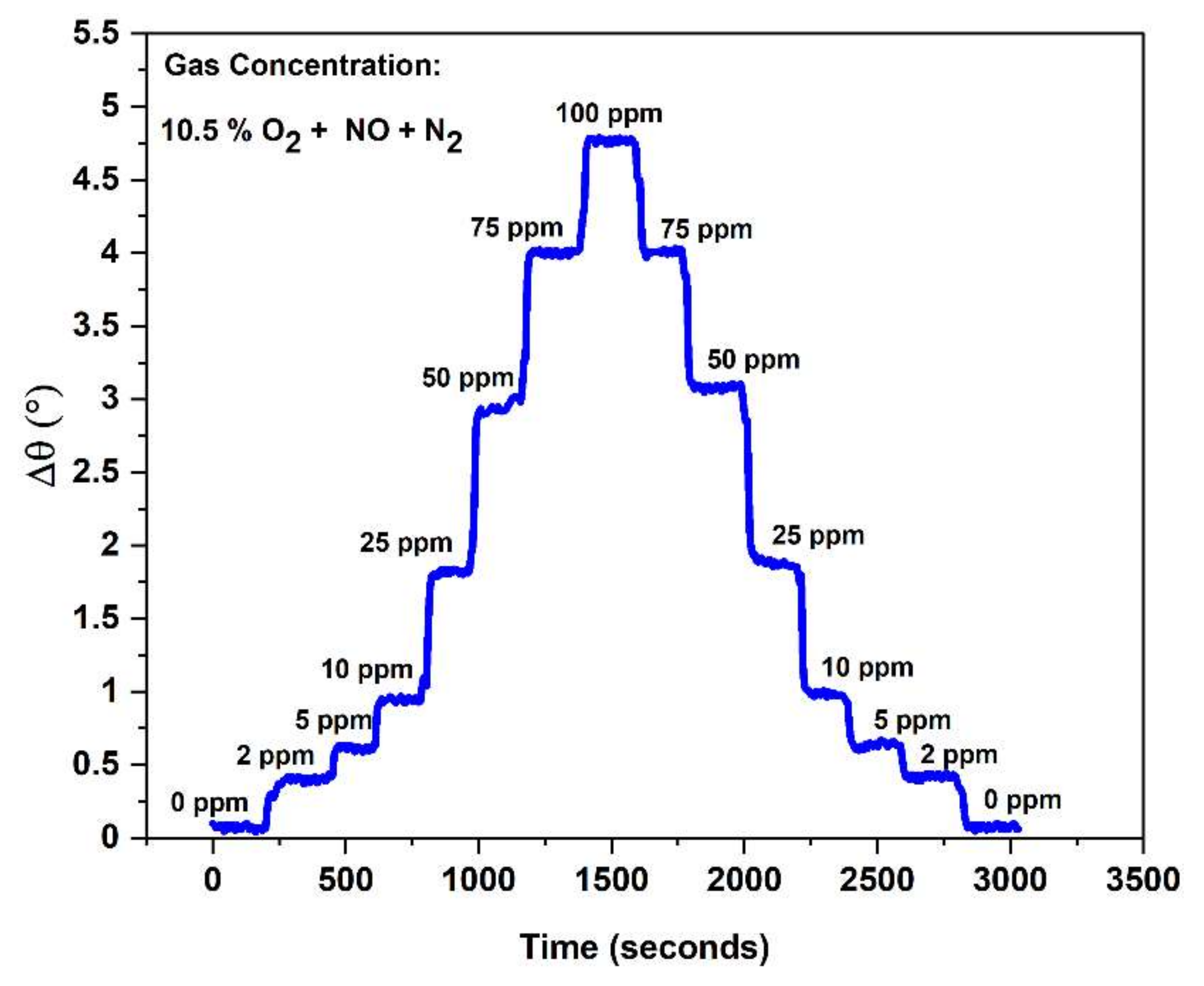

To further explore the accuracy of the FSZ composite sensors, time-based measurements of the NO sensing response and recovery rates were collected. Figure 11 shows the change in the angular phase response for an FSZ composite sensor operating at 20 Hz at T = 575 °C, while the NO concentration changed from 0 to 100 ppm. The response and recovery time, τ₉₀, was determined to be within 34 to 36 s for each of the concentrations measured. The LSM-Au sensing electrode may limit the FSZ composite sensor in response and recovery times. In other studies, NO_x sensor studies with LSM and LSM-YSZ sensing electrodes were found to have average response times of 15 to 17 s, respectively [10]. However, these sensing electrodes demonstrate substantially lower NO_x sensing capabilities relative to the LSM-Au sensing electrodes. It may be possible to improve the response/recovery time of the LSM-Au sensing electrode without sacrificing NO_x sensitivity by modifying the concentration ratio of LSM to Au composing the electrode. Another approach could be to substitute the solid LSM particles with hollow/porous LSM microparticles as the inherent pore size distribution is thought to enhance the response and recovery rates of LSM-based sensors [68]. Further observation of the data in Figure 11 indicated that the FSZ composite sensor response resolution was achieved for NO concentrations as low as 2 ppm. Such an outcome was likely related to the low O₂ cross-sensitivity of the FSZ composite sensor, and the high NO_x sensitivity promoted by the LSM-Au sensing electrode.

4. Conclusions

The microstructures of both the NO_x sensor electrolyte and sensing electrode reveal that the defects and oxygen vacancies significantly affected TPB interfacial reactions that influence sensing behavior. The collective evidence from the XPS of FSZ composite electrolyte revealed the presence of Zr⁴⁺ and Y³⁺ species, which indicated the formation of defects that provided more extrinsic oxygen vacancies conducive for ionic conduction, as also supported by XRD. The XPS of the LSM-Au sample indicated that, along with La³⁺ and Sr²⁺ species, Mn³⁺ and Mn⁴⁺ species at the surface-provided electron-transfer pathways at TPB during NO_x sensing. The presence of Mn⁴⁺ species enhanced the double-exchange phenomenon, which facilitated the oxidation of NO at TPB during NO_x sensing. The working principle of the FSZ composite sensor involved the conductivity of the FSZ composite electrolyte, due to the defect concentration of ionic charge carriers, resulting in oxygen vacancies for charge compensation. Furthermore, during NO sense, the electrons trapped by O²⁻ were transferred to the TPB region at the LSM-Au surface, reducing the number of hole carriers recombining the electron–hole. The TPB in the FSZ sensors were composed of a high density of reaction sites that seemed to support both O₂ and NO_x reactions, thereby enabling O₂ cross-sensitivity. At the FSZ composite sensors, the TPB reaction was interrupted by Al₂O₃ particles present in the composite electrolyte which blocked active electrochemical reaction sites. Such a blocking of active sites significantly affects oxygen reactions, whereas NO_x reactions seem to proceed readily. The LSM-Au sensing electrode promoted NO sensitivity, while the FSZ composite electrolyte limited cross-sensitivity toward CO, CO₂, and CH₄ gases. The LSM-Au microstructure hindered the response and recovery rates. Modifications to the LSM microstructure or changing the ratio of LSM to Au for the electrode could potentially improve these rates. Such methods are under consideration for future studies. Investigations regarding the impact of H₂O cross-sensitivity, which was evident for both sensor types via altering the amount of Au compositing the LSM-Au sensing electrode, are also under the scope of future study. Overall, the electrochemical behavior of the FSZ composite sensors indicated that the composite microstructure enabled a high NO_x sensing response and low cross-sensitivity to interferent gases, while also promoting NO detection capabilities down to 2 ppm.
