Article

Evaluation of the Potency of Anti-HIV and Anti-HCV Drugs to Inhibit P-Glycoprotein Mediated Efflux of Digoxin in Caco-2 Cell Line and Human Precision-Cut Intestinal Slices

by
Martin Huličiak
1,
Ivan Vokřál
1,*,
Ondřej Holas
2,
Ondřej Martinec
1,
František Štaud
1 and
Lukáš Červený
1
1
Department of Pharmacology and Toxicology, Faculty of Pharmacy in Hradec Králové, Charles University, 50005 Hradec Králové, Czech Republic
2
Department of Pharmaceutical Technology, Faculty of Pharmacy in Hradec Králové, Charles University, 50005 Hradec Králové, Czech Republic
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(2), 242; https://doi.org/10.3390/ph15020242
Submission received: 11 January 2022 / Revised: 14 February 2022 / Accepted: 15 February 2022 / Published: 18 February 2022
(This article belongs to the Section Pharmacology)
Browse Figures
Review Reports Versions Notes

Abstract

:
The inhibition of P-glycoprotein (ABCB1) could lead to increased drug plasma concentrations and hence increase drug toxicity. The evaluation of a drug’s ability to inhibit ABCB1 is complicated by the presence of several transport-competent sites within the ABCB1 binding pocket, making it difficult to select appropriate substrates. Here, we investigate the capacity of antiretrovirals and direct-acting antivirals to inhibit the ABCB1-mediated intestinal efflux of [3H]-digoxin and compare it with our previous rhodamine123 study. At concentrations of up to 100 µM, asunaprevir, atazanavir, daclatasvir, darunavir, elbasvir, etravirine, grazoprevir, ledipasvir, lopinavir, rilpivirine, ritonavir, saquinavir, and velpatasvir inhibited [3H]-digoxin transport in Caco-2 cells and/or in precision-cut intestinal slices prepared from the human jejunum (hPCIS). However, abacavir, dolutegravir, maraviroc, sofosbuvir, tenofovir disoproxil fumarate, and zidovudine had no inhibitory effect. We thus found that most of the tested antivirals have a high potential to cause drug–drug interactions on intestinal ABCB1. Comparing the Caco-2 and hPCIS experimental models, we conclude that the Caco-2 transport assay is more sensitive, but the results obtained using hPCIS agree better with reported in vivo observations. More inhibitors were identified when using digoxin as the ABCB1 probe substrate than when using rhodamine123. However, both approaches had limitations, indicating that inhibitory potency should be tested with at least these two ABCB1 probes.

Graphical Abstract

1. Introduction

Human immunodeficiency virus (HIV) and hepatitis C virus (HCV) infections are major global health problems. Over 100 million people are currently living with HIV or HCV [1,2,3], almost 30 million of whom have been prescribed a lifelong antiretroviral combination regimen or months of medication with combinations of direct-acting antivirals (DAA) [1,2]. Patients with HIV and/or HCV frequently have serious comorbidities that require the administration of additional pharmacotherapy [4,5,6,7,8,9,10], which increases the risk of drug–drug interactions (DDI) [11,12,13,14]. Although antivirals are highly effective and well tolerated, they share metabolic pathways with other drugs and reveal frequent interactions with membrane transporters. This creates the potential for pharmacokinetic DDI that could cause a victim drug’s plasma concentration to reach toxic or subtherapeutic levels [11,15]. Therefore, knowledge of the molecular mechanisms underpinning pharmacokinetic DDI is essential for selecting appropriate antivirals and optimal antiviral doses [11,15].
Most antivirals are thought to be substrates and/or inhibitors of P-glycoprotein (ABCB1) [16,17,18]. ABCB1 is an active efflux transporter that determines the disposition of many chemically, structurally, and functionally unrelated substances, and is considered to be a site of clinically relevant DDI [19]. Its polyspecificity is due to the presence of a large and flexible binding pocket containing several distinct transport-competent sites for rhodamine123 (RHD123), Hoechst 33342, digoxin, and prazosin [20,21,22]. ABCB1 localized in the apical membrane of enterocytes reduces the net intestinal absorption of orally administered drugs [19,20], mainly of compounds with low permeability that are minimally metabolized by cytochrome P450 [19,23,24,25,26,27,28,29,30]. DDI on intestinal ABCB1 are known to have clinical consequences: the inhibition of intestinal ABCB1 has been shown to increase the absorption of dabigatran, talinolol, fexofenadine, or digoxin [23,25,26,27,28], while ABCB1 induction reduces exposure to sofosbuvir and dabigatran [30,31]. It has been suggested that both antiretrovirals and DAA may inhibit intestinal ABCB1, but their activity in this respect has not been studied thoroughly.
Human-derived precision-cut intestinal slices (hPCIS) are miniature models of the intestine with a physiological 3D architecture that can be used to study the effects of intestinal metabolism and transporter activity on drug pharmacokinetics [32,33]. By conducting accumulation studies in hPCIS and measuring bidirectional transport across Caco-2 cell monolayers using RHD123 as a model transport substrate, we recently showed that atazanavir, lopinavir, maraviroc, ritonavir, saquinavir, ledipasvir, and daclatasvir inhibit ABCB1 in the intestine [34]. However, abacavir, tenofovir disoproxil fumarate (tenofovir DF), zidovudine, rilpivirine, etravirine, and sofosbuvir did not detectably inhibit RHD123 transport [34]. We used RHD123 as the ABCB1 probe in these studies because it was reported to be suitable for measuring ABCB1 inhibition in hPCIS [35] and cell models [21,36,37]. However, recent studies have shown that relying exclusively on RHD123 as the ABCB1 probe may prevent the detection of ABCB1 inhibitors that bind to other transporter-competent sites [20,21]. Therefore, complementary studies with probes that bind to other sites should be performed [20,21]. Here, we present the results of one such complementary study using the cardiac glycoside digoxin as the probe. Digoxin was suggested to bind to the large D site of ABCB1, which partially overlaps with the smaller RHD123 site [20,38], and its transport appears to be inhibited by a wider range of clinically relevant drugs than that of RHD123 [20]. In addition, multiple regulatory agencies list digoxin as a suitable ABCB1 substrate that can be used to test for clinical DDI [39,40]. The set of antivirals tested for ABCB1 inhibition using this probe included all of those used in our previous study [34], together with asunaprevir, darunavir, elbasvir, grazoprevir, and velpatasvir.

2. Results

2.1. Effect of Antiretrovirals and DAA on Bidirectional Transport of [3H]-Digoxin across Caco-2 Monolayers

We initially performed bidirectional transport experiments using [3H]-digoxin alone, for which the efflux ratio (rPapp) was 9.53 ± 2.22. Adding the model ABCB1 inhibitor CP100356 monohydrochloride (CP100356) (2 µM) reduced the rPapp of [3H]-digoxin to 1.49 ± 0.11. These values are comparable to those reported previously, confirming the functional expression of ABCB1 in the Caco-2 cells [41]. The antiretrovirals atazanavir (50 µM), darunavir (100 µM), lopinavir (50 µM), rilpivirine (20 µM), ritonavir (50 µM), and saquinavir (20 µM), as well as the DAAs asunaprevir (50 µM), daclatasvir (20 µM), and grazoprevir (50 µM), all reduced the rPapp of [3H]-digoxin to values in the range of 1.11 to 1.91, making their effects comparable to that of the model inhibitor. Atazanavir (20 µM), darunavir (50 µM), etravirine (20 µM), lopinavir (5 µM), and ritonavir (20 µM) and DAA asunaprevir (20 µM), elbasvir (5 µM), grazoprevir (20 µM), and ledipasvir (50 µM) also significantly inhibited [3H]-digoxin, albeit to a lesser extent, giving rPapp values of 2.75 to 5.88. Etravirine, elbasvir, and ledipasvir exhibited low solubility, so higher concentrations that could potentially inhibit ABCB1 more strongly were not tested. No significant effect on [3H]-digoxin transport was observed for the antiretrovirals abacavir, dolutegravir, maraviroc, tenofovir DF, and zidovudine, or the DAAs sofosbuvir and velpatasvir. Whereas abacavir, maraviroc, and tenofovir DF were tested at the highest chosen concentration of 100 µM, dolutegravir and velpatasvir were only tested at concentrations of 10 and 5 µM, respectively, due to their limited solubility. These results are summarized in Table 1 (antiretrovirals) and Table 2 (DAAs). Papp values for apical (A) to basolateral (B) and B to A transports are summarized in Tables S1 and S2.

2.2. Effect of Antiretrovirals and DAA on ATP Content in hPCIS

Because the validity of accumulation studies in hPCIS strongly depends on hPCIS viability, we investigated the effect of 2.5 h treatments with [3H]-digoxin (0.3 µCi/mL; 15 nM) together with antiretrovirals, DAAs, or CP100356 on the ATP content of hPCIS prepared from intestine samples collected from four donors. There were no statistically significant differences between the ATP contents of the tested samples (Figure 1). The median ATP concentrations detected in hPCIS exposed to antiretrovirals ranged from 4.5 to 5.7 pmol × µg−1, while those in DAA-treated hPCIS were between 5.5 and 5.4 pmol × µg−1. For comparative purposes, the ATP contents of control hPCIS and hPCIS exposed to CP100356 (2 µM) were 6.1 and 6.6 pmol × µg−1, respectively. It thus appears that the model inhibitor and antivirals did not affect PCIS viability, even at the highest tested concentrations.

2.3. Effect of Antiretrovirals and DAA on [3H]-Digoxin Accumulation in hPCIS

To investigate the inhibitory effect of antivirals on ABCB1 in the intestine, we used hPCIS prepared from jejunal tissue obtained from five donors. The model ABCB1 inhibitor CP100356 (2 µM) increased the accumulation of [3H]-digoxin 12-fold. As shown in Figure 2A, the uptake of [3H]-digoxin increased when hPCIS were treated with atazanavir (50 µM; 9.2-fold), darunavir (100 µM, 4.0-fold), lopinavir (50 µM, 5.0-fold), ritonavir (20 and 50 µM; 4.5- and 5.0-fold, respectively), and saquinavir (20 µM, 4.0-fold). The observed increases were comparable to those observed for CP100256 (2 µM). In contrast to the results obtained in Caco-2 cells, atazanavir (20 µM), darunavir (50 µM), etravirine (20 µM), and rilpivirine (20 µM) did not inhibit [3H]-digoxin efflux from hPCIS. Abacavir (100 µM), dolutegravir (10 µM), lopinavir (20 µM), maraviroc (100 µM), saquinavir (5 µM), tenofovir DF (100 µM), and zidovudine (100 µM) also did not induce any detectable inhibition of [3H]-digoxin efflux, in accordance with the results obtained using Caco-2 cells.
In keeping with the observation in Caco-2 cells, the DAAs asunaprevir (at both tested concentrations of 20 and 50 µM) and daclatasvir (at 20 µM) increased the [3H]-digoxin uptake by factors of 9.3, 15.2, and 13.2, respectively, whereas sofosbuvir (100 µM) had no effect. However, in contrast to the results obtained in Caco-2 cells, grazoprevir increased [3H]-digoxin uptake only at the highest tested concentration (50 µM); the other compounds showing inhibitory activity in vitro, i.e., elbasvir (5 µM) and ledipasvir (20 and 50 µM), caused no inhibition of [3H]-digoxin efflux from hPCIS. Conversely, velpatasvir (5 µM) caused a significant (9.3-fold) increase in [3H]-digoxin accumulation in hPCIS.

3. Discussion

Combination antiretroviral therapy and DAA treatment regimens are a highly effective standard pharmacotherapy for HIV and HCV infections, respectively [11,42]. However, they frequently give rise to DDI with other antiretrovirals, DAA, or drugs used to treat comorbidities [15,43,44,45]. Antiretrovirals and DAA are known to interact with ABCB1 [16,17,18], but their ability to inhibit ABCB1 directly in the human intestine has not previously been studied in detail.
We have previously tested the inhibitory effect of antiretrovirals and DAA on the intestinal ABCB1-mediated transport of the fluorescent probe RHD123 [36] using a combination of bidirectional transport studies in Caco-2 cells and accumulation assays in PCIS [34]. The main advantages of RHD123 are its low cost, easy detection, and relatively low toxicity [36]. However, relying exclusively on RHD123 as an ABCB1 probe may prevent the detection of ABCB1 inhibitors that bind to other transporter-competent sites [20,21,22]. Digoxin, the probe used in this study, is frequently prescribed by clinicians despite its narrow therapeutic index and high frequency of DDI, including with antiviral drugs [11,15,42,46]. Importantly, it is considered to be a sensitive substrate for testing ABCB1 transport and the inhibition of ABCB1-mediated efflux in cell lines [39,47] because it undergoes minimal metabolism and exhibits low inhibitory potency towards clinically relevant intestinal transporters other than ABCB1 [38,48]. The use of digoxin instead of RHD123 in inhibition studies increases the number of identified inhibitors, probably because it has a larger binding region that partially overlaps with the R-site [20,21,49].
As stated previously, hPCIS prepared from human jejunum were used in this study. The jejunum has a very high absorptive capacity and a high expression of ABCB1 [50]. The ileum has similar characteristics [51,52], but tests on this segment were not performed because, at the time of writing the manuscript, it was impossible to collect healthy segments of the human ileum from the University Hospital in Hradec Kralove. Viability was assessed via an ATP content analysis in control and drug-exposed hPCIS, as previously recommended [33,34,35].
Of the antiretrovirals tested, atazanavir, darunavir, etravirine, lopinavir, rilpivirine, ritonavir, and saquinavir inhibited ABCB1-mediated digoxin transport in Caco-2 cells and/or hPCIS. The inhibitory effects of atazanavir, darunavir, ritonavir, and saquinavir are consistent with results from previous studies using other in vitro experimental models [37,53,54] and with reported increases in the AUC of digoxin and dabigatran etexilate in vivo [11]. The inhibitory activity of atazanavir, ritonavir, and saquinavir was also previously observed in Caco-2 cells and hPCIS when using RHD123 as the probe [34]. Furthermore, in accordance with results obtained using non-intestinal experimental models [54,55], we found that lopinavir is a potent inhibitor of the ABCB1-mediated transport of RHD123 [34] and digoxin in Caco-2 cells and hPCIS (Table 1 and Figure 2A). Similarly, a docking analysis using a mice model of ABCB1a (PDB code: 4M1M, Figure S1) showed large binding contact in an ABCB1a cavity (Figure S2) and binding free energy (Table S3). Surprisingly, lopinavir does not alter the pharmacokinetics of ABCB1 substrates in vivo [11]. This is probably because prolonged exposure to lopinavir increases ABCB1 expression, which compensates for its inhibitory activity. As a result, overall reductions in ABCB1 activity following lopinavir treatment are only observed after acute exposure [56]. Rilpivirine was also previously suggested to inhibit ABCB1 in vitro [11,57]. However, rilpivirine at a dose of 25 mg/day does not significantly affect the pharmacokinetics of digoxin or tenofovir DF in vivo [57], suggesting that the inhibition of ABCB1 in human tissues by itself is insufficient to change the pharmacokinetics of ABCB1 substrates. In keeping with this hypothesis, rilpivirine did not affect digoxin efflux in hPCIS (Figure 2A). Additionally, our results indicate that etravirine inhibits ABCB1 in Caco-2 monolayers, contradicting results obtained previously using cell line models with calcein, pheophorbide A, and RHD123 as probes [37,58]. Presumably, the inhibitory effects of etravirine towards ABCB1 probe substrates differ because of the presence of multiple substrate binding sites in ABCB1 [20,21,49]. However, etravirine had no significant inhibitory effect in experiments using hPCIS. We therefore hypothesize that it is only a weak ABCB1 inhibitor, in accordance with the information provided in the summary of product characteristics for the drug Intelence, in which etravirine is the active ingredient [59], and a docking analysis (Figure S3).
Abacavir, dolutegravir, tenofovir DF, and zidovudine have been identified as likely ABCB1 substrates [60,61,62,63]. This identification is supported by their relatively high free energies of binding to the transporter (see Table S3). In keeping with previous studies [11,37], we observed no ABCB1 inhibitory activity for abacavir, tenofovir DF, or zidovudine. Therefore, these antiretrovirals are unlikely to compete with digoxin for binding to its ABCB1 binding pocket or to affect ABCB1 function by binding to the access tunnel [64]. The docking analysis also showed a narrower contact of abacavir with the binding cavity when compared with lopinavir (Figure S2). We also did not observe any inhibitory activity of dolutegravir (Table 1, Figure 2A), contradicting a previous suggestion that it might be a weak inhibitor of digoxin transport in MDCK-ABCB1 cells based on apparent activity at a concentration of 100 µM [60]. However, the reported solubility of this drug in dimethyl sulfoxide (DMSO) is poor; its maximum dissolved concentration is claimed to be in the range of 5 to 10 mM. Therefore, we prepared the stock solution at a concentration of 10 mM. To avoid exceeding the maximum DMSO concentration of 0.1% in the test solution, we could only test dolutegravir at concentrations of up to 10 µM. Because the concentration of dolutegravir could potentially exceed 100 µM in the intestine, an inhibitory effect on intestinal ABCB1 in patients cannot be ruled out based on our results.
Of the tested DAA, asunaprevir, daclatasvir, and grazoprevir inhibited ABCB-mediated digoxin transport in Caco-2 cells and hPCIS. Asunaprevir and daclatasvir have been previously suggested to inhibit ABCB1 in vitro [34,65], and both drugs increase digoxin bioavailability in humans [15,66]. Velpatasvir inhibited ABCB1 only in hPCIS. This finding is consistent with observations in healthy volunteers, in whom velpatasvir increased digoxin exposure by 34% without changing its t1/2 [67]. Ledipasvir inhibited RHD123 transport in Caco-2 cells [34] and is suggested to modestly increase the AUC of digoxin in humans [42]. Our data, obtained using hPCIS, thus support the conclusion that asunaprevir, daclatasvir, and ledipasvir increase the digoxin AUC by inhibiting intestinal ABCB1. Elbasvir also inhibited ABCB1 in vitro [42], but its effect on intestinal ABCB1 inhibition appears to be minimal in humans (11% increase in plasma AUC) [42], which is consistent with its lack of effect in our hPCIS experiments (Figure 2B). Although grazoprevir is a substrate for ABCB1 [42], it was reported not to inhibit ABCB1 in vitro [68], contradicting the results obtained with both of our experimental models. Unfortunately, the studies in which this inhibitory activity was observed are not publicly accessible, making it impossible to know what concentrations were tested or which experimental models were used. The concentrations of grazoprevir tested in our assays could plausibly occur in the small intestine during therapy, so their effects on the intestinal absorption of ABCB1 substrates in humans warrant evaluation. Sofosbuvir is also a substrate of ABCB1 that does not appear to inhibit ABCB1 [42]. Our experiments using digoxin (Table 2, Figure 2B) and RHD123 [34] as probes confirmed this compound’s non-inhibition of ABCB1. Since the calculated free energy of binding of sofosbuvir to ABCB1 is similar to that of digoxin (Table S3), it can be speculated that its mode of binding to ABCB1 differs from that of typical inhibitors [64].
Some antivirals exhibited different inhibitory potencies towards ABCB1-mediated digoxin efflux in Caco-2 cells and hPCIS (Table 1 and Table 2 and Figure 2). Etravirine, rilpivirine, elbasvir, and ledipasvir inhibited digoxin transport in Caco-2 cells but had no effect on digoxin accumulation in hPCIS. Because Caco-2 cells and human jejunum express comparable levels of ABCB1 [50,69], we hypothesize that this outcome is due to the previously suggested greater sensitivity of bidirectional transport studies [70], which results from the reduced binding of test compounds to cell membranes [70] and the narrower tight junctions in the Caco-2 system [71]. Furthermore, differences in the expression of metabolic enzymes and uptake transporters between the Caco-2 cell line and hPCIS could also explain these discrepancies. The hPCIS, compared to the Caco-2 cell line, express a cytochrome P450 3A4 (CYP3A4) drug-metabolizing enzyme [50]. Some of the tested antivirals can be extensively metabolized by CYP3A4 [72], resulting in less pronounced ABCB1 inhibition. On the other hand, metabolites that are produced by enzymatic conversion can also inhibit ABCB1 [73]. On the contrary, the Caco-2 cell line expresses higher levels of some uptake transporters, which could lead to the increased intracellular concentration of the antivirals, leading to the more significant ABCB1 inhibition [50,74]. The hPCIS-based model was previously also found to be less sensitive than the Caco-2 system when measuring the inhibitory potency of maraviroc and ledipasvir [34]. On the other hand, velpatasvir had no effect on digoxin transport in Caco-2 cells, but inhibited ABCB1 in hPCIS. However, it should be noted that, due to its low solubility, velpatasvir was only tested at a concentration of 5 µM, even though its suggested IC50 for ABCB1 is approximately 20.6 µM [67]. We hypothesize that its lack of effect in Caco-2 cells was due to the extensive binding of velpatasvir to bovine serum albumin in the acceptor compartment, which would reduce the amount of free velpatasvir present in bidirectional experiments. Alternatively, velpatasvir metabolites produced in hPCIS by CYP3A4 [42] could be responsible for the ABCB1 inhibition seen in that model system.
The use of digoxin as the probe in these bidirectional transport studies led to the identification of etravirine and rilpivirine as ABCB1 inhibitors (Table 3 and Table 4), neither of which were identified as inhibitors when using RHD123 as the probe [34]. This is consistent with evidence that ABCB1-mediated digoxin transport appears to be affected by a wide spectrum of clinically relevant compounds [20,21]. However, maraviroc significantly affected the ABCB1-mediated transport of RHD123 [34], but not digoxin, in Caco-2 cells (Table 3). The docking analysis showed that maraviroc binds to ABCB1 with a free energy of binding of −8.85 kcal/mol, which is similar to that for digoxin (−8.55 kcal/mol) and greater than that for RHD123 (−6.74 kcal/mol; see Supplementary Materials, Table S3 and Figure S4). The absence of DDI between maraviroc and digoxin is also supported by clinical findings showing that total exposure to digoxin was unaffected by the presence of maraviroc in healthy volunteers [75].

4. Materials and Methods

4.1. Reagents and Chemicals

[3H]-digoxin was purchased from Moravek Biochemicals (Brea, CA, USA). Abacavir, atazanavir, etravirine, lopinavir, maraviroc, rilpivirine, ritonavir, saquinavir, tenofovir DF, and zidovudine were obtained from the NIH AIDS Reagent Program. Asunaprevir, daclatasvir, darunavir, dolutegravir, elbasvir, grazoprevir, ledipasvir, sofosbuvir, and velpatasvir were acquired from MedChemExpress LLC (Middlesex County, NJ, USA). The model ABCB1 inhibitor CP100356 [76], the ATP bioluminescence assay kit, DMSO, Dulbecco’s Modified Eagle Medium, ethanol (EtOH), fetal bovine serum, nonessential amino acid solution, and penicillin–streptomycin solutions were purchased from Sigma-Aldrich (St. Louis, MO, USA). Hanks’ balanced salt solution, William’s medium E containing L-glutamine (WME), and the bicinchoninic acid protein assay kit were obtained from Thermo Fisher Scientific (Waltham, MA, USA). Krebs–Henseleit buffer was prepared as described by de Graaf et al. [31]. All other reagents were of analytical grade.

4.2. Stock Solutions and Test Solutions

CP100356 and all antivirals were dissolved in DMSO, while digoxin was dissolved in 99.9% EtOH. The stock solutions were stored at −20 °C before use. The final concentration of DMSO was 0.1% in all experiments. The final concentrations of EtOH in hPCIS and Caco-2 cells were 0.03% and 0.012%, respectively. The highest tested concentrations of the antivirals were determined by their solubility in the incubation medium; if solubility was not limiting, the maximum tested concentration was the lowest concentration at which the rPapp became comparable to that achieved with CP100356.

4.3. Cell Culture and Growth Condition

The Caco-2 colorectal adenocarcinoma cell line (ATCC HTB-37) was purchased from the American Type Culture Collection and cultured in high-glucose Dulbecco’s Modified Eagle Medium, with L-glutamine supplemented with 10% fetal bovine serum and a 1% nonessential amino acid solution. Cells were routinely cultured in an antibiotic-free medium and incubated in a humidified incubator under a 5% CO2 atmosphere at 37 °C. Cells from passages 10 to 40 were used in all in vitro experiments.

4.4. Human Tissue Samples

Intestinal samples (jejunum) were collected from five donors (Table 5) while they were undergoing the Whipple procedure (pancreaticoduodenectomy) at the University Hospital in Hradec Kralove, Czech Republic. Sample collection was performed with written informed patient consent and the approval of the local research ethics committee (approval no. 201511 S26P and 202103 I67P) [34,77].

4.5. In Vitro Bidirectional Permeability Experiments

Transport experiments were performed using microporous polycarbonate membrane filters (0.4 µm pore size, 12 mm diameter; Transwell® 3401; Costar, Corning, NY, USA), as previously described [34]. Caco-2 cells were seeded at a density of 3 × 105 cells per insert and cultured for 21 days in a standard cultivation medium containing 1% penicillin–streptomycin. The medium was changed every other day, during which the transepithelial electrical resistance (TEER) across the cell monolayers was measured using a Millicell-ERS instrument (Millipore Corporation, Bedford, MA, USA) [34]. The TEER values before the start of the experiment ranged from 1100 to 1900 Ωcm2, which is consistent with previous reports [78,79]. For the bidirectional permeability assay, a Hanks’ balanced salt solution buffer was used. The pH in the A compartment was adjusted to 6.5 using a methanesulfonic acid solution, while that in the B compartment was adjusted to 7.4 using a HEPES solution [34,80]. The volumes used were 0.5 mL and 1.5 mL in compartments A and B, respectively. To improve the reproducibility of the results, the receiver compartment always contained 1% bovine serum albumin, as previously recommended [80]. All wells were preincubated for 30 min with the appropriate transport buffer, containing CP100356 or one of the tested antiviral drugs [34,80]. The assay was started by placing fresh buffer containing CP100356 or an antiviral drug in the donor compartment (compartment A for A to B transport and compartment B for B to A transport) together with [3H]-digoxin at an activity level of 0.12 µCi/mL, corresponding to a low non-saturating concentration of 6 nM [81]. Samples (200 µL) were collected after 1 and 2 h from the receiver compartment; after the first collection, fresh receiver solution was added to the receiver compartment to maintain the original volume [80]. The concentration of [3H]-digoxin was quantified using a Tri-Carb 2900TR liquid scintillation analyzer (Packard Bioscience, Meriden, CT, USA). Its concentration in the samples collected during Caco-2 experiments was measured after adding 1 mL of Ultima GoldTM Cocktail. A to B and B to A transport were evaluated in terms of an apparent permeability coefficient (Papp), calculated using the equation in [80,81].
Papp = (dC/dt) × Vr/(A × C0)
where dC/dt is the change in concentration over time measured during the linear phase of transport over 1 h, Vr is the volume of the receiver well in milliliters, A is the area of the membrane in square centimeters, and C0 is the initial concentration in the donor compartment. The efflux ratio (rPapp) was then calculated using the equation [80,82]:
rPapp = (Papp B to A)/(Papp A to B)

4.6. Analysis of the ATP Content in hPCIS

To evaluate whether antivirals or [3H]-digoxin at an activity of 0.3 µCi/mL (15 nM) had any impact on the viability of the hPCIS, the intracellular ATP content, which is a verified marker of the preservation of vital cell processes [35], was measured using the CLS II ATP bioluminescence assay kit (Roche, Mannheim, Germany), as previously described [34,35,83]. Measurements were performed using fresh hPCIS after 2.5 h incubation with [3H]-digoxin (0.3 µCi/mL; 15 nM) and/or the antivirals. The ATP contents before and after incubation were then compared.

4.7. Ex Vivo Accumulation Experiments in hPCIS Prepared from the Jejunum

Ex vivo accumulation assays were performed as previously described [32]. Directly after surgery, the resected part of the human jejunum was placed in cold (4 °C) Krebs–Henseleit buffer oxygenated with carbogen gas [32,34,35]. The muscle layer was removed, and the remaining mucosa was cut into fragments measuring approximately 5 by 20 mm, which were then embedded in a 3% agarose solution (3% (wt/vol) in 0.9% NaCl, 37 °C). PCIS of approximately 300 µm thickness were cut using a Krumdieck tissue slicer (Alabama R&D, Munford, AL, USA). Slices were pre-incubated for 30 min in the presence of CP100356 or an antiviral drug in WME [34,35] and then transferred to a WME incubation medium containing [3H]-digoxin (0.3 µCi/mL; 15 nM) and the compound being tested. Both incubation steps were conducted in a humidified atmosphere of 80% O2 and 5% CO2 at 37 °C [32,34,35]. The accumulation of [3H]-digoxin was stopped after 2 h of incubation by washing the slices twice in the Krebs–Henseleit cold buffer (4 °C). Slices were transferred to 2 mL microvials containing 600 µL of acetonitrile solution (acetonitrile/water ratio, 2:1) and approximately 300 mg of glass minibeads (diameter, 1.25 to 1.65 mm; Carl Roth, Karlsruhe, Germany), and homogenized with a FastPrep24 5G minibead beater (MP Biomedicals, Santa Ana, CA, USA; 6.0 m/s, twice for 45 s each). The samples were then centrifuged (10 min; 7800 g). Concentrations of [3H]-digoxin in the supernatant samples (300 µL) were assessed after mixing them with 1.5 mL of Ultima Gold™ via scintillation counting (Tri-Carb 2900TR liquid scintillation analyzer, Packard Bioscience). The pellets obtained during centrifugation were dried overnight at 37 °C and then solubilized in 200 µL of 5 M NaOH for 24 h. Milli-Q water was then added to the samples to achieve a NaOH concentration of 1 M. The protein content was measured using a bicinchoninic acid protein kit (Thermo Fisher Scientific, Waltham, MA, USA). The measured [3H]-digoxin concentrations were normalized against the protein content.

4.8. Statistical Evaluation

Statistical analysis of bidirectional transport across Caco-2 cells was performed using an ordinary one-way ANOVA with Dunnett’s post hoc multiple comparisons test. The statistical significance of differences in the measured ATP contents of hPCIS after different treatments was assessed using the non-parametric Kruskal–Wallis test followed by Dunn’s test. The effect of antivirals on [3H]-digoxin accumulation in hPCIS was evaluated using the non-parametric paired Friedman test followed by Dunn’s test. Values differing from controls at the p < 0.05, p < 0.01, and p < 0.001 levels are indicated with the labels *, **, and ***, respectively.

5. Conclusions

We have shown that asunaprevir, atazanavir, daclatasvir, darunavir, grazoprevir, lopinavir, ritonavir, and saquinavir inhibit ABCB1 in both Caco-2 monolayers and hPCIS. Therefore, we conclude that these drugs have a high potential to cause DDIs on intestinal ABCB1. Our hPCIS data also suggest that velpatasvir may inhibit intestinal ABCB1. There is supporting clinical evidence that most of these antivirals increase the AUC of ABCB1 substrates. Our findings suggest that the inhibition of intestinal ABCB1 contributes to this increase in AUC and should, therefore, be taken into account when establishing new antiviral combination regimens or when considering polypharmacy in HIV- and/or HCV-positive patients, especially in cases involving drugs whose absorption is significantly reduced by ABCB1, such as dabigatran etexilate and digoxin [11,15]. On the other hand, abacavir, dolutegravir, maraviroc, sofosbuvir, tenofovir DF, and zidovudine exhibit no apparent inhibitory activity towards ABCB1. Comparing the two experimental models used in this work, we conclude that the bidirectional transport-based assay using Caco-2 cells is more sensitive and better able to reveal ABCB1 inhibition, but that the results of hPCIS experiments agree more closely with published in vivo findings. Additionally, more inhibitors are identified when using digoxin as the ABCB1 probe substrate than when using RHD123. However, both probes have limitations, so inhibitory potency should be tested using at least two ABCB1 probes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph15020242/s1, Figure S1: Location of the binding cavity used in the docking experiment within the ABCB1a crystal structure (PDB code: 4M1M); Figure S2: Visualizations of the top scoring poses of lopinavir and abacavir within the ligand binding cavity; Figure S3: Visualizations of the top scoring pose of etravirine within the ligand binding cavity together with digoxin and RHD123; Figure S4: Visualizations of the top scoring pose of maraviroc within the ligand binding cavity together with digoxin and RHD123; Table S1: Effects of the antiretrovirals and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers—Papp values; Table S2: Effects of the tested DAAs and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers—Papp values; Table S3: Binding free energies of the top scoring poses of RHD123, digoxin, CP100356, and the studied antivirals in the ABCB1a mouse crystal structure. References [20,84] are cited in the supplementary materials.

Author Contributions

Conceptualization, M.H., I.V. and L.Č.; methodology, M.H., O.H., O.M. and I.V.; data curation, I.V. and L.Č.; writing—original draft preparation, M.H., I.V. and L.Č.; writing—review and editing, I.V., F.Š. and L.Č.; visualization, I.V. and O.H.; supervision, I.V. and L.Č.; funding acquisition, I.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Czech Science Foundation (GACR 18-07281Y), the grant agency of Charles University (GAUK 364521 and SVV 260 549), and the EFSA-CDN (no. CZ.02.1.01/0.0/0.0/16_019/0000841) project, which was co-funded by the ERDF.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of University Hospital in Hradec Kralove, Czech Republic (approval no. 201511 S26P, 29.10. 2015, approval no. 202103 I67P, 4. 3. 2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available in this article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. WHO. HIV/AIDS. Available online: www.who.int/news-room/fact-sheets/detail/hiv-aids (accessed on 17 July 2021).
  2. WHO. Hepatitis C. Available online: http://www.who.int/news-room/fact-sheets/detail/hepatitis-c (accessed on 17 July 2021).
  3. WHO. Global Hepatitis Report. Available online: https://apps.who.int/iris/bitstream/handle/10665/255016/9789?sequence=1 (accessed on 17 July 2021).
  4. Brown, T.T.; Qaqish, R.B. Antiretroviral therapy and the prevalence of osteopenia and osteoporosis: A meta-analytic review. AIDS 2006, 20, 2165–2174. [Google Scholar] [CrossRef]
  5. Brown, T.T.; Tassiopoulos, K.; Bosch, R.J.; Shikuma, C.; McComsey, G.A. Association between systemic inflammation and incident diabetes in HIV-infected patients after initiation of antiretroviral therapy. Diabetes Care 2010, 33, 2244–2249. [Google Scholar] [CrossRef] [Green Version]
  6. Burdo, T.H.; Weiffenbach, A.; Woods, S.P.; Letendre, S.; Ellis, R.J.; Williams, K.C. Elevated sCD163 in plasma but not cerebrospinal fluid is a marker of neurocognitive impairment in HIV infection. AIDS 2013, 27, 1387–1395. [Google Scholar] [CrossRef] [Green Version]
  7. Duprez, D.A.; Kuller, L.H.; Tracy, R.; Otvos, J.; Cooper, D.A.; Hoy, J.; Neuhaus, J.; Paton, N.I.; Friis-Moller, N.; Lampe, F.; et al. Lipoprotein particle subclasses, cardiovascular disease and HIV infection. Atherosclerosis 2009, 207, 524–529. [Google Scholar] [CrossRef] [Green Version]
  8. Hudson, B.; Walker, A.J.; Irving, W.L. Comorbidities and medications of patients with chronic hepatitis C under specialist care in the UK. J. Med. Virol. 2017, 89, 2158–2164. [Google Scholar] [CrossRef] [Green Version]
  9. Louie, K.S.; St Laurent, S.; Forssen, U.M.; Mundy, L.M.; Pimenta, J.M. The high comorbidity burden of the hepatitis C virus infected population in the United States. BMC Infect. Dis. 2012, 12, 86. [Google Scholar] [CrossRef] [Green Version]
  10. Shiels, M.S.; Cole, S.R.; Kirk, G.D.; Poole, C. A meta-analysis of the incidence of non-AIDS cancers in HIV-infected individuals. J. Acquir. Immune Defic. Syndr. 2009, 52, 611–622. [Google Scholar] [CrossRef] [Green Version]
  11. Department of Health and Human Services. Panel on Antiretroviral Guidelines for Adults and Adolescents. Guidelines for the Use of Antiretroviral Agents in Adults and Adolescents with HIV. Available online: https://clinicalinfo.hiv.gov/sites/default/files/guidelines/documents/AdultandAdolescentGL.pdf (accessed on 26 August 2020).
  12. Goodlet, K.J.; Zmarlicka, M.T.; Peckham, A.M. Drug-drug interactions and clinical considerations with co-administration of antiretrovirals and psychotropic drugs. CNS Spectr. 2019, 24, 287–312. [Google Scholar] [CrossRef]
  13. Marzolini, C.; Elzi, L.; Gibbons, S.; Weber, R.; Fux, C.; Furrer, H.; Chave, J.P.; Cavassini, M.; Bernasconi, E.; Calmy, A.; et al. Prevalence of comedications and effect of potential drug-drug interactions in the Swiss HIV Cohort Study. Antivir. Ther. 2010, 15, 413–423. [Google Scholar] [CrossRef] [Green Version]
  14. Nachega, J.B.; Hsu, A.J.; Uthman, O.A.; Spinewine, A.; Pham, P.A. Antiretroviral therapy adherence and drug-drug interactions in the aging HIV population. AIDS 2012, 26 (Suppl. 1), S39–S53. [Google Scholar] [CrossRef]
  15. Talavera Pons, S.; Boyer, A.; Lamblin, G.; Chennell, P.; Chatenet, F.T.; Nicolas, C.; Sautou, V.; Abergel, A. Managing drug-drug interactions with new direct-acting antiviral agents in chronic hepatitis C. Br. J. Clin. Pharmacol. 2017, 83, 269–293. [Google Scholar] [CrossRef] [PubMed]
  16. Cerveny, L.; Murthi, P.; Staud, F. HIV in pregnancy: Mother-to-child transmission, pharmacotherapy, and toxicity. Biochim Biophys. Acta Mol. Basis Dis. 2021, 1867, 166206. [Google Scholar] [CrossRef] [PubMed]
  17. Kaur, K.; Gandhi, M.A.; Slish, J. Drug-Drug Interactions Among Hepatitis C Virus (HCV) and Human Immunodeficiency Virus (HIV) Medications. Infect. Dis. Ther. 2015, 4, 159–172. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Kis, O.; Robillard, K.; Chan, G.N.; Bendayan, R. The complexities of antiretroviral drug-drug interactions: Role of ABC and SLC transporters. Trends Pharmacol. Sci. 2010, 31, 22–35. [Google Scholar] [CrossRef]
  19. Chu, X.; Liao, M.; Shen, H.; Yoshida, K.; Zur, A.A.; Arya, V.; Galetin, A.; Giacomini, K.M.; Hanna, I.; Kusuhara, H.; et al. Clinical Probes and Endogenous Biomarkers as Substrates for Transporter Drug-Drug Interaction Evaluation: Perspectives From the International Transporter Consortium. Clin. Pharmacol. Ther. 2018, 104, 836–864. [Google Scholar] [CrossRef] [Green Version]
  20. Bocci, G.; Moreau, A.; Vayer, P.; Denizot, C.; Fardel, O.; Parmentier, Y. New insights in the in vitro characterisation and molecular modelling of the P-glycoprotein inhibitory promiscuity. Eur. J. Pharm. Sci. 2018, 121, 85–94. [Google Scholar] [CrossRef]
  21. Jouan, E.; Le Vee, M.; Mayati, A.; Denizot, C.; Parmentier, Y.; Fardel, O. Evaluation of P-Glycoprotein Inhibitory Potential Using a Rhodamine 123 Accumulation Assay. Pharmaceutics 2016, 8, 12. [Google Scholar] [CrossRef] [Green Version]
  22. Mittra, R.; Pavy, M.; Subramanian, N.; George, A.M.; O’Mara, M.L.; Kerr, I.D.; Callaghan, R. Location of contact residues in pharmacologically distinct drug binding sites on P-glycoprotein. Biochem. Pharmacol. 2017, 123, 19–28. [Google Scholar] [CrossRef] [Green Version]
  23. Hartter, S.; Sennewald, R.; Nehmiz, G.; Reilly, P. Oral bioavailability of dabigatran etexilate (Pradaxa((R)) ) after co-medication with verapamil in healthy subjects. Br. J. Clin. Pharmacol. 2013, 75, 1053–1062. [Google Scholar] [CrossRef] [Green Version]
  24. Mols, R.; Brouwers, J.; Schinkel, A.H.; Annaert, P.; Augustijns, P. Intestinal perfusion with mesenteric blood sampling in wild-type and knockout mice: Evaluation of a novel tool in biopharmaceutical drug profiling. Drug Metab. Dispos. 2009, 37, 1334–1337. [Google Scholar] [CrossRef] [Green Version]
  25. Westphal, K.; Weinbrenner, A.; Giessmann, T.; Stuhr, M.; Franke, G.; Zschiesche, M.; Oertel, R.; Terhaag, B.; Kroemer, H.K.; Siegmund, W. Oral bioavailability of digoxin is enhanced by talinolol: Evidence for involvement of intestinal P-glycoprotein. Clin. Pharmacol. Ther. 2000, 68, 6–12. [Google Scholar] [CrossRef] [PubMed]
  26. Schwarz, U.I.; Gramatte, T.; Krappweis, J.; Oertel, R.; Kirch, W. P-glycoprotein inhibitor erythromycin increases oral bioavailability of talinolol in humans. Int. J. Clin. Pharmacol. Ther. 2000, 38, 161–167. [Google Scholar] [CrossRef] [PubMed]
  27. Sakugawa, T.; Miura, M.; Hokama, N.; Suzuki, T.; Tateishi, T.; Uno, T. Enantioselective disposition of fexofenadine with the P-glycoprotein inhibitor verapamil. Br. J. Clin. Pharmacol. 2009, 67, 535–540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Kumar, P.; Gordon, L.A.; Brooks, K.M.; George, J.M.; Kellogg, A.; McManus, M.; Alfaro, R.M.; Nghiem, K.; Lozier, J.; Hadigan, C.; et al. Differential Influence of the Antiretroviral Pharmacokinetic Enhancers Ritonavir and Cobicistat on Intestinal P-Glycoprotein Transport and the Pharmacokinetic/Pharmacodynamic Disposition of Dabigatran. Antimicrob. Agents Chemother. 2017, 61, e01201-17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Lutz, J.D.; Kirby, B.J.; Wang, L.; Song, Q.; Ling, J.; Massetto, B.; Worth, A.; Kearney, B.P.; Mathias, A. Cytochrome P450 3A Induction Predicts P-glycoprotein Induction; Part 1: Establishing Induction Relationships Using Ascending Dose Rifampin. Clin. Pharmacol. Ther. 2018, 104, 1182–1190. [Google Scholar] [CrossRef]
  30. Lutz, J.D.; Kirby, B.J.; Wang, L.; Song, Q.; Ling, J.; Massetto, B.; Worth, A.; Kearney, B.P.; Mathias, A. Cytochrome P450 3A Induction Predicts P-glycoprotein Induction; Part 2: Prediction of Decreased Substrate Exposure After Rifabutin or Carbamazepine. Clin. Pharmacol. Ther. 2018, 104, 1191–1198. [Google Scholar] [CrossRef] [Green Version]
  31. Hartter, S.; Koenen-Bergmann, M.; Sharma, A.; Nehmiz, G.; Lemke, U.; Timmer, W.; Reilly, P.A. Decrease in the oral bioavailability of dabigatran etexilate after co-medication with rifampicin. Br. J. Clin. Pharmacol. 2012, 74, 490–500. [Google Scholar] [CrossRef] [Green Version]
  32. de Graaf, I.A.; Olinga, P.; de Jager, M.H.; Merema, M.T.; de Kanter, R.; van de Kerkhof, E.G.; Groothuis, G.M. Preparation and incubation of precision-cut liver and intestinal slices for application in drug metabolism and toxicity studies. Nat. Protoc. 2010, 5, 1540–1551. [Google Scholar] [CrossRef]
  33. Li, M.; de Graaf, I.A.; Groothuis, G.M. Precision-cut intestinal slices: Alternative model for drug transport, metabolism, and toxicology research. Expert Opin. Drug Metab. Protoc. 2016, 12, 175–190. [Google Scholar] [CrossRef] [Green Version]
  34. Martinec, O.; Huliciak, M.; Staud, F.; Cecka, F.; Vokral, I.; Cerveny, L. Anti-HIV and Anti-Hepatitis C Virus Drugs Inhibit P-Glycoprotein Efflux Activity in Caco-2 Cells and Precision-Cut Rat and Human Intestinal Slices. Antimicrob. Agents Chemother. 2019, 63, 63. [Google Scholar] [CrossRef] [Green Version]
  35. Li, M.; de Graaf, I.A.; de Jager, M.H.; Groothuis, G.M. P-gp activity and inhibition in the different regions of human intestine ex vivo. Biopharm. Drug Dispos. 2017, 38, 127–138. [Google Scholar] [CrossRef] [PubMed]
  36. Forster, S.; Thumser, A.E.; Hood, S.R.; Plant, N. Characterization of rhodamine-123 as a tracer dye for use in in vitro drug transport assays. PLoS ONE 2012, 7, e33253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Storch, C.H.; Theile, D.; Lindenmaier, H.; Haefeli, W.E.; Weiss, J. Comparison of the inhibitory activity of anti-HIV drugs on P-glycoprotein. Biochem. Pharmacol. 2007, 73, 1573–1581. [Google Scholar] [CrossRef] [PubMed]
  38. Rautio, J.; Humphreys, J.E.; Webster, L.O.; Balakrishnan, A.; Keogh, J.P.; Kunta, J.R.; Serabjit-Singh, C.J.; Polli, J.W. In vitro p-glycoprotein inhibition assays for assessment of clinical drug interaction potential of new drug candidates: A recommendation for probe substrates. Drug Metab. Dispos. 2006, 34, 786–792. [Google Scholar] [CrossRef] [PubMed]
  39. FDA. Drug Development and Drug Interactions|Table of Substrates, Inhibitors and Inducers. Available online: https://www.fda.gov/drugs/drug-interactions-labeling/drug-development-and-drug-interactions-table-substrates-inhibitors-and-inducers#table1 (accessed on 10 September 2021).
  40. EMA. Guideline on the Investigation of Drug Interactions. Available online: https://www.ema.europa.eu/documents/scientific-guideline/guideline-investigation-drug-interactions_en.pdf (accessed on 10 September 2021).
  41. Oga, E.F.; Sekine, S.; Shitara, Y.; Horie, T. P-glycoprotein mediated efflux in Caco-2 cell monolayers: The influence of herbals on digoxin transport. J. EthnoPharmacol. 2012, 144, 612–617. [Google Scholar] [CrossRef]
  42. Garrison, K.L.; German, P.; Mogalian, E.; Mathias, A. The Drug-Drug Interaction Potential of Antiviral Agents for the Treatment of Chronic Hepatitis C Infection. Drug Metab. Dispos. 2018, 46, 1212–1225. [Google Scholar] [CrossRef]
  43. Poizot-Martin, I.; Naqvi, A.; Obry-Roguet, V.; Valantin, M.A.; Cuzin, L.; Billaud, E.; Cheret, A.; Rey, D.; Jacomet, C.; Duvivier, C.; et al. Potential for Drug-Drug Interactions between Antiretrovirals and HCV Direct Acting Antivirals in a Large Cohort of HIV/HCV Coinfected Patients. PLoS ONE 2015, 10, e0141164. [Google Scholar] [CrossRef] [Green Version]
  44. Bellesini, M.; Bianchin, M.; Corradi, C.; Donadini, M.P.; Raschi, E.; Squizzato, A. Drug-Drug Interactions between Direct Oral Anticoagulants and Hepatitis C Direct-Acting Antiviral Agents: Looking for Evidence Through a Systematic Review. Clin. Drug Investig. 2020, 40, 1001–1008. [Google Scholar] [CrossRef]
  45. Vivithanaporn, P.; Kongratanapasert, T.; Suriyapakorn, B.; Songkunlertchai, P.; Mongkonariyawong, P.; Limpikirati, P.K.; Khemawoot, P. Potential drug-drug interactions of antiretrovirals and antimicrobials detected by three databases. Sci. Rep. 2021, 11, 6089. [Google Scholar] [CrossRef]
  46. Hong, J.; Wright, R.C.; Partovi, N.; Yoshida, E.M.; Hussaini, T. Review of Clinically Relevant Drug Interactions with Next Generation Hepatitis C Direct-acting Antiviral Agents. J. Clin. Transl. Hepatol. 2020, 8, 322–335. [Google Scholar] [CrossRef]
  47. International Transporter, C.; Giacomini, K.M.; Huang, S.M.; Tweedie, D.J.; Benet, L.Z.; Brouwer, K.L.; Chu, X.; Dahlin, A.; Evers, R.; Fischer, V.; et al. Membrane transporters in drug development. Nat. Rev. Drug Discov. 2010, 9, 215–236. [Google Scholar] [CrossRef] [PubMed]
  48. Taub, M.E.; Mease, K.; Sane, R.S.; Watson, C.A.; Chen, L.; Ellens, H.; Hirakawa, B.; Reyner, E.L.; Jani, M.; Lee, C.A. Digoxin is not a substrate for organic anion-transporting polypeptide transporters OATP1A2, OATP1B1, OATP1B3, and OATP2B1 but is a substrate for a sodium-dependent transporter expressed in HEK293 cells. Drug Metab. Dispos. 2011, 39, 2093–2102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Safa, A.R. Identification and characterization of the binding sites of P-glycoprotein for multidrug resistance-related drugs and modulators. Curr. Med. Chem.-Anti-Cancer Agents 2004, 4, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Vaessen, S.F.; van Lipzig, M.M.; Pieters, R.H.; Krul, C.A.; Wortelboer, H.M.; van de Steeg, E. Regional Expression Levels of Drug Transporters and Metabolizing Enzymes along the Pig and Human Intestinal Tract and Comparison with Caco-2 Cells. Drug Metab. Dispos. 2017, 45, 353–360. [Google Scholar] [CrossRef] [Green Version]
  51. Englund, G.; Rorsman, F.; Ronnblom, A.; Karlbom, U.; Lazorova, L.; Grasjo, J.; Kindmark, A.; Artursson, P. Regional levels of drug transporters along the human intestinal tract: Co-expression of ABC and SLC transporters and comparison with Caco-2 cells. Eur. J. Pharm. Sci. 2006, 29, 269–277. [Google Scholar] [CrossRef]
  52. Canaparo, R.; Finnstrom, N.; Serpe, L.; Nordmark, A.; Muntoni, E.; Eandi, M.; Rane, A.; Zara, G.P. Expression of CYP3A isoforms and P-glycoprotein in human stomach, jejunum and ileum. Clin. Exp. Pharmacol. Physiol. 2007, 34, 1138–1144. [Google Scholar] [CrossRef]
  53. Fujimoto, H.; Higuchi, M.; Watanabe, H.; Koh, Y.; Ghosh, A.K.; Mitsuya, H.; Tanoue, N.; Hamada, A.; Saito, H. P-glycoprotein mediates efflux transport of darunavir in human intestinal Caco-2 and ABCB1 gene-transfected renal LLC-PK1 cell lines. Biol. Pharm. Bull. 2009, 32, 1588–1593. [Google Scholar] [CrossRef] [Green Version]
  54. Bierman, W.F.; Scheffer, G.L.; Schoonderwoerd, A.; Jansen, G.; van Agtmael, M.A.; Danner, S.A.; Scheper, R.J. Protease inhibitors atazanavir, lopinavir and ritonavir are potent blockers, but poor substrates, of ABC transporters in a broad panel of ABC transporter-overexpressing cell lines. J. Antimicrob. Chemother. 2010, 65, 1672–1680. [Google Scholar] [CrossRef]
  55. Kim, J.Y.; Park, Y.J.; Lee, B.M.; Yoon, S. Co-treatment With HIV Protease Inhibitor Nelfinavir Greatly Increases Late-phase Apoptosis of Drug-resistant KBV20C Cancer Cells Independently of P-Glycoprotein Inhibition. Anticancer Res. 2019, 39, 3757–3765. [Google Scholar] [CrossRef]
  56. Vishnuvardhan, D.; Moltke, L.L.; Richert, C.; Greenblatt, D.J. Lopinavir: Acute exposure inhibits P-glycoprotein; extended exposure induces P-glycoprotein. AIDS 2003, 17, 1092–1094. [Google Scholar] [CrossRef]
  57. Crauwels, H.; van Heeswijk, R.P.; Stevens, M.; Buelens, A.; Vanveggel, S.; Boven, K.; Hoetelmans, R. Clinical perspective on drug-drug interactions with the non-nucleoside reverse transcriptase inhibitor rilpivirine. AIDS Rev. 2013, 15, 87–101. [Google Scholar] [PubMed]
  58. Zembruski, N.C.; Haefeli, W.E.; Weiss, J. Interaction potential of etravirine with drug transporters assessed in vitro. Antimicrob. Agents Chemother. 2011, 55, 1282–1284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Janssen Therapeutics. Intelence. Available online: https://www.janssenlabels.com/package-insert/product-monograph/prescribing-information/INTELENCE-pi.pdf (accessed on 2 November 2021).
  60. Reese, M.J.; Savina, P.M.; Generaux, G.T.; Tracey, H.; Humphreys, J.E.; Kanaoka, E.; Webster, L.O.; Harmon, K.A.; Clarke, J.D.; Polli, J.W. In vitro investigations into the roles of drug transporters and metabolizing enzymes in the disposition and drug interactions of dolutegravir, a HIV integrase inhibitor. Drug Metab. Dispos. 2013, 41, 353–361. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Neumanova, Z.; Cerveny, L.; Ceckova, M.; Staud, F. Interactions of tenofovir and tenofovir disoproxil fumarate with drug efflux transporters ABCB1, ABCG2, and ABCC2; role in transport across the placenta. AIDS 2014, 28, 9–17. [Google Scholar] [CrossRef]
  62. Neumanova, Z.; Cerveny, L.; Ceckova, M.; Staud, F. Role of ABCB1, ABCG2, ABCC2 and ABCC5 transporters in placental passage of zidovudine. Biopharm. Drug Dispos. 2016, 37, 28–38. [Google Scholar] [CrossRef]
  63. Neumanova, Z.; Cerveny, L.; Greenwood, S.L.; Ceckova, M.; Staud, F. Effect of drug efflux transporters on placental transport of antiretroviral agent abacavir. Reprod. Protoc. 2015, 57, 176–182. [Google Scholar] [CrossRef]
  64. Nosol, K.; Romane, K.; Irobalieva, R.N.; Alam, A.; Kowal, J.; Fujita, N.; Locher, K.P. Cryo-EM structures reveal distinct mechanisms of inhibition of the human multidrug transporter ABCB1. Proc. Natl. Acad. Sci. USA 2020, 117, 26245–26253. [Google Scholar] [CrossRef]
  65. Mosure, K.W.; Knipe, J.O.; Browning, M.; Arora, V.; Shu, Y.Z.; Phillip, T.; McPhee, F.; Scola, P.; Balakrishnan, A.; Soars, M.G.; et al. Preclinical Pharmacokinetics and In Vitro Metabolism of Asunaprevir (BMS-650032), a Potent Hepatitis C Virus NS3 Protease Inhibitor. J. Pharm. Sci. 2015, 104, 2813–2823. [Google Scholar] [CrossRef]
  66. Garimella, T.; Tao, X.; Sims, K.; Chang, Y.T.; Rana, J.; Myers, E.; Wind-Rotolo, M.; Bhatnagar, R.; Eley, T.; LaCreta, F.; et al. Effects of a Fixed-Dose Co-Formulation of Daclatasvir, Asunaprevir, and Beclabuvir on the Pharmacokinetics of a Cocktail of Cytochrome P450 and Drug Transporter Substrates in Healthy Subjects. Drugs R&D 2018, 18, 55–65. [Google Scholar] [CrossRef] [Green Version]
  67. Mogalian, E.; German, P.; Kearney, B.P.; Yang, C.Y.; Brainard, D.; McNally, J.; Moorehead, L.; Mathias, A. Use of Multiple Probes to Assess Transporter- and Cytochrome P450-Mediated Drug-Drug Interaction Potential of the Pangenotypic HCV NS5A Inhibitor Velpatasvir. Clin. Pharm. 2016, 55, 605–613. [Google Scholar] [CrossRef]
  68. Merck Sharp & Dohme Corp. Zepatier. Available online: https://www.accessdata.fda.gov/drugsatfda_docs/label/2017/208261s002lbl.pdf (accessed on 9 November 2021).
  69. Taipalensuu, J.; Tornblom, H.; Lindberg, G.; Einarsson, C.; Sjoqvist, F.; Melhus, H.; Garberg, P.; Sjostrom, B.; Lundgren, B.; Artursson, P. Correlation of gene expression of ten drug efflux proteins of the ATP-binding cassette transporter family in normal human jejunum and in human intestinal epithelial Caco-2 cell monolayers. J. Pharmacol. Exp. Ther. 2001, 299, 164–170. [Google Scholar] [PubMed]
  70. Brouwer, K.L.; Keppler, D.; Hoffmaster, K.A.; Bow, D.A.; Cheng, Y.; Lai, Y.; Palm, J.E.; Stieger, B.; Evers, R.; International Transporter, C. In vitro methods to support transporter evaluation in drug discovery and development. Clin. Pharmacol. Ther. 2013, 94, 95–112. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Sun, H.; Chow, E.C.; Liu, S.; Du, Y.; Pang, K.S. The Caco-2 cell monolayer: Usefulness and limitations. Expert Opin. Drug Metab. Protoc. 2008, 4, 395–411. [Google Scholar] [CrossRef] [PubMed]
  72. Rathbun, R.C.; Liedtke, M.D. Antiretroviral drug interactions: Overview of interactions involving new and investigational agents and the role of therapeutic drug monitoring for management. Pharmaceutics 2011, 3, 745–781. [Google Scholar] [CrossRef] [Green Version]
  73. Pauli-Magnus, C.; von Richter, O.; Burk, O.; Ziegler, A.; Mettang, T.; Eichelbaum, M.; Fromm, M.F. Characterization of the major metabolites of verapamil as substrates and inhibitors of P-glycoprotein. J. Pharmacol. Exp. Ther. 2000, 293, 376–382. [Google Scholar]
  74. Bruck, S.; Strohmeier, J.; Busch, D.; Drozdzik, M.; Oswald, S. Caco-2 cells—Expression, regulation and function of drug transporters compared with human jejunal tissue. Biopharm. Drug Dispos. 2017, 38, 115–126. [Google Scholar] [CrossRef]
  75. Vourvahis, M.; Fang, J.; Choo, H.W.; Heera, J. The effect of maraviroc on the pharmacokinetics of digoxin in healthy volunteers. Clin. Pharmacol. Drug Dev. 2014, 3, 202–206. [Google Scholar] [CrossRef]
  76. Kalgutkar, A.S.; Frederick, K.S.; Chupka, J.; Feng, B.; Kempshall, S.; Mireles, R.J.; Fenner, K.S.; Troutman, M.D. N-(3,4-dimethoxyphenethyl)-4-(6,7-dimethoxy-3,4-dihydroisoquinolin-2[1H]-yl)-6,7-dimethoxyquinazolin-2-amine (CP-100,356) as a “chemical knock-out equivalent” to assess the impact of efflux transporters on oral drug absorption in the rat. J. Pharm. Sci. 2009, 98, 4914–4927. [Google Scholar] [CrossRef]
  77. Martinec, O.; Biel, C.; de Graaf, I.A.M.; Huliciak, M.; de Jong, K.P.; Staud, F.; Cecka, F.; Olinga, P.; Vokral, I.; Cerveny, L. Rifampicin Induces Gene, Protein, and Activity of P-Glycoprotein (ABCB1) in Human Precision-Cut Intestinal Slices. Front. Pharmacol. 2021, 12, 684156. [Google Scholar] [CrossRef]
  78. Hellinger, E.; Veszelka, S.; Toth, A.E.; Walter, F.; Kittel, A.; Bakk, M.L.; Tihanyi, K.; Hada, V.; Nakagawa, S.; Duy, T.D.; et al. Comparison of brain capillary endothelial cell-based and epithelial (MDCK-MDR1, Caco-2, and VB-Caco-2) cell-based surrogate blood-brain barrier penetration models. Eur. J. Pharm. Biopharm. 2012, 82, 340–351. [Google Scholar] [CrossRef]
  79. Perloff, E.S.; Duan, S.X.; Skolnik, P.R.; Greenblatt, D.J.; von Moltke, L.L. Atazanavir: Effects on P-glycoprotein transport and CYP3A metabolism in vitro. Drug Metab. Dispos. 2005, 33, 764–770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Hubatsch, I.; Ragnarsson, E.G.; Artursson, P. Determination of drug permeability and prediction of drug absorption in Caco-2 monolayers. Nat. Protoc. 2007, 2, 2111–2119. [Google Scholar] [CrossRef] [PubMed]
  81. Cavet, M.E.; West, M.; Simmons, N.L. Transport and epithelial secretion of the cardiac glycoside, digoxin, by human intestinal epithelial (Caco-2) cells. Br. J. Pharmacol. 1996, 118, 1389–1396. [Google Scholar] [CrossRef] [Green Version]
  82. Zembruski, N.C.; Buchel, G.; Jodicke, L.; Herzog, M.; Haefeli, W.E.; Weiss, J. Potential of novel antiretrovirals to modulate expression and function of drug transporters in vitro. J. Antimicrob. Chemother. 2011, 66, 802–812. [Google Scholar] [CrossRef] [Green Version]
  83. van de Kerkhof, E.G.; Ungell, A.L.; Sjoberg, A.K.; de Jager, M.H.; Hilgendorf, C.; de Graaf, I.A.; Groothuis, G.M. Innovative methods to study human intestinal drug metabolism in vitro: Precision-cut slices compared with ussing chamber preparations. Drug Metab. Dispos. 2006, 34, 1893–1902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Li, J.; Jaimes, K.F.; Aller, S.G. Refined structures of mouse P-glycoprotein. Protein Sci. 2014, 23, 34–46. [Google Scholar] [CrossRef]
Pharmaceuticals 15 00242 g001 550

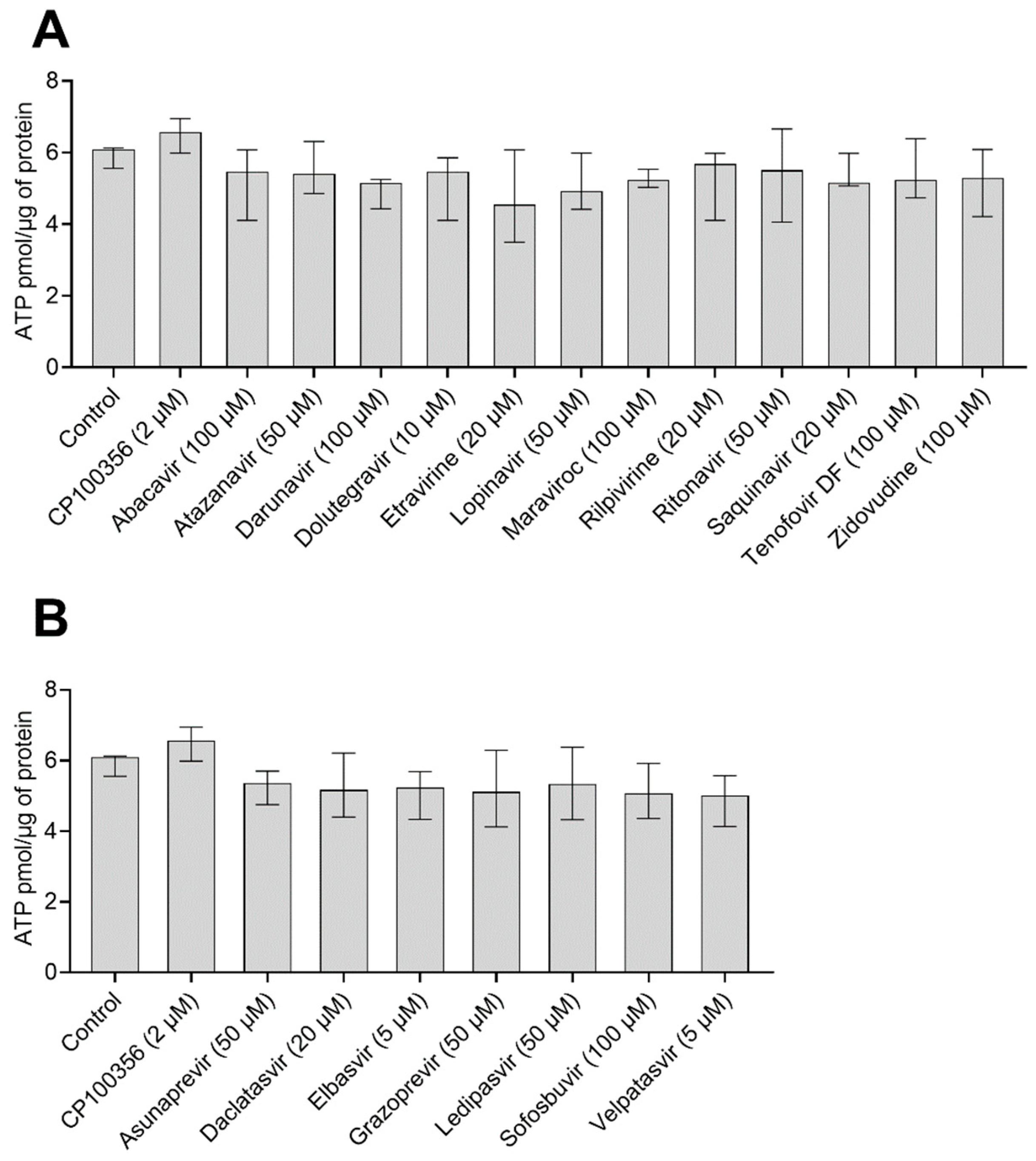

Figure 1. ATP contents of hPCIS (n = 4) after 2.5 h of incubation with [3H]-digoxin in the presence of the studied (A) antivirals and (B) DAA at their highest tested concentrations. Data are presented as medians with interquartile ranges. Statistical significance was assessed using the nonparametric Kruskal–Wallis test followed by Dunn’s test. No statistically significant differences were found.
Figure 1. ATP contents of hPCIS (n = 4) after 2.5 h of incubation with [3H]-digoxin in the presence of the studied (A) antivirals and (B) DAA at their highest tested concentrations. Data are presented as medians with interquartile ranges. Statistical significance was assessed using the nonparametric Kruskal–Wallis test followed by Dunn’s test. No statistically significant differences were found.
Pharmaceuticals 15 00242 g001
Pharmaceuticals 15 00242 g002 550

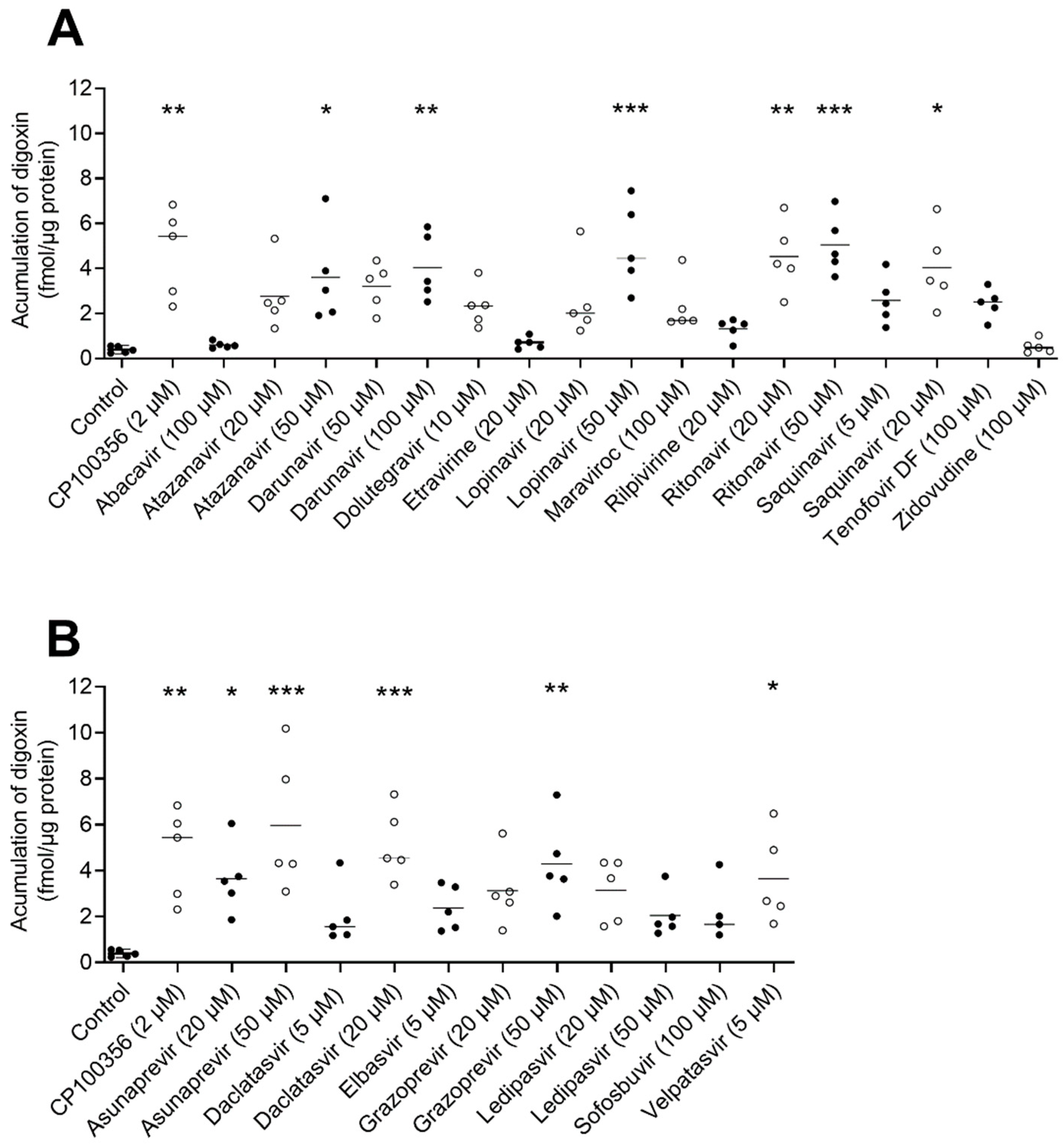

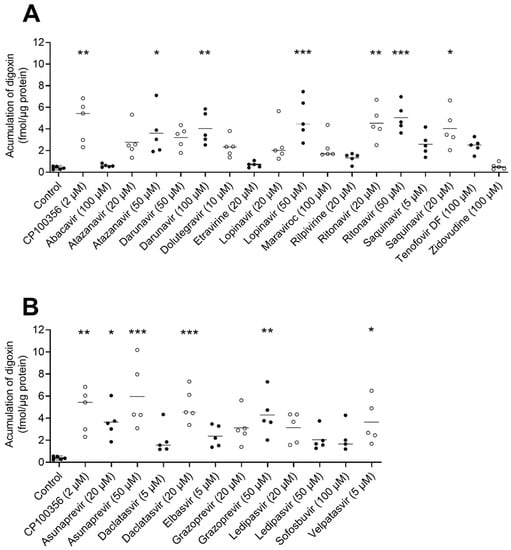

Figure 2. Effects of selected (A) antiretrovirals and (B) DAA on [3H]-digoxin accumulation in hPCIS. Data are presented as medians (n = 5). Statistical analysis was performed using the nonparametric paired Friedman test followed by Dunn’s test: p < 0.05 (*); p < 0.01 (**); p < 0.001 (***).
Figure 2. Effects of selected (A) antiretrovirals and (B) DAA on [3H]-digoxin accumulation in hPCIS. Data are presented as medians (n = 5). Statistical analysis was performed using the nonparametric paired Friedman test followed by Dunn’s test: p < 0.05 (*); p < 0.01 (**); p < 0.001 (***).
Pharmaceuticals 15 00242 g002
Table
Table 1. Effects of the antiretrovirals and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers.
Table 1. Effects of the antiretrovirals and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers.
CompoundConcentration[3H]-Digoxin rPapp 1
Control6 nM9.53 ± 2.22
+CP1003562 µM1.49 ± 0.11 ***
+Abacavir100 µM10.39 ± 2.35
+Atazanavir 220 µM5.57 ± 0.81 *
50 µM1.15 ± 0.22 ***; #
+Darunavir20 µM6.19 ± 1.83
50 µM3.28 ± 0.39 ***
100 µM1.74 ± 0.26 ***; #
+Dolutegravir 310 µM11.91 ± 2.05
+Etravirine 320 µM3.23 ± 0.41 ***
+Lopinavir 25 µM5.24 ± 1.69 *
50 µM1.91 ± 0.23 ***; #
+Maraviroc20 µM11.25 ± 0.11
100 µM8.80± 1.26
+Rilpivirine 220 µM1.52 ± 0.53 ***
+Ritonavir 220 µM2.75 ± 0.97 ***
50 µM1.11 ± 0.10 ***
+Saquinavir 25 µM8.50 ± 3.30
20 µM1.36 ± 0.20 ***; #
+Tenofovir DF100 µM11.76 ± 0.07
+Zidovudine100 µM13.42 ± 0.28
1 rPapp, efflux ratio. Statistical analysis was performed using an ordinary one-way ANOVA with Dunnett’s post hoc multiple comparisons test. Values differing significantly from the control are indicated by the labels * (p < 0.05) or *** (p < 0.001). Values differing significantly from those obtained with the same compound at a lower concentration are indicated by the labels # (p < 0.05). 2 Higher concentrations were not tested because an rPapp of approximately 1 was reached. 3 Higher concentrations were not tested due to limited solubility.
Table
Table 2. Effects of the tested DAAs and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers.
Table 2. Effects of the tested DAAs and the model inhibitor CP100356 on ABCB1-controlled [3H]-digoxin transport across Caco-2 monolayers.
CompoundConcentration[3H]-Digoxin rPapp 1
Control6 nM9.53 ± 2.22
+CP1003562 µM1.49 ± 0.11 ***
+Asunaprevir 220 µM3.07 ± 0.52 ***
50 µM1.27 ± 0.18 ***
+Daclatasvir 25 µM9.75 ± 0.43
20 µM1.22 ± 0.33 ***; ###
+Elbasvir 35 µM5.88 ± 1.01 *
+Grazoprevir 220 µM3.79 ± 0.27 ***
50 µM1.21 ± 0.15 ***
+Ledipasvir 320 µM9.39 ± 1.76
50 µM3.96 ± 0.90 **; #
+Sofosbuvir100 µM6.09 ± 0.18
+Velpatasvir 35 µM7.38 ± 1.81
1 rPapp, efflux ratio. Statistical analysis was performed using an ordinary one-way ANOVA with Dunnett’s post hoc multiple comparisons test. Values differing significantly from the control are indicated by the labels * (p <0.05), ** (p < 0.01), or *** (p < 0.001). Values differing significantly from those obtained with the same compound at a lower concentration are indicated by the labels # (p < 0.05) or ### (p < 0.001). 2 Higher concentrations were not tested because an rPapp of approximately 1 was reached. 3 Higher concentrations were not tested due to limited solubility.
Table
Table 3. Inhibition of bidirectional transport of the probes digoxin and RHD123 [34] across monolayers of Caco-2 cells in the presence of various drugs.
Table 3. Inhibition of bidirectional transport of the probes digoxin and RHD123 [34] across monolayers of Caco-2 cells in the presence of various drugs.
CompoundConcentrationDigoxin
Inhibition		RHD123
Inhibition #
CP1003562 µMYESYES
Abacavir100 µMNONO
Atazanavir50 µMYESYES
Daclatasvir20 µMYESYES
Etravirine20 µMYESNO
Ledipasvir50 µMYESYES
Lopinavir5 µMYESYES
Maraviroc100 µMNOYES
Rilpivirine20 µMYESNO
Ritonavir50 µMYESYES
Saquinavir20 µMYESYES
Sofosbuvir100 µMNONO
Tenofovir DF100 µMNONO
RHD123, rhodamine123; # results are taken from [34].
Table
Table 4. Inhibition of digoxin and RHD123 transport in human PCIS by various drugs.
Table 4. Inhibition of digoxin and RHD123 transport in human PCIS by various drugs.
CompoundConcentrationDigoxin
Inhibition		RHD123
Inhibition #
CP1003562 µMYESYES
Atazanavir50 µMYESYES
Daclatasvir20 µMYESNO *
Ledipasvir50 µMNONO *
Lopinavir50 µMYESYES
Maraviroc100 µMNONO *
Ritonavir100 µMYESYES
Saquinavir20 µMYESYES
RHD123, rhodamine123; * increased uptake of RHD123 was observed in some samples, but the median did not differ significantly from that of the control; # results are taken from [34].
Table
Table 5. Characteristics of intestinal donors.
Table 5. Characteristics of intestinal donors.
Patient No.GenderAge (Year)Medication(s)
1F62candesartan, levothyroxine
2F71diosmin, flavonoids
3F73apixaban, atorvastatin, betaxolol, omeprazole, pancreatin, ramipril, rilmenidine
4F49dosulepin, lactulose, pancreatin, pantoprazole, pregabalin, thiamine, trazodone,
5M74acetylsalicylic acid, amlodipine, budesonide, flavonoids, ipratropium bromide, levothyroxine, metformin, omeprazole, tamsulosin, telmisartan
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huličiak, M.; Vokřál, I.; Holas, O.; Martinec, O.; Štaud, F.; Červený, L. Evaluation of the Potency of Anti-HIV and Anti-HCV Drugs to Inhibit P-Glycoprotein Mediated Efflux of Digoxin in Caco-2 Cell Line and Human Precision-Cut Intestinal Slices. Pharmaceuticals 2022, 15, 242. https://doi.org/10.3390/ph15020242

AMA Style

Huličiak M, Vokřál I, Holas O, Martinec O, Štaud F, Červený L. Evaluation of the Potency of Anti-HIV and Anti-HCV Drugs to Inhibit P-Glycoprotein Mediated Efflux of Digoxin in Caco-2 Cell Line and Human Precision-Cut Intestinal Slices. Pharmaceuticals. 2022; 15(2):242. https://doi.org/10.3390/ph15020242

Chicago/Turabian Style

Huličiak, Martin, Ivan Vokřál, Ondřej Holas, Ondřej Martinec, František Štaud, and Lukáš Červený. 2022. "Evaluation of the Potency of Anti-HIV and Anti-HCV Drugs to Inhibit P-Glycoprotein Mediated Efflux of Digoxin in Caco-2 Cell Line and Human Precision-Cut Intestinal Slices" Pharmaceuticals 15, no. 2: 242. https://doi.org/10.3390/ph15020242

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
