Synthesis, Characterization, and Biological Evaluation of New Derivatives Targeting MbtI as Antitubercular Agents

Abstract

Tuberculosis (TB) causes millions of deaths every year, ranking as one of the most dangerous infectious diseases worldwide. Because several pathogenic strains of Mycobacterium tuberculosis (Mtb) have developed resistance against most of the established anti-TB drugs, new therapeutic options are urgently needed. An attractive target for the development of new antitubercular agents is the salicylate synthase MbtI, an essential enzyme for the mycobacterial siderophore biochemical machinery, absent in human cells. A set of analogues of I and II, two of the most potent MbtI inhibitors identified to date, was synthesized, characterized, and tested to elucidate the structural requirements for achieving an efficient MbtI inhibition and a potent antitubercular activity with this class of compounds. The structure-activity relationships (SAR) here discussed evidenced the importance of the furan as part of the pharmacophore and led to the preparation of six new compounds (IV–IX), which gave us the opportunity to examine a hitherto unexplored position of the phenyl ring. Among them emerged 5-(3-cyano-5-(trifluoromethyl)phenyl)furan-2-carboxylic acid (IV), endowed with comparable inhibitory properties to the previous leads, but a better antitubercular activity, which is a key issue in MbtI inhibitor research. Therefore, compound IV offers promising prospects for future studies on the development of novel agents against mycobacterial infections.

1. Introduction

Tuberculosis (TB), the infectious disease caused by Mycobacterium tuberculosis (Mtb), represents a global emergency requiring new therapeutic options, mainly because of the rapid spread of drug-resistant strains, which are causing an alarming rise in clinical cases.

According to the 2020 World Health Organization (WHO) report [1], TB was responsible for around 1.4 million deaths and over 10 million new infections worldwide in 2019; these numbers are expected to rise significantly in 2020 as a consequence of the coronavirus disease 2019 (COVID-19) pandemic. Additionally, it is estimated that Mtb exists in its latent form in approximately one-quarter of the global population [1].

Although the investigation of new pharmaceutical forms for the delivery of current antitubercular drugs may contribute to enhance patient compliance and limit the spread of the disease [2,3], the development of new therapeutic options represents an even more pressing need. While drug-susceptible TB can be cured within 6–8 months with the current standard treatment regimen [4], multi- and extensively drug-resistant (MDR/XDR) infections are treated for at least 20 months with poor outcomes [5], posing a serious threat to human health. The continuous genetic adaptation and rapid propagation of drug-resistant pathogens have led to an expected drop in the therapeutic efficacy of the current anti-TB drugs, forcing the scientists to face new challenges in the discovery of novel molecular entities to address this issue. Hence, the development of innovative compounds targeting both replicating and dormant Mtb bacilli is critical for the design of more effective and shorter therapies.

To address the urgent need of selective antitubercular drugs with novel mechanisms of action, new drug targets have been recently explored and validated [6,7,8]. Among them, the mycobactin biosynthetic pathway, which leads to the synthesis of siderophores capable of sequestering host iron, has been identified as a source of promising candidates [9,10]. Indeed, the siderophore biochemical machinery is significantly upregulated under iron-deficient conditions, common in infected macrophages, constituting one of the major pathogenic determinants of TB. Moreover, it is absent in humans, thus minimizing the risk of off-target effects.

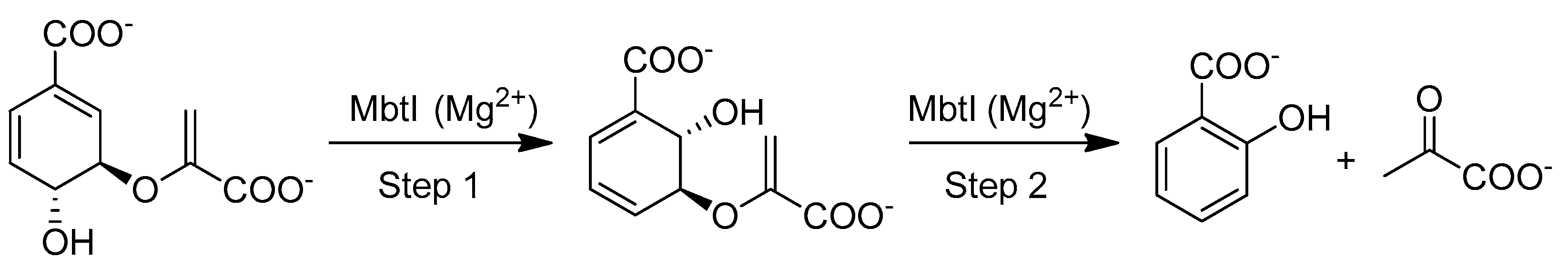

Among the four enzymes involved in mycobactin biosynthesis and currently under investigation as potential drug targets (i.e., MbtI, MbtA, MbtM, and PPTase), we focused our attention on the Mg²⁺-dependent bifunctional salicylate synthase MbtI, which catalyzes the first two steps in the production of all mycobacterial siderophores. This enzyme belongs to the family of the chorismate-utilizing enzymes (CUEs) [11] and it catalyzes the reactions shown in Figure 1.

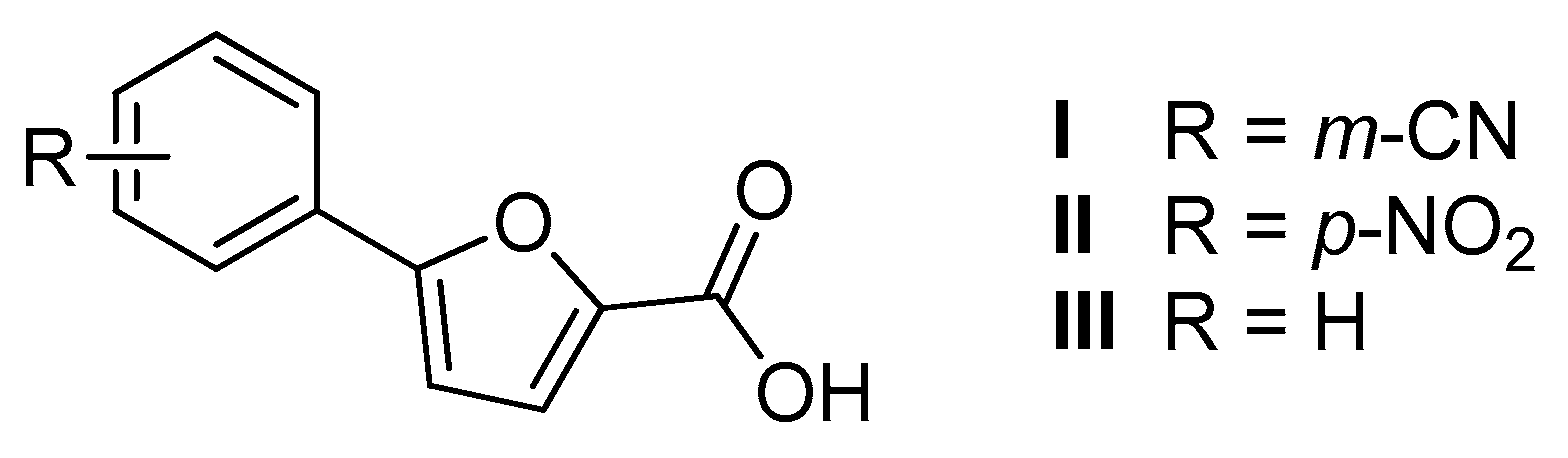

In this context, we developed in recent years a series of furan-based carboxylic acids as MbtI inhibitors [12,13,14,15]. Among this class of compounds, I and II (Figure 2) emerged as the best leads, exhibiting a strong MbtI inhibition, conceivably related to their antitubercular activity, and a negligible cytotoxicity towards eukaryotic cells. When analyzing the structure-activity relationships (SAR) of these compounds, we observed that the activity of the substances was closely related to the presence of an electron withdrawing moiety in a suitable position of the phenyl ring. The removal of the substituent from the phenyl of our furan-based leads (III, Figure 2) resulted in a complete loss of activity [14].

Encouraged by these studies, and with the aim of enriching our arsenal of MbtI inhibitors with compounds exhibiting enhanced antitubercular activities, we enlarged our set of derivatives to include compounds bearing different heterocyclic scaffolds.

In some literature cases, the furan core was successfully replaced by other heterocycles to improve the cellular activity; indeed, according to Hinsberg’s “ring equivalence” theory, the concept of isosterism and bioisosterism can be extended to heterocycles [16]. Here, we investigated whether the furan moiety could be successfully replaced by any of the heterocycles shown in Figure 3, also considering that extensive research efforts have been devoted to the exploration of heterocyclic compounds as antimycobacterial agents [17].

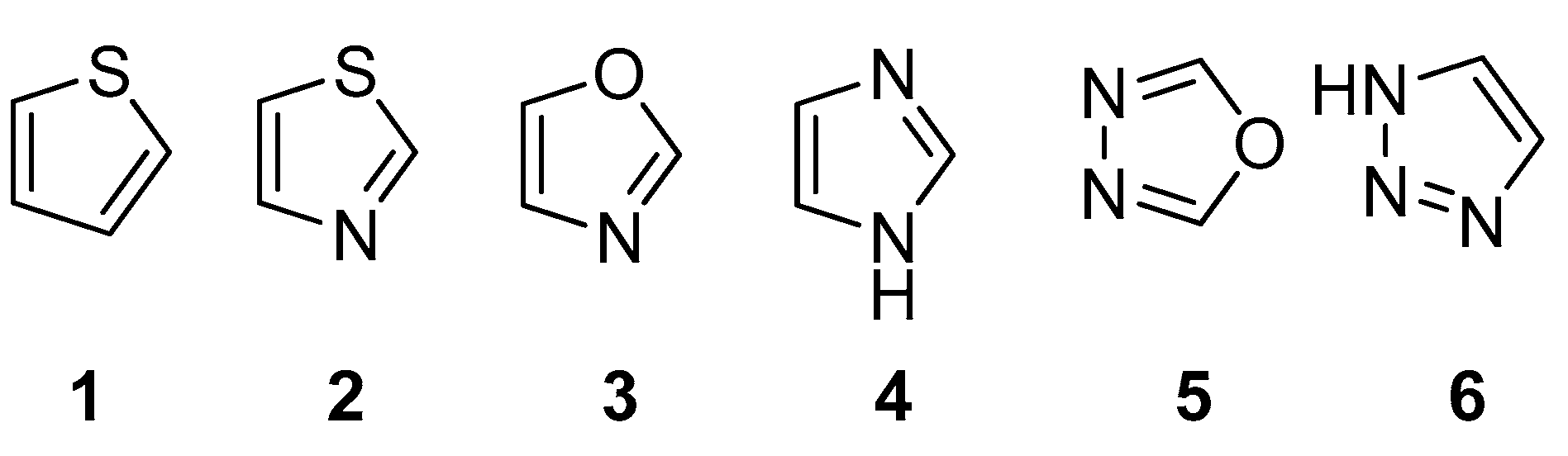

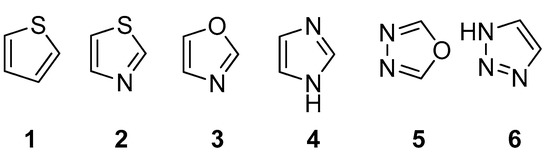

We considered the introduction of a thiophene (1), because, in several literature examples, the use of this ring has resulted in an improvement of the antimycobacterial activity [18,19,20]. The furan was then substituted by a thiazole (2); aside from being the most common heterocycle in drug design [21], this ring is part of the chemical structure of many compounds endowed with antitubercular activity [22]. To expand our investigations, we synthesized two derivatives bearing an oxazole (3), where the sulfur atom of the thiazole ring is substituted by an oxygen, a sulfur isostere [23]. The imidazole was then selected as an attractive isostere of thiazole and oxazole; notably, nitroimidazopyran PA-824 [24] has recently moved to advanced-stage clinical trials, inspiring the development of anti-TB agents featuring this moiety [25]. Finally, we explored the 1,3,4-oxadiazole (5), as it was reported to interact with some of the newest anti-TB targets [26], and the 1,2,3-triazole (6), whose importance is demonstrated by the antitubercular agent I-A09, which is under preclinical trials [27].

In the first part of this work, we designed, synthesized, and evaluated the biological activity of novel heterocyclic compounds belonging to two homologous series (

Table 1. In vitro activity of compounds 1a,b–6a,b.

Structure	Series A R = m-CNPh			Series B R = p-NO2Ph
	%RA *	IC50 ** (µM)		%RA *	IC50 ** (µM)
	I			II
	3.1 ± 1.0		6.3 ± 0.9	18.2 ± 5.1	7.6 ± 1.6
	1a			1b
	23.7 ± 5.0		35.5 ± 1.9	22.5 ±10.8	18.6 ± 1.7
	2a			2b
	24.8 ± 1.8		41.9 ± 7.3	32.8 ± 2.3	-
	3a			3b
	38.0 ± 7.6		-	23.0 ± 7.8	21.1 ± 2.7
	4a			4b
	21.2 ± 1.0		39.3 ± 3.0	18.2 ± 4.9	27.5 ± 2.3
	5a			5b
	75.0 ± 9.8		-	59.0 ± 4.3	-
	6a			6b
	67.9 ± 6.6		-	32.7 ± 7.8	-

* % residual enzymatic activity at 100 µM; ** only for compounds with %RA ≤ 25%.

), bearing the m-CN (series A, compounds 1a–6a) and p-NO₂ (series B, 1b–6b) substituent, respectively.

The modest biological activity of the new derivatives prompted us to reconsider the furan as the best heterocyclic core, suggesting the critical nature of an appropriately substituted furan moiety to maintain a significant enzymatic inhibition and to achieve antitubercular activity.

On this basis, and considering our previous results on disubstituted derivatives, we decided to design and synthesize six new furan-based analogues (IV–IX, Figure 4). In particular, IV was investigated as the isomer of 5-(2-cyano-4-(trifluoromethyl)phenyl)furan-2-carboxylic acid, which exhibited an interesting inhibitory effect (IC₅₀ of about 18 µM) [13]. The new analogue IV bears the CN and CF₃ moieties in the relative meta positions to avoid the steric interactions between the two adjacent groups, which had proven to be detrimental for the activity [13]. Compound V was synthesized to evaluate the role of the 3-CN moiety, as our past works had shown that this group was superior to other substituents in terms of enzymatic activity [12,13].

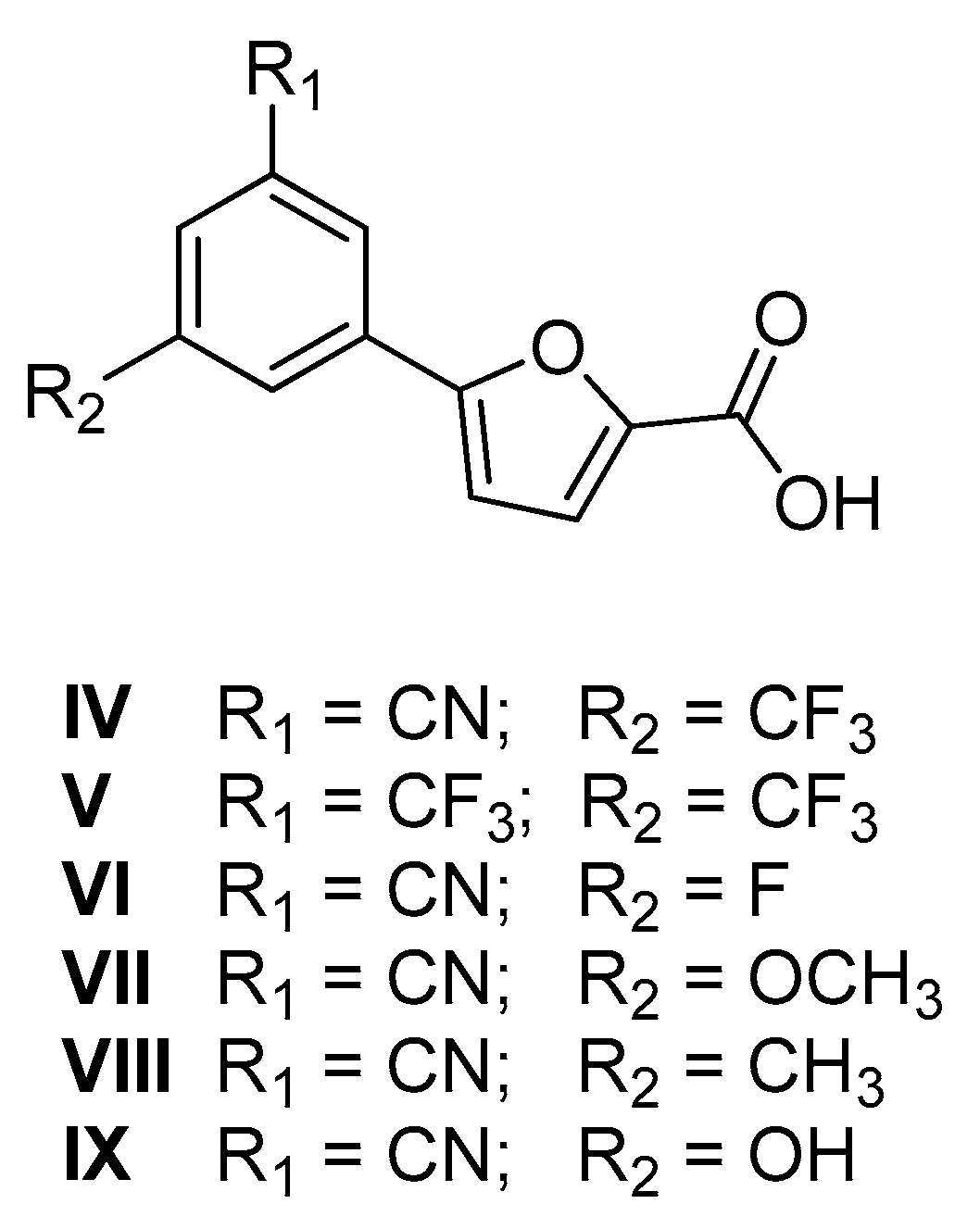

Finally, compounds VI–IX were prepared to examine the influence of the substituent at position 5 of the phenyl ring on the biological activity of this class of compounds.

This strategy gave us the opportunity to examine a hitherto unexplored position of the phenyl ring (IV–IX), leading to the discovery of novel MbtI inhibitors endowed with antimycobacterial activity.

2. Results

2.1. Chemistry

The synthetic procedures adopted for the preparation of the compounds are heterogeneous and reflect the diverse approaches needed for the obtainment of the various heterocyclic derivatives. Where possible, the synthetic strategies were designed and optimized to afford the desired compounds, starting from the same commercially available reagents. All the compounds were characterized by means of mono- and bi-dimensional NMR techniques, FT-IR, ESI-MS, and elemental analysis. The procedures for the synthesis of series A and B (compounds 1a,b–6a,b) are depicted in Scheme 1, Scheme 2, Scheme 3, Scheme 4, Scheme 5 and Scheme 6; all details regarding procedures and analytical data are reported in the Supplementary Materials.

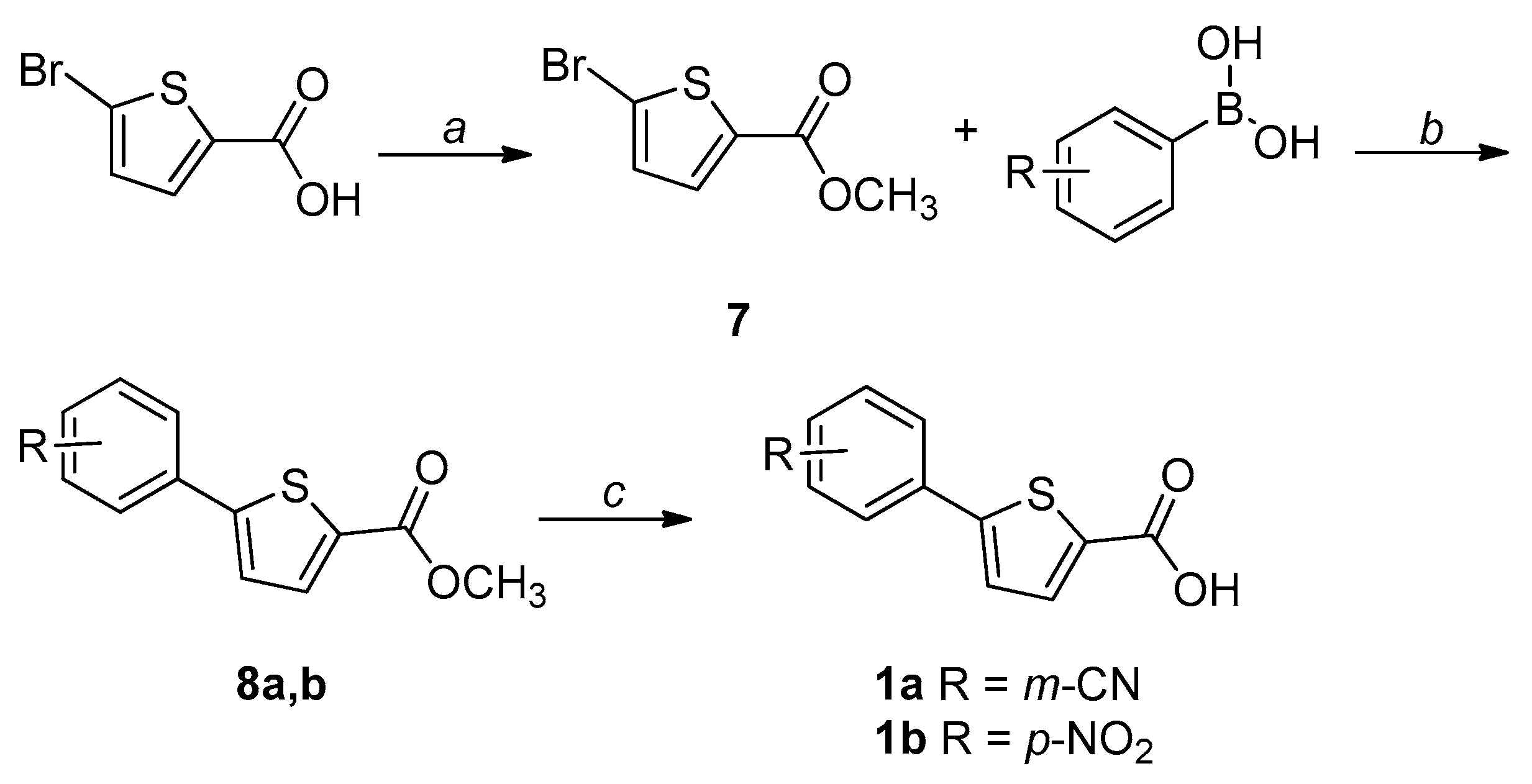

The key intermediate (7) for the synthesis of 1a,b was obtained through a Fischer–Speier esterification of the commercially available 5-bromo-2-thiophenecarboxylic acid. Then, a palladium-catalyzed Suzuki-Miyaura coupling led to 8a,b, which were hydrolyzed to the corresponding acids (1a,b) under basic conditions (Scheme 1).

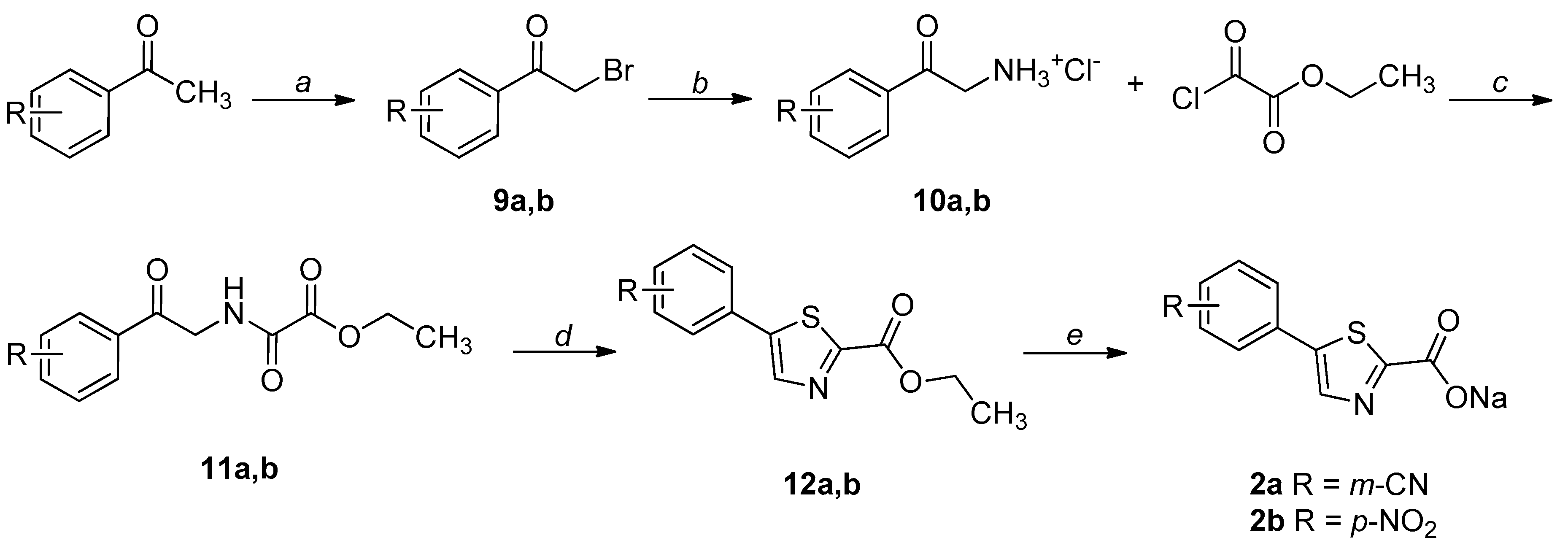

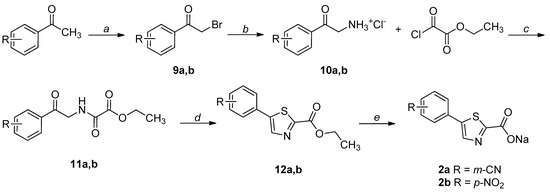

The synthesis of the thiazole-based derivatives (2a,b) started from the bromination of the appropriate acetophenone, leading to 9a,b. The hydrochloride salts of the corresponding amines (10a,b), obtained through the Delépine reaction, were N-acylated with ethyl chlorooxoacetate to afford the corresponding amides (11a,b). The formation of the thiazole ring was performed using the Lawesson’s reagent, leading to the esters 12a,b, which were hydrolyzed under basic conditions and isolated as sodium salts (Scheme 2) [28].

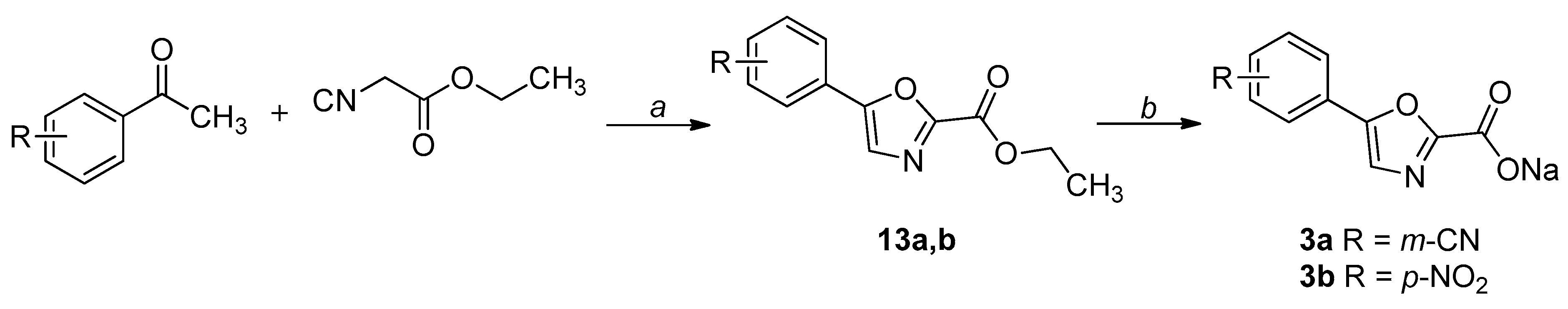

Oxazole-based derivatives were obtained through an iodine-promoted formal [3+2] cycloaddition of methyl ketones to α-methylenyl isocyanides: in particular, ethyl isocyanoacetate was reacted with the suitable acetophenone to afford 2,5-disubstituted oxazole esters (13a,b). The intermediates were then hydrolyzed under basic conditions and isolated as sodium salts (Scheme 3) [29].

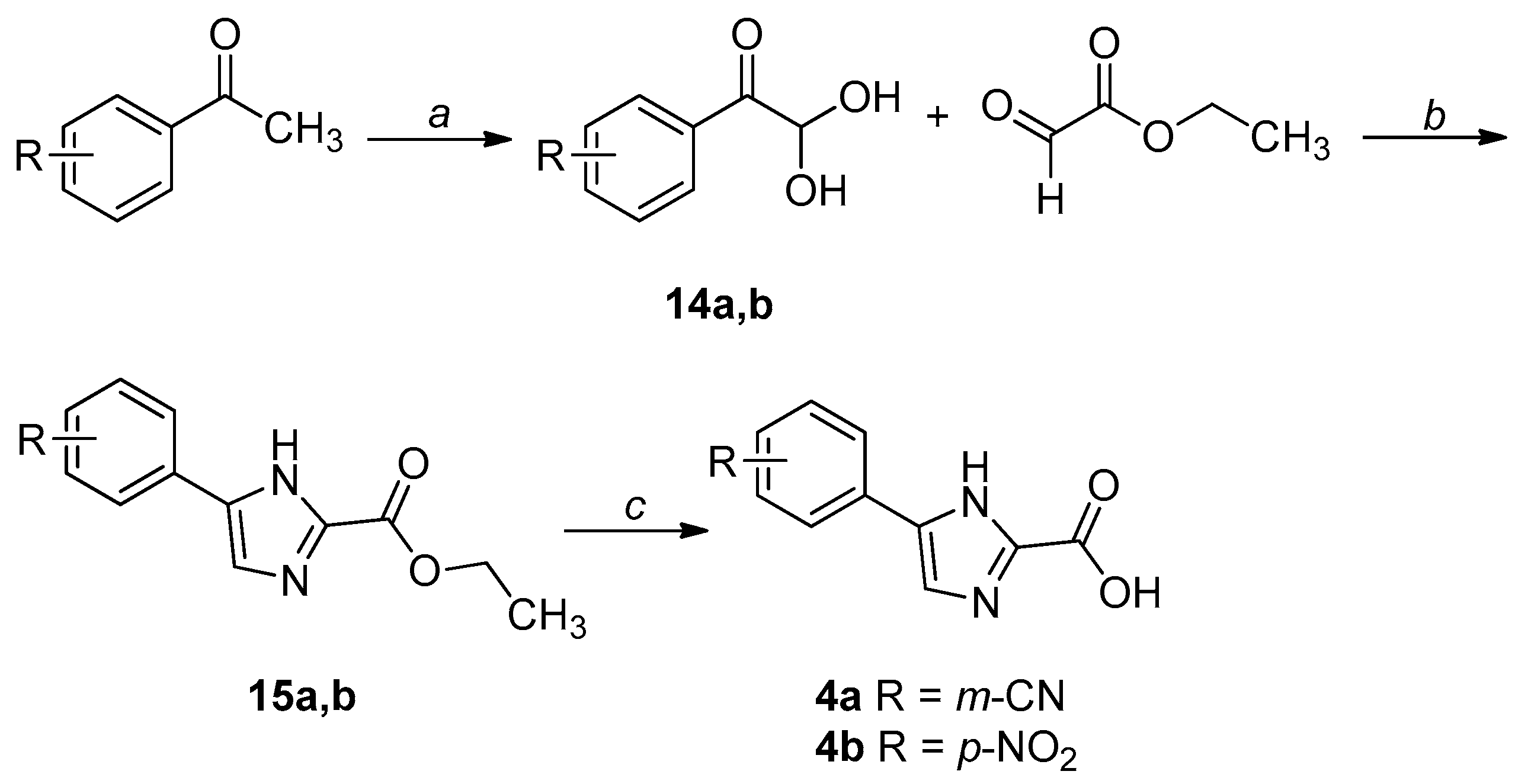

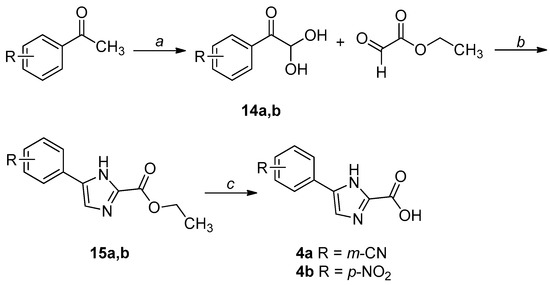

For the synthesis of 4a,b, the suitably substituted geminal diols 14a,b were obtained from the commercially available acetophenone in the presence of selenium dioxide. Then, these intermediates were reacted with ethyl 2-oxoacetate and ammonium acetate, affording the imidazole esters 15a,b, which were finally hydrolyzed to the corresponding acids (4a,b) under basic conditions (Scheme 4) [30].

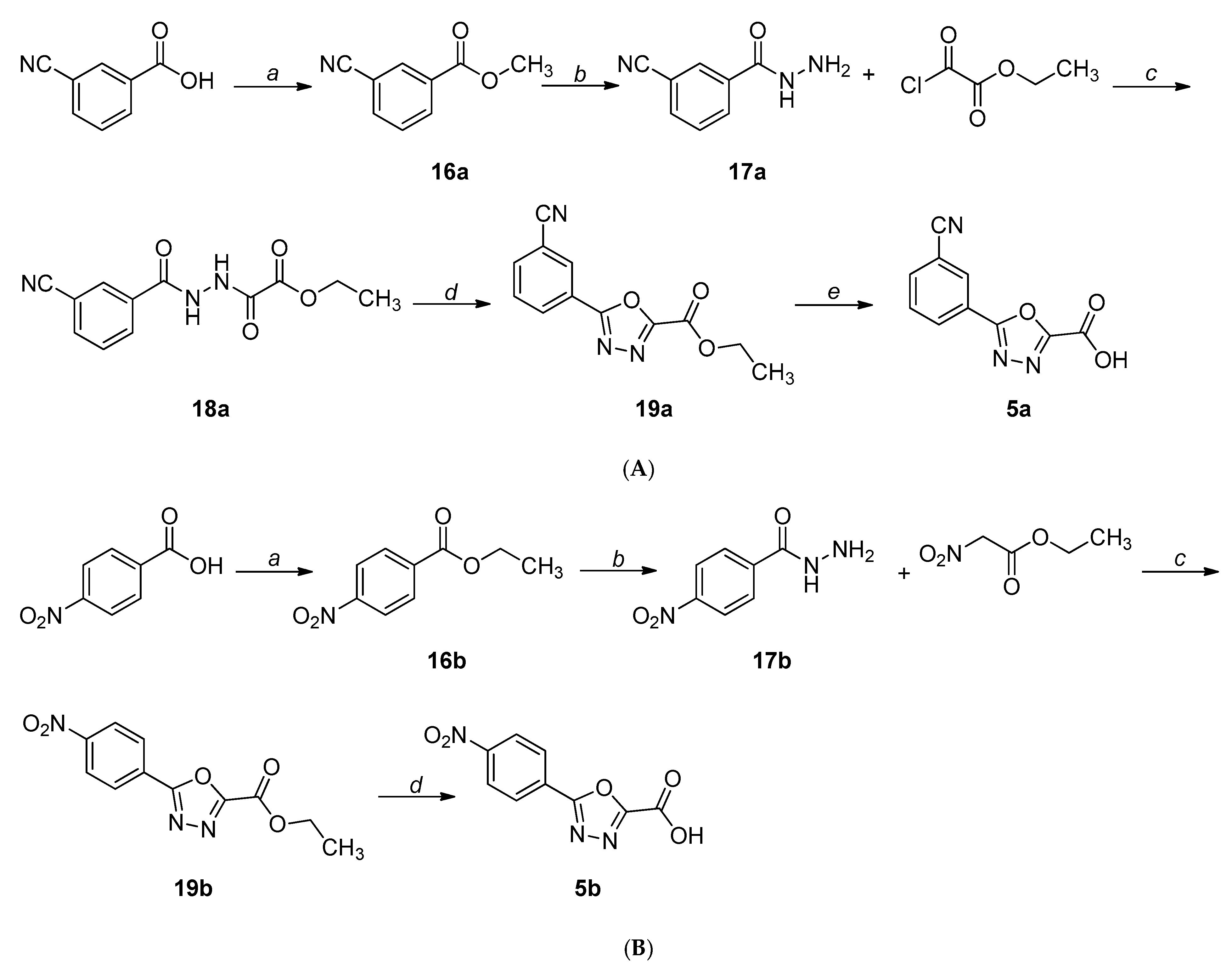

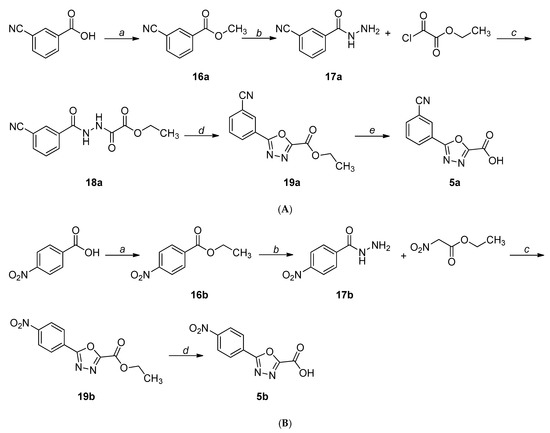

For the synthesis of the m-CN-substituted 1,3,4-oxadiazole derivative (5a), the commercially available 3-cyanobenzoic acid was converted to the corresponding methyl ester (16a) and reacted with hydrazine hydrate to afford the hydrazide 17a. This intermediate was acylated with ethyl-chlorooxoacetate to 18a, which was cyclized to 19a using p-toluensulfonyl chloride in the presence of triethylamine. The oxadiazole ester was then hydrolyzed under basic conditions to give 5a (Scheme 5A) [31].

Concerning the p-NO₂-substituted 1,3,4-oxadiazole analogue (5b), the hydrazide 17b, obtained as described above, was reacted with ethyl 2-nitroacetate in polyphosphoric acid to afford the ester 19b, which was hydrolyzed to the corresponding acid (5b) under basic conditions (Scheme 5B) [32].

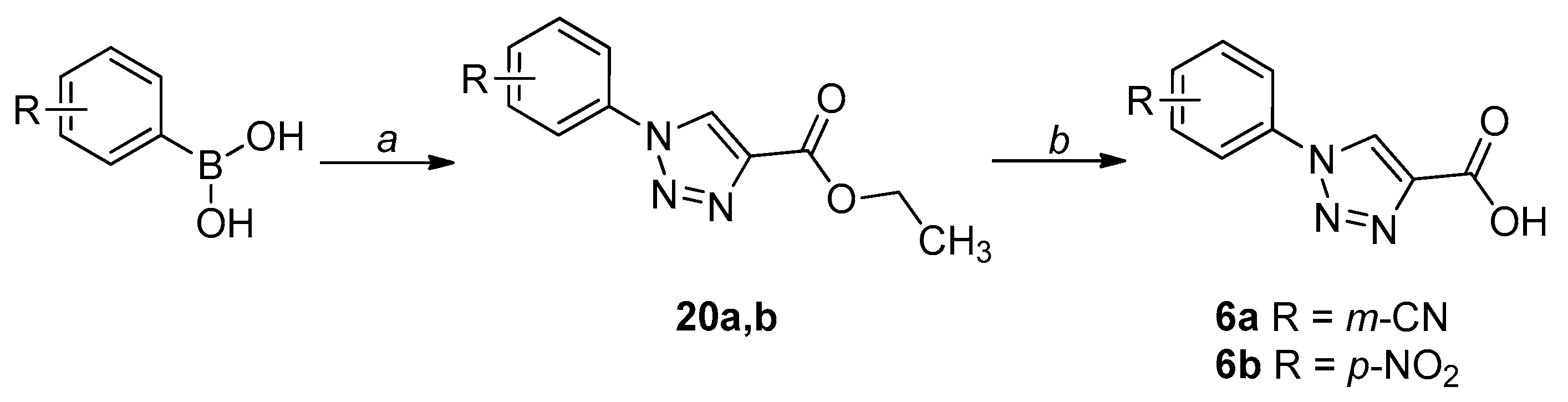

The 1,4-substituted triazole esters 20a,b were obtained through a one-pot Huisgen cycloaddition, starting from the appropriate phenylboronic acid: the synthesis of the azide was followed by the addition of ethyl propiolate, leading to the desired intermediates. The final acids (6a,b) were obtained through a base-catalyzed hydrolysis of the ester function (Scheme 6).

The new furan derivatives IV–IX were synthesized according to previously published procedures [13]. V was obtained by the same approach adopted for 1a,b, employing (3,5-bis(trifluoromethyl)phenyl)boronic acid and methyl 5-bromofuran-2-carboxylate in a traditional Suzuki–Miyaura reaction, followed by a hydrolysis of the ester function [13]. IV was obtained by reacting 3-bromo-5-(trifluoromethyl)benzonitrile with (5-(methoxycarbonyl)furan-2-yl)boronic acid in a microwave-assisted Suzuki-Miyaura coupling, followed by a base-catalyzed hydrolysis of the ester function [13]. Similarly, 3-bromo-5-fluorobenzonitrile, 3-bromo-5-methoxybenzonitrile, 3-bromo-5-methylbenzonitrile, and 3-bromo-5-hydroxybenzonitrile were used as starting compounds for VI, VII, VIII, and IX, respectively.

2.2. Biological Studies

To pursue our aim of investigating the role of the heterocyclic core in MbtI inhibition, we decided to compare two sets of data, derived from our previous leads: I, characterized by the presence of the m-CN group (series A), and II, bearing the less druggable p-NO₂ group, but capable of potently inhibiting MbtI (series B) [12]. Therefore, keeping the cyano and the nitro group in their original positions, we explored the effects of the variation of the five-membered ring on the activity against the enzyme. The results of the in vitro assays on compounds 1a,b–6a,b, calculated as previously reported [12], are listed in Table 1.

As for the thiophene analogues, the biological tests showed that 1a and 1b are approximately equipotent, with 23% residual enzymatic activity at 100 µM (%RA). The corresponding thiazole derivatives 2a and 2b are weaker inhibitors, especially in the presence of the p-NO₂ substitution. In some cases, thiazoles have been identified as pan-assay interference compounds (PAINS) [33]. To exclude this possibility, we tested 2a and 2b, along with all the other compounds published herein, against the PAINS filters of four online-based services, namely FAF-Drugs4 [34], SmartsFilter (https://chiltepin.health.unm.edu/tomcat/biocomp/smartsfilter accessed on 12 January 2021), SwissADME [35], and Zinc Patterns (http://zinc15.docking.org/patterns/home/ accessed on 12 January 2021). Notably, none of the molecules were identified as potential PAINS. As for the oxazole derivatives, 3a showed a negligible activity, while 3b evidenced a modest activity. Although we had envisioned that the structural features of the imidazole ring could be beneficial to form interactions within the MbtI active site, derivatives 4a and 4b displayed only a weak activity. Finally, the replacement of the furan with the oxadiazole and triazole cores in 5a–b and 6a–b, respectively, afforded compounds devoid of any significant effect against MbtI.

The minimal inhibitory concentration (MIC⁹⁹) of the derivatives exhibiting an IC₅₀ lower than 30 μM was determined against the nonpathogenic M. bovis BCG, in iron-limiting conditions (chelated Sauton’s medium), using the resazurin reduction assay method (REMA). All of them displayed MIC⁹⁹ values greater than 250 μM, which did not represent a significant improvement with respect to the previous leads.

In light of these findings, and considering previous SAR data, we designed the new derivatives IV–IX. The furan ring was chosen as the central core of these compounds, because it proved to be the best option and an important portion of our pharmacophore model. This additional investigation was undertaken to explore a new position of the phenyl ring, with the final goal of identifying the structural requirements needed to improve the antitubercular potency of these compounds.

The disubstituted derivatives IV–IX were tested for their effects against the recombinant MbtI, prepared, and assayed as previously reported [12]; their in vitro activities are shown in

Table 2. In vitro activity of compounds IV–IX.

Entry	% RA *	IC50 ** (µM)
IV	0.7 ± 2.7	15.5 ± 3.1
V	8.9 ± 1.6	18.8 ± 6.8
VI	8.7 ± 1.4	17.3 ± 3.1
VII	10.5 ± 3.9	14.5 ± 2.1
VIII	16.7 ± 3.8	29.1 ± 1.8
IX	15.3 ± 2.6	33.5 ± 3.4

* % residual enzymatic activity at 100 µM; ** only for compounds with %RA ≤ 25%.

.

Compound IV was designed with the cyano group in the meta position because our past works had shown that this group was superior to other options in terms of enzymatic activity; moreover, it features a trifluoromethyl moiety in 5, which allowed us to explore a hitherto unconsidered substitution pattern on the phenyl ring. IV was found to be a potent MbtI inhibitor (≈ 1% RA at 100 μM), with an IC₅₀ of ≈ 15 μM. Compound V, carrying two trifluoromethyl moieties, was also effective against MbtI, though displaying a slightly higher IC₅₀ with respect to IV (≈ 19 μM vs. 15 µM). Then, we tested compounds VI–IX, maintaining the original cyano group in 3 and featuring different moieties in 5. Firstly, we assayed the fluorine-substituted compound VI, which showed an IC₅₀ value similar to that of V (IC₅₀ ≈17 μM vs. 15 µM). Compound VII, bearing a methoxy moiety in 5, displayed a comparable IC₅₀ with respect to IV. Derivatives VIII and IX, carrying the CH₃ and the OH groups respectively, showed weaker inhibitory properties compared to compound IV (IC₅₀ ≈ 29 μM and 33 µM) (see Table 2).

The four candidates exhibiting promising inhibitory properties (IC₅₀ < 30 μM) were tested for their antimycobacterial activities against the nonpathogenic M. bovis BCG, in iron-limiting conditions (chelated Sauton’s medium), using the REMA method. In this assay, compound IV showed the best antimycobacterial activity, with a MIC⁹⁹ value of 125 µM.

Due to its better bactericidal activity, IV emerged as the best inhibitor out of this furan series: its halved MIC⁹⁹ compared to I (125 µM vs. 250 μM) highlighted the better drugability of this compound with respect to our previous candidates.

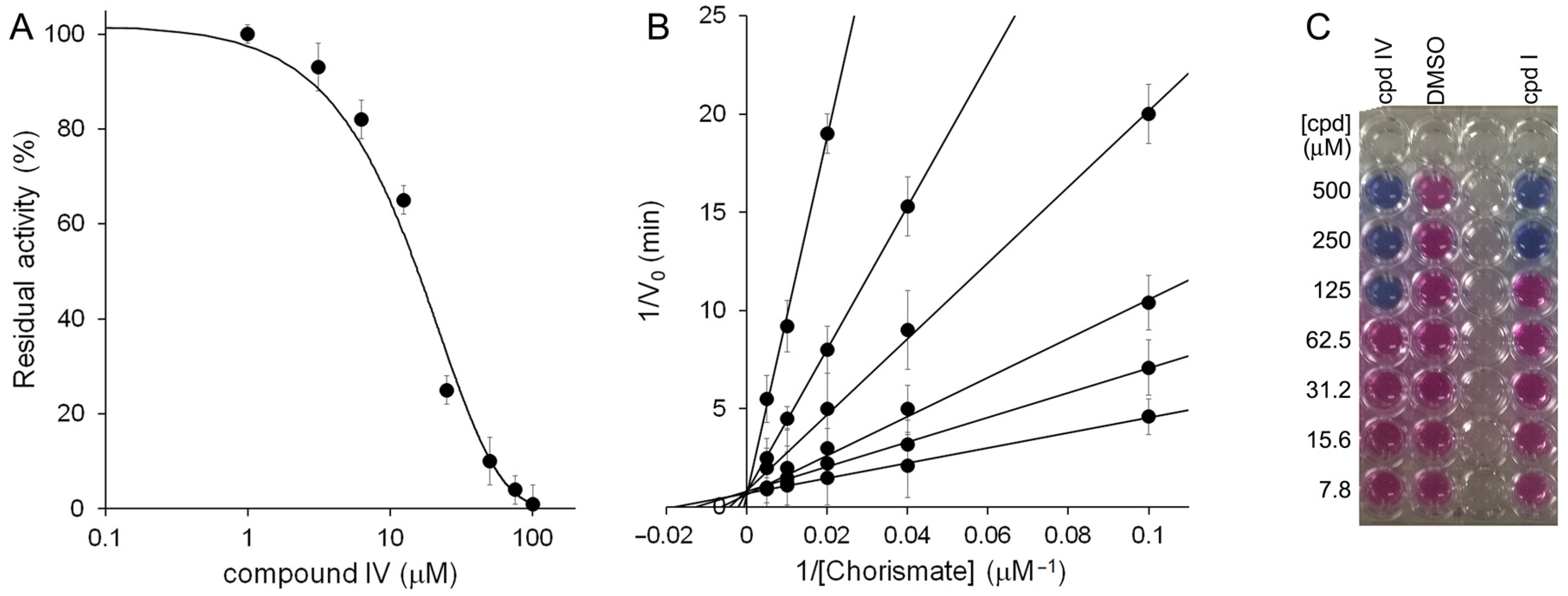

Therefore, we submitted compound IV to a kinetic analysis, which demonstrated the competitive nature of its inhibition against MbtI, with a K_i value of 9.2 ± 0.7 μM (Figure 5).

3. Discussion

In this work, we first applied a bioisosteric replacement strategy introducing in our leads I and II structural modifications in the five-membered core to alter the compound’s electronic distribution and lipophilicity, with the aim of improving the target engagement and the antimycobacterial activity.

Contrary to traditional bioisosteric principles, the biological profiles of the thiophene analogues were not comparable to those of the furan derivatives. Conversely, their inhibitory effect followed the general trend exhibited by the thiazole, oxazole, and imidazole derivatives, suggesting that other factors prevail over the bioisosterism of the two nuclei. Interestingly, a significant decline in the activity was observed in the oxadiazole- and triazole-based compounds. Regarding the substitution of the phenyl ring, the presence of the m-cyano or p-nitro groups did not seem to impact significantly on the variations of the activity.

In previous work, we reported the cocrystal structure of MbtI in complex with I and described the key interactions of the compound within the active site of the enzyme. Briefly, I forms H-bonds through its carboxylic group with Tyr385, Arg405, and an ordered water molecule; the oxygen of the furan interacts with Arg405, while the phenyl ring forms a cation-π interaction with Lys438 and a Van der Waals contact with Thr361. Finally, the cyano group interacts with Lys205, a key amino acid involved in the first step of the catalytic reaction. While the diminished activity of the triazole ring may be justified by the absence of a heteroatom capable of accepting a H bond from Arg405, the formulation of a hypothesis to explain the superiority of the furan with respect to the remaining cores is more arduous. A computational analysis of the binding modes of the tested compounds did not reveal significant disparities with respect to that of the lead molecule (unpublished data), suggesting that other influencing elements must be involved. Similarly, an in-silico comparison of the physicochemical characteristics of the compounds did not lead to meaningful results. Despite the different heterocyclic nuclei impart modifications to the overall properties of the molecules, a correspondence between the alteration of a parameter and the biological activity could not be unequivocally established. Therefore, it is reasonable to assume that the superior activity of the furan derivatives cannot be merely linked to the variation of one single parameter, but rather it is the result of a much more complex intertwinement of unrelated minimal modifications. The inherent multifactorial nature of these processes makes it hard, and potentially misleading, to seek a simplistic, univocal interpretation of these results. Hence, it is our opinion that the biological activity, empirically detected with our assays, is the only meaningful parameter that should be considered while determining the best heterocyclic core for this class of compounds.

In addition, when working with mycobacterial enzymes, in vitro activity may not necessarily correlate with the efficacy against the mycobacteria; therefore, compounds showing a weaker inhibitory effect against the purified target could display a better activity against bacterial growth, for instance due to an improved membrane permeability. On these bases, the MIC of the most potent molecules (IC₅₀ < 30 μM) was determined against M. bovis BCG. Although, in some literature cases, the furan core was successfully replaced by other heterocycles to improve the cellular activity [36], this was not our case. None of the compounds belonging to series A and B exhibited improved antitubercular action, all of them having MIC⁹⁹ values greater than 250 μM.

Overall, these biological results confirmed the furan as the best heterocyclic moiety among the options explored in this study and prompted us to reconsider this ring as the best scaffold to gain MbtI inhibition and antimycobacterial activity. In this regard, new modifications to the phenyl ring were attempted to improve the biological profile of our compounds. In our previous work, we discovered that the m-CN substitution offered the possibility to achieve better results in terms of enzyme inhibition compared to the other groups [12]. Moreover, in the context of a previously published disubstituted series, we took into account 5-(2-cyano-4-(trifluoromethyl)phenyl)furan-2-carboxylic acid, which proved to possess an interesting inhibitory effect (IC₅₀ of about 18 µM). Therefore, we decided to explore the activity of its isomer 5-(3-cyano-5-(trifluoromethyl)phenyl)furan-2-carboxylic acid (IV, Figure 4), bearing the cyano group in the preferred position 3. Additionally, the relocation of the trifluoromethyl moiety to position 5 to avoid the steric interactions between adjacent groups allowed us to examine a hitherto unexplored substitution site on the phenyl ring. The new isomer revealed an interesting IC₅₀ value of about 15 µM. Following the same strategy, we synthesized compound V, an isomer of 5-(2,4-bis(trifluoromethyl)phenyl)furan-2-carboxylic acid (IC₅₀ of about 13 µM) [13]. The new analogue exhibited slightly lower inhibitory properties (IC₅₀ ≈ 19 µM) with respect to the parent compound, while maintaining a promising activity. Subsequently, to further explore the SAR of the 5-substituent, we synthesized and tested compounds VI–IX, bearing the CN group in 3.

The presence of different substituents at position 5 of compounds IV–IX did not seem to significantly affect their inhibitory activity against MbtI, with IC₅₀ ranging from 15 µM to 33 µM. By contrast, the 5-CF₃ group of IV was able to significantly ameliorate its antimycobacterial properties with respect to the lead I. Indeed, IV displayed a MIC⁹⁹ value of 125 µM, far better than that of I (250 µM).

Further biological studies demonstrated that IV was a competitive inhibitor of MbtI, exhibiting a Ki of about 9 µM, roughly comparable to that of I.

Overall, these SAR observations demonstrated the essentiality of the furan core and the advantages of a 3,5-disubstitution of the phenyl ring to achieve a potent in vitro activity against MbtI and a significant antimycobacterial effect.

The improvement of the MIC of new compounds is a common goal in antitubercular drug discovery, as reported in a very recent review, which also supported the importance of the mycobactin biosynthetic pathway for the development of anti-TB agents [37]. The increased antitubercular activity of IV with respect to our previous leads opens new avenues for structural modifications towards improved candidates.

4. Material and Methods

4.1. Chemistry

All starting materials, chemicals, and solvents were purchased from commercial suppliers (Sigma-Aldrich, St. Louis, MI, USA; FluoroChem, Hadfield, UK; Carlo Erba, Cornaredo, Italy) and used as received. Anhydrous solvents were utilized without further drying. Aluminum-backed Silica Gel 60 plates (0.2 mm; Merck, Darmstadt, Germany) were used for analytical thin-layer chromatography (TLC), to follow the course of the reactions. Microwave-assisted reactions were carried out with a Biotage^® Initiator Classic (Biotage, Uppsala, Sweden). Silica gel 60 (40–63 μm; Merck) was used for the purification of intermediates and final compounds, through flash column chromatography. Melting points were determined in open capillary tubes with a Stuart SMP30 Melting Point Apparatus (Cole-Parmer Stuart, Stone, UK). All tested compounds were characterized by means of mono- and bi-dimensional NMR techniques, FT-IR, and ESI-MS. ¹H and ¹³C NMR spectra were acquired at ambient temperature with a Varian Oxford 300 MHz instrument (Varian, Palo Alto, CA, USA) or a Bruker Avance 300 MHz instrument (Bruker, Billerica, MA, USA), operating at 300 MHz for ¹H and 75 MHz for ¹³C. Chemical shifts are expressed in ppm (δ), while J-couplings are given in Hertz. The full decoupling mode was employed for ¹³C spectra when the relaxation times of the carbons did not allow for a sufficient resolution using the APT sequence. The 2D-NOESY sequence was employed to unambiguously assign the hydrogen signals, when appropriate. HMBC and HSQC analyses were performed to aid the assignment of ¹³C NMR signals, when necessary. ATR-FT-IR spectra were acquired with a Perkin Elmer Spectrum One FT-IR (Perkin Elmer, Waltham, MA, USA), equipped with a Perkin Elmer Universal ATR sampling accessory consisting of a diamond crystal. Analyses were performed in a spectral region between 4000 and 650 cm⁻¹ and analyzed by transmittance technique with 28 scansions and 4 cm⁻¹ resolution. MS analyses were carried out with a Thermo Fisher (Waltham, MA, USA) LCQ Fleet system, equipped with an ESI electrospray ionization source and an Ion Trap mass analyzer; ionization: ESI positive or ESI negative; capillary temperature: 250 °C; source voltage: 5.50 kV; source current: 4.00 μA; multipole 1 and 2 offset: −5.50 V and −7.50 V, respectively; intermultipole lens voltage: −16.00 V; trap DC offset voltage: −10.00 V. The purity of the tested compounds was assessed by means of elemental analysis using a EuroVector EA 3000 CHNS-O analyzer (EuroVector, Pavia, Italy). All experimental values are within ± 0.40% of the theoretical predictions, indicating a ≥ 95% purity.

All synthetic procedures are reported in the Supplementary Materials (SM).

5-(3-Cyanophenyl)thiophene-2-carboxylic acid (1a). The compound was synthesized by a specific procedure, reported in SM. Aspect: white solid. Mp: 207 °C. TLC (DCM-MeOH 9:1): R_f = 0.20. The following analytical data are referred to the sodium salt. ¹H NMR (300 MHz, DMSO-d₆) δ 8.09 (t, J = 1.7 Hz, 1H, H₆), 7.91 (ddd, J = 7.9, 2.0, 1.2 Hz, 1H, H₈), 7.70 (dt, J = 7.7, 1.4 Hz, 1H, H₁₀), 7.57 (t, J = 7.8 Hz, 1H, H₉), 7.48 (d, J = 3.7 Hz, 1H, H₃), 7.21 (d, J = 3.7 Hz, 1H, H₄) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 164.80 (COO⁻), 149.77 (C₂), 141.67 (C₅), 136.20 (C_5’), 131.04 (C₈), 130.74 (C₉), 130.17 (C₁₀), 128.71 (C₆, C₃), 125.45 (C₄), 119.01 (CN), 112.70 (C₇) ppm. FT-IR (ATR) ν = 2235, 1578, 1537, 1450, 1397, 1335, 811, 789, 767, 682, 675 cm⁻¹. Anal. calcd. for C₁₂H₆NNaO₂S: C, 57.37; H, 2.41; N, 5.58; S, 12.76. Found: C, 57.48; H, 2.45; N, 5.61; S, 12.83.

5-(4-Nitrophenyl)thiophene-2-carboxylic acid (1b). The compound was obtained according to Procedure A (SM). Starting compound: methyl 5-(4-nitrophenyl)thiophene-2-carboxylate. Yield: 98%. Aspect: yellow solid. Mp: 189 °C. TLC (DCM-MeOH 9:1): R_f = 0.20. The following analytical data are referred to the sodium salt. ¹H NMR (300 MHz, DMSO-d₆) δ 8.21 (d, J = 9.0 Hz, 2H, H_7,7’), 7.97 (d, J = 9.0 Hz, 2H, H_6,6’), 7.57 (d, J = 3.7 Hz, 1H, H₃), 7.22 (d, J = 3.7 Hz, 1H, H₄) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 164.05 (COO⁻), 152.14 (C₂), 146.32 (C₈), 141.46 (C₅), 141.24 (C_5’), 128.78 (C₃), 126.96 (C₄), 126.15 (C_7,7’), 124.86 (C_6,6’) ppm. FT-IR (KBr) ν = 3435, 2920, 2550, 1927, 1664, 1622, 1514, 1450, 1365, 995, 833, 704 cm⁻¹. ESI-MS (m/z) calcd for C₁₁H₆NNaO₄S 270.99, found 204.71 [M-CO₂Na]⁻. Anal. calcd. for C₁₁H₆NNaO₄S: C, 48.71; H, 2.23; N, 5.16; S, 11.82. Found: C, 48.75; H, 2.27; N, 5.14; S, 11.71.

Sodium 5-(3-cyanophenyl)thiazole-2-carboxylate (2a). The compound was obtained according to Procedure B (SM). Starting compound: ethyl 5-(3-cyanophenyl)thiazole-2-carboxylate. Yield: 86%. Aspect: white solid. Mp: >300 °C (dec.). ¹H NMR (300 MHz, DMSO-d₆) δ 8.20 (s, 1H, H₄), 8.19 (t, J = 1.4 Hz, 1H, H₆), 7.95 (ddd, J = 7.9, 1.9, 1.2, Hz, 1H, H₁₀), 7.77 (dt, J = 7.7, 1.2, H₈), 7.60 (dt, J = 7.9, 0.5 Hz, 1H, H₉) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 173.60 (C₂), 161.61 (COO⁻), 140.73 (C₄), 138.39 (C₅), 133.51 (C_5’), 131.81 (C₈), 131.51 (C₁₀), 130.85 (C₉), 129.86 (C₆), 118.85 (CN), 112.81 (C₇) ppm. FT-IR (ATR) ν = 3354, 2235, 1663, 1641, 1578, 1440, 1407, 1366, 1110, 866, 806, 796 cm⁻¹. Anal. calcd. for C₁₁H₅N₂NaO₂S: C, 52.38; H, 2.00; N, 11.11; S, 12.71. Found: C, 52.51; H, 2.02; N, 11.09; S, 12.75.

Sodium 5-(4-nitrophenyl)thiazole-2-carboxylate (2b). The compound was obtained according to Procedure A (SM). Starting compound: ethyl 5-(4-nitrophenyl)thiazole-2-carboxylate. Yield: 85%. Aspect: dark green solid. Mp: >300 °C (dec.). ¹H NMR (300 MHz, DMSO-d₆) δ 8.29 (s, 1H, H₄), 8.23 (d, J = 6.0 Hz, 2H, H_7,7’), 7.93 (d, J = 6.0 Hz, 2H, H_6,6’) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 174.68 (C₂), 161.40 (COO⁻), 146.99 (C₈), 141.97 (C₄), 138.75 (C_5’), 138.37 (C₅), 127.62 (C_7,7’), 124.86 (C_6,6’) ppm. FT-IR (ATR) ν = 3648, 3297, 3100, 2963, 1675, 1645, 1621, 1595, 1514, 1424, 1408, 1365, 1343, 1108, 847 cm⁻¹. ESI-MS (m/z) calcd for C₁₀H₅N₂NaO₄S 272.21, found 205.78 [M-CO₂Na]⁻. Anal. calcd. for C₁₀H₅N₂NaO₄S: C, 44.12; H, 1.85; N, 10.29; S, 11.78. Found: C, 44.31; H, 1.87; N, 10.34; S, 11.67.

Sodium 5-(3-cyanophenyl)oxazole-2-carboxylate (3a). The compound was obtained according to Procedure B (SM). Starting compound: ethyl 5-(3-cyanophenyl)oxazole-2-carboxylate. Yield: 89%. Aspect: grey solid. Mp: >300 °C (dec.). ¹H NMR (300 MHz, DMSO-d₆) δ 8.17 (t, J = 1.6 Hz, H₆), 7.99 (dt, J = 8.0, 1.6 Hz, 1H, H₁₀), 7.74 (dt, J = 8.0, 1.6 Hz, 1H, H₈), 7.66 (t, J = 8.0 Hz, H₉) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 161.87 (COO⁻), 157.88 (C₂), 148.06 (C₅), 131.96 (C₉), 130.85 (C₈), 129.69 (C_5’), 128.69 (C₁₀), 127.90 (C₆₎, 125.07 (C₄), 118.78 (CN), 112.74 (C₇) ppm. FT-IR (ATR) ν = 3522, 3383, 2234, 1650, 1616, 1520, 1422, 1389, 1318, 1273, 1216, 965, 825, 817, 795 cm⁻¹. ESI-MS (m/z) calcd. for C₁₁H₅N₂NaO₃ 236.16, found 169.67 [M-CO₂Na]⁻. Anal. calcd. for C₁₁H₅N₂NaO₃: C, 55.94; H, 2.13; N, 11.86. Found: C, 56.03; H, 2.15; N, 11.93.

Sodium 5-(4-nitrophenyl)oxazole-2-carboxylate (3b). The compound was obtained according to Procedure B (SM). Starting compound: ethyl 5-(4-nitrophenyl)oxazole-2-carboxylate. Yield: 80%. Aspect: pale yellow solid. Mp: >300 °C (dec.). ¹H NMR (300 MHz, DMSO-d₆) δ 8.30 (d, J = 8.9 Hz, 2H, H_7,7’), 7.96 (d, J = 6.0 Hz, 2H, H_6,6’), 7.87 (s, 1H, H₄) ppm. ¹³C APT NMR (75 MHz, DMSO-d₆) δ 162.28 (COO⁻), 157.95 (C₂), 148.37 (C₅), 147.06 (C₈), 134.32 (C_5’), 126.99 (C₄), 125.31 (C_7,7’), 124.92 (C_6,6’) ppm. FT-IR (ATR) ν = 3436, 2964, 1645, 1607, 1512, 1388, 1346, 1261, 1108, 854, 818 cm⁻¹. ESI-MS (m/z) calcd. for C₁₀H₅N₂NaO₅ 256.15, found 189.94 [M-CO₂Na]⁻. Anal. calcd. for C₁₀H₅N₂NaO₅: C, 46.89; H, 1.97; N, 10.94. Found: C, 46.59; H, 1.98; N, 10.92.

5-(3-Cyanophenyl)-1H-imidazole-2-carboxylic acid (4a). The compound was synthesized through a specific procedure, reported in SM. Aspect: white solid. Mp: 165 °C. TLC (DCM-MeOH 7:3): R_f = 0.42. ¹H NMR (300 MHz, DMSO-d₆) δ 12.0-9.0 (broad s exch. D₂O, 2H, NH₂⁺), 8.25 (s, 1H, H₆), 8.16 (d, J = 7.8 Hz, 1H, H₈), 7.99 (s, 1H, H₄), 7.68 (d, J = 7.8 Hz, 1H, H₁₀), 7.58 (t, J = 7.8 Hz, 1H, H₉) ppm. The compound degrades in solution at room temperature, during the acquisition of the ¹³C NMR spectrum. FT-IR (ATR) ν = 3205, 2228, 1666, 1601, 1514, 1473, 1426, 1403, 1334, 1130, 1089, 811, 780, 680 cm⁻¹. ESI-MS (m/z) calcd. for C₁₁H₇N₃O₂ 213.19, found 212.42 [M-H]⁻. Anal. calcd. for C₁₁H₇N₃O₂: C, 61.97; H, 3.31; N, 19.71. Found: C, 62.03; H, 3.35; N, 19.82.

5-(4-Nitrophenyl)-1H-imidazole-2-carboxylic acid (4b). The compound was obtained according to Procedure C (SM). Starting compound: ethyl 5-(4-nitrophenyl)-1H-imidazole-2-carboxylate. Yield: 66%. Aspect: red solid. Mp: 137 °C. TLC (DCM-MeOH 7:3): R_f = 0.40. The following analytical data are referred to the sodium salt. ¹H NMR (300 MHz, DMSO-d₆) δ 8.15-8.09 (m, 4H, H_6,6’, H_7,7’), 7.76 (s, 1H, H₄) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 162.09 (COO⁻), 149.48 (C₂), 145.46 (C₈), 142.17 (C₅), 137.58 (C_5’), 125.45 (C_7,7’), 124.19 (C_6,6’), 117.67 (C₄) ppm. FT-IR (ATR) ν = 3607, 3156, 1652, 1600, 1494, 1472, 1415, 1342, 1135, 1112, 992, 849, 751 cm⁻¹. ESI-MS (m/z) calcd for C₁₀H₇N₃O₄ 233.18, found 232.32 [M-H]⁻. Anal. calcd. for C₁₀H₆N₃NaO₄: C, 47.07; H, 2.37; N, 16.47. Found: C, 47.31; H, 2.39; N, 16.36.

5-(3-Cyanophenyl)-1,3,4-oxadiazole-2-carboxylic acid (5a). The compound was obtained according to Procedure D (SM). Starting compound: ethyl 5-(3-cyanophenyl)-1,3,4-oxadiazole-2-carboxylate. Yield: quantitative. Aspect: white solid. Mp: 222 °C (dec.). TLC (DCM-MeOH 7:3): R_f = 0.42. The following analytical data are referred to the sodium salt. ¹H NMR (300 MHz, DMSO-d₆) δ 8.35 (t, J = 1.8 Hz, 1H, H₆), 8.28 (dt, J = 8.0, 1.4 Hz, 1H, H₈), 8.06 (dt, J = 7.8, 1.4 Hz, 1H, H₁₀), 7.79 (dt, J = 7.9, 0.7 Hz, 1H, H₉) ppm. The compound degrades in solution at room temperature, during the acquisition of the ¹³C NMR spectrum. FT-IR (ATR) ν = 3543, 3384, 2232, 1651, 1614, 1549, 1400, 1343, 1228, 1183, 1086, 812, 807, 679 cm⁻¹. Anal. calcd. for C₁₀H₄N₃NaO₃: C, 50.65; H, 1.70; N, 17.72. Found: C, 50.71; H, 1.81; N, 17.87.

5-(4-Nitrophenyl)-1,3,4-oxadiazole-2-carboxylic acid (5b). The compound was obtained according to Procedure D (SM). Starting compound: ethyl 5-(4-nitrophenyl)-1,3,4-oxadiazole-2-carboxylate. Yield: quantitative. Aspect: pale yellow solid. Mp: 220 °C (dec.). TLC (DCM-MeOH 7:3): R_f = 0.44. ¹H NMR (300 MHz, DMSO-d₆) δ 13.7 (broad s exch. D₂O, 1H, COOH), 8.30 (d, J = 8.9 Hz, 2H, H_7,7’), 8.15 (d, J = 8.9 Hz, 2H, H_6,6’) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 166.24 (COOH), 150.51 (C₅), 136.98 (C_5’), 131.14 (C_7,7’), 124.15 (C_6,6’) ppm. FT-IR (ATR) ν = 2962, 2924, 2853, 1691, 1603, 1520, 1258, 1080, 1013, 789 cm⁻¹. Anal. calcd. for C₉H₅N₃O₅: C, 45.97; H, 2.14; N, 17.87. Found: C, 46.02; H, 2.17; N, 17.96.

1-(3-Cyanophenyl)-1H-1,2,3-triazole-4-carboxylic acid (6a). The compound was synthesized through a specific procedure, reported in SM. Aspect: white solid. TLC (DCM-MeOH 9:1): R_f = 0.14. ¹H NMR (300 MHz, DMSO-d₆) δ 8.90 (s, 1H, H₁), 8.44 (t, J = 2.0 Hz, 1H, H₆), 8.30 (ddd, J = 1.2, 2.0, 8.1 Hz, 1H, H₈), 7.91 (dt, J = 1.2, 8.1 Hz, 1H, H₁₀), 7.77 (t, J = 8.1 Hz, 1H, H₉) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 177.11 (C₂), 163.73 (COOH), 137.81 (C_5’), 132.35 (C₈), 131.66 (C₉), 124.99 (C₁₀), 124.28 (C₆), 123.68 (C₁), 118.30 (CN), 113.25 (C₇) ppm. FT-IR (ATR) ν = 3389, 3091, 2235, 1589, 1557, 1536, 1403, 1343, 1312, 1021, 794 cm⁻¹. Anal. calcd. for C₁₀H₆N₄O₂: C, 56.08; H, 2.82; N, 26.16. Found: C, 56.27; H, 2.91; N, 26.35.

1-(4-Nitrophenyl)-1H-1,2,3-triazole-4-carboxylic acid (6b). The compound was obtained according to Procedure A (SM). Starting compound: ethyl 1-(4-nitrophenyl)-1H-1,2,3-triazole-4-carboxylate. Yield: 91%. Aspect: white solid. Mp: 175 °C. TLC (DCM-MeOH 8:2): R_f = 0.12. ¹H NMR (300 MHz, DMSO-d₆) δ 13.4 (broad s exch. D₂O, 1 H, COOH), 9.59 (s, 1H, H₁), 8.46 (d, J = 7.0 Hz, 2H, H_7,7’), 8.30 (d, J = 7.0 Hz, 2H, H_6,6’) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 161.73 (COOH), 147.60 (C₈), 141.69 (C₂), 140.96 (C_5’), 128.02 (C₁), 125.90 (C_7,7’), 121.72 (C_6,6’) ppm. FT-IR (ATR) ν = 3249, 3142, 3102, 3061, 2962, 2913, 2866, 1729, 1704, 1596, 1516, 1342, 1268, 1219, 1151, 1032, 982, 869, 854 cm⁻¹. ESI-MS (m/z) calcd for C₉H₆N₄O₄ 234.17, found 161.30 [M-CO₂-N₂]⁻. Anal. calcd. for C₉H₆N₄O₄: C, 46.16; H, 2.58; N, 23.93. Found: C, 46.25; H, 2.60; N, 23.97.

5-(3-Cyano-5-(trifluoromethyl)phenyl)furan-2-carboxylic acid (IV). The compound was synthesized according to a previously published procedure [13]. Yield: 70%. Aspect: white solid. Mp: 210 °C. TLC (DCM-MeOH 7:3): R_f = 0.33. ¹H NMR (300 MHz, DMSO-d₆) δ 13.59-13.10 (broad s. exch. D₂O, 1H, COOH), 8.62-8.57 (m, 1H, H₇), 8.41-8.33 (m, 2H, H₁₁, H₉), 7.52 (d, J = 3.7 Hz, 1H, H₄), 7.38 (d, J = 3.7 Hz, 1H, H₃) ppm. ¹³C APT NMR (75 MHz, DMSO-d₆) δ 159.45 (COOH), 152.84 (C₅), 146.18 (C₂), 132.17 (C₇), 132.17-131.78-131.34-130.90 (q, C₁₀), 131.99 (C₆), 129.14 (C₉), 128.80-125.19-121.56-117.94 (q, CF₃), 125.09 (C₁₁), 120.09 (C₃), 117.53 (CN), 114.28 (C₈), 111.74 (C₄) ppm. FT-IR (ATR): ν = 3130, 3082, 2960, 2917, 2849, 2237, 1688, 1578, 1519, 1455, 1438, 1410, 1344, 1274, 1256, 1163, 1133, 1114, 1085, 1032, 900 cm⁻¹. ESI-MS (m/z) calcd for C₁₃H₆F₃NO₃ 281.03, found 280.14 [M-H]⁻. Anal. calcd. for C₁₃H₆F₃NO₃: C, 55.53; H, 2.15; N, 4.98. Found: C, 55.47; H, 2.19; N, 5.01.

5-(3,5-Bis(trifluoromethyl)phenyl)furan-2-carboxylic acid (V). The compound was synthesized according to a previously published procedure [13]. Yield: 91%. Aspect: white solid. Mp: 168 °C. TLC (DCM-MeOH 7:3): R_f = 0.39. ¹H NMR (300 MHz, DMSO-d₆) δ 13.65-13.20 (broad s. exch. D₂O, 1H, COOH), 8.41-8.36 (m, 2H, H₇, H₁₁), 8.12-8.07 (m, 1H, H₉), 7.59 (d, J = 3.7 Hz, 1H, H₃), 7.38 (d, J = 3.7 Hz, 1H, H₄) ppm. ¹³C APT NMR (75 MHz, DMSO-d₆) δ 159.48 (COOH), 153.19 (C₅), 146.03 (C₂), 132.34-131.90-131.46-131.03 (q, C₈), 132.00 (C₆), 128.98-125.36-121.74-118.12 (q, CF₃), 125.00 (C₁₁), 122.14 (C₉), 120.14 (C₃), 111.73 (C₄) ppm. FT-IR (ATR): ν = 2960, 2925, 2855, 1689, 1621, 1591, 1526, 1455, 1420, 1366, 1278, 1161, 1124, 1081, 1027, 896 cm⁻¹. ESI-MS (m/z) calcd for C₁₃H₆F₆O₆ 324.18, found 323.16 [M-H]⁻. Anal. calcd. for C₁₃H₆F₆O₃: C, 48.17; H, 1.87. Found: C, 48.02; H, 1.91.

5-(3-cyano-5-fluorophenyl)furan-2-carboxylic acid (VI). The compound was synthesized according to a previously published procedure [13]. Yield: quantitative. Aspect: white solid. Mp: 247 °C. TLC (DCM-MeOH 7:3): R_f = 0.26. ¹H NMR (300 MHz, DMSO-d₆) δ 13.38 (broad s exch D₂O, 1H, COOH), 8.14 (t, J = 1.6, 1H, H₇), 7.96 (dd, J = 7.8, 1.6 Hz, 1H, H₁₁), 7.88 (dd, J = 6.0, 1.6 Hz, 1H, H₉), 7.43 (d, J = 3.7 Hz, 1H, H₄), 7.37 (d, J = 3.7 Hz, 1H, H₃) ppm. ¹³C APT NMR (75 MHz, DMSO-d₆) δ 164.18-160.91 (d, CF), 159.53 (COOH), 153.20-153.16 (d, C₅), 145.89 (C₂), 133.05-132.93 (d, C₆) 124.92-124.87 (d, C₇), 120.19 (C₃), 119.75-119.41 (d, C₁₁), 117.72-117.68 (d, CN), 116.57-116.25 (d, C₉), 114.46-114.32 (d, C₈), 111.43 (C₄) ppm. FT-IR (ATR): ν = 3113, 2916, 2849, 2663, 2575, 2231, 1675, 1594, 1519, 1435, 1308, 1214, 1173, 1028, 866, 809, 760 cm⁻¹. ESI-MS (m/z) calcd for C₁₂H₆FNO₃ 231.18, found 230.50 [M-H]⁻. Anal. calcd. for C₁₂H₆F NO₃: C, 62.34; H, 2.62. Found: C, 62.53; H, 2.51.

5-(3-Cyano-5-methoxyphenyl)furan-2-carboxylic acid (VII). The compound was synthesized according to a previously published procedure [13]. Yield: 80%. Aspect: white solid. Mp: 226 °C. TLC (DCM-MeOH 7:3): R_f = 0.46. ¹H NMR (300 MHz, DMSO-d₆) δ 13.42-13.19 (broad s. exch. D₂O, 1H, COOH), 7.82 (t, J = 1.4 Hz, 1H, H₇), 7.59 (dd, J = 2.5, 1.5 Hz, 1H, H₁₁), 7.45 (dd, J = 2.5, 1.3 Hz, 1H, H₉), 7.35 (d, J = 3.7 Hz, 1H, H₃), 7.33 (d, J = 3.7 Hz, 1H, H₄), 3.87 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 160.43 (C₁₀) 159.61 (COOH), 154.2 (C₅), 145.46 (C₂), 132.08 (C₆), 120.73 (C₃), 120.20 (C₇), 118.66 (CN), 117.65 (C₉), 115.02 (C₁₁), 113.72 (C₈), 110.60 (C₄), 56.49 (CH₃) ppm. FT-IR (ATR): ν = 3116, 3086, 2926, 2574, 2229, 1693, 1608, 1594, 1572, 1515, 1461, 1427, 1305, 1215, 1167, 1033, 960 cm⁻¹. ESI-MS (m/z) calcd for C₁₃H₉O₄ 243.05, found 242.28 [M-H]⁻. Anal. calcd. for C₁₃H₉F₃O₄: C, 54.56; H, 3.17. Found: C, 54.71; H, 3.23.

5-(3-cyano-5-methylphenyl)furan-2-carboxylic acid (VIII). The compound was synthesized according to a previously published procedure [13]. Yield: 90%. Aspect: white solid. Mp: 238 °C. TLC (DCM-MeOH 7:3): R_f = 0.31 ¹H NMR (300 MHz, DMSO-d₆) δ 13.20 (broad s exch D₂O, 1H, COOH), 8.08-8.02 (m, 1H, H₇), 7.93-7.88 (m, 1H, H₁₁), 7.67-7.62 (m, 1H, H₉), 7.33 (d, J = 3.6 Hz, 1H, H₃), 7.28 (d, J = 3.6 Hz, 1H, H₄), 2.39 (s, 3H, CH₃) ppm. ¹³C NMR (75 MHz, DMSO-d₆) δ 159.56 (COOH), 154.49 (C₂), 145.39 (C₅), 140.84 (C₁₀), 132.82 (C₉), 130.66 (C₆), 129.51 (C₁₁), 125.61 (C₇), 120.13 (C₃), 118.82 (CN), 112.64 (C₈), 110.06 (C₄), 20.89 (CH₃) ppm. FT-IR (ATR): ν = 3119, 2926, 2849, 2692, 2579, 2228, 1726, 1682, 1584, 1520, 1422, 1299, 1169, 1029, 858, 810, 760 cm⁻¹. ESI-MS (m/z) calcd for C₁₃H₉NO₃ 227.063, found 226.35 [M-H]⁻. Anal. calcd. for C₁₃H₉ NO₃: C, 68.72; H, 3.99. Found: C, 68.93; H, 4.01.

5-(3-cyano-5-hydroxyphenyl)furan-2-carboxylic acid (IX). The compound was synthesized according to a previously published procedure [13]. Yield: 95%. Aspect: white solid. Mp: 280 °C (dec.). TLC (DCM-MeOH 7:3 and 3 drops of CH₃COOH): R_f = 0.44. ¹H NMR (300 MHz, DMSO-d₆) δ 13.22 (broad s exch. D₂O, 1H, COOH), 10.54 (broad s exch. D₂O, 1H, OH), 7.71 (t, J = 1.5, 1H, H₇), 7.48 (dd, J = 2.4, 1.5 Hz, 1H, H₁₁), 7.32 (d, J = 3.6 Hz, 1H, H₃), 7.26 (d, J = 3.6 Hz, 1H, H₄), 7.14 (dd, J = 2.4, 1.5, 1H, H₉) ppm. ¹³C APT NMR (75 MHz, DMSO-d₆) δ 159.50 (C₁₀), 158.90 (COOH), 154.42 (C₅), 145.27 (C₂), 132.09 (C₆), 120.10 (C₃), 119.32 (C₇), 118.93 (C₉), 118.74 (CN), 115.92 (C₁₁), 113.50 (C₈), 110.08 (C₄) ppm. FT-IR (ATR): ν = 3400, 3108, 2602, 2228, 1652, 1595, 1516, 1487, 1439, 1310, 1241, 1213, 1174, 1152, 1035, 963, 881, 816, 668 cm⁻¹. ESI-MS (m/z) calcd. for C₁₂H₇NO₄ 229.19, found 228.29 [M-H]⁻. Anal. calcd. for C₁₂H₇ NO₄: C, 62.89; H, 3.08. Found: C, 62.53; H, 3.05.

4.2. Biological Activities

4.2.1. MbtI Enzymatic Assays

Recombinant M. tuberculosis MbtI was produced and purified as previously reported [14]. Enzyme activity was determined at 37 °C, measuring the formation of salicylic acid by a fluorimetric assay, slightly modified from Vasan et al. [38]. Briefly, the reactions were performed in a final volume of 400 μL of 50 mM Hepes pH 7.5, 5 mM MgCl₂, containing 1-2 μM MbtI, by the addition of chorismic acid, and monitored using a Perkin-Elmer LS3 fluorimeter (Ex. λ = 305 nm, Em. λ = 420 nm). Inhibition assays were performed in the presence of the compound at 100 µM (stock solution 20 mM in DMSO) and 50 µM chorismic acid. Where possible, compounds were tested both as free acids and sodium salts, providing analogous results. For compounds inhibiting by more than 75% the initial activity, IC₅₀ values were determined. To this end, the activity was measured at different compound concentrations, and values were calculated according to Equation (1), with Origin 8 software:

$${\mathrm{A}}_{\left[\mathrm{I}\right]}{=\mathrm{A}}_{\left[0\right]}\times \left(1-\frac{\left[\mathrm{I}\right]}{{\left[\mathrm{I}\right]+\mathrm{IC}}_{50}}\right)$$

(1)

where A_[I] is the activity at inhibitor concentration [I] and A[0] is the activity in the absence of the inhibitor.

The K_i was determined at different substrate [S] and compound concentrations, using Equation (2):

$$\mathrm{v}=\frac{{\mathrm{V}}_{\max }\left[\mathrm{S}\right]}{\left[\mathrm{S}\right]{+\mathrm{K}}_{\mathrm{m}}\left(1+\frac{\left[\mathrm{I}\right]}{{\mathrm{K}}_{\mathrm{i}}}\right)}$$

(2)

4.2.2. MIC Determination

The minimal inhibitory concentration (MIC⁹⁹) of the most active compounds was determined against M. bovis BCG in low-iron chelated Sauton’s medium, by the 2-fold microdilution method in U-bottom 96-well microtiter plates, as previously reported [13]. To this purpose, cells were grown in 7H9 medium, sub-cultured in chelated Sauton’s medium, and then diluted to an OD₆₀₀ of 0.01 in chelated Sauton’s containing different concentrations of the test compound. After 15 days of incubation at 37 °C, the growth was evaluated by the resazurin reduction assay method (REMA). Thirty microliters of a 0.01% solution of filter-sterilized resazurin sodium salt were added to each well, and the microtiters were re-incubated at the same temperature for 24 h. The MIC was defined as the lowest concentration of the drug that prevented a change in color from blue to pink, which indicates bacterial growth.

5. Conclusions

In this paper, a SAR study on our series of MbtI inhibitors led to the identification of new candidates, endowed with a potent activity against the enzyme and encouraging bactericidal properties. For the new products, we described the design, synthesis, analytical characterization, and biological activity.

Firstly, two sets of compounds, series A and B, incorporating a variety of heterocyclic motifs were biologically evaluated against MbtI and in whole-cell assays against M. bovis BCG. This approach led to the disclosure of 1b, 3b, and 4b provided with a moderate activity (IC₅₀ in the range 18–27 µM), but low bactericidal effects. Overall, the obtained results confirmed that the furan core was a better scaffold to gain MbtI inhibition in comparison with several other heterocycles.

These findings provided the basis for the design of the new furan-based derivatives IV–IX, which were synthesized, characterized, and tested. The best compound of this series, IV, bearing the preferred cyano group at position 3 and a trifluoromethyl moiety in 5, showed a potent MbtI inhibitory effect (%RA ≈ 1%, IC₅₀ ≈ 15 μM, Ki ≈ 9 μM), comparable to the previous lead I, but exhibiting an enhanced antimycobacterial action (MIC⁹⁹ = 125 μM), thus becoming one of the few potent MbtI inhibitors endowed with a promising antitubercular activity.

These observations justify the selection of IV as the new lead of our next optimization campaign, which will contribute to strengthen the perspectives of anti-TB drug discovery.
