Generation of Stable cisPt Resistant Lung Adenocarcinoma Cells

by
Nico Ruprecht
1,2,*,
Lukas Hofmann
3,†,
Martin Nils Hungerbühler
1,2,
Christoph Kempf
1,2,
Johannes Thomas Heverhagen
1,2 and
Hendrik von Tengg-Kobligk
1,2
1
Department of Diagnostic, Interventional and Pediatric Radiology, Bern University Hospital, University of Bern, 3010 Bern, Switzerland
2
Department of BioMedical Research, University of Bern, 3008 Bern, Switzerland
3
Department of Pharmacology, School of Medicine, Case Western Reserve University, Cleveland, OH 44106, USA
*
Author to whom correspondence should be addressed.
†
Present address: Department of Chemistry, Bar-Ilan University, Ramat-Gan 5290002, Israel.
Pharmaceuticals 2020, 13(6), 109; https://doi.org/10.3390/ph13060109
Submission received: 24 April 2020 / Revised: 20 May 2020 / Accepted: 27 May 2020 / Published: 29 May 2020
(This article belongs to the Section Pharmacology)
Browse Figures
Versions Notes

Abstract

:
Platinum compounds represent the backbone of combined chemotherapy protocols for advanced lung cancer. The mechanisms responsible for its frequent primary or acquired resistance to cisplatin (cisPt)-based chemotherapy remains enigmatic. The availability of two cell lines of the same origin, one resistant and the other sensitive, will facilitate research to reveal the mechanism of resistance formation. Lung adenocarcinoma cells, A240286S (A24), were cultivated in increasing cisPt concentrations over a prolonged time. After a significant increase in IC50 was measured, cultivation of the cells was continued in absence of cisPt and IC50s determined over a long period (>7 months). As a result, a cell line with lasting, high-level cisPt resistance, designated (D-)A24cisPt8.0, was obtained. The cells were cross-resistant to oxaliplatin and to pemetrexed at a low level. Previous publications have claimed that Leucine-rich repeat-containing protein 8 (LRRC8A and LRRC8D) of the volume-regulated anion channels (VRACs) affect cellular resistance to cisPt. Even though cisPt decreased LRRC8D expression levels, we showed by knockdown and overexpression experiments with LRRC8A and D that these proteins do not govern the observed cisPt resistance. The tumor cell sublines described here provide a powerful model to study the mechanisms of resistance to cisPt in lung cancer cells and beyond.

Graphical Abstract

1. Introduction

With nearly 1.5 million new cases diagnosed each year worldwide, lung cancer is the most frequently diagnosed cancer in men and the leading cause of cancer death [1,2]. There are two main types of this disease, non-small cell lung cancer (NSCLC) and small cell lung cancer (SCLC). Eighty-five percent of all cases and thus the most abundant form of lung cancer is NSCLC [3]. Nearly 70% of patients diagnosed with NSCLC are found in the advanced or metastatic disease stage [4]. In spite of newly developed anti-cancer agents, the effect of platinum-based drugs to patients cannot be neglected. The use of Bevacizumab, a humanized monoclonal antibody that targets vascular endothelial growth factor (VEGF) improved responses and survival of patients only in combination with carboplatin and paclitaxel significantly [5]. As a consequence, platinum-based chemotherapy governs the first-line treatment [1,6].
The group around Barnett Rosenberg discovered the robust anti-proliferative effects of cisPt in the late 1960s. Formation of a complex between Pt(II) and nitrogen atoms of the nucleotide bases (platinum-DNA adducts) causes kinks and partial unwinding of the DNA helix [7]. This conformational change of the DNA halts the cell cycle and initiates programmed cell death [5,8]. Passive diffusion was assumed to be the only mechanism for cisPt entering the cell [9,10]. In recent years, however, alternative pathways such as the Copper transporter 1 (CTR1) were identified as an important transmembrane protein involved in cisPt uptake [11]. Furthermore, copper-extruding P-type ATPases were found to alter the export of cisPt too [12]. Recently, Planells-Cases et al. [13] described that the loss of LRRC8A and LRRC8D subunits of the volume-regulated anion channel (VRAC) affects cisPt uptake.
Inherent or acquired platinum resistance is a major limitation to improve long-term outcomes in cancer therapy. Recent discoveries were describing multiple novel resistance mechanisms [14,15,16,17]. These mechanisms with an effect on the development of cisPt resistance with clinical implications include decreased drug import, increased drug export, increased drug inactivation by detoxification enzymes, increased DNA damage repair, and inactivated cell death signaling, just to name the major possible mechanisms. To overcome cisPt resistance in cancer patients, numerous approaches have been undertaken [17]. Unfortunately, none of these approaches has been clinically implemented so far [1]. The recently proposed role of VRACs as entry for cisPt and carboplatin may appear as a promising new target to circumvent platinum-drug resistance in cancer patients [18,19].
The definition of sensitivity to cisPt used in the present report is based on the first performed identification of drug concentrations in vitro that correspond to clinical sensitivity of lung tumors. Ex vivo determined IC50 values for cisPt in endoscopic lung tumor specimens were correlated with effects of platinum-based combination chemotherapy on the respective primary tumors in vivo. Pretherapeutic ex vivo IC50 values for cisPt below 5 µM correlated with partial remission. At higher pretherapeutic IC50 values, the influence of the co-medication increased. Pemetrexed dominated in NSCLC, etoposide in SCLC [20]. Thus, lung tumors with IC50 values for cisPt below 5 µM are considered as sensitive to this drug.
The present report exclusively concerns the in vitro generated resistance to cisPt. Thereby, the platinum-sensitive lung adenocarcinoma wild-type (wt) cells from a suprarenal metastasis were exposed to cisPt. Most specimens of NSCLC are adenocarcinomas, but the presented findings are unrelated to therapeutically naïve tumors and restricted to cisPt resistance resulting from platinum-based chemotherapy. Sublines with decreasing cisPt responsiveness arose by stepwise increasing drug concentration. These sublines will facilitate analysis of the development as well as understanding the nature of mechanism(s) responsible for the acquisition of platinum resistance. Next generation sequencing analysis could reveal the specific and molecular details of gene expression patterns responsible for cisplatin resistance formation. In early stages, de-induction in the absence of drug revealed only temporary effects [21]. Clinically relevant degrees of resistance obtained at inducer concentrations above 4 µM persisted for almost one year and in its absence. This allows the identification of both therapeutic agents, whether or not they are cross-resistant to cisPt, and mechanisms of resistance to platinum derivatives that act in NSCLC.

2. Results

2.1. Immunocytochemical Verification of Lung Adenocarcinoma Properties of A24 wt Cells

In the present study, the lung adenocarcinoma origin of A24 wt cells was verified by immunofluorescence staining. Thyroid transcription factor 1 (TTF-1) was used as a specific marker for adenocarcinomas, while tumor protein p63 (p63) is a specific marker for squamous cell carcinomas [22]. A24 wt cells were fixed and stained with TTF-1 or p63. These staining demonstrated that A24 wt cells were positive for TTF-1 but negative for p63 (Figure 1).

2.2. Development, Levels, and Stability of Graded cisPt Resistance in A24cisPt and (D-)A24cisPt Sublines

A24cisPt sublines with reduced cisPt sensitivity (A24cisPt2.0, A24cisPt4.0, and A24cisPt8.0) were sequentially derived from the wt A24 cell strain and exposed to their defining cisPt concentration for several months, followed by a de-induction phase without cisPt exposure as described in materials and methods (Figure 2).
Dose-response curves of cisPt for sublines the A24 wt cell strain, for its sublines A24cisPt2.0, A24cisPt4.0, A24cisPt8.0, and for their de-induced (D-) counterparts were derived from at least three individual experiments and are shown in Figure 3.
Table 1 shows a comparison between IC50 values for cisPt, population doubling time of the A24 wt adenocarcinoma cell strain subline (column 1), and IC50 values for cisPt of the A24cisPt, (D-)A24cisPt sublines, and the population times observed in the latter.
There were 13-fold, 20-fold, and 40-fold increases in the IC50 values of the A24cisPt2.0, A24cisPt4.0, and A24cisPt8.0 sublines, compared to the A24 wt subline. But de-induced (D-)A24cisPt2.0, (D-)A24cisPt4.0, and (D-)A24cisPt8.0 sublines still showed two-fold, nine-fold, and 30-fold increases in IC50 values, compared to the A24 wt subline. After almost one year in the absence of cisPt, the calculated IC50 value was still 12.74 ± 0.78 μM for the (D-)A24cisPt8.0 subline.

2.3. Cross Resistance of A24cisPt and (D-)A24cisPt Sublines to Oxaliplatin and Pemetrexed

Figure 4 shows cross-resistance to oxaliplatin of the A24cisPt8.0 and (D-)A24cisPt8.0 sublines. Corresponding IC50 values for oxaliplatin were 0.12 ± 0.005 μM for wt A24, 0.78 ± 0.11 μM for A24cisPt8.0 and 0.78 ± 0.05 μM for (D-)A24cisPt8.0. The IC50 values were significantly different form wt A24, p < 0.0001 (A24cisPt8.0), and p < 0.0001 ((D-)A24cisPt8.0).
Figure 5 shows significant cross-resistance of both the A24cisPt8.0 and the (D-)A24cisPt8.0 sublines to pemetrexed but at a very low level. IC50 values of pemetrexed were 0.017 ± 0.001 μM for wt A24, 0.033 ± 0.002 μM for A24cisPt8.0 and 0.033 ± 0.002 μM for (D-)A24cisPt8.0. The IC50 values were significantly different from wt A24, p < 0.0001 for A24cisPt8.0 and (D-)A24cisPt8.0.

2.4. Expression of VRAC Subunits in A24 wt, A24cisPt, and (D-)A24cisPt Cells

In an initial attempt to shed light on the mechanism of resistance formation, we focused on the LRRC8 proteins of VRACs. LRRC8 transporter proteins of VRACs were claimed by Planells-Cases et al. [13] to have a significant clinical impact in cellular uptake of platinum, to influence the efficacy of platinum-based drugs, and to require adjustments of the treatment strategy.
Western blot analysis of VRAC subunits LRRC8A and LRRC8D expression levels in A24 wt cells are shown in Figure 6. Expression levels of both subunits were affected differently in A24cisPt sublines according to cisPt concentrations. The LRRC8D expression strongly decreased with increasing cisPt levels. In the A24cisPt2.0 subline, LRRC8D was barely detectable and was abolished in the A24cisPt4.0 and A24cisPt8.0 sublines. Interestingly, LRRC8D expression levels returned to wt level in all de-induced (D-)A24cisPt sublines. In comparison, expression levels of the LRRC8A subunit was solely changed in A24cisPt8.0 and the de-induced (D-)A24cisPt8.0. A partial decrease of LRRC8A suppression was observed and remains unchanged with de-inducing conditions.
Normalized gene expression of LRRC8A and LRRC8D in resistant cisPt were compared to the cisPt sensitive A24 wt subline by RT-qPCR. The mRNA levels of LRRC8A in induced or in de-induced sublines were almost identical (96% or 92%, respectively) compared to the A24 wt (Figure 6C). However, the average mRNA level of LRRC8D in induced or de-induced sublines dropped significantly to 64% or 68%, respectively (Dunnett’s test, p Value = 0.0016 or 0.0028, respectively) (Figure 6D).

2.5. CisPt Response of siLRRC8A or siLRRC8D Transfected A24 wt Cells

IC50 values for cisPt were determined to test whether siRNA-mediated down regulation of LRRC8A or LRRC8D affects the phenotypical cisPt response in A24 wt cells. Calculated IC50 values were 0.47 ± 0.03 µM and 0.61 ± 0.01 µM for LRRC8A and LRRC8D knockdown cells, respectively. Thus, being almost identical to those observed in siRNA-untreated cells (Figure 7A). Suppression of LRRC8A or LRRC8D subunits of VRAC resulting of siRNA-mediated knockdown were confirmed by RT-qPCR and Western blotting (Figure 7B–D).

2.6. CisPt Response in Transfected (D-)A24cisPt8.0 Cells Overexpressing LRRC8A or LRRC8D

As reported previously, LRRC8A is required to transport LRRC8D to the plasma membrane [23]. Since LRRC8A is significantly reduced in (D-)A24cisPt8.0 cells (Figure 6B), overexpression experiments were performed using both wt LRRC8A and D-containing plasmids. The latter was used to exclude the possibility that the LRRC8D was mutated in the newly developed (D-)A24cisPt8.0 cells.

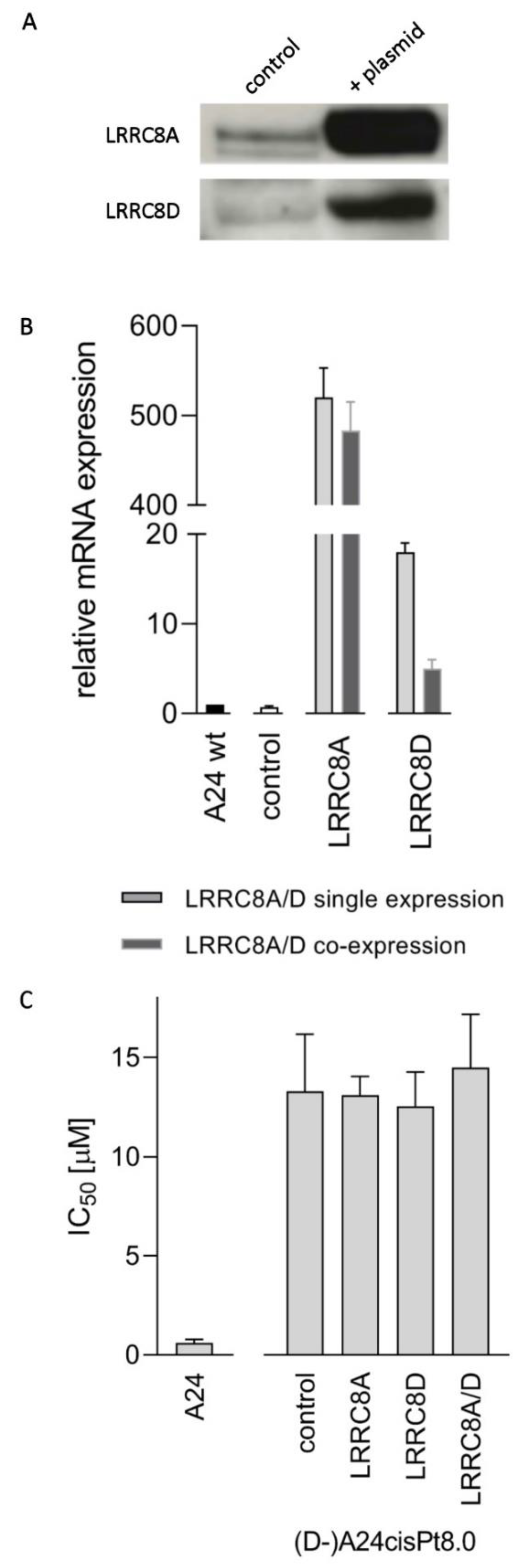

Cells were transfected as described in material and methods to verify whether cisPt resistance is reversed in (D-)A24cisPt8.0 cells by overexpression of LRRC8A and/or LRRC8D. Successful overexpression of LRRC8A and/or LRRC8D subunits of VRAC was tested and confirmed by RT-qPCR and Western blotting. As depicted in Figure 8A LRRC8A appeared in transfected cells and was highly overexpressed compared to A24 wt cells as demonstrated with RT-qPCR (Figure 8B). LRRC8D is present in equivalent amounts in A24 wt and (D-)A24cisPt8.0 cells as judged by Western blot (Figure 6B). LRRC8D was overexpressed successfully, verified by RT-qPCR. Determination of IC50 values showed no difference in LRRC8A and/or LRRC8D overexpressing cells compared to the (D-)A24cisPt8.0 wt cells (Figure 8C). Corresponding IC50 values were 13.1 ± 1.0 µM in (D-)A24cisPt8.0 wt cells and 12.6 ± 1.7 µM and 13.3 ± 2.9 µM in LRRC8A or LRRC8D overexpressing cells, respectively. An IC50 value of 14.5 ± 2.7 µM was measured when LRRC8A and LRRC8D were co-expressed.

3. Discussion

It is a fundamental requirement to fully understand the underlying mechanism of cisPt resistance in NSCLC. Only this understanding will allow us to successfully deploy cisPt as the treatment of choice for patients in first-line combination regiments of NSCLC in the future [1].
A24 wt cells were established from a hematogenous suprarenal metastasis of a lung adenocarcinoma. It is well known that tumors are heterogeneous and, in consequence, cell lines derived thereof are heterogeneous, too [24]. A24 resistant sublines were obtained by cultivating in presence of cisPt over a prolonged time allowing divergent evolution for the acquisition of a cisPt resistance. Resistance could have been acquired by either molecular changes within the entire cell population over time or alternatively by selection over time of preexisting resistant cells. The latter would certainly lead to a reduction in heterogeneity.
The present study is chiefly concerned with establishing the framework required to analyze, in NSCLC, the development of resistance to cisPt during platinum-based combination chemotherapy. Hence, sensitivity as well as resistance to cisPt were considered here as manifestations of the drug’s systemic toxicity. At the organism level, toxicity is tolerable in drug-sensitive settings and becomes intolerable in drug-resistant ones. The upper limit of cisPt tolerance in lung cancer patients was shown to correspond to a plasma level of 6.67 µM cisPt [25]. Different cisPt resistant cell lines have been already established and described [26,27,28]. However, to our knowledge, cell lines resistant to cisPt, which have been growing in absence of drug over a period of more than seven months, have not been previously published [24]. Strictly observing flavin-protecting procedures to prevent photochemical artifacts throughout the study should have been decisive for the survival of tumor cells at high cisPt concentrations [29,30]. The highly resistant A24cisPt8.0 subline is 40-fold more resistant to cisPt when compared to its parent line. Interestingly, the de-induced (D-)A24cisPt8.0 subline shows a 30% decrease of resistance as compared to the induced A24cisPt8.0 subline. This finding suggests that acquired cisPt resistance in A24 sublines is only partial lost in drug free medium. Similar findings were described in Adriamycin resistant cell lines, where 40 to 50% loss of resistance have been observed [31,32]. However, this effect is less pronounced in de-induced sublines of lower concentrations such as (D-)A24cisPt2.0 and (D-)A24cisPt4.0. We suggest that there is a threshold of cisPt concentration in induced A24 sublines which results in an acquired and sustained resistance in de-induced sublines.
In a systematic review of the literature performed by Stordal et al., a cross-resistance between cisPt and oxaliplatin was suggested. They described cross-resistance in low-level platinum resistant cell lines and in patients with cisPt resistant cancers [33]. In our study, induction of cisPt resistance in A24 cells displayed a minimal cross-resistance to oxaliplatin. A four-fold oxaliplatin resistance was determined in the A24cisPt8.0 subline and the (D-)A24cisPt8.0 subline when compared to their parent line. High levels of cisPt resistance in cisPt resistant A24 sublines were associated with marginal level of resistance to oxaliplatin. Similar findings were described by others [34,35,36]. Zhang et al. have demonstrated that pemetrexed-resistant NSCLC are 2.1 to 4.2-fold more resistant to cisPt when compared to its parent line [37]. In our study, a maximum of two-fold pemetrexed resistance was determined in the A24cisPt8.0 subline and the (D-)A24cisPt8.0 subline when compared to their parent cell line. These results support the conclusion that the acquired resistance mechanism in A24cisPt sublines also contributes to an oxaliplatin and pemetrexed resistance albeit to a lesser extent. However, it is highly speculative to assume that these sublines are multi-drug-resistant.
In a clinical study on advanced, chemotherapeutically naïve lung tumors, pre-therapeutic IC50 values for cisPt were determined in small bioptic tumor specimens, and biometrically compared to the radiologically determined effects of platinum-based combination chemotherapy on the respective primary tumors. Procedures used were as in the present study. All tumors with IC50 values of ≤5 µM for cisPt responded to platin-based combination chemotherapy with partial remission. Higher IC50 values of up to 7 µM corresponded to tumors responding with partial remission or with no change. The extremely variable therapeutic effects on tumors with pre-therapeutic IC50 values for cisPt above 7 µM resulted either from action of additional drugs used for the platinum-based combination chemotherapy (e.g., pemetrexed) or were due to interaction with the obligatory platinum drugs. Pre-therapeutic IC50 values above 20 µM for cisPt were frequently observed [20]. Accordingly, in the present study, lung adenocarcinoma cells with IC50 values for cisPt below 5 µM, between 5 µM and 7 µM, and above 7 µM were respectively considered as being sensitive, intermediately responsive, or definitively resistant to cisPt.
Numerous cellular mechanisms related to cisPt resistance are known [17,38]. Prevention of drug uptake by cancer cells is one strategy to become drug resistant. The copper transporter 1 (CTR1) has been successfully identified as transporter for the uptake of polar cisPt into the cytoplasm by several studies [39,40,41]. Conversely, a CTR1 dependent transport was disclaimed by Ivy and Kaplan. Their observations support a non-protein-mediated pathway [42]. Furthermore, Planells-Cases et al. have demonstrated that the loss of LRRC8A and LRRC8D subunits of the heteromeric volume-regulated anion channels (VRACs) in haploid KBM7 cells is related to resistance to cisPt. Similar results were obtained by Sorensen and collaborators [43,44,45]. It was suggested that loss of these subunits contribute to cisPt resistance due to decreased cellular uptake of the cytostatic drug. This is in agreement with our observation that in cisPt induced A24 sublines the LRRC8D subunit is downregulated on the protein level (Figure 6A). Downregulation of LRRC8A is less pronounced than LRRC8D (Figure 6B). Planells-Cases and coworkers [13] also observed, a correlation between LRRC8D downregulation and poor survival of Pt drug-treated patients, but not so with LRRC8A. Indeed, normalized gene expression of LRRC8D in induced and de-induced cisPt A24 sublines was downregulated by 33.6 ± 6%. Therefore, the expression profile of LRRC8D mRNA may predict the sensitivity of cancer cells to cisPt as described by Planell-Cases and coworkers [13]. In contrast, the gene expression of LRRC8A in induced and de-induced cisPt A24 sublines remained unaffected when compared to the parental A24 cell line. Taken together these findings so far may suggest that LRRC8 could be involved in cisPt resistance. However, the fact that in de-induced cells, that remained cisPt resistant protein expression of LRRC8D fully recovered (Figure 6B) suggested that resistance formation does not go along with the loss of this protein in the A24 sublines.
Therefore, knockdown experiments using siRNA against either LRRC8A or LRRC8D were carried out in wt A24 cells. Success of the knockdown was confirmed by RNA analysis by RT-qPCR and Western blot (Figure 7A–C). The use of scrambled siRNA showed no effect. Functional testing performed on these knockdown cells resulted in identical sensitivity of these cells towards cisPt compared to wt A24 cells. Additionally, no change in response to cisPt was observed when LRRC8A and/or LRRC8D, were overexpressed in (D-)A24Pt8.0 cells (Figure 8). Co-transfection was performed because LRRC8D remains intracellular if not co-transfected with LRRC8A [23,46]. Overexpression experiments of LRRC8D exclude that the developed resistance is due to a mutation affecting these proteins. These results clearly demonstrate that the putatively mentioned involvement of LRRC8 in resistance referred to above cannot be sustained in A24 sublines. In summary, it can be stated that loss of LRRC8A or LRRC8D does not govern the cisPt resistance in A24 cells. Hence, these findings are in contradiction to previously published studies for other cells [13,43,44,45]. Currently any explanation of this discrepancy would be highly speculative.
In conclusion, the here established and described A24cisPt cells might serve as a powerful model to study the molecular mechanism of the development of resistance to cisPt and potential re-sensitization mechanisms. In addition, future molecular characterization of these cell lines might also lead to discovery of biomarkers for cisPt resistance and/or resistance development in NSCLC.
Further, availability of stable resistant de-induced sublines allows for in vitro investigations of the cellular cross-resistance to cisPt of other cytostatic drugs. However, the limitation of the established cisPt resistant sublines is that they cannot reflect the microenvironment of a tumor.
In conclusion, we have established cisPt resistant NSCLC sublines. Molecular changes at the respective intermediate resistance levels of 0–8 µM can be identified by sequencing and analyses of the effects of knockdown and overexpression in resistant cells with increasing cisPt levels. The obtained resistance was stable over a period of almost one year and continues. The here established and described A24cisPt cells might serve as a powerful model to study the molecular mechanism of the development of resistance to this drug and potential re-sensitization mechanisms. Further, the availability of stable resistant de-induced sublines allows in vitro investigations of the cellular cross-resistance of other cytostatic drugs to cisPt.

4. Materials and Methods

4.1. Platinum Derivatives and Pemetrexed

Pharmaceutical preparations of cisPt (CISplatin Sandoz®, i.v. Infusion concentrate) and oxaliplatin (OXALIplatin Sandoz®, i.v. Infusion concentrate) were purchased from Galenica AG (Bern, Switzerland). Pharmaceutical preparation of pemetrexed (Alimata 500 mg) was obtained from Eli Lilly Nederland B.V. (Houten, Nederland). The aqueous solutions of cisPt were diluted with fresh medium to the desired concentrations directly before use. pemetrexed was dissolved in sodium chloride solution for injection to 25 mg/mL and subsequently diluted with fresh medium to the appropriate concentrations just before use.

4.2. Metastatic Lung Adenocarcinoma Cells and Cell Cultivation

The cell line A240286S (A24) used was provided by Dr. C. Granzow and has been described previously [30,47]. A24 wt cell strain was mistakenly assumed to origin from the lung metastasis of a hypernephroma [47]. Subsequent reevaluation of the clinical records, however, attributed the A24 cells to originate form a presumably hematogenous suprarenal metastasis of a lung adenocarcinoma, though, without molecular proof. [30].
The A24 subline and any further sublines used in the course of the present study were cultured in RPMI 1640 without riboflavin, phenol red and antibiotics, buffered with 4.5 mM HEPES (BioConcept, Allschwil, Switzerland), supplemented with 10% (v/v) fetal bovine serum (FBS) (Thermo Scientific, Waltham, MA, USA) as the only source of flavins and 13.5 mM NaHCO3. At subcultivation, cell monolayers were rinsed with PBS and exposed for 3 min to StemPro Accutase Cell Dissociation Reagent (Thermo Scientific, Waltham, MA, USA) at 36.5 °C. Detached cells were re-suspended in culture medium. Cell densities were determined using Moxi flow cytometer according to manufacturer instructions (Orflo Technologies, Ketchum, ID, USA). Experiments and subcultivations were performed using light with wavelengths above 520 nm to prevent photochemical artifacts [29]. Culture vessels and test plates were incubated in the dark at 36.5 °C below 3.5% CO2 (vol/vol) and humidified air. Absence of mycoplasma was checked regularly.

4.3. Immunofluorescence

A24 wt cells were washed with PBS and fixed with 4% paraformaldehyde. Fixed cells were incubated with monoclonal anti-TTF-1 antibody or anti- p63 antibody (1:500 dilution, Abcam, Cambridge, UK) for 1 h at room temperature. After incubation, the cells were washed and stained using Alexa™ 488-conjugated goat anti-rabbit secondary antibody (1:500 dilution, Molecular Probes, Eugene, OR, USA) for 1 h at room temperature in the dark. Then, the cells were washed, followed by incubation with DAPI for 1 min and mounted with Dako fluorescent mounting medium (Dako, Carpinteria, CA, USA). Fluorescence images were obtained by using confocal laser scanning microscopy with a 63× magnification objective (Zeiss LSM 880 confocal microscope with Airyscan).

4.4. Induction, Maintenance, and De-Induction of cisPt Resistance

Covering the range of 0.5 µM, 1.0 µM, 2.0 µM, 4.0 µM, and 8.0 µM, five A24cisPt sublines with reduced cisPt sensitivity (A24cisPt0.5, A24cisPt1.0, A24cisPt2.0, A24cisPt4.0, and A24cisPt8.0) were sequentially derived from the wt A24 cell strain. The corresponding cisPt concentration was added to the culture medium during the stepwise duplication at branching-off (Figure 2). After branching-off, A24cisPt sublines were propagated with the cisPt concentration indicated until the temporarily reduced growth rates levelled, thereby indicating successful subline establishment and enabling the next branching-off. Newly established sublines were then exposed to their defining cisPt concentration for several months, followed by a de-induction phase without cisPt exposure (Figure 2). In the present study, A24cisPt2.0, A24cisPt4.0, and A24cisPt8.0 sublines and the corresponding de-induced (D-)A24cisPt2.0, (D-)A24cisPt4.0, and (D-)A24cisPt8.0 sublines were included, along with the wt A24 subline.

4.5. IC50 Determination

Cytostatic drug response was quantified as described by Heuser et al. [30] with minor modifications. Wt A24 single cell suspensions were freshly prepared using Accutase as described above, and diluted in culture medium to a cell density of 2 × 104 cells/mL. 150 µl of this suspension was combined with 150 µl of twice the cisPt, oxaliplatin or pemetrexed concentration in a 96-well microtiter plate (TPP, Trasadingen, Switzerland). For the sublines A24cisPt2.0, A24cisPt4.0, A24cisPt8.0, and the de-induced (D-) counterparts, cell densities of 4 × 104, 8 × 104, and 8 × 104 cells/mL were used. Test plates were incubated with standard conditions for 72 h. Cell densities were determined in a Casy I cell analyzer using Casystat software (OLS OMNI Life Science, Bremen, Germany). Drug concentrations leading to 50% growth inhibition compared to controls were calculated using GraphPad Software (La Jolla, CA, USA). Each experiment was done in triplicates.

4.6. Western Blotting

Protein expression was analyzed by SDS-Page and Western blotting. Briefly, after washing the cells in ice-cold PBS, the cell pellet was re-suspended in Triton based RIPA lysis buffer supplemented with the protease inhibitor cocktail, cOmplete Mini, EDTA-free (Merck KGaA, Darmstadt, Germany). Lysates were centrifuged at 8′609 rcf and the supernatant was mixed with NuPAGE™ LDS Sample Buffer supplemented with NuPAGE™ Sample Reducing Agent (Thermo Scientific, Waltham, MA, USA). SDS-PAGE was performed using NuPAGE™ 4–12% Bis-Tris gels and NuPAGE™ MOPS SDS running buffer (Thermo Scientific, Weltham, MA, USA). Proteins were transferred using activated porous 0.45 μm polyvinylidene fluoride (PVDF) membranes (Thermo Scientific, Weltham, MA, USA). After blocking the membranes in TBS-T (0,15 M NaCl, 50 mM Tris-HCl, 0.1% Tween 20, pH 7.6) containing 5% milk powder and 1% bovine serum albumin (Merck KGaA, Darmstadt, Germany), a mouse MAb against LRRC8A (8H9) and a mouse MAb against LRRC8D (A-12) (Santa Cruz Biotechnology, Dallas, TX, USA) were used to detect subunit composition of VRAC. Rabbit PAb to β-Actin (Abcam, Cambridge, UK) was used as loading control. After washing the membranes with TBS-T, they were incubated with secondary horse radish-peroxidase conjugated anti-mouse or anti-rabbit antibodies (Agilent technologies Dako, Santa Clara, CA, USA). Membranes were developed using SuperSignal® West Dura Extended Duration Substrate (Thermo Scientific, Waltham, MA, USA) and visualized by exposing the membranes to Hyperfilm ECL (GE Healthcare, Buckinghamshire, UK).

4.7. siRNA Cell Assay in A24 wt Cells

siLRRC8A (5′-AAAGUCAUCGACCGUCAGUTT-3′) or siLRRC8D (5′-CCAUGCAACUUACCAAAGATT-3′) were diluted in RPMI 1640 supplemented with Lipofectamin® RNAiMAX (Thermo Scientific, Weltham, MA, USA) to a final concentration of 27 nM in a six-well plate. As negative control, cells were transfected with scrambled siRNA (5′-GCCACACGAUAACCUAACUTT-3′). Small interfering ribonucleic acids were purchased from Microsynth, Balgach, Switzerland. Cells were re-suspended in RPMI 1640 containing 10% FBS. This cell suspension was added to the well and incubated with standard conditions for 48 h. Transfected cells were used for IC50 determinations for cisPt as described above.

4.8. Overexpression Cell Assay in (D-)A24cisPt8.0 Cells

One day before transfection, 8 × 105 cells were plated in a 6- well plate with RPMI 1640 containing 10% FBS. Cells were transfected according to manufacturer’s standard protocols using Lipofectamine™ 2000 Transfection Reagent (Thermo Scientific, Waltham, MA, USA) with 4.0 µg Human LRRC8A or LRRC8D cDNAs cloned into pCMV6 (OriGene Technologies, Rockville, MD, USA). 2.0 µg of Human LRRC8A and LRRC8D cDNA were used to co-express LRRC8A and LRRC8D. As a control, (D-)A24cisPt8.0 cells were incubated with Lipofectamine only. IC50 determinations of transfected cells were carried out as described above.

4.9. Reverse Transcription Real-Time Quantitative Polymerase Chain Reaction (RT-qPCR)

Total poly-A-mRNA was isolated from cells with a Dynabeads mRNA direct Kit- (Thermo Scientific, Waltham, MA, USA). The mRNA of LRRC8A, LRRC8D and β-actin was quantified with a one-step RT-qPCR using Luna® Universal Probe One-Step RT-qPCR Kit (Ipswich, MA, USA) on a BioRad CFX real time system (BioRad, Hercules, CA, USA). Primers were designed to amplify a 128 nt-long LRRC8A fragment, a 122 nt-long LRRC8D cDNA fragment and a 127 β-Actin fragment:
  • LRRC8A forward (5′-GGTTTGCCAAGTACTTCCCCTAC-3′),
  • LRRC8A reverse (5′-CTTCAGCAGGATAGACACAAAGTG-3′),
  • LRRC8D forward (5′-CATGCAACTTACCAAAGATCAGGTG-3′),
  • LRRC8D reverse (5′-CTGCTTCCATCTTTGGGATGTTG-3′),
  • β-Actin forward (5′-GATGGTGGGCATGGGTC-3′) and
  • β-Actin reverse (5′-GATTTTCTCCATGTCGTCCCAG -3′).
LRRC8A and LRRC8D mRNA expression were normalized to β-actin mRNA expression for each sample using the BioRad CFX Maestro software.

4.10. Statistics

Comparison of IC50 values (wt vs sublines) and mRNA expression values and statistical analysis were performed using Dunnett’s test and GraphPad Prism 8.0 Software [48].

4.11. Ethical Statements

All experiments were performed with cell cultures. The cell line A240286S (A24) used was provided by Dr. C. Granzow and has been described previously [30,47]. Since no patients were involved in these studies, no ethics committee approval is required.

Author Contributions

Conceptualization, N.R., M.N.H., and C.K.; Data curation, N.R., M.N.H., and C.K.; Formal analysis, N.R., M.N.H., and C.K.; Investigation, N.R. and C.K.; Methodology, N.R., M.N.H., and C.K.; Supervision, J.T.H. and H.v.T.-K.; Visualization, N.R. and C.K.; Writing—original draft, N.R. and L.H.; Writing—review and editing, L.H., C.K., J.T.H., and H.v.T.-K. All authors have read and agreed to the published version of the manuscript.

Funding

The authors received no specific funding for this work.

Acknowledgments

Images were acquired on equipment provided by the Microscopy Imaging Center (MIC) of the University of Bern.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

cisPtCisplatin
wtWild-type
A24A240286S
NSCLCNon-small cell lung cancer
SCLCSmall cell lung cancer
TTF-1Thyroid transcription factor 1
LRRC8ALeucine-rich repeat-containing protein 8A
LRRC8DLeucine-rich repeat-containing protein 8D
p63Tumor protein p63
VEGFVascular endothelial growth factor
VRACsVolume-regulated anion channels

References

  1. Fennell, D.A.; Summers, Y.; Cadranel, J.; Benepal, T.; Christoph, D.C.; Lal, R.; Das, M.; Maxwell, F.; Visseren-Grul, C.; Ferry, D. Cisplatin in the modern era: The backbone of first-line chemotherapy for non-small cell lung cancer. Cancer Treat. Rev. 2016, 44, 42–50. [Google Scholar] [CrossRef]
  2. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [Green Version]
  3. Jiang, Z.; Yang, Y.; Yang, Y.; Zhang, Y.; Yue, Z.; Pan, Z.; Ren, X. Ginsenoside Rg3 attenuates cisplatin resistance in lung cancer by downregulating PD-L1 and resuming immune. Biomed. Pharmacother. 2017, 96, 378–383. [Google Scholar] [CrossRef]
  4. Tian, Y.; Sun, C.; Zhang, L.; Pan, Y. Clinical significance of miRNA—106a in non-small cell lung cancer patients who received cisplatin combined with gemcitabine chemotherapy. Cancer Biol. Med. 2018, 15, 157–164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Kelland, L. The resurgence of platinum-based cancer chemotherapy. Nat. Rev. Cancer 2007, 7, 573–584. [Google Scholar] [CrossRef] [PubMed]
  6. Molina, J.R.; Yang, P.; Cassivi, S.D.; Schild, S.E.; Adjei, A.A. Non-small cell lung cancer: Epidemiology, risk factors, treatment, and survivorship. Mayo Clin. Proc. 2008, 83, 584–594. [Google Scholar] [CrossRef]
  7. Galluzzi, L.; Senovilla, L.; Vitale, I.; Michels, J.; Martins, I.; Kepp, O.; Castedo, M.; Kroemer, G. Molecular mechanisms of cisplatin resistance. Oncogene 2012, 31, 1869–1883. [Google Scholar] [CrossRef] [Green Version]
  8. Siddik, Z.H. Cisplatin: Mode of cytotoxic action and molecular basis of resistance. Oncogene 2003, 22, 7265–7279. [Google Scholar] [CrossRef] [Green Version]
  9. Kelland, L.R. Preclinical perspectives on platinum resistance. Drugs 2000, 59 (Suppl. 4), 1–8. [Google Scholar] [CrossRef]
  10. Yoshida, M.; Khokhar, A.R.; Siddik, Z.H. Biochemical pharmacology of homologous alicyclic mixed amine platinum(II) complexes in sensitive and resistant tumor cell lines. Cancer Res. 1994, 54, 3468–3473. [Google Scholar]
  11. Kalayda, G.V.; Wagner, C.H.; Jaehde, U. Relevance of copper transporter 1 for cisplatin resistance in human ovarian carcinoma cells. J. Inorg. Biochem. 2012, 116, 1–10. [Google Scholar] [CrossRef]
  12. Samimi, G.; Safaei, R.; Katano, K.; Holzer, A.K.; Rochdi, M.; Tomioka, M.; Goodman, M.; Howell, S.B. Increased expression of the copper efflux transporter ATP7A mediates resistance to cisplatin, carboplatin, and oxaliplatin in ovarian cancer cells. Clin. Cancer Res. Off. J. Am. Assoc. Cancer Res. 2004, 10, 4661–4669. [Google Scholar] [CrossRef] [Green Version]
  13. Planells-Cases, R.; Lutter, D.; Guyader, C.; Gerhards, N.M.; Ullrich, F.; Elger, D.A.; Kucukosmanoglu, A.; Xu, G.; Voss, F.K.; Reincke, S.M.; et al. Subunit composition of VRAC channels determines substrate specificity and cellular resistance to Pt-based anti-cancer drugs. EMBO J. 2015, 34, 2993–3008. [Google Scholar] [CrossRef]
  14. Chen, S.H.; Chang, J.Y. New Insights into Mechanisms of Cisplatin Resistance: From Tumor Cell to Microenvironment. Int. J. Mol. Sci. 2019, 20, 4136. [Google Scholar] [CrossRef] [Green Version]
  15. Rabik, C.A.; Dolan, M.E. Molecular mechanisms of resistance and toxicity associated with platinating agents. Cancer Treat. Rev. 2007, 33, 9–23. [Google Scholar] [CrossRef] [Green Version]
  16. Kartalou, M.; Essigmann, J.M. Mechanisms of resistance to cisplatin. Mutat. Res. 2001, 478, 23–43. [Google Scholar] [CrossRef]
  17. Galluzzi, L.; Vitale, I.; Michels, J.; Brenner, C.; Szabadkai, G.; Harel-Bellan, A.; Castedo, M.; Kroemer, G. Systems biology of cisplatin resistance: Past, present and future. Cell Death Dis. 2014, 5, e1257. [Google Scholar] [CrossRef] [Green Version]
  18. Voets, T.; Nilius, B.; Vennekens, R. VRACs swallow platinum drugs. EMBO J. 2015, 34, 2985–2987. [Google Scholar] [CrossRef] [Green Version]
  19. Rubino, S.; Bach, M.D.; Schober, A.L.; Lambert, I.H.; Mongin, A.A. Downregulation of Leucine-Rich Repeat-Containing 8A Limits Proliferation and Increases Sensitivity of Glioblastoma to Temozolomide and Carmustine. Front. Oncol. 2018, 8, 142. [Google Scholar] [CrossRef]
  20. Granzow, C. Method for Creating a Database for the Preliminary Estimation of the Effectiveness of Active Substances in Tumor Therapy. European Patent Office EP3013972B1, 22 August 2018. [Google Scholar]
  21. Ruprecht, N.O.; Hungerbuhler, M.; Granzow, C.; Kempf, C.M.; Heverhagen, J.T. Cisplatin response of NSCLC cells irresponsive to knocking down VRAC subunits LRRC8A or LRRC8D. In Proceedings of the AACR Annual Meeting, Chicago, IL, USA, 14–18 April 2018; p. 2844. [Google Scholar]
  22. Carney, J.M.; Kraynie, A.M.; Roggli, V.L. Immunostaining in lung cancer for the clinician. Commonly used markers for differentiating primary and metastatic pulmonary tumors. Ann. Am. Thorac. Soc. 2015, 12, 429–435. [Google Scholar] [CrossRef]
  23. Voss, F.K.; Ullrich, F.; Munch, J.; Lazarow, K.; Lutter, D.; Mah, N.; Andrade-Navarro, M.A.; von Kries, J.P.; Stauber, T.; Jentsch, T.J. Identification of LRRC8 heteromers as an essential component of the volume-regulated anion channel VRAC. Science 2014, 344, 634–638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. McDermott, M.; Eustace, A.J.; Busschots, S.; Breen, L.; Crown, J.; Clynes, M.; O’Donovan, N.; Stordal, B. In vitro Development of Chemotherapy and Targeted Therapy Drug-Resistant Cancer Cell Lines: A Practical Guide with Case Studies. Front. Oncol. 2014, 4, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Desoize, B.; Berthiot, G.; Manot, L.; Coninx, P.; Dumont, P. Evaluation of a prediction model of cisplatin dose based on total platinum plasma concentration. Eur. J. Cancer 1996, 32, 1734–1738. [Google Scholar] [CrossRef]
  26. Lai, G.M.; Ozols, R.F.; Smyth, J.F.; Young, R.C.; Hamilton, T.C. Enhanced DNA repair and resistance to cisplatin in human ovarian cancer. Biochem. Pharmacol. 1988, 37, 4597–4600. [Google Scholar] [CrossRef]
  27. Fujii, R.; Mutoh, M.; Sumizawa, T.; Chen, Z.S.; Yoshimura, A.; Akiyama, S. Adenosine triphosphate-dependent transport of leukotriene C4 by membrane vesicles prepared from cisplatin-resistant human epidermoid carcinoma tumor cells. J. Natl. Cancer Inst. 1994, 86, 1781–1784. [Google Scholar] [CrossRef] [PubMed]
  28. Twentyman, P.R.; Wright, K.A.; Mistry, P.; Kelland, L.R.; Murrer, B.A. Sensitivity to novel platinum compounds of panels of human lung cancer cell lines with acquired and inherent resistance to cisplatin. Cancer Res. 1992, 52, 5674–5680. [Google Scholar]
  29. Granzow, C.; Kopun, M.; Krober, T. Riboflavin-mediated photosensitization of Vinca alkaloids distorts drug sensitivity assays. Cancer Res. 1995, 55, 4837–4843. [Google Scholar]
  30. Heuser, M.; Kopun, M.; Rittgen, W.; Granzow, C. Cytotoxicity determination without photochemical artifacts. Cancer Lett. 2005, 223, 57–66. [Google Scholar] [CrossRef]
  31. Mirski, S.E.; Gerlach, J.H.; Cole, S.P. Multidrug resistance in a human small cell lung cancer cell line selected in adriamycin. Cancer Res. 1987, 47, 2594–2598. [Google Scholar]
  32. Twentyman, P.R.; Fox, N.E.; Wright, K.A.; Bleehen, N.M. Derivation and preliminary characterisation of adriamycin resistant lines of human lung cancer cells. Br. J. Cancer 1986, 53, 529–537. [Google Scholar] [CrossRef] [Green Version]
  33. Stordal, B.; Pavlakis, N.; Davey, R. Oxaliplatin for the treatment of cisplatin-resistant cancer: A systematic review. Cancer Treat. Rev. 2007, 33, 347–357. [Google Scholar] [CrossRef] [Green Version]
  34. Rixe, O.; Ortuzar, W.; Alvarez, M.; Parker, R.; Reed, E.; Paull, K.; Fojo, T. Oxaliplatin, tetraplatin, cisplatin, and carboplatin: Spectrum of activity in drug-resistant cell lines and in the cell lines of the National Cancer Institute’s Anticancer Drug Screen panel. Biochem. Pharmacol. 1996, 52, 1855–1865. [Google Scholar] [CrossRef]
  35. Fukuda, M.; Ohe, Y.; Kanzawa, F.; Oka, M.; Hara, K.; Saijo, N. Evaluation of novel platinum complexes, inhibitors of topoisomerase I and II in non-small cell lung cancer (NSCLC) sublines resistant to cisplatin. Anticancer Res. 1995, 15, 393–398. [Google Scholar]
  36. Hector, S.; Bolanowska-Higdon, W.; Zdanowicz, J.; Hitt, S.; Pendyala, L. In vitro studies on the mechanisms of oxaliplatin resistance. Cancer Chemother. Pharmacol. 2001, 48, 398–406. [Google Scholar] [CrossRef]
  37. Zhang, D.; Ochi, N.; Takigawa, N.; Tanimoto, Y.; Chen, Y.; Ichihara, E.; Hotta, K.; Tabata, M.; Tanimoto, M.; Kiura, K. Establishment of pemetrexed-resistant non-small cell lung cancer cell lines. Cancer Lett. 2011, 309, 228–235. [Google Scholar] [CrossRef]
  38. Buckley, A.M.; Bibby, B.A.; Dunne, M.R.; Kennedy, S.A.; Davern, M.B.; Kennedy, B.N.; Maher, S.G.; O’Sullivan, J. Characterisation of an Isogenic Model of Cisplatin Resistance in Oesophageal Adenocarcinoma Cells. Pharmaceuticals 2019, 12, 33. [Google Scholar] [CrossRef] [Green Version]
  39. Ishida, S.; Lee, J.; Thiele, D.J.; Herskowitz, I. Uptake of the anticancer drug cisplatin mediated by the copper transporter Ctr1 in yeast and mammals. Proc. Natl. Acad. Sci. USA 2002, 99, 14298–14302. [Google Scholar] [CrossRef] [Green Version]
  40. Lin, X.; Okuda, T.; Holzer, A.; Howell, S.B. The copper transporter CTR1 regulates cisplatin uptake in Saccharomyces cerevisiae. Mol. Pharmacol. 2002, 62, 1154–1159. [Google Scholar] [CrossRef] [Green Version]
  41. Song, I.S.; Savaraj, N.; Siddik, Z.H.; Liu, P.; Wei, Y.; Wu, C.J.; Kuo, M.T. Role of human copper transporter Ctr1 in the transport of platinum-based antitumor agents in cisplatin-sensitive and cisplatin-resistant cells. Mol. Cancer Ther. 2004, 3, 1543–1549. [Google Scholar]
  42. Ivy, K.D.; Kaplan, J.H. A re-evaluation of the role of hCTR1, the human high-affinity copper transporter, in platinum-drug entry into human cells. Mol. Pharmacol. 2013, 83, 1237–1246. [Google Scholar] [CrossRef] [Green Version]
  43. Sorensen, B.H.; Thorsteinsdottir, U.A.; Lambert, I.H. Acquired cisplatin resistance in human ovarian A2780 cancer cells correlates with shift in taurine homeostasis and ability to volume regulate. Am. J. Physiol. Cell Physiol. 2014, 307, C1071–C1080. [Google Scholar] [CrossRef] [PubMed]
  44. Sorensen, B.H.; Nielsen, D.; Thorsteinsdottir, U.A.; Hoffmann, E.K.; Lambert, I.H. Downregulation of LRRC8A protects human ovarian and alveolar carcinoma cells against Cisplatin-induced expression of p53, MDM2, p21Waf1/Cip1, and Caspase-9/-3 activation. Am. J. Physiol. Cell Physiol. 2016, 310, C857–C873. [Google Scholar] [CrossRef] [Green Version]
  45. Sorensen, B.H.; Dam, C.S.; Sturup, S.; Lambert, I.H. Dual role of LRRC8A-containing transporters on cisplatin resistance in human ovarian cancer cells. J. Inorg. Biochem. 2016, 160, 287–295. [Google Scholar] [CrossRef]
  46. Lee, C.C.; Freinkman, E.; Sabatini, D.M.; Ploegh, H.L. The protein synthesis inhibitor blasticidin s enters mammalian cells via leucine-rich repeat-containing protein 8D. J. Biol. Chem. 2014, 289, 17124–17131. [Google Scholar] [CrossRef] [Green Version]
  47. Granzow, C.; Drings, P.; Kopun, M. Identifizierung von Chemosensitivität bei menschlichen Tumorzellen durch flavinschützende Tests in vitro. In Thoraxtumoren: Diagnostik-Staging-Gegenwärtiges Therapiekonzept; Drings, P., Vogt–Moykopf, I., Eds.; Springer: Berlin, Germany, 1998; pp. 328–332. [Google Scholar]
  48. Dunnett, C.W. A Multiple Comparison Procedure for Comparing Several Treatments with a Control. J. Am. Stat. Assoc. 1955, 50, 1096–1121. [Google Scholar] [CrossRef]
Pharmaceuticals 13 00109 g001 550
Figure 1. Immunostaining patterns of thyroid transcription factor 1 (TTF-1) and protein p63 in A24 wt cells.
Figure 1. Immunostaining patterns of thyroid transcription factor 1 (TTF-1) and protein p63 in A24 wt cells.
Pharmaceuticals 13 00109 g001
Pharmaceuticals 13 00109 g002 550

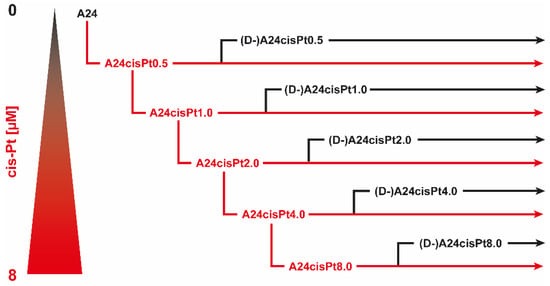

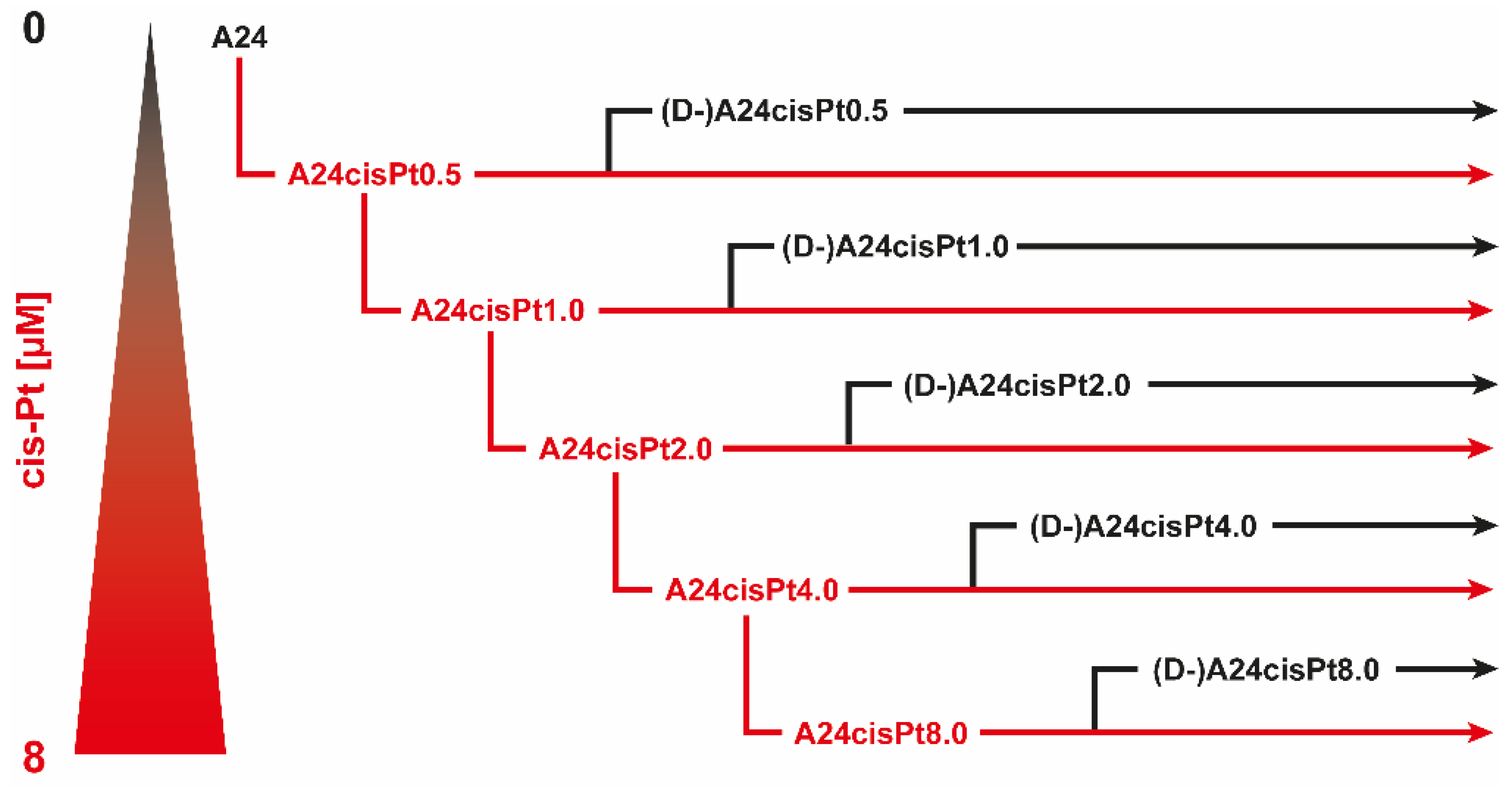

Figure 2. Schematic representation of A24cisPt and (D-)A24cisPt subline generation.
Figure 2. Schematic representation of A24cisPt and (D-)A24cisPt subline generation.
Pharmaceuticals 13 00109 g002
Pharmaceuticals 13 00109 g003 550

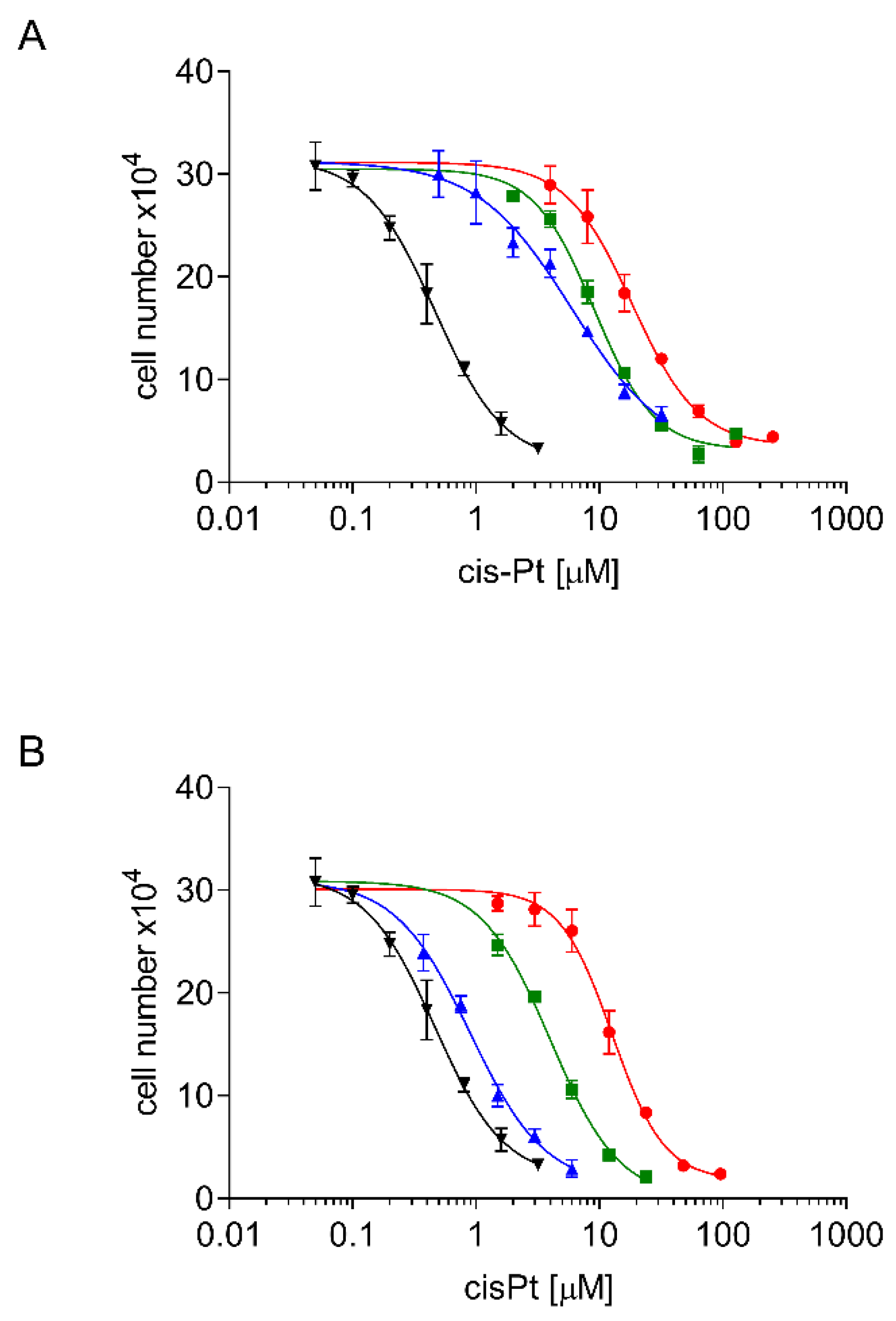

Figure 3. Dose response curves of induced (A) and de-induced (B) A24 sublines. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in cisplatin containing medium (0–512 µM). Cell densities were measured after three days. A24 (-▼-), A24/(D-)A24cisPt2.0 (-▲-), A24/(D-)A24cisPt4.0 (-■-), A24/(D-)A24cisPt8.0 (-●-). Data are presented as mean ± standard deviation (SD). n > 10.
Figure 3. Dose response curves of induced (A) and de-induced (B) A24 sublines. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in cisplatin containing medium (0–512 µM). Cell densities were measured after three days. A24 (-▼-), A24/(D-)A24cisPt2.0 (-▲-), A24/(D-)A24cisPt4.0 (-■-), A24/(D-)A24cisPt8.0 (-●-). Data are presented as mean ± standard deviation (SD). n > 10.
Pharmaceuticals 13 00109 g003
Pharmaceuticals 13 00109 g004 550

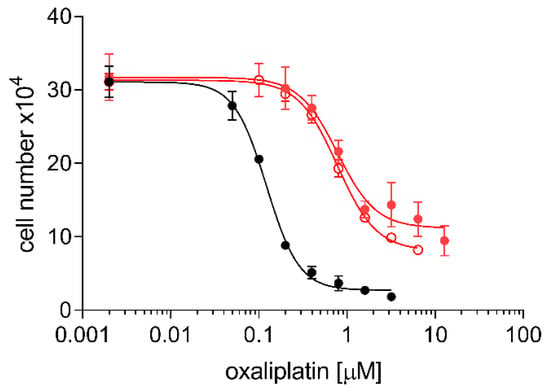

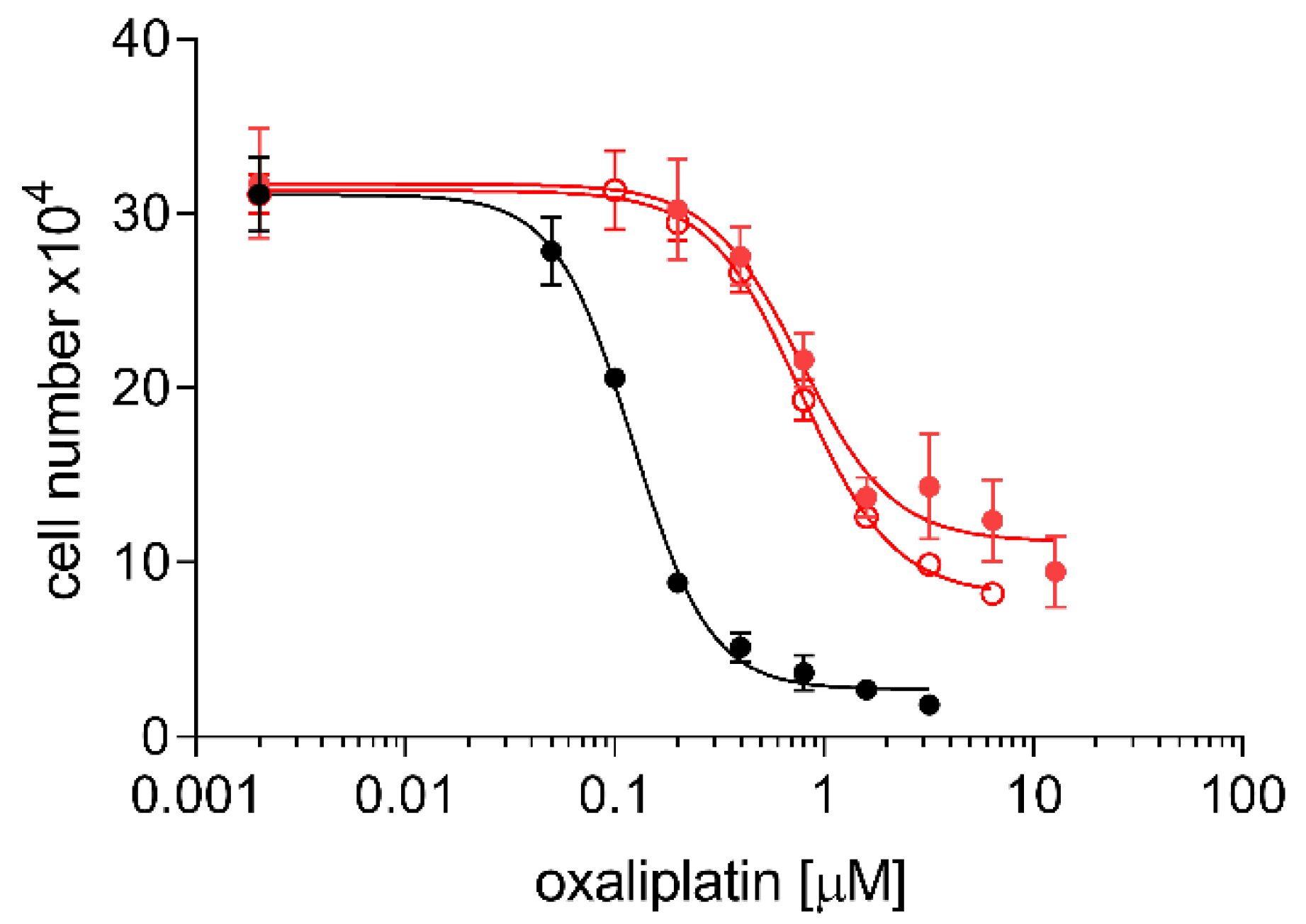

Figure 4. Cross resistance of A24cisPt8.0 and (D-)A24cisPt8.0 cells toward oxaliplatin. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in medium containing oxaliplatin (0–12.8 µM). Cell densities were measured after three days. A24 (-●-), A24cisPt8.0 (-●-), (D-)A24cisPt8.0 (-○-). Data are presented as mean ± SD. n > 10.
Figure 4. Cross resistance of A24cisPt8.0 and (D-)A24cisPt8.0 cells toward oxaliplatin. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in medium containing oxaliplatin (0–12.8 µM). Cell densities were measured after three days. A24 (-●-), A24cisPt8.0 (-●-), (D-)A24cisPt8.0 (-○-). Data are presented as mean ± SD. n > 10.
Pharmaceuticals 13 00109 g004
Pharmaceuticals 13 00109 g005 550

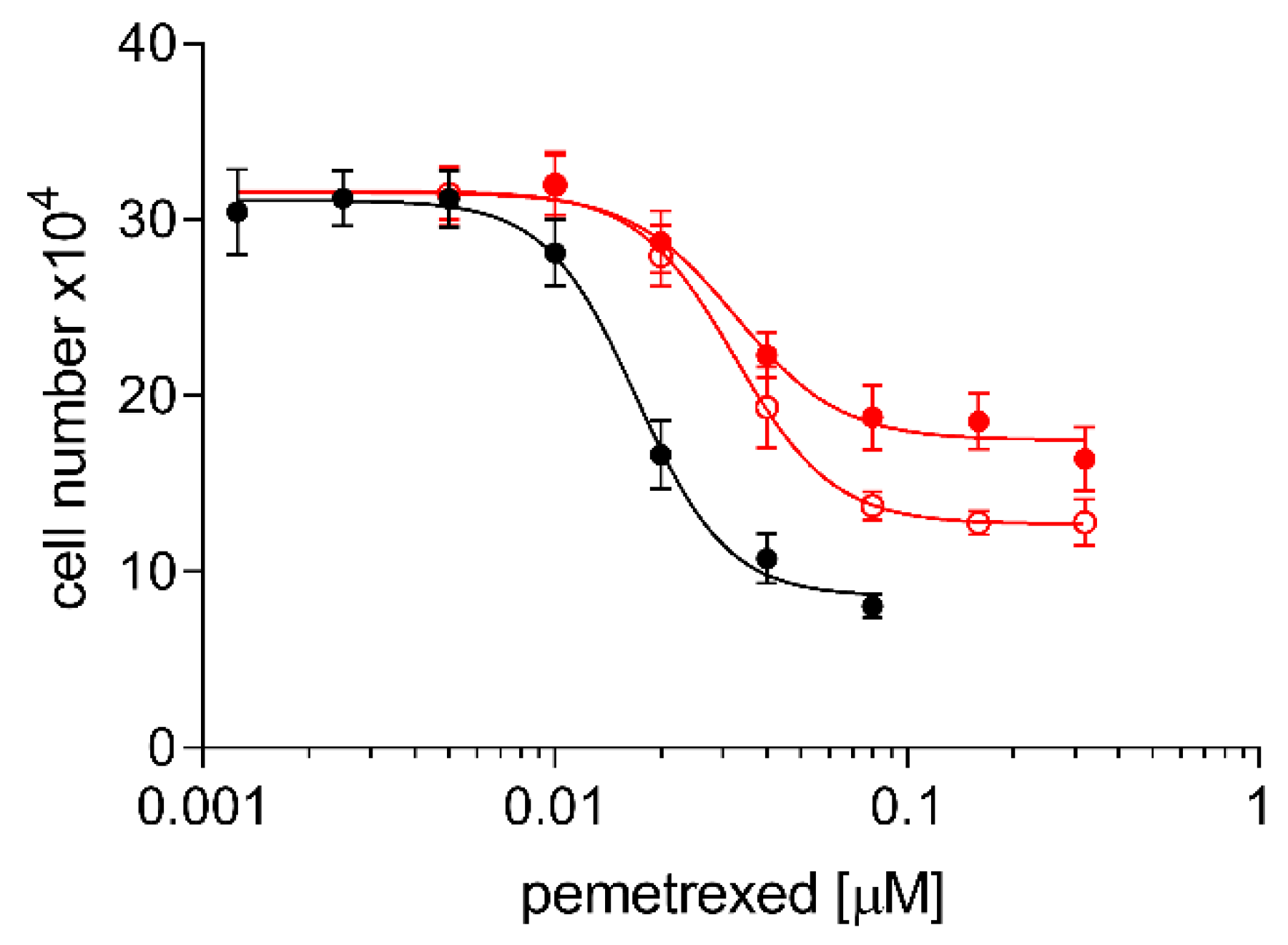

Figure 5. Cross resistance of A24cisPt8.0 and (D-)A24cisPt8.0 cells towards pemetrexed. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in medium containing pemetrexed (0–0.32 µM). Cell densities were measured after three days. (-●-), A24cisPt8.0 (-●-), (D-)A24cisPt8.0 (-○-). Data are presented as mean ± SD. n > 10.
Figure 5. Cross resistance of A24cisPt8.0 and (D-)A24cisPt8.0 cells towards pemetrexed. Cells were seeded at densities of 2–8 × 104 mL−1 and subsequently grown in medium containing pemetrexed (0–0.32 µM). Cell densities were measured after three days. (-●-), A24cisPt8.0 (-●-), (D-)A24cisPt8.0 (-○-). Data are presented as mean ± SD. n > 10.
Pharmaceuticals 13 00109 g005
Pharmaceuticals 13 00109 g006 550

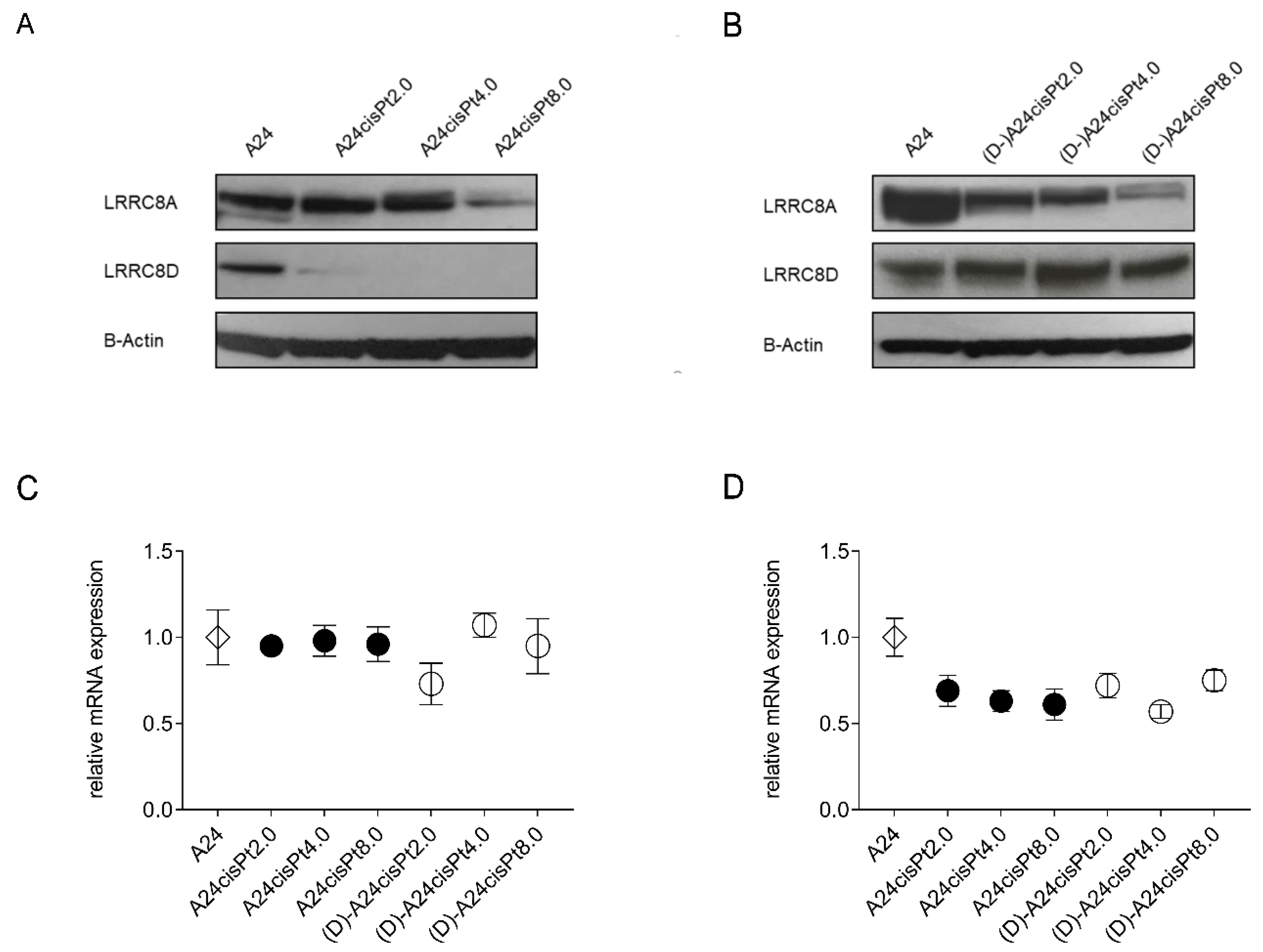

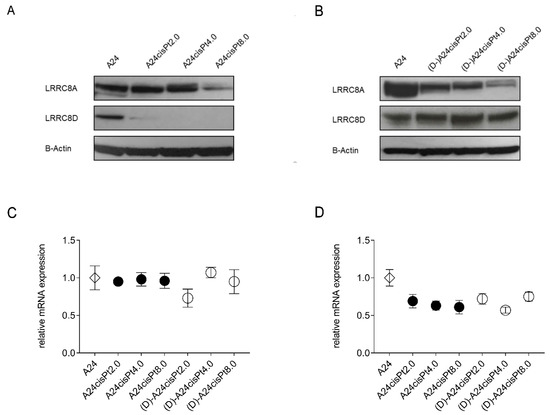

Figure 6. Western Blot illustrating LRRC8A and LRRC8D subunits expression in induced (A) and de-induced (B) A24 sublines. mRNA levels of LRRC8A (C) and LRRC8D (D) were quantified by RT-qPCR. Western blots are representative of 3 independent repeated experiments. Data are presented as mean ± SD. n = 3.
Figure 6. Western Blot illustrating LRRC8A and LRRC8D subunits expression in induced (A) and de-induced (B) A24 sublines. mRNA levels of LRRC8A (C) and LRRC8D (D) were quantified by RT-qPCR. Western blots are representative of 3 independent repeated experiments. Data are presented as mean ± SD. n = 3.
Pharmaceuticals 13 00109 g006
Pharmaceuticals 13 00109 g007 550

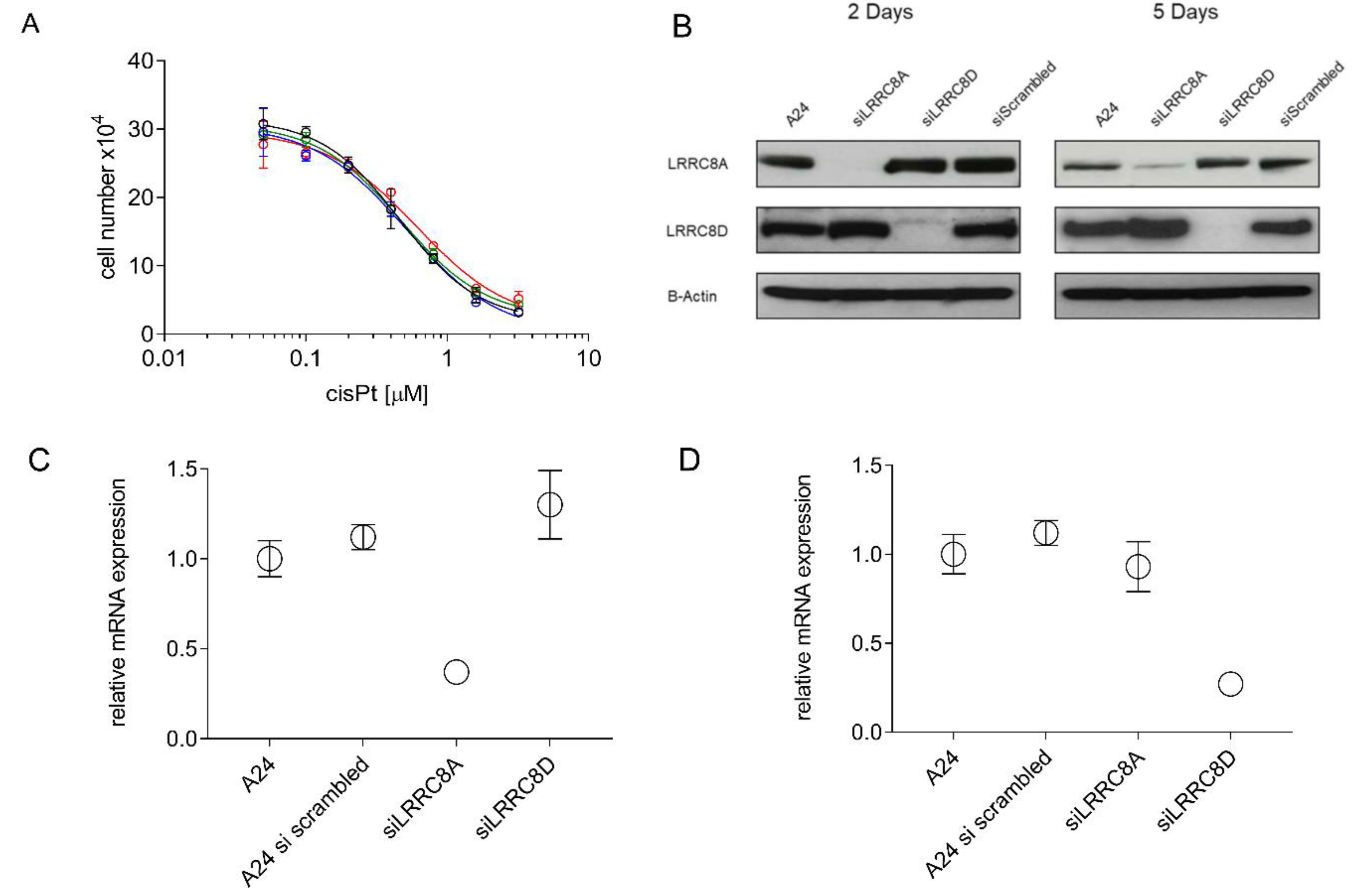

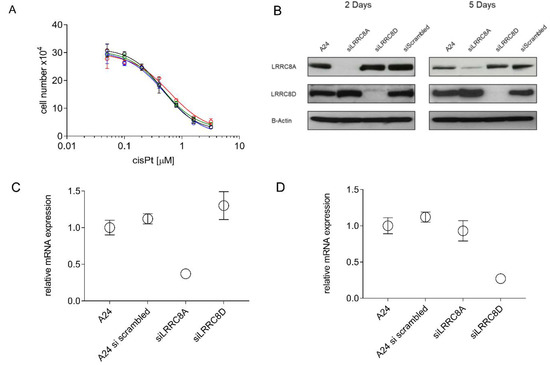

Figure 7. W Suppression of LRRC8A or LRRC8D subunits in A24 wt cells by siRNA. A24 wt cells were cultivated for two days in absence or presence of siRNA, respectively, and subsequently seeded at densities of 2 × 104 mL−1 and grown in cisPt containing medium (0–3.6 µM). Cell densities were measured after three days. wt (-○-), LRRC8A-siRNA (-○-), LRRC8D-siRNA (-○-), scrambled siRNA (-○-) (A). Knock down efficiency of the LRRC8 protein was checked by SDS-PAGE and western blotting (B). mRNA levels of LRRC8A (C) and LRRC8D (D) was quantified by RT-qPCR. Western blots are representative of three independent repeated experiments. Data are presented as mean ± SD. n equal 3 for mRNA quantification and > 10 for IC50.
Figure 7. W Suppression of LRRC8A or LRRC8D subunits in A24 wt cells by siRNA. A24 wt cells were cultivated for two days in absence or presence of siRNA, respectively, and subsequently seeded at densities of 2 × 104 mL−1 and grown in cisPt containing medium (0–3.6 µM). Cell densities were measured after three days. wt (-○-), LRRC8A-siRNA (-○-), LRRC8D-siRNA (-○-), scrambled siRNA (-○-) (A). Knock down efficiency of the LRRC8 protein was checked by SDS-PAGE and western blotting (B). mRNA levels of LRRC8A (C) and LRRC8D (D) was quantified by RT-qPCR. Western blots are representative of three independent repeated experiments. Data are presented as mean ± SD. n equal 3 for mRNA quantification and > 10 for IC50.
Pharmaceuticals 13 00109 g007
Pharmaceuticals 13 00109 g008 550
Figure 8. Overexpression of LRRC8A and LRRC8D in (D-)A24cisPt8.0 cells. (D-)A24cisPt8.0 cells were transfected with LRRC8A and / or LRRC8D cDNAs using Lipofectamine™ 2000. As a control, the cells were incubated with Lipofectamine only. Expression was tested by either Western Blot analysis (A) or RT-qPCR (B). Subsequent to expression, the IC50 values for cisPt (C) were determined as described in materials and methods. Western blots are representative of three independent repeated experiments. Data are presented as mean ± SD. n equal 3 for mRNA quantification and >10 for IC50.
Figure 8. Overexpression of LRRC8A and LRRC8D in (D-)A24cisPt8.0 cells. (D-)A24cisPt8.0 cells were transfected with LRRC8A and / or LRRC8D cDNAs using Lipofectamine™ 2000. As a control, the cells were incubated with Lipofectamine only. Expression was tested by either Western Blot analysis (A) or RT-qPCR (B). Subsequent to expression, the IC50 values for cisPt (C) were determined as described in materials and methods. Western blots are representative of three independent repeated experiments. Data are presented as mean ± SD. n equal 3 for mRNA quantification and >10 for IC50.
Pharmaceuticals 13 00109 g008
Table
Table 1. Cell pharmacological parameters of the metastatic wt A24 lung adenocarcinoma cell strain and of its sublines with induced and with de-induced resistance to cisPt.
Table 1. Cell pharmacological parameters of the metastatic wt A24 lung adenocarcinoma cell strain and of its sublines with induced and with de-induced resistance to cisPt.
Starting SublineA24 wtA24 wtA24cisPt0.5A24cisPt1.0A24cisPt2.0A24cisPt4.0
cisPt concentration exposed to [µM]n. a.0.51.02.04.08.0
Branching-off after (months)n. a.223412
Resulting sublinen. a.A24cisPt0.5A24cisPt1.0A24cisPt2.0A24cisPt4.0A24cisPt8.0
IC50 cisPt at branching-off time0.46 ± 0.052.13 ± 0.622.97 ± 0.816.03 ± 1.399.09 ± 0.5618.49 ± 1.96
De-induction period (months)n. a.3377>7
De-induced sublinen. a.(D-)A24cisPt0.5(D-)A24cisPt1.0(D-)A24cisPt2.0(D-)A24cisPt4.0(D-)A24cisPt8.0
IC50 cisPt [µM]n. a.0.89 ± 0.222.53 ± 0.840.99 ± 0.074.02 ± 0.2312.74 ± 0.78
Population doubling time (h)20.5n. d.n. d.253142
n. a.: not applicable; n. d.: not done; data are presented as mean ± SD. n equal 6 for doubling time and >10 for IC50.

Share and Cite

MDPI and ACS Style

Ruprecht, N.; Hofmann, L.; Hungerbühler, M.N.; Kempf, C.; Heverhagen, J.T.; von Tengg-Kobligk, H. Generation of Stable cisPt Resistant Lung Adenocarcinoma Cells. Pharmaceuticals 2020, 13, 109. https://doi.org/10.3390/ph13060109

AMA Style

Ruprecht N, Hofmann L, Hungerbühler MN, Kempf C, Heverhagen JT, von Tengg-Kobligk H. Generation of Stable cisPt Resistant Lung Adenocarcinoma Cells. Pharmaceuticals. 2020; 13(6):109. https://doi.org/10.3390/ph13060109

Chicago/Turabian Style

Ruprecht, Nico, Lukas Hofmann, Martin Nils Hungerbühler, Christoph Kempf, Johannes Thomas Heverhagen, and Hendrik von Tengg-Kobligk. 2020. "Generation of Stable cisPt Resistant Lung Adenocarcinoma Cells" Pharmaceuticals 13, no. 6: 109. https://doi.org/10.3390/ph13060109

APA Style

Ruprecht, N., Hofmann, L., Hungerbühler, M. N., Kempf, C., Heverhagen, J. T., & von Tengg-Kobligk, H. (2020). Generation of Stable cisPt Resistant Lung Adenocarcinoma Cells. Pharmaceuticals, 13(6), 109. https://doi.org/10.3390/ph13060109

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
