Abstract

Nanoparticles are considered potential candidates for a new class of magnetic resonance imaging (MRI) contrast agents. Negative MRI contrast agents require high magnetic moments. However, if nanoparticles can exclusively induce transverse water proton spin relaxation with negligible induction of longitudinal water proton spin relaxation, they may provide negative contrast MR images despite having low magnetic moments, thus acting as an efficient T2 MRI contrast agent. In this study, carbon-coated paramagnetic dysprosium oxide ([email protected]) nanoparticles (core = DYO = DyxOy; shell = carbon) were synthesized to explore their potential as an efficient T2 MRI contrast agent at 3.0 T MR field. Since the core DYO nanoparticles have an appreciable (but not high) magnetic moment that arises from fast 4f-electrons of Dy(III) (6H15/2), the [email protected] nanoparticles exhibited an appreciable transverse water proton spin relaxivity (r2) with a negligible longitudinal water proton spin relaxivity (r1). Consequently, they acted as a very efficient T2 MRI contrast agent, as proven from negative contrast enhancements seen in the in vivo T2 MR images.
Keywords: dysprosium oxide nanoparticle; carbon coating; efficient contrast agent; T2 magnetic resonance imaging dysprosium oxide nanoparticle; carbon coating; efficient contrast agent; T2 magnetic resonance imaging

1. Introduction

Nanotechnology and nanomaterials may provide a breakthrough in future medicine science [1,2]. Nanoparticles have tremendous potential for application in various medical fields owing to their unique and excellent properties, which are better than those of atomic, molecular, and bulk materials [3,4,5,6]. They may be applied as advanced negative (T2) magnetic resonance imaging (MRI) contrast agents to elevate negative contrast differentials between normal and abnormal tissues [7,8,9]; this effect cannot be obtained using molecular agents because molecules do not have sufficient magnetic moments. Since contrast agents are generally more accumulated in abnormal tissues than in normal ones, they may be used to sensitively diagnose abnormal tissues such as cancer cells at an early stage through contrast enhancements [10,11,12].
At present, Gd(III)-chelates are the most popular contrast agents because of their kinetic stability, biocompatibility, and renal excretion ability [13,14]. On the other hand, the carboxydextran-coated superparamagnetic iron oxide (SPIO) nanoparticles are the only commercially available negative (T2) MRI contrast agent [15]. However, the SPIO nanoparticles are generally limited to liver imaging because of their large particle diameters. For example, Resovist, a commercial SPIO-based contrast agent, is coated with dextran and has multiple SPIOs with a diameter of 4.2 nm at the core. It has a hydrodynamic diameter of 60 nm and is used for liver imaging [15]. Therefore, new ultrasmall nanoparticles that can be used for various organs and that possess renal excretion ability should be developed as a new class of T2 MRI contrast agents.
Nanoparticles composed of lanthanide (Ln) elements such as Dy3+ (6H15/2), Ho2+ (5I8), Tb3+ (7F6), Er3+ (4I15/2), and Tm3+ (3H6) with magnetic moment components originating from fast 4f-electron orbital motions induce negligible longitudinal water proton spin relaxation because the fast electrons are far from the slow proton spin motions [14]. In addition, transverse relaxation can occur without causing longitudinal relaxation; however, the converse is not true [16]. Therefore, such nanoparticles can exclusively induce transverse water proton spin relaxation. Hence, they may provide negative contrasts in the in vivo T2 MR images even though their transverse relaxation induction is not strong, but merely appreciable; thus, these nanoparticles can function as an efficient T2 MRI contrast agent.
So far, few studies have explored Ln2O3 nanoparticles. Most of them were relaxometric studies [17,18,19], and a few included in vivo MRI studies [20,21,22]. For in vivo applications, nanoparticles should be coated with biocompatible and hydrophilic ligands. In this study, ultrasmall dysprosium oxide (= DYO = DyxOy) nanoparticles were synthesized by a polyol method; then, they were coated with carbon in aqueous media by dehydrating dextrose under basic conditions. Carbon as one of the most common elements in living objects is suitable for biomedical applications [23,24,25]. In addition, carbon materials have fluorescent properties in the visible region owing to the numerous conjugated C=C bonds, thus allowing optical imaging [25]. The synthesized [email protected] core–shell nanoparticles (core = DYO; shell = carbon) were stable in a colloidal form because of the numerous hydroxyl groups on the carbon surfaces. These groups originated from dextrose. The [email protected] nanoparticles were characterized by various experimental techniques to investigate their potential as a new class of efficient T2 MRI contrast agent in 3.0 T MR field.

2. Results

2.1. Size, Colloidal Stability, and Crystallinity of [email protected] Nanoparticles

The [email protected] nanoparticles (DYO = DyxOy) were ultrasmall and nearly monodisperse in the particle diameter, as shown in their transmission electron microscope (TEM) images (Figure 1a,b). The lattice fringes of the core DYO nanoparticle on the dark carbon-coating layer can be seen under the magnified high-resolution TEM (HRTEM) image, thus proving the core–shell structure of the [email protected] nanoparticles (inset in Figure 1b). The average particle diameter (davg) was estimated to be 3.0 nm from a log-normal function fit to the observed particle diameter distribution (Figure 1c and Table 1). The average hydrodynamic diameter (aavg) was estimated to be 22.4 nm from a log-normal function fit to the observed dynamic light scattering (DLS) pattern (Figure 1d and Table 1). This large hydrodynamic diameter is attributed to the abundant OH groups on the carbon-coating surface layer covering the nanoparticle; these OH groups attracted numerous water molecules. This structure explains the observed good colloidal stability of the carbon-coated nanoparticles in an aqueous solution. The colloidal stability was also confirmed from the high zeta potential (ξavg = −40.0 mV) of the carbon-coated nanoparticles in an aqueous solution (Figure 1e). Similar large hydrodynamic diameters and consequently, good colloidal stabilities were observed in many polymer-coated nanoparticles [26,27,28]; these previous studies support our result. In general, hydrodynamic diameter is due to both surface-coating materials and hydrated water molecules. From the difference between the hydrodynamic diameter and the core diameter measured from HRTEM imaging, and considering that numerous hydrated water molecules contribute to the hydrodynamic diameter, it is expected that the upper bound value of the coating layer thickness will be 9–10 nm. The carbon-coated nanoparticles were not precipitated at all after synthesis (>1 year): a photograph of a concentrated aqueous nanoparticle solution sample (18 mM Dy) is shown in Figure 1f. In addition, no precipitation of the [email protected] nanoparticles in a 10% fetal bovine serum (FBS) in RPMI1640 medium and a sodium acetate buffer solution (pH = 7.0; 1.8 mM Dy) was observed for 10 days, thereby indicating good colloidal stability (Figure 1g). The laser light scattering (or the Tyndall effect) was only observed for the nanoparticle suspension sample (left photograph in Figure 1h; in this case, a diluted solution sample was used to visually observe the laser path, as indicated with an arrow), but not in the reference triple-distilled water (right photograph in Figure 1h). Thus, the colloidal dispersion of the carbon-coated nanoparticles in an aqueous solution was confirmed.
Before carbon coating, the DYO nanoparticles displayed a broad and amorphous X-ray diffraction (XRD) pattern due to their incomplete crystallization arising from their ultrasmall nanoparticle size [29] (bottom pattern in Figure 2). Here, the DYO nanoparticle is assigned as DyxOy because its structure is unknown (i.e., amorphous). The [email protected] nanoparticles showed an additional broad peak at 2θ = 20–33° (centered at 28°) arising from the carbon-coating layer, likely corresponding to the C (002) peak of amorphous carbon [30,31] (middle pattern in Figure 2). After a thermogravimetric analysis (TGA) up to 900 ℃ of the powder sample, however, only the sharp peaks of cubic Dy2O3 appeared due to the crystallization accompanying crystal growth and the combustion removal of the carbon-coating layer (top pattern in Figure 2). The estimated cell constant (10.67 Å) of the Dy2O3 nanoparticles obtained after TGA was consistent with the reported value of 10.670 Å [32].

2.2. Surface-Coating Amount and Surface-Coating Structure

Two additional peaks, corresponding to the G- and D-bands of C=C stretching were observed at 1568 and 1384 cm−1 [33,34,35], respectively, in the Fourier transform-infrared (FT-IR) absorption spectrum of the powder sample (bottom spectrum in Figure 3a). These peaks were absent in the spectrum of free dextrose (top spectrum in Figure 3a) because of no C=C bond in free dextrose [36], thus confirming the carbon coating on the nanoparticle surface. The Dy-O stretching peak was observed at 550 cm−1 in the FT-IR absorption spectra of both the sample and the bare Dy2O3 nanoparticles, which were obtained after TGA (middle spectrum in Figure 3a), confirming the presence of DYO nanoparticles in the sample. Raman spectrum also confirmed G-and D-bands, which appeared at 1569 and 1412 cm−1 [37], respectively (Figure 3b). The D-band in both FT-IR absorption and Raman spectra was overlapped with CH2 scissoring (δ), wagging (ω), and twisting (τ) vibrations, which appear in the region of 1270–1460 cm−1 [37]. The strong O-H stretching peak at 3240 cm−1 in the spectrum of the sample confirmed the existence of a large number of OH groups in the sample. This O–H stretching peak did not result from water H–O–H stretching, for which the peak appeared at 3390 cm−1, as shown in Figure 3a. The O–H, C–O (at 1065 cm−1), and C–H (at 2970 cm−1) stretching peaks in the FT-IR absorption spectrum of the sample indicate that the carbon-coating layer was not completely carbonated. The carbon-coating layer seems to have polymerized dextrose layers on its surface, as reported elsewhere [38].
The amounts of carbon coating and core DYO nanoparticles were estimated to be 59.3 and 32.9 wt%, respectively, from a TGA curve (Figure 3c and Table 1) after considering the initial mass drop of 7.8% up to 105 °C resulting from water and air desorption from the powder sample. In addition, the surface-coating amount was estimated to be 63.32% (Table 1) from the elemental analysis (EA) of the powder sample by summing the obtained C/H/O wt% of 31.82/3.55/27.95 (=1.51/2.02/1.00 in a mole), which was roughly consistent with the TGA results.
The carbonation percentage of the carbon-coating layer was estimated to be 33.8% (=(0.51/1.51) × 100) using the enhanced carbon content from dextrose (i.e., 1.0 (dextrose) → 1.51 (carbon-coating layer); the C/H/O mole ratio of dextrose (C6H12O6) is 1.0/2.0/1.0). Therefore, the remaining 66.2% of the carbon-coating layer corresponded to the polymerized dextrose layer. Since carbon nanoparticles are formed through dextrose polymerization and terminates with hydrophilic polymerized dextrose at the carbon nanoparticle surface [38], it seems that carbon coating starts with dextrose polymerization on the DYO nanoparticle surface. Then, the polymerized dextrose becomes amorphous carbon, which is made of almost randomly oriented aromatic carbon sheets [30] and terminates with polymerized dextrose, similar to the carbon nanoparticle formation [38]. The observed good colloidal stability of the [email protected] nanoparticles confirms that the hydrophobic amorphous carbon is terminated with hydrophilic polymerized dextrose. Therefore, a carbon-coating structure of the [email protected] nanoparticles is proposed as shown in Figure 3d,e. As shown in Figure 3e, the amorphous carbon was conjugated to Dy3+ ions on the DYO nanoparticle surface through oxygen ions, and the presence of numerous OH groups of the polymerized dextrose on the carbon-coating surface imparted good colloidal stability to the [email protected] nanoparticles in an aqueous solution.
The XPS spectrum showed C, O, Na, and Dy in the nanoparticle sample (Figure 4a). Here, Na resulted from NaOH used in the synthesis and came from charge balance of the [email protected] nanoparticles with negative zeta potential. In addition, the XPS spectrum indicated the presence of various carbons such as C–H (from polymerized dextrose), C=C (from amorphous carbon), C–O (from polymerized dextrose), and C=O (from amorphous carbon; Figure 4b), supporting the presence of amorphous carbon and polymerized dextrose in the carbon-coating layer. The observed electron binding energies (EBEs) of all elements are provided in Table 2 and consistent with literature values [39,40,41,42].

2.3. Magnetic Properties

The magnetization (M) versus applied field (H) curves (i.e., M–H curves) of [email protected] nanoparticles before and after mass correction at 300 K are shown in Figure 5a. The mass correction of M was performed using the net mass of DYO nanoparticles obtained from TGA. The mass effect of the nearly non-magnetic carbon-coating layer on M can be clearly observed; it is seen that the M value of the sample decreased because of the carbon-coating layer with a mass wt% of 59.3 according to the TGA results. The M–H curves showed that the core DYO nanoparticles were paramagnetic (i.e., zero coercivity, zero remanence, no saturation magnetization, and no hysteresis in the M–H curve) as in the case of bulk material [43,44]. The M value increased with increasing H and reached 4.08 emu/g at 2.0 T. This appreciable M value originated from the fast 4f-electrons of Dy3+ [45] and corresponded to the exclusive induction of transverse water proton spin relaxation.
For paramagnetic materials, the Curie–Weiss law (i.e., χ = M/H = C/(T–Tc) in which χ is the magnetic susceptibility, C is the Curie constant, and Tc is the Curie temperature) can be applied [46]. As shown in Figure 5b, a linear plot was obtained, confirming the paramagnetism of the core DYO nanoparticles. From the plot, C = 0.08074 emuK/gOe was estimated, which is a small value because the core DYO nanoparticles are paramagnetic.

2.4. In Vitro Cytotoxicity Results

As shown in Figure 6, the cell viabilities of human prostate cancer (DU145) and normal mouse hepatocyte (NCTC1469) cells treated with the aqueous solution sample were good (>80%) up to 500 μM Dy, supporting good biocompatibility of the [email protected] nanoparticles. However, the DYO nanoparticles before carbon coating exhibited high cellular toxicities at Dy-concentration greater than 50 μM Dy, confirming the necessity of carbon coating on the DYO nanoparticle surface for biomedical applications.

2.5. Longitudinal (r1) and Transverse (r2) Water Proton Spin Relaxivities

The r1 and r2 values of the solution sample were estimated to be 0.1 and 5.7 s−1mM−1 from the slopes of the inverse plots of longitudinal (T1) and transverse (T2) water proton spin relaxation times versus Dy-concentration, respectively (Figure 7a). The appreciable r2 and negligible r1 values (r2/r1 = 57) suggest that the [email protected] nanoparticles are solely devoted to inducing transverse water proton spin relaxation. Hence, they should negligibly induce longitudinal water proton spin relaxation. This was confirmed from the clear dose-dependent contrast enhancements in the R2 map images; in contrast, the R1 map images showed hardly any dose-dependent contrast enhancement (Figure 7b). This observation was further confirmed based on the in vivo T2 MR images as discussed below.
T2 relaxation times were also measured overtime (0, 2, 4, 6, 12, 24, and 24 h) in triple-distilled water (Figure 7c) and a 10% FBS in RPMI1640 medium (Figure 7d) as a function of Dy-concentration. T2 relaxation times were constant overtime within an experimental error limit due to good colloidal stability of the [email protected] nanoparticles in an aqueous solution and a 10% FBS in RPMI1640 medium.

2.6. In Vivo T2 MR Images

The application of [email protected] nanoparticles as an efficient T2 MRI contrast agent was demonstrated from in vivo T2 MR images of mice. Negative (i.e., darkened) contrast enhancements in the kidneys were clearly observed after intravenous administration of the aqueous nanoparticle suspension sample into mice tails (Figure 8a). The negative contrasts weakened with time (i.e., the signal-to-noise ratio (SNR) increased with time) and returned to the original contrast. To quantitatively measure the time evolution of the contrast changes, the SNR of a region-of-interest (ROI) as indicated by a small circle in the preadministration MR image (labeled as 0 h), was plotted as a function of time (Figure 8b). The plot showed that the negative contrast enhancements reached a maximum (or a minimum SNR) at 30 min after administration and then, decreased thereafter (or the SNR increased thereafter), finally reaching the initial preadministration value. However, in the liver, no noticeable negative contrast enhancements were observed at the same points after administration. This is likely because of the rapid excretion of the [email protected] nanoparticles from the liver within 30 min after administration. The SNR behavior in the kidneys was somewhat similar to that of the commercial molecular contrast agents [13,14]; this behavior is attributed to the renal excretion of the nanoparticles as observed for various ultrasmall nanoparticles in previous studies [47,48,49]. The observed appreciable negative contrast enhancement even at an appreciable (but not high) r2 value was due to a negligible r1 value (i.e., a very large r2/r1 ratio). The results prove that the [email protected] nanoparticles should function as an efficient T2 MRI contrast agent.

2.7. Optical Properties: Ultraviolet (UV)-Visible Absorption and Photoluminescent (PL) Spectra

The amorphous carbon absorbs and emits visible photons because of the presence of conjugated C=C bonds [24,25]. These were confirmed from the absorption band at λabs-max = 260 nm in the UV-visible absorption spectrum (Figure 9a) and the emission band at λem-max = 460 nm in the photoluminescent (PL) spectrum (excitation wavelength, λex = 370 nm; Figure 9b) of an aqueous solution sample, as observed in the amorphous carbon nanoparticle solution sample [24]. A PL spectrum (λex = 330 nm) of the aqueous Dy2O3 nanoparticle solution sample, which was prepared by dispersing TGA-treated Dy2O3 nanoparticles in triple-distilled water, was also taken for reference (Figure 9b), showing weak Dy-transitions at 490 nm (4F9/26H15/2) and 520 nm (4I15/26H13/2) [50,51]. Therefore, most of the PL in the [email protected] nanoparticle sample solution was due to the amorphous carbon-coating layer. Here, the emission peak at 520 nm was assigned based on energetic consideration between electronic energy levels [51] below the λex = 330 nm. The quantum yield (QY) of the [email protected] nanoparticle solution sample was estimated to be 6.5% using fluorescein with a QY value of 95% as the reference [24]. This estimated value was consistent with that of amorphous carbon nanoparticle solution sample [24]. Under 365-nm UV irradiation, the aqueous nanoparticle suspension sample exhibited blue-green fluorescence (Figure 9c), corresponding to the emission range observed in the PL spectrum. The fluorescence in the visible region will be useful for fluorescence imaging, which was confirmed by cell imaging using carbon nanoparticles in previous studies [25].

3. Discussion

Both the r2 value and r2/r1 ratio should be high for T2 MRI contrast agents. From the data provided in Table 1, r2 value (=5.7 s−1mM−1) was just appreciable but r2/r1 (=57) was very high due to a negligible r1 value (=0.1 s−1mM−1) under a 3.0 T MR field. Since r2 value was not high, the [email protected] nanoparticles will not be a strong T2 MRI contrast agent under clinical MR fields (i.e., 1.5–3.0 T). However, the [email protected] nanoparticles could act as a very efficient T2 MRI contrast agent under the above conditions, as observed in this study. That is, there were appreciable negative contrast enhancements in the in vivo T2 MR images of mice under a 3.0 T MR field (Figure 8a).
The colloidal stability, biocompatibility, and renal excretion of nanoparticles were essential for in vivo applications. The high zeta potential (Figure 1d) and no precipitation (Figure 1e–g) of the [email protected] nanoparticles indicate that they have excellent colloidal stability. They were nearly non-toxic as indicated by the in vitro cellular cytotoxicity results (Figure 6). They were removed by renal excretion as indicated in the in vivo T2 MR images (Figure 8a,b), showing their suitability for in vivo applications.
Compared to the SPIO nanoparticles with a very high r2 value and an appreciable r2/r1 ratio (Table 3) [15,52,53], the [email protected] nanoparticles are less powerful because of their smaller r2 value, but more efficient because of their higher r2/r1 ratio under clinical MR fields (i.e., 1.5–3.0 T). Under clinical MR fields, the SPIO-based nanoparticles are generally used as liver imaging contrast agents due to their large particle diameters or aggregations [15,53]. However, the [email protected] nanoparticles may not be limited to the liver imaging but also applicable to various organ and tissue imagings because of their renal excretion ability resulting from their ultrasmall core particle size with no aggregation [47,48,49]. In addition, the M value of the [email protected] nanoparticles increases with increasing H (Figure 5a), and consequently, their r2 value increases with increasing MR field because r2 value is proportional to M2 [17,18]. In fact, very high r2 values were observed in high MR fields [18]. This implies that the [email protected] nanoparticles will be a very powerful T2 MRI contrast agent under high MR fields such as 9.4 T, which results from the combined effects of their high r2 value under high MR fields and very high r2/r1 ratio. On the other hand, for gadolinium oxide (Gd2O3) nanoparticles and Gd(III)-DTPA, r2/r1 ratio is close to one [54,55], due to slow s-state 4f-electron motions of Gd3+ (7/2S), which match well with slow proton spin motions. Under these conditions, they can efficiently induce longitudinal water proton spin relaxation. Therefore, they are considered positive (T1) MRI contrast agents.

4. Materials and Methods

4.1. Materials

Dy(NO3)3⋅5H2O (99.9%), NaOH (>99.9%), triethylene glycol (TEG) (99%), dextrose (C6H12O6) (>99.5%), dialysis bags (MWCO = 2000 amu), sodium acetate buffer solution (3.0 M, pH = 7.0), FBS, and RPMI1640 medium were purchased from Sigma-Aldrich, St. Louis, MO, USA, and used as received. Ethanol (99%, Duksan, Korea) was used for the initial washing of the nanoparticles. Triple-distilled water was used for the final washing of the nanoparticles and for the preparation of the nanoparticle suspension sample.

4.2. Synthesis of [email protected] Nanoparticles

The [email protected] core–shell nanoparticles were synthesized in two steps (Figure 10): first, DYO nanoparticles were synthesized in TEG and then, DYO nanoparticles were coated with carbon using dextrose as a carbon source in a basic aqueous solution. Four solutions were prepared: (1) a precursor solution made of 1.0 mmol of Dy(NO3)3⋅5H2O in 20 mL of TEG in a 100 mL three-necked-flask, (2) a NaOH solution made of 4 mmol of NaOH in 10 mL of TEG in a 50 mL beaker, (3) a dextrose solution made of 1.0 mmol of dextrose in 10 mL of triple-distilled water in a 100 mL three-necked-flask, and (4) a NaOH solution made of 4 mmol of NaOH in 10 mL of triple-distilled water in a 50 mL beaker. Solution-1 was magnetically stirred at 60 °C under atmospheric conditions until Dy(NO3)3⋅5H2O dissolved in TEG. Solution-2 was slowly added to solution-1 until the pH of the solution reached 10. The mixed solution was slowly heated to 110 °C with magnetic stirring for 6 h. For temperature control, the three-necked-flask was suspended in a silicone oil bath placed on a hot plate. The solution was cooled to room temperature, transferred to a 1.0 L beaker, diluted with 500 mL of ethanol, magnetically stirred for 30 min, and then kept in a refrigerator (3 °C) until the DYO nanoparticles settled to the bottom of the breaker. The top transparent solution was decanted and the remaining DYO nanoparticle solution was washed with ethanol again by the same process: this process was performed thrice. To remove ethanol from the DYO nanoparticles, the solution was washed with triple-distilled water thrice following the same process as above. The washed DYO nanoparticles were added to solution-3 and the mixed solution was magnetically stirred for 30 min. For carbon coating, solution-4 was added to the above solution until the pH of the solution reached 10 and the mixed solution was magnetically stirred at 95 °C until the solution became black: this carbon-coating process was performed twice. The solution was cooled to room temperature, filtered with a Whatman filter paper (Sigma-Aldrich, St. Louis, MO, USA), transferred to a dialysis bag, and dialyzed against 1.0 L of triple-distilled water for three days with magnetic stirring to remove free dextrose and unreacted NaOH; waste water was replaced with fresh triple-distilled water at one day intervals. To remove free carbon nanoparticles from the product nanoparticles, the product solution was centrifuged at 4000 rpm for 60 min (VS-4000N, Vision Scientific Co., LTD, Limassol, Cyprus). The supernatant top solution was removed and the remaining product nanoparticles that were precipitated at the bottom of the centrifugation tube were redispersed in triple-distilled water. This centrifugation process was performed thrice. The obtained solution sample was divided into two equal volume parts. One part was used for preparing a nanoparticle suspension sample in triple-distilled water. The remaining was transformed into a powder by freeze-drying it in vacuum for various characterizations. Stability of the prepared solution sample was confirmed from dialysis (Mw = 2000 amu) in triple-distilled water for one week: no carbon and Dy3+ in the waste water were detected from the EA and ICPAES, respectively.

4.3. Characterizations

An HRTEM (Titan G2 ChemiSTEM CS Probe, FEI) operated at 200 kV was used to measure the particle diameter (d) of the [email protected] nanoparticles. For measurements, a drop of the diluted nanoparticle suspension in triple-distilled water was put onto a carbon film supported by a 200-mesh copper grid (PELCO no.160, Ted Pella, Inc., Redding, CA, USA) placed on a filter paper using a micropipette (2–20 μL, Eppendorf), and then dried in air at room temperature. The Dy-concentration in an aqueous nanoparticle suspension sample was measured using an inductively coupled plasma-atomic emission spectrometer (ICP-AES; Optima 7300DV and Avio500, Perkin Elmer, Waltham, MA, USA). The nanoparticle suspension sample was pretreated with acids to completely dissolve the nanoparticles into metal ions (Dy3+) in the solution before measurements. A multipurpose XRD spectrometer (X’PERT PRO MRD, Philips, The Netherlands) with unfiltered CuKα radiation (λ = 0.154184 Å) was used to measure the crystal structure of the powder sample before and after TGA. The scan range was 2θ = 15–100° and the scan step was 2θ = 0.03°. A DLS particle size analyzer (UPA-150, Microtrac) was used to measure the hydrodynamic diameter (a) of the [email protected] nanoparticles dispersed in an aqueous solution using a nanoparticle suspension sample (<0.1 mM Dy). The zeta potentials (Zetasizer Nano ZS, Malvern, Malvern, UK) were measured using the nanoparticle suspension sample (<0.1 mM Dy). An FT-IR absorption spectrometer (Galaxy 7020A, Mattson Instruments, Inc., Madison, WI, USA) and a Raman spectrometer (invia Reflex, Renishaw, Charfield, UK) were used to investigate the carbon-coating on the nanoparticle surfaces by recording the FT-IR absorption and Raman spectra, respectively. A pellet of the powder sample in KBr was prepared for measurements. To estimate the surface-coating amount of the carbon on the nanoparticle surfaces, a TGA instrument (SDT-Q600, TA Instruments, New Castle, DE, USA) was used to record the TGA curve using a powder sample between room temperature and 900 °C under air flow. The average surface-coating amount was estimated from the mass loss after taking into account the initial mass loss between room temperature and 105 °C due to water and air desorption. The amount of DYO nanoparticles was approximately estimated from the remaining mass. After TGA, the powder sample was collected and subjected to XRD analysis. Through the EA (Flash 2000, ThermoFisher, Waltham, MA, USA), the surface-coating amount and the surface composition (C/H/O) were estimated using a powder sample. An X-ray photoelectron spectrometer (XPS; NEXSA, ThermoFisher, Waltham, MA, USA) was used to characterize the surface composition of the [email protected] nanoparticles using the powder sample. For measurements, the nanoparticle powder sample was put onto a carbon tape (1 cm × 1 cm). A vibrating sample magnetometer (VSM; 7407-S, Lake Shore Cryotronics Inc., Westerville, OH, USA) was used to characterize the magnetic properties of the powder sample by recording an M–H curve (−2.0 T ≤ H ≤ 2.0 T) at 300 K and an M-T curve (100 ≤ T ≤ 300 K) at H = 100 Oe. The measurement was carried out using a powder sample (20−30 mg). To obtain a net M value of the core DYO nanoparticles, the measured M was mass-corrected by using the net mass of the DYO nanoparticles (i.e., only the mass of DYO nanoparticles without carbon in the sample) as obtained from TGA. Since carbon materials absorb and emit visible photons, a UV-visible absorption spectrum (Cary-Series, Agilent Technologies, Santa Clara, CA, USA) and a PL spectrum (Cary Eclipse, Agilent Technologies, Santa Clara, CA, USA) were recorded using an aqueous nanoparticle suspension sample. The nanoparticle suspension sample was filled into a quartz cuvette with two optically clear sides (Sigma-Aldrich, 3 mL) for UV-visible absorption spectral measurements and into a quartz cuvette with four optically clear sides (Sigma-Aldrich, 3 mL) for PL spectral measurements.

4.4. In Vitro Cell Viability Measurements

The in vitro cytotoxicity of the aqueous nanoparticle suspension sample was measured using a luminescent cell viability assay (CellTiter-Glo, Promega, Madison, WI, USA). Adenosine triphosphate was quantified using a luminometer (Victor 3, Perkin Elmer, Waltham, MA, USA). DU145 and NCTC1469 cell lines were used. The cells were seeded onto a 24-well cell culture plate and incubated for 24 h (5 × 104 cell density, 500 μL cells per well, 5% CO2, and 37 °C). Five test nanoparticle suspension samples (10, 50, 100, 200, and 500 μM Gd) were prepared by diluting the original concentrated nanoparticle suspension sample with a sterile phosphate buffer saline solution. Each test nanoparticle suspension sample (2 μL) was dropped onto the cells. The treated cells were incubated for 48 h. The cell viabilities were measured thrice and normalized with respect to that of the control cells (i.e., untreated cells with 0.0 M Dy).

4.5. Measurements of Water Proton Spin Relaxation Times and Map Images

A 3.0 T MRI scanner (MAGNETOM Trio Tim, Siemens, Munchen, Bayern, Germany) was used to measure the T1 and T2 water proton spin relaxation times, and the R1 and R2 water proton spin relaxation map images at 22 °C. Various aqueous nanoparticle suspension samples (1.0, 0.5, 0.25, 0.125, 0.0625, and 0.0 mM Dy) were prepared via dilution of the original concentrated sample with triple-distilled water. These diluted samples were used to measure the T1 and T2 relaxation times and R1 and R2 map images. T1 relaxation time measurements were performed using an inversion recovery method. The Carr–Purcell–Meiboom–Gill pulse sequence for multiple spin-echo measurements was used to obtain T2 relaxation times. Then, the r1 and r2 water proton spin relaxivities of the nanoparticle suspension sample were estimated from the slopes of plots of 1/T1 and 1/T2 versus the Dy-concentration, respectively.

4.6. In Vivo T2 MR Image Measurements

In vivo MRI studies using mice were approved by the animal research committee of the KIRAMS and were performed in accordance with its rules and guidelines. In vivo T2 MR images were acquired using a 3.0 T MRI scanner. Four mice were used. For imaging, C57BL/6 mice (30 g) were anesthetized with 1.5% isoflurane in oxygen. Measurements were made before and after administration of the nanoparticle suspension sample into mice tail veins. The administration dose was typically 0.1 mmol Dy per kg. After measurements, the mice were revived from anesthesia and placed in a cage with free access to food and water. During measurements, the temperature of the mice was maintained at 37 °C using a warm water blanket. The parameters used for measurements were as follows: external MR field = 3.0 T; temperature = 37 °C; number of acquisitions = 4; field of view (FOV) = 9 mm; phase FOV = 0.5; matrix size = 256 × 192; slice thickness = 1 mm; spacing gap = 0.5 mm (coronal); pixel bandwidth = 15.63 Hz; repetition time = 500 ms; and echo time = 13 ms.

5. Conclusions

[email protected] core–shell nanoparticles (core = DYO = DyxOy; shell = carbon) were synthesized and their potential as a new class of T2 MRI contrast agent was investigated in a 3.0 T MR field. The in vitro cellular cytotoxicity assay showed that they were nearly non-toxic. They were stable in the colloidal form in an aqueous solution due to the presence of numerous hydroxyl groups on the carbon-coating layer. The r2 value of the nanoparticles was only 5.7 s−1mM−1, but their r2/r1 (=57) was very high. Therefore, the [email protected] nanoparticles acted as a very efficient T2 MRI contrast agent. That is, they clearly showed negative contrast enhancements in the in vivo T2 MR images of the mice kidneys after intravenous administration. In addition, the fluorescence of the carbon-coating layer in the visible region may perhaps make the nanoparticles useful as a multimodal imaging agent.

Author Contributions

Experiments and draft manuscript preparation, H.Y.; experiments and data analysis, M.Y.A., S.L., A.G., T.T., S.M. and S.L.H.; MR image acquisition, J.A.P. and S.K.; relaxivity measurements, H.C.; cellular toxicity measurements, K.S.C.; project supervision, Y.C. and G.H.L.; and writing and funding, G.H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Basic Science Research Program (Grant No. 2016R1D1A3B01007622) of the National Research Foundation funded by the Ministry of Education, Science, and Technology of South Korea.

Acknowledgments

We would like to thank the Korea Basic Science Institute for allowing us to use their XRD spectrometer.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chang, E.H.; Harford, J.B.; Eaton, M.A.W.; Boisseau, P.M.; Dube, A.; Hayeshi, R.; Swai, H.; Lee, D.S. Nanomedicine: Past, present and future-A global perspective. Biochem. Biophys. Res. Commun. 2015, 468, 511–517. [Google Scholar] [CrossRef]
  2. Soares, S.; Sousa, J.; Pais, A.; Vitorino, C. Nanomedicine: Principles, properties, and regulatory issues. Front. Chem. 2018, 6, 360. [Google Scholar] [CrossRef] [PubMed]
  3. Jeevanandam, J.; Barhoum, A.; Chan, Y.S.; Dufresne, A.; Danquah, M.K. Review on nanoparticles and nanostructured materials: History, sources, toxicity and regulations. Beilstein J. Nanotechnol. 2018, 9, 1050–1074. [Google Scholar] [CrossRef] [PubMed]
  4. Khan, I.; Saeed, K.; Khan, I. Nanoparticles: Properties, applications and toxicities. Arab. J. Chem. 2019, 12, 908–931. [Google Scholar] [CrossRef]
  5. Nune, S.K.; Gunda, P.; Thallapally, P.K.; Lin, Y.-Y.; Forrest, M.L.; Berkland, C.J. Nanoparticles for biomedical imaging. Expert Opin. Drug Deliv. 2009, 6, 1175–1194. [Google Scholar] [CrossRef]
  6. Choi, H.S.; Frangioni, J.V. Nanoparticles for biomedical imaging: Fundamentals of clinical translation. Mol. Imaging 2010, 9, 291–310. [Google Scholar] [CrossRef]
  7. Neuwelt, A.; Sidhu, N.; Hu, C.-A.A.; Mlady, G.; Eberhardt, S.C.; Sillerud, L.O. Iron-based superparamagnetic nanoparticle contrast agents for MRI of infection and inflammation. Am. J. Roentgenol. 2015, 204, W302–W313. [Google Scholar] [CrossRef]
  8. Stephen, Z.R.; Kievit, F.M.; Zhang, M. Magnetic nanoparticles for medical MR imaging. Mater. Today 2011, 14, 330–338. [Google Scholar] [CrossRef]
  9. Na, H.B.; Song, I.C.; Hyeon, T. Inorganic nanoparticles for MRI contrast agents. Adv. Mater. 2009, 21, 2133–2148. [Google Scholar] [CrossRef]
  10. Cao, Y.; Xu, L.; Kuang, Y.; Xiong, D.; Pei, R. Gadolinium-based nanoscale MRI contrast agents for tumor imaging. J. Mater. Chem. B 2017, 5, 3431–3461. [Google Scholar] [CrossRef]
  11. Zhou, Z.; Lu, Z.-R. Gadolinium-based contrast agents for MR cancer imaging. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2013, 5, 1–18. [Google Scholar] [CrossRef] [PubMed]
  12. Cheng, W.; Ping, Y.; Zhang, Y.; Chuang, K.-H.; Liu, Y. Magnetic Resonance Imaging (MRI) contrast agents for tumor diagnosis. J. Health Eng. 2013, 4, 23–46. [Google Scholar] [CrossRef] [PubMed]
  13. Wahsner, J.; Gale, E.M.; Rodríguez-Rodríguez, A.; Caravan, P. Chemistry of MRI contrast agents: Current challenges and new frontiers. Chem. Rev. 2018, 119, 957–1057. [Google Scholar] [CrossRef] [PubMed]
  14. Caravan, P.; Ellison, J.J.; McMurry, T.J.; Lauffer, R.B. Gadolinium (III) chelates as MRI contrast agents: Structure, dynamics, and applications. Chem. Rev. 1999, 99, 2293–2352. [Google Scholar] [CrossRef]
  15. Reimer, P.; Balzer, T. Ferucarbotran (Resovist): A new clinically approved RES-specific contrast agent for contrast-enhanced MRI of the liver: Properties, clinical development, and applications. Eur. Radiol. 2003, 13, 1266–1276. [Google Scholar] [CrossRef]
  16. Bloembergen, N.; Purcell, E.M.; Pound, R.V. Relaxation effects in nuclear magnetic resonance absorption. Phys. Rev. 1948, 73, 679–712. [Google Scholar] [CrossRef]
  17. Norek, M.; Pereira, G.A.D.L.; Geraldes, C.F.G.C.; Denkova, A.; Zhou, W.; Peters, J.A. NMR Transversal relaxivity of suspensions of lanthanide oxide nanoparticles. J. Phys. Chem. C 2007, 111, 10240–10246. [Google Scholar] [CrossRef]
  18. Norek, M.; Kampert, E.; Zeitler, U.; Peters, J.A. Tunning of the size of Dy2O3 nanoparticles for optimal performance as an MRI contrast agent. J. Am. Chem. Soc. 2008, 130, 5335–5340. [Google Scholar] [CrossRef]
  19. Marasini, S.; Yue, H.; Ho, S.L.; Jung, K.-H.; Park, J.A.; Cha, H.; Ghazanfari, A.; Ahmad, M.Y.; Liu, S.; Jang, Y.J.; et al. D-glucuronic acid-coated ultrasmall paramagnetic Ln2O3 (Ln = Tb, Dy, and Ho) nanoparticles: Magnetic properties, water proton relaxivities, and fluorescence properties. Eur. J. Inorg. Chem. 2019, 2019, 3832–3839. [Google Scholar] [CrossRef]
  20. Das, G.K.; Zhang, Y.; D’Silva, L.; Padmanabhan, P.; Heng, B.C.; Loo, J.S.C.; Selvan, S.T.; Bhakoo, K.K.; Tan, T.T.Y. Single-phase Dy2O3:Tb3+ nanocrystals as dual-modal contrast agent for high field magnetic resonance and optical imaging. Chem. Mater. 2011, 23, 2439–2446. [Google Scholar] [CrossRef]
  21. Kattel, K.; Park, J.Y.; Xu, W.; Kim, H.G.; Lee, E.J.; Alam Bony, B.; Heo, W.C.; Lee, J.J.; Jin, S.; Baeck, J.S.; et al. A facile synthesis, in vitro and in vivo MR studies of d-glucuronic acid-coated ultrasmall Ln2O3 (Ln = Eu, Gd, Dy, Ho, and Er) nanoparticles as a new potential MRI contrast agent. ACS Appl. Mater. Interfaces 2011, 3, 3325–3334. [Google Scholar] [CrossRef] [PubMed]
  22. Kattel, K.; Park, J.Y.; Xu, W.; Kim, H.G.; Lee, E.J.; Alam Bony, B.; Heo, W.C.; Jin, S.; Baeck, J.S.; Chang, Y.; et al. Paramagnetic dysprosium oxide nanoparticles and dysprosium hydroxide nanorods as T2 MRI contrast agents. Biomaterials 2012, 33, 3254–3261. [Google Scholar] [CrossRef] [PubMed]
  23. Fiorito, S.; Serafino, A.; Andreola, F.; Togna, A.; Togna, G. Toxicity and biocompatibility of carbon nanoparticles. J. Nanosci. Nanotechnol. 2006, 6, 591–599. [Google Scholar] [CrossRef] [PubMed]
  24. Tegafaw, T.; Oh, I.T.; Cha, H.; Yue, H.; Miao, X.; Ho, S.L.; Ahmad, M.Y.; Marasini, S.; Ghazanfari, A.; Kim, H.-K.; et al. Facile synthesis of stable colloidal suspension of amorphous carbon nanoparticles in aqueous medium and their characterization. J. Phys. Chem. Solids 2018, 120, 96–103. [Google Scholar] [CrossRef]
  25. Lim, S.Y.; Shen, W.; Gao, Z. Carbon quantum dots and their applications. Chem. Soc. Rev. 2015, 44, 362–381. [Google Scholar] [CrossRef] [PubMed]
  26. Smith, A.M.; Duan, H.; Rhyner, M.N.; Ruan, G.; Nie, S. A systematic examination of surface coatings on the optical and chemical properties of semiconductor quantum dots. Phys. Chem. Chem. Phys. 2006, 8, 3895–3903. [Google Scholar] [CrossRef]
  27. Pons, T.; Uyeda, H.T.; Medintz, A.I.L.; Mattoussi, H. Hydrodynamic dimensions, electrophoretic mobility, and stability of hydrophilic quantum dots. J. Phys. Chem. B 2006, 110, 20308–20316. [Google Scholar] [CrossRef] [PubMed]
  28. Pellegrino, T.; Manna, L.; Kudera, S.; Liedl, T.; Koktysh, D.; Rogach, A.L.; Keller, S.; Rädler, J.; Natile, A.G.; Parak, W.J. Hydrophobic nanocrystals coated with an amphiphilic polymer shell: A general route to water soluble nanocrystals. Nano Lett. 2004, 4, 703–707. [Google Scholar] [CrossRef]
  29. Söderlind, F.; Pedersen, H.; Petoral Jr., R.M.; Käll, P.-O.; Uvdal, K. Synthesis and characterization of Gd2O3 nanocrystals functionalized by organic acids. J. Colloid Interface Sci. 2005, 288, 140–148. [Google Scholar]
  30. Hara, M.; Yoshida, T.; Takagaki, A.; Takata, T.; Kondo, J.N.; Hayashi, S.; Domen, K. A carbon material as a strong protonic acid. Angew. Chem. Int. Ed. 2004, 43, 2955–2958. [Google Scholar] [CrossRef]
  31. Tsubouchi, N.; Xu, C.; Ohtsuka, Y. Carbon crystallization during high-temperature pyrolysis of coals and the enhancement by calcium. Energy Fuels 2003, 17, 1119–1125. [Google Scholar] [CrossRef]
  32. X’pert Highscore, Card No. 01-088-2164, PANalytical Software, Version 2.0.1, 2004. Available online: https://www.malvernpanalytical.com/en/products/category/software/x-ray-diffraction-software/highscore-with-plus-option?campaignid=1330618933&adgroupid=69605355538&creative=338921965823&keyword=x%20pert%20highscore&matchtype=p&network=g&device=c&gclid=EAIaIQobChMI-96BuM217AIVDD5gCh21CAQUEAAYASAAEgLo3vD_BwE (accessed on 15 October 2020).
  33. Kaufman, J.H.; Metin, S.; Saperstein, D.D. Symmetry breaking in nitrogen-doped amorphous carbon: Infrared observation of the Raman-active G and D bands. Phys. Rev. B 1989, 39, 13053–13060. [Google Scholar] [CrossRef] [PubMed]
  34. Malard, L.M.; Pimenta, M.A.; Dresselhaus, G.; Dresselhaus, M.S. Raman spectroscopy in graphene. Phys. Rep. 2009, 473, 51–87. [Google Scholar] [CrossRef]
  35. Ţucureanu, V.; Matei, A.; Avram, A.M. FTIR Spectroscopy for carbon family study. Crit. Rev. Anal. Chem. 2016, 46, 502–520. [Google Scholar] [CrossRef] [PubMed]
  36. Ibrahim, M.; Alaam, M.; El-Haes, H.; Jalbout, A.F.; De Leon, A. Analysis of the structure and vibrational spectra of glucose and fructose. Eclética Química J. 2006, 31, 15–21. [Google Scholar] [CrossRef]
  37. Wiercigroch, E.; Szafraniec, E.; Czamara, K.; Pacia, M.Z.; Majzner, K.; Kochan, K.; Kaczor, A.; Baranska, M.; Malek, K. Raman and infrared spectroscopy of carbohydrates: A review. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 185, 317–335. [Google Scholar] [CrossRef]
  38. Sun, X.; Li, Y. Colloidal carbon spheres and their core/shell structures with noble-metal nanoparticles. Angew. Chem. Int. Ed. 2004, 43, 597–601. [Google Scholar] [CrossRef]
  39. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray Photoelectron Spectroscopy; Chastain, J., Ed.; Perkin-Elmer Corporation: Eden Prairie, MN, USA, 1992. [Google Scholar]
  40. Díaz, J.; Paolicelli, G.; Ferrer, S.; Comin, F. Separation of the sp3 and sp2 components in the C1s photoemission spectra of amorphous carbon films. Phys. Rev. B 1996, 54, 8064–8069. [Google Scholar] [CrossRef]
  41. Barlow, A.; Popescu, S.M.; Artyushkova, K.; Scott, O.; Sano, N.; Hedley, J.; Cumpson, P.J. Chemically specific identification of carbon in XPS imaging using Multivariate Auger Feature Imaging (MAFI). Carbon 2016, 107, 190–197. [Google Scholar] [CrossRef]
  42. Ray, S.C.; Saha, A.; Jana, N.R.; Sarkar, R. Fluorescent carbon nanoparticles: Synthesis, characterization, and bioimaging application. J. Phys. Chem. C 2009, 113, 18546–18551. [Google Scholar] [CrossRef]
  43. Arajs, S.; Colvin, R.V. Magnetic susceptibility of gadolinium and dysprosium sesquioxides at elevated temperatures. J. Appl. Phys. 1962, 33, 2517. [Google Scholar] [CrossRef]
  44. Lal, H.B.; Pratap, V.; Kumar, A. Magnetic susceptibility of heavy rare-earth sesquioxides. Pramana 1978, 10, 409–412. [Google Scholar] [CrossRef]
  45. Greenwood, N.; Earnshaw, A. Chemistry of the Elements; Butterworth-Heinemann: Oxford, UK, 1977; p. 1243. [Google Scholar]
  46. Jiles, D. Introduction to Magnetism and Magnetic Materials; Chapman & Hall: London, UK, 1991; p. 185. [Google Scholar]
  47. Hainfeld, J.F.; Slatkin, D.N.; Focella, T.M.; Smilowitz, H.M. Gold nanoparticles: A new X-ray contrast agent. Br. J. Radiol. 2006, 79, 248–253. [Google Scholar] [CrossRef]
  48. Choi, H.S.; Liu, W.; Misra, P.; Tanaka, E.; Zimmer, J.P.; Ipe, B.I.; Bawendi, M.G.; Frangioni, J.V. Renal clearance of quantum dots. Nat. Biotechnol. 2007, 25, 1165–1170. [Google Scholar] [CrossRef] [PubMed]
  49. Longmire, M.; Choyke, P.L.; Kobayashi, H. Clearance properties of nano-sized particles and molecules as imaging agents: Considerations and caveats. Nanomedicine 2008, 3, 703–717. [Google Scholar] [CrossRef] [PubMed]
  50. Chandrasekhar, M.; Sunitha, D.; Dhananjaya, N.; Nagabhushana, H.; Sharma, S.; Nagabhushana, B.; Shivakumara, C.; Chakradhar, R. Structural and phase dependent thermo and photoluminescent properties of Dy(OH)3 and Dy2O3 nanorods. Mater. Res. Bull. 2012, 47, 2085–2094. [Google Scholar] [CrossRef]
  51. Kofod, N.; Arppe, R.; Sørensen, T.J. Electronic energy levels of dysprosium (III) ions in solution. assigning the emitting state and the intraconfigurational 4f-4f transitions in the Vis–NIR region and photophysical characterization of Dy (III) in water, methanol, and dimethyl sulfoxide. J. Phys. Chem. A 2019, 123, 2734–2744. [Google Scholar] [CrossRef]
  52. Jung, C.W.; Jacobs, P. Physical and chemical properties of superparamagnetic iron oxide MR contrast agents: Ferumoxides, ferumoxtran, ferumoxsil. Magn. Reson. Imaging 1995, 13, 661–674. [Google Scholar] [CrossRef]
  53. Saini, S.; Edelman, R.R.; Sharma, P.; Li, W.; Mayo-Smith, W.; Slater, G.J.; Eisenberg, P.J.; Hahn, P.F. Blood-pool MR contrast material for detection and characterization of focal hepatic lessions: Initial clinical experience with ultrasmall superparamagnetic iron oxide (AMI-227). AJR 1995, 164, 1147–1152. [Google Scholar] [CrossRef]
  54. Yue, H.; Marasini, S.; Ahmad, M.Y.; Ho, S.L.; Cha, H.; Liu, S.; Jang, Y.J.; Tegafaw, T.; Ghazanfari, A.; Miao, X.; et al. Carbon-coated ultrasmall gadolinium oxide (Gd2O3@C) nanoparticles: Application to magnetic resonance imaging and fluorescence properties. Colloids Surf. A Physicochem. Eng. Asp. 2020, 586, 124261. [Google Scholar] [CrossRef]
  55. Weinmann, H.J.; Brasch, R.C.; Press, W.R.; Wesbey, G.E. Characteristics of gadolinium-DTPA complex: A potential NMR contrast agent. Am. J. Roentgenol. 1984, 142, 619–624. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Various characterization results of the [email protected] nanoparticles: (a) TEM image at the 20-nm scale; (b) HRTEM image at the 5-nm scale (inset is a magnified image of the dotted circle at the 2-nm scale); (c) plot of particle diameter distribution and a log-normal function fit to obtain davg; (d) plot of hydrodynamic diameter distribution and a log-normal function fit to obtain aavg; (e) plot of zeta potential and a Gaussian function fit to obtain ξavg; (f) concentrated aqueous solution sample (18 mM Dy); (g) photographs of the nanoparticle suspension samples in a 10% FBS in RPMI1640 medium (right) and a sodium acetate buffer (pH = 7) solution (left; 1.8 mM Dy) showing no nanoparticle precipitation for 10 days; and (h) Tyndall effect showing laser light scattering (indicated with an arrow) due to nanoparticle suspension (left) and the reference triple-distilled water, which did not show laser light scattering (right).
Figure 1. Various characterization results of the [email protected] nanoparticles: (a) TEM image at the 20-nm scale; (b) HRTEM image at the 5-nm scale (inset is a magnified image of the dotted circle at the 2-nm scale); (c) plot of particle diameter distribution and a log-normal function fit to obtain davg; (d) plot of hydrodynamic diameter distribution and a log-normal function fit to obtain aavg; (e) plot of zeta potential and a Gaussian function fit to obtain ξavg; (f) concentrated aqueous solution sample (18 mM Dy); (g) photographs of the nanoparticle suspension samples in a 10% FBS in RPMI1640 medium (right) and a sodium acetate buffer (pH = 7) solution (left; 1.8 mM Dy) showing no nanoparticle precipitation for 10 days; and (h) Tyndall effect showing laser light scattering (indicated with an arrow) due to nanoparticle suspension (left) and the reference triple-distilled water, which did not show laser light scattering (right).
Pharmaceuticals 13 00312 g001
Figure 2. XRD patterns of the DYO nanoparticles before carbon coating (bottom spectrum), and [email protected] nanoparticles before TGA (middle spectrum) and after TGA (top spectrum). All peaks after TGA could be assigned with (hkl) Miller indices corresponding to cubic Dy2O3 and only the strong peaks were assigned.
Figure 2. XRD patterns of the DYO nanoparticles before carbon coating (bottom spectrum), and [email protected] nanoparticles before TGA (middle spectrum) and after TGA (top spectrum). All peaks after TGA could be assigned with (hkl) Miller indices corresponding to cubic Dy2O3 and only the strong peaks were assigned.
Pharmaceuticals 13 00312 g002

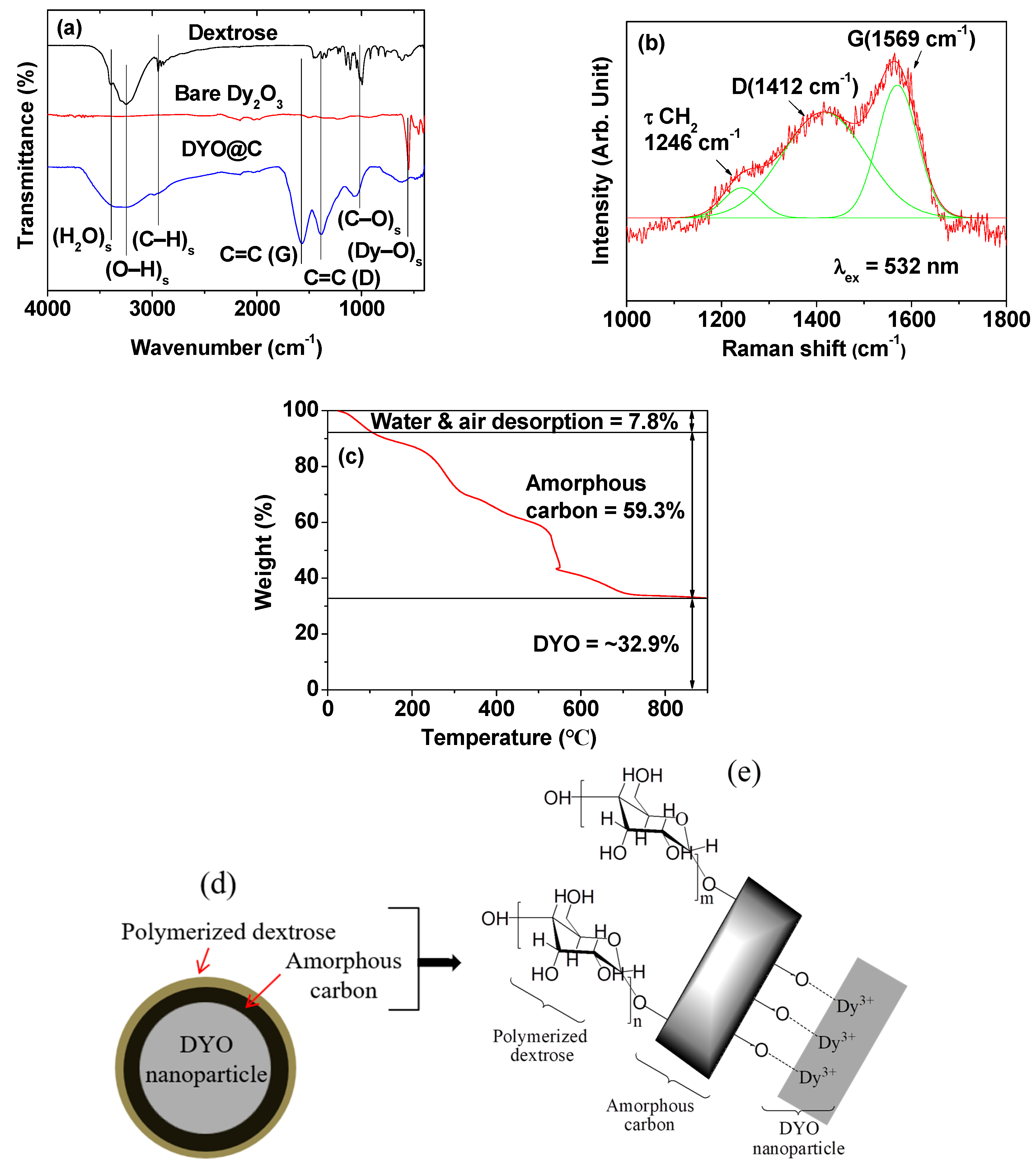

Figure 3. (a) FT-IR absorption spectra of the free dextrose (top spectrum), bare Dy2O3 nanoparticles (middle spectrum obtained after TGA), and [email protected] nanoparticles (bottom spectrum); (b) Raman spectrum of the [email protected] nanoparticles (excitation laser wavelength, λex = 532 nm); (c) TGA curve of the [email protected] nanoparticles; proposed (d) carbon-coating structure of the [email protected] nanoparticles and (e) carbon-coating layer structure.
