Pd-Decorated SnO2 Nanofilm Integrated on Silicon Nanowires for Enhanced Hydrogen Sensing

by
Tiejun Fang
1,
Tianyang Mo
1,
Xianwu Xu
1,
Hongwei Tao
2,
Hongbo Wang
2,
Bingjun Yu
1 and
Zhi-Jun Zhao
1,2,*
1
Tribology Research Institute, School of Mechanical Engineering, Southwest Jiaotong University, Chengdu 610031, China
2
Institute of Smart City and Intelligent Transportation, Southwest Jiaotong University, Chengdu 611756, China
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(3), 655; https://doi.org/10.3390/s25030655
Submission received: 27 November 2024 / Revised: 8 January 2025 / Accepted: 20 January 2025 / Published: 23 January 2025
(This article belongs to the Special Issue Recent Development of Flexible Tactile Sensors and Their Applications)
Browse Figures
Versions Notes

Abstract

:
The development of reliable, highly sensitive hydrogen sensors is crucial for the safe implementation of hydrogen-based energy systems. This paper proposes a novel way to enhance the performance of hydrogen sensors through integrating Pd-SnO2 nanofilms on the substrate with silicon nanowires (SiNWs). The samples were fabricated via a simple and cost-effective process, mainly consisting of metal-assisted chemical etching (MaCE) and electron beam evaporation. Structural and morphological characterizations were conducted using scanning electron microscopy (SEM) and X-ray photoelectron spectroscopy (XPS). The experimental results showed that, compared to those without SiNW structure or decorative Pd nanoparticles, the Pd-decorated SnO2 nanofilm integrated on the SiNW substrates exhibited significantly improved hydrogen sensing performance, achieving a response time of 9 s at 300 °C to 1.5% H2 and a detection limit of 1 ppm. The enhanced performance can be primarily attributed to the large surface area provided by SiNWs, the efficient hydrogen spillover effect facilitated by Pd nanoparticles, and the abundant oxygen vacancies present on the surface of the SnO2 nanofilm, as well as the Schottky barrier formed at the heterojunction interface between Pd and SnO2. This study demonstrates a promising approach for developing high-performance H2 sensors characterized by ultrafast response times and ultralow detection limits.

1. Introduction

As global initiatives to advance renewable energy intensify, hydrogen is being increasingly recognized as a clean and efficient energy carrier. Its widespread applications in fuel cells, portable energy storage, and the hydrogen industry are driving the development of advanced hydrogen safety monitoring technologies [1,2]. However, the flammability of hydrogen, combined with its high diffusivity in air, significantly increases the risk of leaks. Consequently, detecting hydrogen concentration and potential leaks has become a critical measure for ensuring both safety and property protection [3,4]. Additionally, various industrial sectors, including metallurgy, petrochemicals, automotive exhausts, and nuclear energy, require hydrogen sensors that can operate effectively in high-temperature and challenging environments. For example, monitoring hydrogen levels in molten aluminum during the casting process [5] and ensuring the safety of nuclear reactors at power plants [6] highlight the need for robust hydrogen sensing solutions. Current hydrogen detection techniques encompass a variety of methods, including electrochemical sensors, resistive sensors, catalytic sensors, and optical sensors [7,8,9,10]. Among these, metal oxide semiconductor (MOS) gas sensors are particularly promising for hydrogen detection due to their low cost, excellent sensing performance, reliability, and facilitated fabrication [11]. Fundamentally, MOS-based gas sensors operate on the principle that the electrical signal (either current or resistance) varies in response to the interaction between the target gas and the oxygen adsorbed on the surface of the MOS [12]. Among various semiconducting metal oxides, SnO2, as a n-type semiconductor, has become a leading choice in gas sensor research, owing to its exceptional physical and chemical properties, as well as its superior gas sensing capabilities [13,14]. However, bare SnO2 has challenges in meeting the demands for developing high-performance hydrogen sensors [15,16]. Consequently, to enhance the sensing performance of SnO2 gas sensors, many researchers are pursuing an effective method of doping with noble metals (e.g., Ag, Au, Pt) [17,18,19]. Notably, palladium (Pd), as a typical catalyst, can significantly accelerate the adsorption and reaction of hydrogen molecules, thereby enhancing the selectivity and sensitivity of hydrogen sensors. For example, Li et al. fabricated ultrathin nanosheet hydrogen gas sensors based on SnO2, demonstrating that the 1.0 wt% Pd/SnO2 sensor exhibited superior sensitivity, achieving a lower detection limit and rapid response/recovery time of 21 s and 13 s towards 20 ppm H2 at 220 °C, respectively. Furthermore, it showed a marked improvement in selectivity for H₂ compared to pure SnO2 sensors at 300 °C [20]. Meng et al. reported that Pd/SnO2 nanoparticles outperformed pure SnO₂ in hydrogen sensing, achieving a response magnitude of 254 and rapid response/recovery time of 1 s/22 s, respectively, in response to 500 ppm H2 at 125 °C [21]. Meanwhile, Kim et al. fabricated both bare and Pd-decorated SnO2 nanowires using a vapor–liquid–solid method, revealing that the Pd/SnO2 nanowire sensor increased its response at 1 ppm H₂ from 6.88 to 16.95 at 300 °C [22]. Additionally, the structural properties of gas sensors play a crucial role in the advancement of sensing systems with enhanced characteristics [23,24]. Various nanostructures including nanotubes, nanorods, and nanowires, have been extensively utilized in gas sensors due to their excellent gas sensing performance [25,26,27]. Among these, SiNWs have attracted significant attention in recent years due to their unique chemical properties and potential applications in nano/optoelectronics, solar cells, and chemo/biosensors [28,29,30]. To fabricate SiNWs, various methods have been developed, including vapor–liquid–solid synthesis (VLS), reactive-ion etching (RIE), and metal-assisted chemical etching (MaCE) [31,32,33]. Particularly, MaCE is notable for its simplicity, cost-effectiveness, and flexibility in producing vertical SiNWs at the wafer scale, allowing for controlled morphology and microstructure [34]. In the realm of gas sensing applications, the SiNW structure emerges as a particularly attractive candidate due to its large specific surface area, high chemical activity, and excellent compatibility for doping with other sensing materials. For example, Cuscunà et al. successfully fabricated a chemo-resistive sensor based on SiNWs, achieving a NO2 detection limit down to a few parts per billion at room temperature [35]. Similarly, Qin et al. demonstrated that SiNW/WO3 nanowires exhibited good selectivity to NO2 and an ultrafast response time of less than 1 s to 0.5–5 ppm NO2 at room temperature [36]. Furthermore, Noh et al. reported that Pd-coated rough silicon nanowires displayed a rapid response time (<3 s) and low detection limit (~5 ppm) at room temperature [37]. Although both the SiNW structure and Pd-decorated SnO2 materials have been individually and extensively studied to enhance gas sensing performance, their integration within hydrogen sensors remains a largely unexplored area.
Therefore, in this work, we fabricated the hydrogen sensor of Pd-decorated SnO2 sensing nanofilm integrated on SiNW substrate to study the potential gas sensing performance. The SiNW substrate was fabricated via the MaCE process with a silver holey mask, and the mask was previously prepared by annealing the deposited 30 nm-thick Ag nanofilm, which is a solid-state dewetting process selected to pattern the Ag mask instead of using lithograph techniques or other methods, because it is a simple and cost-effective approach. Afterwards, a 40 nm-thick SnO2 nanofilm and a 1 nm-thick Pd nanofilm were deposited on the SiNW substrates by electron beam evaporation, respectively. The synthesized hydrogen sensors based on Pd-decorated SnO2 nanofilm integrated on SiNW substrate showed a high response value greater than 9, a rapid respond to 1.5% H2 (a respond time of 9s), and a detection limit of 1 ppm H2. Such an excellent sensing performance could probably be attributed to the synergistic effect of SnO2 nanofilm, Pd nanoparticles, and the p-n heterojunction formed at the interface between SnO2 and SiNWs, as well as plenty of active sites provided by the SiNW structure with large surface area.

2. Experimental Section

2.1. Materials

Hydrofluoric acid (AR, 40%), nitric acid (AR, 65%), acetone (AR, 99%), ethanol (AR, 99%), and hydrogen peroxide (AR, 30%) were bought from Chengdu Kelong Chemical Co., Ltd. (Chengdu, China). SnO2 particles (1–3 mm, 99.99%), Ag particles (φ 2 mm ×5 mm, 99.99%), and Pd particles (φ 2 mm × 5 mm, 99.95%) to be used as target materials for electronic beam evaporation were bought from Beijing Dream Material Technology Co., Ltd. (Beijing, China). p-type silicon wafer (φ 50.8 mm, <100>, 1–10 Ω·cm, 280 ± 15 μm) were bought from Wuxi Zhonghuixin Technology Co., Ltd. (Wuxi, China).

2.2. Fabrication of Pd-Decorated SnO2 Nanofilm on SiNW Substrate

As illustrated in Figure 1, the fabrication process of the porous Pd-decorated SnO2 nanofilm can be divided into three main steps: (1) the preparation of a nanostructured silver holey mask (Figure 1a–c), (2) the fabrication of a vertical SiNW substrate (Figure 1d–f), and (3) the deposition of the Pd-decorated SnO2 nanofilm onto the SiNW substrate (Figure 1g–i).

2.2.1. Preparation of a Nanostructured Silver Holey Mask

P-type silicon wafers were cut into 4 mm × 1 mm pieces, which were then ultrasonically cleaned in acetone and ethanol for 5 min, respectively (Figure 1a), followed by a rinse with deionized (DI) water. Subsequently, a 30 nm-thick silver nanofilm was deposited onto the cleaned silicon substrates using electron beam evaporation (Figure 1b). To conduct the solid-state dewetting of the silver nanofilm, the samples were put in a preheated muffle furnace at 250 °C and annealed for 30 min. Afterwards, the samples were taken out from the furnace and cooled down to room temperature under environmental circumstances. Then, a nanostructured silver holey mask was prepared (Figure 1c).

2.2.2. Fabrication of a Vertical SiNW Substrate

The substrates covered with silver holey masks were immersed in MaCE solution consisting of 4.8 M HF and 0.05 M H2O2 for 3 h at room temperature (Figure 1d). In this step, the Ag nanofilm catalyzed H2O2 reduction, injecting holes through the Ag/Si Schottky barrier and oxidizing Si that dissolved in the presence of HF [38], and only the silicon in contact with Ag was etched (Figure 1e). Afterwards, the samples were put into a HNO3 solution (65 wt%) for 40 min to remove Ag nanoparticles, followed by rinsing with ethanol and DI water, respectively. Consequently, a vertical SiNW substrate was fabricated (Figure 1f).

2.2.3. Deposition of Pd-Decorated SnO2 Nanofilm on SiNW Substrate

In this work, all the films were deposited using electron beam evaporation, which is a physical vapor deposition technique. Before the deposition, the chamber should be evacuated to a high vacuum with a pressure of 5 × 10−4 Pa, and the depositing rate should be set to 0.5 Å/s. First, a 40 nm-thick SnO2 nanofilm was deposited on each SiNW substrate (Figure 1g), followed by the deposition of a 1 nm-thick Pd nanofilm to decorate the SnO2 layer (Figure 1h). Subsequently, silver electrodes with an area of 1 mm × 1 mm were deposited on the samples, while the sensing zone measured 1 mm × 2 mm (Figure 1i). To better investigate SiNWs and different thicknesses of Pd films and SnO2 fims on the gas sensing performance, 7 different kinds of sensors were fabricated, and they are shown in detail in Table 1.

2.3. Characterization

The scanning electron microscopy (JSM 7800F Prime, JEOL Ltd., Tokyo, Japan) with energy-dispersive X-ray spectroscopy EDS was employed to explore the morphology and composition of the samples. X-ray photoelectron spectroscopy (XPS, Thermo Scientific ESCALAB 250Xi, Al K-Alpha X-ray, Thermo Fisher Scientific Ltd., Waltham, MA, USA) was employed to analyze the surface chemical composition and valence states of the elements. X-ray diffraction (XRD, Empyrean, PANalytical B.V.Ltd., Almelo, The Netherlands) with Cu-Kα radiation (λ = 1.54178 Å) was employed to study the crystallinity.

2.4. Hydrogen Gas Sensing Tests

The hydrogen gas sensing tests were conducted on an optoelectrical integrated test platform (CGS-MT, Beijing Sino Aggtech Co., Ltd., Beijing, China) under dynamic testing circumstances. As is shown in Figure S1, the platform consists of a gas distribution system, a temperature control system (ranging from 25 °C to 400 °C), and a gas sensing analysis system. The gas distribution system was devised to regulate the concentration of the target gas by blending it with a balance gas in specific ratios and to automatically enable the switching between the target gas and the background gas. The temperature control system was accountable for providing a stable operating temperature during gas sensing tests. Meanwhile, the gas sensing analysis system measured variations in the electrical performance of the sensor and sent the relevant signals to the computer, which would then display these signals on the screen in the form of current, voltage, or resistance. The response of the sensor is defined as S = Ra/Rg, and Ra is the stable resistance in air atmosphere, while Rg is the stable resistance in the target gas. The response time and recovery time are defined as the period required for 90% resistance change during H2 adsorption and desorption, respectively.

3. Results and Discussion

3.1. Morphology and Material

Figure 2a shows the SEM image of an even silver nanofilm with a thickness of 30 nm, which was deposited by electron beam evaporation. The silver mask with high-density holes, which has a direct impact on the formation of the vertical SiNWs, is shown in Figure 2b. Prior to this, to determine the appropriate parameters for the formation of the silver holey masks, the silver nanofilms with thicknesses of 10 nm, 20 nm, 25 nm, 30 nm, 35 nm, and 40 nm on silicon substrates were fabricated and annealed at 250 °C for 30 min. The results indicated that the 30 nm-thick silver nanofilm had a good hole nanostructure (Figure S2d), while the 10 nm-, 20 nm-, and 25 nm-thick silver nanofilms became separate Ag particles (Figure S2a–c), the 35 nm- and 40 nm-thick silver nanofilms remained almost as an integrated nanofilm with few and small holes (Figure S2e,f). Figure S3 shows that 250 °C could be an appropriate temperature value based on the temperature tests. Because the 30 nm-thick silver nanofilm annealed at 250 °C for 30 min turned out to have a nanostructure with high-density holes (Figure S3b), while for the 30 nm-thick silver nanofilms annealed at 180 °C and 250 °C for 30 min, respectively, they either presented a nanofilm with small holes (Figure S3a) or presented separate Ag particles (Figure S3c), which would adversely affect the subsequent MaCE process.
Figure 2c–e displays the structures of the vertical SiNWs after MaCE. Most of the nanowires are upright, and the average height of the nanowires is about 20–30 nm. The nanowires are densely distributed (shown in Figure 2c), due to which the upcoming deposited nanofilm would have a high surface area for gas sensing. Figure 2f–h clearly shows the structures of the Pd (1 nm)-decorated SnO2 nanofilm (40 nm) integrated on SiNWs. As shown in Figure 2g,h, it is noteworthy that the vertical SiNWs are successfully coated, and parts of them are connected on the upper by the deposited SnO2 nanofilm, which is decorated by Pd nanoparticles. It might offer conditions for the current to flow along the Pd-decorated SnO2 nanofilm deposited on the vertical SiNWs. To better confirm the distribution of the SnO2 nanofilm on the SiNW substrate, a 130 nm-thick SnO2 film was deposited, and the SEM images in Figure S4 show that SnO2 nanofilms are primarily distributed on the upper surface of SiNWs.
We utilized XPS spectra to analyze the composition and the specific chemical states of the silicon nanowire-based SnO2 nanofilm decorated by Pd nanoparticles. In Figure 3a, the XPS survey spectra of the Pd-decorated SnO2 nanofilm reveal the existence of O, Sn, Pd, and C elements, and C may result from inadvertent carbon contamination. As shown in Figure 3b, the O 1s signal splits into three distinct peaks at 533 eV, 532 eV, and 530.6 eV. Lattice oxygen (OL) has no influence in gas detection due to its stable chemical structure. In contrast, the oxygen vacancy (OV) and chemisorbed oxygen species (OC) are the key factors that enhance the gas sensing performance of MOS-based sensors [39]. Figure 3c displays two Sn 3d peaks split into Sn 3d5/2 (Sn4+), Sn 3d3/2 (Sn4+), Sn 3d5/2 (Sn), and Sn 3d3/2 (Sn) peaks, confirming the presence of both SnO2 and Sn in the Pd-decorated SnO2 nanofilm on SiNWs. According to the area size of the related peaks, it can tell that SnO2 accounts for a much larger proportion than Sn element substance [40]. The XPS spectrum of the Pd 3d in Figure 3d exhibits two well-defined peaks of Pd 3d5/2 (335.3 eV) and Pd 3d3/2 (340.5 eV), which further splits into four distinct peaks through fitting analysis. The XPS spectrum with the two peaks at 336.7 eV and 342.1 eV is associated with Pd0 [41], while the XPS spectrum with the other two peaks at 335.2 eV and 340.5 eV can be attributed to Pd2+. The XPS spectra suggest the presence of both Pd and PdO in the Pd-decorated SnO2 nanofilm. Judging from the area size of the relevant peaks, it can be inferred that the proportion of Pd is significantly higher than that of PdO [42].
The EDS spectrum in Figure 4d demonstrates the element proportions of O, Sn, and Pd to be 33.9 wt%, 61.8 wt% and 4.3 wt%, respectively, which confirms the existence of the three elements (O, Sn, and Pd) in the nanofilm. The EDS element images of the Pd-decorated SnO2 nanofilm on SiNWs are displayed in Figure 4a–c. Clearly, O, Sn, and Pd elements are present in the nanofilm and are distributed across the upper surface of the SiNWs. Therefore, the EDS spectrum and elemental mapping analysis collectively demonstrate the successful deposition of the Pd-decorated SnO2 nanofilm on the SiNW substrate.

3.2. Gas Sensing Properties

The upper graph of Figure 5a shows the baseline resistance changes in all sensors in the air at various temperatures. The sensors with a SiNW structure (Sensor 1 and 2) exhibited higher resistance than the sensor with a non-SiNW structure (Sensor 3). The increased baseline resistance is likely due to the silicon nanowire structure with a large specific surface area. Additionally, Sensor 1 displays higher baseline resistance than the other two, which may be caused by the decorative Pd particles. The upper graph also illustrates the trend of resistance changes with temperature. As the temperature rises from room temperature, resistance decreases significantly due to the movement of energized electrons into the conduction band [43]. However, with further increases in temperature, the baseline resistance rises, because more activated oxygen ions capture electrons from the conduction band, leading to an increase in resistance [44]. The lower graph in Figure 5a depicts the response of SnO2 nanofilm-based sensors to 0.5% H2 at different temperatures spanning from 25 °C to 350 °C. The findings indicate that the best operating temperature for all three SnO2-based sensors could be 300 °C, at which the sensors exhibit the maximum response. Many reports have demonstrated that the response performance of MOS-type gas sensors is greatly affected by the working temperature, which influences the absorption and diffusion capabilities of the relevant gases. At low temperatures, limited thermal energy would result in weak redox reactions and poor responses, while the desorption activity is faster than the adsorption, reducing gas absorption and response at elevated temperatures. Thus, the best working temperature is where gas absorption and chemical activating energy become balanced. In this work, the testing data show that the perfect operating temperature of all the SnO2-based sensors would be 300 °C, at which the sensors display the best response.
Figure 5b shows the gradient response of three sensors to the high ppm level H2 concentrations spanning from 50 ppm to 15,000 ppm at 300 °C. Sensor 1, which has both a SiNW structure and decorative Pd particles, consistently outperforms Sensor 2 (only with SiNW) across all concentrations. Sensor 2, in turn, has a higher response than Sensor 3, which lacks both features. Notably, at 50 ppm H2, Sensor 1 maintains a response of 3.5, while Sensors 2 and 3 reach their detection limits with a response value around 1. Furthermore, Figure 5c shows that Sensor 1 exhibits a strong response to the low ppm level H2 concentrations (1 ppm to 30 ppm) at 300 °C, maintaining a response value of 1.2 at 1 ppm H2. Figure 5d illustrates the response of each sensor at varying gas concentrations at 300 °C, revealing that the response intensifies with increasing concentration. Besides that, it also shows that Sensor 1 exhibits a faster response increase compared to the other two sensors. All these enhanced performances of Sensor 1 may be ascribed to the synergistic effect of silicon nanowires, SnO2 nanofilm, and Pd nanoparticles.
Figure S5 shows that the response times and respond values of Sensors 4 and 5 towards 1.5% H2 at 300 °C are 123 s, 199 s, 1.7, and 1.9, respectively. In contrast, Sensor 2 exhibits a response time of 23 s (Figure 6c) and a response greater than 5 (Figure 6a) under the same conditions. This suggests that a 40 nm-thick SnO2 film offers better hydrogen sensing performance compared to 30 nm- and 50 nm-thick SnO2 films when SiNWs are used as the substrate in this work. Similarly, Figure S6 shows that the response times and response values of Sensors 6 and 7 towards 1.5% H2 at 300 °C are 57 s, 142 s, 2.2, and 1.6, respectively. In comparison, Sensor 1 has a response time of 9 s (Figure 6b) and a response greater than 9 (Figure 6a) under the same working conditions. This indicates that a 1 nm-thick Pd film decorating a SiNW-based 40 nm-thick SnO2 film provides superior hydrogen sensing performance compared to the same SnO2 films decorated with 3 nm- and 6 nm-thick Pd films.
Additionally, for the repeatability tests of all three sensors in response to 1.5% H2 gas (15,000 ppm), eight cycles were conducted at 300 °C. The results, presented in Figure 6a, demonstrate that all three sensors exhibit good repeatability in gas sensing. Notably, due to the enhancement provided by the SiNW structure and the decorative Pd particles, Sensor 1 achieves a response value greater than 9, significantly surpassing the response values of Sensor 2 and 3. Figure 6b–d presents the response and recovery times of Sensor 1, Sensor 2, and Sensor 3 towards 1.5% H2 at 300 °C. All sensors demonstrate superior response performance to H2 compared to their recovery phase. Particularly, Sensor 1 demonstrates the faster respond speed than Sensors 2 and 3, with a response time reduced to 9 s. This rapid response may be triggered collaboratively by the SiNW structure, SnO2 nanofilm, and the decorative Pd particles. Table S1 compares the H2 gas detection limits of several SnO2 sensors containing Pd with the present sensor. The current sensor shows a lower detection limit than the other reported sensors, indicating its superior performance in detection of low concentrations of H2. In Figure 7, Sensor 1 exhibits a markedly stronger response to 500 ppm H2 at 300 °C compared to other target gases, including ethanol, acetone, methane, and ammonia. The results indicate that Sensor 1 demonstrates good selectivity for H2. In Figure 8a, Sensor 1 maintains a consistent response of approximately 9 to 1.5% H2 at 300 °C over 10 cycles after one week. Remarkably, as shown in Figure 8b, even after 5 months, Sensor 1 continues to show stable performance, with a response of around 9 to 1.5% H2 at 300 °C over 20 cycles. These findings suggest that Sensor 1 exhibits excellent stability.

3.3. Hydrogen Sensing Mechanism

In this part, we will investigate the sensing mechanisms of the hydrogen sensors of Pd-decorated SnO2 nanofilms integrated on SiNWs (Sensor 1) through a comparative analysis with Sensors 2 and 3. Outwardly, as shown in Figure 9a, there are two main electrical paths connected in parallel for gas sensing. Path 2 is the normal route along p-type Si, while Path 1 is the one along the discontinuous Pd-decorated SnO2 nanofilm electrically connected by conductive p-Si. With respect to Path 2, in an air atmosphere, the oxygen molecules absorbed on the surface would capture electrons from p-type Si along Path 2, thereby increasing the density of holes on the silicon surface and reducing the resistance of Path 2, as these holes serve as charge carriers in p-type semiconductors. However, upon the introduction of H2, the trapped electrons would be released back to SiNWs, resulting in a decrease in hole concentration and an increase in the Path 2 resistance [45]. Apparently, Path 2 works the opposite way to the sensors, because experimental results show that the sensor resistance increases in the air atmosphere, while decreasing in the presence of H2. Furthermore, bare SiNWs have been prepared for hydrogen sensing, the test results reveal that the response of bare SiNWs is quite low, with a response value of approximately 1.5 towards 1.5% H2 at 300 °C (Figure S7), while Sensor 1 (Pd-decorated SnO2 based on SiNWs) achieves a response value greater than 9 (Figure 6a). Therefore, it suggests that Path 2 contributes little to the gas sensing. Consequently, Path 1 is likely the dominant electrical path for gas sensing. The hydrogen sensing mechanism can be interpreted according to the working principles of n-type MOS gas sensors [46], which perfectly aligns with what experimental results show. In this study, we focus on the hydrogen sensing mechanism at the temperature of 300 °C, because it is the perfect working temperature for all three kinds of sensors. For pure SnO2 nanofilm sensors (Sensor 2 and 3), when they are in an air atmosphere, oxygen molecules are adsorbed onto the oxygen vacancies on the surface of SnO2 nanofilm and capture electrons from the SnO2 nanofilm, resulting in the formation of O2− and O− ions at 300 °C [47]. This adsorption of oxygen generates an electron-depleted layer at the interface between SnO2 nanofilm and oxygen ions, contributing to a reduction in the electron carrier concentration and an increase in the resistance. Subsequently, when hydrogen gas is introduced, it reacts with O2− and O− ions, releasing the trapped electrons back into the SnO2 [48], thereby decreasing the thickness of the electron-depleted layer at the interface and the resistance. The relevant reactions are as follows (Equations (1)–(5)):
O2(gas) → 2O(ads)
O(ads) + e− → O−(ads)
O(ads) + 2e− → O2−(ads)
H2(gas) → H2(ads)
H2(ads) + O−(ads) → H2O(gas) + e−
According to the measurement results, Sensor 2 with the SiNW structure shows a higher response and baseline resistance than Sensor 3, which could be attributed to the more absorption active sites provided by the larger specific surface area of SiNW structure. Sensor 1 with the decorative Pd particle outperforms Sensor 2 in sensing capabilities including a rapid response time of 9 s, a low detection limit of 1 ppm, and a higher response, which could be caused by three primary factors.
H2(gas) → 2H
2H +O− → H2O+ e−
First, the significant improvement in H2 sensing behavior could be attributed to the Pd catalytic properties. It promotes the splitting of H2 entities into H atoms, which subsequently spread to the SnO2 surface through the spillover effect (Equation (6)) [48]. These H atoms react with oxygen ions, releasing free electrons back into the SnO2 (Equation (7)). The related sensing mechanism is illustrated in Figure 9b [48]. The fundamental working principles of Sensor 1 are basically similar to those of Sensor 2 and 3. However, the presence of Pd lowers the activation energy needed for these reactions and increases the absorption speed. These may lead to a significantly enhanced response magnitude and the rapid respond for the Pd/SnO2 system.
Second, the resistance modulations of both the Schottky barrier and p-n heterojunction are crucial to the enhanced gas sensing performance of Sensor 1. XPS analysis indicates that a portion of palladium (Pd) exists as a p-type semiconductor PdO. Furthermore, at 300 °C, in an air atmosphere, a certain amount of PdO is formed through the oxidation of Pd, while some Pd is formed by the reduction in PdO in a hydrogen atmosphere. When PdO contacts the SnO2 surface, it acquires electrons from SnO2 due to its higher work function compared to that of SnO2 [42,49], thereby generating an electron-depleted layer and a p-n heterojunction at the interface between PdO and SnO2 (Figure 10a). Meanwhile, the Schottky barrier would be formed at the Pd/SnO2 interface as well, because the work function of Pd is higher than that of SnO2, and Pd could obtain electrons from SnO2 (Figure 10b) [42,49]. Both the p-n heterojunction and Schottky barrier contribute to the formation of electron-depleted layers, resulting in an increase in resistance. Notably, in an air atmosphere, the thickness of these electron-depleted layers is greater than that in a hydrogen atmosphere, leading to higher resistance because of oxygen molecules capturing electrons from the SnO2 nanofilm (Figure 9b). This completely explains why the baseline resistance of Sensor 1 is higher than Sensor 2 and Sensor 3. Consequently, both the p-n heterojunction and Schottky barrier enhance the hydrogen sensing response by modulating the resistance of the sensitive materials. Additionally, the hydrogen absorption capacity of Pd nanoparticles further enhances the sensing performance of Sensor 1. Under H2 exposure, a certain amount of H atoms generated from the splitting of hydrogen molecules absorbed on the Pd surface would penetrate the lattice of Pd, resulting in the formation of PdHx. At the PdHx/SnO2 interface, SnO2 would acquire electrons from PdHx due to its higher work function compared to that of SnO2 [49,50], which consequently reduces the thickness of the electron-depleted layer at the PdHx/SnO2 interface, resulting in a decrease in the resistance (Figure 10c). Therefore, the hydrogen absorption capability of Pd NPs leads to a further decrease in resistance, which improves the overall sensing capabilities of Sensor 1.
Lastly, the p-Si substrate plays a crucial role in modulating the sensor’s resistance, thereby enhancing its hydrogen sensing capabilities. A p-n heterojunction forms at the interface between the SnO2 nanofilm (with n-type conductivity) and the p-Si substrate due to their differing work functions. This leads to the formation of an electron depletion layer on the SnO2 side and a hole depletion layer on the p-Si side. When exposed to the air, electrons from the SnO2 surface are attracted to absorbed oxygen molecules, causing the depletion layer to thicken and increasing the overall resistance. In contrast, when hydrogen gas is introduced, hydrogen molecules react with the absorbed oxygen, allowing electrons to return to the SnO2, which results in a decrease in resistance (Figure 9) [51].

4. Conclusions

We fabricated SiNW-based Pd-decorated SnO2 nanofilms via a simple process, mainly consisting of MaCE and electron beam evaporation. Initially, a 30 nm-thick silver nanofilm was deposited onto a silicon substrate by electron beam evaporation and then annealed to generate a silver holey mask for the following MaCE, enabling the creation of vertical SiNWs. Afterwards, layers of a 40 nm-thick SnO2 nanofilm and a 1 nm-thick Pd nanofilm were deposited in sequence onto the SiNW substrate. The experimental results indicated that the hydrogen sensors based on Pd-decorated SnO2 nanofilms integrated on SiNWs demonstrated significantly better performance compared to those lacking a SiNW structure or Pd decoration. Particularly, the silicon nanowire-based Pd-decorated SnO2 nanofilm hydrogen sensor demonstrated a response value greater than 9, a respond time of 9 s to 1.5% H2, and a detection limit of 1 ppm. These performance improvements could be mainly attributed to the large surface area of the SiNW structure, the effective spillover mechanism of the dispersed Pd catalyst, the abundant oxygen vacancies of SnO2 nanofilm, and Schottky barrier formed at the heterojunction interface between the Pd nanoparticles and the SnO2 nanofilm, as well as the p-n heterojunction provided by p-Si and SnO2. This work may establish a foundation for other researchers to investigate future high-performance hydrogens sensors based on the combination of SiNWs, MOS, and noble metals.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s25030655/s1, Figure S1: Optoelectrical integrated test platform; Figure S2: SEM images of annealed Ag nanofilms with various thickness; Figure S3: SEM images of 30nm-thick Ag nanofilms annealed at different temperatures; Figure S4: SEM images of 130 nm-thick SnO2 deposited on SiNWs; Figure S5: Response and recovery time graphs of Sensor 4 and Sensor 5; Figure S6: Response and recovery time graphs of Sensor 5 and Sensor 6; Figure S7: Response graph of bare SiNWs towards 1.5% H2 at 300 °C; Table S1: Detection limits of H2 sensors based on SnO2. References [21,52,53,54,55] are mentioned in supplementary materials.

Author Contributions

Conceptualization, T.F.; formal analysis, B.Y.; funding acquisition, Z.-J.Z.; investigation, H.T. and H.W.; methodology, T.M.; resources, Z.-J.Z.; supervision, Z.-J.Z.; validation, X.X.; writing—original draft, T.F.; writing—review and editing, Z.-J.Z. and T.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (no. 52375578), as well as in part by Sichuan Science and Technology Program (no. 2023NSFSC0857). This research was further funded by Sichuan Science and Technology Program (no. 2023NSFSC1988).

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The authors confirm that the data supporting the findings of this study are available within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript: SiNWs, silicon nanowires; MaCE, metal-assisted chemical etching; SEM, scanning electron microscopy; XPS, X-ray photoelectron spectroscopy; MOS, metal oxide semiconductor; VLS, vapor–liquid–solid synthesis; RIE, reactive-ion etching; XRD, X-ray diffraction.

References

  1. Qureshi, F.; Yusuf, M.; Arham Khan, M.; Ibrahim, H.; Ekeoma, B.C.; Kamyab, H.; Rahman, M.M.; Nadda, A.K.; Chelliapan, S. A State-of-The-Art Review on the Latest Trends in Hydrogen Production, Storage, and Transportation Techniques. Fuel 2023, 340, 127574. [Google Scholar] [CrossRef]
  2. Lee, J.-S.; An, J.W.; Bae, S.; Lee, S.-K. Review of Hydrogen Gas Sensors for Future Hydrogen Mobility Infrastructure. Appl. Sci. Converg. Technol. 2022, 31, 79–84. [Google Scholar] [CrossRef]
  3. Foorginezhad, S.; Mohseni-Dargah, M.; Falahati, Z.; Abbassi, R.; Razmjou, A.; Asadnia, M. Sensing Advancement towards Safety Assessment of Hydrogen Fuel Cell Vehicles. J. Power Sources 2021, 489, 229450. [Google Scholar] [CrossRef]
  4. Darmadi, I.; Nugroho, F.A.A.; Langhammer, C. High-Performance Nanostructured Palladium-Based Hydrogen Sensors—Current Limitations and Strategies for Their Mitigation. ACS Sens. 2020, 5, 3306–3327. [Google Scholar] [CrossRef]
  5. Yajima, T.; Koide, K.; Fukatsu, N.; Ohashi, T.; Iwahara, H. A new hydrogen sensor for molten aluminum. Sens. Actuators B Chem. 1993, 14, 697–699. [Google Scholar] [CrossRef]
  6. Hübert, T.; Boon-Brett, L.; Black, G.; Banach, U. Hydrogen sensors—A review. Sens. Actuators B Chem. 2011, 157, 329–352. [Google Scholar] [CrossRef]
  7. Gorbova, E.; Balkourani, G.; Molochas, C.; Sidiropoulos, D.; Brouzgou, A.; Demin, A.; Tsiakaras, P. Brief Review on High-Temperature Electrochemical Hydrogen Sensors. Catalysts 2022, 12, 1647. [Google Scholar] [CrossRef]
  8. Gong, J.; Wang, Z.; Tang, Y.; Sun, J.; Wei, X.; Zhang, Q.; Tian, G.; Wang, H. MEMS-Based Resistive Hydrogen Sensor with High Performance Using a Palladium-Gold Alloy Thin Film. J. Alloys Compd. 2023, 930, 167398. [Google Scholar] [CrossRef]
  9. Xu, L.; Li, T.; Gao, X.; Wang, Y. A High-Performance Three-Dimensional Microheater-Based Catalytic Gas Sensor. IEEE Electron Device Lett. 2012, 33, 284–286. [Google Scholar] [CrossRef]
  10. Ai, B.; Sun, Y.; Zhao, Y. Plasmonic Hydrogen Sensors. Small 2022, 18, 2107882. [Google Scholar] [CrossRef] [PubMed]
  11. Krishna, K.G.; Parne, S.; Pothukanuri, N.; Kathirvelu, V.; Gandi, S.; Joshi, D. Nanostructured Metal Oxide Semiconductor-Based Gas Sensors: A Comprehensive Review. Sens. Actuators Phys. 2022, 341, 113578. [Google Scholar] [CrossRef]
  12. Wang, L.; Lou, Z.; Fei, T.; Zhang, T. Templating Synthesis of ZnO Hollow Nanospheres Loaded with Au Nanoparticles and Their Enhanced Gas Sensing Properties. J. Mater. Chem. 2012, 22, 4767. [Google Scholar] [CrossRef]
  13. Gautam, D.; Gautam, Y.K.; Sharma, K.; Kumar, A.; Kumar, A.; Srivastava, V.; Singh, B.P. Recent Developments in SnO2 Nanostructures Inspired Hydrogen Gas Sensors. Int. J. Hydrogen Energy 2024, 81, 313–345. [Google Scholar] [CrossRef]
  14. Wang, B.J.; Ma, S.Y. High Response Ethanol Gas Sensor Based on Orthorhombic and Tetragonal SnO2. Vacuum 2020, 177, 109428. [Google Scholar] [CrossRef]
  15. Abinaya, M.; Pal, R.; Sridharan, M. Highly Sensitive Room Temperature Hydrogen Sensor Based on Undoped SnO2 Thin Films. Solid State Sci. 2019, 95, 105928. [Google Scholar] [CrossRef]
  16. Shen, Y.; Yamazaki, T.; Liu, Z.; Meng, D.; Kikuta, T. Hydrogen Sensors Made of Undoped and Pt-Doped SnO2 Nanowires. J. Alloys Compd. 2009, 488, L21–L25. [Google Scholar] [CrossRef]
  17. Wang, Y.; Zhao, Z.; Sun, Y.; Li, P.; Ji, J.; Chen, Y.; Zhang, W.; Hu, J. Fabrication and Gas Sensing Properties of Au-Loaded SnO2 Composite Nanoparticles for Highly Sensitive Hydrogen Detection. Sens. Actuators B Chem. 2017, 240, 664–673. [Google Scholar] [CrossRef]
  18. Lu, Z.; Zhou, Q.; Xu, L.; Gui, Y.; Zhao, Z.; Tang, C.; Chen, W. Synthesis and Characterization of Highly Sensitive Hydrogen (H2) Sensing Device Based on Ag Doped SnO2 Nanospheres. Materials 2018, 11, 492. [Google Scholar] [CrossRef]
  19. Duoc, V.T.; Nguyen, H.; Ngoc, T.M.; Xuan, C.T.; Hung, C.M.; Duy, N.V.; Hoa, N.D. Hydrogen Gas Sensor Based on Self-Heating Effect of SnO2/Pt Thin Film with Ultralow Power Consumption. Int. J. Hydrogen Energy 2024, 61, 774–782. [Google Scholar] [CrossRef]
  20. Li, G.; Du, K.; Wang, X.; Wang, X.; Chen, B.; Qiu, C.; Xu, J. Pd Nanoparticles Decorated SnO2 Ultrathin Nanosheets for Highly Sensitive H2 Sensor: Experimental and Theoretical Studies. Int. J. Hydrogen Energy 2024, 50, 761–771. [Google Scholar] [CrossRef]
  21. Meng, X.; Bi, M.; Xiao, Q.; Gao, W. Ultra-Fast Response and Highly Selectivity Hydrogen Gas Sensor Based on Pd/SnO2 Nanoparticles. Int. J. Hydrogen Energy 2022, 47, 3157–3169. [Google Scholar] [CrossRef]
  22. Kim, J.-H.; Mirzaei, A.; Kim, H.W.; Kim, S.S. Improving the Hydrogen Sensing Properties of SnO2 Nanowire-Based Conductometric Sensors by Pd-Decoration. Sens. Actuators B Chem. 2019, 285, 358–367. [Google Scholar] [CrossRef]
  23. Johnson, N.J.J.; Lam, B.; MacLeod, B.P.; Sherbo, R.S.; Moreno-Gonzalez, M.; Fork, D.K.; Berlinguette, C.P. Facets and Vertices Regulate Hydrogen Uptake and Release in Palladium Nanocrystals. Nat. Mater. 2019, 18, 454–458. [Google Scholar] [CrossRef] [PubMed]
  24. Langhammer, C.; Zhdanov, V.P.; Zorić, I.; Kasemo, B. Size-Dependent Kinetics of Hydriding and Dehydriding of Pd Nanoparticles. Phys. Rev. Lett. 2010, 104, 135502. [Google Scholar] [CrossRef]
  25. Cai, Z.; Park, S. Synthesis of Pd Nanoparticle-Decorated SnO2 Nanowires and Determination of the Optimum Quantity of Pd Nanoparticles for Highly Sensitive and Selective Hydrogen Gas Sensor. Sens. Actuators B Chem. 2020, 322, 128651. [Google Scholar] [CrossRef]
  26. Cai, Z.; Park, S. A Superior Sensor Consisting of Porous, Pd Nanoparticle–Decorated SnO2 Nanotubes for the Detection of Ppb-Level Hydrogen Gas. J. Alloys Compd. 2022, 907, 164459. [Google Scholar] [CrossRef]
  27. Kim, M.H.; Jang, B.; Kim, W.; Lee, W. Enhanced Hydrogen Sensing Properties of Pd-Coated SnO2 Nanorod Arrays in Nitrogen and Transformer Oil. Sens. Actuators B Chem. 2019, 283, 890–896. [Google Scholar] [CrossRef]
  28. Coutancier, D.; Zhang, S.-T.; Bernardini, S.; Fournier, O.; Mathieu-Pennober, T.; Donsanti, F.; Tchernycheva, M.; Foldyna, M.; Schneider, N. ALD of ZnO:Ti: Growth Mechanism and Application as an Efficient Transparent Conductive Oxide in Silicon Nanowire Solar Cells. ACS Appl. Mater. Interfaces 2020, 12, 21036–21044. [Google Scholar] [CrossRef] [PubMed]
  29. Baraban, L.; Ibarlucea, B.; Baek, E.; Cuniberti, G. Hybrid Silicon Nanowire Devices and Their Functional Diversity. Adv. Sci. 2019, 6, 1900522. [Google Scholar] [CrossRef]
  30. Peng, F.; Su, Y.; Zhong, Y.; Fan, C.; Lee, S.-T.; He, Y. Silicon Nanomaterials Platform for Bioimaging, Biosensing, and Cancer Therapy. Acc. Chem. Res. 2014, 47, 612–623. [Google Scholar] [CrossRef]
  31. Tripathi, R.; Chauhan, V.; Gandharapu, P.; Kobi, S.; Mukhopadhyay, A.; Dusane, R.O. Si Nanowires Grown on Cu Substrates via the Hot-Wire-Assisted Vapor–Liquid–Solid Method for Use as Anodes for Li-Ion Batteries. ACS Appl. Nano Mater. 2022, 5, 17767–17782. [Google Scholar] [CrossRef]
  32. Xu, J.; Refino, A.D.; Delvalle, A.; Seibert, S.; Schwalb, C.; Hansen, P.E.; Foldyna, M.; Siaudinyte, L.; Hamdana, G.; Wasisto, H.S.; et al. Deep-Reactive Ion Etching of Silicon Nanowire Arrays at Cryogenic Temperatures. Appl. Phys. Rev. 2024, 11, 021411. [Google Scholar] [CrossRef]
  33. Wendisch, F.J.; Rey, M.; Vogel, N.; Bourret, G.R. Large-Scale Synthesis of Highly Uniform Silicon Nanowire Arrays Using Metal-Assisted Chemical Etching. Chem. Mater. 2020, 32, 9425–9434. [Google Scholar] [CrossRef]
  34. Soueiti, J.; Sarieddine, R.; Kadiri, H.; Alhussein, A.; Lerondel, G.; Habchi, R. A Review of Cost-Effective Black Silicon Fabrication Techniques and Applications. Nanoscale 2023, 15, 4738–4761. [Google Scholar] [CrossRef]
  35. Cuscunà, M.; Convertino, A.; Zampetti, E.; Macagnano, A.; Pecora, A.; Fortunato, G.; Felisari, L.; Nicotra, G.; Spinella, C.; Martelli, F. On-Chip Fabrication of Ultrasensitive NO2 Sensors Based on Silicon Nanowires. Appl. Phys. Lett. 2012, 101, 103101. [Google Scholar] [CrossRef]
  36. Qin, Y.; Wang, Z.; Liu, D.; Wang, K. Dendritic Composite Array of Silicon Nanowires/WO3 Nanowires for Sensitive Detection of NO2 at Room Temperature. Mater. Lett. 2017, 207, 29–32. [Google Scholar] [CrossRef]
  37. Noh, J.-S.; Kim, H.; Kim, B.S.; Lee, E.; Cho, H.H.; Lee, W. High-Performance Vertical Hydrogen Sensors Using Pd-Coated Rough Si Nanowires. J. Mater. Chem. 2011, 21, 15935. [Google Scholar] [CrossRef]
  38. Lai, R.A.; Hymel, T.M.; Narasimhan, V.K.; Cui, Y. Schottky Barrier Catalysis Mechanism in Metal-Assisted Chemical Etching of Silicon. ACS Appl. Mater. Interfaces 2016, 8, 8875–8879. [Google Scholar] [CrossRef]
  39. Qi, L.; Song, B.; Wu, H.; Tong, Y.; Li, L.; Wu, H.; Shi, K. Synthesis of Ag-Doped SnO2 Nanoflowers and Applications to Room Temperature High-Performance NO2 Gas Sensing. Sens. Actuators 2024, 420, 136494. [Google Scholar] [CrossRef]
  40. Wang, X.; Cheng, Y.-J.; Liang, S.; Ji, Q.; Zhu, J.; Xia, Y. Ultrafine SnO2/Sn Nanoparticles Embedded into an In Situ Generated Meso-/Macroporous Carbon Matrix with a Tunable Pore Size. Langmuir 2022, 38, 1689–1697. [Google Scholar] [CrossRef]
  41. Gao, J.; Wu, B.; Cao, C.; Zhan, Z.; Ma, W.; Wang, X. Unraveling the dynamic evolution of Pd species on Pd-loaded ZnO nanorods for different hydrogen sensing behaviors. ACS Sustain. Chem. Eng. 2021, 9, 6370–6379. [Google Scholar] [CrossRef]
  42. Gao, Z.; Wang, T.; Li, X.; Li, Q.; Zhang, X.; Cao, T.; Li, Y.; Zhang, L.; Guo, L.; Fu, Y. Pd-Decorated PdO Hollow Shells: A H2-Sensing System in Which Catalyst Nanoparticle and Semiconductor Support Are Interconvertible. ACS Appl. Mater. Interfaces 2020, 12, 42971–42981. [Google Scholar] [CrossRef]
  43. Khan, A.; Rahman, F.; NongJal, R.; Asokan, K. Optical Transmittance and Electrical Transport Investigations of Fe-Doped In2O3 Thin Films. Appl. Phys. A 2021, 127, 339. [Google Scholar] [CrossRef]
  44. Dey, A. Semiconductor Metal Oxide Gas Sensors: A Review. Mater. Sci. Eng. B 2018, 229, 206–217. [Google Scholar] [CrossRef]
  45. Gagaoudakis, E.; Michail, G.; Katerinopoulou, D.; Moschovis, K.; Iliopoulos, E.; Kiriakidis, G.; Binas, V.; Aperathitis, E. Transparent P-Type NiO:Al Thin Films as Room Temperature Hydrogen and Methane Gas Sensors. Mater. Sci. Semicond. Process. 2020, 109, 104922. [Google Scholar] [CrossRef]
  46. Ji, H.; Zeng, W.; Li, Y. Gas Sensing Mechanisms of Metal Oxide Semiconductors: A Focus Review. Nanoscale 2019, 11, 22664–22684. [Google Scholar] [CrossRef]
  47. Sun, J.; Yin, G.; Cai, T.; Yu, W.; Peng, F.; Sun, Y.; Zhang, F.; Lu, J.; Ge, M.; He, D. The Role of Oxygen Vacancies in the Sensing Properties of Ni Substituted SnO2 Microspheres. RSC Adv. 2018, 8, 33080–33086. [Google Scholar] [CrossRef]
  48. Zhang, X.; Sun, J.; Tang, K.; Wang, H.; Chen, T.; Jiang, K.; Zhou, T.; Quan, H.; Guo, R. Ultralow Detection Limit and Ultrafast Response/Recovery of the H2 Gas Sensor Based on Pd-Doped rGO/ZnO-SnO2 from Hydrothermal Synthesis. Microsyst. Nanoeng. 2022, 8, 67. [Google Scholar] [CrossRef] [PubMed]
  49. Chen, Z.; Hu, K.; Yang, P.; Fu, X.; Wang, Z.; Yang, S.; Xiong, J.; Zhang, X.; Hu, Y.; Gu, H. Hydrogen Sensors Based on Pt-Decorated SnO2 Nanorods with Fast and Sensitive Room-Temperature Sensing Performance. J. Alloys Compd. 2019, 811, 152086. [Google Scholar] [CrossRef]
  50. Tang, X.; Haddad, P.-A.; Mager, N.; Geng, X.; Reckinger, N.; Hermans, S.; Debliquy, M.; Raskin, J.-P. Chemically Deposited Palladium Nanoparticles on Graphzene for Hydrogen Sensor Applications. Sci. Rep. 2019, 9, 3653. [Google Scholar]
  51. Bang, J.H.; Choi, M.S.; Mirzaei, A.; Oum, W.; Han, S.; Kim, S.S.; Kim, H.W. Porous Si/SnO2 nanowires heterostructures for H2S gas sensing. Ceram. Int. 2020, 46, 604–611. [Google Scholar] [CrossRef]
  52. Van Toan, N.; Chien, N.V.; Van Duy, N.; Hong, H.S.; Nguyen, H.; Hoa, N.D.; Van Hieu, N. Fabrication of highly sensitive and selective H2 gas sensor based on SnO2 thin film sensitized with microsized Pd islands. J. Hazard. Mater. 2016, 301, 433–442. [Google Scholar] [CrossRef]
  53. Meng, X.; Bi, M.; Xiao, Q.; Gao, W. Ultrasensitive gas sensor based on Pd/SnS2/SnO2 nanocomposites for rapid detection of H2. Sens. Actuators B Chem. 2022, 359, 131612. [Google Scholar] [CrossRef]
  54. Pandey, G.; Bhardwaj, M.; Kumar, S.; Lawaniya, S.D.; Kumar, M.; Dwivedi, P.K.; Awasthi, K. Synergistic effects of Pd-Ag decoration on SnO/SnO2 nanosheets for enhanced hydrogen sensing. Sens. Actuators B Chem. 2024, 402, 135062. [Google Scholar] [CrossRef]
  55. Zhang, H.; Li, Z.; Liu, L.; Xu, X.; Wang, Z.; Wang, W.; Zheng, W.; Dong, B.; Wang, C. Enhancement of hydrogen monitoring properties based on Pd–SnO2 composite nanofibers. Sens. Actuators B Chem. 2010, 147, 111–115. [Google Scholar] [CrossRef]
Sensors 25 00655 g001

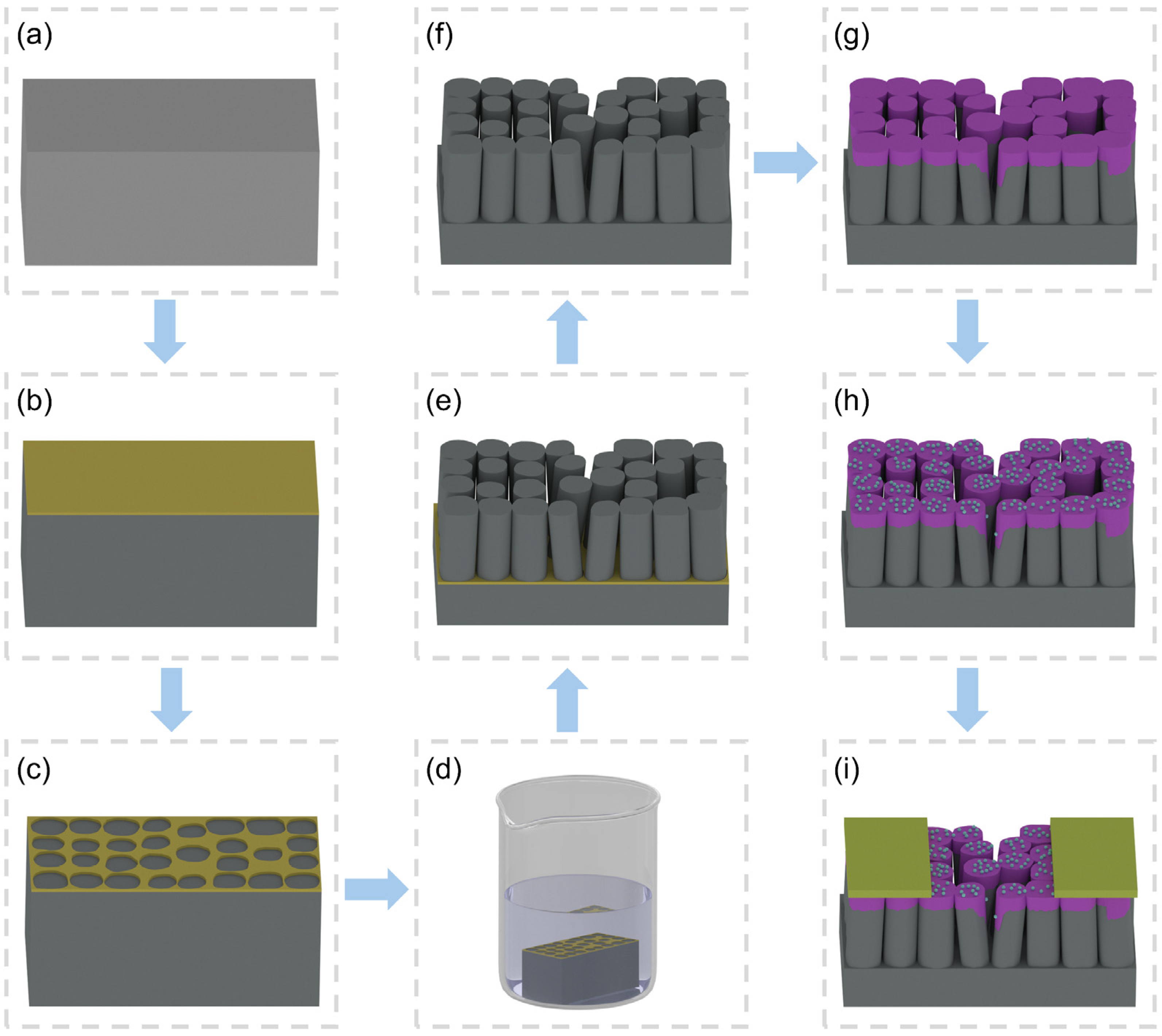

Figure 1. Schematic illustration showing the fabrication process of Pd-decorated SnO2 Nanofilm on SiNW substrate. (a) A rinsed p-Si slice, (b) 30 nm-thick silver film deposited by electron beam evaporation, (c) a nanostructured silver holey mask by annealing, (d) the sample under the process of MaCE, (e) SiNW substrate with Ag nanoparticles remained after MaCE, (f) SiNW substrate after removing Ag nanoparticles, (g) 40 nm-thick SnO2 film deposited by electron beam evaporation, (h) 1 nm-thick Pd film deposited by electron beam evaporation, and (i) Ag electrodes deposited by electron beam evaporation.
Figure 1. Schematic illustration showing the fabrication process of Pd-decorated SnO2 Nanofilm on SiNW substrate. (a) A rinsed p-Si slice, (b) 30 nm-thick silver film deposited by electron beam evaporation, (c) a nanostructured silver holey mask by annealing, (d) the sample under the process of MaCE, (e) SiNW substrate with Ag nanoparticles remained after MaCE, (f) SiNW substrate after removing Ag nanoparticles, (g) 40 nm-thick SnO2 film deposited by electron beam evaporation, (h) 1 nm-thick Pd film deposited by electron beam evaporation, and (i) Ag electrodes deposited by electron beam evaporation.
Sensors 25 00655 g001
Sensors 25 00655 g002

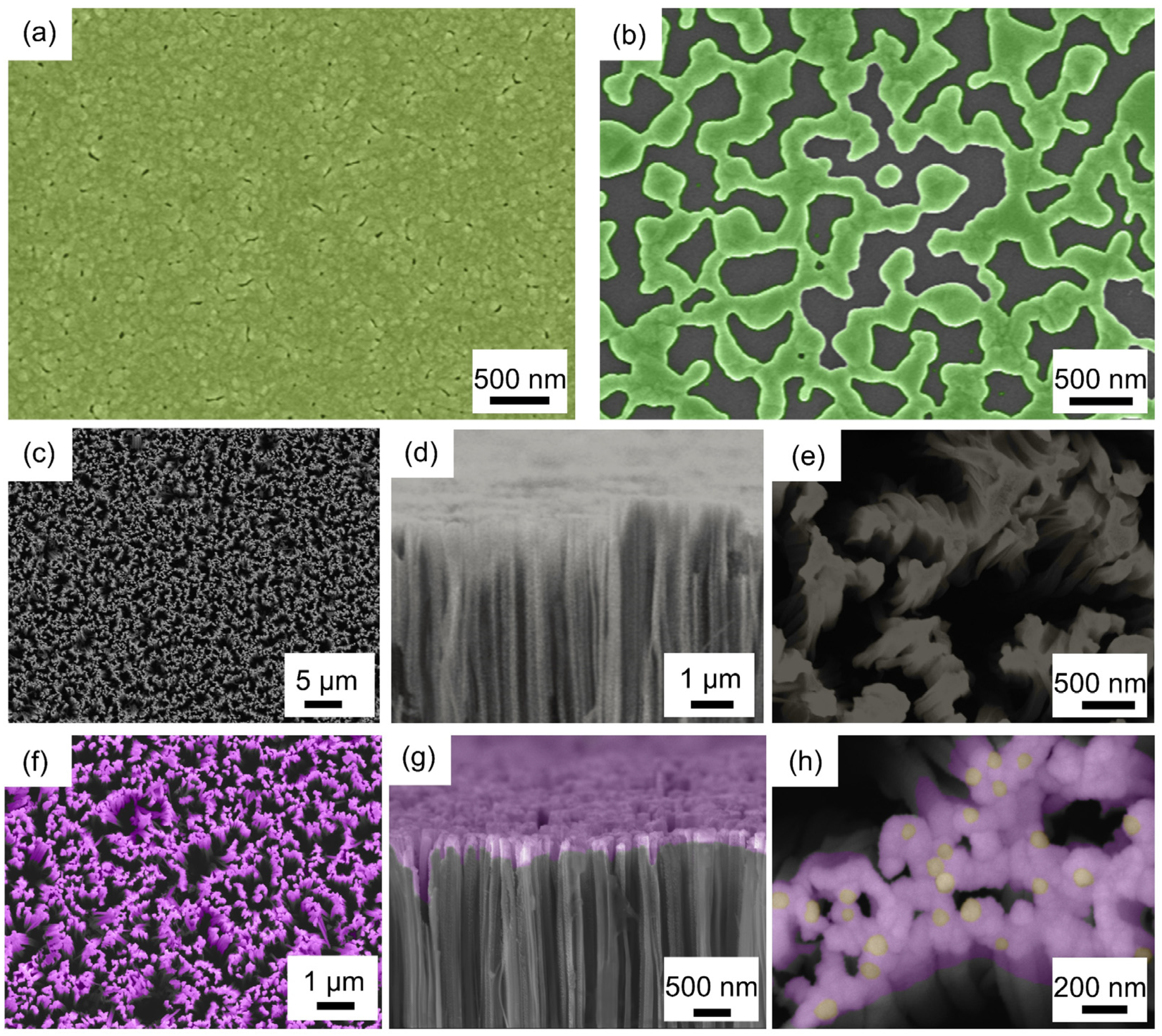

Figure 2. Top-view SEM images of 30 nm-thick Ag film (a), a silver holey mask (b), vertical SiNW structure after MaCE (c,e) and Pd (1 nm)-decorated SnO2 nanofilm (40 nm) on SiNWs (f,h). Cross-sectional SEM images of vertical SiNWs after MaCE (d) and Pd (1 nm)-decorated SnO2 nanofilm (40 nm)-covered SiNWs (g).
Figure 2. Top-view SEM images of 30 nm-thick Ag film (a), a silver holey mask (b), vertical SiNW structure after MaCE (c,e) and Pd (1 nm)-decorated SnO2 nanofilm (40 nm) on SiNWs (f,h). Cross-sectional SEM images of vertical SiNWs after MaCE (d) and Pd (1 nm)-decorated SnO2 nanofilm (40 nm)-covered SiNWs (g).
Sensors 25 00655 g002
Sensors 25 00655 g003

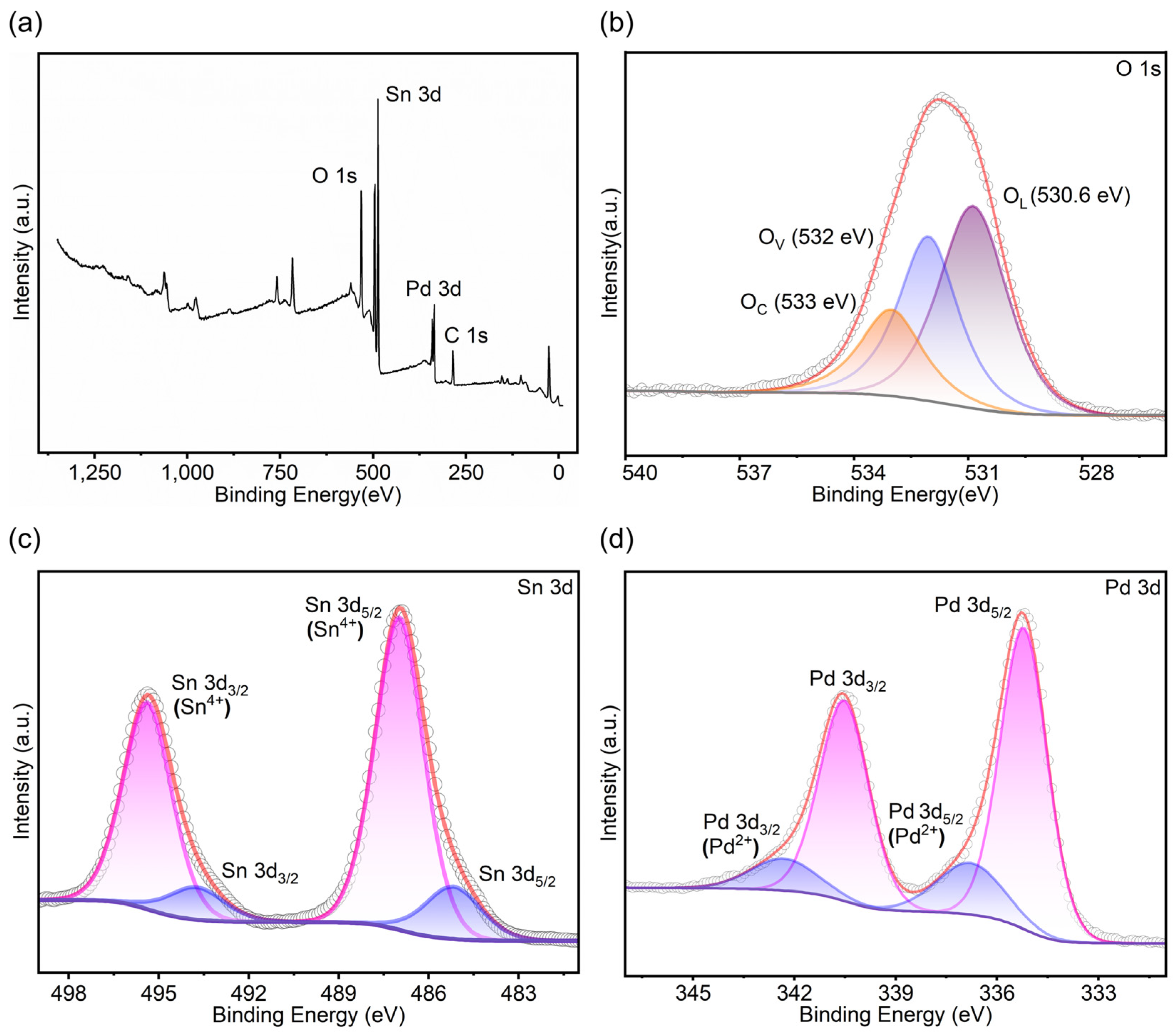

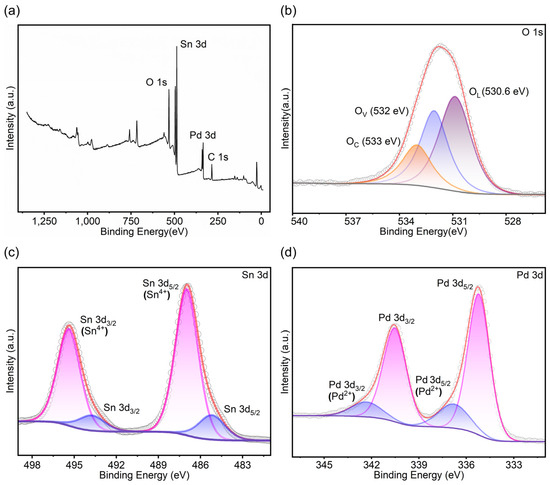

Figure 3. XPS spectra of Pd-decorated SnO2 nanofilm integrated on SiNWs: (a) survey spectrum, (b) O 1s spectrum, (c) Sn 3d spectrum, and (d) Pd 3d spectrum.
Figure 3. XPS spectra of Pd-decorated SnO2 nanofilm integrated on SiNWs: (a) survey spectrum, (b) O 1s spectrum, (c) Sn 3d spectrum, and (d) Pd 3d spectrum.
Sensors 25 00655 g003
Sensors 25 00655 g004

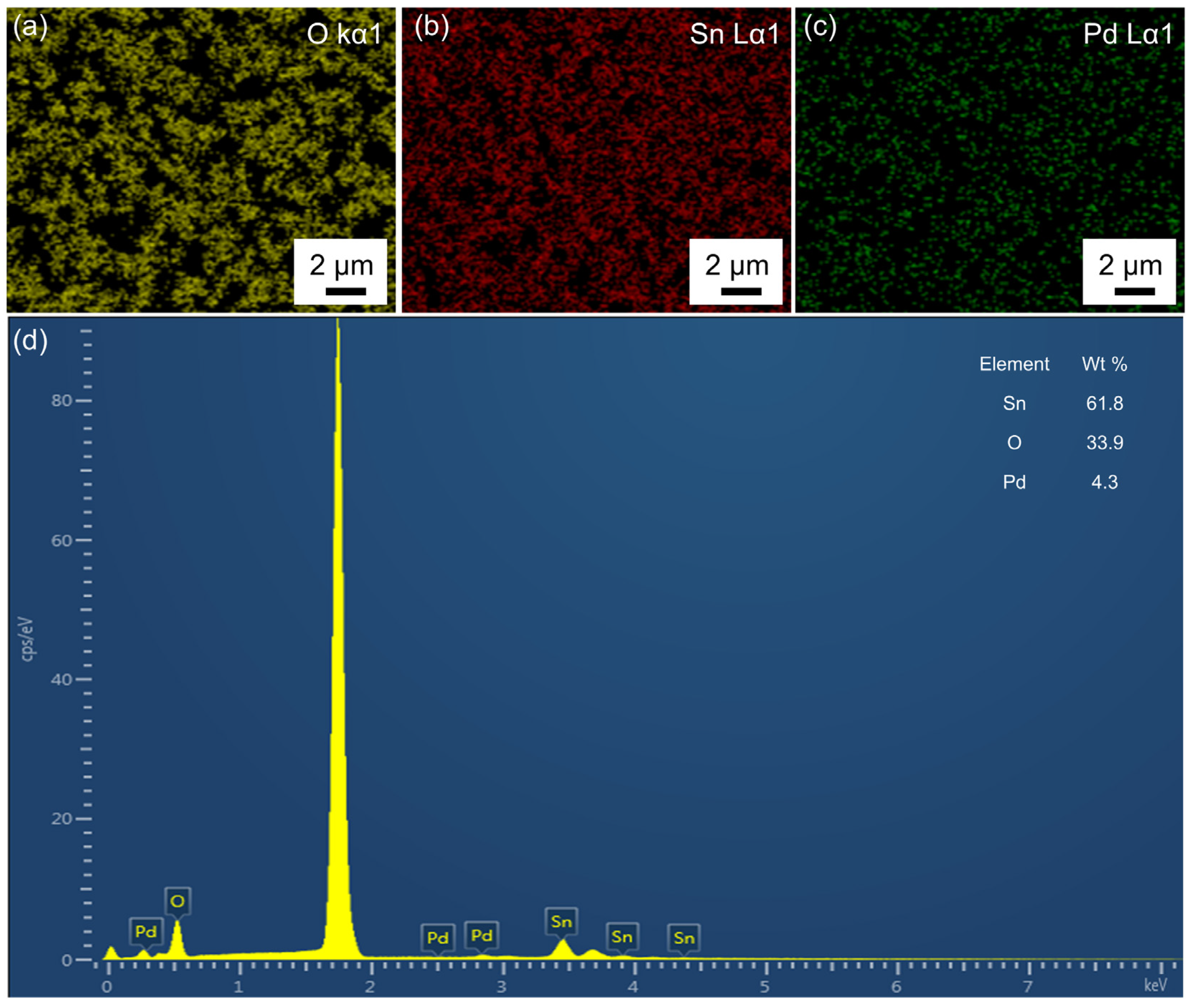

Figure 4. EDS images including the element content of O (a), Sn (b), Pd (c), and EDS spectra (d) of Pd-decorated SnO2 nanofilm on SiNWs.
Figure 4. EDS images including the element content of O (a), Sn (b), Pd (c), and EDS spectra (d) of Pd-decorated SnO2 nanofilm on SiNWs.
Sensors 25 00655 g004
Sensors 25 00655 g005

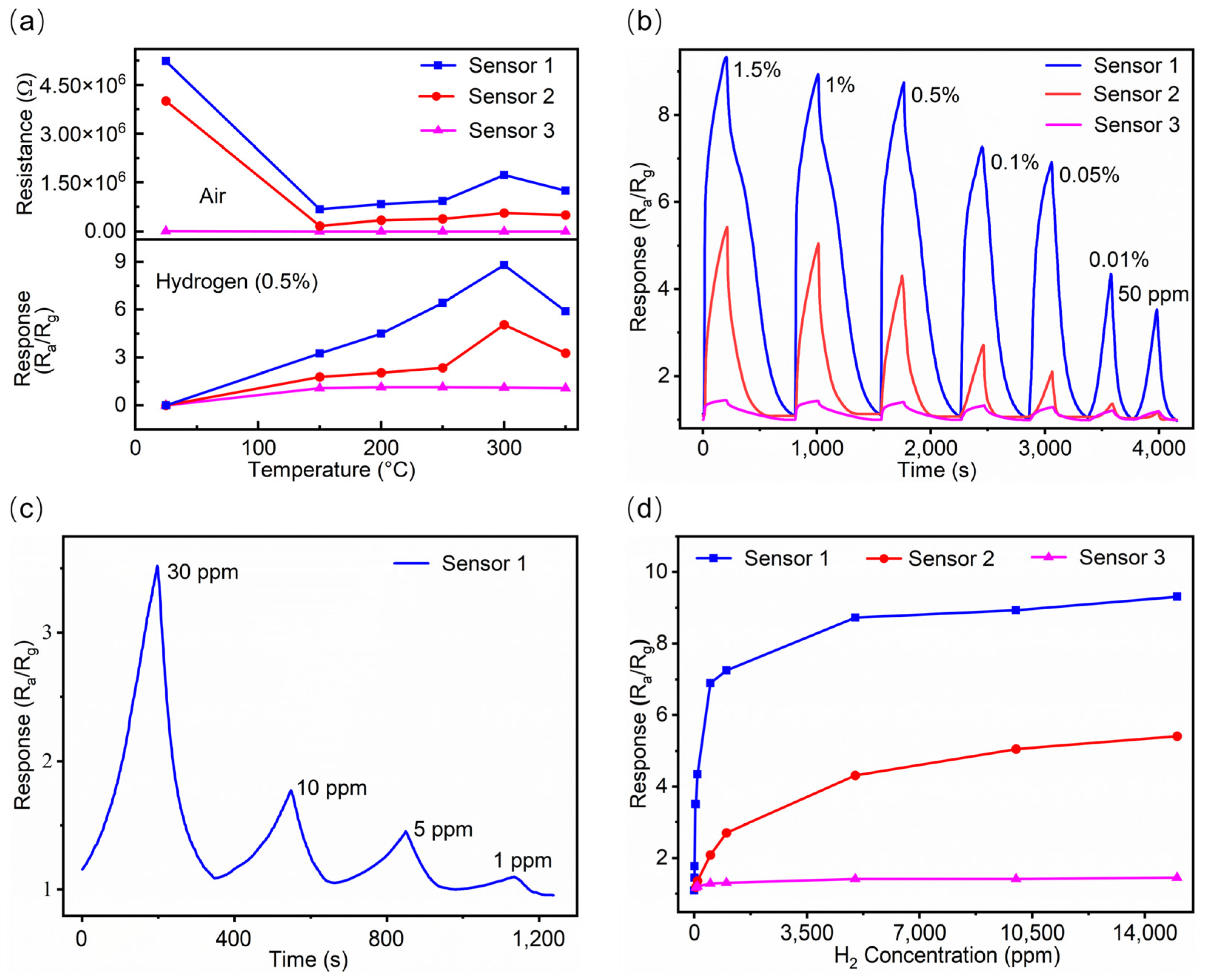

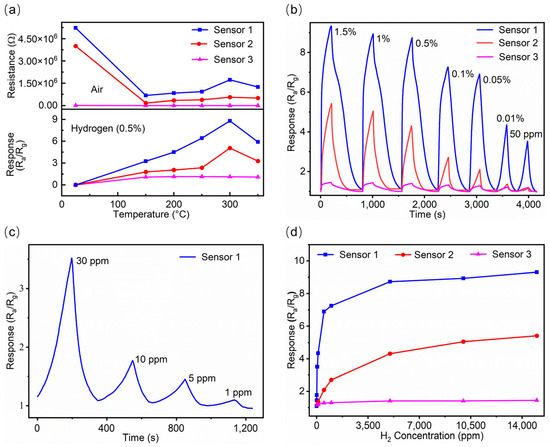

Figure 5. (a) The baseline resistance curves of the sensors to air at various operating temperatures (upper), and the response curves of the sensors to 0.5% H2 at various operating temperatures (below). (b) The response curves of the sensors to the high ppm level H2 concentrations at 300 °C. (c) The response curves of sensor 1 to the low ppm level H2 concentrations at 300 °C. (d) The response curves of the three sensors to different H2 concentrations (1–15,000 ppm) at 300 °C.
Figure 5. (a) The baseline resistance curves of the sensors to air at various operating temperatures (upper), and the response curves of the sensors to 0.5% H2 at various operating temperatures (below). (b) The response curves of the sensors to the high ppm level H2 concentrations at 300 °C. (c) The response curves of sensor 1 to the low ppm level H2 concentrations at 300 °C. (d) The response curves of the three sensors to different H2 concentrations (1–15,000 ppm) at 300 °C.
Sensors 25 00655 g005
Sensors 25 00655 g006

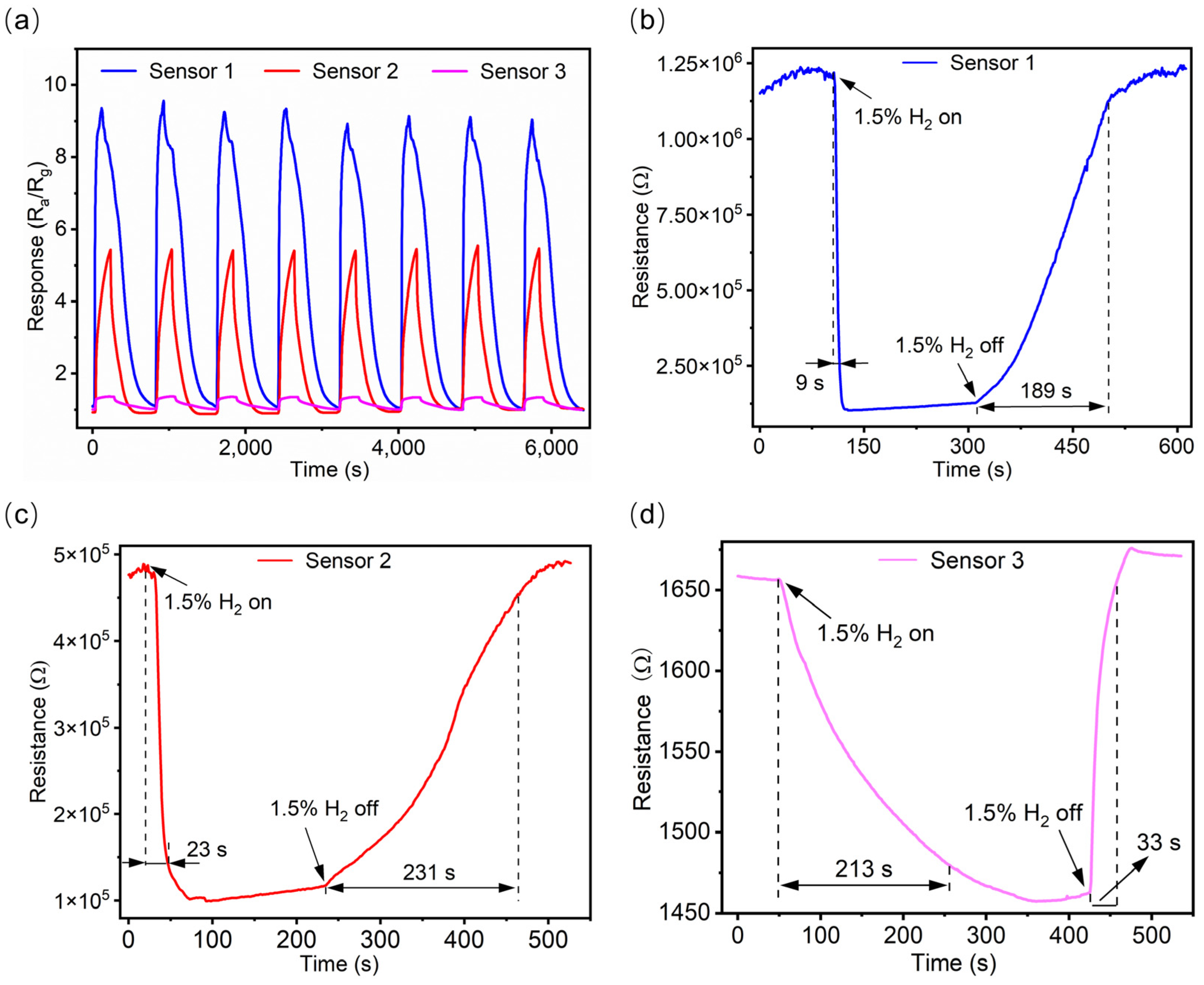

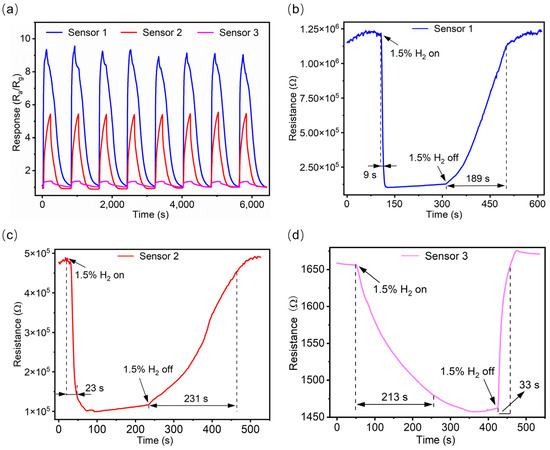

Figure 6. (a) The cycling response curves of the sensors to 1.5% H2 at 300 °C. The response and recovery time of Sensor 1 (b), Sensor 2 (c), and Sensor 3 (d) to 1.5% H2 at 300 °C.
Figure 6. (a) The cycling response curves of the sensors to 1.5% H2 at 300 °C. The response and recovery time of Sensor 1 (b), Sensor 2 (c), and Sensor 3 (d) to 1.5% H2 at 300 °C.
Sensors 25 00655 g006
Sensors 25 00655 g007

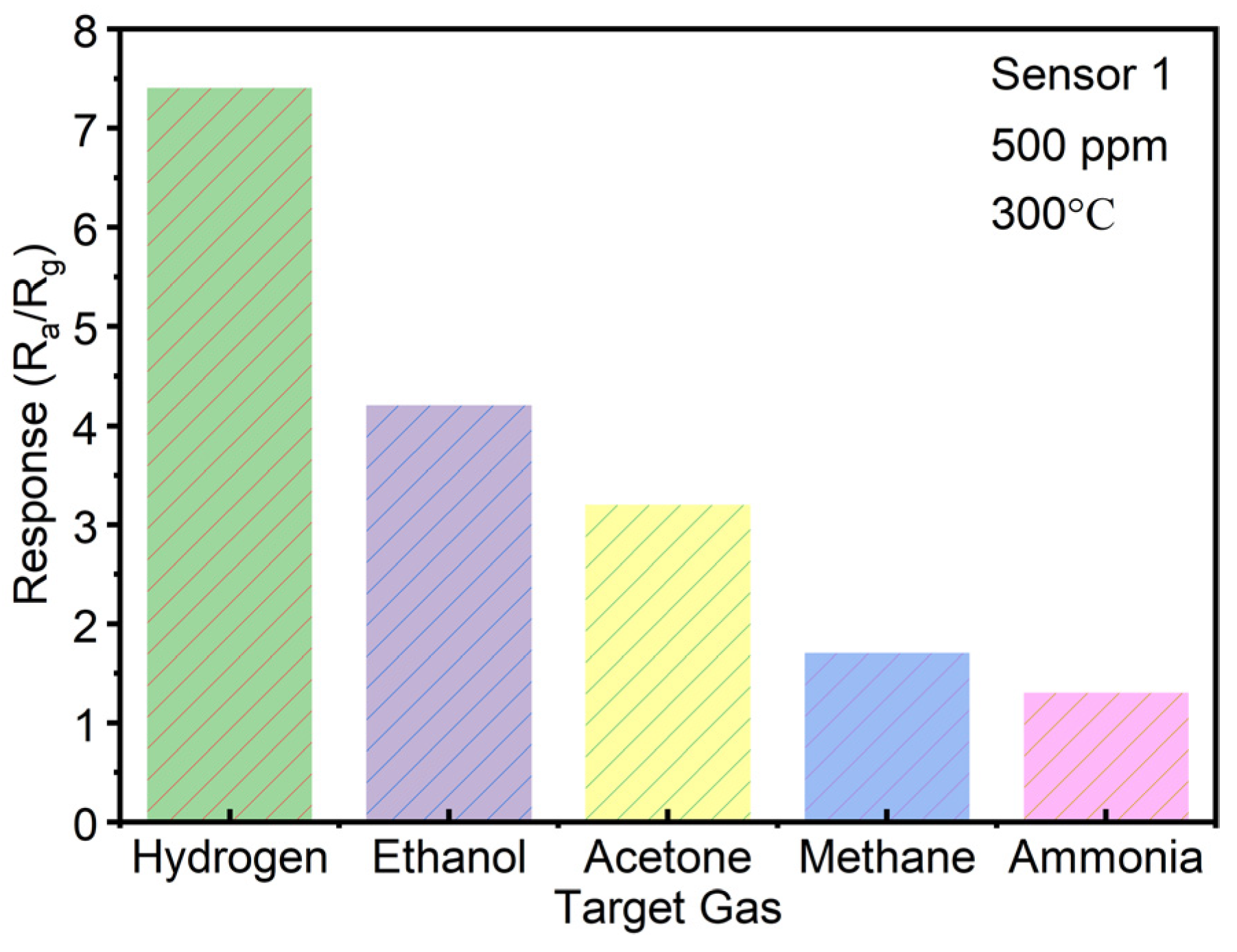

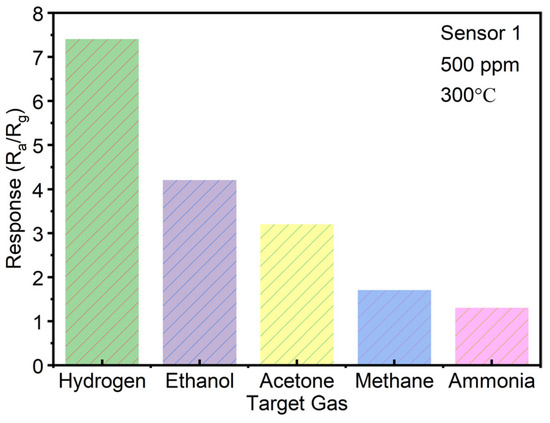

Figure 7. Selectivity test histogram of Sensor 1 towards 500 ppm of different gases at 300 °C.
Figure 7. Selectivity test histogram of Sensor 1 towards 500 ppm of different gases at 300 °C.
Sensors 25 00655 g007
Sensors 25 00655 g008

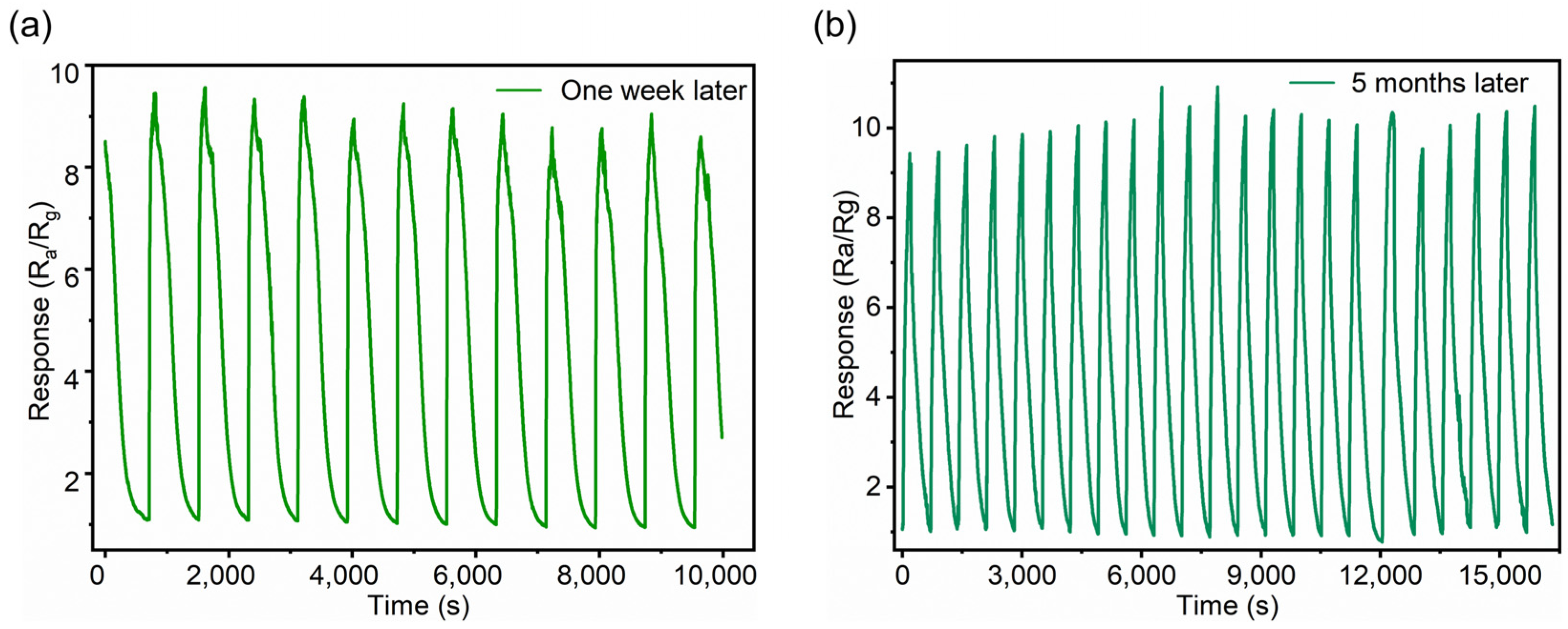

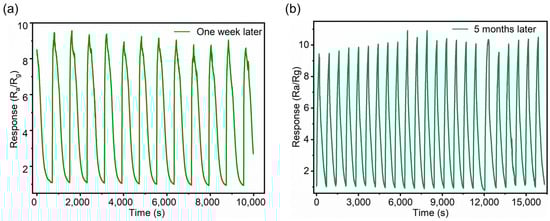

Figure 8. Long-term stability test graphs of Sensor 1 towards 1.5% H2 at 300 °C. (a) The test after one week; (b) the test after 5 months.
Figure 8. Long-term stability test graphs of Sensor 1 towards 1.5% H2 at 300 °C. (a) The test after one week; (b) the test after 5 months.
Sensors 25 00655 g008
Sensors 25 00655 g009

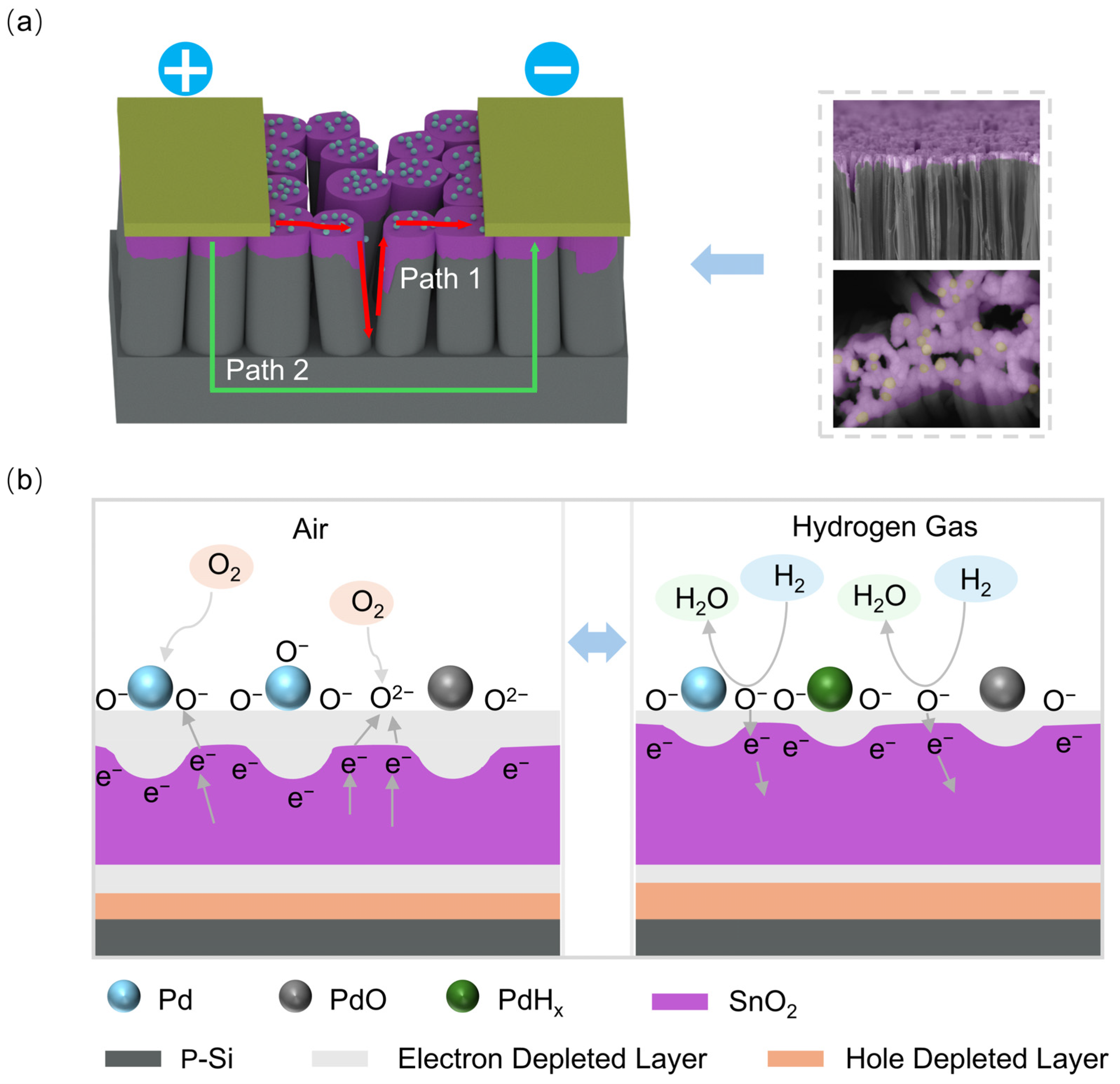

Figure 9. (a) The overall structure and electrical circuit; (b) gas sensing mechanism of Sensor 1.
Figure 9. (a) The overall structure and electrical circuit; (b) gas sensing mechanism of Sensor 1.
Sensors 25 00655 g009
Sensors 25 00655 g010

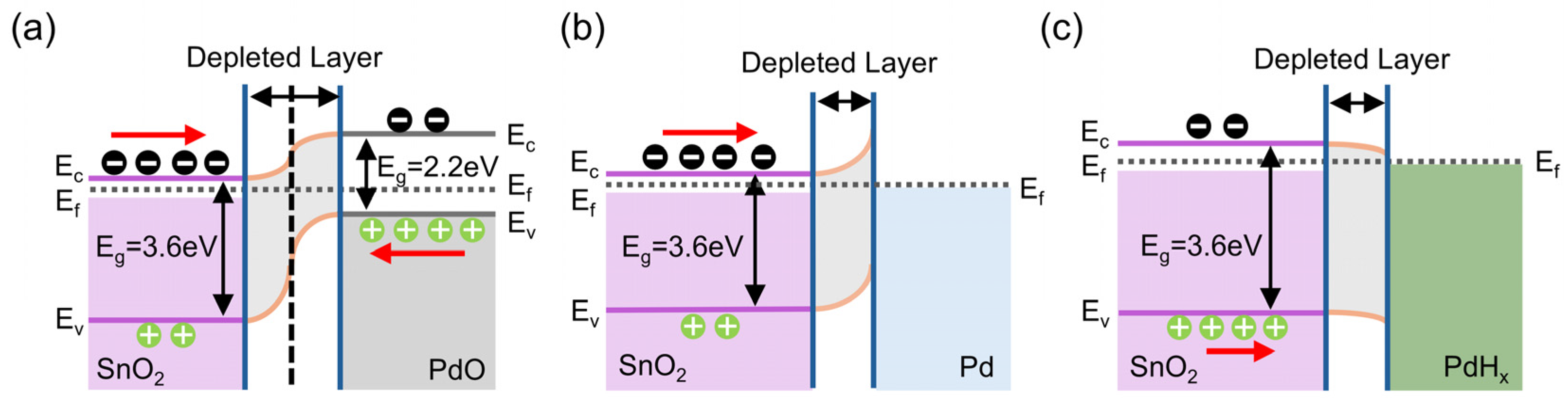

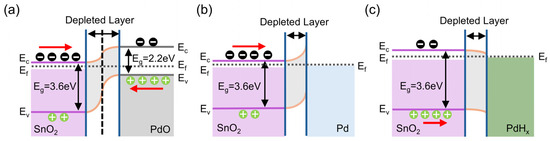

Figure 10. The energy band diagrams of (a) SnO2/PdO, (b) SnO2/Pd, and (c) SnO2/PdHx.
Figure 10. The energy band diagrams of (a) SnO2/PdO, (b) SnO2/Pd, and (c) SnO2/PdHx.
Sensors 25 00655 g010
Table 1. Seven sensors with different thicknesses of SnO2 and Pd films.
Table 1. Seven sensors with different thicknesses of SnO2 and Pd films.
SensorDescription
Sensor 1SiNW-based Pd (1 nm)-decorated SnO2 naofilm (40 nm)
Sensor 2SiNW-based SnO2 nanofilm (40 nm)
Sensor 340 nm-thick SnO2 nanofilm without SiNW substrate and Pd decoration
Sensor 4SiNW-based SnO2 nanofilm (30 nm)
Sensor 5SiNW-based SnO2 nanofilm (50 nm)
Sensor 6SiNW-based Pd (3 nm)-decorated SnO2 nanofilm (40 nm)
Sensor 7SiNW-based Pd (6 nm)-decorated SnO2 nanofilm (40 nm)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fang, T.; Mo, T.; Xu, X.; Tao, H.; Wang, H.; Yu, B.; Zhao, Z.-J. Pd-Decorated SnO2 Nanofilm Integrated on Silicon Nanowires for Enhanced Hydrogen Sensing. Sensors 2025, 25, 655. https://doi.org/10.3390/s25030655

AMA Style

Fang T, Mo T, Xu X, Tao H, Wang H, Yu B, Zhao Z-J. Pd-Decorated SnO2 Nanofilm Integrated on Silicon Nanowires for Enhanced Hydrogen Sensing. Sensors. 2025; 25(3):655. https://doi.org/10.3390/s25030655

Chicago/Turabian Style

Fang, Tiejun, Tianyang Mo, Xianwu Xu, Hongwei Tao, Hongbo Wang, Bingjun Yu, and Zhi-Jun Zhao. 2025. "Pd-Decorated SnO2 Nanofilm Integrated on Silicon Nanowires for Enhanced Hydrogen Sensing" Sensors 25, no. 3: 655. https://doi.org/10.3390/s25030655

APA Style

Fang, T., Mo, T., Xu, X., Tao, H., Wang, H., Yu, B., & Zhao, Z.-J. (2025). Pd-Decorated SnO2 Nanofilm Integrated on Silicon Nanowires for Enhanced Hydrogen Sensing. Sensors, 25(3), 655. https://doi.org/10.3390/s25030655

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
