Monte Carlo Simulation of the Effect of Melanin Concentration on Light–Tissue Interactions in Reflectance Pulse Oximetry

Abstract

Over the past ten years, there has been an increasing demand for reliable consumer wearables as users are inclined to monitor their health and fitness metrics in real-time, especially since the COVID-19 pandemic. Reflectance pulse oximeters in fitness trackers and smartwatches provide convenient, non-invasive SpO₂ measurements but face challenges in achieving medical-grade accuracy, particularly due to difficulties in capturing physiological signals, which may be affected by skin pigmentation. Hence, this study sets out to investigate the influence of skin pigmentation, particularly in individuals with darker skin, on the accuracy and reliability of SpO₂ measurement in consumer wearables that utilise reflectance pulse oximeters. A Monte Carlo model is developed to assess the effect on simulated reflectance pulse oximetry measurements across light, moderate, and dark skin types for oxygen saturation levels between 70 and 100%. The results indicate that a one-algorithm-fits-all calibration approach may be insufficient, and root mean square errors (RMSEs) of at least 0.3956%, 0.9132%, and 8.4111% for light, moderate, and dark skin are observed when compared to transmittance calibration algorithms. Further research is required to validate these findings and improve the performance of reflectance pulse oximeters in real-world applications, particularly in the context of consumer wearables.

1. Introduction

There has been a remarkable evolution in consumer wearables driven by advancements in sensor technology, including a growing emphasis on personal health monitoring using reflectance pulse oximeters [1,2]. Reflectance pulse oximeters measure blood oxygen saturation (SpO₂) using light reflected from tissue rather than transmitted through it, making them suitable for body sites like the forehead or chest. This technology employs light-emitting diodes (LEDs) to emit red and infrared light into the skin and a photodetector to capture the light that is backscattered from the tissue. The relative absorption of these wavelengths by oxygenated and deoxygenated haemoglobin allows for SpO₂ calculation by computing the ratio of ratios values (R). Unlike transmission-based oximeters, reflectance models are less dependent on thin measurement sites like fingers or earlobes, making them versatile for use in diverse clinical settings. However, despite their growing popularity, several limitations exist. One of the primary challenges is the inherent complexity of accurately capturing physiological signals from the skin’s surface. Consumer-grade devices often face technical constraints in achieving the same level of accuracy and reliability as medical-grade equipment relying primarily on transmittance pulse oximeter technology. Factors such as motion artifacts, ambient light interference, and variations in skin properties are inherent in both modes; however, they can be more pronounced in reflectance pulse oximeters, affecting the quality of the photoplethysmography (PPG) signals [3]. As a result, this tends to introduce inaccuracies in oxygen saturation measurement by pulse oximetry, impacting the reliability of the data provided to users, which is a current subject of concern [4].

Moreover, one of the ambiguous challenges regarding pulse oximeters has been in understanding the impact of skin pigmentation on the accuracy of SpO₂ measurement, especially in individuals with darker skin. This is a limitation that has been explored in both retrospective and prospective studies [5], whereas the majority have focused on investigating SpO₂ inaccuracies using transmittance pulse oximeters as a common medical and diagnostic practice [6]. Consequently, there is a notable gap in comprehensive studies examining inaccuracies stemming from skin pigmentation in reflectance pulse oximeters, despite the fact that they rely on interactions with the superficial layers of the skin, including various properties such as pigmentation.

Monte Carlo simulation is a powerful computational technique widely used in biomedical optics to model light–tissue interactions. Its significance lies in its ability to account for complex tissue geometries and stochastic light scattering and absorption events. They are also useful for a range of applications, such as predicting the distribution of tissue chromophores [7], deriving the optical properties of tissue layers and constituents [8], and analysing photon behaviour in complex biological structures including analysis of source-detector separation on output reflectance [9]. Other technologies such as optical tomography also use reflected light to create high-resolution cross-sectional images based on light–tissue interactions occurring in deeper tissue structures. While their application is limited in the context of wearable devices where the primary goal is to achieve accurate, real-time measurements of oxygen saturation at the skin’s surface, understanding the principles of light scattering and absorption, which is the core of optical tomography, remains essential for improving the accuracy of reflectance-based systems. By applying MC simulations to study these interactions, this research can provide insights into addressing the challenges posed by melanin concentration in light-based devices. Table 1 provides a summary of the advantages, limitations, and relevance of different computational approaches for studying the effect of melanin on reflectance pulse oximeter algorithms.

Melanin, the primary pigment responsible for skin colour, plays a pivotal role in light absorption within the visible and near-infrared spectrum, which can be simulated in MC models. Studies have shown that melanin concentration in the skin absorbs light differently, influencing the intensity of the detected signal by the oximeter [10]. In highly pigmented skin, increased melanin concentration leads to higher absorption of light, particularly at shorter wavelengths (e.g., red light). This heightened absorption can alter the reflectance signals detected by pulse oximeters, potentially reducing the accuracy of SpO₂ measurements. As pulse oximeters rely on the ratio of red to infrared light absorption to estimate SpO₂, variations in melanin levels across different skin tones may introduce biases, necessitating adjustments in device algorithms to account for these differences. Reflectance pulse oximetry is particularly susceptible to the effects of melanin due to the shorter optical path lengths and increased backscattering in superficial layers of the skin. Unlike transmission oximetry, where light travels through the tissue, reflectance measurements are more influenced by the optical properties of the epidermis and dermis, where melanin is concentrated. Consequently, variations in melanin levels can significantly impact the proportion of light reaching the detector, especially at red wavelengths. With very few Monte Carlo simulations modelling light interaction within tissue and incorporating skin pigmentation as a central variable in reflectance pulse oximetry [11,12], the need for more robust modelling is required to accurately characterise the impact of melanin on reflectance signals and inform device calibration. This research has indicated that the AC/DC ratio, which is the ratio of absorbance between the pulsatile and non-pulsatile components of the PPG from the desired anatomical site, can be compromised with increasing melanin concentration, primarily due to differences in light scattering and absorption during systole and diastole. Based on this phenomenon, the calibration algorithms of pulse oximeters may be impacted as they depend on the AC/DC ratio at red and infrared wavelengths. However, modelling skin pigmentation should be enhanced to provide a more comprehensive understanding of its effect on optical parameters related to SpO₂ calculation by (a) avoiding the stratification of skin pigmentation based on ethnicity, and (b) incorporating a broader range of pigmentation levels into the analysis. Therefore, the novelty of this study lies in examining the influence of melanin concentration on simulated oxygen saturation in reflective geometry using the Fitzpatrick scale. The aim is to obtain a preliminary understanding of the reliability of wearables when worn by individuals of different skin colour, especially those with darker skin pigmentation.

Table 1. Comparison of different computational techniques for modelling light–tissue interactions in biological media.

Method	Advantages	Limitations	Relevance to Study
Monte Carlo simulation (MCS)	Highly accurate for modeling complex tissue structures and heterogeneous tissue properties [13]. Capable of accounting for scattering, absorption, and tissue heterogeneity, providing a statistically detailed simulation of light transport and interaction [14].	Can be computationally expensive, requiring significant computational resources and time [15].	Provides high accuracy and reproducible outcomes by running a very high number of photon iterations, making it ideal for studying their stochastic nature in light–tissue interactions as pigmentation changes.
Finite element method (FEM)	Suitable for solving complex systems particularly in laser-based applications [16,17].	Less accurate in modelling light scattering and absorption compared to MCS [18].	FEM can be less suited for pulse oximetry applications to model the complex scattering events in tissues such as skin.
Finite different method (FDM)	Useful for solving the light diffusion equation in simple tissue models and to achieve a balance between accuracy and computational efficiency [19].	Assumes constant tissue properties, limiting its application in heterogeneous tissues like skin [20].	FDM is more suited for simpler models of tissue and may be faster for initial simulations but lacks the precision needed for accurately modelling light absorption and scattering in tissues like skin with varying pigmentation.
Diffusion approximation	Computationally efficient for modelling light transport in scattering media especially in deep tissue [21].	Less accurate for tissues with high scattering properties [22].	Diffusion approximation is better suited for modelling light in deep tissues rather than superficial layers, which is the main focus of this study. Like FEM, it is also not ideal for predicting radiative transport in turbid media such as the human finger.

Table 1. Comparison of different computational techniques for modelling light–tissue interactions in biological media.

Method	Advantages	Limitations	Relevance to Study
Monte Carlo simulation (MCS)	Highly accurate for modeling complex tissue structures and heterogeneous tissue properties [13]. Capable of accounting for scattering, absorption, and tissue heterogeneity, providing a statistically detailed simulation of light transport and interaction [14].	Can be computationally expensive, requiring significant computational resources and time [15].	Provides high accuracy and reproducible outcomes by running a very high number of photon iterations, making it ideal for studying their stochastic nature in light–tissue interactions as pigmentation changes.
Finite element method (FEM)	Suitable for solving complex systems particularly in laser-based applications [16,17].	Less accurate in modelling light scattering and absorption compared to MCS [18].	FEM can be less suited for pulse oximetry applications to model the complex scattering events in tissues such as skin.
Finite different method (FDM)	Useful for solving the light diffusion equation in simple tissue models and to achieve a balance between accuracy and computational efficiency [19].	Assumes constant tissue properties, limiting its application in heterogeneous tissues like skin [20].	FDM is more suited for simpler models of tissue and may be faster for initial simulations but lacks the precision needed for accurately modelling light absorption and scattering in tissues like skin with varying pigmentation.
Diffusion approximation	Computationally efficient for modelling light transport in scattering media especially in deep tissue [21].	Less accurate for tissues with high scattering properties [22].	Diffusion approximation is better suited for modelling light in deep tissues rather than superficial layers, which is the main focus of this study. Like FEM, it is also not ideal for predicting radiative transport in turbid media such as the human finger.

2. Materials and Methods

To investigate the effect of melanin concentration on simulated oxygen saturation, a previous Monte Carlo model of the finger was adapted to produce calibration curves for light, moderate, and dark skin in reflectance mode PPG [23]. This involved changing the sensor configuration such that the LED source and photodetector were adjacent to each other, with a separation distance of 3 mm (Figure 1). This source-detector separation was selected as it has shown to produce high-quality AC and DC PPG signals from the finger [24].

Furthermore, the optical properties of all the tissue layers and constituents, including the absorption coefficients (${\mu }_a$), scattering coefficients (${\mu }_s$), and anisotropy values (g) at the two operating wavelengths of pulse oximetry (660 nm and 940 nm), as well as the diastolic blood volumes and water concentration values that were inputted into this model can be found from previous work as extracted from the literature [23]. The melanosome fractions ($v_{mel}$) for the three skin types were extracted from the literature to calculate the absorption coefficients of the epidermis, which were 2.55%, 15.5%, and 30.5% for light, moderate, and dark skin, respectively [25]:

$${\mu }_{a\_epi} \left[{\mathrm{m}\mathrm{m}}^{-1}\right]={\mu }_{a_{\_melanin}}\times v_{mel}+{\mu }_{a_w}\times v_w+\left(1-v_w-v_{mel}\right)+{\mu }_{a_{\_skinbaseline}}$$

(1)

where

$${\mu }_{a_{\_melanin}}=6.6\times {10}^{10}\times {\lambda }^{-3.33}$$

$${\mu }_{a_{\_skinbaseline}}=7.84\times {10}^7\times {\lambda }^{-3.255}$$

${\mu }_{a\_w}$ is the absorption coefficient of water $\left({\mathrm{m}\mathrm{m}}^{-1}\right)$; and $v_w$ is the volume fraction of water.

Furthermore, the systolic phase was replicated by doubling the diastolic blood volume, which was equally distributed between arterial and venous blood [26]. Changes in arterial and venous blood oxygenation were accounted for when calculating the absorption coefficients of arterial and venous blood using the following equation:

$$\begin{gathered} {\mu }_{a_{derm\left(n\right)}} \left[{mm}^{-1}\right]={sat}_A\times {\mu }_{a_{Hbo}}+\left(1-{sat}_A\right)\times {\mu }_{a_{HHb}}\times v_A+{sat}_V\times {\mu }_{a_{Hbo}}+\left(1-{sat}_V\right)\times {\mu }_{a_{HHb}}\times v_V+ \\ {\mu }_{a_w}\times v_w+(1-\left(v_A+v_V+v_w\right))\times 7.84\times {10}^7\times {\lambda }^{-3.255} \end{gathered}$$

(2)

where

${sat}_A$ is arterial oxygen saturation, ranging between 70% and 100% in increments of 5%;

${sat}_V$ is venous oxygen saturation, set to 10% less than ${sat}_A$;

$(1-{sat}_A)$ and $(1-{sat}_v)\times {\mu }_{a_{HHb}}$ is the contribution from deoxygenated arterial and venous blood, respectively;

$derm\left(n\right)$ is the nth sublayer of the dermis;

$\lambda$ is the wavelength of interest (nm);

$v_v$ is the volume fraction of venous blood;

$v_A$ is the volume fraction of arterial blood;

${\mu }_{a_{Hbo}}$ is the absorption coefficient of oxyhaemoglobin $\left({\mathrm{m}\mathrm{m}}^{-1}\right)$;

and ${\mu }_{a_{HHb}}$ is the absorption coefficient of deoxyhaemoglobin $\left({\mathrm{m}\mathrm{m}}^{-1}\right)$.

The model was run until one million photons were detected. Output reflectance, given by the ratio of incident and output intensity, was calculated during systole and diastole to compute the AC and DC components at both wavelengths. The perfusion index (PI) was calculated by dividing the AC value by the DC value for both wavelengths. This allowed for calculation of the ratio of ratios at each oxygen saturation level, by dividing the perfusion index at 660 nm by the perfusion index at 940 nm.

3. Results and Discussion

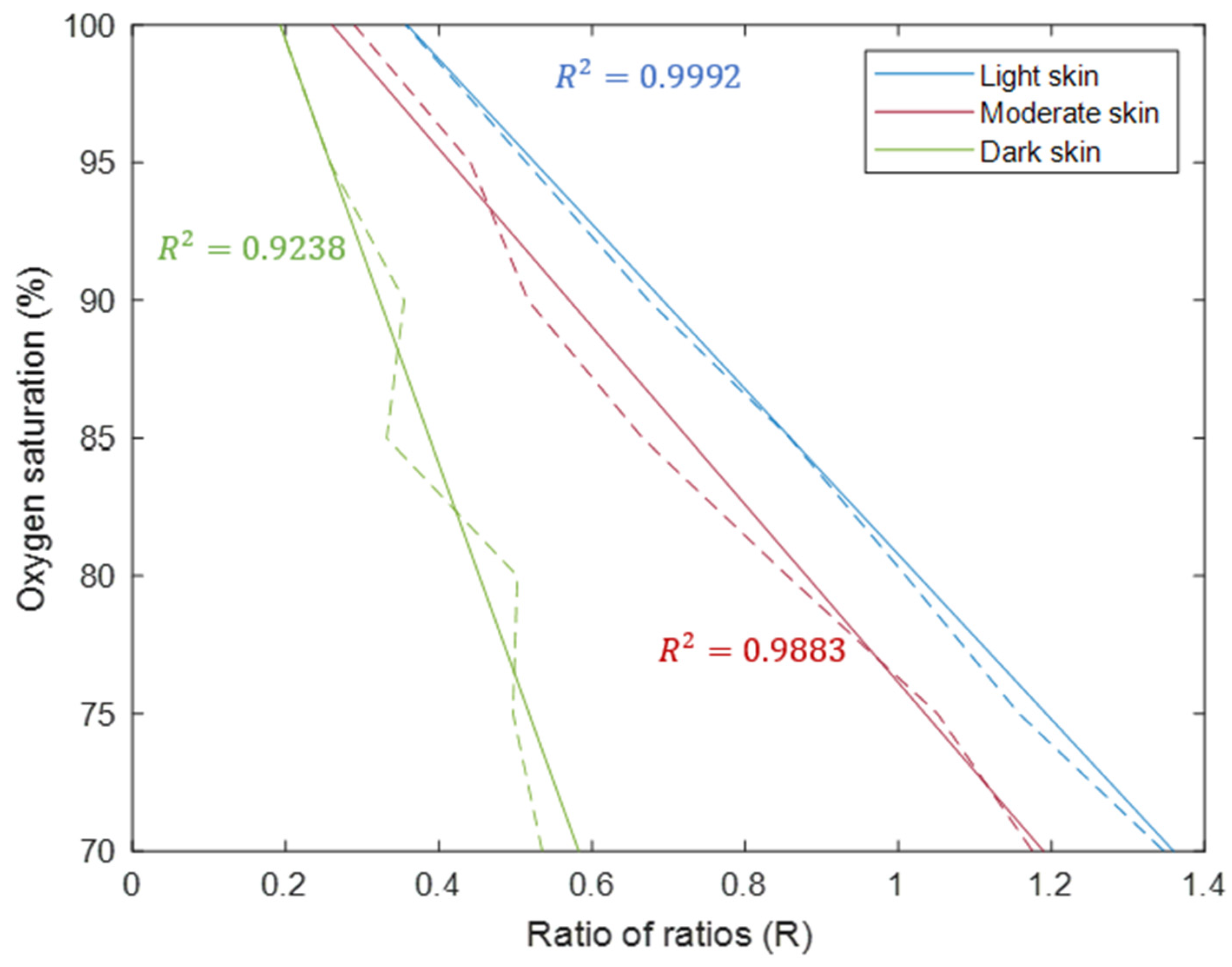

The Monte Carlo model presents three distinct calibration curves for light, moderate, and dark skin (Figure 2). These curves are derived by computing the ratio of ratios using input and output intensity data during systole and diastole. From this data, it is clear that red light is highly absorbed by melanin in comparison to infrared light, especially at higher melanin concentrations. As a result, normalised reflectance at 660 nm reduces in magnitude as melanin concentration increases, and more so at lower oxygen saturation levels. With larger and less compromised normalised reflectance values at 940 nm across the simulated oxygen saturation range, a consistent reduction in the range of the ratio of ratios is observed. Moderate and dark skin calibration curves are shifted with respect to the light skin calibration curve due to changes in skin pigmentation for the same oxygen saturation level, thereby leading to inaccuracies and especially overestimation of SpO₂.

Once again, the results indicate that a single calibration algorithm may not allow for the accurate measurement of health metrics such as SpO₂ by smart wearable technologies on diverse skin pigmentations as is the case with transmittance pulse oximeters [23]. Therefore, a similar approach of applying correction factors to the moderate and dark skin calibration curves was adopted. In doing so, correction factors of 1.21 and 2.17 were calculated, respectively, and applied to the original calibration curves (Figure 3). As shown, the simulated curves do not fully overlap with each other across the entire oxygen saturation range, unlike the behaviour observed with previous work on transmittance pulse oximeters. This discrepancy is possibly due to differences in light absorption and scattering that arise from variations in skin pigmentation as photon travel is primarily limited to the superficial layers, and where sensitivity could be heightened in the epidermis region from backscattering [27]. Therefore, in reflectance mode, there is a greater likelihood for photons to traverse a shorter depth before they are detected especially in darker skin types due to the increased absorption by higher melanin levels, and more so at shorter wavelengths. Hence, additional and/or alternative corrections could be explored by adjusting the source-detector separation for different skin types. By varying the separation distances for individuals with light, moderate, and dark skin, similar photon penetration depths can be achieved, which could ensure more consistent light interaction with specific regions of the tissue. This adjustment could help to normalise the calibration curves, potentially making post-processing corrective measures easier to implement.

From the existing literature, it is known that reflectance pulse oximeters exhibit a decreased accuracy level of 3.5% compared to transmittance pulse oximeters of 3% [28]. Hence, part of the data analysis was to assess whether the computational outcomes reflect this accuracy gap by comparing simulated calibration algorithms for light, moderate, and dark skin in transmittance mode [23] (Figure 4). Visually, the simulated calibration curves suggest that the effect of melanin concentration on oxygen saturation measurement was significantly amplified in reflectance mode, and that pulse oximeter calibrations may indeed be calibrated on individuals from predominantly light-skinned populations due to the smaller gap between both modes. Furthermore, this accuracy consistently decreased with oxygen saturation as observed in studies on hypoxaemic patients [29,30]. All simulated calibration curves were defined by an equation with a linear function, provided in

Table 2. Calibration equations for the Monte Carlo simulated curves from finger transmittance and reflectance pulse oximetry with light, moderate, and dark skin. The ratio of ratios is given by ‘R’.

	Transmittance	Reflectance
Light skin	SaO2 = 109 − 25.44 × R	SaO2 = 110.8 − 29.98 × R
Moderate skin	SaO2 = 109.2 − 32.05 × R	SaO2 = 108.4 − 32.3 × R
Dark skin	SaO2 = 110.6 − 49.33 × R	SaO2 = 114.9 − 76.99 × R
Commercial	SpO2 = 110 − 25 × R

.

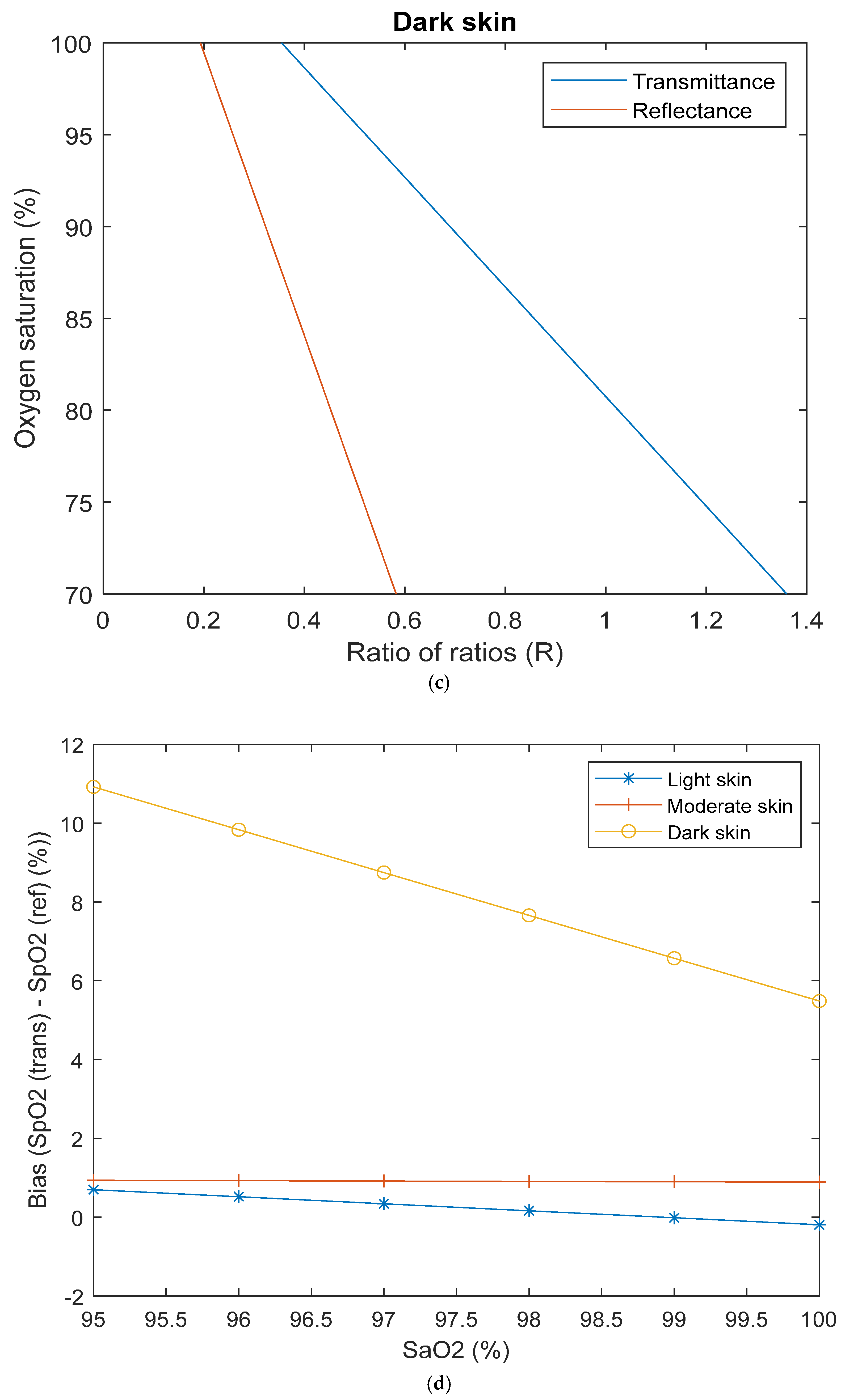

Next, these equations were used to calculate the level of bias between reflectance and transmittance modes for each skin type i.e., light skin transmittance—light skin reflectance, etc. To do this, the equation derived from the simulated light skin transmittance pulse oximetry curve was used as a reference as it closely matched the commonly used commercial pulse oximeter algorithm. This equation was rearranged to calculate the ratio of ratios values for a healthy SaO₂ range of 95–100% to understand the effect of melanin concentration independently of SpO₂ inaccuracies at lower oxygen saturation levels. These R values were then substituted into all other equations to calculate bias as shown in Figure 4d. Evidently, light and moderate skin calibration exhibit a low level of bias across the SaO₂ range between −0.0154% and 0.6984%, and between 0.8884% and 0.9376%, respectively. This results in a root mean square error (RMSE) of 0.3956% and 0.9132% in comparison to 8.4111% for dark skin. However, it is important not to interpret this error by its actual value until further computational investigation of dark skin simulation is conducted due to its more complex structure. Rather, this indicates the potential difference in bias between transmittance and reflectance pulse oximeters on skin types with high melanin concentrations.

Following development of the model and conducting simulations to explore light–tissue interactions of a perfused finger with three distinct skin types, it is clear that a single calibration curve for measuring oxygen saturation is inadequate without accounting for variations in skin pigmentation. This study underscores the need to rectify inaccuracies inherent in reflectance pulse oximeters, particularly due to the high demand of consumer wearables.

In light of these findings, other computational studies have adopted a similar approach in attempt to provide insight into the variations in SpO₂ measurements based on differences in skin pigmentation. For instance, Bolic conducted an examination of the influence of skin colour and the depth of the air gap on SpO₂ levels in reflectance mode, focusing on melanin concentrations ranging from 0.3% to 16% [11]. Similar trends in the simulated calibration algorithms were observed, specifically higher levels of absorption at 660 nm as melanin concentration increased. Some limitations of the study included an anomalous calibration outcome at 8% melanin concentration, whereby a satisfactory explanation was not provided. Additionally, the study focused on the exclusive representation of light and moderate skin types, which neglects individuals with darker skin tones [25], including a significant portion of African populations. Therefore, this could explain the smaller difference in the y-intercepts of the best fit lines, similar to the differences between light and moderate skin in the current study with 2.55% and 15.5% melanin concentrations, respectively.

Furthermore, Jung et al. [12] conducted a study to characterise and evaluate the estimation of oxygen saturation measured by a wrist-worn reflectance pulse oximeter during sleep. While the study had a number of limitations, the accuracy of the smartwatch was said to comply with FDA and ISO standards. In the context of skin pigmentation as the limitation explored in this study, the 97 participants enrolled in the investigation were reported as ‘Asian’. While ethnicity may not serve as a precise method for stratifying skin pigmentation, the probability of not meeting FDA and ISO standards was low, assuming uniform skin pigmentation levels across all participants and a maximum RMSE of ±8% with co-oximetry as a reference. Therefore, future studies are advised to recruit an adequate number of participants with quantified skin pigmentation levels and assess SpO₂ measurement using reflectance pulse oximeters. This can, in addition to providing insight into the effect of skin pigmentation in reflectance pulse oximeters, serve as a validation study to compare with the simulated results from the current Monte Carlo model. While this has been investigated by Jiang et al. [19], larger sample sizes and raw SpO₂ data are required for a more direct comparison. Meanwhile, the generated data from the MC model should be interpreted with caution as there is still potential to enhance the modelling of haemodynamics and skin colour more objectively.

4. Conclusions

This study investigated the impact of skin pigmentation on the accuracy of reflectance pulse oximetry using a Monte Carlo model. By simulating oxygen saturation measurements across light, moderate, and dark skin types, the results highlight significant challenges in applying a single calibration algorithm for all skin tones. Increased melanin concentrations were shown to attenuate red light reflectance disproportionately, leading to biases in SpO₂ estimations, particularly for individuals with darker skin. Root mean square errors were markedly higher for dark skin compared to light and moderate skin when using transmittance-based calibration algorithms as a benchmark. These findings underscore the limitations of current reflectance pulse oximeters and the necessity of tailored calibration algorithms to ensure accuracy and inclusivity in consumer wearables. Future work should validate these findings through experimental studies with diverse populations and optimise device algorithms to address disparities in SpO₂ measurement caused by variations in skin pigmentation.
