Article

Influence of Brake Pad Temperature Variation on the Squeal Noise Characteristics of Disc’s In-Plane Vibration Mode

by
Sungyuk Kim
1,
Seongjoo Lee
1,
Shinwook Kim
1 and
Jaehyeon Nam
2,*
1
Technical Center, KB Autosys Co., Ltd., Asan-si 31443, Republic of Korea
2
Mechanical Convergence System Center, Institute for Advanced Engineering, Youngin-si 17180, Republic of Korea
*
Author to whom correspondence should be addressed.
Sensors 2025, 25(13), 4080; https://doi.org/10.3390/s25134080
Submission received: 30 April 2025 / Revised: 23 June 2025 / Accepted: 23 June 2025 / Published: 30 June 2025
(This article belongs to the Special Issue Robust Measurement and Control Under Noise and Vibrations)
Versions Notes

Abstract

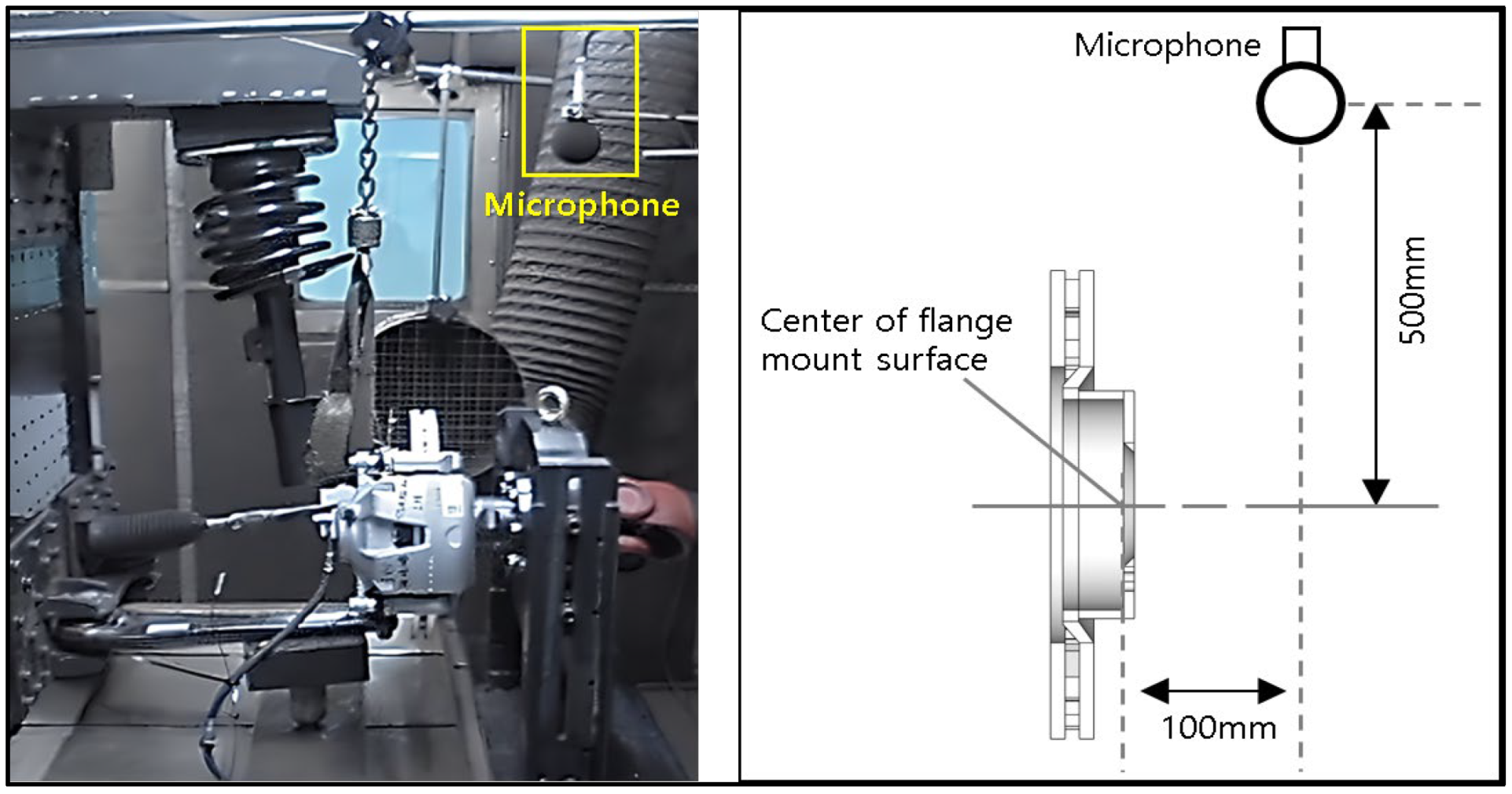

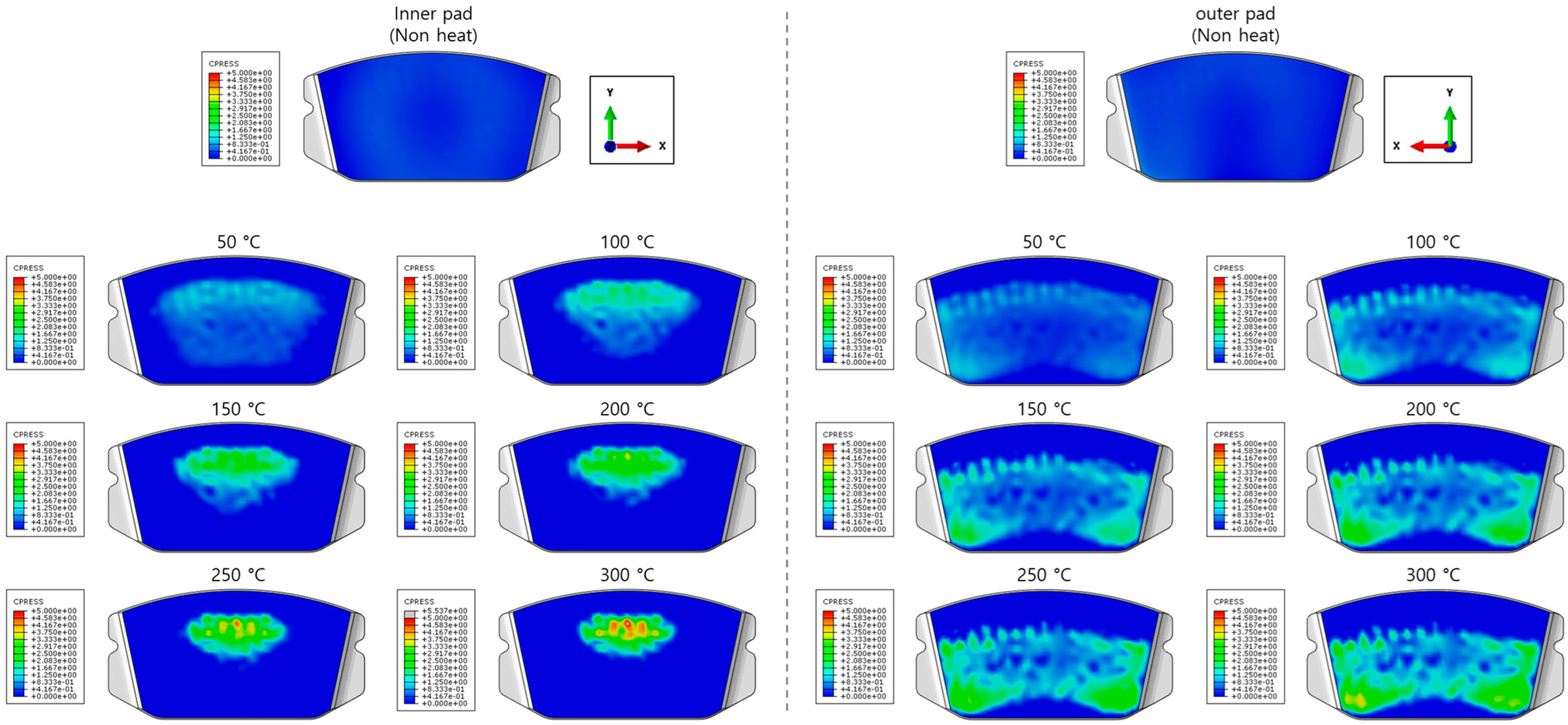

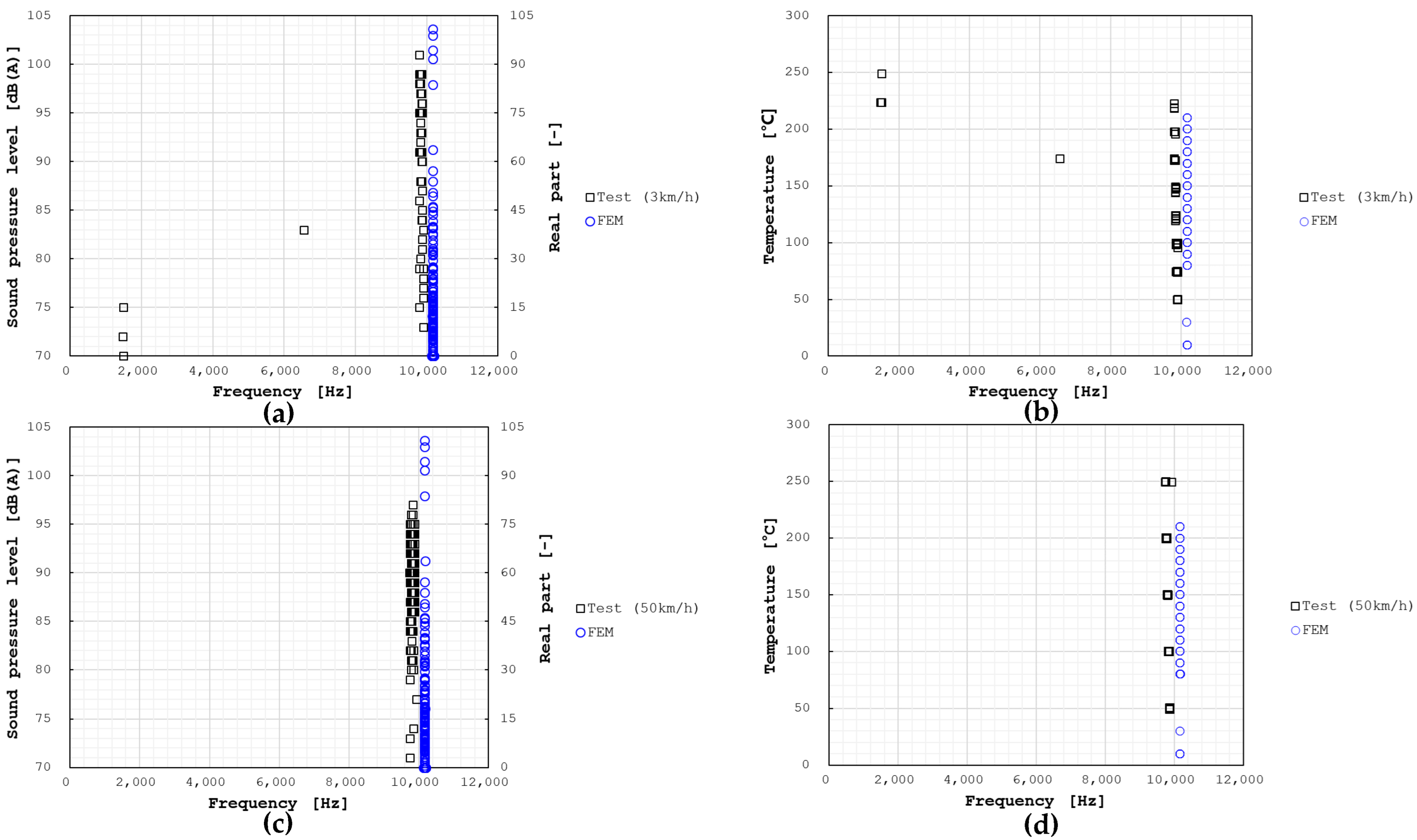

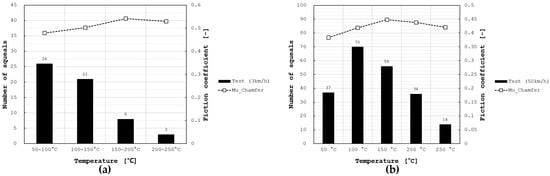

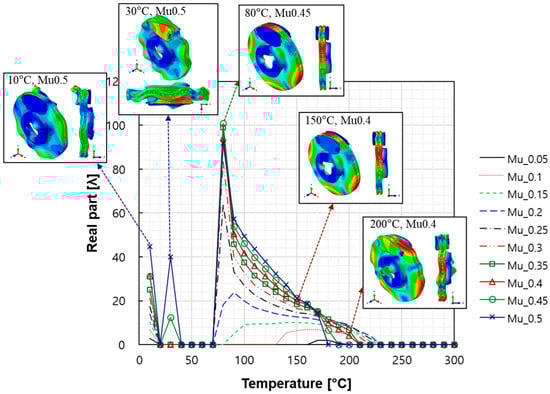

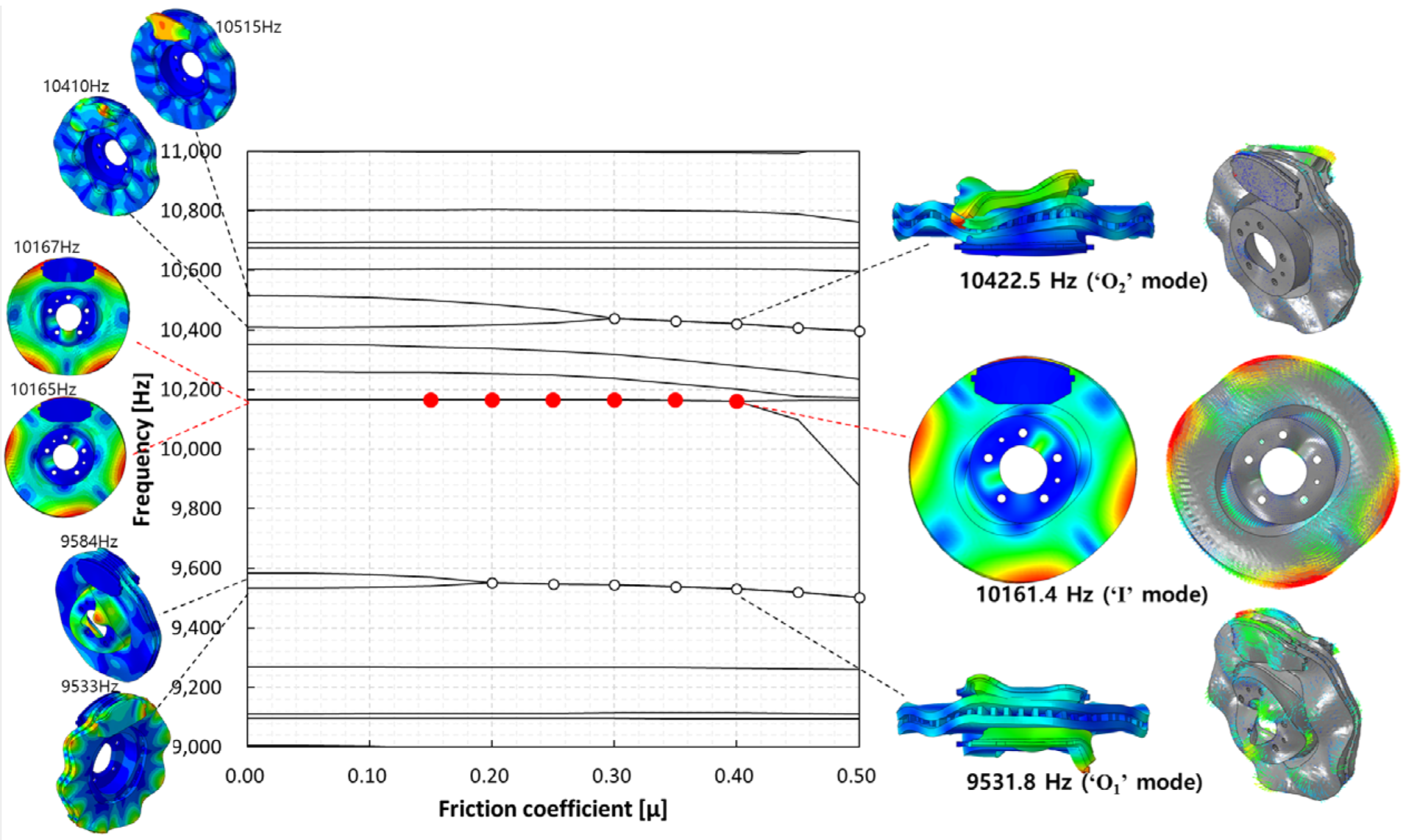

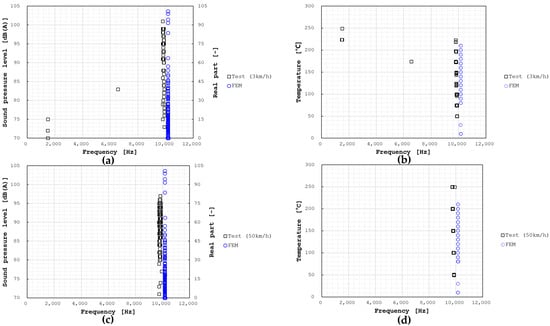

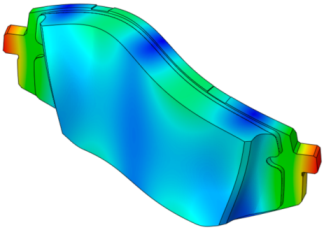

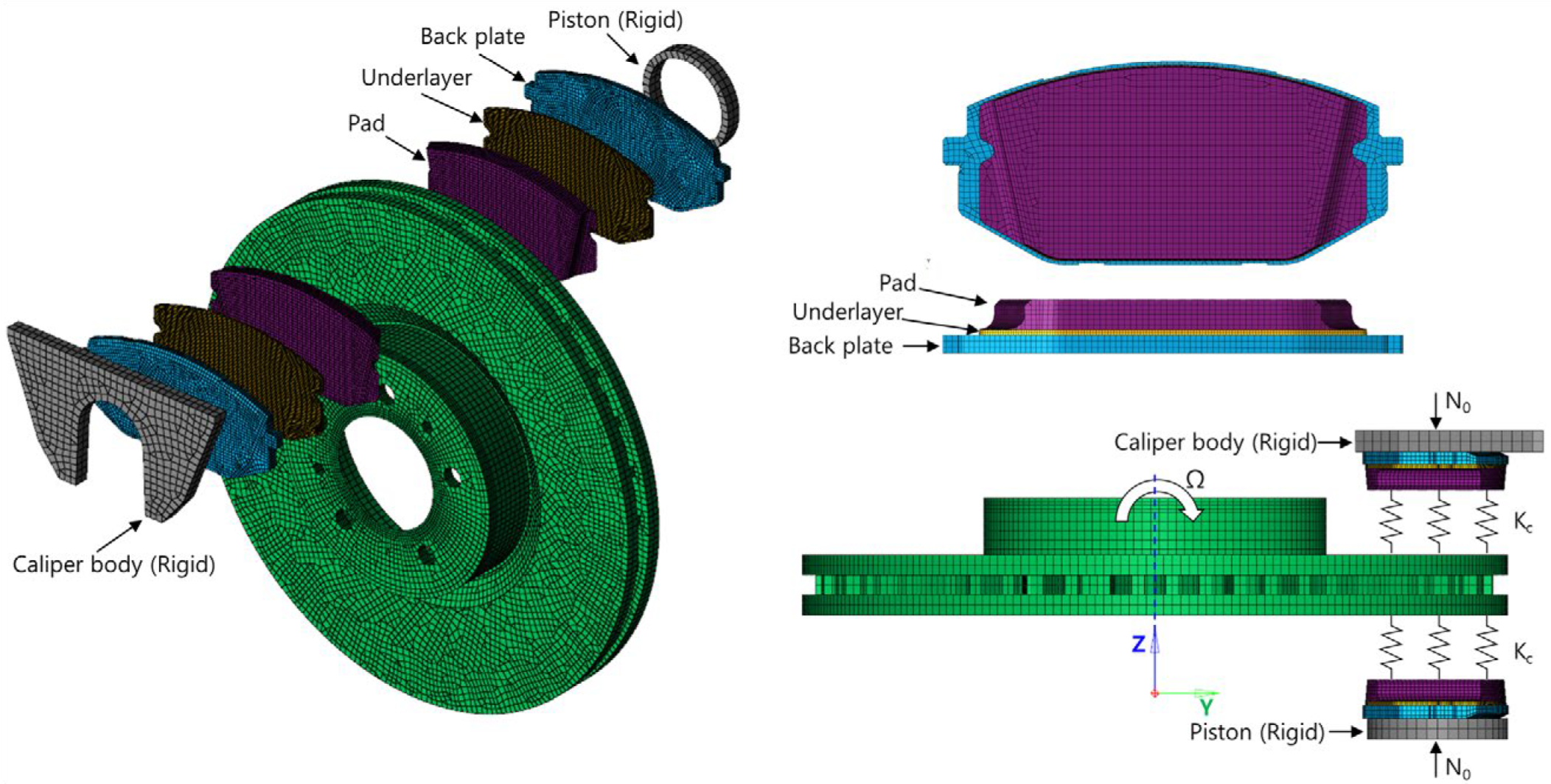

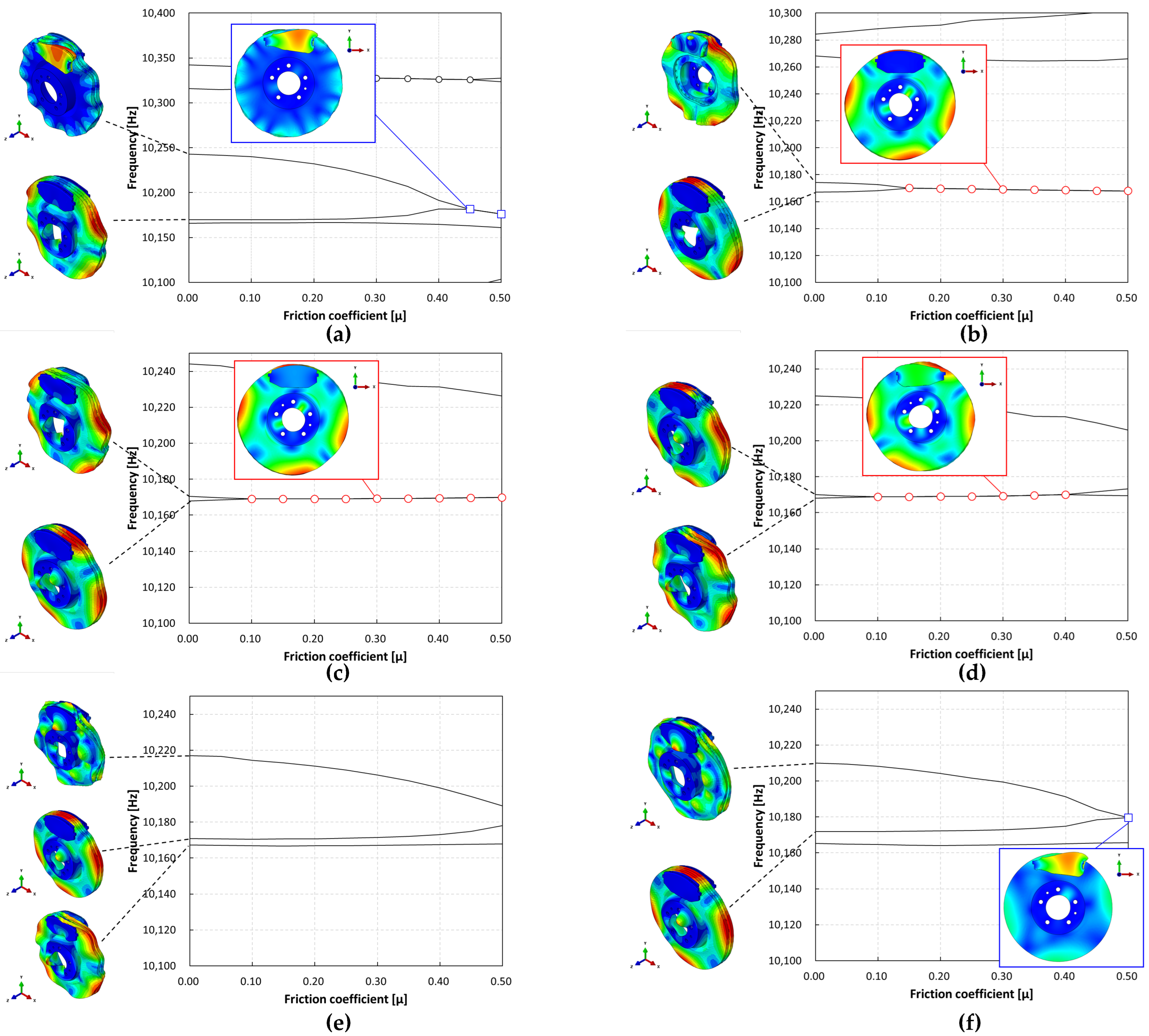

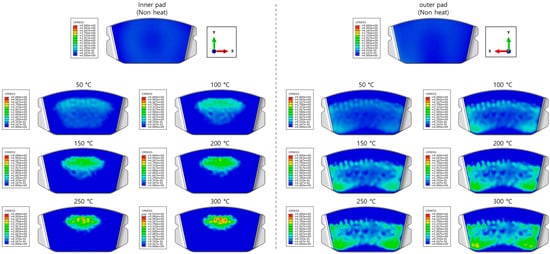

This study investigated the squeal noise characteristics of the in-plane mode of the disc in a disc brake system as influenced by the temperature of the brake pad. The temperature range of the brake pad was set between 50 °C and 300 °C, and the squeal noise was analyzed by calculating the complex eigenvalues using the finite element method (FEM). The FEM analysis indicated that instability was most sensitive near 80 °C, and it was observed that instability exhibited mode exchange from the disc’s in-plane mode to the out-of-plane mode in a nearby frequency band due to thermal deformation of the pad. A reproduction test was conducted using a brake dynamometer, where the main squeal noise was found to be approximately 10,000 Hz, consistent with the FEM analysis. Additionally, the squeal noise occurred most near 100 °C, and the noise disappeared after 250 °C. These results largely align with the FEM analysis model, validating the suitability of the analysis approach.
Keywords: mode coupling; squeal noise; in-plane mode; thermal expansion; brake dynamometer mode coupling; squeal noise; in-plane mode; thermal expansion; brake dynamometer
